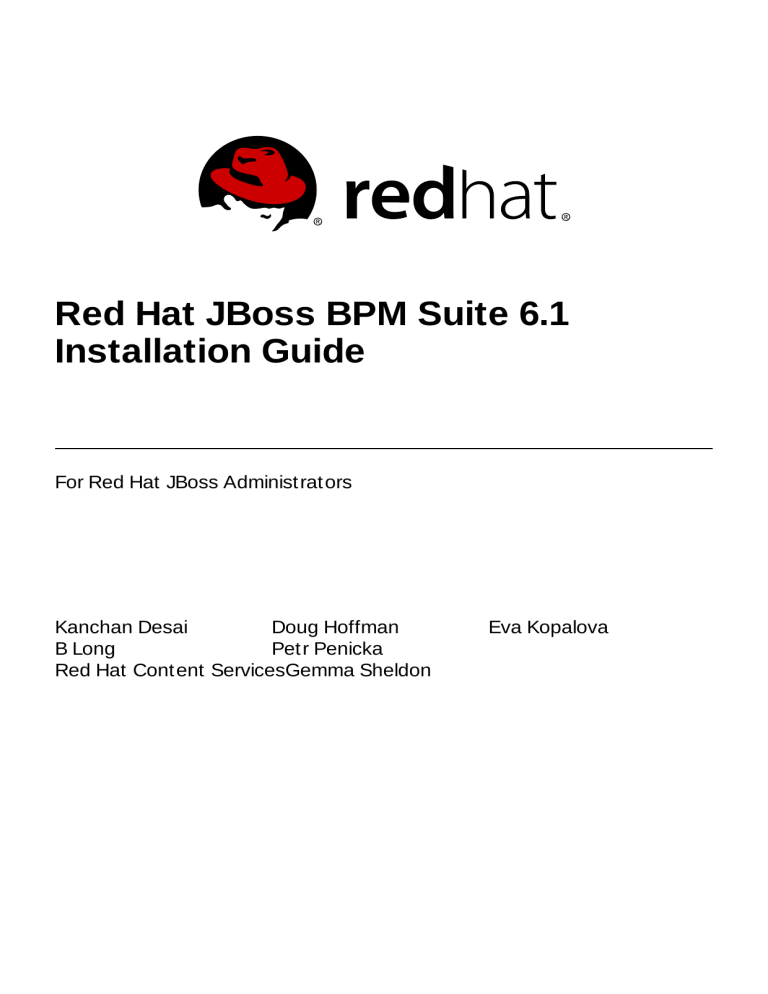

Red Hat JBoss BPM Suite 6.1 Installation Guide

Red Hat JBoss BPM Suite 6.1 Installation Guide

Red Hat JBoss BPM Suite 6.1

Installation Guide

For Red Hat JBoss Administrators

Kanchan Desai

B Long

Doug Hoffman

Petr Penicka

Red Hat Content ServicesGemma Sheldon

Eva Kopalova

Red Hat JBoss BPM Suite 6.1 Installation Guide

For Red Hat JBoss Administrators

Kanchan Desai [email protected] m

Do ug Ho ffman

Eva Ko palo va

B Lo ng

Red Hat Engineering Co ntent Services belo [email protected] m

Petr Penicka

Red Hat Co ntent Services

Gemma Sheldo n

Red Hat Engineering Co ntent Services gsheldo [email protected] m

Legal Notice

Co pyright © 20 15 Red Hat, Inc.

This do cument is licensed by Red Hat under the Creative Co mmo ns Attributio n-ShareAlike 3.0

Unpo rted License . If yo u distribute this do cument, o r a mo dified versio n o f it, yo u must pro vide attributio n to Red Hat, Inc. and pro vide a link to the o riginal. If the do cument is mo dified, all Red

Hat trademarks must be remo ved.

Red Hat, as the licenso r o f this do cument, waives the right to enfo rce, and agrees no t to assert,

Sectio n 4 d o f CC-BY-SA to the fullest extent permitted by applicable law.

Red Hat, Red Hat Enterprise Linux, the Shado wman lo go , JBo ss, MetaMatrix, Fedo ra, the Infinity

Lo go , and RHCE are trademarks o f Red Hat, Inc., registered in the United States and o ther co untries.

Linux ® is the registered trademark o f Linus To rvalds in the United States and o ther co untries.

Java ® is a registered trademark o f Oracle and/o r its affiliates.

XFS ® is a trademark o f Silico n Graphics Internatio nal Co rp. o r its subsidiaries in the United

States and/o r o ther co untries.

MySQL ® is a registered trademark o f MySQL AB in the United States, the Euro pean Unio n and o ther co untries.

No de.js ® is an o fficial trademark o f Jo yent. Red Hat So ftware Co llectio ns is no t fo rmally related to o r endo rsed by the o fficial Jo yent No de.js o pen so urce o r co mmercial pro ject.

The OpenStack ® Wo rd Mark and OpenStack Lo go are either registered trademarks/service marks o r trademarks/service marks o f the OpenStack Fo undatio n, in the United States and o ther co untries and are used with the OpenStack Fo undatio n's permissio n. We are no t affiliated with, endo rsed o r spo nso red by the OpenStack Fo undatio n, o r the OpenStack co mmunity.

All o ther trademarks are the pro perty o f their respective o wners.

Abstract

This guide pro vides the steps necessary fo r administrato rs to install Red Hat JBo ss BPM Suite, the plug-ins fo r Red Hat JBo ss Develo per Studio , and pro vides instructio ns fo r running example pro jects.

Table of Contents

⁠1.1. Ab o ut Red Hat JBo ss BPM Suite

⁠1.2. Sup p o rted Platfo rms

⁠1.3. Use Case: Pro cess​-b ased so lutio ns in the lo an ind ustry

⁠2.1. The Red Hat JBo ss BPM Suite Installer installatio n

⁠2.2. The G eneric Dep lo yab le Bund le Installatio n

⁠3.1. Setting up Persistence fo r Business Central

⁠3.2. Setting up Persistence fo r Dashb uild er

⁠3.3. Sp ecial Setup fo r IBM DB2 Datab ase

⁠4.1. Defining Ro les

⁠4.2. Creating users

⁠5.1. Starting the Server

⁠5.2. Java Security Manag er and Perfo rmance Manag ement

⁠5.3. Lo g g ing o n to Business Central

⁠ G IT rep o sito ry clustering mechanism

⁠ Clustering Maven Rep o sito ries

⁠6 .1. Setting up a Cluster

⁠6 .2. Setting up Q uartz

⁠6 .3. Co nfig uring Clustering o n Red Hat JBo ss EAP

⁠7.1. Ab o ut Maven

⁠7.2. Ab o ut The Pro vid ed Maven Rep o sito ries

⁠7.3. Co nfig uring Maven to Use the File System Rep o sito ries

⁠7.4. Co nfig uring Maven to Use the O nline Rep o sito ries

⁠7.5. Dep end ency Manag ement

⁠8 .1. Red Hat JBo ss Develo p er Stud io

⁠8 .2. Installing the JBo ss Develo p er Stud io Plug -ins

⁠8 .3. Setting the Dro o ls runtime

⁠8 .4. Co nfig uring the JBo ss BPM Suite Server

⁠8 .5. Imp o rting Pro jects fro m a G it Rep o sito ry into JBo ss Develo p er Stud io

⁠9 .1. Ab o ut Patches and Up g rad es

⁠9 .2. Ap p lying Patches in Red Hat JBo ss BPM Suite 6 .1

⁠9 .3. Patching O ther Platfo rms and Ap p licatio ns

T able of Cont ent s

6 0

6 0

6 0

6 1

6 1

51

51

52

55

59

6 5

6 5

6 7

36

37

38

39

40

41

43

45

5

22

31

32

33

34

34

2

2

2

1

Inst allat ion G uide

Chapter 1. Introduction

1.1. About Red Hat JBoss BPM Suit e

Red Hat JBoss BPM Suite is an open source business process management suite that combines

Business Process Management and Business Rules Management and enables business and IT users to create, manage, validate, and deploy Business Processes and Rules.

Red Hat JBoss BRMS and Red Hat JBoss BPM Suite use a centralized repository where all resources are stored. This ensures consistency, transparency, and the ability to audit across the business.

Business users can modify business logic and business processes without requiring assistance from IT personnel.

To accommodate Business Rules component, Red Hat JBoss BPM Suite includes integrated Red Hat

JBoss BRMS.

Business Resource Planner is included with this release.

Red Hat JBoss BPM Suite is supported for use with Red Hat Enterprise Linux 7 (RHEL7).

1.2. Support ed Plat forms

Red Hat JBoss BPM Suite and Red Hat JBoss BRMS are supported on the following containers:

Red Hat JBoss Enterprise Application Platform 6.4

Red Hat JBoss Web Server 2.1 (Tomcat 7) on JDK 1.7

IBM WebSphere Application Server 8.5.5.0

Oracle WebLogic Server 12.1.3 (12c)

1.3. Use Case: Process ​-based solut ions in t he loan indust ry

This section describes a use case of deploying JBoss BPM Suite to automate business processes

(such as loan approval process) at a retail bank. This use case is a typical process-based specific deployment that might be the first step in a wider adoption of JBoss BPM Suite throughout an enterprise. It leverages features of both business rules and processes of JBoss BPM Suite.

A retail bank offers several types of loan products each with varying terms and eligibility requirements. Customers requiring a loan must file a loan application with the bank. The bank then processes the application in several steps, such as verifying eligibility, determining terms, checking for fraudulent activity, and determining the most appropriate loan product. Once approved, the bank creates and funds a loan account for the applicant, who can then access funds. The bank must be sure to comply with all relevant banking regulations at each step of the process, and has to manage its loan portfolio to maximize profitability. Policies are in place to aid in decision making at each step, and those policies are actively managed to optimize outcomes for the bank.

Business analysts at the bank model the loan application processes using the BPMN2 authoring tools (Process Designer) in JBoss BPM Suite. Here is the process flow:

2

⁠Chapt er 1 . Int roduct ion

Fig u re 1.1. Hig h - level lo an ap p licat io n p ro cess f lo w

Business rules are developed with the rule authoring tools in JBoss BPM Suite to enforce policies and make decisions. Rules are linked with the process models to enforce the correct policies at each process step.

The bank's IT organization deploys the JBoss BPM Suite so that the entire loan application process can be automated.

Fig u re 1.2. Lo an Ap p licat io n Pro cess Au t o mat io n

The entire loan process and rules can be modified at any time by the bank's business analysts. The bank is able to maintain constant compliance with changing regulations, and is able to quickly introduce new loan products and improve loan policies in order to compete effectively and drive profitability.

3

Inst allat ion G uide

⁠Part I. Red Hat JBoss BPM Suite installation

4

⁠Chapt er 2 . Inst allat ion opt ions

Chapter 2. Installation options

Red Hat JBoss BPM Suite comes in two versions:

Executable jar installer for installation on Red Hat JBoss Enterprise Application Platform (EAP)

6.4.

Z ip file install which itself comes in two versions:

jbo ss-bpmsui te-6 . MINOR_VERSION-d epl o yabl e-eap6 . x. zi p: version adapted for deployment on Red Hat JBoss Enterprise Application Platform (EAP 6.4).

jbo ss-bpmsui te-6 . MINOR_VERSION-d epl o yabl e-g eneri c. zi p: the deployable version with additional libraries adapted for deployment on Red Hat JBoss Web Server (EWS),

Apache Tomcat 6, and Apache Tomcat 7.

Depending on your environment, you may choose the installation option best suited for your project needs.

Note

Red Hat JBoss BPM Suite is designed to work with UTF-8 encoding. If a different encoding system is used by the underlying JVM, unexpected errors might occur. To ensure UTF-8 is used by the JVM, use the following system property "-D fi l e. enco d i ng = UT F-8".

Important

From JBoss BPM Suite 6.1 onwards, you must have JBoss EAP 6.4 or better already installed before attempting to install JBoss BPM Suite.

Warning

In addition to the following install steps, we strongly recommend to set the system property

o rg . ki e. tx. l o ck. enabl ed to fal se in order to prevent unresponsiveness or deadlock issues. You can either start your server with the option -

D o rg . ki e. tx. l o ck. enabl ed = fal se or edit the stand al o ne. xml file:

<system-properties>

<property name="org.kie.tx.lock.enabled" value="false"/>

...

</system-properties>

For further details, please refer to this article: https://access.redhat.com/solutions/1610723 .

2.1. T he Red Hat JBoss BPM Suit e Inst aller inst allat ion

5

Inst allat ion G uide

This section describes the steps required to install Red Hat JBoss BPM Suite using the jar file installer installation method. The jar file is an executable file that installs JBoss BPM Suite on an existing JBoss EAP 6 installation.

From JBoss BPM Suite 6.1 onwards, you must have JBoss EAP 6.4 or better already installed in order to install JBoss BPM Suite.

Note

Due to IBM JDK not being able to use keystores generated on other JDKs, it is not possible to install JBoss BPM Suite into an existing JBoss EAP running on IBM JDK with a keystore generated on another JDK.

2.1.1. Downloading Red Hat JBoss BPM Suit e for JBoss EAP

1. Go to the Red Hat Customer Portal and log in.

2. Click Do wn lo ad sPro d u ct s Do wn lo ad s.

3. In the P ro d uct D o wnl o ad s page that opens, click R ed Hat JBo ss BP M Sui te.

4. From the Versi o n drop-down menu, select version 6.1.

5. Select R ed Hat JBo ss BP M Sui te 6 . 1 D epl o yabl e fo r EAP 6 . 4 and then click

D o wnl o ad .

2.1.2. Inst alling Red Hat JBoss BPM Suit e Using t he Inst aller

The installer for Red Hat JBoss BPM Suite is an executable Java jar file. You can use it to install

JBoss BPM Suite on an existing EAP 6.4 installation.

Note

For security reasons, you should run the installer as a no n-ro o t user.

Prereq u isit e

Before attempting to install JBoss BPM Suite, ensure you have already installed Red Hat JBoss EAP

6.4 or better.

1.

⁠ Set up Lo cat io n and Users

Navigate to the folder where you downloaded the installer file in a command prompt and execute the following command.

java -jar jbo ss-bpmsui te-6 . 1. 0 . G A-i nstal l er. jar

6

⁠Chapt er 2 . Inst allat ion opt ions

Note

When running the installer on Windows, you may be prompted to provide administrator credentials during the installation. To prevent this, add the

i zpack. mo d e= pri vi l eg ed option to the installation command: java -

D i zpack. mo d e= pri vi l eg ed -jar jbo ss-bpmsui te-6 . 1. 0 . G Ai nstal l er. jar

2. The graphical installer will execute and display a splash screen and a license agreement page. Accept the license to proceed.

3. In the next screen, provide the parent location of an existing JBoss EAP where JBoss BPM

Suite must be installed. The screenshot below depicts an example directory path:

Fig u re 2.1. Red Hat JBo ss BPM Su it e f o r JBo ss EAP Direct o ry Pat h

4. In the next two screens, create two users: the first one for the management console of the EAP

(ManagementRealm) and the second one for managing JBoss BPM Suite itself

(ApplicationRealm).

Creation of the first user for the management console of JBoss EAP is optional and you may skip it if it is not required.

Make a note of these usernames and passwords as you will need them to access the JBoss

EAP server (if you do decide to create it) and the JBoss BPM Suite application respectively.

Unless advanced configuration is performed, the JBoss BPM Suite user password will be used as the default password for both client and server JMS SSL keystores, as well as password vault keystores.

7

Inst allat ion G uide

Note

The username that you create should not be the same as any of the pre-defined roles

(See Section 4.1, “ Defining Roles”

).

The passwords that you create must have at least 8 characters and must contain at least one number and one non-alphanumeric character (not including the character

&).

Note

The application role assigned to the second user that you create is the ad mi n role.

You can assign additional roles to this user at this stage.

5.

⁠ Set up Securit y Enviro nm ent

Next, you will setup the security environment of your new JBoss BPM Suite install. Decide to enable or disable the Java Security Manager in this step by clicking on the check box. The

Java Security Manager makes your system more secure but may downgrade performance.

You need to make a decision based on your environment.

6. Choose whether you want to setup pure IPv6 configuration on the server that the installation is taking place. This will allow you to setup runtime IPv6 specific configurations later.

7. Co n f ig u re Ru n t ime En viro n men t

This step provides the option of using a default configuration or specifying an advanced configuration.

A. Def au lt Co n f ig u rat io n

Choose default configuration for the runtime environment in the next step and click next to review the installation details. If you are happy with the details, click next to start the actual installation or click previ o us to go back and make changes.

B. Ad van ced Co n f ig u rat io n

Choose to enable advanced configuration options. Select "Perform advanced configuration" and choose the advanced configuration options you want to enable for your environment via the check boxes.

8

⁠Chapt er 2 . Inst allat ion opt ions

Fig u re 2.2. Ad van ced Co n f ig u rat io n O p t io n s

A. Co n f ig u re Vau lt Passwo rd

Vault passwords are used to obfuscate passwords in the various server descriptors using a java secret key generated during the installation process, or manually using the keytool. This prevents passwords from being stored as plain text in the descriptors.

The iteration count and salt are both parameters to the encryption process.

In the case of JBoss BPM Suite, a vault is always installed, even if the user does not choose to install one with their own parameters. When this occurs, default values will be used.

For more information about vault passwords, see the Red Hat JBoss EAP Security Guide.

9

Inst allat ion G uide

10

Fig u re 2.3. Co n f ig u re vau lt p asswo rd

B. SSL Secu rit y

This screen allows you to add the <ssl> and <truststore> elements to the

ManagementRealm security-realm using the provided keystore.

The <ssl> element causes the server to present the certificate within the keystore as its identity, which allows the user to apply their official certificate.

The <truststore> element enables "Client-Cert" authentication. This means that, if a remote client attempts to connect to any resource managed by the

ManagementRealm, the client can present a certificate, and if an entry in the truststore matches, will be authenticated without needing to provide a username / password.

The end result is an encrypted connection that is secure between the client and the server for the ManagementRealm.

⁠Chapt er 2 . Inst allat ion opt ions

Fig u re 2.4 . SSL Secu rit y Co n f ig u rat io n

C. LDAP Secu rit y

This step in the installer allows the user to define an LDAP server, which in turn defines users which should be allowed to authenticate with the ManagementRealm. This replaces the default configuration.

The LDAP Co n n ect io n screen allows users to define how to connect to the LDAP server.

The Distinguished Name(DN): the user that can connect to the LDAP server.

Typically the DN will uniquely define a special user for this purpose.

11

Inst allat ion G uide

Fig u re 2.5. LDAP Co n n ect io n Co n f ig u rat io n

⁠ LDAP Securit y (Managem ent Co nso le)

The Man ag emen t Co n so le LDAP Co n f ig u rat io n screen allows you to set up a security realm. This defines the <security-realm> element to be added to the descriptors, and utilizes the connection defined previously.

12

Fig u re 2.6 . Man ag emen t Co n so le LDAP Co n f ig u rat io n

⁠Chapt er 2 . Inst allat ion opt ions

Base DN: Will typically define a 'base search' or 'root context' to begin searching for users.

Filter type: Tells JBoss EAP how to find the LDAP attribute that defines a user; it is can be a simple attribute, but can also be a complex "LDAP Filter".

Username attribute: The LDAP attribute which holds the username values. A username entered in this field is used for search queries as a value of the 'uid' attribute. If a user chooses 'LDAP syntax query' as a filter type, this query must be specified in this field.

Recursive directory search: If enabled, JBoss EAP will traverse the LDAP tree recursively, starting at Base DN. Otherwise, the search will be limited to Base DN.

⁠ LDAP Securit y (Business Cent ral)

Most of the following fields are similar to the Base DN. Contexts are used to search for roles, which allows it to perform authorization in addition to authentication. Otherwise, the co ntext fields are analogous to the Base DN from the previous, and attri bute fields are analogous to Username attribute. The filters allow fine grained control over which values of the given attribute will be accepted.

In JBoss BPM Suite, the jbpm. userg ro up. cal l back. pro perti es and

jbpm. user. i nfo . pro perti es files used by LD AP UserG ro upInfo and

LD AP UserInfo components of Task Service, are also filled by values entered on the

Business Central LDAP Configuration page.

Input values from Business Central LDAP Configuration page are used to configure a new security domain, which make use of Ld apExtend ed login module. This security domain is set as default for Business Central web application. For more information about security domains and login modules, see the Red Hat JBoss EAP Security Guide.

Fig u re 2.7. Bu sin ess Cen t ral LDAP Co n f ig u rat io n

13

Inst allat ion G uide

D. Secu rit y Do main an d JSSE

The Security Domain screen allows you to configure all of the elements of the

<security-domain> security subsystem for managing security information, including JSSE configuration. For more detailed information about configuring security domains, see the Red Hat JBoss EAP Security Guide.

Fig u re 2.8. Secu rit y Do main

14

⁠Chapt er 2 . Inst allat ion opt ions

Fig u re 2.9 . JSSE Co n f ig u rat io n

E. Co n f ig u re JMS SSL Keyst o res

This screen allows the encryption of JMS messages sent to Business Central. The client keystores are distributed to systems that need to communicate with the server in order to facilitate encrypted communications. Users can use their pre-existing keystores or generate new ones.

Fig u re 2.10. Co n f ig u re JMS SSL Keyst o res

8. The installer will go through the steps to install JBoss BPM Suite and will perform post installation configuration steps when you click next. The installer will also start the JBoss

BPM Suite server and connect to it to validate the installation. Click next to get to the last screen where you can generate the installation script and properties file. Click d o ne to quit the installer.

You have successfully installed Red Hat JBoss BPM Suite using the installer.

2.1.3. Inst alling Red Hat JBoss BPM Suit e using t he Inst aller in CLI Mode

The installer for Red Hat JBoss BPM Suite can also be executed through the command-line interface

(CLI). The procedure below demonstrates the steps that you are likely to encounter using this option to install JBoss BPM Suite.

Prereq u isit e

Before attempting to install JBoss BPM Suite, ensure you have already installed Red Hat JBoss EAP

6.4 or better.

1. Navigate to the folder where you downloaded the installer file in a command prompt and execute the following command.

15

Inst allat ion G uide

java -jar jboss-bpmsuite-6.1.0.GA-installer.jar -console

2. The command-line interactive process will start and display the End-User license agreement.

You will be prompted to select an option at the end of this license: press 1 to continue, 2 to quit, 3 to redisplay.

3. Enter 1 to begin the installation and type in the parent directory of an existing EAP installation.

The location below must specify the JBOSS_HOME of an existing EAP installation.

[/home/user/BPMSuite-6.1.0/jboss-eap-6.4]

The installer will verify the location of the JBoss EAP installation at the provided location.

Enter 1 to confirm and continue.

4. Optional: Create a user for the management console of JBoss EAP (Management Realm):

Create an administrative user

This user will be added to the host container's management realm for administrative purposes. It can be used to access the management console, the management CLI or other applications secured in this realm.

Enter 0 to skip creating a new administrative user or 1 to create one. If you do decide to create one, then follow these steps: a. Enter a username:

Admin username: [admin] b. Create and confirm a password for the user of the EAP management console:

The password must have at least 8 characters, and contain at least one number and one non-alphanumeric symbol (not including the character & ).

Admin password: []

Confirm admin password: [******************************]

16

After this user has been created successfully, continue to the next step.

5. Create a JBoss BPM Suite admin user

Create a Business Process Management Suite Admin User

Create a BPM Suite admin user. The user will be added to the

ApplicationRealm, and can be used to access the Business Central

Console. The User will be assigned the 'admin' application roles.

⁠Chapt er 2 . Inst allat ion opt ions

The BPM Suite username cannot be any of the following: 'admin',

'analyst', 'user', 'manager' or 'developer'.

BPM Suite username: [bpmsAdmin]

6. Enter a username for this user and then create and confirm a password.

The password must have at least 8 characters, and contain at least one number and one non-alphanumeric symbol (not including the character & ).

BPM Suite password: []

Confirm BPM Suite password: [****************]

7. After the passwords have been entered and confirmed, you will be given an optional step to define other roles for this user (besides the ad mi n role). Enter these roles in a comma separated list or just press enter to skip this part.

(Optional) You can add this user to additional roles that will be used for task management. These roles are custom named and used again when building your processes with human tasks. Add your custom named roles in a comma separated list below.

Additional user roles: []

8. Configure the Java Security Manager by either pressing 1 to select it or 0 to deselect it.

Configure the Java Security Manager

A Java security manager offers JVM level security beyond what is provided by the application container. It enforces access rules at the JVM runtime based on one or more security policies.

This installer will place two security policies in the installation directory with the filenames 'security.policy' and 'kie.policy' regardless of choice. Those policies will be enabled at runtime if the option below is selected.

Please note that a security manager imposes a significant performance overhead when enabled. It is suggested the included policies be applied in production if user requirements call for a stronger measure than what is already provided by the application container's authentication and authorization mechanism.

Please see the JBoss Business Process Management Suite administrative documentation for further details and consideration.

[ ] Enable the Java security manager

Input 1 to select, 0 to deselect:

9. After the Java Security Manager choice, choose an option from the prompt below: press 1 to continue, 2 to quit, 3 to redisplay.

17

Inst allat ion G uide

10. Specify whether or not you are using IPv6.

IPv6 configuration

If this computer is using a pure IPv6 configuration, please check the box below. A pure IPv6 setup requires additional configuration at runtime to ensure the proper bindings of the management and http interfaces.

[ ] Enable pure IPv6 configuration

Input 1 to select, 0 to deselect:

After selecting or deselecting IPv6 configuration, select one of the following options: press 1 to continue, 2 to quit, 3 to redisplay.

11. Configure the runtime environment by either choosing the default configuration or advanced options.

Configure runtime environment

Red Hat JBoss Business Process Management Suite can be further customized at this time.

0 [x] Perform default configuration

1 [ ] Perform advanced configuration

If you select 1, "Perform advanced configuration," complete the following configurations:

A.

[ ] Install password vault

Input 1 to select, 0 to deselect:

B.

[ ] Enable SSL security

Input 1 to select, 0 to deselect:

C.

[ ] Secure EAP Management Console with LDAP

Input 1 to select, 0 to deselect:

D.

[ ] Secure Business Central with LDAP

Input 1 to select, 0 to deselect:

E.

[ ] Add a security-domain

Input 1 to select, 0 to deselect:

F.

[ ] Generate JMS Client Keystores

Input 1 to select, 0 to deselect:

12. Next, choose an option from the prompt below: press 1 to continue, 2 to quit, 3 to redisplay.

18

⁠Chapt er 2 . Inst allat ion opt ions

13. The .jar file will begin to upack and configure.

14. After a successful installation, the command-line will ask you if you would like to generate an automatic installation script and properties file.

Installation has completed successfully.

Application installed on /home/user/BPMSuite-6.1.0/jboss-eap-6.4

Would you like to generate an automatic intallation script and properties file?

(y/n) [n]:

15. If you select [ y ], provide a path for the automatic installation script:

Select path for the automatic installation script:

[/home/user/BPMSuite-6.1.0/jboss-eap-6.4/<auto script filename>]

This generated script will allow the user to run the installer in the following way for future installations: java -jar jboss-bpmsuite-6.1.0.GA-installer.jar <auto script filename>

Note

Running the installer in this way will result in an installation identical to the installation from which the auto script was generated. Note that sensitive values, such as passwords, will need to be provided from an external file or provided at auto installation time. The optional argument below allows the user to provide these values automatically:

-variablefile <variable filename>

Sensitive values can also be provided using the following argument:

-variables key1=value1,key2=value2

16. The command-line will provide the following message upon a successful auto script creation and/or console installation:

XML written successfully.

[ Console installation done ]

[BPMS_Installer]$

17. Start JBoss EAP by running stand al o ne. sh in the jbo ss-eap-6 . 4 /bi n directory.

./standalone.sh

18. Navigate to http://localhost:8080/business-central in a web browser.

19

Inst allat ion G uide

19. Login with the correct username/password as given to the JBoss BPM Suite user in the

"Create and confirm a password for the JBoss BPM Suite user" step.

2.1.4 . Inst alling Red Hat JBoss BPM Suit e in t he Domain Mode

To install the deployable package for JBoss EAP in the domain mode, do the following steps:

1. Download and extract the Red Hat JBoss BPM Suite 6.1.0 Deployable for EAP 6 Z IP file from

Red Hat Customer Portal and copy the following directories into your local installation of EAP

6.4:

bi n d o mai n

Skip the stand al o ne directory.

2. On the command line, move to the /d o mai n directory and start the domain:

In a Unix environment, run:

./domain.sh

In a Windows environment, run:

./domain.bat

3. Deploy the archive either via ${jbo ss-eap-ho me}/bi n/jbo ss-cl i . sh / ${jbo ss-

eap-ho me}/bi n/jbo ss-cl i . bat, or via management web UI (localhost:9990/):

Note

The web applications business-central.war and dashbuilder.war supplied in the EAP deployable binaries are directories, but for deployment into the domain, you have to use WAR archives. To create them, simply zip the content of the business-central.war

and the dashbuilder.war directories.

a. To deploy the archive via ${jbo ss-eap-ho me}/bi n/jbo ss-cl i . sh or

${jbo ss-eap-ho me}/bi n/jbo ss-cl i . bat, move into the ${jbo ss-eap-

ho me}/bi n d i recto ry and deploy the WAR file:

In a Unix environment, run:

./jboss-cli.sh

In a Windows environment, run:

./jboss-cli.bat

b. To deploy the archive via management web UI (localhost:9990/): log in using your EAP management account select D o mai n -> Manag e D epl o yments -> C o ntent R epo si to ry -> Ad d

20

⁠Chapt er 2 . Inst allat ion opt ions

select the web archive from the file system, upload the web archive select the deployment, click the Assi g n button select the server group

Note

In order to log in to Business Central deployed on Host Controller (HC) machines, the user created on the Domain Controller Machine has to be created on the Host Controller machines

as well, by following the steps in the Section 4.2, “ Creating users” section.

Inst alling Mult iple JBo ss BPM Suit e Se rve r Inst ance s

In many situations, users may want to group together a set of EAP 6 nodes on the same machine and give them a meaningful name for easy maintenance. Unique values need to be incorporated for the system properties for each server instance. Listed below are the common properties that can be specified with a single JBoss BPM Suite node to change the default configuration; however, they should be specified for multiple nodes running on a single machine so every node can point to a different directory:

o rg . uberfi re. ni o . g i t. d i r o rg . uberfi re. metad ata. i nd ex. d i r o rg . uberfi re. ni o . g i t. ssh. cert. d i r

When multiple JBoss BPM Suite nodes are used on a single machine, the below properties need to be specified:

o rg . uberfi re. ni o . g i t. d aemo n. ho st - can be left on default to bind to localhost.

o rg . uberfi re. ni o . g i t. d aemo n. po rt

o rg . uberfi re. ni o . g i t. ssh. ho st - can be left on default to bind to localhost.

o rg . uberfi re. ni o . g i t. ssh. po rt

Note

Both the o rg . uberfi re. ni o . g i t. d aemo n. po rt and the

o rg . uberfi re. ni o . g i t. ssh. po rt require different port values in order to avoid port conflicts.

Incorporate the previous properties in the $EAP _HO ME/d o mai n/co nfi g urati o n/ho st. xml file as illustrated in the two nodes below:

Node A:

<system-properties>

<property name="org.uberfire.nio.git.dir" value="/valid/path/.." boot-time="false"/>

<property name="org.uberfire.metadata.index.dir" value="/valid/path/.." boot-time="false"/>

21

Inst allat ion G uide

<property name="org.uberfire.nio.git.ssh.cert.dir" value="/valid/path/.." boot-time="false"/>

<property name="org.uberfire.nio.git.daemon.host" value="10.10.10.10" boot-time="false"/>

<property name="org.uberfire.nio.git.daemon.port" value="9417" boottime="false"/>

<property name="org.uberfire.nio.git.ssh.host" value="10.10.10.10" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.port" value="8002" boottime="false"/>

</system-properties>

Node B:

<system-properties>

<property name="org.uberfire.nio.git.dir" value="/valid/path/.." boot-time="false"/>

<property name="org.uberfire.metadata.index.dir" value="/valid/path/.." boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.cert.dir" value="/valid/path/.." boot-time="false"/>

<property name="org.uberfire.nio.git.daemon.host" value="10.10.10.10" boot-time="false"/>

<property name="org.uberfire.nio.git.daemon.port" value="9418" boottime="false"/>

<property name="org.uberfire.nio.git.ssh.host" value="10.10.10.10" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.port" value="8003" boottime="false"/>

</system-properties>

The system properties depicted above should indicate the host, port, or location of the . i nd ex or

. ni o g i t files. These files, which should be used by a respective node, would then be grouped in a particular domain.

2.2. T he Generic Deployable Bundle Inst allat ion

To install Red Hat JBoss BPM Suite on Red Hat JBoss Web Server (EWS), you need to use the generic deployable package of the product.

For installation on EWS, the generic deployable package contains additional transaction manager and security libraries that are not part of Red Hat JBoss EWS.

Note that to install the generic deployable package, you need the following Z IP files:

jbo ss-bpmsui te-VER SIO N-d epl o yabl e-g eneri c. zi p: contains the busi ness-

central . war, d ashbui l d er. war and ki e-server. war web applications.

jbo ss-bpmsui te-VER SIO N-eng i ne. zi p: supported execution engine libraries for embeding the engine into your application and other libraries needed for generic deployment.

2.2.1. Downloading t he Generic Deployable Package

22

⁠Chapt er 2 . Inst allat ion opt ions

To download the generic deployable Red Hat JBoss BPM Suite package for JBoss Web Server, do the following:

1. Go to the Red Hat Customer Portal and log in.

2. Click on Do wn lo ad s.

3. From the list of products click on R ed Hat JBo ss BP M Sui te.

4. From the Versi o n drop-down menu, select version 6.1 (if not already selected).

5. In the Software Downloads section that comes up, navigate to the R ed Hat JBo ss BP M

Sui te 6 . 1 D epl o yabl e fo r Al l Suppo rted C o ntai ners row and then click

D o wnl o ad .

6. Also navigate to the R ed Hat JBo ss BP M Sui te 6 . 1 Eng i ne files row and click

D o wnl o ad to download the JBoss BPM Suite Engine files.

2.2.2. Inst alling t he Generic Deployable Package

To install the generic deployable package, you need to set up the following after you have installed the underlying platform (Red Hat JBoss WS):

Set up the database driver and the transaction manager (Bitronix) (refer to Section 2.2.2.1,

“ Setting up Transaction Manager for Red Hat JBoss Web Server 2.1 (Tomcat 7)” ).

Set up the Business Central application: set up users and roles and set up persistence (refer to

Section 2.2.2.2, “ Setting up Business Central for Red Hat JBoss Web Server 2.1 (Tomcat 7)”

).

Set up the Dashbuilder application: set up users and roles and set up persistence (refer to

Section 2.2.2.3, “ Setting up Dashbuilder for Red Hat JBoss Web Server 2.0 (Tomcat 7)”

).

2 .2 .2 .1 . Se t t ing up T ransact io n Manage r fo r Re d Hat JBo ss We b Se rve r 2 .1 (T o m cat

7 )

1. Extract the generic deployable zip package you downloaded from Red Hat Customer Portal to a temporary location. This zip package contains the following three web application archives: busi ness-central . war, d ashbui l d er. war and ki e-server. war in an exploded format. Rename these folders to remove the . war extension.

2. Copy these folders directly under the $TOMCAT_DIR/webapps folder.

You should end up with three folders in an exploded format:

$TOMCAT_DIR/webapps/busi ness-central , $TOMCAT_DIR/webapps/d ashbui l d er and $TOMCAT_DIR/webapps/ki e-server.

Note

$TOMCAT_DIR stands for the home directory where your web server is located.

Replace it with the actual path to your web server home directory, for example:

/ho me/jo hn/jbo ss-ews-2. 1/to mcat7/

3. Extract the contents of the JBoss BPM Suite Engine files archive to a temporary location from where you can copy the required libraries. This folder now contains all the core JBoss BPM

Suite libraries under the extracted folder and a l i b folder.

23

Inst allat ion G uide

4.

⁠ In st all t h e t ran sact io n man ag er.

Warning

Please note that the following section describes the setup of a transaction manager,

Bitronix that is not officially supported by Red Hat.

Copy the following transaction manager jar libraries from the l i b folder to

$TOMCAT_DIR/l i b/ directory: btm-VERSION.jar

btm-tomcat55-lifecycle-VERSION.jar

jta-VERSION.jar

slf4j-api-VERSION.jar

slf4j-jdk14-VERSION.jar

In addition, download the following library and copy it into the $TOMCAT_DIR/l i b/ folder as well: javax.security.jacc-api.jar

5.

⁠ In st all t h e Driver t o Yo u r Dat ab ase

Copy the jar file with the relevant database driver to $TOMCAT_DIR/l i b/.

Note

If using the embedded H2 database, the driver is available in busi ness-

central /WEB-INF/l i b/.

6. Create the transaction manager configuration files in $TOMCAT_DIR/co nf/: btm-config.properties

bitronix.tm.serverId=tomcat-btm-node0 bitronix.tm.journal.disk.logPart1Filename=${btm.root}/work/btm1.t

log bitronix.tm.journal.disk.logPart2Filename=${btm.root}/work/btm2.

tlog bitronix.tm.resource.configuration=${btm.root}/conf/resources.pro

perties resources.properties (the resource.ds1.uniqueName defines the datasource name used in tomcat resource definition later - make a note of this value).

Make sure to change the values in the following definitions to match your environment.

Examp le 2.1. H2 d at aso u rce d ef in it io n

24

⁠Chapt er 2 . Inst allat ion opt ions

resource.ds1.className=bitronix.tm.resource.jdbc.lrc.LrcXADataS

ource resource.ds1.uniqueName=jdbc/jbpm resource.ds1.minPoolSize=10 resource.ds1.maxPoolSize=20 resource.ds1.driverProperties.driverClassName=org.h2.Driver

resource.ds1.driverProperties.url=jdbc:h2:file:~/jbpm resource.ds1.driverProperties.user=sa resource.ds1.driverProperties.password= resource.ds1.allowLocalTransactions=true

Examp le 2.2. MySQ L 5.5 d at aso u rce d ef in it io n

resource.ds1.className=com.mysql.jdbc.jdbc2.optional.MysqlXADat

aSource resource.ds1.uniqueName=jdbc/jbpm resource.ds1.minPoolSize=0 resource.ds1.maxPoolSize=10 resource.ds1.driverProperties.URL=jdbc:mysql://localhost:3306/s ampledb resource.ds1.driverProperties.user=dbuser resource.ds1.driverProperties.password=dbpassword resource.ds1.allowLocalTransactions=true

Examp le 2.3. DB2 T yp e 4 d at aso u rce d ef in it io n

resource.ds1.className=com.ibm.db2.jcc.DB2Driver

resource.ds1.uniqueName=jdbc/jbpm resource.ds1.minPoolSize=0 resource.ds1.maxPoolSize=10 resource.ds1.driverProperties.URL=jdbc:db2://localhost:50000/sa mpledb resource.ds1.driverProperties.user=dbuser resource.ds1.driverProperties.password=dbpassword resource.ds1.allowLocalTransactions=true

Examp le 2.4 . O racle d at aso u rce d ef in it io n

resource.ds1.className=oracle.jdbc.xa.client.OracleXADataSource

resource.ds1.uniqueName=jdbc/jbpm resource.ds1.minPoolSize=0 resource.ds1.maxPoolSize=10 resource.ds1.driverProperties.URL=jdbc:oracle:thin:@ //localhost

:1521/bpms resource.ds1.driverProperties.user=dbuser resource.ds1.driverProperties.password=dbpassword resource.ds1.allowLocalTransactions=true

Examp le 2.5. Micro so f t SQ L Server d at aso u rce d ef in it io n

25

Inst allat ion G uide

resource.ds1.className=com.microsoft.sqlserver.jdbc.SQLServerDr

iver resource.ds1.uniqueName=jdbc/jbpm resource.ds1.minPoolSize=0 resource.ds1.maxPoolSize=10 resource.ds1.driverProperties.URL=jdbc:sqlserver://localhost:14

33;databaseName=bpms; resource.ds1.driverProperties.user=dbuser resource.ds1.driverProperties.password=dbpassword resource.ds1.allowLocalTransactions=true

7. Set up the transaction manager listener in $TOMCAT_DIR/co nf/server. xml to start and stop Bitronix on container startup and shutdown:

Add the following element as the last <Listener> element into the <Server> element:

<Listener className="bitronix.tm.integration.tomcat55.BTMLifecycleListener"

/>

8. Define the btm.root system property and location where bitronix config file is placed:

In $TOMCAT_DIR/bi n/, create a readable setenv. sh file with the following content:

CATALINA_OPTS="-Xmx512M -XX:MaxPermSize=512m -

Djava.security.auth.login.config=$CATALINA_HOME/webapps/businesscentral/WEB-INF/classes/login.config -Dbtm.root=$CATALINA_HOME -

Dbitronix.tm.configuration=$CATALINA_HOME/conf/btmconfig.properties -Dorg.jbpm.designer.perspective=RuleFlow -

Djbpm.tsr.jndi.lookup=java:comp/env/TransactionSynchronizationRegis try"

The property o rg . jbpm. d esi g ner. perspecti ve is set to R ul eFl o w to allow the default perspective for the designer to be R ul eFl o w rather than Ful l . Grant the file execute permissions if applicable.

The java. securi ty. auth. l o g i n. co nfi g property must be set in order for the ssh clone of the git repository to work.

Important

On Microsoft Windows systems, replace the $C AT ALINA_HO ME value in the content of the file with the equivalent environment variable name or use the absolute path and add the values in setenv. bat file as shown here in the following example: set "CATALINA_OPTS=-Xmx512m -XX:MaxPermSize=512m -

Dbtm.root=C:\apache-tomcat -

Dbitronix.tm.configuration=C:\apache-tomcat\conf\btmconfig.properties"

2 .2 .2 .2 . Se t t ing up Busine ss Ce nt ral fo r Re d Hat JBo ss We b Se rve r 2 .1 (T o m cat 7 )

26

⁠Chapt er 2 . Inst allat ion opt ions

To set up Business Central, do the following:

1. Set up a Val ve so that the Business Central web application can load the users set up in

Tomcat: a. Define users and roles in $TOMCAT_DIR/co nf/to mcat-users. xml . Note that

Business Central requires users to have the roles specified as ad mi n and/or

anal yst (for more information about user and role definitions, refer to the Tomcat 7 documentation).

The program listing below shows an example of how these two roles would be added and how a user named bpmsad mi n will be assigned these roles.

Note

Make sure that the usernames don't conflict with any known roles. For example, you should not create a user with the username ad mi n.

<role rolename="admin"/>

<role rolename="analyst" />

<user username="bpmsadmin" password="[email protected] ssw0rd" roles="admin,analyst"/> b. Move (not copy) ki e-to mcat-i nteg rati o n-VERSION. jar from

$TOMCAT_DIR/webapps/busi ness-central /WEB-INF/l i b/ to

$TOMCAT_DIR/l i b/.

c. Copy jbo ss-jaxb-api -VERSION. jar from $TOMCAT_DIR/webapps/busi ness-

central /WEB-INF/l i b/ to $TOMCAT_DIR/l i b/.

d. In $TOMCAT_DIR/co nf/server. xml , add the Tomcat Valve declaration in the relevant <host> element:

<Valve className="org.kie.integration.tomcat.JACCValve" />

2. If you are using a datasource other than the default provided by the underlying H2 database, you will need to setup persistence. If you are using the default H2 database, then you can ignore the rest of the steps in this procedure.

In this procedure, you configure a datasource with the JNDI name jd bc/myD ataso urce as defined in uniqueName=jdbc/jbpm in the bitronix reso urces. pro perti es file earlier (for the

MySQL option).

a. In busi ness-central /MET A-INF/co ntext. xml , replace the datasource JNDI name in the <Resource> element. The uniqueName attribute refers to the resource.ds1.uniqueName property set in reso urces. pro perti es:

<Resource name="jdbc/myDatasource" uniqueName="jdbc/jbpm" auth="Container" removeAbandoned="true" factory="bitronix.tm.resource.ResourceObjectFactory" type="javax.sql.DataSource"/>

27

Inst allat ion G uide

b. In busi ness-central /WEB-INF/web. xml , replace the datasource JNDI name in the <res-ref-name> element with your datasource name:

<resource-ref>

<description>Console DS</description>

<res-ref-name>jdbc/myDatasource</res-ref-name>

<res-type>javax.sql.DataSource</res-type>

<res-auth>Container</res-auth>

</resource-ref> c. Change busi ness-central /WEB-INF/cl asses/MET A-INF/persi stence. xml .

In this file, change the name of the hibernate dialect used for your database, if using a different database other than H2. The code below demonstrates the original database information for persi stence. xml :

<property name="hibernate.dialect" value="org.hibernate.dialect.H2Dialect"/>

This information can be updated in the following manner (as demonstrated with

MySQL database below):

<property name="hibernate.dialect" value="org.hibernate.dialect.MySQLDialect"/>

28

Note

The dialect for DB2 is o rg . hi bernate. d i al ect. D B2D i al ect, for DB2 on

AS/400 is o rg . hi bernate. d i al ect. D B24 0 0 D i al ect, for Oracle is

o rg . hi bernate. d i al ect. O racl e10 g D i al ect and for Microsoft SQL

Server is o rg . hi bernate. d i al ect. SQ LServerD i al ect d. Change busi ness-central /WEB-INF/cl asses/MET A-INF/persi stence. xml file so that JBoss BPM Suite process engine can use the new database.

The code below demonstrates the original datasource information for

persi stence. xml :

<jta-data-source>java:comp/env/jdbc/jbpm</jta-data-source>

Change this value to the datasource defined earlier:

<jta-data-source>java:comp/env/jdbc/myDatasource</jta-datasource>

3. You can now start the JBoss Web Server to login to Business Central.

a. Run startup. sh in the $TOMCAT_HOME/bi n directory.

./startup.sh

b. Navigate to http://localhost:8080/business-central in a web browser.

⁠Chapt er 2 . Inst allat ion opt ions

c. Login with the username/password you defined earlier in to mcat-users. xml file.

2 .2 .2 .3. Se t t ing up Dashbuilde r fo r Re d Hat JBo ss We b Se rve r 2 .0 (T o m cat 7 )

Note

Before setting up Dashbuilder on Red Hat JBoss Web Server, you must ensure that you have

correctly installed and started Business Central as described in Section 2.2.2.2, “ Setting up

Business Central for Red Hat JBoss Web Server 2.1 (Tomcat 7)” . Dashbuilder requires the

history log database tables to exist, which are only provided by Business Central. If these tables are not present in the database before attempting the steps below, you may get initialization errors.

To set up Dashbuilder on Red Hat JBoss Web Server, do the following:

1. Define users and roles in $TOMCAT_DIR/co nf/to mcat-users. xml . Note that Dashbuilder requires users to have the role specified as ad mi n and/or anal yst. If you have already defined these users earlier for Business-Central, you don't need to define them again.

2. Enable single sign-on between Dashbuilder and Business Central by uncommenting the following lines in $TOMCAT_DIR/co nf/server. xml file:

<Valve className="org.apache.catalina.authenticator.SingleSignOn"

/>

3. As with Business Central setup, if you are using a database other than the default and integrated H2 database, you will need to setup persistence.

In this procedure, you configure a datasource with the JNDI name jd bc/d ashbui l d erD S as defined in uniqueName=jdbc/jbpm in the bitronix reso urces. pro perti es file: a. In d ashbui l d er/MET A-INF/co ntext. xml , replace the datasource JNDI name in the <Resource> element. The uniqueName attribute refers to the resource.ds1.uniqueName property set in reso urces. pro perti es:

<Resource name="jdbc/dashbuilderDS" uniqueName="jdbc/jbpm" auth="Container" removeAbandoned="true" factory="bitronix.tm.resource.ResourceObjectFactory" type="javax.sql.DataSource"/>

29

Inst allat ion G uide

Note

Depending upon your database, you may need to define some other properties here as well. For example, in an Oracle environment, this entry may look like the following listing.

<Resource name="jdbc/jbpm" uniqueName="jdbc/jbpm" auth="Container" removeAbandoned="true" factory="bitronix.tm.resource.ResourceObjectFactory" type="javax.sql.DataSource" username="username" password="password" driverClassName="oracle.jdbc.xa.client.OracleXADataSourc

e" url="jdbc:oracle:thin:YOUR-URL:1521:YOUR-DB" maxActive="8" /> b. In d ashbui l d er/WEB-INF/web. xml , add the datasource JNDI name in the <resref-name> element with your datasource name:

<resource-ref>

<description>Dashboard Builder Datasource</description>

<res-ref-name>jdbc/dashbuilderDS</res-ref-name>

<res-type>javax.sql.DataSource</res-type>

<res-auth>Container</res-auth>

</resource-ref> c. In d ashbui l d er/MET A-INF/co ntext. xml , define the transaction factory:

<Transaction factory="bitronix.tm.BitronixUserTransactionObjectFactory"/> d. Update the datasource JNDI name in d ashbui l d er/WEB-

INF/etc/hi bernate. cfg . xml in the <session-factory> element:

<property name="connection.datasource">java:/comp/env/jdbc/dashbuilderD

S</property>

4. Restart Java Web server for these changes to take effect. Once restarted, you can navigate to

Dashbuilder from within Business Central or directly via:

http: //l o cal ho st: 80 80 /d ashbui l d er.

30

⁠Chapt er 3. Special set ups

Chapter 3. Special setups

3.1. Set t ing up Persist ence for Business Cent ral

Red Hat JBoss BPM Suite is configured to use an example datasource with Java Naming and

Directory Interface (JNDI) name java: jbo ss/d ataso urces/Exampl eD S. For Business Central, this example datasource is located in the file busi ness-central . war/WEB-

INF/cl asses/MET A-INF/persi stence. xml .

If you want to configure JBoss BPM Suite to use an external database, make the following changes.

For file busi ness-central . war/WEB-INF/cl asses/MET A-INF/persi stence. xml :

1. Install the respective Java Database Connectivity (JDBC) driver using modular approach for easy subsequent configuration (see EAP 6 documentation ).

2. Create a new datasource according to the example in EAP 6 documentation, section 6.7.1.

Example PostgreSQL Datasource . This is the default used H2 database specific datasource configuration:

<subsystem xmlns="urn:jboss:domain:datasources:1.1">

<datasources>

<datasource jndiname="java:jboss/datasources/ExampleDS" pool-name="ExampleDS" enabled="true" use-java-context="true">

<connection-url>jdbc:h2:mem:test;DB_CLOSE_DELAY=-

1</connection-url>

<driver>h2</driver>

<security>

<user-name>sa</user-name>

<password>sa</password>

</security>

</datasource>

<drivers>

<driver name="h2" module="com.h2database.h2">

<xa-datasourceclass>org.h2.jdbcx.JdbcDataSource</xa-datasource-class>

</driver>

</drivers>

</datasources>

3. Use the JNDI name of the datasource to update the following entry inside the

persi stence. xml file, which is by default set to this entry.

<jta-data-source>java:jboss/datasources/ExampleDS</jta-data-source>

Important

When configuring your datasource, make sure to enable JTA (typically, by adding

jta= "true" to the d ataso urce tag).

4. Replace the following text with the appropriate database specific hibernate dialect name.

31

Inst allat ion G uide

<property name="hibernate.dialect" value="org.hibernate.dialect.H2Dialect" />

For example, for an Oracle Database Express Edition 11g, it would be:

<property name="hibernate.dialect" value="org.hibernate.dialect.Oracle10gDialect" />

Note

When JBoss BPM Suite uses Oracle 11 as the datasource, multiple warning (WAR N) messages are produced in the logs, without any corresponding Business Central activity being performed. This is expected behavior. To turn off these messages, set the level of the org.hibernate.loader category of the logger to ER R O R in the stand al o ne. xml file:

<logger category="org.hibernate.loader">

<level name="ERROR"/>

</logger>

3.2. Set t ing up Persist ence for Dashbuilder

As Dashbuilder is dependent on the configuration of Business Central, ensure Business Central is

configured according to Section 3.1, “ Setting up Persistence for Business Central”

. Red Hat JBoss

BPM Suite 6 is configured to use a datasource with Java Naming and Directory Interface (JNDI) name java: jbo ss/d ataso urces/Exampl eD S. If you want to make the application work with a database different from H2, for example O racl e, MySQ L, P o stg res, or MS SQ L Server, follow these steps.

Note

If you want to use UTF 8 to display non-English characters, you should check your database documentation and set up the encoding at the level of database in order for Dashbuilder to work correctly. For example in MySQL, add the following to the server configuration file:

[mysqld] character-set-server=utf8 collation-server=utf8_general_ci

32

Important

On Unix like systems override the default value of MySQL lower_case_table_names from 0

(case sensitive) to 1 (case insensitive). The JBoss BPM Suite KPI queries are written in lowercase but the table names are in camelCase. By changing the lower_case_table_names property you will prevent exceptions from occurring later on.

⁠Chapt er 3. Special set ups

1. Install the database driver and create a new datasource according to the example in EAP 6

Documentation in section 6.7.1. Example PostgreSQL Datasource . Use modular approach to the installation of JDBC driver for easy subsequent configuration.

2. Create an empty database.

3. Modify file d ashbui l d er. war/WEB-INF/jbo ss-web. xml whose default entry is:

<jboss-web>

<context-root>/dashbuilder</context-root>

<resource-ref>

<res-ref-name>jdbc/dashbuilder</res-ref-name>

<res-type>javax.sql.DataSource</res-type>

<jndi-name>java:jboss/datasources/ExampleDS</jndi-name>

</resource-ref>

4. Modify also files WEB-INF/jbo ss-d epl o yment-structure. xml from both the

busi ness-central . war and d ashbui l d er. war applications, and add a dependency under the dependencies section on the JBDC driver module created earlier during datasource creation. The following snippet shows a sample configuration where

jd bcD ri verMo d ul eName is the name of the JBoss EAP 6 JDBC driver module.

<dependencies>

...

<module name="jdbcDriverModuleName" />

...

</dependencies>

3.3. Special Set up for IBM DB2 Dat abase

If you want to use an IBM DB2 database as the underlying data source for Business Central, you will need to increase the page size for the database. The default page size of 4 kB is not sufficient for the

Dashbuilder table columns size.

When creating the database, force the page size to 16384 as in the example below:

Examp le 3.1. Ad ju st in g p ag e siz e

CREATE DATABASE dashb PAGESIZE 16384

This increase in page size for the underlying database must be performed before the BPM Suite has been run for the first time.

33

Inst allat ion G uide

Chapter 4. Roles and Users

4 .1. Defining Roles

Before starting the server and logging onto Business Central, you will need to create some user accounts. This section describes the different user roles that are used in Red Hat JBoss BPM Suite : admin: The users with admin role are the administrators of the application. Administrators can manage users, manage the repositories (create and clone) and have full access to make the required changes in the application. Admins have access to all areas within the system.

developer: A developer has access to almost all features and can manage rules, models, process flows, forms and dashboards. They can manage the asset repository, they can create, build and deploy projects and they can even use Red Hat JBoss Developer Studio to view processes. Only certain administrative functions like creating and cloning a new repository are hidden for the developer role.

analyst: An analyst role has access to all high-level features to model and execute their projects.

However, Au t h o rin g Ad min ist rat io n access is unavailable to users with the analyst role.

Certain lower-level features targeted towards developers, like the Dep lo ymen t Art if act

Rep o sit o ry view are not accessible for this role. However, the Bui l d & D epl o y button is available for the analyst role while using the Project Editor.

user: User or a business user work on the business task lists that are used to operate a certain process. A user with this role can access the dashboard and manage processes.

manager: A manager is a viewer of the system and is interested in statistics around the business processes and their performance, business indicators, and other reporting of the system. A user with this role has access to the BAM only.

Note

Enter the above mentioned roles during the user creation process.

4 .2. Creat ing users

To start adding new users, you will need to run the add-user.sh script on a Unix system or the adduser.bat file on a Windows system from the EAP bin directory.

1. Run ./add-user.sh on a Unix system or add-user.bat on a Windows system from the bin directory.

2. Enter b to select an Application User at the type of user prompt and press Enter.

3. Accept the default Realm (ApplicationRealm): by pressing Enter.

4. At the username prompt, enter a user name and confirm. For example: hel l o wo rl d user.

34

⁠Chapt er 4 . Roles and Users

Note

Make sure that the usernames don't conflict with any known groups. For example, if there is a group called ad mi n, you should not create a user with the username ad mi n.

5. Create the user's password at the password prompt and reenter the password. For example:

Hel l o wo rl d @ 123.

Note

The password should be at least 8 characters in length and should contain upper and lower case alphabetic characters (e.g. A-Z , a-z), at least one numerical character (e.g.

0-9) and at least one special character (e.g. ~ ! @ # $ % ^ * ( ) - _ + =).

6. Enter a comma separate list of roles the user will need at the roles prompt (refer to Section 4.1,

“ Defining Roles” ).

Business Central users need to have at least the anal yst role, and dashbuilder users need to have the ad mi n role. Roles should be entered as a comma-separated list.

7. Confirm you want to add the user.

8. Enter yes at the next prompt (this is to enable clustering in the future if required).

35

Inst allat ion G uide

Chapter 5. Testing the installation

5.1. St art ing t he Server

If you have installed Red Hat JBoss BPM Suite using the JBoss EAP 6 bundle install, you can now start your server in one of two modes.

Warning

In addition to the previous install steps, we strongly recommend to set the system property

o rg . ki e. tx. l o ck. enabl ed to fal se in order to prevent unresponsiveness or deadlock issues. You can either start your server with the option -

D o rg . ki e. tx. l o ck. enabl ed = fal se or edit the stand al o ne. xml file:

<system-properties>

<property name="org.kie.tx.lock.enabled" value="false"/>

...

</system-properties>

For further details, please refer to this article: https://access.redhat.com/solutions/1610723 .

Note

If you installed JBoss BPM Suite using the generic deployable version on Red Hat Java Web

Server, the instructions for download and install also contain the instructions for starting the server. You can ignore the following discussion.

The default startup script, stand al o ne. sh that Red Hat JBoss BPM Suite ships with is optimized for performance. To run your server in the performance mode, do the following:

1. On the command line, move into the $SERVER_HOME/bi n/ directory.

2. In a Unix environment run:

./standalone.sh

In a Windows environment run:

./standalone.bat

Red Hat JBoss BPM Suite also ships with a separate script, stand al o ne-secure. sh that is optimized for security. This script applies a security policy by default that protects against a known security vulnerability.

36

⁠Chapt er 5. T est ing t he inst allat ion

Note

It is recommended that production environments use stand al o ne-secure. sh script.

Warning

The use of a security manager imposes a significant performance penalty that you should be aware of. The tradeoff between security and performance must be made by taking into

consideration individual circumstances. See Section 5.2, “ Java Security Manager and

Performance Management” .

To run your server in the secure mode with this script, do the following:

1. On the command line, move into the $SERVER_HOME/bi n/ directory.

2. In a Unix environment run:

./standalone-secure.sh

In a Windows environment run:

./standalone-secure.bat

Note

If you installed JBoss BPM Suite using the installer, an option to apply the security policy is given to you at the time of install. The installer doesn't provide a separate stand al o ne-

secure. sh script.

Note

If you are starting the server in the domain mode, the corresponding scripts are d o mai n. sh and d o mai n-secure. sh respectively.

5.2. Java Securit y Manager and Performance Management

As noted earlier, enabling the Java Security Manager (JSM) to sandbox the evaluation of MVEL scripts in Red Hat JBoss BPM Suite introduces a performance hit in high load environments.

Environments and performance markers must be kept in mind when deploying a JBoss BPM Suite application. Use the following guidelines to deploy secure and high performance JBoss BPM Suite applications.

In high load environments where performance is critical it is recommended to only deploy applications that have been developed on other systems and properly reviewed. It is also recommended not to create any users with Analyst role on such systems. If these safeguards are followed, it is safe to leave JSM disabled on these systems so it does not introduce any

37

Inst allat ion G uide

performance degradation.

In testing and development environments without high loads, or in environments where rule and process authoring is exposed to external networks, it is recommended to have JSM enabled in order to achieve security benefits of properly sandboxed evaluation of MVEL.

Allowing users with Analyst role to log in to the Business Central console with JSM disabled is not secure and not recommended.

5.3. Logging on t o Business Cent ral

Log into Business Central after the server has successfully started.

1. Navigate to http://localhost:8080/business-central in a web browser. If the user interface has been configured to run from a domain name, substitute l o cal ho st for the domain name.

For example http://www.example.com:8080/business-central .

2. Log in with the user credentials that were created during installation. For example: User =

hel l o wo rl d user and password = Hel l o wo rl d @ 123.

38

⁠Chapt er 6 . Clust ering

Chapter 6. Clustering

When clustering Red Hat JBoss BPM Suite, consider which components need to be clustered. You can cluster the following:

GIT repository: virtual-file-system (VFS) repository that holds the business assets so that all cluster nodes use the same repository

Execution Server and Web applications: the runtime server that resides in the container (such as,

Red Hat JBoss EAP) along with BRMS and BPM Suite web applications so that nodes share the same runtime data.

For instructions on clustering the application, refer to the container clustering documentation.

Back-end database: database with the state data, such as, process instances, KIE sessions, history log, etc., for fail-over purposes

Fig u re 6 .1. Sch ema o f Red Hat JBo ss BPM Su it e syst em wit h in d ivid u al syst em co mp o n en t s

GIT reposit ory clust ering mechanism

To cluster the GIT repository the following is used:

Apache Z ookeeper brings all parts together.

Apache Helix is the cluster management component that registers all cluster details (the cluster itself, nodes, resources).

39

Inst allat ion G uide

The runtime environment, that is the Execution Server, utilizes the following to provide the clustering capabilities: uberfire framework which provides the backbone of the web applications

Fig u re 6 .2. Clu st erin g sch ema wit h Helix an d Z o o keep er

A typical clustering setup involves the following:

Setting up the cluster itself using Z ookeeper and Helix

Setting up the back-end database with Quartz tables and configuration

Configuring clustering on your container (this documentation provides only clustering instructions for Red Hat JBoss EAP 6)

Clust ering Maven Reposit ories

Various operations within the Business Central publish JARs to the Business Central's internal

Maven Repository.

4 0

⁠Chapt er 6 . Clust ering

This repository exists on the application server's file-system as regular files and is not cluster aware.

This folder is not synchronized across the various nodes in the cluster and must be synchronized using external tools like rsync.

An alternate to the use of an external synchronization tool is to set the system property org.guvnor.m2repo.dir on each cluster node to point to a SAN or NAS. In this case clustering of the

Maven repository folder is not needed.

6.1. Set t ing up a Clust er

To cluster your GIT (VFS) repository in Business Central, do the following (If you don't use Business

Central, you may skip this section):

1. Download the jbo ss-bpmsui te-brms-VERSION-suppl ementary-to o l s. zi p, which contains Apache Z ookeeper, Apache Helix, and quartz DDL scripts. After downloading, unzip the archive: the Zo o keeper directory ($ZO O KEEP ER _HO ME) and the Hel i x directory

($HELIX_HO ME) are created.

2. Now Configure Z ooKeeper: a. In the Z ooKeeper directory, go to co nf directory and do the following: cp zoo_sample.cfg zoo.cfg

b. Open zo o . cfg for editing and adjust the settings including the following:

# the directory where the snapshot is stored.

dataDir=$ZOOKEEPER_HOME/data/

# the port at which the clients connects clientPort=2181 server.1=server1:2888:3888 server.2=server2:2888:3888 server.3=server3:2888:3888

Make sure the dataDir location exists and is accessible.

c. Assign a node ID to each member that will run Z ooKeeper. For example, use "1", "2" and "3" respectively for node 1, node 2 and node 3 respectively. Z ooKeeper should have an odd number of instances, at least 3 in order to recover from failure.

The node ID is specified in a field called myi d under the data directory of Z ooKeeper on each node. For example, on node 1, run: $ echo "1" >

/zo o keeper/d ata/myi d

3. Set up Z ooKeeper, so you can use it when creating the cluster with Helix: a. Go to the $ZOOKEEPER_HOME/bi n/ directory and start Z ooKeeper:

./zkServer.sh start

You can check the Z ooKeeper log in the $ZOOKEEPER_HOME/bi n/zo o keeper. o ut file. Check this log to ensure that the 'ensemble' (cluster) is formed successfully. One of the nodes should be elected as leader with the other two nodes following it.

4 1

Inst allat ion G uide

4. Once the Z ooKeeper ensemble is started, the next step is to configure and start Helix. Helix only needs to be configured once and from a single node. The configuration is then stored by the Z ooKeeper ensemble and shared as appropriate.

Set up the cluster with the Z ooKeeper server as the master of the configuration: a. Create the cluster by providing the Z ooKeeper Host and port as a comma separated list:

$HELIX_HOME/bin/helix-admin.sh --zkSvr

ZOOKEEPER_HOST:ZOOKEEPER_PORT --addCluster CLUSTER_NAME b. Add your nodes to the cluster:

$HELIX_HOME/bin/helix-admin.sh --zkSvr

ZOOKEEPER_HOST:ZOOKEEPER_PORT --addNode CLUSTER_NAME

NODE_NAMEUNIQUE_ID

Examp le 6 .1. Ad d in g t h ree clu st er n o d es

./helix-admin.sh --zkSvr server1:2181,server2:2181,server3:2181 --addNode bpmscluster nodeOne:12345

./helix-admin.sh --zkSvr server1:2181,server2:2181,server3:2181 --addNode bpmscluster nodeTwo:12346

./helix-admin.sh --zkSvr server1:2181,server2:2181,server3:2181 --addNode bpmscluster nodeThree:12347

5. Add resources to the cluster.

Examp le 6 .2. Ad d in g vf s- rep o as reso u rce

./helix-admin.sh --zkSvr server1:2181,server2:2181,server3:2181 -addResource bpms-cluster vfs-repo 1 LeaderStandby AUTO_REBALANCE

6. Rebalance the cluster with the three nodes.

Examp le 6 .3. Reb alan cin g t h e b p ms- clu st er

./helix-admin.sh --zkSvr server1:2181,server2:2181,server3:2181 -rebalance bpms-cluster vfs-repo 3

In the above command, 3 stands for three zookeeper nodes.

7. Start the Helix controller in all the nodes in the cluster.

4 2

⁠Chapt er 6 . Clust ering

Examp le 6 .4 . St art in g t h e Helix co n t ro ller

./run-helix-controller.sh --zkSvr server1:2181,server2:2181,server3:2181 --cluster bpms-cluster 2>& 1

> /tmp/controller.log &

Note

Z ookeeper should an odd number of instances, at least 3 in order to recover from failure. After a failure, the remaining number of nodes still need to be able to form a majority. For example a cluster of five Z ookeeper nodes can withstand loss of two nodes in order to fully recover. One

Z ookeeper instance is still possible, replication will work, however no recover possibilities are available if it fails.

St opping Helix and Zookeeper

To stop Helix processes and the Z ookeeper server, use the following procedure.

Pro ced u re 6 .1. St o p p in g Helix an d Z o o keep er

1. Stop JBoss EAP server processes.

2. Stop the Helix process that has been created by run-hel i x-co ntro l l er. sh, for example,ki l l -15 <pi d o f Hel i xC o ntro l l erMai n>.

3. Stop Z ooKeeper server using the zkServer. sh sto p command.

6.2. Set t ing up Quart z

Before you can configure the database on your application server, you need to prepare the database for Quartz to create Quartz tables, which will hold the timer data, and the Quartz definition file.

Of course, if you are not using Quartz (timers) in your business processes, or if you are not using the

Execution Server at all, you can skip this section completely. Please note that if you want to replicate timers in your business process, you need to use the Quartz component.

To set this up, do the following:

1. Set up the database. Make sure to use one of the supported non-JTA data source. Note, that since Quartz need a non-JTA data source, you cannot use the Business Central data source.

In the example code, PostgreSQL with the user bpms and password bpms is used. This database will need to be connected to your application server, so make sure to keep a note on the database information and credentials.

2. Create Quartz tables on your database to allow timer events synchronization. To do so, use the DDL script for your database, which is available in the extracted supplementary zip archive in QUARTZ _HOME/docs/dbTables.

3. Create the Quartz configuration file q uartz-d efi ni ti o n. pro perti es in

$JBOSS_HOME/PROFILE/co nfi g urati o n/ directory and define the Quartz properties.

4 3

Inst allat ion G uide

Examp le 6 .5. Q u art z co n f ig u rat io n f ile f o r a Po st g reSQ L d at ab ase

#==============================================================

==============

# Configure Main Scheduler Properties

#===============================================================

============= org.quartz.scheduler.instanceName = jBPMClusteredScheduler org.quartz.scheduler.instanceId = AUTO

#===============================================================

=============

# Configure ThreadPool

#===============================================================

============= org.quartz.threadPool.class = org.quartz.simpl.SimpleThreadPool

org.quartz.threadPool.threadCount = 5 org.quartz.threadPool.threadPriority = 5

#===============================================================

=============

# Configure JobStore

#===============================================================

============= org.quartz.jobStore.misfireThreshold = 60000 org.quartz.jobStore.class=org.quartz.impl.jdbcjobstore.JobStoreCM

T org.quartz.jobStore.driverDelegateClass=org.quartz.impl.jdbcjobst

ore.PostgreSQLDelegate

org.quartz.jobStore.useProperties=false org.quartz.jobStore.dataSource=managedDS org.quartz.jobStore.nonManagedTXDataSource=notManagedDS org.quartz.jobStore.tablePrefix=QRTZ_ org.quartz.jobStore.isClustered=true org.quartz.jobStore.clusterCheckinInterval = 20000

#===============================================================

=============

# Configure Datasources

#===============================================================

============= org.quartz.dataSource.managedDS.jndiURL=jboss/datasources/psbpmsD

S org.quartz.dataSource.notManagedDS.jndiURL=jboss/datasources/quar tzNotManagedDS

Note the configured datasources that will accommodate the two Quartz schemes at the very end of the file.

4 4

⁠Chapt er 6 . Clust ering

Important

The recommended interval for cluster discovery is 20 seconds and is set in the org.quartz.jobStore.clusterCheckinInterval of the q uartz-

d efi ni ti o n. pro perti es file. Depending on your set up consider the performance impact and modify the setting as necessary.

Also note the org.quartz.jobStore.driverDelegateClass property that defines the DB dialect to be used when communicating with the set database (in this example,

o rg . q uartz. i mpl . jd bcjo bsto re. P o stg reSQ LD el eg ate. When using Oracle, use

o rg . q uartz. i mpl . jd bcjo bsto re. o racl e. O racl eD el eg ate).

6.3. Configuring Clust ering on Red Hat JBoss EAP

The information provided in this section is a simple clustering recipe. For additional information on clustering refer to Red Hat JBoss EAP documentation.

When using JBoss EAP clustering, a single JBoss EAP domain controller exists with other JBoss

EAP slaves connecting to it as management users. Deployment of Business Central and dashbuilder can be done as a management user on a domain controller, and the WAR deployments will be distributed to other members of the JBoss EAP cluster.

To configure clustering on Red Hat JBoss EAP 6, do the following:

1. Install your JDBC driver as a core module: copy the driver jar to

$EAP_HOME/mo d ul es/system/l ayers/base/ and create a mo d ul e. xml file in the directory.

2. Edit the mo d ul e. xml file as of the respective module XSD.

Examp le 6 .6 . T h e mo d u le.xml f ile co n t en t f o r a Po st g reSQ L d at aso u rce

<module xmlns="urn:jboss:module:1.0" name="org.postgresql">

<resources>

<resource-root path="postgresql-jdbc.jar"/>

</resources>

<dependencies>

<module name="javax.api"/>

<module name="javax.transaction.api"/>

</dependencies>

</module>

3. Configure individual server nodes in the mai n-server-g ro up element in the

$EAP_HOME/domain/co nfi g urati o n/ho st. xml file with properties defined in

Table 6.1,

“ Cluster node properties” :

Note that a when configuring a JBoss EAP cluster with Z ookeeper, a different number of

JBoss EAP nodes than Z ookeeper nodes is possible (keeping in mind that Z ookeeper should to have an odd number of nodes). However, having the same node count for both Z ookeeper and JBoss EAP is considered best practice.

4 5

Inst allat ion G uide

T ab le 6 .1. Clu st er n o d e p ro p ert ies

Pro p ert y n ame jbo ss. no d e. name o rg . uberfi re. cl uster.

i d o rg . uberfi re. cl uster.

l o cal . i d

Valu e no d eO ne o rg . q uartz. pro perti es /bpms/q uartzd efi ni ti o n. pro perti es o rg . uberfi re. cl uster.

auto start true bpms-cl uster no d eO ne_1234 5

Descrip t io n

node name unique within the cluster absolute path to the quartz configuration file

This value delays VFS clustering until the application is fully initialized to avoid conficts when all cluster members create local clones.

Helix cluster name unique ID of the Helix cluster node

Note that : is replaced with

_.

o rg . uberfi re. cl uster.

vfs. l o ck o rg . uberfi re. cl uster.

zk o rg . uberfi re. metad ata

. i nd ex. d i r vfs-repo server1: 2181

name of the resource defined on the Helix cluster

Z ookeeper location

o rg . uberfi re. ni o . g i t

. d aemo n. ho st o rg . uberfi re. ni o . g i t

. d aemo n. po rt

/ho me/jbpm/no d e[N]/i n d ex no d eO ne

9 4 18

location where the index for search is to be created

(maintained by Apache

Lucene) the name of the daemon host machine in a physical cluster.

port used by the VFS repo to accept client connections

The port must be unique for each cluster member.

o rg . uberfi re. ni o . g i t

. d i r o rg . uberfi re. ni o . g i t

. ssh. ho st o rg . uberfi re. ni o . g i t

. ssh. po rt o rg . uberfi re. ni o . g i t

. ssh. ho stpo rt and o rg . uberfi re. ni o . g i t

. d aemo n. ho stpo rt

/ho me/jbpm/no d e[N]/re po no d eO ne

80 0 3

80 0 3 and 9 4 18

GIT (VFS) repository location on node[N] the name of the SSH host machine in a physical cluster.

the unique port number for ssh access to the GIT repo for a cluster running on physical machines.

In a virtualized environment, the outside port to be used.

Examp le 6 .7. Clu st er n o d eO n e co n f ig u rat io n

4 6

⁠Chapt er 6 . Clust ering

<system-properties>

<property name="org.uberfire.nio.git.dir" value="/tmp/bpms/nodeone" boot-time="false"/>

<property name="jboss.node.name" value="nodeOne" boottime="false"/>

<property name="org.uberfire.cluster.id" value="bpms-cluster" boot-time="false"/>

<property name="org.uberfire.cluster.zk" value="server1:2181,server2:2181,server3:2181" boot-time="false"/>

<property name="org.uberfire.cluster.local.id" value="nodeOne_12345" boot-time="false"/>

<property name="org.uberfire.cluster.vfs.lock" value="vfs-repo" boot-time="false"/>

<property name="org.uberfire.cluster.autostart" value="true" boot-time="true"/>

<property name="org.uberfire.nio.git.daemon.host" value="nodeOne" />

<property name="org.uberfire.nio.git.daemon.port" value="9418" boot-time="false"/>

<property name="org.uberfire.nio.git.daemon.hostport" value="9418" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.port" value="8003" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.hostport" value="8003" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.host" value="nodeOne"

/>

<property name="org.uberfire.metadata.index.dir" value="/tmp/jbpm/nodeone" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.cert.dir" value="/tmp/jbpm/nodeone" boot-time="false"/>

<property name="org.quartz.properties" value="/tmp/jbpm/quartz/quartz-db-postgres.properties" boottime="false"/>

</system-properties>

Examp le 6 .8. Clu st er n o d eT wo co n f ig u rat io n

<system-properties>

<property name="org.uberfire.nio.git.dir" value="/tmp/bpms/nodetwo" boot-time="false"/>

<property name="jboss.node.name" value="nodeTwo" boottime="false"/>

<property name="org.uberfire.cluster.id" value="bpms-cluster" boot-time="false"/>

4 7

Inst allat ion G uide

<property name="org.uberfire.cluster.zk" value="server1:2181,server2:2181,server3:2181" boot-time="false"/>

<property name="org.uberfire.cluster.local.id" value="nodeTwo_12346" boot-time="false"/>

<property name="org.uberfire.cluster.vfs.lock" value="vfs-repo" boot-time="false"/>

<property name="org.uberfire.cluster.autostart" value="true" boot-time="true"/>

<property name="org.uberfire.nio.git.daemon.host" value="nodeTwo" />

<property name="org.uberfire.nio.git.daemon.port" value="9418" boot-time="false"/>

<property name="org.uberfire.nio.git.daemon.hostport" value="9418" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.port" value="8003" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.hostport" value="8003" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.host" value="nodeTwo"

/>

<property name="org.uberfire.metadata.index.dir" value="/tmp/jbpm/nodetwo" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.cert.dir" value="/tmp/jbpm/nodetwo" boot-time="false"/>

<property name="org.quartz.properties" value="/tmp/jbpm/quartz/quartz-db-postgres.properties" boottime="false"/>

</system-properties>

Examp le 6 .9 . Clu st er n o d eT h ree co n f ig u rat io n

<system-properties>

<property name="org.uberfire.nio.git.dir" value="/tmp/bpms/nodethree" boot-time="false"/>

<property name="jboss.node.name" value="nodeThree" boottime="false"/>

<property name="org.uberfire.cluster.id" value="bpms-cluster" boot-time="false"/>

<property name="org.uberfire.cluster.zk" value="server1:2181,server2:2181,server3:2181" boot-time="false"/>

<property name="org.uberfire.cluster.local.id" value="nodeThree_12347" boot-time="false"/>

<property name="org.uberfire.cluster.vfs.lock" value="vfs-repo" boot-time="false"/>

<property name="org.uberfire.cluster.autostart" value="true" boot-time="true"/>

4 8

⁠Chapt er 6 . Clust ering

<property name="org.uberfire.nio.git.daemon.host" value="nodeThree" />

<property name="org.uberfire.nio.git.daemon.port" value="9418" boot-time="false"/>

<property name="org.uberfire.nio.git.daemon.hostport" value="9418" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.port" value="8003" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.hostport" value="8003" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.host" value="nodeThree" />

<property name="org.uberfire.metadata.index.dir" value="/tmp/jbpm/nodethree" boot-time="false"/>

<property name="org.uberfire.nio.git.ssh.cert.dir" value="/tmp/jbpm/nodethree" boot-time="false"/>

<property name="org.quartz.properties" value="/tmp/jbpm/quartz/quartz-db-postgres.properties" boottime="false"/>

</system-properties>

4. Add management users as instructed in the Administration and Configuration Guide for Red Hat

JBoss EAP and application users as instructed in Red Hat JBoss BPM Suite Administration and

Configuration Guide.

5. Start the application server:

]$ $JBOSS_HOME/bin/domain.sh

6. Check that the nodes are available.

Deploy the Business Central application to your servers:

1. Change the predefined persistence of the application to the required data base (PostgreSQL): in persi stence. xml change the following: a. jta-data-source name to the source defined on the application server

(java: jbo ss/d ataso urces/psbpmsD S) b. hibernate dialect to be match the data source dialect

(o rg . hi bernate. d i al ect. P o stg reSQ LD i al ect)

2. Log on as the management user to the server Administration console of your domain and add the new deployments using the Runtime view of the console. Once the deployment is added to the domain, assign it to the correct server group (mai n-server-g ro up).

4 9

Inst allat ion G uide

Note

It is important users explicitly check deployment unit readiness with every cluster member.

When a deployment unit is created on a cluster node, it takes some time before it is distributed among all cluster members. Deployment status can be checked via UI and REST, however if the query goes to the node where the deployment was originally issued, the answer is

d epl o yed . Any request targeting this deployment unit sent to a different cluster member fails with D epl o ymentNo tFo und Excepti o n.

50

⁠Chapt er 7 . Maven Reposit ories

Chapter 7. Maven Repositories

7.1. About Maven

Apache Maven is a distributed build automation tool used in Java application development to build and manage software projects. Maven uses configuration XML files called POM (Project Object

Model) to define project properties and manage the build process. POM files describe the project's module and component dependencies, build order, and targets for the resulting project packaging and output. This ensures that projects are built in a correct and uniform manner.

Maven uses repositories to store Java libraries, plug-ins, and other build artifacts. Repositories can be either local or remote. A local repository is a download of artifacts from a remote repository cached on a local machine. A remote repository is any other repository accessed using common protocols, such as http: // when located on an HTTP server, or fi l e: // when located on a file server. The default repository is the public remote Maven 2 Central Repository .

Configuration of Maven is performed by modifying the setti ng s. xml file. You can either configure global Maven settings in the M2_HOME/co nf/setti ng s. xml file, or user-level settings in the

USER_HOME/. m2/setti ng s. xml file.

For more information about Maven, see Welcome to Apache Maven .

For more information about Maven repositories, see Apache Maven Project - Introduction to

Repositories .

For more information about Maven POM files, see the Apache Maven Project POM Reference .

Note

Your Red Hat JBoss product has been built with maven 3.0.x Therefore, this is the recommended maven version for building your own SwitchYard applications.

7.2. About T he Provided Maven Reposit ories

A set of repositories containing artifacts required to build applications based on Red Hat

JBoss BPM Suite is provided with this release. Maven must be configured to use these repositories and the Maven Central Repository in order to provide correct build functionality.

Two interchangeable sets of repositories ensuring the same functionality are provided. The first set is available for download and storage in a local file system, the second set is hosted online for use as remote repositories. If you provided the location of Maven's setti ng s. xml file during installation,

Maven is already configured to use the online repositories.

Important

The set of online remote repositories is a technology preview source of components. As such, it is not in scope of patching and is supported only for use in development environment. Using the set of online repositories in production environment is a potential source of security vulnerabilities and is therefore not a supported use case. For more information see https://access.redhat.com/site/maven-repository .

51

Inst allat ion G uide

7.3. Configuring Maven t o Use t he File Syst em Reposit ories

O verview

In situations where you cannot use the online repositories, you will have to download and configure the required repositories locally.

Pro ced u re 7.1.

1. Download the following Z IP archives containing the required repositories: https://access.redhat.com/jbossnetwork/restricted/listSoftware.html?

product=bpm.suite&version=6.1.0

2. Unzip the downloaded Z IP files into an arbitrary location in a local file system.

3. Add entries for the unzipped repositories to Maven's setti ng s. xml file. The following code sample contains a profile with the repositories, configuration of authentication for access to the repositories, and an activation entry for the profile:

<?xml version="1.0" encoding="UTF-8" standalone="no"?>

<settings xmlns = "http://maven.apache.org/SETTINGS/1.0.0" xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation = "http://maven.apache.org/xsd/settings-

1.0.0.xsd" >

<localRepository/>

<profiles>

<!-- Profile with local repositories required by JBoss

BRMS/JBoss BPM Suite -->

<profile>

<id> brms-bpms-local-profile </id>

<repositories>

<repository>

<id> jboss-brms-bpmsuite-repository </id>

<name> BRMS/BPMS 6.1.0 GA Repository </name>

<url> file://

<!-- path to the repository -->

/jboss-brmsbpmsuite-6.1.0.GA-redhat-2-maven-repository/maven-repository </url>

<layout> default </layout>

<releases>

<enabled> true </enabled>

<updatePolicy> never </updatePolicy>

</releases>

<snapshots>

<enabled> false </enabled>

<updatePolicy> never </updatePolicy>

</snapshots>

</repository>

</repositories>

<pluginRepositories>

<pluginRepository>

<id> jboss-brms-bpmsuite-repository </id>

<name> BRMS/BPMS 6.1.0 GA Repository </name>

<url> file://

<!-- path to the repository -->

/jboss-brmsbpmsuite-6.1.0.GA-redhat-2-maven-repository/maven-repository </url>

<layout> default </layout>

<releases>

52

⁠Chapt er 7 . Maven Reposit ories

<enabled> true </enabled>

<updatePolicy> never </updatePolicy>

</releases>

<snapshots>

<enabled> false </enabled>

<updatePolicy> never </updatePolicy>

</snapshots>

</pluginRepository>

</pluginRepositories>

</profile>

</profiles>

<!-- Configuring pre-emptive authentication for the repository server -->

<server>

<id> brms-bpms-m2-repo </id>

<username> admin </username>

<password> admin </password>

<configuration>

<wagonProvider> httpclient </wagonProvider>

<httpConfiguration>

<all>

<usePreemptive> true </usePreemptive>

</all>

</httpConfiguration>

</configuration>

</server>

<!-- Alternative to enabling pre-emptive authentication - configuring

the Authorization HTTP header with Base64-encoded credentials

<server>

<id>brms-bpms-m2-repo</id>

<configuration>

<httpHeaders>

<property>

<name>Authorization</name>

<value>Basic YWRtaW46YWRtaW4=</value>

</property>

</httpHeaders>

</configuration>

</server>

-->

<activeProfiles>

<!-- Activation of the JBoss BRMS/JBoss BPM Suite profile -->

<activeProfile> brms-bpms-local-profile </activeProfile>

</activeProfiles>

</settings>

Resu lt

The Maven repositories are downloaded, unzipped in a local file system, registered in Maven's

setti ng s. xml file, and ready to be used when performing Maven builds.

53

Inst allat ion G uide

T ro u b lesh o o t in g

Q :

Wh y d o I st ill g et erro rs wh en b u ild in g o r d ep lo yin g my ap p licat io n s?

A: Issu e

When you build or deploy a project, it fails with one or both of the following errors:

[ER R O R ] Fai l ed to execute g o al o n pro ject PROJECT_NAME

C o ul d no t fi nd arti fact ARTIFACT_NAME

Cau se

Your cached local Maven repository might contain outdated artifacts.

Reso lu t io n

To resolve the issue, delete the cached local repository – the ~ /. m2/repo si to ry/ directory on Linux or the %SystemDrive%\Users\USERNAME\. m2\repo si to ry\ directory on

Windows – and run mvn cl ean i nstal l -U. This will force Maven to download correct versions of required artifacts when performing the next build.

Q :

Wh y is JBo ss Develo p er St u d io u sin g my o ld Maven co n f ig u rat io n ?

A: Issu e

You have updated your Maven configuration, but this configuration is not reflected in JBoss

Developer Studio.

Cau se

If JBoss Developer Studio is running when you modify your Maven setti ng s. xml file, this configuration will not be reflected in JBoss Developer Studio.

Reso lu t io n

Refresh the Maven settings in the IDE. From the menu, choose Win d o wPref eren ces. In the

P references Window, expand Maven and choose User Setti ng s. Click the Upd ate

Setti ng s button to refresh the Maven user settings in JBoss Developer Studio.

54

⁠Chapt er 7 . Maven Reposit ories

Fig u re 7.1. Up d at e Maven User Set t in g s

7.4 . Configuring Maven t o Use t he Online Reposit ories

The online repositories required for Red Hat JBoss BPM Suite applications are located at http://maven.repository.redhat.com/techpreview/all/ .

If you did not configure the Maven repository during installation, you can configure it using the following procedure. (It is also possible to do this using the project's POM file, but this is not recommended.)

Pro ced u re 7.2. Co n f ig u rin g Maven t o Use t h e O n lin e Rep o sit o ries

1. Add entries for the online repositories and configuration of authentication for accessing them to Maven's setti ng s. xml file as in the code sample below:

55

Inst allat ion G uide

<settings xmlns = "http://maven.apache.org/SETTINGS/1.0.0" xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation = "http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd" >

<profiles>

<!-- Profile with online repositories required by BRMS/BPMS --

>

<profile>

<id> brms-bpms-online-profile </id>

<repositories>

<repository>

<id> jboss-ga-repository </id>

<url> http://maven.repository.redhat.com/techpreview/all </url>

<releases>

<enabled> true </enabled>

</releases>

<snapshots>

<enabled> false </enabled>

</snapshots>

</repository>

</repositories>

<pluginRepositories>

<pluginRepository>

<id> jboss-ga-plugin-repository </id>

<url> http://maven.repository.redhat.com/techpreview/all </url>

<releases>

<enabled> true </enabled>

</releases>

<snapshots>

<enabled> false </enabled>

</snapshots>

</pluginRepository>

</pluginRepositories>

</profile>

</profiles>

<!-- Configuring pre-emptive authentication for the repository server -->

<server>

<id> brms-bpms-m2-repo </id>

<username> admin </username>

<password> admin </password>

<configuration>

<wagonProvider> httpclient </wagonProvider>

<httpConfiguration>

<all>

<usePreemptive> true </usePreemptive>

</all>

</httpConfiguration>

</configuration>

</server>

<!-- Alternative to enabling pre-emptive authentication -

56

⁠Chapt er 7 . Maven Reposit ories

configuring

the Authorization HTTP header with Base64-encoded credentials

<server>

<id>brms-bpms-m2-repo</id>

<configuration>

<httpHeaders>

<property>

<name>Authorization</name>

<value>Basic YWRtaW46YWRtaW4=</value>

</property>

</httpHeaders>

</configuration>

</server>

-->

<activeProfiles>

<!-- Activation of the BRMS/BPMS profile -->

<activeProfile> brms-bpms-online-profile </activeProfile>

</activeProfiles>

</settings>

2. If you modified the setti ng s. xml file while JBoss Developer Studio was running, you must refresh Maven settings in the IDE. From the menu, choose Win d o wPref eren ces. In the

P references Window, expand Maven and choose User Setti ng s. Click the Upd ate

Setti ng s button to refresh the Maven user settings in JBoss Developer Studio.

57

Inst allat ion G uide

Fig u re 7.2. Up d at e Maven User Set t in g s

Resu lt

Maven has been configured to use the online repositories provided for your Red Hat JBoss product.

58

⁠Chapt er 7 . Maven Reposit ories

Important

If your cached local Maven repository contains outdated artifacts, you may encounter one of the following Maven errors when you build or deploy your project:

Missing artifact ARTIFACT_NAME

[ERROR] Failed to execute goal on project PROJECT_NAME; Could not resolve dependencies for PROJECT_NAME

To resolve the issue, delete the cached local repository – the ~ /. m2/repo si to ry/ directory on Linux or the %SystemDrive%\Users\USERNAME\. m2\repo si to ry\ directory on

Windows. This will force Maven to download correct versions of required artifacts during the next build.

7.5. Dependency Management

In order to use the correct Maven dependencies in your Red Hat JBoss BPM Suite project, you must add relevant Bill Of Materials (BOM) files to the project's po m. xml file. Adding the BOM files ensures that the correct versions of transitive dependencies from the provided Maven repositories are included in the project.

The Maven repository in 6.1.0 is designed to be used only in combination with Maven Central and no other repositories are required.

Depending on your project requirements, declare the dependencies in your POM file in the dependencies section: org.jboss.bom.brms:jboss-brms-bpmsuite-bom:VERSION: This is the basic BOM without any Java

EE6 support.

org.jboss.bom.brms:jboss-javaee-6.0-with-brms-bpmsuite:VERSION: This provides support for

Java EE6.

59

Inst allat ion G uide

Chapter 8. Red Hat JBoss Developer Studio

8.1. Red Hat JBoss Developer St udio

Red Hat JBoss Developer Studio is the JBoss Integrated Development Environment (IDE) based on

Eclipse. Get the latest JBoss Developer Studio from the Red Hat customer support portal at https://access.redhat.com

. JBoss Developer Studio provides plug-ins with tools and interfaces for

Red Hat JBoss BRMS and Red Hat JBoss BPM Suite. These plugins are based on the community version of these products. So, the JBoss BRMS plug-in is called the Drools plug-in and the JBoss

BPM Suite plug-in is called the jBPM plug-in.

Refer to the Red Hat JBoss Developer Studio documentation for installation and set-up instructions.

Warning

Due to an issue in the way multi-byte rule names are handled, you must ensure that the instance of JBoss Developer Studio is started with the file encoding set to UT F-8. You can do this by editing the $JBD S_HO ME/stud i o /jbd evstud i o . i ni file and adding the following property: "-D fi l e. enco d i ng = UT F-8"

8.2. Inst alling t he JBoss Developer St udio Plug-ins

The Drools and jBPM plug-ins for JBoss Developer Studio are available via the update site.

Pro ced u re 8.1. In st all t h e Dro o ls an d jBPM JBo ss Develo p er St u d io Plu g - in

1. Start JBoss Developer Studio.

2. Select Help In st all New So f t ware.

3. Click Ad d to enter the Ad d R epo si to ry menu.

4. Give the software site a name next to Name field and add the following url in the Lo cati o n field: https://devstudio.jboss.com/updates/8.0/integration-stack/

5. Click O K.

6. Select the JBo ss Busi ness P ro cess and R ul e D evel o pment feature from the available options and click Next and then Next again.

7. Read the license and accept it by selecting the appropriate radio button, and click Fi ni sh.

8. After installation of the plug-ins has completed, restart JBoss Developer Studio.

8.3. Set t ing t he Drools runt ime

In order to use the Red Hat JBoss BRMS plug-in with Red Hat JBoss Developer Studio, it is necessary to set up the runtime.

A runtime is a collection of jar files that represent a specific release of the software and provides libraries needed for compilation and running of your business assets.

60

⁠Chapt er 8 . Red Hat JBoss Developer St udio

Pro ced u re 8.2. Co n f ig u re JBo ss BRMS Ru n t ime

1. Extract the runtime jar files located in the jbo ss-brms-VER SIO N-eng i ne. zi p archive that you can download from Red Hat Customer Portal .

2. From the JBoss Developer Studio menu, select Wi nd o w and click P references.

3. Select Dro o lsIn st alled Dro o ls Ru n t imes.

4. Click Ad d . . . ; provide a name for the new runtime, and click Bro wse to navigate to the directory where you extracted the runtime files in step 1. Click OK to register the selected runtime in JBDS.

5. Mark the runtime you have created as the default Drools runtime by clicking on the check box next to it.

6. Click O K. If you have existing projects, a dialog box will indicate that you have to restart

JBoss Developer Studio to update the Runtime.

8.4 . Configuring t he JBoss BPM Suit e Server

JBoss Developer Studio can be configured to run the Red Hat JBoss BPM Suite Server.

Pro ced u re 8.3. Co n f ig u re t h e Server

1. Open the jBPM view by selecting Win d o wO p en Persp ect iveO t h er and select jBP M and click O K.

2. Add the server view by selecting Win d o wSh o w ViewO t h er... and select Server

Servers.

3. Open the server menu by right clicking the Servers panel and select NewServer.

4. Define the server by selecting JBo ss En t erp rise Mid d lewareJBo ss En t erp rise

Ap p licat io n Plat f o rm 6 .4 + and clicking Next.

5. Set the home directory by clicking the Bro wse button. Navigate to and select the installation directory for JBoss EAP 6.4 which has JBoss BPM Suite installed.

6. Provide a name for the server in the Name field, make sure that the configuration file is set, and click Fi ni sh.

8.5. Import ing Project s from a Git Reposit ory int o JBoss Developer

St udio

You can configure JBoss Developer Studio to connect to a central Git asset repository. The repository stores rules, models, functions and processes.

You can either clone a remote Git repository or import a local Git repository.

Pro ced u re 8.4 . Clo n in g a Remo t e G it Rep o sit o ry

1. Start the Red Hat JBoss BRMS/BPM Suite server (whichever is applicable) by selecting the server from the server tab and click the start icon.

61

Inst allat ion G uide

2. Simultaneously, start the Secure Shell server, if not running already, by using the following command. The command is Linux and Mac specific only. On these platforms, if sshd has already been started, this command fails. In that case, you may safely ignore this step.

/sbin/service sshd start

3. In JBoss Developer Studio, select FileImp o rt ... and navigate to the Git folder. Open the

Git folder to select Pro ject s f ro m G it and click Next.

4. Select the repository source as Clo n e URI and click Next.

5. Enter the details of the Git repository in the next window and click Next.

62

Fig u re 8.1. G it Rep o sit o ry Det ails

6. Select the branch you wish to import in the following window and click Next.

⁠Chapt er 8 . Red Hat JBoss Developer St udio

7. To define the local storage for this project, enter (or select) a non-empty directory, make any configuration changes and click Next.

8. Import the project as a general project in the following window and click Next. Name the project and click Fi ni sh.

Pro ced u re 8.5. Imp o rt in g a Lo cal G it Rep o sit o ry

1. Start the Red Hat JBoss BRMS/BPM Suite server (whichever is applicable) by selecting the server from the server tab and click the start icon.

2. In JBoss Developer Studio, select FileImp o rt ... and navigate to the Git folder. Open the

Git folder to select Pro ject s f ro m G it and click Next.

3. Select the repository source as Exist in g lo cal rep o sit o ry and click Next.

Fig u re 8.2. G it Rep o sit o ry Det ails

4. Select the repository that is to be configured from the list of available repositories and click

Next.

5. In the dialog that opens, select the radio button Imp o rt as g en eral p ro ject from the

Wiz ard f o r p ro ject imp o rt g ro u p and click Next . Name the project and click Fin ish .

63

Inst allat ion G uide

64

Fig u re 8.3. Wiz ard f o r Pro ject Imp o rt

⁠Chapt er 9 . Pat ching and Upgrading Red Hat JBoss BPM Suit e

Chapter 9. Patching and Upgrading Red Hat JBoss BPM Suite

9.1. About Pat ches and Upgrades

Red Hat JBoss BPM Suite patches can be either an asynchronous update, or a planned update:

Asynchronous updates: Individual patches which are released outside the normal update cycle of the existing product. These may include security patches, as well as other individual patches provided by Red Hat Global Support Services (GSS) to fix specific issues.

Planned updates: The cumulative patches of an existing product, which includes all previously developed updates for that version of the product.

Red Hat JBoss BPM Suite patches can be downloaded from https://access.redhat.com/downloads/ .

The following files are included as part of a JBoss BRMS and JBoss BPM Suite patch release.

JBoss BRMS customers - jbo ss-brms-<versi o n>-patch. zi p

JBoss BPM Suite customers - jbo ss-bpmsui te-<versi o n>-patch. zi p

Maven repo updates (Same for both JBoss BRMS and JBoss BPM Suite customers) - jbo ss-

brms-bpmsui te-<versi o n>-i ncremental -maven-repo si to ry. zi p

9.2. Applying Pat ches in Red Hat JBoss BPM Suit e 6.1

In Red Hat JBoss BPM Suite, the client patching tool is distributed as a zip file that includes simple

. sh and . bat scripts, allowing for easy and automatic application of updates to an existing JBoss

BPM Suite 6.1 (or better) installation.

Important

The patching tool is for use with JBoss BPM Suite 6.1 or better, and should not be used for earlier versions. For more information, see https://access.redhat.com/articles/1455733 .

The script requires two mandatory parameters: <path-to-distribution-root> and <type-of-

distribution>. For example, the following command applies the updates to the specified JBoss

EAP bundle:

Note

Patch updates should not be applied while you are running an instance of Red Hat JBoss

BPM Suite. Make sure that the server is shut down before running the following command.

$ ./apply-updates.sh ~/EAP_HOME/jboss-eap-6.4 eap6.x

The following distribution types are supported: eap6.x

eap6.x-bc

65

Inst allat ion G uide

eap6.x-kie-server eap6.x-dashbuilder generic generic-bc generic-kie-server generic-dashuilder was8 was8-bc was8-kie-server was8-dashbuilder wls12c wls12c-bc wls12c-kie-server wls12c-dashbuilder brms-engine planner-engine supplementary-tools

The quickstarts and migration tool are also included in the patch and are available for download as a zip file.

Note

Only updates for BRMS/BPM Suite are included in the patch distribution. Patches to EAP itself must be applied using the EAP patching mechanism. See the

Red Hat JBoss EAP Installation

Guide

.

Backup Feat ure

Before applying any updates, the client script takes a backup of the specified distribution. It copies the distribution file or directory into the backup/<current-ti mestamp> subdirectory. The top-level backup directory is created at the same filesystem level as the appl y-upd ates script.

Blacklist Feat ure

The client patching tool provides a blacklist feature that allows you to tell the script the files that must not be updated. This is a really useful feature that helps you to preserve your configuration files from being overwritten automatically by the update process. Of course, you can specify non-configuration files as well, if required.

66

⁠Chapt er 9 . Pat ching and Upgrading Red Hat JBoss BPM Suit e

To specify the blacklisted files, open the file bl ackl i st. txt present within the patch distribution.

Enter the relative path to the files that must not be updated. Each file must be specified on a line by itself.

# lines with a '#' are comment lines, like this one

# blank lines are ignored

# we have made changes to the web.xml that must be preserved

WEB-INF/web.xml

# this file has custom modifications styles/base.css

Files specified in the bl ackl i st. txt file that have updated content in the patch, are not touched by the update tool. Instead, the tool copies the new, updated file in the same location and appends the

new suffix to it. For example, after running the patch tool, both these files will exist in the styl es folder, continuing with the bl ackl i st. txt file in the example above.

$ ls styles base.css base.css.new

It is now up to you to compare the contents of the two files and merge the changes.

What happens if there are files that are no longer being distributed but you want to preserve them?

Put them into the bl ackl i st. txt file as well. The patch update tool will not delete these files, and instead create an empty marker file with the suffix remo ved . It is then up to you to either keep or delete these files manually.

Continuing with the previous example, if the base. css file was removed and you had this file listed in the bl ackl i st. txt file, then after the patch tool has run, the contents of the styles directory would be similar to:

$ ls styles base.css base.css.removed

9.3. Pat ching Ot her Plat forms and Applicat ions

The following commands can be used for updating other supported platforms and common applications in Red Hat JBoss BPM Suite.

Pat ch EAP 6 .x Bu sin ess Cen t ral WAR

$ ./apply-updates.[sh|bat] <some-path>/jboss-eap-

6.4/standalone/deployments/business-central.war eap6.x-bc

Pat ch G en eric KIE Server WAR

$ ./apply-updates.[sh|bat] <some-path-to-tomcat-home>/webapps/kieserver.war generic-kie-server

Pat ch Wh o le Web Lo g ic 12c Bu n d le

67

Inst allat ion G uide

$ ./apply-updates.[sh|bat] <path-to-unzipped-wls12c-bundle> wls12c

Pat ch Plan n er En g in e Bu n d le

$ ./apply-updates.[sh|bat] <path-to-unzipped-planner-bundle> plannerengine

68

Appendix A. Revision History

Revisio n 1.0.0- 4 4 T h u Dec 17 2015

Build includes various enhancements and fixes

⁠Appendix A. Revision Hist ory

Vid ya Iyen g ar

69

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
