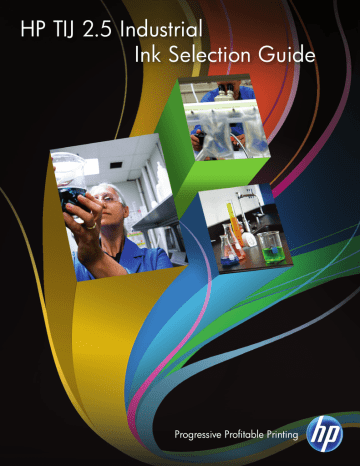

HP TIJ 2.5 Industrial
Ink Selection Guide
Versatile and affordable, HP’s advanced inkjet technology powers a wide range of industrial and commercial
printing applications—from simple text documents to vivid, complex graphics on all types and sizes of media.
HP Thermal Inkjet Technology (TIJ) drives the performance of HP print cartridges, from the printhead technology to
the Original HP ink formulations. The result is high-resolution printing (up to 600 dpi) for sharp text, crisp barcodes,
and vivid color graphics.
Whether your goal is to create eye-catching direct mail or high-resolution barcodes, text or graphics, HP’s wide
variety of ink supplies—including monochrome and color, pigment- and dye-based, and standard and fast drying
inks in a wide range of form factors—offers the right solution for your business.
Why choose Original HP industrial inks?
Proven benefits
HP invented thermal inkjet printing. For more than 25 years, HP engineers
have studied ink and media interaction and applied their knowledge to
create a line of high-performance inks customized to a wide variety of
industrial and commercial applications.
High performance
Maintain high quality and high productivity with
high-performance Original HP inks. HP’s spectrum of TIJ 2.5
inks supports a wide variety of applications and substrates.
Each ink accentuates certain performance characteristics such
as substrate coverage, fast drying time, or long decap time.
By choosing Original HP industrial inks, you get the power of one of the
strongest ink development programs in the world and the quality and
reliability of HP supplies.
TIJ 2.5 at a glance
• Up to 600 dpi resolution
• 300 nozzles
• Print width of 0.5 inch
• Speeds up to 400 feet per minute
Pigment-based inks
• Large, solid-color pigment particles suspended in liquid by a dispersant
• Provide excellent fade resistance and water resistance
Dye-based inks
• Small color molecules dissolved in a liquid
• Deliver a bright, wide color gamut
Consistent and reliable
Every Original HP inkjet print cartridge must meet strict quality
standards. All HP inks are subject to a battery of tests to
prevent problems that may degrade image quality such as
microscopic contaminants that can clog printhead nozzles.
Count on consistent printing performance and reliable results.
Cost effective
Save time, improve productivity, and lower operating costs.
Self contained, customer-replaceable Original HP print
cartridges nearly eliminate time-consuming and routine
maintenance, enable a quick change from black to color
printing, and deliver a fresh printhead with each cartridge
replacement. Proven HP Thermal Inkjet Technology enables
low-cost, efficient ink usage.
Substrate Compatibility for Popular HP Black Inks
Ink Characteristics
45A/4500
Versatile Black
Fast Dry Black
1918
Durable Black
Pigment
Pigment
Pigment
Dye
Pigment
Optical density
Good
Best
Best
Good
Good
Decap
Good
Good
Good
Best
Better
Dry time
Good
Best
Best
Better
Best
Ink type
Substrate Compatibility
Uncoated
Matte coated
Gloss coated
Overprinted
Aqueous coating
Varnish coating
UV coating
DuPont™ Tyvek®
PVC
Recommended ink/substrate combination
Recommended for some substrates in the category
Not a recommended ink/substrate combination
Evaluation notes:
• Ratings show ranking of HP black inks in the HP TIJ 2.5 industrial ink portfolio
•Optical density rankings based on measurements taken on uncoated bond media
•Ink performance may vary based on media, printing system, and environmental
conditions. Test the ink in your application to understand true performance.
To help you select the ideal match for your needs, this chart provides a comparison of inks across the HP industrial ink portfolio.
Whether you’re looking for the fade- and water-resistant output delivered by pigment-based inks or the bright color and wide
gamut characteristics of dye-based inks, HP has the solution.1
Product numbers
Product
name
Description
Type
Integrated
printhead
Bulk ink
supply
40/42 ml
370 ml
Printhead
C6119A
Q7456A
Q7457A
Q2320A
Q2321A
Q2357A
Q2358A
Q2382A
Q2356A
HP 4500
Black Ink
Sharp, crisp print quality with minimal intervention, on primarily uncoated media
• High quality, sharp, crisp output
• Excellent barcode readability
• Fade and water resistance on a variety of media
P
51645A
HP 45A
10-Pack
Simplified bulk packaging of the HP 4500 Black Ink can reduce shipping costs as well as
handling and waste
• High quality, sharp, crisp output
• Excellent barcode readability
• Fade and water resistance on a variety of media
P
CG339A
High-speed printing with high optical density and fast dry time on a wide variety of media
• Sharp, dark black text with high optical density in a single pass
• Fast dry time and high durability, designed for minimum smearing or transfer
• Print on both coated and uncoated media without changing ink
P
C8842A
Fast Dry
Black Ink
High-speed printing with high optical density and fast dry time with minimal intervention
• Fast dry time enables high-quality, high-speed printing
• Sharp, dark black text with high optical density in a single pass
• Fade and water resistance on a variety of media
P
C6195A
HP 1918
Black Ink
Long decap time for intermittent printing on uncoated and some coated media
• Long decap time enables immediate startup and virtually no printhead servicing between
intermittent prints
• Sharp, crisp output
• Durable output, designed for minimum smearing or transfer
D
Q2344A
Durable
Black Ink
Durability, decap, and print quality performance at mid-range print speeds
• Substrate variety, including coated, aqueous overcoated, and varnished media
• Versatility up to 100 ft/min print speeds
• Durable black ink with very good optical density up to 600 x 600 dpi
P
CQ849A
Spot Color
Red Ink
High-speed, high-quality printing with enhanced eye appeal
• Dye-based inks produce bright, eye-catching color
• Faster dry time enables higher production rates and faster printing on uncoated media
• Effective personalization of mailings and direct marketing messages with color text and graphics
D
C6168A
Red Ink
Ideal for applications requiring a more water-resistant red ink on uncoated media
• Pigment-based ink produces more water-resistant prints
• High-quality printing on a variety of uncoated media
P
C6128A
Spot Color
Blue Ink
High-speed, high-quality printing with enhanced eye appeal
• Dye-based inks produce bright, eye-catching color
• Faster dry time enables higher production rates and faster printing on uncoated media
• Effective personalization of mailings and direct marketing messages with color text and graphics
D
C6170A
Blue
2242 Ink
Ideal for applications requiring a more water-resistant blue ink on uncoated media
• Pigment-based ink produces more water-resistant prints
• High-quality printing on a variety of uncoated media
P
Q2354A
Spot Color
Green Ink
High-speed, high-quality printing with enhanced eye appeal
• Dye-based inks produce bright, eye-catching color
• Faster dry time enables higher production rates and faster printing on uncoated media
• Effective personalization of mailings and direct marketing messages with color text and graphics
D
C6169A
Spot Color
Yellow Ink
High-speed, high-quality printing with enhanced eye appeal
• Dye-based inks produce bright, eye-catching color
• Faster dry time enables higher production rates and faster printing on uncoated media
• Effective personalization of mailings and direct marketing messages with color text and graphics
D
C6173A
Versatile
Black Ink
P = Pigment
1
Printhead, bulk ink
350 ml
D = Dye
Print quality and durability performance characteristics of pigment and dye-based inks as compared across the HP industrial ink portfolio. In some cases, fade- and water-resistance testing by HP Image Permanence Lab.
Ink performance may vary based on media, printing system, and environmental conditions. Test the ink in your application to understand true performance.
To learn more about HP inks and custom supplies,
visit www.hp.com/go/industrial_ink
© Copyright 2009-2011 Hewlett-Packard Development Company, L.P. The
information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be
construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
4AA0-0173ENW, July 2011
