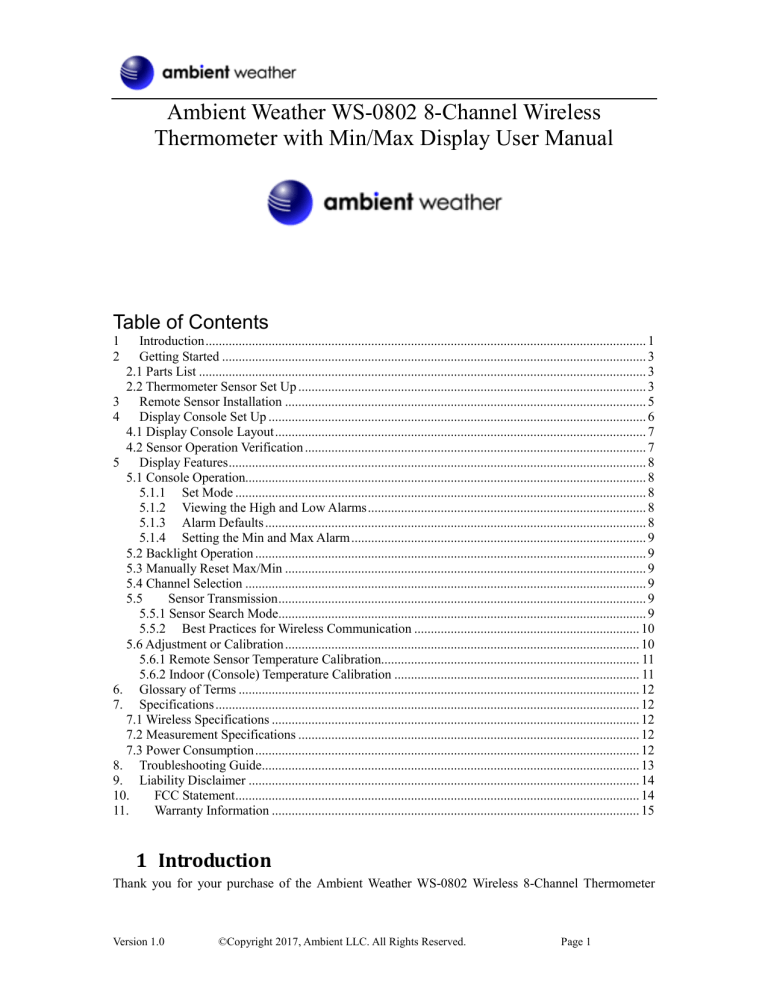

Ambient Weather WS-0802 8-Channel Wireless

Thermometer with Min/Max Display User Manual

Table of Contents

1 Introduction ..................................................................................................................................... 1

2 Getting Started ................................................................................................................................ 3

2.1 Parts List ....................................................................................................................................... 3

2.2 Thermometer Sensor Set Up ......................................................................................................... 3

3 Remote Sensor Installation ............................................................................................................. 5

4 Display Console Set Up .................................................................................................................. 6

4.1 Display Console Layout ................................................................................................................ 7

4.2 Sensor Operation Verification ....................................................................................................... 7

5 Display Features .............................................................................................................................. 8

5.1 Console Operation......................................................................................................................... 8

5.1.1

Set Mode ............................................................................................................................ 8

5.1.2

Viewing the High and Low Alarms .................................................................................... 8

5.1.3

Alarm Defaults ................................................................................................................... 8

5.1.4

Setting the Min and Max Alarm ......................................................................................... 9

5.2 Backlight Operation ...................................................................................................................... 9

5.3 Manually Reset Max/Min ............................................................................................................. 9

5.4 Channel Selection ......................................................................................................................... 9

5.5

Sensor Transmission ............................................................................................................... 9

5.5.1 Sensor Search Mode ............................................................................................................... 9

5.5.2

Best Practices for Wireless Communication .................................................................... 10

5.6 Adjustment or Calibration ........................................................................................................... 10

5.6.1 Remote Sensor Temperature Calibration.............................................................................. 11

5.6.2 Indoor (Console) Temperature Calibration .......................................................................... 11

6.

Glossary of Terms ......................................................................................................................... 12

7.

Specifications ................................................................................................................................ 12

7.1 Wireless Specifications ............................................................................................................... 12

7.2 Measurement Specifications ....................................................................................................... 12

7.3 Power Consumption .................................................................................................................... 12

8.

Troubleshooting Guide .................................................................................................................. 13

9.

Liability Disclaimer ...................................................................................................................... 14

10.

FCC Statement .......................................................................................................................... 14

11.

Warranty Information ............................................................................................................... 15

1 Introduction

Thank you for your purchase of the Ambient Weather WS-0802 Wireless 8-Channel Thermometer

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 1

with Daily Min/Max Display. The following user guide provides step by step instructions for installation, operation and troubleshooting. To download the latest manual and additional troubleshooting tips, please visit the FAQ website: http://ambientweather.wikispaces.com/ws0802

The WS-0802 supports any combination of the following sensors and receivers (additional sensors and receivers are sold separately):

Item Number Image Description

F007T 8-channel sensor measures temperature. Applications include indoor and outdoor air temperature measurement.

F007TP 8-channel sensor measures probe temperature.

Applications include refrigerators and freezers (where the probe is placed inside the appliance(s) and the display is outside), water temperature, soil temperature and ground temperature.

F007PF 8-channel pool float thermometer. Applications include pools, spas, and lakes.

WS0802-C Add as many display consoles as you like to your existing system. For example, you can have one remote sensor display temperature and place a display console in every room.

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 2

2 Getting Started

Note: The power up sequence must be performed in the order shown in this section (insert batteries in the remote transmitter(s) first, Display Console second).

The WS-0802 weather station consists of a display console (receiver), and a thermometer (remote transmitter).

2.1 Parts List

QTY

1

Item

Thermometer transmitter (FT007T)

Dimensions (LxHxW): 4.5” x 2.0” x 0.75”

1

1

Display Console

Frame Dimensions (LxHxW): 4.77 x 2.95 x 0.6 in

LCD Dimensions (LxW): 3.00 x 1.17”

LCD Segment Height: 0.70 inches

User Manual

2.2 Thermometer Sensor Set Up

Note: Do not use rechargeable batteries. We recommend fresh alkaline batteries for temperature ranges between -4 °F and 140 °F and fresh lithium batteries for temperature ranges between -40 °F and 140 °F.

1. Remove the battery door on the back of the sensor by removing the set screw, as shown in

Figure 1 .

Figure 1

2. BEFORE inserting the batteries, locate the dip switches on the inside cover of the lid of the transmitter.

Figure 2 displays all four switches in the OFF position (factory default setting).

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 3

Figure 2

3. Channel Number: The sensor supports up to eight transmitters. To set each channel number

(the default is Channel 1), change Dip Switches 1, 2 and 3, as referenced in Table 1.

4. Temperature Units of Measure: To change the transmitter display units of measure (°F vs.

°C), change Dip Switch 4, as referenced in Table 1.

DOWN UP

DOWN UP

UP

UP

UP

UP

---

---

DOWN

DOWN

UP

UP

---

---

DIP SWITCH

1 2

DOWN DOWN

DOWN DOWN

3

DOWN

UP

DOWN

UP

4

---

---

DOWN ---

UP ---

---

---

FUNCTION

Channel 1

Channel 2

Channel 3

Channel 4

Channel 5

Channel 6

DOWN ---

UP

---

---

---

UP

Channel 7

Channel 8

DOWN °F

°C

Table 1

5. Insert two AAA batteries.

6. After inserting the batteries, the remote sensor LED indicator will light for 4 seconds, and then flash once per 60 seconds thereafter. Each time it flashes, the sensor is transmitting data.

7. Verify the correct channel number (CH) and temperature units of measure (°F vs. °C) are on the display, as shown in Figure 3.

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 4

Figure 3

(1) temperature

(2) temperature units ( °F vs. °C)

(3) channel number

8. Close the battery door. Make sure the gasket (around the battery compartment) is properly seated in its trace prior to closing the door. Tighten the set screw.

3 Remote Sensor Installation

It is recommended you mount the remote sensor on a north facing wall, in a shaded area. Direct sunlight and radiant heat sources will result in inaccurate temperature readings. Although the sensor is water resistant, it is best to mount in a well protected area, such as under an eve. Use a screw or nail

(not included) to affix the remote sensor to the wall, as shown in Figure 4.

Figure 4

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 5

4 Display Console Set Up

Move the remote sensor(s) about 5 to 10’ away from the display console (if the sensor is too close, it may not be received by the display console).

If you have more than one remote sensor, make sure they are all powered up and transmitting on different channels. Remove the battery door on the back of the display, as shown in Figure 5.

Figure 5

Remove the battery cover, and insert two AAA (alkaline or lithium, avoid rechargeable unless fully charged and high quality) batteries in the back of the display console. All of the LCD segments will light up for a few seconds (to verify all segments are operating properly).

1. Replace the battery door, and place the console in the upright position with the desk stand folded out.

The console will instantly display time and indoor temperature as designated. The remote temperature will update on the display within a few minutes on the appropriate channel.

While in the search mode, the remote search icon will be constantly displayed.

If you have more than once remote sensor (up to eight remotes are supported), the display will automatically toggle between sensors until all sensors have reported in.

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 6

Do not touch any buttons until the remote sensor has reported in, or the radio search icon is no longer constantly on, otherwise the remote sensor search mode will be terminated.

When the remote sensor temperature has been received, the console will automatically switch to the normal mode, and all further settings can be performed.

If the remote does not update, please reference the troubleshooting guide in Section 8.

4.1 Display Console Layout

Figure 6

4.2 Sensor Operation Verification

Verify the indoor and outdoor temperature match closely in the same location (about 5 to 10’ apart).

The sensors should be within 2°F (the accuracy is ± 1°F). Allow about 30 minutes for both sensors to stabilize. The temperature can be adjusted or calibrated later to match each other or a known source.

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 7

5 Display Features

5.1 Console Operation

Note: The console has three buttons for easy operation: SET button, MIN/MAX/- button, and

CH/+ button.

5.1.1 Set Mode

The Set Mode allows you to set the time and time format, time alarm and units of measure.

To enter the set mode, press and hold the SET key for 3 seconds.

Command

[SET] + 3 seconds

Mode

12 hour / 24 hour format Press the [+] key to switch between 12 and 24 hour format.

Settings

[SET] Hour

[SET] Minute

Press the [+] or [-] key to increase or decrease the hour.

Press the [+] or [-] key to increase or decrease the minute. Press the SET key to advance to the next setting.

[SET] Alarm Hour Press the [+] or [-] key to increase or decrease the alarm hour. While the alarm value is flashing, press and hold the SET button for three seconds to toggle the alarm on and the alarm off. The time alarm

[SET] Alarm Minute icon will appear when set, and disappear when disabled.

Press the [+] or [-] key to increase or decrease the alarm minute. While the alarm value is flashing, press and hold the SET button for three seconds to toggle the alarm on and the alarm off. The time

[SET]

[SET]

Temperature Units of

Measure

Max/Min Clearing alarm icon will appear when set, and disappear when disabled.

Press the [+] key to switch between °F and °C units of measure.

The Max/Min can be programmed to clear daily (at midnight) or manually. Press the [+] key to switch between “Clears Daily” and Clears Manually

[SET] Exit Set Mode

[SET] + 3 seconds means press and hold the SET button for three seconds.

[SET] means press but do not hold the SET button.

5.1.2 Viewing the High and Low Alarms

The high and low alarms can be set for Channels 1 and 2 only. Press the CH/+ button to switch the display between Channel 1 and 2.

Next, press the SET button to view the High (MAX) and LOW (MIN) alarm along with the alarm time. Press the SET button again to return to the normal mode.

5.1.3 Alarm Defaults

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 8

Channel Default Condition HI ALARM (temperature) ºF LOW ALARM (temperature)ºF

1

2

OFF

OFF

100

110

60

90

5.1.4 Setting the Min and Max Alarm

The high and low alarms can be set for Channels 1 and 2 only. Press the CH/+ button to switch the display between Channel 1 and 2.

Next, press the SET button once, and the alarm icon will appear: . Press and hold the SET button for 3 seconds, and the temperature HIGH (max) alarm will flash. Press the CH/+ button to increase the HIGH alarm and the MIN/MAX button to decrease the HIGH alarm. Press and hold the

+ or - button to change rapidly. While the alarm value is flashing, press and hold the SET button for three seconds to toggle the alarm on and the alarm off. The alarm icon will appear when set, and disappear when disabled.

Press (do not hold) the SET button again to set the LOW (min) temperature alarm. The LOW alarm for temperature will flash. Press the CH/+ button to increase the LOW alarm and the MIN/MAX button to decrease the LOW alarm. Press and hold the + or - button to change rapidly. While the alarm value is flashing, press and hold the SET button for three seconds to toggle the alarm on and off the alarm. The alarm icon will appear when set, and disappear when disabled.

5.2 Backlight Operation

To temporarily turn on the back light for five seconds, press the any button on the indoor sensor.

5.3 Manually Reset Max/Min

In normal mode, press the MIN/MAX button once to view the MAX values. Press the MIN/MAX button again to view the MIN values.

Press the MIN/MAX button again to return to normal mode.

To reset the Max/Min values, press and hold the MIN/MAX- button for 3 seconds.

Note: Default function is Clearing Min/Max Daily.

The minimum and maximum can be set to clear daily (at midnight automatically) or manually. Clears

Daily ( will be displayed)

5.4 Channel Selection

Press the CH/+ button to switch the display between remote sensors 1 through 8, and scroll mode

. In scroll mode, all of detected outdoor sensors will be displayed in five second intervals.

5.5 Sensor Transmission

5.5.1 Sensor Search Mode

If any of the remote sensor communication is lost, dashes (--.-) will be displayed on the screen. To reacquire the signal:

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 9

1. If a specific channel is lost, press the CH/+ button to display this channel, then Press and hold the CH/+ button for 3 seconds, and the remote search icon will be constantly displayed for up to 3 minutes. Once the signal is reacquired, the remote search icon will turn off, and the current values will be displayed.

2. If new sensors are added, subtracted, or multiple sensor channels are lost, press and hold the

CH/+ button for 5 seconds (on any channel), and the remote search icon will be constantly displayed for up to 10 minutes. Once the signal is reacquired, the remote search icon will turn off, and the current values will be displayed.

5.5.2 Best Practices for Wireless Communication

Wireless communication is susceptible to interference, distance, walls and metal barriers. We recommend the following best practices for trouble free wireless communication.

1. Electro-Magnetic Interference (EMI). Keep the console several feet away from computer monitors and TVs.

2. Radio Frequency Interference (RFI). If you have other 433 MHz devices and communication is intermittent, try turning off these other devices for troubleshooting purposes. You may need to relocate the transmitters or receivers to avoid intermittent communication.

3. Line of Sight Rating. This device is rated at 300 feet line of sight (no interference, barriers or walls) but typically you will get 100 feet maximum under most real-world installations, which include passing through barriers or walls.

4. Metal Barriers. Radio frequency will not pass through metal barriers such as aluminum siding. If you have metal siding, align the remote and console through a window to get a clear line of sight.

The following is a table of reception loss vs. the transmission medium. Each “wall” or obstruction decreases the transmission range by the factor shown below.

Medium RF Signal Strength Reduction

Glass (untreated)

Plastics

Wood

Brick

Concrete

Metal

5-15%

10-15%

10-40%

10-40%

40-80%

90-100%

5.6 Adjustment or Calibration

Note: The calibrated value can only be adjusted on the console. The remote sensor(s) always displays the un-calibrated or measured value.

The purpose of calibration is to fine tune or correct for any sensor error associated with the devices margin of error. The measurement can be adjusted from the console to calibrate to a known source.

Calibration is only useful if you have a known calibrated source you can compare it against, and is

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 10

optional. This section discusses practices, procedures and sources for sensor calibration to reduce manufacturing and degradation errors. Do not compare your readings obtained from sources such as the internet, radio, television or newspapers. They are in a different location and typically update once per hour.

The purpose of your weather station is to measure conditions of your surroundings, which vary significantly from location to location.

5.6.1 Remote Sensor Temperature Calibration

Prior to entering the calibration mode, press the CH/+ button to select the remote temperature sensor you wish to adjust.

To enter the temperature calibration mode, press and hold the SET and CH/+ buttons at the same time for 5 seconds and the SENSOR temperature value will begin flashing. Press the CH/+ button to increase the temperature and the MIN/MAX button to decrease the temperature reading in 0.1° increments. To rapidly increase (or decrease) the temperature reading, press and hold the CH/+ or

MIN/MAX button.

To return the temperature to the actual or uncalibrated measurement, press the SET button.

Once the displayed temperature equals the calibrated source, press and hold the SET button for three seconds, or wait 15 seconds for timeout, and the temperature value will stop flashing.

5.6.2 Indoor (Console) Temperature Calibration

To enter the indoor temperature calibration mode, press and hold the SET and MIN/MAX buttons at the same time for 5 seconds and the INDOOR temperature value will begin flashing. Press the CH/+ button to increase the temperature and the MIN/MAX button to decrease the temperature reading in

0.1° increments. To rapidly increase (or decrease) the temperature reading, press and hold the CH/+ or

MIN/MAX button.

To return the temperature to the actual or uncalibrated measurement, press the SET button.

Once the displayed temperature equals the calibrated source, press and hold the SET button for three seconds, or wait 15 seconds for timeout, and the temperature value will stop flashing.

Discussion: Temperature errors can occur when a sensor is placed too close to a heat source (such as a building structure, the ground or trees).

To calibrate temperature, we recommend a mercury or red spirit (fluid) thermometer. Bi-metal (dial) and other digital thermometers are not a good source and have their own margin of error. Using a local weather station in your area is also a poor source due to changes in location, timing (airport weather stations are only updated once per hour) and possible calibration errors (many official weather stations are not properly installed and calibrated).

Place the sensor in a shaded, controlled environment next to the fluid thermometer, and allow the sensor to stabilize for 48 hours. Compare this temperature to the fluid thermometer and adjust the console to match the fluid thermometer.

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 11

6. Glossary of Terms

Term

Accuracy

Definition

Accuracy is defined as the ability of a measurement to match the actual value of the quantity being measured.

Range Range is defined as the amount or extent a value can be measured.

7. Specifications

7.1 Wireless Specifications

Line of sight wireless transmission (in open air): 150 feet, 100 feet under most conditions.

Frequency: 433 MHz

Update Rate: 60 seconds

7.2 Measurement Specifications

The following table provides specifications for the measured parameters.

Measurement Range Accuracy

Indoor Temperature 32 to 140 °F ± 2 °F

Channel 1-8

Temperature

-40 to 140 °F ± 2 °F

Resolution

0.1 °F

0.1 °F

7.3 Power Consumption

Base station (display console) : 2 x AAA 1.5V Alkaline or Lithium batteries (not included)

2 x AAA 1.5V Alkaline or Lithium batteries (not included)

Battery life: Minimum 12 months for base station with one sensor and excellent reception. Intermittent reception, Backlight often light and multiple sensors may reduce the battery life.

Minimum 24 months for water sensor (use lithium batteries in cold weather climates less than -4 °F)

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 12

8. Troubleshooting Guide

If your question is not answered here, you can contact us as follows:

1. Email Support: [email protected]

2. Live Chat Support: www.ambientweather.com/chat.html

(M-F 8am to 3pm Arizona Time)

3. Technical Support: 480-346-3380 (M-F 8am to 3pm Arizona Time)

Problem Solution

Wireless remote (thermo-hygrometer) not reporting in to console.

There are dashes (--.-) on the display console.

Temperature sensor reads too high in the day time.

If any of the sensor communication is lost, dashes (--.-) will be displayed on the screen. To reacquire the signal, press and hold the CH/+ button for 3 seconds, and the remote search icon will be constantly displayed.

Once the signal is reacquired, the remote search icon will turn off, and the current values will be displayed.

The maximum line of sight communication range is 300’ and 100’ under most conditions. Move the sensor assembly closer to the display console.

If the sensor assembly is too close (less than 5’), move the sensor assembly away from the display console.

Make sure the remote sensor LCD display is working and the transmitter light is flashing once per 60 seconds.

Install a fresh set of batteries in the remote thermo-hygrometer. For cold weather environments, install lithium batteries.

Make sure the remote sensors are not transmitting through solid metal (acts as an RF shield), or earth barrier

(down a hill).

Move the display console around electrical noise generating devices, such as computers, TVs and other wireless transmitters or receivers.

Move the remote sensor to a higher location. Move the remote sensor to a closer location.

Make sure the thermo-hygrometer is mounted in a shaded area on the north facing wall. Consider the following radiation shield if this is not possible: http://www.ambientweather.com/amwesrpatean.html

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 13

Problem

Indoor and outdoor temperature do not agree

Solution

Allow up to one hour for the sensors to stabilize due to signal filtering. The indoor and probe temperature sensors should agree within 4 °F (the sensor accuracy is ± 2 °F).

Use the calibration feature to match the indoor and probe temperature to a known source.

Display console contrast is weak Replace console batteries with a fresh set of batteries.

9. Liability Disclaimer

Please help in the preservation of the environment and return used batteries to an authorized depot.

The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in wild country and/or in unauthorized grounds strongly damages the environment.

Reading the “User manual” is highly recommended. The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any consequences that occur should an inaccurate reading take place.

This product is designed for use in the home only as indication of weather conditions. This product is not to be used for medical purposes or for public information.

The specifications of this product may change without prior notice.

This product is not a toy. Keep out of the reach of children.

No part of this manual may be reproduced without written authorization of the manufacturer.

Ambient, LLC WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL,

PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR

MALFUNCTION OF THIS PRODUCT.

10. FCC Statement

Statement according to FCC part 15.19:

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Statement according to FCC part 15.21:

Modifications not expressly approved by this company could void the user's authority to operate the equipment.

Statement according to FCC part 15.105:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 14

can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

11. Warranty Information

Ambient, LLC provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship.

This limited warranty begins on the original date of purchase, is valid only on products purchased and only to the original purchaser of this product. To receive warranty service, the purchaser must contact

Ambient, LLC for problem determination and service procedures.

Warranty service can only be performed by a Ambient, LLC. The original dated bill of sale must be presented upon request as proof of purchase to Ambient, LLC.

Your Ambient, LLC warranty covers all defects in material and workmanship with the following specified exceptions: (1) damage caused by accident, unreasonable use or neglect (lack of reasonable and necessary maintenance); (2) damage resulting from failure to follow instructions contained in your owner’s manual; (3) damage resulting from the performance of repairs or alterations by someone other than an authorized Ambient, LLC authorized service center; (4) units used for other than home use (5) applications and uses that this product was not intended (6) the products inability to receive a signal due to any source of interference or metal obstructions and (7) extreme acts of nature, such as lightning strikes or floods.

This warranty covers only actual defects within the product itself, and does not cover the cost of installation or removal from a fixed installation, normal set-up or adjustments, claims based on misrepresentation by the seller or performance variations resulting from installation-related circumstances.

Version 1.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 15

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
