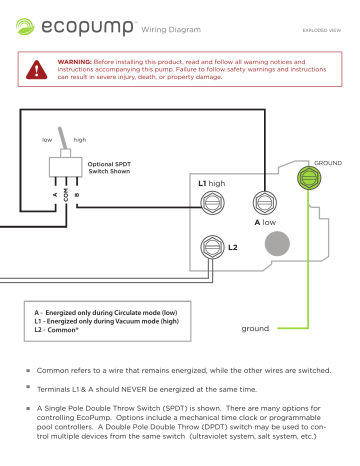

Wiring Diagram L1 high L2 ground A low
tm
Wiring Diagram
EXPLODED VIEW
WARNING: Before installing this product, read and follow all warning notices and
instructions accompanying this pump. Failure to follow safety warnings and instructions
can result in severe injury, death, or property damage.
low
high
GROUND
Optional SPDT
Switch Shown
B
COM
A
L1 high
A low
L2
A - Energized only during Circulate mode (low)
L1 - Energized only during Vacuum mode (high)
L2 - Common*
ground
Common refers to a wire that remains energized, while the other wires are switched.
Terminals L1 & A should NEVER be energized at the same time.
A Single Pole Double Throw Switch (SPDT) is shown. There are many options for
controlling EcoPump. Options include a mechanical time clock or programmable
pool controllers. A Double Pole Double Throw (DPDT) switch may be used to control multiple devices from the same switch (ultraviolet system, salt system, etc.)
