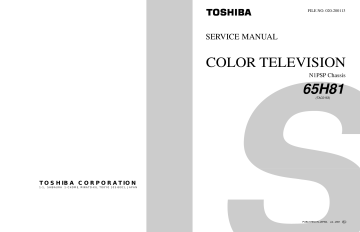

FILE NO. 020-200113
SERVICE MANUAL
COLOR TELEVISION
N1PSP Chassis
65H81
(TAC0153)
TOSHIBA CORPORATION
1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN
PUBLISHED IN JAPAN,
Jul., 2001 So
GENERAL ADJUSTMENTS
TABLE OF CONTENTS
CHAPTER 1 GENERAL ADJUSTMENTS
SAFETY INSTRUCTIONS .............................................................................................................................................. 3
CRT ASSEMBLY REPLACEMENT AND MOUNTING ................................................................................................... 4
PICTURE TUBE COMPONENTS ADJUSTMENT .......................................................................................................... 6
SERVICE MODE ............................................................................................................................................................ 9
ELECTRICAL ADJUSTMENT ...................................................................................................................................... 11
CONVERGENCE ADJUSTMENT ................................................................................................................................ 13
SCREEN AND MIRROR ALIGNMENTS ...................................................................................................................... 15
CIRCUIT CHECKS ....................................................................................................................................................... 16
CHAPTER 2 SPECIFIC INFORMATIONS
SETTING & ADJUSTING DATA .................................................................................................................................... 17
LOCATION OF CONTROLS ......................................................................................................................................... 18
PROGRAMMING CHANNEL MEMORY ....................................................................................................................... 20
CIRCUIT BLOCK DIAGRAM ........................................................................................................................................ 21
MECHANICAL DISASSEMBLY .................................................................................................................................... 23
CHASSIS REPLACEMENT PARTS LIST ..................................................................................................................... 25
PC BOARDS BOTTOM VIEW ....................................................................................................................................... 55
TERMINAL VIEW OF TRANSISTORS ......................................................................................................................... 69
SPECIFICATIONS ........................................................................................................................................................ 73
APPENDIX:
CIRCUIT DIAGRAM
–2–
CHAPTER 1 GENERAL ADJUSTMENTS
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAUTION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.
X-RAY RADIATION PRECAUTION
1. Excessive high voltage can produce potentially hazardous
X-RAY RADIATION. To avoid such hazards, the high voltage must not be above the specified limit. The nominal
value of the high voltage of this receiver is (A) kV at zero
beam current (minimum brightness) under a 120V AC
power source. The high voltage must not, under any circumstances, exceed (B) kV.
Refer to table-1 for high voltage (A), (B).
(See SETTING & ADJUSTING DATA on page 17)
2. This receiver is equipped with a Fail Safe (FS) circuit which
prevents the receiver from producing an excessively high
voltage even if the B+ voltage increases abnormally. Each
time the receiver is serviced, the FS circuit must be checked
to determine that the circuit is properly functioning, following the FS CIRCUIT CHECK procedure in this manual.
3. The only source of X-RAY RADIATION in this TV receiver
is the picture tube. For continued X-RAY RADIATION protection, the replacement tube must be exactly the same
type tube as specified in the parts list.
4. Some part in this receiver have special safety-related characteristics for X-RAY RADIATION protection. For continued safety, parts replacement should be undertaken only
after referring to the PRODUCT SAFETY NOTICE below.
Each time a receiver requires servicing, the high voltage
should be checked following the HIGH VOLTAGE CHECK
procedure in this manual. It is recommended that the reading of the high voltage be recorded as a part of the service
record. It is important to use an accurate and reliable high
voltage meter.
SAFETY PRECAUTION
WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following are the necessary precautions to be observed before
servicing this chassis.
1. An isolation Transformer should be connected in the power
line between the receiver and the AC line before any service is performed on the receiver.
2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube is highly evacuated and if broken, glass fragments
will be violently expelled. Use shatter proof goggles and
keep picture tube away from the unprotected body while
handling.
3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place,
such as; non-metallic control knobs, insulating covers,
shields, isolation resistor-capacitor network etc.
4. Before returning the set to the customer, always perform
an AC leakage current check on the exposed metallic parts
of the cabinet, such as antennas, terminals, screwheads,
metal overlays, control shafts etc. to be sure the set is safe
to operate without danger of electrical shock. Plug the AC
line cord directly into a 120V AC outlet (do not use a line
isolation transformer during this check). Use an AC voltmeter having 5000 ohms per volt or more sensitivity in the
following manner:
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15
µF, AC type capacitor, between a known good earth ground
(water pipe, conduit, etc.) and the exposed metallic parts,
one at a time. Measure the AC voltage across the combination of 1500 ohm resistor and 0.15 µF capacitor. Reverse the AC plug at the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Voltage
measured must not exceed 0.3 volts rms. This corresponds
to 0.2 milliamp. AC. Any value exceeding this limit constitutes a potential shock hazard and must be corrected immediately.
AC VOLTMETER
0.15µF
Good earth ground
such as a water
pipe, conduit, etc.
Place this probe on
each exposed
metallic part.
1500 ohm
10 watt
PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are
often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using
replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the
international hazard symbols on the schematic diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement
parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray radiation or other hazards.
–3–
GENERAL ADJUSTMENTS
SAFETY INSTRUCTIONS
GENERAL ADJUSTMENTS
CRT ASSEMBLY REPLACEMENT AND MOUNTING
CAUTION : DO NOT LOOSEN THE HEX HEAD BOLTS WITH SPRINGS (12 PCS), BECAUSE THOSE ARE FOR
SEALING OF CRT COOLANT.
R
G
B
Attention Serviceman
The Hex Head
Bolts with
Springs. (see
sketch) used on
CRT assembly,
are “NOT”
Adjustment Screws
DO NOT LOOSEN-FLUID
LEAKAGE WILL OCCUR.
8 o’clock
4 o’clock
4 Screws
4 Screws
Lens Assembly
CRT Assembly
CRT Anode Cap Assembly
S.V.M. Coil
CRT DRIVE Board
CRT Mounting
Deflection Yoke and Conver Yoke
Lens and Neck Components View
–4–
Anode Cap
CRT REPLACEMENT (Same procedure for R, G, B)
Reverse the removal procedures except the followings.
1. Anode Cable should be replaced with new one.
See “SERVICING PRECAUTIONS” shown below.
2. Install silicon (T461B) to the CRT, replace the Anode
cable and put enough silicon again on around the Anode Cap as illustrated.
CAUTION: Align the Anode cable as illustrated on page
4.
Silicon
(On shaded area)
TSE3843W #23960136
ADJUSTING PROCEDURE IN REPLACING CRT
1. R.G.B. FOCUS ADJUSTMENT (page 7.)
2. PICTURE TILT ADJUSTMENT (page 7.)
3. USER CONVERGENCE CENTER CHECK
(See owner's manual.)
4. CENTERING ADJUSTMENT (page 7.)
5. CONVERGENCE ADJUSTMENT (page 13.)
6. WHITE BALANCE ADJUSTMENT (page 12.)
Adjustments are complete.
2 ~ 5 mm
15 ~ 25 mm
SERVICING PRECAUTIONS
■ When replacing the anode cap assembly (CRT) or
anode lead assembly (F.B.T.), remove the anode
lead holder from old one and attach the holder
again to new anode lead.
■ Do not use a magnetized screw driver for screws
of Deflection Yoke and Velocity Modulation Coil to
avoid magnetization of electron gun.
Magnetization of electron gun will degrade basic
function and result in unbalance of right and left
shift of user static convergence, and result in no
variable quantity.
■ Check the point of anode lead in a straight
line, if it is winding, please revise it.
Screw for
D.Y
Anode lead holder
Screw for SVM coil
–5–
GENERAL ADJUSTMENTS
TO REMOVE CRT (Same procedure for R, G, B)
1. Remove CRT DRIVE Board, S. V. M. COIL and
DEF. YOKE from CRT.
2. Remove Lens Assembly.
3. Detach CRT Anode Cap from CRT.
4. Remove CRT Assembly from CRT Mounting.
GENERAL ADJUSTMENTS
WARNING : BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAUTION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.
PICTURE TUBE COMPONENTS ADJUSTMENT
Pole 2 magnet
DESCRIPTION OF NECK COMPONENTS
�
Pole 4, 6 magnet
�
� Deflection yoke and convergence yoke
The position on the neck is required most front
(CRT funnel side) and the screw is fastened after
rotating yoke adjusting picture tilt.
� Centering magnet
After adjusting picture tilt, picture position is finally
fixed by this magnet.
In order to get maximum margin of user convergence control for center of screen, this magnet
have to be used for center convergence adjustment.
2. Select adjustment mode (see page 9).
3. Adjust the centering magnets for the RED, GREEN and
BLUE colors. (See CENTERING ADJUSTMENT.)
4. Press “7” button to display the built-in cross-hatch.
5. Press “0” and “RTN” buttons to make the picture a single
Red color.
100 button ............... to erase Red color
0 button ............... to erase Green color
RTN button ............... to erase Blue color5.
6. Adjust the alignment of the projection tube for RED. (See
steps (1) to (3) below.
(1) Slightly turn the focus VR of RED to the left.
(2) Adjust the pole 2 magnet so that the bright section of
the cross hatch on the center of the dark section (flare).
PREPARATION
Operate the receiver for at least 5 minutes.
Dark secton (Flare)
RGB ALIGNMENT ADJUSTMENT
1. Set the knobs of the pole 2, 4, 6 magnets of the SVM
coil so that their magnetic fields override each other.
Bright section (Core)
Pole 6
(3) Readjust the centering magnets for the LED colors.
(4) Reconfirm that the alignment, and centering are correct. If necessary, repeat the steps (1) to (3) above to
adjust appropriately.
Pole 4
Pole 2
7. Adjust the electric focus of RED as well as possible. (See
RGB FOCUS ADJUSTMENT.)
8. Adjust the alignment of GREEN and BLUE using the above
procedure for adjusting RED.
–6–
TILT ADJUSTMENT
Rotate R, G, B deflection yoke so that picture becomes horizon, then fasten screw.
CENTERING ADJUSTMENT
1. Stretch a thread between two center of screen edge (top
and bottom, left and right).
2. Select the adjustment mode.
3. Press TV/VIDEO button on the Remote Control to display
the white cross-bar.
Fig. a
6. Adjust FOCUS VR “R” of FOCUS PACK to find best focusing point of picture center.
7. Repeat steps 3 to 5 for Green and Blue colors.
4. Perform VCEN adjustment. (See page 11.)
5. Adjust G centering magnet so that the cross-bar pattern
center comes to screen center.
6. Perform HEIGHT adjustment . (See page 12.)
7. Perform VERT. LINEARITY adjustment.
8. Perform WIDTH adjustment. (See page 11.)
9. Check whole quality of green line.
10. Adjust R, B centering magnet so that the cross-bar pattern center comes to screen center.
–7–
GENERAL ADJUSTMENTS
R, G, B FOCUS ADJUSTMENT
1. Before adjusting the R, G, B FOCUS, remove the 4 screws
of Lens Assembly which is fixed on the CRT Assembly.
(See page 4.)
Then turn around the Lens Assembly by 180˚ to adjust
the fastening screw (Fig. a) and fasten the 4 screws to
secure Lens Assembly.
2. Select the adjustment mode. (See page 9.)
3. Press “7” button to display the built-in cross-hatch.
4. Press “0” and “RTN” buttons to make the picture a single
Red color.
100 button ............... to erase Red color
0 button ............... to erase Green color
RTN buttonto erase Blue color5.
5. Loosen the fasten screw and adjust Red lense focus to
best focusing point of picture center. Then fasten the screw.
(See Fig. a.)
GENERAL ADJUSTMENTS
LOCATION OF SCREEN AND FOCUS VR’S
SCREEN VR
FOCUS VR
R
G
B
Speaker grille
REPLACEMENT OF HIGH VOLTAGE CABLE
1. When replacing Anode Lead or Anode Cap with new one,
remove Lead Holder from old lead as shown in figure
below, and put it on new lead. Do not throw away Lead
Holder.
ANODE LEAD
NOTE : THE LEAD HOLDER IS ATTACHED TO TPA5007
(Z450), BUT IS NOT ATTACHED TO ANODE
LEAD AND ANODE CAP. RUBBER BOOT IS ATTACHED TO ANODE LEAD AND ANODE CAP.
RUBBER BOOT
LEAD HOLDER
2. Detaching Lead Holder
RUBBER BOOT
LOCK
LEAD HOLDER
Z450 TPA5007
Fig. a
Fig. b
–8–
OLD
ANODE LEAD
or
ANODE CAP
Cut here rubber boot
and lead together to
detach Lead Holder.
1. ENTERING TO SERVICE MODE
1) Press MUTE button twice
on Remote Control.
3) While pressing the MUTE button,
press MENU button on TV set.
2) Press MUTE button
again to keep pressing.
S
1/2 MUTE
MUTE
(Service mode display)
2. DISPLAYING THE ADJUSTMENT MENU
1) Press MENU button on TV.
Service mode
Adjustment mode
Item
S
Press
Data
Press
3. KEY FUNCTION IN THE SERVICE MODE
The following key entry during display of adjustment menu provides special functions.
Screen adjustment mode ON/OFF:
Selection of the adjustment items :
Change of the data value :
Adjustment menu mode ON/OFF :
Initialization of the memory (QA02) :
Initialization of the self diagnostic data:
TV (ANT)/VIDEO button (on TV)
Channel s/t (on TV or Remote)
Volume s/t (on TV or Remote)
MENU button (on TV)
RECALL+Channel button on TV (s)
RECALL+Channel button on TV (t)
“RCUT” selection :
“GCUT” selection :
“BCUT” selection :
“SCNT” selection :
“SCOL” selection :
“TNTC” selection :
Convergence adj :
Test audio signal ON/OFF (1kHz) :
Self diagnostic display :
1 button
2 button
3 button
4 button
5 button
6 button
7 button
8 button
9 button
–9–
GENERAL ADJUSTMENTS
SERVICE MODE
GENERAL ADJUSTMENTS
4. SELECTING THE ADJUSTING ITEMS
1) Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2.
(t button for reverse order)
Refer to table-2 for preset data of adjustment mode.
(See SETTING & ADJUSTING DATA on page 17)
5. ADJUSTING THE DATA
1) Pressing of VOLUME s or t button will change the value of data in the range from 00H to FFH. The variable range
depends on the adjusting item.
6. EXIT FROM SERVICE MODE
1) Pressing POWER button to turn off the TV once.
■ INITIALIZATION OF MEMORY DATA OF QA02
After replacing QA02, the following initialization is required.
1. Enter the service mode, then select any register item.
2. Press and hold the RECALL button on the Remote, then press the CHANNEL s button on the TV. The initialization of QA02
has been complated.
3. Check the picture carefully. If necessary, adjust any adjustment item above.
Perform “Programming Channel Memory” on the owner's manual.
CAUTION: Never attempt to initialize the data unless QA02 has been replaced.
7. SELF DIAGNOSTIC FUNCTION
1) Press “9” button on Remote Control during display of adjustment menu in the service mode.
The diagnosis will begin to check if interface among IC’s are executed properly.
2) During diagnosis, the following displays are shown.
�
�
�
�
�
�
�
�
SELF CHECK
NO. 23 * * * * * *
POWER
: 000
BUS LINE : OK
BUS CONT : OK
BLOCK : MAIN SUB
SET ID : 01
EEP VER : 02
OPT1 : 05
OPT2 : 70
� Part number of microprocessor (QA01)
� Operation number of protection circuit (current limiter) . . . . “000” is normal.
� BUS line check
“OK” ................... Normal
“SCL-GND” or “NG” ........... SCL-GND short circuit
“SDA-GND” or “NG” ........... SDA-GND short circuit
“SCL-SDA” or “NG” ............ SCL-SDA short circuit
� BUS line ACK (acknowledge) check
“OK” ..................... Normal
Display of Location Number . . . . NG
(Display example)
“QA02 NG”, “H001 NG”, “Q501 NG” etc.
Note: The indication of failure place is only one place though failure places are plural. When
repair of a failure place finishes, the next failure place is indicated. (The order of priority of
indication is left side.)
� Sync. signal check
Green display ..... Normal
Red display ........ NG
MAIN ........ Main sync
SUB .......... Sub sync (when turn on the PIP)
� ID code for TV Set
� Version of "EEP"
� Data for "OPT"
– 10 –
ITEM
ADJUSTMENT PROCEDURE
ƒH
(free-running frequency of Hor.
oscillator)
1. Receive NTSC signal.
2. Short the terminal “TP +9V ” and the terminal “ TP (Free run) ” on the signal board with a jumper
wire.
3. Connect the probe of frequency counter to the lead of R426 and GND.
4. Adjust the frequency to “33.75±0.2 kHz” by turning R4034 on DPC Board.
5. Disconnect the shorted wire, then confirm that the picture is synchronized.
VERTICAL POSITION (VCEN)
1.
2.
3.
4.
Receive NTSC signal.
Connect he probe of digital voltmeter to TP-V and TP-G on SIGNAL Board.
Call up the adjustment mode display, then select the item VCEN.
Press the VOLUME s or t button to get the voltage 0±10 mV.
PICTURE POSITION 1. Receive NTSC signal.
(HPOS)
2. Call up the adjustment mode display.
3. Select the item “HPOS”, and adjust the data to “80H”.
4. Adjust the picture position alternately by turning CENTERING MAGNETS for proper picture
position.
5. Check the picture with off-air signal.
WIDTH
(WID)
Receive NTSC signal.
Select the "FULL" mode by PIC SIZE button on Remote Control.
Call up the adjustment mode display, then select the item WID.
Press the VOLUME s or t button to get the picture so that left and right eddes of video signal
begin to lack.
5. Press the VOLUME s button to advance the data by 8 steps.
NOTE: Check the horizontal picture position is correct.
SUB-BRIGHTNESS
(BRTC)
1. Constrict the picture height until the vertical retrace line
appears adjusting the HEIGHT control on the MAIN board.
2. Adjust the CONTRAST to the minimum and BRIGHTNESS
to the center.
3. Enter the service mode, then select “BRTC” register.
4. Adjust the data value so the belt of vertical retrace line just
disappear.
5. Adjust the CONTRAST for the desired contrast.
6. Adjust the HEIGHT control.
1.
2.
3.
4.
Vertical retrace line
SUB-COLOR
(SCOL)
1.
2.
3.
4.
5.
Receive color-bar signal from color-bar generator.
Adjust the BRIGHTNESS and CONTRAST to the center (RESET status).
Blue
Connect oscilloscope to TP501on the MAIN board.
Enter the service mode, then select “SCOL”.
Magenta
Adjust the data value to achieve 1.8V0-p of blue bar on
scope.
0
6. Check the picture with off-air signal.
– 11 –
2
3 (1.8V0-P)
GENERAL ADJUSTMENTS
ELECTRICAL ADJUSTMENT
GENERAL ADJUSTMENTS
ITEM
ADJUSTMENT PROCEDURE
HEIGHT
(HIT)
Receive NTSC signal.
Select the "FULL" mode by PIC SIZE button on Remote Control.
Call up the adjustment mode display and select the item HIT.
Press the VOLUME s or t button to get the picture so that top and bottom of
video signal begin to lack.
5. Press the VOLUME s button to advance the data by 8 steps.
Note: Check the vertical picture position is correct.
Adjust the data of height after vertical linearty.
VERTICAL LINEARITY
(VLIN)
(FULL mode only)
1. Receive cross-hatch pattern.
2. Call up the adjustment mode display, then select the item VLIN.
3. Press the VOLUME s or t button to obtain
the picture of the best linearity.
4. Then readjust the item HIT.
WHITE BALANCE
(RCUT)
(GCUT)
(BCUT)
(RDRV)
(BDRV)
1.
2.
3.
4.
1. Press RESET button on TV or remote hand set.
2. Call up the adjustment mode display, then adjust the data of items RCUT, GCUT
and BCUT to “80”.
3. Press TV (ANT)/VIDEO button on TV.
4. Gradually rotate R, G and B SCREEN volume of FOCUS PAC (page 8) clockwise or counterclockwise until the raster appears slightly on the CRT through
the each lens, and leave them.
(Look into the lens in order to check the raster.)
5. Press TV (ANT)/VIDEO button on TV again.
6. Exit from service mode.
7. Receive white laster pattern signal, and adjust the contrast to the minimum to
make white picture to low light.
8. Adjust the data of items RCUT, GCUT and BCUT for low light area.
9. Adjust the contrast to the maximum to make white picture to high light.
10. Adjust the data of items RDRV and BDRV Controls for proper white-balanced
picture in high light area.
11. Check the white balance in both low and high light areas. If necessary, perform
again steps from 7 to 9.
– 12 –
Adjust convergence from center to circumference in order.
1. Select the adjustment mode following the steps on page
9.
KEY FUNCTION IN THE CONVERGENCE ADJUSTMENT:
Up :
Selet Green color:
Left :
Blinking of cursor ON/OFF:
Right:
Adjust mode ON/OFF:
Down:
Vertical stripe ON/OFF
Erase Green line:
Erase Red line:
Erase Blue line:
RCUT
40H
2 button
3 button
4 button
5 button
6 button
7 button
8 button
9 button
0 button
100 button
ENT button
2. Press “7” button to display the built-in cross-hatch pattern
and press "9" button to display the vertical stripes.
Note:
Adjusting procedure in replacing convergence board.
1. User convergence center check. Make sure the best convergence setting is about the center of adjustable range.
2. CENTERING ADJUSTMENT
3. PICTURE POSITION ADJUSTMENT
4. HIT, WID ADJUSTMENT
5. CONVERGENCE ADJUSTMENT
6. Execute TOUCH FOCUS following instructions displayed
on the screen after finishing CONVERGENCE ADJUSTMENT.
7. If TOUCH FOCUS ERROR is displayed after finishing
TOUCH FOCUS, the method of CROSS-HATCH PATTERN after CONVERGENCE adjustment is different from
what is exhibited on the right figure, or HARDWARE is out
of order.
Cursor
FULL
X: I
Y: I
C: R
FULL
3. Adjustment around cursor can be done.
The pattern includes three colors (R, G, B).
The cursor should be blinking in Red.
This means that the Red color is adjustable.
4. Press “3” button to select Green color to be adjusted.
5. Press “5” button to stop the blinking of cursor.
6. Press “2 (up)”, “8 (down)”, “4 (left)” or “6 (right)” to obtain
the correct cross-hatch pattern as above.
If necessary, the specified color line can be erased from
the screen.
100 button ...................... to erase Red line
0 button ...................... to erase Green line
CH RTN button ...................... to erase Blue line
7. Press “5” button to make the cursor blinking.
8. Press “2”, “8”, “4”, “6” buttons to move the cursor to other
point to be adjusted.
9. Repeat steps 5 to 8.
10. Repeat steps 4 to 9 to adjust Red and Blue colors.
Converge the selected color line into the Green line.
11. Press “7” button to memorize the adjusted states.
At this time, picture changes for about 1 second.
12. Press the TOUCH FOCUS button when "PLEASE PUSH
TOUCH FOCUS" is displayed on the screen.
13. TOUCH FOCUS is executed.
14. It returns to the normal screen after displaying "TOUCH
FOCUS FINISHED".
– 13 –
GENERAL ADJUSTMENTS
CONVERGENCE ADJUSTMENT
GENERAL ADJUSTMENTS
Adjusting Dimension of Each Picture Screen
(16:9 screen size:) 50 inches
(1) HD (1080I/NTSC)
QH173,16KB
Vspan 50.5mm Hspan 115mm
353.5
303.0
151.5
Screen center
0
151.5
303.0
353.5
31.0 690.0 575.0
345.0
115.0
0
115.0
345.0
575.0
690.0
31.0
65 inches 16:9 Screen size : Horizontal 1442 mm
Vertical
810 mm
NOTES
In many cases, color misconvergence may be corrected by returning HIT and WID data in main deflection side to initial adjusting
values. Following cases will surely require readjustment of convergence.
CRT REPLACEMENT
When CRT is replaced, main deflection readjustment and color matching are required.
Perform following procedures.
1. Replace two CRT’s of blue and red.
2. Perform horizontal adjustment for blue and red yokes on base of green CRT data. Mount yoke and velocity mod. coil alignment, pushing towards CRT without gap.
3. Adjust alignment of blue and red. (Refer Alignment adjustment for details.)
4. Rotating centering magnet, adjust CRT centers of red and blue to CRT center of green.
(Picture position adjustment)
5. Adjust HIT and WID data of main deflection, and decide data at the most precise screen comparing to green data.
6. Adjust convergence of screen picture for color matching. Do not move green one at this time.
7. After convergence adjustment of screen picture finishes, replace green CRT.
For green CRT as well, repeat steps 2 to 5 above on bases of red and blue color matching to adjust convergence.
8. Execute TOUCH FOCUS following instructions displayed on the screen after finishing convergence adjustments of all the
colors.
Note: Press button "7" again after "PLEASE PUSH TOUCH FOCUS" has been displayed. Then, TOUCH FOCUS will not be
executed, and the current state of convergence will be displayed.
REPLACING CONVERGENCE UNIT
When replacing convergence unit, picture screen require readjustment basically, but the following method allows process be
reduced considerably.
1. Replace the memory (Q173) on defective unit with memory on new unit. Mounting the unit on the SET after the above
working realizes picture screen before replacement immediately.
2. Mount unit which has old memories, on SET and turn it on. Screen shows whole picture looks like straightly shifted towards
vertical or horizontal direction.
3. Adjust again centers of green, red and blue with centering magnets.
4. Check picture screen for slight disparity of color and picture size. If necessary, add some adjustments of main deflection and
color matching of convergence.
5. Execute TOUCH FOCUS following instructions displayed on the screen after finishing convergence adjustments of all the
colors.
Note: Press button "7" again after "PLEASE PUSH TOUCH FOCUS" has been displayed. Then, TOUCH FOCUS will not be
executed, and the current state of convergence will be displayed.
– 14 –
GENERAL ADJUSTMENTS
SCREEN AND MIRROR ALIGNMENTS
MOUNTING OF FRONT SCREEN
ASSEMBLING OF FRONT SCREEN
INSIDE
0 to 1 mm
K503 FRONT PANEL
K501
K502
LENTICULAR
FRESNAL
OUT SIDE
<INSIDE>
SMOOTH
LENS
BLACK STRIPES
FRESNEL
LENTICULAR
FRONT PANEL
<OUTSIDE>
SMOOTH
BLACK STRIPES
SPACER
FRONT PANEL
LENTICULAR
FRESNEL
SMOOTH
BEZEL
CAUTION : Do not hold the optical system parts (lens and
mirror) with bare hand to avoid finger-prints on
the surface of those parts.
HOW TO CLEAN LENS AND MIRROR
1. Be sure to remove sand dust with an air brush, etc.
2. When it is stained slightly, breathe upon it and wipe away
with the specified cleaning cloth.
For other stains than the above, wipe the stains away with
the specified cloth into which a cleaning liquid has been
soaked.
Cleaning liquid .................... LENS LUSTER (Manufactured by Edmund Scientific
Co.), etc.
HOW TO CLEAN SCREEN
When cleaning the screen, use a soft cloth so as not to
damage the screen.
1. Wipe the screen with a dry cloth to remove moisture on
the screen.
Note : Absolutely do not use detergent, water, alcohol,
benzine, thinner, etc. for cleaning in order not to
wipe away the black print on the surface.
– 15 –
GENERAL ADJUSTMENTS
CIRCUIT CHECKS
HIGH VOLTAGE CHECK
CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on
this chassis. Checking should be done following
the steps below.
1. Connect an accurate high voltage meter to the anode of
the picture tube.
2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST to minimum (zero beam current).
3. High voltage must be measured below (B) kV.
Refer to table-1 for high voltage (B).
(See SETTING & ADJUSTING DATA on page 17)
4. Vary the BRIGHTNESS to both extremes to be sure the
high voltage does not exceed the limit under any conditions.
CAUTION:
When the following parts fail, check the High Voltage after
replacing.
Location
No.
Name
Descriptions
50"
T461
C407
C408
C441
C432
C433
Flyback
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
TFB3090AD
4700pF, ±3%
8200pF, ±5%
4700pF, ±3%
8200pF, ±5%
1200pF, ±3%
FS CIRCUIT CHECK
The Fail Safe (FS) circuit check is indispensable for the final
check in servicing. Checking should be done following the
steps below.
1. Turn the receiver on.
2. Temporarily short TP- (R) and TP- (X) on the DEF/POWER
Board with a jumper wire.
Raster and sound will disappear.
3. The receiver must remain in this state even after removing
the jumper wire. This is the evidence that the FS circuit is
functioning properly.
4. To obtain a picture again, temporarily turn the receiver off
and allow the FS circuit more than 5 seconds to reset. Then
turn the receiver on to produce a normal picture.
Troubleshooting Guide for Fail Safe Circuit
Check that the set returns to normal operation when
pin 12 of Z801 is grounded with jumper wire.
YES
NO
Check the voltage across
Capacitor C419 is
approximately (C) volts.
Refer to table –3 for
fall safe voltage (C) .
ANODE VOLTAGE MEASURING METHOD
CAUTION: Take extra precaution when measuring this high
voltage. High voltages are also present in
surrounding circuit boards (CRT DRIVE assembly, DEFLECTION assembly, and POWER
SUPPLY assembly).
YES
Faulty power
circuit or horizontal circuit.
(See SETTING & ADJUSTING
DATA on page 17)
NO
1. Disconnect the FBT anode cable as outlined below. Measure high voltage at the point where the cable enters the
FBT.
2. Holding the rubber cover firmly, turn it counterclockwise
and check that the lock has been disengaged. (See Fig. b
on page 8.)
3. Determine the extent of the rubber cover before disconnecting the cable.
4. Pull straight up the anode cable to disconnect.
5. When reconnecting the cable, proceed in the reverse order.
After reconnecting, tug on the cable to check that it is secure.
– 16 –
Defective Fail Safe Circuit
CHAPTER 2 SPECIFIC INFORMATIONS
SETTING & ADJUSTING DATA
SAFETY INSTRUCTIONS
HIGH VOLTAGE AT ZERO BEAM:
MAX HIGH VOLTAGE:
(A)
(B)
65"
31.0 kV
32.5 kV
Table-1
SERVICE MODE
Item
RCUT
GCUT
BCUT
RDRV
BDRV
BRTC
TNTC
SCOL
SCNT
HPOS
VPOS
HIT
LIN
VSC
WID
VPS
EYOF
ECNT
Name of adjustment
R CUTOFF
G CUTOFF
B CUTOFF
R DRIVE
B DRIVE
SUB-BRIGHT
SUB-TINT
SUB COLOR
SUB-CONTRAST
HORIZ. POSITION
VERT. POSITION
HEIGHT
V-LINEARITY
V-S CORRECTION
PICTURE WIDTH
V-SHIFT
Y1 BLACK (Q501)
Y1 SCONT (Q501)
Preset
Data
Item
Name of adjustment
Preset
Data
40H
40H
40H
40H
40H
80H
44H
05H
10H
80H
19H
38H
12H
10H
1DH
0AH
07H
16H
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
EIOF
EQOF
PYOF
PIOF
PQOF
VCP
PARA
CNR
HCP
VFC
PHUE
PCNT
PCOL
RGBB
VCEN
TVOP
OPT0
OPT1
R-Y BLACK (Q501)
R-Y BLACK (Q501)
PIP Y OFFSET
PIP I OFFSET
PIP Q OFFSET
V-COMPENSATE
E-W PARABOLA (DPC)
E-W CORNER
H-COMPENSATE
V-F CORRECT
PIP TINT
PIP CONT
PIP COLOR
RGB BRIGHT
V POSITION
TV OPTION
TV SET OPTION
TV SET OPTION
20H
20H
17H
24H
1EH
0AH
17H
08H
00H
00H
40H
10H
15H
54H
70H
08H
50H
05H
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
18H
←
0DH
Table-2
CIRCUIT CHECKS
HIGH VOLTAGE DET
Table-3
– 17 –
(C)
8.7 V
SPECIFIC INFORMATIONS
ADJUSTING ITEMS AND DATA IN THE SERVICE MODE:
LOCATION OF CONTROLS
TV front
SPECIFIC INFORMATIONS
Remort sensor
(Behibd the screen)
Channel ts
Volume T S
Menu tsT S
Automatic Light Sensor
CHs
VOL T
SVOL
POWER
CHt
MENU
POWER
EXIT
TV/VIDEO
Video 3
Video/audio inputs
(behind the door)
Power indicator
TOUCH FOCUS
TV rear
AUDIO CENTER
CHANNEL IN
ANT (75Ω)
ANT-1
ON
OFF
OUT
OUT
L
R
S-VIDEO
VAR
AUDIO
ANT-2
Y
VIDEO
PB
L/
MONO
L
AUDIO
VIDEO
Y
L/
MONO
PB
AUDIO
PR AUDIO
L
R
VIDEO-1 VIDEO-2
IN
P
R
COLOR R
STREAM AUDIO
HD-1
IN
– 18 –
R
OUT
COLOR
STREAM
HD-2
IN
R
Remote Control
RECALL
LIGHT RECALL POWER
TV/CABLE/VCR switch
Set to “TV” to control the TV.
TV
CABLE
VCR
MUTE TV/VIDEO TIMER
MUTE
TIMER
TV/VIDEO
1
2
3
CH
Channel Number
4
5
7
8
100
0
CHANNEL s/t
6
9
CH RTN
VOL
VOLUME s/t
ENT
CH RTN
ZE
SI
ENTER
PIC SIZE
C
FA
VO
RI
ADV/
POP CH
PI
TE
FAVORITE
FAV t
POWER
MENU/
ENTER
FAV
FAV
POP CH s
FAV s
POP CH t
ADV/
POP CH
STOP SOURCE
REC
– 19 –
EXIT
PLAY POP
TV/VCR REW
STILL
EX
IT
s/t/T/S
FF
SWAP
POP functions
(For “TV” and “CABLE” modes)
SPECIFIC INFORMATIONS
LIGHT
PROGRAMMING CHANNEL MEMORY
The channel memory is the list of TV channel numbers the TV tunes in when you press the CHANNEL s or t button.
First, use the TV/CABLE and CH PROGRAM functions to preset all active channels in your area automatically.
If necessary, arrange the preset channels with the ADD/ERASE functions so that you can tune into only desired channels.
Note: If you utilize both ANT-1 and ANT-2 terminals for some model, perform programming channels for each input source.
ADD/ERASE function
SPECIFIC INFORMATIONS
TV/CABLE function
1
Press MENU, then press S or T until the SET UP menu
appears.
After performing the CH PROGRAM function, you can add or
erase specific channels.
2
Press t (or s) until “TV/CABLE” is highlighted.
1
3
Press : or ; to highlight either “TV” or “CABLE”, whichever
you use.
Select the channel you want to erase using the CHANNEL
s or t button, or select the channel you want to add using
the Channel Number buttons.
2
Press MENU, then press S or T until the SET UP menu
appears.
3
Press t (or s) until “ADD/ERASE” is highlighted.
4
Press S or T :
To erase the channel press the button until “ERASE” is
highlighted.
CH PROGRAM function
1
Select “CH PROGRAM” following steps 1 and 2 above.
2
Press : or ; to start channel programming.
The TV will automatically cycle through all the TV or
CABLE channels selected by the TV/CABLE function, and
store active channels in the channel memory.
3
When channel programming is complete, you will see the
message to the right appears.
4
Press CHANNEL s or t to make sure the channel
programming has been done properly.
To add the channel press the button until “ADD” is
highlighted.
5
Repeat steps 1 to 4 for other channels.
You have now completed the channel programming.
Note: The CHANNEL t/s buttons on the TV function as the
t/s buttons while a menu is on the screen.
* Please refer to owner's manual in detail.
– 20 –
CIRCUIT BLOCK DIAGRAM
65H81 Series
BLOCK DIAGRAM
– 21 –
– 22 –
MECHANICAL DISASSEMBLY
1 Speaker Grille Removal
2 Control Panel Removal
3 Front Mask Removal
A001
A201
(A268)
2 screws
A202
(A214)
(A213)
(A224)
K501
K502
K503
8 screws
A102
4 Shield Plate, Lens Removal
5 Mirror Removal
6 Back Board Removal
7 Light Box Removal
5 screws
4 screws
(K111)
(K112)
(K113)
K601
5 screws
5 screws
A160
A424
3 screws
A421
(A424)
6 screws
– 23 –
– 24 –
CHASSIS REPLACEMENT PARTS LIST
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAUTION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.
CAUTION: The international hazard symbols “ ” in the schematic diagram and the parts list designate components
which have special characteristics important for safety and should be replaced only with types identical to those in the
original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.
Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE. Do not degrade the
safety of the receiver through improper servicing.
NOTICE:
• The part number must be used when ordering parts, in order to assist in processing, be sure to include the Model
number and Description.
* mark is no longer available after the end of the production.
Models : 65H81
Capacitors ............. CD : Ceramic Disk
PF : Plastic Film
EL : Electrolytic
Resistors ............... CF : Carbon Film
CC : Carbon Composition
MF : Metal Film
OMF : Oxide Metal Film
VR : Variable Resistor
FR : Fusible Resistor
(All CD and PF capacitors are ±5%, 50V and all resistors, ±5%, 1/6W unless otherwise noted.)
Location
Parts No.
No.
Location
Parts No.
No.
Description
CAPACITORS
C102
C105
C106
C107
C112
C115
C117
C201
C205
24665221
24100102
24669479
24666221
24665221
24100102
24666221
24092730
24206229
C207
C208
C209
C211
C212
C221
C301
C302
C303
C304
C305
C306
C307
C308
C309
C311
C312
C313
C315
C321
C322
C323
C324
C325
C326
C327
C328
C329
24105100
24105100
24105100
24092730
24666100
24503041
24617820
24669101
24109473
24503053
24082057
24082260
24109333
24617820
24693473
24109471
24666100
24666220
24619071
24503041
24567224
24567224
24073053
24503041
24503041
24567103
24617912
24567183
ELECTROLYTIC CE04Q 10V 220UF M 3A
CERAMIC CHIP CK73F 50V 1000PF Z
ELECTROLYTIC CE04Q 50V 4.7UF M 3A
ELECTROLYTIC CE04Q 16V 220UF M 3A
ELECTROLYTIC CE04Q 10V 220UF M 3A
CERAMIC CHIP CK73F 50V 1000PF Z
ELECTROLYTIC CE04Q 16V 220UF M 3A
CERAMIC CHIP CK73B
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
CERAMIC CHIP CC73CH 50V 10PF D
CERAMIC CHIP CC73CH 50V 10PF D
CERAMIC CHIP CC73CH 50V 10PF D
CERAMIC CHIP CK73B
ELECTROLYTIC CE04Q 10V 10UF M 3A
MT PLA CAP 63V 0.1UF J
ELECTROLYTIC CE04P 50V 100UF M 11L 3D
ELECTROLYTIC CE04Q 50V 100UF M 3A
CERAMIC CHIP CK73B 25V 47000PFK
MT PLA CAP 63V 1.0UF J
PLASTIC FILM CF922 M 100V 220000PF J
PLASTIC FILM CQ922 M 100V 4700PF J
CERAMIC CHIP CK73B 25V 33000PFK
ELECTROLYTIC CE04P 50V 100UF M 11L 3D
PLASTIC FILM CQ921 M 100V 0.047MF J
CERAMIC CHIP CK73B 50V 470PF K
ELECTROLYTIC CE04Q 10V 10UF M 3A
ELECTROLYTIC CE04Q 16V 22UF M 3A
MENNJISSOU, 2.2U UWX1H2R2MCR1
MT PLA CAP 63V 0.1UF J
PLASTIC FILM, 50V 0.22UF J
PLASTIC FILM, 50V 0.22UF J
ELECTROLYTIC CE04P 25V 100UF M 3A
MT PLA CAP 63V 0.1UF J
MT PLA CAP 63V 0.1UF J
PLASTIC FILM CF92 M 50V 10000PF J
ELECTROLYTIC CE04CH 50V 2.2UF K 3A LI
PLASTIC FILM CF92 M 50V 18000PF J
– 25 –
C331
C332
C333
C334
C335
C336
C337
C338
C339
C341
C342
C343
C344
C345
C346
C347
24212102
24073020
24567103
24591102
24567474
24503041
24212101
24073020
24666101
24591222
24591222
24667101
24567393
24503041
24669100
24085946
C348
C349
C351
C352
C353
C354
C355
C356
C357
C401
C402
C402
C403
C404
C405
C406
* C407
* C408
C410
C410
C411
C412
24567224
24567224
24503041
24669229
24669010
24567823
24567563
24665101
24073037
24214332
24092463
24214391
24676220
24619071
24567124
24109223
24082608
24820822
24105221
24095900
24678220
24828823
Description
CERAMIC DISK CK45 B 50V 1000PF K
ELECTROLYTIC CE04P 10V 1000UF M 3A
PLASTIC FILM CF92 M 50V 10000PF J
PLASTIC FILM, 50V 1000PF J
PLASTIC FILM, 50V 0.47UF J
MT PLA CAP 63V 0.1UF J
CERAMIC DISK CK45 B 50V 100PF K
ELECTROLYTIC CE04P 10V 1000UF M 3A
ELECTROLYTIC CE04Q 16V 100UF M 3A
PLASTIC FILM, 50V 2200PF J
PLASTIC FILM, 50V 2200PF J
ELECTROLYTIC CE04Q 25V 100UF M 3A
PLASTIC FILM CF92 M 50V 39000PF J
MT PLA CAP 63V 0.1UF J
ELECTROLYTIC CE04Q 50V 10UF M 3A
ELEC. NONPOLAR CE04R 16V 10UF M
NP 3A
PLASTIC FILM, 50V 0.22UF J
PLASTIC FILM, 50V 0.22UF J
MT PLA CAP 63V 0.1UF J
ELECTROLYTIC CE04Q 50V 2.2UF M 3A
ELECTROLYTIC CE04Q 50V 1.0UF M 3A
PLASTIC FILM CF92 M 50V 82000PF J
PLASTIC FILM CF92 M 50V 56000PF J
ELECTROLYTIC CE04Q 10V 100UF M 3A
ELECTROLYTIC CE04P 16V 47UF M 3A
CERAMIC DISK CK45 B 500V 3300PF K
CERAMIC CHIP CK732B 16V R22UF K
CERAMIC DISK CK45 B 500V 390PF K
ELECTROLYTIC CE04Q 100V 22UF M 3A
MENNJISSOU, 2.2U UWX1H2R2MCR1
PLASTIC FILM CF92 M 50V R12UF J
CERAMIC CHIP CK73B 25V 22000PF K
PLASTIC FILM, 1800VH 4700PF H
PLASTIC FILM CQ92 T 630V 8200PF J
CERAMIC CHIP CC73CH 50V 220PF J
PLASTIC FILM M 100V 3.3UFK
ELECTROLYTIC, 200V 22UF M
PLASTIC FILM CQ92 T 200V 82000PF J
SPECIFIC INFORMATIONS
• The PC board assembly with
SPECIFIC INFORMATIONS
Location
Parts No.
No.
C413
* C414
C415
C416
* C417
C418
C420
C421
C422
C423
C424
C426
C427
C428
C429
C431
* C432
* C433
C434
C435
C436
C437
C438
C439
* C441
C451
C452
C453
C454
C455
C456
24214221
24082647
24092484
24095716
24082648
24679330
24503041
24640908
24591102
24211222
24828473
24591153
24567123
24591102
24567333
24591102
24820822
24082594
24073057
24503041
24503041
24666331
24666101
24591223
24082608
24567223
24073040
24109223
24797010
24109103
24085903
C457
C458
C459
C460
C462
C463
C464
C465
C467
24669010
24073039
24100104
24109103
24105101
24109103
24109103
24109103
24085903
C469
C471
C472
C473
C474
C475
C476
C477
C478
C479
C481
C482
C483
C484
C485
C486
C487
C488
C489
C491
C493
C496
C497
24073034
24503041
24436100
24503041
24501561
24501272
24669479
24567103
24591822
24669229
24669229
24501272
24501102
24503041
24666331
24567103
24501151
24503041
24666331
24591332
24436220
24567474
24073039
Location
Parts No.
No.
Description
CERAMIC DISK CK45 B 500V 220PF K
PLASTIC FILM CF92 T 400V R27UF J
CERAMIC DISK CK45B1 2KV 1500PF K
FILM 250V 1R5UF K
MT PLA CAP T 400V 304J
ELECTROLYTIC CE04Q 250V 33UF M 3A
MT PLA CAP 63V 0.1UF J
ELECTROLYTIC CE04H 160V 33UF M 3A LI
PLASTIC FILM, 50V 1000PF J
CERAMIC DISC CK45B 2KV 2200PFK
PLASTIC FILM CQ92 T 200V 47000PF J
PLASTIC FILM, 50V 0.015MF J
PLASTIC FILM, 50V 12000PF J
PLASTIC FILM, 50V 1000PF J
PLASTIC FILM CF92 M 50V 33000PF J
PLASTIC FILM, 50V 1000PF J
PLASTIC FILM CQ92 T 630V 8200PF J
PLASTIC FILM CF92 T 1800VH 1200PF H
ELECTROLYTIC CE04P 25V 1000UF M 3A
MT PLA CAP 63V 0.1UF J
MT PLA CAP 63V 0.1UF J
ELECTROLYTIC CE04Q 16V 330UF M 3A
ELECTROLYTIC CE04Q 16V 100UF M 3A
PLASTIC FILM, 50V 0.022MF J
PLASTIC FILM, 1800VH 4700PF H
PLASTIC FILM, 50V 22000PF J
ELECTROLYTIC CE04P 16V 330UF M 3
CERAMIC CHIP CK73B 25V 22000PF K
ELECTROLYTIC CE04G 50V 1.0UF M
CERAMIC CHIP CK73B 50V 10000PF K
ELEC. NONPOLAR CE04R 50V 1.0UF M
NP 3A
ELECTROLYTIC CE04Q 50V 1.0UF M 3A
ELECTROLYTIC CE04P 16V 220UF M 3A
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B 50V 10000PF K
ELEC. NONPOLAR CE04R 50V 1.0UF M
NP 3A
ELECTROLYTIC CE04P 16V 10UF M 3A
MT PLA CAP 63V 0.1UF J
CERAMIC DISC CC45SL 50V SL 10PF C
MT PLA CAP 63V 0.1UF J
PLASTIC FILM, 50V 560 PF J
PLASTIC FILM, 50V 27OO PF J
ELECTROLYTIC CE04Q 50V 4.7UF M 3A
PLASTIC FILM CF92 M 50V 10000PF J
PLASTIC FILM, 50V 8200PF J
ELECTROLYTIC CE04Q 50V 2.2UF M 3A
ELECTROLYTIC CE04Q 50V 2.2UF M 3A
PLASTIC FILM, 50V 27OO PF J
PLASTIC CAP T 50V 102J
MT PLA CAP 63V 0.1UF J
ELECTROLYTIC CE04Q 16V 330UF M 3A
PLASTIC FILM CF92 M 50V 10000PF J
CAPACITOR 50V 151J
MT PLA CAP 63V 0.1UF J
ELECTROLYTIC CE04Q 16V 330UF M 3A
PLASTIC FILM, 50V 3300PF J
CEREAMIC DISC CC45SL 50V 22PF J
PLASTIC FILM, 50V 0.47UF J
ELECTROLYTIC CE04P 16V 220UF M 3A
– 26 –
C498
C501
C502
C503
C504
C505
C506
C507
C508
C509
C509
C510
C510
C511
C511
C512
C513
C513
C514
C518
C524
C525
C526
C527
C528
C529
C529
C530
C531
C532
C535
C536
C537
C547
C551
C552
C553
C554
C555
C556
C563
24073084
24109103
24092730
24619151
24109222
24105120
24105120
24105120
24100104
24619157
24666101
24092730
24666101
24619157
24109103
24092463
24100104
24109103
24619040
24666100
24092730
24092730
24092730
24092730
24092730
24092730
24109103
24669010
24666101
24666100
24092730
24109103
24109103
24109103
24100104
24100104
24100104
24100104
24100104
24100104
24206229
C564
C565
24666100
24206229
C566
24206229
C567
C568
C569
C570
C601
C602
C603
C604
C605
C606
C607
C608
C609
C610
C611
C612
C661
24109103
24109103
24109103
24669010
24109102
24109102
24669100
24669100
24667470
24667470
24503041
24503041
24669102
24669102
24667470
24666221
24206010
Description
ELECTROLYTIC CE04P 50V 4.7UF M 3A
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B
MENJISSOU TYP 6.3V470U
CERAMIC CHIP CK73B 50V 2200PF K
CERAMIC CHIP CC73CH 50V 12PF J
CERAMIC CHIP CC73CH 50V 12PF J
CERAMIC CHIP CC73CH 50V 12PF J
CERAMIC CHIP CK73F 25V 100000PF Z
MENJISSOU TYP 16V100U
ELECTROLYTIC CE04Q 16V 100UF M 3A
CERAMIC CHIP CK73B
ELECTROLYTIC CE04Q 16V 100UF M 3A
MENJISSOU TYP 16V100U
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK732B 16V R22UF K
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73B 50V 10000PF K
ELEC. CHIP CE24W 16V 10UF M 3A
ELECTROLYTIC CE04Q 10V 10UF M 3A
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B 50V 10000PF K
ELECTROLYTIC CE04Q 50V 1.0UF M 3A
ELECTROLYTIC CE04Q 16V 100UF M 3A
ELECTROLYTIC CE04Q 10V 10UF M 3A
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
ELECTROLYTIC CE04Q 10V 10UF M 3A
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B 50V 10000PF K
ELECTROLYTIC CE04Q 50V 1.0UF M 3A
CERAMIC CHIP CK73B 50V 1000PF K
CERAMIC CHIP CK73B 50V 1000PF K
ELECTROLYTIC CE04Q 50V 10UF M 3A
ELECTROLYTIC CE04Q 50V 10UF M 3A
ELECTROLYTIC CE04Q 25V 47UF M 3A
ELECTROLYTIC CE04Q 25V 47UF M 3A
MT PLA CAP 63V 0.1UF J
MT PLA CAP 63V 0.1UF J
ELECTROLYTIC CE04Q 50V 1000UF M 3A
ELECTROLYTIC CE04Q 50V 1000UF M 3A
ELECTROLYTIC CE04Q 25V 47UF M 3A
ELECTROLYTIC CE04Q 16V 220UF M 3A
ELECTROLYTIC CE04WS 50V 1.0UF M
7L 3A
C662
24206010
C663
24206010
C664
C665
C666
24669220
24109103
24206010
C667
C680
C681
C682
C683
C690
C705
24794100
24669471
24666100
24092538
24092538
24109103
24206479
C707
C712
C713
C715
C717
C718
C719
C720
C721
C726
C760
C761
C762
C765
C766
C767
C768
C769
C770
C771
C780
C781
C782
C784
C786
C787
C788
C789
C790
C791
C792
C801
C809
C810
C811
C812
C813
C830
C831
C832
C833
C834
C835
C836
C840
C842
C851
C852
C853
24797470
24797470
24790470
24214472
24214472
24666470
24435560
24790220
24666470
24212102
24797470
24212102
24797470
24214472
24214472
24790470
24666470
24666470
24435560
24790220
24797470
24212102
24797470
24214472
24214472
24790470
24666470
24666470
24435560
24790220
24669229
24082001
24086067
24086067
24092597
24092597
24092597
24073037
24503047
24073038
24503047
24073037
24503047
24073015
24073058
24073001
24073073
24073094
24073057
Location
Parts No.
No.
Description
ELECTROLYTIC CE04WS 50V 1.0UF M
7L 3A
ELECTROLYTIC CE04WS 50V 1.0UF M
7L 3A
ELECTROLYTIC CE04Q 50V 22UF M 3A
CERAMIC CHIP CK73B 50V 10000PF K
ELECTROLYTIC CE04WS 50V 1.0UF M
7L 3A
ELECTROLYTIC CE04G 16V 10UF M
ELECTROLYTIC CE04Q 50V 470UF M 3A
ELECTROLYTIC CE04Q 10V 10UF M 3A
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73B 50V 10000PF K
ELECTROLYTIC CE04WS 50V 4.7UF M
7L 3A
ELECTROLYTIC CE04G 50V 47UF M
ELECTROLYTIC CE04G 50V 47UF M
ELECTROLYTIC CE04G 160V 47UF M
CERAMIC DISK CK45 B 500V 4700PF K
CERAMIC DISK CK45 B 500V 4700PF K
ELECTORLYTOC CE04Q 16V 47UF M 3A
PCERA CAP SL 500V 560J
ELECTROLYTIC, 160V 22UF M
ELECTORLYTOC CE04Q 16V 47UF M 3A
CERAMIC DISK CK45 B 50V 1000PF K
ELECTROLYTIC CE04G 50V 47UF M
CERAMIC DISK CK45 B 50V 1000PF K
ELECTROLYTIC CE04G 50V 47UF M
CERAMIC DISK CK45 B 500V 4700PF K
CERAMIC DISK CK45 B 500V 4700PF K
ELECTROLYTIC CE04G 160V 47UF M
ELECTORLYTOC CE04Q 16V 47UF M 3A
ELECTORLYTOC CE04Q 16V 47UF M 3A
PCERA CAP SL 500V 560J
ELECTROLYTIC, 160V 22UF M
ELECTROLYTIC CE04G 50V 47UF M
CERAMIC DISK CK45 B 50V 1000PF K
ELECTROLYTIC CE04G 50V 47UF M
CERAMIC DISK CK45 B 500V 4700PF K
CERAMIC DISK CK45 B 500V 4700PF K
ELECTROLYTIC CE04G 160V 47UF M
ELECTORLYTOC CE04Q 16V 47UF M 3A
ELECTORLYTOC CE04Q 16V 47UF M 3A
PCERA CAP SL 500V 560J
ELECTROLYTIC, 160V 22UF M
ELECTROLYTIC CE04Q 50V 2.2UF M 3A
MT PLA CAP M AC125V 474M
ELECTROLYTIC 692Q 200V 1000UF M 3F
ELECTROLYTIC 692Q 200V 1000UF M 3F
CERAMIC DISC CK45E AC250V 4700PF M
CERAMIC DISC CK45E AC250V 4700PF M
CERAMIC DISC CK45E AC250V 4700PF M
ELECTROLYTIC CE04P 16V 47UF M 3A
MT PLA CAP 63V 0.33UF J
ELECTROLYTIC CE04P 16V 100UF M 3A
MT PLA CAP 63V 0.33UF J
ELECTROLYTIC CE04P 16V 47UF M 3A
MT PLA CAP 63V 0.33UF J
ELECTROLYTIC CE04P 10V 47UF M 3A
ELECTROLYTIC CE04P 25V 2200UF M 3A
ELECTROLYTIC CE04P 6.3V 100UF M 3A
ELECTROLYTIC CE04P 35V 2200UF M 3A
ELECTROLYTIC CE04P 50V 1000UF M 3A
ELECTROLYTIC CE04P 25V 1000UF M 3A
C854
C857
C858
C860
C863
C864
C866
C867
C868
C869
C870
C871
C872
C873
C874
C876
C881
C882
C883
C884
C890
C894
C895
C898
C901
C902
C904
C907
C908
C909
C911
C912
C914
C915
C916
C917
C918
C919
C921
C922
C923
C926
C927
C928
C929
C961
C962
C963
C964
C967
C5001
C5002
C5003
C5004
C5005
C5013
C5014
C5023
C5024
C5030
C5031
C7704
C7706
C7708
C7709
– 27 –
24073092
24073060
24073060
24214103
24503045
24092474
24503053
24591472
24073067
24678229
24082890
24092484
24092478
24503045
24212102
24503049
24678478
24073035
24082229
24086916
24073095
24073058
24073044
24092398
24211102
24794101
24436561
24214101
24436390
24794221
24211102
24794101
24436681
24679330
24794102
24214101
24503041
24794221
24211102
24794101
24436681
24214101
24503041
24203100
24794221
24763102
24203100
24503041
24503041
24436331
24619046
24092730
24092515
24092515
24092730
24092538
24092538
24092538
24092538
24619040
24092730
24667101
24503047
24105150
24105150
Description
ELECTROLYTIC CE04P 50V 330UF M 3A
ELECTROLYTIC CE04P 25V 4700UF M 3A
ELECTROLYTIC CE04P 25V 4700UF M 3A
CERAMIC DISK CK45 B 500V 10000PF K
MT PLA CAP 63V 0.22UF J
CERAMIC DISK CK45B1 2KV 220PF K
MT PLA CAP 63V 1.0UF J
PLASTIC FILM, 50V 4700PF J
ELECTROLYTIC CE04P 35V 47UF M 3A
ELECTROLYTIC CE04Q 200 2.2UF M 3A
PLASTIC FILM CQ92 T 800V 82000PF J
CERAMIC DISK CK45B1 2KV 1500PF K
CERAMIC DISK CK45B1 2KV 470PF K
MT PLA CAP 63V 0.22UF J
CERAMIC DISK CK45 B 50V 1000PF K
MT PLA CAP 63V 0.47UF J
ELECTROLYTIC CE04Q 200V 0.47UF M 3A
ELECTROLYTIC CE04P 16V 22UF M 3A
PLASTIC FILM, 0.1MFD, 250V
ELECTROLYTIC CE692R 160V 330UF M 3D
ELECTROLYTIC CE04P 50V 2200UF M 3A
ELECTROLYTIC CE04P 25V 2200UF M 3A
ELECTROLYTIC CE04P 16V 3300UF M 3A
24092398A NI TOOITSU 25V 100000pF Z
CERAMIC DISC CK45 B 2KV1000PF K
ELECTROLYTIC CE04G 16V 100UF M
CERAMIC DISC CC45 SL 50V560PF J
CERAMIC DISK CK45 B 500V 100PF K
CERAMIC DISC CC45SL 50V 39PFJ
ELECTROIYTIC CE04G 16V 220UF M
CERAMIC DISC CK45 B 2KV1000PF K
ELECTROLYTIC CE04G 16V 100UF M
CERAMIC DISC CC45SL 50V 680PF J
ELECTROLYTIC CE04Q 250V 33UF M 3A
ELECTROLYTIC CE04G 16V 1000UF M
CERAMIC DISK CK45 B 500V 100PF K
MT PLA CAP 63V 0.1UF J
ELECTROIYTIC CE04G 16V 220UF M
CERAMIC DISC CK45 B 2KV1000PF K
ELECTROLYTIC CE04G 16V 100UF M
CERAMIC DISC CC45SL 50V 680PF J
CERAMIC DISK CK45 B 500V 100PF K
MT PLA CAP 63V 0.1UF J
ELECTORLYTIC CE04WS 16V 10UF M 7L 3A
ELECTROIYTIC CE04G 16V 220UF M
ELECTROLYTIC CE04G 16V 1000UF M
ELECTORLYTIC CE04WS 16V 10UF M 7L 3A
MT PLA CAP 63V 0.1UF J
MT PLA CAP 63V 0.1UF J
CERAMIC DISC CC45 SL 50V330PF J
“MENNJISSOU, 470U UWX1C470MCR1
CERAMIC CHIP CK73B
CHIP 16V F 475Z CK733F1C475Z
CHIP 16V F 475Z CK733F1C475Z
CERAMIC CHIP CK73B
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
ELEC. CHIP CE24W 16V 10UF M 3A
CERAMIC CHIP CK73B
ELECTROLYTIC CE04Q 25V 100UF M 3A
MT PLA CAP 63V 0.33UF J
CERAMIC CHIP CC73CH 50V 15PF J
CERAMIC CHIP CC73CH 50V 15PF J
SPECIFIC INFORMATIONS
Location
Parts No.
No.
SPECIFIC INFORMATIONS
Location
Parts No.
No.
C7710
C7711
C7712
C7713
C7714
C7715
C7716
C7717
C7718
C7719
C7721
C7722
C7724
C7725
C7726
C7727
C7729
C7730
C7732
C7733
C7735
C7736
C7737
C7738
C7740
C7741
C7755
C7757
C7766
C7767
C7768
C7769
C7770
C7772
C7774
C7776
C7779
C7780
C7783
C7791
C7792
C7793
C7794
C7795
C7796
C7797
C7798
C7810
C7811
C7812
C7815
C7817
C7818
C7819
C7820
C7822
C9100
C9200
CA04
CA05
CA06
CA07
CA08
CA14
CA18
24105150
24105150
24105150
24105150
24105150
24105150
24105150
24105150
24105150
24105150
24105102
24105331
24669101
24669101
24105101
24105331
24105102
24105331
24105331
24105331
24669101
24669101
24105102
24105331
24105331
24105331
24667101
24503047
24667221
24667101
24667101
24109103
24667101
24567334
24105331
24667100
24105331
24105471
24105471
24667471
24109472
24503041
24503041
24109223
24669221
24667471
24669221
24105471
24105471
24109103
24591223
24109332
24109102
24109102
24109332
24503053
24436331
24436331
24109103
24109103
24109392
24109392
24109103
24666100
24666470
Location
Parts No.
No.
Description
CERAMIC CHIP CC73CH 50V 15PF J
CERAMIC CHIP CC73CH 50V 15PF J
CERAMIC CHIP CC73CH 50V 15PF J
CERAMIC CHIP CC73CH 50V 15PF J
CERAMIC CHIP CC73CH 50V 15PF J
CERAMIC CHIP CC73CH 50V 15PF J
CERAMIC CHIP CC73CH 50V 15PF J
CERAMIC CHIP CC73CH 50V 15PF J
CERAMIC CHIP CC73CH 50V 15PF J
CERAMIC CHIP CC73CH 50V 15PF J
CERAMIC CHIP CC73CH 25V 1000PF J
CERAMIC CHIP CC73CH 50V 330pF J
ELECTROLYTIC CE04Q 50V 100UF M 3A
ELECTROLYTIC CE04Q 50V 100UF M 3A
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 330pF J
CERAMIC CHIP CC73CH 25V 1000PF J
CERAMIC CHIP CC73CH 50V 330pF J
CERAMIC CHIP CC73CH 50V 330pF J
CERAMIC CHIP CC73CH 50V 330pF J
ELECTROLYTIC CE04Q 50V 100UF M 3A
ELECTROLYTIC CE04Q 50V 100UF M 3A
CERAMIC CHIP CC73CH 25V 1000PF J
CERAMIC CHIP CC73CH 50V 330pF J
CERAMIC CHIP CC73CH 50V 330pF J
CERAMIC CHIP CC73CH 50V 330pF J
ELECTROLYTIC CE04Q 25V 100UF M 3A
MT PLA CAP 63V 0.33UF J
ELECTROLYTIC CE04Q 25V 220UF M 3A
ELECTROLYTIC CE04Q 25V 100UF M 3A
ELECTROLYTIC CE04Q 25V 100UF M 3A
CERAMIC CHIP CK73B 50V 10000PF K
ELECTROLYTIC CE04Q 25V 100UF M 3A
PLASTIC FILM CF92 M 50V R33UF J
CERAMIC CHIP CC73CH 50V 330pF J
ELECTROLYTIC CE04Q 16V 10UF M 3A
CERAMIC CHIP CC73CH 50V 330pF J
CERAMIC CHIP CC73CH 50V 470pF J
CERAMIC CHIP CC73CH 50V 470pF J
ELECTROLYTIC CE04Q 25V 470UF M 3A
CERAMIC CHIP CK73B 50V 4700PF K
MT PLA CAP 63V 0.1UF J
MT PLA CAP 63V 0.1UF J
CERAMIC CHIP CK73B 25V 22000PF K
ELECTROLYTIC CE04Q 50V 220UF M 3A
ELECTROLYTIC CE04Q 25V 470UF M 3A
ELECTROLYTIC CE04Q 50V 220UF M 3A
CERAMIC CHIP CC73CH 50V 470pF J
CERAMIC CHIP CC73CH 50V 470pF J
CERAMIC CHIP CK73B 50V 10000PF K
PLASTIC FILM, 50V 0.022MF J
CERAMIC CHIP CK73B 50V 3300PF K
CERAMIC CHIP CK73B 50V 1000PF K
CERAMIC CHIP CK73B 50V 1000PF K
CERAMIC CHIP CK73B 50V 3300PF K
MT PLA CAP 63V 1.0UF J
CERAMIC DISC CC45 SL 50V330PF J
CERAMIC DISC CC45 SL 50V330PF J
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B 50V 3900PF K
CERAMIC CHIP CK73B 50V 3900PF K
CERAMIC CHIP CK73B 50V 10000PF K
ELECTROLYTIC CE04Q 10V 10UF M 3A
ELECTORLYTOC CE04Q 16V 47UF M 3A
– 28 –
CA23
CA25
CA27
CA28
24105101
24100103
24092538
24085970
CA30
24085970
CA31
CA33
CA34
CA37
CA38
CA39
CA42
CA45
CA46
CA49
CA54
CA59
CA60
CA61
CA68
CA69
CA71
CA72
24092538
24100103
24092538
24105101
24105101
24105101
24109392
24105471
24105101
24105101
24092730
24105101
24105101
24666220
24666100
24109103
24105331
24085970
CA73
CA80
CA81
CA82
CA251
CA331
CA611
CA701
CA705
CB01
CB05
CB13
24666100
24503041
24073015
24503049
24073015
24073015
24109103
24092538
24666100
24794470
24666100
24085970
CB14
CB15
CB62
CB90
CB91
CD01
CD02
CD03
CD04
CD05
CD06
CD07
CD08
CD09
CD10
CD12
CD13
CD14
CD15
CD17
CD18
CD42
CD44
CD45
CD46
CD47
24105331
24794100
24105331
24109103
24666100
24797479
24539104
24590472
24797479
24797479
24797479
24797479
24797100
24797220
24797100
24539224
24794470
24590472
24539104
24797479
24763221
24797479
24797479
24503041
24567103
24797478
Description
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CK73F 50V 10000PF Z
CERAMIC CHIP CK73F 10V 1UF Z
ELEC. NONPOLAR CE04J 16V 10UF M
7L NP
ELEC. NONPOLAR CE04J 16V 10UF M
7L NP
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 50V 10000PF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CK73B 50V 3900PF K
CERAMIC CHIP CC73CH 50V 470pF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CK73B
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 100PF J
ELECTROLYTIC CE04Q 16V 22UF M 3A
ELECTROLYTIC CE04Q 10V 10UF M 3A
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CC73CH 50V 330pF J
ELEC. NONPOLAR CE04J 16V 10UF M
7L NP
ELECTROLYTIC CE04Q 10V 10UF M 3A
MT PLA CAP 63V 0.1UF J
ELECTROLYTIC CE04P 10V 47UF M 3A
MT PLA CAP 63V 0.47UF J
ELECTROLYTIC CE04P 10V 47UF M 3A
ELECTROLYTIC CE04P 10V 47UF M 3A
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73F 10V 1UF Z
ELECTROLYTIC CE04Q 10V 10UF M 3A
ELECTORLYTIC CE04G 16V 47UF M
ELECTROLYTIC CE04Q 10V 10UF M 3A
ELEC. NONPOLAR CE04J 16V 10UF M
7L NP
CERAMIC CHIP CC73CH 50V 330pF J
ELECTROLYTIC CE04G 16V 10UF M
CERAMIC CHIP CC73CH 50V 330pF J
CERAMIC CHIP CK73B 50V 10000PF K
ELECTROLYTIC CE04Q 10V 10UF M 3A
ELECTROLYTIC CE04G 50V 4.7UF M
PLASTIC FILM, 50V 0.1UF J
PLASTIC FILM CQ922M 50V 4700PF J
ELECTROLYTIC CE04G 50V 4.7UF M
ELECTROLYTIC CE04G 50V 4.7UF M
ELECTROLYTIC CE04G 50V 4.7UF M
ELECTROLYTIC CE04G 50V 4.7UF M
ELECTROLYTIC CE04G 50V 10UF M
ELECTROLYTIC CE04G 50V 22UF M
ELECTROLYTIC CE04G 50V 10UF M
PLASTIC FILM, 50V 0.22 UF J
ELECTORLYTIC CE04G 16V 47UF M
PLASTIC FILM CQ922M 50V 4700PF J
PLASTIC FILM, 50V 0.1UF J
ELECTROLYTIC CE04G 50V 4.7UF M
ELECTROLYTIC, 16V 220UF M
ELECTROLYTIC CE04G 50V 4.7UF M
ELECTROLYTIC CE04G 50V 4.7UF M
MT PLA CAP 63V 0.1UF J
PLASTIC FILM CF92 M 50V 10000PF J
ELECTROLYTIC CE04G 50V 0.47UF M
CD48
CD49
CD60
CD61
CD63
CD64
CD65
CD66
CD70
CD103
CD104
CD105
CD106
CD107
CD108
CD109
CD110
CD111
CD113
CD114
CD115
CD116
CD117
CD118
CD120
CD121
CD123
CD124
CD125
CD126
CD128
CD129
CD131
CH001
CH004
CH005
CH006
CH007
CH008
CH009
CH010
CH011
CH012
CH013
CH014
CH015
CH016
CH017
CH018
CH019
CH020
CH040
CH041
CH042
CH043
CH044
CH051
CH052
CH053
CH061
CH062
CH063
CH101
CH102
CH120
24590472
24797478
24503041
24763221
24762102
24797479
24797100
24797100
24797100
24797100
24590102
24539124
24539104
24567823
24797010
24797100
24590103
24797100
24797010
24797010
24797010
24590103
24590103
24567273
24763221
24590822
24797100
24797010
24567273
24590822
24797100
24797100
24797100
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24092743
24762221
24763101
24763101
24108101
24108330
24108330
24108330
24108330
24108330
24108330
24100104
24108101
24108101
24108101
24108101
24100104
24100104
24105070
24109103
24092730
24100104
24105070
24105070
24100104
Location
Parts No.
No.
Description
PLASTIC FILM CQ922M 50V 4700PF J
ELECTROLYTIC CE04G 50V 0.47UF M
MT PLA CAP 63V 0.1UF J
ELECTROLYTIC, 16V 220UF M
ELECTROLYTIC CE04G 10V 1000UF M
ELECTROLYTIC CE04G 50V 4.7UF M
ELECTROLYTIC CE04G 50V 10UF M
ELECTROLYTIC CE04G 50V 10UF M
ELECTROLYTIC CE04G 50V 10UF M
ELECTROLYTIC CE04G 50V 10UF M
PLASTIC FILM, 50V 1000PF J
CAPACITOR PLASTEC FILM 50V 124J
PLASTIC FILM, 50V 0.1UF J
PLASTIC FILM CF92 M 50V 82000PF J
ELECTROLYTIC CE04G 50V 1.0UF M
ELECTROLYTIC CE04G 50V 10UF M
PLASTIC FILM, 50V 0.01MF J
ELECTROLYTIC CE04G 50V 10UF M
ELECTROLYTIC CE04G 50V 1.0UF M
ELECTROLYTIC CE04G 50V 1.0UF M
ELECTROLYTIC CE04G 50V 1.0UF M
PLASTIC FILM, 50V 0.01MF J
PLASTIC FILM, 50V 0.01MF J
PLASTIC FILM CF92 M 50V 27000PF J
ELECTROLYTIC, 16V 220UF M
PLASTIC FILM, 50V 8200PF J
ELECTROLYTIC CE04G 50V 10UF M
ELECTROLYTIC CE04G 50V 1.0UF M
PLASTIC FILM CF92 M 50V 27000PF J
PLASTIC FILM, 50V 8200PF J
ELECTROLYTIC CE04G 50V 10UF M
ELECTROLYTIC CE04G 50V 10UF M
ELECTROLYTIC CE04G 50V 10UF M
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 10V 470NF Z
ELECTROLYTIC CE04G 10V 220UF M
ELECTROLYTIC CE04G 16V 100UF M
ELECTROLYTIC CE04G 16V 100UF M
CERAMIC CHIP CC73SL 50V 100PF J
CERAMIC CHIP CC73SL 50V 33PF J
CERAMIC CHIP CC73SL 50V 33PF J
CERAMIC CHIP CC73SL 50V 33PF J
CERAMIC CHIP CC73SL 50V 33PF J
CERAMIC CHIP CC73SL 50V 33PF J
CERAMIC CHIP CC73SL 50V 33PF J
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73SL 50V 100PF J
CERAMIC CHIP CC73SL 50V 100PF J
CERAMIC CHIP CC73SL 50V 100PF J
CERAMIC CHIP CC73SL 50V 100PF J
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 7PF D
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 7PF D
CERAMIC CHIP CC73CH 50V 7PF D
CERAMIC CHIP CK73F 25V 100000PF Z
CH121
CH122
CH123
CH124
CH125
CH126
CH127
CH128
CH129
CH140
CH141
CH142
CH143
CH144
CH145
CH146
CH147
CH148
CH149
CH160
CH161
CH162
CH163
CH164
CH165
CH166
CH167
CH168
CH169
CH170
CH171
CH172
CH173
CH174
CH175
CH176
CH177
CH178
CH179
CH180
CH181
CH182
CH183
CH184
CH185
CH186
CH187
CH188
CH189
CH190
CH191
CH192
CH193
CH194
CH195
CH196
CH197
CH198
CH199
CH200
CH201
CH202
CH203
CH204
CH205
– 29 –
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24108221
24108221
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24108221
24108221
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24108221
24108221
24105561
24105821
24105331
24105102
24105391
24105220
24105391
24105220
24105151
24105102
24105561
24105821
24105391
24105220
24105391
24105220
24105331
24105102
24105151
24105102
24105821
24105561
24105391
24105220
24105331
24105102
24105391
24105220
24105151
24105102
24105561
24105821
24105220
24105391
24105391
24105220
Description
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CHIP
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CC73SL 50V 220PF J
CC73SL 50V 220PF J
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CC73SL 50V 220PF J
CC73SL 50V 220PF J
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CC73SL 50V 220PF J
CC73SL 50V 220PF J
CC73CH 50V 560PF J
CC73CH 25V 820PF J
CC73CH 50V 330pF J
CC73CH 25V 1000PF J
CC73CH 50V 390pF J
CC73CH 50V 22PF J
CC73CH 50V 390pF J
CC73CH 50V 22PF J
CC73CH 50V 150PF J
CC73CH 25V 1000PF J
CC73CH 50V 560PF J
CC73CH 25V 820PF J
CC73CH 50V 390pF J
CC73CH 50V 22PF J
CC73CH 50V 390pF J
CC73CH 50V 22PF J
CC73CH 50V 330pF J
CC73CH 25V 1000PF J
CC73CH 50V 150PF J
CC73CH 25V 1000PF J
CC73CH 25V 820PF J
CC73CH 50V 560PF J
CC73CH 50V 390pF J
CC73CH 50V 22PF J
CC73CH 50V 330pF J
CC73CH 25V 1000PF J
CC73CH 50V 390pF J
CC73CH 50V 22PF J
CC73CH 50V 150PF J
CC73CH 25V 1000PF J
CC73CH 50V 560PF J
CC73CH 25V 820PF J
CC73CH 50V 22PF J
CC73CH 50V 390pF J
CC73CH 50V 390pF J
CC73CH 50V 22PF J
SPECIFIC INFORMATIONS
Location
Parts No.
No.
SPECIFIC INFORMATIONS
Location
Parts No.
No.
CH206
CH207
CH208
CH209
CH210
CH211
CH212
CH213
CH223
CH224
CH225
CH226
CH227
CH228
CH229
CH230
CH231
CH232
CH233
CH234
CH235
CH236
CH237
CH238
CH241
CH247
CH249
CH250
CH301
CH302
CH303
CH304
CH305
CH306
CH307
CH308
CH309
CH310
CH311
CH312
CH313
CH314
CH315
CH316
CH317
CH318
CH319
CH320
CH321
CH322
CH401
CH402
CH403
CH404
CH407
CH408
CH409
CH413
CH414
CR12
CR13
CR14
CR15
CR16
CR17
24105331
24105102
24105151
24105102
24105821
24105561
24105331
24105102
24105391
24105220
24105391
24105220
24105151
24105102
24105561
24105821
24105391
24105220
24105391
24105220
24105331
24105102
24105151
24105102
24100104
24100104
24092730
24092730
24109472
24100104
24100104
24109472
24567104
24567104
24109472
24100104
24100104
24109472
24567104
24567104
24100104
24100104
24567104
24567104
24100104
24567104
24567104
24100104
24763101
24763101
24105220
24105220
24100103
24100103
24100103
24794100
24100103
24100104
24100104
24092730
24092730
24092730
24092730
24092730
24092730
Location
Parts No.
No.
Description
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
PLASTIC FILM,
PLASTIC FILM,
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
PLASTIC FILM,
PLASTIC FILM,
CERAMIC CHIP
CERAMIC CHIP
PLASTIC FILM,
PLASTIC FILM,
CERAMIC CHIP
PLASTIC FILM,
PLASTIC FILM,
CERAMIC CHIP
ELECTROLYTIC
ELECTROLYTIC
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECTROLYTIC
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CC73CH 50V 330pF J
CC73CH 25V 1000PF J
CC73CH 50V 150PF J
CC73CH 25V 1000PF J
CC73CH 25V 820PF J
CC73CH 50V 560PF J
CC73CH 50V 330pF J
CC73CH 25V 1000PF J
CC73CH 50V 390pF J
CC73CH 50V 22PF J
CC73CH 50V 390pF J
CC73CH 50V 22PF J
CC73CH 50V 150PF J
CC73CH 25V 1000PF J
CC73CH 50V 560PF J
CC73CH 25V 820PF J
CC73CH 50V 390pF J
CC73CH 50V 22PF J
CC73CH 50V 390pF J
CC73CH 50V 22PF J
CC73CH 50V 330pF J
CC73CH 25V 1000PF J
CC73CH 50V 150PF J
CC73CH 25V 1000PF J
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73B
CK73B
CK73B 50V 4700PF K
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73B 50V 4700PF K
50V 0.1UF J
50V 0.1UF J
CK73B 50V 4700PF K
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73B 50V 4700PF K
50V 0.1UF J
50V 0.1UF J
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
50V 0.1UF J
50V 0.1UF J
CK73F 25V 100000PF Z
50V 0.1UF J
50V 0.1UF J
CK73F 25V 100000PF Z
CE04G 16V 100UF M
CE04G 16V 100UF M
CC73CH 50V 22PF J
CC73CH 50V 22PF J
CK73F 50V 10000PF Z
CK73F 50V 10000PF Z
CK73F 50V 10000PF Z
CE04G 16V 10UF M
CK73F 50V 10000PF Z
CK73F 25V 100000PF Z
CK73F 25V 100000PF Z
CK73B
CK73B
CK73B
CK73B
CK73B
CK73B
– 30 –
CS03
CS04
24436221
24206010
CS07
CS08
24436221
24206010
CS09
CS10
24436331
24206229
CS11
24206010
CS12
CS13
24436221
24206010
CS14
CS15
CS16
24436221
24436331
24206229
CS21
CS22
CS24
CS25
24436101
24436101
24436331
24206229
CS28
CS29
CS32
CS33
CS34
CS35
24436331
24436331
24203100
24203100
24436331
24206229
CS36
24206229
CS38
24206229
CS43
CS45
CS51
24203100
24203100
24206229
CS52
24206229
CS53
24206229
CS54
24206229
CS55
CS56
CS57
CS58
CS60
CS122
CS123
CS124
CS125
CS652
CS676
CV01
24436331
24436331
24436331
24436331
24503041
24797101
24797470
24797229
24590103
24666220
24109103
24085981
CV03
24085981
CV04
CV05
CV08
CV10
CV13
CV17
24203100
24203100
24666102
24203100
24794100
24203100
Description
CERAMIC DISC CC45 SL 50V 220PF J
ELECTROLYTIC CE04WS 50V 1.0UF M
7L 3A
CERAMIC DISC CC45 SL 50V 220PF J
ELECTROLYTIC CE04WS 50V 1.0UF M
7L 3A
CERAMIC DISC CC45 SL 50V330PF J
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
ELECTROLYTIC CE04WS 50V 1.0UF M
7L 3A
CERAMIC DISC CC45 SL 50V 220PF J
ELECTROLYTIC CE04WS 50V 1.0UF M
7L 3A
CERAMIC DISC CC45 SL 50V 220PF J
CERAMIC DISC CC45 SL 50V330PF J
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
CERAMIC DISC CC45 SL 50V100PF J
CERAMIC DISC CC45 SL 50V100PF J
CERAMIC DISC CC45 SL 50V330PF J
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
CERAMIC DISC CC45 SL 50V330PF J
CERAMIC DISC CC45 SL 50V330PF J
ELECTORLYTIC CE04WS 16V 10UF M 7L 3A
ELECTORLYTIC CE04WS 16V 10UF M 7L 3A
CERAMIC DISC CC45 SL 50V330PF J
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
ELECTORLYTIC CE04WS 16V 10UF M 7L 3A
ELECTORLYTIC CE04WS 16V 10UF M 7L 3A
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
CERAMIC DISC CC45 SL 50V330PF J
CERAMIC DISC CC45 SL 50V330PF J
CERAMIC DISC CC45 SL 50V330PF J
CERAMIC DISC CC45 SL 50V330PF J
MT PLA CAP 63V 0.1UF J
ELECTROLYTIC CE04G 50V 100UF M
ELECTROLYTIC CE04G 50V 47UF M
ELECTROLYTIC CE04G 50V 2.2UF M
PLASTIC FILM, 50V 0.01MF J
ELECTROLYTIC CE04Q 16V 22UF M 3A
CERAMIC CHIP CK73B 50V 10000PF K
ELEC. NONPOLAR CE04J 16V 10UF M
11L NP
ELEC. NONPOLAR CE04J 16V 10UF M
11L NP
ELECTORLYTIC CE04WS 16V 10UF M 7L 3A
ELECTORLYTIC CE04WS 16V 10UF M 7L 3A
ELECTROLYTIC CE04Q 16V 1000UF M 3A
ELECTORLYTIC CE04WS 16V 10UF M 7L 3A
ELECTROLYTIC CE04G 16V 10UF M
ELECTORLYTIC CE04WS 16V 10UF M 7L 3A
CV21
CV22
CV24
CV27
CV29
CV37
CV38
24203100
24203100
24212102
24762471
24763101
24797339
24203101
CV39
CV60
CV61
CV63
CV64
CV65
CV66
CV67
CV68
24212102
24203470
24203470
24109103
24206100
24591122
24436561
24591102
24206010
CV77
CV78
CV100
24763222
24109103
24206229
CV135
CV136
CV137
CV138
CV501
CV505
CW09
CX101
CX102
CX111
CX112
CX113
CX114
CX115
CX116
CX117
CX118
CX121
CX122
CX123
CX124
CX125
CX126
CX127
CX128
CX131
CX132
CX133
CX134
CX135
CX136
CX137
CX141
CX142
CX143
CX144
CX145
CX146
CX147
CX151
CX152
CX153
CX154
24203470
24203470
24203470
24203470
24619157
24109103
24109103
24619046
24619046
24100104
24105181
24105820
24105101
24092616
24100104
24619042
24100104
24100104
24105121
24105151
24105331
24092616
24100104
24619042
24100104
24100104
24105121
24105151
24105331
24092616
24100104
24619042
24100104
24105181
24105820
24105121
24092616
24100104
24619042
24100104
24105121
24105151
24105331
Location
Parts No.
No.
Description
ELECTORLYTIC CE04WS 16V 10UF M 7L
ELECTORLYTIC CE04WS 16V 10UF M 7L
CERAMIC DISK CK45 B 50V 1000PF K
ELECTROLYTIC CE04G 10V 470UF M
ELECTROLYTIC CE04G 16V 100UF M
ELECTROLYTIO CE04G 50V 3.3UF M
ELECTROLYTIC CE04WS 16V 100UF M
7L 3A
CERAMIC DISK CK45 B 50V 1000PF K
ELECTROLYTIC CE04WS 16V 47UF M 7L
ELECTROLYTIC CE04WS 16V 47UF M 7L
CERAMIC CHIP CK73B 50V 10000PF K
ELECTROLYTIC CE04WS 50V 10UF M 7L
PLASTIC FILM, 50V 1200PF J
CERAMIC DISC CC45 SL 50V560PF J
PLASTIC FILM, 50V 1000PF J
ELECTROLYTIC CE04WS 50V 1.0UF M
7L 3A
ELECTROLYTIC CE04G 16V 2200UF M
CERAMIC CHIP CK73B 50V 10000PF K
ELECTROLYTIC CE04WS 50V 2.2UF M
7L 3A
ELECTROLYTIC CE04WS 16V 47UF M 7L
ELECTROLYTIC CE04WS 16V 47UF M 7L
ELECTROLYTIC CE04WS 16V 47UF M 7L
ELECTROLYTIC CE04WS 16V 47UF M 7L
MENJISSOU TYP 16V100U
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B 50V 10000PF K
MENNJISSOU, 470U UWX1C470MCR1
MENNJISSOU, 470U UWX1C470MCR1
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 180PF J
CERAMIC CHIP CC73CH 50V 82PF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CK732B 16V 330000PF K
CERAMIC CHIP CK73F 25V 100000PF Z
ELEC. CHIP CE24W 16V 22UF M 3A
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 120PF J
CERAMIC CHIP CC73CH 50V 150PF J
CERAMIC CHIP CC73CH 50V 330pF J
CERAMIC CHIP CK732B 16V 330000PF K
CERAMIC CHIP CK73F 25V 100000PF Z
ELEC. CHIP CE24W 16V 22UF M 3A
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 120PF J
CERAMIC CHIP CC73CH 50V 150PF J
CERAMIC CHIP CC73CH 50V 330pF J
CERAMIC CHIP CK732B 16V 330000PF K
CERAMIC CHIP CK73F 25V 100000PF Z
ELEC. CHIP CE24W 16V 22UF M 3A
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 180PF J
CERAMIC CHIP CC73CH 50V 82PF J
CERAMIC CHIP CC73CH 50V 120PF J
CERAMIC CHIP CK732B 16V 330000PF K
CERAMIC CHIP CK73F 25V 100000PF Z
ELEC. CHIP CE24W 16V 22UF M 3A
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 120PF J
CERAMIC CHIP CC73CH 50V 150PF J
CERAMIC CHIP CC73CH 50V 330pF J
3A
3A
3A
3A
3A
3A
3A
3A
3A
– 31 –
CX155
CX156
CX157
CX161
CX162
CX163
CX164
CX165
CX166
CX167
CX171
CX172
CX173
CX174
CX175
CX176
CX181
CX182
CX183
CX184
CX185
CX186
CX193
CX205
CX206
CX207
CX221
CX222
CX223
CX224
CX225
CX226
CX227
CX228
CX229
CX230
CX241
CX242
CX243
CX244
CX245
CX246
CX248
CX249
CX250
CX252
CX253
CX257
CX261
CX262
CX263
CX264
CX265
CX266
CX267
CX269
CX270
CX301
CX302
CX303
CX304
CX305
CX306
CX307
CX308
24092616
24100104
24619042
24100104
24105121
24105151
24105331
24092616
24100104
24619042
24100104
24100104
24619070
24619157
24100104
24619157
24105101
24105101
24105101
24105101
24105101
24105101
24092730
24109103
24100104
24100104
24619040
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24619040
24619040
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24619040
24100104
24100104
24100104
24619040
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24619040
24619151
24619151
24100104
24092538
24100104
24100104
24092538
24100104
Description
CERAMIC CHIP CK732B 16V 330000PF K
CERAMIC CHIP CK73F 25V 100000PF Z
ELEC. CHIP CE24W 16V 22UF M 3A
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 120PF J
CERAMIC CHIP CC73CH 50V 150PF J
CERAMIC CHIP CC73CH 50V 330pF J
CERAMIC CHIP CK732B 16V 330000PF K
CERAMIC CHIP CK73F 25V 100000PF Z
ELEC. CHIP CE24W 16V 22UF M 3A
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
MENNJISSOU, 1U 50V UWX1H010MCR1
MENJISSOU TYP 16V100U
CERAMIC CHIP CK73F 25V 100000PF Z
MENJISSOU TYP 16V100U
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
ELEC. CHIP CE24W 16V 10UF M 3A
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
ELEC. CHIP CE24W 16V 10UF M 3A
ELEC. CHIP CE24W 16V 10UF M 3A
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
ELEC. CHIP CE24W 16V 10UF M 3A
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
ELEC. CHIP CE24W 16V 10UF M 3A
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
ELEC. CHIP CE24W 16V 10UF M 3A
MENJISSOU TYP 6.3V470U
MENJISSOU TYP 6.3V470U
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 25V 100000PF Z
SPECIFIC INFORMATIONS
Location
Parts No.
No.
SPECIFIC INFORMATIONS
Location
Parts No.
No.
CX309
CX310
CX311
CX312
CX313
CX314
CX315
CX316
CX317
CX318
CX319
CX320
CX321
CX322
CX323
CX324
CX325
CX326
CX327
CX328
CX329
CX330
CX331
CX332
CX340
CX341
CX342
CX343
CX344
CX345
CX346
CX347
CX348
CX349
CX350
CX351
CX352
CX361
CX362
CX363
CX367
CX368
CX369
CX370
CX371
CX372
CX373
CX374
CX375
CX376
CX377
CX381
CX382
CX383
CX384
CX385
CX386
CX387
CX391
CX431
CX432
CX471
CX473
CX541
CX551
24100104
24100104
24100104
24100104
24100104
24100104
24092538
24092538
24092538
24092538
24092538
24100104
24092538
24100104
24092538
24092538
24092538
24100104
24092538
24092538
24100104
24100104
24092538
24100104
24619148
24100104
24100104
24092538
24092538
24092730
24100104
24092730
24092730
24100104
24092730
24105330
24105330
24100104
24100104
24100104
24100104
24100104
24092538
24619151
24092538
24100104
24092538
24100104
24092538
24100104
24092538
24092538
24092538
24100104
24092538
24100104
24092538
24100104
24100104
24100104
24100104
24100104
24092538
24619040
24100104
Location
Parts No.
No.
Description
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 25V 100000PF
MENNJISSOU TYP 6.3V100U
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73B
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73B
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 10V 1UF Z
MENJISSOU TYP 6.3V470U
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 25V 100000PF
CERAMIC CHIP CK73F 10V 1UF Z
ELEC. CHIP CE24W 16V 10UF M 3A
CERAMIC CHIP CK73F 25V 100000PF
Z
Z
Z
Z
Z
Z
CX552
CX553
CX554
CX555
CX561
CX562
CX564
CX565
CX571
CX572
CX574
CX575
CX601
CX602
CX604
CX605
CX607
CX611
CX612
CX613
CX614
CX615
CX616
CX617
CX618
CX619
CX620
CX621
CX622
CX623
CX624
CX625
CX626
CX627
CX628
CX629
CX630
CX631
CX632
CX633
CX640
CX641
CX642
CX643
CX644
CX645
CX646
CX647
CX670
CX671
CX673
CX674
CX675
CX676
CX691
CX811
CX812
CX821
CX822
CX823
CX824
CX825
CX826
CX827
CX829
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
– 32 –
24105820
24105270
24105560
24100104
24100104
24105101
24105330
24100104
24100104
24105101
24105330
24100104
24619151
24619157
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24619149
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24619040
24100104
24619148
24100104
24100104
24100104
24100104
24105330
24105330
24105100
24105100
24105100
24105221
24105221
24105221
24105221
24105221
Description
CERAMIC CHIP CC73CH 50V 82PF J
CERAMIC CHIP CC73CH 50V 27PF J
CERAMIC CHIP CC73CH 50V 56PF J
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CK73F 25V 100000PF Z
MENJISSOU TYP 6.3V470U
MENJISSOU TYP 16V100U
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
MENNJISSOU TYP 6.3V220U
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
ELEC. CHIP CE24W 16V 10UF M 3A
CERAMIC CHIP CK73F 25V 100000PF Z
MENNJISSOU TYP 6.3V100U
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 10PF D
CERAMIC CHIP CC73CH 50V 10PF D
CERAMIC CHIP CC73CH 50V 10PF D
CERAMIC CHIP CC73CH 50V 220PF J
CERAMIC CHIP CC73CH 50V 220PF J
CERAMIC CHIP CC73CH 50V 220PF J
CERAMIC CHIP CC73CH 50V 220PF J
CERAMIC CHIP CC73CH 50V 220PF J
CX844
CX845
CY21
CY22
CY23
CY24
CY25
CY26
CY27
CY28
CY29
CY32
CY33
CY35
CY36
CY37
CY38
CY39
CY40
CY40
CY41
CY42
CY43
CY44
CY45
CY105
CY186
CY501
CY505
CY601
CY602
CY603
CY604
CY605
CY606
CY621
CY622
CY623
CY624
CY661
CY662
CY663
CY664
CY813
CY822
CY824
CY825
CY826
CY827
CY828
CY829
CY830
CY900
CZ02
CZ03
CZ04
CZ05
CZ06
CZ08
CZ09
CZ10
CZ11
CZ12
CZ13
CZ14
24105221
24105221
24100104
24100104
24619158
24100104
24100104
24100104
24092730
24092730
24092730
24619151
24100104
24100104
24105120
24105120
24105120
24092463
24109222
24206100
24109103
24619071
24092463
24619071
24109223
24105221
24100104
24619157
24109103
24619046
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24105101
24105101
24100104
24100104
24105101
24105101
24092538
24105330
24100104
24092538
24105330
24105330
24105330
24105330
24105330
24619151
24100104
24092730
24105121
24105101
24105330
24100104
24109103
24619157
24100104
24105101
24105101
24105151
Location
Parts No.
No.
Description
CERAMIC CHIP CC73CH 50V 220PF J
CERAMIC CHIP CC73CH 50V 220PF J
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
MENJISSOU TYP 16V220U
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B
MENJISSOU TYP 6.3V470U
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 12PF J
CERAMIC CHIP CC73CH 50V 12PF J
CERAMIC CHIP CC73CH 50V 12PF J
CERAMIC CHIP CK732B 16V R22UF K
CERAMIC CHIP CK73B 50V 2200PF K
ELECTROLYTIC CE04WS 50V 10UF M 7L 3A
CERAMIC CHIP CK73B 50V 10000PF K
MENNJISSOU, 2.2U UWX1H2R2MCR1
CERAMIC CHIP CK732B 16V R22UF K
MENNJISSOU, 2.2U UWX1H2R2MCR1
CERAMIC CHIP CK73B 25V 22000PF K
CERAMIC CHIP CC73CH 50V 220PF J
CERAMIC CHIP CK73F 25V 100000PF Z
MENJISSOU TYP 16V100U
CERAMIC CHIP CK73B 50V 10000PF K
MENNJISSOU, 470U UWX1C470MCR1
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
MENJISSOU TYP 6.3V470U
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73B
CERAMIC CHIP CC73CH 50V 120PF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73B 50V 10000PF K
MENJISSOU TYP 16V100U
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CC73CH 50V 150PF J
– 33 –
CZ28
CZ29
CZ30
CZ31
CZ32
CZ33
CZ34
CZ35
CZ36
CZ37
CZ38
CZ39
CZ40
CZ41
CZ42
CZ43
CZ44
CZ45
CZ46
CZ47
CZ48
CZ49
CZ50
CZ51
CZ52
CZ54
CZ57
CZ58
CZ60
CZ77
CZ96
CZ101
CZ102
CZ103
CZ104
CZ105
CZ106
CZ108
CZ109
CZ111
CZ112
CZ113
CZ114
CZ115
CZ116
CZ117
CZ800
CZ802
CZ804
CZ805
CZ806
CZ809
CZ810
CZ811
CZ812
24109561
24092538
24092730
24092730
24100104
24109102
24100104
24619070
24619151
24100104
24100104
24100104
24100104
24100104
24100104
24100104
24092730
24100104
24100104
24105820
24092730
24092730
24100104
24092730
24092730
24100104
24105181
24105560
24100104
24092730
24105270
24092441
24619157
24100104
24109103
24109103
24109103
24100104
24105101
24109103
24105181
24109103
24109103
24105390
24105470
24105680
24105330
24105330
24105330
24105330
24105330
24105330
24105330
24105330
24105330
Description
CERAMIC CHIP CK73B 50V 560PF K
CERAMIC CHIP CK73F 10V 1UF Z
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73B 50V 1000PF K
CERAMIC CHIP CK73F 25V 100000PF Z
MENNJISSOU, 1U 50V UWX1H010MCR1
MENJISSOU TYP 6.3V470U
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73B
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 82PF J
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73B
CERAMIC CHIP CK73B
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 180PF J
CERAMIC CHIP CC73CH 50V 56PF J
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73B
CERAMIC CHIP CC73CH 50V 27PF J
CHIP CERA CK732F 16V 1UF Z
MENJISSOU TYP 16V100U
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73F 25V 100000PF Z
CERAMIC CHIP CC73CH 50V 100PF J
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CC73CH 50V 180PF J
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CK73B 50V 10000PF K
CERAMIC CHIP CC73CH 50V 39PF J
CERAMIC CHIP CC73CH 50V 47PF J
CERAMIC CHIP CC73CH 50V 68PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
CERAMIC CHIP CC73CH 50V 33PF J
RESISTORS
R101
R150
R151
R152
R171
R172
R173
R174
24383183
24366101
24366562
24366103
24011103
24011273
24011103
24011273
OXIDE RES B 2W 183J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 5.6K OHM J
CARBON FILM, 1/6W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 27K J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 27K J
SPECIFIC INFORMATIONS
Location
Parts No.
No.
SPECIFIC INFORMATIONS
Location
Parts No.
No.
R201
R202
R203
R204
R205
R206
R207
R208
R209
R210
R212
R213
R214
R215
R241
R242
R243
R244
R245
R247
R249
R250
R301
R302
R303
R304
R305
R306
R307
R308
R309
R310
R311
R312
R313
R314
R314
R315
R315
R316
R317
R318
R319
R320
R321
R322
R323
R324
R325
R326
R327
R328
R329
R331
R332
R333
R334
R335
R336
R337
R338
R339
R341
R342
R343
24011101
24011471
24000445
24000445
24011101
24011102
24011101
24011102
24011102
24011102
24011103
24011123
24011222
24011101
24367153
24367333
24367223
24367223
24366124
24366474
24366472
24366472
24011472
24011102
24011102
24011102
24321129
24382151
24322828
24382391
24011471
24011472
24011471
24011103
24011472
24011101
24011103
24011474
24011103
24011103
24011472
24011472
24011472
24011102
24366103
24366101
24366103
24366183
24366113
24366471
24366471
24366562
24366103
24366473
24366821
24366102
24366153
24000245
24000368
24000203
24366103
24366472
24366472
24366103
24366103
Location
Parts No.
No.
Description
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 470 J
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 12K OHM J
METAL FILM CHIP 1/20W 2.2K J
CHIP, METAL FILM, 1/20W 100 OHM J
CARBON FILM, 1/6W 15K OHM G
CARBON FILM, 1/6W 33K OHM G
CARBON FILM, 1/6W 22K OHM G
CARBON FILM, 1/6W 22K OHM G
CARBON FILM, 1/6W 120K OHM J
CARBON FILM, 1/6W 470K OHM J
CARBON FILM, 1/6W 4.7K OHM J
CARBON FILM, 1/6W 4.7K OHM J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
OXIDE METAL FILM, 1/2W 1.2 OHM J
OXIDE FILM 1W 150 J
OXIDE METAL FILM, 1W 0.82 OHM J
OXIDE METAL FILM, 1W 390 OHM J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 470K J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 1K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 18K OHM J
CARBON FILM, 1/6W 11K OHM J
CARBON F1LM, 1/6W 470 OHM J
CARBON F1LM, 1/6W 470 OHM J
CARBON FILM, 1/6W 5.6K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 47K OHM J
CARBON FILM, 1/6W 820 OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 15K OHM J
METAL FILM 1/4W 33K F
METAL FILM, 1/4W 2.7K OHM F
METAL FILM 1/4W 27K F
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 4.7K OHM J
CARBON FILM, 1/6W 4.7K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
R344
R345
R346
R347
R348
R349
R351
R352
R353
R354
R355
R356
R357
R358
R359
R361
R361
R362
R363
R365
R366
R367
R368
R369
R371
R372
R373
R374
R375
R376
R377
R378
R379
R381
R382
R383
R384
R385
R386
* R388
R401
R402
R403
R403
R404
R406
R407
R408
R409
R409
R410
R411
R412
R413
R413
R414
R415
R417
R418
R419
R420
R421
R422
R423
R424
– 34 –
24366123
24366103
24019119
24019119
24000525
24366103
24366153
24366563
24366824
24366273
24366822
24366102
24366100
24366103
24366392
24011183
24366123
24366103
24366103
24366682
24366103
24366103
24366102
24366103
24366823
24366332
24366823
24366104
24366153
24366333
24366103
24366682
24366103
24366102
24366103
24366222
24019090
24000633
24000639
24000141
24011361
24011103
24011272
24553101
24383101
24382222
24381100
24366101
24011102
24555220
24555220
24323479
24366101
24011182
24366272
24366101
24533331
24366101
24366472
24942102
24382473
24377224
24376104
24376104
24322398
Description
CARBON FILM, 1/6W 12K OHM J
CARBON FILM, 1/6W 10K OHM J
METAL FILM, 1/6W 30K OHM J
METAL FILM, 1/6W 30K OHM J
METAL FILM, 1/4W 4.7K OHM F
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 15K OHM J
CARBON FILM, 1/6W 56K OHM J
CARBON FILM, 1/6W 820K OHM J
CARBON FILM, 1/6W 27K OHM J
CARBON FILM, 1/6W 8.2K OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 10 OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 3.9K OHM J
METAL FILM CHIP 1/20W 18K J
CARBON FILM, 1/6W 12K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 6.8K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 82K OHM J
CARBON F1LM, 1/6W 3.3K OHM J
CARBON FILM, 1/6W 82K OHM J
CARBON FILM, 1/6W 100K OHM J
CARBON FILM, 1/6W 15K OHM J
CARBON FILM, 1/6W 33K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 6.8K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 2.2K OHM J
METAL FILM, 1/4W 330K OHM F
METAL FILM, 1/4W 10K OHM F
METAL FILM, 1/4W 22K OHM F
METAL FILM 1/4W 220 F
METAL FILM CHIP 1/20W 360 J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 2.7K J
0XIDE RES B 1W 101J
OXIDE FILM 2W 100. J
OXIDE METAL FILM, 1W 2.2K OHM J
OXIDE FILM 1/2W 10 J
CARBON FILM, 1/6W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
OXIDE RES B 3W 220J
OXIDE RES B 3W 220J
METAL FILM, 2W 4.7 OHM J
CARBON FILM, 1/6W 100 OHM J
METAL FILM CHIP 1/20W 1.8K J
CARBON FILM, 1/6W 2.7K OHM J
CARBON FILM, 1/6W 100 OHM J
FUSIBLE, 2W 330 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 4.7K OHM J
CARBON COMPOSITION, 1/2W 1K OHM J
OXIDE METAL FILM, 1W 47K OHM J
CARBON FILM, 1W 220K OHM J
CABON FILM, 1/2W 10OK OHM J
CABON FILM, 1/2W 10OK OHM J
METAL FILM 1W R39 J
R425
R427
R428
R430
R431
R432
R433
R434
R435
R436
R437
R438
R439
R440
R441
R442
R443
R444
R445
R446
R447
R448
R449
R451
R452
R453
R454
R455
R456
R457
R459
R461
R462
R463
R464
R465
R466
R467
R481
R482
R483
R484
R485
* R486
* R487
R488
R489
R501
R503
R505
R506
R508
R509
R510
R511
R512
R520
R520
R521
R521
R522
R523
R524
R525
R526
24366101
24942102
24310109
24383153
24383102
24376274
24376274
24376274
24366101
24382561
24382561
24382561
24366103
24366103
24366474
24366103
24366562
24366562
24366472
24366103
24366152
24366333
24366223
24366103
24366103
24366472
24366562
24019259
24366224
24366223
24366392
24366103
24366222
24366103
24366332
24366474
24552331
24366472
24322568
24552271
24552151
24366102
24000141
24000360
24000147
24366103
24366100
24011303
24011103
24011152
24011272
24011102
24011102
24011471
24011103
24011103
24011101
24011101
24011101
24011101
24011102
24011101
24011102
24011101
24011102
Location
Parts No.
No.
Description
CARBON FILM, 1/6W 100 OHM J
CARBON COMPOSITION, 1/2W 1K OHM J
METAL FILM, 1/2W 1 OHM J
OXIDE METAL FILM, 2W 15K OHM J
OXIDE RES B 2W 102J
RESISTOR CARBON B 1/2W 274J
RESISTOR CARBON B 1/2W 274J
RESISTOR CARBON B 1/2W 274J
CARBON FILM, 1/6W 100 OHM J
OXIDE METAL FILM, 1W 560 OHM J
OXIDE METAL FILM, 1W 560 OHM J
OXIDE METAL FILM, 1W 560 OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 470K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 5.6K OHM J
CARBON FILM, 1/6W 5.6K OHM J
CARBON FILM, 1/6W 4.7K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 1.5K OHM J
CARBON FILM, 1/6W 33K OHM J
CARBON FILM, 1/6W 22K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 4.7K OHM J
CARBON FILM, 1/6W 5.6K OHM J
FUSIBLE, 1/4W 27 OHM G
CARBON FILM, 1/6W 220K OHM J
CARBON FILM, 1/6W 22K OHM J
CARBON FILM, 1/6W 3.9K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 2.2K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON F1LM, 1/6W 3.3K OHM J
CARBON FILM, 1/6W 470K OHM J
OXIDE METAL FILM, 1/2W 330 OHM J
CARBON FILM, 1/6W 4.7K OHM J
METAL FILM 1W R56 J
OXIDE METAL FILM, 1/2W 270 OHM J
0XIDE RES B 1/2W 151J
CARBON FILM, 1/6W 1K OHM J
METAL FILM 1/4W 220 F
METAL FILM 1/4W 1.2K F
METAL FILM 1/4W 470 F
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10 OHM J
METAL FILM CHIP 1/20W 30K J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 1.5K OHM J
METAL FILM CHIP 1/20W 2.7K J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
R527
R530
R530
R531
R531
R532
R532
R533
R534
R535
R536
R537
R538
R539
R540
R562
R563
R564
R565
R601
R602
R603
R604
R609
R610
R611
R612
R613
R661
R662
R663
R665
R666
R667
R668
R669
R671
R672
R673
R674
R682
R683
R684
R687
R689
R690
R691
R692
R693
R695
R702
R709
R713
R715
R716
R717
R718
R719
R720
R722
R723
R724
R725
R730
R731
– 35 –
24011101
24011103
24011101
24011103
24011101
24011103
24011101
24552471
24552471
24552471
24011272
24011472
24011103
24552221
24011103
24011101
24366560
24366560
24366560
24011332
24011332
24011122
24011122
24366229
24366229
24011392
24011392
24011222
24011101
24011332
24011472
24011223
24011473
24011223
24011473
24011222
24011101
24011332
24011472
24011103
24011473
24011223
24011223
24011103
24011222
24011102
24011103
24011103
24011102
24011103
24552221
24366563
24366273
24366333
24366273
24366333
24366101
24366100
24552331
24552471
24366101
24366151
24366332
24552100
24552331
Description
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
OXIDE METAL FILM, 1/2W 470 OHM J
OXIDE METAL FILM, 1/2W 470 OHM J
OXIDE METAL FILM, 1/2W 470 OHM J
METAL FILM CHIP 1/20W 2.7K J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 10K OHM J
OXIDE METAL FILM, 1/2W 220 OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CARBON FILM, 1/6W 56 OHM J
CARBON FILM, 1/6W 56 OHM J
CARBON FILM, 1/6W 56 OHM J
METAL FILM CHIP 1/20W 3.3K J
METAL FILM CHIP 1/20W 3.3K J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CARBON FILM, 1/6W 2.2 OHM J
CARBON FILM, 1/6W 2.2 OHM J
METAL FILM CHIP 1/20W 3.9K J
METAL FILM CHIP 1/20W 3.9K J
METAL FILM CHIP 1/20W 2.2K J
“CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 3.3K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 22K J
METAL FILM CHIP 1/20W 47K J
METAL FILM CHIP 1/20W 22K J
METAL FILM CHIP 1/20W 47K J
METAL FILM CHIP 1/20W 2.2K J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 3.3K J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 47K J
METAL FILM CHIP 1/20W 22K J
METAL FILM CHIP 1/20W 22K J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 2.2K J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
OXIDE METAL FILM, 1/2W 220 OHM J
CARBON FILM, 1/6W 56K OHM J
CARBON FILM, 1/6W 27K OHM J
CARBON FILM, 1/6W 33K OHM J
CARBON FILM, 1/6W 27K OHM J
CARBON FILM, 1/6W 33K OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 10 OHM J
OXIDE METAL FILM, 1/2W 330 OHM J
OXIDE METAL FILM, 1/2W 470 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 150 OHM J
CARBON F1LM, 1/6W 3.3K OHM J
OXIDE METAL FILM, 1/2W 10 OHM J
OXIDE METAL FILM, 1/2W 330 OHM J
SPECIFIC INFORMATIONS
Location
Parts No.
No.
SPECIFIC INFORMATIONS
Location
Parts No.
No.
R732
R733
R734
R735
R736
R737
R738
R739
R740
R741
R742
R743
R744
R745
R761
R762
R763
R764
R765
R766
R767
R768
R769
R770
R771
R772
R773
R774
R775
R776
R777
R778
R779
R781
R782
R783
R784
R785
R786
R787
R788
R789
R790
R791
R792
R793
R794
R795
R796
R797
R798
R799
R810
R811
R818
R819
R856
R857
R858
R859
R861
R862
R863
R864
R865
24366470
24366683
24366470
24366683
24553330
24366751
24366102
24366751
24553330
24322229
24321229
24554221
24366122
24366122
24366273
24366563
24552331
24366470
24552100
24366470
24552221
24366751
24366122
24553330
24322229
24366683
24366683
24366751
24366122
24553330
24321229
24366102
24554221
24366273
24366563
24552221
24552100
24366470
24366751
24366122
24366683
24366683
24366751
24366122
24366102
24321229
24553330
24322229
24554221
24366470
24552331
24553330
24007513
24007513
24366102
24366103
24366152
24552682
24366102
24382333
24383473
24321689
24366101
24552102
24552390
Location
Parts No.
No.
Description
CARBON FILM, 1/6W 47 OHM J
CARBON FILM, 1/6W 68K OHM J
CARBON FILM, 1/6W 47 OHM J
CARBON FILM, 1/6W 68K OHM J
0XIDE RES B 1W 330J
CARBON FILM, 1/6W 750 OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 750 OHM J
0XIDE RES B 1W 330J
METAL FILM 1W 2R2 J
OXIDE METAL FILM, 1/2W 2.2 OHM J
OXIDE METAL FILM, 2W 220 OHM J
CARBON FILM, 1/6W 1.2K OHM J
CARBON FILM, 1/6W 1.2K OHM J
CARBON FILM, 1/6W 27K OHM J
CARBON FILM, 1/6W 56K OHM J
OXIDE METAL FILM, 1/2W 330 OHM J
CARBON FILM, 1/6W 47 OHM J
OXIDE METAL FILM, 1/2W 10 OHM J
CARBON FILM, 1/6W 47 OHM J
OXIDE METAL FILM, 1/2W 220 OHM J
CARBON FILM, 1/6W 750 OHM J
CARBON FILM, 1/6W 1.2K OHM J
0XIDE RES B 1W 330J
METAL FILM 1W 2R2 J
CARBON FILM, 1/6W 68K OHM J
CARBON FILM, 1/6W 68K OHM J
CARBON FILM, 1/6W 750 OHM J
CARBON FILM, 1/6W 1.2K OHM J
0XIDE RES B 1W 330J
OXIDE METAL FILM, 1/2W 2.2 OHM J
CARBON FILM, 1/6W 1K OHM J
OXIDE METAL FILM, 2W 220 OHM J
CARBON FILM, 1/6W 27K OHM J
CARBON FILM, 1/6W 56K OHM J
OXIDE METAL FILM, 1/2W 220 OHM J
OXIDE METAL FILM, 1/2W 10 OHM J
CARBON FILM, 1/6W 47 OHM J
CARBON FILM, 1/6W 750 OHM J
CARBON FILM, 1/6W 1.2K OHM J
CARBON FILM, 1/6W 68K OHM J
CARBON FILM, 1/6W 68K OHM J
CARBON FILM, 1/6W 750 OHM J
CARBON FILM, 1/6W 1.2K OHM J
CARBON FILM, 1/6W 1K OHM J
OXIDE METAL FILM, 1/2W 2.2 OHM J
0XIDE RES B 1W 330J
METAL FILM 1W 2R2 J
OXIDE METAL FILM, 2W 220 OHM J
CARBON FILM, 1/6W 47 OHM J
OXIDE METAL FILM, 1/2W 330 OHM J
0XIDE RES B 1W 330J
CEMENT 15W 0.62 K
CEMENT 15W 0.62 K
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 1.5K OHM J
OXIDE METAL FILM, 1/2W 6.8K OHM J
CARBON FILM, 1/6W 1K OHM J
OXIDE METAL FILM, 1W 33K OHM J
OXIDE METAL FILM, 2W 47K OHM J
METAL FILM, 1/2W 6.8 OHM J
CARBON FILM, 1/6W 100 OHM J
OXIDE METAL FILM, 1/2W 1K OHM J
0XIDE RES B 1/2W 390J
R866
R867
R868
R869
R870
R871
R872
R873
R898
R900
R901
R902
R903
R904
R905
R906
R908
R909
R910
R911
R913
R914
R915
R916
R917
R918
R919
R920
R921
R922
R923
R924
R925
R926
R927
R928
R929
R930
R931
R932
R935
R936
R937
R938
R941
R942
R943
R944
R945
R948
R949
R951
R952
R953
R954
R956
R959
R961
R962
R963
R964
R965
R966
R967
R968
– 36 –
24366393
24366102
24552470
24366100
24381151
24382680
24377224
24366479
24002000
24000892
24366101
24366331
24942102
24366222
24366330
24366331
24366150
24366330
24322478
24366101
24942102
24366222
24366270
24366331
24366331
24366100
24366270
24366562
24366101
24366331
24942102
24366222
24366390
24366331
24366100
24366100
24366330
24366153
24554153
24554153
24366820
24554153
24554153
24366150
24554153
24554153
24554153
24554153
24366150
24366562
24366153
24554153
24554153
24554153
24554153
24366101
24366150
24366152
24366102
24366100
24366332
24366471
24366331
24366681
24366470
Description
CARBON FILM, 1/6W 39K OHM J
CARBON FILM, 1/6W 1K OHM J
OXIDE METAL FILM, 1/2W 47 OHM J
CARBON FILM, 1/6W 10 OHM J
OXIDE FILM 1/2W 150 J
OXIDE FILM 1W 68 J
CARBON FILM, 1W 220K OHM J
CARDON FILM 1/6W 4.7 J
CARBON COMPOSITION GE 1/2W 3R9M
FUSIBLE, 1W 1.2 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 330 OHM J
CARBON COMPOSITION, 1/2W 1K OHM
CARBON FILM, 1/6W 2.2K OHM J
CARBON FILM, 1/6W 33 OHM J
CARBON FILM, 1/6W 330 OHM J
CARBON FILM, 1/6W 15 OHM J
CARBON FILM, 1/6W 33 OHM J
METAL FILM 1W R47 J
CARBON FILM, 1/6W 100 OHM J
CARBON COMPOSITION, 1/2W 1K OHM
CARBON FILM, 1/6W 2.2K OHM J
CARBON FILM, 1/6W 27 OHM J
CARBON FILM, 1/6W 330 OHM J
CARBON FILM, 1/6W 330 OHM J
CARBON FILM, 1/6W 10 OHM J
CARBON FILM, 1/6W 27 OHM J
CARBON FILM, 1/6W 5.6K OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 330 OHM J
CARBON COMPOSITION, 1/2W 1K OHM
CARBON FILM, 1/6W 2.2K OHM J
CARBON FILM, 1/6W 39 OHM J
CARBON FILM, 1/6W 330 OHM J
CARBON FILM, 1/6W 10 OHM J
CARBON FILM, 1/6W 10 OHM J
CARBON FILM, 1/6W 33 OHM J
CARBON FILM, 1/6W 15K OHM J
OXIDE METAL FILM, 2W 15K OHM J
OXIDE METAL FILM, 2W 15K OHM J
CARBON FILM, 1/6W 82 OHM J
OXIDE METAL FILM, 2W 15K OHM J
OXIDE METAL FILM, 2W 15K OHM J
CARBON FILM, 1/6W 15 OHM J
OXIDE METAL FILM, 2W 15K OHM J
OXIDE METAL FILM, 2W 15K OHM J
OXIDE METAL FILM, 2W 15K OHM J
OXIDE METAL FILM, 2W 15K OHM J
CARBON FILM, 1/6W 15 OHM J
CARBON FILM, 1/6W 5.6K OHM J
CARBON FILM, 1/6W 15K OHM J
OXIDE METAL FILM, 2W 15K OHM J
OXIDE METAL FILM, 2W 15K OHM J
OXIDE METAL FILM, 2W 15K OHM J
OXIDE METAL FILM, 2W 15K OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 15 OHM J
CARBON FILM, 1/6W 1.5K OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 10 OHM J
CARBON F1LM, 1/6W 3.3K OHM J
CARBON F1LM, 1/6W 470 OHM J
CARBON FILM, 1/6W 330 OHM J
CARBON FILM, 1/6W 680 OHM J
CARBON FILM, 1/6W 47 OHM J
K
J
J
J
R969
R970
R971
R972
R973
R974
R975
R976
R977
R978
R983
R984
R985
R986
R987
R991
R992
R995
R2108
R2109
R4005
R4010
R4011
R4012
R4013
R4014
R4015
R4016
R4017
R4018
R4020
R4021
R4022
R4023
R4024
R4025
R4026
R4030
R4031
R4032
R4033
R4034
R4035
R4036
R4402
R4502
R4503
R4504
R4505
R4506
R4507
R4508
R4509
R4510
R4512
R4513
R4514
R4515
R4516
R4517
R4521
R4522
R4523
R4524
R4525
24366683
24366393
24367821
24367471
24367681
24367681
24366561
24367472
24367512
24367391
24366681
24366821
24366821
24366821
24366470
24366562
24366153
24366100
24011101
24011102
24366102
24366102
24366223
24366223
24366103
24366222
24000633
24366105
24000639
24000203
24000370
24000637
24000368
24366472
24000203
24000364
24383470
24366102
24366562
24000639
24000147
24066864
24000372
24366102
24011105
24011472
24011102
24011102
24011223
24011103
24011103
24011102
24011561
24000824
24011103
24011222
24000824
24011682
24011102
24011101
24011102
24011102
24011102
24011103
24011103
Location
Parts No.
No.
Description
CARBON FILM, 1/6W 68K OHM J
CARBON FILM, 1/6W 39K OHM J
CARBON,FILM SB 1/6W 820. G
CARBON FILM, 1/6W 470 OHM G
CARBON FILM, 1/6W 680 OHM G
CARBON FILM, 1/6W 680 OHM G
CARBON FILM, 1/6W 560 OHM J
CARBON FOLM, 1/6W 4.7K OHM G
CARBON FILM, 1/6W 5.1K OHM G
CARBON FILM, 1/6W 390 OHM G
CARBON FILM, 1/6W 680 OHM J
CARBON FILM, 1/6W 820 OHM J
CARBON FILM, 1/6W 820 OHM J
CARBON FILM, 1/6W 820 OHM J
CARBON FILM, 1/6W 47 OHM J
CARBON FILM, 1/6W 5.6K OHM J
CARBON FILM, 1/6W 15K OHM J
CARBON FILM, 1/6W 10 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 22K OHM J
CARBON FILM, 1/6W 22K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 2.2K OHM J
METAL FILM, 1/4W 10K OHM F
CARBON FILM, 1/6W 1M OHM J
METAL FILM, 1/4W 22K OHM F
METAL FILM 1/4W 27K F
METAL FILM 1/4W 3.3K F
METAL FILM 1/4W 15K F
METAL FILM, 1/4W 2.7K OHM F
CARBON FILM, 1/6W 4.7K OHM J
METAL FILM 1/4W 27K F
METAL FILM 1/4W 1.8K F
OXIDE METAL FILM, 2W 47 OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 5.6K OHM J
METAL FILM, 1/4W 22K OHM F
METAL FILM 1/4W 470 F
VARIABLE RESISTOR
METAL FILM 1/4W 3.9K F
CARBON FILM, 1/6W 1K OHM J
METAL FILM CHIP 1/20W 1M J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 22K J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 560 J
JUMPER CHIP, 2125TYPE
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 2.2K J
JUMPER CHIP, 2125TYPE
METAL FILM CHIP 1/20W 6.8K J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
R4527
R4528
R4531
R4532
R4533
R4534
R4535
R4536
R4538
R4539
R4541
R4542
R4545
R4546
R4551
R4552
R4553
R5001
R5002
R5003
R5005
R5006
R5007
R5013
R5014
R5015
R5016
R5023
R5024
R5025
R5026
R5030
R5031
R5040
R5041
R7707
R7708
R7710
R7711
R7712
R7713
R7715
R7716
R7717
R7718
R7720
R7721
R7722
R7723
R7725
R7726
R7727
R7728
R7730
R7731
R7732
R7733
R7735
R7736
R7760
R7761
R7762
R7766
R7767
R7775
– 37 –
24011102
24011102
24011103
24011472
24011331
24011471
24011471
24011472
24011222
24011472
24011471
24011330
24011101
24011101
24011101
24011101
24011101
24011331
24011471
24011222
24011182
24011272
24011222
24011222
24011132
24011332
24011392
24011222
24011132
24011272
24011392
24011103
24011101
24011102
24011472
24011472
24011472
24383221
24547189
24011472
24011472
24383221
24547189
24011472
24011472
24383221
24547189
24011472
24011472
24383221
24547189
24011472
24011472
24383221
24547189
24011472
24011472
24383221
24547189
24011103
24011333
24011103
24011223
24011153
24011333
Description
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 330 J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 2.2K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 33 J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 330 J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 2.2K J
METAL FILM CHIP 1/20W 1.8K J
METAL FILM CHIP 1/20W 2.7K J
METAL FILM CHIP 1/20W 2.2K J
METAL FILM CHIP 1/20W 2.2K J
CHIP, METAL FILM, 1/20W 1.3K OHM J
METAL FILM CHIP 1/20W 3.3K J
METAL FILM CHIP 1/20W 3.9K J
METAL FILM CHIP 1/20W 2.2K J
CHIP, METAL FILM, 1/20W 1.3K OHM J
METAL FILM CHIP 1/20W 2.7K J
METAL FILM CHIP 1/20W 3.9K J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
OXIDE FILM 2W 220 J
FUSIBLE 1W 1R8 J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
OXIDE FILM 2W 220 J
FUSIBLE 1W 1R8 J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
OXIDE FILM 2W 220 J
FUSIBLE 1W 1R8 J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
OXIDE FILM 2W 220 J
FUSIBLE 1W 1R8 J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
OXIDE FILM 2W 220 J
FUSIBLE 1W 1R8 J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
OXIDE FILM 2W 220 J
FUSIBLE 1W 1R8 J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 33K J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 22K J
CHIP, METAL FILM, 1/2OW 15K OHM J
METAL FILM CHIP 1/20W 33K J
SPECIFIC INFORMATIONS
Location
Parts No.
No.
SPECIFIC INFORMATIONS
Location
Parts No.
No.
R7776
R7777
R7778
R7779
R7780
R7781
R7793
R7797
R7799
R7836
R7837
R7841
R7842
R7843
R7844
R7845
R7846
R7847
R7848
R7849
R7861
R7862
R7864
R7865
R7866
R7867
R7868
R7871
R7872
R7880
R7881
R7882
R7883
R7884
R7885
R7886
R7887
R7888
R7889
R7890
R7891
R7892
R7893
R7894
R7895
R7896
R7897
R7898
R7899
R7904
R7906
R7907
R7908
R7909
R7910
R7911
R7912
R7913
R7914
R9501
R9502
R9503
R9504
R9505
R9506
24011472
24011333
24011472
24011102
24011102
24011333
24011123
24011472
24011222
24011472
24011221
24011221
24011103
24011472
24011103
24011472
24011103
24011103
24011472
24011101
24011472
24011472
24011221
24011102
24011102
24011102
24011822
24000358
24011103
24011221
24011472
24011103
24011103
24011103
24011103
24011224
24011562
24011333
24011123
24011471
24011471
24383330
24011101
24011472
24011103
24011221
24011103
24011472
24011221
24000247
24011472
24011223
24011473
24011562
24011222
24011221
24011221
24011221
24381182
24366470
24366470
24366681
24366683
24366393
24366681
Location
Parts No.
No.
Description
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 33K J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 33K J
CHIP, METAL FILM, 1/20W 12K OHM J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 2.2K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 220 J
METAL FILM CHIP 1/20W 220 J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 220 J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 8.2K J
METAL FILM, 1/4W 1K OHM F
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 220 J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 220K J
METAL FILM CHIP 1/20W 5.6K J
METAL FILM CHIP 1/20W 33K J
CHIP, METAL FILM, 1/20W 12K OHM J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 470 J
OXIDE FILM 2W 33. J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 220 J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 220 J
METAL FILM 1/4W 39K F
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 22K J
METAL FILM CHIP 1/20W 47K J
METAL FILM CHIP 1/20W 5.6K J
METAL FILM CHIP 1/20W 2.2K J
METAL FILM CHIP 1/20W 220 J
METAL FILM CHIP 1/20W 220 J
METAL FILM CHIP 1/20W 220 J
OXIDE METAL FILM, 1/2W 1.8K OHM J
CARBON FILM, 1/6W 47 OHM J
CARBON FILM, 1/6W 47 OHM J
CARBON FILM, 1/6W 680 OHM J
CARBON FILM, 1/6W 68K OHM J
CARBON FILM, 1/6W 39K OHM J
CARBON FILM, 1/6W 680 OHM J
R9507
R9601
R9602
R9603
R9604
R9605
R9606
R9607
R9608
R9609
R9610
R9611
R9612
R9613
R9614
R9620
R9701
R9702
R9703
R9705
R9706
R9707
R9708
R9709
R9710
R9711
R9712
R9713
R9714
R9715
RA01
RA02
RA03
RA04
RA05
RA06
RA07
RA08
RA09
RA12
RA13
RA14
RA15
RA16
RA17
RA18
RA21
RA22
RA23
RA26
RA28
RA30
RA32
RA35
RA36
RA37
RA38
RA39
RA40
RA41
RA42
RA43
RA44
RA45
RA46
– 38 –
24366220
24366121
24366682
24366562
24366272
24366682
24366272
24366470
24366681
24366683
24366393
24366681
24366470
24366270
24366300
24366100
24366103
24366103
24366103
24366822
24366682
24366391
24366821
24366151
24366332
24366272
24366222
24366102
24366102
24366102
24011102
24011101
24011101
24011102
24011102
24011102
24011102
24011102
24011102
24011102
24011102
24011103
24011102
24011102
24011101
24011103
24011102
24011682
24011102
24011333
24011101
24011101
24011682
24011152
24011332
24011101
24011101
24011101
24011101
24011332
24011151
24011102
24011102
24011102
24011102
Description
CARBON FILM, 1/6W 22 OHM J
CARBON FILM, 1/6W 120 OHM J
CARBON FILM, 1/6W 6.8K OHM J
CARBON FILM, 1/6W 5.6K OHM J
CARBON FILM, 1/6W 2.7K OHM J
CARBON FILM, 1/6W 6.8K OHM J
CARBON FILM, 1/6W 2.7K OHM J
CARBON FILM, 1/6W 47 OHM J
CARBON FILM, 1/6W 680 OHM J
CARBON FILM, 1/6W 68K OHM J
CARBON FILM, 1/6W 39K OHM J
CARBON FILM, 1/6W 680 OHM J
CARBON FILM, 1/6W 47 OHM J
CARBON FILM, 1/6W 27 OHM J
CARBON FILM, 1/6W 30 OHM J
CARBON FILM, 1/6W 10 OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 8.2K OHM J
CARBON FILM, 1/6W 6.8K OHM J
CARBON FILM, 1/6W 390 OHM J
CARBON FILM, 1/6W 820 OHM J
CARBON FILM, 1/6W 150 OHM J
CARBON F1LM, 1/6W 3.3K OHM J
CARBON FILM, 1/6W 2.7K OHM J
CARBON FILM, 1/6W 2.2K OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 6.8K J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 33K J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 6.8K J
CHIP, METAL FILM, 1/20W 1.5K OHM J
METAL FILM CHIP 1/20W 3.3K J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 3.3K J
CHIP, METAL FILM, 1/20W 150 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
RA49
RA51
RA52
RA54
RA55
RA59
RA60
RA71
RA72
RA72
RA73
RA73
RA74
RA75
RA76
RA76
RA77
RA77
RA78
RA78
RA79
RA79
RA80
RA81
RA021
RA031
RA141
RA161
RA181
RA210
RA211
RA212
RA221
RA361
RA401
RA431
RA703
RA705
RA708
RB01
RB03
RB04
RB05
RB05
RB14
RB15
RB15
RB16
RB17
RB19
RB41
RB41
RB42
RB61
RB62
RB64
RB65
RB81
RB82
RB83
RB84
RB90
RB91
RB92
RB93
24011102
24011101
24011103
24011332
24011102
24011101
24011101
24366273
24011332
24366153
24011471
24366822
24011153
24011153
24011103
24366822
24011103
24366153
24011333
24366273
24011333
24366823
24011101
24011473
24011101
24011101
24011103
24011103
24011103
24011102
24011102
24011102
24366153
24011102
24011471
24011103
24011102
24011103
24011101
24366391
24011330
24366473
24011102
24366102
24011153
24011153
24366471
24011471
24011332
24366470
24366123
24366151
24366153
24011222
24011103
24011332
24011392
24011122
24011123
24011123
24011562
24011392
24011473
24011271
24011271
Location
Parts No.
No.
Description
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 3.3K J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CARBON FILM, 1/6W 27K OHM J
METAL FILM CHIP 1/20W 3.3K J
CARBON FILM, 1/6W 15K OHM J
METAL FILM CHIP 1/20W 470 J
CARBON FILM, 1/6W 8.2K OHM J
CHIP, METAL FILM, 1/2OW 15K OHM J
CHIP, METAL FILM, 1/2OW 15K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CARBON FILM, 1/6W 8.2K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CARBON FILM, 1/6W 15K OHM J
METAL FILM CHIP 1/20W 33K J
CARBON FILM, 1/6W 27K OHM J
METAL FILM CHIP 1/20W 33K J
CARBON FILM, 1/6W 82K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 47K J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CARBON FILM, 1/6W 15K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CARBON FILM, 1/6W 390 OHM J
METAL FILM CHIP 1/20W 33 J
CARBON FILM, 1/6W 47K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CARBON FILM, 1/6W 1K OHM J
CHIP, METAL FILM, 1/2OW 15K OHM J
CHIP, METAL FILM, 1/2OW 15K OHM J
CARBON F1LM, 1/6W 470 OHM J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 3.3K J
CARBON FILM, 1/6W 47 OHM J
CARBON FILM, 1/6W 12K OHM J
CARBON FILM, 1/6W 150 OHM J
CARBON FILM, 1/6W 15K OHM J
METAL FILM CHIP 1/20W 2.2K J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 3.3K J
METAL FILM CHIP 1/20W 3.9K J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 12K OHM J
CHIP, METAL FILM, 1/20W 12K OHM J
METAL FILM CHIP 1/20W 5.6K J
METAL FILM CHIP 1/20W 3.9K J
METAL FILM CHIP 1/20W 47K J
METAL FILM CHIP 1/20W 270 J
METAL FILM CHIP 1/20W 270 J
RB94
RB95
RB96
RB97
RB98
RB031
RB032
RB033
RB051
RB052
RB512
RB551
RB552
RB553
RD02
RD03
RD04
RD05
RD07
RD41
RD42
RD43
RD44
RD45
RD46
RD47
RD61
RD63
RD64
RD65
RD66
RD67
RD68
RD71
RD72
RD106
RD108
RD110
RD111
RD113
RD114
RD115
RD116
RD117
RD120
RH002
RH003
RH004
RH005
RH006
RH007
RH008
RH009
RH041
RH042
RH043
RH044
RH051
RH061
RH062
RH063
RH064
RH170
RH171
RH172
– 39 –
24011222
24011222
24011273
24011273
24011102
24011330
24011330
24011103
24011102
24011332
24011100
24011102
24011102
24011332
24366101
24366105
24366221
24366101
24366101
24366102
24366432
24366114
24366132
24366473
24366513
24366392
24366103
24366101
24366101
24366122
24366821
24366152
24366681
24366223
24366223
24366101
24366101
24366223
24366223
24366101
24366221
24366101
24366101
24366101
24366101
24011473
24011473
24011221
24011221
24011221
24011221
24011221
24011333
24011101
24011101
24011101
24011101
24011222
24011561
24011102
24011103
24011103
24011122
24011122
24011122
Description
METAL FILM CHIP 1/20W 2.2K J
METAL FILM CHIP 1/20W 2.2K J
METAL FILM CHIP 1/20W 27K J
METAL FILM CHIP 1/20W 27K J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 33 J
METAL FILM CHIP 1/20W 33 J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 3.3K J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 3.3K J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 1M OHM J
CARBON FILM, 1/6W 220 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 4.3K OHM J
CARBON,FILM G SB 1/6W 110K J
CARBON FILM, 1/6W 1.3K OHM J
CARBON FILM, 1/6W 47K OHM J
CARBON FILM, 1/6W 51K OHM J
CARBON FILM, 1/6W 3.9K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 1.2K OHM J
CARBON FILM, 1/6W 820 OHM J
CARBON FILM, 1/6W 1.5K OHM J
CARBON FILM, 1/6W 680 OHM J
CARBON FILM, 1/6W 22K OHM J
CARBON FILM, 1/6W 22K OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 22K OHM J
CARBON FILM, 1/6W 22K OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 220 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 100 OHM J
METAL FILM CHIP 1/20W 47K J
METAL FILM CHIP 1/20W 47K J
METAL FILM CHIP 1/20W 220 J
METAL FILM CHIP 1/20W 220 J
METAL FILM CHIP 1/20W 220 J
METAL FILM CHIP 1/20W 220 J
METAL FILM CHIP 1/20W 220 J
METAL FILM CHIP 1/20W 33K J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 2.2K J
METAL FILM CHIP 1/20W 560 J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
SPECIFIC INFORMATIONS
Location
Parts No.
No.
SPECIFIC INFORMATIONS
Location
Parts No.
No.
RH173
RH174
RH175
RH176
RH177
RH178
RH179
RH180
RH181
RH182
RH183
RH184
RH185
RH186
RH187
RH188
RH189
RH190
RH191
RH192
RH193
RH194
RH195
RH196
RH197
RH198
RH199
RH201
RH202
RH207
RH208
RH209
RH210
RH211
RH212
RH301
RH302
RH303
RH304
RH305
RH306
RH307
RH308
RH309
RH310
RH311
RH312
RH313
RH314
RH315
RH316
RH317
RH318
RH319
RH320
RH321
RH322
RH323
RH324
RH325
RH326
RH327
RH328
RH329
RH330
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011122
24011472
24011472
24011331
24011221
24011102
24011102
24011473
24011473
24011684
24011102
24011153
24011153
24011102
24011684
24011684
24011102
24011203
24011203
24011102
24011684
24011474
24011474
24011474
24011474
24011104
24011102
24011104
24011102
24011104
24011102
24011104
24011102
24011333
24011333
24011152
24011103
24011152
24011103
Location
Parts No.
No.
Description
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 330 J
METAL FILM CHIP 1/20W 220 J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 47K J
METAL FILM CHIP 1/20W 47K J
METAL FILM CHIP 1/20W 680K J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/2OW 15K OHM J
CHIP, METAL FILM, 1/2OW 15K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 680K J
METAL FILM CHIP 1/20W 680K J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 20K J
METAL FILM CHIP 1/20W 20K J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 680K J
METAL FILM CHIP 1/20W 470K J
METAL FILM CHIP 1/20W 470K J
METAL FILM CHIP 1/20W 470K J
METAL FILM CHIP 1/20W 470K J
CHIP, METAL FILM, 1/20W 100K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 33K J
METAL FILM CHIP 1/20W 33K J
CHIP, METAL FILM, 1/20W 1.5K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 1.5K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
RH331
RH332
RH333
RH334
RH335
RH336
RH337
RH338
RH339
RH340
RH341
RH342
RH343
RH344
RH345
RH346
RH347
RH401
RH402
RH404
RH405
RH406
RH407
RH408
RH412
RH413
RH414
RH415
RH416
RH417
RH420
RH421
RH422
RH425
RH427
RH428
RH429
RH430
RH431
RR15
RR16
RR17
RR52
RR53
RR54
RR55
RR56
RR57
RR61
RR62
RR63
RS02
RS04
RS06
RS07
RS08
RS09
RS10
RS12
RS21
RS22
RS25
RS26
RS27
RS28
– 40 –
24011152
24011103
24011152
24011103
24011224
24011224
24011224
24011224
24011101
24011101
24011101
24011101
24011102
24011102
24011102
24011102
24011104
24011101
24011101
24011101
24011102
24011473
24011101
24011101
24011103
24011103
24011101
24011101
24011101
24011101
24011332
24011681
24011102
24011331
24011222
24011472
24011105
24011472
24011101
24011680
24011680
24011680
24011102
24011471
24011102
24011471
24011102
24011471
24011222
24011222
24011222
24366472
24366102
24366102
24366103
24366103
24366102
24366102
24366103
24366104
24366104
24366223
24366223
24366471
24366471
Description
CHIP, METAL FILM, 1/20W 1.5K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 1.5K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 220K J
METAL FILM CHIP 1/20W 220K J
METAL FILM CHIP 1/20W 220K J
METAL FILM CHIP 1/20W 220K J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 47K J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 3.3K J
METAL FILM CHIP 1/20W 680 J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 330 J
METAL FILM CHIP 1/20W 2.2K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 1M J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 68 J
METAL FILM CHIP 1/20W 68 J
METAL FILM CHIP 1/20W 68 J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 2.2K J
METAL FILM CHIP 1/20W 2.2K J
METAL FILM CHIP 1/20W 2.2K J
CARBON FILM, 1/6W 4.7K OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 100K OHM J
CARBON FILM, 1/6W 100K OHM J
CARBON FILM, 1/6W 22K OHM J
CARBON FILM, 1/6W 22K OHM J
CARBON F1LM, 1/6W 470 OHM J
CARBON F1LM, 1/6W 470 OHM J
RS29
RS30
RS31
RS32
RS33
RS34
RS35
RS36
RS37
RS40
RS42
RS48
RS49
RS51
RS52
RS53
RS54
RS120
RS121
RS122
RS123
RS124
RS125
RS651
RS652
RS659
RS671
RS672
RS673
RS674
RS675
RS676
RS683
RS685
RV01
RV03
RV04
RV11
RV12
RV13
RV15
RV20
RV21
RV22
RV23
RV24
RV25
RV26
RV31
RV31
RV32
RV32
RV38
RV39
RV50
RV51
RV63
RV64
RV65
RV67
RV74
RV81
RV83
RV84
RV85
24366104
24366104
24366103
24366104
24366222
24366222
24366103
24366103
24366101
24366101
24366101
24366101
24366103
24366103
24366103
24366103
24366103
24552821
24011103
24011103
24011473
24011103
24011103
24011101
24011101
24011103
24000445
24011273
24000445
24011273
24011223
24011101
24011103
24011103
24366472
24366101
24366101
24366100
24366100
24366100
24366222
24366750
24366750
24366750
24366332
24366750
24366750
24366750
24366332
24011222
24366750
24011101
24011184
24011334
24011472
24011101
24366102
24366750
24366750
24366750
24366750
24366472
24366332
24366750
24552181
Location
Parts No.
No.
Description
CARBON FILM, 1/6W 100K OHM J
CARBON FILM, 1/6W 100K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 100K OHM J
CARBON FILM, 1/6W 2.2K OHM J
CARBON FILM, 1/6W 2.2K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
0XIDE RES B 1/2W 821J
CHIP, METAL FILM, 1/20W 10K OHM
CHIP, METAL FILM, 1/20W 10K OHM
METAL FILM CHIP 1/20W 47K J
CHIP, METAL FILM, 1/20W 10K OHM
CHIP, METAL FILM, 1/20W 10K OHM
CHIP, METAL FILM, 1/20W 100 OHM
CHIP, METAL FILM, 1/20W 100 OHM
CHIP, METAL FILM, 1/20W 10K OHM
JUMPER CHIP 1608TYPE
METAL FILM CHIP 1/20W 27K J
JUMPER CHIP 1608TYPE
METAL FILM CHIP 1/20W 27K J
METAL FILM CHIP 1/20W 22K J
CHIP, METAL FILM, 1/20W 100 OHM
CHIP, METAL FILM, 1/20W 10K OHM
CHIP, METAL FILM, 1/20W 10K OHM
CARBON FILM, 1/6W 4.7K OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 10 OHM J
CARBON FILM, 1/6W 10 OHM J
CARBON FILM, 1/6W 10 OHM J
CARBON FILM, 1/6W 2.2K OHM J
CARBON FILM, 1/6W 75 OHM J
CARBON FILM, 1/6W 75 OHM J
CARBON FILM, 1/6W 75 OHM J
CARBON F1LM, 1/6W 3.3K OHM J
CARBON FILM, 1/6W 75 OHM J
CARBON FILM, 1/6W 75 OHM J
CARBON FILM, 1/6W 75 OHM J
CARBON F1LM, 1/6W 3.3K OHM J
METAL FILM CHIP 1/20W 2.2K J
CARBON FILM, 1/6W 75 OHM J
CHIP, METAL FILM, 1/20W 100 OHM
METAL FILM CHIP 1/20W 180K J
METAL FILM CHIP 1/20W 330K J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 100 OHM
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 75 OHM J
CARBON FILM, 1/6W 75 OHM J
CARBON FILM, 1/6W 75 OHM J
CARBON FILM, 1/6W 75 OHM J
CARBON FILM, 1/6W 4.7K OHM J
CARBON F1LM, 1/6W 3.3K OHM J
CARBON FILM, 1/6W 75 OHM J
OXIDE METAL FILM, 1/2W 180 OHM
RV89
RV93
RV97
RV117
RV118
RV119
RV124
RV125
RV126
RV127
RV128
RV140
RV141
RV142
RV143
RV144
RV169
RV178
RV179
RV180
RV181
RV182
RV183
RV184
RV185
RV186
RV510
RV511
RV520
RV521
RV522
RV523
RV524
RV525
RV527
RV529
RV530
RV531
RV532
RV533
RV534
RV544
RV545
RV546
RV550
RV551
RV552
RW10
RW12
RW30
RW31
RW32
RW40
RW45
RX11
RX12
RX103
RX105
RX106
RX107
RX108
RX111
RX112
RX113
RX114
J
J
J
J
J
J
J
J
J
J
J
J
J
– 41 –
24366680
24366101
24366221
24366750
24366750
24366750
24366392
24366123
24366274
24366331
24366472
24366103
24366302
24366103
24366103
24366472
24011102
24011152
24011472
24011472
24011101
24011101
24011101
24011182
24011182
24011182
24011102
24011472
24011472
24011472
24011472
24011561
24011272
24011101
24011101
24011331
24011122
24011122
24011101
24011101
24011101
24011103
24011103
24011103
24011391
24011332
24011272
24011102
24011102
24011102
24011102
24011102
24366182
24366103
24011221
24011221
24000445
24011152
24011822
24011152
24011152
24011470
24871681
24011121
24011471
Description
CARBON FILM, 1/6W 68 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 220 OHM J
CARBON FILM, 1/6W 75 OHM J
CARBON FILM, 1/6W 75 OHM J
CARBON FILM, 1/6W 75 OHM J
CARBON FILM, 1/6W 3.9K OHM J
CARBON FILM, 1/6W 12K OHM J
CARBON,FILM G SB 1/6W 270K J
CARBON FILM, 1/6W 330 OHM J
CARBON FILM, 1/6W 4.7K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 3K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 10K OHM J
CARBON FILM, 1/6W 4.7K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1.5K OHM J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 1.8K J
METAL FILM CHIP 1/20W 1.8K J
METAL FILM CHIP 1/20W 1.8K J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 560 J
METAL FILM CHIP 1/20W 2.7K J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 330 J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 1.2K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 390 J
METAL FILM CHIP 1/20W 3.3K J
METAL FILM CHIP 1/20W 2.7K J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CARBON FILM, 1/6W 1.8K OHM J
CARBON FILM, 1/6W 10K OHM J
METAL FILM CHIP 1/20W 220 J
METAL FILM CHIP 1/20W 220 J
JUMPER CHIP 1608TYPE
CHIP, METAL FILM, 1/20W 1.5K OHM J
METAL FILM CHIP 1/20W 8.2K J
CHIP, METAL FILM, 1/20W 1.5K OHM J
CHIP, METAL FILM, 1/20W 1.5K OHM J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/8W 680 OHM J
METAL FILM CHIP 1/20W 120 J
METAL FILM CHIP 1/20W 470 J
SPECIFIC INFORMATIONS
Location
Parts No.
No.
SPECIFIC INFORMATIONS
Location
Parts No.
No.
RX115
RX116
RX117
RX118
RX119
RX121
RX122
RX123
RX124
RX126
RX127
RX128
RX129
RX131
RX132
RX133
RX134
RX136
RX137
RX138
RX139
RX141
RX142
RX143
RX144
RX145
RX147
RX148
RX149
RX151
RX152
RX153
RX154
RX157
RX158
RX159
RX161
RX162
RX163
RX164
RX167
RX168
RX169
RX171
RX172
RX173
RX174
RX175
RX176
RX177
RX178
RX183
RX184
RX185
RX186
RX187
RX188
RX189
RX190
RX191
RX192
RX193
RX194
RX195
RX197
24011272
24011100
24871331
24000445
24011471
24011470
24871681
24011121
24011471
24011470
24871681
24000445
24011471
24011470
24871681
24011121
24011471
24011470
24871681
24000445
24011471
24011470
24871681
24011121
24011471
24011272
24871331
24000445
24011471
24011470
24871681
24011121
24011471
24871681
24000445
24011471
24011470
24871681
24011121
24011471
24871681
24000445
24011471
24011102
24011102
24011102
24011102
24011471
24011103
24011471
24011471
24011471
24011152
24871271
24011100
24871271
24011100
24011101
24011101
24011100
24011101
24011100
24011101
24011100
24011100
Location
Parts No.
No.
Description
METAL FILM CHIP 1/20W 2.7K J
CHIP, METAL FILM, 1/20W 10 OHM J
METAL FILM CHIP 1/8W 330 J
JUMPER CHIP 1608TYPE
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/8W 680 OHM J
METAL FILM CHIP 1/20W 120 J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/8W 680 OHM J
JUMPER CHIP 1608TYPE
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/8W 680 OHM J
METAL FILM CHIP 1/20W 120 J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/8W 680 OHM J
JUMPER CHIP 1608TYPE
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/8W 680 OHM J
METAL FILM CHIP 1/20W 120 J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 2.7K J
METAL FILM CHIP 1/8W 330 J
JUMPER CHIP 1608TYPE
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/8W 680 OHM J
METAL FILM CHIP 1/20W 120 J
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/8W 680 OHM J
JUMPER CHIP 1608TYPE
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/8W 680 OHM J
METAL FILM CHIP 1/20W 120 J
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/8W 680 OHM J
JUMPER CHIP 1608TYPE
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/20W 1.5K OHM J
CHIP, METAL FILM, 1/8W 270 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/8W 270 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
RX201
RX202
RX203
RX204
RX205
RX206
RX207
RX209
RX210
RX211
RX212
RX213
RX214
RX215
RX216
RX217
RX218
RX219
RX220
RX222
RX224
RX225
RX227
RX228
RX229
RX230
RX231
RX232
RX233
RX234
RX235
RX236
RX238
RX242
RX244
RX245
RX247
RX248
RX249
RX250
RX251
RX252
RX253
RX256
RX258
RX263
RX266
RX268
RX269
RX270
RX271
RX272
RX273
RX276
RX277
RX304
RX306
RX307
RX308
RX311
RX312
RX313
RX314
RX315
RX316
– 42 –
24011101
24000445
24011102
24011101
24011102
24011223
24011103
24011221
24011221
24011101
24011221
24011102
24011101
24011102
24011100
24011471
24011222
24011100
24011100
24011470
24011100
24011470
24011100
24011821
24011470
24011470
24011471
24011222
24011100
24011470
24000445
24011100
24011102
24011470
24011100
24011470
24011100
24011681
24011470
24011470
24011471
24011272
24011100
24011100
24011102
24011100
24011100
24011681
24011470
24011470
24011471
24011222
24011100
24011100
24011100
24011103
24019404
24011103
24011103
24019439
24019439
24019439
24019439
24019439
24019439
Description
CHIP, METAL FILM, 1/20W 100 OHM J
JUMPER CHIP 1608TYPE
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 22K J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 220 J
METAL FILM CHIP 1/20W 220 J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 220 J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 2.2K J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/20W 10 OHM J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/20W 10 OHM J
METAL FILM CHIP 1/20W 820 J
METAL FILM CHIP 1/20W 47 J
METAL FILM CHIP 1/20W 47 J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 2.2K J
CHIP, METAL FILM, 1/20W 10 OHM J
METAL FILM CHIP 1/20W 47 J
JUMPER CHIP 1608TYPE
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/20W 10 OHM J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/20W 10 OHM J
METAL FILM CHIP 1/20W 680 J
METAL FILM CHIP 1/20W 47 J
METAL FILM CHIP 1/20W 47 J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 2.7K J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
METAL FILM CHIP 1/20W 680 J
METAL FILM CHIP 1/20W 47 J
METAL FILM CHIP 1/20W 47 J
METAL FILM CHIP 1/20W 470 J
METAL FILM CHIP 1/20W 2.2K J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP BLOCK P-8 1/16W P-8 103J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
RX317
RX318
RX319
RX320
RX321
RX322
RX323
RX324
RX325
RX326
RX327
RX328
RX329
RX330
RX331
RX332
RX334
RX335
RX336
RX342
RX343
RX345
RX346
RX347
RX348
RX349
RX350
RX351
RX352
RX361
RX362
RX363
RX365
RX366
RX367
RX368
RX370
RX371
RX372
RX374
RX375
RX381
RX382
RX383
RX384
RX385
RX386
RX387
RX391
RX392
RX393
RX394
RX395
RX396
RX397
RX398
RX399
RX403
RX404
RX405
RX406
RX551
RX552
RX554
RX555
24019439
24019439
24019439
24019439
24019439
24019439
24011470
24011470
24019439
24019439
24019439
24019439
24011334
24011103
24019404
24011103
24011152
24011332
24011100
24011271
24011820
24011271
24011820
24011100
24011101
24011100
24011101
24000445
24000445
24011181
24011270
24011122
24011272
24011181
24011270
24011122
24011181
24011270
24011122
24011272
24011272
24011100
24011100
24011100
24011100
24011100
24011100
24011100
24011101
24011101
24011102
24011102
24011332
24011332
24011103
24872331
24872331
24011101
24871101
24011101
24871471
24011100
24871681
24011121
24011681
Location
Parts No.
No.
Description
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
METAL FILM CHIP 1/20W 47 J
METAL FILM CHIP 1/20W 47 J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
METAL FILM CHIP 1/20W 330K J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP BLOCK P-8 1/16W P-8 103J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 1.5K OHM J
METAL FILM CHIP 1/20W 3.3K J
CHIP, METAL FILM, 1/20W 10 OHM J
METAL FILM CHIP 1/20W 270 J
METAL FILM CHIP 1/20W 82 J
METAL FILM CHIP 1/20W 270 J
METAL FILM CHIP 1/20W 82 J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
METAL FILM CHIP 1/20W 180 J
METAL FILM CHIP 1/20W 27 J
CHIP, METAL FILM, 1/20W 1.2K OHM J
METAL FILM CHIP 1/20W 2.7K J
METAL FILM CHIP 1/20W 180 J
METAL FILM CHIP 1/20W 27 J
CHIP, METAL FILM, 1/20W 1.2K OHM J
METAL FILM CHIP 1/20W 180 J
METAL FILM CHIP 1/20W 27 J
CHIP, METAL FILM, 1/20W 1.2K OHM J
METAL FILM CHIP 1/20W 2.7K J
METAL FILM CHIP 1/20W 2.7K J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 3.3K J
METAL FILM CHIP 1/20W 3.3K J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/16W 330 OHM J
CHIP, METAL FILM, 1/16W 330 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/8W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/8W 470 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/8W 680 OHM J
METAL FILM CHIP 1/20W 120 J
METAL FILM CHIP 1/20W 680 J
RX557
RX561
RX562
RX564
RX565
RX567
RX571
RX572
RX574
RX575
RX577
RX601
RX602
RX603
RX604
RX605
RX606
RX611
RX612
RX613
RX614
RX615
RX616
RX617
RX618
RX627
RX651
RX654
RX661
RX664
RX671
RX672
RX673
RX674
RX675
RX676
RX677
RX678
RX679
RX680
RX681
RX682
RX683
RX684
RX685
RX691
RX812
RX821
RX822
RX823
RX824
RX825
RX826
RX827
RX829
RX831
RX832
RX833
RX844
RX845
RY01
RY02
RY09
RY10
RY20
– 43 –
24871681
24011100
24871681
24011121
24011471
24871681
24011100
24871681
24011121
24011471
24871681
24011100
24011100
24011334
24011100
24011100
24011470
24019439
24019439
24019439
24019439
24019439
24019439
24019439
24019439
24011330
24011103
24011103
24011103
24011103
24011151
24011220
24011272
24011122
24011272
24011181
24011220
24011272
24011122
24011272
24011181
24011220
24011272
24011122
24011272
24011100
24011101
24011151
24011151
24011151
24011101
24011101
24011681
24011101
24011102
24011100
24011100
24011100
24011101
24011101
24011102
24011471
24011102
24011102
24011101
Description
CHIP, METAL FILM, 1/8W 680 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/8W 680 OHM J
METAL FILM CHIP 1/20W 120 J
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/8W 680 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/8W 680 OHM J
METAL FILM CHIP 1/20W 120 J
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/8W 680 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
METAL FILM CHIP 1/20W 330K J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
METAL FILM CHIP 1/20W 47 J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
METAL FILM CHIP 1/20W 33 J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 150 OHM J
METAL FILM CHIP 1/20W 22 J
METAL FILM CHIP 1/20W 2.7K J
CHIP, METAL FILM, 1/20W 1.2K OHM J
METAL FILM CHIP 1/20W 2.7K J
METAL FILM CHIP 1/20W 180 J
METAL FILM CHIP 1/20W 22 J
METAL FILM CHIP 1/20W 2.7K J
CHIP, METAL FILM, 1/20W 1.2K OHM J
METAL FILM CHIP 1/20W 2.7K J
METAL FILM CHIP 1/20W 180 J
METAL FILM CHIP 1/20W 22 J
METAL FILM CHIP 1/20W 2.7K J
CHIP, METAL FILM, 1/20W 1.2K OHM J
METAL FILM CHIP 1/20W 2.7K J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 150 OHM J
CHIP, METAL FILM, 1/20W 150 OHM J
CHIP, METAL FILM, 1/20W 150 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 680 J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 10 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
SPECIFIC INFORMATIONS
Location
Parts No.
No.
SPECIFIC INFORMATIONS
Location
Parts No.
No.
RY21
RY22
RY23
RY24
RY25
RY26
RY27
RY28
RY32
RY33
RY80
RY81
RY82
RY87
RY150
RY151
RY152
RY154
RY155
RY156
RY157
RY190
RY212
RY213
RY214
RY510
RY511
RY520
RY521
RY522
RY523
RY525
RY527
RY529
RY530
RY531
RY532
RY533
RY534
RY544
RY545
RY546
RY601
RY602
RY603
RY612
RY613
RY621
RY622
RY623
RY661
RY663
RY806
RY810
RZ01
RZ02
RZ03
RZ04
RZ05
RZ06
RZ07
RZ08
RZ09
RZ10
RZ11
24011101
24011153
24011332
24011102
24011102
24011331
24011330
24011153
24011330
24011330
24366331
24366101
24366102
24366100
24011102
24011471
24011102
24011473
24011102
24011182
24011102
24011103
24011103
24011123
24011222
24011102
24011472
24011472
24011472
24011472
24011101
24011101
24011101
24011472
24011472
24011472
24011101
24011101
24011101
24011103
24011103
24011103
24011334
24011470
24011470
24011470
24011470
24011102
24011152
24011102
24011102
24011102
24011101
24011101
24011330
24011152
24011682
24011392
24011122
24011431
24871331
24011151
24011330
24011102
24011561
Location
Parts No.
No.
Description
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/2OW 15K OHM J
METAL FILM CHIP 1/20W 3.3K J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 330 J
METAL FILM CHIP 1/20W 33 J
CHIP, METAL FILM, 1/2OW 15K OHM J
METAL FILM CHIP 1/20W 33 J
METAL FILM CHIP 1/20W 33 J
CARBON FILM, 1/6W 330 OHM J
CARBON FILM, 1/6W 100 OHM J
CARBON FILM, 1/6W 1K OHM J
CARBON FILM, 1/6W 10 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 470 J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 47K J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 1.8K J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 12K OHM J
METAL FILM CHIP 1/20W 2.2K J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/20W 330K J
METAL FILM CHIP 1/20W 47 J
METAL FILM CHIP 1/20W 47 J
METAL FILM CHIP 1/20W 47 J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1.5K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 33 J
CHIP, METAL FILM, 1/20W 1.5K OHM J
METAL FILM CHIP 1/20W 6.8K J
METAL FILM CHIP 1/20W 3.9K J
CHIP, METAL FILM, 1/20W 1.2K OHM J
METAL FILM CHIP 1/20W 430 J
METAL FILM CHIP 1/8W 330 J
CHIP, METAL FILM, 1/20W 150 OHM J
METAL FILM CHIP 1/20W 33 J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 560 J
RZ12
RZ13
RZ14
RZ15
RZ16
RZ17
RZ18
RZ21
RZ28
RZ30
RZ31
RZ32
RZ33
RZ34
RZ49
RZ60
RZ64
RZ65
RZ66
RZ67
RZ68
RZ69
RZ70
RZ71
RZ72
RZ73
RZ74
RZ80
RZ81
RZ82
RZ83
RZ84
RZ85
RZ86
RZ101
RZ102
RZ103
RZ104
RZ105
RZ106
RZ107
RZ109
RZ110
RZ243
RZ244
RZ245
RZ246
RZ265
RZ266
RZ800
RZ802
RZ804
24011182
24011392
24011123
24011151
24011102
24871181
24011121
24011271
24011102
24000445
24011104
24000445
24011101
24011101
24011102
24011102
24011221
24011224
24011223
24011102
24011222
24011153
24011472
24011101
24011103
24011103
24872229
24019439
24019439
24019439
24019439
24019439
24019439
24011470
24011101
24011221
24011102
24011102
24011821
24000445
24011751
24011102
24011152
24011220
24011152
24011220
24011152
24011472
24011103
24871330
24871330
24011330
Description
METAL FILM CHIP 1/20W 1.8K J
METAL FILM CHIP 1/20W 3.9K J
CHIP, METAL FILM, 1/20W 12K OHM J
CHIP, METAL FILM, 1/20W 150 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/8W 180 J
METAL FILM CHIP 1/20W 120 J
METAL FILM CHIP 1/20W 270 J
CHIP, METAL FILM, 1/20W 1K OHM J
JUMPER CHIP 1608TYPE
CHIP, METAL FILM, 1/20W 100K OHM J
JUMPER CHIP 1608TYPE
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 220 J
METAL FILM CHIP 1/20W 220K J
METAL FILM CHIP 1/20W 22K J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 2.2K J
CHIP, METAL FILM, 1/2OW 15K OHM J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 100 OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/16W 2R2 J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
CHIP BLOCK P-8 1/16W P-8 470J
METAL FILM CHIP 1/20W 47 J
CHIP, METAL FILM, 1/20W 100 OHM J
METAL FILM CHIP 1/20W 220 J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1K OHM J
METAL FILM CHIP 1/20W 820 J
JUMPER CHIP 1608TYPE
METAL FILM CHIP 1/20W 750 J
CHIP, METAL FILM, 1/20W 1K OHM J
CHIP, METAL FILM, 1/20W 1.5K OHM J
METAL FILM CHIP 1/20W 22 J
CHIP, METAL FILM, 1/20W 1.5K OHM J
METAL FILM CHIP 1/20W 22 J
CHIP, METAL FILM, 1/20W 1.5K OHM J
METAL FILM CHIP 1/20W 4.7K J
CHIP, METAL FILM, 1/20W 10K OHM J
METAL FILM CHIP 1/8W 33 J
METAL FILM CHIP 1/8W 33 J
METAL FILM CHIP 1/20W 33 J
COILS & TRANSFORMERS
L101
L103
L111
L113
L115
L121
L122
L301
L302
L303
L304
– 44 –
23289845
23289844
23289845
23289842
23103852
23238562
23238562
23237975
23248073
23248073
23103859
COIL,
COIL,
COIL,
COIL,
COIL,
COIL,
COIL,
COIL,
COIL,
COIL,
COIL,
PEAKING 68.00MMHJ COLTRF4680AT
PEAKING, TRF4470AT
PEAKING 68.00MMHJ COLTRF4680AT
PEAKING, TRF4220AT
FILTER, TEM2028AH
PEAKING, TRF4109AJ
PEAKING, TRF4109AJ
PEAKING, TRF4101AC
CHOKE, TLN3299D
CHOKE, TLN3299D
CHOKE, TEM2011
L305
L401
L402
* L403
L404
L405
L406
L410
* L441
* L462
* L463
* L464
L472
L473
L474
L502
L503
L504
L506
L701
L702
L704
L705
L764
L765
L766
L769
L780
L781
L782
L783
L851
L852
L861
L862
L881
L882
L885
L888
L889
L891
L892
L893
L894
L895
L896
L897
L898
L902
L903
L911
L912
L913
L915
L922
L923
L925
L961
L962
L7701
L7702
L7703
L7704
L7705
L7706
23103775
23289560
23103880
23248248
23248191
23103775
23103775
23289120
23233995
23231326
23231326
23231326
23102457
23102457
23102457
23289120
23289120
23103827
23103827
23237987
23261974
23103859
23103859
23103859
23103859
23261974
23237987
23237987
23103859
23103859
23261974
23103880
23103880
23103880
23103880
23103880
23103880
23248073
23103880
23103880
23103880
23103880
23103880
23103880
23248247
23248247
23248087
23248087
23289100
23289101
23237987
23289101
23289100
23289100
23289101
23289150
23289100
23238714
23289100
23103859
23103859
23103859
23103859
23103859
23103859
Location
Parts No.
No.
Description
COIL, FERRITE CHOKE, TEM2014
COIL, PEAKING, TRF4560AF
COIL, CHOKE, TEM2011Y
COIL, CHOKE, TLN3500AH
COIL, CHOKE, TLN3351AD
COIL, FERRITE CHOKE, TEM2014
COIL, FERRITE CHOKE, TEM2014
COIL, PEAKING-12MMHJ COLTRF4120AF
COIL, LINEARITY, TLN2215AG
DEFLECTION YOKE, TDY707PD TDY707PD
DEFLECTION YOKE, TDY707PD TDY707PD
DEFLECTION YOKE, TDY707PD TDY707PD
VM COIL, 29.1VM4T3PLEAD MAG-1102
VM COIL, 29.1VM4T3PLEAD MAG-1102
VM COIL, 29.1VM4T3PLEAD MAG-1102
COIL, PEAKING-12MMHJ COLTRF4120AF
COIL, PEAKING-12MMHJ COLTRF4120AF
INDUCTOR, BEAD TEM2120M
INDUCTOR, BEAD TEM2120M
COIL, PEAKING, TRF4100AC
COIL, FERRITE BEAD, HC5-035
COIL, CHOKE, TEM2011
COIL, CHOKE, TEM2011
COIL, CHOKE, TEM2011
COIL, CHOKE, TEM2011
COIL, FERRITE BEAD, HC5-035
COIL, PEAKING, TRF4100AC
COIL, PEAKING, TRF4100AC
COIL, CHOKE, TEM2011
COIL, CHOKE, TEM2011
COIL, FERRITE BEAD, HC5-035
COIL, CHOKE, TEM2011Y
COIL, CHOKE, TEM2011Y
COIL, CHOKE, TEM2011Y
COIL, CHOKE, TEM2011Y
COIL, CHOKE, TEM2011Y
COIL, CHOKE, TEM2011Y
COIL, CHOKE, TLN3299D
COIL, CHOKE, TEM2011Y
COIL, CHOKE, TEM2011Y
COIL, CHOKE, TEM2011Y
COIL, CHOKE, TEM2011Y
COIL, CHOKE, TEM2011Y
COIL, CHOKE, TEM2011Y
COIL, CHOKE, TLN3499AH
COIL, CHOKE, TLN3499AH
COIL, CHOKE, TLN3312D
COIL, CHOKE, TLN3312D
COIL, PEAKING, TRF4100AF
COIL, PEAKING, TRF4101AF
COIL, PEAKING, TRF4100AC
COIL, PEAKING, TRF4101AF
COIL, PEAKING, TRF4100AF
COIL, PEAKING, TRF4100AF
COIL, PEAKING, TRF4101AF
COIL, PEAKING, TRF4150AF
COIL, PEAKING, TRF4100AF
COIL, PEAKING, TRF4100AJ
COIL, PEAKING, TRF4100AF
COIL, CHOKE, TEM2011
COIL, CHOKE, TEM2011
COIL, CHOKE, TEM2011
COIL, CHOKE, TEM2011
COIL, CHOKE, TEM2011
COIL, CHOKE, TEM2011
– 45 –
L7708
L7709
L7710
L7711
L7712
L7713
LH001
LH002
LH003
LH004
LH005
LH007
LH009
LH010
LH012
LH061
LH062
LH063
LH064
LH065
LH066
LH067
LH120
LH122
LH123
LH124
LH125
LH126
LH301
LH302
LH401
23103859
23103859
23248195
23248195
23248031
23248031
23103864
23103864
23103859
23103859
23103859
23103795
23103795
23103795
23103859
23103864
23103864
23103864
23103864
23103864
23103864
23103864
23103864
23103864
23103864
23103864
23103864
23103864
23103859
23103859
23245830
LH402
LH403
LH404
LH405
LH411
LM09
LV05
LV06
LV07
LV10
LV13
LV14
LV20
LV502
LV503
LX101
LX102
LX103
LX104
LX111
23103864
23103864
23103864
23103864
23103864
23103906
23289560
23289560
23289100
23289100
23289100
23289100
23238705
23103906
24000445
23103906
23103906
23103906
23103906
23246323
LX121
23246323
LX131
23246323
LX141
23246323
LX151
23246323
LX161
23246323
LX173
LX174
24000445
23103906
Description
COIL, CHOKE, TEM2011
COIL, CHOKE, TEM2011
COIL, CHOKE, TLN3441AT
COIL, CHOKE, TLN3441AT
COIL, CHOKE, TLN3274D
COIL, CHOKE, TLN3274D
FILTEM2103T
FILTEM2103T
COIL, CHOKE, TEM2011
COIL, CHOKE, TEM2011
COIL, CHOKE, TEM2011
IMPEDER, MMZ2012S301A
IMPEDER, MMZ2012S301A
IMPEDER, MMZ2012S301A
COIL, CHOKE, TEM2011
FILTEM2103T
FILTEM2103T
FILTEM2103T
FILTEM2103T
FILTEM2103T
FILTEM2103T
FILTEM2103T
FILTEM2103T
FILTEM2103T
FILTEM2103T
FILTEM2103T
FILTEM2103T
FILTEM2103T
COIL, CHOKE, TEM2011
COIL, CHOKE, TEM2011
COIL, CHIP INDUCTOR 10MMH
COLTRF4100CB
FILTER
FILTER
FILTER
FILTER
FILTER
FILTER, CHIP BEAD INDUCTOR TEM2118AS
COIL, PEAKING, TRF4560AF
COIL, PEAKING, TRF4560AF
COIL, PEAKING, TRF4100AF
COIL, PEAKING, TRF4100AF
COIL, PEAKING, TRF4100AF
COIL, PEAKING, TRF4100AF
COIL, PEAKING, TRF4560AJ
FILTER, CHIP BEAD INDUCTOR TEM2118AS
JUMPER CHIP 1608TYPE
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
COIL, CHIP INDUCTOR 4.7MMH
COLTRF44R7CT
COIL, CHIP INDUCTOR 4.7MMH
COLTRF44R7CT
COIL, CHIP INDUCTOR 4.7MMH
COLTRF44R7CT
COIL, CHIP INDUCTOR 4.7MMH
COLTRF44R7CT
COIL, CHIP INDUCTOR 4.7MMH
COLTRF44R7CT
COIL, CHIP INDUCTOR 4.7MMH
COLTRF44R7CT
JUMPER CHIP 1608TYPE
FILTER, CHIP BEAD INDUCTOR TEM2118AS
SPECIFIC INFORMATIONS
Location
Parts No.
No.
SPECIFIC INFORMATIONS
Location
Parts No.
No.
LX175
LX178
LX186
LX187
LX206
LX216
LX221
LX222
LX223
LX224
LX225
LX226
LX227
LX228
LX229
LX241
LX242
LX243
LX244
LX245
LX246
LX247
LX248
LX249
LX260
LX262
LX263
LX265
LX266
LX267
LX269
LX301
LX302
LX303
LX310
LX312
23103806
23103906
23103823
23103823
23103906
23103906
23103906
23103906
23103906
23103906
23103906
23103906
23103906
23103906
23103823
23103906
23103906
23103906
23103906
23103906
23103906
23103906
23103906
23103823
23103906
23103906
23103906
23103906
23103906
23103906
23103823
23103886
24000824
23103886
23103886
23246199
LX320
LX330
LX331
LX340
LX341
LX342
LX343
LX344
LX346
LX347
LX348
LX349
LX360
LX362
LX391
LX470
LX473
23103886
23103887
23103886
23103906
23103906
24000445
23103906
24000445
24000445
24000445
23103806
23103806
23103806
23103906
23103906
23103906
23246325
LX500
LX542
LX551
LX552
23103806
23103906
23103823
23246199
LX561
LX562
23103823
23246323
LX571
LX572
23103823
23246323
Location
Parts No.
No.
Description
INDUCTOR, BEAD TEM2114T
FILTER, CHIP BEAD INDUCTOR TEM2118AS
COIL, COMMONMODE TEM2027D
COIL, COMMONMODE TEM2027D
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
COIL, COMMONMODE TEM2027D
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
COIL, COMMONMODE TEM2027D
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
COIL, COMMONMODE TEM2027D
INDUCTOR, CHIP BEAD 3A 60OHM
JUMPER CHIP, 2125TYPE
INDUCTOR, CHIP BEAD 3A 60OHM
INDUCTOR, CHIP BEAD 3A 60OHM
COIL, CHIP-INDUCTOR-2R2MMHJ
COLTRF42R2CG
INDUCTOR, CHIP BEAD 3A 60OHM
INDUCTOR, CHIP BEAD 3A 220OHM
INDUCTOR, CHIP BEAD 3A 60OHM
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
JUMPER CHIP 1608TYPE
FILTER, CHIP BEAD INDUCTOR TEM2118AS
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
INDUCTOR, BEAD TEM2114T
INDUCTOR, BEAD TEM2114T
INDUCTOR, BEAD TEM2114T
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
COIL, CHIP INDUCTOR 22MMH
COLTRF4220CT
INDUCTOR, BEAD TEM2114T
FILTER, CHIP BEAD INDUCTOR TEM2118AS
COIL, COMMONMODE TEM2027D
COIL, CHIP-INDUCTOR-2R2MMHJ
COLTRF42R2CG
COIL, COMMONMODE TEM2027D
COIL, CHIP INDUCTOR 4.7MMH
COLTRF44R7CT
COIL, COMMONMODE TEM2027D
COIL, CHIP INDUCTOR 4.7MMH
LX601
LX604
LX605
LX607
LX608
LX609
LX610
LX612
LX613
LX614
LX615
LX630
LX648
LX691
LX692
LY09
LY22
LY64
LY305
LY306
LY311
LY312
LY331
LY332
LY502
LY503
LY601
LY602
LY620
LY621
LY660
LY661
LZ03
LZ05
LZ09
LZ20
23103886
23103906
23103906
23103906
23103906
23103906
23103886
23103906
24000824
23103886
23103886
23103887
23103906
23103823
23103906
23103827
23103824
23103827
23103906
23103906
23103906
23103906
23103886
23103886
23103906
24000445
23103906
23103906
23103906
23103906
23103906
23103906
24000445
23103906
23103906
23246316
LZ21
LZ22
23246317
23246199
LZ25
LZ26
LZ28
LZ29
LZ30
LZ31
LZ32
LZ34
LZ35
LZ36
LZ38
LZ39
LZ96
23103906
23103906
23103906
23103906
24000445
23103906
23103906
24000445
23103906
23103906
23103906
23103906
23246206
LZ100
LZ101
LZ102
LZ103
LZ104
LZ105
23246223
23103827
23103827
23103906
23246219
23246222
T400
T401
* T461
– 46 –
23224364
23224371
23236686
Description
COLTRF44R7CT
INDUCTOR, CHIP BEAD 3A 60OHM
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
INDUCTOR, CHIP BEAD 3A 60OHM
FILTER, CHIP BEAD INDUCTOR TEM2118AS
JUMPER CHIP, 2125TYPE
INDUCTOR, CHIP BEAD 3A 60OHM
INDUCTOR, CHIP BEAD 3A 60OHM
INDUCTOR, CHIP BEAD 3A 220OHM
FILTER, CHIP BEAD INDUCTOR TEM2118AS
COIL, COMMONMODE TEM2027D
FILTER, CHIP BEAD INDUCTOR TEM2118AS
INDUCTOR, BEAD TEM2120M
23103824A NI TOOGO, TEM2028K
INDUCTOR, BEAD TEM2120M
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
INDUCTOR, CHIP BEAD 3A 60OHM
INDUCTOR, CHIP BEAD 3A 60OHM
FILTER, CHIP BEAD INDUCTOR TEM2118AS
JUMPER CHIP 1608TYPE
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
JUMPER CHIP 1608TYPE
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
COIL, CHIP INDUCTOR 4.7MMH
COLTRF44R7CR
COIL, CHIP INDUCTOR, TRF4100CR
COIL, CHIP-INDUCTOR-2R2MMHJ
COLTRF42R2CG
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
JUMPER CHIP 1608TYPE
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
JUMPER CHIP 1608TYPE
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
FILTER, CHIP BEAD INDUCTOR TEM2118AS
COIL, CHIP-INDUCTOR-8R2MMHJ
COLTRF48R2CG
COIL, CHIP INDUCTOR, TRF4330CG
INDUCTOR, BEAD TEM2120M
INDUCTOR, BEAD TEM2120M
FILTER, CHIP BEAD INDUCTOR TEM2118AS
COIL, CHIP INDUCTOR, TRF4150CG
COIL, CHIP-INDUCTOR-270MMHJ
COLTRF4270CG
TRANSFORMER, TLN2168AH
TRANSFORMER, HORIZ DRIVE, TLN1080AH
TRANSFORMER, FLY-BACK, TFB3090AD
* T461A
T801
T802
T840
23192961
23211698
23211729
23217530
T862
23217467
Location
Parts No.
No.
Description
ANODE CAP ASSY, TCC5605AU
COIL, LINE FILTER, TRF3218AK
COIL, LINE FILTER TRF3232AQ
TRANSFORMER, POWER EI28 9.1V
TPW1570AT
TRANSFORMER, CONVERTER, TPW3450AS
Q524
Q525
Q526
Q527
23114502
23114502
23114502
23205054
Q528
23205054
Q529
23205054
Q601
Q612
B0376885
23205054
Q661
Q662
Q663
Q664
Q681
Q682
Q683
A6359871
A6359871
23906597
A6014041
A6359871
A6359871
23205057
Q706
Q707
Q709
Q710
Q711
Q711B
Q712
Q712B
Q719
Q720
Q751
Q752
Q760
Q761
Q761B
Q764
23114528
23114437
23114528
23114530
A6550640
70391355
A6369650
70391355
23114528
23114528
23905094
23905094
23114530
A6550640
70391355
23319720
Q765
23205057
Q766
23205057
Q767
23904442
Q769
Q770
Q771
Q771
Q771B
Q772
23114528
23904524
23319267
A6369650
70391355
23205054
Q773
23205057
Q776
23205057
Q777
23205054
Q778
23205057
Q779
23205057
Q779
Q780
23114528
23205054
SEMICONDUCTORS
Q151
Q152
Q171
23114530
23114528
23205057
Q172
23205057
Q201
23205057
Q210
Q211
Q213
23314994
23314993
23205014
Q221
Q301
Q301B
Q302
23114756
23319787
70391355
23205054
Q305
Q321
Q322
Q323
Q324
Q325
Q326
Q327
Q328
Q329
Q400
23904896
B0351501
B0384625
23314965
B0351501
23314965
23314962
23114528
A6002020
23114461
23205079
Q401
Q402
Q403
Q404
Q404B
Q404D
Q405
Q406
Q407
Q408
Q409
Q410
Q420
Q421
Q436
A6064650
23114530
23114437
A6374144
72471082
A8012650
23114437
70128158
23319808
A6073390
23314965
23904353
23316816
23114437
23205057
Q437
Q438
Q501
Q502
Q503
Q504
Q510
B01A0156
23318981
B0386049
23000263
23314994
23314993
23000584
Q520
Q521
Q522
Q523
23114530
23114530
23114530
23205057
TRANSISTOR, 2SA933S
TRANSISTOR, 2SC1740S
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SC4081 Q
TRANSISTOR, HIGH SPEED SWICH
2SC4667-O
TRANSISTOR, 2SC2482
IC, LA7833S
SCREW, 3X8MM
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
IC, JLC1562BF
IC, TA75902P(J)
IC, TA8859CP
TRANSISTOR, KTC3198 Y
IC, TA75902P(J)
TRANSISTOR, KTC3198 Y
TRANSISTOR, KTA1266 Y
TRANSISTOR, 2SC1740S
TRANSISTOR, RN1202
TRANSISTOR, RN1203
TRANSISTOR, VCBO=1500V IC=50MA
2SC4686A
TRANSISTOR, 2SK941
TRANSISTOR, 2SA933S
TRANSISTOR, 2SC752GTM-Y
TRANSISTOR, 2SC5570(FA)
SCREW, 3X10MM
INSULATOR, TRANSISTOR, AC263
TRANSISTOR, 2SC752GTM-Y
BA10393
IC, M5218AP
TRANSISTOR, NMOS FET
TRANSISTOR, KTC3198 Y
IC, AN7712F
IC, LA7860
TRANSISTOR, 2SC752GTM-Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
IC, FRONT END PROCESSOR
IC, MC14053BF
BUS P/N VCD IC QFP48
IC, CMOS MULTIPLEXER SOP16 BU4053BCF
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SC4081 Q
IC, BACK END PROCESSOR 56DIP
TA1316AN
TRANSISTOR, 2SA933S
TRANSISTOR, 2SA933S
TRANSISTOR, 2SA933S
TRANSISTOR, CHIP 50V 150MA SM
– 47 –
Description
KTC3875Y
TRANSISTOR, RN1401
TRANSISTOR, RN1401
TRANSISTOR, RN1401
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
IC, TV SOUND OUT CPP 12PI
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TR 2SC3326B LTAPE
TR 2SC3326B LTAPE
IC, BA4558F
TRANSISTOR, RN2404
TR 2SC3326B LTAPE
TR 2SC3326B LTAPE
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, 2SC1740S
TRANSISTOR, 2SC752GTM-Y
TRANSISTOR, 2SC1740S
TRANSISTOR, 2SA933S
TRANSISTOR, 2SA1837
SCREW, 3X8MM
TRANSISTOR, 2SC4793
SCREW, 3X8MM
TRANSISTOR, 2SC1740S
TRANSISTOR, 2SC1740S
IC, STK392-110
IC, STK392-110
TRANSISTOR, 2SA933S
TRANSISTOR, 2SA1837
SCREW, 3X8MM
IC, C-MOS HEX SCHMITT INV SOP14
TC74HC14AF
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
IC, C-MOS QUAD BILAT-SW. SOP14
TC74HC4066AF
TRANSISTOR, 2SC1740S
IC, +12V 4% REG. IO=1A TO220AB AN7812
AN79M12F
TRANSISTOR, 2SC4793
SCREW, 3X8MM
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, 2SC1740S
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
SPECIFIC INFORMATIONS
Location
Parts No.
No.
SPECIFIC INFORMATIONS
Location
Parts No.
No.
Q781
23205057
Q781
Q782
Q782
Q783
Q783
Q784
Q784B
Q785
Q785B
Q788
23114528
23114530
23318840
23114528
23205037
A6550640
70391355
A6369650
70391355
23205057
Q792
Q793
Q796
23906429
A6073390
23205057
Q798
Q799
Q801
Q801B
A6030112
A6030112
23135015
23476828
Q830
23904163
Q831
Q832
23905976
23905770
Q840
Q843
Q862
23905976
23314965
23000823
Q902
Q912
Q913
Q914
Q915
Q916
Q917
Q918
Q919
Q920
Q922
Q961
Q962
Q963
Q964
Q965
Q966
Q968
Q971
Q972
Q973
Q974
Q975
Q2103
23114433
23114433
23114735
23114433
23114433
23114433
23114433
23114433
23114433
23114433
23114433
23114433
23114735
23114433
23114425
23114433
23114425
23114433
23114425
23114425
23114735
23114433
23114437
23205057
Q5000
Q5001
Q5002
Q5003
Q5004
Q5005
Q5006
Q5007
Q5008
23000821
23314994
23314993
23314993
23314993
23314993
23314993
23314994
23314993
Location
Parts No.
No.
Description
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, 2SC1740S
TRANSISTOR, 2SA933S
IC, AN79M05F
TRANSISTOR, 2SC1740S
TRANSISTOR, 2SJ512 -250V,-5A,30W
TRANSISTOR, 2SA1837
SCREW, 3X8MM
TRANSISTOR, 2SC4793
SCREW, 3X8MM
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
IC, TC74HC123AF
TRANSISTOR, NMOS FET
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
IC CHIP BILATERAL SWITCH
IC CHIP BILATERAL SWITCH
IC, STR-Z4369
BRACKET IC MOUNTING, TMX LOCAL
CF35F50
IC, +9V 2% REG. IO=1.5A TO220FP
SI-3090CA
IC, PQ05RD11
IC, +3V 2.5% REG. IO=2A TO220FP
PQ3RF23
IC, PQ05RD11
TRANSISTOR, KTC3198 Y
PHOTO COUPLER, CTR=(100-300)%
TLP421F(GR)
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SA102-Y(C)
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SA102-Y(C)
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SA1015-Y(TE
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SA1015-Y(TE
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SA1015-Y(TE
TRANSISTOR, 2SA1015-Y(TE
TRANSISTOR, 2SA102-Y(C)
TRANSISTOR, 2SC1815-Y
TRANSISTOR, 2SC752GTM-Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
IC, YUV PICTURE IMPROVEMENT
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SC4081 Q
Q5009
Q5010
23314993
23000871
TRANSISTOR, 2SC4081 Q
IC, IC CHIP SW 2CH BA7602F BA7602F
QA01
23000836
QA02
QA21
23906642
23205057
QA70
QA71
23319935
23205057
QA72
23205057
QA80
QA81
QB01
QB03
QB05
23906295
70200563
23114528
A6004051
23205057
QB14
23205057
QB15
23205057
QB30
QB55
23314965
23205057
QB81
QB82
QB83
QB84
A6359871
A6359871
A6541132
23205057
QB85
23205054
QB86
23205054
QB87
23205054
QB88
23205054
QD01
QD41
QD101
QH001
QH004
QH005
QH006
QH120
QH121
QH140
QH141
QH160
QH161
QH170
QH171
QH172
QH173
QH301
23000381
B01A0107
B0385647
B01B4088
23319595
23905013
23906908
23318897
23318897
23318897
23318897
23318897
23318897
23906909
23906909
23906909
23905320
23358557
IC, MCU 1CHIP 16BIT 4M 64P
MN102H51KFB
IC, AT24C64-10PC
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
IC, MM1096BS
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
IC, UPC29M33HB
IC, RESET VS=2.9V PST9129 PST9129
TRANSISTOR, 2SC1740S
TRANSISTOR, RN1405
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, KTC3198 Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TR 2SC3326B LTAPE
TR 2SC3326B LTAPE
TRANSISTOR, 2SA1162 -(Y)
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
IC, 2CH AUDIO PRO N-DIP22PIN CXA2021S
IC, SOUND PRO SRS TA2136N
4CH AUDIO PRO.N-DIP36PIN
IC, CMOS PDC3 QFP100 0.5
IC, TC74HC244AF
IC, TLC2932IPW
IC, MC33078D
IC, PCM56P-L,
IC, PCM56P-L,
IC, PCM56P-L,
IC, PCM56P-L,
IC, PCM56P-L,
IC, PCM56P-L,
IC, MC33079D
IC, MC33079D
IC, MC33079D
IC, 16384BITS CMOS EEPROM NM24C16EN
OPT DEVICE, AM. PHOTOSENSOR
AM-30-24CA
OPT DEVICE, AM. PHOTOSENSOR
AM-30-24CA
OPT DEVICE, AM. PHOTOSENSOR
AM-30-24CA
OPT DEVICE, AM. PHOTOSENSOR
AM-30-24CA
IC, QUAD OP-AMP DMP14 14P NJM2058M
QH301 23358557
QH301 23358557
QH301 23358557
QH305 23906585
– 48 –
Description
QH306
QH307
QH308
QH309
QH401
23906585
23906585
23906429
23906429
23000820
QH402
QH404
QH405
QH406
70119743
23318977
23319595
23205054
QR14
23205054
QR15
23205054
QR16
23205054
QS01
QS11
QS12
23114623
23114623
23114466
QS13
QS14
QS107
QS108
23314965
23314965
23904896
23205057
QS120
QV01
QV10
QV20
QV21
QV22
QV23
QV28
QV30
QV31
23906597
B0384761
23114528
23114460
23114528
23114530
23114530
23114461
23905590
23205057
QV37
23205054
QV38
23205054
QV39
23205054
QV48
QV49
QV61
23114528
23114528
23205054
QV501
QV504
QV505
QV506
QV517
QV518
QV519
QV524
QW04
23318981
23314994
23314994
23314994
23314993
23314993
23314993
23314993
23205057
QW05
23205057
QW08
23205057
QW10
23205057
QW11
23205057
Location
Parts No.
No.
Description
IC, QUAD OP-AMP DMP14 14P NJM2058M
IC, QUAD OP-AMP DMP14 14P NJM2058M
IC, TC74HC123AF
IC, TC74HC123AF
IC, MCU 1CHIP 8BIT 8M 42P
TMPA8700CPN-3
IC, PST523D
IC, MC14052BF
IC, TC74HC244AF
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, 2SC2878-A(TEM
TRANSISTOR, 2SC2878-A(TEM
TRANSISTOR, R1=R2=47K-OHM TO92S
RN2204
TRANSISTOR, KTC3198 Y
TRANSISTOR, KTC3198 Y
IC, JLC1562BF
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
IC, BA4558F
DUAL AV SW IC NDIP 54
TRANSISTOR, 2SC1740S
TRANSISTOR, RN1204
TRANSISTOR, 2SC1740S
TRANSISTOR, 2SA933S
TRANSISTOR, 2SA933S
TRANSISTOR, RN1203
IC, M52055FP
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
TRANSISTOR, 2SC1740S
TRANSISTOR, 2SC1740S
TRANSISTOR, CHIP -50V -150MA SM
KTA1504Y
IC, MC14053BF
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
TRANSISTOR, CHIP 50V 150MA SM
KTC3875Y
QW17
QX111
QX112
QX113
QX121
QX122
23114463
23314993
23904125
23314993
23314993
23904126
QX123
QX131
QX133
QX141
QX143
QX151
QX153
QX161
QX163
QX170
QX201
QX202
QX206
QX207
QX211
QX212
QX220
QX221
QX222
23314993
23314993
23314993
23314993
23314993
23314993
23314993
23314993
23314993
23000790
23314993
23314993
23314993
23000263
23314993
23314993
23905939
23318026
23904396
QX223 23905927
QX224 23906951
QX226 23314994
QX240 23905013
QX242 23904396
QX243 23905927
QX244 23906951
QX245
QX246
QX260
QX261
QX262
QX300
QX310
QX330
QX340
QX341
QX342
QX391
QX392
QX393
QX470
QX471
QX472
QX551
QX552
QX561
QX562
QX571
QX572
QX600
23318026
23314994
23905013
23000283
23318823
23000788
23000198
23000803
23000282
23314352
23314352
23314993
23314993
23314993
70129665
23314993
23314993
23314994
23314994
23314994
23314994
23314994
23314994
23000789
QX610 23000965
– 49 –
Description
TRANSISTOR, RN1201
TRANSISTOR, 2SC4081 Q
IC, TC4W53FU(T2L
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
IC, L-MOS D-BILATERAL SW. SM8
TC4W66FU
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
IC, ANALOG MPX SSOP32P BH7650FS
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
IC, CMOS MULTIPLEXER SOP16 BU4053BCF
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
IC, TLC2933IPW
C-IC +5V REG I0=40MA
IC, L-MOS SCHMITT INVERTER SMV
TC7S14F
IC, L-MOS 2 INPUT OR USV
TC7SH32FU(BRA
IC, HCMOS SINGLE OR GATE 5PIN
SN74AHCT1G32DCK
TRANSISTOR, 2SA1576A106
IC, TLC2932IPW
IC, L-MOS SCHMITT INVERTER SMV
TC7S14F
IC, L-MOS 2 INPUT OR USV
TC7SH32FU(BRA
IC, HCMOS SINGLE OR GATE 5PIN
SN74AHCT1G32DCK
C-IC +5V REG I0=40MA
TRANSISTOR, 2SA1576A106
IC, TLC2932IPW
IC, 23000283L NI TOUITSU R1121N
IC, TC7S04F
IC, CMOS NEW MVP QFP240P MB87J4731
IC, EM636327Q-8
IC, +2.5V 2% REG.SC-63 UPC2925T
IC, 23000282L NI TOUITSU R1121N
TRANSISTOR, IMT2
TRANSISTOR, IMT2
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
IC, IC-HCT TC74HCT32AF TC74HCT32AF
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
IC, IC, CMOS HV SCALER QFP176P
MB87J8020
IC, HY57V161610DTC-8
SPECIFIC INFORMATIONS
Location
Parts No.
No.
SPECIFIC INFORMATIONS
Location
Parts No.
No.
QX630
QX670
QX691
QY01
QY10
QY12
QY101
QY116
QY213
23000803
23000283
A6030759
B0386049
23314994
23314994
23314994
23314993
23205014
QY260
QY501
QY504
QY505
QY506
QY507
QY508
QY509
QY524
QY600
QY621
23114528
23318981
23314994
23314994
23314994
23314994
23314994
23314994
23314993
23000936
23904396
QY622 23904396
QY661 23904396
QY662 23904396
QZ01
QZ02
23000108
23000438
QZ04
QZ05
QZ06
QZ14
QZ16
QZ17
QZ18
QZ20
QZ21
QZ22
QZ23
QZ24
QZ100
QZ101
QZ102
QZ103
D101
23314994
23314994
23314993
23314994
23314993
23314994
23314993
23314993
23314993
23314993
23314994
23314993
23906515
23314993
23314993
23314994
23316755
D215
D216
D217
D218
D219
D220
D301
D302
D303
D304
D305
D306
23118041
23118041
23118041
23118041
23118041
23118041
23118094
23316794
23118822
23118822
23118041
23316574
D311
D312
D313
23316682
23316732
23118859
Location
Parts No.
No.
Description
IC, +2.5V 2% REG.SC-63 UPC2925T
IC, 23000283L NI TOUITSU R1121N
IC L-MOS INVERTER TE85L
BUS P/N VCD IC QFP48
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SC4081 Q
TRANSISTOR, HIGH SPEED SWICH
2SC4667-O
TRANSISTOR, 2SC1740S
IC, MC14053BF
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SC4081 Q
IC, ODD/EVN_HANTEI 032ATC44-10(T
IC, L-MOS SCHMITT INVERTER SMV
TC7S14F
IC, L-MOS SCHMITT INVERTER SMV
TC7S14F
IC, L-MOS SCHMITT INVERTER SMV
TC7S14F
IC, L-MOS SCHMITT INVERTER SMV
TC7S14F
IC, UPD64082
IC, CMOS 4MDRAM EDO 40SOJ
M11B416256A-35J
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SA1576A106
TRANSISTOR, 2SC4081 Q
IC, CMOS 2LDIGICOMB SOP16P TC90A45F
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SC4081 Q
TRANSISTOR, 2SA1576A106
DIODE, ZENER VZ30.90-32.50 DO34
MTZ J 33C
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, EU2A
DIODE, SC570A
DIODE, ERB12-02
DIODE, ERB12-02
DIODE, MA111
DIODE, ZENER CHIP VZ6.05-6.36V
MA8062-M
DIODE, ZENER, MTZJ7.5C
DIODE, ZENER, MTZJ18C
DIODE, 1SS133
D314
D315
D401
D402
D403
D404
D405
D406
D407
D408
D409
D411
D412
D413
D413
D414
D414
D416
D417
D418
D461
* D482
D520
D521
D522
D523
D531
D532
D533
23118859
23118859
23118094
23118094
23316731
23316254
23118094
23118094
23316731
A7978850
23118094
23118094
23118041
23118707
23118041
23118707
23118041
23118041
23316591
23316591
23224366
23115774
23316647
23118041
23118041
23118041
23316573
23118822
23316586
D534
D601
D602
D603
D604
D607
23316792
23118041
23118041
23118041
23118041
23316616
D608
23316616
D611
D612
D661
23118041
23118041
23316570
D704
D705
D715
D721
D761
D762
D763
D764
D781
D782
D783
D784
D801
D840
D845
D851
D852
D853
D854
D855
D858
D859
23118859
23118859
23118859
23118859
23118859
23118859
23118859
23118859
23118859
23118859
23118859
23118859
23316784
23316962
23118859
23357215
23316714
23316714
23316399
23316399
23118859
23118859
– 50 –
Description
DIODE, 1SS133
DIODE, 1SS133
DIODE, EU2A
DIODE, EU2A
DIODE, ZENER, MTZJ18B
DIODE, ERC06-15
DIODE, EU2A
DIODE, EU2A
DIODE, ZENER, MTZJ18B
DIODE, S5295G
DIODE, EU2A
DIODE, EU2A
DIODE, MA111
DIODE, RP-1H
DIODE, MA111
DIODE, RP-1H
DIODE, MA111
DIODE, MA111
DIODE, ZENER, MA8100-M
DIODE, ZENER, MA8100-M
DIODE, FMQ-3GU
DIODE, ZENER, RD6.2E(FA-1)
DIODE, ZENER, MTZJ2.0B
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, ZENER, MA8062-L
DIODE, ERB12-02
DIODE, ZENER CHIP VZ8.29-8.70V
MA8082-H
DIODE, SC215
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, ZENER CHIP 21.45-22.55V
MA8220-M
DIODE, ZENER CHIP 21.45-22.55V
MA8220-M
DIODE, MA111
DIODE, MA111
DIODE, ZENER CHIP VZ5.30-5.58V
MA8056-L
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, RBV1506, LF-A
DIODE, S1WBA20
DIODE, 1SS133
DIODE, D4SBS6
DIODE, RL2Z
DIODE, RL2Z
DIODE, EL1Z
DIODE, EL1Z
DIODE, 1SS133
DIODE, 1SS133
D862
D863
D864
D873
D875
D876
D877
D878
D884
D885
D891
D892
D899
D901
D902
D911
D912
D916
D921
D922
D924
D925
D931
D932
D933
D934
D936
D941
D942
D943
D946
D948
D962
D963
D964
D965
D966
D967
D5001
D5002
D7702
D7705
D7706
D7707
D7708
D7709
D7715
D7716
D7717
D7718
D7719
D7733
D7734
D7738
D7739
D7740
D7741
D7742
D7743
D7745
D7746
D7747
D7748
D7749
D7760
23118094
23118859
23118094
23316747
23316688
23316759
23316747
23316686
23357217
23357216
23357214
23316768
24019485
23118859
23118859
23118859
23118859
A7568250
23118859
23118859
23118859
23118859
23118859
23118859
23118859
23118859
A7568250
23118859
23118859
23118859
23118859
23118859
23118859
23118859
23118859
23118859
23118859
A7568250
23316963
23316963
23118859
23118041
23118041
23118041
23118041
23118538
23118041
23118041
23118538
23118538
23118538
23118275
23118275
23118041
23118041
23118041
23118041
23118041
23118041
23118041
23118041
23118041
23118041
23118041
23118041
Location
Parts No.
No.
Description
DIODE, EU2A
DIODE, 1SS133
DIODE, EU2A
DIODE, ZENER, MTZJ27C
DIODE, ZENER, MTZJ9.1C
DIODE, ZENER, MTZ J 36C
DIODE, ZENER, MTZJ27C
DIODE, ZENER, MTZJ9.1A
DIODE, D4SBL40
DIODE, D4SBL20U
DIODE, D4SBS4
DIODE, FMB-26L
VARISTOR, V1=430V 3500A TNR10V431K
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1S1834
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1S1834
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1S1834
DIODE, CHIP SILCON 1SS344
DIODE, CHIP SILCON 1SS344
DIODE, 1SS133
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, ZENER, RD6.2ES
DIODE, MA111
DIODE, MA111
DIODE, ZENER, RD6.2ES
DIODE, ZENER, RD6.2ES
DIODE, ZENER, RD6.2ES
DIODE, ZENER, RD18MB2
DIODE, ZENER, RD18MB2
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
– 51 –
D7806
D7807
D7808
D7809
DA02
23118041
23316402
23316766
23118041
23316574
DA11
DA23
DA43
DA44
DA45
DA46
DA70
DB01
DB03
DB30
DB31
DB61
DH001
DH002
DH003
DH301
DH302
DH303
DH304
DH305
DH306
DH307
DH308
DH309
DH310
DH311
DH312
DH313
DH314
DH315
DH316
DH401
23118859
23118041
23118041
23118041
23118041
23118041
23118041
23358564
23358522
23118041
23118041
23118041
23316675
23316675
23316675
23316672
23316672
23316672
23316672
23316672
23316672
23316672
23316672
23118859
23118859
23118859
23118859
23316666
23316666
23316666
23316666
23316574
DR10
DR11
DR12
DR13
DR14
DR15
DS120
23118041
23118041
23118041
23118041
23118041
23118041
23316740
DV01
DV02
DV03
DV07
DV08
DV09
DV11
DV12
DV13
DV17
DV18
DV25
DV30
DV31
DV39
DV161
DV162
DV163
23316686
23316686
23316686
23316686
23316686
23316686
23316686
23316686
23316686
23316686
23316686
23118859
23316792
23316672
23358543
23316591
23316591
23316591
Description
DIODE, MA111
DIODE, RL4Z
DIODE, RU2YX
DIODE, MA111
DIODE, ZENER CHIP VZ6.05-6.36V
MA8062-M
DIODE, 1SS133
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
LED, LAMP RED SLR-56VC3FPQ
DIODE, LED, SIR-56SB3F
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, ZENER, MTZJ6.2B
DIODE, ZENER, MTZJ6.2B
DIODE, ZENER, MTZJ6.2B
DIODE, ZENER, MTZJ5.6B
DIODE, ZENER, MTZJ5.6B
DIODE, ZENER, MTZJ5.6B
DIODE, ZENER, MTZJ5.6B
DIODE, ZENER, MTZJ5.6B
DIODE, ZENER, MTZJ5.6B
DIODE, ZENER, MTZJ5.6B
DIODE, ZENER, MTZJ5.6B
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, 1SS133
DIODE, ZENER, MTZJ4.7B
DIODE, ZENER, MTZJ4.7B
DIODE, ZENER, MTZJ4.7B
DIODE, ZENER, MTZJ4.7B
DIODE, ZENER CHIP VZ6.05-6.36V
MA8062-M
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, MA111
DIODE, ZENER VZ21.52-22.63 DO34
MTZ J 22D
DIODE, ZENER, MTZJ9.1A
DIODE, ZENER, MTZJ9.1A
DIODE, ZENER, MTZJ9.1A
DIODE, ZENER, MTZJ9.1A
DIODE, ZENER, MTZJ9.1A
DIODE, ZENER, MTZJ9.1A
DIODE, ZENER, MTZJ9.1A
DIODE, ZENER, MTZJ9.1A
DIODE, ZENER, MTZJ9.1A
DIODE, ZENER, MTZJ9.1A
DIODE, ZENER, MTZJ9.1A
DIODE, 1SS133
DIODE, SC215
DIODE, ZENER, MTZJ5.6B
PHOTO SENSOR, IF=10MA 650NM S7565
DIODE, ZENER, MA8100-M
DIODE, ZENER, MA8100-M
DIODE, ZENER, MA8100-M
SPECIFIC INFORMATIONS
Location
Parts No.
No.
Location
Parts No.
No.
DV164 23316591
DV165 23316591
DV166 23316591
Location
Parts No.
No.
Description
DIODE, ZENER, MA8100-M
DIODE, ZENER, MA8100-M
DIODE, ZENER, MA8100-M
SPECIFIC INFORMATIONS
MISCELLANEOUS
B224
B225
B230
B233
B234
B235
B236
B237
BB10
BB11
BB20
BB21
BB30
BB31
BB300
23035412
23035412
23037312
23035412
23035412
23035310
23035412
23035412
23713014
23713013
23713014
23713013
23903022
23903022
23368627
E913
E943
E973
F470
F801
F801A
F850
F851
F852
F853
F860
F889
F890
F891
G101
G102
GJ01
GJ01
GJ02
GJ03
GJ05
GJ05
GJ06
GJ07
GJ11
GJ14
GJ14
GJ15
GJ15
GJ16
GJ16
GJ17
GJ18
GJ19
GJ20
GJ20
GJ21
GJ21
GJ22
GJ23
GJ24
GJ25
GJ26
GJ27
23198540
23198540
23198540
23144624
23144481
23165433
23144627
23144627
23144624
23144622
23144511
23144626
23144625
23144627
24011151
24011151
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
BRIDGE PLUG 16P 1.5
BASE SOCKET 16P 1.5
BRIDGE PLUG 16P 1.5
BASE SOCKET 16P 1.5
CONNECTOR, BASE B-B 8P 2.5 JST
CONNECTOR, BASE B-B 8P 2.5 JST
CONNECTOR, BRIDGE B-B 8P 2.5JST
08TM-2.5FJ-E
CRT EARTH ASSY, TP48E60
CRT EARTH ASSY, TP48E60
CRT EARTH ASSY, TP48E60
FUSE, AXIAL 125V 2.0A
FUSE
FUSE HOLDER, 5.2 SOC
FUSE, AXIAL 125V 5.0A
FUSE, AXIAL 125V 5.0A
FUSE, AXIAL 125V 2.0A
FUSE, AXIAL 125V 1.25A
FUSE, AXIAL, 125V 4.0A
FUSE, AXIAL 125V 4.0A
FUSE, AXIAL 125V 3.15A
FUSE, AXIAL 125V 5.0A
CHIP, METAL FILM, 1/20W 150 OHM J
CHIP, METAL FILM, 1/20W 150 OHM J
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
– 52 –
GJ28
GJ30
GJ33
GJ77
GJ78
GJ203
GJ204
GJ205
GJ206
GJ207
GJ208
GJ209
GJ210
GJ211
GJ212
GJ215
GJ216
GJ501
GJA33
H003A
J501
JM03
JM04
JM06
JM07
JR02
JV504
JX206
JX207
JX216
JX217
JX552
JX554
JX562
JX564
JX572
JX574
JX601
JX602
JY22
JY27
JY303
JY504
JZ01
JZ02
JZ03
KB01
P350
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
23740989
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000445
24000576
24000445
24000445
24000576
24000445
23000852
23368634
P410
23903025
P540
P708
P709
P713
P714
P715
P801
23903040
23902655
23902655
23164787
23164787
23164787
23372117
P802
23368013
P900
P900
P900
P900
23164563
23164563
23164563
23164563
Description
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
NUT, F-CONNECTOR 2H BS
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP, 3216TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP 1608TYPE
JUMPER CHIP, 3216TYPE
JUMPER CHIP 1608TYPE
IC, REMOCON RECEIVER PIC-37043TE2
PLUG, B-B 1.5MM 25P JST-JDV
JDV-PS25LB-10-1
CONNECTOR, SOCKET, B-B 1.5MM 25P
JST-JDV, JDV-R25LB-10-1
SOCKET, B-B 2MM 56P TAIKO
CONNECTOR, 15P
CONNECTOR, 15P
PLUG, 7P
PLUG, 7P
PLUG, 7P
POWER CORD, U/C 125V10A HSV 5
CMC-02P 5
CONNECTOR, PLUG, 2P 11.88MM W
VT-JST
PLUG, 3PIN MINICONNECTOR
PLUG, 3PIN MINICONNECTOR
PLUG, 3PIN MINICONNECTOR
PLUG, 3PIN MINICONNECTOR
PB13A
PH001
PH002
PV02
PV04
PV05
PV06
PZ01
S602
SA01
SA02
SA03
SA04
SA05
SA06
SA07
SA08
SA09
SR81
V901A
V902A
V903A
W661
23367677
23367724
23367724
23365819
23365907
23368646
23903040
23368646
23145412
23145226
23145226
23145226
23145226
23145226
23145226
23145226
23145226
23145226
23146577
23903148
23903148
23903148
23151232
W662
23151232
X401
X501
X4401
X4402
XA01
23153721
23153961
23153721
23153721
23153533
XH401
XY01
XY03
* Z401
Z405
23153752
23153961
23153721
24083013
23140203
Z410
Z410A
* Z801
ZH04
ZH001
ZH002
ZH121
ZH122
ZH141
ZH142
ZH161
ZH162
ZH408
ZV60
ZX821
ZX822
ZX823
23110842
23505177
23148734
23103778
23103823
23103823
23103823
23103823
23103823
23103823
23103823
23103823
23103823
23103778
23246195
23246195
23246195
Location
Parts No.
No.
Description
* E043Z
* E044Z
* E051Z
* E052Z
* E053Z
* E054Z
* U401
* U801
* U901
* UA02
* UD01
* UH01
* UV01
* UZ01
PLUG, 4P L TYPE 2.5MM
CONNECTOR, PLUG B-B 15P 2.5MM
CONNECTOR, PLUG B-B 15P 2.5MM
JACK, 1S3P
PIN(3E+1L:OFF+1R:OFF), JACK 5P
PLUG, B-B 2MM 56P TAIKO
SOCKET, B-B 2MM 56P TAIKO
PLUG, B-B 2MM 56P TAIKO
SWITCH
SWITCH, 1C1P, PUSH
SWITCH, 1C1P, PUSH
SWITCH, 1C1P, PUSH
SWITCH, 1C1P, PUSH
SWITCH, 1C1P, PUSH
SWITCH, 1C1P, PUSH
SWITCH, 1C1P, PUSH
SWITCH, 1C1P, PUSH
SWITCH, 1C1P, PUSH
RELAY, DLS5D1-O(M)0.25W DLS5D1-O(M)0.
SOCKET, ISH-44S-E ICE #5
SOCKET, ISH-44S-E ICE #5
SOCKET, ISH-44S-E ICE #5
SPEAKER, SPK-1235, 160X160, 65HZ,
8 OHM
SPEAKER, SPK-1235, 160X160, 65HZ,
8 OHM
CERAMIC RESONATOR, 503KHZ
CRYSTAL, 3.58MHZ
CERAMIC RESONATOR, 503KHZ
CERAMIC RESONATOR, 503KHZ
CERAMIC RESONATOR, CERA RESO
TCR1082AM
CRYSTAL, 8.000 40PPM 50OHM
CRYSTAL, 3.58MHZ
CERAMIC RESONATOR, 503KHZ
COMPOSITE PARTS, CR-BLOCK TPA5010AH
SPARK GAP, 2.0-3.0KV C-010
AG20PC152F-L3N
FOCUS PACK, TPA6031
CABLE, FOCUS
MODULE, PROTECTOR, HIC1026A
FILTER, FERRITE CORE, TFE1008
COIL, COMMONMODE TEM2027D
COIL, COMMONMODE TEM2027D
COIL, COMMONMODE TEM2027D
COIL, COMMONMODE TEM2027D
COIL, COMMONMODE TEM2027D
COIL, COMMONMODE TEM2027D
COIL, COMMONMODE TEM2027D
COIL, COMMONMODE TEM2027D
COIL, COMMONMODE TEM2027D
FILTER, FERRITE CORE, TFE1008
COIL, CHIP INDUCTOR, TRF41R0CG
COIL, CHIP INDUCTOR, TRF41R0CG
COIL, CHIP INDUCTOR, TRF41R0CG
23786226
23786227
23786228
23786229
23786230
23786231
23786232
23786233
PC
PC
PC
PC
PC
PC
PC
PC
BOARD,
BOARD,
BOARD,
BOARD,
BOARD,
BOARD,
BOARD,
BOARD,
PC BOARD, REM PD0081-3
PC BOARD, FRONT-SEN PD0081-4
PC BOARD, CONV-SEN PD0079-1
PC BOARD, CONV-SEN2 PD0079-2
PC BOARD, CONV-SEN3 PD0079-3
PC BOARD, CONV-SEN4 PD0079-4
PC BOARD, DPC PD0077A
PC BOARD, DEFPOWER PD0074A
PC BOARD, SIGNALCONV
PC BOARD, FRONT UNIT PD0081
PC BOARD, SRS-3D PD0076A
PC BOARD, DIGI-CONV
PC BOARD, A/V PD0075A
PW UNIT NEXT HYPER, PD0264A
PICTURE TUBE
* V901R 23008518
* V902G 23008175
* V903B 23008519
CRT COUPLING R 65H81
OTHER BLOCK, COUPLING G 50H81
CRT COUPLING B 65H81
TUNER
H001
23321411
HY01
23321412
TUNER, TIM 181CH IIC PH SHINSEN
EL967LW
TUNER, TIF 181CH IIC PH TDL EL963L
ACCESSORIES
K912
23306413
Y101
Y101F
23565268
23565269
REMOCON HAND UNIT IR, PJTVUSA
CT-90086
OWNER’S MANUAL, ENGLISH 50H81
OWNER’S MANUAL, FRENCH 50H81
CABINET PARTS
PC BOARD ASSEMBLIES
* E031Z
* E032Z
* E033Z
* E034Z
* E035Z
* E036Z
* E041Z
* E042Z
23786234
23786235
23786222
23786223
23786224
23786225
23786220
23786217
23786516
23708379
23786219
23786517
23786218
23786198
Description
CRT-D/R PD0080A1
CRT-D/G PD0080A2
CRT-D/B PD0080A3
SVM/R PD0080A4
SVM/G PD0080A5
SVM/B PD0080A6
FRONT-CON PD0081-1
FRONT-IN PD0081-2
– 53 –
A001
A102
A160
A201
A202
23411546
23527182
23469228
23540678
23450360
A213
A214
A224
A268
A421
A424
A510
A519
A521
A543
A701
A703
A708
A721
K501
K502
K503
K601
23427953
23451976
23445489
23540754
23540170
23540680
23030815
23030815
23030815
72471068
23064558
23946215
23946214
23943628
23311903
23311904
23311861
23405029
WOOD CAB SHIP 65H81
SPK GRILLE ASSY 65H81
CASTER, TP50H60
COVER, BEZEL 65H81
PANEL, CONTROL PANEL ASSY 50H81
50H81
DOOR, DOOR PROPER 50H81 50H81
PUSH CATCH, CLICK
BUTTON, CONTROL BUTTON 50H81 50H81
COVER, FRONT COVER 65H81
COVER, REAR BOARD 50A60 50A60
COVER, BACK BOARD 65H81
WOOD SCREW PTD #6 X 3/4 TNP LOCAL
WOOD SCREW PTD #6 X 3/4 TNP LOCAL
WOOD SCREW PTD #6 X 3/4 TNP LOCAL
SCREW, 4X12
CARTON, CARTON 65H81
TOP PACKING 65H81
BOTTOM PACKING 65H81
PLYETHLENE COVERING 46GM88T
SCREEN, 65KL LENTI SHEET
SCREEN, 65KL FRESNEL
SCREEN, PROTECTOR 65RL
MIRROR, 65WL
SPECIFIC INFORMATIONS
Location
Parts No.
No.
SPECIFIC INFORMATIONS
THIS PAGE IS
INTENTIONALLY LEFT
BLANK.
– 54 –
SIGNAL BOARD PD0073
BOTTOM (FOIL) SIDE
– 55 –
– 56 –
DEF/POWER BOARD PD0074
BOTTOM (FOIL) SIDE
– 57 –
– 58 –
A/V BOARD PD0075
BOTTOM (FOIL) SIDE
– 59 –
SRS-3D BOARD PD0076
BOTTOM (FOIL) SIDE
– 60 –
DPC BOARD PD0077
BOTTOM (FOIL) SIDE
– 61 –
DIGI-CONV BOARD PD0078
BOTTOM (FOIL) SIDE
– 62 –
CONV-SEN BOARD PD0079
BOTTOM (FOIL) SIDE
CRT DRIVE(RED) BOARD PD0080
BOTTOM (FOIL) SIDE
– 63 –
CRT DRIVE(GRN) BOARD PD0080
BOTTOM (FOIL) SIDE
CRT DRIVE(BLE) BOARD PD0080
BOTTOM (FOIL) SIDE
– 64 –
SVM-R BOARD PD0080
BOTTOM (FOIL) SIDE
SVM-G BOARD PD0080
BOTTOM (FOIL) SIDE
SVM-B BOARD PD0080
BOTTOM (FOIL) SIDE
– 65 –
FRONT BOARD PD0081
BOTTOM (FOIL) SIDE
FRONT BOARD PD0081
BOTTOM (FOIL) SIDE
FRONT BOARD PD0081
FRONT BOARD PD0081
BOTTOM (FOIL) SIDE
BOTTOM (FOIL) SIDE
– 66 –
WOW BOARD PD0220
BOTTOM (FOIL) SIDE
– 67 –
NEXT HYPER BOARD PD0264
BOTTOM (FOIL) SIDE
– 68 –
TERMINAL VIEW OF TRANSISTORS
2SC5144
E
C
�
B
2SC3852
2SD1763A
2SC1569
2SC4544
2SA1788
2SA1306
2SA1186A
�
2SC752GTM
2SC2482
2SC2655
2SC4721P
�
2SD1554
2SD2253
2SD1556
2SD2553
2SC5143
2SA1788
CB
�
E
C
BC
ON4409
E
E
E
�
CB
BC
RN2203
RN2201
RN2004
RN1203
RN1204
RN2204
RN1205
RN1202
RN1201
2SC752
2SA562TM
2SA1015
2SC1815
2SC2878
2SC1740S
2SC2120
2SA9335
E
E
�
�
C
B
CB
– 69 –
B
E
SPECIFIC INFORMATIONS
�
MEMO
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
SPECIFIC INFORMATIONS
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
– 70 –
MEMO
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
– 71 –
SPECIFIC INFORMATIONS
........................................................................................................................................
MEMO
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
SPECIFIC INFORMATIONS
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
– 72 –
TELEVISION SYSTEM
NTSC standard
CHANNEL COVERAGE
VHF: 2 through 13
UHF: 14 through 69
Cable TV: Mid band (A-8 through A-1, A through I)
Super band (J through W)
Hyper band (AA through ZZ, AAA, BBB)
Ultra band (65 through 94, 100 through 125)
POWER SOURCE
120 V AC, 60 Hz
POWER CONSUMPTION
195W (Average)
AUDIO POWER
15 W + 15 W
SPEAKER TYPE
Two 6-5/16 inches (16 cm) round
VIDEO/AUDIO TERMINALS
S-VIDEO INPUT
Y-INPUT: 1V (p-p), 75 ohm, negative sync.
C-INPUT: 0.286 V(p-p) (burst signal), 75 ohm
VIDEO/AUDIO INPUT
VIDEO: 1 V(p-p), 75 ohm, negative sync.
AUDIO: 150 mV(rms) (30% modulation equivalent, 47 kohm)
ColorStreamTM (Component video) INPUT
Y-INPUT: 1 V(p-p), 75 ohm
PR-INPUT: 0.7 V(p-p), 75 ohm
PB-INPUT: 0.7 V(p-p), 75 ohm
AUDIO: 150mV(rms). 47 kohm
VIDEO/AUDIO OUTPUT
VIDEO: 1 V(p-p), 75 ohm, negative sync.
AUDIO: 150 mV(rms) (30% modulation equivalent, 4.7 kohm)
VARIABLE AUDIO OUTPUT
0-300 mV(rms) (30% modulation equivalent, 4.7 kohm)
AUDIO CENTER CHANNEL INPUT
300 mV(rms) (30% modulation equivalent, 10 kohm)
DIMENSIONS/MASS
Dimension (W/H/D)
65H81
SUPPLIED ACCESSORIES
59-7/16 x 60-10/16 x 29 inches
(1,510 x 1,540 x 736 mm)
Mass
413 lbs
(187.5 kg)
Remote Control with 2 size “AA” alkaline batteries
*Please refer to owner's manual in detail.
– 73 –
SPECIFIC INFORMATIONS
SPECIFICATIONS
FILE NO. 020-200113
SERVICE MANUAL
COLOR TELEVISION
N1PSP Chassis
65H81
(TAC0153)
TOSHIBA CORPORATION
1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN
PUBLISHED IN JAPAN,
Jul., 2001 So
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
