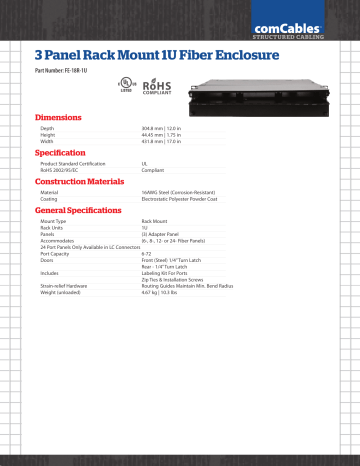

3 Panel Rack Mount 1U Fiber Enclosure
3 Panel Rack Mount 1U Fiber Enclosure
Part Number: FE-18R-1U
RoHS
COMPLIANT
Dimensions
Depth Height Width 304.8 mm | 12.0 in
44.45 mm | 1.75 in
431.8 mm | 17.0 in
Specification
Product Standard Certification RoHS 2002/95/EC
UL
Compliant
Construction Materials
Material Coating
16AWG Steel (Corrosion-Resistant)
Electrostatic Polyester Powder Coat
General Specifications
Mount Type Rack Mount
Rack Units
1U
Panels
(3) Adapter Panel
Accommodates (6-, 8-, 12- or 24- Fiber Panels)
24 Port Panels Only Available in LC Connectors
Port Capacity
6-72
Doors
Front (Steel) 1/4” Turn Latch
Rear - 1/4” Turn Latch
Includes Labeling Kit For Ports
Zip Ties & Installation Screws
Strain-relief Hardware Routing Guides Maintain Min. Bend Radius
Weight (unloaded)
4.67 kg | 10.3 lbs
