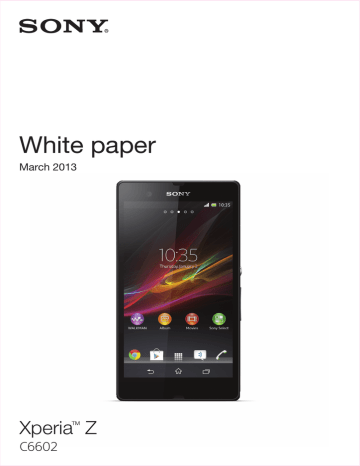

White paper
March 2013
Xperia Z
White paper | Xperia™ Z
Purpose of this document
Sony product White papers are intended to give an overview of a product and provide details in relevant
areas of technology.
Document history
January 2013
First released version
Version 1
March 2013
Second released version
Version 2
March 2013
Third released version
Version 3
Sony Mobile Developer World
For the latest technical documentation and development tools, go to
This document is published by Sony Mobile
Communications AB, without any warranty*.
Improvements and changes to this text
necessitated by typographical errors,
inaccuracies of current information or
improvements to programs and/or equipment
may be made by Sony Mobile Communications
AB at any time and without notice. Such changes
will, however, be incorporated into new editions
of this document. Printed versions are to be
regarded as temporary reference copies only.
This White paper is published by:
Sony Mobile Communications AB,
SE-221 88 Lund, Sweden
© Sony Mobile Communications AB, 2009-2013.
All rights reserved. You are hereby granted a
license to download and/or print a copy of this
Any rights not expressly granted herein are
*All implied warranties, including without
limitation the implied warranties of
merchantability or fitness for a particular
purpose, are excluded. In no event shall Sony or
its licensors be liable for incidental or
consequential damages of any nature, including
but not limited to lost profits or commercial loss,
arising out of the use of the information in this
First released version (January 2013)
Publication number: 1272-9741.1
March 2013
White paper | Xperia™ Z
Table of contents
Product overview ........................................................................................................2
Xperia™ Z HSPA+ – Experience the best of Sony in a smartphone .....................2
Signature features .................................................................................................5
Facts – dimensions, weight, performance and networks ......................................6
Categorised feature list ..........................................................................................8
Technologies in detail ...............................................................................................10
Device-to-device communications (local) ...........................................................10
Bluetooth™ wireless technology ......................................................................10
Wi-Fi® ...............................................................................................................11
DLNA Certified® (Digital Living Network Alliance) ............................................12
Messaging ...........................................................................................................13
MMS (Multimedia Messaging Service)..............................................................13
Email .................................................................................................................13
Positioning – location based services .................................................................14
Provisioning (OMA CP) ........................................................................................14
Multimedia (audio, image and video) ...................................................................15
Synchronisation (OMA DS, EAS, Google Sync™) ...............................................16
Web browser .......................................................................................................16
Memory in Android™ device ...............................................................................17
Trademarks and acknowledgements ..................................................................21
March 2013
White paper | Xperia™ Z HSPA+
Product overview
Xperia™ Z HSPA+ – Experience the best of Sony in a
Xperia™ Z sets a new standard of excellence, with a razor sharp and super bright 5” full HD display and
reflective surfaces that wow anyone looking. Running on Android 4.1, Jelly Bean, it comes fully loaded
with years of Sony engineering. Advanced BRAVIA® screen technology, created with the expertise of the
same engineers behind BRAVIA® TVs. A 13.1 megapixel fast capture camera that’s made to take the best
shots in any light, built with the same expertise and components as leading Sony cameras. And a sleek
design with a solid water and dust-resistant body. Xperia™ Z is designed with attention to every corner,
piece and pixel, all to bring you the most captivating experience imaginable. It’s craftsmanship re-defined.
Smartphone re-imagined. It’s the best of Sony in a smartphone.
A screen as impressive as HDTV
Feel like you’re there with the razor sharp and super bright full HD screen. Xperia™ Z brings you
entertainment that’s bigger and closer than ever. Expertise from our BRAVIA® TV engineers goes into our
mobile screens, to bring you the same quality you’d expect from a top quality HDTV. The 5” 1080 x 1920
full HD display has very high pixel density – 443 ppi—and superior brightness. That’s a lot of numbers that
add up to mean unbelievably crisp and seriously bright, even in sunlight. The Reality Display™ with Mobile
BRAVIA® Engine 2 uses the same contrast enhancement technology as the latest BRAVIA® TVs.
Immerse yourself in your favourite game, a chat with your best mate, or watch the latest flick. Time to go?
The OptiContrast™ panel makes the phone seamlessly, strikingly black when turned off.
Exmor RS™ for mobile – the world’s first image sensor with HDR video for
Torch-lit tent. Backlit peak. Midday beach. Now, with Xperia™ Z, you can capture ultra-sharp photos &
videos in any condition. Our smartphone camera modules use the same expertise and components as
leading Sony cameras. And thanks to Exmor RS™ for mobile with next generation BSI sensors, you can
take stunning shots in any light. With low-light capabilities on both front and back, Xperia™ Z is the
world’s first dual Exmor R™ for mobile camera. So what if the sun is shining right behind your subject?
Xperia™ Z, with HDR photos and HDR video, takes beautiful stills and movies in backlit conditions as well.
More interested in the moment and not a pro with settings? Superior Auto mode automatically activates
HDR and noise reduction when they’re needed. Adopting the technology of luminance and colour noise
reduction allows us to realize detailed results with low noise in challenging lighting conditions, and
reproduces objects in more vivid colour. Your device is automatically optimised for 36 different scenes, so
you always get the best shot. You focus on your target, the camera does the thinking.
Smart, Sleek & Durable
Carry it to your outdoor activities; take it out in the rain, the durable smartphone you’ve imagined is now
real. Xperia™ Z brings Sony’s long history of water-resistant electronics to a smartphone – the only one of
its kind. The slim 7.9 mm body, with its reflective glass surface, looks and feels slick, but Xperia™ Z is
crafted to be sturdy. It’s dust resistant, with durable tempered glass on front and back, which are further
protected by anti-shatter films. No one knows how to best pack durability into a beautiful design like
Sony. For whatever you have planned – and whatever life has planned for you.
March 2013
White paper | Xperia™ Z HSPA+
Smartphone with super power
Forget load time. As fast as you can think it up, Xperia™ Z can deliver. The Snapdragon™ S4 Pro quadcore 1.5 Ghz processor with 2GB RAM gives you super-fast performance and unparalleled graphics. But
Xperia™ Z is also made to use the battery wisely. Because the four cores are powered up and down as
required, they only use the minimum power needed to complete a task. So you’re not left high and dry.
Find your way on Google Maps™. Stream the latest videos and YouTube™ clips. Download all the newest
apps and run them without a hitch. Get it all when you want it – that would be now, right?
Share the magic on any screen
Home at last. Time to relax with the latest blockbuster? The “Movies” app magically downloads info on all
the films that you have downloaded or side loaded, and lets you view them in high quality. Or why not play
your videos on a big screen by connecting a standard HDMI cable to your HDTV using an MHL adapter* or
a compatible Xperia TV Dock* accessory? With live streaming in full HD, what looks gorgeous on your
phone also looks gorgeous on your HDTV. If you prefer to go wireless, you can use the Screen Mirroring**
feature to share content from your phone via the TV***. With just the touch of a button, you can watch your
selected photo pop up on the TV screen or listen to the current music track play on the TV’s speakers.
* Separate accessory, not included.
** When using screen mirroring, the image quality may sometimes be negatively impacted if there is
interference from other Wi-Fi networks.
*** Your TV must support screen mirroring based on Wi-Fi CERTIFIED Miracast™ for the screen mirroring
feature to work. If your TV does not support such screen mirroring, you need to purchase a wireless
display adapter separately.
Better battery life
With Battery STAMINA Mode you have more intelligent battery management and can easily improve your
standby time by four times or more*. When the screen is off, your phone automatically shuts down the
battery-draining apps you don’t need, then starts them up again when the screen is back on. And of
course, since you don’t want to miss any important reminders or notifications, you can choose which
apps to keep running even when the screen is off.
* Based on testing done with default settings, default accounts and applications for Skype™ and Twitter™
downloaded to the phone. The more applications installed, the bigger the effect of Battery STAMINA
Entertainment audio
Xperia™ Z comes with a high quality stereo headset. Sony MH-EX300AP headset has superior acoustic
performance which helps realize sound true to the original recorded sound.
Get the most out of your music, games and films. An in-ear headset that’s designed for a premium
comfort fit lets you enjoy quality entertainment audio. And when a call or message comes in, you’ll know.
PlayMemories Online*. Enjoy anytime, anywhere.
Where are all your favourite shots? Spread out on Facebook™, your phone and your computer? Now you
can carry every picture with you, without storing them all in your phone. PlayMemories Online lets you
collect all your photos and videos in one place, then relive memories wherever you are. See the perfect
shot? Upload pictures automatically over Wi-Fi from your phone camera to PlayMemories Online. Then
view your photos on any device – tablet, phone, computer, or BRAVIA® TV.
* PlayMemories Online is not available in every market.
March 2013
White paper | Xperia™ Z HSPA+
Game on!
In the mood for a brain teaser? Or are your fingers itching to do battle? With your PlayStation™Certified
smartphone, you’ll have direct access to PlayStation®Store for PlayStation®Mobile *, where you can
browse a catalogue of great PlayStation®Mobile games developed for PlayStation®Mobile. So however
you like to play, download something today and say bye-bye to boredom.
* PlayStation® Mobile is currently available in the US, Canada, Japan, UK, France, Italy, Germany, Spain
and Australia only.
Sony Entertainment Network* – anytime, anywhere
Download a movie or TV show from Video Unlimited™. Connect your smartphone to your TV and the TV
launcher pops up automatically. Enjoy millions and millions of songs from Music Unlimited™. Enjoy all this
and more from Sony Entertainment Network, with a common sign-on ID and digital wallet through your
smartphone. It’s the perfect fit for a life full of entertainment.
* Sony Entertainment Network with Video Unlimited™ and Music Unlimited™ is not available in every
market. Separate subscription required. Additional terms and conditions apply.
March 2013
White paper | Xperia™ Z HSPA+
Signature features
The Sony Xperia™ Z comes with a range of features as standard. Below is a summary of the key signature
Xperia™ Local connectivity
More control over your media
Using Local connectivity, you can exercise more control over how media files get transferred and stored.
Xperia™ Home screen application
The place you call Home
Customise your Home screen with widgets, shortcuts, folders, themes, wallpaper and other items.
Where’s best for you? Email top right? Music player bottom left? You decide. With six extensions to your
Home screen, you’ve got plenty of space to put things where you want. Just remember to flick left or right
to find them.
March 2013
White paper | Xperia™ Z HSPA+
Facts – dimensions, weight, performance and
Operating system
Google™ Android™ 4.1 (Jelly Bean)
1.5 GHz Qualcomm APQ8064+MDM9215M Quad Core
Adreno 320
139x71x7.9 mm
146 grams
Available colours
SIM card
Micro SIM
Main screen
16,777,216 colour TFT
1920x1080 pixels
Size (diagonal)
5.0 inches
Shatter-proof sheet on scratch-resistant glass
Input mechanisms
Text input
On-screen QWERTY keyboard
Touch screen
Touch gesture
Yes – multi-touch, up to 10 fingers supported
2 GB
Flash memory
Up to 16 GB*
Expansion slot
microSD™ card, up to 32 GB
Camera resolution
13.1 MP
Digital zoom
Photo light
Yes – Pulsed LED
Video recording
Yes – HD 1080p
Front Camera
Yes – HD 1080p for video chat and 2.2 MP for camera capture
Proximity sensor
March 2013
White paper | Xperia™ Z HSPA+
Ambient light sensor**
UMTS HSPA+ 850 (Band V), 900 (Band VIII), 1700 (Band IV),
1900 (Band II), 2100 (Band I) MHz
GSM GPRS/EDGE 850, 900, 1800, 1900 MHz
Data transfer speeds
Up to 107 kbps
Up to 296 kbps
UMTS HSPA+ cat 6 (upload)
Up to 5.8 Mbps
UMTS HSPA+ cat 24
Up to 42 Mbps
Talk time (GSM)
Up to 11 hours***
Standby time (GSM)
Up to 550 hours***
Talk time (UMTS)
Up to 14 hours***
Standby time (UMTS)
Up to 530 hours***
Music listening time
Up to 40 hours***
Video playback time
Up to 5.5 hours***
Battery (Embedded)
2400 mAh typical
2330 mAh minimum
* Memory comprises of approximate 5 GB firmware, plus 11 GB of “Internal storage” for music, pictures
and movies, and downloaded applications and their data, For more details about memory, “Memory in
Android™ device” on page 17.
** There is no API for the light sensor.
*** Values are according to GSM Association Battery Life Measurement Technique as performed in controlled laboratory conditions. Actual time may vary.
NOTE: Battery performance may vary depending on network conditions and configurations, and device
NOTE: Performance metrics measured under laboratory conditions.
March 2013
White paper | Xperia™ Z HSPA+
Categorised feature list
13.1 megapixel camera
16x digital zoom
Auto focus
Burst Mode
HDR for both picture/movie
Face detection
Flash/Pulsed LED
Flash/Photo light
Front-facing camera (2.2 MP
HD video recording (1080p)
Image stabiliser
Object tracking
Picture Effect
Quick Launch
Red-eye reduction
Scene recognition
Send to web
Smile detection
Sony Exmor RS™ for mobile
Image sensor
Superior Auto
Sweep Panorama
Touch capture
Touch focus
White balance
3D Surround Sound (VPT)
Album art
Bluetooth™ stereo (A2DP)
Clear bass
Clear Phase™
Clear stereo
Dynamic normalizer
Music tones (MP3/AAC)
PlayNow™ service*
TrackID™ music recognition*
“WALKMAN” application
xLoud™ Experience
Google Chrome™
Google Play™
Google™ search*
Google Voice™ Search*
Google Maps™ for Mobile with
Street view and Latitude™*
NeoReader™ barcode scanner
Pan & zoom
Web browser (WebKit™)
March 2013
White paper | Xperia™ Z HSPA+
Call list
Facebook™ application*
Google Talk™ application*
Noise suppression
Polyphonic ringtones
Google Mail™*
Handwriting recognition
Instant messaging
Multimedia messaging (MMS)
Predictive text input
Sound recorder
Text messaging (SMS)
Auto rotation
Battery STAMINA Mode
Direct touch
Face Unlock
Gesture input
IPX5/7 (Water-resistant) & IP5X
On-screen QWERTY keyboard
Sony Mobile BRAVIA® Engine 2
Screenshot capturing
Touch screen
Voice input
Wide color gamut
3D games
Google Wallet™
Media browser
Motion gaming
PlayStation® Certified
Radio (FM radio with RDS)
SensMe™ slideshow
Sony Entertainment Network*
TV launcher
Video streaming
Airplane mode
Alarm clock
Document readers
Infinite button
Setup guide
3.5 mm audio jack (CTIA)
Bluetooth™ 4.0 wireless technology
DLNA Certified®
HDMI via MHL support
Media Go™
Media Transfer Protocol support
Micro USB support
Native USB tethering
PC Companion
Screen mirroring
Synchronisation via Exchange
Synchronisation via Facebook™
Synchronisation via Google™
Synchronisation via SyncML™
USB charging
USB High speed 2.0 support
Xperia™ Link
Wi-Fi® Hotspot functionality
* This service is not available in all markets.
March 2013
White paper | Xperia™ Z HSPA+
Technologies in detail
NOTE: The information outlined below is general and levels of compliance to standards and specifications
may vary between products and markets. For more information, contact Sony Mobile Developer World or
your Sony contact person where applicable.
Device-to-device communications (local)
Bluetooth™ wireless technology
Bluetooth™ profiles supported
Advanced Audio Distribution Profile v1.2
Audio/Video Remote Control Profile v1.0
Generic Attribute Profile Client/Server over LE
Handsfree Profile v1.6 (Wide band speech)
Headset Profile v1.1
Health Device Profile 1.1
Host Interface Device Profile
Human Interface Device Profile v1.1
Message Access Profile
Object Push Profile v1.1
Personal Area Networking Profile v1.0
Phonebook Access Profile v1.0
Proximity Monitor Profile over LE
Core version and supported core Version 4.0
Connectable devices
Products supporting at least one of the Bluetooth™ profiles
BT4.0 accessories generally require installation of a supporting application.
More information:
March 2013
White paper | Xperia™ Z HSPA+
Supported standards
IEEE 802.11a/b/g/n and Wi-Fi®
Wi-Fi Direct, Wi-Fi Protected Setup and Wi-Fi Miracast
Connectable devices
Wi-Fi® access points
Wi-Fi Direct compatible devices
Frequency band
2.4 GHz/5 GHz
Data transfer rate
Up to 150 Mbit/s
Open Authentication
Shared Authentication
WPA Personal and WPA2 Personal
WPA Enterprise and WPA2 Enterprise
WEP 64 bit, WEP 128 bit, TKIP and CCMP (AES)
Power save
March 2013
White paper | Xperia™ Z HSPA+
DLNA Certified® (Digital Living Network Alliance)
Supported Device Classes
M-DMS – Mobile Digital Media Server
Media Types: images, music and video
Summary: The digital media server exposes the media
files in your phone to a Wi-Fi® network. The files can
then be accessed from other DLNA Certified® clients.
Media Types: image, video and music
Summary: Play media in the phone on another device, such
as a TV or computer using 2 box push technology. +PU+ is
integrated in the Gallery and Music applications.
M-DMP – Mobile Digital Media Player
Media Types: image, video and music
Summary: Play content stored on another device, for example, a server or a PC, directly on the phone.
Media Types: image, video and music
Summary: Download content stored on another device, for
example, a server or a PC, and play the downloaded content directly on the phone.
Supported Bearers
DRM Support
The DLNA Certified® implementation does not support
DRM-protected content.
March 2013
White paper | Xperia™ Z HSPA+
MMS (Multimedia Messaging Service)
According to OMA Multimedia Messaging Service v1.0 + SMIL
Bearer type (IP)
Character sets
BIG5 Traditional Chinese
ISO-2022-JP Japanese
ISO-8859-2 Eastern Europe
ISO-8859-5 Cyrillic
ISO-8859-7 Greek
ISO-8859-9 Turkish
ISO 8859-11
KOI8-R Cyrillic
Shift_JIS Japanese
Windows® 874
Windows® 1251 Cyrillic
Windows® 1252
Windows® 1254 Turkish
Windows® 1258 Vietnamese
POP3 and IMAP4
Push email
Microsoft® Exchange ActiveSync® (EAS)
Secure email
SSL/TLS, both port methods (POPS/IMAPS) and STARTTLS
HTML mail
Yes (read only)
More information:
March 2013
White paper | Xperia™ Z HSPA+
Positioning – location based services
Supported standards:
• OMA Secure User Plane Location (SUPL) v1.0 & v2.0
• 3GPP™ Control Plane location (incl. Emergency location)
• Qualcomm® GPSOneXtra™
Supported satellite systems:
* NOTE: GPS and GLONASS are used together to calculate the position. Positioning is more robust and
accurate in most conditions if both systems are active. The benefits of using GLONASS are automatically
available for all applications using the Satellite Positioning API (referred to "GPS Provider" in Android
Provisioning (OMA CP)
OMA CP version 1.1
March 2013
White paper | Xperia™ Z HSPA+
Multimedia (audio, image and video)
Audio Playback
Audio Recording
Decoder format
Supported in file format
Audio decoding MPEG-1/2/2.5,
audio layer 3
MP3 (.mp3), 3GPP (.3gp),
MP4 (.mp4, .m4a)
3GPP (.3gp), MP4 (.mp4)
3GPP (.3gp)
General MIDI (GM)
SMF (.mid)
Linear PCM 16 bit
WAV (.wav)
OTA (.ota)
Ogg vorbis
Ogg vorbis (.ogg)
FLAC (.flac)
Encoder format
Supported in file format
3GPP (.3gp), MP4 (.mp4),
AMR (.amr)
AMR-NB, AMR-WB, AAC-LC stereo 3GPP (.3gp), MP4 (.mp4)
Sample rate: 48 kHz
Bit rate: 128 kbps
Image Playback
Decoder format
Supported in file format
1, 4, 8, 16, 24 and 32 bpp and RLE
encoded formats
BMP (.bmp)
Single and multi-frame, bitmap mask GIF (.gif)
support (GIF87a format and GIF89a
Image Capture
Video Playback
Joint Photographic Experts Group
JPEG (.jpg)
Portable Network Graphics Bitmap
mask support
PNG (.png)
Wireless Bitmap
WBMP (.wbmp)
Encoder format
Supported in file format
Joint Photographic Experts Group
JPEG (.jpg)
Decoder format
Supported in file format
MPEG-4 Simple Profile Level 6,
Advanced Simple Profile Level 5
3GPP (.3gp), MP4 (.mp4)
Matroska (.mkv), AVI (.avi, .xvid),
H.264 High Profile Level 3.2
3GPP (.3gp), MP4 (.mp4)
Matroska (.mkv), MPEG2-TS (.ts,
AAC audio)
H.263 Profile 0 Level 70
3GPP (.3gp)
March 2013
White paper | Xperia™ Z HSPA+
Video Recording
Encoder format
Supported in file format
Video H.263 Profile 0, H.264
High Profile
Baseline Profile
Audio: AAC-LC stereo
Sample rate: 48 kHz
Bit rate: 128 kbps, AMR-NB
3GPP (.3gp), MP4 (.mp4)
Audio/Video Streaming
Streaming transport
RTSP according to 3GPP™
HTTP streaming
DRM (Digital Rights Management) –
features the rights and copy
protection of downloaded content
OMA DRM 1.0 Marlin DRM
Synchronisation (OMA DS, EAS, Google Sync™)
OMA Data Synchronisation protocol versions 1.1.2 and 1.2
OMA Data Formats: vCard 2.1, vCalendar 1.0
Microsoft® Exchange ActiveSync® protocol version 2.5
Microsoft® Exchange ActiveSync® protocol version 12
Microsoft® Exchange ActiveSync® protocol version 12.1
Microsoft® Exchange ActiveSync® protocol version 14
Microsoft® Exchange ActiveSync® protocol version 14.1
Google Sync™
Related information:
Web browser
Google™ Chrome for Android™ is pre-installed.*
Related information:
* Google™ Chrome is not available for all markets.
March 2013
White paper | Xperia™ Z HSPA+
Memory in Android™ device
To use Android phones efficiently, users should be aware of the different types of phone memory. This
knowledge is important in order to understand, for example, where music, photos and videos are saved;
how many apps can be downloaded from Google Play™; and how photos can be copied to a PC.
The below information is also of interest to developers who wants to make their programs able to make
the best possible use of the resources in the phone.
Generally, all Android phones share the same basic memory setup. What differs is how much memory is
available to you via the different types of memory, and whether your phone uses an external SD card or an
internal memory chip. Any information specific to the particular phone model described in this White
Paper is noted as such.
Types of memory
The types of memory described below are consistent with the terminology used in Sony mobile phone
menus and in other content relating to 2013 Xperia™ phones:
1. Dynamic Memory (also known as RAM) is used by applications that run when the phone is turned on.
The amount of Dynamic Memory influences how many applications and operating system services can
run at the same time. In Android™, the operating system automatically closes applications and
services that are not being used.
However, such automatic functionality has limits. For example, if a lower amount of free RAM is
available to applications after a new release of the operating system (due to increased capabilities in
the system), phone speed will eventually be impacted (this is the main reason that a certain device
cannot be indefinitely upgraded to newer releases of Android™).
If you experience problems with RAM, for example, if the phone runs slower than usual or if the Home
application restarts frequently when you leave an application, you should minimize the use of apps that
run all the time. Such apps could include, for example, applications that frequently download social
service updates. You could also consider using a static wallpaper instead of a live wallpaper.
To see which apps and services are currently active, go to Settings > Applications > Running
Services. You should have at least 50 MB, and ideally 100 MB or more, of free RAM to avoid
slowdowns and application restarts.
You should also be aware that if you update the phone to a later Android release, the load on the builtin Dynamic Memory will increase due to the addition of more features, as mentioned above. As a
result, the phone may run slower after an update.
2. System Memory (also known as “System partition” or “/system”) is used for the Android OS and for
most applications that are pre-loaded from the factory. This type of memory is normally locked, and
can only be changed through a firmware upgrade. There is usually some free space available in this
section of memory. However, since it is locked, you cannot save apps, photos or any other content to
this memory. System Memory is reserved for future firmware upgrades, which almost always need
more memory than the original firmware. You cannot see or influence the use of this memory.
3. Internal Storage is memory used as” working” memory. It can be compared to the C: drive on a PC or
to the startup disk on a Mac.
This memory is used to store all application downloaded from Google Play Store™ (and other sources)
and their settings and data (such as emails, messages, calendar events and the like). All applications
have an allocated area which no other applications can access and where the application data can be
March 2013
White paper | Xperia™ Z HSPA+
Some games also stores content such as games music and level information outside their own
designated area; and generally, any application can choose to save their data in locations of their own
choosing (outside the protected application settings areas). Generally, such content is not deleted
when an application is uninstalled but must be removed manually, by connecting the phone to a
computer with a USB cable, or by the use of a file manager application.
Internal Storage is also used for all user content added, for example, as a result of the user taking
photos with the camera, downloading media files, and performing file transfers. Typical user content
• photos
• movies
• music
• downloaded documents (as email attachments, for example)
Internal Storage will tend to fill up as a result of normal usage: use of applications saving their data,
downloading and installing new applications, downloading free or bought content and taking pictures
and movies. Therefore, the larger this memory is from the start, the more applications you can
download and use, and the more pictures and movies you can take.
If the Internal Storage starts to get full, the phone slows down, and in some cases it might no longer be
possible to install more apps. You should always ensure that you have at least 100 MB of free Phone
Memory. If not, you should consider removing some apps that you seldom use, or move content you
do not frequently access to safe storage.
You can see how much Internal Storage is free in Settings > Storage >Internal Storage. You can also
view more detail about how much memory is used by applications in Settings > Applications >
Manage Applications.
Please note that in Sony Mobile 2013 products, “Internal Storage” is now the union of what was
previously known as “Phone Memory” (for applications and their data. “/data”) and “Internal Storage”
(for user’s content, “/sdcard”). The reason for this change is to make the use of available memory more
flexible, and also to enable the optional encryption of user’s content.
Memory card slot
In some products you may find both a large internal memory and a memory card reader slot. However, on
the current Android platform, the card reader slot does not work in the same manner in a phone with large
internal memory, as in a phone with ONLY a memory card slot.
Generally, since most applications expect only a single location of storage, such applications will not
generally allow you to SAVE anything to the card (i.e. they will lack an option to choose storage location);
however, some applications (for instance, the Sony Mobile “Camera” application) may actually allow you
to do so. Other, for example backup applications such as the Sony Mobile “Memory” application, will by
definition be configured to copy content from the Internal Storage to the external SD card.
On the other hand, when it comes to READING from an external SD Card, you will be able access content
(videos, photos, music) on a memory card inserted in this slot without any special considerations since the
Android system searches all available memory for content. Therefore, such products may be regarded as
supporting a fourth type of memory, called “External Card”.
March 2013
White paper | Xperia™ Z HSPA+
4. SD Card (known as “/ext_card” from a programmer’s point of view, or by other names in other Android
products) is the name for the removable SD memory card in all 2013 Sony Mobile products. As
described above, this External Card memory is generally more limited in that any application can READ
from it, but many applications cannot SAVE to this card. Only a few applications, including back-up
applications and file manger applications, has the capability to save to this card.
Backing up data to different memory types
Generally, you should not save photos, videos and other personal content solely on the internal memory
of a phone. If something should happen with the hardware, or if the phone is lost or stolen, the data stored
on the phone’s internal memory is gone forever.
In a phone where an SD card reader is the main memory, it is relatively easy to take the card out and copy
all content to a PC or Mac, or to an entertainment device with a memory card slot. In a product featuring
Internal Storage as the main memory, it is not possible to physically remove the memory. Instead, any
critical or high-value content must either be copied to an external SD card by a special backup
application, transferred to remote storage over a network (mobile or Wi-Fi), or to a computer via a USB
To facilitate the transfer of data via a cable, the Xperia™ Z supports the Microsoft standard, Media
Transfer Protocol (MTP), which makes it possible to easily transfer content back and forth between your
phone and a Windows PC. For Apple Mac computers, a special application, BridgeforMac, is available
offering built-in support for MTP; this application can be downloaded from the Xperia™ Z Support page.
Note that you do not need to back up or make a copy of applications that you have downloaded from
Google Play™. They can normally be downloaded again if, once you have set up your Google account to
work in a new phone phone (or a phone where the memory has been completely erased).
Note 1:
As noted above, some Android phones, including Sony Mobile devices from 2012, and Sony Ericsson
devices from 2011 and earlier, do not use a single “Internal Storage” for both applications (and their data)
and user content. Instead, these devices use either an external SD card for user content, or a
corresponding area of internal memory to reproduce the functionality of an SD card. In such devices, there
is a fixed limit between the application area (“/data”) and the user content area (“/sdcard); with the result
that user content can be filled, stopping the taking of new pictures for example, while there is still
considerable free space in the application area; or vice versa, stopping the download and installation of
new applications even though there is free memory in the content area.
Note 2:
Some devices with an integrated storage have abandoned the distinction between the application area
and the content area when it comes to Factory Data Reset. As a result, there is no choice to do Factory
Data Reset and preserve content; in such devices, all content is mandatorily and completely deleted from
the device when a reset is performed.
In contrast, Sony Mobile has done the integration in a manner which makes it possible to preserve user
content in this situation; therefore, when performing a Factory Data Reset, the default will still be to only
remove applications and their data, and an option box must be checked if also all content is to be
removed (as might be desirable when selling the device second-hand, for instance).
Note 3:
For a developer, it is important to note that from a programmer’s point of view, the location names used to
refer to the different memory areas described in Note 1 are still valid; i.e., the area used for application (/
data) is still present, as is the area used for content (/sdcard).
March 2013
White paper | Xperia™ Z HSPA+
In reality, “sdcard” is a so-called symbolic link to “/data/media”, but from inside an Android application, “/
sdcard” can still be used (for instance, use “sdcard/DCIM/100Android” to find all camera images).
Continuing to use /sdcard to access the content area ensures compatibility across different products and
Android releases in this regard.
March 2013
White paper | Xperia™ Z HSPA+
Trademarks and acknowledgements
All product and company names mentioned herein are the trademarks or registered trademarks of their
respective owners. Any rights not expressly granted herein are reserved. All other trademarks are property
of their respective owners.
Visit for more information.
March 2013
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
