RaidSonic 30229, IB-228U3EB Datasheet

RaidSonic 30229, IB-228U3EB Datasheet

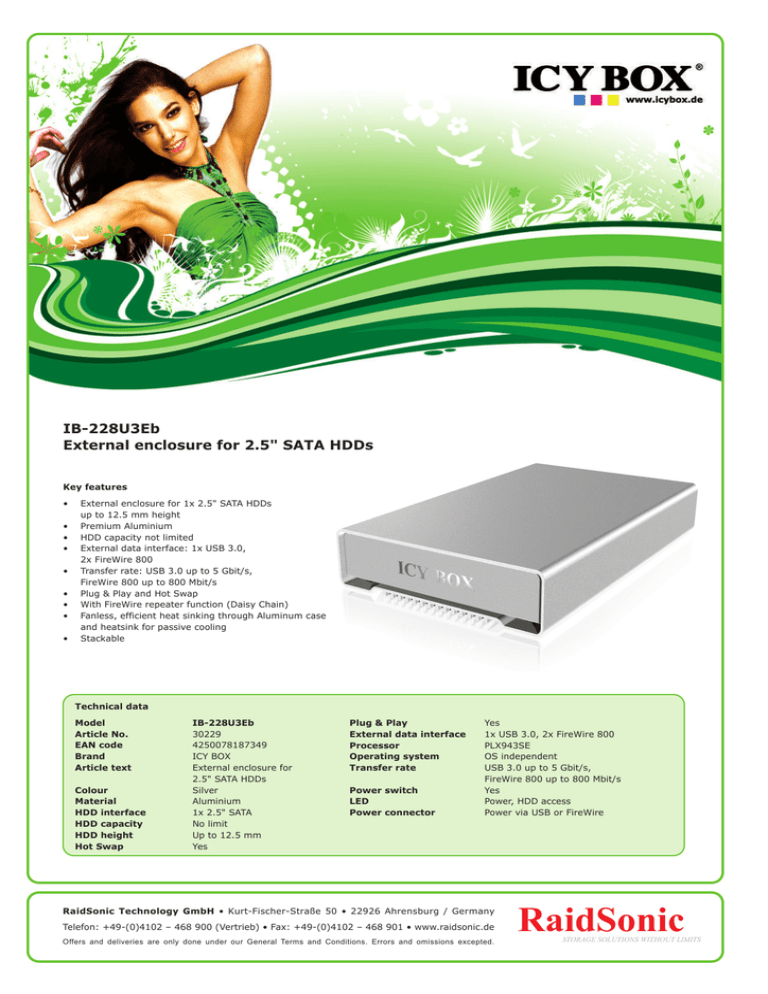

IB-228U3Eb
External enclosure for 2.5" SATA HDDs
Key features
•
•
•
•
•
•
•
•
•
External enclosure for 1x 2.5" SATA HDDs
up to 12.5 mm height
Premium Aluminium
HDD capacity not limited
External data interface: 1x USB 3.0,
2x FireWire 800
Transfer rate: USB 3.0 up to 5 Gbit/s,
FireWire 800 up to 800 Mbit/s
Plug & Play and Hot Swap
With FireWire repeater function (Daisy Chain)
Fanless, efficient heat sinking through Aluminum case
and heatsink for passive cooling
Stackable
Technical data
Model
Article No.
EAN code
Brand
Article text
Colour
Material
HDD interface
HDD capacity
HDD height
Hot Swap
IB-228U3Eb
30229
4250078187349
ICY BOX
External enclosure for
2.5" SATA HDDs
Silver
Aluminium
1x 2.5" SATA
No limit
Up to 12.5 mm
Yes
Plug & Play
External data interface
Processor
Operating system
Transfer rate
Power switch
LED
Power connector
Yes
1x USB 3.0, 2x FireWire 800
PLX943SE
OS independent
USB 3.0 up to 5 Gbit/s,
FireWire 800 up to 800 Mbit/s
Yes
Power, HDD access
Power via USB or FireWire
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
At home in the world of Macs
Enclosure for a 2.5" SATA HDD which easily connects in the world of Macs thanks to 1x USB 3.0, and 2x Firewire 800.
USB 3.0
FireWire 800
(FireWire 1394b)
Power connector
Power switch
Packing content
1x IB-228U3Eb, 1x USB 3.0 cable, 1x FireWire 800 cable, 1x accessory kit, 1x quick start guide
Logistical data
Packing unit:
Total weight:
Gross weight:
Net weight:
20 pcs./carton
9.60 kg/carton
0.48 kg
0.39 kg
Dimension/Carton:
Dimension (with packing):
Dimension of article:
Country of Origin:
435x334x260 mm
230x160x40 mm
125x78x24 mm
China
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
Import tax:
84733080
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
