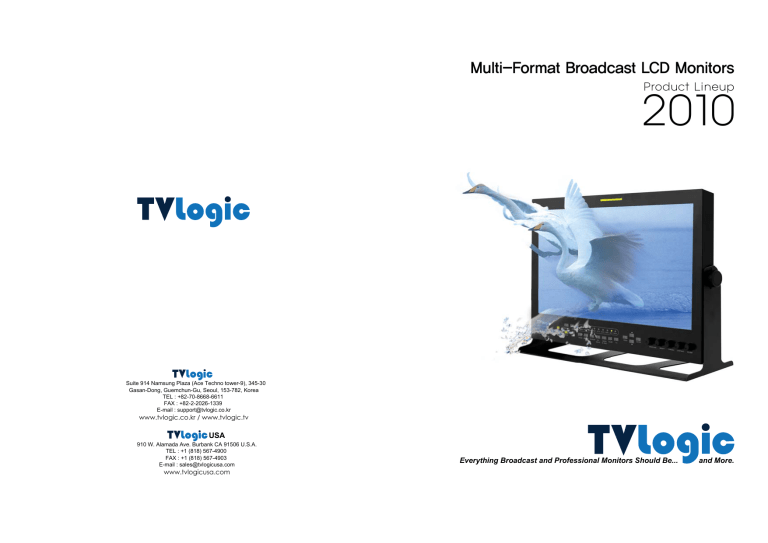

Multi-Format Broadcast LCD Monitors

Multi-Format Broadcast LCD Monitors
Product Lineup
2010
Suite 914 Namsung Plaza (Ace Techno tower-9), 345-30
Gasan-Dong, Guemchun-Gu, Seoul, 153-782, Korea
TEL : +82-70-8668-6611
FAX : +82-2-2026-1339
E-mail : [email protected]
www.tvlogic.co.kr / www.tvlogic.tv
USA
910 W. Alamada Ave. Burbank CA 91506 U.S.A.
TEL : +1 (818) 567-4900
FAX : +1 (818) 567-4903
E-mail : [email protected]
www.tvlogicusa.com
Everything Broadcast and Professional Monitors Should Be...
and More.
Table of Contents
LHM Series
New Products
Everything you expect from broadcast
and professional monitors... and more.
Since 2001, TVLOGIC has been dedicated to developing and manufacturing the highest quality video
monitoring systems available for broadcast, production and post production as well as digital signage &
multi-viewer applications. As a leading pioneer of broadcast equipment in South Korea, our growth has
been accentuated with expanded mass-production systems that consistently achieve higher performance,
lower costs, and enhanced quality control.
Today, TVLOGIC is one of the world’s leading broadcast monitor manufactuers. Our unique technology and
innovative designs have provided customers in top broadcasting and production facilities around the
world with reliable reference grade displays for the most demanding critical viewing applications.
TVLOGIC’s eight monitor lines encompass an ever-growing variety of professional video display requirements.
NEW for 2010, the LEM Series Multi-Format and TDM Series Stereoscopic 3D models showcase 15” HD
Organic LED (OLED) panels, the latest advancement in flat panel display technology, providing vivid,
lifelike images unlike anything seen previously.
Also NEW for 2010 is the LUM Series Quad HD (4K) Monitor designed for 10-bit 56” widescreen display of
4K (3840 x2160) video.
Together, TVLOGIC monitors represent all you have come to expect from broadcast and professional grade
displays. Now, more than ever, TVLOGIC is everything broadcast and professional monitors should
be…and more.
TDM-150W (3D) ............................ 8
LEM-150 (OLED)............................ 9
LUM-560W (4K) ............................ 12
XVM Series (Grade 1)
PRM Series
(HD/SD Multi-Format RGB LED LCD Monitor)
(HD/SD Multi-Channel Rack Monitors)
XVM-245W....................................... 10
LVM Series
(HD/SD Multi-Format LCD Monitors)
Broadcast
LVM-071W.......................................
LVM-084 ..........................................
LVM-091W ......................................
LVM-172W ......................................
LVM-242W ......................................
13
14
15
16
17
Broadcast 3G/Dual Link
LVM-173W ......................................
LVM-243W ......................................
LVM-323W ......................................
LVM-403W ......................................
LVM-463W ......................................
LVM-553W ......................................
LHM-400W ..................................... 28
LHM-460W ..................................... 28
LHM-570W ..................................... 28
18
19
20
21
22
23
PRM-902A .......................................
PRM-702A ........................................
PRM-503A .......................................
PRM-502LE ......................................
PRM-483A .......................................
PRM-434A .......................................
30
31
32
33
34
35
Specifications
NEW Products................................
LVM Series ......................................
XVM Series .....................................
LQM Series .....................................
LHM Series .....................................
PRM Series ......................................
36
37
40
40
41
42
Optional Accessories .............
44
LQM Series
(Integrated Quad-Split Multi-Channel Monitors)
LQM-071W ..................................... 25
LQM-171W ..................................... 26
LQM-241W ..................................... 27
Product Lineup
2010
Industry-Leading Broadcast Features
and Superior Video Engineering
Broadcast Features
Full Native HD Resolution
2 x SD/HD autosensing/SDI, Component,
Composite, S-Video, RGB, DVI-I (or VGA)
and/or HDMI (HDCP) inputs are standard
on all TVLogic Monitors.
The 24”, 32“, 40”, 46“, 55” and 57“ models
support full native 1920x1080 resolution.
Models 17” and below offer full native
resolution support of 720p. All monitors
can handle any standard input format and
are capable of full screen native, full screen
scaled or 1:1 pixel mapped display at each
screen’s maximum resolution.
- Multi-Format Support
(480i, 480P, 576i, 720p, 1080i, 1080P,
1080PsF, 2K)
- Assignable Remote Control
- H/V Delay
- Blue Only & Monochrome
- Wide Variety of Markers & Safety Areas
including user defined Markers
- AutoSensing AutoSwitching HD/SD-SDI
Inputs
- Multi-Format Analog Signal Support
(Composite / S-Video / Component /
RGB / DVI or VGA / HDMI)
- HDMI input (HDCP decryption)
- 2 x Reclocked Active Loop Through (SDI)
- 3G / Dual-Link compatibility on 15”, 17”,
24”, 32”, 40”, 46”, & 55” units
(except LVM-XX2Ws)
- Built in Audio Disembedder and Internal
Speakers
- Selectable Color Temperature
(3200K, 5000K, 5600K, 6500K, 9300K,
and user defined)
- Source ID function / Dynamic UMD
- Timecode display
- 708/608 Closed Caption decoding
- Brightness, Contrast, Chroma, Phase &
Backlight adjustability
- Waveform / Vector Scope
Enhanced contrast and deeper blacks
result as the ND glass filters light emitted
from the display once while filtering
ambient reflected light twice.
without N
ND filter
with ND
D fil
filter
ter
True Multi-Format Support
Support of NTSC, PAL, SECAM & virtually
all SD/HD digital formats is standard. This
includes standard support of PsF formats
as well as 1080p60 and 4:4:4 sources over
Dual-Link or 3G on all LVM-XX3Ws, LEM,
LUM, TDM and XVM series monitors.
TVLogic supports the X-Rite Eye One
Display 2 basic probe as well as the Konica
Minolta CS-200 ChromaMeter and
DK-Technologies PM5639 Probe.
The most advanced probe we support is
the Klein Instruments K-10 Colorimeter.
Designed for the most demanding use,
the K-10 offers the fastest and most
accurate automatic alignment and
includes a separate Klein software utility
that enables measurement of most CRTs,
LCDs, Plasmas, DLPs, etc. for comparison
and matching with TVLogic Displays.
ND Glass is ideal for environments such
edit suites or critical evaluation viewing as
it serves to enhance contrast, improve
black levels, and give the monitor the
familiar glass look of a CRT monitor.
Slim & Smart Design
Slim, single-piece integrated design, low
power consumption and easy-to-use rack
mount kits for 7” - 24“ monitors allow for
flexible installation with any application
from mobile production to master control
and everything in between.
Industry-Leading
Video Processing
TVLogic monitors integrate our
proprietary Advanced Digital Signal
Processing Algorithms with an unparalleled video processing, scaling &
deinterlacing architecture to provide
superior video quality and accurate
picture reproduction for every monitor in
our extensive product line.
Accurate Colorimetry
Field Upgradability
TVLogic’s advanced automatic alignment
technology ensures matching displays
that are calibrated to precise REC 709
specifications.
View Angle Free
Industry leading viewing angles up to a
full 180° (OLED)
SPEC
SPEC
All LVM Series monitors are field upgradable using an optional handheld upgrade
tool that quickly and easily loads firmware
updates into individual monitors.
CS200
(professional grade)
ACCESSORIES
ACCESSORIES
Klein K-10
(professional grade)
TVLogic offers all standard feature
upgrades and firmware updates free to
registered users who own the handheld
upgrade tool and a supported TVLogic
monitor.
Xrite Eye-One Display 2
(basic )
(professional grade)
06
PRM
Superior Picture Quality
Wide Range of Inputs Standard
LHM
PRM
Flexibility
TVLogic monitors support color gamuts
that conform to the ITU standard and
matches EBU/REC 709 specifications for
HD broadcast video, allowing for accurate
and standardized color reproduction.
LQM
LHM
Accurate Color Reproduction
TVLogic’s optional Automatic Color
Calibration Utility provides an unique
interface for proper alignment of our
monitors. Our Color Calibration Utility is
designed to work with 4 different probes
to suit various applications, budgets and
calibration speed requirements.
LVM
LQM
Automatic Alignment
The LVM-173W and LVM-243W can be
outfitted with an optional Neutral Density
Glass Filter.
NEW
LVM
ND Glass Filter Option
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
Enhanced Contrast, Precise Color
Calibration and Field Upgradability
07
The world's first professional
OLED monitor
The world’s first professional
stereoscopic OLED monitor
Input
Input Signal
(2D/ 3D)
SDI LEFT/RIGHT Channel Input
2 x HDMI
HDMI LEFT/RIGHT Channel Input
2 x BNC
SDI LEFT/RIGHT Channel (Active Through Out)
3G-SDI
2.970Gb/s
1.485Gbps
HD-SDI
SD-SDI
270Mbps
HDMI
480i/480p/720p/1080i /1080p& VESA/IBM Modes
SMPTE-425M-A/B
1080p (50/59.94/60)
Dual HD - SDI YPbPr(4:2:2)
SMPTE-372M
1080i (60 / 59.94 / 50)
Dual HD - SDI YPbPr/RGB(4:4:4)
SDI Input
Signal
Formats
SMPTE-274M
SMPTE-260M
SMPTE-125M
1035i (60 / 59.94)
480i (59.94)
ITU-R BT.656
576i (50)
Embedded Audio / Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Size
15.0"
1366 x 768 (16:9 )
Dot Pitch
0.243 (H) x 0.243 (W) mm
Color
Viewing Angle
Luminance of White
Contrast
Display Area
Power
Power Consumption (Approx.)
Operating Temperature
Storage Temperature
16.7M (ture 8bit)
Viewing angle free
200 cd / ㎡
100,000:1
331.9 (H) x 186.6 (V) mm
DC 12V / AC100~240V
42 Watts (MAX)
0 °C to 40 °C (32 °F to 104 °F )
-20 °C to 60 °C (-4 °F to 140 °F )
2 x BNC
Composite / S-Video / Component / RGB
2.970 Gb/s
HD-SDI
1.485 Gbps
SD-SDI
270Mbps
VESA/IBM Mode s
DVI
HDMI
480i/480p/720p/1080i /1080p& VESA/IBM Mode s
1.0Vpp (With Sync)
Composite
Analog
Input Spec
S-Video
Component
RGB
SMPTE-425M-A/B
SMPTE-372M
SDI Input
Signal
Formats
SMPTE-274M
1.0Vpp (Y With Sync), 0.7 Vpp (Pb, Pr)
1.0Vpp (G With Sync), 0.7 Vpp (B, R)
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
1080p (50 / 59.94 / 60)
Dual HD-SDIYPbPr (4:2:2)
Dual HD-SDI
YPbPr/RGB (4:4:4)
1080i (50 / 59.94 / 60)
1080p/psf (30 / 29.97 / 25 / 24 /23.98)
1080i (60 / 59.94 / 50)
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
720p (60/59.94/50)
SMPTE-260M
1035i (60/59.94)
SMPTE-125M
480i (59.94)
ITU-R BT.656
576i (50)
Embedded Audio / Analog stereo (Phone Jack)
Audio IN
Analog stereo (Phone Jack)
Audio OUT
Size
LCD
1.0Vpp (Y With Sync), 0.286 Vpp (C)
SMPTE-296M
15"
Resolution
1366 x 768
Dot Pitch
0.081 (H) x 0.243 (W) mm
Color
Viewing Angle
( Typical )
Contrast
- 370 x 264 x 58 (14.6 x 10 x 2.3)
- 417.2 x 288.2 x 134.6 (16.4 x 11.4 x 5.3) with stand
- Weight : 3.4 Kg / 7.71 lb
SDI A/B Channel Output
3G-SDI
Luminance of White
- 370 x 264 x 58 (14.6 x 10 x 2.3)
- 417.2 x 288.2 x 134.6 (16.4 x 11.4 x 5.3) with stand
HDMI Input
Analog Output
3 x BNC
Analog
Input Signal
Option
Carrying Case / V-Mount / 19" Rack Mountable Kit (6U) / Sun-Hood
* Specifications may be changed without notice.
Main Body Dimensions (mm/inch)
08
SDI A/B Channel Input
1 x HDMI
Output
AC Power Cord
Main Body Dimensions (mm/inch)
- Weight : 3.5 Kg / 7.71 lb
Analog Input
2 x BNC
ACCESSORIES
ACCESSORIES
Resolution
DVI IN / VGA IN
3 x BNC
Display Area
Power
Power Consumption (Approx.)
Operating Temperature
SPEC
SPEC
720p (60 / 59.94 / 50)
Audio OUT
Accessory
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M
Audio IN
LCD
1080p/psf (30 / 29.97 / 25 / 24 / 23.98)
1080i (60/59.94/50)
1 x DVI-I
Input
PRM
PRM
1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
• 15” 1366x768 Active Matrix OLED
• High Contrast 100,000:1
• Low power consumption
• Widest Possible Viewing Angle (180°)
• Fast panel response time
• Firmware update using Ethernet or USB
• 1:1 pixel mapping modes
• Audio Disembedder & Speakers
• 3G-SDI Level A & Level B support
• 3G/ Dual Link Mode – 4:4:4
• User Aspect
• Waveform (Y/Cb/Cr, Wide type, Line waveform,
and Range Error)
• Audio level meter display (horizontal/vertical,
position, size and decay time selects)
• Selectable audio channels for speaker left/right
(SDI, speaker support model)
• Vector Scope
• Timecode Display (VITC, LTC)
• UMD (ANC, Manual, Dynamic, and User) support and
selectable 3 font sizes and selectable tally colors
(User Tally type)
• Blue Only, Mono, Focus Assist
• Fast Mode
• GPI (Remote)
• PBP
• Closed Caption (608/708)
• Key lock
• Selectable 3 function keys.
• Monitor control by using RS422
• Marker
• H/V Delay
• Optional 19” Rack Mount Kit available
(also VESA compatible)
• Supports TVLogic Color Calibration Utility for
proper color alignment
LHM
Output
2 x BNC
Product Highlight
LQM
LHM
3D Stereoscopic display (Active Shutter)
• High Contrast 100,000:1
• 2 x HDMI (L/R) & 2 x SDI (L/R) Inputs
• 2D, 3D Hot Key
• Left/Right Channel Only Function
• Low Power Consumption
• Widest Possible Viewing Angle (180°)
• Fast Panel Response Time
• Firmware Update using Ethernet or USB
• 1:1 Pixel Mapping Mode
• Audio Disembedder & Speakers
• 3G-SDI Level A & Level B Support
• SDI, HDMI 10-bit Support
• 3G/ Dual Link Mode – 4:4:4
• User Aspect
• Waveform/Vector Scope (Y/Cb/Cr, Wide Type,
Line Waveform and Range Error)
• Audio level meter display (horizontal/vertical,
position, size, and decay time selects)
• Selectable audio channels for speaker left/right
(SDI on speaker support model)
• Timecode Display (VITC, LTC)
• UMD support (ANC, Manual, Dynamic, User)
support and selectable 3 font sizes and
selectable tally colors (User Tally type)
• Blue Only, Mono, and Focus Assist
• Fast Mode
• GPI (Remote)
• Closed Caption (608/708)
• Key lock
• Selectable 3 function keys
• Monitor control by using RS422
• Marker
• H/V Delay
• Optional 19” Rack Mount Kit available
(also VESA compatible)
• Supports TVLogic Color Calibration Utility for
proper color alignment
Product Highlight
Product Highlight
LVM
LQM
• 15” 1366x768 Resolution Active Matrix OLED
The LEM-150 is the first broadcast monitor to utilize an Organic Light Emitting Diode (OLED) display. OLED offers many
advantages over conventional flat-panel technologies including highest possible contrast ratio, ultra-wide 180° viewing
angle and extremely fast image response.
LEM
LVM
The TDM-150W is the first professional steroscopic 3D display to take advantage of the unique properties of OLEDs including
highest possible contrast ratio, extremely wide viewing angle and blazingly fast image response. The TDM-150W is an ideal
monitoring solution for 3D production and on-set stereoscopic visualization.
Product Highlight
Everything Broadcast and Professional Monitors Should Be... and More.
TDM
Everything Broadcast and Professional Monitors Should Be... and More.
LEM-150 (OLED)
TDM-150W (3D-OLED)
D)
16.7M (24bit, True )
H : 180 degrees
V : 180 degrees
200 cd / ㎡ (Ce nter)
100,000:1
331.938 (H) x 186.624 (V) mm
12V DC / AC100~240V
12 Watts (DC)
0 °C to 40 °C (32 °F to 104 °F )
Storage Temperature
-30 °C to 50 °C (-22 °F to 122 °F )
Accessory
AC Power Cord
Option
Carrying Case / V-Mount / 19" Rack Mountable Kit (6U) / Sun-Hood
* Specifications may be changed without notice.
09
XVM-245W
A wide range of input standards are
supported by the XVM-245W including two
autosensing/autoswitching HD/SD-SDI,
Component, Composite, S-Video, RGB, DVI-I
and HDMI with HDCP support.
24" (1920x1080) 10 bit
Color Critical LCD Monitor
10 bit - 1.07 Billion Colors Support
XVM-245W
True Multi-Format Support
The XVM-245W utilizes a High-Purity RGB Matrix LED
backlight array to reproduce the most accurate color
possible on an LCD.
NTSC, PAL, SECAM and all SD/HD digital
format support are standard. This includes
PsF formats as a standard feature and
support of 1080p60 and 4:4:4 sources over
Dual-Link and 3G.
Designed in cooperation with the Korean Broadcasting
System, the XVM-245W meets all EBU Grade 1 specifications
for color critical monitors while retaining all of the broadcast
features found in the popular LVM Series.
OTHER MONITORS
Slim and Smart Design
PBP FUNCTION 01
Input
1 x DVI -l
3 x BNC
2 x BNC
1 x HDMI
Output
2 x BNC
2.970Gbps
H D-SDI
1.485Gbps
Composite
S-Video
Component
R GB
1.0Vpp (Y With Sync), 0.286Vpp(C)
1.0Vpp (Y With Sync), 0.7Vpp (Pb,Pr)
389
150
1080p (50 / 59.94 / 60)
1080i (50 / 59.94 / 60)
1080p/psf (30 / 29.97 / 25 / 24 / 23.98 )
1080i (60/59.94/50)
1080 p (30/29.97/25/24/24sF/23.98/23.98sF)
480i (59.94 )
576i (50)
2048 x 1080p (24/24sF/23.98/23.98sF)
TARGET GAMMA : 1.2
TARGET GAMMA : 2.2
TARGET GAMMA : 2.5
Embedded Audio / Analog Stereo (Phone Jack)
Analog Stereo (Phone Jack)
Audio Out
Internal Speaker (Stereo)
Size
Resolution
Pi xel Pitch
LCD
Dual HD-SDI YPbPr/RGB (4:4:4)
1035i (60/59.94 )
Audio In
OTHER MONITORS
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
720p (60/59.94/50)
2K Format
XVM-245W
1.0Vpp (G With Sync), 0.7Vpp (B,R)
SMPTE - 260M
ITU - R BT.656
RGB Matrix LED backlight in an advanced In-Plane Switched (S-IPS) LCD panel yields both
wide gamut color and wide viewing angle (R/L: 178 U/D: 178)
ACCESSORIES
ACCESSORIES
417
1.0Vpp (With Sync)
SMPTE - 296M
SMPTE - 125M
The XVM-245W supports the following
video standards: SMPTE-C, REC 709
(sRGB), DCI-P3, EBU, and User Defined
Color Space.
480i/480 p/720 p/1080i /1080 p& VESA/IBM Modes
Dual HD-SDI YPbPr (4:2:2)
SMPTE-372M
95
SMPTE - 274M
Supports various
video standards
270Mbps
VESA/IBM Modes
SPEC
SPEC
SMPTE-425M-A/B
SDI Input Signal
Format
584
EXT SYNC OUTPUT
C omposite / S-Video / Component / RGB
SD-SDI
HDMI
- 552.5 x 389 x 95 (21.8 x 15.3 x 3.7)
- 584 x 417 x 150 (23 x 16.4 x 5.9) with stand
- Weight : 7 kg / 15.4 lb
SDI A/B Channel Output (Active Through-Out)
3G-SDI
DVI
Analog Input Spec
HDMI Input
EXT SYNC INPUT
Analog Loop Through Output
PRM
PRM
Input Signal
SDI A/B Channel Input
1 x BNC
1 x BNC
PBP FUNCTION 02
DVI IN
Analog Input
3 x BNC
Analog
Main Body Dimensions (mm/inch)
552.5
Various Display Modes
Specifications
Color
24”
1920 x 1200 (16:10)
0.270 (H) x 0.270 (W) mm
1,073,741,824 colors (true 10bit )
Viewing Angle
H : 1 7 8 d e g re e s / V : 1 7 8 d e g re e s
Luminance of white
80 cd /㎡ at Center (Max. 250cd /㎡)
Contrast
Display Area
Power
Power Consumption (Approx.)
Operating Temperature
Storage Temperature
Accessory
Option
800 :1
518.4 (H) x 324.0 (V) mm
24V DC / AC100~240 V
77 Watts (DC / Typ.)
0 °C to 40 °C (32 °F to 104 °F )
-20 °C to 60 °C (-4 °F to 140 °F )
AC Power Cord / NDF Screw
Carrying Case / 19" Rack Mountable Kit / Dual Link / 3Gb
* Specifications may be changed without notice.
10
LHM
LHM
• 1920x1080 Native HD Resolution (Panel Resolution 1920x1200)
• 1000:1 Contrast Ratio
• 10 bit - 1.07 Billion Colors Support
• High-Purity Precision RGB Matrix LED Backlight Array
• 2 x HD/SD SDI inputs
• 1 x DVI-I input (W/HDCP) and 1 x HDMI input(W/HDCP)
• Analog Component/Composite/S-Video/RGB Inputs
• 1:1 Pixel Mapping Modes for SD/HD
• Audio Disembedder & Speakers
• Optional 19” Rack Mount Kit available (also VESA compatible)
• Supports TVLogic Color Calibration Utility for proper color alignment
• Dual-Link/3G Mode - 4:4:4 / 1080p60 compatible
• Matte Finish Panel
• Waveform/Vector Scope (Line selectable)
• Supports External Sync input
• Supports 3D LUT & Adjustable Gamma (1.0 to 3.0) and user defined
• Supports 3rd party 3D LUT formats for import and export
• Supports Multi-point Calibration for RGB and White uniformity correction
• Timecode Display (VITC/VTC), Dynamic UMD Display
• Closed Caption : CEA-608/708
• Embedded Audio Level Meter (16 ch)
LQM
LQM
Product Highlight
LVM
The XVM-245W offers a slim, adjustableangle desktop design, low power consumption, and an optional rack mount kit for use in
any environment requiring the most accurate
color video reproduction possible.
The XVM-245W features an integrated 3D LUT and supports
import and export of popular color grading application LUT
formats.
XVM
LVM
Everything Broadcast and Professional Monitors Should Be... and More.
XVM
Everything Broadcast and Professional Monitors Should Be... and More.
Flexibility
11
LUM-560W (4K)
The most comprehensive 7"
HD LCD display available
56” 4K (3840X2160) 10 bit display
SDI A/B /C/D Channel (Active Through Out)
3G-SDI
2.970Gb/s
HD-SDI
1.485Gbps
SD-SDI
270Mbps
SMPTE-296M
SMPTE-260M
1035i (60 / 59.94)
SMPTE-125M
480i (59.94)
ITU-R BT.656
576i (50)
SMPTE-274M
Audio IN
Embedded Audio / Analog stereo (Phone Jack)
Audio OUT
Analog stereo (Phone Jack)
794
255
Size
56.2"
Resolution
3840 x 2160
Dot Pitch
0.108 (H) x 0.324 (W) mm
Color
1G colors (10-bit)
Viewing Angle
( Typical )
H : 176 degrees
Luminance of White
450 cd / ㎡ (center)
Contrast
1500:1
Display Area
1244.16 (H) x 699.84 (V) mm
3 x BNC
Analog Input
1 x BNC
SDI 1 Channel Input
1 x BNC
SDI Channel Output(Active Through-Out)
Analog
Composite / S-Video / Component / RGB
Input Signal
270Mbps
SD-SDI
DVI-Analog
DVI-Digital (Graphic)
DVI-Digital (Video)
640×480/800×600/1024×768/1280×1024/720×400
640×480/800×600/1024×768/1280×768/1280×1024/720×400
1080p (24/25/30/50/60)/1080i (50/60)/720p (50/60)/480i (60)/480p (60)/576i (50)/576p (50)
1.0Vpp (With Sync)
Composite
Analog
Input Spec
1.0Vpp (Y With Sync), 0.286 Vpp (C)
S-Video
1.0Vpp (Y With Sync), 0.7 Vpp (Pb, Pr)
Component
1.0Vpp (G With Sync), 0.7 Vpp (B, R)
RGB
Main Body Dimensions (mm/inch)
- 203 x 131 x 60 (8.4 x 5.2 x 2.4)
- 217 x 143 x 69 (8.6 x 5.6 x 2.7) with stand
- Weight : 1.35 kg / 2.97 lb
1080i (60 / 59.94 / 50)
SMPTE-274M
SDI Input
Signal
Formats
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M
720p (60 / 59.94 / 50)
SMPTE-260M
1035i (60 / 59.94)
SMPTE-125M
480i (59.94)
576i (50)
ITU-R BT.656
2048 x 1080p (24/24sF/23.98/23.98sF)
2K Format
Embedded Audio / Analog stereo (Phone Jack)
Audio IN
Analog stereo (Phone Jack) / Internal Speaker (Mono)
Audio OUT
Size
LCD
V : 176 degrees
7"
Resolution
800 x 480 (15:9)
Dot Pitch
0.190 mm
16.7M (true), 24bit
Color
Viewing Angle
( Typical )
H : 130 degrees
Luminance of White
350cd (center)
V : 110 degrees
400:1
Contrast
152 x 91 mm
Display Area
Power
AC100~240V
Power
Power Consumption (Approx.)
380 Watts(MAX)
Power Consumption (Approx.)
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F )
Operating Temperature
Storage Temperature
-20 °C to 55 °C (-4 °F to 131 °F )
Accessory
AC Power cord
Option
Carrying Case / Wall Mount
* Specifications may be changed without notice.
1.485Gbps
HD-SDI
12V DC
12 Watts (DC)
0 °C to 40 °C (32 °F to 104 °F )
Storage Temperature
Accessory
Option
ACCESSORIES
ACCESSORIES
124
Output
143
131
480i/480p/720p/1080i /1080p& VESA/IBM Modes
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/
29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
1080i (60 / 59.94 / 50)
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
720p (60 / 59.94 / 50)
SMPTE-425M-A/B
SDI Input
Signal
Formats
VESA/IBM Modes
DVI IN / VGA IN
1 x DVI-I
Input
SPEC
SPEC
848.3
4x BNC
HDMI
LCD
12
HDMI A/B/C/D Channel Input
Specifications
PRM
PRM
1327
4 x HDMI
• Remote (RJ45)
• Embedded Audio Level Meter (16Ch)
• Waveform (SDI)
• Vector Scope (SDI)
• Aluminum Diecast Case
• Timecode display
• UMD
• V-mount for Battery Powered Operation
• Closed Caption: CEA-608/708 (SDI)
• 1:1 Pixel Mapping function
• Highlight Focus Assist function
• Y/C Error Check Function (SDI)
• Audio Disembedder & Speaker
DVI
Main Body Dimensions (mm/inch)
- 1327 x 794 x 127.7 (52.2x 31.3x 5)
- 1327 x 848.3 x 255 (52.2 x 33.4 x 10) with stand
- Weight : 35.6 Kg / 78.4 lb
Product Highlight
SDI A/B/C/D Channel Input
131
Input Signal
DVI A/B/C/D Channel Input
4 x BNC
LHM
LHM
Output
4 x DVI-D
LQM
Input
LVM
LQM
Specifications
Product Highlight
• 4 x HDMI, 4 x SDI, and 4 x DVI Inputs
• 4 x SDI throughout
• DVI, HDMI, SDI 4K Mode Hot Key
• 3840x2160 resolution
• 1500:1 Contrast Ratio
• Full screen display for source selection among
4ch of DVI, HDMI, and SDI
• Firmware update using Ethernet or USB
• Phone jack audio out (analog stereo)
• 3G-SDI Level A & Level B support
• SDI, HDMI, DVI 10-bit support
• GPI (Remote)
• Key lock
• Selectable 5 function keys
• Monitor control using RS422
• Marker
• Supports TVLogic Color Calibration Utility for
proper color alignment
The LVM-071W combines the newest 7” LED-backlit widescreen LCD panel with Multi-format inputs (HD/SD-SDI, Composite,
Component, YC, and DVI w/HDCP), a built-in Waveform/Vector Scope display, battery mount, and speaker with volume control all in a sleek diecast aluminum package. A great choice for broadcast and production applications.
NEW
LVM
The 56” LUM-560W is a 4K (3840X2160) 10 bit monitor designed for high resolution cinema post, industrial, military and
medical applications.
Everything Broadcast and Professional Monitors Should Be... and More.
LUM
Everything Broadcast and Professional Monitors Should Be... and More.
LVM-071W
-30 °C to 50 °C (-22 °F to 122 °F )
AC Power Cord / DC Power Adaptor / Camera Mount
19" Rack Mountable Kit(3U/Dual Monitor/Single Monitor) / Carrying Case / Sun-Hood / Acrylic Filter
* Specifications may be changed without notice.
13
Simply the best 9" LCD
monitor anywhere
High Quality 8.4” LCD for select
4:3 applications
Analog Input
2 x BNC
SDI 2 Channel Input
1 x BNC
SDI A/B Selected Channel Output (Active Through-Out)
Analog
Composite / S-Video / Component / RGB
270Mbps
SD-SDI
640×480/800×600/1024×768/1280×1024/720×400
Composite
Component
SDI Input
SMPTE-274M
1.0Vpp (Y With Sync), 0.7 Vpp (Pb, Pr)
1.0Vpp (G With Sync), 0.7 Vpp (B, R)
1080i (60 / 59.94 / 50)
SPEC
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
Signal
SMPTE-296M
720p (60 / 59.94 / 50)
Formats
SMPTE-260M
1035i (60 / 59.94)
SMPTE-125M
480i (59.94)
ITU-R BT.656
576i (50)
59
LCD
80
8.4"
Resolution
1024 x 768 (4:3)
Dot Pitch
Color
0.165 mm
16.7M(true), 24bit
Viewing Angle
(Typical )
V : 170 degrees
Luminance of White
Contrast
400cd (center)
DVI-Digital (Video)
19" Rack Mountable Kit(4U/Dual Monitor/Single Monitor) / Carrying Bag & Hood / V-Mount
640×480/800×600/1024×768/1280×768/1280×1024/720×400
1080p (24/25/30/50/60)/1080i (50/60)/720p (50/60)/480i (60)/480p (60)/576i (50)/576p (50)
1.0Vpp (With Sync)
Composite
Analog
Input Spec
1.0Vpp (Y With Sync), 0.286 Vpp (C)
S-Video
1.0Vpp (Y With Sync), 0.7 Vpp (Pb, Pr)
Component
1.0Vpp (G With Sync), 0.7 Vpp (B, R)
RGB
1080i (60 / 59.94 / 50)
SMPTE-274M
SDI Input
Signal
Formats
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M
720p (60 / 59.94 / 50)
SMPTE-260M
1035i (60 / 59.94)
480i (59.94)
SMPTE-125M
ITU-R BT.656
2K Format
Audio IN
Audio OUT
576i (50)
2048 x 1080p (24/24sF/23.98/23.98sF)
Embedded Audio / Analog stereo (Phone Jack)
Analog stereo (Phone Jack) / Internal Speaker (Stereo)
Size
9"
Resolution
800 x 480 (15:9)
Dot Pitch
0.246 x 0.246 mm
16.7M (true), 24bit
Color
H : 170 degrees
V : 170 degrees
350cd (center)
Luminance of White
260
Contrast
Display Area
100
480
350:1
196.8 x 118.08 mm
12V/24V DC
Power
Power Consumption (Approx.)
-10 °C to 50 °C (-14 °F to 122 °F )
AC Power Cord / DC Power Adaptor / Camera Mount
270Mbps
640×480/800×600/1024×768/1280×1024/720×400
Viewing Angle
( Typical )
0 °C to 40 °C (32 °F to 104 °F )
Storage Temperature
24 Watts
Operating Temperature
-10 °C to 50 °C (14 °F to 122 °F )
Storage Temperature
Accessory
* Specifications may be changed without notice.
Option
223
446
14
DVI-Digital (Graphic)
LCD
16 Watts(DC)
Operating Temperature
1.485Gbps
SD-SDI
DVI-Analog
223
12V DC
Power Consumption (Approx.)
Composite / S-Video / Component / RGB
HD-SDI
400:1
170 x 128 mm
Power
Option
Analog
Input Signal
H : 170 degrees
Display Area
Accessory
- 223 x 175 x 70 (8.8 x 6.9 x 2.8)
- 260 x 194.2 x 100 x (10.2 x 7.7 x 3.9) with stand
- Weight : 2.5 kg / 5.51 lb
1 x BNC
SDI A/B Channel Input
SDI A/B Selected Channel Output (Active Through-Out)
-20 °C to 60 °C (-4 °F to 140 °F )
AC Power Cord / DC Power Adaptor / Camera Mount / Handle
19" Rack Mountable Kit (4U/Dual Monitor/Single Monitor) / Carrying Case / Sun-Hood / ND Filter
* Specifications may be changed without notice.
15
ACCESSORIES
ACCESSORIES
Size
Main Body Dimensions (mm/inch)
175
Input Spec
1.0Vpp (With Sync)
1.0Vpp (Y With Sync), 0.286 Vpp (C)
194.2
S-Video
2 x BNC
Output
Analog Input
3 x BNC
SPEC
Analog
175
VGA
DVI IN / VGA IN
1 x DVI-I
Input
PRM
PRM
- 215 x 177 x 59 (8.5 x 7 x 2.3)
- 245.8 x 202.6 x 80 (9.7 x 8 x3.2) with stand
- Weight: 2.1kg / 4.6 lb
1.485Gbps
HD-SDI
Input Signal
Specifications
• 9” Wide Screen (800×480 pixels) OCB panel
• Ultra-Fast Response Time
• Wide 170° Viewing Angle
• Remote (RJ45)
• Embedded Audio Level Meters (16Ch)
• Waveform (SDI)
• Vector Scope (SDI)
• Aluminum Diecast Case
• Timecode Display
• UMD
• V-mount for battery powered operation
• Closed Caption: CEA-608/708 (SDI)
• 1:1 Pixel Mapping Function
• Highlight Focus Assist Function
• Y/C Error Check Function (SDI)
• Audio Disembedder & Speakers
LHM
Output
VGA In
3 x BNC
RGB
Main Body Dimensions (mm/inch)
Product Highlight
1 x D-SUB
Input
LQM
LHM
• Multi-Format 2 Channel SDI Support
• Input: 1 D-SUB, 3 BNC (Analog), and 2 BNC (SDI)
• Output: 1 BNC
(Selected SDI Channel Active Through Out)
• Remote (RJ45)
• Embedded Audio Level Meter (8 Ch)
• Dot Pitch : 0.165mm
• 16.7M (true), 8 bit
• Contrast: 400:1
• Viewing Angle: 170°
• LCD Resolution: 1024x768 (4:3)
• V-mount for Battery Powered Operation
LVM
LQM
Specifications
Product Highlight
NEW
LVM
Whether your application is broadcast, OB van, or camera assist, the LVM-091W combines a lightning-fast 9” LCD panel (<5ms)
with Multi-format capability (HD/SD-SDI, Composite, Component, YC, and DVI w/HDCP inputs) built-in Waveform, Vector Scope,
speakers with volume control, and all in a die-cast aluminum case. Camera/viewfinder features include flip mode, mirror mode,
built-in battery, and camera mounts.
Price is competitive with similar quality of HD/SD multi-format units.
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
LVM-091W
LVM-084
LVM-242W
Full-featured 17” display for non-critical
broadcast and production monitoring
24” Full HD display for non-critical
broadcast monitoring applications
Specifications
3 x BNC
Analog Input
2 x BNC
SDI A/B Channel Input
1 x BNC
-
3 x BNC
Analog Loop Through Output
2 x BNC
-
1 x BNC
SDI A/B Selected Channel Output (Active Through-Out)
Analog
Composite / S-Video / Component / RGB
HD-SDI
1.485Gbps
SD-SDI
270Mbps
HDMI
-
DVI-Analog
DVI-Digital (Graphic)
DVI-Digital (Video)
640×480/800×600/1024×768/1280×768/1280×1024/1366×768/720×400
640×480/800×600/1024×768/1280×768/1280×1024/720×400
1080p (24/25/30/50/60)/1080i (50/60)/720p (50/60)/480i (60)/480p (60)/576i (50)/576p (50)
Composite
1.0Vpp (With Sync)
S-Video
1.0Vpp (Y With Sync), 0.286 Vpp (C)
Component
1.0Vpp (Y With Sync), 0.7Vpp (Pb,Pr)
RGB
SDI Input
Signal
Formats
427
1.0Vpp (G With Sync), 0.7 Vpp (B,R)
SMPTE-296M
720p (60 / 59.94 / 50)
SMPTE-260M
1035i (60 / 59.94)
SMPTE-125M
480i (59.94)
ITU-R BT.656
576i (50)
Audio IN
Resolution
1366×768 (16:9)
Dot Pitch
0.273×0.273 mm
Color
16.7M (true), 24bit
Viewing Angle
(Typical)
H : 178 degrees
Luminance of White
350cd (center)
AC 100 - 240V / DC 12V / DC 24V
Power Consumption (Approx.)
60 Watts
Operating Temperature
0 °C to 40 °C ( 32 °F to 104 °F )
Storage Temperature
-20 °C to +60 °C (-4 °F to 140 °F )
AC Power Cord / NDF Screw
Accessory
Carrying Case / V-Mount / 19" Rack Mountable Kit (7U) / ND Filter / Sun-Hood
* Specifications may be changed without notice.
16
1 x BNC
-
3 x BNC
Analog Loop Through Output
2 x BNC
-
1 x BNC
SDI A/B Selected Channel Output (Active Through-Out)
Analog
Composite / S-Video / Component / RGB
HD-SDI
1.485Gbps
SD-SDI
270Mbps
HDMI
-
DVI-Analog
640×480/800×600/1024×768/1280×768/1280×1024/720×400
DVI-Digital (Graphic)
640×480/800×600/1024×768/1280×768/1280×1024/720×400/1600×1200/1920×1200/1920×1080
1080p (60/59.94/50)/1080i (60/59.94/50)/720p (60/59.94/50)/480i (59.94)/480p (59.94)/576i (50)
Composite
Analog
Input Spec
SDI Input
Signal
Formats
552.5
1.0Vpp (Y With Sync), 0.286 Vpp (C)
Component
1.0Vpp (Y With Sync), 0.7 Vpp (Pb,Pr)
720p (60 / 59.94 / 50)
1035i (60 / 59.94)
Audio IN
Audio OUT
576i (50)
24"
Resolution
1920×1200 (16:10)
Dot Pitch
0.27 mm
Color
150
480i (59.94)
2048 x 1080p (24/24sF/23.98/23.98sF)
Embedded Audio / Analog stereo (Phone Jack)
Analog stereo (Phone Jack) / Internal Speaker (Stereo)
Size
584
1080i (60 / 59.94 / 50)
SMPTE-260M
2K Format
LCD
1.0Vpp (G With Sync), 0.7 Vpp (B,R)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SMPTE-296M
ITU-R BT.656
95
1.0Vpp (With Sync)
S-Video
SMPTE-274M
16.7M (true), 24bit
Viewing Angle
H : 178 degrees
(Typical)
V : 178 degrees
Luminance of White
400cd (center)
Contrast
372.9×209.6 mm
Power
SDI A/B Channel Input
DVI-Digital (Video)
V : 178 degrees
900:1
Analog Input
2 x BNC
SMPTE-125M
17"
Contrast
Display Area
Option
- 552.5 x 389 x 95 (21.8 x 15.3 x 3.7)
- 584 x 417 x 150 (23 x 16.4 x 5.9) with stand
- Weight : 10.4 Kg / 22.92 lb
Analog stereo (Phone Jack) / Internal Speaker (Stereo)
Size
LCD
Input
Signal
3 x BNC
RGB
Main Body Dimensions (mm/inch)
Embedded Audio / Analog stereo (Phone Jack)
Audio OUT
Output
2048 x 1080p (24/24sF/23.98/23.98sF)
2K Format
-
1 x HDMI
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
DVI IN / VGA IN
1 x DVI-I
Input
ACCESSORIES
ACCESSORIES
- 427 x 310 x 90.5 (16.8 x 12.2 x 3.6)
- 474 x 327.8 x 150 (18.7 x 12.9 x 6) with stand
- Weight : 7.2 Kg / 15.87 lb
SMPTE-274M
417
Main Body Dimensions (mm/inch)
• Native1920x1080 LCD
• 800:1 Contrast Ratio
• 2 x HD/SD SDI inputs
• 1 x HD/SD through-out
• 1 x DVI-I input w/HDCP
• Analog Component/Composite/S-Video/RGB Inputs
• Audio Disembedder & Speakers
• Optional 19” Rack Mount Kit available
(also VESA compatible)
• Supports TVLogic Color Calibration Utility for
proper color alignment
• Matte Finish Panel or Optional ND filter
• Timecode Display
• UMD
• Closed Caption : CEA-608/708 (SDI)
• Embedded Audio Level Meter (16ch)
• Waveform (SDI)
• Vector Scope (SDI)
• Highlight Focus Assist Functions
SPEC
SPEC
Analog
Input Spec
Specifications
Product Highlight
PRM
PRM
Input
Signal
-
389
Output
DVI IN / VGA IN
1 x HDMI
LHM
Input
1 x DVI-I
LQM
LHM
• 1366x768 Resolution
• 900:1 Contrast Ratio
• 2 x HD/SD SDI inputs
• 1 x HD/SD through-out
• 1 x DVI-I input (W/HDCP)
• Analog Component/Composite/S-Video/RGB Inputs
• 1:1 pixel mapping modes for SD/HD
• Audio Disembedder & Speakers
• Optional 19” Rack Mount Kit available
• Supports TVLogic Color Calibration Utility for
proper color alignment
• Matte Finish Panel or Optional ND filter
• Timecode Display
• UMD
• Closed Caption : CEA-608/708 (SDI)
• Embedded Audio Level Meter (16ch)
• Highlight Focus Assist Function
• Waveform (SDI)
• Vector Scope (SDI)
LVM
LQM
Product Highlight
The LVM-242W is a native 1920x1080 resolution display with advanced features like CC Decoding, Audio Level Meters, Timecode
Display, and compatibility with the TVLogic automatic alignment interface. Designed for non-critical viewing, the LVM-242W is
an excellent and affordable solution for many broadcast and professional applications.
NEW
LVM
The LVM-172W is the economical counterpart to the LVM- 173W and utilizes the same high quality LCD panel. The LVM- 172W is
an excellent choice for professionals looking for the ideal balance between performance and price. With advanced features like
Audio Level Meters, CC decoding, and 1:1 pixel mapping, this unit still comes well equipped with many high-end professional
features.
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
LVM-172W
Display Area
Power
Power Consumption (Approx.)
Operating Temperature
Storage Temperature
Accessory
Option
1000:1
518×324 mm
AC 100 - 240V / DC 24V
112 Watts
0 °C to 35 °C ( 32 °F to 95 °F )
-20 °C to +60 °C (-4 °F to 140 °F )
AC Power Cord / NDF Screw
Carrying Case / 19" Rack Mountable Kit / ND Filter
* Specifications may be changed without notice.
17
LVM-243W(3G)
A Premium Monitoring Solution
for Rack Mount, Desktop, or Field Use
The most comprehensive
24" 1080 native HD LCD display
3 x BNC
Analog Input
SDI A/B Channel Input
3 x BNC
Analog Loop Through Output
2 x BNC
SDI A/B Channel Output
Composite / S-Video / Component / RGB
Analog
2.970Gb/s
HD-SDI
1.485Gbps
SD-SDI
270Mbps
720p / 1080i & VESA / IBM Modes
HDMI
DVI-Analog
640×480/800×600/1024×768/1280×768/1280×1024/1366×768/720×400
640×480/800×600/1024×768/1280×768/1280×1024/720×400
DVI-Digital (Graphic)
DVI-Digital (Video)
1080p (24/25/30/50/60)/1080i (50/60)/720p (50/60)/480i (60)/480p (60)/576i (50)/576p (50)
Composite
1.0Vpp (With Sync)
S-Video
1.0Vpp (Y With Sync), 0.286 Vpp (C)
1.0Vpp (Y With Sync), 0.7Vpp (Pb,Pr)
RGB
SMPTE-425M-A/B
1.0Vpp (G With Sync), 0.7 Vpp (B,R)
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
1080i (60 / 59.94 / 50)
SMPTE-274M
SDI Input
Signal
Formats
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SMPTE-296M
SMPTE-260M
1035i (60 / 59.94)
SMPTE-125M
480i (59.94)
ITU-R BT.656
576i (50)
Main Body Dimensions (mm/inch)
- 552.5 x 389 x 95 (21.8 x 15.3 x 3.7)
- 584 x 417 x 150 (23 x 16.4 x 5.9) with stand
- Weight : 11Kg / 24.2 lb
552.5
2048 x 1080p (24/24sF/23.98/23.98sF)
Input
Signal
3G-SDI
2.970Gb/s
HD-SDI
1.485Gbps
0.273×0.273 mm
Color
16.7M(true), 24bit
DVI-Digital (Graphic)
DVI-Digital (Video)
Analog
Input Spec
SDI Input
Signal
Formats
60 Watts
0 °C to 40 °C ( 32 °F to 104 °F )
Accessory
AC Power Cord / NDF Screw
Carrying Case / V-Mount / 19" Rack Mountable Kit(7U) / Dual Link / ND Filter / Sun-Hood
SMPTE-372M mode is an optoin
* Specifications may be changed without notice.
1035i (60 / 59.94)
480i (59.94)
ITU-R BT.656
576i (50)
2K Format
2048 x 1080p (24/24sF/23.98/23.98sF)
Embedded Audio / Analog stereo (Phone Jack)
Analog stereo (Phone Jack) / Internal Speaker (Stereo)
Size
Resolution
Dot Pitch
Color
150
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SMPTE-125M
Audio OUT
LCD
1080p (60 / 59.94 / 50)
Dual HD-SDI YPbPr/RGB (4:4:4)
SMPTE-260M
Contrast
372.9×209.6 mm
-20 °C to +60 °C (-4 °F to 140 °F )
720p (60 / 59.94 / 50)
SMPTE-372M**
Luminance of White
Storage Temperature
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SMPTE-296M
350cd (center)
Operating Temperature
1.0Vpp (G With Sync), 0.7 Vpp (B,R)
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
SMPTE-274M
Luminance of White
Power Consumption (Approx.)
1.0Vpp (Y With Sync), 0.7 Vpp (Pb,Pr)
RGB
SMPTE-425M-A/B
Viewing Angle
(Typical)
AC 100 - 240V / DC 12V / DC 24V
1.0Vpp (With Sync)
1.0Vpp (Y With Sync), 0.286 Vpp (C)
Component
V : 178 degrees
Power
640×480/800×600/1024×768/1280×768/1280×1024/720×400/1600×1200/1920×1200/1920×1080
1080p (60/59.94/50)/1080i (60/59.94/50)/720p (60/59.94/50)/480i (59.94)/480p (59.94)/576i (50)
S-Video
H : 178 degrees
Display Area
640×480/800×600/1024×768/1280×768/1280×1024/720×400
Composite
(Typical)
900:1
720p / 1080i & VESA / IBM Modes
HDMI
Viewing Angle
Contrast
270Mbps
SD-SDI
DVI-Analog
17"
1366×768 (16:9)
Dot Pitch
Composite / S-Video / Component / RGB
Audio IN
Analog stereo (Phone Jack) / Internal Speaker (Stereo)
Resolution
SDI A/B Channel Output
2 x BNC
Analog
95
Embedded Audio / Analog stereo (Phone Jack)
Size
327.8
310
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
Analog Loop Through Output
3 x BNC
Output
ACCESSORIES
ACCESSORIES
Dual HD-SDI YPbPr/RGB (4:4:4)
Audio OUT
18
SDI 2 Channel Input
Dual HD-SDI YPbPr (4:2:2)
1080p (60 / 59.94 / 50)
SMPTE-372M**
2K Format
Option
Analog Input
2 x BNC
720p (60 / 59.94 / 50)
Dual HD-SDI YPbPr (4:2:2)
Audio IN
LCD
3 x BNC
Display Area
Power
Power Consumption (Approx.)
Operating Temperature
Storage Temperature
Accessory
Option
SPEC
Component
417
Analog
Input Spec
HDMI IN
1 x HDMI
389
Input
Signal
3G-SDI
DVI IN / VGA IN
1 x DVI-I
Input
PRM
SPEC
90.5
HDMI Input
2 x BNC
Output
- 427 x 310 x 90.5 (16.8 x 12.2 x 3.6)
- 474 x 327.8 x 150 (18.7 x 12.9 x 6) with stand
- Weight : 7.1 kg / 15.65 lb
427
DVI IN / VGA IN
1 x HDMI
LHM
PRM
Main Body Dimensions (mm/inch)
Input
1 x DVI-I
LQM
LHM
• 1366x768 Resolution
• 900:1 Contrast Ratio
• 2 x HD/SD SDI inputs
• 2 x HD/SD through-out
• 1 x DVI-I input, 1 x HDMI input (W/HDCP)
• Analog Component/Composite/S-Video/RGB
Inputs
• 1:1 pixel mapping modes for SD/HD
• Audio Disembedder & Speakers
• Optional 19” Rack Mount Kit available
• Supports TVLogic Color Calibration Utility for
proper color alignment
• 3G/Dual-Link 4:4:4 and 1080p60 supported
• Matte Finish Panel or Optional ND filter
• Waveform
• Vector Scope
• Timecode Display
• UMD
• Closed Caption : CEA-608/708
• Embedded Audio Level Meter (16 ch)
• Highlight Focus Assist Function
• PBP Support
Specifications
Product Highlight
• 1920x1080 Native HD Resolution
• 800:1 Contrast Ratio
• 2 x HD/SD SDI inputs
• 2 x HD/SD through-out
• 1 x DVI-I input, 1 x HDMI input (W/HDCP)
• Analog Component/Composite/S-Video/RGB
Inputs
• 1:1 pixel mapping modes for SD/HD
• Audio Disembedder & Speakers
• Optional 19” Rack Mount Kit available
(also VESA compatible)
• Supports TVLogic Color Calibration Utility for
proper color alignment
• 3G/Dual-Link 4:4:4 and 1080p60 support
• Matte Finish Panel or Optional ND filter
• Waveform
• Vector Scope
• Timecode Display
• UMD
• Closed Caption : CEA-608/708
• Embedded Audio Level Meter (16 ch)
• Highlight Focus Assist Function
• PBP Support
LVM
LQM
Specifications
Product Highlight
The LVM-243W is a 24” native 1080 display with Multi-format inputs including 3G/Dual-link HD-SDI, traceable color temperature,
and broadcast monitor feature-sets including closed caption decoding, built-in Waveform and Vector displays, audio demuxing,
on-screen audio level meters, and nine scan modes.
NEW
LVM
The LVM-173W is the higher end of TVLogic’s two 17 inch monitoring solutions. This unit features a true 16:9 Aspect Ratio LCD
panel with 12-bit video processing performance allowing for faithful reproduction of interlaced video and unparalleled scaling
performance. True Multi-Format support and standard Dual-Link/3G support help to make this unit suitable for the most
demanding applications.
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
LVM-173W(3G)
24"
1920×1200 (16:10)
0.27 mm
16.7M(true), 24bit
H : 178 degrees
V : 178 degrees
400cd (center)
1000:1
518×324 mm
AC 100 - 240V / DC 24V
112 Watts
0 °C to 35 °C ( 32 °F to 95 °F )
-20 °C to +60 °C (-4 °F to 140 °F )
AC Power Cord / NDF Screw
Carrying Case / 19" Rack Mountable Kit / Dual Link / ND Filter
SMPTE-372M mode is an optoin
* Specifications may be changed without notice.
19
LVM-403W(3G)
32” Native 1920x1080 LCD
40" Native 1920x1080 LCD
2 x BNC
SDI 2 Channel Input
3 x BNC
Analog Loop Through Output
2 x BNC
SDI A/B Channel Output
Composite / S-Video / Component / RGB
Analog
2.970Gb/s
HD-SDI
1.485Gbps
SD-SDI
270Mbps
480i/480p/720p/1080i & VESA/IBM Modes
HDMI
640×480/800×600/1024×768/1280×768/1280×1024/720×400/1366×768
DVI-Analog
DVI-Digital (Video)
640×480/800×600/1024×768/1280×768/1280×1024/720×400/1600×1200/1920×1080
1080p (60/59.94/50)/1080i (60/59.94/50)/720p (60/59.94/50)/480i (59.94)/480p (59.94)/576i (50)
1.0Vpp (With Sync)
Composite
Analog
Input Spec
1.0Vpp (Y With Sync), 0.286 Vpp (C)
S-Video
1.0Vpp (Y With Sync), 0.7 Vpp (Pb,Pr)
Component
1.0Vpp (G With Sync), 0.7 Vpp (B,R)
RGB
SMPTE-425M-A/B
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
1080i (60 / 59.94 / 50)
SMPTE-274M
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
Dual HD-SDI YPbPr (4:2:2)
SMPTE-372M**
Dual HD-SDI YPbPr/RGB (4:4:4)
481.1
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
1035i (60 / 59.94)
SMPTE-125M
480i (59.94)
ITU-R BT.656
2K Format
Output
Input
Signal
576i (50)
Analog stereo (Phone Jack)
Audio OUT
Analog stereo (Phone Jack)
Size
Analog
Input Spec
1920x1080 (16:9)
Dot Pitch
0.36375 mm x 0.36375 mm
Viewing Angle
(Typical)
Luminance of White
Contrast
Display Area
Power
Power Consumption (Approx.)
Operating Temperature
Storage Temperature
Accessory
Option
* Specifications may be changed without notice.
10-bitb (D), 1.06 B colors
H : 178 degrees
3G-SDI
2.970Gb/s
HD-SDI
1.485Gbps
SD-SDI
270Mbps
HDMI
720p / 1080i & VESA / IBM Modes
640×480/800×600/1024×768/1280×768/1280×1024/720×400
DVI-Digital (Graphic)
640×480/800×600/1024×768/1280×768/1280×1024/720×400/1600×1200/1920×1080
DVI-Digital (Video)
1080p (60/59.94/50)/1080i (60/59.94/50)/720p (60/59.94/50)/480i (59.94)/480p (59.94)/576i (50)
1.0Vpp (With Sync)
S-Video
1.0Vpp (Y With Sync), 0.286 Vpp (C)
Component
1.0Vpp (Y With Sync), 0.7 Vpp (Pb,Pr)
1.0Vpp (G With Sync), 0.7 Vpp (B,R)
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SMPTE-372M**
720p (60 / 59.94 / 50)
SMPTE-125M
ITU-R BT.656
888.4
89.5
2K Format
Audio IN
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
1035i (60 / 59.94)
480i (59.94)
576i (50)
2048 x 1080p (24/24sF/23.98/23.98sF)
Analog stereo (Phone Jack)
Size
40"
Resolution
1920×1080 (16:9)
Dot Pitch
0.461 mm
Color
Viewing Angle
(Typical)
Luminance of White
255
1080i (60 / 59.94 / 50)
Analog stereo (Phone Jack)
Audio OUT
LCD
1080p (60 / 59.94 / 50)
Dual HD-SDI YPbPr/RGB (4:4:4)
SMPTE-260M
Contrast
135 Watts
-20 °C to +60 °C (-4 °F to 140 °F )
Composite / S-Video / Component / RGB
SMPTE-296M
698.40×392.82 mm
AC Power Cord / Remote Controller
SDI A/B Channel Output
Analog
SMPTE-274M
1300:1
Carrying Case / Dual Link / Wall Mount
Analog Loop Through Output
2 x BNC
Dual HD-SDI YPbPr (4:2:2)
500cd (center)
0 °C to 35 °C ( 32 °F to 95 °F )
3 x BNC
RGB
V : 178 degrees
AC 100 - 240V
SDI 2 Channel Input
SMPTE-425M-A/B
SDI Input
Signal
Formats
32"
Resolution
Analog Input
2 x BNC
Composite
Main Body Dimensions (mm/inch)
- 965.6 x 589.5 x 89.5 (38 x 23.2 x 3.5)
- 965.6×642.7×255 (38×25.3×10) with stand
- Weight : 35 Kg / 77.2 lb
HDMI IN
3 x BNC
DVI-Analog
2048 x 1080p (24/24sF/23.98/23.98sF)
Audio IN
LCD
255
1080i (60 / 59.94 / 50)
SMPTE-260M
Color
769.4
1080p (60 / 59.94 / 50)
DVI IN / VGA IN
1 x HDMI
720p (60 / 59.94 / 50)
SMPTE-296M
SDI Input
Signal
Formats
1 x DVI-I
Input
589.5
DVI-Digital (Graphic)
• 1920x1080 Native HD Resolution with High Contrast 5000:1
• 2 x HD/SD SDI inputs
• 2 x HD/SD through-out
• 1 x DVI-I input and 1 x HDMI input (W/HDCP)
• Analog Component/Composite/S-Video/RGB Inputs
• 1:1 Pixel Mapping Modes for SD/HD
• Supports TVLogic Color Calibration Utility for
proper color alignment
• 3G/Dual-Link 4:4:4 and 1080p60 support
• Waveform
• Vector Scope
• Timecode Display
• UMD
• Closed Caption : CEA-608/708
• Embedded Audio Level Meter (16 ch)
• White Side LED Backlight with 120hz LCD panel
• Highlight Focus Assist Function
• Low power consumption
• PBP Support
642.7
Input
Signal
3G-SDI
Specifications
Product Highlight
Display Area
Power
Power Consumption (Approx.)
Operating Temperature
Storage Temperature
Accessory
Option
1.06 Billion, 10bit (FRC)
H : 178 degrees
V : 178 degrees
450cd (center)
5000:1
885.60×498.15 mm
AC 100 - 240V
290 Watts
0 °C to 40 °C ( 32 °F to 104 °F )
-20 °C to +60 °C (-4 °F to 140 °F )
AC Power Cord / Remote Controller
Carrying Case / Wall Mount
* Specifications may be changed without notice.
20
21
ACCESSORIES
ACCESSORIES
102.1
Analog Input
SPEC
SPEC
700.8
HDMI IN
3 x BNC
PRM
PRM
- 769.4 x 481.1 x 102.1 (31.4 x 18.9 x 4)
- 769.4 x 539.3 x 255 (31.4 x 21.2 x 10) with stand
- Weight : 21.45 Kg / 47.3 lb
Output
DVI IN / VGA IN
1 x HDMI
LHM
LHM
Main Body Dimensions (mm/inch)
1 x DVI-I
Input
LQM
Specifications
• 1920x1080 Native LCD
• 1300:1 Contrast Ratio
• 2 x HD/SD SDI inputs
• 2 x HD/SD through-out
• 1 x DVI-I input
• 1 x HDMI input (W/HDCP)
• Analog Component/Composite/S-Video/RGB Inputs
• Supports TVLogic Color Calibration Utility for
proper color alignment
• 3G/Dual-Link 4:4:4 and 1080p60 support
• 1:1 Pixel Mapping Modes for SD/HD
• Matte Finish Panel
• Waveform
• Vector Scope
• Timecode Display
• UMD
• Closed Caption : CEA-608/708
• Dithered 10bit Color Support
• Embedded Audio Level Meter (16 ch)
• 1 x Ethernet input, 1 x USB input (Calibration port x 1)
• Wide Viewing Angle (178°)
• Highlight Focus Assist Function
• PBP Support
LVM
LQM
Product Highlight
The LVM-403W features a 1080 native panel coupled with 3G/4:4:4 dual channel support and TVLogic’s powerful scaling engine
to give you the best picture quality for both HD and SD material. Additional features include automatic color alignment and
HDCP decryption. It is an ideal solution for broadcast, post production, and QC applications.
NEW
LVM
The LVM-323W utilizes a 32" 1920x1080 Native Resolution LCD panel. This model includes a wide range of input with 3G/Dual
link 4:4:4 and TVLogic's industry-leading scaling technology. You’ve got the best 32" HD Multiformat monitor anywhere.
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
LVM-323W(3G)
LVM-553W(3G)
Premier, Broadcast Quality,
46" Multi-Format Monitoring Solution
LVM Series Performance on its
Grandest Scale
DVI IN / VGA IN
1 x DVI-I
HDMI IN
3 x BNC
Analog Input
2 x BNC
SDI 2 Channel Input
3 x BNC
Analog Loop Through Output
2 x BNC
SDI A/B Channel Output
HD-SDI
1.485Gbps
SD-SDI
270Mbps
HDMI
720p / 1080i & VESA / IBM Modes
DVI-Analog
DVI-Digital (Graphic)
DVI-Digital (Video)
640×480/800×600/1024×768/1280×768/1280×1024/720×400
640×480/800×600/1024×768/1280×768/1280×1024/720×400/1600×1200/1920×1080
1080p (60/59.94/50)/1080i (60/59.94/50)/720p (60/59.94/50)/480i (59.94)/480p (59.94)/576i (50)
Composite
S-Video
1.0Vpp (Y With Sync), 0.286 Vpp (C)
Component
1.0Vpp (Y With Sync), 0.7 Vpp (Pb,Pr)
RGB
SMPTE-274M
1.0Vpp (G With Sync), 0.7 Vpp (B,R)
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SMPTE-296M
Main Body Dimensions (mm/inch)
SDI Input
Signal
Formats
SMPTE-372M**
SMPTE-260M
SMPTE-125M
ITU-R BT.656
2K Format
1022.4
89.5
Audio IN
Resolution
719.2
666
480i (59.94)
576i (50)
2048 x 1080p (24/24sF/23.98/23.98sF)
Main Body Dimensions (mm/inch))
Dot Pitch
Color
1212
Viewing Angle
H : 178 degree
(Typical)
V : 178 degree
Luminance of White
450 cd (Center)
Contrast
Display Area
Power
Power Consumption (Approx.)
Operating Temperature
Storage Temperature
Accessory
Option
* Specifications may be changed without notice.
89.5
46"
1.06 Billion, 10bit (FRC)
Analog
Input Spec
AC Power Cord / Remote Controller
Carrying Case / Wall Mount
3G-SDI
2.970Gb/s
HD-SDI
1.485Gbps
270Mbps
SD-SDI
HDMI
720p / 1080i & VESA / IBM Modes
640×480/800×600/1024×768/1280×768/1280×1024/720×400
640×480/800×600/1024×768/1280×768/1280×1024/720×400/1600×1200/1920×1200/1920×1080
1080p (60/59.94/50)/1080i (60/59.94/50)/720p (60/59.94/50)/480i (59.94)/480p (59.94)/576i (50)
1.0Vpp (With Sync)
S-Video
1.0Vpp (Y With Sync), 0.286 Vpp (C)
Component
1.0Vpp (Y With Sync), 0.7 Vpp (Pb,Pr)
RGB
SMPTE-425M-A/B
1.0Vpp (G With Sync), 0.7 Vpp (B,R)
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
1080i (60 / 59.94 / 50)
SMPTE-274M
SDI Input
Signal
Formats
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
720p (60 / 59.94 / 50)
Dual HD-SDI YPbPr (4:2:2)
SMPTE-372M**
SMPTE-125M
ITU-R BT.656
2K Format
Audio IN
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
1035i (60 / 59.94)
480i (59.94)
576i (50)
2048 x 1080p (24/24sF/23.98/23.98sF)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Audio OUT
Size
Resolution
Dot Pitch
Color
LCD
1080p (60 / 59.94 / 50)
Dual HD-SDI YPbPr/RGB (4:4:4)
SMPTE-260M
Viewing Angle
55"
1920×1080 (16:9)
0.630 mm
1.06 Billion, 10bit (FRC)
H : 178 degree
(Typical)
V : 178 degree
Luminance of White
450 cd (Center)
Contrast
AC 100 - 240 V
0 °C to 40 °C ( 32 °F to 104 °F )
Composite / S-Video / Component / RGB
Composite
1018.08 × 572.67 mm
-20 °C to +60 °C (-4 °F to 140 °F )
SDI A/B Channel Output
Analog
DVI-Digital (Video)
5000 : 1
349 Watts
2 x BNC
DVI-Digital (Graphic)
1920×1080 (16:9)
0.53 mm
Analog Loop Through Output
3 x BNC
DVI-Analog
- 1289.5 x 775.7 x 89.5 (50.8 x 30.5 x 3.5)
- 1289.5 x 828.9 x 255 (50.8 x 32.6 x 10) with stand
- Weight : 52 Kg / 114.63 lb
Analog stereo (Phone Jack)
Size
255
1035i (60 / 59.94)
Analog stereo (Phone Jack)
Audio OUT
LCD
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SDI 2 Channel Input
SMPTE-296M
1080p (60 / 59.94 / 50)
Dual HD-SDI YPbPr/RGB (4:4:4)
Analog Input
2 x BNC
Display Area
Power
Power Consumption (Approx.)
Operating Temperature
Storage Temperature
Accessory
Option
5000 : 1
1209.6 × 680.4 mm
AC 100 - 240 V
516 Watts
0 °C to 40 °C ( 32 °F to 104 °F )
-20 °C to +60 °C (-4 °F to 140 °F )
AC Power Cord / Remote Controller
Carrying Case / Wall Mount
* Specifications may be changed without notice.
22
23
ACCESSORIES
ACCESSORIES
- 1098.4 x 666 x 89.5 (43.2 x 26.2 x 3.5)
- 1098.4 x 719.2 x 255 (43.2 x 28.3 x 10) with stand
- Weight : 42 kg / 92.6 lb
720p (60 / 59.94 / 50)
Dual HD-SDI YPbPr (4:2:2)
Input
Signal
3 x BNC
SPEC
SPEC
SMPTE-425M-A/B
683
Analog
Input Spec
1.0Vpp (With Sync)
Output
HDMI IN
1 x HDMI
PRM
PRM
Input
Signal
Composite / S-Video / Component / RGB
2.970Gb/s
DVI IN / VGA IN
1 x DVI-I
Input
828.9
Analog
3G-SDI
775.7
Output
1 x HDMI
• Support for 3G and Dual link 4:4:4
• White LED Sidelit Backlight
• 1920x1080 120Hz LCD
• 5000:1 Contrast Ratio
• High Refresh (120HZ)
• Low power consumption
• 2 x HD/SD SDI inputs
• 2 x HD/SD through-out
• 1 x DVI-I input, 1 x HDMI input (w/HDCP)
• Analog Component/Composite/S-Video/RGB Inputs
• 1:1 Pixel Mapping Modes for SD/HD
• Supports TVLogic Color Calibration Utility for
proper color alignment
• Waveform
• Vector Scope
• Timecode Display
• UMD
• Closed Caption : CEA-608/708
• Embedded Audio Level Meter (16 ch)
• Highlight Focus Assist Function
• PBP Support
LHM
Input
Specifications
Product Highlight
LQM
LHM
• Support for 3G and Dual link 4:4:4
• White LED Sidelit Backlight
• 1920x1080 120Hz LCD
• 5000:1 Contrast Ratio
• High Refresh (120HZ)
• Low power consumption
• 2 x HD/SD SDI inputs
• 2 x HD/SD through-out
• 1 x DVI-I input and 1 x HDMI input (w/HDCP)
• Analog Component/Composite/S-Video/RGB Inputs
• 1:1 Pixel Mapping Modes for SD/HD
• Supports TVLogic Color Calibration Utility for
proper color alignment
• Waveform
• Vector Scope
• Timecode Display
• UMD
• Closed Caption : CEA-608/708
• Embedded Audio Level Meter (16 ch)
• Highlight Focus Assist Function
• PBP Support
LVM
LQM
Specifications
Product Highlight
The LVM-553W is built specifically for ultra-high end applications requiring the performance of the TVLogic LVM Series on a truly
large scale display. The 55 inch LVM-553W delivers an unrivaled combination of quality, performance, and features.
NEW
LVM
The LVM-463W starts with the highest-grade 1080 native LCD panel and adds 3G/Dual-link support plus TVLogic’s powerful
scaling engine and features such as 9 scan systems, traceable color temperature, on-screen audio level meters, and new HDCP
decryption to give the professional user unsurpassed HD and SD video quality and performance.
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
LVM-463W(3G)
LQM Series
Easy to control
TVLogic prides itself on its industry leading
video processing quality and first rate
automatic alignment interface, which is
compatible with the entire TVLogic LCD
Monitor product line up including the LQM
series.
The LQM Series can be remotely
controlled and offers easy to use
controls, making many common
functions accessible from single button
selects on the front of the monitor.
Integrated Quad Split
Concept
Compact 7" Quad-Split LCD with
Integrated Waveform Vector
Scope functionality
The LQM Series displays eliminate the
need for external Quad Split modules.
And by utilizing high quality single piece
LCD panels the LQM Series offers
multiple signal monitoring without
using smaller and inferior quality panels.
Specifications
Product Highlight
Output
1 x BNC
SDI Output only
Selected SDI/Composite Channel (A/B/C/D)
Input Signal
Analog Input Spec
Analog
HD-SDI
SD-SDI
Composite
SMPTE-274M
SDI Input
Signal
Formats
SMPTE-296M
SMPTE-260M
SMPTE-125M
ITU-R BT.656
Analog Input Signal Formats
Composite
1.485Gbps
270Mbps
1.0Vpp (With Sync)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
720p (60 / 59.94 / 50)
1035i (60 / 59.94)
480i (59.94)
576i (50)
NTSC / PAL /PALM /PALN
Embedded Audio
Analog stereo (Phone Jack)
Analog stereo (Phone Jack) / Internal Speaker (Mono)
Audio IN
Audio OUT
Size
Resolution
Dot Pitch
Color
LCD
60
7"
800 x 480 (15:9)
0.190 mm
16.7M(true), 24bit
H : 130 degrees
V : 110 degrees
Viewing Angle
(Typical)
Luminance of White
Contrast
Display Area
350cd (Center)
400:1
152 x 91 mm
12V DC
Power
Power Consumption (Approx.)
Operating Temperature
Storage Temperature
Accessory
Option
18 Watts
-20 °C to 40 °C (-4 °F to 104 °F )
-30 °C to 50 °C (-22 °F to 122 °F )
AC Power Cord / DC Power Adaptor / Camera Mount
19" Rack Mountable Kit(3U/Dual Monitor/Single Monitor),
Carrying Case / Sun-Hood / ND Filter
* Specifications may be changed without notice.
24
25
ACCESSORIES
ACCESSORIES
203
SDI A/B/C/D Channel Input
Analog Composite A/B/C/D Channel Input
(Shares BNC with SDI input)
SPEC
SPEC
- 203 x 131 x 60 (8.4 x 5.2 x 2.4)
- 217 x 143 x 69 (8.5 x 5.6 x 2.7) with stand
- weight : 1.35 Kg / 2.97 lb
4 x BNC
PRM
PRM
Main Body Dimensions (mm/inch)
Input
LHM
LHM
: LQM-241W
• 800X480 resolution with LED backlight
• 4 auto detecting Composite/SD-SDI/HD-SDI Inputs
• 1 x HD/SD SDI Output (Selected input through-out)
• Precision Waveform & Vector Scope
• Audio Disembedder & Speaker Output
• Timecode Display & UMD display
• Closed Caption display
• User programmable Function keys
• Various display modes
4 picture
3 picture + 1 waveform/vector
2 picture + 2 waveform/vector
1 picture + 1 waveform/vector
1 main picture + 3 sub picture...
• Optional 19” Rack Mount Kit available (single/dual)
• Support TVLogic Color Calibration Utility for
proper color alignment
LQM
LQM
LQM-071W features 4 Inputs (BNC) that are autosensing Composite/SD-SDI/HD-SDI. Any combination of incoming sources can
be viewed on-screen at once. The LQM-071W also features sophisticated Waveform/Vector Scope functionality and audio level
meters for each incoming SDI source. The LQM-071W is rackmountable as a single or double monitor configuration and is
equipped with one selectable switched output.
LVM
LVM
: LQM-071W, LQM-171W
NEW
Superior Picture Quality
LQM-071W
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
Integrated multi-format HD Quad-input monitors
LQM-241W
Rackmountable 17" Quad-Split
LCD With Interated Waveform/
Vector Scope functionality
24”1080 Native HD LCD Quad
Split display
SMPTE-274M
SDI Input
Signal
Formats
Audio IN
Audio OUT
Main Body Dimensions (mm/inch)
90.5
327.8
310
427
LCD
Power
Power Consumption (Approx.)
Operating Temperature
Storage Temperature
474
150
Accessory
Option
* Specifications may be changed without notice.
Output
552.5
Analog Input
4 x BNC
SDI A/B/C/D Channel Input
1 x HDMI
HDMI Input
3 x BNC
Analog Loop Through Output
4 x BNC
SDI A/B/C/D Channel Output (Active Through-Out)
Analog
Composite / S-Video / Component / RGB
HD-SDI
1.485Gbps
Input
SD-SDI
Signal
DVI
640×480/800×600/1024×768/1280×768/1280×1024/720×400/1600×1200/1920×1200/1920×1080
DVI-Analog
640×480/800×600/1024×768/1280×768/1280×1024/720×400
270Mbps
HDMI
480i/480p/720p/1080i &VESA/IBM Modes
Composite
1.0Vpp (With Sync)
Analog
S-Video
1.0 Vpp (Y With Sync), 0.286 Vpp (C)
Input Spec
Component
1.0 Vpp (Y With Sync), 0.7 Vpp (Pb,Pr)
RGB
SMPTE-274M
SDI Input
Signal
Formats
Main Body Dimensions (mm/inch)
- 552.5 x 389 x 95 (21.8 x 15.3 x 3.7)
- 584 x 417 x 150 (23 x 16.4 x 5.9) with stand
- Weight : 11 Kg / 24.25 lb
DVI IN / VGA IN
3 x BNC
1.0 Vpp (G With Sync), 0.7 Vpp (B,R)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SMPTE-296M
720p (60 / 59.94 / 50)
SMPTE-260M
1035i (60 / 59.94)
SMPTE-125M
480i (59.94)
ITU-R BT.656
576i (50)
2K Format
Audio IN
2048 x 1080p (24/24sF/23.98/23.98sF)
Embedded Audio / Analog stereo (Phone Jack)
Audio OUT
Analog stereo (Phone Jack) / Internal Speaker (Stereo)
24"
Size
95
Resolution
1920×1200 (16:10)
Dot Pitch
0.27×0.27 mm
Color
LCD
8 bit, 16,777,216 colors
Viewing Angle
H : 178 degrees
(Typical)
V : 178 degrees
400 cd/m2 (Center)
Luminance of White
Carrying Case / V-Mount /
19" Rack Mountable Kit(7U) / ND Filter / Sun-Hood
Contrast
1000:1
Display Area
518.4×324.0 mm
Power
AC 100 - 240V / DC 24V
Operating Temperature
0 °C to 40 °C ( 32 °F to 104 °F )
Storage Temperature
-20 °C to +60 °C (-4 °F to 140 °F )
Accessory
Option
ACCESSORIES
ACCESSORIES
- 427 x 310 x 90.5 (16.8 x 12.2 x 3.6)
- 474 x 327.8 x 150 (18.7 x 12.9 x 6) with stand
- Weight : 7.2 Kg / 15.87 lb
Size
Resolution
Dot Pitch
Color
Viewing Angle
(Typical)
Luminance of White
Contrast
Display Area
1 x DVI-I
Input
SPEC
SPEC
SMPTE-296M
SMPTE-260M
SMPTE-125M
ITU-R BT.656
Analog Input Signal Formats
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
720p (60 / 59.94 / 50)
1035i (60 / 59.94)
480i (59.94)
576i (50)
NTSC / PAL /PALM /PALN
Embedded Audio
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)/Internal Speaker (Stereo)
17"
1366×768 (16:9)
0.273×0.273 mm
16.7M (true), 24bit
H : 178 degrees
V : 178 degrees
350cd (center)
900:1
372.9×209.6 mm
AC 100 - 240V / DC 12V / 24V
60 Watts
0 °C to 40 °C ( 32 °F to 104 °F )
-20 °C to +60 °C (-4 °F to 140 °F )
AC Power Cord / NDF Screw
• 1920x1080 Native HD resolution (panel resolution 1920x1200)
with High Contrast 800:1
• 4 x HD/SD SDI inputs
• 1 x DVI-I input
• 1 x HDMI input (W/HDCP)
• Analog Component/Composite/S-Video/RGB Inputs
• Wide Viewing Angles (178°)
• Embedded Audio Level Meter (16 Ch)
• 1:1 pixel mapping modes for SD/720
• Audio Disembedder & Speakers
• Optional 19” Rack Mount Kit available (also VESA compatible)
• Supports TVLogic Color Calibration Utility for proper color alignment
• Matte Finish Panel or Optional ND filter
• Waveform • Vector Scope • Timecode Display • UMD
• Closed Caption : CEA-608/708
• Various display modes
4 picture
3 picture + 1 waveform/vector
2 picture + 2 waveform/vector
1 picture + 1 waveform/vector
1 main picture + 3 sub picture...
AC Power Cord / NDF Screw
Carrying Case / 19" Rack Mountable Kit / ND Filter
* Specifications may be changed without notice.
26
PRM
PRM
Analog
HD-SDI
SD-SDI
Analog Input Spec Composite
Input Signal
SDI A/B/C/D Channel Selected Output
Analog Composite AD Converted Output
Composite
1.485Gbps
270Mbps
1.0Vpp(With Sync)
Specifications
Product Highlight
417
1 x BNC
SDI A/B/C/D Channel Input
Analog Composite A/B/C/D Channel Input
(Shares BNC with SDI input)
LHM
Output
4 x BNC
389
Input
LQM
LHM
• 1366X768 resolution with High Contrast 900:1
• 4 x HD/SD SDI, Analog Composite auto-detect inputs
• 1 x HD/SD SDI Output (Selected input through-out)
• Precision Waveform & Vector scope
• Various display modes
4 picture
3 picture + 1 waveform/vector
2 picture + 2 waveform/vector
1 picture + 1 waveform/vector
1 main picture + 3 sub picture ...
• Audio Disembedder & Speaker output
• Embedded audio level meter & Time code display
• UMD display & Closed Caption display
• Wide variety of marker & safety areas
• User programmable Function keys (F1, F2)
• Remote control function using RS422 & GPIO
• Remote control & update using Ethernet
• Optional 19” Rack Mount Kit available
• Support TVLogic Color Calibration Utility for proper color alignment
LVM
LQM
Specifications
Product Highlight
The LQM-241W is a high quality 24 inch Quad Split Monitor sharing a majority of the advanced functionality found in the
LVM-243W. The LQM-241W supports 4 HD/SD-SDI inputs at a time in quad split mode and can also display any additional
sources full screen or as one of the 4 Quad Split Windows. The LQM-241W also features 4 HD/SD-SDI outputs as well as hosting
advanced Waveform and Vector Scope functions.
NEW
LVM
LQM-171W is a 17” LCD quad split monitor which can display 4 X HD/SD SDI or Analog composite input signals. It has various
display modes with built in Waveform and Vector displays, Time code display, UMD, Closed Caption, Audio disembedder /
speaker output, and it also can be auto color calibrated by TVLogic’s color calibration utility.
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
LQM-171W
27
Main Body Dimensions (mm/inch)
888.4 / 34.9
990.6 / 139
111.8 / 4.4
255 / 10
700 / 127.5
Main Body Dimensions (mm/inch)
670.7 / 26.4
576.6 / 22.7
1126.6 / 44.4
103.8 / 4
SPEC
SPEC
670.7 / 26.4
The highest monitoring solution
PRM
PRM
LHM-460W
723.8 / 28.5
DVI/HDMI LCD Monitor
• 1920x1080 Native HD Resolution with High Contrast 1000 :
1
• 1 X D-SUB
• 1 X DVI
• 1 X HDMI
• 2 X RJ45 Jack (RS485)
• RGBHV, DVI, HDMI Input
• Video Mode, Graphic Mode Support
• Supports TVLogic Color Calibration Utility for
proper color alignment
• Matte Finish Panel or Optional ND fillter
• Optional HD-SDI Input
785 / 40
255 / 10
1251 / 47.8
350 / 13.8
28
1370 / 53.9
120 / 4.7
807 / 31.7
New standard of multi viewer
system
857.7 / 33.7
LHM-570W
• 1920x1080 Native HD Resolution with High Contrast 1200 : 1
• 1 X D-SUB
• 1 X DVI
• 1 X HDMI
• 2 X RJ45 Jack (RS485)
• RGBHV, DVI, and HDMI Input
• Video Mode, Graphic Mode Support
• Supports TVLogic Color Calibration Utility for
proper color alignment
• Matte Finish Panel or Optional ND fillter
• Optional HD-SDI Input
807 / 31.7
704 / 27.7
PRODUCT HIGHLIGHTS
910 / 35.8
29
ACCESSORIES
ACCESSORIES
Main Body Dimensions (mm/inch)
DVI/HDMI LCD Monitor
LHM
LHM
1022.4 / 40.2
PRODUCT HIGHLIGHTS
LQM
LQM
589.6 / 23.2
The best monitor
for multi viewer system
642.7 / 25.3
LHM-400W
LVM
LVM
• 1920x1080 Native HD Resolution with High Contrast 1000 : 1
• 1 X D-SUB
• 1 X DVI
• 1 X HDMI
• 2 X RJ45 Jack (RS485)
• RGBHV, DVI, HDMI Input
• Video Mode, Graphic Mode Support
• Supports TVLogic Color Calibration Utility for
proper color alignment
• Matte Finish Panel or Optional ND fillter
• Optional HD-SDI Input
NEW
DVI/HDMI LCD Monitor
589.6 / 23.2
500.9 / 19.7
PRODUCT HIGHLIGHTS
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
LHM Series DVI/HDMI LCD Monitors
The LHM series offer an economical solution for multi-viewer & Digital Information Display (DID)
applications while providing the same great panel performance found in the LVM series monitors.
2A
PRM-702A
Dual 9” LCD 4RU
Multi-Channel
Rack Monitor
Dual 7” LCD 3RU Multi-Channel Rack Monitor
Analog
Input Signal
Composite (1.0Vpp with Sync)
S-Video (1.0Vpp Ywith Sync, 0.268Vpp (c))
Component (1.0Vpp Ywith Sync, 0.7Vpp (Pb,Pr))
RGB (1.0Vpp Gwith Sync, 0.7Vpp (B,R))
1.485 Gbps
270 Mbps
1080i (60/59.94/50)
SMPTE-274
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
SDI Input Signal
720P (23.98/24/25/29.97/30/50/59.94/60)
SMPTE-296M
Formats
1035i (60/59.94)
SMPTE-260M
480i (59.94)
SMPTE-125M
576i (50)
ITU-R.BT.656
2048 x 1080 (23.98psf/24psf/23.98p/24p)
2K Format
CVBS Input
NTSC (525 / 59.94i), PAL (625/50i), PAL-M (525 / 59.94i)
S-Video Input
NTSC (525 / 59.94i), PAL (625/50i), PAL-M (525 / 59.94i)
480i (59.94), 576i (50), 480P (59.94), 576P (50)
Component,
1080i (60/59.94/50)
RGB Input
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
720P (50/59.94/60)
Size
9 inch /196.8 (H) X 118.08 (V) mm
800 x 480 (15 : 9)
Resolution
0.246 (H) x 0.246 (V) mm
Pixel Pitch
16.7M (True), 24bit
LCD
Color
H : 160 degrees
Viewing Angle
V : 140 degrees
600cd (center)
Luminance of White
600 : 1
Contrast
12V DC. 3A
Power
36 Watts
Power Consumption (Approx)
Operating Temperature
0℃ to 40℃ (32℉ to 104℉)
Storage Temperature
-30℃ to 50℃ (-22℉ to 122℉)
Optional Accessories
UMD Jender / DC Power Adapter
HD-SDI
SD-SDI
* Specifications may be changed without notice.
Main Body Dimensions (mm/inch)
- 480 x 126 x 45 (18.89 x 4.96 x 1.78)/3RU
- Weight : 3.2kg / 7.05 lb
(
Tilt
Specifications
Number of Screens
3 x BNC
Input (1 Screen)
Output (1 Screen)
2 x BNC
1 x BNC
2 x BNC
1 x Phone Jack
2 x Speaker
Analog
Input Signal
2
3 Composite Inputs
S-Video / RGB / Component
SDI 2 Channel Inputs
Composite Input
SDI Channel / Composite Outputs
Analog Stereo Audio Out
2 x 1W
Composite (1.0Vpp with Sync)
S-Video (1.0Vpp Ywith Sync, 0.268Vpp (c))
Component(1.0Vpp Ywith Sync, 0.7Vpp (Pb,Pr))
RGB(1.0Vpp Gwith Sync, 0.7Vpp (B,R))
1.485 Gbps
270 Mbps
1080i (60/59.94/50)
SMPTE-274
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
SDI Input Signal
720P (23.98/24/25/29.97/30/50/59.94/60)
SMPTE-296M
Formats
1035i (60/59.94)
SMPTE-260M
480i (59.94)
SMPTE-125M
576i (50)
ITU-R.BT.656
2048 x 1080 (23.98psf/24psf/23.98p/24p)
2K Format
CVBS Input
NTSC (525 / 59.94i), PAL (625/50i), PAL-M (525 / 59.94i)
S-Video Input
NTSC (525 / 59.94i), PAL (625/50i), PAL-M (525 / 59.94i)
480i (59.94), 576i (50), 480P (59.94), 576P (50)
Component,
1080i (60/59.94/50)
RGB Input
1080P(30/29.97/25/24/24sF/23.98/23.98sF)
720P (50/59.94/60)
7 inch / 152.4 (H) x 91.44 (V)mm
Size
800 x 480 (15 : 9)
Resolution
0.1905 (H) x 0.1905 (V) mm
Pixel Pitch
16.2M (True), 24bit
LCD
Color
H : 140 degrees
Viewing Angle
V : 140 degrees
350cd (center)
Luminance of White
700 : 1
Contrast
12V DC. 3A
Power
Power Consumption (Approx)
36 Watts
Operating Temperature
-30℃ to 80℃ (-22 ℉ to 176℉ )
Storage Temperature
-30℃ to 85℃ (-22℉ to 185℉)
Optional Accessories
UMD Jender / DC Power Adapter
HD-SDI
SD-SDI
* Specifications may be changed without notice.
31
ACCESSORIES
30
Output (1 Screen)
2 x BNC
1 x BNC
2 x BNC
1 x Phone Jack
2 x Speaker
Product Highlight
• Multi-Format Support
(480i, 576i, 720P, 1080i, 1080P, 1080Psf, 2K)
• 2x HD/SD-SDI inputs
(Auto Detecting/Switching)
with Active Loop Through
• Dual High Definition 7-inch(800x480)
16.7MegaPixel Wide Screen
• Varieties of Analog Input
(Composite, S-Video, Y Pb Pr, RGB)
• 3RU of a standard EIA 19 inch rack
• Assignable Remote Control
• H/V Delay mode
• Analog Stereo Audio Out (Phone Jack)
• Internal Left & Right Speaker (2 x 1W)
• Blue Only & Monochrome
Markers & Safety Areas including user defined
• Markers
• Source ID Function
(User Defined in OSD Function)
• Embedded Audio Level Meter (8Ch)
• Timecode Display (VITC & LTC)
• Selectable Full & Small Size, WaveForm/Vector
SPEC
ACCESSORIES
(
Tilt
Input (1 Screen)
2
3 Composite Inputs
S-Video / RGB / Component
SDI 2 Channel Inputs
Composite Input
SDI Channel / Composite Outputs
Analog Stereo Audio Out
2 x 1W
PRM
SPEC
- 480 x 176 x 63 (18.89 x 6.92 x 2.48)/4RU
- Weight : 4.1kg / 8.8 lb
3 x BNC
LHM
PRM
Main Body Dimensions (mm/inch)
Number of Screens
LQM
LHM
• Multi-Format Support
(480i, 576i, 720P, 1080i, 1080P, 1080Psf, 2K)
• 2x HD/SD-SDI inputs
(Auto Detecting/Switching)
with Active Loop Through
• Dual High Definition 9-inch (800x480)
16.7MegaPixel Wide Screen
• Varieties of Analog Input
(Composite, S-Video, Y Pb Pr, RGB)
• 4RU of a standard EIA 19 inch rack
• Assignable Remote Control
• H/V Delay mode
• Analog Stereo Audio Out (Phone Jack)
• Internal Left & Right Speaker (2 x 1W)
• Blue Only & Monochrome
• Markers & Safety Areas including user
defined Markers
• Source ID Function
(User Defined in OSD Function)
• Embedded Audio Level Meter (8Ch)
• Timecode Display (VITC & LTC)
• Selectable Full & Small Size,
WaveForm/Vector Scope (SDI only)
Specifications
LVM
LQM
Product Highlight
The PRM-702A features two 7” 800x480 with LED backlit LCD panels with 90° tilt range.the 3RU PRM-702A provides front
panel individual control of Brightness, Contrast, Chroma, SDI A/B select, Analog, Aspect select (16:9, 4:3), H/V Delay,
Embedded audio level, Scan (Over, Zero, 1:1), Marker (user selectable), Blue/Mono, Waveform/Vectorscope and the PRM full
feature/setup menu. Inputs include two SDI with active loop through plus component analog, S-Video, RGB and three
composite analog inputs, RJ11 remote control, and serial firmware upgrade port. Outputs include one SDI and one stereo
mini audio out.
NEW
LVM
Featuring two 9” 800x480 CCFL backlit LCD panels with 90° tilt range, the 4RU PRM-902A provides front panel individual
control of Brightness, Contrast, Chroma, SDI A/B select, Analog, Aspect select (16:9, 4:3), H/V Delay, Embedded audio level,
Scan (Over, Zero, 1:1), Marker (user selectable), Blue/Mono, Waveform/Vectorscope, and the PRM full feature/setup menu.
Inputs include two SDI with active loop through plus component analog, S-Video, RGB, three composite analog inputs, RJ11
remote control, and serial firmware upgrade port. Outputs include one SDI and one stereo mini audio out.
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
2A
PRM-902A
PRM-502LE
Triple 5” LCD 2RU Multi-Channel Rack Monitor
Dual 5” 2RU Multi-Channel Rack Monitor
Tilt
(
32
Main Body Dimensions (mm/inch)
- 480 x 87 x 50 (18.89 x 3.42 x1.96)/2RU
- Weight : 1.5kg / 3.3 lb
Tilt
(
Specifications
2
SDI 2 Channel Inputs
3 Composite Inputs
Input
S-Video
3 x BNC
RGB
Component
Output
SDI Channel (Active Through Out)
Composite (1.0Vpp with Sync)
S-Video (1.0Vpp Y with Sync, 0.286Vpp [C])
Analog
Component
(1.0Vpp Y with Sync,0.7Vpp [Pb,Pr])
Input Signal
RGB (1.0Vpp G with Sync, 0.7Vpp [B,R])
HD-SDI
1.485Gbps
SD-SDI
270Mbps
1080i
(60/59.94/50)
SMPTE-274
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
SDI Input
SMPTE-296M 720P (23.98/24/25/29.97/30/50/59.94/60)
Signal
SMPTE-260M
1035i (60/59.94)
Formats
SMPTE-125M
480i (59.94)
ITU-R.BT.656
576i (50)
2K Format
2048 x 1080 (23.98psf/24psf/23.98p/24p)
CVBS Input
NTSC (525/59.94i) , PAL (625/50i), PAL-M (525 / 59.94i)
S-Video Input NTSC (525/59.94i) , PAL (625/50i), PAL-M (525 / 59.94i)
480i (59.94) , 576i (50) , 480P (59.94) , 576P (50)
Component,
1080i (60/59.94/50)
RGB Input
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
720P (50/59.94/60)
Size
5 inch / 108 (H) X 64.8 (V)mm
Resolution
800 x 480 (15 : 9)
Pixel Pitch
0.135(H) x 0.135(V) mm
LCD
16.7M (True), 24bit
Color
Viewing Angle H : 170 degrees / V : 170 degrees
.300cd (center)
Luminance of White
600 : 1
Contrast
Power
12V DC. 1.2A
14 Watts
Power Consumption (Approx)
o
Operating Temperature
0 C to 40 oC (32 oF to 104 oF)
o
o
o
o
Storage Temperature
-30 C to 50 C (-22 F to 122 F)
Optional Accessories
UMD Jender / DC Power Adapter
Number of Screens
2 x BNC
* Specifications may be changed without notice.
33
ACCESSORIES
* Specifications may be changed without notice.
• Multi-Format Support
(480i, 576i, 720P, 1080i, 1080P, 1080Psf, 2K)
• High Definition 5-inch(800x480) 1
6.7MegaPixel Wide Screens
• H/V Delay
• Marker
• Blue Only & Monochrome
• HD/SD-SDI 2 Input & Active Loop Through
• SDI Input Format Auto Detect
• Variety of Analog Input
(Composite,S-Video,YPbPr,RGB)
• Source ID Function
• LED BackLight Unit
• Wide Viewing Angle Technology
(H : 170 degrees , V : 170 degrees)
SPEC
ACCESSORIES
- 480 x 87 x 85 (18.89 x 3.42 x 3.34)/2RU
- Weight : 2.5kg / 5.5 lb
Product Highlight
PRM
SPEC
Main Body Dimensions (mm/inch)
2 x BNC
1 x BNC
1 x BNC
1 x BNC
Analog
HD-SDI
SD-SDI
LHM
PRM
3
SDI 2 Channel Inputs
Composite Input
SDI Channel (Active Through Out)
Output (1 Screen)
Composite Output (Internal Buffer Output)
Composite (1.0 Vpp with Sync)
1.485 Gbps
Input Signal
270 Mbps
1080i (60/59.94/50)
SMPTE-274
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M 720P (23.98/24/25/29.97/30/50/59.94/60)
SDI Input Signal
1035i (60/59.94)
SMPTE-260M
Formats
480i (59.94)
SMPTE-125M
576i (50)
ITU-R.BT.656
2K Format
2048 x 1080 (23.98psf/24psf/23.98p/24p)
NTSC (525 / 59.94i), PAL (625/50i), PAL-M (525 / 59.94i)
CVBS Input
Size
5 inch / 108 (H) X 64.8 (V)mm
800 x 480 (15 : 9)
Resolution
0.135 (H) x 0.135 (V) mm
Pixel Pitch
16.7M (True), 24bit
Color
LCD
H : 170 degrees
Viewing Angle
V : 170 degrees
Luminance of White
300cd (center)
Contrast
600 : 1
12V DC. 2.4A
Power
24 Watts
Power Consumption (Approx.)
0℃ to 40℃ (32℉ to 104℉)
Operating Temperature
-30℃ to 50℃ (-22℉ to 122℉)
Storage Temperature
Optional Accessories
UMD Jender / DC Power Adapter
Number of Screens
Input (1 Screen)
LQM
LHM
Specifications
• Multi-Format Support
(480i, 576i, 720P, 1080i, 1080P, 1080Psf, 2K)
• 3 High Resolution
(800x480) 5-inch 16.7MegaPixel Wide Screens
• Small Footprint-occupies only 2RU
of a standard EIA 19inch rack
• Assignable Remote Control
• H/V Delay
• Blue Only & Monochrome
• Wide Variety of Marker &
• Safety Area including user defined Marker
• HD/SD-SDI 2 Input & Active Loop Through
• SDI Input Format Auto Detect
• Composite Input & Loop Through
• Composite Input Format Auto Detect
• Source ID Function
(User Defined in OSD Function)
• Embedded Audio Level Meter (8Ch)
• Timecode Display
• WaveForm/Vector Scope (Only SDI)
• WaveForm/Vector Scope Full Size,
Small Size Select
LVM
LQM
Product Highlight
Two 5” 800x480 LED backlit LCD panels with 90° tilt range are included in the PRM-502A, which offers front panel individual
control of Brightness, Contrast, Chroma, Aperture, SDI A/B select, Analog, User (assignable feature), and feature/setup
menu. I/O includes two SDI with active loop through and one SDI out plus component analog, RGB, three composite analog
inputs, and serial firmware upgrade port.
NEW
LVM
Three 5” 800x480 LED backlit LCD panels with 90° tilt range are included in the PRM-503A. Input selection and full PRM series
feature-set menu are accessed via the front panel. I/O includes two SDI in with one SDI loop out, one CVBS in, one CVBS loop
out, RJ11 remote control, and serial firmware upgrade port.
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
PRM-503A
Quad 4.3” LCD 2RU Multi-Channel Rack Monitor
(
34
Input Signal
SMPTE-274
SDI Input Signal
Formats
SMPTE-296M
SMPTE-260M
SMPTE-125M
ITU-R.BT.656
2K Format
CVBS Input
3
SDI 2 Channel Input
Composite Input
SDI Channel (Active Through Out)
Composite Output (Internal Buffer Output)
Composite (1.0Vpp with Sync)
1.485 Gbps
270 Mbps
1080i (60/59.94/50)
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
720P (23.98/24/25/29.97/30/50/59.94/60)
1035i (60/59.94)
480i (59.94)
576i (50)
2048 x 1080 (23.98psf/24psf/23.98p/24p)
NTSC (525 / 59.94i), PAL (625/50i), PAL-M (525 / 59.94i)
Size
Resolution
Pixel Pitch
Color
4.8 inch / 103.8 (H) x 62.28 (V) mm
800 x 480 (15 : 9)
0.13 (H) x 0.13 (V) mm
16.7M (True), 24bit
LCD
H : 130 degrees
Viewing Angle
V : 110 degrees
Luminance of White
350cd (center)
Contrast
300 : 1
Power
12V DC. 2A
Power Consumption (Approx.)
24 Watts
0℃ to 40℃ (32℉ to 104℉)
Operating Temperature
-30℃ to 50℃ (-22℉ to 122℉)
Storage Temperature
Optional Accessories
UMD Jender / DC Power Adapter
* Specifications may be changed without notice.
Product Highlights
• Multi-Format Support
(480i, 576i, 720P, 1080i, 1080P, 1080Psf, and 2K)
• 3 High Resolution
(800x480) 4.3-inch 16.7MegaPixel Wide Screens
• Small Footprint-occupies only 2RU
of a standard EIA 19inch rack
• Remote Control (Tally control)
H/V Delay
• Blue Only & Monochrome
• Wide Variety of Marker &
Safety Area including user defined Marker
• HD/SD-SDI Input & Active Loop Through.
• SDI Input Format Auto Detect
• Source ID Function
(User Defined in OSD Function)
• Embedded Audio Level Meter (8Ch)
• Timecode Display
• WaveForm/Vector Scope (Only SDI)
• WaveForm/Vector Scope Full Size Select
Small Size Select
Main BodyDimensions(mm/inch)
Specifications
Number of Screens
Input(1 Screen)
1 x BNC
Output(1 Screen)
1 x BNC
Input Signal
HD-SDI
SD-SDI
SMPTE-274
SDI Input
Signal
Formats
SMPTE-296M
SMPTE-260M
SMPTE-125M
ITU-R.BT.656
2K Format
Size
Resolution
Pixel Pitch
Color
LCD
Viewing Angle
Luminance of White
Contrast
Power
Power Consumption (Approx.)
Operating Temperature
Storage Temperature
Optional Accessories
4
SDI Channel Input
SDI Channel (Active Through Out)
1.485Gbps
270Mbps
1080i (60/59.94/50)
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
720P (23.98/24/25/29.97/30/50/59.94/60)
1035i (60/59.94)
480i (59.94)
576i (50)
2048 x 1080 (23.98psf/24psf/23.98p/24p)
4.3 inch / 93 x 55.8 mm
800 x 480 (15 : 9)
0.116 (H) x 0.116 (V) mm
16.7M (True), 24bit
H : 130 degrees
V : 110 degrees
200cd (center)
300 : 1
12V DC. 2.2A
28 Watts
o
o
o
o
0 C to 40 C (32 F to 104 F)
o
o
o
o
-30 C to 50 C (-22 F to 122 F)
UMD Jender / DC Power Adapter
* Specifications may be changed without notice.
- 480 x 87 x 80 (18.89 x 3.42 x3.14)/2RU
- Weight : 2.5kg / 5.51 lb
Tilt
(
35
ACCESSORIES
ACCESSORIES
Tilt
Output (1 Screen)
2 x BNC
1 x BNC
1 x BNC
1 x BNC
Analog
HD-SDI
SD-SDI
SPEC
SPEC
- 480 x 87 x 69 (18.89 x 3.42 x2.74)/2RU
- Weight : 2.1kg / 4.62 lb
Number of Screens
Input (1 Screen)
PRM
PRM
Main Body Dimensions (mm/inch)
Specifications
LHM
LHM
• Multi-Format Support
(480i, 576i, 720P, 1080i, 1080P, 1080Psf, and 2K)
• 3 High Resolution
(800x480) 4.8-inch 16.7MegaPixel Wide Screens
• Small Footprint-occupies only 2RU
of a standard EIA 19inch rack
• Assignable Remote Control
• H/V Delay
• Blue Only & Monochrome
• Wide Variety of Marker &
Safety Area including user defined Marker
• HD/SD-SDI 2 Input & Active Loop Through
• SDI Input Format Auto Detect
• Composite Input & Loop Through
• Composite Input Format Auto Detect
• Source ID Function
(User Defined in OSD Function)
• Embedded Audio Level Meter (8Ch)
• Timecode Display
• WaveForm/Vector Scope (Only SDI)
• WaveForm/Vector Scope Full Size Select
Small Size Select
LQM
LQM
Product Highlight
The compact PRM-434A packs four 4.3” 800x480 LED backlit LCD panels into a 2RU rack unit designed for SDI signal
monitoring. The front panel allows selection of embedded audio level, Waveform/Vectorscope, and the PRM full
feature/setup menu. I/O includes SDI in/out, serial tally port, and serial firmware upgrade port.
LVM
LVM
Three 4.8” 800x480 LED backlit LCD panels with 24° tilt range are included in the PRM-483A. Input selection and full PRM
series feature-set menu are accessed via the front panel. I/O includes two SDI in with one SDI loop out, one CVBS in, one
CVBS loop out, RJ11 remote control, and serial firmware upgrade port.
NEW
Triple 4.8” LCD 2RU
Multi-Channel
Rack Monitor
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
PRM-434A
PRM-483A
LEM(OLED)
TDM(3D)
DVI IN / VGA IN
3 x BNC
Analog Input
-
HDMI Input
2 x HDMI
-
3 x BNC
Analog Output
Component
SMPTE-425M-A/B
SMPTE-372M
2 x BNC
-
SDI A/B Channel Input
SDI 1 Channel Input
-
-
3 x BNC
-
-
Analog Loop Through Output
-
HD-SDI
1.485Gbps
2 x BNC
-
-
SDI A/B Channel Output
1 x BNC
SDI Channel Output (Active Through-Out)
SDI A/B Selected Channel Output (Active Through-Out)
-
SMPTE-274M
480i/480p/720p/1080i /1080p& VESA/IBM Modes
-
1.0Vpp (With Sync)
1.0Vpp (Y With Sync), 0.286 Vpp (C)
1.0Vpp (Y With Sync), 0.7 Vpp (Pb, Pr)
1.0Vpp (G With Sync), 0.7 Vpp (B, R)
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
Dual HD-SDIYPbPr (4:2:2)
1080p (50 / 59.94 / 60)
Dual HD-SDI
YPbPr/RGB (4:4:4)
1080i (50 / 59.94 / 60)
SDI Input
Signal
Formats
SMPTE-260M
1035i (60/59.94)
SMPTE-125M
480i (59.94)
ITU-R BT.656
576i (50)
1366 x 768
Dot Pitch
0.081 (H) x 0.243 (W) mm
12 Watts (DC)
42 Watts (DC)
0 °C to 40 °C (32 °F to 104 °F )
Operating Temperature
-30 °C to 50 °C (-22 °F to 122 °F ) -20 °C to 50 °C (-4 °F to 140 °F )
AC Power Cord
Accessory
19" Rack Mountable Kit 6U / Carrying Case / Sun-Hood / V-Mount
* Specifications may be changed without notice.
1.0Vpp (Y With Sync), 0.7 Vpp (Pb,Pr)
RGB
1.0Vpp (G With Sync), 0.7 Vpp (B,R)
-
1G colors (10-bit)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
720p (60 / 59.94 / 50)
SMPTE-296M
SDI Input
Signal
Formats
SMPTE-372M***
V : 176 degrees
ITU-R BT.656
2K Format
c
1035i (60 / 59.94)
480i (59.94)
SMPTE-125M
576i (50)
2048 x 1080p (24/24sF/23.98/23.98sF)
Audio IN
1244.16 (H) x 699.84 (V) mm
AC100~240V
b
-
SMPTE-260M
450 cd /㎡ (center)
1500:1
a
1080i (60 / 59.94 / 50)
SMPTE-274M
Audio OUT
380 Watts (MAX)
Embedded Audio
Embedded Audio
Embedded Audio
Embedded Audio
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Internal Speaker (Mono)
Internal Speaker (Stereo)
Internal Speaker (Stereo)
Internal Speaker (Stereo)
7"
8.4"
9"
0 °C to 40 °C (32 °F to 104 °F )
Resolution
800 x 480 (15:9)
1024x768 (4:3)
800×480 (15:9)
1366x768 (16:9)
-20 °C to 55 °C (-4 °F to 131 °F )
Dot Pitch
0.190 mm
0.165 x 0.165 mm
0.246×0.246 mm
0.273x0.273 mm
Size
LCD
16.7M (true), 24bit
16.7M (true), 24bit
16.7M (true), 24bit
16.7M (true), 24bit
H : 130 degrees
H : 170 degrees
H : 170 degrees
H : 178 degrees
(Typical)
V : 110 degrees
V : 170 degrees
V : 170 degrees
V : 178 degrees
Luminance of White
350cd (center)
400cd (center)
350cd (center)
400:1
400:1
350:1
900:1
152 x 91 mm
170 × 128 mm
196.8 x 118.08 mm
372.9×209.6 mm
12V/24V DC
AC100~240V / DC 12V/DC 24 V
Contrast
Display Area
Power
12V DC
Power Consumption (Approx.)
Storage Temperature
12V DC
350cd (center)
12 Watts (DC) (Max)
16 Watts (Max)
24 Watts (DC) (Max)
0 °C to 40 °C (32 °F to 104 °F )
0 °C to 40 °C ( 32 °F to 104 °F )
-10°C to 50°C (14°F to 122°F)
0 °C to 40 °C ( 32 °F to 104 °F )
-30 °C to 50 °C (-22 °F to 122 °F )
-10°C to +50°C (-14 °F to 122 °F)
-20 °C to 60 °C (-4 °F to 140 °F )
-20°C to +60°C (-4 °F to 140 °F)
Operating Temperature
60 Watts (Max)
Main Body Dimensions (mm/inch)
203 x 131 x 60 (8.4 x 5.2 x 2.4)
215 x 177 x 59 (8.5 x 7 x 2.3)
223×175×70 (8.8×6.9×2.8)
427 x310x90.5 (16.8 x12.2 x 3.6)
Main Body Dimensions (with stand)
217 x 143 x 69 (8.5 x 5.6 x 2.7)
245.8 x 202.6 x 80 (9.7 x8 x3.2)
260×194.2×100 (10.2×7.7×3.9)
474 x 327.8 x 150 (18.7 x 12.9 x 5.6)
1.35Kg / 2.97 lb
2.1 Kg / 4.6 lb
2.5Kg / 5.51 lb
7.1Kg / 15.65 lb
AC Power Cord / DC Power Adaptor /
Camera Mount
AC Power Cord / DC Power Adaptor /
Camera Mount
AC Power Cord / DC Power Adaptor /
Camera Mount / Handle
AC Power Cord / NDF Screw
19" Rack Mountable Kit(4U/Dual Monitor/SingleMonitor)/Carrying Case/Sun-Hood/Acrylic Filter
Carrying Case/V-Mount/19" Rack Mountable
Kit(7U) / Dual Link / ND Filter / Sun-Hood
Weight
Accessory
Option
19" Rack Mountable Kit(3U/Dual Monitor/Single- 19" Rack Mountable Kit(4U/Dual Monitor/SingleMonitor)/Carrying Case/Sun-Hood/Acrylic Filter
Monitor) / Carrying Bag & Hood / V-Mount
* Specifications may be changed without notice.
** SMPTE-425M-A/B mode is an optoin : a 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
*** SMPTE-372M mode is an optoin :
36
17"
Viewing Angle
Color
AC Power cord
12V DC / AC100~240V
Power Consumption (Approx.)
1.0Vpp (With Sync)
1.0Vpp (Y With Sync), 0.286 Vpp (C)
1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
37
ACCESSORIES
ACCESSORIES
Power
640×480 / 800×600 / 1024×768 / 1280×768 / 1280×1024 / 720×400
1080p (24/25/30/50/60)/1080i (50/60)/720p (50/60)/480i (60)/480p (60)/576i (50)/576p (50)
Component
Luminance of White
* Specifications may be changed without notice.
640×480 / 800×600 / 1024×768 / 1280×768
/1280×1024 / 1366 x 768 /720×400
S-Video
H : 176 degrees
Operating Temperature
720p/1080i & VESA/IBM Modes
640×480 / 800×600 / 1024×768 / 1280×1024 / 720×400
SMPTE-425M-A/B**
100,000:1
331.938 (H) x 186.624 (V) mm
Display Area
Storage Temperature
Analog
Input Spec
Viewing Angle
( Typical )
Accessory
V : 180 degrees
200 cd / ㎡ (Center)
Contrast
0.108 (H) x 0.324 (W) mm
Storage Temperature
H : 180 degrees
Luminance of White
3840 x 2160
Dot Pitch
Display Area
-
56.2"
Resolution
Color
270Mbps
HDMI
Composite
Analog stereo (Phone Jack)
Power Consumption (Approx)
16.7M (24bit, True)
Viewing Angle
( Typical )
576i (50)
1.485Gbps
SD-SDI
DVI-Digital (Video)
Embedded Audio / Analog stereo (Phone Jack)
Power
Resolution
Color
480i (59.94)
2.970Gb/s
SPEC
SPEC
15"
SMPTE-125M
Contrast
Analog stereo (Phone Jack)
Size
1035i (60 / 59.94)
-
Composite / S-Video / Component / RGB
DVI-Digital (Graphic)
720p (60 / 59.94 / 50)
SMPTE-260M
SDI 2 Channel Input
-
DVI-Analog
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
Size
LCD
Input
Signal
1080i (60 / 59.94 / 50)
Audio OUT
Embedded Audio / Analog stereo (Phone Jack)
Audio OUT
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/
29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
ITU-R BT.656
1080p/psf (30 / 29.97 / 25 / 24 /23.98)
720p (60/59.94/50)
480i/480p/720p/1080i /1080p& VESA/IBM Modes
SMPTE-296M
Audio IN
1080i (60 / 59.94 / 50)
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-274M
Analog
3G-SDI
HD-SDI
VESA/IBM Modes
DVI
-
Output
270Mbps
SD-SDI
HDMI
VESA/IBM Modes
Audio IN
Option
Input
Signal
SMPTE-425M-A/B
270Mbps
SMPTE-296M
LCD
Output
PRM
PRM
SDI Input
Signal
Formats
Analog Input
LHM
LHM
RGB
Analog Input
LQM
LQM
S-Video
Analog Input
1 x BNC
2.970 Gb/s
Composite
HDMI Input
3 x BNC
DVI IN / VGA IN
2.970Gb/s
1.485 Gbps
HDMI
Input
-
SDI A/B /C/D Channel (Active Through Out)
3G-SDI
DVI
HDMI A/B/C/D Channel Input
DVI IN / VGA IN
-
4x BNC
Composite / S-Video / Component / RGB
SD-SDI
SDI A/B/C/D Channel Input
4 x HDMI
LVM-173W
DVI IN / VGA IN
1 x HDMI
3G-SDI
SDI A/B Channel (Active Through-Out)
2 x BNC
4 x BNC
LVM-091W
LVM-084
LVM-071W
1 x DVI-I
SDI A/B Channel Input
-
1 x HDMI
Input Signal HD-SDI
Analog
Input Spec
Input
SDI A/B Channel Input
2 x BNC
Analog
LUM-560W (4K)
DVI A/B/C/D Channel Input
4 x DVI-D
LVM
LVM
Output
1 x DVI-I
NEW
TDM-150W (3D)
LEM-150 (OLED)
Input
LLVM Series
LUM(4K)
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
Specifications
Professional
LLVM Series
Input
LLVM Series
LVM-243W
LVM-323W
LVM-172W
LVM-242W
1 x DVI-I
DVI IN / VGA IN
DVI IN / VGA IN
DVI IN / VGA IN
DVI IN / VGA IN
1 x HDMI
HDMI IN
HDMI IN
-
-
Analog Input
LVM-403W
Input
LVM-463W
1 x DVI-I
DVI IN / VGA IN
1 x HDMI
HDMI IN
3 x BNC
Analog Input
SDI 2 Channel Input
SDI 2 Channel Input
SDI A/B Channel Input
SDI A/B Channel Input
2 x BNC
SDI 2 Channel Input
3 x BNC
Analog Loop Through Output
Analog Loop Through Output
Analog Loop Through Output
Analog Loop Through Output
1 x BNC
-
Output
2 x BNC
SDI A/B Channel Output
SDI A/B Channel Output
-
-
3 x BNC
Analog Loop Through Output
1 x BNC
-
-
SDI A/B Selected Channel Output (Active Through-Out)
Input
Signal
3G-SDI
Analog Input
Analog Input
-
2.970Gb/s
Input Signal
270Mbps
DVI-Digital (Graphic)
640×480 / 800×600 / 1024×768 / 1280×768 / 1280×1024 / 720×400
DVI-Analog
640×480 / 800×600 / 1024×768 / 1280×768 / 1280×1024 / 720×400
DVI-Digital (Graphic)
1.0Vpp (Y With Sync), 0.286 Vpp (C)
Component
1.0Vpp (Y With Sync), 0.7 Vpp (Pb,Pr)
Analog Input Spec
270Mbps
640×480 / 800×600 / 1024×768 / 1280×768 / 1280×1024 / 720×400
640×480 / 800×600 / 1024×768 / 1280×768 / 1280×1024 / 720×400 / 1600×1200 / 1920×1200 / 1920×1080
1080p (60/59.94/50) / 1080i (60/59.94/50) / 720p (60/59.94/50) / 480i (59.94) /480p (59.94) / 576i (50)
1.0Vpp (With Sync)
S-Video
1.0Vpp (Y With Sync), 0.286 Vpp (C)
Component
1.0Vpp (Y With Sync), 0.7 Vpp (Pb,Pr)
RGB
-
SMPTE-425M-A/B
1080i (60 / 59.94 / 50)
SDI Input Signal Formats
1.0Vpp (G With Sync), 0.7 Vpp (B,R)
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF), 1080i (60/59.94/50)
SMPTE-274M
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
720p (60 / 59.94 / 50)
SMPTE-296M
SMPTE-372M**
SMPTE-296M
a Dual HD-SDI YPbPr (4:2:2)
SMPTE-260M
480i (59.94)
SMPTE-125M
576i (50)
ITU-R BT.656
Embedded Audio
Audio IN
Resolution
Embedded Audio
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
-
Internal Speaker (Stereo)
Internal Speaker (Stereo)
32"
17"
24"
1920×1200 (16:10)
1920×1080 (16:9)
1366x768(16:9)
24"
480i (59.94)
576i (50)
2K Format
Analog stereo (Phone Jack)
Internal Speaker (Stereo)
Size
1035i (60 / 59.94)
Audio IN
Audio OUT
LCD
Size
2048 x 1080p (24/24sF/23.98/23.98sF)
-
-
-
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
Analog stereo (Phone Jack)
-
-
-
40"
46"
55"
Resolution
0.36375 mm x 0.36375 mm
0.273x0.273 mm
0.27 mm
Dot Pitch
10 bit (D), 1.068 colors
16.7M (true), 24bit
16.7M (true), 24bit
Viewing Angle
H : 178 degrees
H : 178 degrees
H : 178 degrees
H : 178 degrees
(Typical)
V : 178 degrees
V : 178 degrees
V : 178 degrees
V : 178 degrees
(Typical)
V : 178 degree
V : 178 degree
V : 178 degree
Luminance of White
400cd (center)
500cd (center)
350cd (center)
400cd (center)
Luminance of White
450 cd (Center)
450 cd (Center)
450 cd (Center)
1000:1
1300:1
900:1
1000:1
5000 : 1
5000 : 1
5000 : 1
518×324 mm
698.40×392.82 mm
372.9×209.6 mm
518×324 mm
885.60×498.15 mm
1018×572 mm
1209.6×680.4 mm
AC 100 - 240V / DC 24V
AC 100 - 240V
AC100~240V / DC 12V/DC 24 V
AC 100 - 240V / DC 24V
AC 100 - 240 V
AC 100 - 240 V
AC 100 - 240 V
Color
Contrast
Display Area
Power
Power Consumption (Approx.)
Operating Temperature
112 Watts (Max)
135 Watts (Max)
60 Watts (Max)
112 Watts (Max)
0°C to 35°C ( 32°F to 95°F )
0°C to 35°C ( 32°F to 95°F )
0 °C to 40 °C ( 32 °F to 104 °F )
0°C to 35°C ( 32°F to 95°F )
-20°C to +60°C (-4 °F to 140 °F)
-20°C to +60°C ( -4°F to 140°F )
Color
Viewing Angle
Contrast
Display Area
Power
Power Consumption (Approx.)
Operating Temperature
1920×1080 (16:9)
1920×1080 (16:9)
1920×1080 (16:9)
0.461 mm
0.53 mm
0.651 mm
1.06 Billion, 10 bit (FRC)
1.06 Billion, 10 bit (FRC)
1.06 Billion, 10 bit (FRC)
H : 178 degree
290 Watts (Max)
H : 178 degree
H : 178 degree
349 Watts (Max)
516 Watts (Max)
0°C to 40°C ( 32°F to 104°F )
0°C to 40°C ( 32°F to 104°F )
0°C to 40°C ( 32°F to 104°F )
Storage Temperature
-20°C to +60°C ( -4°F to 140°F )
-20°C to +60°C ( -4°F to 140°F )
-20°C to +60°C ( -4°F to 140°F )
-20°C to +60°C ( -4°F to 140°F )
-20°C to +60°C ( -4°F to 140°F )
Main Body Dimensions (mm/inch)
552.5 x 389 x 95 (21.8 x 15.3 x 3.7)
796.4 x 481.1 x 102.1 (31.35 x 18.94 x 4.01)
427 x310x90.5 (16.8 x12.2 x 3.6)
552.5 x 389 x 95 (21.8 x 15.3 x 3.7)
Main Body Dimensions (mm/inch)
965.6×589.5×89.5 (38×23.2×3.5)
1098.4×666×89.5 (43.2×26.2×3.5)
1289.5×775.7×89.5 (50.8×30.5×3.5)
Main Body Dimensions (with stand)
796.4 x 539.3 x 255 (31.35 x 21.23 x 10.03)
474 x 327.8 x 150 (18.7 x 12.9 x 5.6)
584 x 417 x 150 (23 x 16.4 x 5.9)
Main Body Dimensions (with stand)
965.6×642.7×255 (38×25.3×10)
1098.4×719.2×255 (43.2×28.3×10)
1289.5×828.9×255 (50.8×32.6×10)
Weight
584 x 417 x 150 (23 x 16.4 x 5.9)
11Kg / 24.2 lb
21.45 Kg / 47.3 lb
7.0Kg / 15.4 lb
11Kg / 24.2 lb
Accessory
AC Power Cord / NDF Screw
AC Power Cord / Remote Controller
AC Power Cord / NDF Screw
AC Power Cord / NDF Screw
Carrying Case / 19" Rack Mountable Kit /
Dual Link / ND Filter
Carrying Case / Dual Link / Wall Mount
Carrying Case / V-Mount / 19" Rack Mountable Kit (7U) / ND Filter / Sun-Hood
Carrying Case / 19" Rack Mountable Kit /
ND Filter
Storage Temperature
Option
* Specifications may be changed without notice.
38
** SMPTE-372M mode is an optoin : a 1080p (60 / 59.94 / 50)
b 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
Weight
Accessory
Option
* Specifications may be changed without notice.
ACCESSORIES
ACCESSORIES
1920×1200 (16:10)
0.27 mm
16.7M (true), 24bit
Dot Pitch
SPEC
SPEC
Audio OUT
2048 x 1080p (24/24sF/23.98/23.98sF)
Embedded Audio
-
PRM
PRM
1035i (60 / 59.94)
SMPTE-125M
2K Format
a Dual HD-SDI YPbPr (4:2:2)
b Dual HD-SDI YPbPr/RGB (4:4:4)
SMPTE-260M
ITU-R BT.656
720p (60 / 59.94 / 50)
SMPTE-372M**
-
b Dual HD-SDI YPbPr/RGB (4:4:4)
LHM
LHM
1.0Vpp (G With Sync), 0.7 Vpp (B,R)
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF), 1080i (60/59.94/50)
SMPTE-274M
1.485Gbps
720p/1080i & VESA/IBM Modes (LVM=80i/480p/720p/1080i & VESA/IBM Modes)
Composite
S-Video
RGB
LCD
DVI-Digital (Video)
1.0Vpp (With Sync)
Composite
SMPTE-425M-A/B
HD-SDI
HDMI
1080p (24/25/30/50/60) / 1080i (50/60) / 720p (50/60) / 480i (60) /480p (60) / 576i (50)/576p (50)
DVI-Digital (Video)
Composite / S-Video / Component / RGB
2.970Gb/s
LQM
LQM
DVI-Analog
SDI A/B Channel Output
Analog
SD-SDI
720p/1080i & VESA/IBM Modes
HDMI
2 x BNC
3G-SDI
1.485Gbps
HD-SDI
SD-SDI
SDI Input
Signal
Formats
SDI A/B Selected Channel Output (Active Through-Out))
Composite / S-Video / Component / RGB
Analog
Analog
Input Spec
Output
LVM
Analog Input
2 x BNC
3 x BNC
LVM-553W
NEW
LVM
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
Specifications
35Kg / 77.2 lb
42Kg / 92.6 lb
57Kg / 125.66 lb
AC Power Cord / Remote Controller
AC Power Cord / Remote Controller
AC Power Cord / Remote Controller
Carrying Case / Wall Mount
Carrying Case / Wall Mount
Carrying Case / Wall Mount
** SMPTE-372M mode is an optoin : a 1080p (60 / 59.94 / 50)
b 1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
39
LQM Series
XXVM Series
LHM Series
XVM-245W
1 x DVI-I
Input
DVI IN / VGA IN
3 x BNC
Analog Input
2 x BNC
SDI 2 Channel Input
1 x HDMI
HDMI Input
1 x BNC
EXT SYNC INPUT
3 x BNC
Analog Loop Through
2 x BNC
SDI A/B Channel Output(Active Through-Out)
1 x BNC
EXT SYNC OUTPUT
Analog
Composite / S-Video / Component / RGB
3G-SDI
2.970Gbps
HD-SDI
SD-SDI
DVI-Digital
DVI-Analog
HDMI
Analog
Input Spec
Analog Input
SDI A/B/C/D Channel Input
Analog Composite A/B/C/D
Channel Input
( Shares BNC with SDI input)
SDI 4 Channel Input
4 x BNC
SDI A/B/C/D Channel Input
Analog Composite A/B/C/D
Channel Input
( Shares BNC with SDI input)
-
-
HDMI Input
270Mbps
Input
Signal
4 x BNC
-
-
SDI Channel Output (Active Through-Out)
Analog
Composite
Composite
Composite / S-Video /
Component / RGB
HD-SDI
1.458Gbps
1.458Gbps
1.458Gbps
SD-SDI
270Mbps
270Mbps
270Mbps
DVI-Digital
-
-
640×480 / 800×600 / 1024×768 /
1280×768 / 1280×1024 / 720×400 /
1600×1200 / 1920×1200 / 1920×1080
640×480 / 800×600 / 1024×768 /
1280×768 / 1280×1024 / 720×400
480i/480p/720p/1080i /
1080p & VESA/IBM Modes
1.0Vpp (With Sync)
Component
1.0Vpp (Y With Sync), 0.7Vpp (Pb,Pr)
HDMI
-
-
RGB
1.0Vpp (G With Sync), 0.7Vpp (B,R)
Composite
1.0Vpp (With Sync)
1.0Vpp (With Sync)
S-Video
-
-
1.0Vpp (Y With Sync), 0.286Vpp(C)
Component
-
-
1.0Vpp (Y With Sync), 0.7Vpp (Pb,Pr))
RGB
-
-
1.0Vpp (G With Sync), 0.7Vpp (B,R)
1080i (60/59.94/50)
1080i (60/59.94/50)
PRM
1080i (60/59.94/50)
SMPTE-274M
720p (60/59.94/50)
Dual HD-SDI
SMPTE-372M YPbPr (4:2:2) 1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
SMPTE-125M
480i (59.94)
ITU-R BT.656
576i (50)
2K Format
Audio IN
Power
Operating Temperature
Storage Temperature
Main Body Dimensions (mm/inch)
Embedded Audio
Analog Stereo (Phone Jack)
Analog Stereo (Phone Jack)
Internal Speaker(Stereo)
AC 100~240, DC 24V
0 ° to 40 ° (32 ° to104 °)
-20 ° to 60 ° (-4 ° to 140 °)
552 x 389 x 95 (21.73 x 15.31 x 3.74)
Main Body Dimensions (with stand) 586 x 417 x 150 (23.07 x 16.41 x 5.90)
13.2kg/29.1 lb
AC Power Cord / NDF Screw
Carrying Case / 19" Rack Mountable Kit
* Specifications may be changed without notice.
720p (60/59.94/50)
720p (60/59.94/50)
720p (60/59.94/50)
SMPTE-260M
1035i (60/59.94)
1035i (60/59.94)
1035i (60/59.94)
SMPTE-125M
480i (59.94)
480i (59.94)
480i (59.94)
ITU-R BT.656
576i (50)
-
576i (50)
576i (50)
-
2048 x 1080p (24/24sF/23.98/23.98sF)
Embedded Audio
Embedded Audio
Embedded Audio
Analog Stereo (Phone Jack)
Analog Stereo (Phone Jack)
Analog Stereo (Phone Jack)
Analog Stereo (Phone Jack)
Analog Stereo (Phone Jack)
Analog Stereo (Phone Jack)
Internal Speaker (Mono)
Internal Speaker (Stereo)
Internal Speaker (Stereo)
2K Format
Audio IN
Audio OUT
Power Consumption
18W
Power Input
12V DC
TBD
AC 100~240, DC 12/24V
TBD
AC 100~240, DC 24V
Operating Temperature
-20° to 40° (-4° to 104°)
0° to 40° (32° to 104°)
0° to 40° (32° to 104°)
Storage Temperature
-30° to 50° (-22° to 122°)
-20° to 60° (-4° to 140°)
-20° to 60° (-4° to 140°)
1 x HD-SDI
HD-SDI IN (Option)
DVI
640x480 / 800x600 / 1024x768 / 1280 x 768 / 1280 x 1024 / 1360 x 768 / 1920 x 1080
HDMI
640x480 / 800x600 / 1024x768 / 1280 x 768 / 1280 x 1024 / 1360 x 768 / 1920 x 1080
D-Sub
640x480 / 800x600 / 1024x768 / 1280 x 768 / 1280 x 1024 / 1360 x 768 / 1920 x 1080
HD-SDI
Option
D-Sub
1.0Vpp (With Sync)
5 Key ( Menu, Up , Down , Enter , Power )
IR Remocon (NEC Protocol)
RS 485
Remote
2 x RJ45 (RS485)
PGM
1 x 9Pin D-Sub
LCD
46"
57"
1920 x 1080 (16:9)
1920 x 1080 (16:9)
1920 x 1080 (16:9)
Dot Pitch
0.461 mm
0.53 mm
0.651 mm
Color
16.7M (True), 24bit
16.7M (True), 24bit
16.7M (True), 24bit
Viewing Angle
H : 178 degree
H : 178 degree
H : 178 degree
(Typical)
V : 178 degree
V : 178 degree
V : 178 degree
Luminance of White
500 cd (Center)
500 cd (Center)
600 cd (Center)
Contrast
Display Area
Power
Power Consumption (Approx.)
Operating Temperature
Option
AC Power Cord / DC Power Adaptor /
Camera Mount
AC Power Cord / NDF Screw
AC Power Cord / NDF Screw
19" Rack Mountable Kit(3U/Dual Monitor/
Single Monitor), Carrying Case / Sun-Hood /
Acrylic Filter
Carrying Case / V-Mount / 19" Rack
Mountable Kit(7U) / ND Filter /
Sun-Hood
Carrying Case / 19" Rack Mountable Kit /
ND Filter
3000 : 1
3000 : 1
1200 : 1
885.60 X 498.15 mm
1018 X 572 mm
1251.36 X 703.89 mm
AC 100 ~ 240 V
AC 100 ~ 240 V
AC 100 ~ 240 V
290 Watts
349 Watts
516 Watts
0 °C to 40 °C ( 32 °F to 104 °F )
0 °C to 40 °C ( 32 °F to 104 °F )
0 °C to 40 °C ( 32 °F to 104 °F )
-10 °C to +50 °C ( 14 °F to 122 °F )
Storage Temperature
-10 °C to +50 °C ( 14 °F to 122 °F )
-10 °C to +50 °C ( 14 °F to 122 °F )
Main Body Dimensions (mm/inch)
990.6x589.6x111.8 (39.0x23.2x4.4)
1126.6x670.7x103.8 (44.4x26.4x4.1)
1370x807x120 (54.0x31.8x4.7)
990.6x642.7x255 (39.0x25.3x10.0)
1126.6x723.8x255 (44.4x28.5x10)
1370x857.7x350 (54.0x33.8x13.8)
Weight
Accessory
1920 x 1080 (60i) Only DVI , HDMI
40"
474 x 327 x 150 (18.66x 12.87 x 5.97) 586 x 417 x 150 (23.07 x 16.41 x 5.90)
11Kg/24.25lb
1920 x 1080 (60P)
Resolution
Main Body Dimensions (with stand) 217 x 143 x 69 (8.54 x 5.63 x 2.72)
7.2Kg/15.87lb
232 Program Update Port
1920 x 1080 (50i) Only DVI , HDMI
Size
Main Body Dimensions (with stand)
1Kg/2.2lb
1 x RJ45 (Input) , 1 x RJ45 (Output)
VESA Standard
427 x 310 x 90.5 (16.81 x 12.20 x 3.56) 552.5x 389 x95 (21.73 x 15.31 x 3.74)
Weight
Standard Direct Cable (UTP Cable)
DVI, VGA, HDMI
Input Signal Formats
203 x 131 x 60 (8.39 x 5.16 x 2.36)
Main Body Dimensions (mm/inch)
232 Port
RS485 Port
LCD Control
1080p
1080p
(30/29.97/25/24/24sF/23.98/23.98sF) (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M
RGBHV ( VGA ) IN
Accessory
Option
35Kg / 77.2 lb
42Kg / 92.6 lb
57Kg / 125.66 lb
AC Power Cord / Remote Controller
AC Power Cord / Remote Controller
AC Power Cord / Remote Controller
Carrying Case / ND Filter / Wall Mount
Carrying Case / ND Filter / Wall Mount
Carrying Case / ND Filter / Wall Mount
* Specifications may be changed without notice.
* Specifications may be changed without notice.
40
41
ACCESSORIES
ACCESSORIES
Audio OUT
2048 x 1080p (24/24sF/23.98/23.98sF)
SDI Input
Signal
Formats
HDMI IN
1 x D-Sub
SPEC
SPEC
Dual HD-SDI
YPbPr/RGB 1080p (30 / 29.97 / 25 / 24 /
24sF / 23.98 / 23.98sF)
(4:4:4)
1035i (60/59.94)
SMPTE-260M
1080i (60/59.94/50)
1080p
(30/29.97/25/24/24sF/23.98/23.98sF)
1 x HDMI
2 x RJ45 ( RS485)
Analog
Input Spec
LHM-570W
DVI IN
1 x 9Pin D-Sub
Input
Signal
LHM-460W
PRM
-
SMPTE-296M
Accessory
Analog Loop through Output
-
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
Option
-
DVI-Analog
Analog
Input Spec
Input
-
1.0Vpp (Y With Sync), 0.286Vpp(C)
SMPTE-274M
Weight
-
LHM-400W
1 x DVI-I
S-Video
1080p (60/59.94/50/30/29.97/25/24/23.98/
SMPTE-425M
30sF/29.97sF/25sF/24sF/23.98sF),
-A/B 1080i (60/59.94/50)
SDI Input
Signal
Formats
SDI A/B/C/D Channel Selected Output SDI A/B/C/D Channel Selected Output
Analog Composite AD Converted Output Analog Composite AD Converted Output
3 x BNC
DVI IN / VGA IN
LHM
LHM
Composite
-
1 x BNC
640×480 / 800×600 / 1024×768
/ 1280×768 / 1280×1024 / 720×400
/ 1600×1200 / 1920×1200 / 1920×1080
640×480 / 800×600 / 1024×768
/ 1280×768 / 1280×1024 / 720×400
480i/480p/720p/1080i
/1080p & VESA/IBM Modes
1.0Vpp (With Sync)
-
-
LQM
LQM
Input
Signal
-
3 x BNC
1 x HDMI
1.485Gbps
LQM-241W
1 x DVI-I
Input
Output
LQM-171W
LVM
Output
LQM-071W
NEW
LVM
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
Specifications
PRM-902A
PRM-702A
PRM-483A
PRM Series
Input (1 Screen)
2 x BNC
1 x BNC
2 x BNC
1 x Phone Jack
2 x Speaker
Analog
Input Signal
SMPTE-274
S-Video Input
Viewing Angle
Luminance of White
Contrast
Power Consumption (Approx)
Operating Temperature
Storage Temperature
Optional Accessories
* Specifications may be changed without notice.
42
4
SDI 2 Channel Inputs
1 x BNC
Composite Input
SDI Channel / Composite Outputs
Analog Stereo Audio Out
2 x 1W
Composite (1.0Vpp with Sync)
S-Video (1.0Vpp Ywith Sync, 0.268Vpp [c])
Component (1.0Vpp Ywith Sync, 0.7Vpp [Pb,Pr])
RGB (1.0Vpp Gwith Sync, 0.7Vpp [B,R])
1.485 Gbps
270 Mbps
1080i (60/59.94/50)
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
720P (23.98/24/25/29.97/30/50/59.94/60)
1035i (60/59.94)
480i (59.94)
576i (50)
2048 x 1080 (23.98psf/24psf/23.98p/24p)
Number of Screens
SDI 2 Channel Input
Input
Composite Input
3 x BNC
-
SDI Channel / Composite Output
Composite (1.0Vpp with Sync)
Output
480 x 176 x 63 (18.89 x 6.92 x 2.48) 4RU 480 x 126 x 45 (18.89 x 4.96 x 1.78) 3RU 480 x 87 x 69 (18.89 x 3.42 x2.74) 2RU
3.2kg / 7.05 lb
4.1kg / 8.8 lb
2.1kg / 4.62 lb
12V DC. 3A
12V DC. 2A
12V DC. 3A
36 Watts
24 Watts
36 Watts
0℃ to 40 ℃ (32 ℉ to 104 ℉)
0℃ to 40 ℃ (32 ℉ to 104 ℉)
0℃ to 40 ℃ (32 ℉ to 104 ℉)
-30 ℃ to 50 ℃ (-22 ℉ to 122 ℉) -30 ℃ to 50 ℃ (-22 ℉ to 122 ℉)
-30 ℃ to 50 ℃ (-22 ℉ to 122 ℉)
UMD Jender / DC Power Adapter
SDI Channel (Active Through Out)
Analog
Composite (1.0Vpp with Sync)
SD-SDI
Component, RGB Input
Size
Resolution
Pixel Pitch
LCD
Color
Viewing Angle
Luminance of White
Contrast
SDI Channel (Active Through Out)
-
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M
SMPTE-260M
SMPTE-125M
ITU-R.BT.656
2K Format
CVBS Input
S-Video Input
-
270 Mbps
1080i (60/59.94/50)
SMPTE-274
SDI Input
Signal
Formats
3 Composite Inputs
S-Video
RGB
Component
SDI Channel (Active Through Out)
Composite ( 1.0Vpp with Sync)
S-Video (1.0Vpp Y with Sync, 0.286Vpp [C])
SDI Channel Input (1 Screen)
Component (1.0Vpp Y with Sync,0.7Vpp [Pb,Pr])
RGB (1.0Vpp G with Sync, 0.7Vpp[B,R])
1.485 Gbps
HD-SDI
270 Mbps
NTSC (525 / 59.94i), PAL (625/50i), PAL-M (525 / 59.94i)
NTSC (525 / 59.94i), PAL (625/50i), PAL-M (525 / 59.94i)
480i(59.94), 576i(50), 480P(59.94), 576P(50)
1080i(60/59.94/50)
1080P(30/29.97/25/24/24sF/23.98/23.98sF)
720P(50/59.94/60)
7 inch
9 inch
4.8 inch
800 x 480 (15 : 9)
800 x 480 (15 : 9)
800 x 480 (15 : 9)
0.246 (H) x 0.246 (V) mm
0.246 (H) x 0.246 (V) mm
0.13 (H) x 0.13 (V) mm
16.2M (True), 24bit
16.7M (True), 24bit
16.7M (True), 24bit
H : 160 degrees
H : 130 degrees
H : 140 degrees
V : 140 degrees
V : 110 degrees
V : 140 degrees
600cd (center)
350cd (center)
600cd (center)
600 : 1
300 : 1
600 : 1
1 x BNC
Input Signal
1.485 Gbps
-
-
720P (23.98/24/25/29.97/30/50/59.94/60)
1035i (60/59.94)
480i (59.94)
576i (50)
2048 x 1080 (23.98psf/24psf/23.98p/24p)
NTSC (525 / 59.94i), PAL (625/50i), PAL-M (525 / 59.94i)
-
5 inch
NTSC (525 / 59.94i), PAL (625/50i), PAL-M (525 / 59.94i)
480i (59.94), 576i (50), 480P (59.94), 576P (50)
1080i (60/59.94/50)
1080P (30/29.97/25/24/24sF/23.98/23.98sF)
720P (50/59.94/60)
5 inch
800 x 480 (15 : 9)
0.135 (H) x 0.135 (V) mm
16.7M (True), 24bit
H : 170 degrees / V : 170 degrees
800 x 480 (15 : 9)
0.135 (H) x 0.135 (V) mm
16.7M (True), 24bit
H : 170 degrees / V : 170 degrees
300cd (center)
600 : 1
300cd (center)
-
-
-
4.3 inch
800 x 480 (15 : 9)
0.116 (H) x 0.116 (V) mm
16.7 (True), 24bit
H : 130 degrees / V : 110 degrees
200cd (center)
300 : 1
600 : 1
Main Body Dimensions - mm (inch) RU 480 x 87 x 85 (18.89 x 3.42 x 3.34) 2RU 480 x 87 x 50 (18.89 x 3.42 x1.96) 2RU 480 x 87 x 80 (18.89 x 3.42 x3.14) 2RU
Weight
1.5kg / 3.3 lb
2.5kg / 5.5 lb
2.5kg / 5.51 lb
Power
12V DC. 2.2A
12V DC. 2.4A
12V DC. 1.2A
Power Consumption (Approx)
Operating Temperature
Storage Temperature
Optional Accessories
24 Watts
14 Watts
28 Watts
0 C to 40 C (32 F to 104 F)
-30 C to 50 C (-22 F to 122 F)
0 C to 40 C (32 F to 104 F)
-30 C to 50 C (-22 F to 122 F)
0 C to 40 C (32 F to 104 F)
-30 C to 50 C (-22 F to 122 F)
UMD Jender / DC Power Adapter
* Specifications may be changed without notice.
43
ACCESSORIES
ACCESSORIES
Main Body Dimensions - mm (inch) RU
Weight
Power
SDI 2 Channel Input
-
3
-
SPEC
SPEC
LCD
Size
Resolution
Pixel Pitch
Color
3 Composite Inputs
S-Video / RGB / Component
PRM
PRM
Component, RGB Input
2
2
LHM
LHM
SMPTE-296M
SMPTE-260M
SMPTE-125M
ITU-R.BT.656
2K Format
CVBS Input
SDI Input Signal
Formats
3
SDI 2 Channel Inputs
2
2 x BNC
PRM Series
LQM
LQM
HD-SDI
SD-SDI
PRM-434A
LVM
LVM
Output (1 Screen)
3 x BNC
PRM-502LE
NEW
Number of Screens
PRM-503A
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
Specifications
Rack Mount any display up to 24
17”
8.4”
9”
V-Mount
Rack-Mountable Kit
9”
15”
17”
Hood
8.4”
7”
7”
9”
8.4”
15”
9”
15”
17”
24”
17”
7 inch
7”
8.4”
9”
15”
17”
24”
32”
40”
46”
9 inch
55”
17 inch
PRM
PRM
15 inch
LHM
LHM
Carrying Case
8.4 inch
LQM
LQM
7”
7”
These units can be placed side by side in
most standard racks (typically measuring
22” or more outside to outside). TVLogic
monitors are also equipped with VESA
mounting holes for added flexibility with
respect to mounting options.
LVM
LVM
Tripod Head
External Filter
24”
- 24" models come with a desktop stand
standard and Rack Mount Kit as an option.
Half of the unit mounts inside the rack to
hide all connections leaving a clean looking
bezel (sticking out appx. 2”) outside the rack
that is only 21.7” and wide.
NEW
ND Filter
- 7” & 9” monitors are rack mountable in
both single and double (side-by-side)
configurations.
-15“ and 17” units are easily rack mounted
inside a rack with simple rack ears
available as an option.
Everything Broadcast and Professional Monitors Should Be... and More.
NEW
Everything Broadcast and Professional Monitors Should Be... and More.
Optional Accessories
24 inch
SPEC
SPEC
ACCESSORIES
ACCESSORIES
44
45

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
