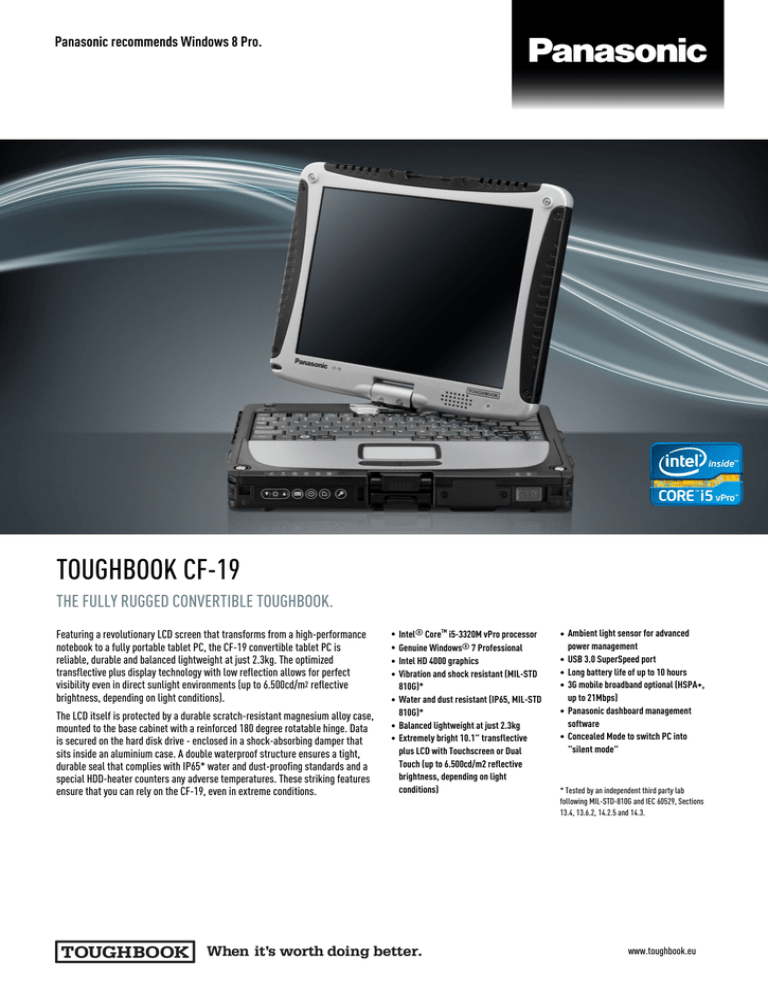

Panasonic recommends Windows 8 Pro.
TOUGHBOOK CF-19
THE FULLY RUGGED CONVERTIBLE TOUGHBOOK.
Featuring a revolutionary LCD screen that transforms from a high-performance
notebook to a fully portable tablet PC, the CF-19 convertible tablet PC is
reliable, durable and balanced lightweight at just 2.3kg. The optimized
transflective plus display technology with low reflection allows for perfect
visibility even in direct sunlight environments (up to 6.500cd/m2 reflective
brightness, depending on light conditions).
The LCD itself is protected by a durable scratch-resistant magnesium alloy case,
mounted to the base cabinet with a reinforced 180 degree rotatable hinge. Data
is secured on the hard disk drive - enclosed in a shock-absorbing damper that
sits inside an aluminium case. A double waterproof structure ensures a tight,
durable seal that complies with IP65* water and dust-proofing standards and a
special HDD-heater counters any adverse temperatures. These striking features
ensure that you can rely on the CF-19, even in extreme conditions.
Intel® Core™ i5-3320M vPro processor
Genuine Windows® 7 Professional
Intel HD 4000 graphics
Vibration and shock resistant (MIL-STD
810G)*
Water and dust resistant (IP65, MIL-STD
810G)*
Balanced lightweight at just 2.3kg
Extremely bright 10.1" transflective
plus LCD with Touchscreen or Dual
Touch (up to 6.500cd/m2 reflective
brightness, depending on light
conditions)
Ambient light sensor for advanced
power management
USB 3.0 SuperSpeed port
Long battery life of up to 10 hours
3G mobile broadband optional (HSPA+,
up to 21Mbps)
Panasonic dashboard management
software
Concealed Mode to switch PC into
"silent mode"
* Tested by an independent third party lab
following MIL-STD-810G and IEC 60529, Sections
13.4, 13.6.2, 14.2.5 and 14.3.
www.toughbook.eu
Panasonic recommends Windows 8 Pro.
MOBILE BUSINESS EXCELLENCE
The 3rd generation Intel® Core™ i5 with vPro™ technology and standard Intel® Core™ i5-3320M processor delivers high performance and
efficient energy consumption. Embedded WLAN and optional 3G Mobile Broadband capabilities enable wireless data transfer for business
communication. The high-power battery allows for a running time of up to 10 hours. The CF-19 is the marketing-leading, rotating screen,
convertible notebook, which sets the benchmark in ruggedness.
Mobile Computing Platform
®
™
™
Core i5-3320M vPro processor
Intel
(2.6GHz, 3MB Intel Smart Cache, Intel 7 series Express chipset QM77)
Windows 7 Professional
Genuine
SDRAM (max. 8 GB)
4IntelGB, DDR3
HD Graphics 4000, UMA (Windows 7 64bit max 1696MB, 32bit max 1557MB)
500GB HDD
(SATA, easy accessible, shock resistant - withstands 180cm* drop)
10.1" sunlight-viewable
transflective plus XGA Active Matrix (TFT) colour LCD with circular polarizer (up to 500cd/m² transmissive and
6.500cd/m² reflective brightness,
depending on light conditions) and ambient light sensor; Concealed Mode
magnesium alloy with handstrap
Full
4.0 + EDR Class 1
Version
Centrino Advanced-N 6235 802.11 a/b/g/n compliant; slide on/off switch
Intel
1000BASE-T/100BASE-TX/10Base-T
: 56 kbps V.92; FAX : 14.4 kbps / voice not compatible
Data
High-Definition audio compliant
Intel
Monaural speaker (integrated in display cabinet)
or Dual Touch (resistive Touchscreen & Digitizer), Touchpad and Keyboard
Touchscreen
LEDs (Power, Battery, HDD, Caps Lock, Scroll Lock, Num Lock, SD Card, WWAN, Wireless Data Transfer)
9Serial
compatible)
Dsub, 9-pin
Serial (16550A
compatible)
Dsub, 9-pin
External(16550A
Mini D-sub, 15-pin
Headphonedisplay (VGA port)
Mini-jack, 3.5 DIA, stereo
Microphone
Mini-jack, 3.5 DIA, stereo
DC In
Jack
USB 2.0
x1, 4-pin
USB 3.0
x1, 9-pin
Modem
RJ-11
LAN
RJ-45
Firewire (IEEE1394a):
x1, 4-pin
External Antenna:
x2 (Dedicated 50 ohms coaxial connector)
Port Replicator:
100-pin
PC Card:
x1 Type II (3.3V: 400mA, 5V: 400mA)
Express Card:
x1 ExpressCard/34 or ExpressCard/54
SD/SDXC Memory Card:
x1
RAM Module:
x1 DDR3L
AC Adapter:
Input: 100 ~ 240V AC, 50Hz/60Hz; Output: 16V DC, 5A
Battery:
Li-ion 10.65V, 5.7Ah (typical), 5.4Ah (minimum)
Battery Life:
Approx. 10 hours (Mobile Mark 2007, 60cd/m²)
Standby function, Hibernation function, ACPI BIOS
TPM (Trusted Platform Module, TCG V1.2 compliant), Integrated hardware security lock slot, Password security
271mm x 49mm x 216mm / 10.7" x 1.93" x 8.5" (excluding protrusions)
Approx. 2.3kg / 5.0lb (including battery)
GPS, Fingerprint Reader, Smart Card Reader, 3G Mobile Broadband (HSPA+, up to 21Mbps), Solid State Disk, Bottom 3MP camera with dual LED light (Project based)
AC Adapter:
CF-AA6503A
Battery Charger:
CF-VCBTB2W
Battery Pack:
CF-VZSU48U
Car-Charger:
CF-AAV1601W (Type A, 60W,12V/24V)
CF-LND8024FD (EIAJ & Type A both 80W, 12-32V)
Car-Mount:
CF-WEB194B
Port-Replicator:
CF-VEB191AU
Carrying and CDS Docking Solutions:
Please visit www.toughbook.eu
Water resistance test:
IEC529 (JIS C0920) IPX5*, MIL-STD 810G 506.5, III*
Dust resistance test:
IEC529 (JIS C0920) IP6X*, MIL-STD 810G 510.5, Level*
Gravity drop resistance test:
MIL-STD 810G 516.6, (180cm* drop)
Vibration resistance test:
MIL-STD 810G 514.6, category 20 & 24*
®
Operating System
RAM
Graphic Chip
Storage
LCD
Cabinet
Bluetooth ™
WLAN
LAN
Modem
Sound
Input Devices
Indicators
Interfaces
Expansion Slots
Power
®
®
®
®
®
®
®
™
Power Management
Security Features
Dimensions (WxHxD)
Weight
Integrated Options
Accessories
Testing Standards
As an ENERGY STAR® Partner, Panasonic Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Active Matrix colour display conforms to industry standards.
Some displays may contain isolated illuminated or dark pixels as an artefact of the manufacturing process (effective pixels: minimum 99.998%). RAM capacity calculated as follows: 1MB = 1,048,576 bytes. HDD
capacity calculated as follows: 1GB = 1,000,000,000 bytes. Toughbook is a brand name and registered trademark of Panasonic Corporation. Acrobat® is a registered trademark of Adobe® Systems Incorporated.
Intel, the Intel logo, Intel Core, Intel vPro, Core Inside and vPro Inside are trademarks of Intel Corporation in the U.S. and other countries. Microsoft® and Windows® are registered trademarks of Microsoft®
Corporation of the United States and/or other countries. All other brand names shown are the registered trademarks of the relevant companies. All rights reserved. All working conditions, times and figures quoted
are optimum or ideal levels and may differ as a result of individual and local circumstances.
* Tested by an independent third party lab following MIL-STD-810G and IEC 60529, Sections 13.4, 13.6.2, 14.2.5 and 14.3
Computer Product Solutions (CPS) BU, Panasonic System Communications Company Europe (PSCEU), Panasonic Marketing Europe GmbH, Hagenauer Straße 43, 65203 Wiesbaden (Germany).
www.toughbook.eu
