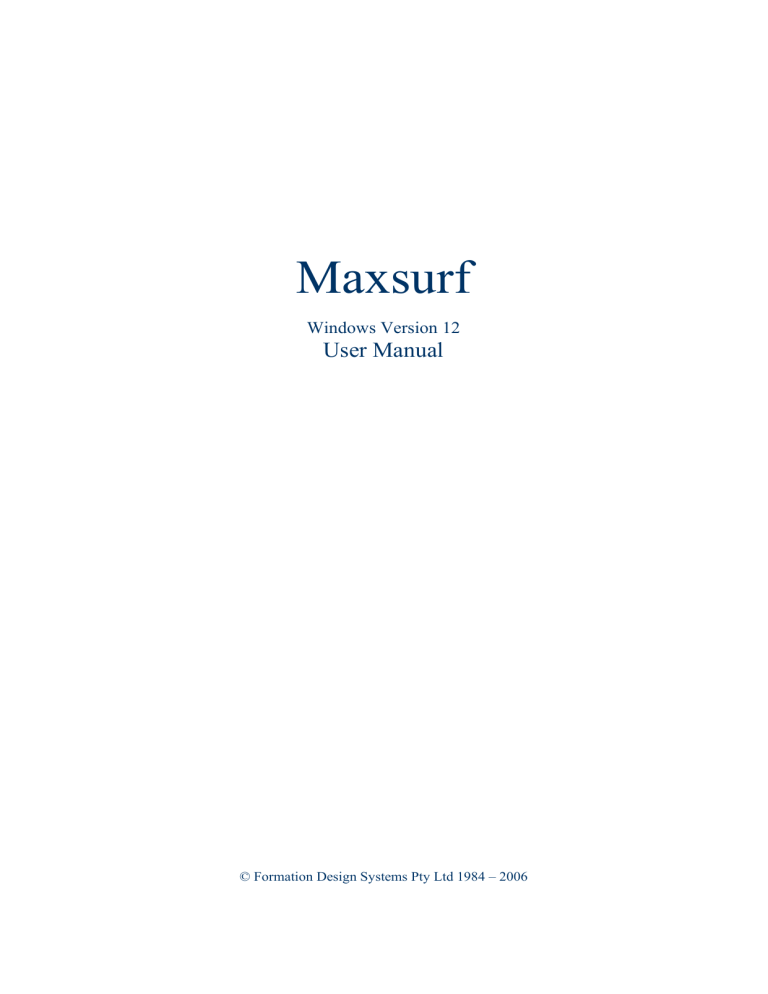

Maxsurf

Windows Version 12

User Manual

© Formation Design Systems Pty Ltd 1984 – 2006

License & Copyright

Maxsurf Program

© 1985-2006 Formation Design Systems

Maxsurf is copyrighted and all rights are reserved. The license for use is granted to the purchaser by Formation Design Systems as a single user license and does not permit the program to be used on more than one machine at one time. Copying of the program to other media is permitted for back-up purposes as long as all copies remain in the possession of the purchaser.

Maxsurf User Manual

© 1990-2006 Formation Design Systems

All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, without the written permission of Formation Design Systems. Formation

Design Systems reserves the right to revise this publication from time to time and to make changes to the contents without obligation to notify any person or organization of such changes.

DISCLAIMER OF WARRANTY

Neither Formation Design Systems, nor the author of this program and documentation are liable or responsible to the purchaser or user for loss or damage caused, or alleged to be caused, directly or indirectly by the software and its attendant documentation, including (but not limited to) interruption on service, loss of business, or anticipatory profits. No Formation Design Systems distributor, or agent, or employee is authorized to make any modification, extension, or addition to this warranty. iii

Contents

License & Copyright .........................................................................................................iii

Contents.............................................................................................................................. v

About This Manual............................................................................................................. 1

Chapter 1 Introduction........................................................................................................ 3

Chapter 2 Basic Principles ................................................................................................. 5

The Spline and Spring Analogy ...............................................................................6

Bibliography ..................................................................................................8

Chapter 3 Getting Started ................................................................................................. 11

Installing, Starting and Opening ............................................................................12

Installing Maxsurf........................................................................................12

Starting Maxsurf ..........................................................................................12

Opening an Existing Design ........................................................................13

Moving a Control Point ...............................................................................15

Creating your first Design ......................................................................................17

Adding a Surface .........................................................................................17

Setting up your Units ...................................................................................18

Modelling Edges ..........................................................................................19

Setting your Frame of Reference .................................................................22

Setting up your Grid ....................................................................................23

Viewing in 3D..............................................................................................25

Saving Your Design.....................................................................................26

Showing the Net...........................................................................................26

Inserting Control Points ...............................................................................29

Setting Surface Stiffness ..............................................................................32

Removing Control Points.............................................................................34

Chapter 4 Maxsurf Windows ........................................................................................... 35

View Windows - General.......................................................................................36

Maxsurf Coordinate System ........................................................................36

Setting the Frame of Reference....................................................................36

Setting the Zero Point ..................................................................................37

Setting the Vessel Type ...............................................................................38

Setting Units ................................................................................................40

Taking Measurements..................................................................................40

Setting up the Grid .......................................................................................40

Zoom, Shrink, Pan and Home View ............................................................47

View Windows.......................................................................................................50

Body Plan Window ......................................................................................50

Plan and Profile Windows ...........................................................................53

Perspective Window ....................................................................................54

Assembly Window .................................................................................................56

Table Windows ......................................................................................................60

Table Windows – General ...........................................................................60

Control Points Window ...............................................................................67

Markers Window .........................................................................................68

Surfaces Window .........................................................................................75

Offsets Window ...........................................................................................76

Graph Windows .....................................................................................................79

Graph Windows - General ...........................................................................79

Curve of Areas Window ..............................................................................80

Calculations Window .............................................................................................82

v

vi

Maxsurf Settings ....................................................................................................86

Maxsurf Preferences ....................................................................................86

Colour and Font ...........................................................................................87

Chapter 5 Using Maxsurf ................................................................................................. 89

Working with Surfaces...........................................................................................90

Surface Types ..............................................................................................90

Surface Stiffness ..........................................................................................95

Surface Appearance .....................................................................................98

Surface Properties ........................................................................................99

Outside Arrows ..........................................................................................100

Surface Materials and Skin Thickness .......................................................101

Surface Precision .......................................................................................103

Surface Curvature ......................................................................................105

Surface Operations.....................................................................................109

Trimming Surfaces...............................................................................................118

Bonding Surfaces .................................................................................................127

Fitting Surfaces ....................................................................................................134

Surface Fitting with Genetic Algorithms ...................................................134

Assisted Manual Fit to Markers .................................................................138

Background Images ...................................................................................142

Modelling Developable Surfaces .........................................................................146

Developable Surfaces Example .................................................................146

Control Points ......................................................................................................151

Adding Control Points ...............................................................................151

Deleting Control Points .............................................................................152

Moving Control Points...............................................................................152

Display of Control Points ..........................................................................155

Masking the Net.........................................................................................156

Manipulating Groups of Control Points.....................................................157

Advanced - Transpose ...............................................................................168

Calculations..........................................................................................................169

Hydrostatics ...............................................................................................169

Calculate Girth ...........................................................................................171

Calculate Areas ..........................................................................................171

Using Parametric Transformation ........................................................................173

Search Parameters......................................................................................173

Scaling factors............................................................................................176

Hull Shape Comparison .............................................................................178

Parametric Transformation Restrictions ....................................................178

Americas Cup Yachts ................................................................................179

Input of Data ........................................................................................................180

Pasting (General) .......................................................................................180

Importing DXF background.......................................................................180

Importing DXF Markers ............................................................................181

Importing IGES Surfaces...........................................................................182

Importing Rhino .3dm files........................................................................183

Output of Data......................................................................................................184

Printing ......................................................................................................184

Copying......................................................................................................187

Offsets Data Output ...................................................................................188

Animation Files..........................................................................................188

Exporting a Maxsurf Design......................................................................189

Chapter 6 Maxsurf Reference......................................................................................... 193

Toolbars ...............................................................................................................194

Customising Toolbars ................................................................................194

Maxsurf Toolbars.......................................................................................197

Menus...................................................................................................................199

File Menu...................................................................................................199

Edit Menu ..................................................................................................200

View Menu ................................................................................................201

Marker Menu .............................................................................................202

Controls Menu ...........................................................................................203

Surfaces Menu ...........................................................................................205

Display Menu.............................................................................................207

Data Menu..................................................................................................210

Window Menu ...........................................................................................212

Help Menu .................................................................................................212

Appendix A Data Export ................................................................................................ 213

Pictures and Text .......................................................................................213

2D Drafting Data .......................................................................................214

3D Drafting Data .......................................................................................215

3D Surface Definition ................................................................................216

Appendix B Surface Algorithms .................................................................................... 217

Appendix C Command Keys.......................................................................................... 221

Modifier Keys ............................................................................................221

Special Keys ..............................................................................................221

Control Point Weights ...............................................................................222

Menu Shortcuts ..........................................................................................222

Appendix D Moving Files Across Platforms ................................................................. 224

Moving Files From Macintosh to Windows ..............................................224

Moving Files from Windows to Macintosh ...............................................225

Index............................................................................................................................... 227

vii

About This Manual

About This Manual

This manual describes the Maxsurf program and is divided into five chapters. It uses a learn-by-example method and introduces you to the features of Maxsurf in a step-by-step manner.

Many of the examples given use designs supplied with your Maxsurf application and contained in a folder titled 'Sample Designs'.

If you are unfamiliar with your computer you should read your owner's manual. This will introduce you to commonly used terms such as click and drag, and the basic methods for using any Windows application.

The chapters in this manual are as follows:

Chapter 1 Introduction

: What is Maxsurf?

Chapter 2 Basic Principles

: An introduction to the concept of the NURB surface and how its shape is controlled by a net of control points.

Chapter 3 Getting Started

: A learn-by-example session of Maxsurf's fundamental surface modelling features resulting in the creation of your first design.

Chapter 4 Maxsurf Windows

: Outline of different features available in each of the windows in Maxsurf.

Chapter 5 Using Maxsurf

: Further explanation on how to manipulate surfaces, do calculations and import and export data.

Chapter 6 Maxsurf Reference : A list of each menu item and command, which may be

used as a quick reference whenever you are using the program.

Many of the examples given in the manual have intentionally been kept as simple as possible so that you can clearly see how each of Maxsurf's functions behaves. By reading the manual and experimenting with the sample designs, you will very quickly become an expert user.

Note

In case you are new to Maxsurf it is highly recommended to read the first two chapters of this manual as well as work through chapter three. This will give you a good understanding of fundamental concepts and functions in

Maxsurf.

Page 1

Chapter 1 Introduction

Chapter 1 Introduction

Maxsurf is a powerful three-dimensional surface modelling system for use in the field of marine design. It provides you with a clear and familiar environment in which to work, allowing for systematic experimentation and rapid optimisation of any new design.

Maxsurf's multiple surface capabilities, allowing any number of surfaces to be modelled in any given design, offer scope for the creation of a wide range of hull forms. Combined with the built-in hydrostatic calculations, you have the tools to experiment with shapes and explore design parameters.

Highly accurate output is produced in the form of hull lines, transfer files for other programs, and comprehensive offsets tables. Data transfer to other programs in the

Maxsurf suite is from a Maxsurf design file, alleviating the need for the re-entry of data once a design has been finalized, and removing the possibility of loss of accuracy through the use of incomplete hull offset files.

The above features offer you a truly integrated system. Each of the modules in the

Maxsurf range work from the same data file and each share a common user interface.

Continue reading:

Chapter 2 Basic Principles on page 5

Page 3

Chapter 2 Basic Principles

Chapter 2 Basic Principles

This chapter outlines the concepts on which the program is based.

Hulls, appendages and superstructures are defined in Maxsurf using one or more surfaces. Typically a surface is used between discontinuities in the design. For example, a three surface design of a sailing yacht might be made up of one surface for the hull, one for the keel and one for the rudder. A five surface design for a workboat might use one surface for the upper hull from sheer line to chine, a second surface for the chine, a third surface for the lower hull from chine to keel, a fourth surface for the deck and a fifth surface for the transom. Designs may contain any number of surfaces.

Surfaces are defined in Maxsurf by the position of a set of control points that collectively form a control point net. Movement of these control points allows you to manipulate a surface into a desired shape.

Central to the process of modelling designs using Maxsurf is an understanding of how control points may be used to attain the surface shapes that you wish to achieve, and this is best explained by the following analogy.

In this chapter:

The Spline and Spring Analogy

Page 5

Chapter 2 Basic Principles

The Spline and Spring Analogy

Historically, naval architects have used flexible battens, or splines to draw smooth twodimensional curves. By fixing the end points of the spline and applying a load at one or more points along the spline, a curve is created that can then be traced onto a drawing.

The curve's smoothness will depend on the stiffness of the spline and the exact placement of the loads, but as long as a few simple rules are followed, the resulting curvature will be smooth.

The spline will initially lie straight on the drawing board.

After dragging the spline at a number of points, the natural stiffness of the spline will result in the smooth curve used for drawing.

To generate its curves, Maxsurf uses a mathematical equation, the B-spline, which is analogous to this procedure. As with drafting splines, curves are defined by the position of their end points, the location and number of controlling points along the curve, and the stiffness of the spline.

Rather than a row of weights that sit along the spline, Maxsurf's curves are shaped by control points, which can be thought of as being attached to the spline by springs. When the control points are moved the inherent stiffness of the spline and the springs combine to keep the curve smooth. An obvious effect of this is that the control points do not lie on the curve created but rather the curve is attracted toward the position of the control points.

Thus, a spline, which is initially straight, is dragged to a new shape at a number of points.

Page 6

The resulting curve is smooth with only the two end control points lying on the curve.

Chapter 2 Basic Principles

By moving the controlling points about, you can bend the spline to a given shape. The curvature of the spline would be free from irregularities, due to the elasticity of the springs and the stiffness of the spline itself. If the spline were made more flexible or stiffer, the curvature would correspondingly increase or decrease.

Although this is a two-dimensional example, Maxsurf uses an analogous procedure to generate its splines in three dimensions to form a surface.

Just as a row of two-dimensional control points can define a two-dimensional curve, a network of three dimensional control points can define an entire three-dimensional surface.

If you consider a network of three-dimensional controlling points, you can imagine that splines could be held along and across the net, hence defining a surface. Maxsurf does just this, and uses a network of three dimensional control points to generate a surface.

The net is formed by rows and columns of control points and has four edges and four corners. Up to 25 rows of control points may be used, depending on the complexity of the desired surface. Note that this limit is for manually defined surfaces, those surfaces which have been imported from other CAD programs (in IGES format) may have any number of control points. There is no restriction on the number of columns of control points. The surface may have different stiffness in the row and column directions.

A surface is created by the generation of splines in three dimensions from the control points that make up the net.

The effect a control point has on a surface depends firstly on whether it is a corner, edge or internal control point.

Page 7

Chapter 2 Basic Principles

Corners of a surface are defined exactly by the position of the corresponding corner of the net.

Edges are defined only by the control points on the corresponding edge of the net.

Internal points of the surface may be influenced by many or all of the control points in the net.

Page 8

Any number of independent surfaces may be used in the definition of a design in

Maxsurf, each with its own control point net. A control point only influences the surface to which it belongs. The only exception to this is the case where two surfaces are bonded together along a common edge. If a control point is moved on a bonded edge it will affect both of the surfaces sharing the bonded edge.

When using Maxsurf, remember that you are changing the position of control points relative to one another in the net to achieve a desired change in the surface. Maxsurf will then recalculate and display the new surface shape. Just as in the spring analogy you may only change the shape of a surface by moving control points in the net rather than directly moving the surface itself.

Bibliography

D F Rogers and J A Adams

'Mathematical Elements for Computer Graphics'

McGraw Hill Book Co., New York, 1976.

D F Rogers

'B - spline curves and surfaces for ship hull definition'

Proceedings 1st Int. Symposium for Computer Aided Hull Surface Definition Annapolis,

Maryland, USA (1977)

D F Rogers and S G Satterfield

'B-spline surfaces for Ship Hull Design'

Computer Graphics (Proc. Siggraph 1980),Vol. 14, No. 3, July 1980

Chapter 2 Basic Principles

D F Rogers and S G Satterfield

'Dynamic B-spline surfaces'

Conference on Computer Applications in the Automation of Shipyard Operation and

Ship Design (ICCAS ) (1982)

F C Munchmeyer, C Schubert and H Nowacki

'Interactive design of fair hull surfaces using B-splines'

Conference on Computer Applications in the Automation of Shipyard Operation and

Ship Design (ICCAS ) (1982)

N G Fog

'Creative definition and fairing of ship hull using a B-spline surface'

Computer Aided Design, Volume 16, Number 4, July 1984

L Piegl and W Tiller

'Curve and surface construction using rational B-splines'

Computer Aided Design, Volume 19, Number 9, November 1987

Page 9

Chapter 3 Getting Started

Chapter 3 Getting Started

In this chapter you will be guided step by step through installation of the software, shown the basic control and display functions of Maxsurf and then guided through the development of a simple single surface design.

In this chapter:

Installing, Starting and Opening

Creating your first Design

Page 11

Chapter 3 Getting Started

Installing, Starting and Opening

This section contains:

Installing Maxsurf

Starting Maxsurf

Opening an Existing Design

Installing Maxsurf

Install Maxsurf by inserting the CD and running the Setup program, and then follow the instructions on screen.

Starting Maxsurf

When you start the program, Maxsurf will show its title screen before displaying all currently open windows. For the time being you will only be concerned with the drawing windows, which show the shape of a design. The drawing windows are titled:

Plan

Profile

Body Plan

Perspective

Other windows exist for the input or display of data and may be accessed by selecting their name from the Windows Menu. The data windows are titled:

Calculations

Control Points

Markers

Surfaces

Offsets

Curve of Areas

Their individual functions will be described in full later in this manual.

All the windows will be blank until you open a design, but you may click any window to make it the top or active window. A window may also be brought to the top by selecting its name from the Windows menu. The number of open windows and their respective positions are saved every time you exit Maxsurf and recalled the next time you open the program.

Windows Registry

Certain preferences and settings used by Maxsurf are stored in the Windows registry. It is possible for this data to become corrupted, or you may simply want to revert back to the default configuration. To clear the Maxsurf preferences, start the program with the

Shift key depressed. You will be asked if you wish to clear the preferences, click OK.

This will reset the following back to the default values or settings:

Page 12

Chapter 3 Getting Started

Window sizes and ordering

Colour settings from the Colour picker dialog in the view menu

Fonts and Toolbars

All Maxsurf preferences from the Preferences dialog in the view menu

Units

Surfaces that have been added to the Add Surface menu by the user

Print Scales added by the user and paper setup

Light settings used in perspective view when rendering is turned on

Note:

If you just want to reset your windows layout and toolbars it is recommended to use the Restore Default Layout command from the

Windows menu. See

Customising Toolbars on page 194 for more

information.

Menu Items, Keyboard Shortcuts and Toolbars

All Maxsurf's commands are accessed through menu commands or dialog boxes, which are displayed as a result of selecting a menu command. In this manual, references are made to the menu commands. However, to facilitate the ease of use of the program, there are many keyboard shortcuts and toolbar buttons for frequently used commands.

The keyboard shortcuts, when available, are displayed next to the menu item, which they

invoke. The toolbar functions are documented in Chapter 6 Maxsurf Reference , in

addition some other special features, which require special keystrokes, are summarised in

Appendix C Command Keys

.

When you learn about a new command, it is worth familiarising yourself with its keyboard shortcut and toolbar button as this will greatly improve your productivity. To display a short hint about what a particular toolbar button does, simply place the mouse pointer over the button; a more detailed explanation is given in the status bar at the bottom left of the main window.

Some of the windows have special context menus, which are enabled by clicking the right mouse button whilst in the window. This can be particularly useful for copying and pasting data into tables that are in dialogs, since the main menu will be unavailable.

Opening an Existing Design

To familiarise yourself with the basic functions of Maxsurf you should now open an existing design.

Select the Profile window from the Windows menu.

Click in the zoom box in the upper right hand corner of the windows, or drag the bottom right hand corner of the window to expand the window to full screen size.

Select Open from the File menu.

Select the design called Maxsurf Sample_Trawler from the Program

Files\Maxsurf\Sample Designs directory.

The design will be displayed by the outline of its surface edges, represented as solid lines. The first thing to do is unlock the model;

Page 13

Chapter 3 Getting Started

Go to Locking in the Surfaces menu.

Either click on the surface name, or use the “Unlock All” button to unlock all surfaces.

Click OK

The profile view of your model should now look like this:

Page 14

Together with the surface edges you will also see some squares joined by light blue lines.

These squares are the control points that affect the surface shape. Four of the control points on each surface will be painted purple indicating that they are surface corner points. Across the window is a yellow line, this is the Datum Waterline (DWL).

At the bottom of the Profile window there are four position indicators, which give the on screen position of the cursor in real world coordinates. The first two indicators show the longitudinal and vertical location of the cursor, and the second pair of indicators show the angle and distance of the cursor from the last point clicked. The indicators are updated as you move the cursor. The position indicators are also present in the Body Plan and Plan windows.

Chapter 3 Getting Started

Moving a Control Point

To change the shape of an edge or any other part of a surface, you must select a control point or group of control points by using the cursor. When a control point is selected it becomes highlighted by a surrounding white square and the interior of the control point is filled with black. The selection may then be moved by dragging it to a new location.

You may de-select any selection by clicking in the background of any of the drawing windows.

Several options are available to you for the selection of control points:

Individual Point

An individual control point may be selected and moved by pointing to it and then pressing the left mouse button and dragging the control point to a new location.

The control point will invert its colour to indicate that you have selected it.

Continuous Group of Points

Alternatively, use the selection box to select a group of control points by pressing the mouse button and dragging the selection box around the group that you wish to move.

Discontinuous Group of Points

A discontinuous selection of control points may be made by holding down the Shift or the Ctrl key and adding to the selection by clicking on control points that you wish to be included in the selection.

Having found out how to select control points with the cursor, you may now go ahead and modify the profile view of the design that you have just opened by performing the steps in the following example:

Page 15

Chapter 3 Getting Started

First save the design to a new file by selecting “Save as” and naming the file differently or saving it to a different folder.

Select the indicated control point with the cursor.

Click and drag the control point to a new location as shown.

Page 16

If you make a mistake, you may wish to undo the change that you have just made to the design and return it to its shape prior to the control point movement. To do this:

Select Undo from the Edit menu (You can also use the Ctrl + Z shortcut).

Most of the Maxsurf commands may be undone in the same way. Commands may be redone by selecting Redo from the Edit menu, or by using the Ctrl Y shortcut.

A control point may be constrained in its movement by holding down the Shift key while dragging the point. The constraint restricts movement to the longitudinal, transverse or vertical directions.

To perform a constrained move:

Select a control point

Click and drag, while holding down the Shift key

Movement will be constrained to either the horizontal or vertical direction depending on the movement of the mouse. If you release the shift key, you are returned to unconstrained movement.

To produce small movements, the control points may be nudged using the arrow keys.

Experiment with the various methods for selecting and moving the control points to modify the sheer line of the IOR yacht.

Control point movement in any other of the drawing windows works in exactly the same way.

For symmetrical surfaces, when moving a control point, a group of control points, or complete surfaces, movement is constrained by the centreline to prevent you from dragging the points across the line of symmetry. You can hold down the Ctrl key while dragging to override this constraint.

Having examined the basic functions of Maxsurf, you can now go on to learn how a simple net of control points may be used to develop your first design.

Select Close from the File menu.

Reply No to the Save Design Changes prompt.

Chapter 3 Getting Started

Creating your first Design

In this first example, we will use only one surface, but modelling hulls with multiple surfaces is a simple extension of the techniques that follow. The number of surfaces available in Maxsurf Pro is limited only by the memory configuration of your computer.

However, in the other versions, the maximum number is fixed.

A design begins with one of the standard surfaces (or an existing design). You then modify the shape of the surface's four edges, followed by its interior. The longitudinal edges are best modelled before the transverse edges, and it is generally best to form the edges in the horizontal plane (the Plan view) prior to the vertical plane (the Profile view).

Having defined the edges you may then go on to manipulate internal points in the net to create the required surface shape, this is best done in the Body Plan view.

The control point net is made up of longitudinal rows and transverse columns. Columns of control points may be added and deleted in the Plan and Profile views, while rows of control points may be added and deleted in the Body Plan view.

The addition of control points increases the density of the control point net and the local control of the surface shape. Increasing the number of control point rows enables greater control of the transverse curvature and is useful for hulls, which have complex section shapes; increasing the number of control point columns, enables greater control of the longitudinal curvature of the hull.

This section contains:

Adding a Surface

Setting up your Units

Modelling Edges

Setting your Frame of Reference

Setting up your Grid

Viewing in 3D

Saving Your Design

Showing the Net

Inserting Control Points

Setting Surface Stiffness

Removing Control Points

Adding a Surface

To begin your first design close any design that is currently open and then make sure the

Plan window is in front.

Select New Design from the File menu.

This creates a new design with no surfaces

Select Default from the Add Surface sub-menu under the Surfaces Menu.

This inserts a new U-shaped surface into your design.

Page 17

Chapter 3 Getting Started

This surface is created with a simple 3 by 3 net of control points. This surface is half Ushaped in cross-section; since it is symmetrical it forms a full U-shaped ‘hull-like’ surface.

The shape of the new surface is shown below. Examine it by selecting the drawing windows from the Windows menu, you may wish to use the Zoom, Shrink and Pan commands to fit the surface inside the window.

In this first design you are aiming to design a simple canoe body with a closed bow and open transom.

Your task is to modify the default surface into the above shape. This may be done by manipulation of control points in the Plan, Profile, and Body Plan windows. The following sections guide you through the necessary steps.

Setting up your Units

Before you start modelling, you should set up the units and overall dimensions for your design.

Choose Units from the Data menu.

Page 18

Select either Metres or Decimal Feet as your preferred units

Click OK

Next set up the overall starting size of the surface you have inserted into the design.

Choose Size Surfaces from the Surfaces menu.

Chapter 3 Getting Started

Type in the following dimensions

Value Feet Meters

Length 24 7.32

Beam 12 3.66

Depth 2 0.61

Click OK

Modelling Edges

To modify the sheer line plan you should move control points in the Plan window.

Bring the Plan window to the front by choosing Plan from the Window menu.

Select the top right hand corner points of the surface.

Use the selection box to do this. In this selection you have in fact selected two control points, one being the corner control point and the other being an intermediate control point in the right hand edge.

Drag the selected points down to the centreline so that they lie on top of the other point there.

This closes the bow by placing all the forward points on the centreline. Note how the sheer line plan changes shape.

Page 19

Chapter 3 Getting Started

You have now successfully completed the closure of the bow, as all control points on the right hand edge now lie on the centreline.

You may now proceed to model the transom.

Select the top left sheer line control points using the selection box

Again, with this selection, you have selected a corner point and an intermediate control point directly beneath it.

Click and drag them down slightly to the new location as shown

Page 20

You have now defined a suitable sheer line plan. All that remains is to generate the profile view. Remember that the default surface already has a sectional shape and we will simply use this shape to satisfy this first design.

Select the Profile window.

Select the Shrink command from the View menu to reduce the size of the image.

Chapter 3 Getting Started

In the Profile window you will see the following shape. The sheer line edge is uppermost, and the centreline edge is below it.

You may now model the sheer line profile.

Select the bow corner point as shown.

There are no intermediate points here so it is not necessary to select the point with a box.

Click and drag it up slightly to the new location.

Note how the sheer line profile moves with it.

To model the foot of the bow, you must separate the corner and intermediate control points at the foot of the bow.

Select and drag the two superimposed control points, one by one, to positions shown below.

You may model the rest of the centreline profile by dragging the intermediate control point downwards.

The transom may be completed in a similar manner.

Page 21

Chapter 3 Getting Started

Select the upper transom corner point.

Drag it to a new location to model the desired sheer line profile.

Select the lower transom corner points using the selection box.

Drag them downwards to a new location to model the lowest point of the transom on the centreline. In this selection you are moving both the corner point and the intermediate control point of the left hand edge.

The resulting shape will look similar to the diagram below.

Finally you will need to position the design in the correct location relative to the DWL

(Datum Water Line). This is the horizontal yellow line running across the window.

Select Move Surface - Freeform from the Surfaces menu

Click on any control point and drag the surface upwards until the bottom of the bow and the bottom of the transom are just below the yellow line (DWL).

Setting your Frame of Reference

Many of the dimensioning and calculation functions in Maxsurf require you to correctly set up the frame of reference which describes the location of key points such as baseline, amidships, forward perpendicular and aft perpendicular.

Page 22

Choose Frame of Reference from the Data menu

Chapter 3 Getting Started

Click on the Find Base button

This will automatically set the baseline to be at the lowest point of the design

Click on the Set to DWL button

This will automatically set the forward and aft perpendiculars to lie at the ends of the

DWL. Amidships will be positioned at the point mid way between the AP and FP.

Click the OK button

Setting up your Grid

To view the shape of your design, you need to display contours on the hull such as sections, waterlines, and buttock lines. These contours are defined by a grid, which contains spaced longitudinal, vertical and transverse coordinates. These define the locations of the sections, waterlines and buttock lines respectively.

Choose Grid Spacing from the Data menu

Click on the Add button

Page 23

Chapter 3 Getting Started

A dialog will appear allowing you to specify the number of sections to be added

Type in 10 to add 10 sections

Click OK

This will return you to the Grid Spacing dialog box.

Click on the Space button

The Spacing dialog will appear. The default setting, which you will use, is to evenly space the sections along the DWL.

Click OK

This will return you to the Grid Spacing dialog box.

Page 24

Click OK

You will now see your grid displayed behind the design in the Profile window.

Chapter 3 Getting Started

The Stations (or Buttocks, Waterlines, Diagonals) can be sorted according to their position by clicking the “Sort” button. Repeated clicks will toggle between sort ascending and sort descending.

Viewing in 3D

Change to the Perspective window and you will see that you have already achieved the required shape.

To better visualise the shape of your design:

Choose Hide Grid from the Grid sub-menu under the Display menu

Choose Contours… from the Display menu

Turn on the Sections check box

Click OK

Your completed design will be displayed along with the sections you have defined.

Page 25

Chapter 3 Getting Started

Saving Your Design

You should now save your first design. If you are using the Maxsurf demo, saving is disabled and you should skip this section.

Select Save Design As from the File Menu.

Type in the name of your design and select the folder that you wish to store it in, then click the Save button.

Maxsurf design files are extremely small in size, typically less than 20K.

Showing the Net

Whenever you move control points you must be aware of how they relate to the position of other control points in the net. The net should generally be set up so that a row or column of control points lie in, or close to, the same plane.

To show the net of control points

Use the Contours command from the Display menu to turn off the display of sections

Select Net - Show Net from the Display menu to turn on the net

Select Half from the Display menu so that only one half of the symmetrical design is displayed

Note the position of the intermediate control point in this simple 3 by 3 net, and relate the surface shape to the control point positions.

Page 26

Click to the other drawing windows and examine how the net relates to the shape by examining the shape and net displays.

Maintaining a Clean Net

In the development of your first design, control point movements were kept very simple, since you only moved the edges of the surface. The result was what is termed a 'clean net'. All the control point rows and columns were positioned in an ordered fashion with no irregularities in the net.

In most cases you should restrict control point movement to the vertical and horizontal directions in the Profile and Plan windows respectively. This prevents the following situation, where a badly placed net shows an irregular parametric surface, and distorted waterlines.

Chapter 3 Getting Started

The diagrams below show how the net should be arranged, with columns running in near straight lines, and rows running close to the waterline shape that is described in the

Shape display.

A good way of familiarizing yourself with the way in which nets should be arranged is to examine the designs supplied with Maxsurf in the Sample Designs folder.

Body Plan

So far you have only worked with control point movement in the Plan and Profile views.

We will now look at some techniques for manipulating the transverse shape of the design by working in the Body Plan view.

Make the Body Plan window topmost

Turn on the net using the Net command from the Display menu

Turn off Half using the Half command from the Display menu

The sections of your design can be viewed in this window. Note the control box, which is displayed in the upper right hand corner of the window:

Page 27

Chapter 3 Getting Started

The Body Plan window with the Net displayed and Half display turned off. Note the control box in the top right.

The Control Box

The control box provides a means of accessing the transverse columns of control points for the current surface allowing you to modify sectional shape.

Station indicator Current section

Page 28

Current column of current surface Column indicator

For example, to modify a section near the bow, you would wish to change the position of the control points in the column closest to that section. The control box allows you to choose which column you wish to work on and which section you wish to see displayed with it.

Changing the Current Section

Across the control box there is a vertical line. This line is the current section, and corresponds to a section taken through the hull that is displayed in the Body Plan and Perspective windows. By clicking in the top of the control box, the current section can be moved to a new location.

The section positions are set by the Sections option of the Grid Spacing dialog in the Data menu. When all the sections are displayed the control box will show lines under all the station indicators.

Changing the Current Column

Underneath the control box is a row of small pointers. These are column pointers and correspond to the columns of control points running transversely around the current surface. One pointer is highlighted, indicating the current column of control points displayed in the Body Plan window.

Chapter 3 Getting Started

Note:

If the Net is turned on, all columns will be visible rather than just the current column. Normally you will want the Net turned off if you wish to work with one column at a time.

By selecting the appropriate column pointer you may vary sectional shapes along the length of the design. Whenever you select a column pointer the station nearest to that column is displayed.

Turn off the net using the Net command from the Display menu

Select the middle column pointer.

This will display the middle column of control points and the section closest to it.

The other control points you see on the screen are the surface edge control points that define the deck, transom, bow and profile shape.

In the Body Plan window, drag the middle control point to modify the section shape.

This will modify the sectional shape of the current section, which will be redrawn while you move the control point in the current column.

Inserting Control Points

It is always advisable to use the minimum number of carefully placed control points to achieve the desired features. This is preferable to inserting a large number of control points, as this will lead to many control point movements to achieve the same result.

Your first design used a simple 3 by 3 control point net, and you will now go on to increase this to a 4 by 4 net. There is no need for the number of controls to be the same in both directions, a 16 by 3 or a 10 by 2 is equally usable; a 4 by 4 is used purely for the sake of this example.

As you have previously learned, rows run longitudinally and columns run transversely in the control point net. To insert a column you must add a control point in the Plan or

Profile window, while to insert a row, you must add a control point in the Body Plan window.

Note:

The number of rows of control points is limited to 25.

Page 29

Chapter 3 Getting Started

Adding a Row

Your existing 3 by 3 net configuration looks like this.

A row or column is always inserted into the current surface. To make any surface the current surface, simply select any control point in that surface. In your first design this will not be a problem as you are only using one surface so it will always be the current surface.

To increase control of the sectional shape, you should add another control point row into the design. For clarity, ensure that the Net display is turned off.

Select the middle column pointer at the bottom centre of the control box.

It is not mandatory to choose this pointer, but we will for this example.

Select Add Row from the Controls menu.

The Add cursor allows you to select a suitable location for the new row.

Click the mouse button to insert the control point row.

Note:

The current section changes shape slightly and the column is redrawn with the new control point included. You can then drag the control points to get the shape amidships that you require.

Page 30

Chapter 3 Getting Started

Change to the Perspective window and display the net view. Note that the additional row has been inserted through all the existing columns.

If you wish to insert a control point row with the whole net visible, you need to tell

Maxsurf which column the point is to be inserted into. Do this by first highlighting any control point in the column you will insert the new row into.

To make sure Maxsurf inserts the row in the right location, first select a control point and then add a control point row.

Note:

Selecting a control point on the control point net, will activate the associated column and row. For example selecting a control point on row 2, column 4 will activate row 2 and column 4.

Maxsurf will add the row to the active column. This works the same for adding columns to active rows.

Adding a Column

You may now go on to add a column of control points into your first design. This will increase your control over the sheer line and centreline edges.

You may add a column in the Plan window. Remember, the new column is inserted into the current surface, so first of all, select a control point belonging to the surface into which you want to insert the new column.

Page 31

Chapter 3 Getting Started

Select the Plan window from the Windows menu.

Select Add Column from the Controls menu.

Position the Add cursor at the point where you wish to insert the new column on the sheer line edge.

Page 32

Click to insert the new column.

Control points will be added through all existing rows in the net. This will change the shape of the design considerably. In the next section you will see how to change the stiffness of the surface to improve the surface shape. For now, you have successfully completed the expansion of the net to a 4 by 4 net.

Obviously more controls can be inserted to increase the control over the surface shape.

This is simply a case of repeating the process of inserting control point rows or columns in either the Body Plan or Plan windows respectively.

Whenever you are inserting control points, be sure that you have made the surface the current surface by selecting one of its control points.

Setting Surface Stiffness

To improve the fairness of the hull, now would be a good time to adjust the stiffness of the surface. The stiffness of a surface can be controlled independently in the transverse and longitudinal directions.

The stiffness is analogous to the stiffness of the wooden battens used in traditional naval architecture. This helps you control how fair the surface is, and how much shape can be put into the surface. A more flexible surface will allow more shape, but may be less fair.

A stiffer surface will help ensure fairness but will not allow you to put so much shape into the surface.

In this case we wish to make the design fairer in the longitudinal direction.

Select Properties from the Surfaces menu and choose Default from the sub-menu

The Properties dialog box for this surface will appear.

Chapter 3 Getting Started

Choose 4 from the Longitudinal Stiffness menu

Click OK

Note

You can only set the surface stiffness in longitudinal direction to 4 if you

have at least 4 control point columns on that surface. See the Surface

Stiffness section on page 95 for more information.

The resulting shape and net will be as shown below.

The sheer line plan may now be redefined by modifying the position of the control points. Similarly, in the Profile window, the sheer line and centreline control points may be repositioned.

Page 33

Chapter 3 Getting Started

Removing Control Points

Rows may be deleted from the Body Plan window and columns may be deleted from the

Plan and Profile windows. Control point rows or columns are always deleted from the current surface.

For example, to delete a control point column from the Profile window:

Select the Profile window from the Windows menu

Select Delete from the Controls menu.

When Delete is selected you may choose which row or column you wish to delete by placing the 'jaws' of the cursor around any control point in the row or column

Click the control point column you wish to delete

This will delete the chosen column.

This completes this brief introduction to Maxsurf. The following chapter provides step by step details of all of the functions available in the program. The last chapter provides a command reference for all of the menu commands.

Page 34

Chapter 4 Maxsurf Windows

Chapter 4 Maxsurf Windows

This chapter explains the many functions available in the Maxsurf windows.

View Windows - General

: Generic features in Maxsurf that apply to all view windows, ie

Body Plan, Profile, Plan and Perspective window.

View Windows

: A detailed explanation of the different windows that Maxsurf uses to display hull shapes, together with explanations of the various controls within the each of them.

Assembly Window

: Describes how to use the assembly window to organise surfaces and access to some surface commands.

Table Windows : Explains both generic features available when working in any of the

Table windows in the Maxsurf suite, together with explanations of Table window – specific features.

Graph Windows : Explains both generic features available when working in any of the

Graph windows in the Maxsurf suite, together with explanations of the Curve of Areas graph in Maxsurf.

Calculations Window : Explains how to use the Calculations window to create custom

calculations inside Maxsurf.

Maxsurf Settings

: Explains the Maxsurf preferences and display settings.

Page 35

Chapter 4 Maxsurf Windows

View Windows - General

The purpose of this section is to cover the various controls and special features that each of Maxsurf’s windows contain.

This section describes:

Maxsurf Coordinate System

Setting the Frame of Reference

Setting the Zero Point

Setting the Vessel Type

Taking Measurements

Setting up the Grid

Zoom, Shrink, Pan and Home View

Maxsurf Coordinate System

Maxsurf has defined its views to be consistent with Naval Architecture standards throughout all view windows.

Page 36

+ve forward

+ve starboard

+ve up

-ve aft

-ve port

-ve down

Body plan

Profile view

Plan view

Looking forward from the stern

Looking from starboard, bow to the right

Looking from below, starboard above the centreline

Setting the Frame of Reference

The Frame of Reference dialog is used to specify the positions of the key locations used in ship design. These positions are:

Forward Perpendicular

Aft Perpendicular

Amidships

Datum Waterline (DWL)

Baseline

Chapter 4 Maxsurf Windows

The DWL is used for all calculations in the Calculations window, calculation of the

Sectional Area Curve in the Curve of Areas window and calculation of surface areas.

The Frame of Reference dialog has functions to automatically locate the Baseline at the lowest point of the hull (the Find Base button) and to set the Fore and Aft Perpendiculars to the extreme ends of the DWL (the Set to DWL button).

In all cases where the Forward or Aft Perpendicular is updated, the Amidships position is calculated to be at the midway position between the perpendiculars.

Note:

All values are entered relative to the Zero Point. However, it may be that the zero point is set to the position of one of the elements in the Frame of

Reference. In this case, the Zero Point is not updated until you click OK in the Frame of Reference dialog.

Setting the Zero Point

The zero point is the reference point that all measurements are taken from. You may choose the position of the longitudinal zero coordinate by selecting from the available options:

Forward Extremity.

The forward most point of all existing surfaces.

Forward Perpendicular.

This is specified in the Frame of Reference dialog where it may be automatically positioned at the intersection of the design waterline with the bow.

Amidships.

Midway between the fore and aft perpendiculars.

Aft Perpendicular.

This is specified in the Frame of Reference dialog where it may be automatically positioned at the intersection of the design waterline with the stern.

Aft Extremity.

The aft most point of all existing surfaces.

Page 37

Chapter 4 Maxsurf Windows

The vertical position of the Zero Point may be set to the Datum Waterline or to the

Baseline. The positions of the forward and aft perpendiculars, Datum Waterline and

Baseline are all specified in the Frame of Reference dialog.

The forward and aft extremities are recalculated every time you change the design. If you have used either of these points to define the longitudinal position of the zero point, then the zero point will move as the design is changed unless it is locked. Even if locked, the zero point will be recalculated if you set the frame of reference again.

The Zero point is always displayed in the Plan, Profile, Body Plan and Perspective

Windows as a small vertical cross.

Also see:

Maxsurf Coordinate System on page 36.

Setting the Vessel Type

The vessel type: monohull, catamaran or trimaran, is defined in the Vessel Type dialog.

This additional model information is used in other programs in the Maxsurf suite.

Currently Hullspeed uses this information to define the panel arrangement for the slender body analysis. The other programs in the Maxsurf suite do not use the vessel type information yet.

You should set up the Frame of Reference and Zero Point first. Then, when the design is finished, the Vessel Type can be setup. None of this data is changed automatically, so if you were to increase the demihull separation of a catamaran, it would be necessary to return to this dialog to update the data manually.

Monohull

Page 38

Chapter 4 Maxsurf Windows

For the monohull vessel type there is nothing more to specify other than that the vessel is a monohull from the ‘Number of hulls’ radio items.

Catamaran

In the case of a catamaran, you should select the appropriate radio button and specify the offset of the local demihull centreline. Analysis programs, such as Hullspeed, will use the local demihull centreline when computing the analysis mesh for the model.

Trimaran

For trimarans, you must specify the centreline offset location of the outer hull and also the transverse extents of the main hull. Again these data are used in analysis programs such as Hullspeed. The transverse extents of the main hulls are used to clip the sections used in the analysis programs so it is generally sufficient to only include the underwater part of the main hull.

Page 39

Chapter 4 Maxsurf Windows

Setting Units

The Units that Maxsurf will use to display measurement data and calculation results can be set in the Units dialog from the Data menu.

Also see:

Setting up your Units on page 18, and

Units on page 210 on how the unit conversion is done in Maxsurf.

Taking Measurements

In the design views, other than the perspective view, Maxsurf displays a number of coordinates and measurements in the bottom-left corner of the design views:

These give you the horizontal and vertical co-ordinates of the cursor and the angle and distance from the last clicked position. These are displayed in the current units. The angle is measured counter-clockwise from the positive horizontal axis.

The horizontal and vertical measurements depend on the current view: If you are in the plan view, they will be the longitudinal and transverse co-ordinates; in the profile view, the longitudinal and vertical co-ordinates; and in the body-plan view the transverse and vertical co-ordinates.

Both the Profile and the Body Plan windows display a horizontal line representing the

Datum Waterline (DWL). The DWL is set using the Frame of Reference dialog in the

Data menu. It is used as the waterline for computation of all data listed in the

Calculations window, as well as the sectional area curve in the Curve of Areas window.

Setting up the Grid

The positions of the Sections, Waterlines, Buttocks, and Diagonals form what is called the Grid. The grid can be displayed on any window by selecting the Grid command from the Display menu. Elements can be added to the Grid by using the Grid Spacing function from the Data menu.

The positions for each of the grid elements are stored in individual lists, which may be selected by clicking on the labelled buttons in the top right hand corner of the Grid

Spacing dialog box.

Page 40

Chapter 4 Maxsurf Windows

The positions of Grid elements are as follows:

Sections

Position of each section relative to the longitudinal zero point. Positive numbers are to the right (forward), negative numbers to the left (aft) of the zero point.

Buttocks

Position of each Buttock relative to the centreline of the hull.

Waterlines

Position of each waterline relative to the vertical zero point. Positive numbers are above, negative numbers below the zero point.

Diagonals

Two columns of figures are provided, centreline height and angle. The centreline height is the position of the origin of each diagonal relative to the vertical zero point. Positive numbers are above, negative numbers below the zero point. The angle is the angle between the diagonal and the centreline as shown below. Angles above 90 degrees will give diagonals above the centreline height.

Editing Grid Lines

To edit a grid line position

Select the cell corresponding to the position you wish to edit.

Type in a new value.

Dimensions entered in units other than the current units are converted automatically.

Grid Labels can be specified by entering text into the first column of the table. Grid labels are used for labelling the grid when printing or plotting, and for inclusion in the

Table of Offsets.

Sorting Grid Lines

To sort grid lines

Click the Sort button.

Sorting occurs as follows:

Stations: Longitudinally.

Buttocks: Transversely.

Waterlines: Vertically.

Diagonals: Vertically - centreline height only.

Page 41

Chapter 4 Maxsurf Windows

Copying and Pasting Grid Lines

The Grid Spacing dialog allows copy and paste operations to take place on the tables of grid names and positions. As the main menu bar is not accessible from within the dialog, copy and paste are achieved using the standard command key equivalents, Ctrl C for copy and Ctrl V for paste.

Adding Grid Lines

To add one or more grid lines

Select the row after which the new grid lines are to be added.

Click the Add button.

Enter the number of grid lines to be added to the list.

All new position fields will be initialized to zero.

The number of Grid elements is limited to the following maxima:

1000 Stations

100 Waterlines

100 Buttocks

50 Diagonals

Deleting Grid Lines

To delete one or more grid lines

Select the row corresponding to the last of the set of grid lines to be deleted.

Click the delete button.

Enter the number of grid lines to be deleted.

Click OK.

If a range of rows is selected in the Grid Spacing dialog, the corresponding number of rows is automatically set in the deletion dialog. These rows will be deleted when you click the OK button.

Page 42

Chapter 4 Maxsurf Windows

Spacing Grid Lines

To space a group of stations along the Datum Waterline or overall length of the design,

Click the Space button.

A dialog will appear with options for spacing the stations.

Select Evenly Along Datum Waterline or Evenly along the length of the model, as desired.

Click OK.

To space grid lines at a specific intervals

Select From and enter the numbers of the grid lines to space

Enter the required interval between grid lines.

Enter a starting position to space from.

Click OK.

You may also specify the range of grid positions by simply selecting those rows in the

Grid Spacing dialog. In this case, the start and finish grid lines, a default spacing and a starting position are set up automatically.

Similar functions are available for spacing the waterlines and buttocks.

Displaying Contour Lines

The Contours option allows you to select which contours are drawn on the screen at any given time. Any combination of contours may be chosen from the contours dialog.

Page 43

Chapter 4 Maxsurf Windows

Contours may be passed through your design to give greater definition of the surface. For example, you might wish to see your design with the sections displayed at the frame spacing you have chosen. To do this you would set the Grid to the required frame spacing and then show the section contours for the design. The selected contours are displayed on all visible surfaces.

You can set the colour of contour lines by selecting Colour from the View menu. When drawing the contours on the surface, Maxsurf uses the Precision as set in Surfaces |

Precision. See

Surface Precision on page 103 for important information on precision.

You may choose to display:

Sections

When the Sections are activated, all sections will be shown in the Body Plan and

Perspective windows, otherwise only the current section will be displayed.

Shown below is a design with 100 stations auto-spaced along the Datum

Waterline.

Page 44

Sections

Buttocks

Buttocks can be displayed in the Profile and Perspective windows.

Datum Waterline

The shape of the Datum Waterline will be displayed in the Perspective window.

Waterlines

Waterlines can be displayed in the Plan and Perspective windows.

Chapter 4 Maxsurf Windows

Diagonals

When the Diagonals are activated, Diagonals will be displayed in the Plan, Profile and Perspective windows. Diagonals are shown as true diagonals in all windows, except for the Plan view where they are displayed as perpendicular projections so that the diagonal's transverse offset in the Plan view is in fact the distance along the diagonal from the centreline to the hull surface.

When both waterlines and diagonals are selected, the Plan will separate them with the waterlines above the centreline and the diagonals below the centreline, in the traditional manner.

Edges

Normally all surface edges will be displayed. However in some cases you may wish to hide the surface edges in order to show only the sections. In this case, turning off the Edges display will give the following result.

Bonded Edges

Show or hide all bonded edges.

Feature lines

Feature lines are created whenever sufficient control points are compacted together to form a hard edge within the surface. To display these features, select the feature lines option. The illustration below shows the use of a feature line to create a knuckle in a set of bow sections.

Page 45

Chapter 4 Maxsurf Windows

Parametrics

Selecting Parametrics displays the parametric surface, or the surface data calculated by Maxsurf from which other surface contours are derived. This view is useful for the examination of the surface as a whole.

Parametric lines do not lie in any particular plane and give a good indication of any inconsistencies in surfaces that might arise due to misplaced control points.

The colour of the parametric curves may be either the colour of the surface or the colour defined for parametric curves. Use the option in the Preferences dialog to select which you prefer.

Intersections

Selecting Intersections calculates and highlights all intersection lines between surfaces in the Plan, Profile, Body Plan, and Perspective windows. Shown below is the intersection line of a bowthruster with the hull.

Page 46

Trimming curves

Trimming curves can exist only in models that have been imported from Rhino

using the File | Import | .3DM Rhino file format. See Importing Rhino .3dm files on page 183 for more information.

Surface Curves

Surface Curves are curves that are embedded within the surface. At the moment these are generated only by the Workshop program, where they are used to define stringer paths and plate boundaries. However, a design that has been saved using

Workshop can display these curves in Maxsurf.

Chapter 4 Maxsurf Windows

Inclined Sections

Workshop also allows the intersection of arbitrarily inclined planes with the hull.

The resulting inclined sections can be displayed in Maxsurf.

Deducted Sections

These are sections, which have had the skin thickness of intersecting surfaces deducted. Skin thicknesses are calculated normal to the surface. For more information, see

Outside Arrows on page 100 and

Surface Materials and Skin

Thickness on page 101.

Selecting Contour Lines

You may select contours in the same way as you select control points (by clicking on them or by dragging a selection box around them). Once selected, it is possible to look at the curvature of the contour, see

Curvature on Contours on page 109.

When the pointer is over a contour or surface edge, the name of the contour or edge will be displayed in the status bar at the bottom left of the main window.

Zoom, Shrink, Pan and Home View

The Zoom, Shrink, Pan and Home View commands allow you to change the size of the drawing in the front window.

Zooming

The Zoom function allows you to work on any part of your design by enlarging a particular area to fill the screen.

The zoom function works in any of the Maxsurf drawing windows. To zoom in on a design:

Select Zoom from the View menu (or the keyboard equivalent Ctrl E).

A set of cross hairs will appear that follow the movements of the mouse. These are used to set the starting position of the zoom rectangle.

Page 47

Chapter 4 Maxsurf Windows

Click and drag the mouse in any direction.

The zoom rectangle will appear and grow as the mouse moves.

Release the mouse button.

Page 48

The view contained in the zoom rectangle will be enlarged to fit the screen.

There is a limit on how far you can zoom, and you will find that after continual zooming the image will not enlarge any further.

Note:

If, before releasing the mouse button, you decide that you do not wish to use

Zoom, or that you wish to change the starting position of the zoom rectangle, simply return the cursor to within a few pixels of the starting position, release the mouse button, and the cross hairs will reappear.

Shrinking

Choosing Shrink will reduce the size of the displayed image in an active drawing window by a factor of two.

To shrink the displayed image:

Select Shrink from the View menu

or

Use the keyboard equivalent, Ctrl R.

Multiple shrinks may be achieved by striking key R the amount of times that you wish to shrink while holding down the Ctrl key.

Chapter 4 Maxsurf Windows

Panning

Choosing Pan allows you to move the image around within a drawing window.

To Pan an image:

Select Pan from the View menu.

Move the arrow cursor to anywhere within the window.

Click and drag to a new position.

The image will move with the cursor until the mouse button is released.

Mouse Wheel Support

You can use the mouse wheel to easily zoom into and out of a design. You can use this feature if you have a mouse with a ‘wheel’ in the centre of the mouse, i.e. Microsoft

Intellimouse or Logitech Wheelmouse.

Holding down the mouse wheel to pan is also supported.

Zooming will be directed towards the current mouse position, for example if the mouse is above the bow zooming will be directed towards the bow.

Home View

When you select Home View a zoomed or panned image is returned to its original state.

This state may be set at any time for any combination of zooming and panning by selecting Set Home View from the View menu.

Maxsurf starts up with default Home View settings, which are based on the Home Views in use the last time the program was operated.

Page 49

Chapter 4 Maxsurf Windows

View Windows

Body Plan Window

The body plan window displays the transverse sections as seen from aft of the model.

Starboard is on the right of the centreline and Portside on the left.

The number of sections and their longitudinal positions is specified in the Grid Spacing dialog in the Data menu.

In body plan view there are a number of options to visualise the model shape

Display all sections

Display one section at a time and use the control box to navigate through the sections

Display half of the model, with or without split sections

Display All Sections

To display all the sections, simply tick the sections box in the Contours dialog in the

Display menu.

If the stations are turned off, only the current station will be displayed in the Body Plan and Perspective windows. In the Body Plan window the control box in the top right hand corner is used to navigate through the sections.

Control Box

In the top right hand corner of the Body Plan window is the control box containing a miniature view of the plan shape of all currently visible surfaces. The purpose of the control box is to allow you to specify precisely what part of a surface you wish to view or modify, by allowing you to select different cross sections and columns of control points in that surface.

Page 50

At the top of the control box several short vertical lines are drawn. These are the station indicators; there is one indicator for each of the stations specified in the Grid Spacing dialog.

Chapter 4 Maxsurf Windows

The section marker line shows which section is currently displayed.

The “triangles” on the bottom display the control point columns for the surface you are currently working on. The triangles are spaced evenly along the bottom of the control box.

By selecting the triangles you select a column of control points and display the section that is closest to that column. Alternatively, a column is made the current column of its respective surface whenever one of its control points is selected in any of the drawing windows.

By clicking at the desired longitudinal position well inside the control box, the section closest to that longitudinal position is displayed. By using the arrow keys on your keyboard you can then scroll through the sections. The right arrow displays the next station forward and the left arrow displays the next station aft.

Note

When the cursor is within the control box the horizontal cursor coordinate at the bottom of the window refers to the cursor’s longitudinal position on the plan shape.

Markers Display Options In Body Plan Window

If markers are defined, there are three display modes, chosen from the Markers sub-menu in the Display menu:

Hide all markers — all defined markers are invisible

Markers for current station —only markers with the same longitudinal position as the current station are displayed

Show all markers — all defined markers are displayed

These display modes are particularly useful when trying to fit a surface to a table of offsets.

Half Hull Display

The half hull display selects whether both halves of a symmetrical surface are displayed.

If half is turned on, only the starboard side of symmetrical surfaces will be displayed.

Page 51

Chapter 4 Maxsurf Windows

When the Half function is not activated, both sides of each symmetrical surface will be displayed. However, when Half is activated, the Body Plan window will show either a split section view or all sections on one side depending on whether Split Section Display is setup correctly. The Split Section Display option is described in greater detail in the next section.

Page 52

Note

Activating Half function changes the hull display in all view windows.

Split Section Display

The Split Section Display affects the way in which sections are displayed in the Body

Plan window; if enabled, aft sections are displayed on the left and forward sections on the right.

The Split Section Display option is only enabled when the half hull display is turned on.

If Split Section Display is chosen for any surface, it will be displayed with the forward side of the hull on the right of the centreline and the aft half of the hull on the left. The split section option is specified independently for each surface in the surface's Properties dialog and the Surfaces window.

Chapter 4 Maxsurf Windows

If Split Section Display is not chosen, all stations will be drawn over half of the hull on the right hand side of the centreline.

Defining Section Splitting

It is possible to specify at which section the body plan view will be split using a column in the Grid Spacing titled Split. Clicking in this column selects the station where the displayed station will change side in the Body Plan window.

The Control box in the body plan window will be drawn with the sections staggered to show where the split has been placed.

Plan and Profile Windows

Plan Window

The plan window displays the model as seen from below, with Starboard above the centreline and Portside below.

Page 53

Chapter 4 Maxsurf Windows

Profile Window

Displays the hull as seen as seen from the Starboard side, with the bow to the right of the screen.

Compress Function

By choosing Compress it is possible to foreshorten the display of the design in the Plan and Profile windows. This foreshortened display is valuable for fairing long slender hulls on screen.

Page 54

The vertical axis is expanded relative to the longitudinal axis by a factor of four.

Perspective Window

The Perspective window is bordered by three rulers containing pointers that control the rotation of the displayed design. If the mouse is clicked anywhere in a ruler, the pointer will move to that angle and the design will be redrawn in the new orientation.

Alternatively, you may drag any of the sliders to the desired angle. You may rotate the design in the Perspective window within the following limits:

Pitch ± 30°

Roll ± 180°

Yaw ± 180°

The zero position for each ruler is at its centre and markers are given at 15°. The Yaw and Roll rulers also have elongated markers at 30° intervals.

Chapter 4 Maxsurf Windows

Moving Control Points in Perspective view

As it is not possible to uniquely determine a three-dimensional coordinate from a twodimensional screen position, Maxsurf limits movement of control points to a particular plane. It does this by determining which plane is most perpendicular to the direction of view, and only allows movement in that plane. You will see an axis indicator in the lower right corner of the window showing the current plane of movement.

For example, if the bow of the hull was pointing almost towards you, the sections plane would be most perpendicular, and points could be moved in the same plane as they could be in the Body Plan window (i.e. transversely and vertically, but not longitudinally).

In the perspective view, the control point constrain function (holding the Shift key whilst dragging the control point) constrains movement to longitudinal, transverse or vertical motion in the design's co-ordinate system (not the screen's horizontal and vertical directions).

Rotate

The Rotate function in the view menu activates the Rotate command, which is a virtual trackball, which lets you freely rotate a design in the perspective view.

After selecting the Rotate tool, move the mouse to a location in the Perspective window and press the left mouse button. With the left button depressed, you can rotate the image by dragging the mouse around and the rotation is performed by projecting the movements onto a virtual sphere on the screen – essentially like a virtual trackball.

Generally speaking, moving the mouse left and right rotates about a vertical axis while moving the mouse up and down rotates about a horizontal axis. The Rotate mode is exited when the left button is released.

Interrupting Maxsurf

When Maxsurf is redrawing a complex design, or when it is rendering with simple shading in the perspective window, you may interrupt the drawing by pressing Esc or by clicking with the mouse.

Page 55

Chapter 4 Maxsurf Windows

Assembly Window

The Assembly Window adds the ability to organise surfaces into groups in Maxsurf and a quick access to surface related commands and settings such as visibility, locking and trimming. Grouping surfaces allows changing the settings for several surfaces with one right click action.

The assembly window in Maxsurf can be in different states:

Floating

Docked

Pinned – Auto Hide

Hidden

Floating

Docked

Pinned -

Auto Hide

Opening the Assembly Window

The Assembly window may be brought to the front by selecting View | Assembly window, pressing F2, or using the button on the view toolbar.

The Assembly Window is a floating palette window that contains a tree view of the surface hierarchy.

Docking the Assembly Window

To dock a floating assembly window, simply left click on the top window border and drag it onto any of the stickers that appear.

Page 56

Drag the Assembly Window onto the sticker to dock it.

When the Assembly Window is docked, this process can easily be reversed to switch back to a Floating Assembly window. Simply select the top border of the docked window and drag it to any location on the screen.

Chapter 4 Maxsurf Windows

Tip: when the Assembly Window is docked, you can use the “Tile Horizontal” or “Tile

Vertical” commands from the Windows menu to automatically fill the rest of the window with your favourite working windows.

Pinning or Auto Hiding the Assembly Window

You can change the Assembly window from Docked to Pinned or Auto Hide and visa versa by clicking on the Pin icon on the top right of the window.

When the Assembly Window is in the Auto Hide state, it will automatically hide itself to the outside of the screen if it is not being used. To show the dialog again, simply move your mouse cursor over the bar on the side of the screen (or click on it) and it will appear.

Editing Surfaces and Assemblies

The tree view has full support for inline editing, so names of assemblies and surfaces can be changed easily simply by slowly clicking twice on the name. Surfaces properties can also be edited by double clicking on the name, which then brings up the Surface

Properties dialog box. You can also right-click on any item in the tree to modify it via context sensitive menus. Further, a surface’s properties may be edited by double clicking on the surface name in the Assembly window.

Drag and Drop

You can move a surface into an assembly by dragging and dropping the surface icon in the tree onto the assembly. You can move an assembly into another assembly in the same way.

You can repeat this process as required to create any arrangement of assemblies you may require.

Context Sensitive Menus

Right clicking on an item in the tree view brings up a menu with commands for that item.

For surfaces this context sensitive menu contains:

Add New

Assembly

Adds a new assembly, with the same parent as the current surface.

Rename Renames the currently selected surface

Lock/Unlock Locks or unlocks the currently selected surface (if possible to do so)

Show/Hide Shows or Hides the currently selected surface

Properties Shows Surface Properties Dialog for the current surface

Page 57

Chapter 4 Maxsurf Windows

Assembly window – Context Sensitive Menu for Surfaces

For assemblies this context sensitive menu contains:

Add Adds a new assembly, with the same parent as the current assembly

Delete Deletes the currently selected assembly

Rename Renames the currently selected assembly

Hide Hides all surfaces that belong to the currently selected assembly, including any surfaces belonging to sub-

Show

Lock

Unlock assemblies of this assembly.

As per Hide Assembly, but instead showing surfaces that belong to the currently selected assembly, including any surfaces belonging to sub-assemblies of this assembly.

As per Hide Assembly, but instead locking all surfaces that belong to the currently selected assembly, including any surfaces belonging to sub-assemblies of this assembly.

As per Hide Assembly, but instead unlocking surfaces that belong to the currently selected assembly, including any surfaces belonging to sub-assemblies of this assembly.

Page 58

Chapter 4 Maxsurf Windows

Assembly window - Context Sensitive Menu for Assemblies

Assembly window Icons

Icons are used next to each item to show its current state – i.e. unlocked/locked, visible/hidden, and also for assemblies, i.e. collapsed/expanded. Icons allow you to see at a glance what state a surface is in at any time. The tick icon indicates that the surface is visible; the padlock icon indicates that the surface is locked.

Page 59

Chapter 4 Maxsurf Windows

Table Windows

There are several windows in Maxsurf and other programs in the Maxsurf suite that display tabulated data.

This section will first discuss the generic features available when working in Table windows in the Maxsurf suite and then discuss the following specific Table windows available in Maxsurf:

Control Points Window

Markers Window

Surfaces Window

Offsets Window

Table Windows – General

This section describes general features of tables in the Maxsurf suite.

Display Area

Using the scroll bars on the right and bottom-right of the window changes the displayed area. These will disappear if the whole table is visible. In addition, it is possible to use the zoom and shrink functions to increase or reduce the size of the table.

Selection

There are a number of ways of selecting data from the tables. You may wish to select data for copying or pasting to or from another application.

Single Cell

A single cell is selected simply by clicking once in the cell. The selected cell will be highlighted with a bold outline:

Page 60

Single Row

A single row is selected by clicking once in the grey, row number cell in the left-most column. The selected row will be highlighted by making the background black and the text white:

Chapter 4 Maxsurf Windows

Single Column

A single column is selected by clicking once in the grey, column-heading cell in the topmost row. The selected column will be highlighted by making the background black and the text white:

Contiguous Rows and Columns

Contiguous rows or columns are selected by clicking in the grey, row number cell or the grey, column heading cell and dragging the mouse over the other rows or columns to be selected. Alternatively, you may click in the first row or column header and then click in the final row or column header with the Shift key depressed. All the columns between, and including, the first and last will be selected. You may also use the scroll bars if you use the second method.

Block of Cells

A rectangular block of cells may be selected by clicking and dragging over the cells to be selected. Alternatively you may click in the first cell and then click in the final cell with the Shift key depressed. You may also use the scroll bars if you use the second method.

Page 61

Chapter 4 Maxsurf Windows

Complete Table

The complete table may be selected simply by clicking in the blank, grey, top-left cell:

Sizing Columns

The width of the columns may be adjusted by two different methods. In either case, the column widths will be save when you exit the program. When you re-start the program, the saved column widths will be re-loaded.

Dragging

The column widths may be adjusted by placing the cursor over the line between the two columns, in the greyed column heading area. The cursor will chance to a re-sizing cursor and the column may now be re-sized by clicking and dragging the line to the new desired position. The column to the left will be adjusted. You may re-size several columns together by first selecting a group of columns and then adjusting the width of any of them. When you release the mouse, all the selected columns will be re-sized.

Size to Text

Alternatively, the column widths may be sized according to the width of the text displayed in the column's header. To do this, select the columns to be re-sized and then right-click in one of the grey header cells of one of the selected columns. Select Size

Column/s to text from the context menu:

Page 62

Chapter 4 Maxsurf Windows

Customizing the Display

In some tables the format of the displayed data may be customised. In most tables it is possible to hide columns and sort rows. Some programs also have additional features, for further details of these additional functions please see the documentation for the relevant program.

Column Hiding

To hide a column or selection of columns, select the columns and right-click in one of the grey header cells of one of the selected columns. Choose Hide Column/s from the context menu:

To unhide the columns, select the columns on each side of the hidden columns, right click and choose Show Column/s:

Page 63

Chapter 4 Maxsurf Windows

If all the columns are hidden, right-click in the top-left grey cell and choose Show All

Columns from the menu:

Page 64

Row Sorting

The rows may be sorted according to the data in a particular column. Right-click in the grey header row of the column you wish to sort by, then select Sort Rows ascending or

Sort Rows descending as required. To return the rows to their original order, right-click anywhere in the grey column header row and select Unsort Rows

Font

The font used in the table may be changed using the Font command in the View menu.

Editing

There are several tools which aide editing data in a table. These are described in greater detail below.

Typing

Data may be typed in a cell by clicking in the cell and typing in the new data. This will overwrite the original entry in the cell. If you wish to edit the data in a cell, double-click to place the cursor at the position in the cell where you wish to start typing. Once editing, you can use the mouse to move the cursor by clicking once at the new insertion point or you can use the left and right cursor keys. If you wish to select certain characters in the cell, click and drag the mouse over the characters to be selected, these will be highlighted with a blue background and white text.

Copy

The entire contents of a cell or group of cells may be copied to the clipboard for pasting into another application or Maxsurf table. Select the cells to be copied and choose Copy from the Edit menu, or use the keyboard shortcut Ctrl+C or Ctrl+Ins.

If a group of cells have been selected, they will be copied in tab delimited format which enables direct pasting into applications such as MS Excel.

Note

Use Ctrl+Shft+C to include the table column-headings.

Chapter 4 Maxsurf Windows

Paste

Data may be pasted from other tables or other applications such as MS Excel. Once the data has been copied, select the top-left cell of the area you wish to paste the data into.

Choose Paste from the Edit menu, or use the keyboard shortcut Ctrl+V or Shift+Ins.

Make sure the table you are pasting into contains more or an equal number of rows and columns as the table you copied the data from.

Fill Down

The data from a cell, or group of cells, may be copied into the cells below it. Select the group of cells you wish the new data to be copied into; include also the cells which contain the data you wish to fill down with. Right-click and select Fill Down or use the keyboard shortcut Ctrl+D.

Selection and data before Fill Down

Modified data after Fill Down

Fill Right

In a similar manner, data may be filled to the right using the Fill Right command:

Page 65

Chapter 4 Maxsurf Windows

Selection and data before Fill Right

Page 66

|

Modified data after Fill Right

Multiple Tables

The tables used in the Maxsurf suite are similar to the Worksheets in MS Excel. Just like in Excel, you can switch between tables by clicking on the tab of the desired table at the bottom of the window (if there are multiple tables available in that window). Use the scroll arrows in the bottom left hand corner to view more tabs. The scroll bar on the bottom right is used to scroll through the currently displayed table.

Example of multiple tables in one window (from Hydromax).

Chapter 4 Maxsurf Windows

Control Points Window

The Control Points window allows the user to specify the control point positions directly using the keyboard rather than by using the mouse in one of the design windows.

Whenever the Control Points window is selected the highlighted row is that of the current control point in the current surface.

Only the control points of visible surfaces will be displayed. Those of locked, visible surfaces will be displayed in grey and cannot be edited. Only the control points of unlocked, visible surfaces can be changed.

The position, offset and height of a control point may be edited by selecting the relevant cell. It is also possible to copy and paste data from other applications such as spreadsheets. You may select rows, columns, the whole window, or an individual cell by using the mouse.

The Surface, Column, and Row columns are not editable. The Surface column displays the surface name as specified in the Properties dialog. The Column and Row columns specify the row and column numbers in the same order as their position in the net.

Control Point Weighting

If the Surface is a NURB surface, it is possible to have control point weights other than unity. This is necessary for producing true conical and spherical surfaces, but should otherwise be left as unity. See the section on

Surface Types on page 90 for further

details.

Editing Control Points

To edit a control point position numerically

Select the control point you wish to edit.

Select the control point from any of the drawing windows.

Select the Control Points window.

Scroll through the list.

The selected control point will be highlighted.

Edit the control point position.

Note:

Addition and deletion of control point rows and columns may not be performed in the Control Points window. To add and delete rows use the

Add and Delete functions from the Controls menu in their respective drawing windows.

Page 67

Chapter 4 Maxsurf Windows

Setting Control Point Display format

In the Control Points window it is possible to view the points listed by row then column or by column then row. This is achieved by setting the Row then Column or the Column then Row items in the Preferences dialog (in the View menu).

This is an advantage when you wish to paste a single row of data into a surface such as in the case of an airfoil section being imported from a spreadsheet. In other cases you may wish to paste only a single column of data.

Alternatively, you may sort the data by any column by right clicking in that column's header and selecting from the pop-up context menu. Or you may sort in ascending order by double clicking the column's header.

Synchronization of Control Points and Design windows

Single control points selected in the design view are selected in the Control Points table and control points selected in the Control Points table will be selected in the design views. This can make it easier to verify visually which control point is which.

Markers Window

Markers are reference marks displayed on the screen. They may be offset data that has originated from an existing hull or simply limiting dimensions that need to be visible while developing a design.

Markers are purely graphical and have no effect on the calculation of surfaces. The maximum number of markers you may use is 30000. In practice you will usually use many fewer than this.

Markers may either be read in with a design from Prefit, read directly from a text file or by

Importing DXF Markers . Markers can also be entered manually using the Add Marker

function in the Edit menu or copied and pasted into the markers table from another application such as a spreadsheet. They are stored as three-dimensional points in space and may be added, moved or deleted. All marker positions are stored in the design file whenever you save a design.

Each marker can be associated with a station in your design. Usually if you are importing markers that form the offsets of an existing design, you will set up the grid in Maxsurf to match the station spacing of the original design, and then set the station number of each marker to match its station in the offsets table. See

Generating a Grid from Markers

on

page 138 for more information on automatically generating a grid from a set of markers.

Page 68

Chapter 4 Maxsurf Windows

Markers may also be associated or linked to a specific surface and location in that surface. Once linked to a surface, the marker takes on the colour of that surface. This function may be controlled with "Use Surface Colour for Drawing Parametrics" control in the View | Preferences dialog. If this control is turned off, markers that have been linked to a surface will be displayed in the same colour as the surface parametrics. This

is not only useful for display purposes but can also be used to Measure Surface Errors

and utilise the

Fit Surface to Markers Command

that is available when you

Activate/Deactivate Prefit .

Displaying Markers

To turn all markers on or off

Select the Markers function from the Display menu.

You can choose to display all markers or no markers, or you may choose to only show those markers whose station number is the same as the current station.

Marker Selection

In the design views, markers may be selected in a similar manner to the control points: by simply clicking on them with the left mouse button or by dragging a box around them.

Holding down the Shift or Control key while making the selection allows you to add more markers to the current selection or remove previously selected markers from the selection.

Selected markers are highlighted in the highlighting colour.

Note:

You may have to lock the surfaces to hide the control points, as selection of control points takes precedence over selection of markers; i.e. if the drag box contains control points, these will be selected rather than the markers.

In the Markers table, you may only make a continuous selection. However, data may be sorted by right clicking in the column header and choosing from the pop-up menu to sort ascending or descending based on the contents of that column. The markers may be unsorted by right clicking in any of the column headers and selecting Unsort Rows from the pop-up menu:

Adding Markers

To add a marker to a drawing window

Select Add Marker from the Marker menu or use the Ctrl+M shortcut key.

A pencil cursor will be displayed.

Page 69

Chapter 4 Maxsurf Windows

Click the mouse at the position of the new marker.

Use the position indicators to place the marker at the required position. The added marker will be associated with the current station as displayed in the control box.

Markers may also be placed graphically in the Plan or Profile views. For these 2D views, the third dimension takes the value of the last entered marker. For example, if you wanted to enter makers on the 2m waterline, first switch to the Plan view. Add a marker in the Plan view; double click the marker so that you can specify its height as 2m, then any subsequently added markers (in the Plan view) will have their height at 2m. Markers on Buttock lines may be entered in a similar fashion in the Profile view.

Alternatively, a marker can be added directly into the Markers window. To do this

Select the Markers window.

Highlight a row by clicking in the far left hand column.

Page 70

Select Add Marker from the Edit menu.

Enter the number of markers you wish to add and hit Return.

Rows will be added after the row selected, with cells initialised to zero.

Note:

You must have a design open before you can add markers.

Deleting Markers

To delete a marker from a drawing window

Select the marker(s) to be deleted

Select Delete Marker from the Marker menu or use the Delete key on your keyboard

Click yes to confirm you want to delete the selected markers.

Chapter 4 Maxsurf Windows

The marker will be deleted.

To delete a marker from the Markers window

Select the Markers window

Select the row(s) of the marker(s) that you wish to delete

Select Delete Marker from the Marker Menu or use the Delete key on your keyboard

Click yes to confirm you want to delete the selected markers.

Rows will be deleted from the Markers window.

Modifying Markers

The co-ordinates in the Markers window may be edited to move a marker in space. To edit a marker

Click on a cell in the Markers window.

Enter the changed Station Number, Longitudinal Position, Offset, or Height.

Alternatively, to edit a marker directly

Double click on a marker in one of the drawing windows.

A small dialog box will appear containing data about the marker. You may select and edit any of the marker's co-ordinates. When you click OK the marker will be updated to the new position.

You may also set the data for a number of markers together:

Select the markers in one of the drawing windows.

Select Properties from the Markers menu.

If you have selected several markers, those fields that contain exactly the same data for all the selected markers will be displayed with the common data. If the data differs, the field will be left blank. Editing the data in any field will update all the selected markers.

This can be useful for making sure that all the markers on one station have identical longitudinal positions, or for specifying which section they should be linked to.

Page 71

Chapter 4 Maxsurf Windows

Reading Markers Files

It is possible to read a text file of markers into Maxsurf. This text file may be created from the Save Markers or Save Offsets commands in Maxsurf or created in a spreadsheet, word processor or other application.

The format for the Markers file is tab delimited text. Each coordinate is separated by a

Tab character, and each line ends with a Carriage Return character. An example would be:

Column 1 is the station number with which the marker is associated. This controls when the marker is displayed and when it is hidden when the Show Markers for Current

Station command is active. Column 2 is the longitudinal position from the zero point,

Column 3 the offset from the centreline and column 4 the height above the zero point.

Alternatively you may create markers by Importing DXF Markers

. The DXF file is imported by choosing File | Import | DXF markers.

Sorting Markers

The order in which markers are sorted along a section line can be important when the marker data is used in Prefit to automatically generate a surface, or when you want to use the marker-connection-lines as a reference during manual surface fitting tasks.

Markers that have been assigned to the same Station Index can be sorted for each station using the Sort Marker Stations command from the Markers menu. This sorting uses a nearest neighbour sort, which works in most instances, but can be confounded if the section shape is complex and/or the spacing between markers varies significantly. To view the connectivity (and ordering) of the markers turn on the Display | Connect Marker

Stations option: Ctrl+J, . This is best done in the Body Plan view, with the Display |

Show Markers for Current Station option selected ( ).

A single marker can be moved along the ordering by using Ctrl+Cursor keys; left and down keys move the point one positions towards the start of the ordering whilst up and right keys move the point one position towards the end of the ordering; the Home key makes it the first point and the End key makes the it the last point:

Page 72

Before and after: Moving the selected point one position towards the start of the curve corrects the marker ordering

Chapter 4 Maxsurf Windows

To re-order a range of markers, select them in the new desired order (from the keel outwards towards the deck edge (or deck centre line) and select Markers | Re-order

Selected Markers (Ctrl+Shift+R). If the new order is the reverse of what is required, simply repeat the command without changing the selection, and the order will be reversed.

Markers incorrectly ordered Start selecting Markers in correct order

Start with marker that should be closest to keel in the group

Markers selected in correct order. Use Re-Order

Selected Markers command to re-order

Page 73

Chapter 4 Maxsurf Windows

Points are now ordered in the selection order, if this is the inverse of what is required, simply repeat the Use

Re-Order Selected Markers command without changing the selection.

When a marker is added, it will be inserted to so as to minimise the increase in section length. This normally ensures that it is inserted in the correct location.

Generating Markers for Developable Surfaces

To generate markers that describe the shape of the developable surface you have to first set the surface type to Developable. This will create ruling lines from the surface edges from which the markers can be generated using the Markers | Generate Markers for

Developable Surfaces command. This command is only available if there is at least one surface in the design with the surface type set to developable surface.

See

Surface Types on page 90 for more information

Page 74

Chapter 4 Maxsurf Windows

Markers are calculated for the surfaces selected in the list on the left of the dialog (only developable surfaces are listed). Markers can be generated where the ruling lines intersect stations previously defined in the Grid Spacing dialog, or at equal intervals along the ruling lines. The number of ruling lines calculated depends on the current surface precision setting, but during the generate markers command the precision is increased temporarily to highest.

Markers generated at equal intervals along the ruling lines – this is useful for the automated surface fitting

(Markers | Fit surface to Markers) as it ensures that markers are generated even when the rulings are vertical and do not interest stations.

Markers generated where they intersect the sections. This is useful when manually fitting the surface to the markers in the body plan view.

Surfaces Window

The surfaces window provides quick and flexible access to all the surfaces' properties.

Page 75

Chapter 4 Maxsurf Windows

Column hiding and sorting may be used in this window and this may be used to reduce the size of the window. This window may then be used as a very convenient way of turning on and off the visibility and locking of surfaces in a complicated design. Copy,

Paste and Fill down may also be used in this table.

Offsets Window

The Offsets window allows you to calculate and view the offsets for a design on screen.

Offsets are found for the given grid spacing as set in the Grid Spacing dialog from the

Data menu.

Page 76

The offsets are displayed for one station at a time. See the Displaying Offsets section for

instructions on how to change this display.

Calculating Offsets

To calculate offsets

Select the Offsets window.

Select Calculate Offsets from the Data menu.

A dialog will appear allowing you to choose whether or not to include skin thickness deduction and/or to automatically create a table of markers from the calculated offset points.

Chapter 4 Maxsurf Windows

Offsets calculation may take some time depending on the number of surfaces and grid lines in use. Offsets are sorted by station position.

Skin Thickness Deduction

The skin thickness is deducted on a surface-by-surface basis. In order to ensure this is done correctly please check the following:

Thickness specification of each surface

Thickness direction of each surface

Outside arrows direction of each surface

For more information on how to specify the above please refer to the Outside Arrows and Surface Materials sections.

If you have chosen to deduct skin thickness, Maxsurf will add or deduct that thickness perpendicular to the surface at each point on the hull, so that areas of the hull that are not parallel to the centreline will be correctly calculated.

Where an offset is for an edge or feature line, the following rules apply:

Edges

Skin thickness is taken along the surface perpendicular at the edge, rather than along a waterline, buttock or diagonal. An example of this would be for a sheer line, where the topside was not vertical, with the resulting offset higher than the original point. Builders should be made aware that the height specified does not correspond to the height of the sheer line.

Feature lines

Offsets at feature lines such as knuckles and chines within a surface are taken at the intersection of the projection of the deducted surface, rather than on a radius around the feature point.

Displaying Offsets

To display different pages of the offset table:

Page 77

Chapter 4 Maxsurf Windows

Choose Go To Offset… from the Data menu

Enter the number of the station whose offsets you wish to view.

Click OK

The Offsets window will change to display the offsets for the station requested.

Copying Offsets

Offsets may be copied for transfer to other programs. To do this

Click in the top left hand corner of the Offsets table.

This selects and highlights the entire Offsets window for copying.

Select Copy from the Edit menu.

Switch to your word processor or spreadsheet and choose Paste.

Customizing Offsets

Once a table of Offsets has been calculated in Maxsurf, it is possible to customize the names used for waterlines, buttocks, diagonals, feature lines and edges. Simply type the text required into the required cell in the Offsets window. These names will be used when the table of offsets is printed or written to a file.

Writing an Offsets File

It is also possible to write out a text file of the complete table of offsets. This can be read directly into other programs such as word processors or spreadsheets. To do this

Make sure the Offsets window is in front.

Select Save Offsets from the File menu.

Specify a name for the offsets file and click on the save button.

The offsets will be saved in a TEXT file of that name and may be opened by any word processor or spreadsheet.

Page 78

Chapter 4 Maxsurf Windows

Graph Windows

There are several windows in Maxsurf and other programs in the Maxsurf suite that display Graph data. The

Graph Windows - General

section discusses generic features of graph windows in the Maxsurf suite. You can also find specific information on how to

select different view options for the Curve of Areas Window

.

Graph Windows - General

Data Interpolation

Data may be read off the graph by clicking on the curve of interest. A slider is then displayed which may be dragged along the curve. The abscissa and ordinate are displayed in the bottom-left corner of the window.

Graph data

The graphed data in any graph can be displayed in tabulated format by double clicking on the graph. This can be used to obtain the sectional area curve data for example. The complete set of data can be copied by right clicking on the top left grey cell to select the entire table, then selecting copy from the menu. If you wish the Copy operation to include the column headings, hold down the Shift key at the same time as you select the

Copy command. The dialog may also be resized to best display the tabulated data.

Graph legend

A graph legend may me displayed in the various graph windows. Right click in the graph view to obtain the context-menu that gives the various display options:

Page 79

Chapter 4 Maxsurf Windows

Page 80

Scaled graph printing

You can specify whether a graph should be printed to a scale (to facilitate taking measurements from the graph). Holding down the Shift key while selecting Print from the File menu, or using the toolbar button will display the following dialog. Answering

“Yes”, will mean that the graph is scaled so that one grid unit is a sensible number of centimetres or inches: either 1, 2, 2.5 or 5. The use of centimetres or inches will depend on whether the units used for length are metric or imperial. The setting will be remembered once the selection has been made; to change the setting, hold down the shift key again when selecting print to display the dialog. Choosing “No” will cause the graph to be printed filling the page and is the default behaviour.

Scaled print dialog if length units are metric

Curve of Areas Window

When a design is open the Curve of Areas window may be used to determine the

Sectional Area Curve for the current datum waterline.

Chapter 4 Maxsurf Windows

The form of Sectional Area Curve displayed may be chosen in the Preferences dialog in the View menu.

Three choices exist:

Section Area.

Graphs sectional area against longitudinal position from the zero point.

Section Area / Maximum Section Area.

Graphs sectional area normalised by maximum sectional area to allow the comparison of sectional area curves from different designs of similar displacement.

Section Area / Volume.

Graphs sectional area normalised by volume

2/3

. This allows the comparison of sectional area curves of designs with different displacements.

The Sectional Area Curve is made up from a number of sectional areas. Most are spaced equally along the datum waterline with additional half stations at each end. You can specify the number of sections used to display the curve by choosing the appropriate

Sectional Area Curve Stations button in the Preferences dialog.

To display sectional area values along the curve, simply click on the movable crosshair and move it to the required position. The station position and current value for the curve will be displayed in the bottom left hand corner of the window.

Page 81

Chapter 4 Maxsurf Windows

Calculations Window

Maxsurf has two ways of performing calculations on the model:

Calculations from the Data menu

Calculations in the Calculations Window

In this section the Calculations window will be discussed. For more information on the

calculations available from the data menu, see the Calculations section on page 169.

In the Calculations window, Maxsurf is capable of evaluating calculations entered by the user and solving them in a form much like a simple programming language. These calculations may be simple arithmetic expressions, or may include variables that are precalculated by Maxsurf. Formulae, together with relevant comments, are displayed on the left, with the result of each calculation displayed in the second column. You can also add comments (e.g. units of the result) in the right hand column.

Page 82

Note:

- Although the calculations window allows user customisable calculations, more accurate results can be achieved by using the calculations from the data menu. This is recommended in case there is no need for customised calculations.

- The calculations sheets provided with Maxsurf are examples only. They should be checked thoroughly before use in your office, and your attention is drawn to the conditions of use outlined in the disclaimer at the front of this manual. Also ensure that you are using the Calculation sheet consistent with your current Units setting.

Expressions

Expressions use standard arithmetic notation and are evaluated based on the level of precedence of their operators, and their left to right ordering. Precedence levels determine the order of computation of expressions. For example, a multiplication (level three) would be computed before an addition (level four). The operators and their precedence levels are:

Chapter 4 Maxsurf Windows

( ) PARENTHESES

^ EXPONENTIATION

*,

/

MULTIPLICATION, DIVISION

+,

-

ADDITION, SUBTRACTION

Level one

Level three

Level four

Statement Syntax

Syntax for each statement should be similar to the following:

Built-in Variables

Built-in variables contain information about the volume enclosed by the surfaces being designed, and the plane specified by the Datum Waterline (DWL). Once the DWL has been positioned and the Frame of Reference set up correctly, Maxsurf determines the waterline length and calculates data for 13 immersed stations (stations 0 to 10, plus half stations 0.5 and 9.5), in addition to several general variables. Station 0 is the forwardmost station and Station 10 the aft-most. The variables available to be included in calculations are:

SPACING Immersed Station Spacing

MAXA

MAXB

Maximum Immersed Sectional Area

Maximum Waterline Beam

STAT0. .STAT10

SA0 . . SA10

DR0 . . DR10

WLB0 . . WLB10

IGIR0 . . IGIR10

TGIR0 . . TGIR10

CAH0 . . CAH10

Immersed Station Position

Immersed Sectional Area

Draft

Waterline Beam

Immersed Girth

Total Girth

Transverse Centre of Immersed Area

CAV0 . . CAV10 Vertical Centre of Immersed Area (above

DWL)

Half stations at 0.5 and 9.5 have the following variable names:

STAT0.5 Immersed Station Position at position 0.5

STAT9.5 Immersed Station Position at position 9.5

Likewise for the fields :

SA, DR, WLB, IGIR, TGIR, CAH, CAV.

Page 83

Chapter 4 Maxsurf Windows

Note:

- The station positions used for the volumetric analysis of the hull in the calculations are completely independent of the station positions set up by the Grid Spacing function from the Data Menu. Maxsurf determines the position of the STAT0 to STAT10 variables, and therefore the SPACING variable, purely on the position of the Datum Waterline you have specified.

- The calculations performed in the Maxsurf calculations window use 13 sections. The Hydrostatic and Area calculations available from the data menu use a number of sections that is dependent on the precision setting in

Maxsurf, where for example medium uses 50 sections. The calculation results will be different each time a different number of sections are used.

The hull shape is approximated most accurately at highest precision (200 sections). For more information see

Calculations.

Built-in Functions

Built-in functions provided are:

PI Pi

SIN(x) Sine of x

COS(x)

TAN(x)

LN(x)

ARCTAN(x)

SQRT(x)

Cosine of x

Tangent of x

Logarithm to base e of x

ArcTangent of x

Square root of x

Calculation Units

Calculations are solved in the current units as set by the Units function in the Data Menu.

Please ensure that any expressions used are correct for the units in use.

Solving Calculations

To open and solve an existing calculations sheet

Select the Calculations window.

Select Open Calculations from the File Menu.

Select a file of calculations to open from the disk. (Samples are provided in the

Maxsurf\Calcs directory.)

Click Open and the calculations sheet will be opened and displayed in the calculations window.

Choose Solve Calculations from the Data menu.

A dialog appears that allows you to specify a longitudinal range over which to perform calculations. The dialog will have the Use current DWL option selected. If you click the

OK button, calculations will proceed using the current waterline length of the hull.

Page 84

Chapter 4 Maxsurf Windows

If, however, you select the Set range option and specify new fore and aft limits for the analysis, the calculations performed when you click OK will be restricted to this zone of the hull. The Simpson's stations created by Maxsurf are displayed on the screen as a visual check. Note that calculations using Simpson’s stations are approximate. While these are usually sufficient for initial design checks, for accurate calculations you should use Hydromax, which uses more accurate integration and allows a much larger number of stations to be used.

Note: When you are setting the range you may refer to stations on the grid directly by typing S followed by the number of the station you want. For example, if S3 is typed in, the longitudinal position for Station 3 of the grid will be automatically substituted.

When you click OK, Maxsurf will evaluate the arithmetic expressions in each statement of the calculation window and calculate the result, which is displayed in the second column.

Maxsurf also assigns the result to the variable name on the left, so that the result may be referred to in later statements.

If a division by zero has been found, NAN (not a number) will be displayed in the results column. If there is an error in your entered expressions, an error message will be displayed. Locate and correct the error and solve again to continue.

You may insert comments into your calculations by preceding a comment line with a $ symbol. This line will then be ignored by the calculations routines.

There is no practical limit to the size of the calculations sheet that can be solved. To enable you to see all of a large sheet of calculations you may use the scroll bar on the right hand side of the Calculations window.

Saving Calculations

To save a calculations sheet

Select the Calculations window.

Select Save Calculations or Save Calculations As from the File menu.

If you choose Save As you will be prompted to enter a name for the new calculations sheet.

Page 85

Chapter 4 Maxsurf Windows

Maxsurf Settings

Maxsurf has a number of settings that give you control over how the program operates and displays results:

Maxsurf Preferences

Colour and Font

Maxsurf Preferences

Maxsurf has a number of global preferences, which affect how the program works. These may be changed by selecting Preferences from the View menu.

Page 86

The different settings are described below:

Control Point Size

The control point size may be set to either: huge (6 pixels), large (4 pixels), or small (2 pixels).

Graph Type

The Sectional Area Curve graph may be set to be a filled graph, a line graph, or a graph made up of discrete data points.

Sectional Area Curve Type

The sectional area curve may be set to graph:

Chapter 4 Maxsurf Windows

Section Area.

Section Area / Maximum Section Area.

Section Area / Volume2/3.

Control Point Window Column Ordering.

In the Control Points window it is possible to view the points listed by row then column or by column then row. The reason for doing this is to simplify the pasting of single rows or columns into the Control Points window.

Sectional Area Curve Stations.

The sectional area curve may be set to use 13, 25 or 39 stations. For complex hulls it is better to use more stations, while for simple hulls it will be faster to calculate fewer stations.

Refresh Options

Depending on the speed of your computer, select between: Update Frontmost

Window Only; Update All Windows or Update All Windows Dynamically. On a slow computer, Update All Windows Dynamically may be too slow to use the program effectively.

Contour Tolerance

This value is used when computing surface contours using Highest Precision. A lower tolerance value will give more precise contours.

Curvature Porcupine Size

This value is used to scale the curvature porcupines displayed on contours.

Outside Arrow Size

This value is used to scale the outside arrows displayed on surfaces.

No. of Undo Levels

This sets the maximum number of ‘undos’, which are stored and may be set to a value between 2 and 100. Setting too high a value may cause your computer to slow down since this will require considerable memory, the amount of memory used depends on the complexity of the model.

Sub-menu Length

This sets the maximum number of items in the surfaces sub-menus before the

More Surfaces… item is displayed.

Use Surface Colour for Drawing Parametrics

The parametric surface contours may be displayed in the global parametric contour colour or in the colour of the surface. This option can be useful for better visualising the design and distinguishing the different surfaces.

Colour and Font

The colour and font used in the windows may be changed with the Colour and Font commands in the View menu.

The Colour command allows you to set the colour of lines, controls, and graphs.

Remember to always be careful when using colour. It is very easy to get carried away with bright colours and end up with a garish display that is uncomfortable to work with.

In general it is best to use a neutral background such as mid Gray or dull blue and use lighter or darker shades of a colour rather than fully saturated hues.

Page 87

Chapter 4 Maxsurf Windows

To change the colours, select Colour from the View menu.

From the scrollable list, select the item whose colour you wish to change. The item’s current colour will be displayed on the left of the dialog. To change the colour, click in the box and select a new colour from the palette.

The colours of items in the four design views are all consistent. The colours used in the graph window may also be changed with the colour command.

The Font command allows you to set the size and style of the text in the current window; the font may be independently set for all the windows.

Select Font from the View menu and select the desired font, style and text size.

Page 88

Chapter 5 Using Maxsurf

Chapter 5 Using Maxsurf

The previous chapter covered a lot of the functions that are available to you when you are working in one of the windows. This chapter will discuss specific functions in

Maxsurf to manipulate the shape of the design, do calculations and work with external data.

Working with Surfaces : The characteristics of the surfaces used in Maxsurf to define its

designs, commands that apply to surfaces, including methods for generating true conic curves.

Trimming Surfaces : How and when to use surface trimming.

Bonding Surfaces : How and when to use bonded surfaces.

Fitting Surfaces : Tools available in Maxsurf to fit a surface to an existing design.

Modelling Developable Surfaces

: Tools available in Maxsurf to help you model a surface so that it can be build with no or minimal strain.

Control Points : Tools available for manipulating a control point or group of control

points to achieve the desired surface shapes.

Calculations : How to calculate hydrostatics, girths and surface areas in Maxsurf.

Using Parametric Transformation : Numerical modification of critical design parameters

where Maxsurf will automatically modify the parent hullshape to match required parameters. This function is available in Maxsurf Pro only.

Input of Data : Different types and methods of input data.

Output of Data Different types and methods of output data.

Page 89

Chapter 5 Using Maxsurf

Working with Surfaces

Maxsurf allows you to create complex designs using any number of a range of surface types. You can use B-Spline, NURB, Developable or Conic surfaces.

Many different surface types have been proposed over the years for use in Computer

Aided Design systems. You may be wondering why Maxsurf uses B-spline surfaces and

NURB surfaces, rather than any of the alternative methods such as Bezier Surfaces or Bicubic spline patches.

The simple answer is that the B-spline definition encompasses many of these other forms as special cases of the B-spline. For example, a Bezier curve is exactly the same as a Bspline where the order has been set to be equal to the number of control points minus one. Similarly, a B-spline curve of order 4 stiffness is a piece-wise cubic spline.

Page 90

B-splines are a powerful and mathematically elegant formulation that retain a high level of numeric stability, while encompassing many of the curve types that have gone before.

Surface Types

Maxsurf is capable of creating complex surfaces using B-spline surfaces with up to 25 rows of control points. Conventional B-spline surfaces are ideal for many applications.

However, they do have the disadvantage that they are not able to precisely represent simple conics such as circular, elliptical or parabolic curves. Maxsurf offers an alternative surface definition that overcomes this disadvantage and allows you to combine conic curves with free form surfaces at will.

Maxsurf allows the use of four surface types, which are all members of the NURB family:

B-Spline

This type of NURB surface has all control point weights set to unity. It has the advantage of being faster computationally, at the expense of not being able to precisely represent conics. However, this type of surface is applicable to most situations.

NURB

With this surface type, it is possible to precisely represent conic curves and surfaces. This is achieved by the addition of weights, which may be varied for each control point.

Chapter 5 Using Maxsurf

Conic

When this surface type is selected, a NURB surface is used and the control point weights are automatically calculated by Maxsurf to produce a precise conic surface. Use this surface only if you require precise conic surfaces, such as for a bow cone.

Note

The control point weights are only computed automatically for 3-point forms. If you are using 4-point forms you will need to make your surfaces

NURB surfaces and type in the weights manually.

Developable Surfaces

A NURB surface of which the edges determine the internal surface shape. Maxsurf draws ruling lines based on the edges and lets the user determine the shape of the internal surface.

Use this surface type as an intermediate design aid, then change back to a B-Spline surface.

B-Splines and NURBs

Non Uniform Rational B-Spline (NURB) surfaces have an additional shape control parameter, called a weighting value, available at each control point. In Maxsurf, the weighting value is shown in the last column of the Control Point window.

When all of the weighting values in a control point net are set to one, the surface will be identical to a conventional B-spline surface.

When a control point has its weighting value increased, the surface, in the vicinity of that control point, will be attracted towards the control point. Conversely, a decrease in the weighting value will result in the surface being pushed away from that control point.

Page 91

Chapter 5 Using Maxsurf

This is true to the extent that a negative value will give a curve that balloons outward from the polygon of control points.

In general you should only use weighting values to exactly model a conic curve. It is not usually a good idea to use the weighting value to control the shape of free form curves.

Circular Arcs

The primary use for the weighting values in a NURB surface is to allow you to create true arcs of circles and ellipses. There are two standard formulations for these curves, one using three control points and Order 3 (quadratic) stiffness, and one using four control points and Order 4 (cubic) stiffness. In both cases, there is an equation that describes what the weighting value should be, based on the angle of the arc.

Note that when a surface is defined as a conic, Maxsurf only automatically computes the control point weights correctly for three-point-forms. Weights will be incorrect for fourpoint-forms and you must change the surface type to NURB so that you can enter the weights manually.

For the three point case, the distances between control points are kept equal and the weighting value for the centre point is set to w = COS (

θ/2) where

θ

is the included angle of the arc.

For example for a 90° arc, w = COS 45° = 0.7071.

Page 92

For a 45° arc, w = COS 22.5° = 0.9239.

Chapter 5 Using Maxsurf

The four point form again has the control points forming an equally spaced polygon around the curve. In this case, the equation for the weighting value is w = (1 + 2 Cos (

θ/2) ) / 3 where

θ

is the included angle of the arc.

For example, for a 90° arc, w = (1 + 2 (Cos 45°))/3 = 0.804738

For a 180° arc, w = (1 + 2 (Cos 90°))/3 = 0.3333'

The three point form of circular arc can be used for any arc from 0° to 180°. However, as the angle approaches 180°, the weighting value approaches 0 and the position of the centre control point approaches infinity. It is best applied to arcs between 0° and 90°.

The four point form has a more complex equation for the weighting values, but is an elegant form for 180° arcs. It is best used for arcs between 90° and 180°

Elliptical Arcs

NURBS can represent elliptical as well as circular arcs simply by stretching the control point polygon in a linear fashion.

When this is done the weighting values remain the same as those for the circular arc on which the ellipse is based.

Page 93

Chapter 5 Using Maxsurf

Circular and Elliptical Surfaces

The extension of the NURB curve to the surface allows cylinders, spheres, cones etc. to be modelled exactly. For a cylinder or cone, one row is set to the weighting value required for the arc.

In the case of a toroidal or spherical surface where curvature runs in both directions on the surface, the weighting values are set as follows:

Page 94

The central control point has its weighting value set to the product of the weighting values of the row and column that intersect it. In this case 0.7071 x 0.7071 = 0.5.

Chapter 5 Using Maxsurf

By combining these surfaces, it is possible to build up complex designs made up of true circular and elliptical segments, such as a submarine. The submarine example is in the

Sample Designs folder, which comes with Maxsurf. (Maxsurf\Sample

Designs\Naval\Submarine\Submarine.msd)

Developable Surfaces

A developable surface is one that can be formed from a flat sheet without stretching the material. This material may be aluminium, steel, wood or even paper - the material chosen has no effect on whether or not the surface is developable. Examples of simple developable surfaces are cylinders and cones, as opposed to a sphere which is clearly not developable.

A developable surface is created from the edges of a B-spline surface and a set of offset points can be generated at each station. These offsets can then used to manually or automatically fit the B-spline surface to the developable shape. This allows you to create a surface that is developable within practical tolerances.

See

Modelling Developable Surfaces on page 146 for more information.

Surface Stiffness

The choice of surface stiffness is analogous to the selection of a different weight of spline when drawing a curve on the drawing board. When drawing a smooth shallow curve you would select a stiff spline, and when drawing a curve featuring a high rate of change of curvature you would select a flexible spline.

Page 95

Chapter 5 Using Maxsurf

Flexible splines are useful for modelling knuckles and discontinuities, otherwise try and work with the stiffest spline possible. Often a good compromise is to use flexible splines transversely and stiffer splines longitudinally.

Two factors influence the stiffness of a surface:

Setting of stiffness through the Properties dialog.

A number of stiffness settings allow for the specification of stiffness in the longitudinal (row) or transverse (column) direction.

…. …..

There is no absolute value for the recommended surface stiffness since it is very much dependent on the surface shape you wish to achieve. In general, a longitudinal stiffness of 5 and a transverse stiffness of 4 offers a good starting point from where you can go up or down dependent on the surface shape you wish to achieve.

The stiffer the surface, the easier it is to get a fair surface. At the same time, a stiff surface is more difficult to achieve high curvature shapes with.

Number of control points.

You need at least the same number of control points in the direction of the surface stiffness. For example: for a longitudinal stiffness of 6 you need at least 6 columns of control points and for a transverse stiffness of 5 you need at least 5 rows of control points.

To get an idea why this is necessary, imagine a 2 column surface (only a forward and an aft edge column without any control points columns in between): the surface stiffness can only be linear.

Maxsurf will make sure the stiffness of the surface cannot be greater then the number on control points in that direction; i.e. if you have an order 6 surface and you reduce the number of columns from 6 to 5, Maxsurf automatically reduces the surface stiffness from 6 to 5.

Tip:

Use as little control points as possible on a surface that is as stiff as possible whilst achieving the required shape. This will result in a fair surface model.

The example below shows a surface with the same net but with two different stiffness’s.

One surface is set to flexible in both the longitudinal and transverse directions and the other is set to stiff.

Page 96

Chapter 5 Using Maxsurf

Local Influence

When using few control points, a control point movement may influence the whole surface, but when using many control points the control point's area of influence will be more local.

This is illustrated below, showing the extent to which the surface deforms due to a control point movement using a rectangular 3*3 control point net.

The movement of the middle control point on the top edge would result in, the following deformation.

Note:

The influence of the control point movement may be seen across the full width of the parametric surface.

Page 97

Chapter 5 Using Maxsurf

If the net is increased to 9*3, keeping the stiffness (as set in the Properties dialog) the same, the result of a similar control point movement would be as follows.

Through the addition of extra control points:

the surface has become more flexible

the influence of the control point movement is much more localized.

Note:

The surface stiffness actually relates to the number of continuous derivatives of the surface. There are two special cases:

1. If the spline is order 4, the curvature is continuous and the spline is the same as a piece-wise cubic spline.

2. If the order is one less than the number of control points, it is a Bezier spline.

Surface Appearance

The surface appearance may be used to change the colour of the smooth rendered view and the parametric curves of the surface.

To change the surfaces' appearance:

Select Appearance from the Surfaces menu.

In the dialog, select the surfaces whose appearance you wish to modify.

To modify the colour, click in the coloured square and select the new colour from the pallet.

Page 98

Chapter 5 Using Maxsurf

Note:

Some graphics cards may ignore the transparency option.

Surface Properties

Each surface that is created within a Maxsurf design has a unique set of properties associated with it. The Properties command allows you to view and modify these properties.

Note:

The properties of all the surfaces may be quickly viewed and modified in the Surfaces window.

It is possible for you to modify:

Surface Name

This may be any name typed in from the keyboard up to twenty characters long.

Page 99

Chapter 5 Using Maxsurf

Surface Type

May be set to conventional B-spline, NURB, Conic or Developable surface.

Surface Use

This tells Maxsurf and Hydromax whether the surface is an internal structure or not. Surfaces that are to be used for internal tank or compartment walls in

Hydromax must be defined as Internal Structure.

Note:

It is very important to specify “surface use” in order for Hydromax and

Workshop to interpret the Maxsurf model correctly.

Visibility

This determines whether the surface is visible or not. Visibility may also be set in the Visibility dialog from the Surfaces Menu.

Locking

This determines if the surface is locked or not. If a surface is locked none of its control points are displayed, and the surface may not be modified. Locking may also be set in the Locking dialog from the Surfaces menu.

Symmetrical

This determines whether a surface is displayed with its image reflected about the longitudinal centreline or not.

Split Section Display

Split Section Display is only activated in the Body Plan window, when the Half option is in effect. In this situation, if Split Section Display is activated, the surface will be shown with the forward sections on the right hand side and the aft sections on the left, as one would expect in a traditional hull body plan.

The position chosen for the break in the display of the sections depends on the station you have selected in the Grid Spacing dialog.

Stiffness

Sets the surface stiffness in the longitudinal (row) or transverse (column)

direction. See also Surface Stiffness on page 95.

Material

This tells Maxsurf, Hydromax and Workshop what material is used for construction, and how the thickness is calculated in regards to the hull shape.

Note

A materials library file must have been loaded when Maxsurf was started for there to be a list of materials to select. If no materials are available, you may simply type in the thickness. Further details are in the next section,

Surface Materials.

Outside Arrows

Another surface property is the Outside Normal Direction. This direction is displayed in

Maxsurf with Outside Arrows, which can be displayed from the Display menu or the

Outside Arrows toolbar button.

Page 100

Chapter 5 Using Maxsurf

The Outside Arrows tell Maxsurf which is the inside and which is the outside of a surface. This is important for the following Maxsurf functions:

Skin Thickness direction

Curvature display

Correct interpretation of model in Workshop and Hydromax

Setting Outside Arrows

Select Outside Arrows from the Display menu.

Selecting this menu item displays surface normal arrows in all of the display windows.

By clicking on the circles at the heads of these arrows it is possible to reverse their direction. Do this until all arrows point to the outside of the hull. It may be necessary to look at different views or to rotate the hull in the perspective window in order to see the directions clearly. Once you have specified the outside directions, save the design; these directions will be saved in the Maxsurf design file and are used automatically by

Workshop and Hydromax.

Note:

The length of the outside arrow may be changed in the Preferences dialog.

Surface Materials and Skin Thickness

Maxsurf provides a method for specifying skin thickness and material properties that are consistent and compatible with both Hydromax and Workshop. This also allows sections with skin thickness deductions to be displayed in Maxsurf, printed from Maxsurf or exported to a DXF file.

Thickness can be either specified directly or selected from the Material pop-up menu.

The Material pop-up menu will contain materials that have been loaded from the

Workshop materials library. Workshop may be used to modify the library; users who do not have Workshop will have the default library.

Page 101

Chapter 5 Using Maxsurf

The direction that the thickness projects from the line of the designed surface needs to be specified. Three choices are available:

inside the designed surface

centred on the designed surface

skin outside the designed surface.

To do this Maxsurf needs to know what the inside and what the outside of each surface is. Make sure the Outside Arrows are set up correctly (pointing outwards, generally towards the “wet side” of the vessel). For more information on outside arrows see

Outside Arrows on page 100.

Note: Skin thickness and hydrostatic calculations

In Maxsurf skin thickness is used for creating the table of offsets, however for hydrostatic calculation purposes, skin thickness is ignored. Hydromax can be used to calculate the effect of skin thickness on the vessel’s hydrostatics by selecting “include skin thickness” in the opening dialog.

Skin Thickness Projected to the Inside

An example of a thickness deducted inside the hull would be a hull made of foam sandwich, where the Maxsurf surface modelled the outside of the hull. The skin thickness deduction would then give the line of the inside of the foam core and laminations.

Maxsurf Surface section line

Skin thickness projected inside / deducted section line

Female mould

Female mould GRP example

Skin Thickness Projected to the Outside

A typical steel or aluminium boat is designed to a moulded line, to the outside of the framing, but the inside of the hull plating. Another example is a GRP boat build from a male mould. The Skin Thickness would then be added on to give the line of the outside of the plating.

Page 102

Chapter 5 Using Maxsurf

Skin thickness projected outside

/ Hydromax Section line with surface thickness included.

Moulded line / Maxsurf surface section line

Construction Frame

Frame construction method (Same for male GRP mould method)

Centred Skin Thickness

Plating centred around the designed surface would be unusual for the hull shell, but has been included for possible use in the specification of internal structure.

Display Skin Thickness and Direction

You can see the effect of the skin thickness and direction you have specified by displaying deducted sections. To display deducted sections

Choose Contours from the Display Menu and select Deducted Sections.

If this option is selected, deducted sections will be displayed on screen and included in

DXF and IGES file output.

Surface Precision

Each curve drawn by Maxsurf is made up of a number of short straight lines.

The precision selected corresponds directly to the number of line segments shown in a surface edge or contour, and also equates directly to the number of parametric lines shown when displaying parametric contours.

Lowest Precision

Lowest Precision may be used early in the design process for general design layout. It allows for fast modification of the shape, but lacks the necessary detail for optimising a design. It uses an 8 by 8 parametric mesh.

Low Precision

Low Precision is the suggested working precision for your design development and modification if you have a slow computer. It uses a 16 by 16 parametric mesh.

Medium Precision

Medium Precision is the suggested working precision for designs with more curvature, or with discontinuities, which need more precision for display. It uses a

32 by 32 parametric mesh.

High Precision

High Precision may be used for complex shapes, or during printing or zooming when more curve definition is needed. It uses a 64 by 64 parametric mesh.

Page 103

Chapter 5 Using Maxsurf

Highest Precision

Highest Precision may be used when extremely high definition is required, typically for plotting final lines plans. Highest Precision will take much longer to calculate than Low precision.

High and Highest precision are not fixed precisions, but adapt the number of segments to the amount of curvature in a surface.

Data Insertion and Reduction

Data Insertion

High and highest precisions start with a 64 by 64 parametric mesh and then insert points into the curve to reach the curve tolerance you have specified using the

Contour Tolerance field in the Preferences dialog.

Page 104

Data Reduction

At Highest Precision redundant points are also removed from the curve. For example, if a surface is flat, all of the co-linear points along the middle of a line will be removed, just leaving the required end points. This can considerably increase display speed in Maxsurf and reduce the size of the DXF or IGES file.

This makes the curves much faster to manipulate in your CAD system.

Precision Number of segments Data reduction Data insertion

Lowest 8

Low 16

Medium 32

High 64

Highest 64

Chapter 5 Using Maxsurf

The number of curve segments apply both to lines drawn to the screen, Clipboard, and

IGES files, as well as to output devices such as printers.

Surface Curvature

Maxsurf has two different ways of displaying surface curvature. First, rendering of the surface can be used to display a colour shading which indicates the curvature across the surfaces. Secondly, curvature along a selected contour or contours can be displayed as a porcupine; see

Curvature on Contours on page 109.

Curvature Display Using Rendering

Maxsurf has four different ways of calculating and rendering curvature on a surface. You control these settings using the Rendering command from the Display menu. Before you use Rendering, make sure that you have used the Outside Arrows command to set up the surface normal direction for each of the surfaces. Render may only be selected when the

Perspective window is active.

To display the rendered view, it is necessary to turn on hidden surface elimination. It is then possible to display a shaded view of the design, or to use false colouring to highlight the curvature of the surfaces.

Hidden Surface Elimination

Selecting Hidden Surface Elimination performs surface shading over the surface, using a fixed light source. If Smooth Shading is selected, the base colours of the surfaces are those chosen in the Appearance option from the Surface menu.

Simple Shading

Shading using polygons is utilised. Surface contours may also be displayed with this option.

Smooth Shading

An alternative shading algorithm is used to provide smoother rendering. The colours of the surfaces may be changed in the Appearance dialog.

To examine the fairness of your design, Maxsurf can use false colouring to display four types of surface curvature. These have different uses and are described below:

Gaussian Curvature

Is the product of the maximum and minimum curvatures at a point on the surface.

Gaussian curvature will indicate whether the surface is locally elliptical (positive

Gaussian curvature, i.e. both curvatures in the same direction), whether it is hyperbolic (negative Gaussian curvature, curvatures with opposite signs i.e. saddle shaped), or whether it is developable (zero Gaussian curvature).

Page 105

Chapter 5 Using Maxsurf

Gaussian curvature is a useful indicator of areas of twist in a surface, but is not directly linked to surface fairness. It is possible for a surface to be quite unfair and still be developable, yet the Gaussian curvature display will not reveal any problems.

Gaussian curvature can be used as an indication of whether a surface is developable. A developable surface is one that can be formed out of a flat sheet material by bending or rolling, without stretching or distorting the material. In this case, the surface will have a Gaussian curvature of zero at all points; i.e. the surface is only curved in one direction and straight in the direction orthogonal to that. See

Developable Surfaces on page 95 for more information on what

developable surfaces are and

Modelling Developable Surfaces on page 146 for

information on how to model developable surfaces in Maxsurf.

You can adjust the brightness value to make the display more or less sensitive to

the Gaussian curvature values. See Brightness Level on page 107 for more

information.

Note:

The Gaussian curvature gives an indication of developability, but only should only be used to isolate areas where the plate will be less developable.

If you want to be certain of a plates’ developability, load the surface into

Workshop and develop a surface plate. You can then examine the strain distribution on the plate; the plate is developable if there is no strain. A small amount of strain can be acceptable dependent on the builders’ plate bending equipment and production techniques.

See the Workshop manual for more information, especially regarding precision settings during plate development.

Longitudinal Curvature

This is a display of the curvature of each longitudinal parametric curve, taken perpendicular to the surface at each point along the curve.

This display is extremely useful for determining the longitudinal fairness of a design. You should look for an even graduation of colour along the hull.

Inflections can be detected by looking for changes from blue (positive curvature) to red (negative curvature). If you choose to show positive curvature values only, do so by using the following settings:

This will reveal areas of negative curvature by painting them black.

Transverse Curvature

Is the curvature of each transverse parametric curve, also taken perpendicular to the surface at each point along the curve.

This display is extremely useful for determining the transverse fairness of a design. You can mask off areas of positive or negative curvature in the same way as with the longitudinal curvature display.

Page 106

Chapter 5 Using Maxsurf

Convexity

The convexity check highlights any areas of negative curvature.

The convexity check calculates and displays the minimum curvature for each point on the surface. If this minimum curvature is less than zero, the surface is locally concave.

Brightness Level

The brightness level referred to in the dialog affects the way in which the colours in the display are mapped onto the curvature values.

Because the range of colours is small and the range of curvatures infinite you may need to change the colouring to suit the curves you are looking at. Changing the brightness level re-maps the colours - if the image is very dark and it is difficult to distinguish different curvatures, try using a smaller number. On the other hand if the image tends to be all pale colours, try a darker tonal value.

For Gaussian curvature, a higher brightness level will make the display more sensitive to non-zero Gaussian curvature, highlighting more areas. See

Curvature Display Using

Rendering on page 105 for more information.

Lighting Options

Maxsurf allows the user to edit the lighting settings used in the perspective window when rendering is turned on.

Light Positions

Maxsurf has the option to use four different light sources. These can be turned on and off by clicking in the Render toolbar.

It is possible to vary the location of these lights by editing values in a lighting dialog. This dialog is displayed by clicking on the right most icon in the Render toolbar when the Perspective window is active and rendering is turned on.

Page 107

Chapter 5 Using Maxsurf

Each light is specified by three values, distance, bearing and elevation. Distance is measured from the centre of the view in the perspective window. Bearing is taken relative to the direction from the eye to the object being viewed. For example, a light at 0 degrees is pointing in the same direction as the eye is looking at the object, 90 degrees is to the right of the object, -90 degrees is to the left of the object and 180 degrees is behind the object. Elevation is in degrees above the horizontal. A negative elevation value defines a light shining up from below the horizontal.

Light Intensities

Ambient, Diffuse and Specular values define what kind of reflection will be seen on the surface. If only ambient light values are specified, the object will be lit evenly from all directions and its reflected light will not appear to change in brightness as it is rotated. This is analogous to the sort of light seen on an overcast day. The result is no differentiation of colour or brightness across the surface.

Diffuse light is directional but is made up of parallel rays. The effect on an object illuminated with a diffuse light is that it changes in brightness as it is rotated due to the change in the incident angle of the surface.

A specular light is one that comes from a specific point such as a light bulb. When an object is lit with specular lights, definite highlights will be seen moving across the surface as it is rotated.

In practice, the ideal combination seems to be a small amount of ambient light, and roughly equal contributions from the diffuse and specular lights.

OpenGL

Smooth shading rendering uses OpenGL. OpenGL supports transparency and this may be specified on a surface by surface basis using the Appearances dialog in the Display menu.

OpenGL should work correctly with all versions of Microsoft Windows, except for the earliest releases of Microsoft Windows 95. These users, who are using a version of

Windows 95 prior to OSR2, will need to download the OpenGL DLL. This is a free download, available from www.microsoft.com

. Users should install the OpenGL drivers supplied with their video card or the default driver installed with Microsoft Windows.

OpenGL requires suitable driver software to run correctly. The driver required depends on the operating system and video card you have on your computer. The driver is normally supplied by Microsoft, or the video card or video card chipset manufacturer.

Occasionally there may be problems with the driver, which prevent Maxsurf from rendering the image correctly or may even cause the computer to crash. This is more likely for very new video cards and/ or new, or less popular, operating systems such as

MS Windows 2000 or MS Windows NT. This is because the drivers will have had less testing. If a problem occurs, one way of helping to determine if the driver or Maxsurf is at fault is to try running other OpenGL software such as the OpenGL screen savers; if the

OpenGL screen saver crashes, the problem is probably with the OpenGL driver and you should try to update it. Video card manufacturers regularly update their drivers and these are normally available from their web sites. Another web site, which can be very helpful, is: www.opengl.org

.

Page 108

Chapter 5 Using Maxsurf

Curvature on Contours

The second way to display curvature on a Maxsurf design is to select a contour or group of contours, and use the Show Curvature command from the Display menu. Curvature may be displayed on all surface contours except intersection lines.

To select a contour, click on the contour. It will be highlighted with a different line thickness and colour. To select more than one contour, shift-click on other contours.

When you choose Show Curvature, "Porcupines" are displayed perpendicular to the curve, and their lengths are inversely proportional to the square root of the radius of curvature at that point on the curve. Therefore the longer the porcupine line, the tighter the curve.

Note:

The value of the smallest radius (tightest bend) on a given curve is displayed numerically at the end of the porcupine located at the corresponding position on the curve.

To hide the display of curvature porcupines, choose Hide Curvature from the Display menu.

The lengths of the curvature porcupines may be scaled in the Curvature Scaling Factor field in the Preferences dialog.

Surface Operations

Maxsurf contains several commands that allow you to manipulate whole surfaces. These commands generally apply to the current surface, that is the last surface selected or modified. If you are unsure as to which surface is the current surface, you can check the list of surfaces in the additional menu that appears when you place the cursor on the

Properties item in the Surfaces menu. Alternatively, you can ensure that the surface you wish to work on is the current surface by selecting any control point in the surface.

Adding Shapes

Maxsurf has a number of standard shapes, which may be added to a design. They are as follows:

Page 109

Chapter 5 Using Maxsurf

Box

This is a box shaped prism; the primary axis may be selected to be orientated in the longitudinal, transverse or vertical direction, this will determine where the open ends are. The length, width and height are the dimensions in longitudinal, transverse and vertical directions respectively.

Additional surfaces to close the open ends of the prism may be added if desired.

The box is placed on the centre line of the design. If the Symmetrical box is ticked, either a full or half model may be selected. For shapes that lie symmetrically on the centreline, it is best to select the Half Model on Centreline option. To add a complete box, away from the centreline, tick the Symmetrical box and select the

Full Model button, then move the box away from the centre line to its desired location using the Move command from the Surfaces menu. If the box appears symmetrically on both sides of the vessel, you can then turn on the symmetry flag for the box's surfaces.

Cylinder

This is a circular or elliptical cylinder, the options work in the same way as the box.

Sphere

This is a circular sphere of specified radius. The various symmetry options are the same as for the box.

Hemisphere

This is a circular hemisphere of specified radius, which may or may not be closed with a disk. The hemisphere may be orientated in the longitudinal, transverse or vertical direction.

The illustrations below show the different effects that may be achieved with the symmetry options. In addition, the front and back ends of the box could have been closed with two additional surfaces if the Close Ends option had been ticked. (Box#1 is the top part of the box and Box#2 is the bottom; Box#3 and Box#4 are the mirrored surfaces.)

Non-symmetrical model

Page 110

Chapter 5 Using Maxsurf

Symmetrical half model on centreline

Symmetrical full model on centreline made up of four non-symmetrical surfaces

Symmetrical model offset from centreline after move command and changing symmetry flags

Adding Surfaces

When adding a surface, it is possible to select from a range of different surfaces in the

Add Surface menu.

To add or delete surfaces from the list, which appear in the Add Surface menu, use the

Edit Surface List command from the Add Surface sub-menu under the Surface menu.

To delete surfaces from the Surfaces list, select the surfaces to be deleted then click the

Delete button.

Page 111

Chapter 5 Using Maxsurf

Page 112

To add surfaces from your existing design to the surface list, click the Add button then choose the surfaces from your design that you wish to add to the list.

Deleting Surfaces

Choosing Delete Surface presents a dialog that allows you to select surfaces for deletion.

Simply click on those surfaces you wish to delete and click OK.

Chapter 5 Using Maxsurf

Multiple surfaces may be deleted at the same time, and a surface that is bonded to another may be deleted without the need to unbond first.

Duplicating Surfaces

This command duplicates the selected surfaces.

Select Duplicate Surface from the Surfaces menu.

Select the surfaces to be duplicated.

Click OK

A number of duplicates may be made at one time and these can be offset from the original, and one another, by the specified longitudinal, transverse and vertical spacings.

If the Respect Bonding box is ticked, surfaces which are bonded will be selected and copied together.

Moving Surfaces

Surfaces may be selected and moved relative to one another. This can be achieved by freeform dragging of the surface or by typing in a numerical offset.

Freeform Movement:

Movement is made in the plane of the window that is being used, or in the case of the

Perspective window, in the plane most perpendicular to the current view. To select a surface for movement

Select Move Surface - Freeform from the Surfaces Menu.

The move cursor will be displayed.

Position the cursor over any control point.

Click and drag the surface to the new location.

An outline of the surface will display the position of the surface while it is being moved.

Page 113

Chapter 5 Using Maxsurf

Release the mouse button.

On releasing the mouse button the surface will be displayed again at the new location.

Move Surface will move all surfaces bonded to the surface that is being moved. Note that all these surfaces must be unlocked.

Numerical Movement:

To move surfaces by a specified amount:

Select Move Surface - Numerical from the Surfaces Menu.

Select the surfaces to be moved and specify the amount that they should be moved in the longitudinal, transverse and vertical directions.

Locked surfaces or those which are bonded to locked surfaces cannot be selected.

Page 114

Size Surfaces

The Size function allows a designer to scale and re-proportion a surface or group of surfaces by their principle dimensions. This function is particularly useful when modelling geometrically similar variations from a parent design, and also allows precise specification of principle design parameters.

To resize a design

Select Size from the Surfaces menu.

Select which surfaces you wish to resize.

Do this by selecting the surface names from the check boxes on the left hand side of the dialog. When a single surface is selected the size displayed will be the overall dimensions of that surface. When multiple surfaces are selected the size displayed will be the overall dimensions of all selected surfaces.

Select whether you wish to use proportional scaling.

Chapter 5 Using Maxsurf

For example, if you wish to maintain a length/beam ratio, tick the boxes of the dimension to be scaled proportionally (length and beam). When any of the dimension boxes are changed all boxes selected for proportional scaling will be changed in proportion.

Similarly, length, depth and beam may be scaled simultaneously, to produce a geometrically similar vessel, by ticking all three boxes. The desired length, depth or beam may be entered and all dimensions will be scaled proportionally. The dimensions will follow in proportion from the time that their proportional scaling boxes were ticked.

Select and edit the appropriate size boxes to alter the size.

You may do this by either editing the text directly or by using the scale up / scale down arrows at the right hand side of the size boxes. Dimensions may be entered in any units by specifying the appropriate suffix.

Note:

Only the actual surfaces are changed by resizing. The grid spacing does not change as the hull is resized. This means that you may need to reset the grid to accurately reflect a new waterline length.

Markers may be scaled in the same proportion as the hull or may be left as they are. Tick the re-scale markers box to scale the markers with the surfaces.

You can size different surfaces by different amounts. This can be done by:

Selecting the first surface(s) you wish to resize

Resize them (as described above)

Deselect these surfaces and select the other surfaces you wish to resize

Resize these surfaces

Repeat for all the surfaces you wish to resize

Click OK

Flipping Surfaces

Surfaces may be flipped about specified planes: longitudinally, transversely or vertically.

The actual mirror plane may also be specified, and need not be about the origin. At the same time you may also create a duplicate of the original surfaces.

Select Flip Surfaces from the Surfaces menu.

Select the surfaces you wish to flip.

If you are duplicating the surfaces, they need not be unlocked since the original surfaces will remain unchanged. If you are not duplicating the surfaces then they must be unlocked. If you choose Respect Bonding, bonded surfaces will be selected together. If you are not making duplicates, all the bonded surfaces must be unlocked.

Specify the reflection plane.

For example, if you wished to make a symmetrical catamaran hull, with a centreline spacing of 8m, you would design one side of the hull, move it transversely 8m then flip and duplicate it about the 8m transverse plane.

Page 115

Chapter 5 Using Maxsurf

Flipping about the longitudinal direction could be used to produce a double-ended design.

Rotating Surfaces

The rotation dialog allows multiple surfaces to be rotated simultaneously around a specified centre of rotation. Surfaces to be rotated are selected by clicking in the list of surface names.

The centre of rotation is specified numerically, and is displayed in the drawing windows as a small circle:

Page 116

The selected surfaces will be rotated about the rotation point by the angles chosen.

The centre of rotation (Reference Point) may be moved by double clicking on it in one of the design views and entering its new position numerically:

Chapter 5 Using Maxsurf

Aligning Surfaces

Two surfaces can be aligned by selecting one control point from each surface. The second control point will be moved, along with its entire surface, so that it aligns exactly with the first control point.

To align two surfaces

Select a control point from the surface to remain fixed.

Hold down the Shift key.

Select a control point from the surface to be moved.

Select Align Surfaces from the Surfaces menu.

The second surface you selected will be moved so that the two control points become coincident.

Page 117

Chapter 5 Using Maxsurf

Trimming Surfaces

A surface's boundary and any intersections with other surfaces create regions which may be made visible or invisible. A surface that has invisible regions is said to be trimmed. A surface that intersects the trimmed region may be referred to as the trimming surface.

When to Use Trimming

Trimmed surfaces allow complex shapes to be modelled in Maxsurf. Trimming is most likely to be useful when the surface is fair but there are discontinuities in the edges of the surface or a hole has to be cut in the interior.

Typical applications:

Deck edges

Transom

Propeller tunnel

Bowthruster

Non-tangential Skeg / Keel - hull transitions

Superstructure penetrations through decks

Another reason to use trimming could be when two surfaces are combined to form one shape, while they do not have the same properties such as stiffness or number of control point columns.

Page 118

An example of a Chined hull using trimmed surfaces. It is difficult to control the shape of the intersection line using two trimmed surfaces. In this case it is often preferable to use bonding.

Chapter 5 Using Maxsurf

The disadvantages of using trimming for this purpose are:

No or little control over the shape of the intersection line of the two surfaces, especially if the intersection line is quite shallow (eg a propeller tunnel with a smooth transition with the hull)

It is more difficult to make changes to the model whilst maintaining trimming information. The trimming is easily lost.

It is often better to use bonded surfaces when two surfaces have to be combined into one shape.

Note:

In general it is recommended to use trimming to create discontinuities in the surfaces edge or holes in the surface interior.

Instead of trimming you can often also choose to use bonded surfaces. One of the main advantages of using bonded surfaces is the ability to join two surfaces and have control over the intersection shape. Models with bonded surfaces are easier to make changes to and export to other programs. See

When to Use Bonding on page 127.

Trimming Concept

Maxsurf uses the concept of a 'region' to define an area of a surface that may be visible or invisible (trimmed off). These regions are defined by the boundaries of the surface and any intersections that the surface has with any other surfaces.

Before trimming any surfaces, it is useful to check that the surfaces intersect properly.

Since, if this is not the case, it will not be possible to correctly trim the surfaces. To display the surface intersections, select Contours from the Display menu and place a tick next to the Intersections item. Surface intersections are normally displayed in yellow.

Check that these are as required.

Consider the sample shape below. The left picture below shows four surfaces: a planar surface which we wish to trim, a cylindrical surface and two arc-shaped surfaces. We wish to trim the planar surface to the boundaries defined by its intersections with the other three surfaces.

Initially, all of the regions on the surface are visible and selected. We need to de-select the regions that need to be trimmed off.

Page 119

Chapter 5 Using Maxsurf

All regions are initially selected, regions to be trimmed off are removed by clicking in the unwanted region.

Once we trim off the unwanted regions we are left with the required shape.

Perhaps the most important thing to remember is that for a region to be used as a trimming region, it must be fully bounded. In other words, the perimeter of the region must be fully closed. If a perimeter is not closed, a region cannot be properly formed.

The diagrams below explain the difference between closed and unclosed regions.

GOOD: (Closed regions)

POOR: (Unclosed regions)

Page 120

Chapter 5 Using Maxsurf

Note:

Maxsurf will find all the closed areas defined by the surface edges and any intersections. Even though two of the three intersections do not define fully bounded regions, when placed together, Maxsurf will find both regions 2 and 3.

In this example, the intersections do not define fully closed regions, so Maxsurf will find a single region, which covers the entire surface.

Trimming a Surface

First have a look at the following flowchart giving an overview of the trimming steps:

Start State

Step 5: Repeat

Trim other surfaces (optional)

Step 1: Turn trimming on

1 a. Trimming Gray

1 b. Trimming Invisible

Maxsurf in Trim mode

Step 2: Start Trimming & Select

Surface

2 a. Surfaces | Start Trimming | <Surface>

2 b. Right click on any contour/edge/intersection

2 c. Right click on surface in Assembly window

Surface Trimmed

Surface regions highlighted

Step 4: Trim Surface

4 a. Ctrl + T

4 b. Right click anywhere in screen and select Trim <Surface>

4 c. Surfaces | Trimming | Trim <Surface>

Surface Regions

Selected

Step 3: Select Regions to trim

Regions in grey will remain visible

Note

It is important to note that after you have taking step 2, you have to do steps

3 and Step 4 as well. Maxsurf will continue to ask you to select your regions and trim the surface until you finished Step 4.

Page 121

Chapter 5 Using Maxsurf

Example:

The following example shows a chined vessel. The boat has been modelled with a hull and a transom. The transom will be used to trim off the aft most sections of the hull.

To trim the hull surface

Turn on trimming by selecting Trim Gray or Trim Invisible from the Display -

Trimming menu.

Select the surface to be trimmed from the Surface - Start Trimming menu. (e.g.

Hull)

Maxsurf will show the hull surface with all the currently visible regions selected. In this case since the whole surface is visible, the whole surface will be selected. A selected region is shown with Gray shading.

To change the visibility of a region, click inside that region. The shading will be turned off or on as appropriate to show whether it is selected or not.

In this case, to trim off the area behind the transom (i.e. make it invisible), simply click on the region defined by the edges of the hull, and the hull's intersection with the transom. When this region is clicked on, the shading will disappear.

After clicking in the region to be trimmed off, the screen looks like this:

Page 122

Chapter 5 Using Maxsurf

The window may be zoomed, panned or rotated while regions are being selected.

Now that all the regions to be trimmed off have been selected

Choose Trim from the Surface menu (or use Ctrl T).

The contours on the design will now be recalculated and trimmed to the visible regions of the hull surface.

Trimming is often easiest in the perspective window with the “Half” display option turned on. This way you will only see the actual surfaces and not their mirror images.

Rotate the view direction so that you can select the desired region. You can zoom and pan the design whilst trimming; however, you cannot change window.

Displaying Trimmed Surfaces

Maxsurf provides the option of displaying trimmed contours in Gray or ignoring trimming altogether.

The Trimming command in the Display menu controls how Maxsurf will display trimmed surfaces. If Trimming Off is selected, Maxsurf will not display or recalculate any trimmed surfaces. This provides a method for making changes to the design without the overhead of recalculating the surface trimming after each change.

If Trim Gray is selected, Maxsurf will trim off any parts of the contours that are not in the visible regions of the surface, and show the trimmed off parts in grey.

If Trim Invisible is selected, Maxsurf will trim all contours to the visible regions of the surface and not display the trimmed contours.

If the trimming mode is set to off, and then turned on (or Gray), Maxsurf will find all the intersections, and attempt to reform any trim regions that you have selected. For example, you could work in low precision with trimming turned off, and switch to high precision with trimming turned on to have a more accurate look at the design without having to re-trim the design.

Page 123

Chapter 5 Using Maxsurf

In some cases, if the design has been substantially changed, it may be necessary to retrim some surfaces. It is possible for a complete surface to be trimmed away and hence invisible when trimming is turned on, if this happens use Trim Gray to make the surface visible or untrim the surface; see

Untrim Surface

in the next section.

A good design will trim consistently at all precisions. If you find that the trimming behaviour changes at different precisions, your surfaces may not intersect consistently as you change the precision. The best way to overcome this type of problem is to increase the amount by which surfaces overlap.

Also be aware that you may loose or change trimming information if you add new surfaces or move existing surfaces or control points so that the trimming regions change considerably. It is generally best to do the trimming when you have virtually completed the design.

Untrim Surface

The trimming information for any surface may be removed by selecting Untrim - Surface name from the Surfaces menu. Only surfaces that have been trimmed are listed in the

Untrim menu.

Note

Only visible surfaces are listed in the trim menus.

Trimming Rules

Trimming is an extremely powerful tool to model a wide variety of shapes using surfaces. However, trimming is also a common cause of difficulties with the surface model that can easily be prevented by following the guidelines below.

1: Closed regions

Make sure the region you wish to trim is completely enclosed by intersection lines or edge lines.

Symptom: the region cannot be selected

Check the intersection line carefully by zooming in.

Check the centreline control points are on the centreline (do a multiple selection and a control properties, check offset = 0).

2: Overlap

Use sufficient overlap on the trimming surface. Plenty of overlap helps to identify remnants of untrimmed surfaces, makes trimming easier, makes it easier to change the trimmed surface without losing trimming information etc.

Symptom: region cannot be selected, precision settings affect trimming. See images below for explanation why precision can affect trimming.

Never put the trimming surface’s edge exactly in the plane of the surface that you want to trim.

3: Over-compacted control points

Do not over-compact control points to create knuckles in the surface. See

Discontinuities and Feature Lines on page 166.

Page 124

Chapter 5 Using Maxsurf

4: Surfaces exactly on top of each other

Do not place two surfaces exactly on top of each other. This often happens during a Duplicate surface command without adding any spacing between the surfaces.

Symptom: nothing happens after Start trimming is selected

Make sure the surfaces are sufficiently spaced so that there is no maze of intersection lines visible.

5: Make sure trimming works at medium & highest precision

It is important to make sure the model trims at medium and highest Surface

Precision

. This guarantees that the model can be transferred to other programs without any problems. Sometimes it may be better to use bonded surfaces as well, see

When to Use Bonding on page 127.

No trimming region at lowest precision

Page 125

Chapter 5 Using Maxsurf

Trimming region at medium precision

Not only Maxsurf uses the trimmed surfaces for its calculations, also the other programs in the Maxsurf suite require the model to be trimmed properly.

All trimming rules originate from the trimming concepts, so make sure you have read the

Trimming Concept section on page 119.

Page 126

Chapter 5 Using Maxsurf

Bonding Surfaces

Maxsurf allows you to join two surfaces together along a common edge so that the two surfaces behave as one larger surface. This procedure is referred to as Bonding. The edges may be in the same surface, or in separate surfaces.

Bonding is an extremely powerful tool to help you create all kinds of features such as areas with specific radiuses, chined transitions etc. Aside from that Maxsurf has the capability to enforce specific tangential continuity across a bonded edge.

Bonding Rules

Two rules govern which edges may be bonded together:

1. The two edges that are to be bonded must share the same number of control points along their respective edges.

2. The two edges must share the same stiffness in the direction of the edge.

When to Use Bonding

Bonded surfaces are typically used to achieve particular design features where different types of surfaces or surfaces with different properties have to be used.

Typically a bonded surface is used to achieve a combination of regular hull surfaces:

Areas with a specific radius using conic surfaces: bilge, bowcone, transom-hull transition

Areas with no curvature using linear surfaces: flat plate

Areas where you require a different stiffness in the direction other than the direction of the edge. For example a transition from transverse stiffness 5 to transverse stiffness 3 along a longitudinal bonded edge.

Example applications

Page 127

Chapter 5 Using Maxsurf

Knuckles in the hull, chines

Bowcones

Bilge radiuses

Flat of sides, flat bottom plate

Box shaped models, deckhouses that require plate expansion

Bulbous bow transition into hull

Tangential keel – hull transitions

Page 128

Example of a model using bonded surfaces; bow cones, swim platform, radiuses and large fillets.

The advantages of using bonding are:

Tangent transitions between surfaces with different properties.

Control over the shape of the bonded edge.

Knuckles can be created without adding a lot of extra control points as opposed to using compacted control points.

Model transfers into other programs more easily (no trimming problems)

By dividing the model up into different panels, the plate development can be a lot easier in Workshop. You can use the Develop Surface command in Workshop without having to subdivide the surface.

The disadvantages of using bonding are:

It can sometimes be difficult to change the surface shape of the bonded surfaces due to tangency constraints. Applying the tangent transition at a later design stage and some practice can solve this.

Certain changes, such as changing the number of control points on the edge or the stiffness of the edge, affect both surfaces. This may result in:

o

A large number of surfaces (use the Assembly window to manage large number of surfaces)

o

A large number of control points

Bonding two Surfaces

Two edges need to be selected for bonding. The first edge selected will remain stationary in space while the second edge is moved to exactly match it. The process of bonding may be performed by using the following steps:

Chapter 5 Using Maxsurf

Select the edge that you wish to remain stationary first,

While holding the Shift key down, select the second that you wish to move and bond to the stationary edge,

Choose Bond Edges from the Controls Menu and select the type of tangency you wish to apply to bond the edges together.

Or,

Select any control point, excluding corner points, from the edge that you wish to remain stationary first,

While holding the Shift key down, select any control point, excluding corner points, from the edge that you wish to move and bond to the stationary edge,

Choose Bond Edges from the Controls Menu and select the type of tangency you wish to apply to bond the edges together.

Corner points cannot be used to select edges, as they fall on two edges simultaneously, and so do not uniquely define one particular edge. Hence edges that you wish to bond must contain at least one intermediate control point.

Only two edges may be bonded together. However, if you wish more surface edges to be bonded you can manually bond the third edge by compacting and grouping the control points and make the surface stiffness’s the same.

Also see:

Advanced - Transpose on page 168 for information on how to swap rows and

columns.

Bonding with tangent continuity

Maxsurf has additional options for bonding together two surface edges while maintaining overall fairness across the surface edge. This is particularly useful in situations where it is necessary to create a number of surfaces in an area of the hull but no discontinuities are desired. Maxsurf has three options to bond together two edges

No Tangency

Approximate Tangency

Strict Tangency

No Tangency:

Ensures that each control point along the bonded edge maintains the same location as the corresponding point on the other surface and the surface has the same stiffness in the direction of the bonded edge.

Page 129

Chapter 5 Using Maxsurf

Original surfaces to be bonded

Bonding with No Tangency, points on edge share same location

Approximate Tangency:

Ensures that the two control points in the same row or column perpendicular to the edge remain in a straight line. This is the same effect you can get by using the

Align to Vector command and it helps ensure that the surfaces share a common tangent direction across the edge. In some cases, particularly when there is significant twist in the surface, this is not sufficient to guarantee tangency and the third bonding option must be used.

Page 130

Approximate Tangency – Rows are colinear across the surface edge

Chapter 5 Using Maxsurf

Strict Tangency:

Ensures both that each row or column running across the surface edge is kept in alignment with the corresponding row or column on the other surface, and also that the next control point on each side of the edge is kept at an equal distance from the edge. This guarantees tangent continuity in all cases.

Strict Tangency – Rows are co-linear across surface edge and points are equal distance from the edge

After bonding with a tangency constraint, and points either side of the edge are moved, the points on the opposite side of the bonded edge will move in the opposite direction to maintain continuity. If a point on the edge is moved, then both adjoining points will be moved in the same direction and by the same amount.

When bonding two edges together using tangency constraints, some control points will be moved by Maxsurf to ensure continuity. In this case, the rule as to which points remain unchanged and which points are modified is the same as that used with simple bonding. The first surface selected is treated as the master surface and is not modified in any way. The second surface selected is regarded as the slave surface, meaning that

Maxsurf will modify points in this surface as required to meet the constraints.

Viewing bonding types

Positioning the mouse cursor over a bonded edge will display both edge names and the continuity constraint in the bottom left of the status bar:

The following types of bonding annotations are possible:

C0 = No Tangency

C1 Lenient = Approximate tangency

C1 Strict = Strict Tangency

If a bonded edge is selected, the bonding constraint will be displayed ticked in the

Bonding menu:

Page 131

Chapter 5 Using Maxsurf

Changing bonding types

You can change the type of tangency easily by simply selecting a bonded edge or a control point on that edge, excluding corner points, and re-apply the bonding.

Page 132

Selecting a shared control point on a bonded edge.

Tip:

In practise you may find it more convenient to use “no tangency” in early stages of design and then apply tangency later when you get to the fairing stage of design. This is mainly because the control points move on both sides of the bonded edge when tangency constraints are used.

Unbonding

Any two edges may be unbonded by selecting the bonded edge or a control point on that edge, excluding corner points, and choosing Unbond from the Controls menu. Once the edges are unbonded they are free to move independently.

Bonding within a Surface

Edges within a surface may also be bonded to one another as long as they follow the requirements of number of control points and stiffness. If you wished to form a closed surface, you might start off with the following net arrangement, with the object being to bond the two edges as indicated.

Chapter 5 Using Maxsurf

This net would generate a closed surface joined along the bonded edge. To highlight the bonded edge as shown, select the Bonded Edges option from the Contours dialog.

Commands Affected by Bonding

Bonding can effectively combine two surfaces to form a larger surface. As a result, commands that previously worked on single surfaces treat bonded surfaces as one.

Examples of this are:

Adding and Deleting of controls, where the row or column extends across a bonded edge.

Surface locking, where all surfaces that are bonded together are locked or unlocked in unison.

The Size Surface function, i.e. bonded surfaces cannot be sized independently.

Surface movement commands such as Move, Flip, Rotate and Align.

Page 133

Chapter 5 Using Maxsurf

Fitting Surfaces

Maxsurf has some extremely powerful built in tools for fitting surfaces to existing marker data. These marker data may be from an existing design which has been imported from a DXF file or perhaps a table of offsets.

This version adds a new surface fitting function to Maxsurf. This function differs from

Prefit in that it uses a Genetic Algorithm to optimise both the surface fit and net fairness, resulting in better quality control point nets. It is however significantly slower than

Prefit with quality fits taking several hours. At the moment it is restricted to fitting one surface at a time, however this will be changed in future to fit multiple surfaces.

There are also various tools to assist with manual fitting to existing designs. Users will see many additional features relating to markers, and these have been collected in the new Markers menu.

Other main features include the ability to load scanned images into the background of the design views, OpenGL rendering and a Assembly window, which is very useful for managing complex, multi-surface designs. These features are described in greater detail below.

Surface Fitting with Genetic Algorithms

The Genetic Algorithm (GA) is an advanced optimisation method based on a simulation of the process of evolution. Although slow, GAs are excellent for solving problems with large numbers of dimensions and constraints. The surface fitting problem falls into this category, as it is not sufficient to simply create a surface that is a close fit to the data points provided, it is also desirable that the surface be fair and that the control point net be smooth and regular.

Genetic Algorithms start by creating a population of individuals with a small amount of random variation. In the case of surface fitting, a population of usually 25 to 50 surfaces is created based on an initial example surface. Each individual in the population is made unique by randomly moving one or more control points a small distance.

Once the initial population has been created the system simulates evolution by repeating the following steps until a solution is found that meets the fitting criteria sufficiently well.

Measure the fit of each individual surface to the data points and give it a score based on its quality of fit, fairness and net regularity. Rank all the individuals from best to worst.

Repeatedly choose two individuals as parents, with individuals being chosen in proportion to how highly they were ranked in step 1. This means that the most successful individuals produce the most offspring in the next generation.

Create members for the next generation by choosing some surface control points from one parent and the remainder from the other parent. Occasionally include a small amount of random control point movement to provide some mutation from generation to generation.

The result is a population that progressively gets closer to an ideal solution of the problem, with poor solutions being eliminated. The highest ranked individual in the final generation is the best solution.

Page 134

Chapter 5 Using Maxsurf

Advantages Over Prefit

Prefit is already capable of quickly fitting a simple surface to a table of offsets, however it has several disadvantages:

Ordered data points.

Prefit requires that data points be ordered in consecutive columns from the stern to the bow. Points within each column should be in the correct order.

Density of data points.

Prefit has problems if the data points are unevenly distributed over the surface.

Poor net of control points.

The resulting net of control points from the Prefit fitting process is often not suitable for modification in normal design work. Columns and rows may be skewed and be irregular in their layout.

Poor fairness.

Even when the Prefit surface fits the data closely, it is possible for it to contain significant unfairness.

Although much slower, the Genetic Algorithm fitting method has several advantages over Prefit.

Data may be unordered.

It is not necessary to organise data into rows or columns, nor is it necessary for points to be sorted into a particular order. The GA fitting method can handle randomly ordered data with no problems.

Data may be of varying density

It is possible to have more points concentrated in areas of greater curvature or detail.

Regular and smooth net

Resulting control point net tends to be regular and smooth with even spacing of rows and columns that tend to be orthogonal to one another.

Fair and close fit

The resulting surface tends to be fair as well as fitting the data points closely.

Markers

Before executing the fitting function it is necessary to set up the markers and create an initial surface. Fortunately, the conditions that the set of marker points have to meet are much less restrictive than those required by Prefit.

It is important to have a reasonable number of data points defining the edges of the surface. If there is a discontinuity in an edge it is better to create some extra data points to form a fair edge and model the discontinuity using trimmed surfaces at a later time.

There is no limit to the number of data points you can use, however the more points you use the longer it will take to find a solution. It is unlikely that using a very large number of points will improve the overall quality of fit, so it may be worth pruning down the original table of offsets data if there is more than about 100 points.

When Maxsurf first scans the data points for fitting it automatically finds the edges of the implied surface. If you do a brief fit, say one generation, and then exit the dialog you will see that the edge points are coloured red while the interior points are coloured blue. If you see an interior point that is coloured red it means that Maxsurf has had difficulty with that point probably because it is nearly a duplicate of another point.

Page 135

Chapter 5 Using Maxsurf

Duplicate points are automatically handled by the fitting process; however points that are simply very close together can cause a problem. It is not so easy for Maxsurf to detect and ignore these. If you see an interior point coloured red, it is usually best to delete that point and continue.

Initial Surface

It is also necessary to set up an initial surface for the fitting process. This should have what you think will be the right number of rows and columns as well as having transverse and longitudinal stiffness set appropriately. The surface should have its rows and columns spaced evenly and the corners of the surface placed close to their final positions.

The Genetic Algorithm will use the initial surface as a starting point, so the closer it is to its final configuration the better. It is not essential to get it near to the data points as long as the overall layout of the net is regular.

If you are able to set the corner control points to exactly the right location, or if you are able to manually fit the edges of the surface to your satisfaction, these can be locked during the fitting process with a resultant speeding up of the calculations.

Fit Surface to Markers Command

Please note that the Markers - Fit Surface to Markers command is only available if you own a licensed copy of Prefit (see below).

Once the markers and the initial surface have been created it is time to fit a new surface.

Selecting the Fit Surface To Markers Command from the Markers Menu brings up the following dialog box.

Page 136

As a first step it is necessary to specify which surface you want fitted to the available markers. If your design only has one surface than no options will be shown in the

Surface pull down menu, however if your design already has more than one surface you will be able to choose between them.

If the corners of the selected surface are always assumed to be in their correct locations and Maxsurf will not move them during the fitting procedure. You can use the Snap

Control Point to Marker function in the Markers menu to help you fit the corners.

If you do not wish Maxsurf to attempt to fit the surface edges, select Lock Edges. You would do this if you were happy that the surface is already adequately fitted to the edges of the data points. You can use the Fit Edge to Markers function in the Markers menu to help you fit the edges.

Chapter 5 Using Maxsurf

The two remaining options constrain the surface so that bottom concave and

tumblehome at the hull side are not permitted. If you know that your design contains these features then one or both of these boxes should be unchecked.

Once you have specified these options it is simply necessary to click on the Fit button.

Once Maxsurf has fitted the surface it will add values to the RMS Error Achieved and

Generations Tested fields.

The RMS error value is the Root Mean Square error. This is the square root of the sum of the squares of all of the errors between every data point and the fitted surface. It is a good measure of overall fit, but it should be regarded as an average error rather than a worst error value.

Once you have clicked the Finish button you will be returned to the Maxsurf viewing windows where you will see the new fitted surface.

If the fitted surface has undesirable features, or if you think it can be improved by changing the control point layout, it is possible to modify it and use it as the starting point for further fitting.

Modify the fitted surface to correct any problems that you have detected, and then choose Fit Surface to Markers again. The modified fitted surface will be used as the initial surface for any further fitting, and the Genetic Algorithm will attempt to incorporate your changes into the design.

Once the fitting process has started and the initialisation has been completed, you may exit the fit before the specified time has elapsed by clicking on the Cancel button or hitting the Escape key. Note that the response to this may be a little slow. This is because

Maxsurf must finish the current optimisation cycle before exiting. After exiting, you will have the current best-fit surface. If required you can re-start the fitting progress, or close the fitting dialog.

Licensing of Fit Surface to Markers command

Please note that the Markers - Fit Surface to Markers command is only available if you own a licensed copy of Prefit.

If you own Prefit, you will probably want to enable the Fit Surface to Markers command in Maxsurf. Do this by starting Maxsurf and selecting Activate Prefit from the Edit menu.

Now exit and restart Maxsurf. If you have a valid access code for Prefit, Maxsurf will start automatically and the Fit Surface to Markers command will be available in the

Markers menu. If the current access code is not valid, you will be prompted for a new one.

Type in your access code, and click OK. If the correct access code was entered, the Fit

Surface to Markers command will be available in the Markers menu.

If for any reason you wish to turn off the Fit Surface to Markers command, select

Deactivate Prefit from the Edit menu. Note that you will have to exit and restart Maxsurf for this to take effect. The most likely time you might want to do this is if you are on a network, using a network copy protection device, and need to release a Prefit licence so that another person may use it.

Page 137

Chapter 5 Using Maxsurf

Generating a Grid from Markers

It is also useful to use the Generate Grid from Markers command to set up the grid

(stations, buttocks and waterlines) for the surface you have just created from the marker point data. Stations are generated at the markers’ longitudinal position; buttocks at their transverse offset; and waterlines at their vertical location:

Page 138

You have the option of selecting which items of the grid to generate (stations, buttocks and waterlines). For each of these you have the option of deleting and replacing the existing grid data or adding to the existing grid data. You can also specify how many markers must be at the same longitudinal position, transverse offset or vertical location for a station, buttock or waterline (respectively) to be added. Finally, you can specify a tolerance for markers to be considered at the same plane: for example if the Marker plane separation tolerance were set to 0.001mm then markers up to 1mm apart (in longitudinal position, transverse offset or vertical location) would be considered to be in the same plane and the station, buttock or waterline location would be averaged.

When

Importing DXF Markers or GHS markers, Maxsurf can automatically generate the

grid. The section grid is generated automatically only if no existing sections are defined.

If sections are already defined then imported markers that lie within 1cm of a section will be allocated to that section, otherwise they will be left unallocated.

Assisted Manual Fit to Markers

The additional features which assist with manual fitting are described below:

Snap Control Point to Marker

This command may be used to snap a single control point to a marker. In any of the design views, select the marker, then select the control point (whilst holding down the

Shift key). When you select Markers - Snap Control Point to Marker, the control point will be made coincident with the marker, in addition the marker's properties will be updated so that it is now linked to the surface to which the control point belongs; if the control point lies on a corner or edge, the marker will be linked to the corresponding corner or edge, otherwise the control point will be linked to the surface's interior.

You may only snap one control point to one marker.

Chapter 5 Using Maxsurf

Fit Edge to Markers

In a similar way that the Snap Control Point to Marker moved a single control point onto the marker, the Fit Edge to Markers will fit the selected edge to the selected markers.

Select the markers that lie on the surface's edge. Note that the order in which you select the markers is important, as this will be the order in which the edge is fitted through the markers. However, you can override this ordering once you select the Fit Edge to

Markers command:

If you are fitting a longitudinal edge (control point row), then you must select the markers from left to right. If you are fitting a transverse edge (control point column) then you must select the markers from bottom to top. In the fitting process the control point in the first row or column of the edge will go to the first selected marker and the control point in the last row or column of the edge will go to the last selected marker.

You may select any number of markers to define the edge, but you must select either only one edge or only one control point to define the edge (this cannot be a corner control point).

When fitting the edge you can select whether you wish the corner points to remain where they are or to be included in the fit.

You should add the required number of control points to the surface and select the required surface stiffness prior to fitting the surface edge to the markers.

When a surface edge has been fitted to markers, the markers are associated with that particular surface edge. (You can also directly associate markers with a particular surface edge by editing the marker properties in the Markers table or Markers properties dialog.)

Once markers have been associated with a particular surface edge, you can fit the surface edge to its markers by simply selecting a control point in the edge (other than a corner control point) and selecting Markers | Fit edge to markers. This is very useful as it allows you to easily change an edge’s properties (number of control points and stiffness) and refit the edge to obtain the best possible fit to the markers without having to always reselect the markers. It also makes it very easy to add or remove markers to those used for the edge fitting.

Page 139

Chapter 5 Using Maxsurf

Again, the markers' properties are updated to reflect the surface and edge that have been fitted.

Smooth Surface Interior

Once you have fitted the surface's edges, the interior control points, displayed by turning on the surface net, may be very irregular. This command uses a three dimensional smoothing procedure to smooth the surface's interior control points to follow the shape defined by the surface's edges. This will give you a much better starting point for faring.

Smoothing is done on the current surface; select a control point in the surface to make it the current surface. The net must be turned on for this command to become active.

Page 140

Before smoothing, having fitted the edges

After smoothing the interior

Chapter 5 Using Maxsurf

Measure Surface Errors

This function may be used to determine the quality of the fit of the surfaces to the markers. The marker's error is the distance between the marker and the closest point on the surface. A dialog with a summary of the RMS error (average error for all the markers linked to that surface), the maximum error and the marker where that occurs for each surface will be displayed.

Also the error of each marker associated with a surface will be calculated and displayed in the Error column of the Markers Table.

Measure Error can be called up with any of the drawing windows or the markers window topmost. Note that the error is calculated using the current surface precision setting.

Procedure for Assisted Manual Fitting to Markers

The steps for manually fitting to a set of markers is outlined below:

Create a new design and add a surface

Insert an appropriate number of control point columns and rows

Specify suitable longitudinal and transverse stiffness’s

Load the markers file

This file can be either a DXF file (File - Import - DXF markers) or a table of offsets as a tab delimited text file. Remember that once you have specified how many markers you have, you can copy and paste from the Markers Table to other applications, such as spreadsheets.

Alternatively, you can digitise your design, by loading a scanned image (File - Import -

Background Image) and then manually adding markers using the scanned images as a guide.

Fit the corner points of the surface

The corner points of your surface should be fitted to the markers chosen to be the corners of the set of markers. This can be done manually by dragging control points into position, but is most easily achieved using the “Snap Control Point to Marker” command.

Page 141

Chapter 5 Using Maxsurf

At this point it is possible to go straight to the surface fitting procedure, however there are several steps that can be taken to improve the initial quality of the surface. These steps are not essential, but can dramatically speed up the surface fitting process. The steps include:

Fit surface edges to the markers at the edges of the set of markers.

This may be done to any or all of the four surface edges. If necessary, compact the required number of control points at the location of knuckles and hard points in the surface.

Smooth the surface's interior using the Surfaces - Smooth Surface Interior command.

The Smooth Surface Interior command uses the shape of the surface edges as a guide for smoothing the surface interior, so the surface edges should be a reasonable fit to the edge points before this command is used.

You should also do the following to assist is viewing the output from the fitting process.

Define the station grid spacing to match that of the markers.

Link the markers to the correct stations

It may help to do this in the plan or profile views with the grid and grid labels turned on.

Turn on the Display - Markers - Markers for Current Station option.

Background Images

Maxsurf has the ability to display background images in each of the design views. Those in the Plan, Profile and Body Plan views may be re-positioned and resized to match the design and can then be used to assist in fairing to an existing design. The image in the perspective view is always displayed at full image size and from the top left corner; by using the zoom and pan control you can re-position your vessel in the scene.

Maxsurf has no built-in image manipulating commands, other than to control the position and scale of the image. Hence you must ensure that the image is in the correct orientation prior to loading into Maxsurf. It is also helpful if you make the background colour of your image similar to that of the Maxsurf background colour, since it will be easier to see the control points and other lines which are drawn over the top of the image by Maxsurf.

Some useful programs for image manipulation are listed below:

L View Pro www.lview.com

Paint Shop Pro www.jasc.com

Photo Shop www.adobe.com

US$50 approx.

US$99 approx.

US$609 approx.

Importing an Image

Maxsurf can load image files of the type jpg, gif, bmp and png. To open an image file, choose File - Import - Import Image Background (note you must have a design already open). If the image is not visible, check that the display option is turned on: Display -

Background - Show Image.

Page 142

Chapter 5 Using Maxsurf

When first opened, the image will be scaled so that it is displayed at full size at the current window zoom level. Once you have loaded the image, you can re-position it by locating the zero point in the image. The image will then be moved so that the image zero point is in the same position as the design zero point.

Setting the Zero Point

To set the image zero point, select Display - Background - Set Image Zero Point. Then click the mouse at the position in the image that is the design zero point:

When you click the mouse, the background image will move so that the point you just clicked lines up with the design's zero point:

Setting the Scale

You can specify a known position on the image to scale the image. For instance, with the example shown, we know that the transom is 8.6m aft of the zero point. So to set the scale of the background image, select Display - Background - Set Image Reference Point and click on the transom in the image:

Page 143

Chapter 5 Using Maxsurf

Page 144

A dialog will now pop up and you can specify the known distance and also whether it is a transverse or vertical distance:

Remember that in the Profile view, distances to the left of the zero point are negative, as are distances below the zero point; Maxsurf's positive directions are forward, starboard and up. Hence, in this case, we have specified that the distance to the transom is -8.6m from the zero point. The image is now re-scaled accordingly and the transom of the design matches that of the image:

Note that the aspect ratio of the image is always maintained. In this case, the design would have to be stretched vertically to match the image.

Remember that the images in all the views are independent so you can load a profile and buttock lines sketch into the Profile view, a sketch of the sections into the Body Plan view and a sketch of the waterlines into the Plan view.

Images in the Perspective View

The background image in the Perspective view can be used for generating presentation pictures. The background image remains in the centre of the screen, use the zoom and pan controls to place the Maxsurf design in the desired position over the background:

Chapter 5 Using Maxsurf

Note that the images are not saved with the design file, only the path name to the image file. If you change the directory of your images or their file names, Maxsurf will no longer be able to find them and the images will not be automatically loaded when the design is re-opened.

Page 145

Chapter 5 Using Maxsurf

Modelling Developable Surfaces

Developing surfaces in Maxsurf can be done using semi-automated procedure that is basically a combination of the following tools:

Generating Markers for Developable Surfaces on page 74, and

Surface Fitting with Genetic Algorithms on page 134.

The following Developable Surfaces Example

will show you how to develop a surface in

Maxsurf.

Developable Surfaces Example

The example described below uses the chine hull design,

WorkBoat_4Surface_BowCone.msd, which may be found in the Maxsurf\Sample

Designs\Workboats\ directory. However, it is necessary to delete the middle row of control points in the TOPSIDES surface so that it only has control point rows along its longitudinal edges.

Step 1: Creating Rulings

The first step is to design a hull using normal B-spline surfaces that have no intermediate rows - in other words having control points only along the longitudinal edges. These edges should be made as fair as possible and should have the minimum of inflections.

You should also set up a set of stations in the Grid dialog. Once you are generally happy with the hull form

Select the Surfaces | Surface Properties for the surface you wish to be developable.

Select Developable under Surface Type.

This will display rulings on the hull shape and the aim should be to get these rulings as regular as possible.

Page 146

Maxsurf does not automatically create a developable B-spline surface - it generates ruling lines, which are used as guides to allow you to see where the developable surface will lie.

Chapter 5 Using Maxsurf

When the rulings are viewed in the Body Plan window, small indicator points are displayed where each ruling intersects a section. You will see a discrepancy between the solid section line from the existing B-spline surface and the indicator points from the developable surface - this shows you how much the B-spline surface will need to be distorted to make it developable.

In other words, the indicator points are where the developable surface (between the two longitudinal edges) lies. The solid lines are where the B-spline surface actually lies. Your task, as the designer, is to add intermediate rows of control points to the B-spline surface so that you can make the B-spline surface match the developable surface to within acceptable tolerances.

These points allow you to see what shape the sections of your hull will have. The higher the precision you are using, the more rulings there will be, and the more points will be shown at each station. If a station has very few or no points displayed, it is usually because the section at that point is nearly straight and few rulings intersect the station.

You can increase the number of rulings by increasing the surface precision.

If all sections are displayed using the contours dialog, all sections will be marked on the rulings. If only one section is displayed, only the corresponding intersections of that section with the rulings will be visible. Remember that the current section is selected using the station indicators in the Control Box in the Body Plan window.

Step 2: End Ruling Line

When Maxsurf displays the rulings on a hull surface, it displays the final valid ruling, or end ruling, at each end of the surface in blue (markers colour), while normal rulings are in yellow (datum waterline colour). If you wish to get the ends of the surface straight (for example you may wish the surface to bond to a straight edged bow cone), you should move the control points on the edges to get the end ruling as parallel to the end of the surface as possible. This will occur when the tangents to the ends of the two edge curves lie in the same plane.

If the rulings cross through the end of the surface, then the end of the developable surface will not be straight (Remember that the rulings are straight lines in the developable surface.)

Page 147

Chapter 5 Using Maxsurf

For example, if point C in the above diagram is moved away from the centreline of the vessel, the rulings will change so that they line up with the edge of the bow cone (AB). If point D was moved towards the centreline by a small distance the rulings would change in a similar way. This is because lines AD and lines BC are approaching co-planarity. If the points are moved too far the rulings will once again run off the end of the surface, but from the opposite edge, as the tangents will be out of plane once again.

Page 148

One simple way of getting rulings parallel to the end of a surface is to use the Align to

Plane command. By selecting points A, B and D to define a plane and then selecting point C and choosing the Align to Plane command, point C will be moved into the plane defined by the first three points.

Note

We will now proceed to use the ruling lines to shape the internal surface into a developable shape. Because the ruling lines are created from the surface edges, it is important that you do not make any further changes to the surface edges since from this point onwards.

Step 3: Fit Surface to Rulings

Once an acceptable set of rulings has been created, the next step is to modify the B-

Spline surface to fit the rulings. To do this, we first need to generate marker points at the intersection of the ruling line and the transverse sections.

Select

Generating Markers for Developable Surfaces

from the Markers menu.

Once the markers have been generated, change the surface from Developable to B-spline so that rulings are no longer visible. At this time it is necessary to insert between one and three rows to model the inside of the B-Spline surface. In many cases, only one row is needed, but if some sections have a lot of curvature, two or three rows may be needed.

When the extra row of control points has been added, you should change the transverse stiffness from 2 (linear) to 3 (flexible).

Chapter 5 Using Maxsurf

Manual Fitting

The markers can be used as guides for manipulating the surface to make it as developable as possible. Your aim should be to adjust the internal control points so that the sections of the B-spline surface match the markers you have created. (The markers indicate where the developable surface intersects the sections.)

If the edges of the surface are changed, causing the rulings to be updated, a new set of markers should be created. Remember to delete any existing markers by selecting the Markers window and selecting Delete Markers from the Edit menu.

Then, recreate the markers using the Generate Markers for Developable Surfaces command from the Markers menu.

Automatic Fitting

Since the markers have been generated using the Generate Markers for

Developable Surfaces command, they have automatically been assigned to the correct surface and station.

This means that we can now use the

Fit Surface to Markers Command

from the

Markers menu (see page 136) to automatically fit the internal surface to the marker

points. This command is only available when Prefit is activated.

Page 149

Chapter 5 Using Maxsurf

Remember to lock the edges when you run this command.

See:

Activate/Deactivate Prefit on page 201 for information on how to activate Prefit

Surface Fitting with Genetic Algorithms on page 134 for more information on how

to use the Surface Fitting tools.

Step 4: Checking the developability of the surface

The level of developability of the surface can be checked in Maxsurf by rendering the surface and use the Gaussian curvature rendering mode.

See:

Surface Curvature on page 105 for information on the use of Gaussian curvature to

isolate areas where the plate will be less developable.

Page 150

Chapter 5 Using Maxsurf

Control Points

Within Maxsurf, a design is defined purely by the movement and positioning of a number of control points in space. The facilities for the display and manipulation of these points are therefore the most important part of the program, and should be studied carefully.

In the previous section we have seen how surfaces may be manipulated as whole objects.

Here we will look at the tools available for manipulating a control point or group of control points to achieve the desired surface shapes.

Adding Control Points

To increase the density of a control point net, columns of control points may be added in the Plan and Profile windows, and rows may be added in the Body Plan window.

To add a control point row or column

Select the Plan, Profile or Body Plan window, as appropriate.

In the Body Plan window you will also need to select a current column in which to perform the insertion. The current surface’s current column is indicated by a highlighted column marker in the Control Box. You can select a different column by clicking on a different column marker, or by selecting a control point in the desired column.

Note:

In cases where there is ambiguity as to which surface is being added to, you can give Maxsurf a hint by first clicking on an existing point in the required surface. Selecting a point in this way tells Maxsurf to begin its search for the correct insertion point in this surface.

If necessary, select the surface and column into which you want to insert the new control point.

Select Add from the Controls menu.

Position the Add cursor at the point where you wish to insert the new row or column.

Click the mouse button.

Page 151

Chapter 5 Using Maxsurf

Maxsurf will insert the new control point and also insert all other points in the column or row based on an average of the positions of existing points in the net. The new shape of the current surface will then be calculated.

If Maxsurf is unable to determine into which surface you wish to add the points, it is a good idea make all other surfaces invisible or to lock them to remove the source of ambiguity.

Deleting Control Points

The Delete command allows you delete a control point row or column to decrease the density of a control point net. Columns of points may be deleted from the Plan and

Profile windows, while rows of points may be deleted from the Body Plan window.

To delete a control point row or column

Select the Plan, Profile or Body Plan window as appropriate.

Control point rows may be deleted in the Body Plan; control point columns may be deleted in the Plan or Profile windows.

Select Delete from the Controls menu.

Position the jaws of the Delete cursor around the control point.

Page 152

Click the mouse button.

Maxsurf will delete the control point row or column and calculate the new shape of the current surface.

Deleting a row or column that contains one or more control points in a bonded edge will impact the bonded surface. If a row or column, which is part of a bonded edge, is chosen for deletion, you will be alerted to this fact by a dialog, through which you may then choose between cancelling, and deleting the row or column from both surfaces.

Moving Control Points

Control points may be moved, either individually, or as a group.

To move an individual control point:

Click and drag the control point to a new location.

Chapter 5 Using Maxsurf

To move multiple control points:

Select multiple control points using the selection box or the mouse and Shift key

Click on any control point from the selection and drag the selection to a new

location.

Constraining Movement

Any group or individual control point may be constrained in its movement by holding down the Shift key while dragging the control points. The constraint restricts movement to the vertical or horizontal directions. If you release the shift key, you are returned to unconstrained movement.

If a surface is symmetrical, its control points are constrained to lie all on one side of the centreline. You can override this constraint by holding down the Ctrl key while dragging the point.

Control Point Properties

It is possible to change values for control points numerically by double clicking on the control point.

A small dialog box appears containing data about the control point. You may select and edit any of the control point's coordinates, or its weighting value. You can also change these values in the table in the Control Points window.

It is also possible to change the properties of a selection of control points. To do this:

Select the control points, by either using the dragged selection box, or holding down the shift or control keys and selecting the individual points.

Select Control Properties from the Controls menu.

Page 153

Chapter 5 Using Maxsurf

The same dialog will appear, but only those values that are common between all the selected control points will be filled in. You can change any of the values and all the selected control points will have their respective values updated.

This function is useful for aligning columns of control points; see below:

Select the control points you wish to align:

Select Control Properties from the Controls menu:

Any data fields, which are common for all the selected control points will be filled in; any data fields which differ for the selected control points will be left blank. In this case the surface name and column number are the same for all the selected control points.

Type in the longitudinal position you wish to set for all the control points and click

OK.

Page 154

The selected control points are now all set to the same longitudinal position of –5.26m.

Chapter 5 Using Maxsurf

Snap to Grid

Maxsurf has a built-in facility to allow you to have your control points automatically snap to an evenly spaced alignment grid while they are being moved. You can control the spacing and use of this alignment grid with the Snap To Grid command from the

Controls menu. To specify an alignment grid:

Choose Snap To Grid from the Controls menu

Click the On button and enter a value for the spacing of the alignment grid

Click the OK button

The alignment grid is based around the current Zero Point and will change as the Zero

Point changes. For this reason it is advisable to lock the Zero Point when using the Snap to Grid option.

Snap to Grid only affects control point movements made with the mouse or arrow keys.

Fairing commands are not affected.

Display of Control Points

It is possible to display the Surface being designed together with a limited number of control points (the 'Shape' display), display the net of control points ('Net' display), or show both the shape and the net simultaneously.

Shape Display

When displaying the shape, the surfaces being modelled are shown with a limited number of control points. Surface contours may also be shown as required e.g. Sections,

Waterlines, Buttocks, Diagonals, Intersections, Bonded Edges or Parametrics.

In the Plan and Profile windows, the control points shown are the edges of each net, while in the Body Plan window the current column of each individual surface is shown.

Control points may be moved, and the change in shape viewed, at the same time. Each time the movement pauses for more than about half a second, the new shape will be recalculated and drawn. The ideal technique is to keep the mouse in motion until you wish to see the shape of the design for that control point position.

Page 155

Chapter 5 Using Maxsurf

Net display

When displaying the Net the entire network of control points is shown by itself. Any control point or group of control points may be selected and moved. The resulting shape is not shown until the Shape display is chosen again.

The Net display allows you to make rapid changes without reference to the hull shape, or to perform functions, such as aligning and smoothing, where a view of the net as a whole may be important.

It is also possible to display only the net rows or only the net columns. To control the net display, select the items under the Net sub-menu in the Display menu.

Masking the Net

In cases where you are dealing with a complex net of control points, it is sometimes very helpful to be able to select a particular group of control points to remain visible while the remainder of the net is hidden. This is the function of the Mask command.

It can be particularly useful to select the control points you wish to mask in one view and then to manipulate them in another view. For example, when fairing a bulbous bow, it can be helpful to mask the control points in the Perspective or Profile views and then manipulate the surface shape in the Plan view.

When working with a control point net with a large number of columns, it may be very confusing to try to work on particular points in the Body Plan window.

Page 156

Chapter 5 Using Maxsurf

By selecting all the points on one or two columns and then selecting Mask, only the portion of the net selected, and the area of the surface that it exerts an influence on, will be displayed. It will then be much easier to view and modify in the Body Plan or any other window.

When the Unmask command is selected, the entire net will be made visible again.

Manipulating Groups of Control Points

There are several commands that are useful for fairing a design. These operate on groups of control points: either controls within a particular row or column; a patch of control points in a surface or across bonded surfaces, or arbitrary control points.

The smoothing and straightening commands are particularly useful for manipulating the edges or features of a surface, e.g. creating a straight bow profile, producing a smooth, fair chine line, etc.

Smoothing may also be useful when applied to a patch of control points for maintaining a fair net and hence a fair design.

Page 157

Chapter 5 Using Maxsurf

The align functions are useful when you wish to place control points in the same vector or plane. The control points may be from the same or different surfaces. These functions are also useful for fairing across the edges of bonded surfaces. If the Align to Plane or

Align to Vector functions are called while holding the shift key down a constraints dialog box will appear. In this dialog you may specify movement constraints in certain planes.

The size function may be used to enlarge or reduce a portion of a design, by re-scaling a group of control points. In a similar way, certain areas of a design can be rotated by rotating the control points in that area. To re-size or rotate complete surfaces, please refer to the Size and Rotate commands in the Surfaces menu, these are described in the

Surfaces section.

Smoothing and Straightening - Rows or Columns

Any complete or partial row or column of control points can be straightened into a straight line, or faired into a smooth curve.

To smooth or straighten three or more control points

Click on the control point at one end of the group to be straightened.

This control point will be the control point at one end of the selection to be smoothed or straightened. If after selecting one point you wish to change your selection, simply click anywhere in the background of the window.

Hold down the shift key.

Click on the control point at the other end of the group.

This control point will be the control point at the other end of the selection to be smoothed or straightened. It should lie in the same row or column as the first selected control point. If you wish to change your selection after selecting a second point, release the shift button and start again with the first point.

To fair the control points, select Smooth Controls from the Controls menu and select the desired stiffness.

The stiffer the smoothing, the straighter the line will become. Smoothing is done in three dimensions.

or to straighten the control points, select Straighten Controls from the Controls menu and select whether you wish to straighten in 2D or 3D.

If you straighten in 2D, the control points will be forced to a straight line in the current view direction, leaving the third direction unchanged. This can be particularly useful for producing straight bow profiles or transoms; this is done by using the Straighten in 2D command in the profile view. Straighten in 3D will produce a straight line in all three dimensions.

Page 158

Chapter 5 Using Maxsurf

You can choose to undo a smooth or align operation by selecting Undo from the Edit menu.

Smoothing and Straightening may only be performed in a single surface; it may not be performed over two or more surfaces.

Note

The Straighten Controls and Smooth Controls commands only work for control points that belong to the same surface.

Smoothing or Straightening a Patch

The Smooth and Straighten commands in Maxsurf can also be applied to a patch of control points that spans more than a single row or column.

A patch is a rectangular grid of control points that can be as small as one row or column, or as large as the entire surface. Not all the points to be smoothed need to be selected as

Maxsurf will determine the size of the patch from the points that are selected.

For example, in the diagram above, if only points A and B had been selected (instead of using the selection box) Maxsurf would have smoothed exactly the same group of control points, since points A and B define the limits of the patch.

Page 159

Chapter 5 Using Maxsurf

To smooth or straighten a patch of control points, select them and choose Smooth

Controls or Straighten Controls from the Controls Menu. An example of a smoothed patch is shown above. If straighten had been applied in the previous example, the control point rows and columns in the selected patch would lie on straight lines.

Moving Control Points

This command may be used to move an area of a surface.

Select the control points you wish to move.

Choose Move Controls from the Controls menu.

In the dialog type in the desired movements.

Click OK.

Page 160

Resizing Control Points

The Size Controls command may be used to enlarge or reduce an area of a surface.

Select the control points you wish to resize.

Choose Size Controls from the Controls menu.

In the dialog type in the desired length, width and depth dimensions; proportional scaling may be achieved by ticking the Proportional Scaling boxes next to the dimensions.

Note that the values that appear when the dialog is first displayed are the dimensions of the bounding box containing the desired control points. To scale the control points, type in the dimensions of the new bounding box you wish the control points to occupy.

Choose the origin for the re-scaling in the Size About fields.

This will control the direction in which the control points are moved. The Size About point will remain unchanged when the control points are resized.

Chapter 5 Using Maxsurf

Click OK.

Rotating Control Points

To rotate a group of control points:

Select the control points you wish to rotate.

Choose Rotate Controls from the Controls menu.

Type in the rotations about each of the axes.

Type in the rotation centre.

Click OK.

Aligning Control Points

The align commands are for making groups of control points co-linear or co-planar. The

Align to Vector command aligns points along a 3D line in space, while the Align to

Plane command aligns points to a specified plane.

Align to Vector differs from Smooth and Straighten in that the points selected do not have to be in the same row or column, or even in the same surface. You may select any control points to define the vector or plane, and then align any control points with that vector or plane; the control points need not lie in the same surface. You must also select

all the control points to be aligned, patches may not be selected as they are in the Smooth and Straighten commands.

To use Align to Vector:

Page 161

Chapter 5 Using Maxsurf

Select two control points with the shift key held down.

While still holding down the shift key, select one or more additional points.

Select the Align to Vector command.

The first two selected control points define the vector; all subsequently selected points are moved to the point on that vector closest to their original position:

Before aligning, endpoints with vector defined by two middle points

With shift key held down, select two middle points to define vector

With shift key held down, select two end points to be aligned

Select Align to Vector; end points are moved to closest corresponding points on the vector

Page 162

Chapter 5 Using Maxsurf

This feature is very useful for ensuring co-linearity of control points either side of a bonded edge to ensure that the surface is slope continuous across that edge, or for creating a straight bow. Align to vector can also be used to ensure a smooth forefoot, going from the surface’s bottom edge to the bow; ensure that the corner control point and the two control points on each side, immediately adjacent to it, are co-linear:

Before alignment, discontinuity at forefoot

After alignment, smooth transition at forefoot

Align to Plane works in a similar fashion to the Align to Vector command, except that the first three points selected define a plane in space that all subsequently selected points are moved on to.

Page 163

Chapter 5 Using Maxsurf

Control points, other than those defining the plane, are moved to the closest position in the plane.

Page 164

This means that a line between the new and old positions of the point would form a line that was normal to the plane.

Chapter 5 Using Maxsurf

Compacting Control Points

The Compact function is used when you wish to position one or more control points precisely over an existing control point. This can be used to create a knuckle or discontinuity in the surface or to collapse a side to a point e.g. at the bottom of a bow cone (see

Discontinuities and Feature Lines on page 166).

To compact two or more control points

Select one control point,

This control point is the one that you wish all other control points to compact onto. It will remain stationary when you select the Compact function.

Hold down the Shift key and select one or more other control points.

These are the control points that you wish to compact to the first selected control point.

Select Compact from the Controls menu or type Ctrl+K.

This will compact all selected control points to the first selected point.

Note:

The Compact command does not hold the compacted points together permanently, i.e. if you select one with the mouse and move it, the other points in the same position will not move with it. If you wish all the points to move as one, select all the compacted points (with a selection box) and then select the Group command.

Also see:

Discontinuities and Feature Lines on page 166

Page 165

Chapter 5 Using Maxsurf

Grouping Control Points

Control point grouping is provided to help with the movement of multiple control points.

Grouping allows the movement of a number of control points that move as a whole whenever a single control point from the group is moved. To group several control points simply select the points that you wish to be in the group and choose Group from the

Controls menu or type Ctrl + G.

Note: It is possible for you to group together several groups that have been previously created, to create a single group of control points.

The Ungroup function performs the reverse of the Group function. Choose the group that you wish to ungroup by selecting a control point from within the group. Choose Ungroup from the Controls menu.

Single control points cannot be marked as grouped – you must select at least two control points to group them. If a control point is grouped to another which is subsequently deleted (by, for example, deleting the surface, row or column in which the control point lies) the remaining control point will become ungrouped unless there are other, undeleted, control points in the same group.

Group Versus Compact

It is important not to confuse the functions of the Group command and the Compact command. Group allows you to move control points simultaneously, even if they occupy different positions in space. Compact forces several control points to the same position in space, but does not force them to move simultaneously. If you wish to have several control points occupy one position and move together, you will need to select the

Compact command followed by the Group command.

Discontinuities and Feature Lines

It is possible to use compacted grouped control points as a means of introducing a discontinuity into a surface.

Consider a surface whose stiffness is set to flexible (order 3) in the transverse (column) direction. The following example shows how the use of two rows of control points can form a discontinuity in the surface.

Illustrated below is a Perspective view of the net and shape of a simple surface.

Page 166

If an additional control point row is added, and its points compacted directly on top of the existing intermediate control point row, a hard corner is created running along the surface, as shown in the following illustration.

Chapter 5 Using Maxsurf

The scope of the discontinuity may be changed by splitting the superimposed row in some of the columns.

By splitting the row at the right hand edge of the surface as shown it is possible to fade the hard edge out. The surface shows a smoothly curved section at its right hand edge and a section with a hard corner at its left hand edge.

To achieve a discontinuity of this type you need to compact several control points together. The number of points required to achieve a hard corner is always one less than the order of the surface in that direction. For example, if you have a surface that is flexible in the transverse direction (Order 3), you will only need to superimpose two control points to achieve a hard corner in the section. If, on the other hand, the transverse stiffness is set to stiff (Order 6), five control points will need to be compacted together to form the corner.

If you wish to display the line along the corner you have created, select Feature Lines from the Contours menu item. The effect will be similar to the following:

Note:

Do not compact more control points than necessary to create a knuckle. The required number of control points is the surface stiffness minus 1. For example: a stiffness 4 surface requires 3 compacted control points to create a knuckle.

Page 167

Chapter 5 Using Maxsurf

Advanced - Transpose

The transpose function may be used to flip the column or row ordering and also swap the rows and columns of a surface. This operation will not affect the actual shape of the surface, merely the ordering of the control points. This can be particularly useful if you have imported a NURB surface which uses a different control point orientation from

Maxsurf, or if you have rotated a surface and the column selection in the Body Plan view selects columns which are now closer to being longitudinal than transverse.

The Reverse Row Ordering and Reverse Column Ordering functions change the order in which the control points in a row or column are indexed.

The Swap Row and Column Axes function will make rows columns and columns rows.

This can be useful if the columns have become longitudinal rather than transverse through surface rotations.

Page 168

Chapter 5 Using Maxsurf

Calculations

Maxsurf is able to calculate a variety of data from your design. Before making calculations with your Maxsurf design, it is essential that sections can be properly formed. This means that sections must be closed, or have only one opening which is then closed with a straight line. If you are using intersecting surfaces and trimming, ensure that all unwanted portions of all the surfaces are removed.

This section explains how to calculate:

Hydrostatics

Calculate Girth

Calculate Areas

For information on how to calculate offsets see:

Offsets Window section on page 76.

Also see:

Calculations Window on page 82.

Hydrostatics

The hydrostatics dialog, in the Data menu, will compute the upright hydrostatics at the design waterline. More sections are used for the computations as the precision is increased. As well as the normal hydrostatics, the righting moment at one degree is also given. This is computed as: GMt

Δ sin(1°). The precision at which the calculations were done and the number of sections used are given in the last row.

Page 169

Chapter 5 Using Maxsurf

To change the density or VCG, type in the new value and press tab or the recalculate button to refresh the data.

Note:

The wetted surface area displayed in this dialog is calculated using the same method as that used in the Calculate Areas dialog in the Data menu. This method is more accurate than that used in Hydromax; Maxsurf divides the surfaces into triangular elements to calculate the surface area, whereas

Hydromax does a lengthwise integration of section girth.

When using the Calculate Hydrostatics dialog from the Data menu, Maxsurf displays the sections used to calculate the hydrostatic properties in the window in the background.

You can move the hydrostatics dialog around on screen to view the sections to ensure that they are correct. Note that this dialog calculates based on your current settings of trimming, surface visibility and precision.

Note: Skin thickness and hydrostatic calculations

In Maxsurf skin thickness is used for creating the table of offsets. For hydrostatic calculation purposes, skin thickness is ignored. Hydromax can be used to calculate the effect of skin thickness on the vessel’s hydrostatics by selecting “include skin thickness” in the opening dialog.

Hydrostatic Coefficient Calculation Parameters

This dialog is available in Maxsurf in the Data menu.

Page 170

Default settings for coefficient length and LCB/LCF measurements

The first part of the dialog is used to define the length to be used for calculating Block,

Prismatic and Waterplane Area coefficients; the same length may also be used to nondimensionalise the LCB and LCF measurements. (In previous versions of Hydromax, the length had to be set before an analysis was carried out. In this version, the changes may be made at any time and the relevant results will update automatically without the need for redoing the analysis – this is the same behaviour as the Units options).

Chapter 5 Using Maxsurf

The second part of the dialog is used to define how LCB and LCF (but not LCG) measurements are presented. The range of origins for the measurements has been extended to include forward and aft perpendiculars. Also you may define whether positive values should be in the forward or aft direction (relative to the chosen origin); finally you may choose to non-dimensionalise the value by dividing by the coefficient length (chosen in the first part of the dialog) and displaying as a percentage.

These options are used in all Hydromax results and in the Maxsurf Hydrostatics dialog.

The LCB options are not used in the Maxsurf Parametric Transformation dialog (though the coefficient length is used for the coefficients in this dialog).

Calculate Girth

Girths may be found for all visible surfaces by using the Girth function from the Data

Menu.

To locate the longitudinal position where a given half girth occurs:

Enter the half girth length.

Click the Calculate Position button.

To find a half girth length at a given longitudinal position:

Enter a position where the half girth is required.

Click the Calculate Half girth button.

You may search from the bow or stern. When you have finished, click Finished.

Calculate Areas

The Calculate Areas function in the Data menu allows the area of surfaces to be accurately calculated, together with their longitudinal, transverse and vertical centre of gravity. The dialog also includes the surfaces' second moments of area about their centres of area. This can be useful when estimating gyradii of the designs.

Page 171

Chapter 5 Using Maxsurf

Page 172

It is possible to compute the total, above water or below water area and inertias. The values account for trimming and surface symmetry. The DWL, as defined by the Frame of Reference, is used.

A fine mesh triangulation of the surface is used, so errors inherent in the use of

Simpson's rule are avoided. The higher the precision selected, the denser the triangulation, and the more accurate the answer will be. The CG positions are given relative to the current zero point.

The projected transverse areas and centroids may also be computed, and this is useful for estimating centres of pressures. Note that the total projected area is computed, so if you have a propeller tunnel for example, both sides of the tunnel will be included.

It is important to distinguish between the CG of the surface area and the centre of lateral area provided by the Calculations window. In the first case the centre is of the entire 3D area, whereas in the second case the centre is of the 2D projection of the area.

It is possible to copy the columns of data from the dialog by clicking and dragging over the cells you require and then using the Ctrl C Copy command to copy the data to the clipboard.

Click the Finish button when you wish to close the dialog.

Chapter 5 Using Maxsurf

Using Parametric Transformation

Maxsurf Pro has the ability to perform parametric transformations of hull shapes using the Parametric Transformation command in the Data menu. A key quality of this function is that it maintains the fairness of the hull to a very high degree during the transformation process.

The Parametric Transformation command displays a dialog that is used to perform the transformation on the design's visible surfaces.

The parameters that can be specified are divided into two groups:

Search Parameters

Scaling factors

After doing a parametric transformation you will want to be able to do a Hull Shape

Comparison . Also see the section on Parametric Transformation Restrictions

on page

178.

Search Parameters

Search Parameters are those that require a non-linear transformation of the hull shape.

These are -

Page 173

Chapter 5 Using Maxsurf

Prismatic or Block coefficient

LCB – Longitudinal Centre of Buoyancy (also see the section on

Parametric

Transformation Restrictions on page 178.

Parallel Midbody – In a merchant vessel that has a parallel midbody it is important to be able to perform parametric transformations on the fore and aft portions of the vessel without affecting the midbody. To use this feature, enter the positions of the fore and aft limits of the parallel midbody. The Parametric transformation will not change the location of any control points between these two locations.

Midship Area Coefficient. This parameter determines the fullness of the midship section and the magnitude of any bilge radius. A change to the Midship Area

Coefficient will also result in the sections in the bow and stern becoming fuller or slacker.

Topside Flare. This parameter is unlikely to be used for commercial ships but is useful in the design of leisure craft, both power and sail. The angle of the topsides at the position of greatest beam can be specified, resulting in more or less flare.

This flare is also distributed in a fair manner forward and aft, tending to taper out near the extremities.

To vary these values, some form of non-linear transformation of the hull must take place.

Because the non-linear transformation is not an explicit function of these parameters,

Maxsurf must perform an iterative search to achieve the specified values.

Note that the only required search parameters are LCB, and either Prismatic or Block coefficients. All other parameters and scaling factors are optional and can be combined arbitrarily.

Also note that the values for Waterplane Area coefficient and LCF are provided for informational purposes only; i.e. it is not possible for them to be specified as search parameters.

Using the search parameters for a parametric transformation

Before performing a parametric transformation of the hull, make sure you do the following steps first;

¾

Ensure that you have a coherent model for which hydrostatic data can be calculated – see the Hydromax user manual section “ Hydromax model ".

¾

Unlock all surfaces (tip: use the right click function in the Assembly

Window to do this).

¾

Hide all superstructure and other surfaces that are not used to describe the hullshape.

You are now ready to do a parametric transformation.

¾

Specify the new LCB position and either a new Block or Prismatic

Coefficient, followed by constraint values for a maximum of three of

Displacement, Waterline Length, Beam and Draft.

¾

Once these values and constraints have been specified, click on the Search button.

Maxsurf will iterate to achieve the required parameters and will display the results when it is finished. If the required parameter values could not be achieved, Maxsurf will beep at the conclusion of the calculation process.

Page 174

Chapter 5 Using Maxsurf

Example: LCB variation on fishing trawler

¾

Open the Maxsurf Sample_Trawler.msd file from the sample designs folder on your hard drive.

¾

¾

Save the design to another location with a different filename

Tip: it is generally good practice to save to another filename before doing a parametric transformation or working with the standard sample designs.

Go to Data | Parametric transformation

¾

Type LCB = 49 to search for a LCB of 49% of Lwl aft of FP

¾

Leave the Waterline Length, Beam and Draft and draft fixed, but allow the displacement to vary by using the “Scale to:” settings as in the image above.

¾

Press Search and wait for the hourglass to disappear.

¾

Press Ok to accept the new hullshape

¾

Do a Data | Calculate hydrostatics to check the new LCB position

Tip: use the following Data | Coefficients dialog settings:

Page 175

Chapter 5 Using Maxsurf

¾

Go to profile view and do a Ctrl+Z to undo the parametric transformation and a Ctrl+Y to redo it. This quickly gives you an idea of what has changed.

Also see:

Scaling factors

Hull Shape Comparison

Parametric Transformation Restrictions

Scaling factors

Scaling Factors are those parameters that can be calculated directly using a linear scaling of the hull, namely Displacement, Waterline Length, Waterline Beam and Draft. These parameters can be constrained to particular values, or left to vary as other parameters change by selecting the appropriate check boxes and setting the required values.

As an example, if no scale factors are specified and the Block Coefficient is increased, the displacement will also increase, while the length, beam and draft will remain constant. If the displacement is the only constraint, the length, beam and draft will decrease proportionally to accommodate the redistributed volume. If displacement, length and beam are constrained to particular values the draft will be changed accordingly.

Note

It is not possible to constrain all the values simultaneously – of the four values, displacement, length, beam and draft, at least one must be allowed to vary at all times.

Page 176

Example: specifying the waterline dimensions

¾

Open the Maxsurf Sample_Trawler.msd file from the sample designs folder on your hard drive.

¾

¾

Save the design to another location with a different filename

Tip: it is generally good practice to save to another filename before doing a parametric transformation or working with the standard sample designs.

Go to Data | Parametric transformation

Chapter 5 Using Maxsurf

¾

Specify the following scaling factors and leave the displacement unconstrained:

¾

Press Search and wait for the hourglass to disappear.

¾

Press Ok to accept the new hullshape

¾

Do a Data | Calculate hydrostatics to check the changes have been made correctly.

Note that the displacement has changed, but the LCB % and hull form coefficients are still the same. The draft to baseline is not updated until you specify the new baseline and you may also want to reset your AP and FP in the Frame of

Reference dialog to match the new overall dimensions of the hull.

Also see:

Search Parameters

Hull Shape Comparison

Parametric Transformation Restrictions

Hydrostatics

Page 177

Chapter 5 Using Maxsurf

Hull Shape Comparison

For comparison purposes it may be a good idea to duplicate the surfaces prior to modification (the duplicate surfaces can be made to lie exactly on top of the originals by specifying zero for all three spacings). The duplicate surfaces should then be made invisible so that they are not affected by the transformation. If, after the transformation, you make the original surfaces visible, you will have a direct comparison of changes to the waterlines, buttocks and sections.

Tip: by holding the mouse cursor over the contour lines you can see the surface name and the contour line name in the bottom left of the Maxsurf window. Note that this method of comparison will not work if the model is trimmed as the coincident surfaces will corrupt the trimming information.

Hull comparison after 2% change to Prismatic and 1% change to LCB

Another quick way to compare the hull is by simply doing Ctrl+Z to undo the Parametric

Transformation and Ctrl+Y to redo.

It can also be a good idea to make a copy of the hydrostatic data before the parametric transformation into Excel and compare it with the data afterwards.

Parametric Transformation Restrictions

Transformations are applied to visible surfaces only. Surfaces selected should form a coherent model capable of being analysed in Hydromax. This means that care should be to taken to trim intersecting surfaces where necessary and make sure that potential ambiguities such as multiple openings in the hull are resolved.

It is important that the parent model be reasonably close in form to the required final design as it is not feasible to make major changes to the search parameters before the hull starts becoming unreasonably distorted. Experience suggests that reasonable variations of

Block, Prismatic or LCB are of the order of up to plus or minus 3 to 5%. These limits may be lower for vessels that have moderately high prismatic coefficients – as the prismatic increases the scope for variation seems to improve.

Page 178

Normal hullshape with relatively low prismatic coefficients allow 3 to 5% LCB variation.

Highly prismatic hullshapes only allow small % LCB variations.

Chapter 5 Using Maxsurf

The parametric variation tool is ideal for making small adjustments from a suitable parent design. It is not intended to be used for gross design modifications. The scope for parameter variation is greatest for designs that are not extreme; as the design and its form parameters become more extreme the scope for parametric variation is reduced.

Because of the non linear nature of the transformation and the requirement that fairness be maintained, it is often found that long fore and aft overhangs distort proportionally more than the underwater body. The shorter the overhangs of the vessel are the less noticeable this effect will be.

It is not possible to constrain Displacement, Length, Beam and Draft simultaneously; the maximum permissible is any three parameters out of the four available.

Americas Cup Yachts

Special functionality has also been added specifically for the designers of Americas Cup class yachts. This is enabled only for purchasers of ACRule which can be accessed by entering an authorisation code in the Options dialog in the Windows | About Maxsurf dialog.

In the case of Americas Cup class yachts the constraint applying to LWL has been replaced by one applying to the AC LBG value, a length measured 200mm above the

DWL. In addition, the Parametric Transformation automatically constrains the forward and aft girths to the minimum allowable value, as measured by a chain girth at the forward and aft girth stations.

Page 179

Chapter 5 Using Maxsurf

Input of Data

Maxsurf can import a range of data formats to assist you in creating a Maxsurf design to match existing data. Point and line data can be imported via DXF, surface data can be imported via IGES and Rhino 3dm files and image data can be imported in a range of bitmap formats such as GIF, BMP and PNG.

In this section:

Pasting (General)

Importing DXF

Importing DXF Markers

Importing IGES Surfaces

Importing Rhino .3dm files

Also see:

Background Images on page 142 in the surface fitting section of chapter 5.

Before continuing this section, you may wish to read the Maxsurf Coordinate System

on

page 36.

Note

If your File | Import submenu is greyed out, make sure you create a new design first from File | New.

Pasting (General)

You can paste data from any spreadsheet, word processor or text editor into the tables in

Maxsurf.

To paste data into Maxsurf

Copy the text to be pasted and switch to Maxsurf

Select the range of cells to be pasted into

Choose Paste from the Edit menu (or use Ctrl V).

Importing DXF background

Using the Import DXF Background command from the File menu enables you to import a DXF file into Maxsurf to use as construction lines. The DXF file will be displayed in all design views. DXF backgrounds can be really useful when you have a 3D lines plan in for example AutoCAD that you want to manually fit a surface to.

Note: You can only have one DXF background for your Maxsurf design. This single

DXF background will be displayed in all 4 design windows. In case you want the profile lines displayed in the Profile window, and the section lines displayed in the Body Plan window, you have to convert your 2D lines plan drawing to a 3D lines plan in AutoCAD before saving as a .DXF.

Page 180

Chapter 5 Using Maxsurf

Note

If your File | Import submenu is greyed out, make sure you create a new design first from File | New.

See also:

Importing DXF Markers on page 181

Importing DXF Markers

The importing of marker information is possible from DXF as well as GHS and Seaway section data files.

The Import DXF Markers command from the File menu can be used to import lines, arcs or polylines from a DXF file and display them as markers in the graphics views in

Maxsurf. Each point at the end of a line or along a polyline will be converted into a marker.

To import a DXF file as markers:

Choose Import->Import DXF Markers from the File menu

Set the XYZ orientation of the data in the file

Note

If your File | Import submenu is greyed out, make sure you create a new design first from File | New.

You can use the radio buttons in the middle of the dialog to specify the orientation of the points in the file relative to the Maxsurf coordinate system. For example, choosing +ve

(positive) and X in the Forward section means that +ve X coordinates in the DXF file will be aligned with the forward direction of the Maxsurf model.

Also see: Maxsurf Coordinate System on page 36

The coordinates in the file are positioned relative to the current Maxsurf zero point.

Set the units of the data in the file

Page 181

Chapter 5 Using Maxsurf

Click on the radio button corresponding to the units of the data in the file.

Optionally set the arc segment length

If you are importing arcs from the file, these will be converted into line segments before importing. This field can be used to specify the length of the line segments along the arc.

Note:

You can only import ARC objects in the DXF file. Arcs within polylines will not be imported, you should explode the polyline first before importing.

Optionally save the configuration

You can use the Add button at the bottom left of the dialog to add a configuration and save the setting for future usage. For example, if you frequently import from AutoCAD, you might like to set up a configuration, named AutoCAD, to save your import settings.

Click OK to import the data

Once imported the markers can be manipulated in the usual way, including assigning to a

particular station or associating with a surface. See also Markers section

.

Importing IGES Surfaces

To import NURB surfaces into Maxsurf, use the Import IGES Surfaces command from the File menu. If you are starting a new design by importing an IGES file, make sure you create a new design first from File | New.

IGES stands for the Initial Graphics Exchange Standard. It is an extremely powerful format and is compatible with the majority of major CAD programs. IGES trimmed

NURBS surfaces are represented as an entity 128, which contains the surface geometry, together with an entity 144, which contains only the trimming information.

Maxsurf can only read the entity 128 data, but does not support importing the entity 144 trimming data.

Note: importing trimming surfaces

Maxsurf does not support importing trimmed surfaces at the moment. All surfaces have to be re-trimmed manually.

Each NURB surface found in the file will become a surface in Maxsurf.

Page 182

Chapter 5 Using Maxsurf

The orientation of the imported model into the Maxsurf coordinate system depends on the orientation of the axis in the program where the .IGES file originates from.

Note:

See: Maxsurf Coordinate System on page 36

The options at the bottom of the dialog can be used to correctly orientate the control point net with respect to Maxsurf’s usual conventions.

Importing Rhino .3dm files

To import NURB surfaces into Maxsurf, you can use the Import | Rhino .3dm file command from the File menu. If you are starting a new design by importing a Rhino file, make sure you create a new design first from File | New. When importing a Rhino file which has trimmed surfaces a dialog box will appear asking you whether you wish to try and replicate the trimming.

Each NURB surface found in the file will become a surface in Maxsurf.

The orientation and dimensions of the imported model into the Maxsurf coordinate system depends on the orientation of the axis and units set in the 3dm file where the model originates from.

Note: Importing trimming surfaces

On importation of a trimmed model from Rhino, trimming curves that do not necessarily lie on a surface/surface intersection may be present. These contours can be used to trim the surfaces as any normal intersection line.

Visibility of these Rhino trimming contours may be turned on and off via the Display | Contours dialog.

Page 183

Chapter 5 Using Maxsurf

Output of Data

Maxsurf can output your design lines in a wide variety of file formats and hard copy. File formats available are 2D IGES, 3D IGES, 2D DXF, 3D DXF, 3DMF and VRML. Lines from any of the drawing windows may be saved as files or output directly to printers.

Data from the Calculations, Markers, Control Points and Offsets files can be printed, saved to text files or copied into the clipboard for pasting into spreadsheets or other applications. Maxsurf also allows saving of animation files.

This section will describe the following output options:

Printing

Copying

Offsets Data Output

Animation Files

Exporting a Maxsurf Design

Also see:

Appendix A Data Export

Printing

Maxsurf prints the contents of the window that is topmost on the screen. Choosing Print from the File menu will display a print preview, allowing you to view the output, pageby-page, on screen.

Use Page Setup, also from the File menu, to adjust the paper size, margins, orientation etc.

Standard Views

When printing a standard view of the design, you will be asked select the scale at which you wish to print. There are a number of default scales but you may also enter your own custom scale factors.

Bring the window you wish to print to the front.

Choose Print from the File menu.

Choose the desired Scale.

If the print preview is as required, click the Print Button.

Page 184

Chapter 5 Using Maxsurf

Printing from Maxsurf is straightforward and is usually a matter of setting the Page Setup parameters and selecting Print. If you encounter problems, check that the following have been done.

Make sure your printer is connected to the computer.

Make sure you have selected a default printer using the Printer control panel

Rendered Perspective Views

Printing a rendered perspective view is the same as printing a standard view except you will not be prompted for a custom scale. Rendered perspective views can only be printed on one page.

The image displayed in the print preview window may have some slight differences from the final printed version, this is only due to scaling in the print preview window.

Also see:

Exporting a Maxsurf Design , section:

Bitmap Image on page 192.

Colour Printing

Maxsurf supports colour output to suitable devices. You may choose whether you wish to print in colour or black and white in the print preview by clicking the Colour button.

Setting Page Size , Orientation and Margins,

The paper size, paper orientation and margins may all be set in the Page Setup dialog accessed from the File menu.

You may choose the printer you wish to print to by clicking the Printer button.

Page 185

Chapter 5 Using Maxsurf

Further printer specific options may be chosen by clicking on the Properties button. The options available will depend on the printer and the printer driver you are using.

Page 186

Print Titles

You can specify titles to be placed on the head and foot of each page you print. Use the

Titles button in the print preview window:

This will bring up the Titles dialog, which allows you to set your print titles.

Chapter 5 Using Maxsurf

Copying

When copying from a drawing window

Select the window you wish to copy.

Select Copy from the Edit menu (or use Ctrl C).

Select the scale or enter your own custom scale and name.

Click OK.

To paste this selection into a word processor or spreadsheet

Select Paste from the Edit menu (or use Ctrl V).

Copying Numeric Data

When copying from a data window:

Select the appropriate column by clicking in the column title bar.

or

Select the appropriate row by clicking on the row number.

or

Select the whole window by clicking in the top left hand corner.

Select Copy from the Edit menu (or use Ctrl C).

To copy the column titles as well as the selected data, hold down the Shift key while selecting Copy (or use Shift Ctrl C)

It is also possible to select arbitrary blocks of text rather than complete rows or columns or individual cells.

To achieve a rectangular selection, hold down the mouse button in the cell that you wish to be a corner of the required selection. Drag the mouse in any direction and multiple cells will highlight. If you drag the mouse outside of the table boundaries, the cells will automatically scroll in the correct direction.

Page 187

Chapter 5 Using Maxsurf

Alternatively, click in one cell, than hold down the Shift key and click in a second cell.

All cells between the two chosen will be selected.

To paste into the selected cells, choose Paste from the Edit menu (or use Ctrl V).

Offsets Data Output

The following output option exist for offset data:

Copied and pasted into Excel

Saving the table of offsets as a text file from the Offsets window

Using Hydrolink.

Using Hydrolink to Export Offsets Data

Maxsurf supports saving of offset data in a format suitable for input to other analysis systems. This is done by Hydrolink, a separate application in the Maxsurf suite.

Hydrolink can read in a Maxsurf design and save the offset data in a format suitable for input into many other analysis systems.

Animation Files

Animations generated in the perspective view may be saved in avi format for playback at a later date or for use in presentations etc.

To generate an animation:

Go to the perspective view and adjust the display, rendering and colours to obtain the desired view.

Select Animate from the Display menu, set-up the desired animation options and tick the Save Animation to disk box.

Page 188

Click OK and then choose a file name for the animation file.

Click Save and then select the Compressor type.

Please note that some of the compressors will not work with all graphics settings. The

Full Frames (Uncompressed option) should work with all graphics settings.

Chapter 5 Using Maxsurf

Click OK

The animation will now be generated and saved to the file. This may take a few seconds, particularly if there are many surfaces to be rendered in the model.

Exporting a Maxsurf Design

Maxsurf allows you to export your design file in different formats.

DXF File

IGES File

Rhino .3dm file

Maxsurf V8.0 , export to earlier Maxsurf file formats. Note that this may lead to some loss of data

Others

You may export the following file formats to other platforms by selecting them from the

Data Export dialog box in the File menu:

IGES

DXF

3DMF

Vrml

3dm

Page 189

Chapter 5 Using Maxsurf

IGES

DXF

3DMF

Vrml

3dm

2D IGES

3D IGES

DXF

DXF

Polylines.igs, lines in 2D that can be controlled with control points. Similar to a spline in AutoCAD.

Polylines.igs, a line in 3D that can be controlled with control points. Similar to a spline in AutoCAD.

NURBS.igs, consists of the control points, control point weights, surface stiffness and possibly trimming.

Polylines.dxf, straight-line segments in 2D approximating the NURB surface. Contour lines are exported as displayed on screen.

Polylines.dxf, straight-line segments in 3D approximating the NURB surface. Contour lines are exported as displayed on screen.

3D Face.dxf, Similar to polylines, but instead of approximating a curve, faces approximate a surface.

3D Mesh.dxf, approximates a surface by dividing the surface up into a number of “faces” see 3d faces.

File format for Quickdraw3D.

Virtual Reality Modelling Language format. This is a file format especially designed for delivering 3D

File format for Rhinoceros (.3dm files).

IGES File

IGES stands for the International Graphics Exchange Standard. It is an extremely powerful format and is compatible with the majority of major CAD programs. Design information may be transferred using a 2D or 3D IGES file. If a 3D IGES file is chosen you have the option of transferring the lines that are visible in the drawing windows

(polylines), or using the complete B-spline surface definition (NURBS surface).

For more information on IGES export, please refer to Appendix A Data Export from page 213.

Page 190

Chapter 5 Using Maxsurf

IGES export example. An .IGES file contains all NURBS surface information.

DXF File

DXF is the Drawing eXchange Format. Design information is transferred using a 2D or

3D DXF file as either a polyline file or a 3D face or mesh.

3D Polyline export example.

3D Mesh export example. The number of segments used to display the surface is dependent on the surface precision.

Page 191

Chapter 5 Using Maxsurf

Page 192

3D Face export. The mesh is divided up into a number of faces.

3DMF

3DMF is the file format for Quickdraw3D.

VRML

Maxsurf is able to export models in the ISO standard VRML (Virtual Reality Modelling

Language) format. This is a file format especially designed for delivering 3D models over the internet for their display in standard browsers such as Netscape Navigator or MS

Internet Explorer. This feature means that Maxsurf models can be readily included in web pages; this facilitates sharing information on a global (internet) or internal (intranet) level. Further information on VRML is available from the Web3D consortium, whose web site may be found at: http://www.web3d.org/

Rhino .3dm file

3dm is the file format for Rhinoceros NURBs modelling software. Both trimmed and untrimmed Maxsurf surfaces can be saved in Rhino file format. Because there is no concept of symmetrical surfaces in Rhino, any symmetrical surfaces in Maxsurf will be duplicated and mirrored about the centreline when exported to Rhino using the Export |

Rhino .3dm file command from the File menu in Maxsurf.

Bitmap Image

Bitmap export gives you the ability to export Rendered Perspective Views to a bmp file.

This is similar to Edit | Copy (Copy to Clipboard), however File | Export | Bitmap Image allows you to specify the size of the image; the larger the size, the better the quality.

This is a useful feature for creating high resolution promotional material.

This function is not available for the Simple Shading rendered mode.

Note

For additional information on data export from Maxsurf, see: Appendix A

Data Export on page 213.

Chapter 6 Maxsurf Reference

Chapter 6 Maxsurf Reference

This chapter describes the toolbars and menu commands available in Maxsurf.

Toolbars

Menus

The functions available in the different Maxsurf windows are explained in Chapter 4

Maxsurf Windows on page 35.

Page 193

Chapter 6 Maxsurf Reference

Toolbars

Maxsurf has a number of icons arranged in toolbars to speed up access to some commonly used functions. You can hold your mouse over an icon to reveal a pop-up tip of what the icon does.

Customising Toolbars

All applications in the Maxsurf suite contain fully customisable toolbars. This enables you to make your most frequently used commands available with just one click and delete any toolbar buttons that you don’t need. The toolbar buttons themselves are also fully customisable, including text and button images.

Adding/Deleting Standard Toolbar Buttons

The standard toolbars available in each of the Maxsurf suite’s applications can easily be edited by clicking on the little triangle on the right side of any of the toolbars and select

“Add or Remove buttons”. This allows you to select which button you wish to add or delete buttons by simply ticking or un-ticking the command.

By selecting “Reset” the Standard toolbar will be restored to its default state. Note: this will delete any extra buttons you may have added to the standard toolbar.

Creating Your Own Toolbars

You can customise all toolbars in all Maxsurf applications via the customise toolbars function. This is available via the View | Toolbars | Customise Toolbars menu item or by clicking on the little triangle on the right side of each toolbar and selecting “Add or

Remove buttons”. Alternatively simply right click on a blank space on the toolbar area of the application window and select “Customize”. This brings up the following tabbed dialog:

Page 194

Toolbars tab

Use this tab to add or delete toolbars. Note: the standard toolbars that were installed with the applications cannot be deleted or renamed.

Chapter 6 Maxsurf Reference

Commands tab

On this tab you will find all commands available in the application sorted per menu. To add a command to a toolbar, simply select the command and drag and drop it onto the toolbar. Note: As long as the Customize dialog is open, you can drag and drop toolbar buttons between different toolbars and the toolbar buttons are inactive; i.e. they will not work.

Dragging and dropping a command onto a new toolbar.

Options tab

This tab allows you to customise the menu and toolbar display.

Always show full menus will only show the most commonly used commands in the menu based on the command usage history. This command usage tracking function is not enabled in the Maxsurf applications; this means you can ignore the top half of this dialog.

Large icons displays the toolbar buttons larger.

Show ScreenTips on toolbars will enable the little text boxes that display which command is invoked by that toolbar button.

Show shortcut key in ScreenTips will also show you the shortcut key (if available).

This can be quite handy for you to learn the shortcut keys which allow you to operate the program even faster.

Menu animations allows you to set how you want the menus to appear.

Page 195

Chapter 6 Maxsurf Reference

Editing Toolbars Buttons

When the Customize dialog is open (from View | Toolbar |Customize Toolbars menu), you can right click on a toolbar button to edit it via a right click menu.

Page 196

A couple of interesting things that this allows you to do are:

Edit button image will pop up a dialog that allows you to draw your own toolbar button image.

Change the toolbar button image to one from the standard toolbar button images library.

Select how you want to display the toolbar button image. For example: if you have trouble distinguishing between different toolbar buttons, you can select the Image and Text option to display both the image and the toolbar button name (the image button name is the command name by default).

Saving a Customised User Interface

Each time you close any of the applications in the Maxsurf suite, the application will automatically save your toolbar settings and windows layout to an ##Settings.xml file in the Maxsurf root directory. The Maxsurf root directory is by default c:\program files\Maxsurf.

For example: After closing Hydromax, your current user interface will be saved in c:\program files\maxsurf\HMSettings.xml. The next time you start up Hydromax, it will look for this file for the application user interface settings.

If you want to save a copy of a user interface settings file, simply use windows explorer to locate the .xml file mentioned above, duplicate it and rename the duplicate to for example: HMSetting_Custom1.xml.

Restoring a Customised User Interface

Restoring a toolbar

If you want to restore only one toolbar, use the View | Toolbars | Customise

Toolbars command, select the Toolbar you wish to reset and then press Reset.

Chapter 6 Maxsurf Reference

Restoring the user Interface

Use the Restore default layout from the Windows menu to restore to the default windows and toolbar settings. Alternatively you can hold down the shift key at

start-up. Note that the latter clears your Windows Registry. See the “ Windows

Registry”

section for each application to find out which settings are stored in the windows registry before clearing it!

Restoring to a saved settings file

If you want to restore to a saved setting, use the following steps:

1. Rename or delete your current ##Settings.xml in windows explorer. Your current user interface settings file is located in the Maxsurf root directory and is called MSSettings.xml for Maxsurf, HMSettings.xml for Hydromax etc.

2. Rename the custom.xml file to the default name. For example to restore custom1 settings: rename HMSettings_Custom1.xml to HMSettings.xml.

Maxsurf Toolbars

File Toolbar

The File toolbar contains icons that execute the following commands:

New – Open – Save | Cut - Copy - Paste | Print | Help

Edit Toolbar

The Edit toolbar contains icons that execute the following commands:

Undo – Redo

View Toolbar

The View toolbar contains icons that execute the following commands:

Zoom – Shrink – Pan – Home View – Rotate | Assembly Window

Markers Toolbar

The Marker toolbar contains icons that execute the following commands:

Add Marker, Delete Marker | Snap Control Point to Marker, Fit Edge to Markers

Controls Toolbar

The Controls toolbar contains icons that execute the following commands:

Add Row/Column – Delete Row/Column | Align To Vector – Align To Plane – Compact

– Group – Ungroup – Bond - Unbond | Mask – Unmask

Page 197

Chapter 6 Maxsurf Reference

Display Toolbar

The Display toolbar contains icons that change the state of the following parts of the display:

Shape – Net – Half – Compress – Outside Arrows | Hide Curvature – Show Curvature |

Hide Markers – Show Markers for Current Station – Show All Markers – Connect

Markers

Window Toolbar

The Window toolbar contains icons that make the corresponding window come to the front:

Perspective – Plan – Profile – Body Plan | Calculations – Control Points – Markers –

Surfaces – Graph – Offsets

Render Toolbar

The Render toolbar lets you switch rendering on/off and change light settings. These toolbar commands are only available when you are in the Perspective window.

Render on/off – Light directions (4x) - Lighting Options

Visibility Toolbar

The Visibility toolbar contains icons that can be used to quickly toggle the display of certain contours:

Stations – Waterlines – Buttocks | Edges – Bonded Edges – Feature Lines – Parametrics |

Intersections.

Surface Toolbar

The Surface toolbar contains icons that are used to access the surface manipulation commands:

Move – Duplicate – Flip – Rotate – Align

Page 198

Chapter 6 Maxsurf Reference

Menus

Maxsurf uses the standard set of Windows menu commands for File, Edit and Window operations. It also has a range of menus for control point and surface manipulation and control of data and view displays.

File Menu

Edit Menu

View Menu

Marker Menu

Controls Menu

Surfaces Menu

Display Menu

Data Menu

Window Menu

Help Menu

File Menu

The File menu contains commands for opening and saving files, importing and exporting data, and printing.

New

Select New when you wish to commence a new design. Alternatively, if the Calculations window is uppermost a new calculations sheet will be created.

Open

Maxsurf has the ability to save designs to disk and recall them at a later date. By selecting Open, a dialog box appears with a list of available designs. Select the design you wish to recall, click the Open prompt, and the requested design will be read in.

Open will remain active until you are using the maximum number of surfaces available in your version of Maxsurf. This allows you to read in multiple designs and overlay them, or to read in the same design twice so that any changes can be compared with the original.

When the Calculations or Markers windows are active, Open will allow you to open a calculations sheet or a set of markers from a text file.

Close

Select Close when you wish to finish with the current design. Before closing, a dialog box will appear asking whether you wish to save the current design. If you select ‘Yes’ the current design will be saved onto the disk.

When the Calculations window is uppermost Close will close the calculations sheet.

Save

Selecting Save will save the current design onto disk.

Page 199

Chapter 6 Maxsurf Reference

When the Calculations, Markers, Offsets, Control Points or Surfaces windows are active

Save will allow you to save the calculations sheet or Markers, Offsets, Control Points or

Surfaces data to a text file.

Save As

Selecting Save As enables you to save the current design under a new name. This is useful if you modify a design, but wish to keep a copy of the old version as well as the new.

When the Calculations window is active Save As will allow you to save a new calculations sheet.

Import

Selecting Import enables you to import a DXF, GHS or Seaway file directly into

Maxsurf as a set of markers, or an IGES file with surface entities directly into Maxsurf as a surface.

Import DXF Background enables you to import a DXF file into Maxsurf to use as construction lines. The DXF file will be displayed in the design views.

Note that if you intend to load DXF markers and a DXF background, the DXF background should be loaded after loading the DXF Markers. If a zero-point shift of the

DXF background occurs due to loading DXF markers, the DXF background should be reloaded.

Import Image Background enables you to import an image file (jpg, gif, bmp or png) file into the background of any of the Maxsurf design views.

Export

Selecting Export enables you to export a Maxsurf file as a variety of different file formats such as DXF or IGES.

You may also export to earlier Maxsurf file formats. Note that this may lead to some loss of data.

Page Setup

The Page Setup dialog allows you to change page size and orientation for printing.

Print

Choosing the Print function prints out the contents of the active Maxsurf window.

Exit

When you have finished using Maxsurf choose Exit to close the program. If Maxsurf has a design open that has not been saved to disk, you will be asked whether you wish it to be saved.

Edit Menu

The Edit menu contains commands for copying and pasting data, and working with tables.

Page 200

Chapter 6 Maxsurf Reference

Undo

The Undo function will reset the control point net back to its previous state after an accidental or experimental movement of a control point or group of control points.

Redo

The Redo function will reinstate the changes that were discarded with the Undo command.

Cut

Cut cannot be used in Maxsurf.

Copy

This function performs the standard Copy function.

Paste

Choose the Paste command to Paste data into a table. Paste may also be used with other applications, but cannot be used on Maxsurf drawing windows.

Select

Facilitates the selection of table cells, columns and rows.

Fill Down

Choose the Fill Down command when you want to change several cells in a column to the value of the first cell. This function may be used in most of the tables, and may also available by clicking the right mouse button, which brings up a context menu.

Activate/Deactivate Prefit

This command toggles the use of the Prefit licence for the automatic surface fitting function. You must restart Maxsurf for this to take effect. Contact [email protected]

for information on how to get access to Prefit.

View Menu

The View menu contains commands for controlling the appearance of the display in the graphical windows.

Zoom

The Zoom function allows you to work on any part of your design by enlarging the selected area to fill the screen.

Shrink

Choosing Shrink will reduce the size of the displayed image in an active drawing window by a factor of two.

Pan

Choosing Pan allows you to move the image around within a drawing window.

Home View

Choosing Home View will set the image back to its Home View size. Maxsurf starts up with default Home View settings for all its drawing windows. However, the Home View may be set at any time by choosing the Set Home View function.

Page 201

Chapter 6 Maxsurf Reference

Set Home View

Choosing Set Home View allows you to set the Home View in each drawing window.

To set the Home View, use Zoom, Shrink, and Pan to arrange the view as you require, then select Set Home View from the View menu.

Rotate

Activates the Rotate command, which is a virtual trackball which lets you freely rotate a design in the perspective view.

After selecting the Rotate tool, move the mouse to a location in the Perspective window and press the left mouse button. With the left button depressed, you can rotate the image by dragging the mouse around and the rotation is performed by projecting the movements onto a virtual sphere on the screen – essentially like a virtual trackball.

Generally speaking, moving the mouse left and right rotates about a vertical axis while moving the mouse up and down rotates about a horizontal axis. The Rotate mode is exited when the left button is released.

Colour

The Colour function allows you to set the colour of lines, controls, and graphs.

Font

The Font command allows you to set the size and style of the text in the current window.

Preferences

The Preferences function allows you to customise some of Maxsurf's features.

Toolbars

Allows you to select which toolbars are visible.

Assembly window

Displays the Assembly window floating window.

Status Bar

Allows you to show or hide the Status Bar at the bottom of the main window.

Marker Menu

The Marker menu contains commands for managing markers and fitting surfaces to existing sets of markers.

Add Marker

The Add Marker command is used when you wish to place a reference marker in the

Body Plan, Profile, Plan or Markers windows.

Delete Marker

This is used when you wish to delete a marker from the Markers window or from the

Body Plan, Profile or Plan windows.

Page 202

Chapter 6 Maxsurf Reference

Generate Markers for Developable Surfaces

This command generates markers from the ruling lines on the developable surfaces and is only available if the design contains surfaces with surface type “Developable”. See

Surface Types on page 90 for more information.

Generate Grid from Markers

This command will generate the grid (stations, buttocks and waterlines) based on the marker data and also associate markers with the correct station index. See

Generating a

Grid from Markers on page 138 for more information.

Sort Marker Stations

After transverse sections have been defined and a Station Index for each marker has been assigned, the markers with the same station index may be sorted into order (using a

nearest neighbour sort). See Sorting Markers on page 72 for more information.

Re-order Selected Markers

This command sorts all markers in a selection in the order of selection. Running this

command twice will sort order the markers in the opposite order. See Sorting Markers

on

page 72 for more information.

Snap Control Point to Marker

Used to move the selected control point to exact the position of the selected marker.

Fit Edge to Markers

Fits the selected edge (the edge may be highlighted by clicking on the edge or by selecting a control point in it – similar to bonding surface edges) to the selected markers.

The spline is fitted through the markers in the order they were selected.

Smooth Interior Controls

Smoothes the interior control points of the current surface based on the positions of the edge control points. The edges remain unchanged. Useful for getting an initial fitted surface once the edges have been fitted.

Fit Surface to Markers

This command is only available if you own a Prefit Licence. This activates the automatic surface fitting to markers.

Measure Surface Error

This command measures the distance between the marker and the closest point on the surface with which it has been associated. After measurement, the distance for each individual marker is entered in the Markers table, and summary data is displayed in a dialog.

Marker Properties

Allows you to edit the properties of the selected marker(s).

Controls Menu

This menu provides commands to manipulate control points.

Page 203

Chapter 6 Maxsurf Reference

Add

To Add a control point, select the add command and click in the current view at the location desired. Control point columns may be added in the Plan and Profile windows; control point rows may be added in the Body Plan window.

Delete

The delete command allows you to delete a row or column of control points from a surface. Select the delete command and click on the desired control points using the delete cursor. Control point columns may be added in the Plan and Profile windows; control point rows may be added in the Body Plan window.

Smooth Controls

Smoothes a complete or partial row or column, or a patch of control points. Smooth is always applied in three dimensions, not simply in the current view.

Straighten Controls

Straightens a complete or partial row or column, or a patch of control points. Straighten can be applied in the plane of the current view, (e.g. straightening a sheer line only in the profile view, while leaving it curved in the plan view), or in all three views simultaneously.

Move Controls

This function allows you to move a group of control points by a specified amount.

Size Controls

This function allows you to scale and re-proportion a group of control points by their principle dimensions.

Rotate Controls

This function allows you to rotate a group of control points about a specified centre of rotation.

Align to Vector

Aligns a number of selected control points to the 3D vector defined by the first two control points selected. To constrain the movement in certain directions hold the shift key down whilst selecting this command. A dialog box will appear within which you define the constraints.

Align to Plane

Moves a number of selected control points into the plane defined by the first three control points selected. To constrain the movement in certain directions hold the shift key down whilst selecting this command. A dialog box will appear within which you define the constraints.

Compact

There may be occasions when a number of control points need to be placed at precisely the same point in space. To do this, select the points and choose Compact. The points are all compacted onto the first point in the selection.

Page 204

Chapter 6 Maxsurf Reference

Group

Any number of control points may be selected from a surface or multiple surfaces and grouped to move as one by selecting the control points and grouping them with the

Group command.

Ungroup

This function performs the opposite of the Group function. All control Points that were previously in the selected group will return to being individual control points.

Bond Edges

Two Surfaces may be bonded together by joining along a common edge. The two edges may be selected for bonding by clicking on the edges or by selecting a control point

(other than corner points) from each edge.

When Bond Edges is selected the two edges are bonded together and will show a single row or column of control points along their common edge. Bonded edges may be displayed by selecting Bonded Edges from the Contours dialog in the Display menu.

Unbond Edge

Any edge that is bonded may be unbonded. Choose any control point along the desired edge and select unbond. The selected edges will now be unbonded and may be moved independently.

Mask

The Mask command allows you to select a particular group of control points, which will remain visible while the remainder of the net is hidden.

Unmask

The Unmask command restores a masked surface display to one where all control points in a surface net are visible.

Snap to Grid

The Snap To Grid command allows you to specify a minimum value for movement of control points. (This only affects manual movement of control points using the mouse or arrow keys and not the fairing controls such as smooth.)

Control Properties

This command lets you change the control point properties for a group of selected control points. This command can be quite useful if you want to set a group of control points to the same position or plane; e.g. move a group to the centreline or a specific deck height. See

Control Point Properties on page 153 for more information.

Advanced

This gives you advanced functions that may be used to adjust the control point net. Row and column indexing may be changed and rows and columns transposed. The actual surface shape remains unchanged.

Surfaces Menu

The Surface menu contains commands for manipulating surfaces.

Page 205

Chapter 6 Maxsurf Reference

Page 206

Add Shape

A number of basic shapes may be added, these include cylinders, boxes and spheres.

Add Surface

Select Add Surface to add a surface shape to your design. It may be renamed through the

Properties dialog.

Delete Surface

Choosing Delete Surface displays a dialog that allows you to select the surfaces to be deleted.

Duplicate Surfaces

This command duplicates the selected surfaces. You may select the number and relative positioning of duplicates.

Move Surface

Choosing Move Surface allows movement of a whole surface to any position in the current view. This may be done by dragging the surface or specifying the movement numerically.

Size Surfaces

The Size function allows you to scale and re-proportion a surface or group of surfaces by their principle dimensions. This function is particularly useful when modelling geometrically similar variations from a parent design, and also allows precise specification of principle design parameters.

Flip Surfaces

This command allows you to flip, or mirror, a surface or group of surfaces about a specified longitudinal, transverse or horizontal plane.

Rotate Surfaces

Choosing Rotate Surface rotates one or several surfaces about a specific centre of rotation. The centre of rotation is specified numerically, and is displayed in the drawing windows as a small circle.

Align Surfaces

Choosing Align Surfaces allows you to select two surfaces for aligning by way of selecting a control point from each surface. Aligning takes place by movement of the complete surface such that the two control points are coincident. The surface whose control point was selected first is fixed.

Visibility

This function allows you to select which surfaces are visible. The visibility of any surface may also be changed in the Properties dialog and Surfaces window.

Locking

This function allows you to select which surfaces are locked. Locking hides all control points in the surface, which prevents modification of the shape. The locking of any surface may also be changed in the Properties dialog and Surfaces window.

If you hold down the "Shift + Ctrl" keys when clicking OK in the Locking dialog, the surfaces are locked and made read-only forever!

Chapter 6 Maxsurf Reference

Note that you can never unlock them, so be careful! You can use this to send a design to someone, where you do not want them to be able to modify the design or create a new design based on your model. Use Save As to create a new file before using this feature.

Appearance

This dialog allows you to select the surface colours that are used for rendering in the

Perspective window, and displaying the surface's parametric curves. This may also be specified in the Surfaces window.

Surface Properties

Each surface that is created in a Maxsurf design has a unique set of properties associated with it. The Properties command allows you to view and modify these properties. The properties of all the surfaces may also be edited in the Surfaces window.

Precision

Maxsurf has five levels of calculation and display precision. The appropriate precision may be set at any time depending on the performance of your computer, the complexity of the design and the level of detail required.

Start Trimming

Select the name of the surface you wish to trim from this sub-menu and then click on the regions of the surface to turn trimming on and off. When you are happy with the trimmed state of the surface, or if you just want to stop trimming, choose the Trim command.

Trim Surface <name>

Select this command when you have finished clicking on the regions of the surface you are currently trimming, and you want to confirm your trimming changes.

Untrim Surface <name>

Removes all trimming information from the selected surface.

Display Menu

The Display menu contains commands for turning on and off items displayed in the graphics windows.

Shape

When the Shape option is selected, the contours and edges of all visible surfaces will be displayed.

It is possible to display either the surfaces being worked on or their control point nets.

Alternatively, it is possible to show both the shape and the net simultaneously. This allows for the modification of the entire control point net, while viewing the changes in the surface itself.

It is a good idea to set the colour of the net and the surface contours to different hues so that you may distinguish them easily.

Net

The Net display shows the complete control point net for all visible and unlocked surfaces.

Page 207

Chapter 6 Maxsurf Reference

The net can be manipulated by clicking on a control point vertex and dragging it about the window. Once you are familiar with the results of modifying the net directly, it is an extremely efficient way of modifying a shape to effect global changes.

Control points may be moved in any drawing window, but in the Perspective window the movement is limited to the plane that is most perpendicular to the angle of view. An indicator showing the most perpendicular plane is displayed in the lower right hand corner of the window.

Half

For symmetrical surfaces, the control point net exists only for one half of the symmetrical surface. The Half function controls whether the surface's mirror image is displayed across the longitudinal centreline.

By choosing the 'Split Surface Display' option in the surface Properties dialog, the Body

Plan window will display the forward half of a surface on the right hand side and the aft half on the left hand side, when the Half function is selected.

Compress

The vertical and transverse axes are increased by a factor of four relative to the longitudinal axis. This is useful for fairing longitudinal curvature.

Curvature

Displays curvature porcupines for any edge, section, waterline, buttock, diagonal or feature line by clicking on the curve and selecting Show Curvature. Porcupines are displayed perpendicular to the curve and their lengths are inversely proportional to the square root of the radius of curvature at that point on the curve. Note that the smallest radius on a given curve is displayed at the end of the porcupine corresponding to its position on the curve.

Trimming

Turns on or off the trimming option in Maxsurf. This command also lets you trim surfaces Invisible or Gray.

Outside Arrows

Displays the arrows which show the surface's current outside normal direction. All surfaces should point outwards. The direction of the surface normal may be flipped by clicking in the circle at the end of the arrowhead. This is important for rendering, skin thickness direction and correct interpretation of the design when it is loaded into

Hydromax or Workshop.

Markers

You can choose to display all markers or no markers, or you may choose to only show those markers whose station number is the same as the current station. The Connect

Marker Stations command displays a connecting line between markers on the same

station. See Sorting Markers on page 72 for more information.

Background

Controls whether the background DXF construction lines and the background images are displayed or not. The background may be loaded from an existing DXF file using the

Import function in the File menu. Tools for positioning and scaling the background image are also here.

Page 208

Chapter 6 Maxsurf Reference

The commands in the submenu are only available when a background image or DXF has been imported. See:

Importing DXF background on page 180

Background Images on page 142

Hide DXF

Hides the DXF background.

Show DXF

Shows the DXF background.

Delete DXF background

Deletes the DXF background.

Hide Image

Hides the background image in the current view window.

Show Image

Shows the image in the current view window.

Set Image Zero Point

Sets the image zero point. This command is not available for images in the

perspective window. See Setting the Zero Point on page 143.

Set Image Reference Point

Sets the image reference point. See

Setting the Scale on page 143.

Delete Image

Deletes the background image in the current view window.

Grid

When Show Grid Only is selected, the positions of the Sections, Waterlines, Buttocks and Diagonals as specified by the Grid Spacing function from the Data menu, will be drawn.

When Show Grid and Labels is selected, the names assigned to each grid line in the Grid

Spacing option will also be shown on the screen and hardcopy.

Contours

The Contours option allows you to select which contours are drawn on the screen at any given time. Any combination of contours may be chosen from the contours dialog.

Render

Render may only be selected when the Perspective window is active. Selecting Render performs hidden line removal on the design with a choice of surface shading and false colouring.

Animate

Animate may only be selected when the Perspective window is active. Maxsurf will attempt to draw as many views as possible with the available memory, up to the maximum number specified in the animate dialog.

Page 209

Chapter 6 Maxsurf Reference

When these views have all been drawn they can be played back as a moving picture by moving the mouse from side to side. Clicking the mouse button will terminate the animation.

Animations may be saved to AVI files for playback at a later time.

Data Menu

The Data menu contains commands for calculating and changing the numerical data that defines the design.

Units

A variety of metric and imperial units may be specified.

Irrespective of the default units specified, the Size, Grid Spacing, Girth, and Markers options, and data input windows will accept dimensional data in any units. For example, if the default units were metres, all of the following input would be accepted and converted accordingly:

3 (interprets as 3.00 meters)

2.5c

33cm

328mm

650.44 mil

6ft 3.1in

5f 5i

11.25 feet

5’4"

4 inches

3.25"

Coefficients

Allows you to specify how you want to display the LCB and LCF position and how the hydrostatic calculations should be carried out.

See

Hydrostatic Coefficient Calculation Parameters on page 170 for more information.

Grid Spacing

This menu function allows you to specify the positions of Sections, Waterlines, Buttocks, and Diagonals.

See

Setting up the Grid on page 40 for more information.

Frame of Reference

Choosing this function allows you to set the positions of the Fore and Aft Perpendiculars, the DWL and the Baseline of the design; the Midship position is altered indirectly since it is assumed to be mid way between the Fore and Aft Perpendiculars. All values are entered relative to the Zero Point. However, it may be that the Zero Point is set to the position of one of the elements in the Frame of Reference. In this case the Zero Point is not updated until you have clicked OK in the Frame of Reference dialog.

See

Setting the Frame of Reference on page 36 for more information.

Page 210

Chapter 6 Maxsurf Reference

Zero Point

This function sets the longitudinal and vertical reference point for all measurements.

See

Setting the Zero Point on page 37 for more information.

Vessel Type

Lets you specify the type of vessel you are modelling. See Setting the Vessel Type on page 38 for more information.

Girth

Measures halfgirths or locates the position at which a particular halfgirth occurs.

See

Calculate Girth on page 171 for more information.

Calculate Offsets

When Calculate Offsets is selected, the Offsets window will be filled with offset data for the grid that has been specified via the Grid Spacing command.

See

Offsets Window on page 76 for more information.

Go to Offset

This command allows you to select the station for which the offsets are displayed in the

Offsets window. This item is available only when the Offsets window is active.

Calculate Areas

Calculates the areas and centres of the surfaces in the design.

See

Calculate Areas on page 171.

Calculate Hydrostatics

Calculates the upright hydrostatics of the design at the DWL.

See

Hydrostatics on page 169 for more information.

Solve Calculations

Choose this command to solve the calculations currently displayed in the Calculations window. The dialog box that appears can be used to set the longitudinal extent of the hull to be used in the calculations.

See

Calculations Window on page 82 for more information.

Parametric Transformation

Activates the Parametric Transformation dialog, which allows you to manipulate an existing design.

See

Using Parametric Transformation on page 173 for more information.

AC Rule

If you have a license for the America's Cup Rule software, this menu item will be available. Maxsurf will automatically measure your hull and calculate its rating under the

America's Cup Rule.

Page 211

Chapter 6 Maxsurf Reference

Window Menu

The Window menu allows you to make any window selected from the menu the active window.

Cascade

Displays all the Windows behind the active Windows.

Tile Horizontal

Lays out all visible windows across the screen.

Tile Vertical

Lays out all visible windows down the screen.

Arrange Icons

Rearranges the icons of any minimised window so that they are collected together at the bottom of the Maxsurf program window.

Help Menu

Provides access to the Maxsurf manual.

Maxsurf Help

Invokes the Maxsurf manual PDF file.

Maxsurf Automation Help

Invokes the Maxsurf Automation Help PDF manual.

Maxsurf Automation Reference

Invokes the Automation Reference help system.

Online Support

Provides access to a wide range of support resources available on the internet.

Check for Updates

Provides access to our website with the most recent version listed.

About Maxsurf

Displays information about the current version of Maxsurf you are using and other diagnostic information. Use this to obtain version and diagnostic information when reporting a problem to the Support Staff at Formation Design Systems.

Page 212

Appendix A Data Export

Appendix A Data Export

Maxsurf provides a number of alternative methods for transferring data between Maxsurf and other software applications on other computers. Each of the different methods of data transfer has various advantages and disadvantages. This appendix will help you determine which method is most suitable for your work.

Broadly speaking the data interchange can be divided into five types.

Pictures and Text

2D Drafting Data

3D Drafting Data

3D Surface Definition

Pictures and Text

Copying the drawing

The drawing in any of the views may be copied in two ways:

The first method will copy a scaled drawing to the clipboard which may then be pasted into another application such as MS Word. To do this select Copy from the Edit menu.

Maxsurf supports the transfer of pictures and tables of text on the clipboard for use by other applications. (If you are not familiar with copying information to the clipboard, consult your computer's owner's guide.) In Maxsurf you can copy pictures by using the

Copy command from the Edit menu or by using Ctrl C.

When copying a design, the Copy dialog allows you to choose what scale you would like to copy the picture at. A picture on the clipboard can be pasted into word processors, page layout applications or drawing applications.

The main disadvantage of pictures is their limited resolution. This effect may be minimized by copying at a large scale and then reducing the size of the picture in the destination application. Some CAD programs have a 'Re-scale when Pasting' option that allows you to reduce a set of lines copied into the Clipboard from Maxsurf at a 1:1 scale, down to the scale you are using at the time.

The second method makes a copy of the actual screen image (similar to a copy made by screen capturing software or the print screen button). To activate this method, press Ctrl I whist in the view. Alternatively you can directly save the window image to a bitmap file by holding down the Shit key whilst pressing Ctrl I. This will then prompt you for the file name (by default the file name contains the design name and the view name).

Copying Text

As well as copying pictures to the clipboard, Maxsurf allows you to copy text from the

Control Points, Markers and Offsets windows or any of the tables in the dialogs to the clipboard. It is also possible to Paste text into these windows.

Page 213

Appendix A Data Export

Before copying or pasting you must select the range of data you wish to copy from or paste into. You can select a single cell, row, column, arbitrary rectangular range of cells or the whole table of data. You can click at the top of a column to select the whole column, click at the left of a row to select a whole row, and click at the top left of a table to select the whole table.

Text copied from Maxsurf will be placed on the clipboard in "Tab Delimited Format".

This means each number is separated from the next number in the row by a Tab character, and each row of numbers is terminated by a Return character. If you paste this text into a word processor or text editor such as Microsoft Word, the data will be displayed with each row on a separate line, and tabs between the numbers. If you paste the text into a spreadsheet such as Excel, the numbers will be displayed in individual cells exactly as they are shown in the tables in Maxsurf.

If you hold down the Shift key while using the Copy command in a table, the headings of the columns will also be included in the clipboard.

It is also possible to save the contents of the Control Points, Markers and Offsets windows as text files. With the appropriate window frontmost on the screen, choose Save

As… from the File menu and Maxsurf will save the contents of the window into a text file. This data will also be in Tab Delimited Format, i.e. the contents of the text file will be exactly the same as the text placed on the clipboard if you copy the whole table. Text files created in this way can be read into a word processor, text editor or spreadsheet.

If you wish to write a program that reads data from Maxsurf, these text files are an easy way to access the data. If you want to reconstruct a Maxsurf surface exactly, you can read in the control point positions and use them to generate the surface coordinates from

the standard B-spline algorithm (see Appendix B Surface Algorithms on page 217).

Note:

Surface stiffness and other properties may be saved from the Surfaces window.

2D Drafting Data

Maxsurf includes support for IGES and DXF files, the two most commonly used interchange formats for computer-generated drawings. These files are the most effective way of transferring lines drawings to a CAD system for further drafting work.

Two-dimensional output is always in the z=0 plane. The positive y-axis corresponds to the upward vertical screen axis and the positive x-axis to the right-hand-side horizontal screen axis.

DXF (Drawing Exchange File) was originated by AutoCAD and is supported by almost all CAD systems on most platforms.

IGES (Initial Graphics Exchange Standard) is a widely supported by CAD systems on all types of computers and is published by the US Dept of Commerce, National Bureau of

Standards. IGES is widely supported by workstation and mainframe based CAD systems.

These files are the most accurate way to transfer lines drawings from Maxsurf to a CAD system with data accurate to 5 decimal digits.

Page 214

Appendix A Data Export

Note:

Maxsurf designs exported in this way are at the current Maxsurf precision.

For best quality, set the Maxsurf precision to High or Highest before writing the file.

When you choose Export from the File menu, with a drawing window frontmost,

Maxsurf will present you with the export dialog, allowing you to choose whether you wish to save DXF or IGES format data. If you choose either of these options and click

OK, Maxsurf will ask you for the name of the file and allow you to save it to disk. This file will contain the DXF or IGES format data, which can then be read into your CAD system (e.g. using the DXFIN command in AutoCAD). Use the 2D option in the Export dialog to copy drawings in this way.

Note:

Many programs (such as AutoCAD) require a file extension for both DXF and IGES files. File names should have either the .DXF or .IGS extension appended to them.

Maxsurf supports the DXF format and is compatible backwards to release 10. It supports the Line and Polyline entities. Each contour from Maxsurf will be saved as a polyline in the DXF file.

Maxsurf supports IGES, version 4.0. It supports IGES entity number 106, the copious data entity. Each contour from Maxsurf is saved as a linear path of copious data, with x, y and z coordinates.

3D Drafting Data

If you use your CAD system in 3D, you can use the DXF or IGES methods to save the lines from the Maxsurf design as three-dimensional lines rather than just 2D. This allows you to do things like interior space planning in three dimensions. Choose the 3D IGES or

3D DXF file format as required.

Maxsurf exports 3D poly-line and surface data so that it will be correctly interpreted by a cad system which has the following right-handed co-ordinate system: x-axis, positive along the forward longitudinal axis of the vessel; y-axis, positive along the port transverse axis of the vessel; and z-axis, positive along the upward vertical axis. This means that the y-ordinates will be the negative of the Maxsurf “Offset” values since, in

Maxsurf, “Offsets” are measured transversely, but positive to starboard.

Maxsurf supports the 3DLine and 3DPolyline entities. Each contour from Maxsurf will be saved as a 3D polyline in the DXF file.

Maxsurf supports IGES entity number 106. Each contour from Maxsurf is saved as a linear path of copious data, with x, y and z coordinates.

Page 215

Appendix A Data Export

3D Surface Definition

Maxsurf supports IGES entities, which allow you to transfer an exact surface description from Maxsurf, if you use a high end CAD system, such as Intergraph EMS, which supports B-spline surfaces. This is the most advanced and accurate way to transfer the model and ensures that accuracy is preserved. Use the Export function to export an IGES

NURBS surface model in 3D. When your CAD system reads in the data it will accept the surfaces and will then allow you to manipulate them in any way that the system allows.

As well as the usual contours, which are saved as IGES entity number 106, Maxsurf will save an IGES entity number 128 for each Maxsurf surface and any associated trimming data as entity 144. This entity is a NURB (Non Uniform Rational B-spline) surface, which has the positions of the control points and the stiffness of the surface stored within it.

If you wish to write custom software that needs to read accurate Maxsurf surface descriptions, we recommend that you support input of the IGES file and this entity in particular as the most effective way of accessing the Maxsurf surface description.

Please note that there are some surface topologies that may cause difficulties when they are exported as trimmed IGES surfaces. In these cases the trimming may have to be redone in the importing application. In most cases the trimmed IGES export should work correctly: For example the topology shown below with multiple edge and interior trims, including intersecting trim regions, will work correctly.

There are two cases where IGES NURBS surface trimming is known to break down. The topology shown below (right), where a trim region contains an untrimmed region, will display correctly in Maxsurf but may not transfer correctly through IGES – this may be dependent on the receiving program.

The major limitation of IGES NURBS transfer is in the interpretation of a surface that has been divided into two or more independent regions, as in the following examples:

Page 216

Appendix B Surface Algorithms

Appendix B Surface Algorithms

This appendix describes the mathematical basis of the Maxsurf models, and will be of interest to users who wish to write software to recreate Maxsurf surfaces.

Maxsurf constructs its shapes using the Rational B-spline formulation as described by the

IGES standard. Maxsurf uses a uniform knot vector. However, non-uniform knot vectors are permissible.

B-spline curves and surfaces are dependent on a set of basis functions, which define the influence of each control point at any given point on the curve. The basis functions are determined by a vector of knots T where T = {t

0

,...,t i

,t i+1,

...,t m

} and m = number of control points + order of the curve. The parameter t varies from zero to n – k + 2. In general, the

B-spline basis function on a curve of degree p (order k = p + 1) is given by

1 if t i

≤ t < t i+1

and t i

< t i+1

N i,0(

(t) =

N i,p

(t) = t - t i

N i,p-1

(t) + t i+p+1

- t N i+1,p-1

(t)

t i+p

-t i

t i+p+1

- t i+1 assuming 0/0=0.

The elements of the open uniform knot vector, t i

, are given by t t i t i i

= 0

= i - k

1

≤ i ≤ k k + 1

≤ i ≤ n + 1

= n – k + 2 n + 2

≤ i ≤ n + k + 1 where there are n+1 control points on the curve, and k is the order of the curve

(k = p + 1).

A rational B-spline surface is given by

S(u,v) = m n

Σ Σ

N i,p

(u) N j,q

(v) W ij

P ij i=0 j=0

______________________ _ m n

Σ Σ

N i,p

(u) N j,q

(v) W ij i=0 j=0 where S(u,v) is a point on the B-spline surface at parametric coordinates u,v,

N i,p

(u) and N j,q

(v) are the B-spline basis functions, W ij are the rational weighting values, and P ij are the control point positions.

Page 217

Appendix B Surface Algorithms

The Pascal code to implement the uniform rational B-spline surface follows the setting up of the following variables -

Read a Maxsurf Control Point File into the Cont_Points array.

Set LimitU to the number of control point Columns used.

Set LimitV to the number of control point Rows used.

Set KValU to the Row Stiffness.

Set KValV to the Column Stiffness.

Stiffness:

Linear:

Flexible:

Stiff:

Order 2, Degree 1 (Linear)

Order 3, Degree 2 (Quadratic)

Order 4, Degree 3 (Cubic)

Order 5, Degree 4 (Quartic)

Order 6, Degree 5 (Quintic)

Call CalcSurface to create B spline parametric surface

{**********************************************************

*******

PROGRAM B_Spline; { © FORMATION DESIGN SYSTEMS LTD. 1990 }

TYPE

Point_3D =

x REAL;

y REAL;

z REAL

END;

ControlPoint4D = x :

REAL;

REAL; y :

REAL z :

h REAL;

END;

VAR knotN,knotK,I_Main :INTEGER;

KValU,KValV :INTEGER;

Cont_Points

:ARRAY[0..15,0..15] OF ControlPoint4D;

{*****************************************************}

FUNCTION Knot(i:INTEGER):INTEGER;

{CALCULATES UNIFORM KNOT VECTOR}

{*****************************************************}

VAR

KnotVal

BEGIN

:INTEGER;

IF i < knotK THEN

KnotVal := 0

Page 218

Appendix B Surface Algorithms

ELSE

IF i > knotN THEN

KnotVal := knotN - knotK + 2

ELSE

KnotVal := i - knotK + 1;

Knot := KnotVal;

END;

{*****************************************************}

FUNCTION Bspline (i,k:INTEGER;u:REAL):REAL;

{RECURSIVE BSPLINE BASIS VALUE CALCULATION}

{*****************************************************}

VAR

t

v

BEGIN

IF k = 1 THEN

BEGIN

v := 0;

:LONGINT;

:REAL;

IF (Knot(i) <= u) & (u < Knot(i + 1)) THEN

v := 1;

IF (u = knotN - knotK + 2) & (I_Main = KnotN) THEN

v := 1;

END

ELSE

BEGIN

v := 0;

t := Knot(i + k - 1) - Knot(i);

IF t <> 0 THEN

v := (u - Knot(i)) * Bspline (i,(k - 1),u)/ t;

t := Knot(i + k) - Knot(i + 1);

IF t <> 0 THEN

v := v + (Knot(i + k) - u) * Bspline(i + 1,(k -

1),u)/t;

END;

Bspline := v;

END;

{*****************************************************}

FUNCTION Calc_Bval(k,i,n:INTEGER;u:REAL):REAL;

{CALCULATES BSPLINE BASIS VALUES}

{*****************************************************}

BEGIN

IF K > n + 1 THEN

K := n + 1;

u := u * (n - K + 2);

I_Main := i;

RECURSION}

KnotK := K;

{SET UP GLOBALS PRIOR TO

KnotN := n;

Calc_Bval := Bspline(i,K,u);

END;

{*****************************************************}

Page 219

Appendix B Surface Algorithms

FUNCTION Calc_Point(U,V:REAL):Point_3D;

{CALCULATES A PARTICULAR POINT ON A SURFACE}

{*****************************************************}

VAR i,j :INTEGER;

B :REAL;

BEGIN

shape_pt.x := 0; shape_pt.y := 0;

shape_pt.z := 0;

D:=

FOR i := 0 to limitU DO

FOR j := 0 to limitV DO

BEGIN

Calc_Bval(KValU,i,limitU,U) *

Calc_Bval(KValV,j,limitV,V) *

Cont_Points[i,j].w;

:= B;

Cont_Points [i,j].x * B;

Cont_Points [i,j].y * B;

Cont_Points [i,j].z * B;

END; shape_pt.x := shape_pt.x / D; shape_pt.y := shape_pt.y / D; shape_pt.z := shape_pt.z / D;

Calc_Point := shape_pt;

END;

PROCEDURE CalcSurface;

{*****************************************************}

{CALCULATES ALL POINTS ON A SURFACE}

{*****************************************************}

CONST

Res = 32;

VAR

Surface :ARRAY[0..Res,0..Res] OF

Point_3D; l,m :INTEGER;

BEGIN

FOR l := 0 to Res DO

FOR m := 0 to Res DO

Calc_Point(l/Res,m/Res);

END;

END.

Page 220

Appendix C Command Keys

Appendix C Command Keys

There are several functions in Maxsurf that are not obvious to the user as they rely on key combinations to activate them.

This is a summary of the various key combinations and their effects:

Modifier Keys

Special Keys

Control Point Weights

Menu Shortcuts

Modifier Keys

The following keys modify a function while they are held down.

Shift or Ctrl - select of points.

Adds or removes control points from the current selection.

Shift - drag of points.

Constrains movement to horizontal or vertical planes.

Ctrl - drag of points.

Lets you drag control points on a symmetrical surface over the centreline.

Ctrl - while developable surface is drawing

Calculates markers which can later be used as guides for designing a developable surface.

Shift + Ctrl + C

Copies the column headings along with the data in a data window such as control points or markers.

Shift - While starting Maxsurf

Will prompt you to reset the Maxsurf preferences. This will reset the windows registry.

For more information see Windows Registry .

Special Keys

The following keys launch special commands

Key Function

Space bar Force a redraw of the front window

F1 Help/Contents

Page 221

Appendix C Command Keys

Control Point Weights

The following keys change the weights of the currently selected control points.

MultKey

DivKey

PlusKey

MinusKey

ZeroKey

*

/

+

-

0

Increase current weight by factor of 2.0

Divide current weight by 2.0

Add 0.1 to current weight

Subtract 0.1 from current weight

Set weight to 0.7071 (value required for mid point on a 3-point circular arc)

Set weight to 1.0 to 9.0 respectively 1..9 1..9

Menu Shortcuts

The following keyboard shortcuts access menu commands

Key

Menu

Function

Ctrl+A

Controls

Add Column/Row

Ctrl+C

Ctrl+Shft+C

Ctrl+D

Edit

Edit

Controls

Copy

Copy, including the column headers

Delete Column/Row

Ctrl+E

Ctrl+F

Ctrl+G

View

Edit

Zoom

Fill Down

Group

Ctrl+H

Ctrl+I

Shift+Ctrl+I

Controls

View

-

-

Controls

Home View

Copy the design screen to a clipboard image

Copy the design screen to a bitmap file

Ctrl+K

Ctrl+L

Ctrl+M

Ctrl+N

Ctrl+O

Edit

Edit

File

Compact

Delete Marker

Add Marker

New

Open

Ctrl+P

Ctrl+R

Ctrl+S

File

File

View

Print Preview

Shrink

Save

Ctrl+T

Ctrl+U

Ctrl+V

Ctrl+W

Ctrl+X

File

Surfaces

Controls

Edit

View

Trim

Ungroup

Paste

Pan

Cut

Ctrl+Y

Ctrl+Z

Ctrl+Insert

Edit

Edit

Edit

Edit

Redo

Undo

Copy

Page 222

Shift+Insert

Edit

Alt+Backspace Edit

Shift+Delete

Edit

Paste

Undo

Cut

Appendix C Command Keys

Page 223

Appendix D Moving Files Across Platforms

Appendix D Moving Files Across

Platforms

Maxsurf design and data files may be moved easily between PC an Macintosh computers. The data file structure used by the two formats is identical on both platforms.

The changes required when moving files from Macintosh to PC are only to allow the

Open File dialogs to determine the contents of the file.

Moving Files From Macintosh to Windows

Moving Files from Windows to Macintosh

Moving Files From Macintosh to Windows

Copy your Macintosh file to your Windows computer, either via a network or by inserting a DOS formatted floppy disk into your Macintosh computer and copying the required files onto the floppy disk. Put the disk into your PC and copy the files to the desired location on your PC's hard disk.

It is necessary to add a file extension to the file name so that your PC can determine the contents of the file. If you already have Maxsurf installed on your PC, once you have added the correct .msd file extension to your Maxsurf design files, these files will have the Maxsurf icon associated with them.

The following file extensions are given to files saved on the PC. Macintosh users copying files from Macintosh to PC should add the appropriate file extension so that the files are recognised correctly.

Maxsurf

Maxsurf Design Files

Maxsurf Calculation Files

Marker, Offsets, Control Points Files

Data eXchange Files

Iges Files

Hydromax

Hydromax Loadcase Files

Damage Case Files

Tank Definition Files

Down Flooding Points, Margin Line Points,

Modulus Points, Output Data Files

Report(Rich Text Format)

Hydrolink

USNA, IMSA NURBs, Output Data Files

Nakashima Stereo Files

File Extension

.msd

.msc

.txt

.dxf

.igs

.hml

.dcs

.htk

.txt

.rtf

.txt

.nst

Page 224

Appendix D Moving Files Across Platforms

Workshop

Workshop Design Files

Materials Library Files

Hullspeed

Hullspeed Measurement Files

Prefit

Prefit Offsets Files

Span

Span Data Files

Seakeeper

Seakeeper Data Files

Image Formats

Quickdraw 3D Metafiles

PICT Files

Renderman Files

Video for Windows

Other

Rich Text Format

Text Files

Temporary Files

EPS (expanded PostScript) Files

.wsd

.wsl

.hsd

.pfd

.spd

.sld

.3dmf

.pic

.rib

.avi

.rtf

.txt

.tmp

.eps

Moving Files from Windows to Macintosh

Windows Maxsurf designs with the file extension .msd will automatically open on the

Macintosh. Other files must have their type and creator attributes changed once they have been copied to the Macintosh. This may be done with software such as ResEdit.

The following type and creator attributes are required:

Application and File type

Maxsurf

Maxsurf Design Files

Type Creator

SHA3 SURF

Maxsurf Calculation Files TEXT SURF

Marker, Offsets, Control Points Files

TEXT MWRT

Data eXchange Files

Iges Files

TEXT ????

TEXT ????

Page 225

Appendix D Moving Files Across Platforms

Hydromax

Hydromax Loadcase Files

Tank Definition Files

Down Flooding Points, Margin Line

Points, Modulus Points, Output Data

Files

Report

Workshop

Workshop Design Files

Materials Library Files

Hullspeed

Hullspeed Measurement Files

Prefit

Prefit Offsets Files

Span

Span Data Files

CGDA SHED

TKDF STAB

TEXT MWRT

RPRT STAB

SHOP SHOP

WSLB SHOP

ZIS1 ZIST

PFIN PFIT

QKS1 QKSL

Page 226

Index

Index

A

About Maxsurf ............................................212

AC Rule ......................................................211

Add Marker.................................................202

Add Shape...................................................206

Add Surface ................................................111

Advanced ....................................................205

Aft Perpendicular ..........................................36

Align ...........................................................117

Align Surfaces.............................................206

Align to Plane .....................................163, 204

Align to Vector ...................................161, 204

Americas Cup..............................................179

Amidships .....................................................36

Animate.......................................................209

Animation Files...........................................188

Appearance .................................................207

Arrange Icons..............................................212

Assembly window.................................56, 202

Context Sensitive Menus ..........................57

Docking.....................................................56

Drag and Drop...........................................57

Editing.......................................................57

Hiding .......................................................57

Icons..........................................................59

Automation Help.........................................212

Automation Reference ................................212

B

Background .................................................208

Background Image, Importing ....................142

Background Image, Perspective View ........144

Background Image, Scaling ........................143

Background Image, Zero Point ...................143

Background Images ....................................142

Baseline.........................................................36

Bibliography ...................................................8

Body Plan......................................................27

Body Plan Window .......................................50

Bond Edges .................................................205

Bonded Edges ...............................................45

Bonding two Surfaces .................................128

Bonding within a Surface............................132

Bonding, Commands Affected....................133

Brightness Level .........................................107

B-Spline ........................................................91

Built-in Functions .........................................84

Buttocks ..................................................40, 44

C

Calculate Areas ...................................171, 211

Calculate Hydrostatics ................................211

Calculations Window....................................82

Cascade .......................................................212

Check for Updates ......................................212

Circular and Elliptical Surfaces ....................94

Circular Arcs.................................................92

Clean Net ......................................................26

Close ...........................................................199

Coefficients.................................................210

Colour ...................................................87, 202

Column Hiding .............................................63

Command Keys ..........................................222 comparison..................................................178

Compress ....................................................208

Constraining Movement .............................153

Contour Tolerance ................................87, 104

Contours......................................................209 display.......................................................43 select .........................................................47

Control Box ..................................................28

Control Point.........................................29, 151

Control Point Column Ordering ...................87

Control Point Display Format.......................68

Control Point Editing ....................................67

Control Point Properties .............................153

Control Point Weighting...............................67

Control Point Weights ................................223

Control Point Window ..................................67

Control Point, Adding.................................151

Control Point, Adding a Column ..................31

Control Point, Adding a Row .......................30

Control Point, Aligning ..............................161

Control Point, Compacting .........................165

Control Point, Deleting ...............................152

Control Point, Display ................................155

Control Point, Grouping .............................166

Control Point, Moving ..................15, 152, 160

Control Point, Removing ..............................34

Control Point, Resizing...............................160

Control Point, Rotating ...............................161

Control Point, Smoothing ...........................158

Control Point, Smoothing a Patch...............159

Control Point, Straightening .......................158

Control Point, Straightening a Patch...........159

Control Points

Add .........................................................204

Compact..................................................204

Page 227

Index

Delete ......................................................204

Group ......................................................205

Ungroup ..................................................205

Control Points, Synchronization ...................68

Control Properties .......................................205

Controls Menu ............................................203

Controls Toolbar .........................................197

Convexity....................................................107

Copy............................................................201

Copying.......................................................187

Copying Drawing........................................213

Copying Numeric Data ...............................187

Copying Text ..............................................213

Current Column ............................................28

Current Section .............................................28

Curvature ............................................105, 208

Curvature Display Using Rendering ...........105

Curvature on Contours ................................109

Curvature Porcupine Size .............................87

Curve of Areas Window ...............................80

Cut...............................................................201

D

Data Export .................................................213

Data Interpolation .........................................79

Data Menu...................................................210

Datum Waterline.....................................36, 44

Deducted Sections.........................................47

Delete DXF background .............................209

Delete Marker .............................................202

Delete Surface.............................................112

Developable Surfaces....................................95

Diagonals ................................................40, 45

Dimensions ...................................................18

Discontinuities ............................................166

Display

Animate...................................................209

Background .............................................208

Compress.................................................208

Contours..................................................209

Curvature.................................................208

Grid .........................................................209

Half .........................................................208

Markers ...................................................208

Net...........................................................207

Outside Arrows .......................................208

Render .....................................................209

Shape.......................................................207

Trimming ................................................208

Display Area .................................................60

Display Menu..............................................207

Display Toolbar ..........................................198

Drafting Data, 2D........................................214

Drafting Data, 3D........................................215

Page 228

Drawing, Copying.......................................213

DWL .............................................................36

E

Edges ......................................................19, 45

Edit Menu ...................................................200

Edit Toolbar ................................................197

Editing ..........................................................64

Editing, Copy................................................64

Editing, Fill Down ........................................65

Editing, Fill Right .........................................65

Editing, Paste ................................................65

Editing, Typing .............................................64

Elliptical Arcs ...............................................93

Exit..............................................................200

Export .........................................................200

Export, Earlier Maxsurf File Formats.........200

Expressions ...................................................82

F

Feature Lines ..................................45, 77, 166

File Format, 3DMF .....................................192

File Format, DXF........................................191

File Format, IGES.......................................190

File Format, VRML ....................................192

File Menu....................................................199

File Toolbar ................................................197

Fill Down ....................................................201

Fit Edge to Markers ............................139, 203

Fit Surface to Markers ........................136, 203

Fitting Surfaces ...........................................134

Flexibility..............................................95, 100

Flip Surfaces ...............................................206

Font .................................................64, 88, 202

Forward Perpendicular..................................36

Frame of Reference.........................22, 36, 210

G

Gaussian Curvature.....................................105

Generate Grid from Markers.......................138

Girth....................................................171, 211

Go to Offset ................................................211

Graph Type ...................................................86

Grid .................................................23, 40, 209

Grid Labels ...................................................41

Grid Lines, Adding .......................................42

Grid Lines, Copying and Pasting..................42

Grid Lines, Deleting .....................................42

Grid Lines, Editing .......................................41

Grid Lines, Sorting .......................................41

Grid Lines, Spacing ......................................43

Grid Spacing ...............................................210

Group Versus Compact...............................166

H

Half ...............................................................51

Help.............................................................212

Help Menu ..................................................212

Hidden Surface Elimination........................105

Hide DXF....................................................209

Home View .....................................47, 49, 201

Hydrostatic Coefficient Calculation

Parameters...............................................170

Hydrostatics ................................................169

I

Import..........................................................200

Import DXF Background ............................200

Import DXF Markers ..................................200

Import IGES Surfaces .................................200

Import Image Background ..........................200

Importing DXF background........................180

Importing DXF markers..............................181

Importing IGES Surfaces ............................182

Inclined Sections...........................................47

Input of Data ...............................................180

Installing Maxsurf.........................................12

Interrupting Maxsurf .....................................55

Intersections ..................................................46

K

Keyboard Shortcuts.......................................13

L

Lighting Options .........................................107

Locking ...............................................100, 206

Longitudinal Curvature ...............................106

M

Margins .......................................................185

Marker Menu ..............................................202

Marker Properties........................................203

Markers .......................................................208

Markers Toolbar..........................................197

Markers Window ..........................................68

Markers, Adding ...........................................69

Markers, Deleting .........................................70

Markers, Developable Surfaces ............74, 203

Markers, Displaying......................................69

Markers, Generate Grid ..............................203

Markers, Modifying ......................................71

Markers, Reading Files .................................72

Markers, Re-order Selected ........................203

Markers, Selection ........................................69

Markers, Sort Stations.................................203

Mask............................................................205

Material ...............................................100, 101

Index

Measure Surface Error ........................141, 203

Menu Items ...................................................13

Menu Shortcuts...........................................223

Menus .........................................................199

Modifier Keys.............................................222

Mouse Wheel Support ..................................49

Move Controls ....................................160, 204

Moving Files Across Platforms ..................226

Moving Files From Macintosh to Windows226

Moving Files from Windows to Macintosh 227

N

Net Display .................................................156

Net, Masking...............................................156

New.............................................................199

NURB ...........................................................91

O

Offsets.........................................................211

Offsets Data ................................................188

Offsets File ...................................................78

Offsets Window ............................................76

Offsets, Calculating ......................................76

Offsets, Copying ...........................................78

Offsets, Customising.....................................78

Offsets, Displaying .......................................77

Online Support............................................212

Open............................................................199

OpenGL ......................................................108

Opening a Design .........................................13

Orientation ..................................................185

Output of Data ............................................184

Outside Arrow Size.......................................87

Outside Arrows ...................................101, 208

P

Page Setup ..................................................200

Page Size.....................................................185

Pan ..................................................47, 49, 201

Panning .........................................................49

Parametric Transformation .................173, 211

Parametrics ...................................................46

Paste............................................................201

Pasting ........................................................180

Perspective Window .....................................54

Pictures and Text ........................................213

Precision .............................................103, 207

Precision, high ............................................103

Precision, highest ........................................104

Precision, low .............................................103

Precision, lowest .........................................103

Precision, medium ......................................103

Preferences......................................12, 86, 202

Prefit, Activate/Deactivate..........................201

Page 229

Index

Print.............................................................200

Print Titles...................................................186

Printing........................................................184

Printing, Colour...........................................185

R

Redo ............................................................201

Refresh Options ............................................87

Render .........................................................209

Rhino file, Exporting ..................................192

Rhino file, Importing ..................................183

Rotate ....................................................55, 202

Rotate Controls ...................................161, 204

Rotate Surfaces ...........................................206

Row Sorting ..................................................64

S

Save.............................................................199

Save As .......................................................200

Saving Calculations ......................................85

Saving Your Design ......................................26

Scaling factors.............................................176

Search Parameters .......................................173

Section Splitting............................................53

Sectional Area Curve Stations ......................87

Sectional Area Curve Type ...........................86

Sections ...................................................40, 44

Select...........................................................201

Selection........................................................60

Selection, Block of Cells...............................61

Selection, Complete Table ............................62

Selection, Contiguous Rows and Columns ...61

Selection, Single Cell....................................60

Selection, Single Column..............................61

Selection, Single Row ...................................60

Set Home View ...........................................202

Setting Flexibility..........................................32

Shape Display .............................................155

Shapes, Adding New...................................109

Shapes, Box ................................................110

Shapes, Cylinder .........................................110

Shapes, Hemisphere ....................................110

Shapes, Sphere ............................................110

Shift Key ...............................................12, 153

Show DXF ..................................................209

Show Negative Values ................................106

Show Positive Values .................................106

Showing the Net............................................26

Shrink........................................47, 48, 60, 201

Simple Shading ...........................................105

Size Controls.......................................160, 204

Size Surfaces...............................................114

Sizing Columns.............................................62

Sizing Columns, Dragging............................62

Page 230

Sizing Columns, Size to Text .......................62

Skin Thickness Deduction ............................77

Smooth Controls .................................158, 204

Smooth Interior Controls ............................203

Smooth Shading..........................................105

Smooth Surface Interior..............................140

Snap Control Point to Marker.............138, 203

Snap to Grid........................................155, 205

Solve Calculations ................................84, 211

Split Section Display ............................52, 100

Start Trimming............................................207

Starting Maxsurf ...........................................12

Statement Syntax ..........................................83

Station Indicators ..........................................50

Status Bar....................................................202

Straighten Controls .............................158, 204

Sub-menu Length..........................................87

Surface Algorithms .....................................217

Surface Appearance ......................................98

Surface Curves..............................................46

Surface Definition, 3D................................216

Surface Fitting, Advantages Over Prefit.....135

Surface Fitting, Automatic..........................134

Surface Fitting, Initial Surface....................136

Surface Fitting, Licensing...........................137

Surface Fitting, Manual ..............................138

Surface Fitting, Markers .............................135

Surface Name................................................99

Surface Operations......................................109

Surface Properties .................................99, 207

Surface Toolbar ..........................................198

Surface Type...............................................100

Surface Types ...............................................90

Surface Use.................................................100

Surface, Adding ............................................17

Surface, Adding New..................................111

Surface, Aligning ........................................117

Surface, Conic...............................................91

Surface, Deleting ........................................112

Surface, Duplicating ...................................113

Surface, Flipping.........................................115

Surface, Intersections..................................119

Surface, Moving .........................................113

Surface, Moving, Freeform.........................113

Surface, Moving, Numerical.......................114

Surface, NURB .............................................90

Surface, Rotating ........................................116

Surface, Trimming ......................................118

Surface, Untrim...........................................124

Surfaces

Add .........................................................206

Allign ......................................................206

Appearance .............................................207

Delete......................................................206

Duplicate .................................................206

Flip ..........................................................206

Locking ...................................................206

Move .......................................................206

Rotate ......................................................206

Size..........................................................206

Visibility .................................................206

Surfaces Menu ............................................205

Surfaces Window ..........................................75

Surfaces, Displaying Trimmed ...................123

Symmetrical ................................................100

T

Tab ................................................................66

Taking Measurements ...................................40

Tile Horizontal ............................................212

Tile Vertical ................................................212

Toolbars ........................................13, 194, 202

Transpose ....................................................168

Transverse Curvature ..................................106

Trim ............................................................207

Trim Gray ...........................................122, 123
