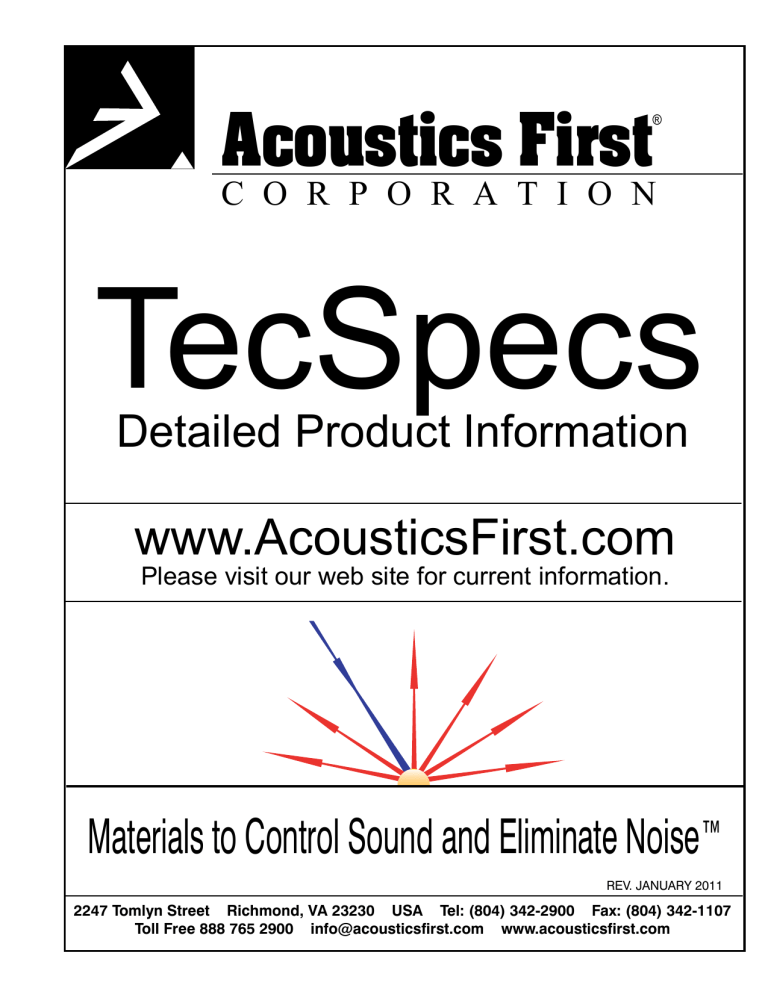

FoAM - Acoustics First

Acoustics First

®

C O R P O R A T I O N

TecSpecs

Detailed Product Information www.AcousticsFirst.com

Please visit our web site for current information.

Materials to Control Sound and Eliminate Noise

REv. JaNuaRy 2011

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

Pg. 2

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

TAble oF ConTenTS

AbSoRbeRS

FaBRIC

03—SOuND CHaNNELS® aCOuStICaL FOaM

04—CuttINg WEDgE® FOaM

05—SPECIaLty aCOuStICaL FOaM

06—POLyuREtHaNE aCOuStICaL FOaM

07—FIREFLEX™ (CLaSS 1) FOaM

15—CLOuDSCaPE® CEILINg tILES gLaSS FIBER aBSORBERS

08—SONORa® WaLL PaNELS

09—SONORa® CEILINg CLOuDS & BaFFLES

14—SONORa® CEILINg tILES

10—gEOMEtRIX™ BROaDBaND aBSORBER

11—QuIEt LOuvER™

12—SONORa® SOuND SHIM™

19—CLOuDSCaPE® BaFFLES aND BaNNERS

dIFFUSeRS

13—HIPER PaNEL® FLat PaNEL DIFFuSER

16—aRt DIFFuSOR® MODELS F, C, E, & W

17—QuaDRaPyRaMID™ DIFFuSER

18—DOuBLE Duty™ BaRREL & PyRaMIDaL DIFFuSERS

bARRIeR & VIbRATIon

20—vIBRatION CONtROL

21—BLOCkaID® vINyL SOuND BaRRIER

IndUSTRIAl & CoMPoSITeS

22—COMPOSItE FOaM

23—StRatIQuILt™ QuILtED FIBERgLaSS

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

Pg. 3

SoUnd CHAnnelS®

ACoUSTICAl FAbRIC FoR VeRTICAl SURFACeS

Sound Channels is a dimensional fabric that offers excellent acoustical properties, unmatched fade resistance, and a fire/smoke rating of Class a.

With the aesthetic appearance of wall carpet, it is lightweight and as easy and inexpensive to install as conventional panel fabrics. Sound Channels is resistant to moisture, mildew, rot, bacteria, and is non-allergenic. Sound Channels is produced with no vOC’s (volatile organic compounds), ODS’s (ozone depleting substances), heavy metals or formaldehyde.

CONSTRUCTION

Roll Size: 54” (w) x 33 Linear yards

Weight: 23 Ounces / Linear yard

Pile Height: 0.20”+/- 0.010”

backing: Fusible Clear Latex

Tear Strength: 23 lbs. minimum in both warp and fill direction per aStM D-2261

Tensile Strength: 100 lbs. minimum in both warp and fill direction per aStM D-1682

FLAMMABILITY SPECIFICATIONS

Flame Spread = 15

Smoke developed = 15

Passes Corner burn - NFPa 265, uBC 8-2 (formerly uBC 42-2)

Meets Class a Flame Spread Rating in accordance with aStM E-84

MEa #276-90M & Ny DOS #09975-92085-4005

Sound Channels has been tested for toxicity in accordance with Pittsburgh Protocol and is no more toxic than wood. (La method) avaILaBLE IN DOZENS OF COLORS

LONg WEaRINg

LOW StatIC PROPERtIES

EaSy tO CLEaN vELCRO COMPatIBLE

• Partitions

• Panels

• Wall coverings

• Exhibits

• Displays

125 Hz 250 Hz

Sound Absorption Coefficients

500 Hz 1000 Hz 2000 Hz 4000 Hz

NRC

0.03

0.04

0.15

0.24

0.31

0.38

0.20

Note: Measurements are for fabric alone applied directly to 1/2” gypsum board.

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Pg. 4

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

CUTTIng Wedge® FoAM

Acoustical Foam

Cutting Wedge can be installed to create absolutely seamless absorptive walls, and enhance imaging by reducing unwanted reflections. the “2000”

Cutting Wedge Classic

2’x4’

Cutting Wedge 2000®

1’x1’ design enables you to increase thickness quickly by nesting layers instead of buying different and incompatible products. By adding 2 or

3 nested layers of CW2k, you can control energy hot spots in corners or in the path of first reflections quickly and efficiently. Cutting

Wedge 2000 can be used to simply and efficiently create virtual bass traps in corners by nesting 3 or 4 layers of CW2k.

Colors: Charcoal brown beige blue

• Prevent destructive specular reflections from distorting or coloring the

sweet spot

• Eliminate room modes, comb filtering, standing waves and undesirable

specular artifacts

• Attenuate sound pressure buildup at room boundaries (where

walls meet walls)

SIZeS:

CW Classic: 2”,3”, 4”, & 6” thicknesses, as 1’ x 1’ squares and 2’ x 4’ sheets

CW2K: 2.25” thickness, as 1’ x 1’ squares and 2’ x 4’ sheets

Cutting Wedge 2000®

2’x4’

2”

3”

4”

6”

Sound Absorption Coefficients

Cutting Wedge Classic

250 Hz 500 Hz 1000 Hz 2000 Hz nRC

0.31

0.58

0.67

0.9

0.69

0.84

0.94

0.95

0.91

0.96

0.99

0.98

1.12

0.88

1.05

1.06

Cutting Wedge 2000

2.25” 0.28

0.79

0.92

0.91

0.70

0.80

0.95

1.05

0.70

Material: Open Cell Polyurethane Foam

Density: 2 pound cubic foot

Flammability: Meets uL94HF-1

Flame Spread= 95

Smoke Density= 340 tensile Strength= 20

Can be installed using a construction adhesive that is approved for foam.

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

TECHNICAL SPECIFICATIONS

Acoustics First

®

C O R P O R A T I O N

beRMUdA TRIAngle TRAP

®

triangular broadband absorbers designed for mounting in room corners. the rolling pattern front provides increased surface area for more sound absorption.

Pg. 5

SPeCIAlTY ACoUSTICAl FoAM

Size: 12” corner edges

17” across face

Heights: 24” or 48”

1014 AcoustiKit™

Corner connector cubes are available to connect Bermudas at the ceiling and wall intersections.

the 1014 acoustikit provides enough acoustical treatment for desktop music production or a small mixing room up to 10’x14’. It can easily be expanded as the facility and the budget grow.

Colors: Charcoal brown beige blue

SoUnd CYlIndeR™

Free standing foam sound absorbers designed to fit on a typical studio microphone stand. Several can be used to create a vocal booth or mix area. the extra surface area, created by the Cutting

Wedge® pattern, makes it a highly efficient sound absorber. Complimenting the wall panels are the Bermuda triangle traps®. these extend the absorption range, providing bass control in the room corners. Completing the acoustikit are the original art Diffusors®. these are true “Binary array” diffusors as seen in professional recording facilities around the world. these sound scattering devices make the room seem larger by breaking up reflections.

Size: 10” diameter x 48” high

Colors: Charcoal brown beige blue

a room layout guide is included with the package. the design, created by a professional acoustician, illustrates placement of materials in relation to the listening position.

Sound Absorption Properties (Sabins per Unit)

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz bermuda Triangle Trap

20.0

26.4

26.7

28.5

35.7

49.3

Sound Cylinder 20.6

25.0

26.2

27.6

35.1

48.8

the acoustical foam comes in our standard charcoal grey. the diffusors are white and may be painted with a water based latex spray paint to match the room décor.

EACH ACOUSTIKIT CONTAINS

Polyurethane Physical Characteristics:

Material: Open Cell Polyurethane Foam

Density: 2 pound cubic foot

Flammability: Meets uL94HF-1

Flame Spread=

Smoke Density= tensile Strength=

95

340

20

(48) Cutting Wedge® 2” Classic 1’ x 1’

(2) Bermuda Triangle Traps® 2’ x 1’

(2) Art Diffusor® - Model F 2’ x 2’

All KIT FOAM IS CHArCOAl grEy.

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Pg. 6

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

PolYUReTHAne ACoUSTICAl FoAM

Wedge

Wedge installs easily to handle the toughest noise problems—from firing ranges to computer rooms, recording studios or industrial machinery.

available Colors:

C h a r c o a l

B r o w n

Thickness:

1”,1.5”,2”,3”,4”

B e i g e

Size: 2’ x 4’

B l u e

PYRAMId

Each square is identical to the others, allowing for seamless appearance when installed.

Thickness:

2”,3”,4”

Polyurethane acoustical foam is used to:

•Prevent destructive specular reflections.

•Eliminate room modes, comb filtering, standing

waves and undesirable specular artifacts.

•Attenuate sound pressure buildup in rooms

MAX Wedge

Size: 2’ x 2’

Designed for controlling low frequency sound.

Thickness:

4”,6”,8”

Size: 1’ x 1’

Pyramid Pattern

2”

3”

4”

Wedge Pattern

Sound Absorption Coefficients

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz nRC

0.14

0.44

0.39

0.32

0.48

0.60

0.72

1.19

1.21

1.01

1.12

1.14

1.05

1.16

1.16

1.08

1.16

1.13

0.80

1.00

1.05

2”

3”

4”

Max Wedge

0.15

0.24

0.32

0.31

0.46

0.93

0.73

1.08

1.43

1.04

1.05

1.33

1.08

0.98

1.29

1.12

0.90

1.21

6”

8”

0.27

0.41

1.05

1.05

1.34

1.42

1.28

1.36

1.26

1.37

1.17

1.51

Ceiling baffle (Sabins per baffle)

3”

4.44

6.00

10.00

15.50

17.90

19.20

0.80

0.90

1.25

1.25

1.30

n/A

CeIlIng bAFFle

Hanging baffles are ideal for manufacturing areas and other high noise interior environments.

(Baffles are shipped assembled and ready to hang with eyelets at each of the 4 corners.)

Thickness: 3”

Size: 2’ x 4’

Polyurethane Physical Characteristics:

Material: Open Cell Polyurethane Foam

Density: 2 pound cubic foot

Flammability: Meets uL94HF-1

Flame Spread=

Smoke Density= tensile Strength=

95

340

20

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

Pg. 7

FIReFleX™ (ClASS 1) FoAM

FireFlex materials are constructed of lightweight, porous acoustic melamine. Internal structure is a cellular complex of slim, flexible webs, which are completely open-celled.

Wedge

Wedge installs easily to handle the toughest noise problems—from firing ranges to computer rooms, recording studios or industrial machinery.

FireFlex products are uniquely suited for environments where temperatures are high or sparks may fly. It withstands constant temperatures up to 320 degrees F, and meets all Class 1 regulations for flame spread, smoke density and fuel contribution.

Thickness:

1.5”,2”,3”,4”

Size: 2’ x 4’

Colors: Light grey (Standard)

White (Special Order)

PYRAMId

Each square is identical to the others, allowing for seamless appearance when installed.

Pyramid Pattern

2”

3”

4”

Wedge Pattern

Sound Absorption Coefficients

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz nRC

0.09

0.28

0.79

0.10

0.48

0.91

0.16

0.56

1.11

0.94

1.11

1.13

1.00

1.11

1.13

1.04

1.14

1.21

0.75

0.90

1.00

2”

3”

4”

Max Wedge

0.03

0.13

0.33

0.31

0.74

1.12

0.81

1.26

1.32

1.02

1.18

1.39

1.01

1.12

1.19

0.96

1.03

1.12

6”

8”

0.22

0.39

1.07

1.05

1.27

1.44

1.34

1.38

1.27

1.33

1.15

1.19

Ceiling baffle (Sabins per baffle)

3”

4.17

6.50

10.00

15.60

17.90

12.80

0.80

1.10

1.26

1.26

1.33

n/A

MAX Wedge

Thickness:

2”,3”,4”

Size: 2’ x 2’

Designed for controlling low frequency sound.

Thickness:

4”,6”,8”

Size: 1’ x 1’

bAFFle

Hanging baffles are ideal for manufacturing areas and other high noise interior environments.

(Baffles are shipped assembled and ready to hang with eyelet tabs)

Fire Rating: Class 1

FireFlex Physical Characteristics:

Material:

Density:

Open Cell Melamine Foam

0.7 pounds/cubic foot

Flammability: uL94v-0

Flame Spread = 10

Smoke Density = 50 tensile Strength= 8 PSa

Thickness: 3”

Size: 2’ x 4’

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Pg. 8

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

SonoRA® WAll PAnelS

High density (6-7 PCF) glass Fiber Panels covered with an acoustically transparent fabric. Edges are chemically hardened.

edge design Choices:

SQuaRE, RaDIuS, BEvEL

(See illustration below)

Mounting options:

IMPaLINg CLIPS, Z-CLIPS,

HOOk & LOOP

Thickness: 1”, 2” (Standard)

3”, 4” (Special Order)

Sizes: 2’ x 2’ up to 4’ x 10’ (Custom sizes also available)

Fabric/Color: guilford of Maine® FR701® 2100

or factory approved finish

High Impact (abuse resistant) or Tackable facings are also available to improve durability and tackability. Other facing and fabric selections are available.

Ships Via: Common Carrier Motor Freight

Fire Rating: Class a

Applications

• Houses of Worship

• Recording & Broadcast Studios

• Educational Facilities

• Home Entertainment Rooms

EDGE DESIGNS:

Full Bevel 1/2 Bevel

Full Radius

1/2 Radius

Square

Sound Absorption Coefficients

Type

6-7 PCF

Panels

Hi Impact

Hi Impact

Thickness 125 Hz 250 Hz

1” 0.10

0.32

2”

3”

4”

1-1/8”

2-1/8”

0.45

0.34

0.45

0.22

0.35

0.74

0.91

1.03

0.49

0.80

500 Hz 1000 Hz 2000 Hz 4000 Hz

0.75

1.02

1.09

0.96

1.26

1.20

1.25

1.00

1.16

1.29

1.18

1.18

1.14

1.12

1.17

1.10

1.12

1.08

1.06

1.20

1.08

1.12

0.94

1.07

nRC

0.80

1.10

1.10

1.15

0.95

1.05

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

TECHNICAL SPECIFICATIONS

Acoustics First

®

C O R P O R A T I O N

SonoRA CeIlIng CloUd

Pg. 9

SonoRA® CeIlIng CloUdS & bAFFleS

ConSTRUCTIon:

Built for maximum sound reduction, 6- 7 PCF glass fiber core with face and edges wrapped in fabric.

Sonora Ceiling Cloud

Thickness: 1”, 2” .

Sizes: 2’x2’, 2’x4’, 2’x6’, 2’x8’, 4’x4’, 4’x5’,4’x6’

Fabric: guilford of Maine® FR701 2100®

or factory approved finish

Mounting: Suspended horizontally with L-bar.

Fire Rating: Class a

Suspended horizontally from the ceiling, clouds reduce reflected sound in areas such as theaters, restaurants, arenas, shopping malls, convention centers, recording and broadcast rooms or anywhere absorption is required. Ceiling Clouds meet or exceed

nRC rating of Sonora® Wall Panels.

SonoRA CeIlIng bAFFle

Eyelet

Wood Strip

Acoustic Core

TYPe 1

CONStRuCtION:

One piece 6-7PCF fiber core covered on all sides with fabric.

(tyPICaL)

Fabric Finish

Hardened Edge

Thickness: 1”, 2”

Fabric:

Sizes: 2’x4’, 2’x8’ guilford of Maine® FR701 2100® or factory approved finish

Mounting: vertical with Eye hooks

D-Ring

Resin Spot

TYPe 2

CONStRuCtION: two pieces of 6-7PCF glass fiber fabric wrapped, back to back.

Acoustic Core

Side View

(tyPICaL)

Fabric Finish

Hardened Edge

Fire Rating: Class a

Thickness: 2” only

Fabric:

Sizes: 2’x4’, 2’x8’ guilford of Maine® FR701 2100® or factory approved finish

Mounting: vertical with D-Rings

Sound Absorption Properties (Sabins Per Unit 24”x48”)

Thickness 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz

1” 4.55

6.20

8.42

12.83

14.35

14.28

2” 4.48

8.00

13.20

17.93

16.98

16.35

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Pg. 10

Acoustics First

®

C O R P O R A T I O N

8”

16”

1/4 Round

1/2 Round

TECHNICAL SPECIFICATIONS

geoMeTRIX™ bRoAdbAnd AbSoRbeR

Sculptured sound absorbing modular units used for wall, corner and ceiling applications.

available in half-rounds or quarter-rounds.

ConSTRUCTIon: the geometrix is constructed of 1” thick, 6- 7 PCF glass fiber core with a 1/4” thick , 1 PCF fiber blanket. the inner structure of the geometrix is comprised of 3/4” thick, industrial grade particleboard half rounds or quarter rounds spaced every 24” o.c. the top and bottom of the units are faced with 1/8” hardboard. the back of the geometrix is 1/4” hardboard. the geometrix is wrapped on the exposed face, top and bottom with a guilford of Maine® FR701® woven polyester fabric. Z-clips or adhesive are recommended mounting methods. the length of the geometrix cannot exceed 96”.

Size: Half (1/2) Round - 16” Diameter

Quarter (1/4) Round - 8” Radius

Available lengths: 48”, 96” high (Custom lengths are also available.)

Fabric: guilford of Maine® FR701 Style 2100

Mounting options: Construction adhesive or Z-Clip fasteners

Fire Rating: Class a

geometrix demonstrate outstanding performance in all sound frequency ranges. tests measure 0.84 aBSORPtION at 125 Hz!

125 Hz

0.84

250 Hz

1.26

Sound Absorption Coefficients

500 Hz 1000 Hz 2000 Hz 4000 Hz

1.28

1.25

1.26

1.17

nRC

1.25

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

Pg. 11

QUIeT loUVeR™

QUIeT loUVeR™ AbSoRbeR PAnelS

High Density 6-7 PCF glass Fiber Panels covered with guilford of Maine® FR701® fabric and overlaid with wood louvers, which are attached directly to the panel. these louvers overlap the seams of the acoustical panels leaving the finished installation with a clean monolithic look. No joints are visible. Quiet Louvers are appropriate anywhere sound absorption is required and the warmth of wood is desired.

Edges of panel are chemically hardened and square.

Fabric Color: guilford of Maine® FR701® Style 2100

Wood louver: RED Oak, aSPEN, MaPLE

Stain for wood louver: FRuItWOOD, WaLNut, MaHOgaNy

Sizes(nominal):

Wood edges:

Ceiling Mount:

Wall Mounting:

Finish for wood louver is Class a.

24” x 48” x 2.25”; 24” x 96” x 2.25”

Square or radius

Z-Clips; Construction adhesive

Panels should be attached to black standard heavy-duty t-bar grid with combo louver spring clips.

nRC: 0.65 - 0.75

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Pg. 12

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

SonoRA® SoUnd SHIM™

APPlICATIon

Sonora Sound Shim wall panels are used for acoustical absorption or directed reflection combined with strong design elements. this product is suitable for theaters and other critical listening environments.

ConSTRUCTIon

the core construction is a ¾” dimensionally stable 6-7 PCF glass fiberboard attached at an angle to an MDO plywood backer and ribs, covered face and edges with a layer of 16-20 PCF molded fiberglass for absorption, or 1/16” unperforated copolymer face sheet for high frequency reflection. Finishes are completely adhered to the face of the panel and returned to the back for a full finished, fully tailored edge.

SIZe AVAIlAbIlITY

Maximum size is 16 square feet, with a maximum length of 8’, and minimum width of 2’. Minimum depth is 1-1/2”.

FInISH

guilford of Maine® FR701® Style 2100 or factory approved finish

edge deTAIl

all edges are square and covered with 1/8” molded fiberglass.

MoUnTIng

Standard mounting is Z-Clip to Wall Bar. Wall Bar to Wall Bar or a combination of Wall Bar on the top, and velcro on the bottom is also available.

ACoUSTICAl PeRFoRMAnCe

Sonora Sound Shim Panels provide excellent acoustical performance for auditoriums, theaters, or anywhere sound absorption or directed reflection with low frequency absorption is required.

FIRe RATIng

Components, with the exception of the MDO plywood, have been tested according to aStM E

84 and have a flame spread of 25 or less.

absorptive

Reflective

125 Hz

0.29

0.43

250 Hz

Sound Absorption Coefficients

500 Hz 1000 Hz 2000 Hz

0.70

0.98

1.05

1.04

0.28

0.21

0.24

0.28

4000 Hz

1.10

0.29

nRC

0.95

0.25

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

TECHNICAL SPECIFICATIONS

Acoustics First

®

C O R P O R A T I O N the Hiper Panel, Flat Panel Diffuser is a patented acoustical panel that combines absorption and diffusion into one sound panel. the device is similar in style to a standard fabric covered acoustical wall panel and can be intermixed with them.

Pg. 13

HiPer Panel®

FLat PaNEL DIFFuSER

(uS PatENt # 7,314,114) acoustical performance differs significantly from outward appearance.

Foil Backing

Perf. F.G.

Septum

Perf. F.G.

Septum

Internally the panel substrates have a pattern of holes in two substrate layers, 180 degrees out-of-phase with each other and separated by a thin membrane creating an equal distribution of absorptive and reflective regions both vertically and horizontally. there will also be additional cancellation at certain frequencies due to wave interference from phase shifting due to the time delay of passing through the various combinations of substrate and membrane and reflecting back through the panel.

Fabric Face

Fabric Finish: guilford of Maine® FR701® or factory approved finish

edge design: Square

Thickness:

Sizes:

Fire Rating:

1”, 2”

2’x2’, 2’x4’

Class a

Applications

• Houses of Worship

• Recording & Broadcast Studios

• Educational Facilities

• Home Entertainment Rooms

Mounting

type a type E400

125 Hz

0.09

0.43

Sound Absorption Coefficients (1” Thick)

250 Hz

0.21

0.28

500 Hz

0.72

0.51

1000 Hz

0.79

0.76

2000 Hz

0.91

0.99

Model FPD1

4000 Hz

1.03

1.10

nRC

0.65

0.65

ISo

17497-1

125 Hz

0.00

Random Incidence Sound Scattering

250 Hz

Polar Plots available upon request.

0.03

500 Hz

0.00

1000 Hz

0.05

2000 Hz

0.42

4000 Hz

0.51

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Pg. 14

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

SonoRA® CeIlIng TIleS

Sonora®Ceiling Tiles for T-Bar Suspended Grids

Sonora Ceiling tiles are an elegant choice for a variety of ceiling grid applications requiring high absorption.

Construction:

One piece of 6-7 PCF noncombustible and dimensionally stable glass fiber core .

Thickness: 1”, 2”

Size: 2’ x 2’ (nominal), 2’ x 4’ (nominal)

Specify tile size when ordering.

Finish: Fabric - Guilford of Maine® FR701® Style 2100

or factory approved finish

Fire Rating: Class a

Thickness 125 Hz

Sound Absorption Coefficients (Type A mount)

250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz

1” 0.10

0.32

0.75

1.02

1.09

0.96

2” 0.45

0.74

1.26

1.29

1.17

1.20

nRC

0.80

1.10

Sonora®Ceiling Tiles

Backed with 1/2” Gypsum

Construction:

6-7 PCF glass fiber core laminated with gypsum board.

Ceiling tile provides both sound absorption and reduced transmission to increase STC.

Thickness: 1-1/2”

Size: 2’ x 2’ (nominal)

Finish: Fabric - Guilford of Maine® FR701® Style 2100

or factory approved finish

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Acoustics First

®

C O R P O R A T I O N

FOg

CIRRuS

TECHNICAL SPECIFICATIONS

Pg. 15

CloUdSCAPe® CeIlIng TIleS

Cloudscape Ceiling tiles absorb and block sound transmission.

Five patterns are available plus a smooth face with no pattern.

tiles are designed to fit into existing 24” x 24” ceiling grid systems.

they may be used with 24” x 48” ceiling grid by retrofitting grid with cross tees.

this product may also be ordered as a full 24” x 24” size, unbacked for adhesive mounting directly to walls or ceilings.

ConSTRUCTIon

Material: FireFlex™ Class 1 Melamine

Color: White (Paintable)

Tile Size: 24” x 24” (unbacked)

or sized to fit standard t-bar grid

Fire Rating: Class 1

StRatuS

ConFIgURATIonS

Unbacked: 1.5” Melamine Ceiling tile

backed: 1.5” Melamine + 0.5” Backer

barrier backed: 1.5” Melamine + 0.5” Backer + 1/8” vinyl Barrier

NIMBuS

nRC = 0.80

STC = 29 (Barrier Backed)

FireFlex Physical Characteristics:

Material: Open Cell Melamine Foam

density: 0.7 pounds/cubic foot

Tensile Strength: 8 PSa

Flammability: uL94v-0

Flame Spread 10

Smoke density 50

Barrier

Barrier Backed

Ceiling Tile

1/2” Backer Board

Foam Tile

1/2” Backer Board

Foam Tile aLtuS

+ CuMuLuS

Sound Absorption Coefficients

Mounting 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC

UnBacked 0.26

Backed 0.22

0.60

0.44

0.64

0.85

0.93

0.95

0.97

0.97

0.93

0.95

0.80

0.80

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Pg. 16

TECHNICAL SPECIFICATIONS

Acoustics First

®

C O R P O R A T I O N

Model F two-dimensional diffusor.

ART dIFFUSoR®

THE

A rt

DIFFUSOR

US PAT. 5160816

®

Size: 23-5/8 x 23-5/8” depth: 2”

Mount: Direct mount (wall or ceiling) or Drop into t-Bar grid

Material: Class a thermoplastic

bandwidth: 1000 Hz to 16 kHz

Model C two-dimensional, four-octave diffusor.

Size: 23-5/8 x 23-5/8” depth: 4.5”

Mount: Direct mount (wall or ceiling) or Drop into t-Bar grid

Material: Class a thermoplastic

bandwidth: 250 Hz to 16 kHz

Model E two-dimensional, five-octave diffusor.

Size: 15” x 15” depth: 9”

Mount: Direct mount (wall or ceiling)

Material: Rigid Modified Expanded Polystyrene (EPS) Plastic

bandwidth: 125 Hz to 16 kHz

Model W two-dimensional, five-octave diffusor.

Size: 15” x 15”

Mount: Direct mount

Material:

Wood

bandwidth: 125 Hz to 16 kHz

depth: 9.5”

Detailed Product

Book available upon Request

Model F

Model C

Model e

Model W

Performance

(Absorption/diffusion)

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz nRC

tyPE a 0.05

E400 0.20

Diffusion 0.79

0.60

0.10

0.74

0.07

0.06

0.66

0.09

0.05

0.67

0.07

0.06

0.69

tyPE a 0.32

E400 0.20

Diffusion 0.71

0.20

0.12

0.71

0.10

0.12

0.72

0.29

0.31

0.75

0.20

0.23

0.72

tyPE a absorption not available at time of printing.

Diffusion 0.68

0.69

0.70

0.73

0.75

tyPE a absorption not available at time of printing.

Diffusion 0.69

0.69

0.7

0.75

0.74

0.13

0.14

0.67

0.16

0.22

0.71

0.72

0.72

0.20

0.05

-

0.20

0.20

-

-

diff

Coef.

-

-

0.70

-

-

0.77

0.77

0.74

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

Pg. 17

QUAdRAPYRAMId™ dIFFUSeR

the patented QuadraPyramid™ diffuser presents a low profile with four pyramids creating sixteen angles of reflection on the surface of a single 2’ X 2’ panel.

2.75”

CoNSTRuCTioN:

Size: 23.75” x 23.75” x 2.75”

Mount: Direct mount (wall or ceiling)

or Drop into t-Bar grid

Material: Thermoplastic

Fire Rating: Class 1 (A)

23.75”

Applications

• Theater & Performance Venues

• Houses of Worship

• Recording & Broadcast Studios

• Educational Facilities

• Home Entertainment Rooms the QuadraPyramid™ diffuser generates a uniform polar response over a broad frequency range. there is very little sound absorption when used as a ceiling mounted device in a standard grid. (NRC=0.10)

When wall mounted in a specific manner, it becomes a mid-bass absorber in the range of 250 Hz

(0.60 SaC) with the skirt of the bell curve extending down to 125 Hz on the low end and 315 Hz at its upper limit. (NRC=0.20)

Polar Pattern

Sound Absorption Coefficients

Mounting 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz

NRC

Type A

E400

0.23

0.28

0.58

0.17

Polar Plots Available Upon Request

0.05

0.09

0.04

0.07

0.04

0.10

0.11

0.14

0.20

0.10

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Pg. 18

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

doUble dUTY™ & PYRAMIdAl dIFFUSeRS

Material:

thermoformed plastic, Class a

Finish:

White texture finish or fabric covered in guilford of Maine®FR701® Style 2100

Mounting:

L-Bracket for direct mount to wall/ceiling.

Manufactured to fit into standard t-bar grids.

double duty™ barrel diffuser

Polycylindrical (barrel shaped) diffusers will act to scatter sound in any location. Bass absorption will vary with size. a 2’ X 4’ has maximum absorption at 125 Hz. Increasing size to 4’ X 8’ lowers the point of maximum absorption to 63 Hz. Mid to high frequency absorption is typically 0.10 to 0.25.

nominal Sizes:

2’x2’, 2’x4’, 3’x3’, 3’x4’, 3’x5’, 3’x6’, 4’x4’, 4’x6’

4’x8’ (Molded Fg only)

depth:

7”

0

1.00

.80

.60

.40

.20

High efficiency

Low frequency absorber

125Hz 250Hz 500Hz 1 kHz 2 kHz

Frequency uniform Diffusion

Polar Pattern

10 kilohertz

Note: Illustrations are for a 2’x4’ nominal size with no lining and no fabric covering.

90

60

70

1000

80

Pyramidal diffuser

a quick and easy way to eliminate floor to ceiling standing waves.

Reduces flutter echo while maintaining a warm room sound. the offset apex provides four different angles of reflection.

nominal Sizes:

2’x2’, 2’x4’, 4’x4’

depths:

8” - 13” (nominal)

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

Pg. 19

CloUdSCAPe® bAFFleS And bAnneRS

Cloudscape Baffles and Banners are designed to solve acoustical problems economically in any large cubic volume space such as arenas, gymnasiums, theaters, restaurants, and auditoriums.

Reverberation times that range from 4 to 9 seconds can be reduced to 1/2 to 2 seconds. Speech intelligibility is greatly improved and sound intensity levels are reduced simultaneously by 3 to 12 decibels.

Composition: acoustical fiberglass fill, encapsulated in PvC covering.

Standard Colors: Black, White, Light grey

Special order Colors: Red, yellow, Blue, green, Beige

light Reflectivity:

Fire Rating:

0.10 to 0.80/aStM C523-68

Class a aStM E84 25/0/50

CloUdSCAPe® ACoUSTICAl bAFFleS

Standard : 1.5 lb. / cu. ft. Fg Size: 1.5” x 4’ x 2’

(Includes two hanging grommets)

Custom: 2.0 lb. / cu. ft. Fg Sizes: 2” x up to 4’x8’ in 2’ increments

(Includes 3 grommets)

Cloudscape Baffles are easily suspended from ceilings, bar joists or pre-engineered suspension systems. they are designed to hang in a vertical fashion, allowing free flow of air and integrate exceptionally well with existing sprinklers, lighting and HvaC systems.

125 Hz

3.02

250 Hz

5.11

Sound Absorption (Sabins per Baffle) 2’x4’ Unit

500 Hz

10.21

1000 Hz

12.80

CloUdSCAPe® ACoUSTICAl bAnneRS

2000 Hz

11.92

4000 Hz

8.95

density: 0.75 lb. / cu. ft. Fg Size: 2” x 4’(w) x (LENgtH uP tO 40 Ft) these banners are suspended from ceilings, bar joists or pre-engineered suspension systems. they are designed to hang in a horizontal or catenary fashion using washer plates or stiffeners every 8’ in length.

Festoon dimensions range from 30” min. to 72” max.

NRC

N/A

Standard configuration of banners includes one side perforated. they can be ordered with two sides perforated, if desired.

Sound Absorption Coefficients

Mounting 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz

Type A 1.09

0.97

0.92

1.05

1.00

1.11

NRC

1.00

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Pg. 20

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

VIbRATIon ConTRol

Vib-X

VIB-X Pad absorbs vibration energy and thus prevents the transmission of shock or vibration from one surface to another surface. VIB-X Pad may be used to mount noisy machinery or to attach an independent ‘floating’ stud wall for room-within-a-room isolation. The crossribbed construction acts as an efficient energy absorber, enabling large horizontal forces to be generated without slippage or “walking” occurring.

Size: 24”x24” x 5/16”

Material: DuPont Neoprene elastomer sheet

45 durometer pad - 1/16” deflection 50 psi

65 durometer pad - 1/16” deflection 150 psi

•Reduces structure borne acoustic noise

•Decouples machinery vibration from structure

•Floats sound studio and theater walls

•Easy to cut to size with common tools

VibDamp

vibrating surfaces are often damped, by applying visco-elastic materials directly to the surface converting the vibrational energy to heat. the flexing of the damping material provides the energy dissipation and “decay” to reduce noise.

Metal no longer “rings” when it is struck or excited by airborne noise.

Color: Light beige, non-reflective stipple finish

density: 85.3 lb./cu. ft. (wet), 72.9 lb./cu. ft. (dry),

350 pentrometer viscosity at 80 deg.F. Sprayable loose Paste.

IsoHangers

IsoHangers are used to absorb vibration energy to help prevent the structural transmission of sound. these can be used to hang speaker boxes, ceilings and ceiling grids, air ducts and piping.

Construction: 11 gauge cold drawn steel wire, zinc plated to prevent corrosion, rubber collar to prevent metal to metal contact. Clearance for 3/16” diameter rod.

available

Max Loads:

65 lbs.

120 lbs.

200 lbs.

Resilient Clips

Improve sound transmission loss, reduce impact noise and structural noise transmission in most ceiling and wall constructions. Resilient clips are used to isolate using standard furring channels (hat track) when mounting gypsum board, drywall, or sheetrock.

Clips eliminate the need for RC-1 and other acoustical mats.

Can improve StC up to 20 points.

underlayment provides floor isolation to prevent sound transmission, structural noise transmission and impact noise.

Floor Underlayment

STC: 27

Roll Size: 54”(w) Weight: 179 oz. /sq. yd.

Construction: Flexible non-lead loaded solid mass barrier fusion-bonded to a 1/4” 8 - 10 lbs density closed-celled PvC foam decoupler.

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

TECHNICAL SPECIFICATIONS

Acoustics First

®

C O R P O R A T I O N

Blockaid sound barrier is a high-density limp-mass material constructed of non-reinforced high temperature fused vinyl with no lead fillers.

Designed to block transmission of sound through walls, floors and ceilings. It is also effective as a pipe and duct wrap to dampen vibrations and reduce noise.

60’ rolls ship via Common Carrier Motor Freight.

30’ and 20’ rolls may ship by uPS/FedEx ground service.

Pg. 21

bloCKAId® VInYl SoUnd bARRIeR

Wall Installation

Resilient Channel

Batt Insulation

1/8 in Vinyl Barrier

(rotated 90 deg.)

5/8 in Gypsum Board

Ceiling Installation

Resilient Channel

Flooring

2x6 joist

Batt Insulation

5/8 in Gypsum Bd.

1/8 in Vinyl Barrier

(rotated 90 deg.)

5/8 in Gypsum Bd.

1/8” Thick

Width: 54” wide

Size: 20’, 30’ and 60’ rolls

Weight: 1 lb. per sq. ft.

Thickness: 1/8”

Fire Rating: Fire Resistant SE “0”

Passes: MvSS302,uL-94 HB,

FED StD 5903

Sound Transmission Loss (dB) Per Octave Band (Hz)

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz

15 19 21 28 33 37

STC

27

Transparent Vinyl Sound barrier

transparent vinyl sound barrier is recommended where observation or supervision is desired. It is an excellent material to use over windows, where sound blocking is needed, and it is desirable to retain the light coming through the windows. this product is available in rolls which are 4’ x 60’ x 0.160” or by the linear yard.

temperature Limits: Service range of -20° to 160° F.

Certified flame retardant by California State Fire Marshal

Registration No. F-51.1.

Sound Transmission Loss (dB) Per Octave Band (Hz)

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz

14 19 23 28 33 37

STC

26 0.16” Thick

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Pg. 22

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

These products are used for applications where increased noise absorption, sound transmission loss and/or vibration damping is needed.

CoMPoSITe FoAM

CoNSTRuCTioN:

Composites combine vinyl sound barrier, acoustical foam

(either Polyurethane or FireFlex™ Class 1 Melamine) and a 1/4” foam decoupler.

SiZE: 24” x 48”

THiCKNESS:

1” foam + 0.125” barrier + 0.250” foam decoupler

COLOR: CHARCOAL (If Polyurethane foam)

LIGHT GREY (If FireFlex™ foam)

ITEM DESCRIPTIONS:

Composite w. Mylar Face installed in engine compartment

ATP1 - Foam only with TUFTANE face and Peel & Stick Backing

AMP1 - Foam only with aluminized MYLAR FACE and Peel & Stick Backing

ABF1 - Foam/Barrier/Foam (No film face - no Peel & Stick Backing)

ABF1-P - Foam/Barrier/Foam with Peel & Stick Backing (No film face)

ABF1-M - Foam/Barrier/Foam with MYLAR face (no Peel & Stick Backing)

ABF1-MP - Foam/Barrier/Foam with MYLAR face and Peel & Stick Backing

ABF1-T - Foam/Barrier/Foam with TUFTANE face (no Peel & Stick Backing)

ABF1-TP - Foam/Barrier/Foam with TUFTANE face and Peel & Stick Backing)

ABF1X - FIREFLEX Flat Foam/Barrier/Foam (No film face - no Peel & Stick Backing)

ABF1X-MINI - FIREFLEX MINI WEDGE Foam/Barrier/Foam (No film face - no PSA)

125 Hz

0.33

125 Hz

20

Sound Absorption Coefficients (Foam/Barrier/Foam)

250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz

0.24

0.63

1.23

1.35

1.14

Sound Transmission Loss (Foam/Barrier/Foam)

250 Hz

21

500 Hz

25

1000 Hz

28

2000 Hz

32

4000 Hz

42

NRC

0.85

STC

29

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

PaRt#

Weight per S.F.

SQ122 0.25 lb

SQ124 0.50 lb

SQ125 1.50 lb thickness

(nominal)

1”

2”

2”

Blanket Configuration

Facing one side

Facing both sides

Facing both sides w/ 1.0 lb. SF Septum

StC NRC n/a 0.65

19 0.70

29 0.65

Acoustics First

®

C O R P O R A T I O N

TECHNICAL SPECIFICATIONS

Pg. 23

StratiQuilt™ QUIlTed FIbeRglASS

StratiQuilt rolls and panels combine noise barrier performance with efficient sound absorption. this lightweight, semi-flexible, easy-to-handle material is a vinyl coated, grey colored fiberglass facing cloth, quilted to a supporting 2 lb./cu. ft. density fiberglass.

Quilted Fiberglass Material (QFM) as a semi-flexible barrier enclosure, StratiQuilt’s absorptive properties help to control reverberant energy inside an area. StratiQuilt does not accordion fold, therefore it should be considered as a suspended barrier in areas requiring infrequent access.

ConSTRUCTIon:

StratiQuilt Panels are quilted in a 4” diamond shape, and are fully bound on all edges so no fiberglass is exposed.

Other configurations are available.

SQ122 - Facing on one side. Standard grommets are on the top 4’ edge only.

SQ124 - is constructed of two layers of SQ122 bound back-to-back.

SQ125 - is similar to SQ124—with 1.0 lb./sq. ft. loaded vinyl barrier septum added.

all Stratiquilt panels have standard brass grommets 12” O.C. on top hanging side. In addition, SQ124 and SQ125 have double-grommet fastening system on edges. Nylon thread is used exclusively for all hems.

Prefabricated Panels:

Width: 4’ maximum

Standard Heights: 4’, 6’, 8’, 10’

Flame Resistance: Class 1 rated material per aStM E84-70:

Flamespread: 5.0

Fuel Contributed: 20.00

Smoke Developed: 5.0

Resists oils, grease, moisture, mild acids and alkalies, dirt, dust, and salt atmospheres.

Facing can be steam cleaned or washed with common industrial cleaners.

StratiQuilt is available in 1” or 2” thick rolls, faced one or both sides.

PaRt#

Weight per S.F.

SQ122 0.25 lb

SQ124 0.50 lb

SQ125 1.50 lb thickness

(nominal)

1”

2”

2”

Blanket Configuration

Facing one side

Facing both sides

Facing both sides w/ 1.0 lb. SF Septum

StC NRC n/a 0.65

19 0.70

29 0.65

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

REv. JaN 2011

Acoustics First

C O R P O R A T I O N

®

2247 Tomlyn Street

Richmond, VA 23230-3334 USA

TEL: 804-342-2900

FAX: 804-342-1107

Toll Free 1-888-765-2900

(U.S. & Canada)

E-mail: [email protected]

Website: http://www.acousticsfirst.com

Acoustics First, The Art Diffusor, Cutting Wedge, Cutting Wedge 2000, Cloudscape, Bermuda

Triangle Trap, BlockAid, Sound Channels, Sonora, HiPer Panel, BassEraser, Transfusor, Acoustic

Calculator and Silent Pictures are registered trademarks of Acoustics First Corporation. Double

Duty Diffuser, SoundShim, Sound Cylinder, 1014 AcoustiKit, and QuardaPyramid are trademarks of

Acoustics First Corporation. Other trademarks are the property of their respective companies.

Copyright © 1997 - 2011 Acoustics First Corporation

2247 Tomlyn Street Richmond, VA 23230 USA Tel: (804) 342-2900 Fax: (804) 342-1107

Toll Free 888 765 2900 [email protected] www.acousticsfirst.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
