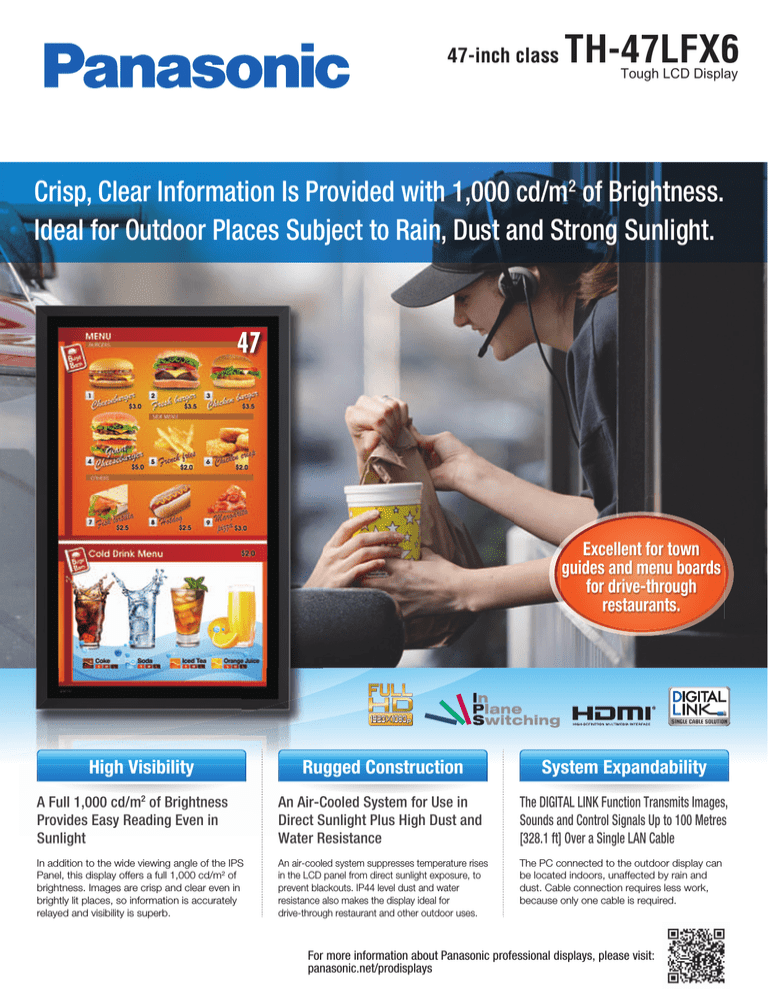

47-inch class
TH-47LFX6
Tough LCD Display
Crisp, Clear Information Is Provided with 1,000 cd/m2 of Brightness.
Ideal for Outdoor Places Subject to Rain, Dust and Strong Sunlight.
47
Excellent for town
guides and menu boards
for drive-through
restaurants.
High Visibility
Rugged Construction
System Expandability
A Full 1,000 cd/m2 of Brightness
Provides Easy Reading Even in
Sunlight
An Air-Cooled System for Use in
Direct Sunlight Plus High Dust and
Water Resistance
The DIGITAL LINK Function Transmits Images,
Sounds and Control Signals Up to 100 Metres
[328.1 ft] Over a Single LAN Cable
In addition to the wide viewing angle of the IPS
Panel, this display offers a full 1,000 cd/m2 of
brightness. Images are crisp and clear even in
brightly lit places, so information is accurately
relayed and visibility is superb.
An air-cooled system suppresses temperature rises
in the LCD panel from direct sunlight exposure, to
prevent blackouts. IP44 level dust and water
resistance also makes the display ideal for
drive-through restaurant and other outdoor uses.
The PC connected to the outdoor display can
be located indoors, unaffected by rain and
dust. Cable connection requires less work,
because only one cable is required.
For more information about Panasonic professional displays, please visit:
panasonic.net/prodisplays
47-inch class TH-47LFX6
Tough LCD Display
High Brightness (1
(1,000
000 cd/m2) for Easy
Easy-to-See
to See Images Even in Sunlight
Images are clear even in brightly lit places. Full
1,000 cd/m2 brightness maintains excellent visibility
under direct sunlight. This makes the LFX ideal for
installation in drive-through lanes. And because the
brightness isn't affected by external light,
information such as menu items and prices remain
clear and easy to read.
The IPS Panel Makes It Easy to Read
from Any Position
178°
The IPS panel displays clear images, and colors appear unchanged even when
the image is viewed from an angle top or bottom, right or left. It provides
accurate information to many people in a large place such as a public facility.
Air-Cooling System Strongly Resists Dust, Water and Direct Sunlight
Forced Air-Cooling System for Blackout Prevention
veent
ntio
i
Outside air is brought into the cabinet to
produce an airflow between the front
glass and the LCD panel. This
suppresses internal temperature rises
and prevents blackouts when the display
is installed outdoors. It also serves as a
countermeasure against condensation.
Heat
Heat
Dustproof and Water Resistance Performance —
Ideal for Outdoor Installation
IP44 level dustproof and water resistance performance enables use even in outdoor
and other severe environments.
IP- 4 4
Level of protection from dust particles
Level
An Ordinary LCD
4
LFX6
Blackouts
Occur
No
Change
Level of water resistance
Degree of Protection
Protection from solid
bodies greater than 1 mm
(0.04") in diameter
Level
4
1.0 mm
(0.04")
Degree of Protection
Protection of the display from
water splashing (in both vertical
and horizontal directions)
Aluminium Cabinet and Tempered Glass
The aluminum cabinet strongly resists corrosion. In addition, tempered glass ensures
rugged strength against impacts.
A 5 cm (2.0") -diameter iron ball
weighing 500 g (1.2 lbs.).
The LFX operates stably even outdoors under direct sunlight.
Resists
corrosion!
Product specification
TH-47LFX6U
Model No.
DISPLAY
Screen Size (Diagonal)
TH-47LFX6W
46.9-inch (1,192 mm)
The screen
doesn't
crack!
47-inch (1,192 mm)
IPS/CCFL
Panel Type
1,039 x 584 mm (40.9" x 23.0")
Effective Display Area (W x H)
Number of Pixels
1,920 x 1,080 pixels
Brightness (Typ)
1,000 cd/m2
Viewing Angle (Horizontal/Vertical)
CONNECTION TERMINAL
HDMI In
178°/178°
DIGITAL LINK for Transmission of Video, Audio and Control
Signals for up to 100 m [328.1 ft] with a Single LAN Cable
HDMI Type A Connector x 1
DVI-D In/Audio In (L/R)
DVI-D 24-pin x 1/M3 Jack x 1 (Shared with PC In)
PC In/Audio In (L/R)
Mini D-Sub 15-pin x1/M3 Jack x 1 (Shared with DVI-D In)
DIGITAL LINK
CONTROL
Serial In
RJ45 x 1 (Shared with LAN)
D-Sub 9-pin x 1, RS-232C Compatible
LAN
ELECTRICAL
Power Requirements
RJ45 x 1 (Shared with DIGITAL LINK)
AC 110-127 V, 50 Hz/60 Hz
AC 220-240 V, 50 Hz/60 Hz
370 W
Power Consumptions
Stand-by Conditions/Power Off Condition
MECHANICAL
Dimensions (W x H x D)
Weight
ENVIRONMENTAL
Direct Sunlight Capability (Measures Against Blackout)
Dust Proof, Water-resistant Level
Operating Environment
Dropped from
a height of
1.3 m (51.2").
0.5 W / 0.3 W
1,162 x 706 x 216 mm (45.8" x 27.8" x 8.5")
Only a single LAN cable*1 is required to transmit uncompressed HD video, audio and
control signals for a distance of up to 100 m [328.1 ft]. This enables indoor installation
of the PC and other devices connected to the display at an outdoor location in order to
protect the PC and devices from rain and dust. Since only one cable needs to be
connected between the PC and panel, cable routing work is quick and easy. Because
a control signal can also be sent simultaneously, it is easy to upgrade the system by
combining it with the optional ET-YFB100G Digital Interface Box.
*1: Use an STP cable of CAT5e or higher.
*2: WUXGA (1,920 × 1,200 pixels) compatible.
LFX6
Full-HD Picture*2
Approx. 49.5 kg (109.1 lbs)
Sound
Yes (Built-in Air Cooling System)
IP44
Ethernet
Temperature: -20 °C* to 40 °C (-4 °F* to 104 °F) / Humidity: 20 % to 80 %
RS232C
PC, etc
ET-YFB100G
(Option)
*When using outdoor mode.
Optional Accessories
Replacement Air Filter
Digital Interface Box
TY-AF6STD
ET-YFB100G
[Outdoors]
LAN cable*1 (Max.100 m [328.1 ft])
[In a room]
Printed in Japan
Simulated pictures on screen.
Design and specifications are subject to change without notice.
As of May 1, 2013.
CT13-G02PF-LFX
