Integral INSSD32GMSA6M, INSSD64GMSA6M, INSSD256GMSA6M, INSSD128GMSA6M Datasheet

Integral INSSD32GMSA6M, INSSD64GMSA6M, INSSD256GMSA6M, INSSD128GMSA6M Datasheet
Product Specification
i
i
mSATA 6Gbps MO-300
32
GB

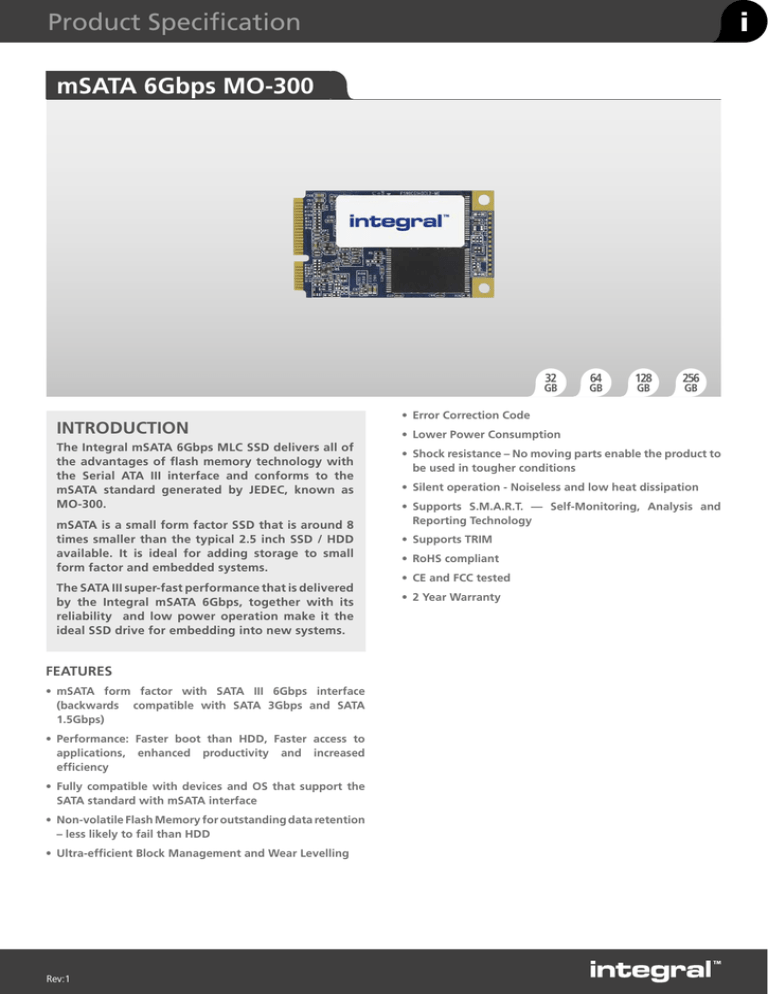

INTRODUCTION
The Integral mSATA 6Gbps MLC SSD delivers all of
the advantages of flash memory technology with
the Serial ATA III interface and conforms to the
mSATA standard generated by JEDEC, known as
MO-300.
mSATA is a small form factor SSD that is around 8
times smaller than the typical 2.5 inch SSD / HDD
available. It is ideal for adding storage to small
form factor and embedded systems.
The SATA III super-fast performance that is delivered
by the Integral mSATA 6Gbps, together with its
reliability and low power operation make it the
ideal SSD drive for embedding into new systems.
FEATURES
• mSATA form factor with SATA III 6Gbps interface
(backwards compatible with SATA 3Gbps and SATA
1.5Gbps)
• Performance: Faster boot than HDD, Faster access to
applications, enhanced productivity and increased
efficiency
• Fully compatible with devices and OS that support the
SATA standard with mSATA interface
• Non-volatile Flash Memory for outstanding data retention
– less likely to fail than HDD
• Ultra-efficient Block Management and Wear Levelling
Rev:1
64
GB
128
GB
256
GB
• Error Correction Code
• Lower Power Consumption
• Shock resistance – No moving parts enable the product to
be used in tougher conditions
• Silent operation - Noiseless and low heat dissipation
• Supports S.M.A.R.T. — Self-Monitoring, Analysis and
Reporting Technology
• Supports TRIM
• RoHS compliant
• CE and FCC tested
• 2 Year Warranty
Product Specification
i
Technical Features
• MLC-NAND Flash Technology
• Cache Size: 32GB, 64GB & 128GB = 256MB DDR 3,
256GB = 512MB DDR 3
• mSATA
i
CAPACITY
PART CODE
BARCODE (EAN)
32GB
INSSD32GMSA6M
5055288421653
64GB
INSSD64GMSA6M
5055288421660
128GB
INSSD128GMSA6M
5055288421677
256GB
INSSD256GMSA6M
5055288421684
1GB = 1,000,000,000 bytes. Formatted capacity is less.
• JEDEC standard - M0-300
This device should not be used as your sole backup.
Product design and specification subject to change or modification without notice. E&OE.
• Supports TRIM (OS support required)
All trademarks acknowledged.
For warranty information please visit www.integralmemory.com/warranty
0.00
5.80
2—ø2.60 holes
24.05
29.85
0.00
2.83
5.80
• CE and FCC certified and RoHs compliant
24.05
27.03
29.85
• Supports S.M.A.R.T.
PCB T=1.00±0.1
128GB
256GB
Write
236MB/s (up to)*
Read
369MB/s (up to)*
Write
240MB/s (up to)*
Read
375MB/s (up to)*
Write
240MB/s (up to)*
Read
350MB/s (up to)*
Write
240MB/s (up to)*
4.00
3.20 [Max.]
0.00
SATA III 6Gbps
Also Compatible with SATA II
3Gbps and SATA 1.5Gbps
5.10 [Min.]
0.25 [Max.]
0.00
5.10 [Min.]
Details A
Details B
Details C
( 13.60 )
Pin 1
Interface
Interface
BOT TOM SIDE
TOP SIDE
4.00
3.20 [Max.]
0.00
50.80
48.80 [Max.]
45.00
45.00
0.00
368MB/s (up to)*
50.80
29.85
Read
27.78
29.35
29.85
64GB
48.05
45.00
0.00
0.50
2.08
9.08
10.325
11.825
13.08
32GB
50.80
48.80 [Max.]
48.05
45.00
50.80
Performance
2 —RO.80 [Max.]
1.65
4.00
( 5.60 )
Pin 51
Pitch: 0.80
25.70
Details B
0.60 ±0.05
*Based on internal testing
RELIABILITY
MTTF
2,000,000 hours
ECC algorithm
24 9-bit Symbols Correction per
512 9-bit Symbol
POWER CONSUMPTION
Supply Voltage
Pin 52
2.05
2.55 ±0.05
Pin 2
13.60
4.00
Details C
3.3V
Read = 850min / 900max
Power Consumption (mA)
ECC algorithm
Supports 72-bit ECC correct per
1K Byte
MTBF
>1 Million Hours
ENVIRONMENTAL
Operating Temp
0° - +70°C
Non - Operating Temp
-40° - +85°C
Humidity
RH 90% under 40C in operation
Physical
Length
50.8mm
Width
29.85mm
Height
3.8mm
Weight
8g
Length (Packed)
115mm
Width (Packed)
132mm
Height (Packed)
57mm
Weight (Packed)
58g
Warranty
Rev:1
2 —O.25 [Max.]
Write = 580min / 830max
Idle = 80
2 years
5.60
2 —O.25 [Max.]
Details A
