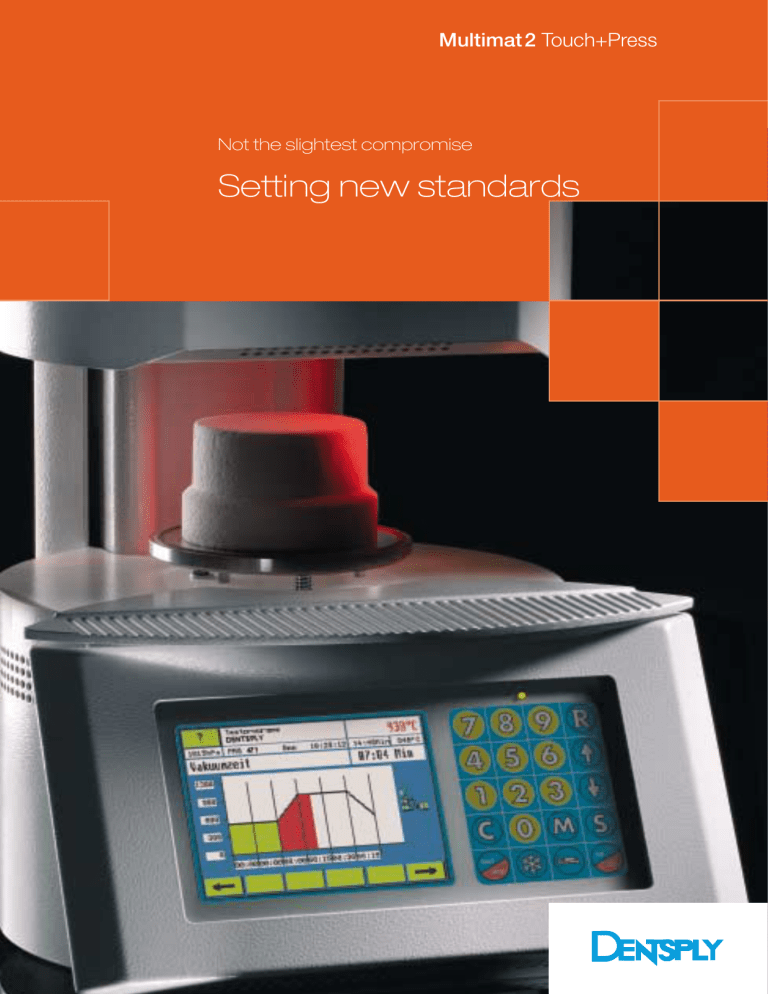

208-04-DEDE Multimat 2_GB
Multimat 2 Touch+Press
Not the slightest compromise
Setting new standards
All-in-One
Discovering completeness
Take benefit of the perfectly adjusted integration of the innovative
components that form a perfect unity. Your high demands have
been reflected in the performance features of the Multimat®2
Touch+Press. A new furnace that focuses on more benefits –
added value for you! – building on the success platform of
MULTIMAT Touch, the world’s most widely sold furnace for all
pressable and veneering ceramics.
To fulfil your requirements, the Multimat®2 places a special emphasis
on technical innovation and on firing safety.
Non-reflecting foil touch screen
The most resistant screen available against scratching, chemical
substances, heat and water. The non-reflecting foil additionally
protects the keyboard from dust and ensures a brilliant, reflectionfree data display, for your ease of use.
USB Slave interface for standard PC-printers
The USB Slave interface makes it easy to print firing protocols or to
document firing sequences as per applicable QM standards using
your PC and any commercially available printer.
16-bit precision control technology
allows higher frequency rates and increases the precision of the
temperature control cycles for assuring excellent firing results.
Smart Media Card technology
offers ample memory for all 300 programs and for the software
itself – no PC required for updating.
Automatic power factor
Compensates for voltage peaks and mains power fluctuations.
Dual overheating protection
The firing muffle is controlled by a separate monitoring circuit.
Touch
+ Press
Beyond all expectations
Visible added value
More than the sum of its advantages
For firing
and/or for
pressing
Power-fail
protection
for
added safety
Excellent firing
results through
16-bit precision
control
technology
Automatic power
factor compensates
for voltage peaks
and mains power
fluctuations
Double
overheating
protection
for
firing muffle
Software memory
for 300 individual
firing sequences
Non-reflecting
foil touch screen
for brilliant
reproduction
USB
Slave connector
for
PC/Printer
Added flexibility
thanks to
Smart Media Card
technology
Intuitive
user interface
and
easy-to-understand
logics
This is how you benefit
Standard and exclusivity – in a single furnace
Demands are increasing. Those who want to deliver excellent work
will need excellent tools. Therefore, your requirements towards
dental furnaces have increased as well. We have further improved
the famous classic furnace and can now present a furnace that
impresses with its ease of handling and perfect firing results.
Controlled, result-driven work
The unique control-panel concept lets you control a great variety of
different programs using the same logical principles. The graphic
display shows the entire firing curve for the currently selected
program in brilliant display quality.
Precision
Precision has been our main goal when we developed our 16-bit
precision control technology with increased frequency. This
allows for maximum exactness in temperature control and yields
top-of-the-line firing precision. The excellent quality of the firing
results will convince you.
Logging
USB Slave is an interface concept that is ready for the future. The
Touch + Save PC software lets you log, save and print firing or
pressing data for documentation purposes as required by quality
management standards. This feature can be utilized using any
industry-standard PC and commercial printer.
There are different ways to bring the furnace up to date with the most
recent software version available. Updates are performed using the
Smart Media Card technology. The Smart Media Card can be used
for all parameter settings or for storing the user software.
The variety of the furnace
Three hundred freely selectable and storable firing programs can
be programmed quickly, and easily, via the intuitive user interface.
Manufacturer-defined programs can be modified to suit your
individual requirements. The versatility, even with the work
processes, is assured by freely choosing between firing or pressing
plus firing. This combination furnace is really a fusion of two devices
that simplifies the workflow and, in addition, saves valuable bench
top space.
40045/0408/H
Technical specifications
Multimat®2 Touch
•
•
•
•
•
•
•
Height:
Width:
Depth:
Weight:
Voltage:
Frequency:
Power:
closed approx. 435 mm, open approx. 585 mm
approx. 320 mm
approx. 425 mm
approx. 27 kg
100 V, 110 V, 115 V, 125 V, 230 V
50 – 60 Hz
1300 VA
without pump
Multimat®2 Touch + Press
•
•
•
•
•
•
•
Height:
Width:
Depth:
Weight:
Voltage:
Frequency:
Power:
closed approx. 525 mm, open approx. 675 mm
approx. 320 mm
approx. 425 mm
approx. 28 kg
100 V, 110 V, 115 V, 125 V, 230 V
50 – 60 Hz
1300 VA
without pump
Parameter
Lower limit
Upper limit
Standby temperature
100 °C
600 °C
Temperature
20 °C
1200 °C
Adjustable firing times
00 : 00 seconds
99 : 60 hours
Heating rate, controlled
0.1 °C/min
Heating rate, max.
Cooling rate
1 °C/min
Cooling rate, max.
Heater off
1 hPa (0.1 inHg)
1013 hPa (29.9 inHg)
View
12 : 01: 00 min
3 : 00 : 00 min
Vacuum on
20 °C
1200 °C
Vacuum off
20 °C
1200 °C
Firing chamber positions
Number of programs
Interfaces
120 °C/min, controlled
Vacuum
Steps
Colour graphic display
120 °C/min
approx. 120 °C/min
150
1
9
• 5.7 in., 320 x 240 pixels
• External dimensions 154.6 x 114.8 x 8.5 mm
• Visible area 118.8 x 89.38 mm
• 300
• USB Slave
• Smart Media Card
(for external data backup)
• Serial
Technical specifications may change without notice
DeguDent GmbH
P.O.Box 13 64 · 63403 Hanau
GERMANY
www.dentsply-degudent.com
