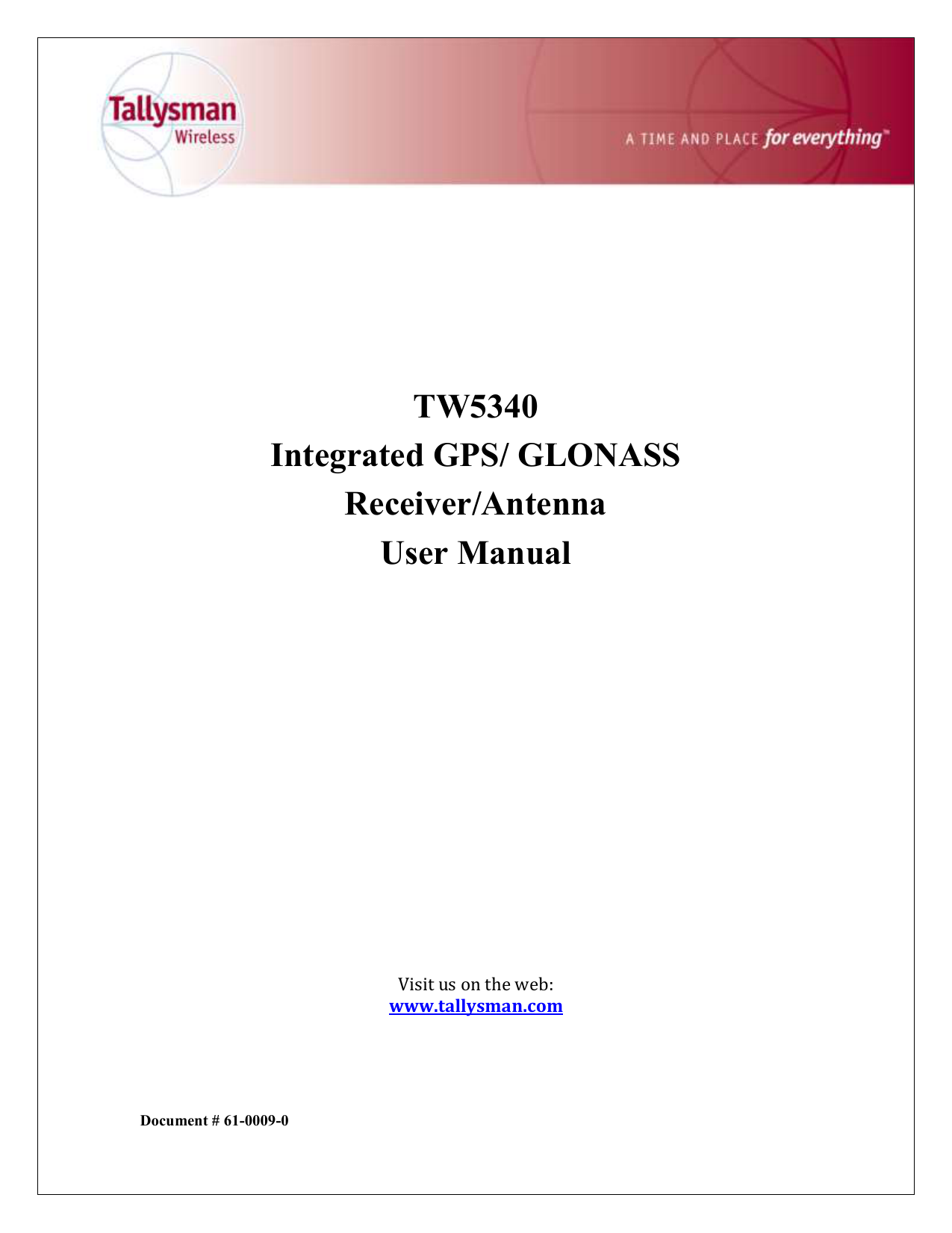

TW5340 Integrated GPS/ GLONASS Receiver/Antenna
Document # 61-0009-0
TW5340
Integrated GPS/ GLONASS
Receiver/Antenna
User Manual
Visit us on the web:
www.tallysman.com
TW5340 User Manual
Document Amendment Record
Revision Date
Rev 1_0 7 Nov 2014
Comments
Initial release
Rev 1_1
Rev 1_2
Rev 1_3
Rev 1.4
11 Nov 2014
10 Dec 2014
4 Mar 2015
6 May 2015
Minor edits
Edit of wake up pin
TW5340 Rev 3 Standby Mode support
Correction to configurator and clarification regarding
10 Hz operation
Rev 1.5
Rev 1.6
23 June 2015
31 July 2015
Rev 1.7 3 Sept 2015
Rev 1.8 30 Oct 2015
Connector Pin out changes
Updated “walking mode” & “Position hold mode”
Added changes to return to factory defaults & loading new firmware
Added Accuracy figures and Salt spray info
Updated Standby mode info
Rev 1.9 15 Jan 2016 Corrections to section 7, Note 1
Copyright
Copyright
2014 2016 Tallysman Wireless Inc. All Rights Reserved.
This document and the subject matter herein are proprietary items to which
Tallysman Wireless Inc. retains an exclusive right to reproduction, manufacture and sale. This document is submitted in confidence, for the use of the recipient alone, or in conjunction with Tallysman Wireless Inc. and its licensees, and for no other purpose whatsoever unless permission for further disclosure is expressly granted in writing. Information in this document is subject to change without notice.
Tallysman Wireless Inc.
106 Schneider Road, Unit 3
Ottawa ON K2K 1Y2 Canada
Tel: 613 591 3131
Fax: 613 591 3121
©2014 -2015 Tallysman Wireless, Inc. Confidential
2
TW5340 User Manual
Table of Contents
©2014 -2015 Tallysman Wireless, Inc. Confidential
3
TW5340 User Manual
©2014 -2015 Tallysman Wireless, Inc. Confidential
4
TW5340 User Manual
1 Downloads
For the latest TW5340 download package click on the following link http://tallysman.com/downloads/45-0030-0%20TW5340.zip
2 Introduction
The TW5340 GNSS receiver/antenna incorporates the ST STA8088 state of the art receiver which provides 32 high sensitivity tracking channels which can be assigned to acquire and track GPS and GLONASS signals simultaneously. The TW5340 is designed for use in professional grade applications such as precision timing, network synchronization, low current battery and vehicle tracking applications.
The TW5340 family of GNSS receiver/antennas employs Tallysman’s Accutenna™ dual feed antenna patch technology which greatly improves rejection of multi-path signals across the whole GNSS band, resulting in much higher precision than single feed antennas which are typically tuned to a single GNSS frequency.
The TW5340 supports ST Microelectronics Autonomous A-GPS which accelerates GPS positioning by predicting satellite ephemeris data based on previous observations, this results in extremely fast Time-To-First- Fix.
The TW5340 supports 3 modes of operation; Navigation, Standby and Low Current
(expert mode parameters only). A hardware interface is provided for external application to control the Standby mode, this is especially useful in applications that require low current drain.
The TW5340 outputs standard NMEA 0183 output with navigation updates rates up to
10Hz are supported. Three (3) messages lists can be output each with different output rates.
The TW5340 is available with RS232, and CMOS interfaces and input voltage options of
3,3V, 5.0V and 12V.
A standard one pulse-per-second 1PPS output is available as a single ended output or as a differential output at RS422 levels. The 1PPS can be configured to be synchronized to
UTC, GPS or GLONASS reference time.
Tallysman Windows™ based TW5340 Configurator application provides for simple configuration of TW5340 parameters such as tracking, Standby mode operation, 1 PPS timing, constellations, SBAS etc.
©2014 -2015 Tallysman Wireless, Inc. Confidential
5
TW5340 User Manual
Figure 1 TW5340
The TW5340 is housed in an industrial grade weatherproof IP67 enclosure for
19mm diameter (¾”) thru-hole mount or mast mount installations. It is available with low profile radome for use in tracking applications and with a conical radome for timing applications.
Figure 2 TW5340
Features
Standalone Integrated GPS/GLONASS Receiver/Antenna
32 channel simultaneous operation
High performance tracking (-162dBm)
Fast time to first fix (35mS)
Accutenna – Dual feed antenna ( high multipath rejection)
SBAS Capable
©2014 -2015 Tallysman Wireless, Inc. Confidential
6
TW5340 User Manual
Low noise LNA and SAW band-pass filter
NMEA 0183 output; up to 3 lists
Differential 1PPS output
1PPS Qualification
Configuration information saved across power cycles
Waterproof enclosure (IP67)
Standby low current mode
RoHS compliant
2.1 Position Accuracy
Position accuracy verifies long time static accuracy and stability. The results below show the circular error probability (CEP) and the spherical error probability (SEP), CEP and SEP are respectively the probability of a point falling within a circle or sphere or datum radius around its reported position.
2.2 CE Marking
The TW5340 has been tested against the following specifications:
Electromagnetic compatibility testing to EN 55022
Radiated RF immunity, EN 61000-4-3,
Electrical fast transient/burst, EN 61000-4-4
Conducted RF immunity, EN 61000-4-6
Salt Spray, MIL-STD-810F section 509.4
©2014 -2015 Tallysman Wireless, Inc. Confidential
7
TW5340 User Manual
3 Variants
The TW534X is offered in the following variants:
PRODUCT
PWR GND
TW5340 (RS232)
3.3V,5V,12V ☑
TW5340 (CMOS) 3.3V, 5V ☑
TX (RS232) RX (RS232)
TX (CMOS) RX (CMOS)
Table 1
SIGNALS
1PPS _ A
(RS422)
1PPS_B
RS422
1PPS _ A
(RS422)
1PPS_B
RS422
Fix Qual
/Standby Wake Up
Fix Qual
/Standby Wake up
3.1 Ordering Information
Part Numbering:
33-5340-X-YY GPS/GLONASS Smart Antenna
33-5341-X-YY Non-magnetic, GPS/GLONASS Smart Antenna
27-0045-1 TW5340 Test Adaptor
Where X= interface/voltage (0= RS232 12V; 1 = RS232 5V; 2 = CMOS 5V, 3 = CMOS, 3.3V,
4 = N/A, 5 = RS232 3.3V), YY= Radome (00= grey conical, 10=grey low profile, 01=white conical, 11=white low profile).
3.2 Build Information
The current build information is:
Hardware Build: Rev 4.2
Hardware build Rev 4.3 (25m cable variant)
Software build: 1.1.02 ( The TW5340 configurator shows the software version
in the General tab/Text Message
4 GNSS Systems
Tallysman TW5340 family of GNSS Receiver/Antennas are multi-GNSS receivers that receive and track GPS, and GLONASS, signals simultaneously.
4.1 GPS
The US Global Position System (GPS) uses L1C/A signals at 1575.42 MHz to determine position.
4.2 GLONASS
The Russian GLONASS satellite system is an alternative system to the US-based Global
Positioning System (GPS).
©2014 -2015 Tallysman Wireless, Inc. Confidential
8
TW5340 User Manual
5 NMEA Packet Format
The TW5340 serial interface is based on the NMEA-0183 protocol standard.
The NMEA -0183 protocol starts with a “$” character followed by a NMEA Talker ID.
“GP” indicates Talker ID for the GPS constellation
“GL” indicates Talker ID the GLONASS constellation
“GN” indicates Talker ID for all constellations
6 Software Utilities
6.1 Open Source GPS Software Utilities
The following open source GPS utility can be used to display the GPS and GLONASS GGA and GSV messages with Talker ID’s GP and GL. http://www.visualgps.net/VisualGPSView/
Note: “GN”Talker ID’s are not currently supported by this application.
This VisualGPS application can log data which can subsequently be imported into the following data conversion application for easy display tracking data on Goggle maps: http://www.gpsbabel.org/
©2014 -2015 Tallysman Wireless, Inc. Confidential
9
TW5340 User Manual
7 Hardware Interface
The TW5340 is provided with a 5 m cable terminated in a RJ45 connector.
Wire Color
Brown
Brown/White
Blue/White
Orange
Green/White
Green
Orange/White
Blue
Figure 3
Comments Signal
Power
Gnd
12V, 5V or 3.3V depending on model
0V
RX into the TW5340
TX out of the TW5340
Differential 1PPS output
Differential 1PPS output
RS232 level (+/-6V)
CMOS 3.3V
RS232 level (+/-6.6V)
CMOS 3.3V
1PPS_B
(0 to 2.0V levels).
1PPS_A
(0 to 2.0V levels).
Wake Up -input Low
‘”not supported on Rev 1_0 release”
Wake up Input
Fix Quality (1PPS Qualification)
/Standby status
Table 2
Continuous mode (0 to 3.3V)
©2014 -2015 Tallysman Wireless, Inc. Confidential
4
1
2
3
Pin #
8
7
5
6
10
TW5340 User Manual
Note 1:
TW5340 cable outputs have been changed on Rev 4 to provide better noise immunity of the 1PPS outputs. The following pin changes were made:
1PPS B was pin 4 & is now pin 1
1PPS A was pin 3 & is now pin 2
Wake up input was pin 2 & is now 3
Fix Quality/Standby status was pin 1 & is now pin 4
7.1 TW5340 Installation
For best results the TW5340 GPS Receiver/Antenna should installed with a clear view of the sky. The GPS Receiver/Antenna will obtain a 3D fix GPS fix with a minimum of 4 satellites.
8 Testing
Tallysman TW5340 DB9 Test adaptor (part # 27-0045-1) connects to the RJ45 connector on the TW5430 and provides a DB 9 COM port connection to a PC for testing purposes.
Figure 4 shows the test system set-up, connect the adaptor RED wire to the positive
supply and the Black wire to Gnd.
If the TW5340 outputs at RS232 levels the Test Adaptor can be plugged directly into the
PC Com Port, if the TW5340 outputs at CMOS levels a CMOS to RS232 converter will be required between the Test Adaptor and the PC COM port.
8.1 Baud Rate
The default output from the TW5340 is 5 digit resolution GGA, GSV and Usage messages
at 115,200 baud. See section 12 for message format information.
©2014 -2015 Tallysman Wireless, Inc. Confidential
11
TW5340 User Manual
PC
Running VisualGPS
Optional
CMOS/RS232
Converter
DB 9
Test Adaptor
27-0045-1
PC
Com Port
Yellow
(Test wires)
RED Black
Power GND
To TW5340
Clear view
Of Sky
TW5430
Note: The Yellow test wire are only used when resetting parameters to factory defaults
Figure 4
8.2 Test Adaptor Pin outs
TW5430
Power (Pin 8 Brown)
DB9 Test Adaptor (27-0045-1)
Pin 5 Gnd Gnd (Pin 7 Brown/White)
TX out (Pin 6 Orange)
RX in (Pin 5 Blue/White)
** Reset factory default 1 (Yellow)
Pin 2 RX into PC
Pin 3 TX out of PC
Pin 4 DTR out of PC
** Reset factory default 1 (Yellow
( Pin 3 Wake up)
Table 3
** Only used to revert to default parameters to factory defaults, see section 13.2
8.3 NMEA Output test
Run the VisualGPS application (see section 6.1), select the NMEA tab to display message
output.
Set COM Port: Select Tools/Connect to GPS
©2014 -2015 Tallysman Wireless, Inc. Confidential
12
TW5340 User Manual
Figure 5
8.4 Satellite Output Test
To display GPS/GLONASS satellite outputs the TW5340 must be configured to output a
GSV and GGA messages (default configuration). Run the VisualGPS application (see
section 6.1), select the Front Panel Status tab to display:
Figure 6
To read and write the TW5340 configuration parameters the same hardware test configuration is can be used while running the Tallysman Windows based Configurator
application on the PC. See section 11 for configuration details.
The SBAS satellite is indicated by its NMEA ID and not the PRN #. See Table 5
for details.
©2014 -2015 Tallysman Wireless, Inc. Confidential
13
TW5340 User Manual
8.5 Power
The TW5340 operates from 3.3V, 5V and 6 to 16 volts. Overvoltage and transient protection is provided making it suitable for installation in the harshest of vehicle installations.
On the RJ45 connector shown in Figure 3:
Connect the BROWN wire on the TW5340 to Positive supply
Connect the BROWN/WHITE wire on the TW5340 to Gnd
8.6 1PPS
The TW5340 provides a one (1) pulse-per second output signal for timing purposes.
Differential 1PSS outputs are provided at RS422 levels.
The 1PPS signal can be synchronized to GPS or GLONASS reference times to an accuracy within 50 nanoseconds.
250 ms 750ms
3V
1PPS_A
0V
3V
1PPS_B
0V
Figure 7
The default pulse width is 250 ms, but is configurable from 100 ms to 500 ms. Typical jitter is 20ns. Signal levels are differential, 0.V to 2.03V.
After obtaining a GPS fix, the 1PPS output will be accurately maintained even when tracking only one satellite. Once synchronized the 1PPS maintains synchronization accuracy with no GPS reception by fly-wheeling for a period.
The following examples are provided for termination of the 1PPS signals.
©2014 -2015 Tallysman Wireless, Inc. Confidential
14
TW5340 User Manual
Figure 8
The balanced driver in the TW5430 is an Intersil 3179E. Please check the data sheet for additional information.
Cable Delays:
The timing of the 1PPS pulse depends on the length of both antenna and interface cables, to account for cable delays add 3ns for each meter of cable.
Fix Quality (1PPS Qualification)/Standby
This output has a dual function, by default it is a Fix Quality (1PPS qualification) output.
©2014 -2015 Tallysman Wireless, Inc. Confidential
15
TW5340 User Manual
If the device is configured to operate in Standby mode the output provides positive feedback that the device has entered Standby mode.
Fix Quality (1PPS Qualification)
A 1PPS qualification signal is provided to indicates when the 1PPS output is valid,
qualification is based on the configured Fix Quality PDOP value, see section 11.2.
Figure 9 shows the internal 1PPS qualification status of the TW5340. Once the 1PPS
status is detected as good, a Fix Quality Start Delay can be inserted before the 1PPS qualification signal is output to ensure that the TW5340 has time to average out the satellite clocks and provide a stable 1PPS output.
On loss of 1PPS qualification status the 1PPS qualification output is maintained for the
Fix Quality Flywheel time, see section 11.2.
1 PPS Qualification status
2.0 V
0V
1PPS Qualification output
1PPS
Qual Start delay
1PPS
Qual stop delay
Figure 9
8.7 Wake Up Input
The Wakeup input is pulled high by the TW5340. It must be left in this state to enter standby mode. When in standby, the wakeup input must be pulled to ground to cause the TW5340 to exit Standby mode and return to Navigation mode.
9 Operating Modes
The TW5340 has three operating modes:
9.1 Navigation Mode
The TW5340 uses the acquisition engine continually resulting in the shortest time to first fix. It searches all possible satellites until the almanac is completely downloaded, the receiver then switches to the tracking engine to lower power consumption.
©2014 -2015 Tallysman Wireless, Inc. Confidential
16
TW5340 User Manual
9.2 Standby Mode
Standby mode stops the navigation operation and all supply inputs are powered down and power drain is reduced. Standby mode is entered by External control ( see below)
In Navigation mode the current consumption is approximately 70 mA, and in Standby mode is approximately 1 mA,
The Standby status output pin provides a positive feedback that the device has entered
Standby mode. When Not In standby the output is pulled high, when in standby the output is floating.
External control
The W5340 can enter Standby mode by issuing a “$PSTMGOTOSTANDBY” command.
$PSTMGOTOSTANDBY,1,<sleep time>,0,<sleep time>
<Sleep time> is the number of seconds to remain in standby mode. Note the two sleep times in the command must be identical.
The TW5340 can be woken from standby state by the wakeup pin.
Pin 3 on the TW5340 can be used to wake the device up. To exit Standby mode the
Wake-Up pin must be pulsed low for approximately 1 ms by an open collector output.
Note: If the TW5340 is in Standby mode for greater 30 minutes the ephemeris data may old and have to be re-acquired before a GNSS position can be resolved resulting in a cold start of approximately 50 to 90 seconds.
As a rule of thumb the TW5340 should be on for 30 seconds every 30 minutes to guarantee a hot start of less than 10seconds.
Note: For applications that need to conserve power by waking up quickly from standby mode and getting a fix as quickly as possible it is recommended that both GPS &
GLONASS constellations are enabled
Initialize GPS time
Acquisition of a position fix can be sped up by initializing the TW5430 with the GPS time.
The following NMEA command can be used $PSTMINITTIME
$PSTMINITTIME,<Day>,<Month>,<Year>,<Hour>,<Minute>,<Second><cr><lf>
©2014 -2015 Tallysman Wireless, Inc. Confidential
17
TW5340 User Manual
Parameter
Day
Month
Format
dd - decimal, 2 digits
Description
Day of month (01 to 31)
Year
Hour
Minute mm – Decimal, 2 digits
YYYY – Decimal, 4 digits
HH – Decimal, 2 digits
MM _ Decimal, 2 digits
Month (01 to 12)
Year (194 - ….)
Hour (00 to 23)
Minute (00 to 59)
Second SS – Decimal, 2 digits Second (00 to 59
Table 4
The following message will be output on the NMEA communications channel
$PSTMINITTIMEOK<cr><lf> If success
$PSTMINITTIMEERROR<cr><lf> If no success
©2014 -2015 Tallysman Wireless, Inc. Confidential
18
TW5340 User Manual
10 Satellite Based Augmentation System (SBAS)
The TW5340 can be configured to use satellite corrections transmitted by SBAS satellites to provide greater positioning accuracy. There are three compatible SBAS systems which are integrated to provide a seamless worldwide navigation system.
Configure the SBAS satellite ID closest to your Location.
Service Satellite Name NMEA Satellite ID
(PRN)
Location
WAAS Inmarsat 4-F3 46 133
(longitude)
98⁰ W
WAAS
Galaxy 15 48 135
133⁰ W
WAAS
EGNOS
Anik F1R
Inmarsat 3-F2
51
33
138
120
107.3⁰ W
15.5⁰ W
EGNOS
Inmarsat 4-F2 39 126
25⁰ E
EGNOS
MSAS
MSAS
Inmarsat 3-F1
MTSAT-1R
MTSAT-2
44
42
50
131
129
137
64.5⁰ E
140⁰ E
145⁰ E
Table 5
The default satellite ID is 133 (Suitable for longitudes of those of the Eastern US).
The TW5340 configurator supports the addition of two future SBAS satellite ID’s.
Three SBAS are already operational (WAAS, MSAS, EGNOS), three are under implementation (GAGAN, SDCM, SNAS) while others are under feasibility studies, as is the case of SACCSA.
©2014 -2015 Tallysman Wireless, Inc. Confidential
19
TW5340 User Manual
Figure 10
More information can be found by clicking on the following link: http://www.navipedia.net/index.php/SBAS_Systems
©2014 -2015 Tallysman Wireless, Inc. Confidential
20
TW5340 User Manual
11 TW5340 Configuration
Tallysman provides downloadable software package (part # 45-0030-0) which includes a
Windows based “Configurator” for reading and writing of operating parameters and a user manual.
For the latest information click on the following link http://tallysman.com/downloads/45-0030-0%20TW5340.zip
Figure 11
Connect the PC to the TW5340 using the Test Adaptor (27-0045-1)
Set the TW5340 Configurator to the COM port speed of the TW5340 (115200 baud is default).
- Select Program/Read to read the parameters in the TW5300.
(Note: It is recommended that the default parameters are saved, so that you can
always retrieve and Write them back if required).
- To write a new set of parameters to the TW5340 select Program/Write
- The configuration file can be save by selecting File/Save.
Note: Most configuration parameters changes do not take effect until the TW5340 is reset i.e. power cycled.
The configurator provides configuration of the “general” parameters of the TW5340.
Contact Tallysman Wireless to discuss specific parameters that may not be listed.
©2014 -2015 Tallysman Wireless, Inc. Confidential
21
TW5340 User Manual
11.1 INTERFACE TAB
Baud Rate: (default 115200)
Sets the operating baud rate of the TW5340. If the baud rate is changed and written to the TW5340 remember to change the Configurator baud rate to match.
11.2 GENERAL TAB
Enable watchdog:
Enable to set the internal watchdog. TW5340 resets when watchdog times out.
Enable Fix Quality output:
Enables output on Pin 2 of the TW5340 to indicate Fix Quality OK (1PPS Qualification)
Fix Quality Start Delay: (default 10 ms)
Inserts a delay before asserting Fix Quality OK.
This is the period that the TW5340 waits after detection of a good fix before outputting a 1PPS qualification signal. The TW5340 uses this period to ensure that the TW5300 has time to average out the satellite clocks and provide a stable 1PPS output.
Fix Quality Flywheel: (default 10ms)
On loss of Fix the Fix quality output flywheels for a period set by this parameter.
Fix Quality PDOP Threshold: (default 12)
The Dilution of precision (DOP) required for Fix Quality OK.
©2014 -2015 Tallysman Wireless, Inc. Confidential
22
TW5340 User Manual
DOP
Value
Rating Description
1 Ideal
This is the highest possible confidence level to be used for applications demanding the highest possible precision at all times.
1-2 Excellent
At this confidence level, positional measurements are considered accurate enough to meet all but the most sensitive applications.
2-5
10-20
Good
Fair
Represents a level that marks the minimum appropriate for making business decisions. Positional measurements could be used to make reliable in-route navigation suggestions to the user.
5-10 Moderate
Positional measurements could be used for calculations, but the fix quality could still be improved. A more open view of the sky is recommended.
Represents a low confidence level. Positional measurements should be discarded or used only to indicate a very rough estimate of the current location.
>20 Poor
At this level, measurements are inaccurate by as much as 300 meters with a 6 meter accurate device (50 DOP × 6 meters) and should be discarded.
Table 6
FIX Rate (Sec) :
Defines the time in seconds between fixes. E.g., if a Message list output rate of 10 Hz is required, then the Fix Rate per second should be set to 0.1 sec, or ( 1/ 10 Hz).
©2014 -2015 Tallysman Wireless, Inc. Confidential
23
TW5340 User Manual
Text Message:
The user modifiable text message which is output on reset.
CPU Clock Speed:
Sets the CPU clock rate to support the required fix rate.
The lower the speed the less current draw. 52Mhz (Osc) provides the lowest operating power.
Higher speeds (104 Mhz minimum) will be required to support higher fix rates or accurate timing i.e. 1PPS or NMEA output relative to a fix.
The “Usage” message provides information on % of CPU usage, see section 12 for Usage
message format.
11.3 MESSAGES TAB
SBAS Satellite on GSV Message:
The SBAS satellite information is output in a GSV message.
NMEA 3.01 Mode field on RMC, VTG, and GLL messages:
Setting this option will enable a “mode” field to be appended to the RMC, VTG and GLL sentences, as required by the NMEA 3.01 specification. (See the “mode indicator” in the
GNGNS NMEA message, section 12 under GNGNS).
Start Up header message:
Outputs device information on reset, including version, model, ESN, and user text message.
Current Configuration message on startup:
Outputs the configuration parameters of the TW5340 on startup.
Use GNGSV in place of GLGSV or GPGSV:
The GSV message can be configured to be output with GN talker ID.
Use GNGSA in place of GLGSA or GPGSA:
The GSA message are be configured to be output with GN talker ID.
©2014 -2015 Tallysman Wireless, Inc. Confidential
24
TW5340 User Manual
Decimal digits in GGA:
Sets the number of decimal digits in GGA output.
Decimal Digits in RMC and GLL
Sets the number of decimal digits in RMC and GLL output.
NMEA Talker ID: (Default is “P”)
Assign a unique talker ID to these non-constellation message types. This NMEA talker ID relates to the following message types; RMC, GGA, VTG, GST, GLL, and ZDA.
Note: Constellation related messages are automatically assigned on selection of constellation type.
•
•
•
GP” indicates the GPS constellation
“GL” indicates the GLONASS constellation
“GN” indicates satellites for all constellations
Delay from Fix to Start of Output:
Message output can be delayed related to time of the current fix. This establishes a known offset from the receipt of the NMEA message to the time stamp within the message; thus permitting reliable time transfer. This feature only applies to the high priority message list 3.
If the start of a NMEA out message is being used for timing purposes the “fix rate” should be set to 1 second and message list 3 used.
For >5Hz fix rate operation this parameter should be set to zero.
GLONASS satellite Format: (default ID is based on slot)
Selects satellite ID based on “frequency” or “slot” (as reported in almanac and ephemeris data).
NMEA output:
The TW5340 will output messages that are specified in up to 3 lists. Each of the message lists can be output at a different rates.
©2014 -2015 Tallysman Wireless, Inc. Confidential
25
TW5340 User Manual
Message List 1 rate:
Sets message list 1 output rate. The rate is specified as the number of fixes between message output.
Message List 2 rate:
Sets message list 2 output rate.
There is No Message List 3 rate:
Messages from list 3 are always output at the fix rate.
NMEA Message List 1
The basic output message list is shown in Figure 12. Additional outputs are available in
expert mode, contact Tallysman for details.
Figure 12
Message list 1 is the standard message list. Use message list 1 if the NMEA multiple output rate feature is not required.
NMEA Message List 2
Use to output messages at a different rate. For example GSV and GSA can be output at a much lower rate than RMC or GGA.
NMEA Message List 3
Message list 3 is reserved for those messages which need to be sent at a high rate
(10hz) and /or require accurate message output timing (low jitter). If high rate messages or low jitter messages are not required, this message list should not be used.
If you are outputting message list 3 at 10 Hz, message list 1 & 2 should be disabled. If additional lists outputs are required the output message rate of list 1 will need to be
©2014 -2015 Tallysman Wireless, Inc. Confidential
26
TW5340 User Manual reduced e.g. if you configure message list 3 to output GGA at 8 Hz then message list 1 can be configure to output once per second (by setting the Message List 1 Rate to 8).
Note 1: When configuring additional NMEA lists, check that the baud rate is high enough to ensure there is enough time to output all messages.
10 Hz. Operation
For 10 Hz operation the following configuration settings are required:
[1] In the “Interface” tab: set the “NMEA Baudrate” to at least 115200.
The next time the configurator is run be sure to set the “COM Port Baudrate” in the
“Program” Menu “COM Port…” tab to the same value.
[2] In the “General” tab set:
[a] “Fix Rate (sec)” option to “.1”
[b] “CPU Clock Speed” option to “208 MHz (PLL)”
[3] In the “Message” tab set:
[a] “Delay from Fix to Start of Output (ms)” option to 0
[b] Uncheck all items from List #1 and List #2 (*)
[c] Check just one item for List #3
(*) If more NMEA sentence outputs are required, then set the “Message List #1 Rate” option to 10, so the selected sentences in List #1 are output at most once per second.
[4] If fix rate is > 5Hz.
[a] In the “Tracking” tab check “High Dynamics”.
This enables a higher DSP sample rate.
©2014 -2015 Tallysman Wireless, Inc. Confidential
27
TW5340 User Manual
11.4 CONSTELLATIONS
Enable GPS Constellation and fix
Enables GPS constellation. (Note for GNS messages the talker ID is “GP” unless GLONASS is also selected, in which case, the talker ID will be “GN”).
Enable GLONASS Constellation and Fix:
Enables GLONASS constellation. (Note for GNS messages the talker ID is “GL” unless GPS is also selected, in which case, the talker ID will be “GN”).
Enable SBAS (WAAS):
When set and if data is currently received from an SBAS satellite, then the TW5340 includes the SBAS corrections in the calculated position.
SBAS Auto-Search: (default ON)
The TW5340 will automatically search for an appropriate satellite in view.
SBAS PRN
Set the SBAS satellite number to track.
SBAS -1 Parameter: PRN
Two additional SBAS satellites can be added to the SBAS search list. Enter PRN,
Longitude, and Service for each SBAS satellite.
SBAS -1 Parameter: Longitude
SBAS -1 Parameter: Service
SBAS -2 Parameter: PRN
SBAS -2 Parameter: Longitude
©2014 -2015 Tallysman Wireless, Inc. Confidential
28
TW5340 User Manual
SBAS -2 Parameter: Service
11.5 TRACKING
2 D Fix: ( default off)
Enables a two-dimensional GPS position fix that includes only horizontal coordinates (no
GPS elevation). It requires a minimum of three visible satellites.
Walking mode: (default off)
The receiver engine uses different filters in walking mode i.e. does not include velocity in position calculations or accelerations that are not feasible by a pedestrian, and maintain accurate position in urban environments during lower operating speeds ( 0.5 to 3 m/sec) such as walking or even running.
Stop Detection: (default on)
This enables “pining” the position while stopped to minimize “wandering” such as in an automotive application at a stop light. It also has protection to prevent it from getting stuck in an undesirable mode when the user dynamics change.
This feature should be disabled when doing ‘wander’ testing or when walking mode is enabled.
High Dynamics: (default off)
The receiver engine uses different filters for high acceleration applications.
Must be enabled when the fix rate is >5Hz.
Acquisition Mask Angle (degrees):
The elevation angle of a GNSS satellite below which data will be ignored when acquiring a fix. A lower mask angle may lead to faster acquisition.
©2014 -2015 Tallysman Wireless, Inc. Confidential
29
TW5340 User Manual
Positioning Mask Angle:
The elevation angle of a GNSS satellite below which data will be ignored once a fix has been acquired. Once a fix has been acquired the mask angle can be increased so that only high satellites are tracked. By setting this parameter to a value less than the acquisition mask angle the satellite will always be used in a fix once it is acquired.
Having larger values helps reduce multipath errors.
Tracking Threshold (SNR):
This parameter sets the minimum C/N0 threshold to track a satellite. Any GNSS satellite, with C/N0 less than the threshold value is dropped and the engine searches for another satellite with a stronger signal level. Increasing the tracking threshold decreases the
GNSS sensitivity, but helps prevent errors due to multipath. The value must be in the range 10 to 40. The default is 10.
Positioning Threshold (SNR):
A satellite must have a signal strength above this threshold to be included in a fix calculation. The default is 15, which helps reduce multi-path errors.
Default 2D DOPS
A low DOP value represents a better positional precision due to the wider angular separation between the satellites used to calculate a unit's position.
These are the maximum allowable values for calculating a 2D fix.
Default 3D DOPS:
These are the maximum allowable values for calculating a 3D fix.
Startup 2D DOPS
Set these values the same as the default 2D DOPS.
Startup 3D DOP:
Set these values the same as the default 3D DOPS.
©2014 -2015 Tallysman Wireless, Inc. Confidential
30
TW5340 User Manual
11.6 1 PPS TAB
1PPS Enable:
1PPS is output when set.
Invert 1PPS Polarity:
The polarity of the 1PPS output is inverted.
1 PPS Hold Position:
The configured Hold Position is used in Timing application as the current position.
The accuracy and integrity of the timing solution is highly dependent on the accuracy of the reference position. Position can be set and held but should be generated from a highly accurate survey grade receiver. If this is not available, the reference position may be determined automatically by position hold auto-survey command to selfsurvey over an extended period (at the very least, 1 hour). See # Auto survey samples below.
TRAIM Enable:
Enable/disable the TRAIM algorithm
Timing Receiver Autonomous Integrity Monitoring allows the receiver to remove satellites with timing errors in excess of a given timing threshold.
1PPS Clock (Mhz)
Set to 64 Mhz for highest accuracy
1PPS pulse Duration (ms):
Duration of 1 PPS pulse, the default configuration is 250ms.
1PPS Correction (Delay in ns):
This is a time correction to compensate for any 1PPS delays due to cable length or the
RF chain.
©2014 -2015 Tallysman Wireless, Inc. Confidential
31
TW5340 User Manual
Hold Position Latitude (degrees):
Sets the latitude for the position hold mode.
Hold Position Longitude (degrees):
Set the longitude of the position hold mode.
Hold Position Height (meters):
Set altitude for the position hold mode.
# Auto-survey samples
When setting the reference 1 PPS hold position, the reference position may be determined automatically by position hold auto-survey command to self-survey over an extended period (at the very least, 1 hour). Remember to scale this value by number of fixes per second.
1PPS Elevation Mask (degrees):
Sets the elevation mask angle of 1PPS.
1PPS Satellite Threshold (snr):
Fix quality evaluation only use satellites above SNR threshold.
1PPS Fix condition:
GNSS fix condition for PPS generation.
NO FIX: PPS signal is present even in GNSS NO fix conditions.
2D FIX: the PPS is present if the GNSS is at least in 2D fix condition
3D FIX: the PPS is present only if the GNSS is in 3D fix conditions.
1PPS reference time:
Sets the 1PPS time reference.
©2014 -2015 Tallysman Wireless, Inc. Confidential
32
TW5340 User Manual
1PPS Output:
1PPS output enabled base on selection.
1PPS Constellations:
This parameter enables the usage of mixed constellations in the 1pps timing filter. If
“Use GPS…” is enabled GPS satellites are used to correct the GLONASS reference time together with GLONASS satellites. If “Use GLONASS…” is enabled, GLONASS satellites are used to correct the GPS reference time together with the GPS satellites. When constellation mask is zero (default) only GPS satellites are used to correct the GPS reference time and only GLONASS satellites are used to correct the GLONASS reference time.
11.7 STANDBY TAB
Not Currently Supported on Rev 4.2 hardware
Enable Periodic Standby:
Enables the Standby mode low current consumption feature.
Sleep Time (seconds)
Sets the sleep time in seconds.
Fix Time (seconds)
Sets the navigation wake time to acquire a fix.
In order to refresh satellite ephemeris data the receiver should be configured to transitions to full power every 30 minutes and can remain awake for up to 3 minutes.
Maximum Awake Time (Fix count)
The maximum number of attempts to get a fix before resuming standby mode.
©2014 -2015 Tallysman Wireless, Inc. Confidential
33
TW5340 User Manual
12 NMEA Message Reference
NMEA 0183 sentences are all ASCII. Each sentence begins with a dollar sign ($) and ends with a carriage return linefeed (<CR><LF>). Data is comma delimited. A checksum is optionally added.
The first two letters following the „$” are the talker identifier. The next three characters
(sss) are the sentence identifier, followed by a number of data fields separated by commas, followed by an optional checksum, and terminated by carriage return/line feed. The data fields are uniquely defined for each sentence type.
RMC
Recommended Minimum Navigation Information
Fields
UTC Time
Status, V=Navigation receiver warning A=Valid
Latitude
N or S
Longitude
E or W
Speed over ground, knots
Track made good, degrees true
Date, ddmmyy
Magnetic Variation, degrees
E or W
FAA mode indicator (NMEA 2.3 and later)
Checksum
A status of V means the GPS has a valid fix that is below an internal quality threshold, e.g. because the dilution of precision is too high or an elevation mask test failed.
©2014 -2015 Tallysman Wireless, Inc. Confidential
34
TW5340 User Manual
GGA
Global Positioning System Fix Data
Time, Position and fix related data for a GPS receiver.
Field :
Universal Time Coordinated (UTC)
Latitude
Direction of latitude N or S (North or South)
Longitude
Direction of Longitude E or W (East or West)
GPS Quality Indicator,
0 - fix not available,
1 - GPS fix,
2 - Differential GPS fix (values above 2 are 2.3 features)
3 = PPS fix
4 = Real Time Kinematic
5 = Float RTK
6 = estimated (dead reckoning)
7 = Manual input mode
8 = Simulation mode
Number of satellites in view, 00 - 12
Horizontal Dilution of precision (meters)
Antenna Altitude above/below mean-sea-level (geoid) (in meters)
Units of antenna altitude, meters
Geoidal separation, the difference between the WGS-84 earth ellipsoid and mean-sealevel (geoid), "-" means mean-sea-level below ellipsoid
Units of geoidal separation, meters
Age of differential GPS data, time in seconds since last SC104 type 1 or 9 update, null field when DGPS is not used
Differential reference station ID, 0000-1023
Checksum
©2014 -2015 Tallysman Wireless, Inc. Confidential
35
TW5340 User Manual
GSA
GPS DOP and active satellites
Field :
Selection mode: M=Manual, forced to operate in 2D or 3D, A=Automatic, 3D/2D
Mode (1 = no fix, 2 = 2D fix, 3 = 3D fix)
PRN number, 01 through 32 for GPS, 33 through 64 for SBAS, 64+ for GLONASS
ID of 1st satellite used for fix
ID of 2nd satellite used for fix
ID of 3rd satellite used for fix
ID of 4th satellite used for fix
ID of 5th satellite used for fix
ID of 6th satellite used for fix
ID of 7th satellite used for fix
ID of 8th satellite used for fix
ID of 9th satellite used for fix
ID of 10th satellite used for fix
ID of 11th satellite used for fix
ID of 12th satellite used for fix
PDOP
HDOP
VDOP
Checksum
©2014 -2015 Tallysman Wireless, Inc. Confidential
36
TW5340 User Manual
GSV
GSV - Satellites in view
These sentences describe the sky position of a UPS satellite in view. Typically they’re shipped in a group of 2 or 3.
Field:
Total number of GSV messages to be transmitted in this group
Origin number of this GSV message within current group
Total number of satellites in view (leading zeros sent)
Satellite PRN number (leading zeros sent)
Elevation in degrees (00-90) (leading zeros sent)
Azimuth in degrees to true north (000-359) (leading zeros sent)
SNR in dB (00-99) (leading zeros sent) more satellite info quadruples like 4-7 n) checksum
Example: $GPGSV,3,1,11,03,03,111,00,04,15,270,00,06,01,010,00,13,06,292,00*74
$GPGSV,3,2,11,14,25,170,00,16,57,208,39,18,67,296,40,19,40,246,00*74
$GPGSV,3,3,11,22,42,067,42,24,14,311,43,27,05,244,00,,,,*4D
Some GPS receivers may emit more than 12 quadruples (more than three GPGSV sentences), even though NMEA-0813 doesn’t allow this. (The extras might be WAAS satellites, for example.) Receivers may also report quads for satellites they aren’t tracking, in which case the SNR field will be null.
©2014 -2015 Tallysman Wireless, Inc. Confidential
37
TW5340 User Manual
VTG
VTG - Track made good and Ground speed
Field :
Track Degrees
T = True relative to true North
Track Degrees
M = Magnetic
Speed Knots
N = Knots
Speed Kilometers per Hour over ground
K = Kilometers per Hour
FAA mode indicator (NMEA 2.3 and later)
Checksum
GLL
Geographic Position - Latitude/Longitude
Field :
Latitude
N or S (North or South)
Longitude
E or W (East or West)
Universal Time Coordinated (UTC)
Status A - Data Valid, V - Data Invalid
FAA mode indicator (NMEA 2.3 and later)
Checksum
©2014 -2015 Tallysman Wireless, Inc. Confidential
38
TW5340 User Manual
GNGNS
Outputs GPS and Glonass information in the same message list
GNSS capable receivers will also output this message with the GP and/or GL talker ID when using more than one constellation for the position fix.
An example of the GNS message output from a GNSS capable receiver is:
$GNGNS,014035.00,4332.69262,S,17235.48549,E,RR,13,0.9,25.63,11.24,,*70<CR><LF>
$GPGNS,014035.00,,,,,,8,,,,1.0,23*76<CR><LF>
$GLGNS,014035.00,,,,,,5,,,,1.0,23*67<CR><LF>
1 = Message ID $GNS
2 = UTC of position fix
3 = Latitude
4 = Direction of latitude, N: North, S: South
5 = Longitude
6 = Direction of longitude, E: East, W: West
7 = Mode indicator:
Variable character field with one character for each supported constellation.
First character is for GPS
Second character is for GLONASS
Subsequent characters will be added for new constellation
Each character will be one of the following:
N = No fix. Satellite system not used in position fix, or fix not valid
A = Autonomous. Satellite system used in non-differential mode in position fix
D = Differential (including all OmniSTAR services). Satellite system used in differential mode in position fix
P = Precise. Satellite system used in precision mode. Precision mode is defined as: no deliberate degradation (such as Selective Availability) and higher resolution code (P-code) is used to compute position fix
R = Real Time Kinematic. Satellite system used in RTK mode with fixed integers
F = Float RTK. Satellite system used in real time kinematic mode with floating integers
E = Estimated (dead reckoning) Mode
M = Manual Input Mode
S = Simulator Mode
8= Number of SVs in use, range 00–99
9=HDOP calculated using all the satellites (GPS, GLONASS, and any future satellites) used in computing the solution reported in each GNS sentence.
10= Orthometric height in meters (MSL reference)
11= Geoidal separation in meters - the difference between the earth ellipsoid surface and mean-sea-level
(geoid) surface defined by the reference datum used in the position solution
“-” = mean-sea-level surface below ellipsoid.
12= Age of differential data - Null if talker ID is GN, additional GNS messages follow with GP and/or GL Age of differential data
©2014 -2015 Tallysman Wireless, Inc. Confidential
39
TW5340 User Manual
13= Reference station ID1, range 0000-4095
- Null if talker ID is GN, additional GNS messages follow with GP and/or GL Reference station ID
14= The checksum data, always begins with *
ZDA
ZDA - Time & Date - UTC, day, month, year and local time zone
Field :
UTC time (hours, minutes, seconds, may have fractional subsecond)
Day, 01 to 31
Month, 01 to 12
Year (4 digits)
Local zone description, 00 to +- 13 hours
Local zone minutes description, apply same sign as local hours
Checksum
Example: $GPZDA,160012.71,11,03,2004,-1,00*7D
Usage
$PSTMCPU, 53.13,0,52*6d
Field :
% of CPU usage
Clock Source
Clock Speed
©2014 -2015 Tallysman Wireless, Inc. Confidential
40
TW5340 User Manual
WAAS
$PSTMSBAS,1,2,133,,,43*2C
Field:
Status ( 1= WAAS ON)
Acquire flag
PRN
Elevation
Azimuth
Two SBAS channels can be tracked:
$PSTMSBASCH,0,133,,,26*76
Field:
Channel #
PRN
Elevation
Azimuth
$PSTMSBASCH,1,0,0,,,,*42
Field :
Channel #
PRN
Elevation
Azimuth
©2014 -2015 Tallysman Wireless, Inc. Confidential
41
TW5340 User Manual
13 Loading New Firmware
To update to the latest firmware release
1) Select Program/Load firmware
Figure 13
The latest version of the Configurator always presents you with the option to load the
“official firmware” load with its associated factory default parameters.
13.1 Custom Firmware
If you wish to create your own custom firmware which includes your own specific parameters select Program/Create custom firmware with new default configuration
Figure 14
Select the current firmware build you are running.
Select where your custom firmware build will be output too
©2014 -2015 Tallysman Wireless, Inc. Confidential
42
TW5340 User Manual
Select Create Firmware button.
The custom firmware will be created with the current TW5340 parameter setting you have configured.
13.2 Factory Defaults
To return the TW5340 to factory defaults configuration parameters use the following procedure:
1. Start the configurator.
2. Connect TW5340 test Adaptor ( see Figure 4).
3. Power the adaptor.
4. In configurator set the COM port and READ configuration to ensure you are connected. (This is only a connection check. Even if the device can’t be read,
continue with next step)
5. Connect the Yellow wires on the test adaptor together.
6. In the Configurator select Program/Restore factory defaults. Cycle power to the adaptor
Click OK after cycling power.
7. Wait till done.
Figure 15
8. Disconnect Yellow wires and click OK.
9. Cycle the power. It may take 30 seconds before the system responds
Note: After restoring factory defaults ensure the Yellow wire cannot short by applying
insulating tape to the wires.
©2014 -2015 Tallysman Wireless, Inc. Confidential
43
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
