HP L2683B Datasheet

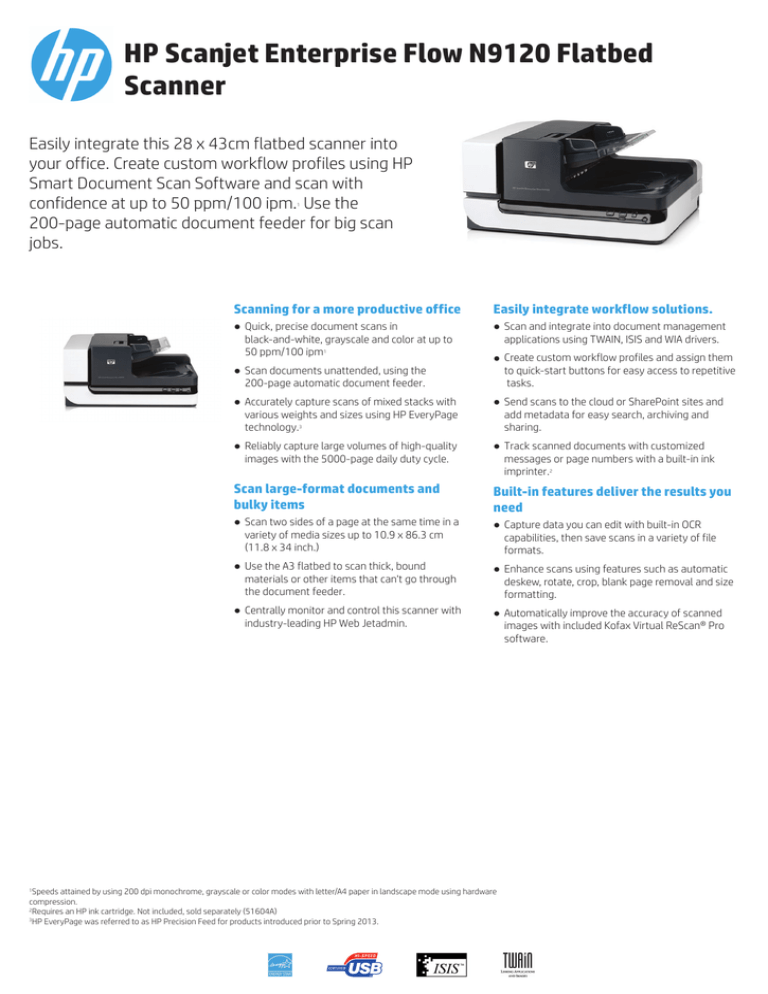

HP Scanjet Enterprise Flow N9120 Flatbed
Easily integrate this 28 x 43cm flatbed scanner into
your office. Create custom workflow profiles using HP
Smart Document Scan Software and scan with
confidence at up to 50 ppm/100 ipm. Use the
200-page automatic document feeder for big scan
Scanning for a more productive office
Easily integrate workflow solutions.
● Quick, precise document scans in
black-and-white, grayscale and color at up to
50 ppm/100 ipm1
● Scan and integrate into document management
applications using TWAIN, ISIS and WIA drivers.
● Scan documents unattended, using the
200-page automatic document feeder.
● Create custom workflow profiles and assign them
to quick-start buttons for easy access to repetitive
● Accurately capture scans of mixed stacks with
various weights and sizes using HP EveryPage
● Send scans to the cloud or SharePoint sites and
add metadata for easy search, archiving and
● Reliably capture large volumes of high-quality
images with the 5000-page daily duty cycle.
● Track scanned documents with customized
messages or page numbers with a built-in ink
Scan large-format documents and
bulky items
Built-in features deliver the results you
● Scan two sides of a page at the same time in a
variety of media sizes up to 10.9 x 86.3 cm
(11.8 x 34 inch.)
● Capture data you can edit with built-in OCR
capabilities, then save scans in a variety of file
● Use the A3 flatbed to scan thick, bound
materials or other items that can't go through
the document feeder.
● Enhance scans using features such as automatic
deskew, rotate, crop, blank page removal and size
● Centrally monitor and control this scanner with
industry-leading HP Web Jetadmin.
● Automatically improve the accuracy of scanned
images with included Kofax Virtual ReScan® Pro
Speeds attained by using 200 dpi monochrome, grayscale or color modes with letter/A4 paper in landscape mode using hardware
2Requires an HP ink cartridge. Not included, sold separately (51604A)
3HP EveryPage was referred to as HP Precision Feed for products introduced prior to Spring 2013.
HP Scanjet Enterprise Flow N9120 Flatbed Scanner
Charge Coupled Device (CCD)
Scan Type
Flatbed, ADF; Colour Scanning: Yes
Scan Speed
Up to 50 ppm/100 ipm (b&w, gray, color, 200 dpi)1
Scan Size Maximum
ADF: 300 x 864 mm
Flatbed: 297.2 x 431.8 mm
Scan Resolution
Hardware: Up to 600 x 600 dpi
Optical: Up to 600 dpi
Scan File Format
PDF (image-only, searchable, MRC, PDF/A, encrypted), TIFF (single
page, multi-page, compressed: G3, G4, LZW, JPEG), DOC, RTF, WPD,
Scan Size Maximum (ADF)
300 x 864 mm; 11.7 x 34 in
Scan Input Modes
Quick start buttons to HP Smart Document Scan Software and HP
Document Copy; software scan using HP Smart Document Scan
Software; user application via TWAIN, ISIS, WIA or Kofax
VirtualRescan (VRS) Professional drivers
Light Source (Scanning)
Cold Cathode Fluorescent Lamp (CCFL)
Output resolution dpi settings 75, 100, 150, 200, 240, 300, 400, 500, 600
Grayscale Levels/Bit Depth
256; Bit Depth: 48-bit
Duty Cycle (daily)
Recommended daily duty cycle: 5000 pages
Multi Feed Detection
Yes, ultrasonic
Auto Document Feeder Capacity Standard, 200 sheets
Duplex ADF Scanning
Media Size (ADF)
Letter; legal; executive; US check; A3; A4; A5; A6; long paper up to
864 mm (34 in)
Media Types Supported
Paper (plain, inkjet, photo), envelopes, cards (index, greeting), 3-D
Media Weight (ADF)
49 to 120 g/m²
External I/O ports
1 Hi-Speed USB 2.0
Standard Connectivity
1 Hi-Speed USB 2.0
Digital Sending Standard
Local or network folder; e-mail; SharePoint 2007 & 2010; Cloud
destinations; Google Drive; Box; FTP; printer; fax; user-defined
command-line application; web folder
Optional Connectivity
Network Ready
Supported Network Protocols
Control Panel
2 quick start buttons (Scan, Copy), Cancel, Tools, Powersave
Scanner Advanced Features
48-bit internal/24-bit external bit depth
Twain Version
Version 2.1
Software Included
HP Smart Document Scan Software, EMC ISIS/TWAIN drivers, Kofax
VirtualRescan (VRS) Professional, I.R.I.S. Readiris Pro OCR, WIA
drivers, HP Web Jetadmin SNMP Proxy Agent
Compatible Operating Systems Windows 8 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows
Vista (32-bit, 64-bit), Windows XP (32-bit, 64-bit) with Service Pack
3, (Windows 2000 available on hp.com)
Minimum System Requirements PC: Windows 8 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows
Vista (32-bit, 64-bit): 2 GHz processor (recommend Intel® Core™ 2,
2 GHz, Duo Processor or equivalent); 2 GB RAM; 150 MB for TWAIN
and ISIS drivers; USB 2.0; 1024 x 768 SVGA monitor; Windows XP,
Service Pack 3: 1.6 GHz processor; 1 GB RAM; 150 MB for TWAIN
and ISIS drivers; USB 2.0; 1024 x 768 SVGA monitor; Windows
2000: 1.3 GHz processor, 512 MB RAM;
Color Scanning
What's In The Box
Scan Technology
Operating Environment
Security Management
Energy Star
Product Dimensions
Product Weight
Service And Support Options
L2683B: HP Scanjet N9120 Document Flatbed Scanner; Hi-Speed
USB 2.0 cable; power cord; CD-ROMs with software (HP Smart
Document Scan Software, Kofax VirtualRescan (VRS) Professional,
IRIS Readiris Pro OCR, EMC ISIS/TWAIN drivers, WIA drivers); Printed
Setup and Support Guide
Operating Temperature Range: 10 to 35ºC
Storage Temperature Range: -40 to 70ºC
Recommended Operating Temperature Range: 10 to 35ºC
Operating Humidity Range: 15 to 80% RH
Recommended Humidity Operating Range: 15 to 80% RH
Non-Operating Humidity Range: 15 to 80% RH
Power Consumption: 112 watts maximum
Power Supply Type: Built-in universal power supply
Power Requirements: 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3%)2
HP Web Jetadmin SNMP Proxy Agent
692 x 558 x 338 mm; 27.24 x 21.97 x 13.31 in
37 kg; 83 lb
One-year on-site warranty, phone and Web support included.
Warranty may vary by country as required by law. Go to
hp.com/support to learn about HP award winning
service and support options in your region.
UJ990E - HP 3 year Next Business Day Onsite Scanjet N9120
Hardware Support
UJ992E - HP Hardware Installation Scanjet N9120 and SJ9000
UJ991PE - HP 1 year Post-Warrant Next Business Day Onsite
Scanjet N9120 Hardware Support
Count on dependable support to create the best image possible. We can help you enhance your printing and
imaging environment, protect your IT investment, and grow your business—with expert support that’s
affordable, personal, and tailored to your needs through HP Care Pack Services.
For more information, visit our website at hp.com
HP Scanjet Enterprise Flow N9120 Flatbed Scanner L2683B
1Scan speeds of up to 50 ppm/100 ipm measured at 200 dpi (b&w, gray, color), up to 40 ppm/80 ipm at 300 dpi (b&w, gray), and up to 40 ppm/78 ipm at 300 dpi (color, duplex). Actual processing speeds may vary depending on scan resolution, network conditions,
computer performance, and application software.
2Power requirements are based on the country or region where the product is sold. Do not convert operating voltages or use with other voltages. Doing so might cause damage that would not be covered under HP product warranty.
©2013 Hewlett-Packard Development Company, L.P. HP is a registered trademark of the Hewlett Packard Company. ENERGY STAR and the ENERGY STAR logo are registered U.S. marks. All other trademarks are the property of their respective owners. Microsoft and
Windows are registered trademarks of Microsoft Corporation. This listing of non HP products does not constitute an endorsement by Hewlett Packard Company. The information contained herein is subject to change without notice and is provides "as is" without
warranty of any kind. HP shall not be liable for technical or editorial errors or omissions contained herein. July 2013
Published in LAR December 2013 4AA4-5421ENL Rev. 1
