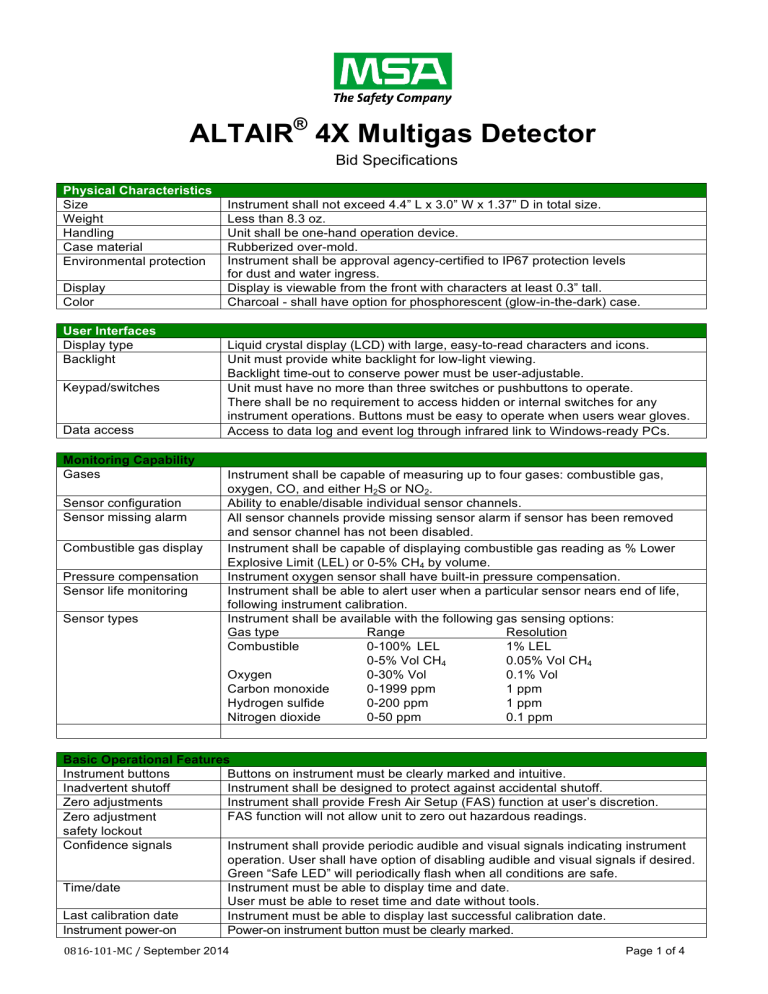

ALTAIR® 4X Multigas Detector
Bid Specifications
Physical Characteristics
Size
Weight
Handling
Case material
Environmental protection
Display
Color
User Interfaces
Display type
Backlight
Keypad/switches
Data access
Monitoring Capability
Gases
Sensor configuration
Sensor missing alarm
Combustible gas display
Pressure compensation
Sensor life monitoring
Sensor types
Instrument shall not exceed 4.4” L x 3.0” W x 1.37” D in total size.
Less than 8.3 oz.
Unit shall be one-hand operation device.
Rubberized over-mold.
Instrument shall be approval agency-certified to IP67 protection levels
for dust and water ingress.
Display is viewable from the front with characters at least 0.3” tall.
Charcoal - shall have option for phosphorescent (glow-in-the-dark) case.
Liquid crystal display (LCD) with large, easy-to-read characters and icons.
Unit must provide white backlight for low-light viewing.
Backlight time-out to conserve power must be user-adjustable.
Unit must have no more than three switches or pushbuttons to operate.
There shall be no requirement to access hidden or internal switches for any
instrument operations. Buttons must be easy to operate when users wear gloves.
Access to data log and event log through infrared link to Windows-ready PCs.
Instrument shall be capable of measuring up to four gases: combustible gas,
oxygen, CO, and either H2S or NO2.
Ability to enable/disable individual sensor channels.
All sensor channels provide missing sensor alarm if sensor has been removed
and sensor channel has not been disabled.
Instrument shall be capable of displaying combustible gas reading as % Lower
Explosive Limit (LEL) or 0-5% CH4 by volume.
Instrument oxygen sensor shall have built-in pressure compensation.
Instrument shall be able to alert user when a particular sensor nears end of life,
following instrument calibration.
Instrument shall be available with the following gas sensing options:
Gas type
Range
Resolution
Combustible
0-100% LEL
1% LEL
0-5% Vol CH4
0.05% Vol CH4
Oxygen
0-30% Vol
0.1% Vol
Carbon monoxide
0-1999 ppm
1 ppm
Hydrogen sulfide
0-200 ppm
1 ppm
Nitrogen dioxide
0-50 ppm
0.1 ppm
Basic Operational Features
Instrument buttons
Buttons on instrument must be clearly marked and intuitive.
Inadvertent shutoff
Instrument shall be designed to protect against accidental shutoff.
Zero adjustments
Instrument shall provide Fresh Air Setup (FAS) function at user’s discretion.
FAS function will not allow unit to zero out hazardous readings.
Zero adjustment
safety lockout
Confidence signals
Instrument shall provide periodic audible and visual signals indicating instrument
operation. User shall have option of disabling audible and visual signals if desired.
Green “Safe LED” will periodically flash when all conditions are safe.
Time/date
Instrument must be able to display time and date.
User must be able to reset time and date without tools.
Last calibration date
Instrument must be able to display last successful calibration date.
Instrument power-on
Power-on instrument button must be clearly marked.
0816-­‐101-­‐MC / September 2014 Page 1 of 4
Sensor Characteristics and Performance
Sensor life
End of life sensor
indicator
Typical t (90) response
times
All sensors
Oxygen sensor
Combustible sensor
CO/H2S sensor
CO/NO2 sensor
Sensors shall have an expected life of four years.
Instrument shall notify user when sensor is close to and at its end of life,
following calibration.
Combustible sensor
<10 seconds (methane)
< 15 seconds (pentane)
Oxygen sensor
< 10 seconds
CO sensor
< 15 seconds
H2S sensor
< 15 seconds
NO2
< 20 seconds
All sensors shall have built-in control circuitry, including drive circuits,
memory, microprocessor, and analog to digital converter to all for sensor level
control and compensation.
Oxygen sensor shall be lead-free and use non-consumable chemical reaction.
Combustible sensor must provide the following poison resistance at minimum:
3000 ppm*hours to H2S
90 ppm*hours to silicon
CO/H2S sensor shall be designed with extremely robust carbon filter for CO
channel to block interference. Sensor shall be designed for virtually no crosschannel interference. Sensor shall be designed for two-toxic gas detection in the
same physical envelope as a single gas sensor.
CO/NO2 sensor shall be designed with extremely robust carbon filter for CO
channel to block interference. Sensor shall be designed for two-toxic gas detection
in the same physical envelope as a single gas sensor.
Advanced Display and Software Options
Industrial hygiene
Instrument shall have capability of displaying PEAK, STEL and TWA at user’s
displays
discretion. User shall have ability to enable/disable STEL and TWA functions.
Instrument settings
All settable instrument parameters (alarm set points, expected calibration gas values,
etc.) shall be protected by user-selectable password.
Reset of functions
User shall be provided with capability of resetting PEAK, STEL and TWA
readings in the field.
Measurement units
Unit shall be capable of displaying both types of installed gas sensors
and measurement units for each gas.
Instrument Alarms
™
MotionAlert feature
™
InstantAlert feature
Visual alarms
Audible alarm
Vibrating alarm
LEL latching alarm
Oxygen alarms
Alarm set points
STEL and TWA alarm
Battery alarms
Instrument Power
Run time
Power supply
Battery life indication
Instrument shall offer MotionAlert feature. When activated, instrument shall
go into latch alarm when no instrument movement is detected for 30 seconds.
Instrument shall have InstantAlert feature to allow users to manually activate
all alarms if situation requires.
Visual alarms shall consist of bright, flashing LEDs on top and bottom of
instrument and positive indication on unit’s display for alarm type identification.
Audible alarm shall be rated at >95 dB @ 1-ft.
Unit shall be offered with standard vibrating alarm.
Combustible channel shall have non-resettable latching alarm when combustible
gas level exceeds 100% LEL or 5.00% CH4.
Oxygen channel shall have alarm set points for both oxygen deficiency
and oxygen enrichment.
Alarm set points must be user-settable.
Instrument shall provide audible, visual and vibrating alarms if STEL or TWA levels
are exceeded. User shall be able to select alarm set points for STEL and TWA.
Instrument shall provide user with 10-minutes warning of battery power loss in all
environmental conditions. Power consumption alarms shall activate audible, visual
and vibrating alarms.
Instrument run time shall be 34 hours continuous running for ALTAIR 4X MSHA and
24 hours continuous running for ALTAIR 4X.
Instrument shall be equipped with a rechargeable battery.
Monitor shall provide icon depicting estimated remaining battery operation time.
Battery icon must always be visible when instrument is powered on.
0816-­‐101-­‐MC / September 2014 Page 2 of 4
Charging cradle
Charger input voltages
Charging status
Calibration
Calibration tools
Pushbutton calibration
Calibration cylinder mix
Calibration time
Automatic calibration
Bump test station
Sampling Systems
Sampling modes
Sampling system filters
Allowable sample
line length
Fluid ingress protection
Optional charging cradle shall be offered.
Chargers shall be available for 110VAC/220VAC and 12-24VDC.
Instrument or charging cradle shall provide visual indication of battery charging status.
Unit shall require no special tools for calibration other than calibration cap,
cylinder, regulator, and tubing to supply gas to instrument.
Calibration shall be easily performed using instrument’s pushbuttons.
Internal instrument access or tools shall not be necessary for calibration.
Calibration gas cylinders shall be offered in standard four-gas configurations
(combustible, O2, CO, and NO2 or combustible, O2, CO and H2S). Instrument shall
be calibrated using one cylinder.
Span calibration shall not exceed 60 seconds.
Instrument shall be compatible with optional automated test and with calibration
system able to store data. External system shall automatically recognize and
calibrate instrument and retain all calibration records.
Economical bump test station shall be offered to verify field performance.
Test station shall be capable of checking performance of standard four-gas
instrument (combustible, O2, CO and NO2, or combustible, O2, CO, and H2S) and
store records.
In addition to standard diffusion mode, instrument must be available with
external powered pump probe option.
Pump must contain user-replaceable filters to prevent liquid and dust ingress.
Instrument must be capable of sample draw from up to 50 feet away.
Sample probe designed to prevent water and debris from entering instrument
shall be offered.
Data logging (Instrument Data Storage)
Data logging
Instrument must be available with standard data logging.
Event log
Instrument shall record at least 500 events.
Data log capacity
Data log shall record and store data for an average of 50 hours (at one-minute
intervals) without overwriting existing information in normal use.
Gas record content
Data log entries shall contain as minimum date, time and record of peak and
average readings for each gas sensor (oxygen shall be recorded as maximum
and minimum intervals).
Atmospheric record
Instrument shall have provisions to record atmospheric temperature changes.
Record intervals
Time span between data records shall be user-selectable from 15 seconds
to 15 minutes.
Data retention
Instrument data stored in memory shall not be lost or corrupted in event of
sudden instrument power loss.
Activity record
Instrument data log shall record and be capable of reporting significant
content page
instrument events including:
• Gas and battery alarms
• Fresh air setups, sensor re-zeroing and calibrations
• Battery voltage and elapsed run time
• Reset of PEAK, Min, STEL, and TWA values
Environmental and Durability
Drop test
Can survive incidental 20’ drop.
Temperature
Normal operation: -10° to 40° C
Extended: -20° to 50° C
Short periods (15 minutes): -40° to +60° C
Humidity
15-90% RH (non condensing) continuous
5-95% RH (non condensing) Intermittent
0816-­‐101-­‐MC / September 2014 Page 3 of 4
Maintenance & Warranties
Sensor replacement
Sensors shall be easily accessed and replaced by users if desired by purchaser.
No printed circuit boards should require removal to access sensors.
Warranty, consumables
Instrument shall have three-year warranty on all components, including sensor
and battery.
Extended warranty
Optional extended warranty shall be offered for an additional one year
(fours year total).
Certifications
North America
USA and Canada
Europe
30 CFR Part 22, Methane Detector
30 CFR Part 75 Determination testing for methane and oxygen deficiency
USA / Canada ETL
Class I, Division 1, Groups A, B, C & D
Class II, Division 1, Groups E, F & G
Class III, Division 1
Ambient temperature: -40°C to +54°C; T4
Canada CSA - Pending
Class I, Division 1, Groups A, B, C & D
CAN/CSA C22.2 No. 152 Combustible Gas Detection Instruments
C22.2 No. 152 Performance Ambient Temperature: -20°C to +54°C; T4
C22.2 No. 157 Intrinsic Safety Ambient Temperature: -40°C to +54°C; T4
Directive 94/9/EC (ATEX): II 1G Ex ia IIC T4 Ga, -40°C to +60°C, IP67
(Zone 0 with no combustible sensor installed)
II 2G Ex ia d IIC T4 Gb, -40°C to +60°C, IP67
(Zone 1 with combustible sensor installed)
Australia/New Zealand
Manufacturing system
quality approvals
CE 0080
Directive 2004/108/EEC (EMC): EN50270 Type 2, EN61000-6-3
Australia/New Zealand Test Safe Australia
Ex ia s I/IIC T4, -40°C to +60°C, IP67 (Zone 0)
IECEx TestSafe Australia
Ex ia I/IIC T4 Ga, -40°C to +60°C, (Zone 0 with no combustible sensor installed)
Ex d ia IIC T4 Gb, -40°C to +60°C, (Zone 1 with combustible sensor installed)
Instrument manufacturer must be certified as compliant with ISO 9001 provisions.
0816-­‐101-­‐MC / September 2014 Page 4 of 4
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
