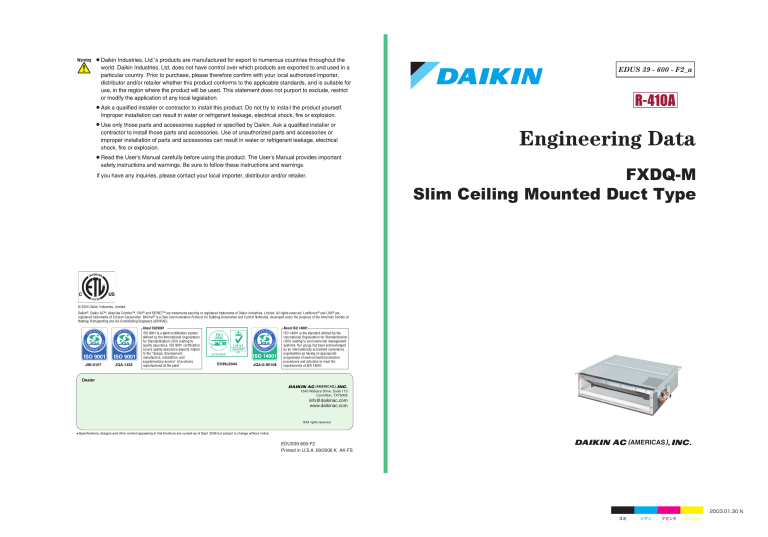

EDUS 39 - 600 - F2_a

FXDQ-M

Slim Ceiling Mounted Duct Type

AMERICAS

EDUS39-600-F2_a

FXDQ-M

Slim Ceiling Mounted Duct Type

1. Features ......................................................................................................2

2. Specifications .............................................................................................. 3

3. Dimensions .................................................................................................5

4. Piping Diagrams..........................................................................................8

5. Wiring Diagrams..........................................................................................9

6. Electric Characteristics..............................................................................10

7. Capacity Tables ........................................................................................11

7.1

Cooling Capacity ........................................................................................ 11

7.2

Heating Capacity ........................................................................................ 12

8. Fan Performances.....................................................................................13

9. Sound Levels ............................................................................................14

10.Installation .................................................................................................15

11.Accessories...............................................................................................32

FXDQ-M 1

Features

1. Features

Slim design, quietness and static pressure switching

EDUS39-600-F2_a

2

FXDQ07M / FXDQ09M / FXDQ12M

Only 27-9/16 in. in width and 51 Lbs in weight, this model is optimum to install in limited spaces like drop-ceilings in hotels.

Optimum for

hotel use!

FXDQ18M / FXDQ24M

Only 7-7/8 in. in height, this model can be installed in rooms with as little as 9-7/16 in. depth between the drop-ceiling and ceiling slab.

Only 27-9/16 in.

7-7/8 in.

35-7/16 in.

7-7/8 in.

43-5/16 in. in width for the FXDQ24N model.

Suspension bolt* Air filter

AIR

9-7/16

in.

Discharge grille*

AIR

Suction grille*

*: To be obtained locally

External static pressure selectable by remote controller providing optimal flexibility and range of comfort.

FXDQ07~12M models: in. Wg 0.12-0.04 factory set

FXDQ18~24M models: in. Wg 0.16-0.06 factory set

Drain-up pump is equipped as standard accessory with 21-5/8 in. lift.

Low operating sound

(dB(A))

Class 07 09 12 18 24

Operating sound (H/L)

33/29 33/29 33/29 35/31 36/32

The values of operation sound level represent those for rear-suction operation.

Sound level values for bottom-suction operation can be obtained by adding 5 dB.

Values are based on the following conditions:

FXDQ07~12M: external static pressure in. Wg 0.12;

FXDQ18~24M: external static pressure in. Wg 0.16

21-5/8 in.

Ceiling

FXDQ-M

EDUS39-600-F2_a Specifications

2. Specifications

Slim Ceiling-Mounted Duct Type

Model

Cooling Capacity

1

Heating Capacity

2

Casing / Color

Dimensions: (H × W × D)

Btu/h

Btu/h in (mm)

FXDQ07MVJU

7,500

8,500

Galvanized Steel Plate

7-7/8 × 27-9/16 × 24-7/16”

(200 x 698.5 x 622.3 mm)

FXDQ09MVJU

9,500

10,500

Galvanized Steel Plate

7-7/8 × 27-9/16 × 24-7/16”

(200 x 698.5 x 622.3 mm)

FXDQ12MVJU

12,000

13,500

Galvanized Steel Plate

7-7/8 × 27-9/16 × 24-7/16”

(200 x 698.5 x 622.3 mm)

Coil (Cross

Fin Coil)

Fan

Safety Devices

Rows × Stages × FPI

Face Area

Model

Type

Motor Output

Air Flow Rate (H/L)

External Static Pressure

4

Drive

Temperature Control ft² (m²)

kW cfm in. Wg

Sound Absorbing Thermal Insulation Material

Air Filter

Liquid Pipes in / mm

Gas Pipes in / mm

Piping

Connections

Drain Pipe in / mm

Machine Weight (Mass)

Sound Level (H/L)

5

Refrigerant Control

Connectable outdoor unit

Standard Accessories

Lbs dBA

2 × 12 × 17

1.36’ (0.41 m)

Sirocco Fan

0.06

280/226 (H/L)

0.12 - 0.04

Direct Drive

Microprocessor Thermostat for Cooling and Heating

Foamed Polyethylene

Removal, Washable, Mildew Proof

φ1/4” / 6.4 mm (Flare Connection)

φ1/2” / 12.7 mm (Flare Connection)

VP20

External Dia. 1-1/32” / 26.2 mm

Internal Dia. 25/32” / 19.8 mm

51

33/29

Fuse,

Thermal Protector for Fan Motor

Electronic Expansion Valve

R-410A Series

Operation Manual, Installation

Manual, Paper Pattern for Installation,

Drain Hose, Clamp Metal, Insulation for

Fitting, Sealing Pads, Clamps, Screws,

Washers, Conduit Mounting Plate,

Insulation Tube.

2 × 12 × 17

1.36’ (0.41 m)

Sirocco Fan

0.06

280/226 (H/L)

0.12 - 0.04

Direct Drive

Microprocessor Thermostat for Cooling and Heating

Foamed Polyethylene

Removal, Washable, Mildew Proof

φ1/4” / 6.4 mm (Flare Connection)

φ1/2” / 12.7 mm (Flare Connection)

VP20

External Dia. 1-1/32” / 26.2 mm

Internal Dia. 25/32” / 19.8 mm

51

33/29

Fuse,

Thermal Protector for Fan Motor

Electronic Expansion Valve

R-410A Series

Operation Manual, Installation

Manual, Paper Pattern for Installation,

Drain Hose, Clamp Metal, Insulation for

Fitting, Sealing Pads, Clamps, Screws,

Washers, Conduit Mounting Plate,

Insulation Tube.

C:3D051780A Drawing No.

Notes:

1. Nominal cooling capacities are based on the following conditions:

Return air temperature: 80°FDB, 67°FWB

Outdoor temperature: 95°FDB

Equivalent ref. piping length: 25 ft / 7.5 m (Horizontal)

2. Nominal heating capacities are based on the following conditions:

Return air temperature: 70°FDB.

Outdoor temperature: 47°FDB, 43°FWB

Equivalent ref. piping length: 25 ft / 7.5 m (Horizontal)

3. Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat.

4. The airflow is set to STANDARD before leaving the factory. You can switch between STANDARD ESP and HIGH ESP with the remote controller.

Refer to the fan curves for actual fan performance.

5. Anechoic chamber conversion value, measured under JISB8616 conditions. During actual operation, these values are normally somewhat higher as a result of installation conditions.

6. Refer to page 10 for Power Input.

3 × 12 × 17

1.36’ (0.41 m)

Sirocco Fan

0.06

280/226 (H/L)

0.12 - 0.04

Direct Drive

Microprocessor Thermostat for Cooling and Heating

Foamed Polyethylene

Removal, Washable, Mildew Proof

φ1/4” / 6.4 mm (Flare Connection)

φ1/2” / 12.7 mm (Flare Connection)

VP20

External Dia. 1-1/32” / 26.2 mm

Internal Dia. 25/32” / 19.8 mm

51

33/29

Fuse,

Thermal Protector for Fan Motor

Electronic Expansion Valve

R-410A Series

Operation Manual, Installation

Manual, Paper Pattern for Installation,

Drain Hose, Clamp Metal, Insulation for

Fitting, Sealing Pads, Clamps, Screws,

Washers, Conduit Mounting Plate,

Insulation Tube.

FXDQ-M 3

Specifications EDUS39-600-F2_a

Slim Ceiling-Mounted Duct Type

Model

Cooling Capacity

1

Heating Capacity

2

Casing / Color

Dimensions: (H × W × D)

Coil (Cross

Fin Coil)

Fan

Rows × Stages × FPI

Face Area

Model

Type

Motor Output

Air Flow Rate (H/L)

External Static Pressure

4

Drive

Temperature Control

Sound Absorbing Thermal Insulation Material

Air Filter

Piping

Connections

Liquid Pipes

Gas Pipes in / mm in / mm

Drain Pipe in / mm

Machine Weight (Mass)

Sound Level (H/L)

5

Safety Devices

Refrigerant Control

Connectable outdoor unit

Standard Accessories

Btu/h

Btu/h in

(mm) ft² kW cfm in.Wg

Lbs dBA

FXDQ18MVJU

18,000

20,000

Galvanized Steel Plate

7-7/8 × 35-7/16 × 24-7/16”

(200 x 901.7 x 622.3 mm)

3 × 12 × 17

1.89’

Sirocco Fan

0.13

FXDQ24MVJU

24,000

27,000

Galvanized Steel Plate

7-7/8 × 43-5/16 × 24-7/16”

(200 x 1100 x 622.3 mm)

3 × 12 × 17

2.44’

Sirocco Fan

0.13

440/350 (H/L)

0.17 - 0.06

Direct Drive

Microprocessor Thermostat for Cooling and Heating

Foamed Polyethylene

Removal, Washable, Mildew Proof

φ1/4” / 6.4 mm (Flare Connection)

φ1/2” / 12.7 mm (Flare Connection)

External Dia. 1-1/32” / 26.2 mm

Internal Dia. 25/32” / 19.8 mm

580/460 (H/L)

0.17 - 0.06

Direct Drive

Microprocessor Thermostat for Cooling and Heating

Foamed Polyethylene

Removal, Washable, Mildew Proof

φ3/8” / 9.5 mm (Flare Connection)

φ5/8” / 15.8 mm (Flare Connection)

External Dia. 1-1/32” / 26.2 mm

Internal Dia. 25/32” / 19.8 mm

63

35/31

Fuse,

Thermal Protector for Fan Motor

Electronic Expansion Valve

71

36/32

Fuse,

Thermal Protector for Fan Motor

Electronic Expansion Valve

R-410A Series

Operation Manual, Installation Manual, Paper Pattern for

Installation, Drain Hose, Clamp Metal, Insulation for Fitting,

Sealing Pads, Clamps, Screws, Washers, Conduit Mounting

Plate, Insulation Tube.

R-410A Series

Operation Manual, Installation Manual, Paper Pattern for

Installation, Drain Hose, Clamp Metal, Insulation for Fitting,

Sealing Pads, Clamps, Screws, Washers, Conduit Mounting

Plate, Insulation Tube.

C:3D051780A Drawing No.

Notes:

1. Nominal cooling capacities are based on the following conditions:

Return air temperature: 80°FDB, 67°FWB

Outdoor temperature: 95°FDB

Equivalent ref. piping length: 25 ft / 7.5 m (Horizontal)

2. Nominal heating capacities are based on the following conditions:

Return air temperature: 70°FDB.

Outdoor temperature: 47°FDB, 43°FWB

Equivalent ref. piping length: 25 ft / 7.5 m (Horizontal)

3. Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat.

4. The airflow is set to STANDARD before leaving the factory. You can switch between STANDARD ESP and HIGH ESP with the remote controller.

Refer to the fan curves for actual fan performance.

5. Anechoic chamber conversion value, measured under JISB8616 conditions. During actual operation, these values are normally somewhat higher as a result of installation conditions.

6. Refer to page 10 for Power Input.

4 FXDQ-M

EDUS39-600-F2_a

3. Dimensions

FXDQ07/09/12MVJU

Dimensions

FXDQ-M 5

Dimensions

FXDQ18MVJU

EDUS39-600-F2_a

6 FXDQ-M

EDUS39-600-F2_a

FXDQ24MVJU

Dimensions

FXDQ-M 7

8

Piping Diagrams

4. Piping Diagrams

R2T

R1T

R3T

EDUS39-600-F2_a

R1T : Thermistor for suction air temperature

R2T : Thermistor for liquid line temperature

R3T : Thermistor for gas line temperature

Capacity

07/09/12/18M

24M

Gas Liquid

φ1/2” / 12.7 mm φ1/4” / 6.4 mm

φ5/8” / 15.8 mm φ3/8” / 9.5 mm

4D043864H

FXDQ-M

EDUS39-600-F2_a

5. Wiring Diagrams

FXDQ07M/09M/12M/18M/24MVJU

Wiring Diagrams

FXDQ-M 9

Electric Characteristics

6. Electric Characteristics

EDUS39-600-F2_a

10

4D051757

FXDQ-M

EDUS39-600-F2_a Capacity Tables

7. Capacity Tables

7.1

Cooling Capacity

FXDQ-M

Cooling capacity

Unit size

Outdoor air temp.

07

09

12

18

24

87

91

95

99

103

75

79

83

87

91

95

99

103

75

79

83

87

91

95

99

103

103

75

79

83

°FDB

87

91

95

99

103

75

79

83

87

91

95

99

75

79

83

TC : Total capacity ; kW

SHC : Sensible heat capacity ; kW

7.5

10.8

10.8

10.8

7.5

7.5

7.5

7.5

6.2

7.5

7.5

7.5

6.2

6.2

6.2

6.2

SHC

MBh

5.2

5.2

5.2

5.2

6.2

6.2

6.2

5.2

5.2

5.2

5.2

10.8

10.8

10.8

10.8

10.8

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

TC

MBh

5.9

5.9

5.9

61

7.5

9.5

9.5

9.5

7.5

7.5

7.5

7.5

5.9

7.5

7.5

7.5

5.9

5.9

5.9

5.9

14.2

14.2

14.2

14.2

14.2

18.9

18.9

18.9

18.9

18.9

18.9

18.9

18.9

9.5

14.2

14.2

14.2

9.5

9.5

9.5

9.5

7.9

12.7

12.7

12.7

7.9

7.9

7.9

7.9

7.2

7.9

7.9

7.9

7.2

7.2

7.2

7.2

SHC

MBh

6.1

6.1

6.1

6.1

7.2

7.2

7.2

6.1

6.1

6.1

6.1

12.7

12.7

12.7

12.7

12.7

16.1

16.1

16.1

16.1

16.1

16.1

16.1

16.1

TC

MBh

6.7

6.7

6.7

64

8.5

10.7

10.7

10.7

8.5

8.5

8.5

8.5

6.7

8.5

8.5

8.5

6.7

6.7

6.7

6.7

16.1

16.1

16.1

16.1

16.1

21.5

21.5

21.5

21.5

21.5

21.5

21.5

21.5

10.7

10.7

10.7

10.7

10.7

16.1

16.1

16.1

8.2

13.3

13.3

13.3

9.0

8.8

8.6

8.4

6.9

9.0

9.0

9.0

7.4

7.3

7.1

6.9

SHC

MBh

6.6

6.6

6.6

6.4

7.5

7.5

7.5

6.5

6.5

6.4

6.4

13.2

12.8

12.6

12.3

12.1

18.2

18.2

18.2

18.0

17.6

17.3

17.0

16.7

18.0

18.0

18.0

18.0

18.0

24.0

24.0

24.0

24.0

24.0

24.0

24.0

24.0

12.0

12.0

12.0

12.0

12.0

18.0

18.0

18.0

9.5

12.0

12.0

12.0

9.5

9.5

9.5

9.5

TC

MBh

7.5

7.5

7.5

Indoor Air Temp. °FWB

67 70

SHC

MBh

TC

MBh

6.3

6.3

6.3

8.3

8.3

8.3

7.5

9.5

9.5

9.5

7.5

7.5

7.5

7.5

6.3

6.3

6.3

6.3

6.3

7.3

7.3

7.3

7.7

10.5

10.5

10.5

8.2

8.1

8.0

7.8

7.3

7.3

7.3

7.3

7.3

8.8

8.8

8.8

8.8

8.8

8.8

8.8

8.8

12.9

12.9

12.9

13.2

13.0

12.7

12.5

12.3

19.9

19.9

19.9

10.4

10.3

10.1

9.9

9.7

13.3

13.3

13.3

12.9

12.9

12.9

12.9

12.9

16.4

16.4

16.4

16.4

16.4

16.4

16.4

16.4

19.8

19.4

19.1

18.8

18.4

26.5

26.5

26.5

26.4

25.9

25.5

25.0

24.6

Refer to Outdoor Unit Capacity Tables : for the actual performance data of each indoor and outdoor unit combination.

8.2

13.7

13.5

13.3

8.8

8.6

8.5

8.4

7.0

9.2

9.1

9.0

7.4

7.3

7.1

7.0

SHC

MBh

6.8

6.7

6.7

6.4

7.8

7.6

7.5

6.6

6.6

6.5

6.5

13.0

12.8

12.5

12.4

12.2

18.2

17.9

17.6

17.4

17.0

16.8

16.4

16.2

TC

MBh

8.8

8.6

8.5

72

10.6

10.4

10.2

10.0

9.9

14.0

13.8

13.6

7.8

11.1

10.9

10.7

8.3

8.2

8.1

7.9

20.0

19.7

19.3

19.0

18.7

28.0

27.6

27.1

26.7

26.2

25.8

25.3

24.9

13.3

13.1

12.9

12.7

12.4

21.0

20.7

20.4

8.3

13.3

13.1

12.8

8.9

8.8

8.5

8.4

6.7

9.3

9.1

9.0

7.3

7.1

7.0

6.8

SHC

MBh

6.8

6.7

6.7

6.3

7.6

7.4

7.3

6.6

6.5

6.5

6.4

12.6

12.5

12.2

12.0

11.8

17.1

16.9

16.6

16.3

16.0

15.8

15.5

15.2

TC

MBh

8.9

8.8

8.6

75

10.9

10.6

10.4

10.2

10.0

14.3

14.0

13.8

7.9

11.3

11.1

10.9

8.5

8.4

8.2

8.1

20.4

20.1

19.7

19.4

19.0

28.5

28.1

27.6

27.2

26.7

26.3

25.8

25.4

13.6

13.4

13.1

12.9

12.7

21.4

21.1

20.7

FXDQ-M 11

Capacity Tables EDUS39-600-F2_a

7.2

Heating Capacity

FXDQ-M

Indoor unit

Outdoor Air Temp.

07

09

12

18

24

°FWB

24.0

28.0

32.0

36.0

40.0

43.0

47.0

50.0

53.0

36.0

40.0

43.0

47.0

50.0

53.0

56.0

20.0

56.0

20.0

24.0

28.0

32.0

36.0

40.0

43.0

20.0

24.0

28.0

32.0

36.0

40.0

43.0

47.0

50.0

53.0

56.0

20.0

24.0

28.0

32.0

47.0

50.0

53.0

56.0

20.0

24.0

28.0

32.0

36.0

40.0

43.0

47.0

50.0

53.0

56.0

°FDB

26.0

30.0

35.0

39.0

44.0

47.0

51.0

54.0

57.0

39.0

44.0

47.0

51.0

54.0

57.0

60.0

22.0

60.0

22.0

26.0

30.0

35.0

39.0

44.0

47.0

22.0

26.0

30.0

35.0

39.0

44.0

47.0

51.0

54.0

57.0

60.0

22.0

26.0

30.0

35.0

51.0

54.0

57.0

60.0

22.0

26.0

30.0

35.0

39.0

44.0

47.0

51.0

54.0

57.0

60.0

62

TC

MBh

12.2

12.8

13.3

13.9

14.5

14.9

15.4

15.5

15.5

11.0

11.4

11.8

12.2

12.3

12.3

12.3

11.7

15.5

17.5

18.3

19.2

20.0

20.8

21.7

22.3

9.3

9.6

9.7

9.7

7.3

7.6

8.0

8.3

8.7

9.0

9.7

9.2

9.7

10.1

10.6

23.1

23.2

23.2

23.2

23.3

24.5

25.6

26.7

27.8

28.9

29.7

30.8

31.0

31.0

31.0

Heating Capacity

72

TC

MBh

12.2

12.7

13.0

13.0

13.0

13.0

13.0

13.0

13.0

10.3

10.3

10.3

10.3

10.3

10.3

10.3

11.6

13.0

17.4

18.2

19.1

19.5

19.5

19.5

19.5

8.1

9.2

9.6

10.1

10.3

8.1

8.1

8.1

8.1

7.3

7.6

7.9

8.1

8.1

8.1

19.5

19.5

19.5

19.5

23.2

24.3

25.4

26.0

26.0

26.0

26.0

26.0

26.0

26.0

26.0

65

TC

Indoor Air Temp. °FDB

68 70

TC

MBh

TC

MBh

12.2

12.7

13.3

13.5

13.5

13.5

13.5

13.5

13.5

10.5

10.5

10.5

10.5

10.5

10.5

10.5

11.6

13.5

17.4

18.3

19.1

19.9

20.0

20.0

20.0

8.5

9.2

9.6

10.1

10.5

8.5

8.5

8.5

8.5

7.3

7.6

8.0

8.3

8.4

8.5

20.0

20.0

20.0

20.0

23.2

24.3

25.5

26.6

27.0

27.0

27.0

27.0

27.0

27.0

27.0

12.2

12.7

13.3

13.9

14.0

14.0

14.0

14.0

14.0

11.0

11.1

11.1

11.1

11.1

11.1

11.1

11.6

14.0

17.4

18.3

19.1

19.9

20.8

21.0

21.0

8.7

9.2

9.6

10.1

10.5

8.7

8.7

8.7

8.7

7.3

7.6

8.0

8.3

8.7

8.7

21.0

21.0

21.0

21.0

23.3

24.4

25.5

26.6

27.7

28.0

28.0

28.0

28.0

28.0

28.0

MBh

12.2

12.8

13.3

13.9

14.4

14.7

14.7

14.7

14.7

11.0

11.4

11.7

11.7

11.7

11.7

11.7

11.7

14.7

17.5

18.3

19.1

20.0

20.8

21.6

22.1

9.2

9.2

9.2

9.2

7.3

7.6

8.0

8.3

8.7

9.0

9.2

9.2

9.7

10.1

10.5

22.1

22.1

22.1

22.1

23.3

24.4

25.5

26.6

27.7

28.9

29.5

29.5

29.5

29.5

29.5

75

TC

MBh

12.1

12.3

12.3

12.3

12.3

12.3

12.3

12.3

12.3

9.7

9.7

9.7

11.6

9.7

9.7

9.7

9.7

12.3

17.4

18.2

18.4

18.4

18.4

18.4

18.4

7.7

7.7

7.7

7.7

7.2

7.6

7.7

7.7

7.7

7.7

7.7

9.2

9.6

9.7

9.7

18.4

18.4

18.4

18.4

23.2

24.3

24.5

24.5

24.5

24.5

24.5

24.5

24.5

24.5

24.5

Refer to Outdoor Unit Capacity Tables : for the actual performance data of each indoor and outdoor unit combination.

12 FXDQ-M

EDUS39-600-F2_a

8. Fan Performances

FXDQ07 / 09MVJU FXDQ12MVJU

Fan Performances

FXDQ18MVJU

3D052851

FXDQ24MVJU

3D052852

FXDQ-M

3D052853

Note:

1. The remote controller can be used to switch between HIGH and LOW.

2. The air flow is set to STANDARD before leaving the factory.

You can switch between STANDARD ESP and HIGH ESP with the remote controller.

3D052854

13

Sound Levels

9. Sound Levels

Overall

„ Slim Ceiling-Mounted Duct Type

Model

FXDQ07MVJU

FXDQ09MVJU

FXDQ12MVJU

FXDQ18MVJU

FXDQ24MVJU

EDUS39-600-F2_a

H

33

33

33

35

36

208~230V, 60Hz

L

29

29

29

31

32 dBA

Note:

The operating condition is external static pressure 0.04”

Wg. Operation noise differs with operation and ambient conditions.

Octave Band Level

208V~230V

FXDQ07MVJU FXDQ09MVJU FXDQ12MVJU

FXDQ18MVJU

4D052846

FXDQ24MVJU

4D052847 4D052848

4D052849

4D052850

14 FXDQ-M

EDUS39-600-F2_a

10. Installation

Center of Gravity

: inches

FXDQ07 / 09 / 12MVJU

FXDQ18MVJU

FXDQ24MVJU

4D051766

4D051767

Installation

FXDQ-M

4D051768

15

Installation

1.

SAFETY CONSIDERATIONS

Read these SAFETY CONSIDERATIONS carefully before installing air conditioning equipment, and be sure to install it correctly. After completing the installation, make sure that the unit operates properly during the startup operation.

Instruct the customer how to operate and maintain the unit.

Inform customers that they should store this iInstallation Manual with the Operation Manual for future reference.

Always use a licensed installer or contractor to install this product. Improper installation can result in water or refrigerant leakage, electrical shock, fire, or explosion.

Meanings of DANGER, WARNING, CAUTION, and NOTE symbols:

DANGER ................Indicates an imminently hazardous situation which,if not avoided, will result in death or serious injury.

WARNING ..............Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION ...............Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices.

NOTE ......................Indicates a situation that may result in accidents involving only equipment or property.

DANGER

• Refrigerant gas is heavier than air and displaces oxygen. A massive leak could lead to oxygen depletion, especially in basements, and an asphyxiation hazard could occur leading to serious injury or death.

• Do not install unit in an area where flammable materials are present as this can cause risk of explosion resulting in serious injury or death.

• If the refrigerant gas leaks during installation, ventilate the area immediately.

Refrigerant gas may produce toxic gas if it comes in contact with fire such as from a fan heater, stove, or cooking device.

Exposure to this gas could cause severe injury or death.

• Any abnormalities in the operation of the air conditioner such as smoke or fire could result in severe injury or death.

Turn off the power and contact your dealer immediately for instructions.

• If equipment utilizing a burner is used in the same room as the air conditioner, there is the danger of oxygen deficiency which could lead to an asphyxiation hazard resulting in serious injury or death. Be sure to ventilate the room sufficiently to avoid this hazard.

• After completing the installation work, check that the refrigerant gas does not leak.

Refrigerant gas may produce toxic gas if it comes in contact with fire such as from a fan, heater, stove, or cooking

16

EDUS39-600-F2_a

device. Exposure to this gas could cause severe injury or death.

• Do not ground unit to water pipes. Do not ground unit to gas pipes because a gas leak could result in an explosion which could lead to severe injury or death.

• Do not ground the unit to telephone wires or lightning rods as lightning strikes could cause a severe shock hazard resulting in severe injury or death.

• Children playing with plastic bags face the danger of

death by suffocation. Tear apart and throw away plastic packaging bags so that children will not play with them.

• Safely dispose of the packing materials.

• Packing materials, such as nails and other metal or wooden parts, may cause stabs or other injuries. Tear apart and throw away plastic packaging bags so that children will not play with them

• Ask your dealer or qualified personnel to carry out installation work. Do not try to install the machine by yourself.

Improper installation may result in water leakage, electric shocks, or fire.

• Perform installation work in accordance with this installation manual.

Improper installation may result in water leakage, electric shocks, or fire.

• Be sure to use only the specified accessories and parts for installation work.

Failure to use the specified parts may result in water leakage, electric shocks, fire, or the unit falling.

• Install the air conditioner on a foundation strong enough to withstand the weight of the unit.

A foundation of insufficient strength may result in the equipment falling and causing injuries.

• Carry out the specified installation work after taking into account strong winds, typhoons, or earthquakes.

Improper installation work may result in the equipment falling and causing accidents.

• Make sure that a separate power supply circuit is provided for this unit and that all electrical work is carried out by qualified personnel according to local laws and regulations and this installation manual.

An insufficient power supply capacity or improper electrical construction may lead to electric shocks or fire.

• Continually check the unit stand for damage. If left in a damaged condition, the unit may fall and cause injury.

• Do not touch the air outlet or the horizontal flaps while the swing flap is in operation as fingers may get caught and injured.

• Do not allow children to play on or around the unit as they could be injured.

• Make sure that all wiring is secured, the specified wires are used, and no external forces act on the terminal connections or wires.

Improper connections or installation may result in fire.

• When wiring the power supply and connecting the remote controller wiring and transmission wiring, position the wires so that the electrical parts box lid can be securely fastened.

FXDQ-M

EDUS39-600-F2_a

Improper positioning of the electrical parts box lid may result in electric shocks, fire, or the terminals overheating.

• Before touching electrical parts, turn off the unit.

• Be sure to establish an ground.

Do not ground the unit to a utility pipe, arrester, or telephone.

Incomplete ground may cause electrical shock, or fire.

• Do not remove the front panel because some parts inside are dangerous to touch. In addition, some parts may be damaged.

For checking and adjusting internal parts, contact your dealer.

• Do not put a finger or other objects into the air inlet or air outlet.

The fan is rotating at high speed and will cause injury.

• Do not let the indoor unit get wet as it may cause an electric shock or fire.

• Placing a flower vase or other containers with water or other liquids on the unit could result in a shock hazard or fire if a spill occurs.

• A high surge current from lightning or other sources may cause damage to the air conditioner.

• Do not touch the switch with wet fingers.

Touching a switch with wet fingers can cause electric shock.

• Be sure to install ground for a leakage breaker.

Failure to install ground for a leakage breaker may result in electric shocks, or fire.

• Do not install the air conditioner in the following locations:

(a) Where a mineral oil mist or an oil spray or vapor is produced, for example in a kitchen as plastic parts may deteriorate and fall off or result in water leakage.

(b) Where corrosive gas, such as sulfurous acid gas, is produced as corroding copper pipes or soldered parts may result in refrigerant leakage.

(c) Near machinery emitting electromagnetic waves as

electromagnetic waves may disturb the operation of the control system and result in a malfunction of the equipment.

• Heat exchanger fins are sharp enough to cut.

To avoid injury wear gloves or cover the fins when working around them.

Use of unspecified parts could lead to the unit falling, leaks and, in worse cases, electric shock or fire.

• Entrust installation to the place of purchase or a qualified serviceman.

Improper installation could lead to leaks and, in worse cases, electric shock or fire.

• Refrigerant pipes may be very hot or very cold during, or immediately after, operation.

Touching them can result in burns or frostbite. To avoid injury give the pipes time to return to normal temperature or, if you must touch them, be sure to wear proper gloves.

CAUTION

• While following the instructions in this installation manual, install drain piping in order to ensure proper drainage and insulate piping in order to prevent condensation.

FXDQ-M

Installation

Improper drain piping may result in water leakage and property damage.

• Be very careful about product transportation.

Some products use PP bands for packaging. Do not use any PP bands for a means of transportation. It is dangerous.

• Do not turn off the power immediately after stopping operation.

Always wait at least five minutes before turning off the power as water leakage or other problems may occur.

• Make sure to provide adequate measures to prevent the outdoor unit from being used as a shelter by small animals.

Small animals making contact with electrical parts can cause malfunctions, smoke, or fire. Please instruct the customer to keep the area around the unit clean.

NOTE

• Install the indoor and outdoor units, power supply wiring, and connecting wires at least 3.5 feet away from televisions or radios in order to prevent image interference or noise.

(Depending on the radio waves, a distance of 3.5 feet may not be sufficient to eliminate the noise.

• Remote controller (wireless kit) transmitting distance is shorter than expected in rooms with electronic fluorescent lamps. Install the indoor unit as far away from fluorescent lamps as possible.

• Dismantling of the unit, and treatment of the refrigerant, oil, and other parts, should be done in accordance with local and national regulations.

2.

BEFORE INSTALLATION

WARNING

• Entrust installation to the place of purchase or a qualified serviceman. Improper installation or using unspecified parts can result in the unit falling, leaks, electric shock, or fire.

• Use of unspecified parts could lead to the unit falling, leaks and, in worse cases, electric shock or fire.

NOTE

• Be sure to read this manual before installing the indoor unit.

• Be sure to mount an air filter (part to be procured in the field) in the suction air passage in order to prevent water leaking, or other problems.

The accessories needed for installation must be retained in your custody until the installation work is completed.

Do not discard them!

1. Decide upon a line of transport.

2. Leave the unit inside its packaging until reaching the installation site. If unpacking is unavoidable, use a sling of soft material or protective plates, and a rope if lifting, to avoid damage or scratches to the unit.

When moving the unit while removing it from the packing case, be sure to lift it by the four hanger brackets. Avoid putting any pressure on other parts, especially the refrigerant piping.

17

Installation

Be sure to check the type of R-410A refrigerant to be used before installing the unit.

NOTE: Using an incorrect refrigerant will prevent normal operation of the unit.

For the installation of an outdoor unit, refer to the installation manual attached to the outdoor unit.

2-1 PRECAUTIONS

• Be sure to instruct customers how to properly operate the unit,such as operating different functions and adjusting the temperature, by having them carry out operations themselves while looking at the operation manual.

• Do not install in locations where the air contains high levels of salt such as near the ocean and where voltage fluctuates greatly such as in factories, vehicles or vessels.

EDUS39-600-F2_a

2-2 ACCESSORIES

Check that the following accessories are included with your unit:

Name

Quantity

Metal clamp (1)

1 pc.

Drain hose

(2)

Insulation for fitting Sealing pad

1 pc.

1 each 1 each for liquid pipe (3)

Large (5)

Shape

Name

Quantity

Screws for duct flanges (7)

1 set

Washer for hanger bracket (8)

8 pcs.

for gas pipe (4)

Clamp

1 set mid. (6)

Washer fixing plate (11)

4 pcs.

Large (9)

8 pcs.

Shape

24 pcs.

small (10)

4 pcs.

Name

Quantity

Conduit mounting plate

1 pc.

Screw for conduit mounting plate

2 pcs.

Pipe insulation

1 pc.

Shape

Name Sealing material (12) Air filter (13)

Quantity 2 pcs.

1 pc.

Shape

• Operation manual

• Installation manual

2-3 OPTIONAL ACCESSORIES

• This indoor unit requires one of the operation remote controls listed below.

Remote controller

Wired type

Wireless type

BRC1D71

BRC4C82

18 FXDQ-M

EDUS39-600-F2_a

FOR THE FOLLOWING ITEMS, BE ESPECIALLY

CAREFUL DURING CONSTRUCTION, AND CHECK

THEM AGAIN AFTER INSTALLATION IS COM-

PLETED:

a. Items to be checked after completion of work

Items to be checked

Are the indoor and outdoor unit fixed firmly?

Is the gas leak test finished?

Is the unit fully insulated?

Does drainage flow smoothly?

Does the power supply voltage correspond to that shown on the name plate?

If not properly done, what is likely to occur

Units may drop, vibrate or make noise.

Insufficient cooling.

Condensate may drip.

Condensate may drip.

The unit may malfunction or the components burn out.

Are wiring and piping correct?

Is the unit safely grounded?

Is wiring size according to specifications?

The unit may malfunction or the components burn out.

Incomplete grounding may result in electric shocks.

The unit may malfunction or the components burn out.

Is something blocking the air outlet or inlet of either the indoor or outdoor units?

Insufficient cooling.

Are refrigerant piping length and additional refrigerant charge noted down?

The refrigerant charge in the system is not clear.

Also review the SAFETY CONSIDERATIONS.

Check

b. Items to be checked at time of delivery

Items to be checked

Did you explain about operations while showing the operation manual to your customer?

Did you hand the operation manual and warranty over to your customer?

Did you explain about the way of maintaining and cleaning local procurements such as (air filter, air outlet and suction grilles to your customer?

Did you hand manuals of local procurements (in case equipped) over to your customer?

Check

3.

SELECTING INSTALLATION SITE

CAUTION

• When moving the unit while removing it from the packing case, be sure to lift it by the four hanger brackets. Avoid putting any pressure on other parts especially the refrigerant piping.

• If you think the humidity inside the ceiling might exceed 86°F and RH80%, reinforce the insulation on the unit body.

Use glass wool or polyethylene foam as insulation so that the

Installation

thickness is more than 1/2 in. and fits inside the ceiling opening.

(1) Select an installation site where the following conditions are fulfilled and that meets with your customer’s approval.

• Where optimum air distribution can be ensured.

• Where nothing blocks air passage.

• Where condensate can be properly drained.

• Where the ceiling is strong enough to bear the indoor unit weight.

• Where the false ceiling is not noticeably on an incline.

• Where sufficient clearance for maintenance and service can be ensured. (Refer to Fig. 1)

• Where piping between indoor and outdoor units is possible within the allowable limit. Refer to the installation manual for the outdoor unit.

*12 or more

Control box

Maintenance space

12 or more

Maintenance space

13/16 or more

Ceiling

Fig. 1

Floor surface

(length : in.)

• Select the *H dimension such that a downward slope of at least 1/100 is ensured as indicated in Section 7.

DRAIN PIPING WORK.

• The maintenance space marked with an asterisk is required when the installation box for adaptor PC board

(KRP1B101) sold separately is used.

[ PRECAUTION ]

• Install the indoor and outdoor units, power supply wiring and connecting wires at least 3.3 feet away from televisions or radios in order to prevent image interference or noise. Depending on the radio waves, a distance of

3.3 feet may not be sufficient enough to eliminate the noise.

• If installing the wireless kit in a room with electronic fluorescent lighting, the remote controller’s transmission distance may be shortened. Indoor units should be installed as far away from fluorescent lighting as possible.

DANGER

• Do not install unit in an area where flammable materials are present due to the risk explosion resulting in serious injury or death.

FXDQ-M 19

Installation EDUS39-600-F2_a

WARNING

• If the supporting structural members are not strong enough to take the unit’s weight, the unit could fall out of place and cause serious injury.

NOTE

• Install the indoor and outdoor units, power supply wiring and connecting wires at least 3.5 ft. away from televisions or radios in order to prevent image interference or noise.

Depending on the radio waves, a distance of 3.5 ft. may not be enough to eliminate the noise.

(2) Use suspension bolts for installation. Check whether the ceiling is strong enough to support the weight of the unit or not. If there is a risk, reinforce the ceiling before installing the unit.

(Installation pitch is marked on the carton box for installation. Refer to it to check for points requiring reinforcing.)

4.

PREPARATIONS BEFORE INSTALLATION

(1) Confirm the positional relationship between the unit and suspension bolts. (Refer to Fig. 2)

• Install the inspection opening on the control box side where maintenance and inspection of the control box and drain pump are easy. Install the inspection opening also in the lower part of the unit.

24-7/16

19-11/16

Suspension bolt pitch

(length : in.)

Air outlet

Drain pump

Air inlet

Control box

¨17-3/4

(Inspection opening size)

⟨SERVICE SPACE⟩

24-7/16

Ceiling

20

Allow view

Inspection door

(Ceiling opening)

Fig. 2

Model

07 · 09 · 12 type

18 type

24 type

A

27-9/16

35-7/16

43-5/16

(length : in.)

B

29-1/8

37

44-7/8

(2) Make sure the range of the unit’s external static pressure is not exceeded.

See the Engineering Data for the range of the external static pressure setting.

(3) Open the installation hole. (Pre-set ceilings)

FXDQ-M

EDUS39-600-F2_a

• Once the installation hole is opened in the ceiling where the unit is to be installed, pass refrigerant piping, drain piping, transmission wiring, and remote controller wiring unnecessary if using a wireless remote controller) to the unit’s piping and wiring holes.

See Section 6. REFRIGERANT PIPING WORK, Section 7. DRAIN PIPING WORK, and 10. WIRING EXAM-

PLE.

• After opening the ceiling hole, make sure ceiling is level if needed. It might be necessary to reinforce the ceiling frame to prevent shaking.

Consult an architect or carpenter for details.

(4) Install the suspension bolts.

Use W3/8 to M10 suspension bolts.

Use a hole-in-anchor for existing ceilings, and a sunken insert, sunken anchor or other part to be procured in the field to reinforce the ceiling to bearing the weight of the unit for new ceiling. (Refer to Fig. 3)

Ceiling slab

Anchor bolt

Long nut or turn-buckle

Suspension bolt

Indoor unit

Note: All the above parts are field supplied.

Fig. 3

(5) For bottom intake, replace the chamber lid in the procedure listed in Fig. 4.

(1) Remove the protection net and the chamber lid.

(2) Refer to Fig. 4 for direction of the protection net and the chamber lid.

(3) Attach the air filter (accessory) in the manner shown in the diagram.

The four holes which cannot be covered by the air filter should be covered with commercially available tape.

(1)

Air discharge

(2)

Installation

Protection net

Air inlet

Chamber lid

(3)

Air discharge

Chamber lid

Protection net

Air inlet

Fig. 4

Main unit

Filter

Force

Force

Attach the filter to the main unit while pushing down on the tabs.

In case of bottom side In case of back side

FXDQ-M 21

Installation

5.

INDOOR UNIT INSTALLATION

You must use the provided accessories and specified parts designated by our company.

(1) Install the indoor unit temporarily.

• Attach the hanger bracket to the suspension bolt. Be sure to fix it securely by using a nut and washer from the upper and lower sides of the hanger bracket. (Refer

to Fig. 5)

[ Securing the hanger bracket ]

Part to be procured in the field

Washer for hanging bracket (8)

(accessory)

[ How to secure washers ]

Hanger bracket

Tighten

(double nut)

Insert below washer

Washer fixing plate(11)

(accessory)

Fig. 5

[ PRECAUTION ]

Since the unit uses a plastic drain pan, prevent welding spatter and other foreign substances from the air outlet during installation.

(2) Adjust the height of the unit.

(3) Check if the unit is horizontally level.

CAUTION

• Make sure the unit is installed level using a level or a plastic tube filled with water. In using a plastic tube instead of a level, adjust the top surface of the unit to the surface of the water at both ends of the plastic tube and adjust the unit horizontally. Be aware that if the unit is installed so that the slope is not in the direction of the drain piping, this might cause leaking.

Level

(4) Tighten the upper nut.

Vinyl tube

EDUS39-600-F2_a

6.

REFRIGERANT PIPING WORK

For refrigerant piping of outdoor units, see the installation manual attached to the outdoor unit.

Execute heat insulation work completely on both sides of the gas piping and the liquid piping. Otherwise, or water leakage can result.

Use insulation that can withstand temperatures of at least

250°F. Reinforce the insulation on the refrigerant piping according to the installation environment. If the temperature above the ceiling reaches 86°F or the humidity RH80%,. condensation may form on the surface of the insulation.

CAUTION

Follow the points at below.

• Use a pipe cutter and flare suitable for the type of refrigerant.

• Apply ester oil or ether oil to the flare section when using a flare connection.

• Only use the flare nuts included with the unit. Using different flare nuts may cause the refrigerant to leak.

• To prevent dust, moisture or other foreign matter from infiltrating the piping, either pinch the end or cover it with tape.

• Do not allow anything other than the designated refrigerant to get mixed into the refrigerant circuit, such as air. If any refrigerant gas leaks while working on the unit, thoroughly ventilate the room immediately.

• The outdoor unit is charged with refrigerant.

• Be sure to use both a spanner and torque wrench together, as shown in the drawing, when connecting or disconnecting pipes to/from the unit. (Refer to Fig. 6)

Torque wrench

Ester oil or ether oil

Spanner

Flare nut

Piping union

Fig. 6

Tightening torque (ft.lbf)

Flare dimensions A

(in.)

Fig. 7

• Refer to the Table 1 for the dimensions of flare nut spaces.

• Apply ester oil or ether oil to flare section (both inside and out) when using flare nut connections and then turn 3 or 4 times by hand. (Refer to Fig. 7)

• Refer to Table 1 for tightening torque.

Table 1

Flare shape (in.)

Pipe size

(in.)

φ1/4

φ3/8

φ1/2

φ5/8

10.4–12.7

24.1–29.4

36.5–44.5

45.6–55.6

0.342–0.358

0.504–0.520

0.638–0.654

0.760–0.776

45˚±2˚

R0.016-0.031

CAUTION

Overtightening may damage the flare and cause leaks.

Ensure that oil does not to adhere to any portions other

22 FXDQ-M

EDUS39-600-F2_a than a flare part. If oil adheres to resin parts., deterioration can occur.

• Refer to Table 2 if no torque wrench is available.

Using a wrench to tighten flare nuts causes the tightening torque to suddenly grow much tighter after a certain point.

From there, tighten the nut further by the appropriate angle listed in Table 2.

(5) After the work is finished, ensure there is no gas leak.

(6) After checking for gas leaks, be sure to insulate the pipe connections referring to Fig. 8.

• Insulate using the insulation for fitting (3) (4) included with the liquid and gas pipes. Besides, make sure the insulation for fitting (3) (4) on the liquid and gas piping has its seams facing up.

Tighten both edges with clamp (9).

• For the gas piping, wrap the middle sealing pad (6) over the insulation for fitting (4) flare nut part.

Liquid Piping Insulation Procedure

Piping insulation material

(main unit)

Insulation for fitting (3) (accessory)

Flare nut connection

Attach to base

Turn seams up

Main unit

Clamp (9) (accessory)

Piping insulation material

(Field supply)

Liquid pipe

Gas pipe

Gas Piping Insulation Procedure

Piping insulation material (main unit)

Attach to base

Insulation for fitting (4) (accessory)

Flare nut connection

Turn seams up

Mid. sealing pad (6) (accessory)

Main unit

Clamp (9)

(accessory)

Piping insulation material

(Field supply)

Fig. 8

Wrap over the top of the flare nut connection.

CAUTION

Be sure to insulate any field piping all the way to the piping connection inside the unit. Any exposed piping may cause condensation or burns if touched.

• When brazing the refrigerant piping, perform nitrogen replacement first, or perform the brazing while feeding nitrogen into the refrigerant piping, and then connect the indoor unit using the flare connections. (Refer to Fig. 9)

CAUTION

• When brazing a pipe while feeding nitrogen inside the pipe, make sure to set the nitrogen pressure to 29 psi or less using the pressure reducing valve.

Installation

Pressure-reducing valve

Part to be brazed

Taping

Refrigerant piping

Nitrogen

Fig. 9

hands valve

Nitrogen

Not recommendable but in case of emergency

You must use a torque wrench but if it is necessary to install the unit without a torque wrench, you may follow the installation method mentioned below.

After the work is finished, make sure to check that there is no gas leak.

When you keep on tightening the flare nut with a spanner, there is a point where the tightening torque suddenly increases. From that position, further tighten the flare nut the angle shown below:

Table 2

Pipe size (in.) Further tightening angle

φ1/4

φ3/8

φ1/2

φ5/8

60 to 90 degrees

60 to 90 degrees

30 to 60 degrees

30 to 60 degrees

Recommended arm length of tool (in.)

Approx. 5-7/8

Approx. 7-7/8

Approx. 9-13/16

Approx. 11-13/16

DANGER

• Use of oxygen could result in an explosion resulting in serious injury or death. Only use nitrogen gas.

• Refrigerant gas may produce toxic gas if it comes in contact with fire such as from a fan heater, stove or cooking device.

Exposure to this gas could cause severe injury or death.

NOTE

• Do not use flux when brazing refrigerant piping. Therefore, use the phosphor copper brazing filler metal (BCuP) which does not require flux.

(Flux has an extremely negative effect on refrigerant piping systems. For instance, if chlorine based flux is used, it will cause pipe corrosion. Flux containing fluorine will damage refrigerant oil.)

FXDQ-M 23

Installation

7.

DRAIN PIPING WORK

CAUTION

• The connection opening on the drain piping may vary depending on the model, so check the model name and use the right method for that model.

• Make sure all water is out before making the duct connection.

(1) Install the drain piping.

Drain pipe connection hole

Fig. 10

Main drain piping

(with a slope of at least 1/100)

CAUTION

Water accumulating in the drain piping can cause the drain to clog.

• To keep the drain piping from sagging, space hanging bracket every 3 to 5 feet.

• Use the drain hose (2) and the metal clamp (1). Insert the drain hose (2) fully into the drain pipe connection hole and firmly tighten the metal clamp (1) with the upper part of the tape on the hose end. Tighten the metal clamp (1) until the screw head is less than 1/8 inches from the hose.

(Refer to Fig. 11, 12)

• The two areas below should be insulated because condensation may form there causing water to leak.

• Drain piping passing indoors

• Drain pipe connection hole

Referring the figure below, insulate the metal clamp (1) and drain hose (2) using the included large sealing pad (5).

(Refer to Fig. 12)

24

EDUS39-600-F2_a

Metal clamp (1)

(accessory)

Tape

Fig. 11

Drain hose (2)

(accessory)

Fig. 12

Large sealing pad (5)

(accessory)

Metal clamp (1)

(accessory)

≤1/8 in.

PRECAUTIONS FOR DRAIN RAISING PIPE

• Make sure the drain raising pipe height is no higher than

23-5/8 in..

• Place the drain raising pipe vertically and make sure it is no further than 11-3/4 in. from the unit. (Refer to Fig. 13)

Ceiling slab

11-3/4 in. or less

3-5 ft.

Hanging bracket

Refrigerant pipes

Service drain hole

(with rubber cap)

• Make sure the drain works properly.

• The diameter of the drain piping should be greater than or equal to the diameter of the connecting pipe (vinyl tube; pipe size : 3/4” (19.1 mm) ; outer dimension : 1” (25.4 mm).

(not including a riser)

• Keep the drain piping short and sloping downwards at a gradient of at least 1/100 to prevent air pockets from forming.

(Refer to Fig. 10)

Adjustable range

(23-5/8 in. or less)

Metal clamp (1) (accessory)

Drain hose (2) (accessory)

Drain raising pipe

(Field supply)

Fig. 13

PRECAUTIONS

Drain piping connections

• Do not connect the drain piping directly to sewage pipes that smell of ammonia. The ammonia in the sewage might enter the indoor unit through the drain piping and corrode the heat exchanger.

• Do not twist or bend the drain hose (2) as excessive force causes leakage.

• If you are using central drain piping, follow the procedure outlined in the figure 10.

• Select central drain piping of proper size according to the capacity of the connected unit.

(2) After piping work is finished, check drainage flows smoothly.

• Gradually insert approximately 2 quarts of water into the drain pan to check drainage in the manner described below.

FXDQ-M

EDUS39-600-F2_a

CAUTION

• The electric wiring work shall be performed by qualified electricians.

• If workers not having the electrician qualification have performed the electric wiring work, the steps 3 to 7 shall be performed after the TEST RUN.

1. Remove the lid of the control box. Connect the remote controller and power supply (single-phase, 60Hz 208-

230V) respectively to the terminal block and securely connect the ground also as shown in the figure below.

Securely clamp the cables with the accessory clamps

(9)(10) as shown in Fig. 14 so that tension will not be applied on the cable connection areas.

2. Confirm that the lid of the control box is closed before turning on the power.

3. Remove the inspection lid.

4. Gradually pour approximately 2 quarts of water from the water inlet into the drain pan to check drainage.

CAUTION

Be sure to prevent external force from being exerted on the float switch or breakage can occur. Attach the inspection lid

5. Perform the following operation using the remote controller, and check drainage.

• Select the inspection/test operation button “

TEST

” using the remote controller. The unit will engage the test operation. Press the operation selector button

“ ”, and select FAN OPERATION “ ”.

• Press the ON/OFF button “ ”. The indoor fan and drain pump will operate.

CAUTION

Be cautious of the fan turning simultaneously. Do not touch the drain pump to prevent electric shock.

Drain outlet

Water inlet

Portable pump

Inspection lid

Refrigerant pipes

Service drain hole

(with rubber cap)

Bucket

P1 P2

REMOTE

CNTRL

F1 F2

TRANSMISSION

WIRING

T1 T2

FORCED

OFF

Indoor PCboard

(ASSY)

P1 P2

REMOTE

CNTRL

F1 F2

TRANSMISSION

WIRING

T1 T2

FORCED

OFF

L N

L1 L2

Power supply:

Single phase,

60Hz,208-230V

Power terminal connection method

Remote controller terminal connection method

Terminal block Terminal block

6. Make sure to use the remote controller in finishing the operation.

FXDQ-M

Installation

8.

INSTALLING THE DUCT

Connect the duct supplied in the field.

Air inlet side

• Attach the duct and intake-side flange (field supply).

• Connect the flange to the main unit with accessory screws

(in 20 or 24 positions).

• Wrap the intake-side flange and duct connection area with aluminum tape or something similar to prevent air escaping.

CAUTION

When attaching a duct to the intake side, be sure to attach an air filter inside the air passage on the intake side. (Use an air filter whose dust collecting efficiency is at least 50% in a gravimetric technique.)

The included filter is not used when the intake duct is attached.

Flange

(Field supply)

Connection screw (7)

(accessory)

Aluminum tape

(Field supply)

Main unit

Flange

Insulation material

(Field supply)

Aluminum tape

(Field supply)

Air outlet side Air inlet side

Air outlet side

• Connect the duct according to the air inside of the outletside flange.

• Wrap the outlet-side flange and the duct connection area with aluminum tape or something similar to prevent air escaping.

CAUTION

• Be sure to insulate the duct to prevent condensation from forming. (Material: glass wool or polyethylene foam, 1 in. thick)

• Use electric insulation between the duct and the wall when using metal ducts to pass metal laths of the net or fence shape or metal plating into wooden buildings.

• Be sure to explain how to clean local procurementssuch as air filters and grilles to your customer.

9.

ELECTRIC WIRING WORK

9-1 GENERAL INSTRUCTIONS

• Shut off the power before doing any work.

• All field supplied parts and materials, electric works must conform to local codes.

• Use copper wire only.

• See also the Wiring Diagram label attached to the control box lid when laying electrical wiring.

• For details on hooking up the remote controller, refer to the

REMOTE CONTROLLER INSTALLATION MANUAL.

• All wiring must be performed by an authorized electrician.

• This system consists of multiple indoor units. Mark each indoor unit as unit A, unit B , and so forth, and be sure the

25

Installation

terminal board wiring to the outdoor unit and BS unit are properly matched. If controls wiring and piping between the outdoor and indoor units are mismatched, a communications malfunction is likely.

• Install a wiring interrupter or ground-fault circuit interrupter for the power wiring.

• Make sure the ground resistance is no greater than 100

Ω.

• To avoid short circuiting the power supply wire, be sure to use insulated terminals.

• Do not turn on the power supply (wiring interrupter or ground-fault circuit interrupter) until all other work is done.

DANGER

• Do not ground units to water pipes, telephone wires or lightning rods because incomplete grounding could cause a severe shock hazard resulting in severe injury or death, or to gas pipes because a gas leak could result in an explosion which could lead to severe injury or death.

9-2 LIST OF STANDARD WIRING EQUIPMENT

Power supply wiring

(including ground wire)

Field fuses

Size

Transmission wiring

Remote controller wiring

Wire Size

15A

Must comply with local codes.

2 conductor, stranded copper, non-shielded,

PVC or vinyl jacket

AWG18

NOTE

1. If the wiring is in a place where people it can be easily touched, install a ground-fault circuit interrupter to prevent electric shock.

2. When using a ground-fault circuit interrupter, make sure to select one useful also to protection against overcurrent and short-circuit.

3. When using a ground-fault circuit interrupter only for grounding device, make sure to use a wiring interrupter together.

• The length of the transmission wiring and remote controller wiring are as follows:.

Outdoor unit – Indoor unit

Indoor unit – Remote controller

Max. 3280 ft.

(Total wiring length: 6560 ft.)

Max. 1640 ft.

9-3 ELECTRICAL CHARACTERISTICS

Units

Power supply

Model Hz Volts

Voltage range

Fan motor

MCA MFA KW FLA

07 · 09 · 12 type

18 type

24 type

60

208-

230

Min. 187

Max. 253

0.9

1.3

1.4

15

0.062

0.7

0.13

1.0

0.13

1.1

MCA: Minimum Circuit Amps (A) MFA: Max. Fuse Amps (A)

KW: Fan motor output (kW) FLA: Full Load Amps (A)

EDUS39-600-F2_a

10. WIRING EXAMPLE

10-1 HOW TO CONNECT WIRINGS

• Wire only after removing the control box lid as shown in

Fig. 14.

Control box lid

Power supply wiring and ground wire through conduit

Wiring Diagram

(Rear)

∗Transmission wiring

∗Remote controller wiring

∗ Do not connect power supply wiring here.

That may cause

malfunctions.

Clamp

Power supply wiring and ground wire through conduit

Conduit

(field supply)

Conduit mounting plate

(accessory)

Screw

(accessory)

Clamp (for fixing in place)

Match up the wiring sheath with the fixing clasp with the clamping material for preventing slippage on the power supply side and clamp

(accessory (9)).

Clamp (for prevent slippage)

Clamp the wiring sheaths (accessory (10))

• Make sure to let a wire go through a wire penetration area.

• After wiring, seal the wire and wire penetration area to prevent moisture and small creatures from the outside.

• Wrap the wire with the sealing material (12) as shown in the figure below.

(Otherwise, moisture or small creatures such as insects from the outside may cause short-circuit inside the control box.)

Attach securely so that there are no gaps.

Sealing material (12)

(accsessory)

Penetration area

Wire

Outside unit

[How to adhere it]

Inside unit

Fig. 14

WARNING

• Use only specified wire and connect wires to terminals tightly. Be careful that wires do not place external stress on terminals. Keep wires in neat order so as to not to obstruct other equipment. Make sure that the electric parts box lid closes tightly. Incomplete connections could result in overheating, and in worse cases, electric shock or fire.

26 FXDQ-M

EDUS39-600-F2_a

WARNING

• Never connect power supply wiring to the terminal block for remote controller wiring as this could damage the entire system.

NOTE

NOTE

• When clamping the wiring, use the included clamp material

(9) and (10) as shown in the Fig.14 to prevent outside pressure being exerted on the wiring connections and clamp firmly.

• When doing the wiring, make sure the wiring is neat and does not cause the control box lid to stick up, then close the cover firmly. When attaching the control box lid, make sure you do not pinch any wires.

• Outside the air conditioners, separate the low voltage wiring

(remote controller and transmission wiring) and high voltage wiring (ground wire and power supply wiring) at least 5 in. so that they do not pass through the same place together. Proximity may cause electrical interference, malfunctions, and breakage.

PRECAUTIONS

• Refer to the REMOTE CONTROLLER INSTALLATION

MANUAL on how to install and lay the wiring for the remote controller.

• See also the WIRING DIAGRAM label” attached to the control box lid when laying electrical wiring.

• Connect the remote controller and transmission wiring their respective terminal blocks.Do not, under any circumstances, connect the power supply wiring to the remote controller or transmission wiring terminal block. Doing so can destroy the entire system.

Connecting electrical wiring, remote controller wiring, and transmission wiring -- (Refer to Fig. 15)

Indoor PCboard (ASSY)

P 1 P 2 F 1 F 2 T 1 T 2

R E M O T E

C O N T R L

T R A N S M I S S I O N

W I R I N G

F O R C E D

O F F

L N

Terminal block (3P)

Insulation tube

(accessory)

Terminal block (6P)

Remote controller wiring

Transmission wiring

Wiring through hole

P

1

P

2

REMOTE

CONTRL

F

1

F

2

TRANSMISSION

WIRING

T

1

T

2

FORCED

OFF

Power supply wiring

Ground wire

Installation

Remove the control box lid.

Next, pull the wires into the unit through the conduit and thread them through the insulation tube (accessory), then connect to the terminal block (3P).

Fig. 15

• Power supply wiring and Ground wire

FXDQ-M 27

Installation

• Remote controller and transmission wiring

Pull the wires into the unit through the wiring through hole and connect to the terminal block (6P).

Be sure to put PVC or vinyl-clad wire into the control box.

WIRING EXAMPLES

No. 1 system When using 1 remote controller for

1 indoor unit

Power supply single phase

60Hz 208-230V

L1 L2

Outdoor unit

F

1

IN/D

F

2

F

OUT/D

1

F

2

Power supply single phase

60Hz 208-230V

L1 L2

Power supply single phase

60Hz 208-230V

L1 L2

No. 3 system When including BS unit

Power supply single phase

60Hz 208-230V

L1 L2

Outdoor unit

IN/D

F

1

F

2

OUT/D

F

1

F

2

EDUS39-600-F2_a

BS unit

OUT/D

F

1

F

2

IN/D

F

1

F

2

L1 L2 P

1

P

2

F

1

F

2

T

1

T

2

L1 L2 P

1

P

2

F

1

F

2 2

L1 L2 P

1

P

2

F

1

F

2

T

1

T

2

Indoor unit A

P

1

P

2

Indoor unit B

Remote controller

(option)

Most downstream

Indoor unit

P

1

P

2

P

1

P

2

Remote controller Remote controller

(option) (option)

Fig. 16

No. 2 system For group control or use with 2 remote controllers

Power supply single phase

60Hz 208-230V

L1 L2

Outdoor unit

IN/D OUT/D

F

1

F

2

F

1

F

2

Note) There is not need to set the indoor unit address when using group control.

(It is automatically set when the power is turned on.)

Indoor unit A

L1 L2 P

1

P

2

F

1

F

2 2

L1 L2 P

1

P

2

F

1

F

2 2

Indoor unit B

L1 L2

P

1

P

2

Remote controller

(option)

Case of group control

Fig. 17

P

1

P

2

F

1

F

2 2

Most downstream indoor unit

P

1

P

2

P

1

P

2

Remote controller Remote controller

(option)

For use with 2 remote controllers

L1 L2

P

1

P

2

F

1

F

2

T T

2

Indoor unit A

P

1

P

2

Remote controller

(option)

Fig. 18

Precautions when laying power supply wiring

• Wiring of different thicknesses cannot be connected to the power supply wiring terminal block. (Slack in the power supply wiring may cause abnormal heat.)

• Use sleeve-insulated round crimp-style terminals for connections to the power supply wiring terminal block. When none are available, connect wires of the same diameter to both sides, as shown in the following figure.

Insulation sleeve

Round crimp-style terminal

Connect wires of the same gauge to both sides.

Do not connect wires of the same gauge to one side.

Electric wire

Do not connect wires of different gauges.

Follow the instructions below if the wiring gets very hot due to slack in the power supply wiring.

• For wiring, use the designated power supply wiring and connect firmly, then secure to prevent outside pressure being exerted on the terminal board.

• Use the correct screwdriver for tightening the terminal screws.

If the blade of screwdriver is too small, the head of the screw might be damaged, and the screw will not be properly tightened.

• If the terminal screws are tightened too hard, screws might be damaged.

• Refer to the following below for the tightening torque of the terminal screws.

28 FXDQ-M

EDUS39-600-F2_a

Terminal block

Remote controller / transmission wiring terminal block (6P)

Power supply wiring terminal block (3P)

Tightening torque (ft · lbf)

0.58 – 0.72

0.87 – 1.06

10-2 CONTROL BY 2 REMOTE CONTROLLERS

(Controlling 1 indoor unit by 2 remote controllers)

• When using 2 remote controllers, one must be set to MAIN and the other to SUB.

MAIN/SUB CHANGEOVER

(1) Insert a screwdriver into the recess between the upper and lower part of remote controller and, working from the 2 positions, pry off the upper part.

The remote controller PC board is attached to the upper part of remote controller.

Upper part of remote controller

Installation

[ PRECAUTIONS ]

• Crossover wiring is needed when using group control and

2 remote controllers at the same time.

• Connect the indoor unit at the end of the crossover wire

(P

1

, P

2

) to remote controller 2 (SUB).

Indoor unit 1 Indoor unit 2

Max. No. of indoor units

Crossover wire (P

1

.P

2

)

Remote controller 1

(MAIN)

Remote controller 2

(SUB)

10-3 REMOTE CONTROL (FORCED OFF AND ON/

OFF OPERATION)

• Connect input lines from the outside to the terminals T

1 and T

2

on the terminal block (6P) for remote controller to achieve remote control capability.

• See 11. FIELD SETTING AND TEST RUN for details on operation.

P

1

P

2

F

1

F

2

T

1

T

2

REMOTE

CONTRL

TRANSMISSION

WIRING

FORCED

OFF

Lower part of remote controller

Insert the screwdriver here and gently work off the upper part of remote controller.

(2) Turn the MAIN/SUB changeover switch on one of the

two remote controller PC boards to “[S]”.

(Leave the switch of the other remote controller set to

“[M]”.)

(Factory setting)

M

Remote controller

PC board

Only one remote controller needs to be changed if factory settings have remained untouched.

S

M

Wiring Method: See Section 9, ELECTRICAL WIRING

WORK.

(3) Remove the control box lid.

(4) Add remote controller 2 (SUB) to the terminal block for remote controller (P

1

, P

2

) in the control box.

There is no polarity.

P

1

P

2

F

1

F

2

T

1

T

2

REMOTE TRANSMISSION FORCED

OFF

CONTRL WIRING

Remote controller wiring terminal block

Remote controller 1

(MAIN)

Remote controller 2

(SUB)

Wire specification

Gauge

Length

External terminal

Input A

2-conductor, stranded copper, non-shielded,

PVC or vinyl jacket

AWG18

Max. 328 ft.

Contact that can ensure the minimum applicable load of 15 V DC, 1 mA.

10-4 CENTRALIZED CONTROL

• For centralized control, it is necessary to designate the

Group No. For details, refer to the manual of each optional controllers for centralized control.

11. FIELD SETTING AND TEST RUN

Field settings may have to be performed using the remote controller, depending on the type of installation.

• Make sure the control box lids are closed on the indoor and outdoor units.

• Depending on the type of installation, make the field settings from the remote controller after the power is turned on, following the FIELD SETTINGS manual that came with the remote controller.

• The settings can select Mode No., No., FIRST CODE

NO. and SECOND CODE NO.

FXDQ-M 29

Installation

• The FIELD SETTINGS included with the remote controller list the order of the settings and method of operation.

SECOND

CODE NO.

FIRST

CODE NO.

Mode

SETTING

FIELD SET

MODE

• Lastly, make sure the customer keeps the FIELD SET-

TINGS manual, along with the operating manual, in a safe place.

11-1 SETTING THE STATIC PRESSURE SELECTION

• Select the SECOND CODE NO. for the resistance of the connected duct.

(The SECOND CODE NO. is set to 01 when shipped.

• See the technical documentation for details.

External static pressure Mode No.

Standard

High static pressure setting

13(23)

FIRST

CODE NO.

5

SECOND

CODE NO.

01

02

11-2 REMOTE CONTROL SETTING

• Forced OFF and ON/OFF operation should be selected by selecting the SECOND CODE NO. as shown in the table below.

The SECOND CODE NO. is set to 01 when shipped.

External ON/OFF input

Forced off

Mode No.

FIRST

CODE NO.

SECOND

CODE NO.

01

12(22) 1

ON/OFF operation 02

• Input A of forced off and ON/OFF operation work as shown in the table below.

FORCED OFF (Manual Restart)

Mode No. 12

First Code No. 1

Second Code No. 01

ON/OFF OPERATION

Mode No. 12

First Code No. 1

Second Code No. 02

DEFAULT SETTING

Input A OFF (Open Circuit) Input A OFF (Open Circuit)

An open circuit between terminals T1 and T2 allows the unit to run normally.

An open circuit between terminals T1 and T2 prevents unit operation.

Input A ON (Closed Circuit)

Closing the normally open circuit between terminals T1 and

T2 stops operation of the unit.

When T1-T2 is opened, the unit must be restarted with the remote controller.

Unit stopped by changing input A from “on” to “off”

EDUS39-600-F2_a

11-3 SETTING THE FILTER SIGN DISPLAY INTERVAL

• Explain the following to the customer if the filter dirt settings have been changed.

• The filter sign display time is set to 2500 hours

(equivalent to 1 year’s use) when shipped.

• The settings can be changed to prevent display.

• When installing the unit in a place with a lot of dust, set the filter-sign display time to shorter intervals (1,250 hours).

Explain to the customer that the filter needs to be cleaned regularly to prevent clogging, and the time that is set.

30 FXDQ-M

EDUS39-600-F2_a

Mode No.

10 (20)

FIRST CODE NO.

0

1 (low/high)

3

Filter dirt

Displayed time

(units: hours)

Filter sign display

SECOND

CODE NO.

01 02 low

2500/

1250

ON high

10000/

5000

OFF

11-4 SETTINGS FOR SEPARATELY SOLD

ACCESSORIES

• See the instruction manuals included with separately sold accessories for the necessary settings.

When using a wireless remote controller

• A wireless remote controller address needs to be set when using a wireless remote controller. See the installation manual included with the wireless remote controller for details on how to make the settings.

• Perform a test run according to the outdoor unit’s installation manual.

• The operation lamp of the remote controller will flash when a malfunction occurs. Check the malfunction code on the liquid-crystal display to identify the point of trouble. An explanation of malfunction codes and the corresponding trouble is provided in the manual CAUTION FOR SERVIC-

ING of the outdoor unit.

• If the display shows any of the following, there is a possibility that it is wired incorrectly or that the power is not on. , so check again.

Remote control display

“ ” display

“ ” display

“ ” display

“ ” display

“ ” display

No display

Content

• There is a short circuit at the

FORCED OFF terminals (T1, T2).

• The test-run has not been performed.

• The power on the outdoor unit is off.

• The outdoor unit has not been wired for power supply.

• Wiring is incorrect for the transmission wiring or FORCED OFF wiring.

• The transmission wiring is cut.

• Reversed transmission wiring

• The power on the indoor unit is off.

• The indoor unit has not been wired for power supply.

• Wiring is incorrect for the remote controller wiring, the transmission wiring or the FORCED OFF wiring.

• The remote controller wiring is cut.

CAUTION

• Always stop the test run using the remote controller to stop operation.

WARNING

• After finishing the test run, make sure to check drainage in the drain pump according to “7. DRAIN PIPING WORK”.

NOTE

FXDQ-M

Installation

31

Accessories EDUS39-600-F2_a

11. Accessories

Standard Accessories

Name

Quantity

Metal clamp (1)

1 pc.

Drain hose

(2)

Insulation for fitting Sealing pad

1 pc.

1 each 1 each

Screws for duct flanges (7)

Washer for hanger bracket (8)

1 set 8 pcs.

Clamp

1 set

Washer fixing plate (11)

4 pcs.

Shape for liquid pipe (3)

Large (5)

Large (9)

8 pcs.

for gas pipe (4) mid. (6)

24 pcs.

small (10)

4 pcs.

Name

Quantity

Conduit mounting plate

1 pc.

Screw for conduit mounting plate

2 pcs.

Insulation tube

1 pc.

Shape

Sealing material (12) Air filter (13)

2 pcs.

1 pc.

(Other)

• Operation manual

• Installation man-

ual

C:3PN06240-4E

Refer to Controller manual for optional accessories for controllers.

32 FXDQ-M

July 2009

AMERICAS

1645 Wallace Drive, Suite 110

Carrollton, TX75006 [email protected]

www.daikinac.com

EDUS39-600-F2_a

Printed in U.S.A. 07/2009

EDUS 39 - 600 - F2

FXDQ-M

Slim Ceiling Mounted Duct Type

AMERICAS

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
