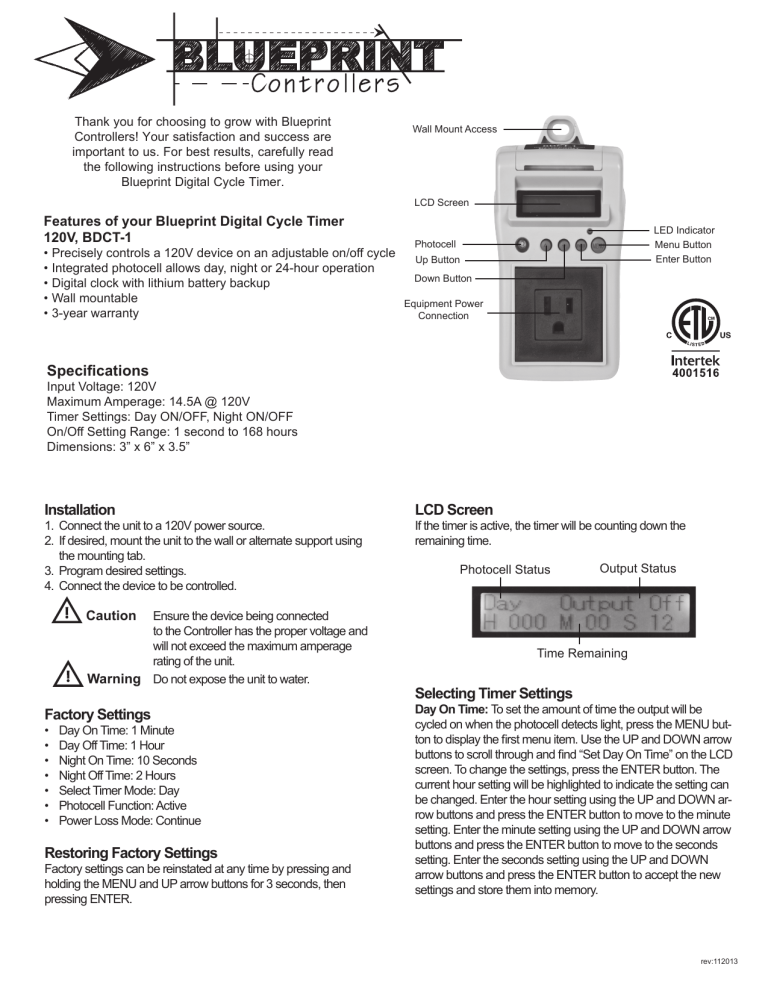

Thank you for choosing to grow with Blueprint
Controllers! Your satisfaction and success are
important to us. For best results, carefully read
the following instructions before using your
Blueprint Digital Cycle Timer.
Wall Mount Access
LCD Screen
Features of your Blueprint Digital Cycle Timer
120V, BDCT-1
•Precisely controls a 120V device on an adjustable on/off cycle
•Integrated photocell allows day, night or 24-hour operation
•Digital clock with lithium battery backup
•Wall mountable
•3-year warranty
LED Indicator
Menu Button
Enter Button
Photocell
Up Button
Down Button
Equipment Power
Connection
Specifications
Input Voltage: 120V
Maximum Amperage: 14.5A @ 120V
Timer Settings: Day ON/OFF, Night ON/OFF
On/Off Setting Range: 1 second to 168 hours
Dimensions: 3” x 6” x 3.5”
Installation
1. Connect the unit to a 120V power source.
2. If desired, mount the unit to the wall or alternate support using the mounting tab.
3. Program desired settings.
4. Connect the device to be controlled.
Caution
Ensure the device being connected to the Controller has the proper voltage and will not exceed the maximum amperage rating of the unit.
Warning Do not expose the unit to water.
Factory Settings
•
•
•
•
•
•
•
Day On Time: 1 Minute
Day Off Time: 1 Hour
Night On Time: 10 Seconds
Night Off Time: 2 Hours
Select Timer Mode: Day
Photocell Function: Active
Power Loss Mode: Continue
Restoring Factory Settings
Factory settings can be reinstated at any time by pressing and
holding the MENU and UP arrow buttons for 3 seconds, then
pressing ENTER.
LCD Screen
If the timer is active, the timer will be counting down the
remaining time.
Photocell Status
Output Status
Time Remaining
Selecting Timer Settings
Day On Time: To set the amount of time the output will be
cycled on when the photocell detects light, press the MENU button to display the first menu item. Use the UP and DOWN arrow
buttons to scroll through and find “Set Day On Time” on the LCD
screen. To change the settings, press the ENTER button. The
current hour setting will be highlighted to indicate the setting can
be changed. Enter the hour setting using the UP and DOWN arrow buttons and press the ENTER button to move to the minute
setting. Enter the minute setting using the UP and DOWN arrow
buttons and press the ENTER button to move to the seconds
setting. Enter the seconds setting using the UP and DOWN
arrow buttons and press the ENTER button to accept the new
settings and store them into memory.
rev:112013
Day Off Time: To set the amount of time the output will be cycled off
when the photocell detects light, press the MENU button to display the
first menu item. Use the UP and DOWN arrow buttons to scroll through
and find “Set Day Off Time” on the LCD screen. To change the settings,
press the ENTER button. The current hour setting will be highlighted to
indicate the setting can be changed. Enter the hour setting using the UP
and DOWN arrow buttons and press the ENTER button to move to the
minute setting. Enter the minute setting using the UP and DOWN arrow
buttons and press the ENTER button to move to the seconds setting.
Enter the seconds setting using the UP and DOWN arrow buttons and
press ENTER button to accept the new settings and store them
into memory.
Photocell Function: To operate the unit continuously regardless of
the ambient lighting, disable the photocell function. To change the
photocell option, press the MENU button to display the first menu
item. Use the UP and DOWN arrow buttons to scroll through and find
“Select Photocell” on the LCD screen. To change the settings, press
the ENTER button. Use the UP and DOWN arrow buttons to select
the photocell option. Press the ENTER button to accept the new settings and store them into memory.
Night On Time: To set the amount of time the output will be cycled on
when the photocell does not detect light, press the MENU button to
display the first menu item. Use the UP and DOWN arrow buttons to
scroll through and find “Set Nit On Time” on the LCD screen. To change
the settings, press the ENTER button. The current hour setting will be
highlighted to indicate the setting can be changed. Enter the hour setting
using the UP and DOWN arrow buttons and press the ENTER button
to move to the minute setting. Enter the minute setting using the UP and
DOWN arrow buttons and press the ENTER button to move to the seconds setting. Enter the seconds setting using the UP and DOWN arrow
buttons and press ENTER button to accept the new settings and store
them into memory.
Power Loss Mode: Use this option to program how the timer will react if power is interrupted. There are two choices to continue to count
down or to pause (stop) until power is reconnected. To change the
setting, press the MENU button to display the first menu item. Use the
UP and DOWN arrow buttons to scroll through and find “Power Loss
Mode” on the LCD screen. To change the settings, press the ENTER
button. Use the UP and DOWN arrow buttons to select the power loss
mode. Press the ENTER button to accept the new settings and store
them into memory.
Night Off Time: To set the amount of time the output will be cycled off
when the photocell does not detect light, press the MENU button to
display the first menu item. Use the UP and DOWN arrow buttons to
scroll through and find “Set Nit Off Time” on the LCD screen. To change
the settings, press the ENTER button. The current hour setting will be
highlighted to indicate the setting can be changed. Enter the hour setting
using the UP and DOWN arrow buttons and press the ENTER button
to move to the minute setting. Enter the minute setting using the UP and
DOWN arrow buttons and press the ENTER button to move to the seconds setting. Enter the seconds setting using the UP and DOWN arrow
buttons and press ENTER button to accept the new settings and store
them into memory.
Select Timer Mode: The timer can be used as a day timer, night timer,
or both. If using the day timer, the output will be activated only when the
photocell senses light. If using the night timer, the output will be activated
only when the photocell does not detect light. If using day and night
timers, both timers can activate the output on a different schedule. To
change the setting, press the MENU button to display the first menu item.
Use the UP and DOWN arrow buttons to scroll through and find “Select
Timers” on the LCD screen. To change the settings, press the ENTER
button. Use the UP and DOWN arrow buttons to select the timer mode
and press the ENTER button to accept the new settings and store them
into memory.
Note: When the photocell is disabled only the Day ON and Day OFF
timers will be used. Photocell will require disabling to use the unit as a
long duration timer (longer than 24 hours).
Test Timer
To manually test the output and timing functions, press the ENTER
button two times. When the test is started, the On timer for the appropriate Day or Night setting will reset to its full value, activate the output
and begin counting down. This starts the currently programmed cycle
from the beginning, which will continue under normal operation.
Troubleshooting
How can I tell if the photocell is working correctly?
The photocell will detect even dimly lit areas as being “Daytime.”
When the photocell senses enough light, it will activate the Day timer
settings and the unit will read “Day” on the left side of the display.
When it doesn’t detect light, the display will read “Night.”
The LCD screen is blinking and showing an error message.
All detected errors will cause the unit to go into “safe mode.” It will shut
down the connected device and display one of the following errors:
Error Rtc (time clock)
Data Low / Sclk Low (circuit)
Overload (current draw exceeds 10A)
Holding the ENTER button for 3 seconds will reset any fault except
for OVERLOAD. In this case, disconnect the unit from the electrical
supply to reset the error. It may be necessary to reduce the size of the
connected equipment (e.g.: if it exceeds a 10A draw) to prevent the
OVERLOAD error from reoccurring.
See warranty procedure information if you reset the unit and error
codes continue to appear.
rev:112013
Blueprint 3-Year Limited Warranty
All Blueprint Digital Cycle Timers are protected against manufacturer defect by a limited 3-year manufacturer’s warranty.
Limited 3-Year Warranty Terms
Sunleaves Garden Products warrants that the Blueprint Digital Cycle Timer will remain free from appearance
of defects in workmanship and materials for 3 years from date of original retail purchase. This warranty is subject to the following limitations: (a) manufacturer’s liability is limited to the replacement or repair of the unit, as
decided by the manufacturer; (b) a defective unit must be returned, prepaid, with proof of purchase to the point
of purchase or as instructed below; and (c) this warranty does not apply to defects resulting from the alteration,
abuse, accidental damage, unauthorized repair or misuse of the unit. This warranty is given in lieu of all other
warranties, guarantees and conditions on manufacturer’s part, and the manufacturer shall have no tortious or
other liability in respect to this Blueprint Digital Cycle Timer.
Blueprint Digital Cycle Timer Warranty Is Void If:
• NOT ACCOMPANIED BY THE ORIGINAL PROOF OF PURCHASE.
• BLUEPRINT DIGITAL CYCLE TIMER HAS BEEN USED IN A NONSTANDARD WAY, INCLUDING GENERAL MISUSE AND OUTDOOR USE.
• BLUEPRINT DIGITAL CYCLE TIMER HAS BEEN DAMAGED AS A RESULT OF ACCIDENT, IMPROPER INSTALLATION, ALTERATION, OR FIRE, FLOOD OR OTHER NATURAL DISASTER.
Sunleaves Product Warranty Claims
To obtain warranty service in the event that your product fails to operate, return the product to the place of purchase. Often the retailer will be able
to examine the product in closer detail, determine the problem and even fix the product on site.
For technical support and warranty information, call our toll-free number at 888-464-9676
or email: [email protected]
7854 North State Road 37
Bloomington, IN 47404
rev:112013
