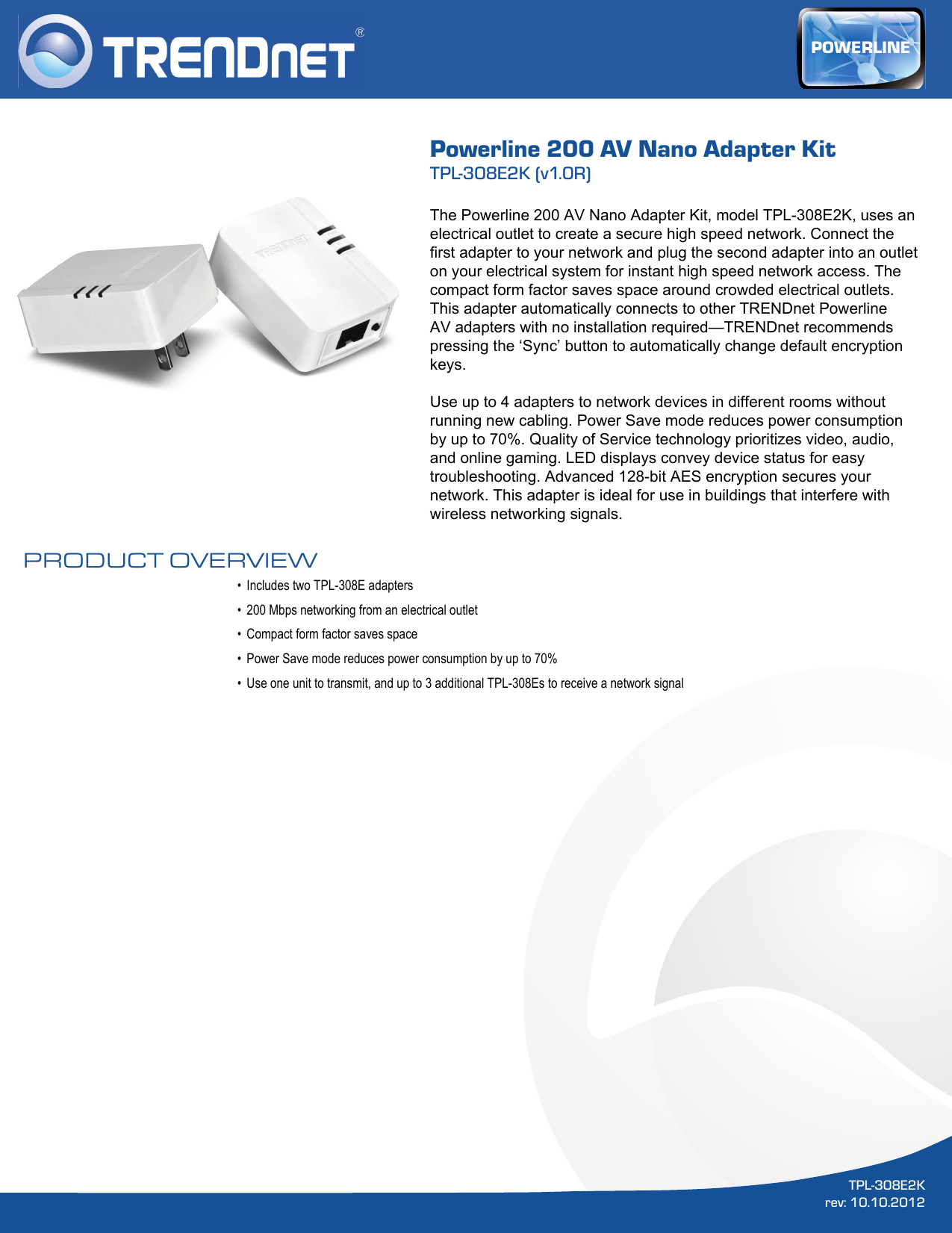

Trendnet TPL-308E2K Powerline 200 AV Nano Adapter Kit Datasheet

Powerline 200 AV Nano Adapter Kit
TPL-308E2K (v1.0R)
The Powerline 200 AV Nano Adapter Kit, model TPL-308E2K, uses an
electrical outlet to create a secure high speed network. Connect the
first adapter to your network and plug the second adapter into an outlet
on your electrical system for instant high speed network access. The
compact form factor saves space around crowded electrical outlets.
This adapter automatically connects to other TRENDnet Powerline
AV adapters with no installation required—TRENDnet recommends
pressing the ‘Sync’ button to automatically change default encryption
keys.
Use up to 4 adapters to network devices in different rooms without
running new cabling. Power Save mode reduces power consumption
by up to 70%. Quality of Service technology prioritizes video, audio,
and online gaming. LED displays convey device status for easy
troubleshooting. Advanced 128-bit AES encryption secures your
network. This adapter is ideal for use in buildings that interfere with
wireless networking signals.
PRODUCT OVERVIEW
• Includes two TPL-308E adapters
• 200 Mbps networking from an electrical outlet
• Compact form factor saves space
• Power Save mode reduces power consumption by up to 70%
• Use one unit to transmit, and up to 3 additional TPL-308Es to receive a network signal
TPL-308E2K
rev: 10.10.2012
Powerline 200 AV Nano Adapter Kit
TPL-308E2K (v1.0R)
FEATURES
• Includes two TPL-308E adapters
• 200 Mbps networking over an existing electrical system
• Compliant with IEEE1901 and HomePlug® AV standards
• 1 x 10/100 Mbps Auto-MDIX Ethernet port
• Compact form factor saves space
• Adapters automatically connect using an encrypted Powerline signal
• One-touch Sync button changes encryption keys
• Three LED indicators:
• Power (on / off)
• Powerline Connection: green (best), amber (better), red (good), off (no connection)
• Ethernet Connection: solid (connection), blinking (transfer activity), off (no connection)
• Connect one 200 Mbps** Powerline AV Adapter to the internet and then plug in up to 3* additional 200 Mbps** Powerline AV
adapters for instant connectivity
• Share data intensive files, play games, download music and more at fast data transfer rates
• Advanced 128-bit AES encryption to ensure total network security
• Supports IPv6 pass through
• Supports up to 4** IGMP based IPTV streams
• Power Save mode reduces electrical consumption by up to 70%
• Neighbor network support for up to 4 overlapping networks
• Network signal transmits up to 300 meters (984 ft.)
• Auto QoS supports traffic classification and multiple priority queuing
• Optional management utility compatible with Windows 8, Windows 7 (32/64-bit), Vista (32/64-bit), and XP (32/64-bit) operating
systems
• 3-year limited warranty
* Maximum of 4 adapters (nodes) recommended for streaming video across your network.
** 200 Mbps is the maximum theoretical Powerline data rate. Actual throughput will vary depending on environment.
*** Networked Powerline devices need to be plugged into power outlets that are on the same electrical system.
**** GFCI outlets and AFCI circuit breakers may degrade Powerline network signals.
TPL-308E2K
rev: 10.10.2012
Powerline 200 AV Nano Adapter Kit
TPL-308E2K (v1.0R)
SPECIFICATIONS
HARDWARE
Standards
• IEEE 1901, HomePlug® AV, IEEE 802.3, IEEE 802.3x, IEEE 802.3u
Interface
• 1 x 10/100 Mbps Auto-MDIX port
• 1 x Sync / Reset button
• Power prong
• A: North America Type B (NEMA 5–15)
• EU: Euro Type C (CEE 7/16)
• UK : United Kingdom Type G (BS 1363)
Frequency Band
• 2 ~ 30 MHz
Modulation
• OFDM Symbol Modulation on link synchronization, 1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
Protocol
• TDMA and CSMA/CA
Speed
• Powerline: up to 200 Mbps**
• Ethernet: Up to 200 Mbps (Full Duplex mode)
Utility OS Compatibility
• Windows 8, Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Nodes
• Up to 4 (max)
Overlapping Powerline
Networks
• Up to 4 (per electrical system)
Coverage
• Up to 300 m (984 ft.)
Security
• 128-Bit AES (Advanced Encryption Standard)
LED
• Power (PWR)
• Powerline (PL) Connection
• Best (Green)
• Better (Amber)
• Good (Red)
• No connection (Off)
• Ethernet (ETH) Connection
• Solid
• Blinking
• Off
Buttons
• Sync (3 sec.) / Reset (20 sec.)
Dimension (L x W x H)
• A: 70 x 50 x 43 mm (2.76 x 1.97 x 1.69 in.) per unit
• EU: 70 x 50 x 63 mm (2.76 x 1.97 x 2.48 in.) per unit
• UK: 70 x 50 x 58 mm (2.76 x 1.97 x 2.28 in.) per unit
Weight
• A: 62.4 g (2.2 oz) per unit
• EU: 68 g (2.4 oz) per unit
• UK: 79.4 g (2.8 oz) per unit
Power Source
• 100~240 V AC, 50~60 Hz
Consumption
• Active mode: 1.75 watts (max.)
• Standby mode: 0.56 watts (max.)
Temperature
• Operating: 0° ~ 40°C (32° ~ 104°F)
• Storage: -10° ~ 55°C (14° ~ 131°F)
Humidity
• Max 95% (non-condensing)
Certifications
• CE, FCC
TPL-308E2K
rev: 10.10.2012
Powerline 200 AV Nano Adapter Kit
TPL-308E2K (v1.0R)
NETWORKING SOLUTIONS
PACKAGE CONTENTS
2 x TPL-308E units
Quick Installation Guide
CD-ROM (Utility & User’s Guide)
2 x Network cables (1.5 m / 5 ft.)
RELATED PRODUCTS
TPL-308E
Powerline 200 AV Nano Adapter
TPL-310AP
Powerline 200 AV Wireless Access Point
TPL-406E2K
Powerline 500 AV Nano Adapter Kit
CONTACT INFORMATION
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: 1-310-961-5500
Fax: 1-310-961-5511
Web: www.trendnet.com
Email: [email protected]
1-888-326-6061
