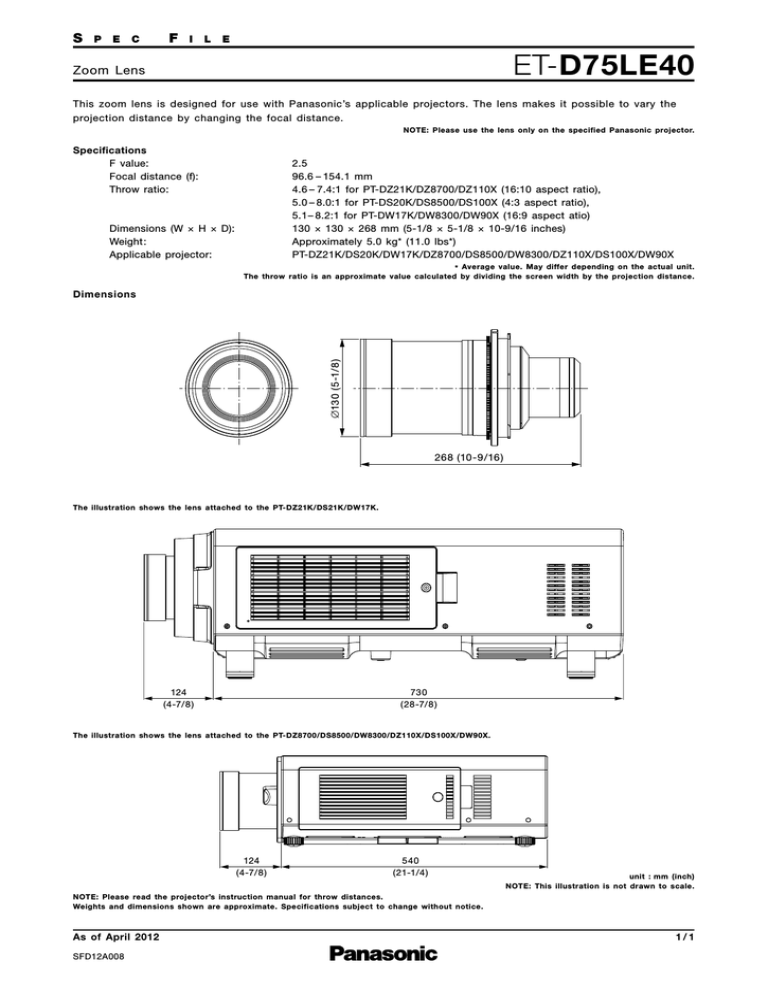

ET-D75LE40
Zoom Lens
This zoom lens is designed for use with Panasonic’s applicable projectors. The lens makes it possible to vary the
projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic projector.
Specifications
F value:
Focal distance (f):
Throw ratio:
2.5
96.6 – 154.1 mm
4.6 – 7.4:1 for PT-DZ21K/DZ8700/DZ110X (16:10 aspect ratio),
5.0 – 8.0:1 for PT-DS20K/DS8500/DS100X (4:3 aspect ratio),
5.1– 8.2:1 for PT-DW17K/DW8300/DW90X (16:9 aspect atio)
130 × 130 × 268 mm (5-1/8 × 5-1/8 × 10-9/16 inches)
Approximately 5.0 kg* (11.0 lbs*)
PT-DZ21K/DS20K/DW17K/DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X
Dimensions (W × H × D):
Weight:
Applicable projector:
* Average value. May differ depending on the actual unit.
The throw ratio is an approximate value calculated by dividing the screen width by the projection distance.
∅130 ( 5-1/8 )
Dimensions
268 (10-9/16 )
The illustration shows the lens attached to the PT-DZ21K/DS21K/DW17K.
124
(4-7/8 )
730
(28-7/8 )
The illustration shows the lens attached to the PT-DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X.
124
(4-7/8 )
540
(21-1/4)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
NOTE: Please read the projector’s instruction manual for throw distances.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
As of April 2012
SFD12A008
1/1
