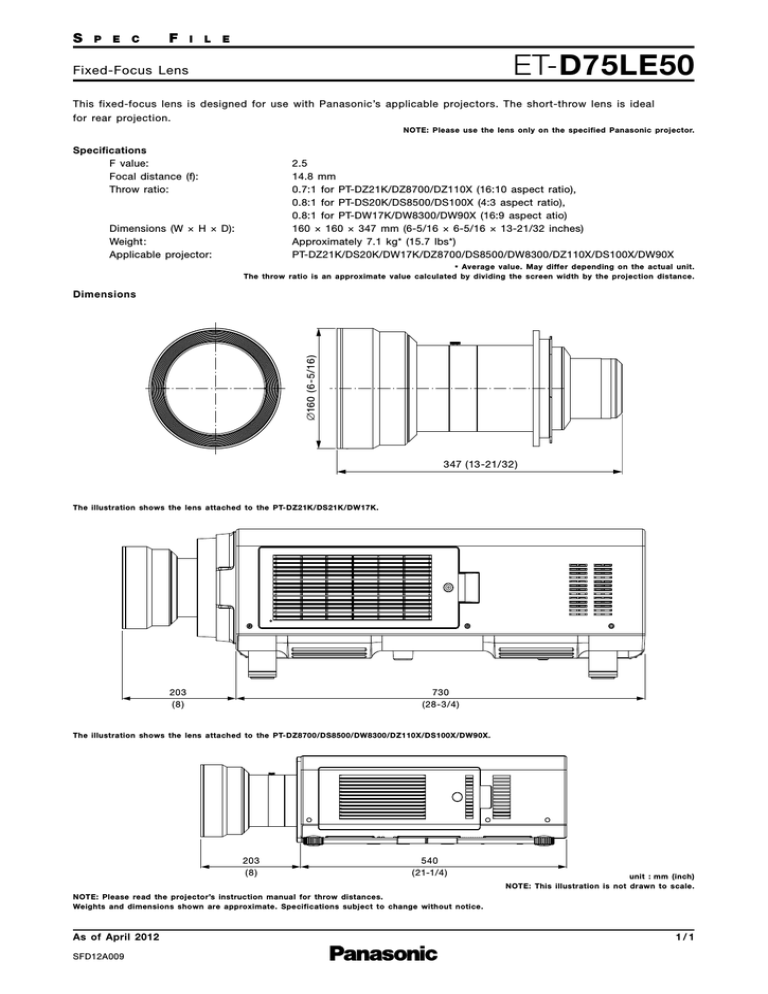

Panasonic ET-D75LE50 Datasheet

Panasonic ET-D75LE50 Datasheet
S
P
E
C
F
I
L
E
ET-D75LE50
Fixed-Focus Lens
This fixed-focus lens is designed for use with Panasonic’s applicable projectors. The short-throw lens is ideal
for rear projection.
NOTE: Please use the lens only on the specified Panasonic projector.
Specifications
F value:
Focal distance (f):
Throw ratio:
2.5
14.8 mm
0.7:1 for PT-DZ21K/DZ8700/DZ110X (16:10 aspect ratio),
0.8:1 for PT-DS20K/DS8500/DS100X (4:3 aspect ratio),
0.8:1 for PT-DW17K/DW8300/DW90X (16:9 aspect atio)
160 × 160 × 347 mm (6-5/16 × 6-5/16 × 13-21/32 inches)
Approximately 7.1 kg* (15.7 lbs*)
PT-DZ21K/DS20K/DW17K/DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X
Dimensions (W × H × D):
Weight:
Applicable projector:
* Average value. May differ depending on the actual unit.
The throw ratio is an approximate value calculated by dividing the screen width by the projection distance.
∅160 ( 6-5/16 )
Dimensions
347 (13-21/32)
The illustration shows the lens attached to the PT-DZ21K/DS21K/DW17K.
203
(8)
730
(28-3/4)
The illustration shows the lens attached to the PT-DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X.
203
(8)
540
(21-1/4)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
NOTE: Please read the projector’s instruction manual for throw distances.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
As of April 2012
SFD12A009
1/1
