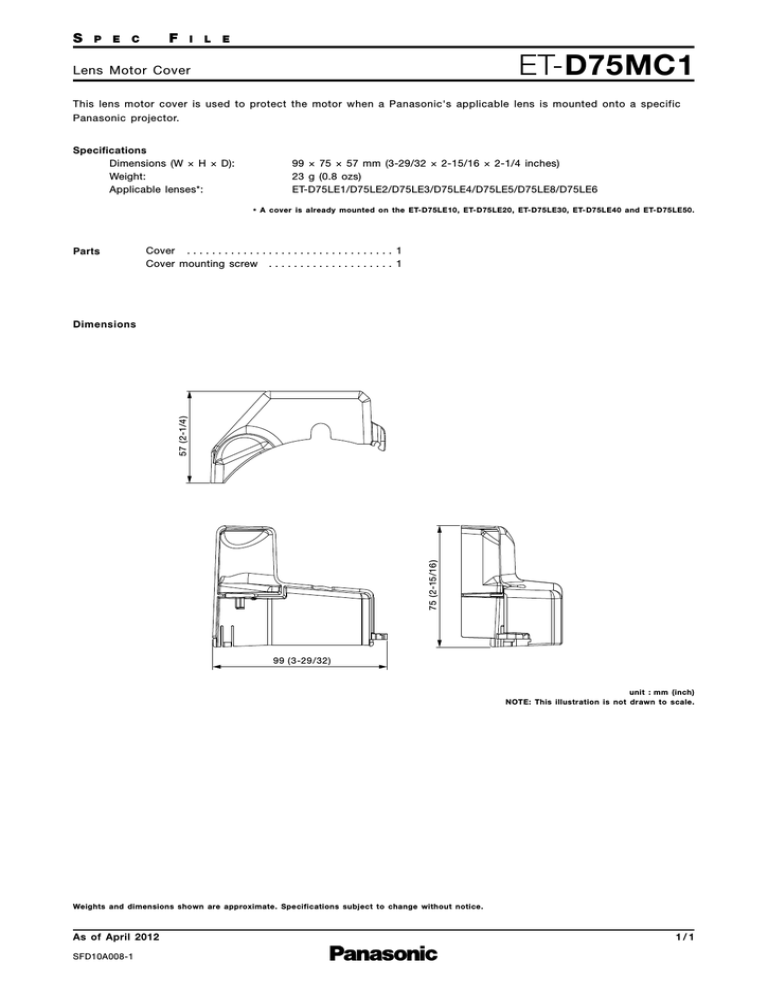

ET-D75MC1
Lens Motor Cover
This lens motor cover is used to protect the motor when a Panasonic's applicable lens is mounted onto a specific
Panasonic projector.
Specifications
Dimensions (W × H × D):
Weight:
Applicable lenses*:
99 × 75 × 57 mm (3-29/32 × 2-15/16 × 2-1/4 inches)
23 g (0.8 ozs)
ET-D75LE1/D75LE2/D75LE3/D75LE4/D75LE5/D75LE8/D75LE6
* A cover is already mounted on the ET-D75LE10, ET-D75LE20, ET-D75LE30, ET-D75LE40 and ET-D75LE50.
Parts
Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Cover mounting screw . . . . . . . . . . . . . . . . . . . . 1
75 (2-15/16 )
57 (2-1/4)
Dimensions
99 ( 3-29/32)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
As of April 2012
SFD10A008-1
1/1
