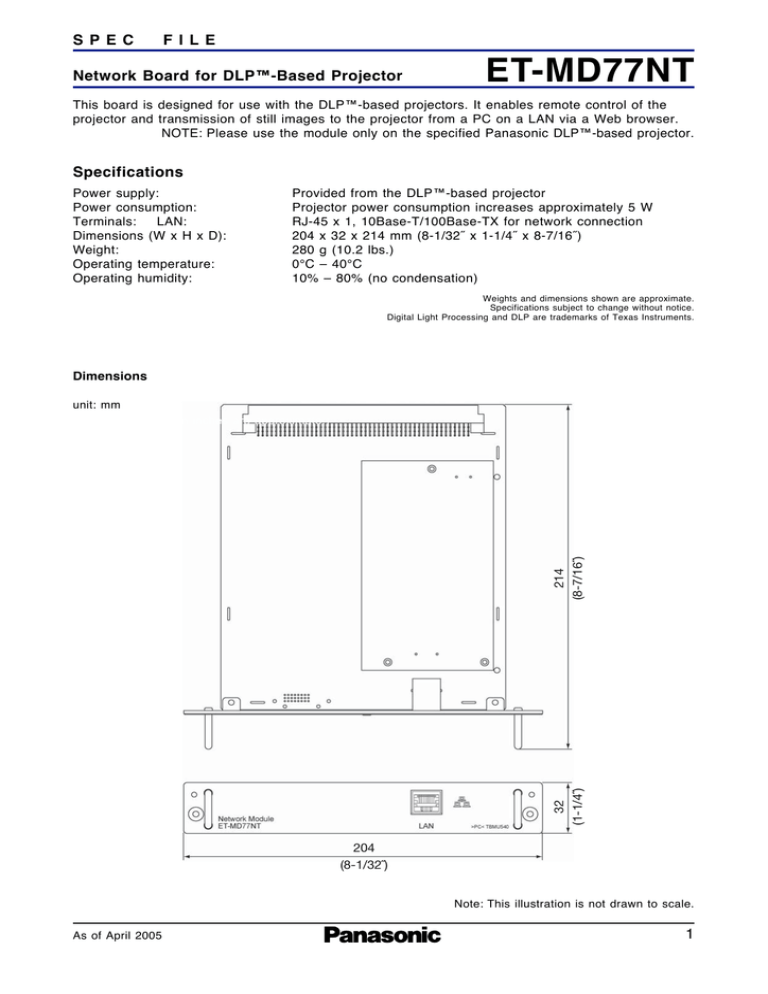

S P E C
F I L E
Network Board for DLP™-Based Projector
ET-MD77NT
This board is designed for use with the DLP™-based projectors. It enables remote control of the
projector and transmission of still images to the projector from a PC on a LAN via a Web browser.
NOTE: Please use the module only on the specified Panasonic DLP™-based projector.
Specifications
Power supply:
Power consumption:
Terminals:
LAN:
Dimensions (W x H x D):
Weight:
Operating temperature:
Operating humidity:
Provided from the DLP™-based projector
Projector power consumption increases approximately 5 W
RJ-45 x 1, 10Base-T/100Base-TX for network connection
204 x 32 x 214 mm (8-1/32˝ x 1-1/4˝ x 8-7/16˝)
280 g (10.2 lbs.)
0°C – 40°C
10% – 80% (no condensation)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
Digital Light Processing and DLP are trademarks of Texas Instruments.
Dimensions
32
(1-1/4˝)
214
(8-7/16˝)
unit: mm
(Dimensions given in inches are approximate.)
204
(8-1/32˝)
Note: This illustration is not drawn to scale.
As of April 2005
