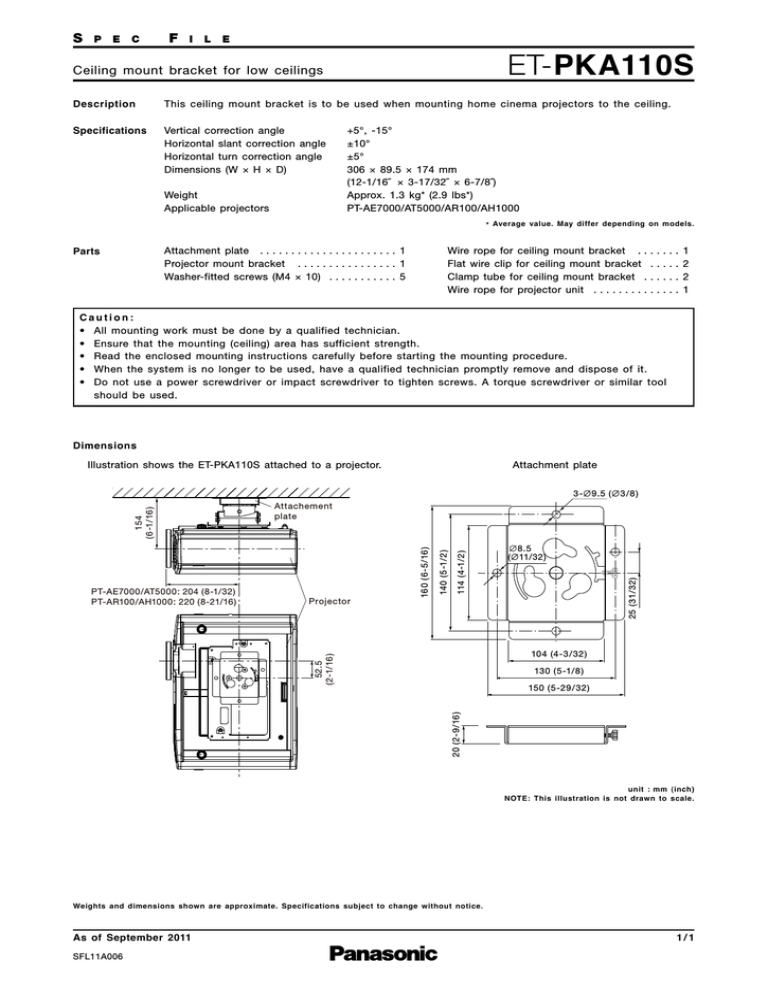

ET-PKA110S
Ceiling mount bracket for low ceilings
­D escription
This ceiling mount bracket is to be used when mounting home cinema projectors to the ceiling.
Specifications
Vertical correction angle
Horizontal slant correction angle
Horizontal turn correction angle
Dimensions (W × H × D)
Weight
Applicable projectors
+5°, -15°
±10°
±5°
306 × 89.5 × 174 mm
(12-1/16˝ × 3-17/32˝ × 6-7/8˝)
Approx. 1.3 kg* (2.9 lbs*)
PT-AE7000/AT5000/AR100/AH1000
* Average­ value.­ May­ differ­ depending­ on­ models.
Parts
Attachment plate . . . . . . . . . . . . . . . . . . . . . . 1
Projector mount bracket . . . . . . . . . . . . . . . . 1
Washer-fitted screws (M4 × 10) . . . . . . . . . . . 5
Wire rope for ceiling mount bracket . .
Flat wire clip for ceiling mount bracket
Clamp tube for ceiling mount bracket .
Wire rope for projector unit . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
2
2
1
Caution:
• All mounting work must be done by a qualified technician.
• Ensure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions carefully before starting the mounting procedure.
• When the system is no longer to be used, have a qualified technician promptly remove and dispose of it.
• Do not use a power screwdriver or impact screwdriver to tighten screws. A torque screwdriver or similar tool
should be used.
Dimensions
Illustration shows the ET-PKA110S attached to a projector.
Attachment plate
25 ( 31/32)
114 (4-1/2)
140 ( 5-1/2)
∅8.5
(∅11/32)
Projector
104 (4-3/32)
52.5
( 2-1/16 )
PT-AE7000/AT5000: 204 (8-1/32)
PT-AR100/AH1000: 220 (8-21/16)
160 ( 6-5/16 )
154
( 6-1/16 )
3-∅9.5 ( ∅3/8 )
Attachement
plate
130 ( 5-1/8 )
20 ( 2-9/16 )
150 ( 5-29/32)
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
Weights­ and­ dimensions­ shown­ are­ approximate.­ Specifications­ subject­ to­ change­ without­ notice.
As­ of­ September­ 2011
SFL11A006
1/1
