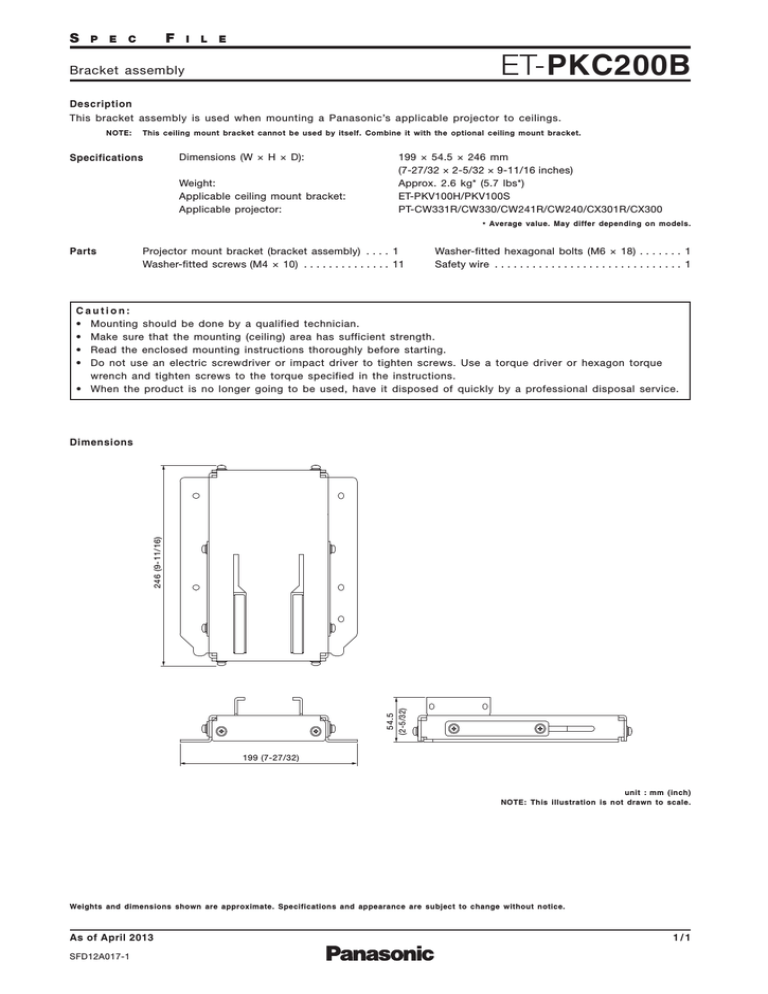

ET-PKC200B
Bracket assembly
Description
This bracket assembly is used when mounting a Panasonic’s applicable projector to ceilings.
NOTE:
This ceiling mount bracket cannot be used by itself. Combine it with the optional ceiling mount bracket.
Dimensions (W × H × D):
Specifications
Weight:
Applicable ceiling mount bracket:
Applicable projector:
199 × 54.5 × 246 mm
(7-27/32 × 2-5/32 × 9-11/16 inches)
Approx. 2.6 kg* (5.7 lbs*)
ET-PKV100H/PKV100S
PT-CW331R/CW330/CW241R/CW240/CX301R/CX300
* Average value. May differ depending on models.
Parts
Projector mount bracket (bracket assembly) . . . . 1
Washer-fitted screws (M4 × 10) . . . . . . . . . . . . . . 11
Washer-fitted hexagonal bolts (M6 × 18) . . . . . . . 1
Safety wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
54.5
(2-5/32)
246 (9-11/16)
Dimensions
199 (7-27/32)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
As of April 2013
SFD12A017-1
1/1
