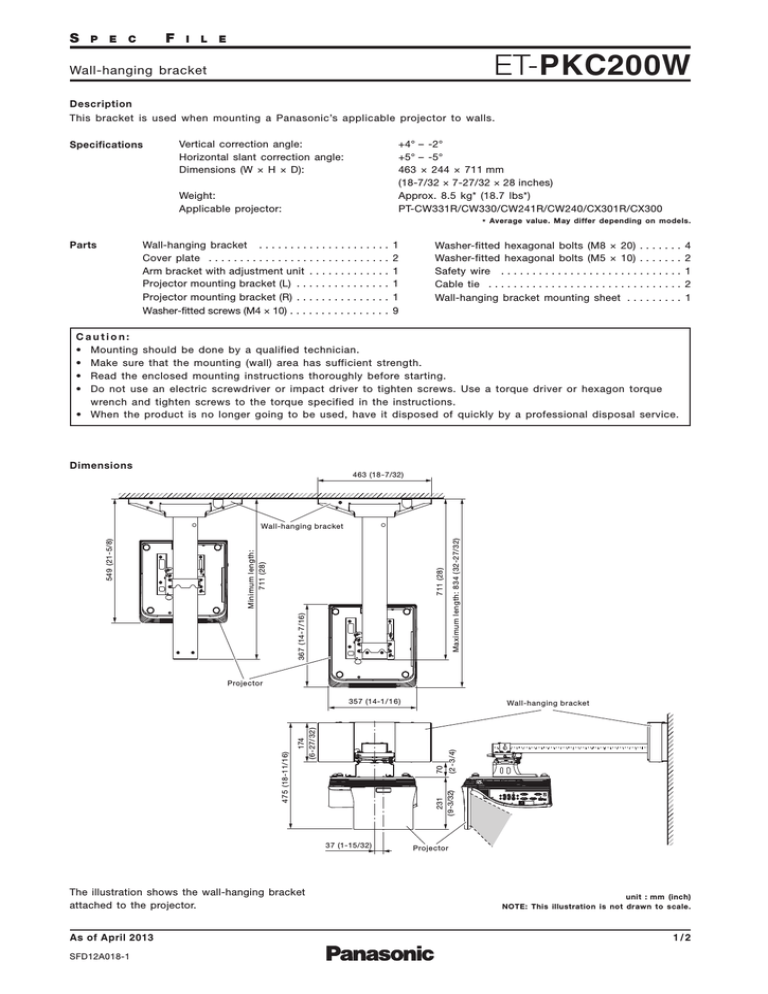

ET-PKC200W
Wall-hanging bracket
Description
This bracket is used when mounting a Panasonic’s applicable projector to walls.
Specifications
Vertical correction angle:
Horizontal slant correction angle:
Dimensions (W × H × D):
+4° – -2°
+5° – -5°
463 × 244 × 711 mm
(18-7/32 × 7-27/32 × 28 inches)
Approx. 8.5 kg* (18.7 lbs*)
PT-CW331R/CW330/CW241R/CW240/CX301R/CX300
Weight:
Applicable projector:
* Average value. May differ depending on models.
Parts
Wall-hanging bracket . . . . . . . . . . . . . . . . . . . .
Cover plate . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Arm bracket with adjustment unit . . . . . . . . . . . .
Projector mounting bracket (L) . . . . . . . . . . . . . .
Projector mounting bracket (R) . . . . . . . . . . . . . .
Washer-fitted screws (M4 × 10) . . . . . . . . . . . . . . .
.
.
.
.
.
.
1
2
1
1
1
9
Washer-fitted hexagonal bolts (M8 × 20)
Washer-fitted hexagonal bolts (M5 × 10)
Safety wire . . . . . . . . . . . . . . . . . . . . . .
Cable tie . . . . . . . . . . . . . . . . . . . . . . . .
Wall-hanging bracket mounting sheet . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
4
2
1
2
1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (wall) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
Dimensions
463 (18-7/32)
367 (14-7/16)
711 (28)
Maximum length: 834 ( 32-27/32)
Minimum length:
711 (28)
549 (21-5/8)
Wall-hanging bracket
Projector
The illustration shows the wall-hanging bracket
attached to the projector.
SFD12A018-1
( 2 - 3 /4)
70
231
( 9 -3/32)
37 (1-15/32)
As of April 2013
Wall-hanging bracket
174
( 6-27/32)
475 (18-11/16)
357 (14-1/1 6 )
Projector
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
1/2
S
P
E
C
F
I
L
E
ET-PKC200W
Wall-hanging bracket
Dimensions
• Wall-hanging bracket
45 × 80
(1-25/32 × 3-5/32)
135 (5-5/16)
174 (6-27/32)
27
(1-1/16)
13 × 33
(1/2 × 1-5/16)
224 (8-13/16)
406 (15-31/32)
463 (18-7/32)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
Weights and dimensions shown are approximate.
Specifications and appearance are subject to change without notice.
As of April 2013
SFD12A018-1
2/2
