ET-PKD510H
Ceiling mount bracket for high ceilings
Description
This ceiling mount bracket is used when mounting a Panasonic' s applicable projector to high ceilings.
Specifications
Vertical correction angle:
Horizontal slant correction angle:
Horizontal turn correction angle:
Dimensions (W × H × D):
+5°, -17°
±2.5°
±1.2°
350 × 409 – 529 × 535 mm
(13-25/32 × 16-3/32 –20-13/16 × 21-1/16 inches)
Approximately 13.5 kg (29.8 lbs)
PT-DZ21K/DS20K/DW17K
Weight*:
Applicable projector:
* Average value. May differ depending on the actual unit.
Parts
Attachment plate . . . . .
Projector mount bracket
Adjuster pole A . . . . . . .
Adjuster pole B . . . . . . .
Angle adjuster . . . . . . . .
Pole support bracket 1 .
Pole support bracket 2 .
Pole base . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
1
1
1
1
1
1
1
Hexagonal head bolt (M6 × 110) . .
Spring washer (M6) . . . . . . . . . . . .
Washers . . . . . . . . . . . . . . . . . . . . .
Hexagonal nut . . . . . . . . . . . . . . . .
Washer-fitted hexagonal bolts (M6 ×
Washer-fitted hexagonal bolts (M6 ×
Washer-fitted hexagonal bolts (M8 ×
Drop prevention kit . . . . . . . . . . . . .
...
...
...
...
30)
16)
20)
...
.
.
.
.
.
.
.
.
.
.
.
..
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 1
. 1
. 2
. 1
. 6
32
. 4
. 1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.

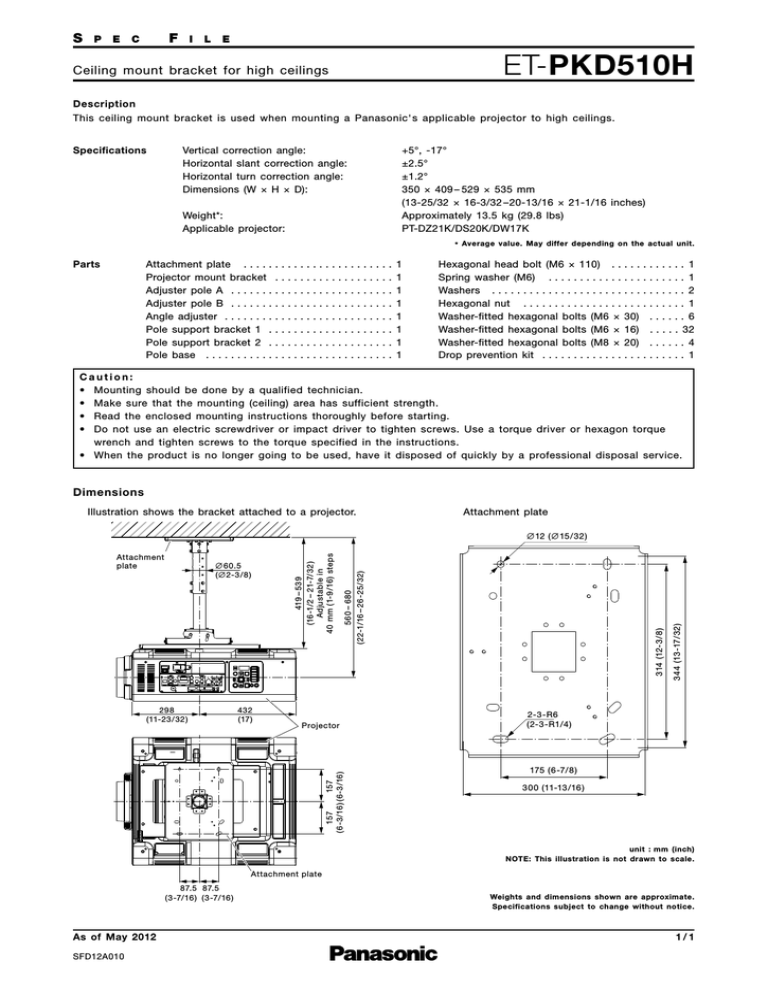

Dimensions
Illustration shows the bracket attached to a projector.
Attachment plate
∅
432
(17)
Projector
157
157
( 6-3/16 ) ( 6-3/16 )
298
(11-23/32)
314 (12-3/8 )
344 (13-17/32)
∅ 60.5
(∅ 2-3/8 )
560 – 680
(22-1/16 – 26-25/32)
Attachment
plate
419 – 539
(16-1/2 – 21-7/32)
Adjustable in
40 mm (1-9/16 ) steps
∅ 12 (∅ 15/32)
2-3-R6
(2-3-R1/4)
175 ( 6-7/8 )
300 (11-13/16 )
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
Attachment plate
87.5 87.5
( 3-7/16 ) ( 3-7/16 )
As of May 2012
SFD12A010
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
1/1
