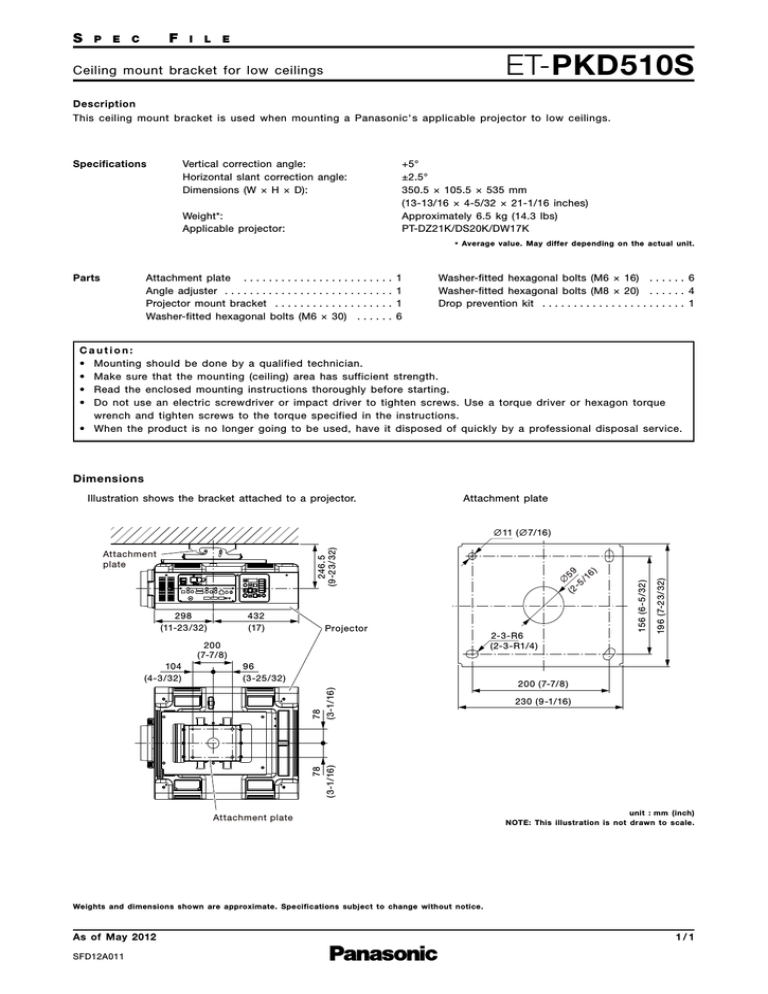

ET-PKD510S
Ceiling mount bracket for low ceilings
Description
This ceiling mount bracket is used when mounting a Panasonic' s applicable projector to low ceilings.
Specifications
Vertical correction angle:
Horizontal slant correction angle:
Dimensions (W × H × D):
+5°
±2.5°
350.5 × 105.5 × 535 mm
(13-13/16 × 4-5/32 × 21-1/16 inches)
Approximately 6.5 kg (14.3 lbs)
PT-DZ21K/DS20K/DW17K
Weight*:
Applicable projector:
* Average value. May differ depending on the actual unit.
Parts
Attachment plate . . . . . . . . . . . . . .
Angle adjuster . . . . . . . . . . . . . . . . .
Projector mount bracket . . . . . . . . .
Washer-fitted hexagonal bolts (M6 ×
...
...
...
30)
....
....
....
...
.
.
.
.
.
.
.
.
.
.
.
.
1
1
1
6
Washer-fitted hexagonal bolts (M6 × 16) . . . . . . 6
Washer-fitted hexagonal bolts (M8 × 20) . . . . . . 4
Drop prevention kit . . . . . . . . . . . . . . . . . . . . . . . 1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
Dimensions
Illustration shows the bracket attached to a projector.
Attachment plate
432
(17)
Projector
P
2
2-3-R6
(2-3-R1/4)
200
(7-7/8 )
96
( 3-25/32)
2
200 (7-7/8 )
230 ( 9-1/16 )
78
( 3-1/16 )
78
( 3-1/16 )
104
(4-3/32)
156 ( 6-5/32)
298
(11-23/32)
196 (7-23/32)
∅
5
-5 9
/1
6)
(2
Attachment
plate
∅
246.5
( 9-23/32)
∅ 11 (∅ 7/16 )
Attachment plate
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
As of May 2012
SFD12A011
