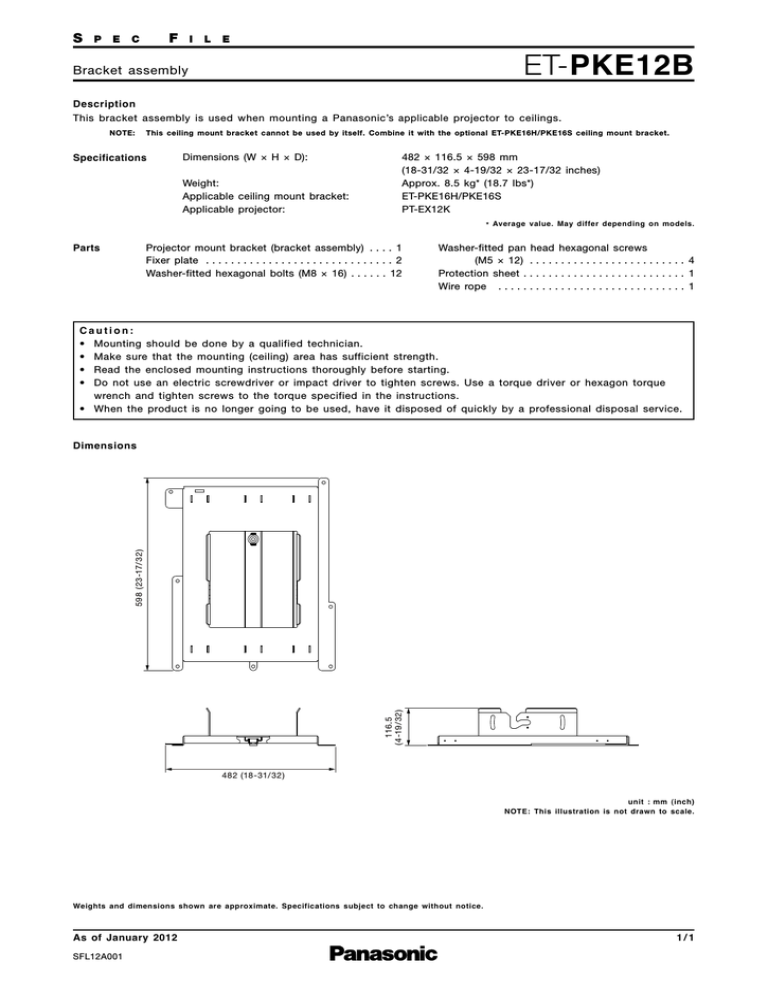

ET-PKE12B
Bracket assembly
­D escription
This bracket assembly is used when mounting a Panasonic’s applicable projector to ceilings.
This ceiling mount bracket cannot be used by itself. Combine it with the optional ET-PKE16H/PKE16S ceiling mount bracket.
NOTE:
Specifications
Dimensions (W × H × D):
Weight:
Applicable ceiling mount bracket:
Applicable projector:
482 × 116.5 × 598 mm
(18-31/32 × 4-19/32 × 23-17/32 inches)
Approx. 8.5 kg* (18.7 lbs*)
ET-PKE16H/PKE16S
PT-EX12K
* Average­ value.­ May­ differ­ depending­ on­ models.
Parts
Projector mount bracket (bracket assembly) . . . . 1
Fixer plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Washer-fitted hexagonal bolts (M8 × 16) . . . . . . 12
Washer-fitted pan
(M5 × 12)
Protection sheet .
Wire rope . . . . .
head hexagonal screws
......................... 4
......................... 1
......................... 1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
116.5
(4-19/32)
598 ( 23-17/32)
Dimensions
482 (18-31/32)
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
Weights­ and­ dimensions­ shown­ are­ approximate.­ Specifications­ subject­ to­ change­ without­ notice.
As­ of­ January­ 2012
SFL12A001
1/1
