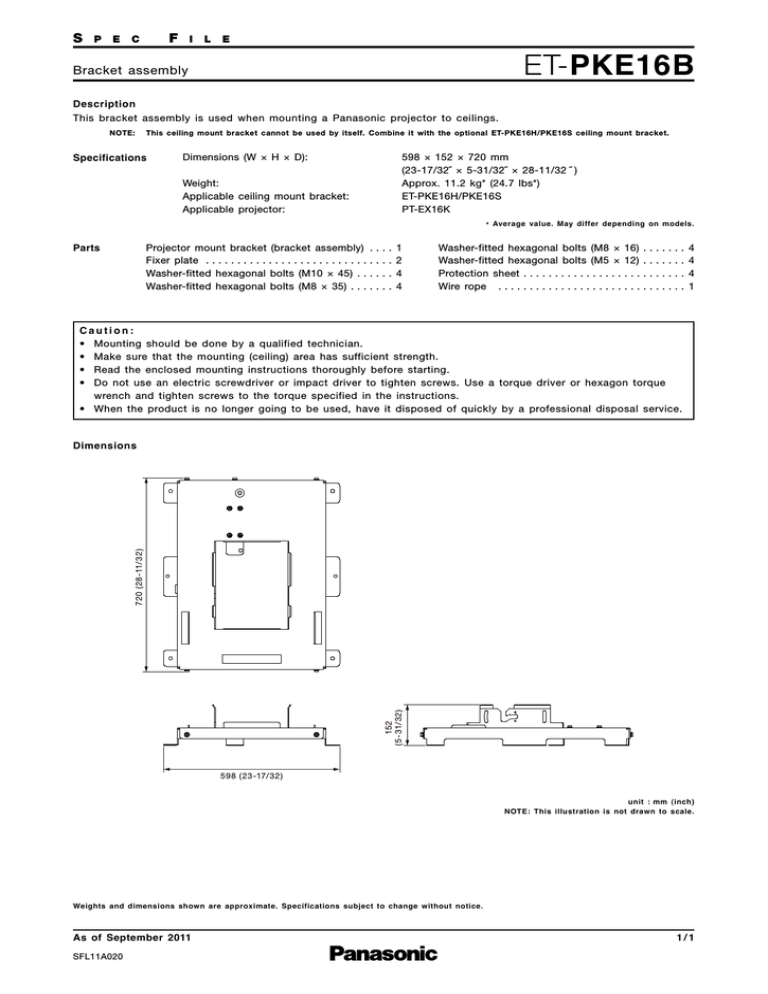

ET-PKE16B
Bracket assembly
­D escription
This bracket assembly is used when mounting a Panasonic projector to ceilings.
NOTE:
This ceiling mount bracket cannot be used by itself. Combine it with the optional ET-PKE16H/PKE16S ceiling mount bracket.
Specifications
Dimensions (W × H × D):
598 × 152 × 720 mm
(23-17/32˝ × 5-31/32˝ × 28-11/32 ˝ )
Approx. 11.2 kg* (24.7 lbs*)
ET-PKE16H/PKE16S
PT-EX16K
Weight:
Applicable ceiling mount bracket:
Applicable projector:
* Average­ value.­ May­ differ­ depending­ on­ models.
Parts
Projector mount bracket (bracket assembly)
Fixer plate . . . . . . . . . . . . . . . . . . . . . . . . . .
Washer-fitted hexagonal bolts (M10 × 45) . .
Washer-fitted hexagonal bolts (M8 × 35) . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
2
4
4
Washer-fitted hexagonal
Washer-fitted hexagonal
Protection sheet . . . . . .
Wire rope . . . . . . . . . .
bolts (M8 ×
bolts (M5 ×
..........
..........
16)
12)
...
...
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
4
4
4
1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
152
( 5-31/32)
720 ( 28-11/32)
Dimensions
598 ( 23-17/32)
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
Weights­ and­ dimensions­ shown­ are­ approximate.­ Specifications­ subject­ to­ change­ without­ notice.
As­ of­ September­ 2011
SFL11A020
1/1
