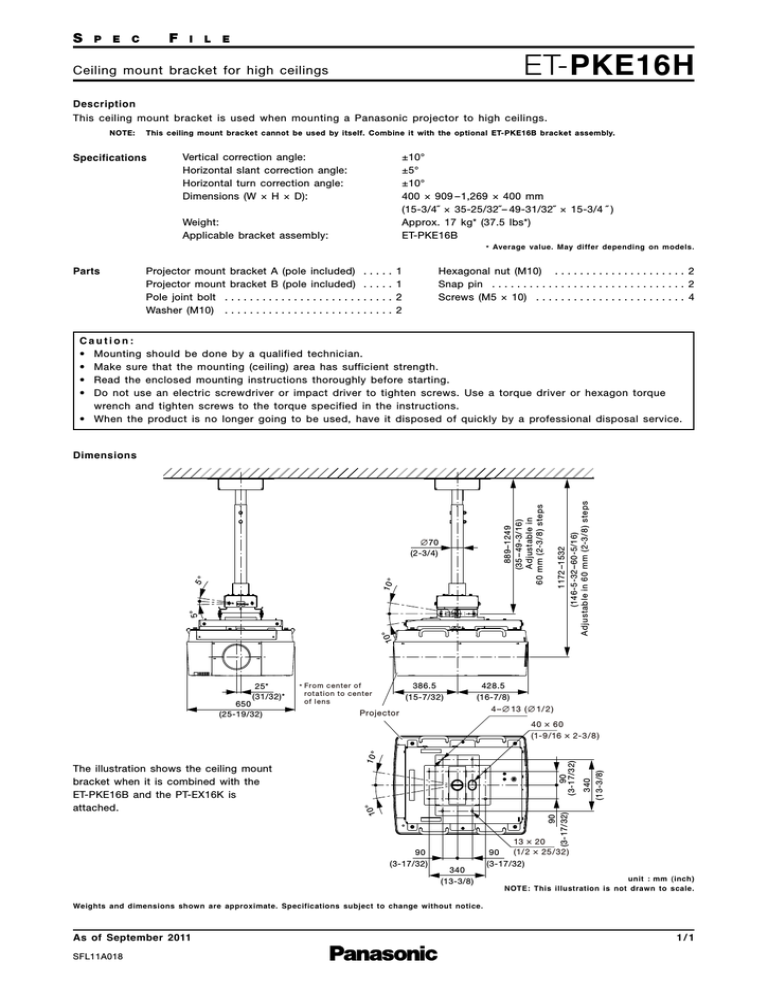

ET-PKE16H
Ceiling mount bracket for high ceilings
­D escription
This ceiling mount bracket is used when mounting a Panasonic projector to high ceilings.
NOTE:
This ceiling mount bracket cannot be used by itself. Combine it with the optional ET-PKE16B bracket assembly.
Specifications
Vertical correction angle:
Horizontal slant correction angle:
Horizontal turn correction angle:
Dimensions (W × H × D):
±10°
±5°
±10°
400 × 909 –1,269 × 400 mm
(15-3/4˝ × 35-25/32˝– 49-31/32˝ × 15-3/4 ˝ )
Approx. 17 kg* (37.5 lbs*)
ET-PKE16B
Weight:
Applicable bracket assembly:
* Average­ value.­ May­ differ­ depending­ on­ models.
Parts
Projector mount bracket A
Projector mount bracket B
Pole joint bolt . . . . . . . . .
Washer (M10) . . . . . . . . .
(pole included)
(pole included)
.............
.............
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
1
2
2
Hexagonal nut (M10) . . . . . . . . . . . . . . . . . . . . . 2
Snap pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Screws (M5 × 10) . . . . . . . . . . . . . . . . . . . . . . . . 4
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
889–1249
(35 – 49-3/16)
Adjustable in
60 mm ( 2-3/8 ) steps
∅70
(2-3/4)
5°
10°
5°
1172 –1532
(146-5-32–60-5/16)
Adjustable in 60 mm ( 2-3/8 ) steps
Dimensions
10°
A* 1
25*
(31/32)*
650
(25-19/32)
* From ce nte r of
rot ation to ce nte r
of le ns
386.5
(15-7/32)
428.5
(16-7/8)
4 – ∅ 13 ( ∅ 1/ 2 )
Projector
340
(13-3/8)
90
(3-17/32)
10°
The illustration shows the ceiling mount
bracket when it is combined with the
ET-PKE16B and the PT-EX16K is
attached.
90
(3-17/32)
10°
40 × 60
(1-9/16 × 2-3/8 )
90
(3-17/32)
340
(13-3/8)
13 × 20
(1/2 × 25/32)
90
(3-17/32)
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
Weights­ and­ dimensions­ shown­ are­ approximate.­ Specifications­ subject­ to­ change­ without­ notice.
As­ of­ September­ 2011
SFL11A018
