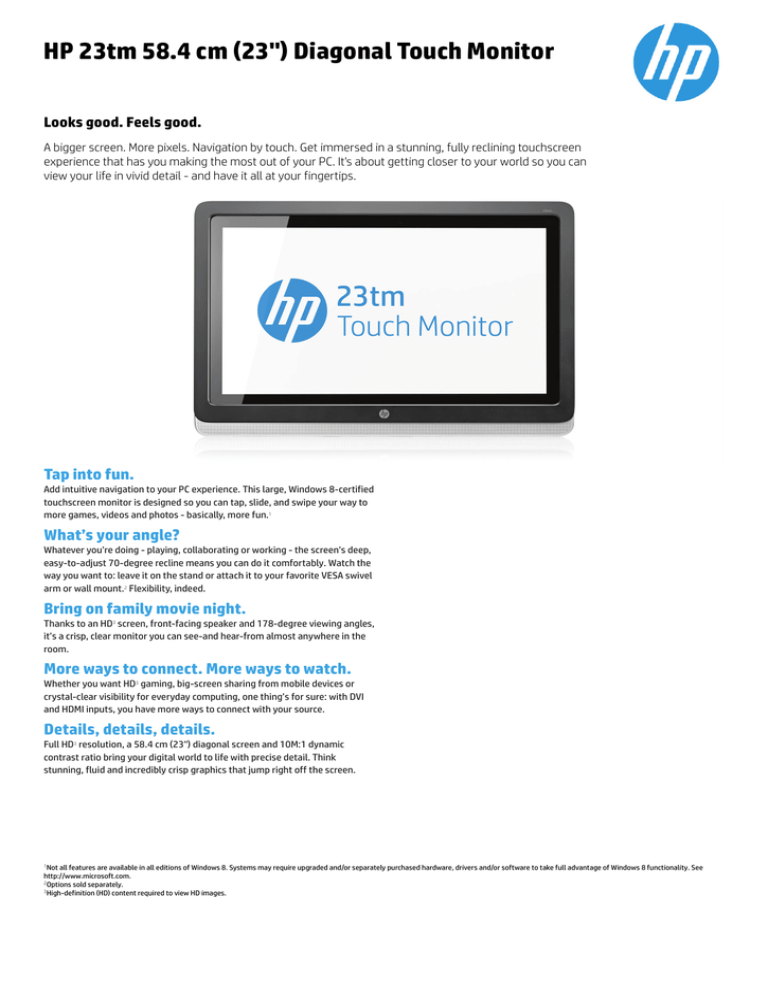

HP 23tm 58.4 cm (23") Diagonal Touch Monitor
Looks good. Feels good.
A bigger screen. More pixels. Navigation by touch. Get immersed in a stunning, fully reclining touchscreen
experience that has you making the most out of your PC. It's about getting closer to your world so you can
view your life in vivid detail - and have it all at your fingertips.
Tap into fun.
Add intuitive navigation to your PC experience. This large, Windows 8-certified
touchscreen monitor is designed so you can tap, slide, and swipe your way to
more games, videos and photos - basically, more fun.1
What’s your angle?
Whatever you’re doing - playing, collaborating or working - the screen’s deep,
easy-to-adjust 70-degree recline means you can do it comfortably. Watch the
way you want to: leave it on the stand or attach it to your favorite VESA swivel
arm or wall mount.2 Flexibility, indeed.
Bring on family movie night.
Thanks to an HD3 screen, front-facing speaker and 178-degree viewing angles,
it’s a crisp, clear monitor you can see-and hear-from almost anywhere in the
More ways to connect. More ways to watch.
Whether you want HD3 gaming, big-screen sharing from mobile devices or
crystal-clear visibility for everyday computing, one thing’s for sure: with DVI
and HDMI inputs, you have more ways to connect with your source.
Details, details, details.
Full HD3 resolution, a 58.4 cm (23") diagonal screen and 10M:1 dynamic
contrast ratio bring your digital world to life with precise detail. Think
stunning, fluid and incredibly crisp graphics that jump right off the screen.
all features are available in all editions of Windows 8. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows 8 functionality. See
2Options sold separately.
3High-definition (HD) content required to view HD images.
HP 23tm 58.4 cm (23") Diagonal Touch Monitor
Display Size
58.4 cm (23")
Aspect Ratio
Widescreen (16:9)
Display type
IPS with LED backlighting
Pixel pitch
0.265 mm
Refresh response time
7 ms gray to gray
220 cd/m²
Contrast ratio
1000:1 static; 10000000:1 dynamic
Viewing angle
178° horizontal; 178° vertical
Video input signal
1 DVI-D with HDCP; 1 HDMI with HDCP
1920 x 1080
Recommended resolution
All VESA modes up to 1920 x 1080 @ 60Hz (native recommended)
Display Scan Frequency (horizontal)
Up to 94 kHz
Display Scan Frequency (vertical)
Up to 76 Hz
Display features
Plug and Play; Touch Panel
Speakers (2W per channel)
External I/O Ports
Internal speakers and headphone jack
Physical security features
Security Lock
Display moving angle
Tilt angle: +15 to +70°
Environmental Specifications
Low Halogen; Arsenic-Free Display Glass; Mercury-free LED display backlighting
Management software
Power Supply and Power Requirements
External Power Supply; Power Consumption: 33W maximum, 25W typical; Standby mode: 0.5W
Display User Control Options
Brightness; Contrast; Color; Image Control; OSD Control; Management features; Language; Input Select; Information and Factory Reset
Dimensions (W x D x H)
599.3 x 69.5 x 409.2 mm
6.5 kg
Package Dimensions (W x D x H)
680 x 139 x 507 mm
Package Weight
8.5 kg
Operating Temperature Range
5 to 35° C
Operating Humidity Range
20 to 80% relative humidity non-condensing
Storage Temperature Range
-20 to 60° C
Non-operating Humidity Range
5 to 95% relative humidity non-condensing
Storage Temperature Range
-20 to 60° C
Non-operating Humidity Range
5 to 95% relative humidity non-condensing
Certifications and compliances
CB; CE; TUV-S; CUL; FCC; CSA; NOM; S-Mark; VCCI; PSB; ISC; CCC; BSMI; C-Tick; E-Standby; eK; CECP; Microsoft WHQL Certification
Product colour
Jack Black and Silver
Limited one-year parts and repair labour
Country of Origin
Box Content
Monitor; Documentation kit w/CD; Speakers (built-in); HDMI video cable; Audio cable; USB cable; Power adapter; Power cable
Ordering info
E1L10AA#ABB (France, Italy, Netherlands, Germany, Austria, French Africa, English Africa, Spain, Portugal, Finland, Sweden, Norway, Baltics, Poland, Slovakia, Czech
Republic, Russia, Turkey, Greece), UPC 887758467008
E1L10AA#ABU (UK & Ireland), UPC 887758467015
E1L10AA#UUZ (Switzerland), UPC 887758467022
E1L10AA#ABY (Denmark), UPC 887758467039
E1L10AA#ABT (Israel), UPC 887758467046 E1L10AA#ACQ (South Africa), UPC 887758467053
E1L10AA#ABV (Middle East), UPC 887758467060
E1L10AA#UUG (Belgium), UPC 887758467077
E1L10AA#AKQ (Serbia), UPC 887758467091
E1L10AA#A2N (Saudi Arabia), UPC 887758467084 E1L10AA#A2Q (Ukraine), UPC 887758467107
© 2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
All performance specifications are provided by the component manufacturers. Performance specifications represent the highest
specification of all HP's component manufacturers' typical level specifications for performance. Actual performance may vary either higher
or lower.
August 2013
