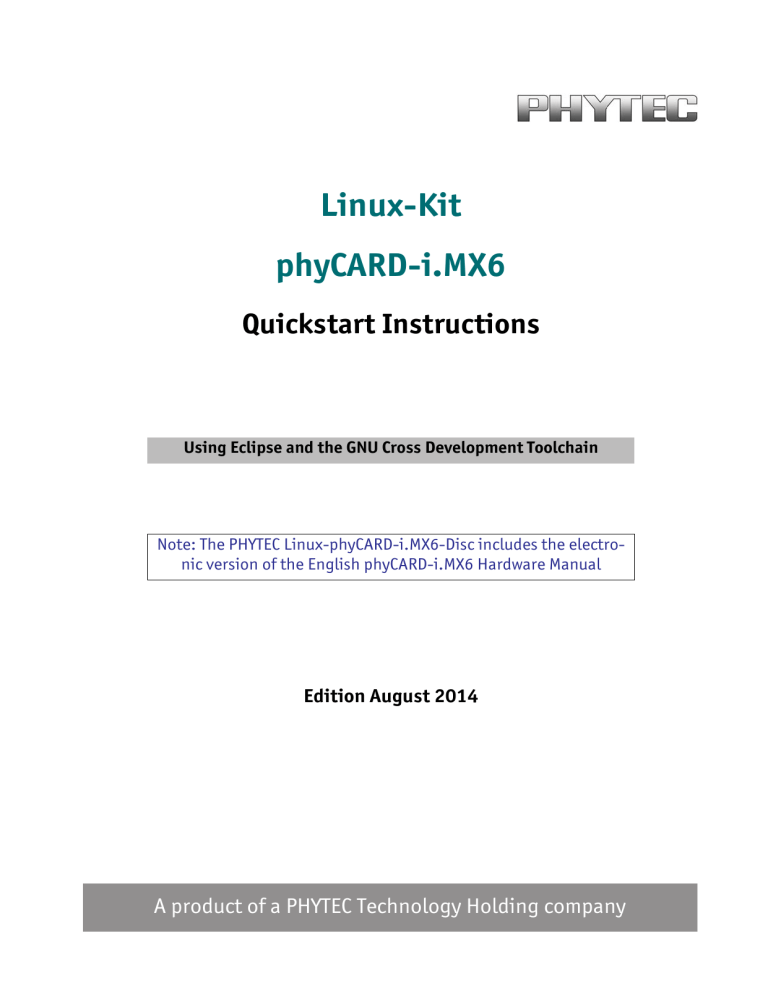

Linux-Kit phyCARD-i.MX6

Linux-Kit phyCARD-i.MX6
Linux-Kit
phyCARD-i.MX6
Quickstart Instructions
Using Eclipse and the GNU Cross Development Toolchain
Note: The PHYTEC Linux-phyCARD-i.MX6-Disc includes the electronic version of the English phyCARD-i.MX6 Hardware Manual
Edition August 2014
A product of a PHYTEC Technology Holding company
phyCARD-i.MX6
Copyrighted products are not explicitly indicated in this manual. The absence of the
trademark (™) and copyright (©) symbols does not imply that a product is not
protected. Additionally, registered patents and trademarks are similarly not expressly
indicated in this manual.
This product contains software components that are licensed by the holder of the rights
as free software, or open source software, under GNU General Public License, Version 2.
For 5 euros (to cover the costs of providing the data carrier and shipping) you can obtain
the source code for these software components from us on a data carrier (CD or DVD) by
submitting a request to our customer service department at the following address
within three years after we distribute the product:
Phytec Messtechnik GmbH
Phytec Support
Robert-Koch-Str. 39
55129 Mainz
Phone: +49 6131 9221 31
Source code: phyCARD-i.MX6
The information in this document has been carefully checked and is considered to be
entirely reliable. However, PHYTEC Messtechnik GmbH assumes no responsibility for any
inaccuracies. PHYTEC Messtechnik GmbH neither gives any guarantee nor accepts any
liability whatsoever for consequential damages resulting from the use of this manual or
its associated product. PHYTEC Messtechnik GmbH reserves the right to alter the information contained herein without prior notification and accepts no responsibility for any
damages that might result.
Additionally, PHYTEC Messtechnik GmbH offers no guarantee nor accepts any liability
for damages arising from the improper usage or improper installation of the hardware
or software. PHYTEC Messtechnik GmbH further reserves the right to alter the layout
and/or design of the hardware without prior notification and accepts no liability for
doing so.
© Copyright 2014 PHYTEC Messtechnik GmbH, D-55129 Mainz.
Rights - including those of translation, reprint, broadcast, photo-mechanical or similar
reproduction and storage or processing in computer systems, in whole or in part - are
reserved. No reproduction may be made without the explicit written consent from
PHYTEC Messtechnik GmbH.
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
EUROPE
NORTH AMERICA
Address:
PHYTEC Messtechnik GmbH
Robert-Koch-Str. 39
D-55129 Mainz
GERMANY
PHYTEC America LLC
203 Parfitt Way SW, Suite
G100
Bainbridge Island, WA 98110
USA
Ordering Information:
+49 (6131) 9221-30
[email protected]
1 (800) 278-9913
[email protected]
Technical Support:
+49 (6131) 9221-31
[email protected]
1 (800) 278-9913
[email protected]
Fax:
+49 (6131) 9221-33
1 (206) 780-9135
Web Site:
http://www.phytec.de
http://www.phytec.eu
http://www.phytec.com
Editon August 2014
L-805e_1
© PHYTEC Messtechnik GmbH 2014
phyCARD-i.MX6
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Table of content
Table of Contents
1
2
3
4
5
Introduction ...................................................................1
1.1 Rapid Development Kit Documentation........................... 1
1.2 Professional Support Packages Available......................... 1
1.3 Overview of these QuickStart Instructions ....................... 2
1.4 Conventions used in this QuickStart ............................... 2
1.5 System Requirements ................................................. 4
1.6 Contents of the Linux-phyCARD-i.MX6-Kit-DVD ................ 4
1.7 About the Ubuntu distribution...................................... 5
Getting started................................................................6
2.1 Some notes before starting .......................................... 6
2.2 First impressions of the Live DVD ................................... 7
2.3 Starting the Hardware................................................. 9
2.4 Copying an Example to the Target................................ 14
2.4.1Copying a Program to the Target .......................... 14
2.4.2Using Telnet to execute a Program on the Target ..... 16
2.4.3Using SSH to execute a Program on the Target ........ 17
2.5 Advanced Information .............................................. 19
2.5.1Copying a Program to the Target with the command line 19
2.5.2Executing a program on the target ....................... 19
2.5.3Executing a program directly on the target using SSH 19
Getting more involved .................................................... 20
3.1 Working with the Kernel ............................................ 20
3.2 Working with the filesystem ....................................... 21
3.3 Writing the Images into the Target´s Flash.................... 26
Working with Eclipse...................................................... 29
4.1 Programming in the C/C++ perspective ......................... 29
4.1.1Handle with the demo project.............................. 29
4.1.2Creating a New Project ....................................... 37
4.1.3Changing the Demo Application ........................... 47
4.1.4Starting a Program out of Eclipse on the Target ....... 50
4.2 Programming in the Qt C++ perspective ........................ 53
4.2.1Importing the demo application........................... 53
4.2.2Handle with the demo application ........................ 60
Debugging an example project......................................... 62
5.1 Starting the GDB server on the target........................... 62
5.2 Configuring and starting the debugger in Eclipse............ 63
L-805e_1
© PHYTEC Messtechnik GmbH 2014
5 min
35 min
70 min
35 min
35 min
Table of content
5.3
5.4
5.5
5.6
phyCARD-i.MX6
Setting a Breakpoint .................................................69
Stepping and Watching Variable Contents......................70
Stepping and Watching Variable Contents......................73
Using the Memory Monitor..........................................75
6
Summary...................................................................... 78
7
Installing Linux on the phyCARD-i.MX6............................. 79
7.1 Configure Barebox Environments Variables ....................79
7.2 Update the Bootloader ..............................................81
7.3 Writing the Kernel / Root File System into Flash ..............82
8
Setup your own Linux-Host-PC ........................................ 83
8.1 Essential settings .....................................................83
8.1.1Installation of software packages..........................83
8.1.2Setup the serial connection .................................84
8.1.3Setup of toolchain, PTXdist and BSP ......................84
8.1.4Setting up Eclipse and integrate plug ins ................86
8.1.5Setting up a TFTP server ......................................87
8.2 Optional settings ......................................................88
9
Installation of the modified Ubuntu................................. 89
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
1 Introduction
Introduction
5 min
In this QuickStart Instructions Manual you will find general information about the PHYTEC
phyCARD-i.MX6-Kit and instructions how to start-up with the phyCARD-i.MX6. You will learn
how to...
• ... connect to the target in different ways.
• ... handle with PTXdist and the BSP-Phytec-phyCARD-i.MX6-PD14.1.0 to build your own
images.
• ... working with Eclipse and running example programs on the target with the GNU GCC
C/C++ Cross-Development Toolchain.
• ... and much more good to know things.
This first Chapter gives a short introduction about the PHYTEC phyCARD-i.MX6-Kit and it's
Quickstart. Also you will find general requirements and information to successfully pass
the Quickstart.
Please refer to the phyCARD-i.MX6 Hardware Manual® for specific information on such
board-level features as jumper configuration, memory mapping and pin layout.
1.1 Rapid Development Kit Documentation
This "Rapid Development Kit" (RDK) includes the following electronic documentation
on the enclosed Linux-phyCARD-i.MX6-Disc "SO-534" under PHYTEC/Documentations or
if you are in the Live Environment under /opt/PHYTEC_Tools/Documentation.
• The PHYTEC phyCARD-i.MX6 Hardware Manual
• These Quickstart Instructions
• The BSP Quickstart
1.2 Professional Support Packages Available
If you have any questions concerning installation and setup, you are welcome to
contact our support department.
For more in-depth questions, we offer a variety of custom-tailored packages with different support options (e-mail, phone, direct contact to the developer) and different
reaction times. Please contact our sales team to discuss the appropriate support option
if professional support beyond installation and setup is important for you.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
1
Introduction
phyCARD-i.MX6
For more information please refer to the following sources:
http://www.phytec.de
http://www.phytec.eu
[email protected]
Also more contact information can be found on page 2.
1.3 Overview of these QuickStart Instructions
This QuickStart gives you an overview of the phyCARD-i.MX6. It's content ranges from
the first startup, to building your own kernel and file system, to the point of building
your own program with Eclipse. This Quickstart is structured as follows:
1. The “Getting Started” section describes the basics such as configure your host
platform and starting the phyCARD-i.MX6 platform.
2. The “Getting More Involved” section provides step-by-step instructions on how to
configure, build and install a new kernel and file system.
3. The “Programming with Eclipse” section explains how to modify an example application, create and build a new project, and copy programs to the phyCARD-i.MX6 using
Eclipse with the C/C++ and the Qt plug in .
4. The “Debugging” section provides information on how to debug an application with
the Eclipse debugging interface.
5. In the Appendix you will find an overview about how to install Linux on the target,
how to install the Live DVD on your system and how to setup your own Linux-Host-PC
if you don't want to use our Live DVD.
1.4 Conventions used in this QuickStart
The following is a list of the typographical conventions used in this book:
italic
Used for file and directory names, program and command names,
command-line options, menu items, URLs, and other terms that
correspond to the terms on your desktop
Bold
Used in examples to show commands or other text that should be
typed literally by the user.
2
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Introduction
Pay special attention to notes set apart from the text with the following icons:
At this icon you might leave the path of this QuickStart.
This is a warning. It helps you to avoid annoying problems.
You can find useful supplementary information about the topic.
At the beginning of each chapter you can find information about the
time required to read the following chapter.
You have successfully completed an important part of this QuickStart.
You can find information to solve problems.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
3
Introduction
phyCARD-i.MX6
1.5 System Requirements
The following items will be needed to complete this Quickstart successfully:
• The PHYTEC phyCARD-i.MX6 (i.MX6)
• The PHYTEC Development Board with the included DB-9 serial cable, Ethernet
cross-over cable and AC adapter supplying 12 VDC (min. 2 A)
• PHYTEC Linux-phyCARD-i.MX6-Kit-DVD SO-534
• An IBM-compatible host-PC (586 or higher) with 512 MB RAM (or more)
• DVD-drive with dual/double layer support
• Recommended free disk space: 25 GB if you want to install Ubuntu with our customization
1.6 Contents of the Linux-phyCARD-i.MX6-Kit-DVD
There is a bootable modified Ubuntu distribution on the Linux-phyCARD-i.MX6-Kit-DVD.
You can run Ubuntu directly from your DVD without affecting your current system.
Therefore you have the possibility to work with this Quickstart without installing the
operating system. To allow a fast and smooth procedure some modifications are applied
to the original Ubuntu. A short overview about these modifications:
• Design customization
• Installation of required software to work with this Quickstart
• Preparation of the Toolchain for cross-compilation
• Integration of the PHYTEC Board Support Package
You can find a detailed list in the appendix "Setup your own Linux-Host-PC".
4
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Introduction
1.7 About the Ubuntu distribution
Ubuntu - which you can find on the Linux-phyCARD-i.MX6-Kit-DVD - is a free and open
source operating system based on Debian Linux. Basically it is designed for desktop use.
Web statistics suggest that Ubuntu is one of the most popular operating systems in the
Linux desktop environment.
The Ubuntu release which we deliver is 12.04.5 and was released on 8. August 2014.
Ubuntu 12.04 code name "Precise Pangolin" is designated as a Long Term Support
(LTS) release and the first stable release was on 26 April 2012. LTS means that it will be
supported and updated for five years.
Our Ubuntu version comes with Unity as desktop environment, dpkg as package
management system, the update method is based on APT (Advanced Packaging Tool)
and the user space uses GNU.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
5
Getting started
phyCARD-i.MX6
2 Getting started
35 min
In this chapter we establish a basis to go through the steps in this Quickstart. First you will
learn more about the Ubuntu Live DVD and its handling. Then you will be starting the
phyCARD-i.MX6 platform for the first time.
2.1 Some notes before starting
As mentioned in the beginning of this Quickstart the Linux-phyCARD-i.MX6-Kit-DVD is
an Ubuntu Live DVD with some modifications. This means that you have the freedom to
choose if you want to first test the platform under the live-environment or if you will
directly install Ubuntu on your hard drive. In the following you can find a list of advantages and disadvantages from the perpective of the live-environment to simplify your
decision:
Live-environment vs. Installation
Pro
Contra
• starting directly without preparation
• slower performance
• if anything goes wrong, your system is •
clean after a reset
•
• testing without affecting your current
system
• all Quickstart steps can be done
after a restart all changes are lost
depending on the size of your RAM you
can only do a limited number of changes
• not intended for productive use
Of course more involved users can use their own - perhaps existing distribution. In the appendix "Setup your own Linux-Host-PC" you will
find a list of modifications which have been made to Ubuntu.
These modifications can be done specifically to your system but we
don't ensure support if you have any system specific problems.
Also you can find the essential programs on our DVD under the directory
/PHYTEC
6
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Getting started
2.2 First impressions of the Live DVD
After reading the general notes it's now time for you to start activity. Regardless of
which choice you made it is necessary to change the boot priority in the BIOS.
Your system should first access to the DVD-drive and check if there is a bootable device.
We are starting the Live DVD by inserting the Linux-phyCARD-i.MX6-Kit-DVD and boot
from the DVD-drive.
When the system has completely booted the following screen appears:
In this window you can choose your desired language and you can also choose between
installing the operating system or only testing the system. In the following we assume
that you are working with the live-environment.
If you want to install our Live DVD now you will find the relevant
instructions in the appendix "Install the Live DVD on your host".
After having completed this you can go back to this position and continue
your work.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
7
Getting started
phyCARD-i.MX6
After clicking on "Try Ubuntu" the live-environment is loaded and the system welcomes
you with the following desktop view.
The operating system is booted and in the next chapter we will focus on your first
contact with the target.
8
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Getting started
2.3 Starting the Hardware
In this section you will learn how to connect your host PC to the target. The connection
will be done using a cross-over Ethernet cable and a serial one-to-one cable. You will
start Linux from the flash memory on the target and you will be able to log in with the
serial communication program Microcom as well as via a telnet session using a peer-topeer network connection.
By default every input and output is transmitted over the serial
connection you built up earlier.
• Connect the serial cable to the UART0 RS232 port on the target and the first serial
interface on your host.
Be sure to use the one-to-one serial cable included in this Rapid
Development Kit.
• Connect the cross-over Ethernet cable to the Ethernet connector on the target and
to the appropriate network card of your host.
• Click the Microcom_ttyS0 icon on your desktop, if you have connected the target to
your serial interface on your host. If you have connected the serial cable with an USB
dongle to your PC click the Microcom_ttyUSB0 icon on your deskop.
• Connect the AC adapter to the power supply connector PWR (12V) on your board.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
9
Getting started
phyCARD-i.MX6
After connecting the board to the power supply, the target starts booting. When the
target has finished loading the system, you should see a screen similiar to the following:
• Type root to log in.
• After you have successfully logged in, you can close Microcom.
If you don't see the Bootloader and Linux starting and don't get a login prompt, you
probably have a kit with Windows CE pre-installed. Please refer to the chapter "Installing Linux on the phyCARD-i.MX6" for instructions on how to install Linux in such a case.
When the target is connected to the power supply, the boot loader
Barebox is first loaded from the flash memory. Then the boot loader is
uncompressing and booting the Linux kernel from the flash. Then the
kernel will install the root file system, which is also located in the
target's flash.
10
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Getting started
If you don’t see any output in the Microcom window, check the serial
connection between the target and your host.
If you have more than one serial port try the others. By default
Microcom uses /dev/ttyS0. If you want to use another port you can
click on the Microcom Icon at your desktop with your right mouse
button and select Properties. A window opens in which you can change
the Properties of theMicrocom Icon. Click in the Command field and
search for "-p /dev/ttyS0". Change it for example to /dev/ttyS1 and so
on if you have more than one serial port. If you are connecting the
board via RS232 to USB change it to /dev/ttyUSB0.
The -p Parameter defines the port which Microcom will use.
If the Microcom window does not open, one reason could be a lock-file
which was created when Microcom was not correctly terminated.
Delete this file by opening a terminal and type:
sudo rm /var/lock/LCK..*
After starting the target and see the serial outputs in Microcom we want to connect to
the target via Ethernet.
Before we can start connecting to the target we must configure the IP address of our
host.
We recommend that the host PC is not connected to any other network.
The target and host will be connected with a cross-over cable via a
peer-to-peer connection. If your host is part of a company's network,
we recommend disconnecting your host from such a network.
• In the Unity-Panel at the left of the desktop click on Dash Home write System Settings
in the input field and press Enter.
• After the System Settings dialog appears click on Network icon.
• Choose the right wired network if more than one is present and click on Options....
• Select the IPv4 Settings register and select Manual in the Method drop-down box.
• Click on Add and enter as IP address 192.168.3.10 and subnet mask 255.255.255.0
• At last click on Apply to save this connection and close the windows.
Now we are ready to test the network connection.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
11
Getting started
phyCARD-i.MX6
• Click the Telnet for Target icon on your desktop.
A new window with a connection to the target opens.
If you can see the user login in the opened window, the network was configured
correctly.
• Close the window.
12
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Getting started
Troubleshooting:
If you don’t see the user login, check the Ethernet connection between
the target and the host. If you have installed more than one network
card on your host, be sure to connect the cable to the network card
which you have configured with the IP address 192.168.3.10.
If you do not see the login, you may not have set up the right IP
address for your host. You can check the settings of your network card
by clicking on System Preferences Network Connections.
Another common reason is that the MAC address of the target isn't set
correctly. You can check this by opening Microcom if it is not already
started and reset the target. Press any key to stop autoboot and type:
edit /env/config
Search for a line beginning with "eth0.ethaddr=". After finding this
entry compare it to the MAC address which you find on the target.
If you don't find this line, insert it manually, followed by the MAC
address which you find on the target. For example eth0.ethaddr=00:50:C1:D1:F1:E1. After you have made the change quit the
program by pressing CTRL+D , type save and reset the target.
You have successfully set up all configurations to access your phyCARD-i.MX6 from your
host.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
13
Getting started
phyCARD-i.MX6
2.4 Copying an Example to the Target
In this section you will learn how to copy an example program to the target using the
FTP protocol with the Nautilus file browser. After that you will execute an example on
the target. At the end of this passage you can find some information on how to copy and
execute a file on the target using the command line.
2.4.1 Copying a Program to the Target
• First click the PHYTEC-Tools icon on your Unity desktop.
A new window with the contents from the PHYTEC_Tools directory opens.
• Enter the HelloWorld folder.
14
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Getting started
• Click the FTP for Target icon on your desktop.
A window with an FTP session with the target opens. User is root and password is empty.
Now you have two windows opened, one for the target and one for the host. You can use
these two windows to copy files per “drag and drop” from the host to the target (and
vice versa).
• Select the window that lists the HelloWorld program on your hard disk.
• Click the HelloWorld program with the left mouse button and drag and drop it to the
second window.
• Close the two windows.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
15
Getting started
phyCARD-i.MX6
2.4.2 Using Telnet to execute a Program on the Target
• Click the Telnet for Target icon on your Unity desktop.
• Enter root as login and press Enter.
• Enter ./HelloWorld and press Enter.
The program starts and you should see the following output:
Welcome to the World of PHYTEC!
16
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Getting started
2.4.3 Using SSH to execute a Program on the Target
SSH can be used if you want to execute a program directly from the host on the target.
Later, this will be used to execute programs out of Eclipse on the target. Before you can
start programs out of Eclipse, you have to log in to the target via SSH from the command
line for the first time. This is necessary to add the RSA public key of the target to the list
of known hosts.
When the host connects to the target, the file~/.ssh/known_hosts (on
the host) is consulted when using RSA host authentication to check
the public key of the target. The key must be listed in this file to be
accepted. When the host connects to the target for the first time, you
will be asked to store the target’s RSA public key to your ~/.ssh/
known_hosts. If you agree to do this, then the host will be able to
connect to the target without entering a password.
• Click the SSH for Target icon on the desktop.
A new window opens.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
17
Getting started
phyCARD-i.MX6
In this window you can see that the authenticity of the phyCARD-i.MX6 can't be
established. This is normal if you want to create an SSH connection for the first time.
• Enter yes and press Enter to continue. The RSA public key of the target will be
permanently added to the list of the known hosts.
Troubleshooting:
If an error occurs and you can’t see the [email protected]:~> prompt, open
a terminal window and enter the following command:
rm ~/.ssh/known_hosts
Try to log in again by entering:
ssh [email protected]
Enter yes to add the target to the list of known hosts.
Now you should see the target's prompt.
We expect that you did not change the SSH configuration file on your
host. If you have changed this file, the authentication may not work.
Now you are logged in and you can execute programs on the target.
• Type ./HelloWorld to start the program you had copied to the phyCARD-i.MX6
before.
The program starts and you should see the following output:
Welcome to the World of the PHYTEC!
• Close the SSH window.
You have successfully copied and executed an example application on the
target.
18
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Getting started
2.5 Advanced Information
2.5.1 Copying a Program to the Target with the command line
• Open a new terminal window.
• Change to /opt/PHYTEC_Tools/HelloWorld:
cd /opt/PHYTEC_Tools/HelloWorld
• Copy the application to the target by typing:
scp HelloWorld [email protected]:/home
Be sure to enter a slash followed by a space after the IP address.
2.5.2 Executing a program on the target
• Open a Telnet session to the target:
telnet 192.168.3.11
• Type root and press Enter.
• Type ./HelloWorld to start the application.
• Type exit.
2.5.3 Executing a program directly on the target using SSH
• To start the program, type:
ssh [email protected] ./HelloWorld
After the program has finished, SSH will log out automatically.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
19
Getting more involved
phyCARD-i.MX6
3 Getting more involved
70 min
In this chapter you will go through some continuative topics. First you will configure and
compile your own kernel and root file system. With the help of PTXdist you can add additional features, or disable them if they are not needed. After compiling the new images,
you will learn how to write the newly created kernel and root file system into target’s flash
memory and how to start from.
Then you will start working with the Eclipse platform using the C/C++ Development Tools
(CDT) in conjunction with the GCC C/C++ tool chain. You will learn how to configure the
Eclipse platform and how to open an existing project. After that you will create your first
own project and modify the example’s source code.
At the end of this chapter you will execute the program as an external application out of
Eclipse. Additionally, you will add your application to the startup configuration of the
target so it starts automatically when the phyCARD-i.MX6 boots.
3.1 Working with the Kernel
In this part you will learn how to configure and build a new Linux kernel and a root file
system. Then you will configure the kernel and the root file system with the help of
PTXdist, a tool to build the Board Support Package and to create your own image.
After the configuration you will create your own image.
To configure your images the following files are already pre-installed:
• ptxdist-2012.03.0.tgz (Tool from our partner Pengutronix, that configures and
compiles BSPs)
• BSP-Phytec-phyCARD-i.MX6-PD14.1.0.tar.gz (BSP for the phyCARD-i.MX6)
• OSELAS-2011.11.1 Toolchain: arm-cortexa9-linux-gnueabi
All files are also downloadable from our ftp server or you can find it on
our Linux-phyCARD-i.MX6-Kit-DVD under /PHYTEC/BSP/. If you want
other versions check our ftp server too.
ftp://ftp.phytec.de/
20
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Getting more involved
3.2 Working with the filesystem
Let's start by opening a new terminal if you haven't already opened it and change into
the directory of the pre-installed BSP:
• Click the terminal icon on your desktop.
• Type the following command to change to the BSP-directory:
cd /opt/PHYTEC_BSPs/BSP-Phytec-phyCARD-i.MX6-PD*
• Type the following to show the deselected/selected kernel features:
ptxdist kernelconfig
L-805e_1
© PHYTEC Messtechnik GmbH 2014
21
Getting more involved
phyCARD-i.MX6
You should see the following output on the terminal:
• Leave the menu by selecting < Exit > at the bottom with the arrow right key and press
Enter.
You can find more information about PTXdist and the toolchain in our
"BSP-Quickstart
phyCARD-i.MX6"
under
/opt/PHYTEC_Tools/
Documentation/.
22
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Getting more involved
• Now let's take a look into the user space and add a new program in the root file
system. Type the following:
ptxdist menuconfig
You should see the following output:
• For example we add nano to the user space which is another editor. With the help of
the up and down arrow key we select Editors and press Enter.
• After that, we navigate to nano in the list of editors. By pressing Y we selected nano
as "built-in".
L-805e_1
© PHYTEC Messtechnik GmbH 2014
23
Getting more involved
phyCARD-i.MX6
• Leave the menu by selecting < Exit > at the bottom with the arrow right key and press
Enter. Repeat this until a question appears to save the new configuration.
24
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Getting more involved
• Select < Yes > and press Enter to save the configuration.
• Now we can start building the configured BSP. In the terminal type:
ptxdist go
• After it is finished you can finally create the root file system by calling:
ptxdist images
You will find the kernel named linuximage and the root file system named root.ubi in the
directory platform-phyCARD-i.MX6/images/.
In this section you will build your own kernel and root file system and learn how to
configure and compile it. Now you can add new features to your kernel or remove
features you do not need.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
25
Getting more involved
phyCARD-i.MX6
3.3 Writing the Images into the Target´s Flash
In this section you will find a description on how to write the newly created images into
the phyCARD-i.MX6’s flash memory. Before the images can be written into the flash, the
target will have to download them from a TFTP server. This will be done from the
command line of the boot loader. The images will be copied into target’s RAM. Then you
will have to erase the part of the flash to which you want to copy the images. Finally the
images are written from the RAM to the flash.
In the default configuration you will find four partitions on the target: The first partition
contains the boot loader, the second is used to store the boot loader settings, the third
partition stores the Linux kernel, and the fourth contains the root file system.
You should never erase the Barebox partition. If this partition is erased,
you won't be able to start your target anymore. In such a case please
contact our support department.
• First open a new terminal window if it is not opened yet. Then change to the directory
/opt/PHYTEC_BSPs/BSP-Phytec-phyCARD-i.MX6-PD*.
• Copy the new images to the /tftpboot directory and exit:
cd platform-phyCARD-i.MX6/images
cp linuximage /tftpboot
sudo cp root.ubifs /tftpboot
exit
• Open Microcom and press the RESET button on the target.
You will see the output "Hit any key to stop autoboot".
• Press any key to stop autoboot.
26
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Getting more involved
• Check the network settings with following command:
ifup eth0
devinfo eth0
The target should present the this lines:
ipaddr=192.168.3.11
netmask=255.255.255.0
gateway=255.255.255.0
serverip=192.168.3.10
If you need to change something, type:
edit /env/network/eth0
Edit the settings, save them by leaving the editor with Strg-D, then type saveenv and
reboot the board.
Now we download the images from the TFTP server to the target's RAM, then we erase
the required flash and write the images from the RAM into the flash.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
27
Getting more involved
phyCARD-i.MX6
• Type erase /dev/nand0.kernel.bb to erase the kernel partition.
• Type cp /mnt/tftp/linuximage /dev/nand0.kernel.bb to download the kernel
using TFTP and write it into the target's flash. The copy process can take up to several
minutes.
• Now we flash the root filesystem type:
ubiformat /dev/nand0.root
ubiattach /dev/nand0.root
ubimkvol /dev/ubi0 root 0
cp /mnt/tftp/root.ubifs /dev/ubi0.root
• Type boot to boot the phyCARD-i.MX6 with the new kernel and root file system.
• After the target has successfully finished booting, type root to log in.
• Now we can test our new editor nano by trying to open a file with it.
nano /etc/profile.environment
• Close nano by pressing CTRL+X.
• Close Microcom when nano is closed.
Troubleshooting:
If any problem occurs after writting the kernel or the root file system
into the flash memory, you can restore the original kernel (uImagepbaa03) and root file system (root-pbaa03.ubifs) from the /tftpboot
directory.
In this section you learned how to download images from a tftp server
into the RAM of the target. The images have been written from RAM to
flash and finally the target was started with the new images.
28
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
4 Working with Eclipse
Working with Eclipse
35 min
With the help of example projects, we will teach you how to work with eclipse during this
chapter. First we take a look on the C programming language. At the end of this chapter
we explain how to execute your written programs automatically when booting the
target.
4.1 Programming in the C/C++ perspective
We are starting with the C/C++ workbench. Therefor you will import an existing Eclipse
project into your workspace. The imported example project will be compiled with the
cross compiler. After compiling the project, you will copy and execute the newly created
program on the target.
4.1.1 Handle with the demo project
• Click the Eclipse icon to start the application. You can find this icon on your desktop.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
29
Working with Eclipse
phyCARD-i.MX6
• Confirm the workspace directory with OK.
• You see the Eclipse workbench now. We will first import an existing project now.
• Select File ► Import from the menu bar.
30
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
• Select Existing Projects into Workspace.
• Click Next.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
31
Working with Eclipse
phyCARD-i.MX6
• Select Browse.
32
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
• Double-click the HelloWorld directory under /home/ubuntu/workspace/.
• Click OK.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
33
Working with Eclipse
phyCARD-i.MX6
• Select Finish to import the project.
• On the left side you see the Project Explorer with the imported project. Right click on
the HelloWorld project and select Build Project.
34
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
The HelloWorld program will be compiled and the HelloWorld executable is built for the
target. Then the HelloWorld file is copied to the target using secure copy. After the file
has been copied to the target, the program is executed on the target using SSH.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
35
Working with Eclipse
phyCARD-i.MX6
You will see the following content in the Console window:
To build the project new select Project ► Clean... and Project
►Build Project.
You have successfully passed the first steps with the Eclipse IDE. You are
now able to import existing projects into the Eclipse workspace. You can
compile an existing project and execute the program on the target.
36
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
4.1.2 Creating a New Project
In this section you will learn how to create a new project with Eclipse and how to
configure the project for use with the GNU C/C++ cross development toolchain.
• Open Eclipse if it isn't already opened.
• Select File ► New ► Project from the menu bar.
A new dialog opens.
• Select C Project and click Next.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
37
Working with Eclipse
phyCARD-i.MX6
• Enter the project name myHelloWorld and click Next.
38
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
• Click Finish.
You will see the C/C++ IDE with the myHelloWorld project.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
39
Working with Eclipse
phyCARD-i.MX6
• Double-Click the HelloWorld project which we have worked with previously.
• Right-click on HelloWorld.c in the HelloWorld project.
• Select Copy.
40
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
• Select the myHelloWorld project.
• Right-click the myHelloWorld project.
• Select Paste.
• Double-click on HelloWorld.c in the myHelloWorld project.
If Build Automatically from the Project menu is selected, the HelloWorld application will
now be compiled and created with the standard GCC C/C++ compiler suitable for your
host machine. You will find the executable file, which can only run on your host system,
in the workspace/myHelloWorld/Debug directory.
To compile your project for the phyCARD-i.MX6 instead, you will have to use the GNU C/
C++ cross compiler.
• Right-click the myHelloWorld project and choose Properties.
The Properties dialog appears.
• Select C/C++ Build.
• Enter arm-cortexa9-linux-gnueabi-gcc into the Command input field.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
41
Working with Eclipse
phyCARD-i.MX6
• Select GCC C Linker.
• Enter arm-cortexa9-linux-gnueabi-gcc into the Command input field.
• Select GCC Assembler.
• In the Command input field, change the default as to arm-cortexa9-linuxgnueabi-as.
42
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
• Click Apply.
• Select the Build Steps tab.
• Enter the following command in the Post-build steps Command input field:
scp ./myHelloWorld [email protected]:/home/. ;ssh [email protected] ./
myHelloWorld
L-805e_1
© PHYTEC Messtechnik GmbH 2014
43
Working with Eclipse
phyCARD-i.MX6
Be sure to enter the semicolon before the ssh command.
Be sure that the file myHelloWorld on the target will have execution
rights, because otherwise ssh will fail.
• Click Apply.
• Click OK.
• Select Project ► Clean from the menu bar.
44
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
• Confirm with OK.
The project will be rebuilt.
• Select the Console tab.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
45
Working with Eclipse
phyCARD-i.MX6
If no errors occur while building the project, you will see the following output:
You have successfully created your first own project with the Eclipse IDE.
You have configured the project to create an application for your target
platform.
46
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
4.1.3 Changing the Demo Application
Now we will extend the myHelloWorld application. The extended myHelloWorld application will write an output to the first serial interface as well as to the standard output.
• Open Eclipse if it is not opened yet.
• Double-click HelloWorld.c in the myHelloWorld project.
• First include the following two additional header files:
#include <unistd.h>
#include <fcntl.h>
• Then add the function write_tty(), which writes n bytes to the first serial interface
(which, on the phyCARD-i.MX6, is connected to the system console /dev/console):
void write_tty (char *buffer, int count) {
int out;
out = open ("/dev/console", O_RDWR);
write(out, buffer, count);
close(out);
}
• Enter the following tow lines in the main() function to declare the buffer and call the
write_tty() function.
char buf [] = { "Welcome to the World of PHYTEC! (serial)\n" };
write_tty(buf, sizeof (buf) - 1);
In the next screenshot you can see the complete program.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
47
Working with Eclipse
phyCARD-i.MX6
• Save your program after changing the code.
The application will be compiled, built, copied to the target and executed.
48
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
• Click the Microcom icon on the desktop.
• If you are not logged in, enter root and press Enter.
• Type ./myHelloWorld to start the application.
• You will see the following output:
Welcome to the World of PHYTEC! (serial)
Welcome to the World of PHYTEC!
• Close Microcom.
When you start the application via an SSH session, you only see one output line.
When you execute the program with Microcom, you see two output lines.
The first line is a direct output on the serial interface. You can't see this
line in a SSH session, because you are connected over a TCP/IP
connection to the target. With Microcom, however, you have direct
access to the serial interface, so you can also see the line that is written
to the serial console.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
49
Working with Eclipse
phyCARD-i.MX6
In this section you have changed an existing application. You also learned how to access
the serial interface. First you called the function open() on the device /dev/console.
The return value of this function was a file descriptor. With the file descriptor you called
the function write() to send n bytes to the device /dev/console. After that, the file
descriptor was closed with the function close().
This procedure is in principle quite typical for Linux, because Linux treats everything
like a file.
4.1.4 Starting a Program out of Eclipse on the Target
After compiling a project in Eclipse, the program is copied to the target and directly
executed. A program can also be executed on the target without compiling a project.
In the following section you will learn how to start a program on the target as an
external tool.
• Select Run ► External Tools ► External Tools Configurations from the menu bar.
• Under Program select New_configuration (1).
50
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
• In the Name input field, enter: myHelloWorld Target.
• Enter /usr/bin/ssh in the Location input field.
• Enter [email protected] ./myHelloWorld into the Arguments field.
• Select Apply.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
51
Working with Eclipse
phyCARD-i.MX6
• Select Run.
If you want to execute the program the next time, you can use the Run External Programs
button from the menu bar.
You have successfully create your own Eclipse project and you learned
how to execute a program at the target.
52
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
4.2 Programming in the Qt C++ perspective
In this section our attention goes to the Qt framework, which gives us tools to develop
graphical user interfaces. With the help of an example project we will give you a short
introduction of how to work with Qt.
4.2.1 Importing the demo application
• Click the Eclipse icon to start the application, if it isn't already open. You can find
this icon on your desktop.
• Now we switch to the Qt C++ perspective. Click Window ► Open Perspective ► Other.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
53
Working with Eclipse
phyCARD-i.MX6
• A dialog opens. Choose Qt C++ and click OK.
• Now we can import the example project. Select File ► Import from the menu bar.
54
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
• Select Existing Projects into Workspace.
• Click Next.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
55
Working with Eclipse
phyCARD-i.MX6
• Select Browse.
• Double-click the FullScreen directory under /home/ubuntu/workspace/.
56
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
• Click OK.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
57
Working with Eclipse
phyCARD-i.MX6
• Select Finish to import the project.
• On the next window deselect HEADERS and FORMS and click OK.
58
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
The FullScreen program will be compiled and you can find the outputs on the console.
After the compilation is finished successfully the FullScreen executable for the target is
built and can be found under /home/ubuntu/workspace/FullScreen.
If the project is not built automatically, you will have to check
Project ► Build automatically in the menu bar. To rebuild select Project
► Clean...
L-805e_1
© PHYTEC Messtechnik GmbH 2014
59
Working with Eclipse
phyCARD-i.MX6
4.2.2 Handle with the demo application
If you want the project to be automatically copied to the target and executed we must
make some changes in the FullScreen.pro file.
• Double-click the FullScreen.pro to open it.
At the end of this file you will find four uncommented rows.
• Remove the commentar signs ( # ) to enable the three QMAKE_POST_LINK tags.
With this tag you can add post-build commands. In our case we copy the compiled
project and the picture to the target and connect via ssh, set the environment and
execute the application.
• Before we clean and build the project, be sure that no other QT application is started
on the target (for example the Fluidlauncher from the autostart).
• Select Project ► Clean....
• Confirm the Clean dialog with OK.
60
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Working with Eclipse
After the FullScreen program is compiled the QMAKE_POST_LINK is called.
The FullScreen file is copied to the target using secure copy and executed using SSH.
On the display of the target the project is started and you can change between
windowed and fullscreen mode by clicking the button. By touching the X you can close
the program.
You have successfully imported and built a Qt project in Eclipse.
You've also learned to run your application on the target.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
61
Debugging an example project
5 Debugging an example project
phyCARD-i.MX6
35 min
In this chapter you will learn using the GNU debugger GDB on the host for remote debugging in conjunction with the GDB server on the target. GDB is the symbolic debugger of the
GNU project and is arguably the most important debugging tool for any Linux system.
First you will start the GDB server on the target. Then you will configure the Eclipse platform
and start the GNU debugger out of Eclipse using the Debug view.
The CDT extends the standard Eclipse Debug view with functions for debugging C/C++ code.
The Debug view allows you to manage the debugging and running of a program in the
workbench. Using the Debug view you will be able to set breakpoints/watchpoints in the
code and trace variables and registers. The Debug view displays the stack frame for the
threads of each target you are debugging. Each thread in your program appears as a node
in the tree, and the Debug view displays the process for each target you are running.
The GDB client is running on the host and is used to control the GDB server on the target,
which in turn controls the application running on the target. GDB client and GDB server can
communicate over a TCP/IP network connection as well as via a serial interface. In this
Quickstart we will only describe debugging via TCP/IP.
5.1 Starting the GDB server on the target
In this passage you will learn how to start the GDB server on the target. The GDB server
will be used to start and control the myHelloWorld program.
To debug a program with GDB, the program needs extended debugging symbols.
This has already been added while building the program.
• Open Microcom.
• Type root and press Enter.
• Start the GDB server:
gdbserver 192.168.3.11:10000 myHelloWorld
You have started the GDB server on the target. The GDB server is now waiting for
connections on TCP port 10000.
62
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Debugging an example project
5.2 Configuring and starting the debugger in Eclipse
In this passage you will learn how to configure your project settings to use Eclipse with
the GNU debugger. After the configuration of your project settings, the GNU debugger
will start and connect to the GDB server on the target.
• Start Eclipse if the application is not started yet.
• Right-click on the myHelloWorld project in the Navigator window.
• Select Debug As ► Debug Configurations.
A dialog to create, manage and run applications appears.
• Double-click on C/C++ Application and Select myHelloWorld Debug.
• Select the Debugger tab.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
63
Debugging an example project
phyCARD-i.MX6
• Select gdbserver Debugger from the Debugger drop-down box.
• Click the Browse button right beside the GDB debugger input field.
A new dialog opens to choose the GDB executable.
• Click on File System.
• Navigate to the directory /opt/OSELAS.Toolchain*/arm-cortexa9-linux-gnueabi/
gcc-4.6.2-glibc-2.14.1-binutils-2.21.1a-kernel-2.6.39-sanitized/bin.
• Select the file arm-cortexa9-linux-gnueabi-gdb.
• Click OK.
64
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Debugging an example project
• Keep the GDB command file field empty.
• Select the Connection tab and select TCP in the drop-down box.
• Enter 192.168.3.11 (the target's IP address) in the Host name input field.
The host's GDB will connect to this IP address to communicate with the target's
GDB server.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
65
Debugging an example project
phyCARD-i.MX6
• Click Apply.
• Click Debug.
A new dialog appears.
66
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Debugging an example project
• Select Yes to switch to the Debug perspective.
The debug perspective opens and the debugger stops automatically at the first line.
The host's GDB is now connected to the GDB server on the target.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
67
Debugging an example project
phyCARD-i.MX6
You have configured your project for remote debugging. You have started the GNU
debugger in Eclipse and connected the host's GDB with the target's GDB server. You can
now start to debug the project.
68
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Debugging an example project
5.3 Setting a Breakpoint
Now you will set a breakpoint in your program. The breakpoint will be set on the last line
of the function main(). If you resume the application, the debugger will stop on this
line.
• Select the last line in main().
• Right-click into the small grey border on the left-hand side and select Toggle
Breakpoint to set a new breakpoint.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
69
Debugging an example project
phyCARD-i.MX6
5.4 Stepping and Watching Variable Contents
In this part you will step through the example project with the debugger. You will also
learn how to check the content of a variable.
• Expand buf in the Variables window.
• Click the Step Over button in the Debug window to step to the next line.
You will see the content of the buf variable in the Variables window.
70
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Debugging an example project
• Click on the variable buf.
• Then click the button Step into to enter the function write_tty().
The debugger stops in write_tty().
L-805e_1
© PHYTEC Messtechnik GmbH 2014
71
Debugging an example project
phyCARD-i.MX6
You will see the following variable window:
• Click on the variable buffer.
You will probably see a different address on the buffer pointer. Remember what address
is shown in your case; you will need this address later.
72
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Debugging an example project
5.5 Stepping and Watching Variable Contents
In this section you will change the value of a variable. At the end of this part you will see
the effect of this change.
• Select the count variable in the Variables window.
• Right-click on count and select Change Value.
• Change the value of count to 7 and click OK.
• Open Microcom if the application is not already opened.
• Go back to Eclipse.
• Click the Step Overbutton two times.
• Change to Microcom.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
73
Debugging an example project
phyCARD-i.MX6
You will see the output Welcome in the Microcom window. This shows when changing the
counter variable's value to 7 only the first seven characters of the buffer are output,
instead of the whole sentence.
74
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Debugging an example project
5.6 Using the Memory Monitor
In the last section of this chapter you will use the memory monitor to control the
content at a memory address.
• Select the Memory tab.
• Click Add Memory Monitor.
• Enter the address of buffer and click OK. Remember that the variable's address might
differ from your system.
• Change the window size.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
75
Debugging an example project
phyCARD-i.MX6
• Click Add Rendering.
• Select ASCII and click OK.
You can see the contents of the variable buffer at the address 0xbee13ca7 (or whatever
address is used on your system).
76
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Debugging an example project
• Now click the Resume button from the menu bar.
The debugger stops at the breakpoint in the last line of main().
• Click the Resume button to end the application.
You have successfully passed the debugging chapter. You are now able
to configure and use Eclipse for remote debugging. You can step
through a project, watch and change the content of variables, and you
can use the memory monitor to view the content at a memory address.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
77
Summary
phyCARD-i.MX6
6 Summary
This Quick Start manual gave you a general “Rapid Development Kit” description, as well
as software installation advice and an example program enabling quick out-of-the-box
start-up of the phyCARD-i.MX6 in conjunction with the Eclipse IDE and GNU C/C++
software tools.
In the Getting Started section you learned how to configure your host to provide a basis
for working with your target platform. You installed the Rapid Development Kit software
and learned how to copy and run a program on the target.
In the Getting More Involved section you got step-by-step instructions on how to configure and build a new kernel, modify the example application, create and build new
projects, and copy programs to your phyCARD-i.MX6 using Eclipse.
The Debugging part of this Quick Start gave you information on setting up and using the
GNU debugger with the Eclipse IDE. You learned how to set breakpoints, watching and
changing variable contents and using the memory monitor.
78
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Installing Linux on the phyCARD-i.MX6
7 Installing Linux on the phyCARD-i.MX6
This part provides instructions on how to update bootloader (Barebox) on the
phyCARD-i.MX6 and how to write a kernel and/or a root file system image into the
target’s flash memory.
7.1 Configure Barebox Environments Variables
The following steps will be done on a Linux platform. We assume that you use our
customized Ubuntu LiveDVD and that you have configured your host platform.
Information on how to configure the host platform can be found in the Getting Started
part of this Quick Start.
• Connect the serial cable with the UART0 RS232 on the target and the first serial
interface on your host.
• Connect the cross-over Ethernet cable with the Ethernet connector X10 on the target
and the correct network card of your host.
• Click the Microcom icon on your desktop.
Microcom is configured with the following configuration:
115200 baud, 1 start bit, 8 data bits, 1 stop bit, no parity, no flow control.
If you want to use another program than Microcom for serial communication, you will
have to setup that program with these settings.
• Connect the AC adapter with the power supply connector PWR (12V) on your board.
• Press any key to stop autoboot.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
79
Installing Linux on the phyCARD-i.MX6
phyCARD-i.MX6
• Check the network settings with following command:
ifup eth0
devinfo eth0
The target should present the this lines:
ipaddr=192.168.3.11
netmask=255.255.255.0
gateway=255.255.255.0
serverip=192.168.3.10
If you need to change something, type:
edit /env/network/eth0
Edit the settings, save them by leaving the editor with Strg-D, then type saveenv and
reboot the board.
80
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Installing Linux on the phyCARD-i.MX6
7.2 Update the Bootloader
The bootloader used on the phyCARD-i.MX6 is Barebox which is already preinstalled.
If your target don't start because nothing is installed there is another way by updating
the barebox over an SD card and set close JP1 3+4.. For this case or if something goes
wrong while you update your bootloader you can find more information on our website
www.phytec.eu under "Support" / "FAQ/Download" / "phyCARD-i.MX6". If you are
unsure please contact our support department otherwise you can do the following steps
to update the bootloader.
In the directory /tftpboot in your live environment or under /PHYTEC/BSP on your DVD
you can find three files starting with barebox-phytec* these files are the Bootloader for
different RAM sizes populated on the module.
The standard kit version of the module has 1 Gbit RAM size. In order to see if your
module can hold this completely within only one RAM bank, please take a look at the
backside of the module. If you see there the Molex connector and only two chips, then
this is the case, so that barebox-phytec-pbaa03-1gib_1bank.img is the right one.
Otherwise you’ll see six chips, so that in this case you need to use barebox-phytecpbaa03-1gib.img.
Before executing this command, you should check that your Bootloader environment is
properly configured. Look at "Configure Barebox Environments Variables" for more
details.
• Open Microcom and press the RESET button on the target.
You will see the message "Hit any key to stop autoboot."
• Press any key to stop autoboot.
• Type cp /mnt/tftp/barebox-phytec-pbaa03-1gib-1bank.img . to get the barebox
from your TFTP-server.
• After that store the Barebox into the NAND flash:
barebox_update -y barebox-phytec-pbaa03-1gib-1bank.img
• Press the RESET button on the board to restart your target.
The target should now start with the new bootloader you have written into the flash.
We strongly recommend that after flashing the Barebox to another BSP
version, you should erase the old environment: erase /dev/nand0.
barebox-environment.bb
L-805e_1
© PHYTEC Messtechnik GmbH 2014
81
Installing Linux on the phyCARD-i.MX6
phyCARD-i.MX6
7.3 Writing the Kernel / Root File System into Flash
In the directory /tftpboot in your live environment or under /PHYTEC/BSP on your DVD
you can find a file called uImage-pbaa03 - this file is the Linux kernel image. There is
another file, root-pbaa03.ubifs this file contains the Linux root filesystem.
Before executing this command, you should check that your Bootloader environment is
properly configured. Look at "Configure Barebox Environments Variables" for more
details.
• Open Microcom and press the RESET button on the target.
You will see the message "Hit any key to stop autoboot."
• Press any key to stop autoboot.
• Now we download the images from the TFTP server to the target's RAM, then we erase
the required flash and write the images from the RAM into the flash.
• Type erase /dev/nand0.kernel.bb to erase the kernel partition.
• Type cp /mnt/tftp/uImage-pbaa03 /dev/nand0.kernel.bb to download the kernel
using TFTP and write it into the target's flash. The copy process can take up to several
minutes.
• Now we flash the root filesystem type:
ubiformat /dev/nand0.root
ubiattach /dev/nand0.root
ubimkvol /dev/ubi0 root 0
cp /mnt/tftp/root-pbaa03.ubifs /dev/ubi0.root
• Type boot to boot the phyCARD-i.MX6 with the new kernel and root file system.
82
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Setup your own Linux-Host-PC
8 Setup your own Linux-Host-PC
In this chapter we give an overview of the modifications which we made to the Ubuntu
version on the Linux-phyCARD-i.MX6-Kit-DVD in comparison to the original Ubuntu.
In the following we distinguish between optional and essential modifications. So you
can see faster which changes are important to execute this Quickstart in case you don't
want to use our modified Ubuntu version. You can find a step-by-step instruction of the
essential changes in order to modify your own distribution.
We can't guarantee that the presented changes are compatible to other
distributions or versions. If you want to use another distribution, it might
take a lot of individual initiative. We do not support other distributions.
You should be sure about what you do.
8.1 Essential settings
In the following you see a short instruction of the important settings which are essential
to guarantee the execution of this Quickstart.
8.1.1 Installation of software packages
We begin with the installation of the required software packages with using the package
manager APT.
• It is useful to split the commands to keep the overview.
Packages which are needed for compiling and building the Board Support Package:
sudo apt-get install libncurses-dev g++ gawk flex bison texinfo gettext quilt
autoconf lzop
Packages for developoment:
sudo apt-get -y install vim eclipse
For setting up the TFTP server:
sudo apt-get -y install tftpd-hpa
During installation it can happen that some programs ask for a license agreement.
Follow the shown steps.
The first preparations are finished and you will find the instructions to setup the bigger
software packages in the next chapters.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
83
Setup your own Linux-Host-PC
phyCARD-i.MX6
8.1.2 Setup the serial connection
To enable the serial connection with the target it's important to add the existing user
to the existing group dialout.
You can change this with one simple command:
sudo usermod -aG dialout $USER
After a restart it is possible to use the serial connection with a program like Microcom.
8.1.3 Setup of toolchain, PTXdist and BSP
The important packages are installed now and we begin with the setup of PTXdist which
we need to modify the Board Support Package by your own.
• First we create a local directory in our /home/ folder and change into this directory:
mkdir /home/$USER/local
cd /home/$USER/local
• In the second step we unpack the compressed PTXdist´- which you will find on our
Linux-phyCARD-i.MX6-Kit-DVD under /PHYTEC/BSP - in the folder local:
tar -xjf ...PHYTEC/BSP/ptxdist-XXX.tar.bz2
• After this step a PTXdist folder is created in which we change by typing:
cd ptxdist*
• Afterwards we can configure, compile and install PTXdist via the standardized
GNU-Tools. For this we use the following commands:
./configure
make
sudo make install
• The installation is finished and the temporary folder local can be removed:
cd ../../
rm -fr local
PTXdist is now ready for use and can be accessed through the ptxdist command.
But before we can start cross-compiling, we need a toolchain which provides tools to
build the Board Support Package.
On our Linux-phyCARD-i.MX6-Kit-DVD you will find under /PHYTEC/BSP an already
prebuilt Toolchain for the phyCARD-i.MX6 which we will use.
• Therefore we first decompress the toolchain using the following command:
tar -xvPpjf ...PHYTEC/BSP/arm-cortexa9-linux-gnueabi.tar.bz2
By this operation the toolchain is directly archived under /opt/OSELAS*.
84
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Setup your own Linux-Host-PC
If any error occurs or if you want to build your own toolchain you will find
detailed information in our "BSP-Quickstart phyCARD-i.MX6" under
ftp://ftp.phytec.de/.
Finally our attention is focused on the setup of the Board Support Package.
In our modified Ubuntu version our BSPs are located under /opt/PHYTEC_BSPs/.
So let's use the following procedure:
• sudo mkdir /opt/PHYTEC_BSPs
• Now only root has the privilege to access this folder. Therefore we must change the
permissions:
sudo chmod 777 /opt/PHYTEC_BSPs
• After this we switch over to the folder and use our compressed but not yet built
PHYTEC-BSP on the DVD under /PHYTEC/BSP/.
cd /opt/PHYTEC_BSPs
tar -xzf ...PHYTEC/BSP/BSP-Phytec-phyCARD-i.MX6*.tar.gz
• The BSP is unpacked and we change into the created folder:
cd BSP-Phytec-phyCARD-i.MX6*
• The time has come to handle with PTXdist. First of all we must specify our platform
with which we will work:
ptxdist platformconfig configs/phyCARD-i.MX6
• The required toolchain should be found automatically and we can use PTXdist to build
the BSP:
ptxdist go
Depending on your system hardware this procedure can take up to several hours.
• Finally we must create the images which we can flash to the target.
ptxdist images
Congratulations - you have successfully completed the most timeconsuming pre-requirements. In the next chapter you will be informed
about everything concerning the set up of Eclipse.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
85
Setup your own Linux-Host-PC
phyCARD-i.MX6
8.1.4 Setting up Eclipse and integrate plug ins
In this chapter we setup Eclipse and integrate the plug ins for QT and C/C++. Thereby you
can assign own programs, written in Eclipse, to the target.
• First we must create a workspace folder, in which we can save the Eclipse projects.
In our example we make this in our /home/ folder:
mkdir /home/$USER/workspace
• Thereafter we can open Eclipse and insert the path to our created workspace in the
pop-up window:
eclipse
• Eclipse is started and now we click at Help in the menu bar ► Install new Software.
• Thereupon a window was opened and in the text field "Work with" we enter the
following address: http://download.eclipse.org/tools/cdt/releases/indigo and
click on "Add".
• After a while the software which we can integrate appears in the area with a
scrollbar. We check "CDT Main Features" and click at "Next".
• Now the system shows us an overview of the installation details, which we skip with
a click on Next.
• At last the system shows us the licensing agreement, which we accept and after we
have clicked on Finish it begins to install the required software.
The CDT plug in is installed. We close Eclipse and go on with the QT integration.
• For the QT integration we must use an external package from the Nokia website.
This package is already available on our DVD under /PHYTEC/Applications. We unpack
the compressed archive in the /usr/lib folder:
cd /usr/lib
tar xzf ...PHYTEC/Applications/qt-eclipse-integration-linux.x86-1.6.1.tar.gz
• After that we start Eclipse with the option clean, which cleans any cached data:
eclipse --clean
• Eclipse is started and now we must setup one small thing:
In the menu bar we click on "Window" ► "Preferences" ► "QT" and enter the
following QT specific information Name: QT4 ► Bin Path: /opt/PHYTEC_BSPs/
BSP-Phytec-phyCARD-i.MX6-PD14.1.0/platform-phyCARD-i.MX6/sysroot-cross/bin
► Include Path: /opt/PHYTEC_BSPs/BSP-Phytec-phyCARD-i.MX6-PD14.1.0/
platform-phyCARD-i.MX6/sysroot-target/usr/include )
• Finally we close Eclipse and start it again with the clean option.
86
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Setup your own Linux-Host-PC
Congratulations! You have successfully integrated two new plugins in
Eclipse and now you can start programming in C/C++ and QT in an Eclipse
environment. In the next sub-section you will find a short introduction on
how to setup a TFTP server.
8.1.5 Setting up a TFTP server
In the chapter "Installation of software packages" we have installed the required
packages to set up a TFTP server. Now we must change some short settings.
• First we change the file /etc/default/tftp-hpa as follows:
TFTP_USERNAME="tftp"
TFTP_DIRECTORY="/tftpboot"
TFTP_ADDRESS="0.0.0.0:69"
TFTP_OPTIONS="--secure"
• Then we must create a folder called /tftpboot. The TFTP server accesses this folder
later.
mkdir /tftpboot
• At last we must set the right permissions:
chmod 777 /tftpboot
• Actually there is a bug in in the tftp-hpa daemon. The daemon don't start after the
system is rebootet. You can start it in the terminal with following command:
restart tftpd-hpa
Another permamently way is to create a file called tftpd-hpa under /etc/network/
if-up.d/ and insert following:
#!/bin/sh
restart tftpd-hpa
Save the file and set the correct permissions with chmod 755 /etc/network/
if-up.d/tftpd-hpa .
You have successfully set up the TFTP server. In the future the
phyCARD-i.MX6 can access to the /tftpboot/ folder to load the images.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
87
Setup your own Linux-Host-PC
phyCARD-i.MX6
8.2 Optional settings
In the following we show the optional settings. These settings are not needed for a
successful operation of this Quickstart. They only simplify the handling and the look of
the system. For this reason we show the modifications without big explanation.
• Installation of vim, the improved vi editor.
• Creation of desktop-icons for faster and easier start of required programs.
• The following modifications were made to the look of Ubuntu:
– Other wallpaper and associated options were adjusted with the help of gsettings.
– Changing the color of the Gnome terminal.
• History-search-backward and history-search-forward in /etc/inputrc is activated.
This allows you to search through your history with the entered string.
• Also there are some scripts that will be executed at the first start after the
installation. These scripts ensure that the right permissions are set for the created
user.
88
© PHYTEC Messtechnik GmbH 2014
L-805e_1
phyCARD-i.MX6
Installation of the modified Ubuntu
9 Installation of the modified Ubuntu
In this chapter you will find an instruction on how to install the modified Ubuntu on the
Linux-phyCARD-i.MX6-Kit-DVD.
If another operating system is installed on your computer, you should first make a
backup of your important files. Before we can start, make sure that your computer is set
to boot from DVD before it boots from a hard disk drive.
• Insert the Linux-phyCARD-i.MX6-Kit-DVD into your DVD drive.
• Start or restart your computer. Your system finds a bootable DVD and starts from it.
After a while a language screen appears.
• Select your desired language and click Install Ubuntu.
• The Preparing to install Ubuntu window appears. From Ubuntu it's adviced that you
select "Download updates while installing" and "Install this third-party software"
now. Click on Continue.
• The Installation type window appears. You now have different options how to install
Ubuntu. The three possibilities are explained in the dialog. After you have choose
one click on Continue.
• The Install Ubuntu... window appears. After you have checked the settings you can
click on Install now.
• While the installation is started Ubuntu asks for your location, keyboard layout and
login and password details.
• When the installation wizard has finished, the "Installation complete" window
appears. Click Restart now to restart your computer. Ubuntu is now installed.
L-805e_1
© PHYTEC Messtechnik GmbH 2014
89
Revision History
phyCARD-i.MX6
10 Revision History
Date
Version numbers
Changes in this manual
2014-08-19
Quickstart L-805e_1
First draft
Working with PD14.1.0 and
Ubuntu 12.04.5
90
© PHYTEC Messtechnik GmbH 2014
L-805e_1
Was this manual useful for you? yes no
Thank you for your participation!
