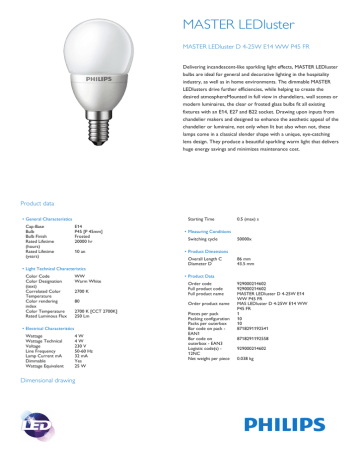

Philips 19254100 Datasheet

Philips 19254100 Datasheet
MASTER LEDluster
MASTER LEDluster D 4-25W E14 WW P45 FR
Delivering incandescent-like sparkling light effects, MASTER LEDluster
bulbs are ideal for general and decorative lighting in the hospitality
industry, as well as in home environments. The dimmable MASTER
LEDlusters drive further efficiencies, while helping to create the
desired atmosphereMounted in full view in chandeliers, wall scones or
modern luminaires, the clear or frosted glass bulbs fit all existing
fixtures with an E14, E27 and B22 socket. Drawing upon inputs from
chandelier makers and designed to enhance the aesthetic appeal of the
chandelier or luminaire, not only when lit but also when not, these
lamps come in a classical slender shape with a unique, eye-catching
lens design. They produce a beautiful sparkling warm light that delivers
huge energy savings and minimizes maintenance cost.
Product data
• General Characteristics
Cap-Base
Bulb
Bulb Finish
Rated Lifetime
(hours)
Rated Lifetime
(years)
Starting Time
E14
P45 [P 45mm]
Frosted
20000 hr
10 an
• Light Technical Characteristics
Color Code
Color Designation
(text)
Correlated Color
Temperature
Color rendering
index
Color Temperature
Rated Luminous Flux
WW
Warm White
2700 K
80
2700 K [CCT 2700K]
250 Lm
• Electrical Characteristics
Wattage
Wattage Technical
Voltage
Line Frequency
Lamp Current mA
Dimmable
Wattage Equivalent
4W
4W
230 V
50-60 Hz
32 mA
Yes
25 W
Dimensional drawing
0.5 (max) s
• Measuring Conditions
Switching cycle
50000x
• Product Dimensions
Overall Length C
Diameter D
86 mm
43.5 mm
• Product Data
Order code
Full product code
Full product name
Order product name
Pieces per pack
Packing configuration
Packs per outerbox
Bar code on pack EAN1
Bar code on
outerbox - EAN3
Logistic code(s) 12NC
Net weight per piece
929000214602
929000214602
MASTER LEDluster D 4-25W E14
WW P45 FR
MAS LEDluster D 4-25W E14 WW
P45 FR
1
10
10
8718291192541
8718291192558
929000214602
0.038 kg
MASTER LEDluster
Dimensional drawing
MASTER LEDluster D 4-25W E14 WW P45 FR
D
Product
C (Norm) D (Norm)
43.5
C
LED 4-25W E14 WW P45 FR 86
14
E14
© 2013 Koninklijke Philips N.V. (Royal Philips)
All rights reserved.
Specifications are subject to change without notice. Trademarks are the property of
Koninklijke Philips N.V. (Royal Philips) or their respective owners.
www.philips.com/lighting
2013, August 3
data subject to change
