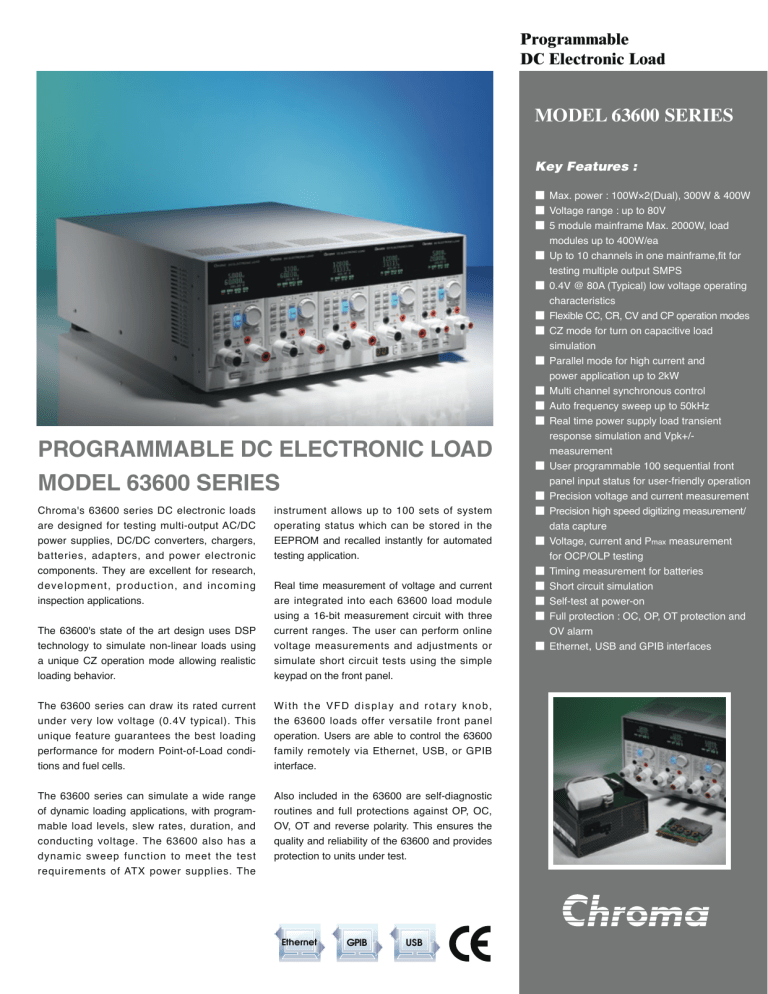

Programmable
DC Electronic Load
MODEL 63600 SERIES
Key Features :
■ Max. power : 100W×2(Dual), 300W & 400W
■ Voltage range : up to 80V
■ 5 module mainframe Max. 2000W, load
modules up to 400W/ea
■ Up to 10 channels in one mainframe,fit for
testing multiple output SMPS
■ 0.4V @ 80A (Typical) low voltage operating
characteristics
■ Flexible CC, CR, CV and CP operation modes
■ CZ mode for turn on capacitive load
simulation
■ Parallel mode for high current and
power application up to 2kW
PROGRAMMABLE DC electronic load
MODEL 63600 SERIES
Chroma's 63600 series DC electronic loads
are designed for testing multi-output AC/DC
power supplies, DC/DC converters, chargers,
batteries, adapters, and power electronic
components. They are excellent for research,
development, production, and incoming
inspection applications.
instrument allows up to 100 sets of system
operating status which can be stored in the
EEPROM and recalled instantly for automated
testing application.
The 63600's state of the art design uses DSP
technology to simulate non-linear loads using
a unique CZ operation mode allowing realistic
loading behavior.
Real time measurement of voltage and current
are integrated into each 63600 load module
using a 16-bit measurement circuit with three
current ranges. The user can perform online
voltage measurements and adjustments or
simulate short circuit tests using the simple
keypad on the front panel.
The 63600 series can draw its rated current
under very low voltage (0.4V typical). This
unique feature guarantees the best loading
performance for modern Point-of-Load conditions and fuel cells.
With the VFD display and rotary knob,
the 63600 loads offer versatile front panel
operation. Users are able to control the 63600
family remotely via Ethernet, USB, or GPIB
interface.
The 63600 series can simulate a wide range
of dynamic loading applications, with programmable load levels, slew rates, duration, and
conducting voltage. The 63600 also has a
dynamic sweep function to meet the test
requirements of ATX power supplies. The
Also included in the 63600 are self-diagnostic
routines and full protections against OP, OC,
OV, OT and reverse polarity. This ensures the
quality and reliability of the 63600 and provides
protection to units under test.
Ethernet
GPIB
USB
■ Multi channel synchronous control
■ Auto frequency sweep up to 50kHz
■ Real time power supply load transient
response simulation and Vpk+/ measurement
■ User programmable 100 sequential front panel input status for user-friendly operation
■ Precision voltage and current measurement
■ Precision high speed digitizing measurement/
data capture
■ Voltage, current and Pmax measurement
for OCP/OLP testing
■ Timing measurement for batteries
■ Short circuit simulation
■ Self-test at power-on
■ Full protection : OC, OP, OT protection and
OV alarm
■ Ethernet, USB and GPIB interfaces
Versatile System Configuration
Chroma's 63600 Series Programmable Electronic Load integrates micro-processing capability into each load module to optimize the speed and
control among multiple load modules. All load modules are configured to work independently, though testing can be carried out simultaneously
at multiple outputs via remote control to simulate real life application.
Module Load Design
The Chroma 63600 electronic load mainframe accepts the user-installable
63600 series load modules for easy system configuration. The model
63600-5 mainframe holds five 63610 load modules to offer up to 10 100W
load input channels with standard front-panel inputs. The maximum power
for a single mainframe is 2kW when five 63640-80-80 load modules
are paralleled. This is suitable for testing multiple output switch mode
power supplies, and many other types of power products. Using the GO/
NG output port, production snapshots are made available to show the
immediate pass/fail judgment of UUT. All modules on the mainframe share
a common GPIB address to synchronize and speed up the control of the
load modules and read back the operating data.
Application of Specific Load Simulation
The 63600 series load modules operate in constant voltage, current, resistance, power, or impedance to satisfy a wide range of test
requirements. For example, the CV is designed to simulate batteries for charger testing.
Constant Current
Constant Resistance
V
Constant Voltage
V
Constant Power
V
I
V
I
I
I
CC Applications:
CR Applications:
CV Applications:
CP Applications:
1. Load/Cross regulation
1. Test current limit point and 1. Charger test for mobile phone
1. CP power test
2. Current limit test for fold back
2. Battery capacity test and
test for CV power supply
slew rate for power supply
2. Battery discharge time
2. Soft start test for telecom 3. Fuel cell test.
test and life cycle test
power
3. Fuel cell testing
3. LED's drive source test
4. Loading pattern simulation
4. Loading simulation for
automotive temperature
controller
for automotive wiper
power supply
capacity life cycle test
3. Pout vs Eff% curve test
4. Current source test
Low Voltage Operating Characteristics
Each 63600 load module provides 3 load current range settings with a
minimum full current operating voltage of 0.5V for each range. At the
Low Voltage & V-I Curve Operating Characteristics
(Typical) of 63600 Series : Model 63640/ 63630/ 63610
minimum voltage (0.4V), the 63640-80-80 series load can draw maximum
current defined by the current range. Based on this design, this load is well
suited for testing DC/DC converters, fuel cells, and other low voltage - high
current devices. Low voltage operation is possible towards zero volts with
corresponding reduced current levels (see de-rating curves).
10A
20A
30A
40A
50A
60A
70A
Input Characteristics for Model 63640-80-80
80A
Current
Note: All specifications are measured at load input
terminals. (Ambient temperature of 25 ˚C)
Constant Impedance Mode (CZ Mode)
The unique CZ mode designed in 63600 series can improve the loading behavior of CC & CP mode and makes the simulated loading current
more realistic.
Dynamic Loading and Control
DYNA
1. Dynamic + Repaet Times
2. Frequency Sweep
DYNA Page
Modern electronic devices operate at very high speed
Load 1
and demand rapid transient and dynamic response
characteristics which the 63600 provides. To address
Rise rate
Fall rate
Load 2
these testing applications, the 63600 offers high speed,
programmable dynamic loading, sweep simulation and
control capability never before achieved. The figure right
shows the programmable parameters : Setting Current
high/low level, T1/T2, Rise/Fall, and Repeat times.
T1
T2
Repeat times
The dynamic mode provides a unique simulation capability, which allows users to set the number of repeat times, and setting range is
1 – 65535, it is idea to test the Peak Current sustained of D2D converter.
The 63600 also offers a unique dynamic frequency sweep with variable frequencies up to 50kHz ideal for use in finding the worst case of UUT
voltage peaks (Figure 1). Measuring the Vpeak (+/-) can be achieved by this dynamic function with a sampling rate of 500 kHz (Figure 2). The
dynamic loading mode can simulate different loading conditions for most users' requirements. Its dedicated remote load sensors and control
circuits guarantee minimum waveform distortion during dynamic loading.
Vpk+
Vpk-
Figure 1 : Sweep Waveform
Figure 2 : Measurement of Vpeak
Master / Slave Parallel Control
When the need is for increased power, paralleling two or more loads together can be done to achieve the desired current. The 63600
provides the user with smart Master/Slave mode controls, that enables the user to program the loading currents on the Master and have them
calculated and downloaded automatically to the Slaves. With several loads working in Master/Slave mode emulating a single load unit, will
dramatically simplify the user's operation. The 63600 can be configured with USB, Ethernet, and GPIB interfaces as options for remote control
and automated testing applications.
Front Panel Control
Master
USB
Ethernet
GPIB
63600 Series
Master
Application for High Power
Slave
Slave
+48V
None
UUT (Server Power)
+5V
+12V
Timing Function
The 63600 series loads include a unique timing & measurement function allowing precise time measurements in the range of 2ms to 100,000s.
This feature allows the users to set the final voltage & timeout values for battery discharge testing and other similar applications.
For example, Figure 3 shows that the 63600's internal timer can be
initiated automatically when the battery voltage falls below a preset
value. The timer will continue counting until the second preset
value is reached.
The Timing function can be used in testing battery and super
capacitor discharge, fuse and breaker protection, rise time for ATX
or D/D power supplies, and other similar applications.
Figure 3 : Battery Discharge Testing
Program Sequences
The 63600 series offers 100 programmable loading sequences that enable the user to simulate various real world conditions. In addition,
each module can be operated independently or synchronized so that all modules start operating at the same time while running independent
programs. Below are some examples of the most popular program sequences available.
Simulations of all kinds of real current waveforms for battery
discharge testing and other applications are possible.
(Notebook, Electric car and Electric bike)
(Single output channel for UUT)
Peak power cycle test for printer power
(Three output channel for UUT)
Current
I
Delay
T
Time
SINE WAVE DYNAMIC FUNCTION
The 63600 has a unique sine wave loading current that allows the user to set the loading
current bias(I_DC), the loading sine wave(I_AC) and sine wave frequency without any external
function generator. As figure right shows CH1 is the actual loading current waveform and CH2
is the voltage waveform of the UUT. This function can be used in D2D/ATX Power supplies for
sine wave dynamic testing.
Digitizing Function
The 63600 offers a digitizing function that makes the load very convenient for recording transients in both voltage and current waveforms.
The following are the specifications of setting parameters :
SAMPLING TIME : 2µs to 40ms / R : 2µs (Setting the interval of sampling time)
SAMPLING POINT : 1 to 4096 (Setting the total sampling points)
Measurements
The 63600 series provides three operating current ranges and a built in 16-bit, precision A/D converter, achieving 0.025%+0.01%F.S.,
0.05%+0.05%F.S. and 0.1%+0.1%F.S. accuracy for voltage, current and power measurement respectively. Precise measurements like these
are ideal for testing power efficiency and other critical parameters of the UUT's. The 63600 can also measure OCP/OLP trip voltage and
current.
PANEL DESCRIPTION
1
9
10
11
2
3
12
17
18 19 20 21 22 23 24 25
4
5
13
6
14
7
8
15
16
1.
2. 3. 4. 5. 6. 7. 8. 9. LCD Display:
Used for setting and measurements
MODE key:
Used to select the operating mode :
CC, CR, CV, CP or CZ
DYNA key:
To select dynamic test mode
EDIT key:
Used for setting and editing
SHORT key:
Used to apply a short circuit across the input
ADVA key:
Used to select the other testing functions
Enter key:
Used for confirming data entry
Voltage sense terminal
A/B key:
Used to select static A or B load (63630, 63640)
L/R key:
Used to select left or right channel of input load (63610)
10. DATA key:
Used to select the other parameters
11. RANGE key:
Used to select HIGH, MIDDLE or LOW loading range
12. Rotary knob:
Used to adjust loading and parameter setting
13. Cursor key:
Used for setting and editing
14. LOAD key:
Used to enable or disable the load input
15. Module lock:
Used to remove the module
16. Load terminal
26 27 28
29
30
31
32
33
17. Power switch
18. LED display:
Used to display the memory address
19. Up / Down key:
Used to select the next or previous memory address
20. SPEC key:
Used to setup High/Low limits for GO/NG test
21. LOCK key:
Used to lock the setting data
22. SAVE key:
Used to save the front panel input status into memory
23. RECALL key:
Used to recall the front panel input status from memory
24. LOCAL key:
Used to recover local control
25. Shortcut key:
Used to save loading profile for all channels
26. Voltage & Current monitor output:
Analog output to proportional to the voltage
and current waveform
27. V EXT:
Input for external wave in control
28. System I/O:
Used for system input/output control signals
29. Ethernet connector
30. System Bus:
Used for master/slave control system data communication
31. USB connector
32. GPIB connector
33. AC input fuse
34. AC Input connector
ORDERING INFORMATION
63600-1 : 63600 Mainframe for Single Modules*
63600-2 : 63600 Mainframe for 2 Modules
63600-5 : 63600 Mainframe for 5 Modules
63610-80-20 : DC Load Module, 100Wx2/ 20A/ 80V
63630-80-60 : DC Load Module, 300W/ 60A/ 80V
63640-80-80 : DC Load Module, 400W/ 80A/ 80V
*None digital interface option.
34
A636000 : GPIB Interface
A636001 : Ethernet Interface
A636003 : External Signal Board (Test Pin)
A636005 : External Signal Board (BNC)
A632006 : NI USB-6211 Bus-Powered Multifunction DAQ
SPECIFICATIONS
Model
63610-80-20
Configuration
100Wx2
Voltage *1 *2
0~80V
Current
0~0.2A
0~2A
0~20A
Power *3
16W
30W
100W
Static Mode
Typical min. operating
[email protected]
[email protected]
[email protected]
voltage (DC)
Constant Current Mode
Range
0~0.2A
0~2A
0~20A
Resolution
0.01mA
0.1mA
1mA
Accuracy
0.1%+0.1%F.S.
Constant Resistance Mode CRL : 0.04~80 ohm (100W/6V)
Range
CRM: 1.44~2.9k ohm (100W/16V)
CRH : 5.76~12k ohm (100W/80V)
Resolution
0.3288m mho
0.1%+0.075 mho (6V)
Accuracy *4
0.1%+0.01 mho (16V)
0.1%+0.00375 mho (80V)
Constant Voltage Mode Range
6V/16V/80V
Resolution
14 bits
Accuracy
0.05%+0.1%F.S.
Constant Power Mode Range
2W
10W
100W
Resolution
1mW/10mW/100mW
Accuracy *5
0.3%+0.3%F.S.
Dynamic Mode - CC
Min. operating
1.5V
voltage
Frequency
100Hz~50kHz/0.01Hz~1kHz
Duty
1~99% (Min. Rise Time Dominated)
Accuracy
1µs/1ms+100ppm
0.04A/ms~
0.4A/ms~
4A/ms~
Slew rate
0.02A/µs
0.2A/µs
2A/µs
Resolution
9 bits
Min.rise time
10 µs
Current Range
0~0.2A
0~2A
0~20A
Resolution
14 bits
Ext Wave Mode(20KHz) : CC
Range
0~0.2A
0~2A
0~20A
Level
0~10V
Accuracy
0.5%F.S.
Program mode
Sequence No.
100/Program
Dwell / SEQ
0.1ms ~ 30s (Resolution : 0.1ms)
Load Setting
Refer to Static mode specifications
Spec Check
Voltage/Current/Power
Measurement
Voltage read back
Range
6V/16V/80V
Resolution
0.1069mV
0.2489mV
1.3537mV
Accuracy *6
0.025%+0.01%F.S.
Current read back
Range
0~0.2A
0~2A
0~20A
Resolution
0.003349mA 0.034628mA
0.329561mA
Accuracy *6
0.05%+0.05%F.S.
Power read back
Range
2W
10W
100W
Accuracy *5 *6
0.1%+0.1%F.S.
Voltage Monitor
Bandwidth
20 kHz
Range
6V/16V/80V
Output
0~10V
Accuracy
0.5%F.S.
Current Monitor
Bandwidth
20 kHz
Range
0~0.2A
0~2A
0~20A
Output
0~10V
Accuracy
0.5%F.S.
0~0.6A
30W
63630-80-60
300Wx1
0~80V
0~6A
60W
0~0.8A
60W
63640-80-80
400Wx1
0~80V
0~8A
60W
0~60A
300W
0~80A
400W
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
0~0.6A
0.01mA
0~6A
0.1mA
0.1%+0.1%F.S.
0~60A
1mA
0~0.8A
0.01mA
0~8A
0.1mA
0.1%+0.1%F.S.
0~80A
1mA
CRL : 0.015~30 ohm (300W/6V)
CRM: 0.3~600 ohm (300W/16V)
CRH : 1.5~3k ohm (300W/80V)
0.9864m mho
0.1%+0.2 mho (6V)
0.1%+0.03 mho (16V)
0.1%+0.01 mho (80V)
CRL : 0.01~20 ohm (400W/6V)
CRM: 0.36~720 ohm (400W/16V)
CRH : 1.45~2.9k ohm (400W/80V)
1.3221m mho
0.1%+0.275 mho (6V)
0.1%+0.036 mho (16V)
0.1%+0.01375 mho (80V)
6V/16V/80V
14 bits
0.05%+0.1%F.S.
6V/16V/80V
14 bits
0.05%+0.1%F.S.
6W
30W
300W
3.2mW/32mW/320mW
0.3%+0.3%F.S.
8W
40W
4mW/40mW/400mW
0.3%+0.3%F.S.
400W
1.5V
1.5V
100Hz~50kHz/0.01Hz~1kHz
1~99% (Min. Rise Time Dominated)
1µs/1ms+100ppm
0.12A/ms~
1.2A/ms~
12A/ms~
0.06A/µs
0.6A/µs
6A/µs
9 bits
10 µs
100Hz~50kHz/0.01Hz~1kHz
1~99% (Min. Rise Time Dominated)
1µs/1ms+100ppm
0.16A/ms~
1.6A/ms~
16A/ms~
0.08A/µs
0.8A/µs
8A/µs
9 bits
10 µs
0~0.6A
0~6A
14 bits
0~60A
0~0.8A
0~8A
14 bits
0~80A
0~0.6A
0~6A
0~10V
0.5%F.S.
0~60A
0~0.8A
0~8A
0~10V
0.5%F.S.
0~80A
100/Program
0.1ms ~ 30s (Resolution : 0.1ms)
Refer to Static mode specifications
Voltage/Current/Power
0.1069mV
0~0.6A
0.009942mA
6W
6V/16V/80V
0.2489mV
1.3537mV
0.025%+0.01%F.S.
0~6A
0~60A
0.101748mA
1.009878mA
0.05%+0.05%F.S.
30W
0.1%+0.1%F.S.
300W
100/Program
0.1ms ~ 30s (Resolution : 0.1ms)
Refer to Static mode specifications
Voltage/Current/Power
0.1069mV
0~0.8A
0.013695mA
8W
20 kHz
6V/16V/80V
0~10V
0.5%F.S.
0~0.1A
20 kHz
0~1A
0~10V
0.5%F.S.
6V/16V/80V
0.2489mV
1.3537mV
0.025%+0.01%F.S.
0~8A
0~80A
0.138766mA
1.31406mA
0.05%+0.05%F.S.
40W
0.1%+0.1%F.S.
400W
20 kHz
6V/16V/80V
0~10V
0.5%F.S.
0~10A
0~0.8A
20 kHz
0~8A
0~80A
0~10V
0.5%F.S.
Continued on next page...
SPECIFICATIONS
Model
Protection
Over Power
Over Current
Over Voltage
Over Temperature Alarm
Reverse
Interface
63610-80-20
63630-80-60
63640-80-80
105~110% of Rated Power
105~110% of Rated Current
105~110% of Rated Voltage
Yes
105~110% of Rated Power
105~110% of Rated Current
105~110% of Rated Voltage
Yes
105~110% of Rated Power
105~110% of Rated Current
105~110% of Rated Voltage
Yes
Standard
Standard
Standard
Yes
USB
Remote controller
Ethernet
GPIB
System Bus
Others
Optional
Optional
Optional
Master/Slave & Remote Controller
Dout
No. of bits
2 bits per mainframe
Level - H
1.8V/3.3V/5V switchable
Level - L
<[email protected]=10mA
Drive
Pull_up resistor = 4.7k ohm
Din (TTL Compatible)
No. of bits
2 bits per mainframe
External Trig. for Digitizing (TTL Compatible,Rising Edge)
No. of bits
1 bit per mainframe
External Trig. for Auto Sequences (TTL Compatible,Rising Edge)
No. of bits
1 bit per mainframe
Load ON - O/P
Level
TTL Level, Active High
Short ON - O/P
Level
TTL Level, Active High
General
Short circuit
Current *7
Set to 105% of rated current (H range)
Dimensions (HxWxD)
142x86x514mm / 5.6x3.4x20.2 inch
Weight
5kg / 11 lbs
Operating Temperature
0~40˚C
StorageTemperature
-20~80˚C
Power
Supply from mainframe
EMC & Safety
CE
Yes
Yes
Optional
Optional
Optional
Master/Slave & Remote Controller
Optional
Optional
Optional
Master/Slave & Remote Controller
2 bits per mainframe
1.8V/3.3V/5V switchable
<[email protected]=10mA
Pull_up resistor = 4.7k ohm
2 bits per mainframe
1.8V/3.3V/5V switchable
<[email protected]=10mA
Pull_up resistor = 4.7k ohm
2 bits per mainframe
2 bits per mainframe
1 bit per mainframe
1 bit per mainframe
1 bit per mainframe
1 bit per mainframe
TTL Level, Active High
TTL Level, Active High
TTL Level, Active High
TTL Level, Active High
Set to 105% of rated current (H range)
142x86x514mm / 5.6x3.4x20.2 inch
4kg / 8.8 lbs
0~40˚C
-20~80˚C
Supply from mainframe
CE
Set to 105% of rated current (H range)
142x86x514mm / 5.6x3.4x20.2 inch
4.5kg / 9.9 lbs
0~40˚C
-20~80˚C
Supply from mainframe
CE
*Note 1 : The maximum current loading below the minimum operating voltage (0.5V) will follow a derating curve.
*Note 2 : If the operating voltage exceeds the rated voltage for 1.1 times, it would cause permanent damage to the device.
*Note 3 : The 400W power rating of the 63640-80-80 specified at an ambient temperature of 35°C, please refer to the power rating curve
on the right.
*Note 4 : It does not apply to setting current < 0.025% full scale current in high range. It does not apply to setting current < 0.05% full
scale urrent in low and middle range.
*Note 5 : The full scale is Vmax x Imax.
*Note 6 : The DC level measurements are made over a period of 20ms, and does not measure any transient signals in the DC
measurements.
*Note 7 : Its limits are the maximum power and maximum current of the current range.
*Note 8 : The 63600 is guaranteed to meet specified performance at temperature range of 25 ± 5°C.
Power Rating
100%
87.5%
˚C
35 40
Ambient
Temperature
MAINFRAME SPECIFICATION
Model
63600-1
63600-2
63600-5
Number of slots
Operating temperature
1 slot
0~40˚C
2 slots
0~40˚C
5 slots
0~40˚C
Input Rating
90~127 / 175~253VAC
Switchable / 47~63Hz
90~130 / 175~253VAC
Switchable / 47~63Hz
90~130 / 175~253VAC
Auto Range / 47~63Hz
177x90x554mm /
7.0x3.5x21.8 inch
177x210x554mm /
7.0x8.27x21.8 inch
177x447x554mm /
7.0x17.6x21.8 inch (Full Rack)
Mainframe dimension (HxWxD)
Weight
All specifications are subject to change without notice.
7.5kg / 16.53lbs
11.5kg / 25.35lbs
Developed and Manufactured by :
Distributed by:
CHROMA ATE INC.
致茂電子股份有限公司
HEADQUARTERS
No. 66, Hwa-Ya 1st Rd.,
Hwa-Ya Technology Park,
Kuei-Shan Hsiang,33383
Taoyuan County, Taiwan
Tel: +886-3-327-9999
Fax: +886-3-327-8898
http://www.chromaate.com
E-mail: [email protected]
CHINA
CHROMA ELECTRONICS
(SHENZHEN) CO., LTD.
8F, No.4, Nanyou Tian An
Industrial Estate, Shenzhen,
China PC: 518052
Tel: +86-755-2664-4598
Fax: +86-755-2641-9620
15.6kg / 34.39lbs
JAPAN
CHROMA JAPAN CORP.
11F NARA Building II 2-2-8
Shinyokohama, Kouhokuku,
Yokohama City 222-0033
Kanagawa, Japan
Tel: +81-45-470-2285
Fax: +81-45-470-2287
http://www.chroma.co.jp
U.S.A.
CHROMA SYSTEMS
SOLUTIONS, INC.
25612 Commercentre Drive,
Lake Forest, CA
92630-8830
Tel: +1-949-600-6400
Fax: +1-949-600-6401
Toll Free: +1-866-600-6050
http://www.chromausa.com
E-mail: [email protected]
EUROPE
CHROMA ATE EUROPE B.V.
Morsestraat 32, 6716 AH Ede,
The Netherlands
Tel: +31-318-648282
Fax: +31-318-648288
http://www.chromaeu.com
E-mail: [email protected]
Worldwide Distribution and Service Network
63600-201008-2000
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
