Panasonic | EJMDA32UK | Datasheet | Panasonic EJ-MDA32U-K

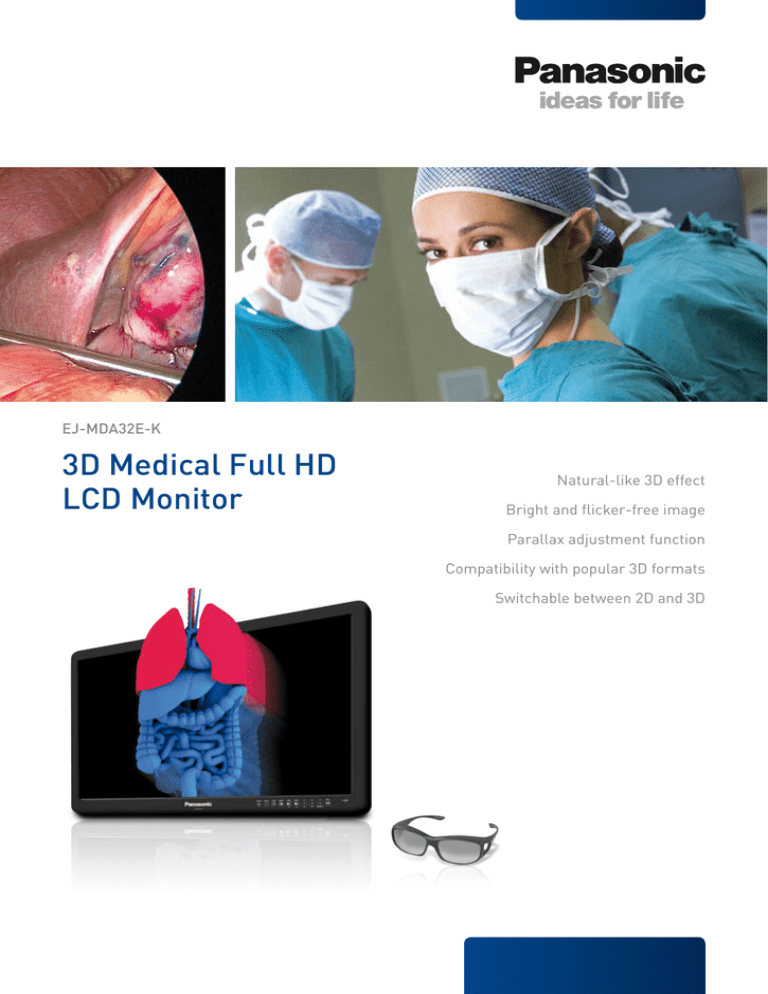

EJ-MDA32E-K
3D Medical Full HD
LCD Monitor
Natural-like 3D effect
Bright and flicker-free image
Parallax adjustment function
Compatibility with popular 3D formats
Switchable between 2D and 3D
Medical 3D LCD Monitor: EJ-MDA series
Enter the world of Panasonic
3D Medical Images
The new Medical 3D Full HD LCD Monitor makes an
incredible viewing experience for surgeons possible.
Take advantage during more complicated surgeries
as well as medical trainings and increase efficiency
through an optimum of three-dimensional orientation. The natural-like 3D effect and excellent image
quality is suitable for endoscopic surgery as well as
microscopy. Due to light weight polarized glasses a
good wearability is assured in any situation.
Natural-like 3D effect
Excellent 3D effect and image quality are best suitable for end
oscopic surgery allowing quick recognition of affected areas an d
smooth saturation procedures. Bright flicker-free images throug
h light weight 3D glasses greatly reduce 3D related nausea and
eye fatigue. Fine adjustment of 3D effect is possible with inc luded parallax adjustment function.
Excellent image quality
Advanced IPS (In-Plane-Switching) technology allows accurate co
lor reproduction and consistent performance not affected by
environment of usage, which improves efficiency in operation p rocedures in combination with better visibility with large scre en and
full-screen display mode function.
Flexible switching to 2D
Panasonic's medical 3D LCD monitor features flexible selection
function key, GPI and RS232C interfaces.
from 2D/3D modes and multiple display modes via OSD,
3D Feature
∙ Technology: Passive 3D with Xpol
∙ Compatible 3D Input Format:
®
polarization filter
L
L
R
L
R
R
Side-by-side
Line-by-line
Top & bottom
Dual stream
∙ 3D Input Terminal: HD-SDI / DVI-D
∙ 3D Function: Odd/even line selection / Parallax adjustment
∙ 3D displayable Input Signal:
1080/60p(DVI), 1080/50p(DVI), 1080/30p, 1080/25p, 1080/24p, 1080/24PsF
1080/60i, 1080/50i, 720/60p, 720/50p
Xpol is registered trademark of Arisawa Co., Ltd
Authorized Dealer
Medical 3D LCD Monitor Specification
General
Power (Internal)
Power Consumption
Dimensions (HxWxD)
Weight
Cabinet Color
Image Specifications
Size (Diagonal)
LCD Panel
View Area
Aspect Ratio
Pixel
Number of Colors
View Angle
Luminance
Contrast
Response Speed
Rise: Black > White
Fall: White > Black
EJ-MDA32U-K
AC100-120/200-240V±10% 50/60Hz
100V-240V / 1.44A-0.64A
473 x 776 x 114 mm
15 kg
Front: Black / Back: White
32.0“ (81 cm)
IPS-Pro
698 x 393 mm
16:9
1920 x 1080
16.77 million
(2D mode) V:178 H:178; (3D mode) V: 26-28 (typ) H:178
400 cd/m2 (typ.)
1000:1 (typ.)
8 ms (typ.) / 6 ms (typ.)
Features
IPS
HD Dual Input
Reverse Display
Still Mode
OSD Language
Image processing
Wide view angle with IPS panel
HD-SDI 2 input / DVI-D 2 input: independent display mode
180°/90°/270° rotation
Temporary still mode
English / Spanish / Italian / German / French
10bit
Input
HD/SD-SDI
DVI-D
HD15
YPbPr/RGB
Video
Y/C
2 input, BNC x 2
2x 24 pin input / input 1: with HDCP; input 2: without HDCP
1 input, Dsub 15 pin
1 input, BNC x 5, Y/G, Pb/B, Pr/R, CSYNC/HD, VD
1 input, BNC x 1
1 input, miniDin 4 pin x 1
Output
HD/SD-SDI
DVI-D
YPbPr/RGB
Video
Y/C
2 output, BNC x 2
1 output without HDCP
1 ouput, BNC x 5, Y/G, Pb/B, Pr/R, CSYNC/HD, VD
1 output, BNC x 1
1 output, miniDin 4 pin x 1
Remote
RS232C
GPI
1 connector, Dsub 9 pin
1 GPI
Frequency
Frequency
Dot Clock
Horizontal: 31.4 ~ 75 kHz, Vertical: 56.2 ~ 85.1 kHz
25.1– 162 MHz
Signal Level
HD/SD-SDI
DVI-D
HD15
YPbPr/RGB
Video
Y/C
800 mV ± 10%
TMDS single link
R/G/B: 0.7 Vpp, HD/VD: TTL
R/G/B: 0.7 Vpp, HD/VD: TTL, Y:1 Vpp, Pb: 0.7 Vpp, Pr: 0.7 Vpp
Video 1 Vpp
Y: 1 Vpp, C: 0.286 Vpp (NTSC Burst), 0.3 Vpp (PAL Burst)
Mounting
VESA
200 x 200 mm
Compilance
EN60601-1, EN60601-1-2, CE(MDD)
Attachment
Access
Operating Instructions
3D Glasses
Data subject to change without notice.
AC Cord
Yes (English / Spanish / Italian / German / French)
Circular polarized glasses (not part of supply)
as at 2011
Medical 3D LCD Monitor Specification
Appearance
Unit: mm
Screw holes
200
539
Rear
Front view
Side
Screw holes
Back view
200
117
896
Terminal
1
2
3
4
5
6
7
8
9
10
11
12
13
15
14
16
1
Power supply
2
S-Video-Input (4-pin, Mini, DIN)
3
Video-Input (BNC-Type)
4
Y/G-Input (BNC-Type)
5
Pb/B-Input (BNC-Type)
6
Pr/R
7
SYNC/HD-Input (BNC-Type)
8
VD-Input (BNC-Type)
9
GPI-Input (D-Sub 9-pin)
10
HD 15-Input (Mini-D-Sub, 15-pin)
11
RS-232C-Input (D-Sub 9-pin)
12
SDI 1/2-Input (BNC-Type)
13
potential equalisation pin
14
DVI-D 1/2-Input (DVI-D)
15
Loop-Through SDI 1/2
16
Loop-Through DVI-D2
Authorized Dealer
5770 Ambler Drive 29, Mississauga, Ontario L4W 2T3
Tel: 905 238-2240 Fax: 800 363-3016
www.Panasonic.ca
