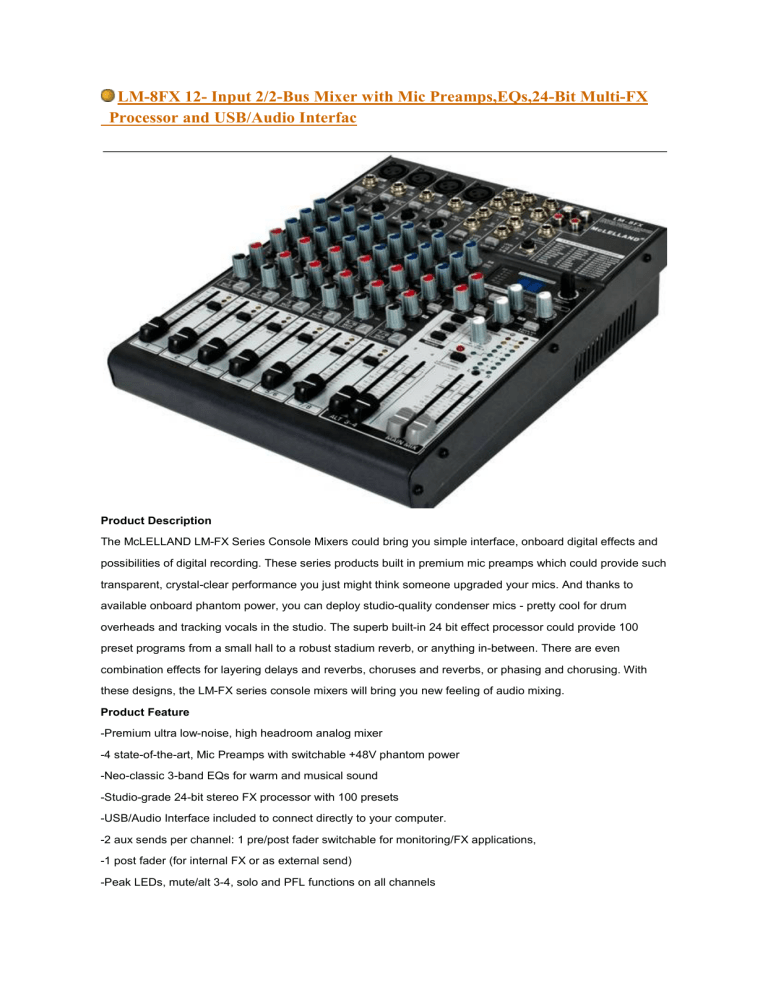

LM-8FX 12- Input 2/2-Bus Mixer with Mic Preamps,EQs,24-Bit Multi-FX
Processor and USB/Audio Interfac
Product Description
The McLELLAND LM-FX Series Console Mixers could bring you simple interface, onboard digital effects and
possibilities of digital recording. These series products built in premium mic preamps which could provide such
transparent, crystal-clear performance you just might think someone upgraded your mics. And thanks to
available onboard phantom power, you can deploy studio-quality condenser mics - pretty cool for drum
overheads and tracking vocals in the studio. The superb built-in 24 bit effect processor could provide 100
preset programs from a small hall to a robust stadium reverb, or anything in-between. There are even
combination effects for layering delays and reverbs, choruses and reverbs, or phasing and chorusing. With
these designs, the LM-FX series console mixers will bring you new feeling of audio mixing.
Product Feature
-Premium ultra low-noise, high headroom analog mixer
-4 state-of-the-art, Mic Preamps with switchable +48V phantom power
-Neo-classic 3-band EQs for warm and musical sound
-Studio-grade 24-bit stereo FX processor with 100 presets
-USB/Audio Interface included to connect directly to your computer.
-2 aux sends per channel: 1 pre/post fader switchable for monitoring/FX applications,
-1 post fader (for internal FX or as external send)
-Peak LEDs, mute/alt 3-4, solo and PFL functions on all channels
-2 subgroups with separate outputs for added routing flexibility
-2 multi-functional stereo aux returns with flexible routing
-Balanced main mix outputs with gold-plated XLR connectors plus separate control room,
-headphones and stereo tape outputs
-Control room/phones outputs with multi-input source matrix
-Tape inputs assignable to main mix or control room/phones outputs
-60-mm logarithmic-taper faders and sealed rotary controls
-Internal autorange power supply for maximum flexibility (100 - 240 V~), noise-free audio,
-superior transient response plus low power consumption for energy saving
-Rack mount brackets included for ultimate flexibility
-High-quality components and exceptionally rugged construction ensure long life
Product Specification/Models
-THD: 0.004%
-Frequency Response: 20 Hz-20K Hz
-Input Hum & Noise: -108 dB
-Crosstalk: -90dB
-Phantom Power: +48 V
-CH & ST CH Input: +10 dB - +60 dB(Mic),
-gain control: -10 dB - +40 dB(Line)
-CH & ST High Pass Filter: 75 Hz, 18 dB/Oct
-CH EQ Mono High: +/- 15 dB @ 12K Hz
Mid:+/- 15 dB @ 2.5K Hz
Low: +/- 15 dB @ 80 Hz
-CH EQ Stereo High: +/- 15 dB @ 12K Hz
Mid: +/- 15 dB @ 2.5K Hz
LOW: +/- 15 dB @ 80 Hz
-Intemal Digital Effect: 100 programs
