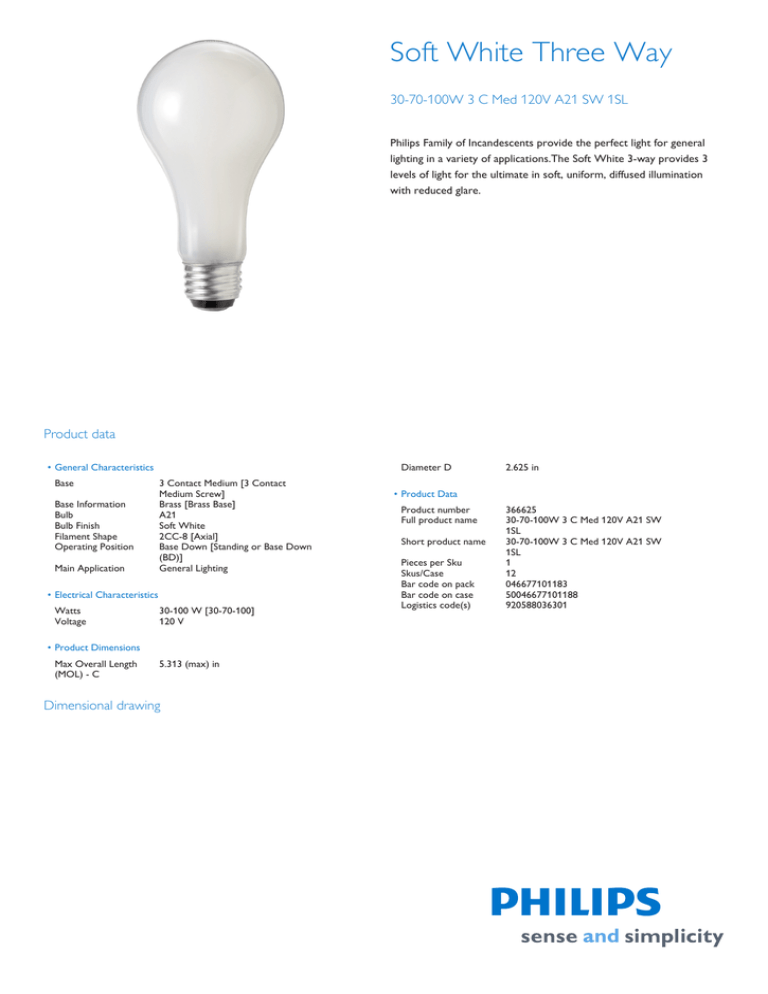

Philips 046677101183 Datasheet

Philips 046677101183 Datasheet
Soft White Three Way
30-70-100W 3 C Med 120V A21 SW 1SL
Philips Family of Incandescents provide the perfect light for general
lighting in a variety of applications.The Soft White 3-way provides 3
levels of light for the ultimate in soft, uniform, diffused illumination
with reduced glare.
Product data
• General Characteristics
Base
Base Information
Bulb
Bulb Finish
Filament Shape
Operating Position
Main Application
Diameter D
3 Contact Medium [3 Contact
Medium Screw]
Brass [Brass Base]
A21
Soft White
2CC-8 [Axial]
Base Down [Standing or Base Down
(BD)]
General Lighting
• Electrical Characteristics
Watts
Voltage
30-100 W [30-70-100]
120 V
• Product Dimensions
Max Overall Length
(MOL) - C
5.313 (max) in
Dimensional drawing
2.625 in
• Product Data
Product number
Full product name
Short product name
Pieces per Sku
Skus/Case
Bar code on pack
Bar code on case
Logistics code(s)
366625
30-70-100W 3 C Med 120V A21 SW
1SL
30-70-100W 3 C Med 120V A21 SW
1SL
1
12
046677101183
50046677101188
920588036301
Soft White Three Way
Dimensional drawing
30-70-100W 3 C Med 120V A21 SW 1SL
Product
C (Max) D (Norm)
30-70-100W E26d 120V A21 SW 5.313
2.625
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.
Specifications are subject to change without notice. Trademarks are the property of Koninklijke
Philips Electronics N.V. or their respective owners.
www.philips.com/lighting
2013, May 17
data subject to change
