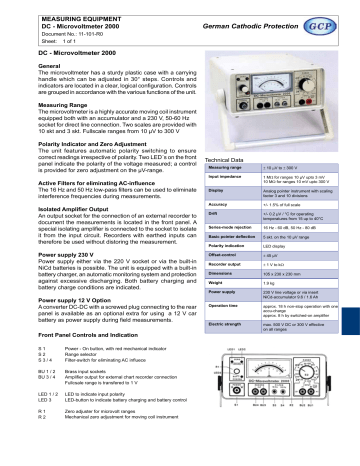

Measuring equipMent

DC - Microvoltmeter 2000

Document No.: 11-101-R0

Sheet: 1 of 1

DC - Microvoltmeter 2000

general

The microvoltmeter has a sturdy plastic case with a carrying handle which can be adjusted in 30° steps. Controls and indicators are located in a clear, logical configuration. Controls are grouped in accordance with the various functions of the unit.

German Cathodic Protection

Measuring range

The microvoltmeter is a highly accurate moving coil instrument equipped both with an accumulator and a 230 V, 50-60 Hz socket for direct line connection. Two scales are provided with

10 skt and 3 skt. Fullscale ranges from 10 µV to 300 V

polarity indicator and Zero adjustment

The unit features automatic polarity switching to ensure correct readings irrespective of polarity. Two LED´s on the front panel indicate the polarity of the voltage measured; a control is provided for zero adjustment on the µV-range.

Technical Data

Measuring range input impedance

Active Filters for eliminating AC-influence

The 16 Hz and 50 Hz low-pass filters can be used to eliminate interference frequencies during measurements.

Display accuracy

Drift

Isolated Amplifier Output

An output socket for the connection of an external recorder to document the measurements is located in the front panel. A special isolating amplifier is connected to the socket to isolate it from the input circuit. Recorders with earthed inputs can therefore be used without distoring the measurement.

power supply 230 V

Power supply either via the 220 V socket or via the built-in

NiCd batteries is possible. The unit is equipped with a built-in battery charger, an automatic monitoring system and protection against excessive discharging. Both battery charging and battery charge conditions are indicated.

series-mode rejection

Basic pointer deflection polarity indication

Offset-control recorder output

Dimensions

Weight power supply

Power supply 12 V Option

A converter DC-DC with a screwed plug connecting to the rear panel is available as an optional extra for using a 12 V car battery as power supply during field measurements.

Operation time electric strength

Front panel Controls and indication

± 10 µV to ± 300 V

1 MΩ for ranges 10 µV upto 3 mV

10 MΩ for ranges 10 mV upto 300 V

Analog pointer instrument with scaling factor 3 and 10 divisions

+/- 1.5% of full scale

+/- 0.2 µV / °C for operating temperatures from 15 up to 40°C

16 Hz - 60 dB, 50 Hz - 80 dB

5 skt. on the 10 µV range

LED display

± 45 µV

± 1 V to kΩ

105 x 230 x 230 mm

1.9 kg

230 V line voltage or via insert

NiCd-accumulator 9.6 / 1.6 Ah approx. 18 h non-stop operation with one accu-charge approx. 8 h by switched-on amplifier max. 500 V DC or 300 V effective on all ranges

S 1

S 2

S 3 / 4

BU 1 / 2

BU 3 / 4

LED 1 / 2

LED 3

R 1

R 2

Power - On button, with red mechanical indicator

Range selector

Filter-switch for eliminating AC influece

Brass input sockets

Amplifier output for external chart recorder connection

Fullcsale range is transfered to 1 V

LED to indicate input polarity

LED-button to indicate battery charging and battery control

Zero adjuster for microvolt ranges

Mechanical zero adjustment for moving coil instrument

Measuring equipMent

LC-4 Handheld multimeter

Document No.: 11-102-R0

Sheet: 1 of 1

LC-4 Handheld Multimeter

German Cathodic Protection

Pick up a Model LC-4 and have these features in the palm of your hand

DC volts for IR drop, potential & rectifier readings

AC volts for potential & rectifier readings

Ohms for continuity & resistance testing

Selectable input resistance display „freeze“ for instant off & coordinated tests

Optional plug-in shunt for current readings

Heavy duty carrying case

general

Model LC-4 is a hand-held voltmeter to include a number of special

features which facilitate corrosion and cathodic protection testing on underground structures. It is designed for field testing under almost any environmental conditions. Sealed Mil Spec. switches, sealed windows, a gasketed case and a printed circuit board with baked-on moisture and fungus resistant coating on both sides make this possible.

The large (0.5“) display characters are easy to read under both high and low lighting conditions and function over a wide temperature range with very little drain on the battery.

The LC-4 is recommended for potential surveys, side drain measurements, surface potential surveys, IR drop measurements, checking both the AC and DC circuits of rectifiers, checking for stray or hazardous AC potentials, and checking galvanic anodes. DC current measurements require the use of an optional plug-in shunt (0-20 Amp).

The selectable input resistance feature permits detection of high resistance in the external circuit and elimination of resulting errors in virtually all cases.

The push-to-hold-reading button freezes the display at any desired time, which makes the meter usable in many areas having varying stray currents. It is also useful when conducting instant-off and coordinated tests.

accessories spare Carrying Case

Made of heavy, water resistant simulated leather, this carrying case leaves your hands free to perform tests.

A quick opening snap permits ready access to the instrument, and a belt loop is included with a snap fastener.

electrode extension adapter

Designed to save effort (and your back) as well as to protect you from snakes and poison ivy, the MCM electrode extension adapter firmly mates with the base of the meter by the use of Velcro® pads. The base has a threaded socket which connects to either input terminal by means of a test lead pigtail with a banana plug. Any

MCM intermediate electrode extension can be screwed into the socket.

Specifications

Logic

Display

DC Volt Range

AC Volt Range

Resistance Range

DC Current Range

Accuracy

AC Rejection

@ 50/60/400 Hz

DC Rejection

Zero

Decimal Point

Polarity

Input Resistance

Operating Temperature

Battery

Dimensions

Weight

CMOS, crystal controlled timing

Liquid crystal, 3 1/2 digits, 0.5“ high

0 - 20 mV (0.01 mV resolution)

0 - 200 mV (0.1 mV resolution)

0 - 2 V (1.0 mV resolution)

0 - 200 V (0.1 V resolution)

0 - 600 V (1.0 V resolution)

0 - 200 Ohms (0.1 Ohm resolution)

Using optional 0.001 Ohm

LC Shunt: 0-20 A (0.01 A resolution)

DCV: 1% of reading +1 digit

ACV: 3% of reading +1 digit

Ohms: 2% of reading +1 digit

20 mV range: 20 mV AC

200 mV range: 5 VAC

2 V range: 120 VAC

200 V range: 600 VAC

600 VAC range: 600 VDC

Automatic

Automatic; set by range switch

Automatic; negative symbol displayed, positive assumed

20 mV range; 1000 Ohms. All other DCV ranges are switch selectable

(10, 25, 50, 100, 200 megohms)

+8

°

F to +176

°

F (-14

°

C to +80

°

C)

One 9V alkaline recommended

6-1/8 x 3-5/8 x 1-3/4“ overall (15 x 8 x 4.5 cm)

11 oz. approx. (0.312 kg)

external shunt

Two shunts which plug directly into the 20 mV range of the LC-4 Meter are available:

0.00 Ω / 50A/ 1 mV = 1A (measure up to 20 A on the

20 mV range).

0.1 Ω / 2 A/ 100 mV= 1A (measure up to 200 mA on the 20 mV range).

Measuring equipMent

Multimeter Model B3a2

Document No.: 11-103-R0

Sheet: 1 of 1

Multimeter Model B3a2 advantages

Designed for the corrosion control industry

Increased dependability through solid state design

RFI shielded throughout

Accurate, stable readings

Active filtering for power frequency rejection

Selectable input resistance

Withstands the most harsh environments

Flexible multimeter for all your corrosion tests

German Cathodic Protection

Specifications

Left meter:

9 DC voltage ranges, zero to full scale: 2 mV, 10 mV,

20 mV, 100 mV, 200 mV, 1 V, 2 V, 10 V, 100 V

Minus 10% of full scale on all ranges

Input polarity reversal switch on volts and amps ranges eliminates the need to reverse test leads

Best resolution: 20 µV (0.00002 V) on the 2 mV range

Input Resistance: 10 000 Ω on 2 mV and 10 mV ranges

10 MΩ on 20 mV to 100 V ranges

Line frequency rejection: >60dB @ 60Hz

RF rejection: > 70dB @ 1MHz

Overload protection: 10 times full scale

9 DC ampere ranges, zero to full scale: 2 mA, 10 mA,

20 mA, 100 mA, 200 mA, 1 A, 2 A, 10 A, 20 A

Minus 10% of full scale on all ranges

Best resolution: 20 µA on the 2 mA range

Burden voltage: 20 mV

Overload allowed: 5 times full scale, less than 5 sec.

Contact check: > 200 mA short circuit

Adjustable output current supply: controllable 0 to 3

VDC and 0 to 4 A

Control external current flow with built-in 25 W adjustable rheostats

Read internal battery voltage directly

Left meter switch: internally connects right meter to left terminals, enabling current and voltage to be read simultaneously

general information

A major design achievement was to eliminate the effects of RFI, and offer accurate, repeatable readings.

Impact resistant d’Arsonval meters with taut band movement to withstand rough handling.

Resistant to rain, dust and temperature: - 0°F to 150°F.

10% up scale: -0.1, 0, 1; -.02, 0, 2: a visual prompt which indicates when the reading crosses zero.

Knife-edge pointer with easy-to-view mirror scale.

Accuracy: +0.5% of full scale for all ranges.

Tracking accuracy: +0.5%

applications

The B3A2 was designed specifically as a cathodic protection test instrument. In most cases it is all that is required for the test and evaluation of existing systems or design of new installation. It can be utilized in making the following tests, all of which are illustrated in the B3A2 operating manual:

right meter:

9 DC voltage ranges, zero to full scale: 2 mV, 10 mV,

20 mV, 100 mV, 200 mV, 1 V, 2 V, 10 V, 20 V

Minus 10% of full scale on all ranges

Input polarity reversal switch on volts

Best resolution: 20 µV(0.00002 V) on the 2 mV range

Input resistance: 100,000© on 2mV and 10mV ranges. selectable from 1 MΩ, 10 MΩ, 25 MΩ, 50 MΩ, 100 MΩ,

200 MΩ on 20 mV to 100 V ranges

Line frequency rejection > 60 dB @ 60 Hz

RF rejection > 70dB @ 1 MHz

Bias control + full scale, all ranges

Overload protection 10 times full scale

Structure-to-soil potentials

Current measurements (direct null-amp method, 2 or

4 terminal zero resistance)

IR drops and calibration of IR drop test stations

Soil or water resistivity by soil box and by 4-electrode method

Soil potential gradients

Continuity tests

Pipe coating resistance tests and fault surveys

(over-the-ground method)

Galvanic anode rectifier output and cathodic protection interference tests

Duct slug survey on lead covered cables and concrete bridge deck surveys pH determination

Grounding tests

Measuring equipMent

Digital multimeters MM 2

Document No.: 11-104-R0

Sheet: 1 of 1

Digital Multimeter with manual ranging MM 2

The MM 2 offers all advantages of a Digital multimeter with manual measuring range selection such as fast response time due to the manually selectable measuring ranges and easy handling due to color-marked measuring ranges.

German Cathodic Protection

The multimeter MM2 is provided with DC and AC voltage ranges of up to 1000 V

DC

/750 V

AC

as well as with DC and AC current ranges of up to 20 A. Further measuring functions are resistance measuring up to 20 MΩ as well as an acousticcontinuity and diode test.

The MM 2 has an automatic switch-off function when not in use (approx. 30 min.) and a battery low voltage indication as well.

The included protective rubber holster makes it possible to use it under roughest environmental conditions. The measuring ranges of the MM 2 are protected against overload.

accessories for multimeter MM

set ta2

Ø 4 mm safety measuring lead set, silicone, 6-piece, red, black, professional design, CAT III 1000 V, consisting of:

2 x Ø 4 mm safety measuring leads, silicone,

L = 100 cm, 19 A

2 x fully insulated crocodile clips with toothed jaws and fine wire surface, 32 A

2 x Ø 4 mm safety test probes, 20 A

Display

DC voltage:

Resolution/accuracy

aC voltage

Resolution/accuracy

Measuring method

DC current

Resolution/accuracy

Over voltage protection

aC current

Resolution/accuracy

Over voltage protection

Measuring method

resistance

Resolution/accuracy

Continuity test

Diode test

Over voltage protection

Range switching

Over voltage category

Operation temperature

Dimensions (l x w x h)

Weight

Battery type

Delivery includes

31/2 digit LC display (1999 pixels)

200 mV/2 V/20 V/200 V/1000 V max. 0.1 mV/max. ± 0.5 % + 2 digit

200 mV/2 V/20 V/200 V/750 V max. 0.1 mV/max. ± 1.3 % + 5 digit

RMS value

200 µA/2 mA/20 mA/200 mA/20 A max. 0.1 µA/max. ± 1.0 % + 2 digit

1 A, 16 A (500 V) fuse, fast

200 µA/2 mA/20 mA/200 mA/20 A max. 0.1 µA/max. ± 1.5 % + 3 digit

1 A, 16 A (500 V) fuse, fast

RMS value

200 Ω/2 kΩ/20 kΩ/200 kΩ/ 2 MΩ/20 MΩ max. 0.1 Ω/max. ± 0.75 % + 2 digit

50 Ω, acoustic: buzzer, optic: LCD

1.5 mA

750 V effective resp. 500 V effective manual ranging

CAT III 600 V, CAT II 1000 V

0 °C to + 50 °C

192 x 95 x 50 mm

550 g

9 V battery IEC 6LR61 multimeter, protective rubber holster, carrying case, battery, double insulated safety test leads

set ta3

Ø 4 mm safety measuring lead set, silicone, 8-piece, red, black, professional design, CAT III 1000 V, consisting of:

2 x Ø 4 mm safety measuring leads, silicone,

L = 100 cm, 19 A

2 x fully insulated crocodile clips with toothed jaws and fine wire surface, 32 A

2 x safety test probes with slight tip made of stainless steel, 1 A

2 x safety claw gripper with strong claws, 16 A

Measuring equipMent

Fluke 170 series Digital multimeters

Document No.: 11-106-R0

Sheet: 1 of 1

The three models of the new 170 Series are the new benchmarks for general purpose multimeters. They set the standard with a combination of precision, features, ease-of-use, safety and reliability.

Features

German Cathodic Protection

True RMS voltage and current measurements

0.09% basic accuracy (177, 179)

6000 count resolution Digital display with analog bargraph and backlight (177, 179)

Manual and automatic ranging

Display Hold and Auto Hold

Frequency and capacitance measurements

Resistance, continuity and diode measurements

Temperature measurements (179)

Min-max-average recording

Smoothing mode allows filtering of rapidly changing inputs

Easy battery exchange without opening the case

Closed case calibration through front panel

Ergonomic case with integrated protective holster

EN61010-1 CAT III 1000V / CAT IV 600V

Measures twice as fast as other multimeters

safety conformance

All inputs are protected to IEN61010-1 CAT IV 600V/CAT III 1000V.

UL, CSA, TÜV listed and VDE Pending

Specifications

Voltage DC

Voltage AC

Current DC

Current AC

Resistance

Capacitance

Frequency

Temperature

Note

175 - Accuracy*

177 - Accuracy*

179 - Accuracy*

Max. Resolution

Maximum

Accuracy*

Max. Resolution 0.1 mV

Maximum

Accuracy*

Max. Resolution 0.01 mA

Maximum

Accuracy*

Max. Resolution 0.01 mA

Maximum

Accuracy*

Max. Resolution 0.1 Ω

Maximum

Accuracy*

Max. Resolution 1 nF

Maximum

Accuracy*

± (0.15%+2)

± (0.09%+2)

± (0.09%+2)

0.1 mV

1000 V

± (1.0%+3)

1000 V

± (1.0%+3)

10 A

± (1.5%+3)

10 A

± (0.9%+1)

50 MΩ

± (1.2%+2)

Max. Resolution 0.01 Hz

Maximum

10,000 µF

± (0.1%+1)

100 kHz

179 - Accuracy* ± (1.0%+10)

Max. Resolution 0.1°C

Range function

-40°C/400°C

* Accuracies are best accuracies for each

Fluke 175

Safety Specifications

Overvoltage category

Agency Approvals

Fluke 177

EN 61010-1 to 1000 V CAT III.

EN 61010-1 to 600 V CAT IV.

UL, CSA, TÜV listed and VDE Pending

Mechanical & General Specifications

Size

Weight

Warranty

Battery Life

43 x 90 x 185 mm

420 g

Lifetime

Alkaline: ~200 hours typical, without backlight

accessories

C510 Leather Meter Case

Oiled genuine top grain cowhide

Rugged construction with heavy duty stitching and reinforced rivets

Large tool belt loop and top flap to secure meter

Holds most Fluke DMMs, Thermometers, and

Process Calibrators

TLK-225 SureGrip™ Master Accessory Set

Kit includes all the SureGrip™ leads and probes in a handy roll-up pouch:

AC220 SureGrip™ Alligator Clip Set

AC280 SureGrip™ Hook Clip Set

AC283 SureGrip™ Pincer Clip Set

AC285 SureGrip™ Large Jaw Alligator Clip Set

TP220 SureGrip™ Test Probe Set

TL224 SureGrip™ Silicone Test Lead Set

6-Pocket Storage Pouch

TLK-220 US SureGrip™ Industrial Test Lead

Fluke 179

Special value SureGrip Set for industrial applications. Includes two sizes of alligator clips and sharp test probes for reliable connections, test leads and a roomy carry case to hold and protect your meter and all your accessories. All 1000 V

CAT III, 600 V CAT IV rated.

Included with set:

Environmental Specifications

Operating Temperature

Storage Temperature

Humidity (Without Condensation)

-10°C to +50°C

-30°C to +60°C

0% - 90% (0°C - 35°C)

0% - 70% (35°C -50°C)

AC220 Plunger Style Alligator Clips

AC285 Large Jaw Alligator Clips

TP220 Sharp Test Probes

TL224 Right to Straight Test Leads

Zippered Vinyl Carry Case with Moveable

Divider

Measuring equipMent

Multifunction instrument MoData 2

Document No.: 11-200-R0

Sheet: 1 of 2

MoData 2, a computer-aided measuring system, has

been developed to integrate the function and capability of several instruments used in the field of cathodic corrosion protection in one instrument only.

MoData 2 combines 4 separate measuring instruments

µ

-volts, resistance).

(AC/DC voltage, current,

With serial interface port for connection and direct data transfer between PC and MoData2.

Provided with bar code input for automatic test point identification on site.

MoData 2, Handheld computer

technical Data

Type

Case

Size

Weight

Protection class

Screen

Keybord, waterproof

Operating system

Processor

Memory

ROM

Interfaces

Modem

Power supply

Operating temperature

Additional

Itronix fex21

Impact-resistant plastic

190 x 155 x 37 mm (D x W x H)

0.8 kg

IP 65

6.5“, 16 grayscale with backlight

640 x 240 pixel, touch screen

Fluorescent membrane keyboard

Windows Handheld PC 2000

Toshiba 129 MHz

32 MB

32 MB

2 x 9 pin serial port, infrared interface

V34 analog (installed)

Rechargeable lithium ion batterry

Lifetime approx. 10 h

-10 °C to 50 °C

Compact flash card (CF card) 64 MB installed

German Cathodic Protection

Measuring ranges and accuracy

The following tables contain details of the available measuring ranges, resolutions and maximum deviations.

DC voltage measurement (Channels a, B and C)

Input impedance:

DC voltage attenuation:

Measuring range

> 10 MΩ

16.6 Hz / 60 dB (factor 10

3

)

50.0 Hz / 100 dB (factor 10

5

)

Resolution Max. deviation

±

±

1 V

10 V

0.1 mV

1.0 mv

± 0.5 % ± 0.5 mV

± 0.5 % ± 5.0 mV

± 100 V

10 mV ± 0.5 % ± 10 mV

Simultaneous measurement of 3 channels, time difference between channels < 5 ms

aC voltage measurement (Channel a)

Input impedance: > 10 MΩ

Measuring range

1 V eff.

10 V eff.

100 V eff.

Resolution

0.1 mV

1.0 mv

10 mV

Max. deviation

± 2.0 % ± 1.0 mV

± 2.0 % ± 10 mV

± 2.0 % ± 50 mV

Frequency range 10 Hz to 120 Hz, cut-off frequency 800 Hz (2 dB)

MoData 2, Multi task converter

technical Data

Case

Size

Weight

Interfaces

Power supply

Equipment

Options

Impact-resistant plastic

290 x 260 x 70 mm (D x W x H)

2.25 kg (including MoData computer)

2 x 9 pin serial port

12 V charging socket

(with internal isolation)

Terminal for synchronization or relay cable

Rechargeable lead battery 6 V/1.3 Ah

Lifetime approx. 10 h

MoData 2 including Itronix fex21

External 230 V battery charger

Synchronization cable

Transfer cable

User manual

System carry case

„Sprint“ carrying strap for maintenance

„Marathon“ carrying strap for

Intensive measurement

External 12 V battery charger

GPS antenna with integrated receiver

Measuring equipMent

Multifunction instrument MoData 2

Document No.: 11-200-R0

Sheet: 2 of 2

Micro voltage measurement (Channel a)

Input impedance:

AC voltage attenuation:

Measuring range

± 80000 µV

> 10 MΩ

16.6 Hz / 60 dB (factor 10

3

)

50.0 Hz / 100 dB (factor 10

5

)

Resolution

1 µV

Max. deviation

± 0.2 % ± 5.0 µV

Current measurement (Channel a)

AC voltage attenuation:

Measuring range

16.6 Hz / 60 dB (factor 10

3

)

50.0 Hz / 100 dB (factor 10

5

)

Internal shunt Resolution Max. deviation

± 10 mA

± 100 mA

10 Ω

3 Ω

1 µA

10 µA

± 1.0 % ± 5 µA

± 1.0 % ± 20 µA

German Cathodic Protection

Current measurement (30 a current input)

AC voltage attenuation:

Measuring range

16.6 Hz / 60 dB (factor 10

3

)

50.0 Hz / 100 dB (factor 10

5

)

Internal shunt Resolution Max. deviation

± 30 A 0.01 Ω 1 mA ± 1.0 % ± 3 mA

resistance measurement

Measuring method:

Measuring frequency:

Output voltage:

Wenner; 2-pole or 4-pole

128 Hz max. 2 V eff.

1 kΩ measuring range max. 10 V eff.

max. 10 V eff.

10 kΩ measuring range

800 kΩ measuring range

Measuring range

Resolution

(4-pole)

1 kΩ

10 kΩ

800 kΩ

0.01 Ω

0.1 Ω

1 Ω

10 Ω

100 Ω

10 Ω

100 Ω

100 Ω

1 kΩ

Max. deviation

0.0 Ω -

10.0 Ω -

200 Ω -

0.00 kΩ -

1.0 kΩ -

0.00 kΩ -

10.0 kΩ -

9.9 Ω

199.9 Ω

999 Ω

0.99 kΩ

9.9 kΩ

9.99 kΩ

99.9 kΩ

100.0 kΩ 199.9 kΩ

200.0 kΩ 799.9 kΩ

± 1.0 %

± 1.0 %

± 1.0 %

± 1.0 %

± 1.0 %

± 1.0 %

± 1.0 %

± 1.0 %

± 1.0 %

± 0.05 Ω

± 0.50 Ω

± 5 Ω

± 50 Ω

± 100 Ω

± 0.1 kΩ

± 0.5 kΩ

± 1 kΩ

± 5 kΩ

Back carrying rack „Marathon“

To ensure a problem-free measuring execution on site, the cable drum is eqipped with sliding contacts which guaranteed a simple unreeling of measuring cable without any interruption at the measuring points.

Standard cable drum with 500 m measuring cable.

Measuring equipMent ground resistance tester

Document No.: 11-301-R1

Sheet: 1 of 3

GEOHM

C - ground resistance tester

Battery operated tester for the measurement of ground resistance meets international standards for performing such tests. This instrument allows measurement of soil resistivity and ohmic resistance by means of the ammeter-voltmeter test method.

Features

3 or 4-wire measurement selectable from menu

No balancing required

Continuous monitoring of interference voltage and auxiliary earth electrode resistance with indication of limit value violations

Indication is displayed if maximum probe resistance is exceeded at the beginning of the measurement

Voltage measurement with automatic switch-over function between direct voltage and alternating voltage:

Direct voltage measuring range 1.0 … 250 V (with polarity display)

Alternating voltage measuring range 0 … 300 V

applications

The GEOHM

®

C is a compact instrument for the measurement of ground resistance in electrical systems in accordance with:

DIN VDE 0100

DIN VDE 0141

DIN VDE 0800

Installation of power systems with nominal voltages of up to 1000 V

Grounding in AC systems with nominal voltages of greater than 1 kV

Installation and operation of telecommunications systems including data processing systems: equipotential bonding

and grounding

Testing of lightning protection systems in accordance with

DIN VDE 0185

The instrument is also capable of determining soil resistivity which is essential in calculating dimensions for grounding systems.

It can thus be taken advantage of for simple, geological surveys, and for the planning of grounding systems.

Beyond this, ohmic resistance can be measured at both solid and liquid conductors, as well as internal resistance at conductive elements, as long as these are capacitance and induction-free.

special Functions

Hold function: The measurement value is frozen at the display after the measurement key is released

Storage of measurement values to memory

Data interface for the transmission of measurement values and for software updates

Convenient report generating software, can be expanded into a comprehensive database

Operation

The instrument is easy to operate. A multifunction key allows for one-hand operation for menu selections and the initialization of measurements. Basic functions and sub-functions are selected with the help of four softkeys.

The instrument functions in accordance with the ammeter- voltmeter principle, and thus requires no balancing. Automatic measuring range selection, limit value monitoring and direct selection of 3 or

4-wire measurement assure easy operation as well.

German Cathodic Protection

Display

The LCD consists of a backlit dot matrix display at which menus, setup options, measuring results and online help can be viewed. Various display languages can be selected depending upon the country in which the instrument is used.

signal Lamps

The instrument automatically recognizes errors which occur during measurement, and signals them with four LEDs as shown in the table below.

LeD

U

Stör/

U noise

Netz

Mains

R

S

R

H

>max

>max

status

red red red red

Measuring Function

Interference voltage

Voltage

Probe resistance

Auxiliary earth electrode resistance

Battery Monitoring and self-test

Meaning

U > 10 V

Mains voltage is present

Limit value exceeded

Limit value exceeded

A battery symbol with five segments ranging from depleted to fullycharged continuously indicates the charging level of the batteries in the main menu.

Automatic shutdown ensures if the batteries are fully depleted, and the instrument includes an integrated charge monitoring circuit for safe charging of rechargeable NiMH or NiCd batteries.

During the self-test, a series of test patterns can be displayed one after the other, and indicator LEDs and relays are tested.

Rugged Housing for Harsh Operating Conditions

Soft plastic jacketing protects the instrument against damage due to impact and dropping.

Data interface

Measurement data can be uploaded to a PC via the integrated

IRDA interface for processing and archiving, or for the generation of official reports.

software updates

The test instrument can always be kept current thanks to device software updates via the IRDA interface. Software updates are performed during the course of re-calibration by our service department, or by the user himself.

applicable regulations and standards ieC 61010/en 61010-1/

VDe 0411-1 ieC 61557/en 61557/

VDe 0413

Din 43751 part 1, 2

VDe 0106 part 1 en 60529,

VDe 0470 part 1

Din en 61326

VDe 0843 part 20

Safety requirements for electrical equipment for measurement, control and laboratory use

Devices for testing, measuring and monitoring protective measures

Part 1:

Part 5:

General requirements

Earth resistance

Digital measuring instruments

Protection against electrical shock, classification of electrical and electronic equipment

Test instruments and test procedures, protection provided by enclosures (IP code)

Electrical equipment for measurement, control and laboratory use - EMC requirements

Measuring equipMent ground resistance tester

Document No.: 11-301-R1

Sheet: 2 of 3

GEOHM

C - ground resistance tester

regulations and standards for use of the test instrument

Din VDe 0413 part 5

Din VDe 0100

Din VDe 0141

Devices for testing, measuring and monitoring protective measures

Regulations for the installation of power systems with nominal voltages of up to 1000 V

Earthing in AC systems with nominal voltages of greater than 1 kV

Din VDe 0800

Setup and operation of telecommunication systems including electronic data processing:

Din VDe 0185

equipotential bonding and grounding

Lightning protection systems-general installation regulations

international regulations and standards

BS 7430 + BS 7671, NFC 15-100, IEC 60364

Characteristic Values

Measured

Quantity

R

E

U

_

2)

U∼

3) f

3)

Measured

Quantity

Intrinsic Error Measuring Error

R

E

± (3% rdg. + 6d)

± (10% rdg. + 6d)

± (10% rdg. + 6d)

± (10% rdg. + 6d)

± (10% rdg. + 6d)

± (16% rdg. + 10d)

U

_

2)

U∼ 3) f

3)

± (2% rdg. + 2d)

± (4% rdg. + 3d)

± (0.1% rdg. + 1d)

1)

Manual measuring range selection only

2)

as from software version AD

3)

for sinusoidal measured quantities only

± (0.2% rdg. + 1d)

Output voltage: max. 50 Vrms at 128 Hz ± 0.5 Hz

Display Range

0.01 ... 20 Ω

0.1 ... 200 Ω

1 Ω ... 2 kΩ

10 Ω ... 20 kΩ

10 Ω ... 50 kΩ

1.0 ... 99.9 V

100 ... 250 V

1.0 ... 99.9 V

100 ... 300 V

15 ... 99.9 Hz

100 ... 400 Hz

reference Conditions

Battery Voltage:

Ambient Temperature:

Relative Humidity:

nominal ranges of use

Temperature Range:

Battery Voltage:

Line Frequency :

Line Voltage Waveshape:

Measuring Range

1.0 ... 20 Ω

5 ... 200 Ω

50 Ω ... 2 kΩ

500 Ω ... 20 kΩ

500 Ω ... 50 kΩ

1)

German Cathodic Protection

10 ... 250 V

45 ... 200 Hz

5.5 V ± 1%

+ 23 °C ± 2 K

40 … 60%

Impedance/

Test Current

10 mA

1 mA

100 µA

100 µA

100 µA

500 kΩ

500 kΩ

0 °C … + 40 °C

4.5 … 6.5 V

50/60 Hz ±0.2 Hz sine (deviation between RMS and rectified value < 1%)

nominal Conditions of use

Series Mode

Interference Voltage:

Additional Error caused by

Probe and Auxiliary Earth

Electrode Resistance:

Max. Probe Resistance:

Max. Auxiliary Earth

Electrode Resistance:

Max. Earth and Auxiliary Earth

Electrode Resistance:

< 3 V AC DC

< 5% of (R

< 70 kΩ

< 50 kΩ

E

+ R

A

+ R

P

)

50 kΩ, R

E

as a function of R

H

ambient Conditions

Operating Temperature:

Storage Temperature:

Relative Humidity:

Elevation:

power supply

–10 ... + 50 °C

–20 ... + 60 °C (without batteries)

max. 75%,

no condensation allowed

max. 2000 m

Batteries:

Battery Voltage:

Battery Service Life:

4 ea. 1.5 V C-size (4 x C-Size)

(alkaline-manganese per IEC LR14)

4.6 … 6.5 V

30 h or 1000 measurements at RE

(with 10 s on-time, each measurement performed until the instrument switches off automatically, without display

illumination)

Rechargeable Batteries:

Battery Charger:

(not included)

Charging Voltage:

NiCd or NiMH

NA 0100S (Article No. Z501D),

3.5 mm jack plug

9 V

Charging Time: approx. 9 hours

As a rule, fewer measurements can be performed with rechargeable batteries due to their limited charging capacity.

electrical safety

Safety Class:

Fuse:

Operating Voltage:

Test Voltage:

Measuring Category:

Contamination Degree:

II per IEC 61010-1

250 V

2.3 kV

250 V CAT II

2

F0.1H250V

electromagnetic Compatibility (eMC)

Interference Emission/Immunity IEC 61326/EN 61326

Data interface

Type:

Format:

Range:

Mechanical Design

infrared interface (SIR/IrDa)

bidirectional, half-duplex

9600 baud, 1 start bit, 1 stop bit, 8 data

bits, no parity, no handshake

max. 10 cm recommended distance: < 4 cm

Display:

Dimensions:

Weight:

Protection: multiple dot matrix display, 128 x 64

pixels (65 mm x 38 mm), illuminated

275 mm x 140 mm x 65 mm

approx. 1.2 kg with batteries

housing: IP 54 per EN 60529

with pressure compensating diaphragm

of microporous ePTFE, non-ageing,

8 mm dia. in battery compartment lid

Measuring equipMent ground resistance tester

Document No.: 11-301-R1

Sheet: 3 of 3

GEOHM

C - ground resistance tester

Extract from table on the meaning of IP codes

ip XY

(1 st

digit X)

3

4

5

protection against foreign object entry

≤ 2.5 mm

1.0 mm ∅ dust protected

(2 nd ip XY

digit Y)

3

4

5

protection against the penetration of water

spraying water splashing water water jets

standard equipment

1 GEOHM

®

C test instrument

1 carrying strap

1 set of batteries

1 set of comprehensive instructions covering the following topics:

– Measurement of earth resistance with instructions for 3 and 4-wire methods, with physical considerations regarding the potential gradient area as related to dissipation resistance of grounding systems of various size, with important tips for the performance of measurements on difficult terrain

– Measurement of soil resistivity with geologic analysis and calculation of dissipation resistance

– Measurement of ohmic resistance

1 PC software WinProfi for communication with GEOHM

®

C

The PS3 CD-ROM includes the software WinProfi with the following content and functions:

• up-to-date test instrument software

– for loading other user interface languages

– for loading firmware version updates

• Transmission of measured data from test instrument to PC

accessories e-set 3 earth testing set accessories e-set 4 earth testing set

German Cathodic Protection

Order Information

Designation

Basic instrument

Digital Earth Tester

Add-Ons

IR interface for connection to a USB port at a PC for data exchange between the PC and the GEOHM

®

C, e.g. for software updates to the tester or visualization of measurement values at the PC

accessories

4 special NiMH baby cells

(rechargeable)

Adapter for charging batteries inside the GEOHM

®

C

Hard-shell case with compartment for one C series test instrument and accessories

Earth testing set:

Synthetic leather case with 2 reels, two 25 measurement cables, one

40 m measurement cable, two 3 m measurement cables, 4 earth spikes

(zinc plated), 2 spike pullers and 1 hammer

Earth testing set:

Synthetic leather case with 2 reels, two 25 m cables, one 40 m cable, two 3 m measurement cables and

4 earth drills

Earth testing set:

Carrying case accommodating GEOHM

®

C

1 drum with 25 m measurement cable

2 drums with 50 m measurement

cable each

4 measurement cables,

3 x 0.5 m long, 1 x 2 m long

1 test clamp

4 earth drills, each 350 mm long

1 dust cloth

2 pads of earth testing

measurement data forms

Reel with 25 m measurement cable and banana plugs at both ends

Drum with 50 m measurement cable, banana plug / jack socket

Earth drill, 35 cm long, can be connected by means of

4 mm banana plugs

type

GEOHM

®

Converter

IrDa-USB

Akku-Set

NA 0100S

HC30-C

E-Set 3

E-Set 4

E-Set 5

TR25

TR50

SP350

C

article number

M590A

Z501J

GTY 1040 042 E25

Z501D

Z541C

GTZ 3301 005 R0001

Z590A

Z590B

GTZ 3303 000 R0001

GTY 1040 014 E34

GTZ 3304 000 R0001

accessories e-set 5 earth testing set

Measuring equipMent earth resistance and resistivity tester

Mru-105

Document No.: 11-302-R1

Sheet: 1 of 1

general information

The MRU-105 is a portable meter for measuring earth resistance and resistivity (Wenner’s method). The instrument can measure resistance with a 2, 3, or 4 poles method. The very high immunity for existing interference voltage AC + DC at which measurement is still performed:

24V (68V-p-p) but also measurement of existing interference voltage up to 40V is unique functionality of meters. Moreover meters measure the resistance of the probes and calculate automatically the error coming from probe`s resistances. The meter additionaly can be powered from

Ni-MH batteries or standard C size, and the test results can be stored in the internal memory and transmitted to PC via USB-cable. Measurements can be simplified using current clamps.

German Cathodic Protection

-

-

-

Measurement of earthing resistance using a three- or four-pole technique

selective earth resistance measurement with clamp

(no influence from parallel earth; no opening of rusty junctions is needed) supervision of the measurement conditions (eg. voltages, impact resistance measurement electrodes R monitor) high immunity of interference voltage

H

i R

S

and battery state/

-

-

-

Measurement of ground resistivity (Wenner´s method):

the earth resistivity measurement with the possibility to introduce the distancw between electrodes automatic calculation and displaying the resistivity

Measurement of resistance using a two- or four-pole technique

Built in battery charger

Memory of 300 measurement results with the ability to transfer the data to a pC

Meter meets the requirements of the standard en61557

Optional Equipment

Cable for battery charger

Test wire reel

Earth contact test probe (rod) 0.8 m

Carrying case L3 for Earth contact test probe (rod) 0.8 m

Cramp

Current clamp C-3 (=52 mm)

Ni-MH battery package 7.2 V, 3 Ah

USB 1.1/RS232 adaptor

-

-

-

electric security

type of insulation measurement category protection class

-

Other technical data:

power supply

-

charge power supply display double, acc. to EN 61010-1

CAT III 300V acc. to EN61010-1

IP 54

5 batteries LR14(C) or Ni-MH battery package

100...250V, 50...60Hz

LCD, 20 mm high

-

-

-

-

-

rated operational conditions:

operating temperature max. interference voltage AC + DC at which the measurement is still performed test current for resistance value =< 100 Ω max. measured voltage test current frequency

0...+40°C

24V (68V

P-P

)

225mA

40V

128Hz

standard equipment

Test lead (length: 50 m) on the reel with banana plug yellow

Test lead (length: 25 m) on the reel with banana plug, red

Test lead with banana plug 1,2m; yellow

Test lead with banana plugs 2,2m

Pin probe with banana connector;yellow

„Crocodile“ clip K01; black

Earth contact test probe (rod) 0,3m

Carrying case L2

Hanging straps

User Manual

Calibration Certificate

5 batteries LR14

(WAPRZ050YEBBSZ)

(WAPRZ025REBBSZ)

(WAPRZ1X2YEBB)

(WAPRZ2X2BLBB)

(WASONYEOGB1)

(WAKROBL20K01)

(WASONG30)

(WAFUTL2)

(WAPOZSZE1)

(WAPRZLAD230)

(WAPOZSZP1)

(WASONG80)

(WAFUTL3)

(WAZACIMA1)

(WACEGC3OKR)

(WAAKU05)

(WAADAUSBRS232)

earth resistance measurement

(three-, four pole method)

Measurement range acc. to IEC 61557: 0.12 Ω..20 kΩ

Range

0.0.. 9.99 Ω

10.0.. 99.9 Ω

100.. 999 Ω

1.0..9.99 kΩ

10.0..20.0 kΩ

Resolution

0.01 Ω

0.1 Ω

1 Ω

10 Ω

100 Ω

Accuracy

±(3% m.v. + 3 digits)

±(2% m.v. + 2 digits)

±(2% m.v. + 2 digits)

±(2% m.v. + 2 digits)

±(2% m.v. + 2 digits)

earth resistance measurement using clamps

Measurement range acc. to IEC 61557: 0.16Ω..20kΩ

Range

0.0.. 9.99 Ω

10.0.. 99.9 Ω

100.. 999 Ω

1.0..9.99 kΩ

10.0..20.0 kΩ

Resolution

0.01 Ω

0.1 Ω

1 Ω

10 Ω

100 Ω

Accuracy

±(8% m.v. + 3 digits)

±(8% m.v. + 2 digits)

±(8% m.v. + 2 digits)

±(8% m.v. + 2 digits)

±(8% m.v. + 2 digits)

ground resistivity measurement

Range

0.0.. 9.99 Ω

10.0.. 99.9 Ω

100.. 999 Ω

1.0..9.99 kΩ

10.0..20.0 kΩ

100...999 kΩ

Resolution

0.01 Ω

0.1 Ω

1 Ω

10 Ω

100 Ω

1 kΩ

Accuracy

±(3% m.v. + 3 digits)

±(2% m.v. + 2 digits)

±(2% m.v. + 2 digits)

±(2% m.v. + 2 digits)

±(2% m.v. + 2 digits)

±(2% m.v. + 2 digits)

=> m.v. = measured value

Measuring equipMent earth resistance and resistivity tester

Mru-120

Document No.: 11-304-R0

Sheet: 1 of 2

possible measurements:

earth resistance measurment with 3-pole,4-pole method selective earth resistance measurement with clamp

(no influence from parallel earths; no opening of rusty junctions is needed) continuity of equipotential bondings and protecting conductors two clamps earth resistance measurement without auxiliary test probs earth resistivity measurement

German Cathodic Protection

Mru-120 allows to take the measurements of:

earthing resistance using auxiliary electrodes earthing resistance using auxiliary electrodes and clamp

(for measurements of multiple earthing) earthing resistance using double clamps

(for measurement of earthing when it is impossible to use auxiliary electrodes) ground resistivity (Wenner method) measurement of continuity of equipotential bondings and protective conductors

(meeting the requirements of IEC 60364-6-61:2000 6.12.2) with auto-zero function – with current 200 mA

electric security:

- type of insulation double, according to EN 61010-1 and IEC 61557

- measurement category CAT IV 300V acc. to EN 61010-1

- protection class acc. to EN 60529 IP54

rated operational conditions:

- operation temperature -10...+50°C

- storage temperature -20...+70°C

- humidity 20...80%

Other technical data:

- LCD display graphic, backlighted

- interface USB, wireless

- number of measurements carried out of set of batteries > 500

- warranty 24 months

Measurement of interference voltage range

0...100 V

resolution

1 V

• singnalling overvoltage 24 V or 40 V rms

• measurement for DC and AC 45…65 Hz

accuracy

±(2% m.v + 3 digits)

Measurement of continuity of equipotential bondings and protective conductors (r cont

) measurement range to IEC61557-5: 0.24 Ω...19.9 kΩ

range

0.00 Ω...19.99 Ω

resolution

0.01 Ω

accuracy

20.0 Ω...199.9 Ω

200 Ω...1999 Ω

0.1 Ω

1 Ω

±(2% m.v + 2 digits)

2.0 kΩ ... 9.99 kΩ 0.01 kΩ

10.0 kΩ ...19.9 kΩ 0.1 kΩ

±(5% m.v + 2 digits)

• voltage on open terminals: <24 Vrms but >4 Vrms

• measurement current: under short circuit >200 mA

• frequency of measurement current: 125 (for networks 50 Hz)

or 150Hz (for networks 60 Hz), possible choice of measurement

frequency in menu

• auto-zero function measurement leads

Measurement of earthing resistance (method 3- and 4-pole)

measurement range to IEC61557-5:

0.30 Ω...19.9 kΩ range

0.00 Ω...19.99 Ω

20.0 Ω...199.9 Ω

200 Ω...1999 Ω

2.0 kΩ ... 9.99 kΩ

10.0 kΩ ...19.9 kΩ

resolution

0.01 Ω

0.1 Ω

1 Ω

0.01 kΩ

0.1 kΩ

accuracy

±(2% m.v + 2 digits)

±(5% m.v + 4 digits)

• measurement current: under short circuit >200 mA

• voltage on open terminals: selectable <25 V AC or <50 V AC,

• frequency of measurement current: 125 (for networks 50 Hz)

or 150 Hz (for 60 Hz)

Measurement of resistance of auxiliary electrodes r

H

and r s range

0 Ω...999 Ω

1.0 kΩ ... 9.99 kΩ

10.0 kΩ ...19.9 kΩ

resolution

1 Ω

0.01 kΩ

0.1 kΩ

accuracy

±(5% (R

8 digits)

S

+R

E

+R

H

) +

Measurement of multiple earthing resistance with using the clamp and auxiliary electrodes (3p + clamp)

measurement range to IEC61557-5:

0,44Ω...1999Ω range

0.00 Ω...19.99 Ω

20.0 Ω...199.9 Ω

200 Ω...1999 Ω

resolution

0.01 Ω

0.1 kΩ

1 kΩ

accuracy

±(8% w.m. + 3 digits)

• selectable <25 V AC or <50 V AC

• measurement current: under short circuit > 200 mA

• frequency of measurement current: 125 (for networks 50 Hz)

or 150 Hz (for 60 Hz

Measurement of ground resistivity

Measurement method: Wenner, r=2pLR

E

range

0.0 Ω...199.9 Ω

200 Ω...1999 Ω

2.0 kΩ ... 19.99 kΩ

20.0 kΩ ... 99.99 kΩ

resolution

0.01 Ω

0.1 Ω

1 Ω

0.01 kΩ

accuracy

depending on measurement accuracy R

E with 4p method but not less than ± 1 digit

100 kΩ ...999 kΩ 0.1 kΩ

L= distance between probes: 1...50 m

Measuring equipMent earth resistance and resistivity tester

Mru-120

Document No.: 11-304-R0

Sheet: 2 of 2

Measurement of multiple earthing resistance with using double clamps range

0.00 Ω...19.99 Ω

20.0 Ω...149.9 Ω

resolution

0.01 Ω

0.1 Ω

accuracy

±(10% m.v + 3 digits)

±(20% m.v + 3 digits)

• frequency of measurement current 125 (for networks 50 Hz)

or 150 Hz (for networks 60 Hz)

German Cathodic Protection

standard accessories of the meter Mru-120

- Test lead with banana plug; 1.2 m; red

- Test lead with banana plugs 2.2 m; black

- Test lead on a reel with banana plugs; 25 m red

- Test lead on a reel with banana plugs; 25 m blue

- Test lead on a reel with banana plugs; 50 m yellow

- USB transmission cable

- Pin probe with banana plug; yellow

- Earth contact test probe (rod); 0.30 m

- Carrying case L2

- Ni-MH battery package 4.8 V 3 Ah

- Crocodile clip K01; black

- Power supply adaptor Z7

- Cable for battery charger

- Hanging straps

- Calibration certificate issued by calibration laboratory

WAPRZ1X2REBB

WAPRZ2X2BLBB

WAPRZ025REBBSZ

WAPRZ025BUBBSZ

WAPRZ050YEBBSZ

WAPRZUSB

WASONYEOG1

WASONG30

WAFUTL2

WAAKU03

WAKROBL20K01

WAZASZ7

WAPRZLAD230

WAPOZSZEKPL

Optional accessories of the meter MRU-120

- Earth contact test probe (rod); 0.80 m

- Test lead with banana plugs 2 m (N-1)

- Carrying case L3

- Current clamp C-3 (Ø=52 mm)

- Current clamp N-1 (Ø=52 mm)

- Akumulator Ni-MH 4.8V 4.2Ah

- Battery case LR14 (size C)

- USB radio interface

- Crocodile clip K02; red

- Cramp

- Software for creation of documentation from

electrical measurements „PE4”

- Charger for battery loading from the socket

of car lighter (12V)

WASONG80

WAPRZ002DZBB

WAFUTL3

WACEGC3OKR

WACEGN1BB

WAAKU07

WAPOJ1

WAADAUSBOR1

WAKRORE20K02

WAZACIMA1

WAPROSONPE4

WAPRZLAD12SAM

Measuring equipMent earth resistance tester

Document No.: 11-303-R0

Sheet: 1 of 1

unitest teLaris

®

earth

Key Functions

Earth resistance measurement

Specific earth resistance measurement

German Cathodic Protection

general information

The integrated constant current measurement principle allows the application in sandy as well in rocky environments

Monitoring and display of auxiliary earth and probe resistances

Displays of the actual test current

Automatic and manual and frequency selection for noise reduction

Test voltage preselection

Clear and large LCD providing the user with an optimum visual indication of both test values and limits

Auto power off

special Features

Earth resistance measurement 2/3 and 4-pole

Specific earth resistance measurement in compliance with the Wenner principle

scope of supply

1 pc UNITEST TELARIS Earth

2 pc Test leads

2 pc Crocodile clamps

1 pc Protective Holster

1 pc Carrying Case

6 pc Batteries 1.5 V, IEC LR6

1 pc Instruction Manual

accessories

Professional Carrying Case, Cat. No. 1229

Earth Accessory-Set, Cat. No. 1189

Order information

Description Cat. No.

UNITEST TELARIS Earth

8986

Professional Carrying Case

1229

Earth Accessory-Set

1189 technical data

Display

Duration of measurement

Measurement principle

Measurement voltage

Current/power consumption

Measurement current

Frequency (f1/f2)

Measurement method

Earth resistance RE

Earth resistance RE

Earth resistance RH, RS

I M

nominal use range:

Correct polarity

Noise voltage aux. earth (RH), probe res. (RS)

Ratio RH/RE

Ratio RS/RE

Earth resistance (RE)

reference range:

Correct polarity

Noise voltage aux. earth (RH), probe res. (RS)

Auto power off

Power supply

Low Bat at

Battery life

Dimension (L x W x D)

Weight

environmental conditions:

Temperature range / humidity

Ref. temperature range

Storage temperature range

Casing

Built in accordance with

Overvoltage category

Pollution degree

Protection class

Protection degree

Height above MSL

3 Digit; LCD; 1999 Digits

3 - 5 s

Current-Voltage measurement

25/50 V selection approx. 10 mA/0.1 W max. 500 mA briefly, during measurement max. 12 mA

127 Hz / 140 Hz, selectable

2 pole / 3 pole / 4 pole

0.05 - 2.00 Ω ±(4% + 0.1 Ω)

2 - 1999.9 Ω

0.1 - 50 kΩ

0.1 - 13 mA

±(4% + 2 Digit)

±(10% + 3 Digit)

±(10% + 3 Digit) for 3/4 pole measurements

0...5 V, max. 10% of meas. voltage max. 50 kΩ max. 1000/1 max. 10000/1 max. 2 kΩ for 3/4 pole measurements

0 V max. 2 kΩ after approx. 5 min

6 x 1.5 V, IEC LR6 (Mignon/Size AA)

6.6 V ± 5% (OFF at 6.1 V ± 5%) approx. 1 year for normal use

235 x 105 x 68 mm approx. 640 g (incl. 6 batteries)

0°C...40°C / max. 80% at -10...40°C

+17°C...27°C

-20°C...+60°C

Protection class II

2

I I

IEC 61557-5, DIN VDE 0413-5

CAT III / 300 V against ground

I P 50 up to 2000 m

Measuring equipMent soil box, test cell

Document No.: 11-310-R0

Sheet: 1 of 1

Measuring arrangement, soil box with earthing tester

German Cathodic Protection

CALCULATION OF FORM FACTOR ( f ) f = a x b

C D

= 10 cm

SPECIFIC SOIL RESISTIVITY ( p )

p = r x f

example:

Soil box filled with salty liquid

indicated r = 2.5

SPECIFIC SOIL RESISTIVITY ( p )

p = r x f = 2.5 x 10 cm

p = 25 cm

The soil box can be used for the measurement of specific resistivity of electrolytes ie. soil sample, water and conducting fluids.

The specific resistivity is measured by using a normal

4 -terminal earth resistance meter in accordance with

Wenner´s 4 - electrode method.

The soil box consists of a plastic container with metal end plates for passing current through the soil sample packed into the box and potential terminals permitting measurement of voltage drop across a section of the soil sample,

The dimensions of the box and position of electrodes are designed so that resistivity of electrolyte sample in the box is obtained by multiplying the resistance value in Ohm indicated by the meter by the form factor (printed on box).

The test sample should be filled up to the top of the box.

The soil samples should be carefully filled and compacted to ensure proper contact with the plates and rod electrodes and also to remove air bubbles and voids.

The test box method gives very accurate results for fluids but the value measured for soil samples may differ from those measured at actual site due to variations of natural conditions including moisture, compaction, void ratio, particle size etc..

Dimensions

Length

168 mm

Height

55 mm

Depth

60 mm

Weight

0.38 kg

Measuring equipMent supersting™ Wi-Fi

®

- geo-electrical imaging system

Document No.: 11-320-R1

Sheet: 1 of 5

German Cathodic Protection

super sting™ Wi-Fi

®

- geo-electrical imaging system

The SuperSting™ with Wi-Fi

®

is a portable resistivity, induced polarization (IP), and self-potential (SP) instrument with memory storage and user-defined measure cycles. It provides the highest accuracy and lowest noise levels in the industry. The instrument comes in two versions: the single-channel version R1 and the eight-channel version R8.

The R8 measures up to 8 channels simultaneously for each current injection, making it up to 8 times faster than the

R1 model. Both models exhibit the accuracy, reliability and ruggedness that all Advanced Geosciences instruments are known for.

The instrument uses a built-in power transmitter and can be used for traditional vertical electrical sounding (VES), mise-a-la-masse measurements, or multi-electrode electrical tomography in 2D, 3D and 4D (time lapse). Other applications include borehole-to-borehole tomography and underwater measurements in rivers, lakes, dams and the sea to investigate bottom conditions.

geo-electrical imaging with android™ app & Wi-Fi

®

New mobility allows you to send data immediately to your processing center from the comfort of your vehicle up to

100 meters away (depending on terrain and atmospheric conditions). You no longer need to monitor imaging surveys from the instrument in the field. Using Android™ mobile 7-inch or 10-inch tablets or phones, you can check the electrodes for contact resistance and at the same time control the SuperSting™ while reviewing data in real time in both numerical and color plots.

accessories

The SuperSting™ comes with a built-in 200 W transmitter. A series of external high-power, 5-15 kW, transmitters are available for deep IP surveys.

AGI’s

earthimager™ inversion software for 1D, 2D and 3D data processing.

supersting™ remote for resistivity, IP and SP time monitoring in remote & hard-to-access areas.

Cables for land, borehole and underwater surveys.

Electrode streamers for towed marine surveys.

Stainless steel electrodes, non-polarizable electrodes and patented graphite electrodes.

Manual single conductor cables on reel.

Features

The 8-channel instrument (R8) is designed for large surveys when time is of the essence.

The single-channel unit (R1) is designed for smaller surveys when speed of survey is less important.

Used for resistivity and IP imaging in 2D, 3D and 4D.

Borehole-to-borehole, and borehole-to-surface measurements.

Underwater measurements in fresh and salt water.

Deep IP mineral exploration using the external power transmitter PowerSting™ (5 - 15 kW).

Ground water exploration.

Geotechnical investigation for depth to bedrock, cavity detection, stratigraphy and more.

Android™ is a trademark of Google Inc. The term Wi-Fi® is a registered trademark of the Wi-Fi Alliance® SuperSting™ is a trademark of

Advanced Geosciences, Inc.

Measuring equipMent supersting™ Wi-Fi

®

- geo-electrical imaging system

Document No.: 11-320-R1

Sheet: 2 of 5

German Cathodic Protection

supersting™ with android™ appsupersting™ with android™ app

geo-electrical instrument for resistivity/ip/sp tomography

Gives you freedom in the field to move away from the instrument and still be in contact to control and monitor the data acquisition.

Data quality analysis in real time.

Review the data as a pseudo section or cross-plot of transmitter and receiver pairs.

Review IP curves in real time.

Android™ devices can serve as easily replaceable, upgradable display and control devices.

Data can be emailed and backed up to cloud servers in real time for enhanced data security and faster reporting.

Key Features of the supersting™ Manager app

You have all important information about each data point immediately available by touch screen.

The electrodes for each data point are highlighted in case a survey needs to be paused and restarted to fix a loose electrode and thus save important time in the field while improving data quality.

A floating window displays apparent resistivity, voltageRx/currentTx, voltageRx, currentTx, voltageTx, power, % error, command line number and the channels used.

The contact resistance data is now saved in a separate file documenting this primary data quality control condition along the line.

What if my android™ device gets lost or runs out of power?

Your data is safe because it is saved both on the SuperSting™ instrument and on the Android™ device.

The survey will continue localy on the SuperSting™ and can be fully controlled from the standard

SuperSting™ keypad.

What happens if i get out of Wi-Fi® range?

The Wi-Fi® max range is 100 meter depending on terrain, atmosphere etc. The SuperSting™ will continue to measure even if the Android™ device gets outside the range. As soon as the device returns within range the SuperSting™ App reconnects and continues all functions as before without losing any data.

Measuring equipMent supersting™ Wi-Fi

®

- geo-electrical imaging system

Document No.: 11-320-R1

Sheet: 2 of 5

German Cathodic Protection

supersting with Wi-Fi

AVAILABLE AS EIGHT- OR SINGLE-CHANNEL MEMORY EARTH RESISTIVITY, SP & IP METER

TECHNICAL SPECIFICATION supersting:

Measurement modes

Measurement range

Measuring resolution

screen resolution

transmitter

Output current

Output voltage

input channels

input gain ranging

input impedance

Apparent resistivity, resistance, induced polarization (IP), SP & battery voltage.

+/- 10Vp-p.

Max. 30 nV, depends on voltage level.

4 digits in engineering notation.

200 W internal transmitter; external 5 kW, 10 kW and 15 kW transmitters are also available

(see separate brochure for specications).

1 – 2,000 mA continuous, measured to high accuracy.

800 Vp-p, actual electrode voltage depends on transmitted current & ground resistivity.

sp compensation

Two models are available; 8 channel & single channel.

Automatic, always uses full dynamic range of receiver.

>150 MΩ

Automatic cancellation of SP voltages during resistivity measurement.

Constant & linearly varying SP cancels completely.

type of ip measurement Time domain chargeability (M), six time slots measured & stored in memory.

ip current transmission ON+/OFF/ON-/OFF.

ip time cycles

Measure cycles

resistivity time cycles

signal processing

noise suppression

0.5 s/1 s/2 s/4 s/8 s.

Running average of measurement displayed after each cycle. Automatic cycle stop when reading errors fall below user-set limit or user-set max cycles are done.

Basic measure time is 0.2/0.4/0.8/1.2/3.6/7.2 or 14.4 s as selected by user via keyboard.

Auto-ranging & commutation adds about 1.4 s.

Continuous averaging after each complete cycle. Noise errors calculated & displayed as percentage of reading.

Reading displayed as resistance (DV/I) & apparent resistivity (Ωm). Apparent resistivity is calculated using user entered electrode array coordinates.

Better than 100 dB at f>20 Hz.

Better than 120 dB at power line frequencies (16 2/3, 20, 50 and 60 Hz) for measurement cycles of 1.2 s & above.

total accuracy

system calibration

Better than 1% of reading in most cases (lab measurements). Field measurement accuracy depends on ground noise & resistivity. The instrument will calculate & display running estimate of measuring accuracy.

Calibration is done digitally by the microprocessor based on correction values stored in memory.

supported congurations In manual mode; resistance, Schlumberger, Wenner, dipole-dipole, pole-dipole, pole-pole.

Operating system

Data storage

Data display

Memory capacity

In automatic mode; any conguration can be programmed.

Stored in re-programmable flash memory. New version can be downloaded from the AGI web site & stored in the flash memory.

Full resolution reading average & error are stored along with user entered coordinates & time of day for each measurement. Data is automatically stored in a job oriented file system.

Apparent resistivity (m), current intensity (mA), & measured voltage (mV) are displayed & stored in memory for each measurement. Data can also be displayed on an Android device in real time as bright color pseudosections,

IP curves, transmitter/receiver plot, contact resistance measurements & more.

Data transmission

Virtually unlimited data storage in real time on controlling Android device. The internal SuperSting memory can store more than 79,000 measurements (resistivity mode) & more than 26,000 measurements in combined resistivity/IP mode.

Data can be instantaneously transferred from the Android device by email or by le transfer from the Android device USB port. RS-232C channel available to dump data from the instrument to a Windows type computer on user command.

automatic multi-electrodes The SuperSting is designed to run dipole-dipole, pole-dipole, pole-pole, gradient, Wenner and Schlumberger surveys

user controls including roll-along surveys completely automatically with the patented (Pat.# 6,404,203) Dual Mode Automatic

Multi-electrode system or a passive electrode cable system. The SuperSting can run any other electrode array by using user programmed command files. These are ASCII files that can be created using a regular text editor. The command files are uploaded to the SuperSting RAM memory & can at any time be recalled & run as a survey.

20 key tactile, weatherproof keyboard with numeric entry keys & function keys.

On/off

Measure button, integrated within main keyboard.

Display

Power supply, field

Power supply, office

Operating time

Operating temperature

Weight

Dimensions

LCD night light switch (push to light).

Keyboard and LCD are mirrored to an Android™ device using Wi-Fi® technology for easy remote control of the SuperSting.

Graphics LCD display (16 lines x 30 characters) with nightlight. Android mobile phone screen & 7” or 10” Android tablet bright color AMOLED display.

12V or 2x12V DC external power, connector on front panel.

Optional AC/DC power supply & motor generator.

DC power supply.

Depends on survey conditions & size of battery used. Internal circuitry in auto mode adjusts current to save energy.

-20 to +50°C when controlled by your Android device (phone or tablet). The instrument LCD screen fades out at

-5°C, but the instrument continues to function normally contolled by your Android phone, kept warm in your pocket.

10.9 kg (24 lb.)

Width 184 mm (7.25“); length 406 mm (16“) & height 273 mm (10.75“).

Measuring equipMent supersting™ Wi-Fi

®

- geo-electrical imaging system

Document No.: 11-320-R1

Sheet: 4 of 5

German Cathodic Protection

supersting Manager app:

Device

android™ version

Functions

Used with various Wi-Fi capable Android devices such as mobile phones, 7-inch & 10-inch tablets.

Recommended for tablets; the App may not render properly on all handset devices.

3.2 -4.4

All functions performed using the SuperSting’s keypad can be performed using the App’s GUI with the exception of baud rate setting.

real time quality assurance Color pseudo-section plot, transmitter/receiver pair plot, IP curve plot, contact resistance test results, real time

Data storage

available.

Data transfer

Wi-Fi range data review.

Data storage on Android devices is typically in Gigabyte range, meaning essentially unlimited storage space is

Data transfer by email or by file transfer from the Android device USB port.

Up to 100 m, depending on terrain & atmospheric conditions.

agi earthimager

1D agi earthimager

2D agi earthimager

3D

Win10

Win8.1

Win7

Win10

Win8.1

Win7

Use earthimager 1D to interpret 1D vertical electrical sounding (VES) resistivity curves created with

Schlumberger, Wenner and dipole-dipole electrode arrays.

The earthimager 2D is used to interpret 2D resistivity profiles created with any electrode array, recorded with electrodes in one plane, i.e. on a line on the surface, between two or more parallell bore holes, or between bore hole and surface. Any array or mixed data from Schlumberger, pole-pole, pole-dipole, dipole-dipole or Wenner electrode arrays are possible to invert. A special „Survey Planner“ allows the user to enter a geological model and run a virutal survey and then invert the virtual data to see if the objective of the survey can be met.

extra modules available:

the 2D time lapse module, is used when information about resistivity changes in the ground is needed. Some common situations include potential leakage from landfills, industrial sites, etc. Other monitoring situations include fracture tracing by injection of a conductive solution such as a salt solution. Other possible monitoring situations include saltwater intrusion in coastal areas, remediation progress at environmental sites, groundwater recharge, infiltration studies, to see how the ground is

„wetted“ or how the ground dries up after a rain storm.

The Continuous resistivity profiling (CRP) module, is used to invert data with large number of electrode positions, like marine CRP surveys or certain roll-along files.

Win10

Win8.1

Win7

earthimager 3D will automatically determine a three dimensional resistivity model for the subsurface using the data obtained from a 3D electrical imaging survey with the electrodes arranged in boreholes and/or on the surface and presents a 3D volume of inverted resistivity data with advanced volume rendering technique. The final resistivity or IP image-volume can be rotated in any orientation, zoomed in and out, and translated to anywhere inside the image window in order to see the volume of interest in detail. Colors representing areas of less interest can be made transparent so that the shape of a pollution plume, for example, can be visible. With EarthImager 3D, resistivity inversion can be as easy as two steps: Read Data and Start Inversion with only a few mouse clicks.

extra modules available:

the 3D time lapse module, is used when information about resistivity changes in the ground is needed. Some common situations include potential leakage from landfills, industrial sites, etc. Other monitoring situations include fracture tracing by injection of a conductive solution such as a salt solution. Other possible monitoring situations include saltwater intrusion in coastal areas, remediation progress at environmental sites, groundwater recharge, infiltration studies, to see how the ground is

„wetted“ or how the ground dries up after a rain storm.

the 64-bit parallel processing module, is used to invert data with large number of electrode positions and number of data. It can access the total RAM space available on the machine as well as all cpu cores.

Measuring equipMent supersting™ Wi-Fi

®

- geo-electrical imaging system

Document No.: 11-320-R1

Sheet: 5 of 5

German Cathodic Protection

supersting swift Dual Mode (us patent 6,404,203) electrode switches

The Swift dual mode electrode switches facilitate automatic induced polarization measurement in a multi-electrode array using stainless steel stakes for current injection and non-polarizable (porous pot) electrodes for the potential measurements. The electrode switch can operate either as a dual mode electrode with separate current injection and potential measurement or in mono mode where both current injection and potential measurement occurs through the stainless steel stake. The electrode switches have been re-designed in order to reduce the size of the electrode switch. On one side of the electrode switch is a miniature banana jack where the non-polarizable electrode is connected when the electrode is used in dual mode. When the banana jack is not in use, it is covered by a plug to prevent dirt and moisture to enter the jack.

earthimager 2D

AGI EarthImager 2D is a Windows based computer program that interprets two-dimensional (2D) electrical resistivity and induced polarization (IP) data and produces inverted resistivity and IP sections that reveal the sought-after target and subsurface geology. EarthImager turns the complicated resistivity data inversion into a simple step wise process, i.e., reading a data file, running the inversion and plotting the figurs for a report. EarthImager also presents a long list of options for advanced users.

EarthImager supports all Windows true type fonts and Windows 24-bit true color. Hardware accelerated graphics powered by OpenGL leads to fast graphics on the screen and export of report ready plots. The graphical user interface allows browsing of the processing results from one parameter to another and one iteration to another. There are multiple visualization options such as 3D volumes with variable opacity and color scale so that the viewer can see inside a subsurface volume.

Supersting wi-fi fast and easy electrical imaging

Sting/Swift prg : SCHL5m

Pseudo

Depth

2.6

6.6

10.4

13.9

19.8

0.0 m

25.7

31.3

37.0

80.0 m

Measured Apparent Resistivity Pseudosection

160.0 m

160.0 m Pseudo

Depth

2.6

6.6

10.4

13.9

19.8

0.0 m

25.7

31.3

37.0

80.0 m

Calculated Apparent Resistivity Pseudosection

0.0 m 80.0 m 160.0 m

Depth

2.6

6.6

19.8

25.7

31.3

37.0

15.4

21.8

30.8

Inverse Model Resistivity Section (Ohm x m)

43.6

61.6

87.0

240.0 m

Unit Electrode Spacing = 5.0 m

240.0 m

Unit Electrode Spacing = 5.0 m

240.0 m

123 174

Unit Electrode Spacing = 5.0 m

Measuring equipMent

Ministing - resistivity ip geophysical instrument

Document No.: 11-330-R0

Sheet: 1 of 2

Ministing

earth resistivity/ip Meter

4-pin Wenner Soil Test (ASTM G57)

IEEE Fall of Potential

Vertical Electrical Sounding (VES)

German Cathodic Protection

The MiniSting is a high powered resistivity & IP meter especially designed for manual resistivity jobs like electrical grounding-grid testing, the IEEE fall-off-potential method, ASTM G57 soil resistivity test using the Wenner four electrode method, survey for corrosion control, electrical surveys with the four electrode method (vertical electrical sounding or profiling).

The MiniSting is pre-programmed for Wenner, Schlumberger, dipole-dipole, pole-dipole, pole-pole, mise-a-la-masse, SP, resistance and azimuthal surveys in the manual measurement mode.

Recorded data is saved in the internal memory and at a convenient time downloaded to a computer for further processing. Our utility sofware „the Administrator“ is included with the

MiniSting as well as a serial download cable. The Administrator software is used for data down-load.

The MiniSting has a built in re-chargeable NiMH battery with power sufficient for one day of manual surveying. The instrument is delivered with a battery charger.

Key Benefits

High Powered

Compact size with built in battery

Rugged construction

Easy to use menu driven system

Versatile instrument for different survey configurations

Measuring equipMent

Ministing - resistivity ip geophysical instrument

Document No.: 11-330-R0

Sheet: 2 of 2

German Cathodic Protection

TECHNICAL SPECIFICATION

Measurement

modes

Measurement

range

Measuring

resolution

screen

resolution

Apparent resistivity, resistance, voltage (SP), induced polarization (IP), battery voltage.

400 kohms to 0.1 milliohms (resistance)

0-500 V full scale voltage autoranging

Max 30 nV, depends on voltage level

4 digits in engineering notation.

Output current

1-2-5-10-20-50-100-200-500 mA

Output voltage The user can switch between high and low voltage limit for the transmitter (800 Vp-p or 320 Vp-p voltage limit).

input gain

Actual electrode voltage depends on transmitted current and ground resistivity.

Automatic, always uses full dynamic range of receiver.

ranging

input impedance >20 Mohms

Max 500 V

Automatic cancellation of SP voltages during resistivity measurement. Constant and linearly varying SP cancels completely.

input voltage

sp

compensation

type of ip

measurement

ip current

transmission

Time domain chargeabilitiy (M), six time slots measured and stored in memory.

ON+, OFF, ON-, OFF

ip cycle times 1 s, 2 s, 4 s and 8 s

Measure cycles Running average of measurement displayed after each cycle. Automatic cycle stops when reading errors fall below user

Cycle times set limit or user set max cycles are done.

Basic measure time is 1.2, 3.6, 7.2 or 14.4 s as selected by user via keyboard. autoranging and commutation adds about 1.4 s.

Continuous averaging after each complete cycle. Noise errors calculated and displayed as percentage of reading.

Reading displayed as resistance (dV/I) and apparent resistivity (ohmm). Resistivity is calculated using user entered

signal

processing

electrode

noise

suppression

total

accuracy

system

Better than 100 dB at f>20 Hz.

Better than 120 dB at power line frequencies (16 2/3, 20, 50 & 60 Hz).

Better than 1% of reading in most cases (lab measurements). Field measurement accuracy depends on ground noise and resistivity. Instrument will calculate and display running estimate of measuring accuracy.

Calibration is done digitally by the microprocessor based on correction values stored in memory.

calibration

supported Resistance, Schlumberger, Wenner, dipole-dipole, pole-dipole, pole-pole, azimuthal, mise-a-la-masse, SP (absolute) and

configurations

SP (gradient).

Full resolution reading average and error are stored along with user entered coordinates and time of day for each measurement. Storage is effected automatically.

Data storage

Memory capacity More than 3000 measuring points can be stored in internal memory.

RS-232C channel included to dump data from instrument to PC on user command Data

transmission

user controls

Display

20 key tactile, weather proof keyboard with numeric entry keys and function keys.

On/Off switch

Measure button, integrated within main keyboard.

LCD night light switch (push to illuminate).

Connectors

Alphanumeric LCD display (4 lines x 20 characters) with night light.

4 banana plug, pole screws for current and potential electrodes. 10-pole KPT connector for external power, RS-232C and

synchronization

power supply connections.

12V, 4.5 Ah NiMH built-in rechargeable battery. External power connector on front panel, the instrument automatically selects external battery if present.

Operating time Depends on conditions, internal circuitry in auto mode adjusts current to save energy. At 20 mA output current and 10 kW electrode resistance more than 2000 cycles are available from a fully charged battery pack.

Battery charger Dual stage charger with switchable input (115/230 V AC @ 50/60 Hz

Weight

Dimensions

6.6 kg (14.5 lb.)

Width 255 mm (10“), length 255 mm (10“) and height 123 mm (5“).

Measuring equipMent

Digital current clamp meter CM 2

Document No.: 11-105-R0

Sheet: 1 of 1

German Cathodic Protection

Digital Current Clamp Meter for DC and aC currents measurements

The Digital Current Clamp Meter CM 2 combines the advantages of a Digital Multimeter with a current Clamp Meter. The 3 3/4 digit LC display offers a resolution of 3999 pixels and allows the recording of the measured value and the maximum value in all measuring ranges by means of the H/MAX button.

The CM 2contains DC and AC current ranges up to 300 A and because of its maximum measurement resolution of 10 mA it is ideally suitable for measuring smaller current ranges. The optimum zero setting for the direct current range can be set to the ZERO button.

Additionally the CM 2 reads direct voltage and alternating voltage up to

600 V, resistance up to 40 MΩ and it has an acoustic continuity test. All the ranges are protected against overload.

Relative measurements (differential measurements) can be made via

ZERO button in voltage and current range.

The CM 2has a battery low voltage indication and an auto-shut off function when not in use (approx. 30 min.).

4

11

10

9

6

1

2

5

7

3

8

9

10

3

4

1

2

5

6

7

8

11

Housing

Sliding switch for selecting the required functions

Digital display (liquid-crystal type)

Function button

HOLD/MAX button

(hold function and automatic peak-value storage)

ZERO button (zero setting button) for zero adjustment in current measurement

COM socket: joint socket for voltage and resistance measurements and continuity test, marked black

V-Ω socket (positive): joint socket for voltage and resistance measurements and continuity test, marked red

Opening lever, for opening and closing the current prongs

Prong guard, protects user from accidental contact with conductor

Measurement prongs, for inserting and gripping the single conductor containing AC current

Display

DC voltage:

Resolution/accuracy

aC voltage

Resolution/accuracy

Measuring method

DC current

Resolution/accuracy

aC current

Resolution/accuracy

Measuring method

resistance

Resolution/accuracy

Continuity test

Over voltage protection

Range switching

Jaw opening

Over voltage category

Operation temperature

Dimensions (l x w x h)

Weight

Battery type

Delivery includes

33/4 digit LC display (3999 pixels)

400 mV/4 V/40 V/400 V/600 V max. 100 µV/max. ± 0.5 % + 2 digit

400 mV/4 V/40 V/400 V/600 V max. 100 µV/max. ± 1.5 % + 5 digit

RMS value

40 A, 200 A, 300 A max. 10 mA/max. ± 1.0 % + 2 digit

40 A, 200 A, 300 A max. 10 mA/max. ± 1.0 % + 3 digit

RMS value

400 Ω/4 kΩ/40 kΩ/400 kΩ/ 4 MΩ/40 MΩ max. 100 mΩ/max. ± 0.9 % + 3 digit

50 - 300 Ω, acoustic: buzzer, optic: LCD

600 V effective, 400 A effective autoranging max. 25 mm

CAT III 300 V, CAT II 600 V

0 °C to + 50 °C

192 x 66 x 27 mm

205 g

2 micro batteries 1.5 V IEC 6LR03/AA

Current clamp meter carrying case, set of batteries, double insulated safety test leads

Measuring equipMent

MiniLog2

Document No.: 11-502-R2

Sheet: 1 of 5

German Cathodic Protection

MiniLog2

Datalogger and gps time switch for Cp

2-Channels (DC + AC = 4 values) · Microvolt · AC Filter · max. 1,000 measurements / sec. · 1,300,000 Values (4 MByte)

GPS Time Switch 15 A relay · Li-Ion battery for 1 month cont. switching · DCVG + CIPS with GPS · Waterproof IP68

general

The new MiniLog2 is a waterproofed universal measuring instrument with

LCD and keyboard designed for CP measurement tasks. Used in data logger mode, the MiniLog2 samples for both channels DC and AC simultaneously.

In interrupter mode, the built-in relay swiches fully GPS synchronized for interrupting not only rectifiers, but coupons for IR-free potentials. Finally with survey mode, the MiniLog2 is able to make DCVG and CIPS surveys while storing the GPS position for every measuring point taken.

Datalogger with Microvolt

Measurement

Two channel sampling, each with DC and

AC measurement, resulting in 4 values simultaneous measured per sample.

Both DC channels got microvolt resolution and have active filters built-in to prevent low AC frequency interference. The MiniLog2 is able to sample up to 1 300 000 values.

This results in up to 20 min. sampling even when measuring in “High-Speed mode” (= 1,000 measurements / second). The built-in USB connector allows galvanically isolated data transfer via a USB.

Miniaturised gps interrupter with rechargeable Battery

The MiniLog2 has a mechanical

15A/60V relay built-in for switching of rectifiers, flanges and coupons.

Optionally a version with built-in electronic relay 30A/60V is available.

Via the keyboard and the LCD a switching cycle resolution of

0.1s is configurable by the user. In addition, night and weekend savings are selectable. The rechargeable Li-Ion battery allows

GPS synchronised switching for 30 days without recharging.

For fixed installations in rectifier housings an USB mains supply and fix mount can be used. To increase the switching power even more, miniaturised external slave relays for

MiniLog2 are available with 50 A and 100 A.

Coupon Measurement with

MiniCoup

For measuring IR-free potentials on a coupon, MiniLog2 can sample and interrupt simultaneously.

For accurate sampling of the complete off depolarisation curve,

MiniLog2 is able to measure 1000 samples/s for one channel for up to 20 min. time.

Optionally with the „MiniCoup“ adapter and its built-in 10

Ohm shunt, the MiniLog2 samples every second for up to 24h. By just connecting pipe, electrode and coupon with the adapter sockets, On and Off potential and DC and AC current are collected simultaneously.

gps synchronisation and gps position

The optional Garmin GPS receiver allows synchronisation of the MiniLog2 time and date. Using the MiniLog2 as data logger in DCVG survey mode, the GPS positions are automatically stored beside each value.

DCVg and Cips survey with google

®

Maps presentation

Like with an analogue multimeter,

MiniLog2 shows the DCVG voltage difference in a bar graph for quick recognition. With a simple press of the „OK“-button mounted on the electrode, the DCVG value and the related GPS position are stored and the survey continues. In the same way potential (CIPS) and/ or voltage gradient measurements can be done.

The survey path and the defects can be directly presented with

Google Maps and the WinLog 2.0 software.

Measuring equipMent

MiniLog2

Document No.: 11-502-R2

Sheet: 2 of 5

technical data

German Cathodic Protection

Measuring channels:

2 (DC+AC parallel = 4 values)

Measuring range and resolution:

± 100 mV / 1 µV (only DC)

± 10 V / 0.1 mV (DC+AC)

± 100 V / 1 mV (DC+AC)

input impedance:

Maximum sampling rate:

Lowpass filters:

recording capacity:

and measurements

switching cycle:

synchronization:

switching power:

1,000 samples / second

10 samples / second (with filter)

16.6 Hz > 60 dB (factor 1,000)

50.0 Hz > 100 dB (factor 10,000)

1,300,000 sampling values

In 0.1s steps, user configurable

GPS and manual or external (Master / Sleeve)

Mechanic relay 60V / 15A

power supply:

time accuracy:

Lithium-ion battery 3.6V / 1,900 mAh

USB supply

< 10 ms / 24h with GPS synchronisation

Battery time:

Datalogger mode: 10 days with 0.5s sampling rate

20 weeks with 60s sampling rate

Interrupter mode: 30 days with 4/2 and GPS

DCVG / CIPS: 20 hours with GPS position

Dimension:

148 x 68 x 42 mm

Weight: 350g

Measuring equipMent

MiniLog2

Document No.: 11-502-R2

Sheet: 3 of 5

German Cathodic Protection

WinLog 2.0 Data Logger software

The software WinLog 2.0 for the evaluation of data loggings is especially designed for the new

MiniLog2.

Beside the easy transfer of the samplings via USB to the PC, the WinLog 2.0 software supports

4 channel data evaluation with statistic (max, min and median building) and comprehensive printing features.

For the DCVG and CIPS evaluation WinLog 2.0 with an internet connection allows the instant presentation of the survey path together with the location of the defects.

.

WinLog 2.0 works with Windows

®

XP, Vista and Windows

®

7 (32/64 Bit)

Stray current sampling during 24 hours

Median values of the Off-Potential with a screen mouse zoom

Measuring equipMent

MiniLog2

Document No.: 11-502-R2

Sheet: 4 of 5

German Cathodic Protection

Print: Coupon switching with 1 ms sampling rate

Print: 24 hours coupon measurement with P

ON

+ P

OFF

+ I

DC

+ I

AC

Measuring equipMent

MiniLog2

Document No.: 11-502-R2

Sheet: 5 of 5

German Cathodic Protection

Built-in export feature for Microsoft

®

Excel

®

DCVG measurement export to Google

®

Maps for defect localization

MEaSuRING EQuIPMENT

Current interrupter - GPS-Syntakt

Document No.: 11-501-R1

Sheet: 1 of 2

Current Interrupter - GPS-Syntakt -

General Information

The GPS-Syntakt time switch is used for the synchronous switching of rectifiers, flanges and coupons for cathodic corrosion protection applications.

After having been synchronised, the switching cycle (4/2, 12/3 or 27/3) is maintained even when the device is not in operation and immediately available again even after the time switch has been transported in an instrument car for several weeks.

GPS-Synchronisation

GPS-Syntakt resynchronises itself automatically every 2 hours via the connected GPS antenna and thereby guarantees continuous synchronous switching without time deviations. The GPS reception quality and successful GPS synchronisation (during the last 24 h) are indicated by a two-colour LED on the front panel.

Manual and External Synchronisation

It is possible to manually synchronise via the corresponding push button or externally via another timer when no GPS antenna is connected. In this respect the functions correspond to the functions of the predecessor

Syntakt.

High-Precision Quartz Time Base

Being equipped with a highly precise and temperaturestabilised quartz time base the GPS-Syntakt enables synchronous switching for several weeks without resynchronisation.

Battery Operation

During GPS-operation

GPS-Syntakt’s internal lead-acid storage battery facilitates mains-independent synchronous switching for more than 6 weeks.

During 230 V mains operation the internal storage battery is automatically charged, and the installed charging electronics monitor the charge state.

LS50 - Electronic Powerswitch 50 ampere

German Cathodic Protection

Night and Weekend Shutdown

It is possible to suspend the switching operation during the night and on weekends via a programmable LCD clock display installed on the front panel in order to maximise the protective current for the pipeline.

Secondary Switching

Power:

Mechanic Option:

60 Volt DC / 15 A (via pole terminals)

Electronic Option:

100 Volt DC / 30 A (via pole terminals)

Connection of External Slave Relays

To increase the switching power, an external slave relay can be additionally connected when the time switch is 230 V mains-operated.

The LS50 slave relay permits switching power rates of up to 50 A

.

The LS100 slave relay permits switching power rates of up to 100 A

.

LS100 - Electronic Powerswitch 100 ampere

Powerswitch with electronic relay. Build for usage in combination with a switcher.

The LS50 is intended for switching of CP rectifiers, flanges, soutirages and drainages.

Easy to install with no need for checking the switching polarity, as the

LS50 switches polarity independent.

Powerswitch with electronic relay. Build for usage in combination with a switcher.

The LS100 is intended for switching of CP rectifiers, flanges, soutirages and drainages.

Easy to install with no need for checking the switching polarity, as the

LS100 switches polarity independent.

Technical data LS50

Housing: Metal with built-in heat distribution plates

Switching Power: 50 A (100 V DC / 70 V AC)

Operating Temperature: -20°C up to 60°C

Dimensions:

Weight:

Item No.:

W 110 x H 70 x D 160 mm

(incl. 30 mm pole clamps)

1.2 kg

140201

Technical data LS100

Housing: Metal with built-in heat distribution plates

Switching Power: 100 A (100 V DC / 70 V AC)

Operating Temperature: -20°C up to 60°C

Dimensions:

Weight:

Item No.:

W 125 x H 75 x D 160 mm

(incl. 30 mm pole clamps)

1.25 kg

140211

MEaSuRING EQuIPMENT

Current interrupter

Document No.: 11-501-R1

Sheet: 2 of 2

Technical data - GPS-Syntakt -

Switching cycles (On/Off)

GPS antenna

GPS synchronisation

Time deviation

Switching power

Operating temperature

Power supply

Operating time / charge

Housing

Dimensions (WxHxD)

Weight

4 / 2 s, 12 / 3 s, 27 / 3 s

(other switching cycles at extra charge)

Type Garmin, with 5 m cable every 2 h, accuracy < 10 ms maximum ± 10 ms / 24 h at 20°C maximum ± 20 ms / 24 h at 0°C - 40°C

30 V DC / 15 A (via pole terminals)

230 V AC / 6 A ( via socket )

- 20°C to + 60°C lead-acid storage battery 6 V / 12 Ah and 230 V AC / 5 VA approx. 1.200 h with GPS antenna, at 12 / 3 and

20°C approx. 1.500 h without GPS antenna, at 12 / 3 and 20°C aluminium with variable grip

173 x 110 x 151 mm (housing)

80 mm diameter (GPS antenna)

4.1 kg with GPS antenna

GPS Synchronisation

Set the < Cycle> switch to the desired switching cycle (e.g. 12/3)

Set the < Mode> switch to [1 Normal] or for an operation including night and weekend shutdown to [2 Timer]

Insert the bullet connector of the GPS antenna in the [ Signal GPS] socket of GPS-Syntakt.

Align the GPS antenna as horizontally as possible with an unobstructed view of the sky. It is possible to position the antenna horizontally below a plastic main cover inside a rectifier cabinet. A GPS reception in metal cabinets, buildings or in forests underneath dense vegetation is mostly impossible.

In general, only one successful GPS reception within 24 h is necessary due to the highly precise and temperature-stabilised quartz time base of GPS-Syntakt.

During mains operation GPS reception attempts are performed continuously. During battery operation GPS reception attempts are only made every 2 h to spare the storage battery. However, by pressing the < Battery Mode> push button twice (on and off) it is possible to manually start a new GPS reception attempt at any time during battery operation.

The ( Signal GPS) LED indicates a sufficient GPS signal by flashing in Green colour. It is flashing in Red colour when the signal is insufficient.

A Green (GPS SYNC) LED signalises at least one successful GPS synchronisation during the last 24 h. A Red LED indicates that there has not been any GPS synchronisation during the last 24 h.

The ( GPS SYNC) LED is flashing during battery operation to keep the current consumption low. It is continuously illuminated during

230 V mains operation.

German Cathodic Protection

Display and Control Elements

9

10

7

8

5

6

3

4

1

2

11

12

13

= Pole terminals for potential-free switching, max. 15A / 30V

= Power cord with safety plug for 230V mains operation

= Grounding receptacle switches 230V with max. 6A

= Inputs for external synchronisation

= <Battery Mode> push button for switching during battery operation

= <Cycle> switch for selecting the switching cycle

= (Cycle Control) LED for indicating the cycle

= <Manual Sync> push button for manual synchronisation

= <Mode> for selecting the operating mode (Normal / Timer / SYNC)

= Clock display for night and weekend shutdown

= Input for GPS antenna

= (Signal GPS) LED for indicating the GPS signal quality

= (GPS Sync) LED indicates successful GPS synchronisation

Manual Synchronisation

Set the < Cycle> switch to the desired switching cycle (e.g. 12/3)

Set the < Mode> switch to [3 Sync]

Supply GPS-Syntakt with 230 V or press the <Battery Mode> push button for battery operation. GPS-Syntakt starts switching with the

„old“ synchronisation

Press the < Manual SYNC> push button once for manual synchronisation, thereby deleting the „old“ synchronisation and replacing it by the new manual synchronisation.

To prevent an incidental resynchronisation, you have to set the

< Mode> switch back to [1 Normal] at any rate.

External Synchronisation („Master“ and „Slave“)

Set the < Cycle> switch to the desired switching cycle (e.g. 12/3)

Set the <

Mode> switch to [3 Sync]

Supply the GPS-Syntakt with 230 V or press the <Battery Mode> push button for battery operation.

GPS-Syntakt starts switching with the „old“ synchronisation

Connect the two <

Extern SYNC> sockets of GPS-Syntakt („Slave“) via two lines to the potential-free contacts of the „Master“ time base

The „Master“ time base has to switch with the same cycle (e.g. 12/3) as

GPS-Syntakt

Press the <

Manual SYNC> push button once. It is flashing and

GPS-Syntakt now waits as „Slave“ for the cycle of the „Master“ and synchronises to the externally created cycle

To prevent an incidental resynchronisation, you have to set the

<

Mode> switch back to [1 Normal] at any rate.

Measuring equipMent pipe and cable precicion locator rD8100

Document No.: 11-602-R2

Sheet: 1 of 6

Since Radiodetection launched the first commercial, twin antenna, cable and pipe locators over 40 years ago, we have pioneered many technologies that are used widely in the location industry today. Behind developments such as depth measurement, StrikeAlert

®

and

Current Direction® is a drive to protect utilities from damage, making excavation easier and safer.

German Cathodic Protection

RD8100, our most advanced precision locator range, is built on this pedigree for performance, quality and durability.

Containing a unique arrangement of

5 antennas, it allows you to choose the optimum level of precision for the job in hand. Integrated GPS and usage-logging options automatically generate data for customer reports, or in-house quality and safety audits to promote best working practices.

Measuring equipMent pipe and cable precicion locator rD8100

Document No.: 11-602-R2

Sheet: 2 of 6

German Cathodic Protection

High contrast screen provides clarity even in bright sunlight

Simultaneous display of depth and current gives more confidence you are following the target line

Custom Frequencies

Program up to 5 extra frequencies to customize the RD8100 to signals found on your network

survey Measurements with

Bluetooth® Connectivity

Store up to 1000 records and send wirelessly to a mobile device or PC using Bluetooth..

Optional integrated GPS adds positional data without requiring an external device

Locate over longer distances

90V signal output and automatic impedance matching

4 kHz frequency with Current

Direction for locating and tracing higher impedance cables over longer distances

High visibility reflective design helps protect operators and equipment

Light weight and ergonomic design for comfortable use

Built for on-site use – ip65

Shock resistant, ingress protected casing protects against knocks, drops, water and dust

Base tray for accessories

precision by design

A unique arrangement of five custom manufactured, precision ground antennas deliver locate accuracy and repeatability

Li-ion Battery pack

Lithium-Ion rechargeable battery options for both locator and transmitter provide extended runtime with reduced running costs.

gps and usage-Logging

Integrated GPS and automatic usagelogging allow managers to review locate history to ensure compliance with best practice.

iLOC

Save time on site by controlling your transmitter from distances of up to

1400 feet / 450 meters.

Measuring equipMent pipe and cable precicion locator rD8100

Document No.: 11-602-R2

Sheet: 3 of 6

Tools for difficult locates

German Cathodic Protection

Making complex locates simpler

SIMULTANEOUS dEPTH

ANd CURRENT REAd OUT

With utility infrastructures becoming more complex, locate professionals require more powerful tools to simplify the task of distinguishing between and tracing different utilities.

Consistency of depth and current measurements gives confidence the correct line is being followed.

dC (CURRENT dIRECTION)

Identify your target amongst a number of parallel utilities by applying a specialized CD signal from the Tx-10 transmitter. CD arrows displayed on the locator confirm you are tracing your target.

dYNAMIC OVERLOAd PROTECTION

Filters out interference, enabling use in electrically noisy environments such as near substations or overhead power lines.

traCe HigH-iMpeDanCe utiLities WitH 4 kHz

The 4 kHz locate frequency enables lines such as twisted pair telecoms or street lighting to be traced over longer distances. Since such utilities are often found in areas of dense infrastructure, you can combine 4 kHz with CD to improve trace accuracy.

USE POwER FILTERS™ TO PINPOINT ANd dISCRIMINATE BETwEEN POwER CABLES

When a signal transmitter can’t be connected, tracing individual power lines through dense networks can be a real challenge.

Conflicting or powerful signals confuse or combine to create a wash of signal.

A single key press uses the harmonic properties of power signals to establish if a signal comes from one source, or from multiple cables which you can then trace and mark.

SPEEd COMBINEd wITH ACCURACY - PEAK+ MOdE

Peak+ mode allows you to add either Guidance or Null locating to the accuracy of Peak mode.

siDestep tM

INTERFERENCE EVASION

Adjusts frequency slightly enabling locates in areas prone to interference or where more than one operator is working.

Adding Guidance gets you to the Peak position faster.

Adding Null to Peak lets you check for the distortion caused by other utilities, spursor SideStep™ interference.

RESPONSE BY dESIGN

Adjusts frequency slightly enabling locates in areas prone to interference or where more than one operator is working.

Measuring equipMent pipe and cable precicion locator rD8100

Document No.: 11-602-R2

Sheet: 4 of 6

German Cathodic Protection

supporting your business

Every locating operation needs to meet the continuing challenges of delivering on-time, high quality work and increasing value to customers.

Operator Confidence on-site

enHanCeD seLF-test

AUTOMATIC USAGE - LOGGING wITH GPS POSITIONING

The integrity of the measurement system can be confirmed on-site.

Self-test applies signals to the locating circuitry as well as checking display and power functions.

When equipped with GPS, RD8100 locators automatically capture key locate parameters every second, providing a comprehensive picture of individual locates and allowing you to assess usage patterns over extended periods.

The data generated can be used to ensure adherence to best-practice, or to identify training needs before poor work habits develop.

Additionally, the information can be used for internal audits or shared with partners or clients to evidence task completion, or compliance to service requirements.

Usage data can be exported in multiple file formats – for example KML for

Google Maps to confirm where and when work was performed.

striKeaLer ™ in aCtiVe anD

PASSIVE LOCATING MOdES

Visual and audio warnings of shallow cables reduces the risk of accidents.

ECER™ - REMOTE CALIBRATION wITHOUT dOwNTIME

Verify and certify the calibration of your locator over the internet using the RD Manager™ PC software package without returning the unit to a service center. Have confidence that the RD8100 is ready for action whenever you are.

CaLsaFe™

Choose to automatically enforce maintenance or lease schedules by providing a 30 day countdown before the calibration certificate expires.

SUPPORT wHEN YOU NEEd IT

The RD8100 is backed with an industry leading

3 year warranty on registration. Our global sales and service network delivers comprehensive technical support and training tailored to your needs.

tru DeptH™

As depth readings are only given when the RD8100 is correctly oriented, you can be confident in the result.

HigH sensitiVitY

Sophisticated circuitry enables operators to detect and react to the weak signals associated with difficult to locate utilities.

Measuring equipMent pipe and cable precicion locator rD8100

Document No.: 11-602-R2

Sheet: 5 of 6

The RD8100 offers a choice of locate modes, each of which is optimized for specific tasks

peak

Displays the strongest response when directly above a cable. Depth and current measurements are also shown.

use for: Precise locating prior to and during excavation. Many professionals have trained in this mode and appreciate the simplicity of the display.

peak+

Add Guidance or Null modes to Peak and alternate between them.

use for: Finding Peak response quickly while checking for the presence of multiple lines or other features which may require extra vigilance.

guidance

Proportional guidance arrows and differentiated audio tones indicate if utility is to left or right of user.

use for: Checking general direction of utilities as part of a pre-locating sweep.

Better for congested areas than null mode alone.

Broad peak

Operating similarly to Peak mode but more suited to locating weaker signals.

use for: Locating deep lines, or when weak signal levels or interference makes conventional peak locating difficult.

null

Arrows and audio signals indicate where the cable is relative to the operator. A null response is displayed above the cable.

use for: Long distance marking of single utilities in non-congested areas. Audio response allows users to rely on sound rather than the screen.

German Cathodic Protection

Getting more from your RD8100 system. . .

CUSTOMIzE THE LOCATOR TO YOUR NETwORK

FrequenCies

Up to 5 additional frequencies can be programmed into all

RD8100 locators to match it to the signals found on your target telecoms networks.

aCCurate surVeYing WitH integrateD

OR ExTERNAL GPS

Save up to 1,000 survey measurements, capturing utility depth, and send to a mobile device using Bluetooth. Add positional data with the integrated GPS option, or combine with external GNSS device using the wireless Bluetooth link to get the accuracy that you need.

FauLt FinD

Combine the RD8100 locator with an accessory A-frame to identify and pinpoint insulation sheath faults to within 4“ (10cm).

Rd MANAGER PC SOFTwARE

Set-up, calibrate and update your locator from a PC.

Download usage logging and survey measurement data for analysis.

PASSIVE AVOIdANCE

Rapidly check an area before excavation using simultaneous detection of the Passive Power and Radio signals carried on underground cables or pipes.

90 V TRANSMITTER OUTPUT

More locate signal on high impedance target lines - detect deeper and further.

MULTIMETER FUNCTION

Assess the target utility using your transmitter - quickly measure line voltage, current and impedance.

Measuring equipMent pipe and cable precicion locator rD8100

Document No.: 11-602-R2

Sheet: 6 of 6

German Cathodic Protection

CHOOSE THE OPTIMUM MOdE FOR YOUR LOCATE

Our unique arrangement of 5 antennas allows you to optimize your RD8100 for different tasks. Each mode uses a different combination of antennas. At the heart of each of our locating antennas is a custom manufactured, precision-ground ferrite to ensure the accuracy and precision of our measurements.

iL OC

iLOC is an advanced Bluetooth link between the RD8100 locator and Bluetooth enabled transmitter,which allows you to control the locate signal’s power and frequency from up to 1400‘ / 450m away. Spend less time walking and more time locating.

ACCESSORIES TO OPTIMIzE THE SYSTEM TO YOUR NEEdS

Whether you are locating telephone cables in a bundle or underwater power cables, Radiodetection’s accessory range extends the precision locate capabilities of the RD8100 and transmitters to your application.

rD8100 range options:

Locate Frequencies sonde Frequencies passive Modes

On-board GPS power Filters usage-Logging

CaLsafe™

4 kHz

Current Direction

Fault Find

Depth in power passive avoidance iLOC

Lithium-ion Battery pXL

13

4

2

pXLg

13

4

2

Rd8100 LOCATORS pDL

18

4

5

4k+CD

pDLg

18

4

5

4k+CD

ptL

22

4

5

4k+CD

● ● ● ● ●

Max. Output Power active Frequencies induction Frequencies

Current Direction Frequencies iLOC remote control

Fault Find induction Field strength eco Mode tx - 1

1 W

16

8

0.7

transMitters tx - 5

5 W

16

8

0.85

tx - 5B

5 W

16

8

0.85

Other features described are standard on the RD8100 Locators and Tx transmitters unless otherwise noted

Available, enabled by default

● Option

■ Available, disabled by default

tx - 10

10 W

16

8

6

1

ptLg

22

4

5

4k+CD

tx - 10B

10 W

36

8

14

1

Measuring equipMent

Holiday (pin Hole) Detector

Document No.: 11-620-R0

Sheet: 1 of 2

poro test 7 - High voltage porosity detection

reliable porosity detection

For all insulating coatings on metal such as: coatings on oil, gas or water pipelines linings of tubes, vessels or storage tanks protective coatings on hulls, oil tanks, vessels, pipelines including fittings enamel, epoxy and plastics coatings

German Cathodic Protection

porosity detection and corrosion control

Flaws in protective coatings such as pores, cracks and fissures, if undetected, may impair the corrosion resistance of a product.

The PoroTest 7 has been specifically designed for nondestructive porosity testing of such coatings, based on automatic test voltage control specific to the thickness of material to be tested and vice versa. The major fields of application of the

PoroTest 7 range from vendor inspection to quality assurance in corrosion protection.

Test principle and field of application

Designed for detecting flaws and pores, the PoroTest 7 can be used for testing all insulating coatings on conductive substrates such as steel, Aluminium, etc.

The test instrument consists of a high voltage probe with an integrated high voltage generator and a test electrode, which is simply connected to the probe. The control unit features a digital display and control pad. The control unit housing is fully portable and made of rugged ABS plastic with an integrated handle. The high voltage probe and control unit are connected via a rugged cable. To detect porosity, the appropriate test voltage specific to the material thickness is set on the control unit which applies, when activated, a spark discharge at the moment a material flaw is detected.

In addition to the spark discharge, flaws are indicated by a visible and audible signal and counted. Typical applications: Testing linings and coatings applied on ducts, pipes, hulls, oil and storage tanks, enamel, paint, rubber and bitumen linings, vessels and tanks, GFK and other plastics materials.

Features product advantages

Quick detection of local flaws in the insulating material being tested.

Reliable detection of flaws according to the test conditions described in the DIN 55 670 standard

Additional safety feature through residual voltage indicator

New compact and ergonomic design, extremely light-weight and handy for easy handling

Broad range of electrodes are available for a wide range of applications

Optimum test voltage setting ensures safe testing without damaging the material being tested

Variable test voltages

Precise and stable test voltage settings achieved through electronic control

No separate gauge required for measuring the current test voltage at the search electrode

Test voltage directly indicated on the instrument’s digital display

User-selectable menu language: German, English, French and Spanish. Others available upon request.

Powerful and versatile gauge with new ergonomic design making it ideal for on-site testing

Light-weight and hand-held test electrodes provide convenient operation

User-friendly key-pad layout with menu driven operation

Test method conforms to DIN 55 670

15 sensitivity settings

Pre-set test voltages specific to material thickness

Backlit display to indicate current test voltage, number of pores and material thickness

High voltage probe with equipment-on and pore indicator

(red LED)

Residual voltage indicator

Power supply: AC operated or battery operated via integrated storage battery (C-cells)

Low-battery indicator

Variable high voltage probes

Non-destructive porosity detection requires adapted high voltages covering different ranges. The versatile PoroTest 7 offers 2 types of high voltage probes, which are interchangeable with the control unit. The test electrode of your selection directly plugs to the high voltage probe. The specific high voltage setting is entered on the control unit’s touch pad and is displayed on the digital display and monitored via the electronic control. The

PoroTest 7 is designed for safe use, the high voltage probes are designed and engineered to be insulated and absolutely risk free to the operator. Electrical safety conforms to the German standard VDE 0411, part 1: Both, the maximum discharge rate as well as the probe voltage never exceed the limit values as set forth in the safety standard.

High voltage probe, model P 7: 0.5…7 kV

High voltage probe, model P 35: 6…35 kV

Accuracy of voltage setting: ± (0.1 kV + 3% of reading)

Measuring equipMent

Holiday (pin Hole) Detector

Document No.: 11-620-R0

Sheet: 2 of 2

test principle

When scanning the high voltage search electrode smoothly over the surface, flaws are detected through spark discharge to the conductive substrate.

Test voltage can be adjusted from 500 Volt to 35.000 Volt. The instrument has been designed for testing insulating materials from approx. 30 microns to 11.3 mm (1 mils … 444 mils) thickness.

adapted search electrodes

A comprehensive selection of special test electrodes are available, such as:

Rolling spring or ring electrodes for outside-tube testing

Brush electrodes for inside or outside pipe and tube testing

Sweeper electrodes for large surfaces of coatings made from plastics, enamel or rubber

Silicon-rubber electrodes for sensitive surfaces

German Cathodic Protection

Even complex shapes such as accoutrements or fittings can be tested confidently with specially designed adaptor brush electrodes.

Compact and convenient design

The PoroTest 7 is a powerful tool for porosity detection and includes the following items:

Rugged plastics carrying case

Control unit with integrated storage battery

Connecting cable probe-control unit

High voltage probe

Metal sweeper electrode

Silicon-rubber electrode, 200 mm (0.7 ft) width

Earthing magnet

Earthing clamp

Equipotential cable, 5 m (16 ft) length

Power cable

Shoulder belt

recommended accessories

Aluminium case

Brush electrodes

Rolling spring electrodes

Ring electrodes

Right-angle electrodes (max. 500 mm/20” width)

3-pin plug, cable-free, directly plugs into the integrated signal contact (make contact)

Earthing rod

Earthing/equipotential cable, 10 m (32 ft) length

Connecting cable for control unit and high voltage probe in special lengths: 5 m (16 ft), 10 m (32 ft)

Non-destructive coating thickness gauge, helps you to adjust test voltage specific to coating thickness

High voltage probe p 7 or p 35

Due to the characteristic dielectric strengths of different materials, they require different ranges of test voltages. To meet the requirements of such different applications, two high voltage probe models are available:

p 7 for thin coatings starting from 30 microns (1 mils) such as condenser or packaging films, paints, enamels

p 35 for thick coatings ranging from 1.4 mm (55 mils) thickness and more such as protective linings in pipelines

Further gauges from our range of products:

Coating thickness gauges

Wall thickness gauges

Gloss meters

Hardness and roughness gauges

Continuous measuring systems for flat films and sheets

Continuous pinhole detection systems for flat films and sheets

Technical specification

High voltage probe

Operating range

Coating thickness

Voltage

Test voltage indication

Accuracy of voltage setting

Dimension of voltage probe

Weight of voltage probe

Dimension of control unit

Weight of control unit

Alarm signal

Signal output

Storage battery

Storage battery life

Storage battery charging time

Mains voltage

Operating temperature

Humidity

Standards

p 7

0.5 ... 7 kV

0.03 mm .... 1.7 mm

1 mils ... 67 mils

DC

LC-Display, 3-digit

± (0.1 kV + 3 % of reading)

p 35

6 ... 35 kV

1.4 mm ... 11.3 mm

55 mils ... 444 mils

274 mm x 63 mm (L x dia.)

550 g

225mm x 150 mm x 85 mm (L x W x H)

1 400 g

90 dB, 0.1 s/Pore, continuous in case of short circuit potential free, U max

: 100 V, I max

: 0.4 A

4 C-cells, IEC LR 14, 3.5 Ah, NiMH, replaceable

P 7 approx. 20 h P 35 approx. 10 h

4 hrs quick charge

110 to 230 V, 50/60 Hz, automatic switch

0° ... 50° C avoid dew on the surface (refer to DIN 55 670)

DIN 55 670, DIN 50 191 (VDE 0104), DIN EN 611010/Part 1

Measuring equipMent

Holiday (Pin Hole) detector ISOTEST 4S

Document No.: 11-630-R0

Sheet: 1 of 2

ISOTEST 4S - Porosity Testing of Coatings

German Cathodic Protection

Application

ISOTEST 4S is indispensable in the area of passive corrosion protection.

Non-destructive high voltage testing of the most diverse coatings and corrosion protection materials has proved itself again and again over long periods of time. The test, prescribed by many works’ specifications and Standards, has made a successful contribution, within the framework of quality control to reducing stoppalte times and avoiding interruptions to production and subsequent repair costs.

Coating thicknesses from a few hundred micrometres to several millimetres can be tested for pores, cracks or scarcely discernible transport damage by means of short high voltage impulses. The short action time of the impulses, which treats the material gently, makes it possible to test with reserves of energy, which, in turn, guarantees the stability of the selected test voltage even with dirty or damp surfaces.

ISOTEST 4S stands for:

Robust construction for using at construction sites

Testing of dyrty, damp and even slightly conductive surfaces

Defective areas can be clearly distinguished, whether it be with externally or internally coated tubes, rubber coated containers, seams in plastic, fully coated fittings or machine parts

... everywhere where non conductive coatings are overlaid an conductive materials (e.g. metal, wet concrete) or where non conductive coatings have an underlay of conductive materials (e.g. plastic seams in tubing or containers).

Rapid battery change - on site

Three earthing possibilities, including capacitance

Testing of fully insulated objects

Emergency off safety mode via switch

No static charge when testing

Automatic earth monitoring

Benefits at a glance

Minimal loading on material by using short test impulses

Microprocessor controlled test instrument

Fully adjustable test voltage

Can be carried with shoulder strap and abdominal belt

Patented automatic regulation

Power reserves for the highest requirements

Graduated voltage adjustment

Adjustable sensitivity (switch)

Separate high voltage pushbotton

Measuring equipMent

Holiday (Pin Hole) detector ISOTEST 4S

Document No.: 11-630-R0

Sheet: 2 of 2

accessories

A large number of accessories are available for a wide range of applications. Test electrodes for the most diverse shapes of object and coatings are complemented by components for the using of different earthing possibilities including capacitance earthing.

German Cathodic Protection

Revisions in the course of technical progress reserved.

The full-trimmed brush electrodes and the spiral electrodes are impressively robust and hard wearing. All electrodes can be easily swapped even with older versions of ISOTEST.

Our expert service personnel are always available to advise you on the choice of the right accessory for your application - especially for less common uses of the equipment.

Whether testing internally, in manholes, with completely coated components or on oversized tubing, the ISOTEST accessory programme has the right tool.

technical data

Voltage range

Voltage selection

Voltage form

Impulse duration

Voltage supply

10-25 kV, 5 kV steps graduated switch unipolar impulses

< 10 µs rechargeable battery 6 V,

4.5 Ah, separate compartment

(90 x 45 x 120) mm, 0,9 kg Size and weight of battery

Operating time

Size and weight w/o battery

Alarm signal

Connecting cable to test probe up to 9 hours

(220 x 256 x 88) mm, < 3 kg approx. 86 dB, 3.5 kHz

1.5 m

Relevant standards and DIN (55670, 28055, 30670)

DVGW process sheets DIN (4681, 28063)

DIN EN 14330 (iV)

DVGW 462/I, W400-2

service - Calibration

ISOTEST instruments will be delivered with a traceable calibration together with a certificate. A clearly visible seal make keeping to the recommended inspection easier. The data can also be accessed through the menu.

Measuring equipMent

Handheld pH Meter, pH 3110

Document No.: 11-109-R0

Sheet: 1 of 1

The 3110 handheld meters provide reliable measurements under difficult conditions both in the Lab and in the field.

German Cathodic Protection

Robust silicone keypad with sealed surface – 100 % waterproof and easy to clean

Tangible button click - for ease of use

Built-in calibration timer - for accurate measurements

pH-Value

The water molecule has the property of dissociating into two ionic components in aqueous solutions.

The H

+ hydroxide ion.

H

2

O ↔ H

+

+ OH

-

ion is termed hydrogen ion or proton, the OH

-

ion

The pH value describes the activity of hydrogen ions in aqueous solutions on a scale of -1 to 15. Based on this scale, liquids are characterised as being acidic, alkaline or neutral: a solution which is neither acidic or alkaline is neutral. This corresponds to a value of 7 on the scale.

Acidity indicates a higher activity of hydrogen ions and a pH value lower than 7. Alkaline solutions are characterised by a lower hydrogen ion activity or higher hydroxide ion activity, respectively and a pH value above 7. The graph below uses examples to illustrate the pH scale.

0.4% HCI orange juice

Cola sea water milk ammonia

0.4% NaOH

technical data

Dimension

Weight

Type of protection

Electrical safety

Test certificates

Storage temperature

Operation temperatur

Power supply

Battery life time

Sensor input resistance

Sensor input current approx. 180 x 80 x 55 mm approx. 0.4 kg

IP 67

Protective class III

CE

-25 °C .... +65 °C

-10 °C .... +55 °C

Four 1.5 V AA batteries

2500 hours

> 5 x 10

12

Ohm

< 1 x 10

-12

A

Measuring ranges, resolution

Variable

pH

Measuring range

-2.0...+20.0

pH

-2.00...+20.00

pH

-2.000...+19.999

U [mV]

-1200.0...+1200.0

U [mV]

-2000...+2000

T [°C]

-5.0...+105.0

T [°F]

23.0...+266

0.1

1

0.1

0.1

resolution

0.1

0.01

0.001

Manual temperature input

Variable range

T manual

T manual

[°C]

[°F]

-25...+130

-13...+221.0

increment

1

1

-1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 acidic neutral basic/alkaline

The pH scale is logarithmic. A difference of one pH unit represents a tenfold, or ten times increase or reduction of hydrogen ion activity in the solution. This explains how a solution’s aggressiveness increases with the distance from the neutral point.

The pH value can be measured using electrochemical measuring systems, litmus paper, indicators and colorimeters. Of these methods, electrochemical sensors provide the most accurate results.

The pH electrode is an electrochemical sensor which consists of a measuring electrode and a reference electrode. The measuring electrode is made of special glass which, due to its surface properties, is particularly sensitive to hydrogen ions. It is filled with a buffer solution which has a pH value of 7.

accuracy (± 1 digit)

Variable

pH / range*

-2.0...+20.0

-2.00...+20.00

-2.000...+19.999

U [mV] / range

-2000...+2000

-1200.0...+1200.0

T [°C] / temp. sensor

NTC 30

PT 1000

accuracy

±0.1

±0.01

±0.005

±1

±0.3

±0.1

±0.1

temp. of test sample

+15 °C...+35 °C

+15 °C...+35 °C

+15 °C...+35 °C

+15 °C...+35 °C

+15 °C...+35 °C

* when measuring in a range of ± 2 pH around the calibration point

When placing the pH electrode into a test solution, the change in voltage is measured by the electrode by comparing the measured voltage to the stable reference electrode. This change is recorded by the meter and converted into the pH value displayed.

Measuring equipMent

High-Voltage Insulation Tester METRISO PRIME

Document No.: 11-108-R1

Sheet: 1 of 3

METRISO PRIME

High-Voltage insulation tester for battery or hand crank generator operation

Broad measuring range from 10 kΩ to 1 TΩ

Easy to read logarithmic display

Test voltages:

100 V, 250 V, 500 V, 1000 V, 1500 V, 2000 V, 2500 V, 5000 V

Measurement to 2000 V in accordance with DIN VDE 0413

Measuring range: 100 kΩ to 100 MΩ (1000 V)

Voltage measurement to 2000 V DC and AC

Guard terminal eliminates surface current

5 m extension cable as accessory equipment

Power supply with batteries or hand crank generator (optional)

applications

Insulation measurement for cables, motors etc.

German Cathodic Protection

test voltages to 5000 V

This instrument is suited for the non-destructive measurement of installation resistance in electrical systems at machines, transformers and cables, as well as within the electrical equipment with eight selectable test voltages up to 5 kV.

Voltage measurement to 2000 V

With the voltage measuring ranges, test objects can be checked for the absence of voltage in network of up to 2 kV. This is important for insulation resistance measurement, because extraneous voltages distort measurement results.

Discharge of capacitive devices under test

Capacitive devices under test such as cables and coils, which might be discharged to test voltage, are discharged by the instrument. The drop in voltage can be observed at the needle gauge.

applicable regulations and standards

IEC 61010-1:2010

DIN EN 61010-1:2010

VDE 0411-1:2011

IEC 61010-031:

2002+A1:2008

DIN EN 61010-031: 2008

VDE 0411-031:2008

IEC61010-2-030:2010

DIN EN 61010-2- 030:2011

VDE 0411-2-030:2011

Safety regulations for electrical measurement, control, regulation and lab devices

– General requirements

Safety requirements for electrical equipment for measurement, control and laboratory use.

Part 031. Safety requirements for hand-held probe assemblies for electrical measurement and test

Safety requirements for electrical equipment for measurement, control and laboratory use.

Part 2-030: Particular requirements for testing and measuring circuits

IEC 61557

DIN EN 61557

Part 1:2007, Part 2:2007

VDE 0413

Part 1:2007, Part 2:2008

IEC 61326-1:2005

DIN EN 61326-1:2006

VDE 0843-20-1:2006

Measuring and monitoring facilities for testing the electrical safety in lines with nominal voltages up to

AC 1000 V and DC 1500 V

Part 1 – General

Part 2 – Insulation resistance measuring devices

Generic Emission Standard; Electrical equipment for measurement, control and laboratory use

– EMC requirements

Part 1 – General requirements

DIN EN 60529

VDE 0470-1:2000

Test instruments and test procedures

– degree of protection provided by enclosures (IP code)

Measurements in accordance with en 61557 part 1 and 2

(VDe 0413)

Measuring current is equal to 1 mA at a test voltage of 100 V,

250 V, 500 V and 1000 V.

Measuring cables with heavy-duty insulation

The measuring cables with heavy-duty insulation are permanently connected for safety and technical reasons. Possible danger caused by the unintended removal of cables is thus avoided, for example when charging occurs due to capacitive test objects.

needle gauge with LeDs

Measuring ranges

insulation resistance

Scale

Standard

1

VDE 0423

Measuring

Range

100 kΩ

...

100 MΩ

Nominal

Range of Use

100 kΩ

...

10 MΩ

Nominal

Test

Voltage

U

N

/U

T

100 V

200 V

500 V

1000 V

2

10 kΩ

...

1TΩ

100 kΩ

...

100 GΩ

100/1500 V

250/2000 V

500/2500 V

1000/5000 V

ShortCircuit Current I

K

1.3 mA

Nominal

Test Current

I

N

/I

T

1 mA

1mA/0.7mA

1mA/0.5mA

1mA/0.4mA

1mA/0.1mA

Instrinsic

Uncertainty

1)

± 2.5%

Measuring

Uncertainty

±30% of measured value

± 5%

Three LEDs arranged within the scale to make reading easier.

The lamp which is assigned to the selected measuring range lights up. During the measurement sequence, the green LED indicates whether or not the battery charge is sufficient for the measurement.

Making Capacity for insulation resistance Measurement

Response Time < 100 GΩ < 3 s; > 100 GΩ < 8 s also valid for test voltage or measuring change

Measuring equipMent

High-Voltage Insulation Tester METRISO PRIME

Document No.: 11-108-R1

Sheet: 2 of 3

Direct and alternating Voltage

Measuring range

Frequency

0 ... 2000 V AC/DC 15 ...5 00 Hz

internal resistance

5 M

Max. allowable voltage

2200 V AC/DC max. 10 s

instrinsic error

1)

± 5%

German Cathodic Protection

Display

Movement

Scale length

Core-magnet moving coil mechanism

111.5 mm (longest scale)

protective Devices terminal

- Measurement cable

+ Measurement cable

Insulation measurement

Guard cable

internal resistance

------

-----between Guard and meas. cables

90 k

------

Max. allowable voltage

to +meas. cable/ to Guard cable:

2000 V DC/AC max. 10 s to +meas. cable/ to Guard cable:

2000 V DC/AC max. 10 s to +meas. cable

2000 V DC/AC max. 10 s

10 V

protective device

via grounded damping diodes

Diodes in high-voltage cascade,

PTC thermistor

2)

and series resistors

PTC thermistor

2)

and series resistors

Battery Pole protection with diodes voltage limiting in battery charger (optional)

1)

with reference to scale length 97.5 mm (100 M

at least 2 minutes must be observed!

range) or 109.8 mm (1 T

2) PTC resistor cool-down period until start of new measurement:

Ω range)

reference Conditions

Ambient

Temperature

Relative Humidity

+23 °C ±2 K

40 ... 60%

Meas. Quantity

Frequency 50 Hz

±

10 Hz

(for

Line Voltage

Waveform

Battery voltage

Operating position

Sine, deviation between effective and rectified value < 1%

8 V

±

1%

Horizontal

power supply

Standard or

Storage Battery

Working Range

Battery Service Life

6 ea. 1.5 V single cell per IEC R20

(6

6 V ... 10 V

7500 measurements for test voltage of

1000 V with meas. resistance of 1 MΩ,

15000 measurements for test voltage of 500 V with meas. resist. of 500 kΩ, measurement of 5 s – pause 25 s

Crank Generator (optional) 2 to 3 r.p.s. with moderate strength,

the frequency and consequently the validity

of

Nominal Voltage

Nominal Power values

7.5 V (at approx. 2.5 r.p.s.)

4 W (at approx. 2.5 r.p.s.)

electrical safety

Protection Class

Test Voltage

Measuring Category

II

8.5 kV~

1000 V CAT II, 600 V CAT III,

300

Nominal Voltage

Open Circuit Voltage

Contamination Degree

V

1000 V

CAT

5000 V

2

using the test probes

Maximum rated voltage

Measuring category

With safety cap attached

Without safety cap

300 V

CAT IV

----

600 V

CAT III

----

1000 V

CAT II

----

5000 V

----

----

electromagnetic Compatibility (eMC)

Product standard DIN EN 61326-1:2006

interference emission

EN 55022

interference immunity

EN 61000-4-2

EN 61000-4-3

Test Value

Contact/Air - 4 kV/8 kV

10 V/m

Class

B

Performance Feature

B

B

Mechanical Design

Dimensions

Weight

Protection

W x D x H:

290 mm x 250 mm x 140 mm

3.4 kg with batteries

IP 52

Extract from table on the meaning of IP codes

(1 ip XY st digit X)

0

1

2

3

4

5

protection against foreign object entry

not protected

> 50.0 mm dia.

> 12.5 mm dia.

> 2.5 mm dia.

> 1.0 mm dia.

dust protected

ip XY

(2nd digit Y)

0

1

2

3

4

5

protection against the penetration of water

not protected vertically falling drops vertically falling drops with enclosure tilted 15° spraying water splashing water water jets

ambient Conditions

Operating Temperature

Storage Temperature

Relative Humidity

Elevation

0 °C ... + 40 °C

- 20 °C ... + 60 °C (without batteries) max. 75%, condensation must be avoided up to 2000 m

Measuring equipMent

High-Voltage Insulation Tester METRISO PRIME

Document No.: 11-108-R1

Sheet: 3 of 3

Equipment METRISO PRIME (battery operation)

1 high-voltage insulation tester with permanently

connected measurement cables and test prods,

2 crocodile clips (5 kV version)

and plug-in battery module including batteries

1 carrying strap

1 operating instructions

Equipment METRISO PRIME (hand crank generator operation)

1 high-voltage insulation tester with permanently

connected measurement cables and test prods,

2 crocodile clips (5 kV version)

and hand crank generator

1 carrying strap

1 operating instructions

accessories

Hand Crank Generator for retrofit

German Cathodic Protection

Order Information

Designation

High-voltage insulation tester

for battery operation

High-voltage insulation tester

for hand crank generator operation

Universal carrying bag for METRISO PRIME

2 alligator clips

1000 V CAT III / 5000 V CAT I 16 A

1 guard cable with plug and crocodile clip

5 m extension cable

Hand crank generator for retrofitting METRISO PRIME to hand crank generator operation

Set consisting of: METRISO PRIME for battery operation, F2000, KY 5000A and

5000A guard

Set consisting of: METRISO PRIME for hand crank generator operation, F2000,

KY 5000A and 5000A guard

Calibration adapter for test voltages up to 1000 V

D)

Data sheet available

type

METRISO PRIME

METRISO PRIME

F2000

D)

KY 5000A

Guard 5000A

Leadex 5000

Z580A

article number

M550T

Z700D

Z580B

Z580C

Z580D

Z580A

METRISO PRIME-Set M551T

METRISO PRIME-Set M551U

ISO-Kalibrator 1

M550U

M662A

Carrying Bag F2000

The test instrument, replacement batteries, guard cable, etc., can all be conveniently strored and transported with the F2000 carrying bag.

ISO-Kalibrator 1

Calibration adapter for testing the accuracy of measurement instruments for insulation resistances and low impedance resistances for test voltages up to 1000 V.

Measuring equipMent potential converters

Document No.: 11-411-R0

Sheet: 1 of 1

The monitoring and control schemes of cathodic protection systems require very accurate measurement of relatively very low potential differences between metallic objects and surrounding electrolytes soil or water, with respect to a standard reference electrode :

Zn, Cu/CuSO

4

, ag/agCl or MnO

2

The conventional low input impedance instrument can not be relied upon to give good results in such cases. The zinc reference electrodes which have relatively longer reliable operation life than other electrodes are installed in permanent systems but the measured values are to be usually / conventionally displayed and reported in terms of potentials with respect to Cu/CuSO

4

or Ag/AgCl reference electrodes for easy interpretation of results.

German Cathodic Protection

The present practice of marking the scales for both types of reference electrodes on analog type instruments solves the problem to some extent but not at all when the low input impedance analog type instruments are replaced by high input impedance digital instruments.

The transmission of field data by long cables between local measuring points and master control station for remote monitoring and controls, makes it necessary to convert the measured low voltage signal into an equivalent low current signal to preserve its integrity. These practical considerations indicated the need of developing a potential converter which can be conveniently connected across the conventional potential measuring devices to provide the desired results.

Option potential Converter with integrated potential data logger technical data

Design Plug-in or snap-on unit with separate terminals

Input

Output

Reference electrode / cathode -4.0 V - +4.0 V DC

Volts, as measured by a 10 MΩ input impedance voltmeter

Output options

Accuracy

Environmental conditions

Volts, measured by a specified type of reference electrode : Zn, Cu/CuSO

4

, Ag/AgCl or MnO

2

0 - 20 mA or 4 - 20 mA signals for transmission purposes via cable

< 1 %

Temperature -25°C to 60°C

Installation : indoor (enclosed)

Power supply AC 90 - 265 V, 50-60 Hz, or

DC 18 - 36 V

Protection class IP 40

Dimensions 70 x 75 x 109.5 mm

The potential converter can be optionally equiped with a one channel potential logger. The available number of selectable sampling rates in combination with the storage capacity allows short term recording as well as long term recording covering several months.

The specially designed processing software ConView

(for Windows) enables display of stored values either graphically or as table on screen as well as print-out by printer or plotter.

The data transfer to a laptop takes place by means of an interface RS 232. Data transfer during potential logger operation mode is possible.

Recording capacity: 2 000 values

Sampling rates: 1.0 s / 1 min / 10 min / 1.0 h / 6.0 h

Measuring equipMent portable reference electrodes

Document No.: 11-701-R0

Sheet: 1 of 1

portable reference electrodes

German Cathodic Protection

Portable reference electrodes are used to carry out potential measurements on all types of buried and submerged structures. The reference electrodes are made of solid copper elements which are housed in impact resistant plastic tubes.

To ensure that the copper elements remain electrically stable, copper sulfate crystals are provided with each ordered reference electrodes. The crystals surround the copper elements in the plastic tube, and when mixed with distilled water, create a super saturated solution of copper sulfate to reduce ion intermixing. A window on each cell allows the operator to observe the water level of the crystallized solution. If the level is insufficient, water and copper sulfate crystals can be simply added by removing the filling cap found on each creference electrodes.

Reference Electrode Cu/CuSO4 for use in soil

Model: Cus-01

Dimensions

Diameter: 110 mm Height: 110 mm Weight: 1.0 kg

Reference Electrode Cu/CuSO4 for use in soil and

(with submersible adapter) for use in water

Model: MiLLer re-5

Dimensions

Diameter: 35 mm Height: 152 mm Weight: 0.15 kg

reference electrode Kit ag/agCl

Model: re-7ag

Dimensions of case:

270 x 180 x 85 mm (W x D x H) Weight: 1.1 kg

Used on land with Lexan tube, CPT ceramic plug and

KCL filling solution.

Used in sea water with perforated Lexan tube, brass submersible weights (any number of weights can be attached; two included in this kit) and standard 2.5 m submersible adapter (available in additional lengths).

accessories:

Electrode extension 760 mm long.

Submersible adapter converts electrode for use in water.

With different lead length:

(2.5 m, 7.5 m, 15 m, 30 m, or 60 m) with copper test clip attached.

Water-tight connection.

Measuring equipMent accessories

Document No.: 11-801-R0

Sheet: 1 of 1

German Cathodic Protection

Test lead reels - „ BIGSPOOL „

Type

SPOOLB - 50/1.00

SPOOLB - 10/1.00

SPOOLB - 50/1.50

SPOOLB - 10/1.50

SPOOLB - 50/2.50

Lead length

500 m

1000 m

500 m

1000 m

500 m

Cross-section

1.0 mm

2

1.0 mm

2

1.5 mm

2

1.5 mm

2

2.5 mm

2

Colour code

1 - 8

1 - 8

1

1

1

Colours : 1 = black, 2 = red, 3 = blue, 4 = yellow, 5 = green, 6 = violet, 7 = brown, 8 = white

Test lead reels - „ FASTSPOOL „

Type

SPOOLF - 25/0.75

SPOOLF - 25/1.00

SPOOLF - 50/0.75

SPOOLF - 50/1.00

SPOOLF - 10/0.75

SPOOLF - 10/1.00

Lead length

25 m

25 m

50 m

50 m

100 m

100 m

Cross-section

0.75 mm

2

1.0 mm

2

0.75 mm

2

1.0 mm

2

0.75 mm

2

1.0 mm

2

Colour code

1 - 8

1 - 8

1 - 8

1 - 8

1 - 8

1 - 8

Colours : 1 = black, 2 = red, 3 = blue, 4 = yellow, 5 = green, 6 = violet, 7 = brown, 8 = white

needle tips

Flexible guide shaft and contact socket for plug 4 mm dia.

Colours : 1 = black, 2 = red

earthing rod for temporary measurements

Rod material:

Handle:

Total length:

Rod length:

Vanadium steel 50CrV4

Blade tanged right through the handle, chrome- plated, extremely strong

Hardwood, clear varnished with leather cap

390 mm

250 mm

Contact socket: 4 mm dia.

14 14

M6

2 dia.

pKi 10

M4

pK 10

M6

2 dia.

M4

earthing rod for temporary measurements

Type: D 634 145

Material : Steel, galvanised

Length : 450 mm

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
