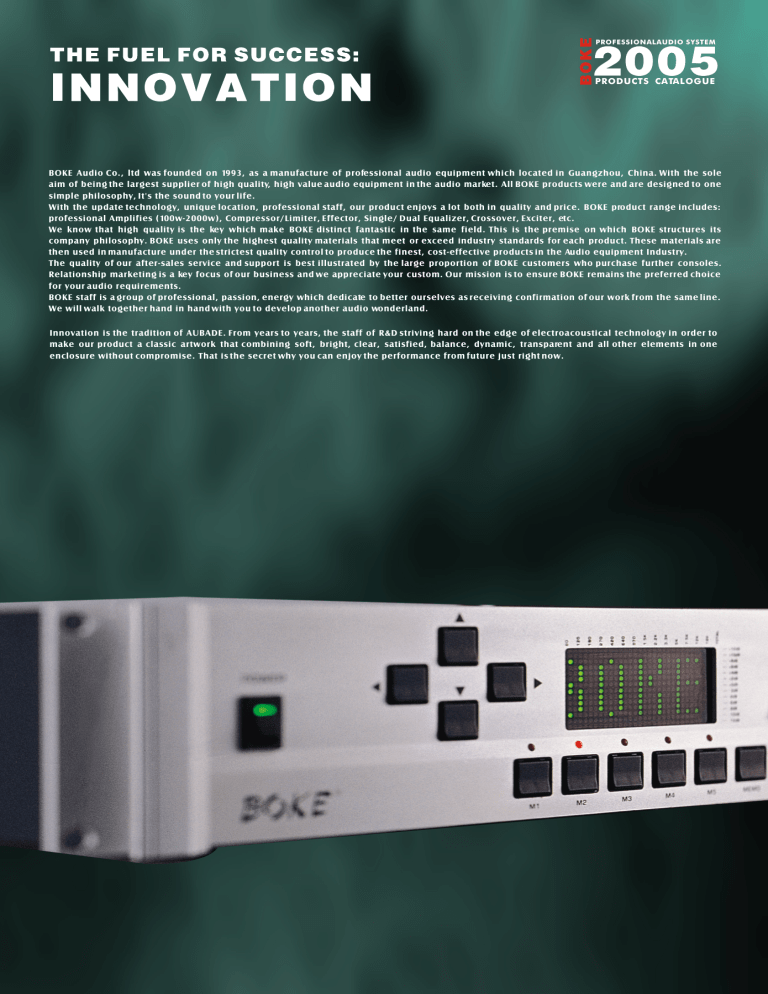

BOKE Audio Co., ltd was founded on 1993, as a

BOKE Audio Co., ltd was founded on 1993, as a
PROFESSIONALAUDIO SYSTEM
PRODUCTS CATALOGUE
BOKE Audio Co., ltd was founded on 1993, as a manufacture of professional audio equipment which located in Guangzhou, China. With the sole
aim of being the largest supplier of high quality, high value audio equipment in the audio market. All BOKE products were and are designed to one
simple philosophy, It's the sound to your life.
With the update technology, unique location, professional staff, our product enjoys a lot both in quality and price. BOKE product range includes:
professional Amplifies (100w-2000w), Compressor/Limiter, Effector, Single/ Dual Equalizer, Crossover, Exciter, etc.
We know that high quality is the key which make BOKE distinct fantastic in the same field. This is the premise on which BOKE structures its
company philosophy. BOKE uses only the highest quality materials that meet or exceed industry standards for each product. These materials are
then used in manufacture under the strictest quality control to produce the finest, cost-effective products in the Audio equipment Industry.
The quality of our after-sales service and support is best illustrated by the large proportion of BOKE customers who purchase further consoles.
Relationship marketing is a key focus of our business and we appreciate your custom. Our mission is to ensure BOKE remains the preferred choice
for your audio requirements.
BOKE staff is a group of professional, passion, energy which dedicate to better ourselves as receiving confirmation of our work from the same line.
We will walk together hand in hand with you to develop another audio wonderland.
Innovation is the tradition of AUBADE. From years to years, the staff of R&D striving hard on the edge of electroacoustical technology in order to
make our product a classic artwork that combining soft, bright, clear, satisfied, balance, dynamic, transparent and all other elements in one
enclosure without compromise. That is the secret why you can enjoy the performance from future just right now.
PROFESSIONALAUDIO SYSTEM
PRODUCTS CATALOGUE
PUBLIC SPEAKER SYSTEM
SERIES
[BP-3008]
FEATURES :
SIGNAL MATRIX
Signal matrixes(one ALM input, one REMOTE input
and 8CH inputs 8CH outputs).
The channel will be switched to ALM input
automatically while alarming.
Remote-control available.
One microphone amplifier.
Input channels indicator.
Output level indicator.
Memory function.
Dimensions(W H D): 482 88 358mm
Weight(Net/Gross): 6.8/7.8Kg
[BP-3010]
FEATURES :
PAGING ELECTOR
Micro computer chip control, Light-touch button.
10 channels.
Alarm activating.
Remote-control available.
2 Mic, 2 line inputs.
LED indicator for each paging channel.
Chime & Mute function.
Dimensions(W H D): 482 88 358mm
Weight(Net/Gross): 6.5/7.5Kg
[BP-3015]
FEATURES :
INDIRECT SPEAKER SELECTOR
2CH inputs, 10CH outputs.
Hi/Low alarm level available.
The channel will be switched to input B automatically
while alarming.
Alarm indicator and output indicator.
Dimensions(W H D): 482 88 358mm
Weight(Net/Gross): 6.5/7.5Kg
PROFESSIONALAUDIO SYSTEM
PRODUCTS CATALOGUE
PUBLIC SPEAKER SYSTEM
SERIES
[BP-3016]
FEATURES :
PROGRAMMABLE TIMER
Micro computer chip control, Light-touch button.
LCD Display, Chinese characters, to know the status
clear at a glance.
Graphical interfaces and multi-level menu for user
adjustment, It a real easy access device without the
complexity of a personal knowledge.
Can control external CD/Radio/Cassette player etc.
Dimensions(W H D): 482 88 358mm
Weight(Net/Gross): 6.5/7.5Kg
[BP-3017]
FEATURES :
EMERGENCY PANEL
Alarm triggering and siren or recorded signal output.
1 minutes digital Rec/Play IC.
Record Level control.
Output volume control.
Dimensions(W H D): 482 88 358mm
Weight(Net/Gross): 6.5/7.5Kg
[BP-3018]
FEATURES :
EQUALIZER/COMPRESSOR
Micro computer chip control, Light-touch button.
Fourteen segment digital equalizer.
Five equalizer mode memory.
Inner gate and compressor.
LED peak level indicator.
Dimensions(W H D): 482 88 358mm
Weight(Net/Gross): 6.3/7.3Kg
PROFESSIONALAUDIO SYSTEM
PRODUCTS CATALOGUE
PUBLIC SPEAKER SYSTEM
SERIES
PUBLIC BROADCAST SPEAKER
PARAMETER :
V-SD302B :
2-Way Plastic Sealed Box Design
3-1/2"Mica Cone Rubber Edge Woofer
13mm Ferrite Magnet PEI Dome Tweeter
100 Watts Peak Power
25 Watts RMS
Frequency Response: 65-22000Hz
Colour: Blue/Black
V-SD302B
125mm
134mm
240mm
187mm
V-SD502B :
2-Way Plastic Sealed Box Design
5"Mica Cone Rubber Edge Woofer
13mm Ferrite Magnet PEI Dome Tweeter
140 Watts Peak Power
35 Watts RMS
Frequency Response: 55-22000Hz
Colour: Blue/Black
V-SD502B
190mm
190mm
358mm
270mm
V-SD602B :
2-Way Plastic Sealed Box Design
6-1/2"Mica Cone Rubber Edge Woofer
20mm Ferrite Magnet PEI Dome Tweeter
180 Watts Peak Power
45 Watts RMS
Frequency Response: 45-22000Hz
Colour: Blue/Black
V-SD602B
210mm
220mm
425mm
310mm
V-SD802B :
2-Way Plastic Sealed Box Design
8"Mica Cone Rubber Edge Woofer
25mm Ferrite Magnet PEI Dome Tweeter
220 Watts Peak Power
55 Watts RMS
Frequency Response:35-22000Hz
Colour: Blue/Black
270mm
520mm
390mm
V-SD802B
260mm
PROFESSIONALAUDIO SYSTEM
PRODUCTS CATALOGUE
PUBLIC SPEAKER SYSTEM
SERIES
PARAMETER :
WS-410 WS-410B
100V
MODEL
Pressure Input
Power Output
20W
Sensitivity 1W/1M
89
Frequency Response
80Hz-20KHz
215 170 150
White/Black
ABS resin
Dimensions(W
Colour
Material
[WS-410]
H D)
3dB
[WS-410B]
PARAMETER :
WS-510 WS-510B
100V
MODEL
Pressure Input
Power Output
30W
Sensitivity 1W/1M
90
Frequency Response
75Hz-20KHz
242 182 162
White/Black
ABS resin
Dimensions(W
Colour
Material
[WS-510]
H D)
3dB
[WS-510B]
PARAMETER :
WS-610 WS-610B
100V
MODEL
Pressure Input
Power Output
40W
Sensitivity 1W/1M
91
Frequency Response
70Hz-20KHz
284 215 189
White/Black
ABS resin
Dimensions(W
Colour
Material
[WS-610]
[WS-610B]
H D)
3dB
PROFESSIONALAUDIO SYSTEM
PUBLIC SPEAKER SYSTEM
SERIES
PRODUCTS CATALOGUE
PUBLIC BROADCAST SPEAKER Water-proof
V-6002MK :
6 1/2" 2-Way Marine Speaker System
6 1/2 " Polypropylene cone rubber edge woffer
10 Oz ferrite magnet, 20mm KSV voice coil
13mm Mylar dome tweeter
Impedance: 4 or 8 Ohms
Input: RMS.50W; Max.100W
Frequency Response: 50-20000Hz
SPL:88 3dB
Rated Freq.range: 60-20KHz
Rated Power: 35W
Max Power: 50W
[V-6002MK]
86.0
0.5
58.5
0.1
73.0
0.5
129.0
0.1
V-6002MK
V-5002MK :
0.5
54.0
0.5
77.0 0.5
110.0 0.5
153.2 0.5
90.0 0.5
147.0 0.5
190.0 0.5
167.0
[V-5002MK]
V-5002MK
5" 2-Way Marine Speaker System
5" Polypropylene cone rubber edge woffer
5.4 Oz ferrite magnet, 20mm KSV voice coil
13mm Mylar dome tweeter
Impedance: 4 or 8 Ohms
Input: RMS.40W; Max.80W
Frequency Response: 55-20000Hz
SPL:86 3dB
Rated Freq.range: 90-20KHz
Rated Power: 25W
Max Power: 40W
SURFACE MOUNTED SPEAKER
SPECIFICATIONS :
The BOKE surface mounted speaker with top design 2way speaker, weatherproof supply high fidelity sound.
No processors need, easy mounting. 2 pieces in semisphere, powerful high quality loudspeaker. Strong bass
response, bass reflex, high power, 2-way hifi quality in
100V technology, background music equipment for
large sized applications.
PARAMETER :
[TA-3H]
[TA-5H]
TA-3H :
100 Watts Peak Power
25 Watts RMS
Sensitivity 1W/1M 90dB
Frequency Response: 65-22000Hz
TA-5H :
140 Watts Peak Power
35 Watts RMS
Sensitivity 1W/1M 92dB
Frequency Response: 55-22000Hz
TA-6H :
180 Watts Peak Power
45 Watts RMS
Sensitivity 1W/1M 95dB
Frequency Response: 45-22000Hz
TA-8H :
[TA-6H]
[TA-8H]
220 Watts Peak Power
55 Watts RMS
Sensitivity 1W/1M 97dB
Frequency Response: 35-22000Hz
PROFESSIONALAUDIO SYSTEM
PRODUCTS CATALOGUE
PUBLIC SPEAKER SYSTEM
SERIES
INTRODUCTION :
MG-605 mushroom lawn speaker, water-proof, sunproof, consolidate, stainless permanent, sounds
clearly, good looking shape be suitable with all kinds
of outside places.
INSTALLATIONS:
Arrange the audio signal lines underground, the point
of the line be connected with the mushroom speaker
inside, fixed the speaker on the ground with screw,
better for using with cement, prevent the speaker from
stolen.
PARAMETER :
Effective IMP.: 4.0Ohm
R.DC.: 3.6Ohm
Resonant Freq.: 55Hz
SPL: 85dB
Rated freq.range: 55Hz-20KHz
Rated power: 35W
Max power: 50W
Flux density: GAUSS 10%
Operation: 11V 30Hz-55Hz
Sweep test: 8V 55Hz-20KHz
Voice Coil: 25 KSV
[MG-605]
PUBLIC BROADCAST SPEAKER
PARAMETER :
Effective IMP.: 8.0Ohm
R.DC.: 5.5Ohm
Resonant Freq.: 70Hz
SPL: 87dB
Rated freq.range: 70Hz-20KHz
Rated power: 30W
Max power: 45W
Flux density: GAUSS 10%
Operation: 12V 35Hz-70Hz
Sweep test: 8V 70Hz-20KHz
Voice Coil: 25 KSV
[ROCK-605]
SPECIFICATIONS :
2 inputs,16outputs
Alarm triggering
Switchable
[TA-16]
DISTRIBUTION MATRIX
SPECIFICATIONS :
[TA-10]
PRE.AMPLIFIER
5 Mic inputs
2 Priority inputs
3 Aux inputs
2 Aux outputs
Muting function
Individual volume control
Bass and treble tone control
Chime out first
PROFESSIONALAUDIO SYSTEM
PUBLIC SPEAKER SYSTEM
SERIES
PRODUCTS CATALOGUE
AMPLIFIER FOR PUBLIC BROADCAST
SPECIFICATIONS :
Three microphone inputs, two auxiliary inputs, and one AUX out.
Transformer isolated 100V, 70V and 4~16Ohms speaker outputs.
Muting function.
Individual volume control.
Low and high tone control.
PARAMETER :
Models:
TA-1000P
TA-1200P
TA-2500P
TA-3500P
INTRODUCTION :
Output Power
60W
120W
250W
350W
Output regulation
Less than 3db.no load to full load
BOKE amplifier has become complete series, it supply in the metaphoric
system has professional quality without compare. TA series is meticulously
planned, so it very strong and durable. To fit strict international standard.
Every style has line with protection, guarantee long life, volve without
trouble. Meantime, reduce the maintain large quantity. On the contrary this
point reduce the charge of maintain and use.
System use template structure, so any complex system can use standard
analog to match and pare the basic for future system develop, never make
the problem of opposition in equipment.
Good TA series amplifier with attachment, can satisfied the request of
professional strict megaphonia the amplifier has signal output, can link
surround and become big power amplifier. Some has DTC, can deference
control the voice of speak and music.
Speaker output
Balanced 4-16 ,70V,100V
Inputs
Mic 1,2,3: 600 ,1.8mV(-55dBV) unbalanced
Inputs
AUX 1,2: 10K ,100mV(-20dBV) unbalanced
Frequency response
100Hz-16KHz
Distortion
Less than 0.1% at1KHz,1/3 rated power
Tone
Bass: +10dB at 200Hz
Tone
Treble:+10dB at 12kHz
Protection
AC fuse x 1,DC voltage, overload
Muting function
Mic 1 overrides other input signals With 0-30dB attenuation
Dimensions(W H D)
418 88
Power requirements
AC 220-240V/50-60Hz
345 mm
PARAMETER :
MIXING AMPLIFIERS
Models:
TA-4000P
TA-5000P
Output Power
300W
400W
Output regulation
Less than 3db.no load to full load
Speaker output
Balanced 4-16 ,70V,100V
Inputs
Mic 1,2,3: 600 ,1.8mV(-55dBV) unbalanced
Inputs
AUX 1,2: 10K ,100mV(-20dBV) unbalanced
Frequency response
100Hz-16KHz
Distortion
Less than 0.1% at1KHz,1/3 rated power
Tone
Bass: +10dB at 100Hz
SPECIFICATIONS :
Tone
Treble:+10dB at 10kHz
Protection
AC fuse x 1,DC voltage, overload
Three microphone inputs, Three auxiliary inputs, and one AUX out.
Muting function.
Individual distributor for 6CH.
Muting function
Mic 1 overrides other input signals With 0-30dB attenuation
Dimensions(W H D)
483
Power requirements
AC 220-240V/50-60Hz
132 350 mm
PARAMETER :
BACK POWER AMPLIFIERS
SPECIFICATIONS :
Transformer isolated 100V, 70V and 4Ohms speaker outputs
A five-element LED level meter is provided for quick and easy
Low cut & 400Hz
Big power output
Models:
TA-4000
TA-6000
TA-8000
Output Power
150W
300W
400W
Output regulation
Less than 3db.no load to full load
Speaker output
Balanced 4-16 ,70V,100V
Inputs
10K
Frequency response
40Hz-16kHz
Distortion
Less than 0.25% at1kHz,1/3 rated power
, 150mV(-17dBV), unbalanced
Protection
AC fuse x 1,DC voltage, overload and short circuit
Dimensions(W H D)
483
Power requirements
AC 220-240V/50-60Hz
132 350 mm
PROFESSIONALAUDIO SYSTEM
PRODUCTS CATALOGUE
PUBLIC SPEAKER SYSTEM
SERIES
CEILING SPEAKERS
INTRODUCTION :
Ceiling Loudspeakers uniquely full-range response,
cost-efficiency, aesthetics. And easy installation into
one complete assembly. Ceiling loudspeakers are
offered in 6, 8, & 10 sizes enabing owners, architects,
contractors, and consultants to meet varying sound
system requirements in applications such as
restaurants, homes, lounges, boutiques. Health clubs,
convention and gaming centers, professional offices.
Meeting and board room.
PARAMETER :
[V-5CA]
MODEL
Pressure Input
V-5CA
70V-100V
Power Output
2.5W-5W-10W
Sensitivity 1W/1M
111dB
Frequency Response
130Hz-2KHz
192
165
0.7
Overall Diameter
Installation Diameter
Weight(kg)
PARAMETER :
MODEL
Pressure Input
V-6CA
70V-100V
Power Output
2.5W-5W-10W
Sensitivity 1W/1M
92dB
Frequency Response
130Hz-2KHz
206
180
1.1
Overall Diameter
Installation Diameter
Weight(kg)
[V-6CA]
[V-8CA]
PARAMETER :
MODEL
Pressure Input
V-8CA
70V-100V
Power Output
2.5W-5W-10W
Sensitivity 1W/1M
93dB
Frequency Response
130Hz-2KHz
246
220
1.55
Overall Diameter
Installation Diameter
Weight(kg)
[CSL-621H]
PARAMETER :
MODEL
Pressure Input
CSL-621H
100V
Power Output
6W
Sensitivity 1W/1M
90dB
Frequency Response
110Hz-13KHz
200 100
185
IRON
Overall Diameter
Installation Diameter
Material
[CSL-621H]
PROFESSIONALAUDIO SYSTEM
PRODUCTS CATALOGUE
PUBLIC SPEAKER SYSTEM
SERIES
CEILING SPEAKERS
PARAMETER :
MODEL
Pressure Input
V-5SA
70V-100V
Power Output
2.5W-5W-10W
Sensitivity 1W/1M
91dB
Frequency Response
130Hz-2KHz
170 170mm
144 144mm
Overall Size
Installation Size
[V-5SA]
PARAMETER :
MODEL
Pressure Input
V-6SA
70V-100V
Power Output
2.5W-5W-10W
Sensitivity 1W/1M
92dB
Frequency Response
130Hz-2KHz
201 201mm
175 175mm
Overall Size
Installation Size
[V-6SA]
PARAMETER :
MODEL
Pressure Input
V-5WA
70V-100V
Power Output
2.5W-5W-15W-20W
Sensitivity 1W/1M
91dB
Frequency Response
130Hz-2KHz
236 168mm
210 142mm
Overall Size
Installation Size
[ V - 5 WA ]
PARAMETER :
MODEL
Pressure Input
V-6WA
70V-100V
Power Output
2.5W-5W-15W-20W
Sensitivity 1W/1M
92dB
Frequency Response
130Hz-2KHz
325 194mm
299 190mm
Overall Size
Installation Size
[ V - 6 WA ]
PROFESSIONALAUDIO SYSTEM
PRODUCTS CATALOGUE
PUBLIC SPEAKER SYSTEM
SERIES
CEILING SPEAKERS
PARAMETER :
MODEL
Pressure Input
V-52S
70V-100V
Power Output
2.5W-5W-15W-20W
Sensitivity 1W/1M
91dB
Frequency Response
100Hz-2KHz
324 159mm
317 133mm
Overall Size
Installation Size
[V-52S]
PARAMETER :
MODEL
Pressure Input
V-62S
70V-100V
Power Output
2.5W-5W-15W-20W
Sensitivity 1W/1M
92dB
Frequency Response
100Hz-2KHz
394 170mm
368 144mm
Overall Size
Installation Size
[V-62S]
WALL FITTED SPEAKER
PARAMETER :
MODEL
Pressure Input
TA-6S
70V-100V
Power Output
5W
Sensitivity 1W/1M
88dB
Frequency Response
100Hz-10KHz
295 220 120mm
6.27kg
Size
Weight
PARAMETER :
MODEL
Pressure Input
TA-8S
70V-100V
Power Output
6W
Sensitivity 1W/1M
89dB
Frequency Response
100Hz-10KHz
240 197 113mm
5.06kg
Size
Weight
[TA-6S]
[TA-8S]
PROFESSIONALAUDIO SYSTEM
PUBLIC SPEAKER SYSTEM
SERIES
PRODUCTS CATALOGUE
SPHERE SPEAKERS
[TA-6U]
[TA-8U]
[TA-10U]
INTRODUCTION :
PARAMETER :
These wide-ranged and good-looking speakers deliver high fidelity sound for speech
and music. They are designed to be suspended from a ceiling by their 5-meter 7-core
connecting cables (Cables length can be tailored for desired height.) Or to be mounted
on a wall by their 360
swivel metal brackets. Suitable for use in swimming pools,
stadiums, factories, shopping centers, outdoor theaters, parks and playground, etc.
MODEL
Pressure Input
TA-6U
70V/100V
TA-8U
70V/100V
TA-10U
70V/100V
Power Output
6W
15W
25W
Sensitivity 1W/1M
88dB
89dB
90dB
Frequency Reponse
100Hz-12kHz
100Hz-10kHz
100Hz-10kHz
Weight(kg)
1
1.6
2.75
[CS-411]
[CS-412]
[CS-413]
PARAMETER :
[CS-414]
INTRODUCTION :
MODEL
CS-411
CS-412
CS-413
CS-414
Pressure Input
100V
100V
100V
100V
Power Output
10W-20W
20W-30W
30W-40W
40W-50W
Sensitivity 1W/1M
95
96
97
99
Frequency Response
150Hz-16KHz
150Hz-16KHz
150Hz-16KHz
150Hz-16KHz
Dimension (W H D)
150
150
150
150
Material
Aluminum
3dB
260
100mm
3dB
370
Aluminum
100mm
3dB
490
Aluminum
100mm
With white textured aluminum-cast appearance, metal
grid front protection, two grade (70/100 V) power
output and water-proof enclosure, It's your best choice
for PA application in different circumstance.
3dB
610
Aluminum
100mm
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
