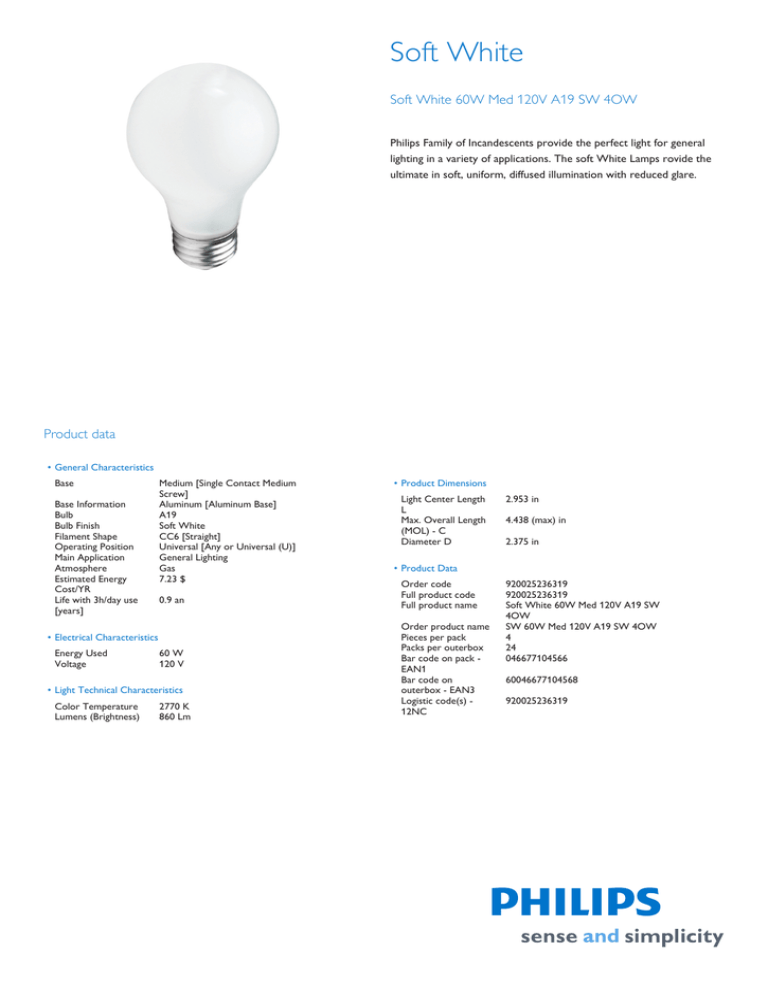

Philips 046677104566 Datasheet

Philips 046677104566 Datasheet
Soft White
Soft White 60W Med 120V A19 SW 4OW
Philips Family of Incandescents provide the perfect light for general
lighting in a variety of applications. The soft White Lamps rovide the
ultimate in soft, uniform, diffused illumination with reduced glare.
Product data
• General Characteristics
Base
Base Information
Bulb
Bulb Finish
Filament Shape
Operating Position
Main Application
Atmosphere
Estimated Energy
Cost/YR
Life with 3h/day use
[years]
Medium [Single Contact Medium
Screw]
Aluminum [Aluminum Base]
A19
Soft White
CC6 [Straight]
Universal [Any or Universal (U)]
General Lighting
Gas
7.23 $
0.9 an
• Electrical Characteristics
Energy Used
Voltage
60 W
120 V
• Light Technical Characteristics
Color Temperature
Lumens (Brightness)
2770 K
860 Lm
• Product Dimensions
Light Center Length
L
Max. Overall Length
(MOL) - C
Diameter D
2.953 in
4.438 (max) in
2.375 in
• Product Data
Order code
Full product code
Full product name
Order product name
Pieces per pack
Packs per outerbox
Bar code on pack EAN1
Bar code on
outerbox - EAN3
Logistic code(s) 12NC
920025236319
920025236319
Soft White 60W Med 120V A19 SW
4OW
SW 60W Med 120V A19 SW 4OW
4
24
046677104566
60046677104568
920025236319
Soft White
Dimensional drawing
Product
C (Max) D (Norm)
Std 60W E26 120V A19 SW 4.438
2.375
26
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
Specifications are subject to change without notice. Trademarks are the property of Koninklijke
Philips Electronics N.V. or their respective owners.
www.philips.com/lighting
2011, August 25
data subject to change
