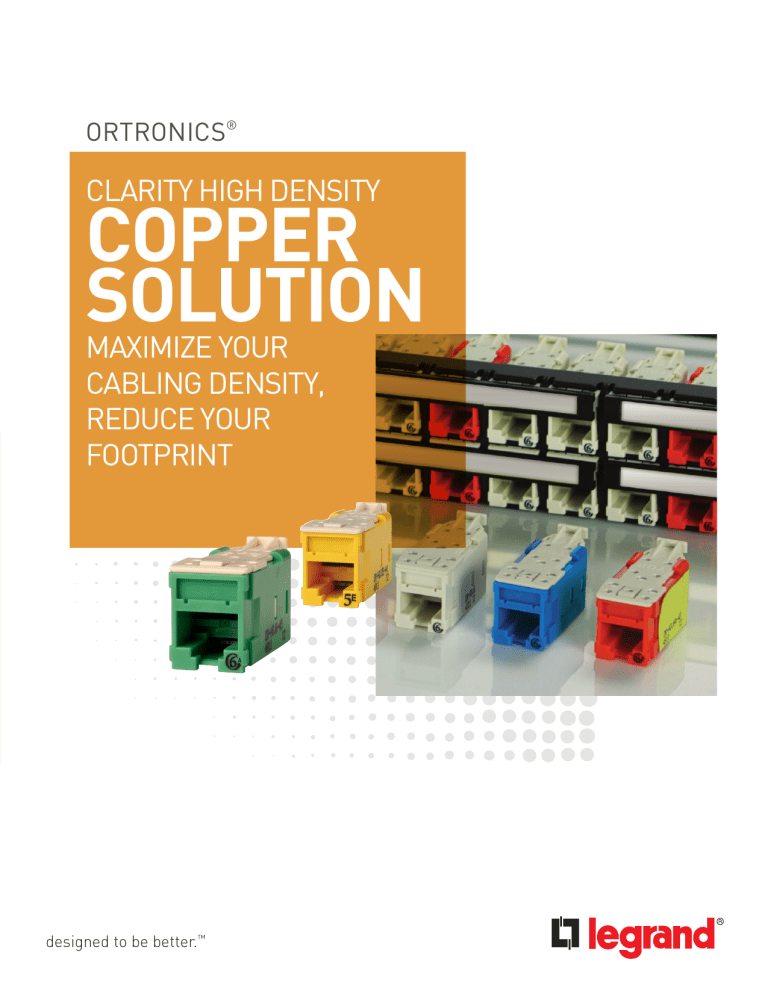

ORTRONICS®
CLARITY HIGH DENSITY
COPPER
SOLUTION
MAXIMIZE YOUR
CABLING DENSITY,
REDUCE YOUR
FOOTPRINT
designed to be better.™
Clarity® High Density
Copper Solution
Legrand® HDJ
patented, recessed
angled modular
patch panels
combine with
Legrand vertical
cable managers to
provide up to
quadruple the
density as standard
panels with
horizontal cable
managers.
Legrand’s newest high density Clarity® jack and panel products (HDJ) solve density
challenges without sacrificing performance. The smaller HDJ jack footprint allows up
to 48-ports of premium Category 6a, 6 or 5e performance in 1 rack unit panel. This
system is ideal for applications like data centers, distribution areas (TIA-942 Standard)
or limited space, high density environments.
The new high density jack and panel series provides:
■■
Less required rack and floor space to reduce real-estate costs
A nearly transparent signal path, when used with Clarity patch cords, for enhanced
network performance
■■
■■
New cable termination process that is easier and faster for Category 6a and 6
A new slide-lock mounting for a quicker installation time that reduces labor costs,
while locking the jacks firmly in place
■■
The greater rack unit density, made possible with the smaller jack footprint, is
supported by superior cable management products that have been optimized for cable
protection and proper airflow. Mighty Mo® cable managers allow up to 48 Category 6A
or 6 patch cords per rack unit on a single side of the rack or cabinet, providing ample
support to Clarity high density solutions.
High Density
Panels
The HDJ series of jacks is supported by high density flat or angled panel options, which
includes 24-port (1 RU), 48-port (1 RU) and 72-port (2 RU) sizes. All panels are supplied with
rear cable management bars, straps and ties.
■■
Support up to 48-ports in 1 rack unit (1 RU)
■■
Quicker termination and installation time
■■
New 6 port front labeling fields snap into jack icon slots
■■
Ability to field configure with different color and category jacks
Angled modular patch panel design offers additional bend radius protection for patch cords
as they route to vertical pathways
■■
Modular patch panels accept HDJ copper and fiber modules, providing modularity for mixed
data center media and future upgrades
■■
Rear cable management bars are supplied with all HDJ panels to support and protect
cable terminations
■■
High Density
PART NO.
DESCRIPTION
OR-PHAHJU24
24-port angled HDJ jack panel, unloaded 1.75” x 19”, 1 RU
OR-PHAHJU48
48-port angled HDJ jack panel, unloaded 1.75” x 19”, 1 RU
OR-PHAHJU72
72-port angled HDJ jack panel, unloaded 3.5” x 19”, 2 RU
OR-PHDHJU24
24-port flat HDJ jack panel, unloaded 1.75” x 19”, 1 RU
OR-PHDHJU48
48-port flat HDJ jack panel, unloaded 1.75” x 19”, 1 RU
OR-PHDHJU72
72-port flat HDJ jack panel, unloaded 3.5” x 19”, 2 RU
Standard Density
PART NO.
DESCRIPTION
OR-PSAHJU48
48-port angled HDJ jack panel, unloaded 3.5” x 19”,
standard height, 2 RU
OR-PSDHJU48
48-port flat HDJ jack panel, unloaded 3.5” x 19”,
standard height, 2 RU
Workstation
Options
The HDJ series of jacks and HD fiber modules are supported by our most popular single
gang faceplate sizes along with a surface mount box and furniture plate mounting. In
addition an HDJ TJ bezel can convert any of these jacks into a front loading TracJack®
mount for inserting into the wide range of TracJack plates and boxes.
■■
HDJ jacks offer quick termination and installation time at the workstation
■■
HDJ jacks provide icon slots for identification icons
■■
Single gang faceplates and surface boxes offer label fields
■■
TracJack bezel allows any HDJ jack to mount into any TracJack faceplate or box
■■
Ability to field configure with different color and category jacks
Plastic Blanks for High Density Jack Faceplates, Boxes, Frames and Panels
PART NO.
DESCRIPTION
OR-HTJB20
High density blank, 20pk, fog white
OR-HTJB20-00
High density blank, 20pk, black
OR-403STJ12
Shown with OR-HTJTJA20
and HDJ Jacks
TracJack Adapter Bezel for High Density Jacks
PART NO.
DESCRIPTION
OR-HTJTJA20
TracJack adapter bezel for high density jacks, 20pk, fog white
Single Gang Plastic High Density Jack Faceplates
PART NO.
DESCRIPTION
OR-403HDJ12
Faceplate single gang, 2-port, fog white, rear loading with designation
OR-403HDJ13
Faceplate single gang, 3-port, fog white, rear loading with designation
OR-403HDJ14
Faceplate single gang, 4-port, fog white, rear loading with designation
OR-403HDJ16
Faceplate single gang, 6-port, fog white, rear loading with designation
NOTE: Standard color for plastic HDJ plates is fog white. For white, add -88 to end of
part number.
OR-403HDJ13-88
Shown with HDJ Jacks
Surface Housing, Frames and Furniture Plates
PART NO.
DESCRIPTION
OR-404HDJ4
Surface mount box, 4-port, for high density jacks, 4.75L x 3.6”W x 1.5”D
OR-421HDJ-09
Furniture adapter plate for high density jacks, fog white,
(3) rear load openings
OR-421HDJ-00
Furniture adapter plate for high density jacks, black,
(3) rear load openings
NOTE: Plates, frames and surface mount housings are 94V-0 rated thermoplastic housing
and UL 1863 listed.
OR-404HDJ4
Shown with HDJ Jacks
High Density Jacks
A reduced jack footprint
Legrand’s high density jacks incorporate patent-pending mechanical and electrical advancements,
providing greater headroom, as well as a new installation mechanism. In addition, the easy
to lace-and-crimp termination maintains cable performance, reduces time to install and offers
a simple hand tool that contributes additional time savings. The HDJ jacks are available in
Category 6a, 6 and 5e with Clarity® performance that is visible in the channel. These jacks are
rear loading, utilizing an innovative locking latch for quick and reliable mounting.
Features:
■■
Supported by panel and workstation mounting options
■■
Support up to 48 ports in a 1 rack unit (1 RU panel)
■■
Center tuned to Clarity patch cords for optimal channel performance
OR-HDJ6A-42
Quad ReactanceTM technology in Category 6a jacks for improved performance at
higher frequencies
■■
■■
ETL verified to TIA 568C.2 Category 6a and Category 6 component performance standards
■■
Quick termination and installation time
PART NO.
DESCRIPTION
OR-HDJ6A
Clarity HDJ Category 6a jack, 8-position, T568A/B, fog white
OR-HDJ6
Clarity HDJ Category 6 jack, 8-position, T568A/B, fog white
OR-HDJ5E
Clarity HDJ Category 5e jack, 8-position, T568A/B, fog white
OR-HDJ6-36
NOTE: For other colors add one of the following suffixes: -00 black, -36 blue, -42 red, -43 orange,
-44 yellow, -45 green, -88 white
HDJ Jack performance and ratings:
■■
8-pin connector: FCC part 68, Subpart F and IEC-603-7 compliant
■■
Durability: 1,000 mating cycles
■■
Contact plating material: minimum 50 micro-inches gold over nickel
■■
Current rating: 1.5 A maximum
Gas-tight connection: insulation displacement of 22 to 24 AWG (.64 to .51mm) plastic
insulated solid copper conductors
■■
■■
UL 94V-0, plastic housing, UL 1863
■■
IDC durability: 20 insertions of any combination of wire gauge
OR-HDJ5E-44
HDJ Handled Crimping Tool
The HDJ termination process is simpler. The HDJ handled crimping tool works with the jack’s
easy to lace wiring cap, making the crimp process quick and consistently aligned. This presents
an even greater time savings when terminating cable.
PART NO.
DESCRIPTION
OR-HDJHCT
HDJ handled crimping tool
OR-HDJHCT
©2014 Legrand All Rights Reserved rev. 02|14 HDJ2014
designed to be better.™
Data Communications
125 Eugene O’Neill Drive
New London, CT 06320
800.934.5432
www.legrand.us
570 Applewood Crescent
Vaughan, Ontario L4K 4B4
905.738.9195
www.legrand.ca
