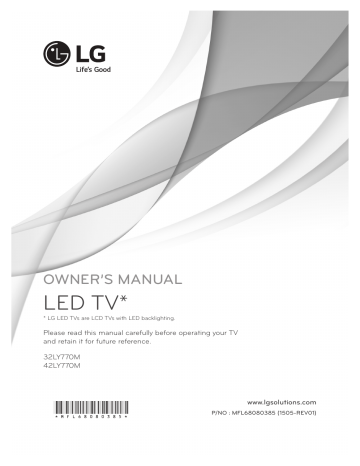

OWNER’S MANUAL

LED TV*

* LG LED TVs are LCD TVs with LED backlighting.

Please read this manual carefully before operating your TV and retain it for future reference.

32LY770M

42LY770M

*MFL68080385*

www.lgsolutions.com

P/NO : MFL68080385 (1505-REV01)

2

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product.

WARNING/CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR

BACK). NO USER SERVICEABLE PARTS

INSIDE. REFER TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING/CAUTION

- TO REDUCE THE RISK OF FIRE AND

ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

WARNING

If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

If you ignore the caution message, you may be slightly injured or the product may be damaged.

NOTE

The note helps you understand and use the product safely. Please read the note carefully before using the product.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Wash hands after handling.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Do not press strongly upon the panel with a hand or a sharp object such as a nail, pencil, or pen, or make a scratch on it.

IMPORTANT SAFETY INSTRUCTIONS

3

• CAUTION concerning the Power Cord

(Can differ by country):

Check the specification page of this owner’s manual to be certain. Do not connect too many appliances to the same AC power outlet as this could result in fire or electric shock. Do not overload wall outlets.

Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon.

Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Do not move the TV with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the TV.

Warning - To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning.

• Do not stick metal objects or any other conductive material into the power cord. Do not touch the end of the power cord while it is plugged in.

• Keep the packing anti-moisture material or vinyl packing out of the reach of children.

Anti-moisture material is harmful if swallowed. If swallowed, induce vomiting and go to the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

• Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus

(e.g., on shelves above the unit).

4

IMPORTANT SAFETY INSTRUCTIONS

Grounding

(Except for devices which are not grounded.)

Ensure that you connect the earth ground wire to prevent possible electric shock

(i.e., a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightning rods, or gas pipes.

Power

Supply

Circuit

Breaker

• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off.

• Do not attempt to modify this product in any way without written authorization from

LG Electronics. Unauthorized modification could void the user’s authority to operate this product.

Outdoor Antenna Grounding

(Can differ by country):

If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded to provide some protection against voltage surges and built-up static charges. Section 810 of the National

Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Antenna grounding according to the National

Electrical Code, ANSI/NFPA 70

Ground Clamp

Electric Service

Equipment

Ground Clamp

NEC: National Electrical Code

Antenna Lead in Wire

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductor

(NEC Section 810-21)

Power Service Grounding

Electrode System

(NEC Art 250, Part H)

Cleaning

When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners, or benzene.

Moving

Make sure the product is turned off, unplugged, and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV.

Ventilation

Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged.

Do not install in excessively dusty places.

• If you smell smoke or other odors coming from the TV, unplug the power cord and contact an authorized service center.

• Keep the product away from direct sunlight.

• Never touch this apparatus or antenna during a lightning storm.

• When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV.

• Do not allow an impact shock, any objects to fall into the product, and do not drop anything onto the screen.

DISCONNECTING THE DEVICE FROM THE

MAIN POWER

The power plug is the disconnecting device.

In case of an emergency, the power plug must remain readily accessible.

Batteries

Store the accessories (battery, etc.) in a safe location out of the reach of children.

• This apparatus uses batteries. In your community there might be regulations that require you to dispose of these batteries properly due to environmental considerations.

Please contact your local authorities for disposal or recycling information.

• Do not dispose of batteries in a fire.

• Do not short circuit, disassemble, or allow the batteries to overheat.

• Do not use high voltage electrical equipment near the TV. (e.g., a bug zapper.)

This may result in product malfunction.

Dot Defect

The panel is a high technology product with resolution of two million to six million pixels.

In a very few cases, you could see fine dots on the screen while you’re viewing the TV.

Those dots are deactivated pixels and do not affect the performance and reliability of the

TV.

Generated Sound

Cracking noise A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required.

Electrical circuit humming/panel buzzing

A low level noise is generated from a highspeed switching circuit, which supplies a large amount of current to operate a product.

It varies depending upon the product.

This generated sound does not affect the performance and reliability of the product.

• Take care not to touch the ventilation openings. When watching the TV for a long period, the ventilation openings may become hot. This does not affect the performance of the product or cause defects in the product.

• Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

• If the TV feels cold to the touch, there may be a small flicker when it is turned on. This is normal; there is nothing wrong with TV.

Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the TV’s performance. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time.

Doing so may produce some temporary distortion effects on the screen.

IMPORTANT SAFETY INSTRUCTIONS

5

Preventing image burn or burn-in on your

TV screen

• If a fixed image displays on the TV screen for a long period of time, it will be imprinted and become a permanent disfigurement on the screen. This is image burn or burn-in and not covered by the warranty.

• If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the screen.

• Avoid displaying a fixed image on the TV screen for a long period of time to prevent image burn.

6

IMPORTANT SAFETY INSTRUCTIONS

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

LG RECYCLING POLICY

LG Electronics offers a customized e-waste take-back and recycling service that meets local needs and requirements in the countries where e-waste regulations are in place, and also provides product and packaging take-back and recycling service voluntarily in some countries. LG Electronics evaluates products’ recyclability at the design step using LG’s recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities, LG seeks to contribute to conserving natural resources and protecting the environment.

For more information about the LG Recycling Policy, please visit our global site at http://www.lg.com/global/sustainability/environment/take-back-recycling.

LICENSES / OPEN SOURCE SOFTWARE NOTICE INFORMATION

7

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the

United States and other countries.

This DivX Certified

®

device has passed rigorous testing to ensure it plays DivX

® video. To play purchased DivX movies, first register your device at vod.divx.com.

Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified ® to play DivX ® video up to HD 1080p, including premium content.

DivX

®

, DivX Certified

®

and associated logos are trademarks of DivX, LLC and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274.

For DTS patents, see http://patents.dts.com. Manufactured under license from

DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0+Digital Out is a trademark of DTS, Inc.

DTS, Inc. All Rights Reserved.

OPEN SOURCE SOFTWARE NOTICE INFORMATION

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected] This offer is valid for three (3) years from the date on which you purchased the product.

NOTE

• Image shown may differ from your TV.

• Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

• The available menus and options may differ from the input source or product model that you are using.

• New features may be added to this TV in the future.

8

TABLE OF CONTENTS

TABLE OF CONTENTS

2 IMPORTANT SAFETY

INSTRUCTIONS

7 LICENSES

7 OPEN SOURCE SOFTWARE

NOTICE INFORMATION

8 TABLE OF CONTENTS

9 ASSEMBLING AND PREPARING

9 Unpacking

10 Optional Extras

10

11

Parts and Buttons

- Using the Joystick Button

12

12

13

Lifting and Moving the TV

Mounting on a Wall

Tidying Cables

14 MAKING CONNECTIONS

14

15

Connecting to an Antenna or Cable

Other Connections

17 SETTINGS

18 MAINTENANCE

18

18

18

Cleaning your TV

- Screen, Frame, Cabinet, and Stand

- Power Cord

19 TROUBLESHOOTING

20 SPECIFICATIONS

ASSEMBLING AND PREPARING

9

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

Owner’s Manual

(For 42LY770M)

Power Cord Cable Holder

1 EA

Wall Mount Spacers

6 EA

CAUTION

• Do not use any unapproved items to ensure the safety and product’s lifespan.

• Any damages or injuries by using unapproved items are not covered by the warranty.

• Some models appear to have a thin film on the screen. It is actually part of the screen; do not remove it.

NOTE

• The items supplied with your product may vary depending upon the model.

• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inches) thick and 18 mm

(0.7 inches) width.

• Use an extension cable that supports USB 2.0 if the USB cable or

USB flash drive does not fit into your TV’s USB port.

• Recommended HDMI cable types

- High-Speed HDMI

®

/

TM

cable

- High-Speed HDMI

®

/

TM

cable with Ethernet

A

B

B

*A 10 mm (0.39 inches)

*B 18 mm (0.7 inches)

• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.

A

10

ASSEMBLING AND PREPARING

Optional Extras

Optional extras can be changed or modified for quality improvement without any notification.

Contact your dealer to buy these items. These devices only work with certain models.

The model name or design may be changed manufacturer’s circumstances or policies.

AN-MR500

Magic Remote

Parts and Buttons

Screen

Speakers

Intelligent Sensor

1

Remote Control Sensor

Power Indicator

Joystick Button 2

1. Intelligent Sensor - Adjusts the image quality and brightness based on the surrounding environment.

2. Joystick Button is located below the screen of TV.

NOTE

• You can set the power indicator light to on or off by selecting

(Depending upon model)

General in the main menus.

ASSEMBLING AND PREPARING

11

Using the Joystick Button

You can operate the TV functions simply, pressing or moving the joystick button up, down, left, or right.

Basic functions

Power On

Power Off

When the TV is turned off, place your finger on the joystick button, press it once, and release it.

When the TV is turned on, place your finger on the joystick button, press it once for a few seconds, and release it. (However, if the menu button is on the screen, pressing and holding the joystick button will let you exit the menu.)

NOTE

• With your finger over the joystick button and move it up, down, left, or right. Be careful not to press the joystick button. If you press the joystick button first, you may not be able to adjust the volume level and/or scroll through saved channels.

Adjusting the menu

When the TV is turned on, press the joystick button one time.

You can adjust the Menu items ( , , ) moving the joystick button left or right.

TV Off

Close

Input List

Turn the power off.

Clears on-screen displays and returns to TV viewing.

Changes the input source.

12

ASSEMBLING AND PREPARING

Lifting and Moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

• Avoid touching or applying pressure to the screen at all times, as this may result in damage to the screen.

• Do not place the product on the floor with its front facing down without padding. Failure to do so may result in damage to the screen.

• It is recommended to move the TV in the box or packing material that the TV originally

• came in.

Before moving or lifting the TV, disconnect the power cord and all cables.

• When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grille area.

Mounting on a Wall

An optional wall mount can be used with your

LG Television. Consult with your local dealer for a wall mount that supports the VESA standard used by your TV model. Carefully attach the wall mount bracket at the rear of the TV.

Install the wall mount bracket on a solid wall perpendicular to the floor. If you are attaching the TV to other building materials, please contact qualified personnel to install the wall mount. Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.

• Use at least two people to move a large TV.

• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the

TV to jolts or excessive vibration.

• When transporting the TV, keep the TV upright; never turn the TV on its side or tilt towards the left or right.

10 cm

10 cm

(4 inches)

10 cm

10 cm

Make sure to use screws and wall mounts that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Model

VESA (A x B)

Standard screw

32LY770M

200 x 200

M6

Number of screws

4

Wall mount bracket

(optional)

LSW240B

MSW240

42LY770M

400 x 400

M6

4

LSW440B

MSW240

A

B

CAUTION

• Disconnect the power before moving or installing the TV. Otherwise electric shock may occur.

• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury.

Use an authorized LG wall mount and contact the local dealer or qualified personnel. When using a third-party wall mount, it is not covered by the warranty.

• Do not overtighten the screws as this may cause damage to the TV and void your warranty.

• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed in the VESA standard screw specifications.

• The wall mount kit includes an installation manual and necessary parts.

• The wall mount bracket is optional. You can obtain additional accessories from your local dealer.

• The length of screws may differ depending upon the wall mount. Make sure to use the proper length.

• For more information, refer to the manual supplied with the wall mount.

• When attaching a wall mounting bracket to the TV, insert the wall mount inner spacers into the TV wall mount holes to adjust the vertical angle of the TV. (For 42LY770M)

Wall Mount

Spacers

ASSEMBLING AND PREPARING

13

Tidying Cables

Gather and bind the cables with the cable holder.

Cable Holder

• If it is difficult to connect cables (antenna, power, etc.) to the back of the TV, use the provided Wall Mount Spacers with the TV wall mount holes. (For 42LY770M, use 6 spacers.)

• Please contact your dealer or mount vendor for other wall mounting options.

14

MAKING CONNECTIONS

MAKING CONNECTIONS

• Image shown may differ from your TV.

You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

For more information on external device’s connection, refer to the manual provided with each device.

NOTE

• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the manual provided with the connected device.

• The external device connections shown may differ slightly from illustrations in this manual.

• Connect external devices to the TV regardless about the order of the TV port.

• If you connect a gaming device to the TV, use the cable supplied with the gaming device.

• Refer to the external equipment’s manual for operating instructions.

• Using a DVI to HDMI cable may cause compatibility issues.

• Use only with the 3-pole 3.5 mm Stereo Jack.

Connecting to an Antenna or Cable

Connect an antenna, cable, or cable box to watch TV. The illustrations may differ from the actual items and an RF cable is optional.

VHF Antenna

UHF Antenna

CAUTION

• Make sure not to bend the copper wire of the RF cable.

Copper wire

• Complete all connections between devices, and then connect the power cord to the power outlet to prevent damage to your TV.

Antenna

Coaxial (75Ω)

(*Not provided)

Terminal

NOTE

• Use a signal splitter to use 2 TVs or more.

• DTV Audio Supported Codec: MPEG, Dolby

Digital

MAKING CONNECTIONS

15

Other Connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable as shown. Any separate cable is not provided.

Pro:Centric Server

ETHERNET

SI Box

M.P.I.

Game Controller

Pillow Speaker

GND

L

R

GND

External Speaker

PILLOW SPEAKER

LAN

SPEAKER OUT

LINE OUT

VIDEO

L/MONO

-AUDIO -

AV IN/AUDIO IN(DVI)

R

TV-LINK CFG

RESET UPDATE

GAME CONTROL

/M.P.I.

OPTICAL

DIGITAL

AUDIO OUT

ANTENNA/

CABLE IN

OPTICAL AUDIO IN

Digital Audio System

VIDEO L/MONO AUDIO R

Blu-Ray / HD Cable Box

/ DVD / VCR

PILLOW SPEAKER

PTC SERVICE

(SERVICE ONLY)

SERVICE

LAN

SPEAKER OUT

LINE OUT

VIDEO

L/MONO

-AUDIO -

AV IN/AUDIO IN(DVI)

R

TV-LINK CFG

RESET UPDATE

GAME CONTROL

/M.P.I.

OPTICAL

DIGITAL

AUDIO OUT

ANTENNA/

CABLE IN

AUDIO OUT

DVI OUT

HDMI

ETHERNET

M.P.I.

PILLOW SPEAKER

PTC SERVICE

(SERVICE ONLY)

LAN

SPEAKER OUT

LINE OUT

VIDEO

L/MONO

-AUDIO -

AV IN/AUDIO IN(DVI)

R

TV-LINK CFG

RESET UPDATE

GAME CONTROL

/M.P.I.

OPTICAL

DIGITAL

AUDIO OUT

ANTENNA/

CABLE IN

GND

L

R

GND

OPTICAL AUDIO IN

VIDEO L/MONO AUDIO R

16

MAKING CONNECTIONS

PILLOW SPEAKER

PTC SERVICE

(SERVICE ONLY)

SERVICE

LAN

SPEAKER OUT

LINE OUT

VIDEO

L/MONO

-AUDIO -

AV IN/AUDIO IN(DVI)

R

TV-LINK CFG

RESET UPDATE

GAME CONTROL

/M.P.I.

OPTICAL

DIGITAL

AUDIO OUT

ANTENNA/

CABLE IN

USB

AUDIO OUT DVI OUT HDMI

Blu-Ray / HD Cable Box

/ HD STB / DVD / PC

NOTE

ARC (Audio Return Channel)

• When connected with a high-speed HDMI cable, digital audio can be sent to a compatible device without an additional optical audio cable.

• ARC is only supported on the HDMI input 2 (ARC) port. An external audio device that supports ARC should be connected to HDMI IN 2 (ARC) if you wish to use ARC.

SETTINGS

To select Picture Mode

SETTINGS

PICTURE Picture Mode

Select the picture mode optimized for the viewing environment or the program.

Vivid Heightens contrast, brightness, and sharpness to display vivid images.

Standard Displays images in standard levels of contrast, brightness and sharpness.

APS APS (Auto power saving) mode reduces power consumption by dimming control.

Cinema / Game Displays the optimum picture for movie or game.

Sport Optimized picture mode for football matches. The pitch and kits are presented in vibrant colors, with crystal-clear images even for fast movements.

Expert [Depending upon model]

Menu for adjusting picture quality that allows experts and amateurs to enjoy the best TV viewing. This menu for adjustment is provided for ISF-certified picture tuning professionals. (ISF logo can be used only on

ISF-certified TVs.)

ISFccc: Imaging Science Foundation Certified

Calibration Control

• Depending upon the input signal, the available range of picture modes may differ.

Expert mode is for picture tuning professionals to control and fine-tune using a specific image. For normal images, the effects may not be drastic.

SETTINGS

17

To set Motion Eye Care

SETTINGS

PICTURE Picture Mode

Picture Option

Motion Eye Care Automatically adjusts brightness and reduces image blur based on image data to reduce eyestrain.

To use Energy Saving feature

SETTINGS

PICTUREEnergy Saving

[Depending upon model]

Reduces power consumption by adjusting peak screen brightness.

Off Turns off the Energy Saving.

Minimum / Medium / Maximum Applies the pre-set Energy Saving.

Screen Off Screen is turned off and only sound is played. Press any button on the remote control to turn the screen back on.

18

MAINTENANCE

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep it at peak performance and to extend the product’s lifespan.

CAUTION

• Before cleaning, turn the power off and disconnect the power cord and all other cables.

• When the TV is left unattended or unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, Frame, Cabinet, and Stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the screen and image distortions.

• Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, or lubricants, as these may damage the screen’s finish and cause discoloration.

• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power Cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

19

TROUBLESHOOTING

The software may be updated for improvement in performance. The customer is responsible to ensure the compatibility of their equipment with any LG Electronics software. If needed, please consult with LG Electronics and update new software versions according to the guidance provided by LG

Electronics.

Problem

Cannot control the TV with the remote control.

No image display and no sound is produced.

The TV turns off suddenly.

Solution

• Check if anything such as tape has been placed over the receiver.

• Check if there is any obstacle between the product and the remote control.

• Replace the batteries with new fresh ones.

• Check if the product is turned on.

• Check if the power cord is connected to a wall outlet.

• Check if there is a problem in the wall outlet by connecting other products.

• Check the power control settings. The power supply may be interrupted.

• Check if the auto off feature is activated in the Time settings.

When connecting to the

PC (RGB/HDMI/DVI),

No

signal or Invalid Format is displayed.

Turn the TV off/on using the remote control.

Reconnect the RGB/HDMI/DVI cable.

• Restart the PC with the TV on.

20

SPECIFICATIONS

SPECIFICATIONS

Product specifications may be changed without prior notice due to upgrade of product functions.

Power Requirement

Television System

Program Coverage

External Antenna Impedance

Environment condition

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

AC 120 V ~ 50 / 60 Hz

ATSC, NTSC-M, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 Ω

0 °C to 40 °C (32 °F to 104 °F)

Less than 80 %

-20 °C to 60 °C (-4 °F to 140 °F)

Less than 85 %

MODELS

Dimensions (W x H x D)

Weight

Current Value / Power Consumption

32LY770M

(32LY770M-UA)

732 x 437 x 55.5 (mm)

28.8 x 17.2 x 2.1 (inches)

6.0 kg (13.2 lbs)

1.25 A / 75 W

42LY770M

(42LY770M-UA)

961 x 567 x 55.5 (mm)

37.8 x 22.3 x 2.1 (inches)

9.2 kg (20.2 lbs)

1.1 A / 110 W

Standard

Frequency ragne

Output power

(Max.)

Wireless module (LGSBW41) Specifications

Wireless LAN

IEEE 802.11a/b/g/n Standard

2400 to 2483.5 MHz

5150 to 5250 MHz

5725 to 5850 MHz

802.11a: 11.5 dBm

802.11b: 11 dBm

802.11g: 10.5 dBm

802.11n - 2.4 GHz: 11 dBm

802.11n - 5 GHz: 12.5 dBm

Frequency range

Output power

(Max.)

Bluetooth

Bluetooth Version 3.0

2400 to 2483.5 MHz

10 dBm or Lower

• Because band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.

• This device should be installed and operated with minimum distance 20 cm (7.8 inches) between the device and your body. And this phrase is for the general statement for consideration of user

• environment.

Contains FCC ID: BEJLGSBW41

• Contains IC: 2703H-LGSBW41

HDMI (PC) supported mode

Resolution

640 x 350

720 x 400

640 x 480

800 x 600

1024 x 768

1152 x 864

1360 x 768

1280 x 1024

1920 x 1080

Horizontal

Frequency (kHz)

31.468

31.469

31.469

37.879

48.363

54.348

47.712

63.981

67.50

Vertical

Frequency (Hz)

70.09

70.08

59.94

60.31

60.00

60.053

60.015

60.02

60.00

HDMI (DTV) supported mode

Resolution

720 x 480p

1280 x 720p

1920 x 1080i

1920 x 1080p

Horizontal

Frequency (kHz)

31.47

31.50

44.96

45.00

33.72

33.75

26.97

27.00

33.71

33.75

67.432

67.50

Vertical

Frequency (Hz)

59.94

60.00

59.94

60.00

59.94

60.00

23.976

24.00

29.97

30.00

59.94

60.00

SPECIFICATIONS

21

CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

THE CONSUMER ELECTRONICS INDUSTRY CARES

• Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable.

• As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. Televisions that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc., may fall over, resulting in injury.

TUNE IN TO SAFETY

ALWAYS

follow the manufacturer’s recommendations for the safe installation of your television.

ALWAYS

read and follow all instructions for proper use of your television.

NEVER

allow children to climb on or play on the television or the furniture on which the television is placed.

NEVER

place the television on furniture that can easily be used as steps, such as a chest of drawers.

ALWAYS

install the television where it cannot be pushed, pulled over or knocked down.

ALWAYS

route cords and cables connected to the television so that they cannot be tripped over, pulled or grabbed.

WALL OR CEILING MOUNT YOUR TELEVISION

ALWAYS

contact your retailer about professional installation if you have any doubts about your ability to safely mount your television.

ALWAYS

use a mount that has been recommended by the television manufacturer and has a safety certification by an independent laboratory (such as UL, CSA, ETL).

ALWAYS

follow all instructions supplied by the television and mount manufacturers.

ALWAYS

make sure that the wall or ceiling where you are mounting the television is appropriate.

Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder block construction. If you are unsure, contact a professional installer.

• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount installation.

MOVING AN OLDER TELEVISION TO A NEW PLACE IN

YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the purchase of a flat-panel television. Special care should be made in the placement of older CRT televisions.

ALWAYS

place your older CRT television on furniture that is sturdy and appropriate for its size and weight.

NEVER

place your older CRT television on a dresser where children may be tempted to use the drawers to climb.

ALWAYS

make sure your older CRT television does not hang over the edge of your furniture.

CE.org/safety

CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

THE CONSUMER ELECTRONICS INDUSTRY CARES

• Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable.

• As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. Televisions that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc., may fall over, resulting in injury.

TUNE IN TO SAFETY

ALWAYS

follow the manufacturer’s recommendations for the safe installation of your television.

ALWAYS

read and follow all instructions for proper use of your television.

NEVER

allow children to climb on or play on the television or the furniture on which the television is placed.

NEVER

place the television on furniture that can easily be used as steps, such as a chest of drawers.

ALWAYS

install the television where it cannot be pushed, pulled over or knocked down.

ALWAYS

route cords and cables connected to the television so that they cannot be tripped over, pulled or grabbed.

WALL OR CEILING MOUNT YOUR TELEVISION

ALWAYS

contact your retailer about professional installation if you have any doubts about your ability to safely mount your television.

ALWAYS

use a mount that has been recommended by the television manufacturer and has a safety certification by an independent laboratory (such as UL, CSA, ETL).

ALWAYS

follow all instructions supplied by the television and mount manufacturers.

ALWAYS

make sure that the wall or ceiling where you are mounting the television is appropriate.

Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder block construction. If you are unsure, contact a professional installer.

• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount installation.

MOVING AN OLDER TELEVISION TO A NEW PLACE IN

YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the purchase of a flat-panel television. Special care should be made in the placement of older CRT televisions.

ALWAYS

place your older CRT television on furniture that is sturdy and appropriate for its size and weight.

NEVER

place your older CRT television on a dresser where children may be tempted to use the drawers to climb.

ALWAYS

make sure your older CRT television does not hang over the edge of your furniture.

CE.org/safety

Declaration of Conformity

Trade Name: LG

Model: 32LY770M-UA, 42LY770M-UA

Responsible Party: LG Electronics Inc.

Address: 1000 Sylvan Ave. Englewood Cliffs NJ

07632 U.S.A

TEL: 201-266-2534

LG Customer Information Center

For inquires or comments, visit www.lg.com or call;

1-888-865-3026

1-888-542-2623

USA, Commercial User

CANADA

The model and serial numbers of the TV are located on the back and on one side of the

TV. Record them below should you ever need service.

MODEL

SERIAL

This product qualifies for ENERGY

STAR in the factory default

(Home configuration) setting.

Changing the factory default settings or enabling other features may increase power consumption that could exceed the limits necessary to quality for ENERGY STAR.

Refer to ENERGYSTAR.gov for more information on the ENERGY STAR program.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
