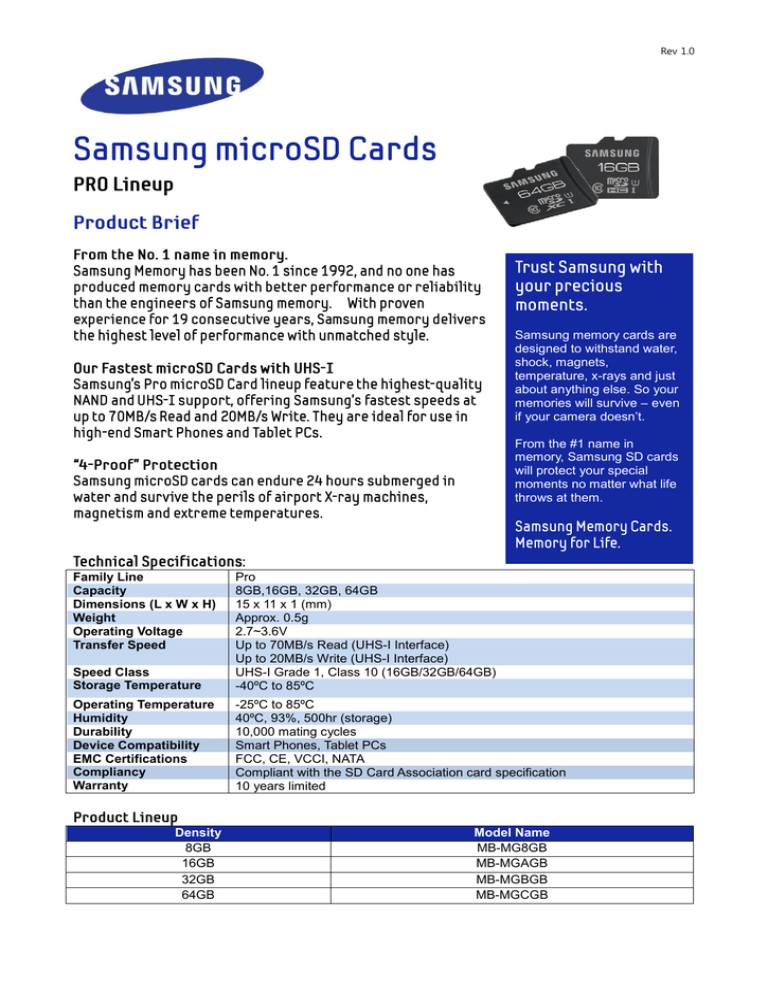

Samsung 16GB microSDHC Datasheet

Rev 1.0
Samsung memory cards are
designed to withstand water,
shock, magnets,
temperature, x-rays and just
about anything else. So your
memories will survive – even
if your camera doesn’t.
From the #1 name in
memory, Samsung SD cards
will protect your special
moments no matter what life
throws at them.
Family Line
Capacity
Dimensions (L x W x H)
Weight
Operating Voltage
Transfer Speed
Speed Class
Storage Temperature
Pro
8GB,16GB, 32GB, 64GB
15 x 11 x 1 (mm)
Approx. 0.5g
2.7~3.6V
Up to 70MB/s Read (UHS-I Interface)
Up to 20MB/s Write (UHS-I Interface)
UHS-I Grade 1, Class 10 (16GB/32GB/64GB)
-40ºC to 85ºC
Operating Temperature
Humidity
Durability
Device Compatibility
EMC Certifications
Compliancy
Warranty
-25ºC to 85ºC
40ºC, 93%, 500hr (storage)
10,000 mating cycles
Smart Phones, Tablet PCs
FCC, CE, VCCI, NATA
Compliant with the SD Card Association card specification
10 years limited
Density
8GB
16GB
32GB
64GB
Model Name
MB-MG8GB
MB-MGAGB
MB-MGBGB
MB-MGCGB
