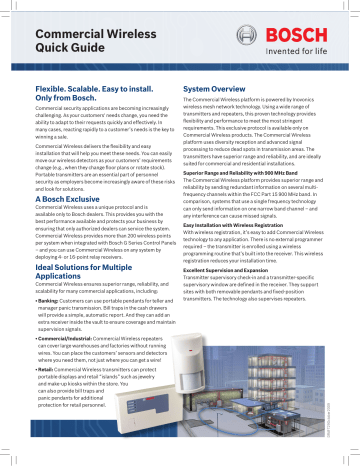

Commercial Wireless Quick Guide
Commercial Wireless
Quick Guide
Flexible. Scalable. Easy to install.
Only from Bosch.
Commercial security applications are becoming increasingly
challenging. As your customers' needs change, you need the
ability to adapt to their requests quickly and effectively. In
many cases, reacting rapidly to a customer’s needs is the key to
winning a sale.
Commercial Wireless delivers the flexibility and easy
installation that will help you meet these needs. You can easily
move our wireless detectors as your customers’ requirements
change (e.g., when they change floor plans or rotate stock).
Portable transmitters are an essential part of personnel
security as employers become increasingly aware of these risks
and look for solutions.
A Bosch Exclusive
Commercial Wireless uses a unique protocol and is
available only to Bosch dealers. This provides you with the
best performance available and protects your business by
ensuring that only authorized dealers can service the system.
Commercial Wireless provides more than 200 wireless points
per system when integrated with Bosch G Series Control Panels
– and you can use Commercial Wireless on any system by
deploying 4- or 16-point relay receivers.
Ideal Solutions for Multiple
Applications
Commercial Wireless ensures superior range, reliability, and
scalability for many commercial applications, including:
• Banking: Customers can use portable pendants for teller and
manager panic transmission. Bill traps in the cash drawers
will provide a simple, automatic report. And they can add an
extra receiver inside the vault to ensure coverage and maintain
supervision signals.
System Overview
The Commercial Wireless platform is powered by Inovonics
wireless mesh network technology. Using a wide range of
transmitters and repeaters, this proven technology provides
flexibility and performance to meet the most stringent
requirements. This exclusive protocol is available only on
Commercial Wireless products. The Commercial Wireless
platform uses diversity reception and advanced signal
processing to reduce dead spots in transmission areas. The
transmitters have superior range and reliability, and are ideally
suited for commercial and residential installations.
Superior Range and Reliability with 900 MHz Band
The Commercial Wireless platform provides superior range and
reliability by sending redundant information on several multifrequency channels within the FCC Part 15 900 MHz band. In
comparison, systems that use a single frequency technology
can only send information on one narrow band channel – and
any interference can cause missed signals.
Easy Installation with Wireless Registration
With wireless registration, it’s easy to add Commercial Wireless
technology to any application. There is no external programmer
required – the transmitter is enrolled using a wireless
programming routine that’s built into the receiver. This wireless
registration reduces your installation time.
Excellent Supervision and Expansion
Transmitter supervisory check-in and a transmitter-specific
supervisory window are defined in the receiver. They support
sites with both removable pendants and fixed-position
transmitters. The technology also supervises repeaters.
• Retail: Commercial Wireless transmitters can protect
portable displays and retail “islands” such as jewelry
and make-up kiosks within the store. You
can also provide bill traps and
panic pendants for additional
protection for retail personnel.
DRAFT29October2009
• Commercial/Industrial: Commercial Wireless repeaters
can cover large warehouses and factories without running
wires. You can place the customers’ sensors and detectors
where you need them, not just where you can get a wire!
Pendant
Transmitters
Pendant Transmitters
provide single- and
two-button activation.
Single-button designs
are ideal for assisted
living installations, whereas the two-button
design reduces accidental activation. One
light emitting diode (LED) flashes with
all transmissions, including supervision,
to clearly show users when the unit is
operating. Pendants include a belt clip and a
battery. They can also be mounted for fixed
position signaling, adapting to a wide range
of installations.
Pendant Transmitters
Double-button waterresistant pendant
ISW-EN1223D
transmitter
Single-button waterresistant pendant
ISW-EN1223S
transmitter
ISW-EN1233D
ISW-EN1233S
ISW-EN1235D
ISW-EN1235DF
ISW-EN1235S
ISW-EN1235SF
Double-button pendant
transmitter
Single-button pendant
transmitter
Double-button belt clip
pendant transmitter
Double-button fixed position
hold up transmitter
Single-button belt clip
pendant transmitter
Single-button fixed position
holdup transmitter
Site Survey Kit
The Site Survey Kit is
a portable tool
that you can use
to conduct a quick
and accurate site
survey. You can
easily determine the optimum location for
transmitters and repeaters.
Site Survey Kit
ISW-EN7016
ISW-EN1210SK
ISW-EN1223SK
Wireless survey kit
Survey kit universal
transmitter
Survey kit pendant
transmitter
Universal
Transmitters
The Universal
Transmitters can
make nearly any
Normally Open (NO)
or Normally Closed
(NC) sensor a wireless device. The Universal
Transmitters work with shock sensors,
holdup buttons, pressure mats, temperature
sensors, status relays, and other devices.
They are fully supervised and include screw
closure housings, cover tampers, and wall
tampers.
Motion
Detectors
You can provide
a range of motion
detectors suitable
for any application,
including residential
and commercial, with wall-mount, ceilingmount, pet-friendly, and high-traffic models.
Universal Transmitters
Single input universal
ISW-EN1210
transmitter
Single input universal
ISW-EN1210EOL transmitter, EOL
protection
Door/window transmitter
ISW-EN1210W
with reed switch
Universal transmitter with
ISW-EN1215EOL
wall tamper
Door/window transmitter
ISWwith wall tamper and reed
EN1215WEOL
switch
Motion Detectors
Interface for G
Series Panels
Receivers
Interface for G Series Panels
Receivers
This simple interface
for G Series panels
provides an easyto-follow menu that
allows installers to
quickly add and change transmitters.
ISW-D8125CW
Interface
ISW-EN1260
ISW-EN1261HT
ISW-EN1262
ISW-EN1265
Commercial Wireless Quick Guide
800.289.0096 | www.boschsecurity.us
ISW-EN1242
ISW-EN1247
ISW-EN1249
Smoke detector transmitter
Glass-break detector
transmitter
Bill Trap
Repeaters
The line-powered 900
MHz ISW-EN5040-T
High-Power Repeater
receives, decodes,
and re-transmits
signals from
Commercial Wireless platform transmitters.
The repeater acts as a range expander for
any transmission, allowing the installation
to scale from smaller commercial sites to
large campuses with several buildings. They
include an on-board, state-of-the-art lithium
ion back-up battery.
Repeaters
ISW-EN7280
Serial receiver/translator kit
ISW-EN4200
Serial Receiver
ISW-EN4216R
These transmitters
can support special
applications, including
smoke and glass break
detection, as well as
high-security applications such as retail or
banking.
Specialty Transmitters
Wall mount motion detector
High Traffic Motion Detector
Motion detector with pet
immunity
360° Ceiling mount motion
detector
Seamlessly integrate
Commercial Wireless
platform transmitters
into a wireless network with G Series
Control Panels. They
provide individual point annunciation with
trouble conditions for each transmitter.
Receivers are also available with relays for
connection to other control panels.
ISW-EN4204R
Specialty
Transmitters
Four zone add-on receiver
with relay outputs
16 zone add-on receiver
with relay outputs
ISW-EN5040-T
High power repeater with
transformer
