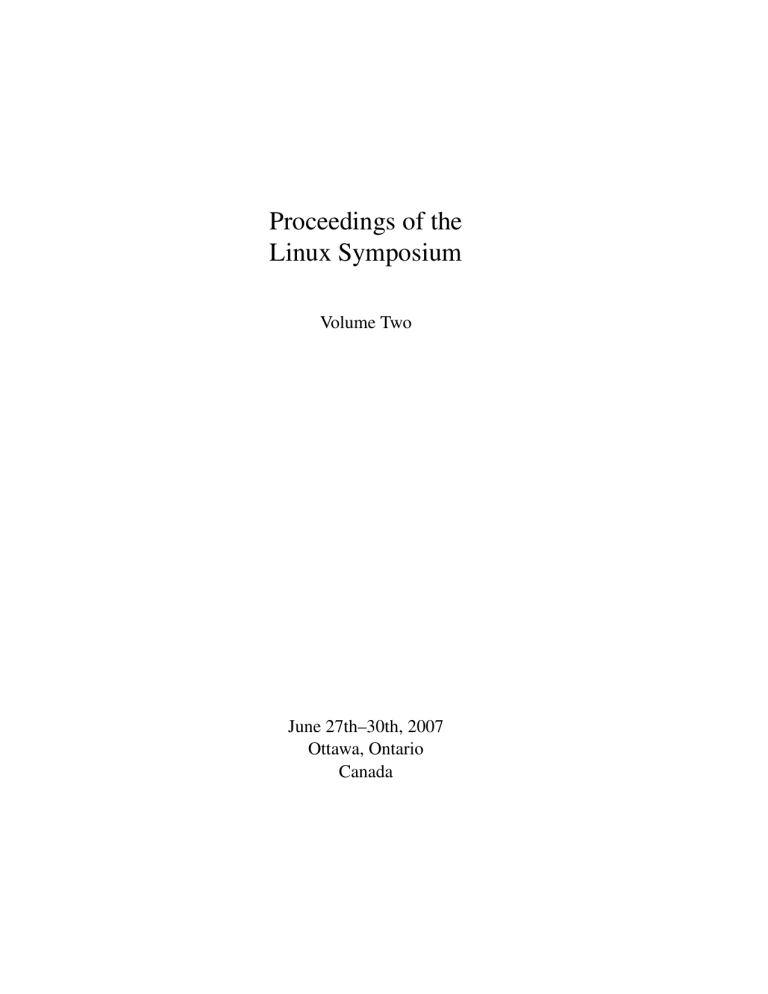

Proceedings of the
Linux Symposium
Volume Two
June 27th–30th, 2007
Ottawa, Ontario
Canada
Contents
Unifying Virtual Drivers
J. Mason, D. Shows, and D. Olien
9
The new ext4 filesystem: current status and future plans
A. Mathur, M. Cao, S. Bhattacharya, A. Dilger, A. Tomas, & L. Vivier
21
The 7 dwarves: debugging information beyond gdb
Arnaldo Carvalho de Melo
35
Adding Generic Process Containers to the Linux Kernel
P.B. Menage
45
KvmFS: Virtual Machine Partitioning For Clusters and Grids
Andrey Mirtchovski
59
Linux-based Ultra Mobile PCs
Rajeev Muralidhar, Hari Seshadri, Krishna Paul, & Srividya Karumuri
65
Where is your application stuck?
S. Nagar, B. Singh, V. Kashyap, C. Seethraman, N. Sharoff, & P. Banerjee
71
Trusted Secure Embedded Linux
Hadi Nahari
79
Hybrid-Virtualization—Enhanced Virtualization for Linux
J. Nakajima and A.K. Mallick
87
Readahead: time-travel techniques for desktop and embedded systems
Michael Opdenacker
97
Semantic Patches
Y. Padioleau & J.L. Lawall
107
cpuidle—Do nothing, efficiently. . .
V. Pallipadi, A. Belay, & S. Li
119
My bandwidth is wider than yours
Iñaky Pérez-González
127
Zumastor Linux Storage Server
Daniel Phillips
135
Cleaning up the Linux Desktop Audio Mess
Lennart Poettering
145
Linux-VServer
H. Pötzl
151
Internals of the RT Patch
Steven Rostedt
161
lguest: Implementing the little Linux hypervisor
Rusty Russell
173
ext4 online defragmentation
Takashi Sato
179
The Hiker Project: An Application Framework for Mobile Linux Devices
David Schlesinger
187
Getting maximum mileage out of tickless
Suresh Siddha
201
Containers: Challenges with the memory resource controller and its performance
Balbir Singh and Vaidyanathan Srinivasan
209
Kernel Support for Stackable File Systems
Sipek, Pericleous & Zadok
223
Linux Rollout at Nortel
Ernest Szeideman
229
Request-based Device-mapper multipath and Dynamic load balancing
Kiyoshi Ueda
235
Short-term solution for 3G networks in Linux: umtsmon
Klaas van Gend
245
The GFS2 Filesystem
Steven Whitehouse
253
Driver Tracing Interface
David J. Wilder, Michael Holzheu, & Thomas R. Zanussi
261
Linux readahead: less tricks for more
Fengguang Wu, Hongsheng Xi, Jun Li, & Nanhai Zou
273
Regression Test Framework and Kernel Execution Coverage
Hiro Yoshioka
285
Enable PCI Express Advanced Error Reporting in the Kernel
Y.M. Zhang and T. Long Nguyen
297
Enabling Linux Network Support of Hardware Multiqueue Devices
Zhu Yi and PJ. Waskiewicz
305
Concurrent Pagecache
Peter Zijlstra
311
Conference Organizers
Andrew J. Hutton, Steamballoon, Inc., Linux Symposium,
Thin Lines Mountaineering
C. Craig Ross, Linux Symposium
Review Committee
Andrew J. Hutton, Steamballoon, Inc., Linux Symposium,
Thin Lines Mountaineering
Dirk Hohndel, Intel
Martin Bligh, Google
Gerrit Huizenga, IBM
Dave Jones, Red Hat, Inc.
C. Craig Ross, Linux Symposium
Proceedings Formatting Team
John W. Lockhart, Red Hat, Inc.
Gurhan Ozen, Red Hat, Inc.
John Feeney, Red Hat, Inc.
Len DiMaggio, Red Hat, Inc.
John Poelstra, Red Hat, Inc.
Authors retain copyright to all submitted papers, but have granted unlimited redistribution rights
to all as a condition of submission.
Unifying Virtual Drivers
Jon Mason
3Leaf Systems
[email protected]
Dwayne Shows
3Leaf Systems
[email protected]
Dave Olien
3Leaf Systems
[email protected]
Abstract
implemented through two distinct ways: Full Virtualization and Para-virtualization.
Para-virtualization presents a wide variety of issues to
Operating Systems. One of these is presenting virtual
devices to the para-virtualized operating system, as well
as the device drivers which handle these devices. With
the increase of virtualization in the Linux kernel, there
has been an influx of unique drivers to handle all of these
new virtual devices, and there are more devices on the
way. The current state of Linux has four in-tree versions
of a virtual network device (IBM pSeries Virtual Ethernet, IBM iSeries Virtual Ethernet, UML Virtual Network Device, and TUN/TAP) and numerous out-of-tree
versions (one for Xen, VMware, 3leaf, and many others). Also, there are a similar number of block device
drivers.
Full Virtualization is a method that fully simulates hardware devices through emulating physical hardware components in software. This simulation of hardware allows
the OS and other components to run their software unmodified. In this technique, all instructions are translated through the hypervisor into hardware system calls.
The hypervisor controls the devices and I/O, and simulated hardware devices are exported to the virtual machine. This hardware simulation does have a significant performance penalty when compared to running the
same software on native hardware, but allows the user
to run multiple instances of a VM (virtual machine) simultaneously (thus allowing a higher utilization of the
hardware and I/O). Examples of this type of virtualization are QEMU and VMware.
This paper will go into why there are so many, and the
differences and commonalities between them. It will
go into the benefits and drawbacks of combining them,
their requirements, and any design issues. It will discuss
the changes to the Linux kernel to combine the virtual
network and virtual block devices into two common devices. We will discuss how to adapt the existing virtual
devices and write drivers to take advantage of this new
interface.
1
Introduction to I/O Virtualization
Virtualization is the ability of a system through hardware and/or software to run multiple instances of Operating Systems simultaneously. This is done through abstracting the physical hardware layer through a software
layer, known as a hypervisor. Virtualzation is primarily
Para-virtualization is a method that modifies the OS running inside the VM to run under the hypervisor. It is
modified to support the hypervisor and avoid unnecessary use of privileged instructions. These modifications
allow the performance of the system to be near native.
However, this type of virtualization requires that virtual devices be exposed for access to the underlying I/O
hardware. UML and Xen are examples of such virtualization implimentations. The scope of this paper is
in considering only para-virtualized virtual machine abstractions; this is where virtual device implementations
have proliferated.
To have better I/O performance in a virtual machine, the
VMs have virtual devices exported to them and have the
native device located in another VM or in the hypervisor. These virtual devices have virtual device drivers for
• 9 •
10 • Unifying Virtual Drivers
them to appear in the VM as if they were native, physical devices. These virtual device drivers allow the data
to be passed from the VM to the physical hardware. This
hardware then does the required work, and may or may
not return information to the virtual device driver. This
level of abstraction allows for higher performance I/O,
but the underlying procedure to perform the requested
operation differs on each para-virtualzation implementation.
2
From the kernel address space the driver can use for user
processes to mmap to their own address spaces.
All the guest reads and writes go through an API to the
host and are translated to host reads and writes. As such,
these operations are using the buffer cache on the host.
This causes a disproportionate amount of memory to be
consumed by the UMLs without limits as to how much
they can utilize. As is characteristic to Linux, flushing
modified buffers back to disk will be done when appropriate, based upon memory pressure in the host.
Linux Virtualization support
There are many Linux-centered virtualization implementations, both in the kernel and outside the kernel.
The implementations that are currently in the Linux kernel have been there for some time and have matured
over that time to be robust. Those implementations are
UML, IBM’s POWER virtualization, and the tun/tap device driver. Those implementations that are currently
living outside the kernel tree are gaining popularity, and
may one day be included in the mainline kernel. The
implementations of note are Xen and 3leaf Systems virtualization (though many others exist).
2.1
2.1.1
In-tree Linux Virtualization support
Another feature of UML virtual block device is supports
“copy on write” (COW) partitions. COW partitions allow a common image of a root device to be shared
among many instances of UML. Writes to blocks on the
COW partition are kept in a unique device for that UML
instance. This is more convenient than the Xen recommendation for using the LVM to provide COW functionality.
UML provides a number of APIs for file IO. These APIs
hook into native versions largely unmodified Linux
code. These APIs provides the virtual interface to the
physical device on the host. Examples of these interfaces are os_open_file, os_read_file, and
os_write_file.
User Mode Linux
2.1.2
User Mode Linux (UML) provides virtual block and
network interfaces with a couple of predominant drivers.
Briefly, the network drivers recommended for UML are
TUN/TAP. These are described in a later section. The
virtual devices created can be used with other virtual
devices on other VMs or with systems on the external
network. To configure for forwarding to other VMs,
UML comes with a switch daemon that allows userlevel forwarding of packets. UML supports hot plug
devices: new virtual devices can be configured dynamically while the system is up. As long as a multicastcapable NIC is available on the host, UML supports
multicast devices and it is possible to multicast to all
the VMs.
UML’s virtual storage solution consists of exporting a
file from a filesystem on storage known by the host to
the guest. That storage can be used directly through
reads and writes or with a feature called IO memory emulation that allows a file to be mapped as an IO region.
IBM POWER virtualization
IBM’s PowerPC-based iSeries and pSeries hardware
provides a native hypervisor in system firmware, allowing the system to be easily virtualized. The user-level
tools allow the underlying hardware to be assigned to
specific virtual machines, and in certain cases no I/O
hardware at all. In the latter case, one virtual machine
is assigned the physical adapters and manages all I/O to
and from those adapters. The hypervisor then exposes
virtual devices to the other virtual machines. The virtual
devices are presented to the OS via the system’s Open
Firmware device tree, and from the OS’s perspective appear to be on a system bus [4]. Currently, the hypervisor
supports virtual SCSI, ethernet, and TTY devices.
For the virtual ethernet device, the hypervisor implements a system-wide, VLAN-capable switch [4]. This
enables a virtual ethernet device in one VM to have a
connection to another VM via its virtual ethernet device.
This virtual switch can be connected to the external network only by connecting a virtual ethernet device to a
2007 Linux Symposium, Volume Two • 11
physical device in one of the VMs. In Linux, this would
be done via the kernel level ethernet bridging code.
For the virtual SCSI device, the connection is based
on a client-server model [4]. The SCSI virtual client
device works like most SCSI host controllers. It handles the SCSI commands via the SCSI mid-layer and
issues SCSI commands to those devices. The SCSI virtual server device receives all SCSI commands and is
responsible for handling them. The virtual SCSI interpartition communication protocol is the SCSI RDMA
Protocol.
2.1.3
TUN/TAP driver
The tun/tap driver has two basic funtions, a network
tap and a network tunnel. The network tap simulates a
ethernet device, and encapsulates incoming data inside
an ethernet frame. The network tunnel simulates an IP
layer device, and encapsulates the incoming data in an
IP packet. It can be viewed as a simple Point-to-Point or
Ethernet device, which instead of sending and receiving
packets from a physical media, sends and receives them
from user-space programs [5].
This enables virtualization programs running in user
space (for example UML) access to the network without needing exclusive access to a network device, or any
additional network configuration or OS kernel changes.
2.2
2.2.1
Out-of-tree Linux Virtualization support
Xen
Xen provides an architecture for device driver isolation
using a split driver architecture. The virtual device functionality is provided by front-end and back-end device
drivers. The front-end driver runs in the unprivileged
“guest” domain, and the back-end runs in a “privileged”
domain with access to the real device hardware. For
block devices, these drivers are called blkfront and blkback; and for the network devices, netfront and netback.
On the front end, the virtual device appears as a physical
device and receives IO requests from the guest kernel.
The front-end driver must issue requests to the back-end
driver since it doesn’t have access to physical hardware.
The back-end verifies that the request is safe and issues
it to the real device. The back-end appears to the hypervisor as a normal user of in-kernel IO functionality.
When the IO completes, the back-end notifies the frontend that its data is ready. The front-end driver reports IO
completions to its own kernel. The back-end is responsible for translating device addresses and verifying that
requests are correct and do not violate isolation guarantees.
Xen accomplishes device virtualization through a set of
clean and simple device abstractions. IO data is transferred to and from each domain via grant tables using
shared-memory, asynchronous buffer-descriptor rings.
These are said to provide a high-performance communication mechanism for passing buffer information vertically through the system, while allowing Xen to efficiently perform validation checks—for example, of
a domain’s credits. This shared-memory interface is
the fundamental mechanism supporting the split device
drivers for network and block IO.
Each domain has its own grant table. This data structure
is shared with the hypervisor, allowing the domain to
tell Xen what kinds of permissions other domains have
on its pages. Entries in the grant table are identified by a
grant reference, an integer, which indexes into the grant
table. It acts as a capability which the grantee can use
to perform operations on the granter’s memory. This
mechanism allows shared-memory communications between unprivileged domains. A grant reference also encapsulates the details of a shared page, removing the
need for a domain to know the real machine address of a
page it is sharing. This makes it possible to share memory correctly among domains running in fully virtualized memory.
Grant table manipulation, the creation and destruction
of grant references, is done by direct access to the grant
table. This removes the need to involve the hypervisor
when creating grant references, changing access permissions, etc. The grantee domain invokes hypercalls to use
the grant reference.
Xen uses event-delivery mechanism for sending asynchronous notifications to a domain, similar to a hardware interrupt. These notifications are made by updating a bitmap of pending event types, and optionally calling an event handler specified by the guest. The events
can be held off at the discretion of the guest.
Xenstore is the mechanism by which these event channels are set up, along with the shared memory frame.
12 • Unifying Virtual Drivers
It is used for setting up shared memory regions and
event channels for use with the split device drivers. The
store is arranged as a hierarchical collection of keyvalue pairs. Each domain has a directory structure containing data related to its configuration.
Ingress packets from the network are received by
the back end. The back end simply acts as a demultiplexer, forwarding incoming packets to the correct front end via the appropriate virtual interface.
The setup protocol for a device channel should consist
of entering the configuration data into the Xenstore area.
The store allows device discovery without requiring the
relevant device structure to be loaded. The probing code
in the guest should see the Xen “bus.”
The asynchronous shared buffer rings described earlier
are used for the network interface to implement transmit and receive rings. Each descriptor ring identifies a
block of contiguous machine memory allocated to the
domain. The transmit ring carries packets to transmit
from the guest to the back-end domain. The return path
of this ring carries messages indicating contents have
been transmitted. This signals that the back-end driver
does not need the pages of memory associated with that
request.
Once communications is established between a pair of
front- and back-end drivers, the two can communicate
by directly placing requests/responses into shared memory and then on the event channel. This separation allows for message batching, making for efficient device
access.
Xen Network IO
As mentioned, the shared memory communication area
is shared between front-end and back-end domains.
From the point of view of other domains, the back-end
is viewed as a virtual ethernet switch, with each domain
having one or more virtual network interfaces connected
to it.
From the reference point of the back-end domain, the
network driver on the back end consists of a number of
ethernet devices. Each of these has a connection to a
virtual network device in another domain. This allows
the back-end domain to route, bridge, firewall, etc. all
traffic from and to the other domains using the usual
Linux mechanisms.
The back end is responsible for:
• Validation of data. The back end ensures the front
ends do not attempt to generate invalid traffic. The
back end may look at headers to validate MAC or
IP addresses, making sure they match the interface
they have been sent from.
• Scheduling. Since a number of domains can share
the same physical NIC, the back end must schedule between domains that can have packets queued
for transmission, or that may have ingress traffic. The back end is capable of traffic-shaping or
rate-limiting schemes. Logging/Accounting on the
back end can be configured to track/record events.
To receive packets, the guest puts descriptors for unused
pages of memory on the receive ring. The back end exchanges these pages in the domain’s memory with new
pages containing the received packet and passing back
descriptors regarding the new packets in the ring. This
is a zero-copy approach, allowing the back end to maintain a pool of free pages to receive packets into, delivering them to the associated domains after reading their
headers. This is known as page flipping.
A domain that doesn’t keep its receive ring filled with
empty buffers will have dropped packets. This is seen
as an advantage by Xen because it limits live-lock problems because the overloaded domain will stop receiving further data. Similarly, on the transmit path, it provides the application the feedback on the rate at which
the packets can leave the system.
Flow control on the rings is managed by an independent
mechanism from the flow of data on the transmit/receive
rings. In this way the ring is divided into two message
queues, one in each direction.
Xen Block IO
All disk access uses the virtual block device interface. It
allows domains access to block storage devices visible
to the block back-end device. The virtual block device is
a split driver, like the network interface. A single shared
memory ring is used between the front and back end for
each virtual device. This memory ring handles all IO
requests and responses for that virtual device.
Many storage types can be exported by the back-end domain for use by the front end—various network-based
2007 Linux Symposium, Volume Two • 13
block devices such as iSCSI, or NBD, as well as loopback and multipath devices. These devices get mapped
to a device node on the front end in a static way defined
by the guest’s startup configuration.
The ring used by block IO supports two message types,
read and write. For a read, the front end identifies the
device and location to read from and attaches pages for
data to be copied into. The back end acknowledges
completed reads after the data is transferred from the
device into the buffer, typically the underlying physical
device’s DMA engine. Writes are analogous to reads,
except data moves from the front end to the back end.
Xen IO Configuration
Domains with physical device access (i.e., driver domains) receive access to certain PCI devices on a limited basis, acquiring access to interrupts and bus address space. Many guests attempt to determine the PCI
configuration by accessing the PCI BIOS. Xen forbids
such access and provides a hypercall, physdev_op to
set/query configuration details.
2.2.2
3leaf Virtualization
3leaf Systems provides virtual storage and network interfaces built on top of typical Linux APIs. Their devices span physical machine boundaries so that frontend drivers can be on one system and the back-end
drivers hosted where the physical devices reside.
SCSI mid-layer can pass off requests with scatterlists.
These get wrapped with header information before being passed to the lower layers of transport. This header
is used for demultiplexing on the back end where the
request is forwarded to the SCSI device. Completions
come back to the back end where they are wrapped with
the header information for the return trip through the
transport to the front end. The front-end driver forwards
the completion to the SCSI midlayer.
The 3leaf stack can manage multiple devices, and hotplug events, but can entail software queuing at different levels, especially the networking stack. Interactions between front and back ends are mitigated through
thoughtful use of scatter-gather lists to chain requests.
3leaf services do not rely on an operating system being fully or para-virtualized; it is more of a distributed
IO services mechanism. In some ways the hardware
where the back-end runs is analogous to a hypervisor,
whereas the front-end systems can be many and serve
as the guests in the model of the virtual IO services surveyed here.
3Leaf virtual storage virtualization supports a number of
useful features for providing diskless front-end clients
with controlled, high-availability, high-performance access to storage. It also includes tools for assisting centralized provisioning to these distributed clients.
Following is a list of capabilities supported by this storage virtualization implementation. Each capability will
be followed by a brief description of its implementation.
Features supported include:
Their front-end drivers communicate to the back-end
drivers through a transport-agnostic interface that lends
itself to running on any number of transports that meet
some minimal set of requirements.
Front-end network devices look like a normal ethernet interface for the purposes of the front-end application/user. Such devices have their own MAC addresses
randomly generated. Egress packets get wrapped with
header information before being passed to the lower layers of the transport. This header is used for demultiplexing. The corresponding virtual NIC on the back end
passes the packet to the bridge, where the packet gets
forwarded to its recipient.
The storage front end looks like a SCSI device, usually
having a SCSI device backing the back-end driver. The
front-end registers with the block device layer so the
• Multiple redundant access paths to storage. A typical configuration has two or more back-end servers,
each with redundant paths to storage on a fibre
channel SAN. The fail-over and fail-back between
redundant fibre channel paths on the back-end redundant paths is managed by the Linux device
mapper multipathing. A front end then has paths to
storage through two or more back-end servers. The
front-end and back-end storage software manages
fail over and fail back between back-end servers.
• Block or SCSI storage devices. The virtual storage
devices can appear on the front-end clients as either
block or SCSI devices.
• Name persistence. The Linux hotplug software
also includes mechanisms that can be used give
14 • Unifying Virtual Drivers
storage devices persistent names. For example,
these names can be based on the UUID of the
physical storage device. This mechanism requires
some intervention on the front-end client to establish these mappings. The hotplug mechanism is
still available for use on the 3leaf front-end clients.
But the 3leaf virtual storage software also maintains its own stable naming mechanism. This can
be administered centrally from the back-end storage server.
• Boot support for diskless front-end clients. The
front-end client is able to load its operating system
from the back-end server and then use a virtual disk
as its root device. Access to this root device will
also be highly available using the redundant paths
provided by the storage virtualization.
• COW virtual devices. As with UML, the 3leaf
COW devices are especially useful for root disks.
It allows several client front ends to share a common root file system, allocating additional storage
only for each client’s modifications to that shared
image.
• NPIV. N-port interface virtualization is another
mechanism which allows the owner of the SAN to
regulate access to devices on that SAN by individual front-end clients. This is based upon a virtual
host bus adapter model, where the SAN administrator can associate sets of storage devices with virtual HBAs and then associate individual VHBAs
with different client machines.
• Centralized provisioning. The back-end servers interact with a distributed set of tools to specify the
virtual storage environment for the storage client.
Storage devices can be added or removed from the
client’s environment, generating hotplug events to
update the client’s storage name space.
The 3leaf virtual storage implementation is conceptually
similar to the Xen storage device implementation. Both
are based on an efficient and reliable means for passing
messages and DMA data transfers between the “guest”
or front-end clients, and the “host” or back-end servers.
The messaging mechanism is used to implement an
rpc-like communication between the back-end servers
and the front-end clients. This rpc mechanism is used
to simulate SCSI/Fibre channel behavior when needed,
and to support the creation/deletion of virtual disks, the
construction of COW devices, and VHBAs.
When the underlying transport supports it (e.g., infiniband RDMA), the transfer of disk data is transferred using RDMA read and RDMA write operations. RDMA
read and write operations are initiated on the client.
The RDMA operations use “opaque” handles to identify memory on the back-end servers that are the source
or target of RDMA reads and writes, respectively. The
client memory to be used is identified by a scatter/gather
list.
These opqaue rdma handles are generated on the backend servers as part of registering portions of the server’s
physical memory to be used for RDMA operations. In
the case of infiniband, these handles are encoded in so
that they cannot be forged. This provides some isolation
between client front ends, making it difficult for clients
to maliciously generate RDMA handles to memory they
should not have access to. The opaque memory handles are transmitted from the back end server nodes to
the front end’s servers using the RPC mechanism. Each
client is given a set of RDMA handles for segments of
server memory. These memory segments sets are not
shared between clients. Thus there is no chance of misdirected RDMA operations. Each client has ownership
and control of its set of RDMA handles until it releases
them. To perform a disk IO transfer, a client allocates an
RDMA handle from the set given to it by the destination
server. In the case of a write, it first transfers data using
RDMA into the server’s client memory. Then issues an
rpc call to the server instructing it to write that memory
to a disk device. In the case of a disk read, the client first
sends an rpc to the server instructing it to read data from
disk into the server’s memory. It then uses its RDMA
handle for that memory to transfer that data from the
server’s memory to the client’s.
The rest of the virtual disk implementation is built upon
these messaging and RDMA primitives. On the client,
the virtual disk implementation appears to the Linux operating system’s block layer and SCSI mid-layer as just
another disk driver. The driver accepts either SCSI requests or block request structures, and translates them
into rpc messages and RDMA operations targeted towards one of the servers providing access to disk storage. If the targeted server fails, these operations will be
re-directed to one of the redundant servers for that storage.
2007 Linux Symposium, Volume Two • 15
On the server side, the disk virtualization is logically at
the same level in the Linux disk software stack as the
Linux page cache. The client and server’s virtualization
software manages its own pool of memory for RDMA
operations. RPC requests from the client cause block
requests to be submitted to the server’s block layer to
cause disk read and write operations. In this way, disk
data transfers are performed without any copying of disk
data by the CPUs on either the clients or the servers.
2.2.3
Non-local memory transport of data via IB
OpenFabrics.org is another player in the fabric of virtual
IO solutions. Their solutions use infiniband as the transport to provide network and storage solutions to lowcost, front-end machines that run with their drivers and
commodity HCA cards.
In this paradigm, virtual network interfaces are provided
over the HCA ports with a protocol built on the verbs/
access layer called the IPoIB module. This uses the two
physical interfaces for each HCA; however, the MAC
used is the GUID, which means it becomes difficult to
put these packets on ipv4 networks. The ethernet header
then needs to be massaged before transmitted packets
can go out. When the virtual device’s MAC is tied to the
hardware, it becomes difficult to migrate virtual devices
to other ports. The packets have to be bridged from the
IB network to the ethernet network, much as packets
from other solutions.
The storage solution provided is a module based on
SCSI Request Protocol (SRP) initiator. It provides access to IB-based SRP storage targets.
3
3.1
Virtualized I/O
Virtualized Networking
The need for unified virtual ethernet drivers are many.
First, the multitude of pre-existing code, and the potential for more in the future. The partial addition of features in an uncoordinated effort when many of the rest
could also benefit from these features. UML provides
switching from a user-level daemon which will have less
performance than a kernel module. Not all implementations support hot-plug additions of virtual devices to
the VM. Self-virtualizing devices are soon to be on the
market and a common architecture should be adapted to
take advantage of that functionality in the NICs.
3.2
Virtualized Storage
The need for unification of virtualized storage drivers is
several fold. First, file-based partitions are slow. While
convenient for desktop users, they do not meet the needs
of an enterprise-scaled organization. It is well documented that read/write performance in the interfaces
UML uses are slow. Additionally, file-based partitions
also suffer from unchecked buffer cache growth on the
host system. That tends to help performance, keeping
much of the disk/partition resident in memory; however,
as the number of disks group, it can cause inequities as
to which VM has the lion’s share of memory tied up.
Attempted solutions to resolve that have been controversial and seem too specialized for the particular hypervisor running. mmap performance is not much better
as an alternative, as some experiences indicate.
Inconsistent CoW implemenatations. The market has
shown the need to have a single master root drive that is
read-only, backed by a writable device to manage VMbased configuration differences which CoW provides a
per-block mechanism for satisfying. Using the Linux
Volume Manager as a solution goes beyond its original
design; likewise there are limitations in using a bitmap
implementation exclusively.
As far as disk-based partitions vs. file-based partitions,
a disk gives a better unit of granularity that SAN storage providers have deployed with. It makes concepts
like zoning and n-port virtualization much more achieveable.
SCSI-based devices seem a familiar and dependable
mechanism to build a framework under. This mechanism is used by many other drivers and is itself a dependable framework supporting multiple device types.
SCSI request blocks are already a well defined way to
format requests and completions. A flexible back end
should support all device types; however, for the scope
of this document the discussion will be focused on SCSI
disks. Such disks could be SAS (serial attached scsi) or
storage that is allocted from a SAN fabric through an
HBA (host bus adapter).
Lastly, a single flexible implementation will be better
supported by the Linux community.
4
Design requirements and open issues
Abstracting the existing virtual drivers into a generic implementation raises interesting design requirements and
16 • Unifying Virtual Drivers
issues. Regardless of how the underlying virtualization
actually works, there are a few basic interfaces for the
network transport layer to interlock with the virtual ethernet driver, and the storage transport layer to interlock
with the virtual SCSI driver.
4.1
Net
All the virtual ethernet device drivers described above
contain certain basic features which are common,
though the underlying methods of transfer the data from
one point to another differs. All virtual network device drivers have functions which create and delete the
device, start and stop the network stack, and transmit
and receive data. These basic functions can be created
in a generic virtual ethernet driver, which would then
be supplemented by a specific module that handles any
transport-specific calculations and transports the data
from one point to another.
By providing a veth_ops data structure, with the
pointers to the transport layer “helper” functions, this
division of labor can greatly increase the ability to separate the existing virtual ethernet driver into a generic
and transport layer.
For example in Xen, the packet to be transmitted has a
few transport-specific calculations that need to be done
(like insertion into the grant table and calculation for the
number of pages the skb fits into). Those can be pushed
down into a transmit transport layer, to which the skb is
handed for transmission. In contrast, the tun/tap driver
simply queues the packet onto a skb queue.
veth_ops−>tx(struct sk_buff ∗skb,
struct net_device ∗netdev);
This enables generic error checking and setup that all
data transmission routes need in the generic tx stub, and
the transport-specific work can be done in the function
pointed to by the veth_ops.
receive data, as well as destroy any resources allocated.
While some of these functions are specific to the transport layer (like creating buffer pools), most of the drivers
require the very basic setup of zeroing statistics and
starting the transmit queue.
veth_ops->open(struct net_device
*netdev);
veth_ops->close(struct net_device
*netdev);
Unfortunately, driver probe and create are very dependent on how the attributes are passed to the driver. Since
some are passed via hcall and others are provided by
the user-space tools, there really is no abstract way to do
this.
There are other generic functions that can easily be
made generic. Specificly, functions to change the MTU,
transmit timeout, and get statistics are all generic and
really do not need any hooks in them to work for all
virtualization implementations.
There are currently some offloading technologies which
have been implemented in some of the drivers via
software, and which have not been proliferated into
all of the existing drivers. For example, GSO and
checksum offloads. Integrating these functions into
existing implementations might be easy; they are
very implementation-dependent and should only be abstracted after further investigation.
Our current implementation uses the API defined above
to communicate between the generic virtual ethernet
driver and a few generic transport layers. Specificly, we
generalized the Xen network to behave in the above way,
as well as UML and 3leaf.
4.2
Disk
For receiving, things can be significantly simplier using NAPI. Registering a generic poll routine on device
open, and providing a skb queue to pull from, makes this
very generic. The transport layer populates the queue as
packets are pulled off its transport layer (via interrupt,
etc.).
We propose virtualization-aware devices using a unified
generic stub. This allows for a transport/virtualizationspecific layer. If a transport were to be connected
through the generic stubs, the front end and back end
would not have to be co-located on the same piece of
hardware.
Open and close will need generic and transport-layer
constructs to set up the virtual device to transmit and
By providing a vstore_ops structure, with the structure elements being pointers to transport layer “helper”
2007 Linux Symposium, Volume Two • 17
functions, one can separate existing virtual storage
drivers into a generic and transport layer.
the generic driver to these devices could be quite beneficial.
In Xen the IO request results in pages inserted into the
grant table for the blkback driver for reads and writes.
They can be pushed down to the transport layer in a way
that shields the upper layers from the transport. In contrast, UML with its UBD driver does reads and writes
to the host operating system, largely driven through the
os_* interfaces. These are block device interfaces, but
the pertinent information is available from the ioreq
struct. The 3leaf front-end driver can accomodate both.
Writes and reads have the same prototypes:
A performance analysis of the merged drivers, with a
contrast to the existing drivers, should be done prior to
any merging into mainline.
The driver should be expanded to accomodate block devices as well as scsi, using the 3leaf model for supporting both types.
Features in the 3leaf solution should be addressed, including multiple redundant paths to storage, name persistence, and centralized provisioning.
vstore_ops−>dma_write(struct scatterlist
local_buf_list[],
int nbuf, int size);
6
Conclusion
vstore_ops−>dma_read(struct scatterlist
local_buf_list[],
int nbuf, int size);
Open and release of block devices are generic enough
that the transport-specific portion is easily isolated. The
open causes caches of buffers to be allocated and data
structure initialization. The release causes those resources to be freed.
vstore_ops−>open(struct inode ∗inode,
struct file ∗filp);
We implemented a generic virtual device driver with
implementation-specific transportation layer for UML,
Xen, and 3leaf Systems. We have shown a breadth of
virtualization technologies that would benefit from using this, and the generic API which can be used to do
this.
We will continue to clean and extend the usage of this
implementation in Linux. Hopefully, by the time this is
read, it will be submitted for inclusion into the Linux
kernel.
vstore_ops−>release(struct inode ∗inode,
struct file ∗filp);
The auto-provisioning in the 3leaf model is preferable
for many reasons. There needs to be a way for a VM to
probe for devices; this callback fills that requirement,
not unlike Xen—when it reads its configuration, it’s
technically accessing the Xen bus.
5
Roadmap/Future work
We plan on extending this work into all virtualization
implementations mentioned in this paper. However, due
to certain logistical limitations, we have not been able
to do this. For example, there was no access to IBM
POWER-enabled hardware.
Self-virtualizing devices which can be offloaded with
certain virtualization functionality are becoming more
prevalent. These devices require that one physical device appear as multiple devices, each VM having a semiprogrammable device exclusively for its own. Exporting
7
Terms
front end, back end
One class of distributed computer system in which the
computers are divided into two types: back-end computers and front-end computers. Front-end computers typically have minimal peripheral hardware (e.g., storage
and ethernet) and interact with users and their applications. Back-end computers provide the front ends with
access to expensive peripheral devices or services (e.g.,
a database), so as to share the cost of those peripherals
across the front ends.
Also: client, server.
bridge
A mechanism to forward network packets between ports
or interfaces.
VM (virtual machine)
Software that provides a virtual environment on top of
18 • Unifying Virtual Drivers
the hardware platform. This virtual environment provides services for creating and managing virtual IO devices such as disks and network interfaces.
NIC (Network Interface Controller)
A hardware device that allows computers to communicate over a network.
CoW (Copy on Write)
A technique for efficiently sharing the un-modified contents of a disk or file system whose contents are “read
mostly”—for example, a root file system. Writes to this
shared content are re-directed to a write-able device that
is unique to each user.
page cache, buffer cache
A cache of disk-backed memory pages. The Linux operating system uses a page cache for holding process
memory pages as well as file data.
DMA (Direct Memory Access)
A hardware mechanism used by peripheral devices to
transfer data between the pre-determined locations in
computer memory and the peripheral device, without
using the computer’s cpu to copy that data.
scatterlist
A list (typically an array) of physical memory addresses
and lengths used to specify the source or destination for
a DMA transfer.
RPC (Remote Procedure Call)
A protocol where software on one computer can invoke
a function on a remote computer.
RDMA (Remote Direct Memory Access)
An extension of DMA where data is transferred between
pre-determined memory locations on two computer systems over a network connection, without utilizing cpu
cycles to copy data.
SCSI (Small Computer System Interconnect)
A standard for physically connecting and transferring
data between computer systems and peripheral storage
devices.
MAC (Media Acess Control) address
A unique identifier associated with a network adapter.
API (Application Programming Interface)
A software interface definition for providing services.
GUID (Globally Unique Identifier)
A 128-bit number, unique identifier that is associated
with an infiniband HCA.
HCA (Host Channel Adapter)
A hardware device for connecting a computer system to
an infiniband communications link.
IPoIB (Internet Protocol over InfiniBand)
An implementation of the internet protocol on the Infiniband network fabric.
HBA (Host Bus Adapter)
A hardware device that connecting a computer system
to a SCSI or Fibre Channel link.
SRP (SCSI RDMA Protocol)
A combination of the SCSI protocol with Infiniband
RDMA, providing SAN storage.
hotplug (hot plugging)
A method for adding or removing devices from a computer system while that computer system is operating.
UML (User Mode Linux)
A virtual machine implementation where one or more
guest Linux operating systems run in user-mode Linux
processes.
N-Port (Node Port)
a Fibre Channel node connection.
hypvervisor (also, virtual machine monitor)
The software that provides the virtual machine mechanisms to support guest operating systems.
infiniband
A point-to-point communications link used to provide
high performance data and message transfer between
computer nodes.
Fibre Channel
A network implementation that is used mostly for accessing storage.
SAN (Storage Area Network)
A network architecture for attaching remote storage to a
server computer.
Volume Manager
Software for managing and allocating storage space.
2007 Linux Symposium, Volume Two • 19
8
Legal Statement
All statements regarding future direction and intent are subject to change or withdrawal without notice, and represent
goals and objectives only. Information is provided “AS IS”
without warranty of any kind. This article could include technical inaccuracies and typographical errors. Improvements
and/or changes in the product(s) and/or the program(s) described in this publication may be made at any time without
notice. This paper represents the view of its authors and not
necessarily the view of 3leaf Systems. Other company, product, or service names may be the trademarks of others. Void
where prohibited.
References
[1] M.D. Day, R. Harper, M. Hohnbaum, A. Liguori,
& A. Theurer. “Using the Xen Hypervisor to
Supercharge OS Deployment,” Proceedings of the
2005 Linux Symposium, Ottawa, Vol. 1, pp.
97–108.
[2] K. Fraser, S. Hand, C. Limpach, and I. Pratt. “Xen
and the Art of Open Source Virtualization,”
Proceedings of the 2004 Linux Symposium,
Ottawa, Vol. 2, p. 329.
[3] Xen 3.0 Virtualization Interface Guide
http://www.linuxtopia.org/online_
books/linux_virtualization/xen_3.0_
interface_guide/linux_virualization_
xen_interface_25.html
[4] Dave Boutcher, Dave Engebretsen. “Linux
Virtualization on IBM POWER5 Systems,”
Proceedings of the 2004 Linux Symposium,
Ottawa, Vol. 1, p. 113.
[5] http://www.kernel.org/pub/linux/
kernel/people/marcelo/linux-2.4/
Documentation/networking/tuntap.txt
[6] Raj, Ganev, Schwan, and Xenidis. Scalable IO
Virtualization via Self-Virtualizing Devices,
http://www-static.cc.gatech.edu/
~rhim/Self-VirtTR-v1.pdf
[7] Jeff Dike, User Mode Linux, Prentice Hall, 2006.
[8] http://wiki.openvz.org
20 • Unifying Virtual Drivers
The new ext4 filesystem: current status and future plans
Avantika Mathur, Mingming Cao, Suparna Bhattacharya
IBM Linux Technology Center
[email protected], [email protected], [email protected]
Andreas Dilger, Alex Tomas
Cluster Filesystem Inc.
[email protected], [email protected]
Laurent Vivier
Bull S.A.S.
[email protected]
Abstract
R
Ext3 has been the most widely used general Linux
filesystem for many years. In keeping with increasing
disk capacities and state-of-the-art feature requirements,
the next generation of the ext3 filesystem, ext4, was created last year. This new filesystem incorporates scalability and performance enhancements for supporting large
filesystems, while maintaining reliability and stability.
Ext4 will be suitable for a larger variety of workloads
and is expected to replace ext3 as the “Linux filesystem.”
In this paper we will first discuss the reasons for starting the ext4 filesystem, then explore the enhanced capabilities currently available and planned for ext4, discuss methods for migrating between ext3 and ext4, and
finally compare ext4 and other filesystem performance
on three classic filesystem benchmarks.
1
Introduction
Ext3 has been a very popular Linux filesystem due to its
reliability, rich feature set, relatively good performance,
and strong compatibility between versions. The conservative design of ext3 has given it the reputation of being
stable and robust, but has also limited its ability to scale
and perform well on large configurations.
With the pressure of increasing capabilities of new hardware and online resizing support in ext3, the requirement to address ext3 scalability and performance is
more urgent than ever. One of the outstanding limits
faced by ext3 today is the 16 TB maximum filesystem
size. Enterprise workloads are already approaching this
limit, and with disk capacities doubling every year and
1 TB hard disks easily available in stores, it will soon be
hit by desktop users as well.
To address this limit, in August 2006, we posted a series
of patches introducing two key features to ext3: larger
filesystem capacity and extents mapping. The patches
unavoidably change the on-disk format and break forwards compatibility. In order to maintain the stability of
ext3 for its massive user base, we decided to branch to
ext4 from ext3.
The primary goal of this new filesystem is to address
scalability, performance, and reliability issues faced by
ext3. A common question is why not use XFS or start
an entirely new filesystem from scratch? We want to
give the large number of ext3 users the opportunity to
easily upgrade their filesystem, as was done from ext2
to ext3. Also, there has been considerable investment in
the capabilities, robustness, and reliability of ext3 and
e2fsck. Ext4 developers can take advantage of this previous work, and focus on adding advanced features and
delivering a new scalable enterprise-ready filesystem in
a short time frame.
Thus, ext4 was born. The new filesystem has been in
mainline Linux since version 2.6.19. As of the writing
of this paper, the filesystem is marked as developmental, titled ext4dev, explicitly warning users that it is not
ready for production use. Currently, extents and 48-bit
block numbers are included in ext4, but there are many
new filesystem features in the roadmap that will be discussed throughout this paper. The current ext4 development git tree is hosted at git://git.kernel.org/
• 21 •
22 • The new ext4 filesystem: current status and future plans
pub/scm/linux/kernel/git/tytso/ext4.
Upto-date ext4 patches and feature discussions can be
found at the ext4 wiki page, http://ext4.wiki.
kernel.org.
Some of the features in progress could possibly continue
to change the on-disk layout. Ext4 will be converted
from development mode to stable mode once the layout
has been finalized. At that time, ext4 will be available
for general use by all users in need of a more scalable
and modern version of ext3. In the following three sections we will discuss new capabilities currently included
in or planned for ext4 in the areas of scalability, fragmentation, and reliability.
2
Scalability enhancements
The first goal of ext4 was to become a more scalable
filesystem. In this section we will discuss the scalability
features that will be available in ext4.
2.1
the end of the block group descriptor structure to store
the most significant bits of 64-bit values for bitmaps and
inode table pointers.
Since the addresses of modified blocks in the filesystem are logged in the journal, the journaling block layer
(JBD) is also required to support at least 48-bit block addresses. Therefore, JBD was branched to JBD2 to support more than 32-bit block numbers at the same time
ext4 was forked. Although currently only ext4 is using
JBD2, it can provide general journaling support for both
32-bit and 64-bit filesystems.
One may question why we chose 48-bit rather than full
64-bit support. The 1 EB limit will be sufficient for
many years. Long before this limit is hit there will be
reliability issues that need to be addressed. At current
speeds, a 1 EB filesystem would take 119 years to finish
one full e2fsck, and 65536 times that for a 264 blocks (64
ZB) filesystem. Overcoming these kind of reliability issues is the priority of ext4 developers before addressing
full 64-bit support and is discussed later in the paper.
Large filesystem
2.1.1
The current 16 TB filesystem size limit is caused by the
32-bit block number in ext3. To enlarge the filesystem
limit, the straightforward method is to increase the number of bits used to represent block numbers and then fix
all references to data and metadata blocks.
Previously, there was an extents[3] patch for ext3 with
the capacity to support 48-bit physical block numbers.
In ext4, instead of just extending the block numbers to
64-bits based on the current ext3 indirect block mapping, the ext4 developers decided to use extents mapping with 48-bit block numbers. This both increases
filesystem capacity and improves large file efficiency.
With 48-bit block numbers, ext4 can support a maximum filesystem size up to 2(48+12) = 260 bytes (1 EB)
with 4 KB block size.
After changing the data block numbers to 48-bit,
the next step was to correct the references to metadata blocks correspondingly. Metadata is present in
the superblock, the group descriptors, and the journal. New fields have been added at the end of the
superblock structure to store the most significant 32
bits for block-counter variables, s_free_blocks_count,
s_blocks_count, and s_r_blocks_count, extending them
to 64 bits. Similarly, we introduced new 32-bit fields at
Future work
After extending the limit created by 32-bit block numbers, the filesystem capacity is still restricted by the
number of block groups in the filesystem. In ext3, for
safety concerns all block group descriptors copies are
kept in the first block group. With the new uninitialized block group feature discussed in section 4.1 the
new block group descriptor size is 64 bytes. Given the
default 128 MB(227 bytes) block group size, ext4 can
have at most 227 /64 = 221 block groups. This limits the
entire filesystem size to 221 ∗ 227 = 248 bytes or 256TB.
The solution to this problem is to use the metablock
group feature (META_BG), which is already in ext3
for all 2.6 releases. With the META_BG feature, ext4
filesystems are partitioned into many metablock groups.
Each metablock group is a cluster of block groups
whose group descriptor structures can be stored in a single disk block. For ext4 filesystems with 4 KB block
size, a single metablock group partition includes 64
block groups, or 8 GB of disk space. The metablock
group feature moves the location of the group descriptors from the congested first block group of the whole
filesystem into the first group of each metablock group
itself. The backups are in the second and last group of
each metablock group. This increases the 221 maximum
2007 Linux Symposium, Volume Two • 23
ext4_extent structure
47
95
leaf nodes
0
31
ext4_inode
index node
logical block #
physical block #
node header
disk blocks
extent
uninitialized extent flag
node header
length
i_block
ext4_extent_header
eh_magic
eh_entries
eh_max
eh_depth
eh_generation
ext4_extent_idx
ei_block
ei_leaf
ei_leaf_hi
ei_unused
extent index
extent
eh_header
root
...
...
...
extent index
node header
extent
Figure 1: Ext4 extents, header and index structures
...
extent
block groups limit to the hard limit 232 , allowing support
for the full 1 EB filesystem.
2.2
Extents
The ext3 filesystem uses an indirect block mapping
scheme providing one-to-one mapping from logical
blocks to disk blocks. This scheme is very efficient for
sparse or small files, but has high overhead for larger
files, performing poorly especially on large file delete
and truncate operations [3].
As mentioned earlier, extents mapping is included in
ext4. This approach efficiently maps logical to physical
blocks for large contiguous files. An extent is a single
descriptor which represents a range of contiguous physical blocks. Figure 1 shows the extents structure. As
we discussed in previously, the physical block field in
an extents structure takes 48 bits. A single extent can
represent 215 contiguous blocks, or 128 MB, with 4 KB
block size. The MSB of the extent length is used to flag
uninitialized extents, used for the preallocation feature
discussed in Section 3.1.
Figure 2: Ext4 extent tree layout
the node, the capacity of entries the node can store, the
depth of the tree, and a magic number. The magic number can be used to differentiate between different versions of extents, as new enhancements are made to the
feature, such as increasing to 64-bit block numbers.
The extent header and magic number also add muchneeded robustness to the on-disk structure of the data
files. For very small filesystems, the block-mapped files
implicitly depended on the fact that random corruption
of an indirect block would be easily detectable, because
the number of valid filesystem blocks is a small subset of a random 32-bit integer. With growing filesystem
sizes, random corruption in an indirect block is by itself
indistinguishable from valid block numbers.
Four extents can be stored in the ext4 inode structure
directly. This is generally sufficient to represent small
or contiguous files. For very large, highly fragmented,
or sparse files, more extents are needed. In this case
a constant depth extent tree is used to store the extents
map of a file. Figure 2 shows the layout of the extents
tree. The root of this tree is stored in the ext4 inode
structure and extents are stored in the leaf nodes of the
tree.
In addition to the simple magic number stored in the
extent header, the tree structure of the extent tree
can be verified at runtime or by e2fsck in several
ways. The ext4_extent_header has some internal consistency (eh_entries and eh_max) that also depends on
the filesystem block size. eh_depth decreases from the
root toward the leaves. The ext4_extent entries in a leaf
block must have increasing ee_block numbers, and must
not overlap their neighbors with ee_len. Similarly, the
ext4_extent_idx also needs increasing ei_block values,
and the range of blocks that an index covers can be verified against the actual range of blocks in the extent leaf.
Each node in the tree starts with an extent header (Figure 1), which contains the number of valid entries in
Currently, extents mapping is enabled in ext4 with the
extents mount option. After the filesystem is mounted,
24 • The new ext4 filesystem: current status and future plans
any new files will be created with extent mapping. The
benefits of extent maps are reflected in the performance
evaluation Section 7.
2.2.1
Future work
Extents are not very efficient for representing sparse or
highly fragmented files. For highly fragmented files, we
could introduce a new type of extent, a block-mapped
extent. A different magic number, stored in the extent
header, distinguishes the new type of leaf block, which
contains a list of allocated block numbers similar to an
ext3 indirect block. This would give us the increased robustness of the extent format, with the block allocation
flexibility of the block-mapped format.
In order to improve the robustness of the on-disk data,
there is a proposal to create an “extent tail” in the extent
blocks, in addition to the extent header. The extent tail
would contain the inode number and generation of the
inode that has allocated the block, and a checksum of
the extent block itself (though not the data). The checksum would detect internal corruption, and could also detect misplaced writes if the block number is included
therein. The inode number could be used to detect
corruption that causes the tree to reference the wrong
block (whether by higher-level corruption, or misplaced
writes). The inode number could also be used to reconstruct the data of a corrupted inode or assemble a deleted
file, and also help in doing reverse-mapping of blocks
for defragmentation among other things.
2.3
Large files
In Linux, file size is calculated based on the i_blocks
counter value. However, the unit is in sectors (512
bytes), rather than in the filesystem block size (4096
bytes by default). Since ext4’s i_blocks is a 32-bit variable in the inode structure, this limits the maximum file
size in ext4 to 232 ∗ 512 bytes = 241 bytes = 2 TB. This
is a scalability limit that ext3 has planned to break for a
while.
The solution for ext4 is quite straightforward. The
first part is simply changing the i_blocks units in the
ext4 inode to filesystem blocks. An ROCOMPAT feature flag HUGE_FILE is added in ext4 to signify that
the i_blocks field in some inodes is in units of filesystem block size. Those inodes are marked with a flag
EXT4_HUGE_FILE_FL, to allow existing inodes to
keep i_blocks in 512-byte units without requiring a full
filesystem conversion. In addition, the i_blocks variable
is extended to 48 bits by using some of the reserved inode fields. We still have the limitation of 32 bit logical block numbers with the current extent format, which
limits the file size to 16TB. With the flexible extents format in the future (see Section 2.2.1), we may remove
that limit and fully use the 48-bit i_blocks to enlarge the
file size even more.
2.4
Large number of files
Some applications already create billions of files today,
and even ask for support for trillions of files. In theory,
the ext4 filesystem can support billions of files with 32bit inode numbers. However, in practice, it cannot scale
to this limit. This is because ext4, following ext3, still
allocates inode tables statically. Thus, the maximum
number of inodes has to be fixed at filesystem creation
time. To avoid running out of inodes later, users often
choose a very large number of inodes up-front. The consequence is unnecessary disk space has to be allocated
to store unused inode structures. The wasted space becomes more of an issue in ext4 with the larger default
inode. This also makes the management and repair of
large filesystems more difficult than it should be. The
uninitialized group feature (Section 4.1) addresses this
issue to some extent, but the problem still exists with
aged filesystems in which the used and unused inodes
can be mixed and spread across the whole filesystem.
Ext3 and ext4 developers have been thinking about supporting dynamic inode allocation for a while [9, 3].
There are three general considerations about the dynamic inode table allocation:
• Performance: We need an efficient way to translate
inode number to the block where the inode structure is stored.
• Robustness: e2fsck should be able to locate inode
table blocks scattered across the filesystem, in the
case the filesystem is corrupted.
• Compatibility: We need to handle the possible inode number collision issue with 64-bit inode numbers on 32-bit systems, due to overflow.
These three requirements make the design challenging.
2007 Linux Symposium, Volume Two • 25
63
50
18
32-bit block group #
15-bit relative
block #
3
0
4-bit
offset
Figure 3: 64-bit inode layout
With dynamic inode tables, the blocks storing the inode
structure are no longer at a fixed location. One way to
efficiently map the inode number to the block storing
the corresponding inode structure, is encoding the block
number into the inode number directly, similar to what is
done in XFS. This implies the use of 64-bit inode numbers. The low four to five bits of the inode number store
the offset bits within the inode table block. The rest
store the 32-bit block group number as well as 15-bit
relative block number within the group, shown in Figure 3. Then, a cluster of contiguous inode table blocks
(ITBC) can be allocated on demand. A bitmap at the
head of the ITBC would be used to keep track of the
free and used inodes, allowing fast inode allocation and
deallocation.
In the case where the filesystem is corrupted, the majority of inode tables could be located by checking the
directory entries. To further address the reliability concern, a magic number could be stored at the head of the
ITBC, to help e2fsck to recognize this metadata block.
Relocating inodes becomes tricky with this blocknumber-in-inode-number proposal. If the filesystem is
resized or defragmented, we may have to change the location of the inode blocks, which would require changing all references to that inode number. The proposal
to address this concern is to have a per-group “inode
exception map” that translates an old block/inode number into a new block number where the relocated inode
structure is actually stored. The map will usually be
empty, unless the inode was moved.
One concern with the 64-bit inode number is the possible inode number collision with 32-bit applications, as
applications might still be using 32-bit stat() to access
inode numbers and could break. Investigation is underway to see how common this case is, and whether most
applications are currently fixed to use the 64-bit stat64().
One way to address this concern is to generate 32-bit
inode numbers on 32-bit platforms. Seventeen bits is
enough to represent block group numbers on 32-bit architectures, and we could limit the inode table blocks
to the first 210 blocks of a block group to construct the
32-bit inode number. This way user applications will be
ensured of getting unique inode numbers on 32-bit platforms. For 32-bit applications running on 64-bit platforms, we hope they are fixed by the time ext4 is in production, and this only starts to be an issue for filesystems
over 1TB in size.
In summary, dynamic inode allocation and 64-bit inode
numbers are needed to support large numbers of files in
ext4. The benefits are obvious, but the changes to the
on-disk format may be intrusive. The design details are
still under discussion.
2.5
Directory scalability
The maximum number of subdirectories contained in a
single directory in ext3 is 32,000. To address directory
scalability, this limit will be eliminated in ext4 providing
unlimited sub-directory support.
In order to better support large directories with many entries, the directory indexing feature[6] will be turned on
by default in ext4. By default in ext3, directory entries
are still stored in a linked list, which is very inefficient
for directories with large numbers of entries. The directory indexing feature addresses this scalability issue
by storing directory entries in a constant depth HTree
data structure, which is a specialized BTree-like structure using 32-bit hashes. The fast lookup time of the
HTree significantly improves performance on large directories. For directories with more than 10,000 files,
improvements were often by a factor of 50 to 100 [3].
2.5.1
Future work
While the HTree implementation allowed the ext2 directory format to be improved from linear to a tree search
compatibly, there are also limitations to this approach.
The HTree implementation has a limit of 510 * 511 4
KB directory leaf blocks (approximately 25M 24-byte
filenames) that can be indexed with a 2-level tree. It
would be possible to change the code to allow a 3-level
HTree. There is also currently a 2 GB file size limit on
directories, because the code for using the high 32-bits
for i_size on directories was not implemented when the
2 GB limit was fixed for regular files.
Because the hashing used to find filenames in indexed
directories is essentially random compared to the linear order in which inodes are allocated, we end up doing random seeks around the disk when accessing many
26 • The new ext4 filesystem: current status and future plans
inodes in a large directory. We need to have readdir
in hash-index order because directory entries might be
moved during the split of a directory leaf block, so to
satisfy POSIX requirements we can only safely walk the
directory in hash order.
To address this problem, there is a proposal to put the
whole inode into the directory instead of just a directory
entry that references a separate inode. This avoids the
need to seek to the inode when doing a readdir, because
the whole inode has been read into memory already in
the readdir step. If the blocks that make up the directory
are efficiently allocated, then reading the directory also
does not require any seeking.
This would also allow dynamic inode allocation, with
the directory as the “container” of the inode table. The
inode numbers would be generated in a similar manner
as previously discussed (Section 2.4), so that the block
that an inode resides in can be located directly from
the inode number itself. Hard linked files imply that
the same block is allocated to multiple directories at the
same time, but this can be reconciled by the link count
in the inode itself.
We also need to store one or more file names in the inode itself, and this can be done by means of an extended
attribute that uses the directory inode number as the EA
name. We can then return the name(s) associated with
that inode for a single directory immediately when doing readdir, and skip any other name(s) for the inode that
belong to hard links in another directory. For efficient
name-to-inode lookup in the directory, we would still
use a secondary tree similar to the current ext3 HTree
(though it would need an entry per name instead of per
directory block). But because the directory entries (the
inodes themselves) do not get moved as the directory
grows, we can just use disk block or directory offset order for readdir.
2.6
Large inode and fast extended attributes
Ext3 supports different inode sizes. The inode size can
be set to any power-of-two larger than 128 bytes size up
to the filesystem block size by using the mke2fs -I [inode
size] option at format time. The default inode structure
size is 128 bytes, which is already crowded with data
and has little space for new fields. In ext4, the default
inode structure size will be 256 bytes.
Ext4 Large Inode
Original
128-bit Inode
i_extra_isize
i_pad1
i_ctime_extra
i_mtime_extra
i_atime_extra
i_crtime
i_crtime_extra
i_version_hi
0
127
Fixed Fields
Fast Extended
Attributes
255
Figure 4: Layout of the large inode
In order to avoid duplicating a lot of code in the kernel
and e2fsck, the large inodes keep the same fixed layout
for the first 128-bytes, as shown in Figure 4. The rest
of the inode is split into two parts: a fixed-field section
that allows addition of fields common to all inodes, such
as nanosecond timestamps (Section 5), and a section for
fast extended attributes (EAs) that consumes the rest of
the inode.
The fixed-field part of the inode is dynamically sized,
based on what fields the current kernel knows about.
The size of this area is stored in each inode in the
i_extra_isize field, which is the first field beyond the
original 128-byte inode. The superblock also contains
two fields, s_min_extra_isize and i_want_extra_isize,
which allow down-level kernels to allocate a larger
i_extra_isize than it would otherwise do.
The s_min_extra_isize is the guaranteed minimum amount of fixed-field space in each inode.
s_want_extra_isize is the desired amount of fixed-field
space for new inode, but there is no guarantee that
this much space will be available in every inode. A
ROCOMPAT feature flag EXTRA_ISIZE indicates
whether these superblock fields are valid. The ext4
code will soon also be able to expand i_extra_isize
dynamically as needed to cover the fixed fields, so
long as there is space available to store the fast EAs or
migrate them to an external EA block.
The remaining large inode space may be used for storing
EA data inside the inode. Since the EAs are already in
memory after the inode is read from disk, this avoids
a costly seek to external EA block. This can greatly
2007 Linux Symposium, Volume Two • 27
improve the performance of applications that are using
EAs, sometimes by a factor of 3–7 [4]. An external EA
block is still available in addition to the fast EA space,
which allows storing up to 4 KB of EAs for each file.
The support for fast EAs in large inodes has been available in Linux kernels since 2.6.12, though it is rarely
used because many people do not know of this capability at mke2fs time. Since ext4 will have larger inodes,
this feature will be enabled by default.
There have also been discussions about breaking the 4
KB EA limit, in order to store larger or more EAs. It is
likely that larger single EAs will be stored in their own
inode (to allow arbitrary-sized EAs) and it may also be
that for many EAs they will be stored in a directory-like
structure, possibly leveraging the same code as regular
ext4 directories and storing small values inline.
3
Block allocation enhancements
Increased filesystem throughput is the premier goal for
all modern filesystems. In order to meet this goal, developers are constantly attempting to reduce filesystem
fragmentation. High fragmentation rates cause greater
disk access time affecting overall throughput, and increased metadata overhead causing less efficient mapping.
There is an array of new features in line for ext4, which
take advantage of the existing extents mapping and are
aimed at reducing filesystem fragmentation by improving block allocation techniques.
3.1
block until it is explicitly initialized through a subsequent write. Preallocation must be persistent across reboots, unlike ext3 and ext4 block reservations [3].
For applications involving purely sequential writes, it is
possible to distinguish between initialized and uninitialized portions of the file. This can be done by maintaining a single high water mark value representing the size
of the initialized portion. However, for databases and
other applications where random writes into the preallocated blocks can occur in any order, this is not sufficient. The filesystem needs to be able to identify ranges
of uninitialized blocks in the middle of the file. Therefore, some extent based filesystems, like XFS, and now
ext4, provide support for marking allocated but uninitialized extents associated with a given file.
Ext4 implements this by using the MSB of the extent
length field to indicate whether a given extent contains
uninitialized data, as shown in Figure 1. During reads,
an uninitialized extent is treated just like a hole, so that
the VFS returns zero-filled blocks. Upon writes, the extent must be split into initialized and uninitialized extents, merging the initialized portion with an adjacent
initialized extent if contiguous.
Until now, XFS, the other Linux filesystem that implements preallocation, provided an ioctl interface to applications. With more filesystems, including ext4, now
providing this feature, a common system-call interface
for fallocate and an associated inode operation have
been introduced. This allows filesystem-specific implementations of preallocation to be exploited by applications using the posix_fallocate API.
Persistent preallocation
3.2
Some applications, like databases and streaming media
servers, benefit from the ability to preallocate blocks for
a file up-front (typically extending the size of the file
in the process), without having to initialize those blocks
with valid data or zeros. Preallocation helps ensure contiguous allocation as far as possible for a file (irrespective of when and in what order data actually gets written) and guaranteed space allocation for writes within
the preallocated size. It is useful when an application
has some foreknowledge of how much space the file will
require. The filesystem internally interprets the preallocated but not yet initialized portions of the file as zerofilled blocks. This avoids exposing stale data for each
Delayed and multiple block allocation
The block allocator in ext3 allocates one block at a time
during the write operation, which is inefficient for larger
I/O. Since block allocation requests are passed through
the VFS layer one at a time, the underlying ext3 filesystem cannot foresee and cluster future requests. This also
increases the possibility of file fragmentation.
Delayed allocation is a well-known technique in which
block allocations are postponed to page flush time,
rather than during the write() operation [3]. This method
provides the opportunity to combine many block allocation requests into a single request, reducing possible
28 • The new ext4 filesystem: current status and future plans
fragmentation and saving CPU cycles. Delayed allocation also avoids unnecessary block allocation for shortlived files.
given attribute, such as SID or a combination of
SID and parent directory. At the deferred pageflush time, dirty pages are written out by groups,
instead of by individual files. The number of nonallocated blocks are tracked at the group-level, and
upon flush time, the allocator can try to preallocate
enough space for the entire group. This space is
shared by the files in the group for their individual
block allocation. In this way, related files are place
tightly together.
Ext4 delayed allocation patches have been implemented, but there is work underway to move this support to the VFS layer, so multiple filesystems can benefit
from the feature.
With delayed allocation support, multiple block allocation for buffered I/O is now possible. An entire extent,
containing multiple contiguous blocks, is allocated at
once rather than one block at a time. This eliminates
multiple calls to ext4_get_blocks and ext4_new_blocks
and reduces CPU utilization.
Ext4 multiple block allocation builds per-block group
free extents information based on the on-disk block
bitmap. It uses this information to guide the search for
free extents to satisfy an allocation request. This free
extent information is generated at filesystem mount time
and stored in memory using a buddy structure.
The performance benefits of delayed allocation alone
are very obvious, and can be seen in Section 7. In a
previous study [3], we have seen about 30% improved
throughput and 50% reduction in CPU usage with the
combined two features. Overall, delayed and multiple block allocation can significantly improve filesystem
performance on large I/O.
There are two other features in progress that are built on
top of delayed and multiple block allocation, trying to
further reduce fragmentation:
In summary, ext4 will have a powerful block allocation
scheme that can efficiently handle large block I/O and
reduce filesystem fragmentation with small files under
multi-threaded workloads.
3.3
Online defragmentation
Though the features discussed in this section improve
block allocation to avoid fragmentation in the first
place, with age, the filesystem can still become quite
fragmented. The ext4 online defragmentation tool,
e4defrag, has been developed to address this. This tool
can defragment individual files or the entire filesystem.
For each file, the tool creates a temporary inode and allocates contiguous extents to the temporary inode using
multiple block allocation. It then copies the original file
data to the page cache and flushes the dirty pages to the
temporary inode’s blocks. Finally, it migrates the block
pointers from the temporary inode to the original inode.
4
Reliability enhancements
• In-core Preallocation: Using the in-core free extents information, a more powerful in-core block
preallocation/reservation can be built. This further
improves block placement and reduces fragmentation with concurrent write workloads. An inode
can have a number of preallocated chunks, indexed
by the logical blocks. This improvement can help
HPC applications when a number of nodes write to
one huge file at very different offsets.
Reliability is very important to ext3 and is one of the
reasons for its vast popularity. In keeping with this
reputation, ext4 developers are putting much effort into
maintaining the reliability of the filesystem. While it is
relatively easy for any filesystem designer to make their
fields 64-bits in size, it is much more difficult to make
such large amounts of space actually usable in the real
world.
• Locality Groups: Currently, allocation policy decisions for individual file are made independently. If
the allocator had knowledge of file relationship, it
could intelligently place related files close together,
greatly benefiting read performance. The locality
groups feature clusters related files together by a
Despite the use of journaling and RAID, there are invariably corruptions to the disk filesystem. The first line of
defense is detecting and avoiding problems proactively
by a combination of robust metadata design, internal redundancy at various levels, and built-in integrity checking using checksums. The fallback will always be doing
2007 Linux Symposium, Volume Two • 29
fsck time vs. Inode Count
integrity checking (fsck) to both detect and correct problems that will happen anyway.
4500
4000
3500
fsck time (sec)
One of the primary concerns with all filesystems is the
speed at which a filesystem can be validated and recovered after corruption. With reasonably high-end RAID
storage, a full fsck of a 2TB ext3 filesystem can take
between 2 to 4 hours for a relatively “clean” filesystem.
This process can degrade sharply to many days if there
are large numbers of shared filesystem blocks that need
expensive extra passes to correct.
3000
ext3: 0 files
ext3 100k files
ext3 2.1M files
ext4 100kfiles
ext4 2.1M files
2500
2000
1500
1000
500
0
Some features, like extents, have already added to the
robustness of the ext4 metadata as previously described.
Many more related changes are either complete, in
progress, or being designed in order to ensure that ext4
will be usable at scales that will become practical in the
future.
4.1
Unused inode count and fast e2fsck
In e2fsck, the checking of inodes in pass 1 is by far the
most time consuming part of the operation. This requires reading all of the large inode tables from disk,
scanning them for valid, invalid, or unused inodes, and
then verifying and updating the block and inode allocation bitmaps. The uninitialized groups and inode table
high watermark feature allows much of the lengthy pass
1 scanning to be safely skipped. This can dramatically
reduce the total time taken by e2fsck by 2 to 20 times,
depending on how full the filesystem is. This feature
can be enabled at mke2fs time or using tune2fs via the
-O uninit_groups option.
With this feature, the kernel stores the number of unused inodes at the end of each block group’s inode table.
As a result, e2fsck can skip both reading these blocks
from disk, and scanning them for in-use inodes. In order to ensure that the unused inode count is safe to use
by e2fsck, the group descriptor has a CRC16 checksum
added to it that allows validation of all fields therein.
Since typical ext3 filesystems use only in the neighborhood of 1% to 10% of their inodes, and the inode allocation policy keeps a majority of those inodes at the start
of the inode table, this can avoid processing a large majority of the inodes and speed up the pass 1 processing.
The kernel does not currently increase the unused inodes
count, when files are deleted. This counter is updated on
every e2fsck run, so in the case where a block group had
0
0.5
10
15
20
25
30
35
Total Inode Count (millions)
Figure 5: e2fsck performance improvement with uninitialized block groups
many inodes deleted, e2fsck will be more efficient in the
next run.
Figure 5 shows that e2fsck time on ext3 grows linearly
with the total number of inodes in filesystem, regardless
of how many are used. On ext3, e2fsck takes the same
amount of time with zero used files as with 2.1 million
used files. In ext4, with the unused inode high watermark feature, the e2fsck time is only dependent on the
number of used inodes. As we can see, fsck of an ext4
filesystem with 100 000 used files takes a fraction of the
time ext3 takes.
In addition to the unused inodes count, it is possible
for mke2fs and e2fsck to mark a group’s block or inode bitmap as uninitialized, so that the kernel does not
need to read them from disk when first allocating from
the group. Similarly, e2fsck does not need to read these
bitmaps from disk, though this does not play a major
role in performance improvements. What is more significant is that mke2fs will not write out the bitmaps or
inode tables at format time if the mke2fs -O lazy_bg feature is given. Writing out the inode tables can take a
significant amount of time, and has been known to cause
problems for large filesystems due to the amount of dirty
pages this generates in a short time.
4.2
Checksumming
Adding metadata checksumming into ext4 will allow it
to more easily detect corruption, and behave appropriately instead of blindly trusting the data it gets from
30 • The new ext4 filesystem: current status and future plans
disk. The group descriptors already have a checksum
added, per the previous section. The next immediate target for checksumming is the journal, because it has such
a high density of important metadata and is constantly
being written to, so has a higher chance of wearing out
the platters or seeing other random corruption.
the metadata to the checksummed journal and still be
confident that it is valid and correct at recovery time.
The blocks can have metadata-specific checksums computed a single time when they are written into the
filesystem.
Adding checksumming to the ext4 journal is nearly
complete [7]. In ext3 and ext4, each journal transaction has a header block and commit block. During normal journal operation the commit block is not sent to
the disk until the transaction header and all metadata
blocks which make up that transaction have been written to disk [8]. The next transaction needs to wait for the
previous commit block to hit to disk before it can start
to modify the filesystem.
5
With this two-phase commit, if the commit block has the
same transaction number as the header block, it should
indicate that the transaction can be replayed at recovery
time. If they don’t match, the journal recovery is ended.
However, there are several scenarios where this can go
wrong and lead to filesystem corruption.
With journal checksumming, the journal code computes
a CRC32 over all of the blocks in the transaction (including the header), and the checksum is written to the
commit block of the transaction. If the checksum does
not match at journal recovery time, it indicates that one
or more metadata blocks in the transaction are corrupted
or were not written to disk. Then the transaction (along
with later ones) is discarded as if the computer had
crashed slightly earlier and not written a commit block
at all.
Since the journal checksum in the commit block allows
detection of blocks that were not written into the journal,
as an added bonus there is no longer a need for having
a two-phase commit for each transaction. The commit
block can be written at the same time as the rest of the
blocks in the transaction. This can actually speed up the
filesystem operation noticeably (as much as 20% [7]),
instead of the journal checksum being an overhead.
There are also some long-term plans to add checksumming to the extent tail, the allocation bitmaps, the
inodes, and possibly also directories. This can be
done efficiently once we have journal checksumming in
place. Rather than computing the checksum of filesystem metadata each time it is changed (which has high
overhead for often-modified structures), we can write
Other new features
New features are continuously being added to ext4. Two
features expected to be seen in ext4 are nanosecond
timestamps and inode versioning. These two features
provide precision when dealing with file access times
and tracking changes to files.
Ext3 has second resolution timestamps, but with today’s
high-speed processors, this is not sufficient to record
multiple changes to a file within a second. In ext4, since
we use a larger inode, there is room to support nanosecond resolution timestamps. High 32-bit fields for the
atime, mtime and ctime timestamps, and also a new crtime timestamp documenting file creation time, will be
added to the ext4 inode (Figure 4). 30 bits are sufficient
to represent the nanosecond field, and the remaining 2
bits are used to extend the epoch by 272 years.
The NFSv4 clients need the ability to detect updates to
a file made at the server end, in order to keep the client
side cache up to date. Even with nanosecond support
for ctime, the timestamp is not necessarily updated at
the nanosecond level. The ext4 inode versioning feature
addresses this issue by providing a global 64-bit counter
in each inode. This counter is incremented whenever the
file is changed. By comparing values of the counter, one
can see whether the file has been updated. The counter is
reset on file creation, and overflows are unimportant, because only equality is being tested. The i_version field
already present in the 128-bit inode is used for the low
32 bits, and a high 32-bit field is added to the large ext4
inode.
6
Migration tool
Ext3 developers worked to maintain backwards compatibility between ext2 and ext3, a characteristic users appreciate and depend on. While ext4 attempts to retain
compatibility with ext3 as much as possible, some of
the incompatible on-disk layout changes are unavoidable. Even with these changes, users can still easily
upgrade their ext3 filesystem to ext4, like it is possible
2007 Linux Symposium, Volume Two • 31
from ext2 to ex3. There are methods available for users
to try new ext4 features immediately, or migrate their
entire filesystem to ext4 without requiring back-up and
restore.
6.1
Upgrading from ext3 to ext4
There is a simple upgrade solution for ext3 users to start
using extents and some ext4 features without requiring a
full backup or migration. By mounting an existing ext3
filesystem as ext4 (with extents enabled), any new files
are created using extents, while old files are still indirect block mapped and interpreted as such. A flag in the
inode differentiates between the two formats, allowing
both to coexist in one ext4 filesystem. All new ext4 features based on extents, such as preallocation and multiple block allocation, are available to the new extents
files immediately.
A tool will also be available to perform a system-wide
filesystem migration from ext3 to ext4. This migration
tool performs two functions: migrating from indirect to
extents mapping, and enlarging the inode to 256 bytes.
• Extents migration: The first step can be performed
online and uses the defragmentation tool. During
the defragmentation process, files are changed to
extents mapping. In this way, the files are being
converted to extents and defragmented at the same
time.
• Inode migration: Enlarging the inode structure size
must be done offline. In this case, data is backed
up, and the entire filesystem is scanned and converted to extents mapping and large inodes.
For users who are not yet ready to move to ext4, but
may want to in the future, it is possible to prepare their
ext3 filesystem to avoid offline migration later. If an
ext3 filesystem is formatted with a larger inode structure, 256 bytes or more, the fast extended attribute feature (Section 2.6) which is the default in ext4, can be
used instantly. When the user later wants to upgrade
to ext4, then other ext4 features using the larger inode
size, such as nanosecond timestamps, can also be used
without requiring any offline migration.
6.2
Downgrading from ext4 to ext3
Though not as straightforward as ext3 to ext4, there is
a path for any user who may want to downgrade from
ext4 back to ext3. In this case the user would remount
the filesystem with the noextents mount option, copy
all files to temporary files and rename those files over
the original file. After all files have been converted
back to indirect block mapping format, the INCOMPAT_EXTENTS flag must be cleared using tune2fs, and
the filesystem can be re-mounted as ext3.
7
Performance evaluation
We have conducted a performance evaluation of ext4, as
compared to ext3 and XFS, on three well-known filesystem benchmarks. Ext4 was tested with extents and delayed allocation enabled. The benchmarks in this analysis were chosen to show the impact of new changes
in ext4. The three benchmarks chosen were: Flexible
Filesystem Benchmark (FFSB) [1], Postmark [5], and
IOzone [2]. FFSB, configured with a large file workload, was used to test the extents feature in ext4. Postmark was chosen to see performance of ext4 on small
file workloads. Finally, we used IOzone to evaluate
overall ext4 filesystem performance.
The tests were all run on the 2.6.21-rc4 kernel with delayed allocation patches. For ext3 and ext4 tests, the
filesystem was mounted in writeback mode, and appropriate extents and delayed allocation mount options
were set for ext4. Default mount options were used for
XFS testing.
FFSB and IOzone benchmarks were run on the same
4-CPU 2.8 Ghz Intel(R) Xeon(tm) System with 2 GB
of RAM, on a 68GB ultra320 SCSI disk (10000 rpm).
Postmark was run on a 4-CPU 700 MHz Pentium(R) III
system with 4 GB of RAM on a 9 GB SCSI disk (7200
rpm). Full test results including raw data are available
at the ext4 wiki page, http://ext4.wiki.kernel.
org.
7.1
FFSB comparison
FFSB is a powerful filesystem benchmarking tool, that
can be tuned to simulate very specific workloads. We
have tested multithreaded creation of large files. The test
32 • The new ext4 filesystem: current status and future plans
!"#
!"#!$"%&'()*
Figure 8: IOzone results: throughput of transactions on
512 MB files
Figure 6: FFSB sequential write comparison
These results show that, aside from the obvious performance gain on large contiguous files, ext4 is also a good
choice on smaller file workloads.
!"#$%&
7.3
IOzone comparison
Figure 7: Postmark read write comparison
runs 4 threads, which combined create 24 1-GB files,
and stress the sequential write operation.
The results, shown in Figure 6, indicate about 35% improvement in throughput and 40% decrease in CPU utilization in ext4 as compared to ext3. This performance
improvement shows a diminishing gap between ext4 and
XFS on sequential writes. As expected, the results verify extents and delayed allocation improve performance
on large contiguous file creation.
7.2
Postmark comparison
Postmark is a well-known benchmark simulating a mail
server performing many single-threaded transactions on
small to medium files. The graph in Figure 7 shows
about 30% throughput gain with with ext4. Similar percent improvements in CPU utilization are seen, because
metadata is much more compact with extents. The write
throughput is higher than read throughput because everything is being written to memory.
For the IOzone benchmark testing, the system was
booted with only 64 M of memory to really stress disk
I/O. The tests were performed with 8 MB record sizes on
various file sizes. Write, rewrite, read, reread, random
write, and random read operations were tested. Figure 8
shows throughput results for 512 MB sized files. Overall, there is great improvement between ext3 and ext4,
especially on rewrite, random-write and reread operations. In this test, XFS still has better read performance,
while ext4 has shown higher throughput on write operations.
8
Conclusion
As we have discussed, the new ext4 filesystem brings
many new features and enhancements to ext3, making it
a good choice for a variety of workloads. A tremendous
amount of work has gone into bringing ext4 to Linux,
with a busy roadmap ahead to finalize ext4 for production use. What was once essentially a simple filesystem
has become an enterprise-ready solution, with a good
balance of scalability, reliability, performance and stability. Soon, the ext3 user community will have the option to upgrade their filesystem and take advantage of
the newest generation of the ext family.
2007 Linux Symposium, Volume Two • 33
Acknowledgements
The authors would like to extend their thanks to JeanNoël Cordenner and Valérie Clément, for their help on
performance testing and analysis, and development and
support of ext4.
We would also like to give special thanks to Andrew
Morton for supporting ext4, and helping to bring ext4 to
mainline Linux. We also owe thanks to all ext4 developers who work hard to make the filesystem better, especially: Ted T’so, Stephen Tweedie, Badari Pulavarty,
Dave Kleikamp, Eric Sandeen, Amit Arora, Aneesh
Veetil, and Takashi Sato.
Finally thank you to all ext3 users who have put their
faith in the filesystem, and inspire us to strive to make
ext4 better.
Legal Statement
c 2007 IBM.
Copyright This work represents the view of the authors and does not
necessarily represent the view of IBM.
IBM and the IBM logo are trademarks or registered trademarks of International Business Machines Corporation in the
United States and/or other countries.
Lustre is a trademark of Cluster File Systems, Inc.
Linux is a registered trademark of Linus Torvalds in the
United States, other countries, or both.
Other company, product, and service names may be trademarks or service marks of others.
References in this publication to IBM products or services
do not imply that IBM intends to make them available in all
countries in which IBM operates.
This document is provided “AS IS,” with no express or implied warranties. Use the information in this document at
your own risk.
References
[1] Ffsb project on sourceforge. Technical report.
http://sourceforge.net/projects/ffsb.
[2] Iozone. Technical report. http://www.iozone.org.
[3] Mingming Cao, Theodore Y. Ts’o, Badari
Pulavarty, Suparna Bhattacharya, Andreas Dilger,
and Alex Tomas. State of the art: Where we are
with the ext3 filesystem. In Ottawa Linux
Symposium, 2005.
[4] Jonathan Corbet. Which filesystem for samba4?
Technical report.
http://lwn.net/Articles/112566/.
[5] Jeffrey Katcher. Postmark a new filesystem
benchmark. Technical report, Network Appliances,
2002.
[6] Daniel Phillips. A directory index for ext2. In 5th
Annual Linux Showcase and Conference, pages
173–182, 2001.
[7] Vijayan Prabhakaran, Lakshmi N.
Bairavasundaram, Nitin Agrawal, Haryadi S.
Gunawi, Andrea C. Arpaci-Dusseau, and Remzi
H. Arpaci Dusseau. Iron file systems. In SOSP’05,
pages 206–220, 2005.
[8] Stephen Tweedie. Ext3 journalling filesystem. In
Ottawa Linux Symposium, 2000.
[9] Stephen Tweedie and Theodore Y Ts’o. Planned
extensions to the linux ext2/3 filesystem. In
USENIX Annual Technical Conference, pages
235–244, 2002.
34 • The new ext4 filesystem: current status and future plans
The 7 dwarves: debugging information beyond gdb
Arnaldo Carvalho de Melo
Red Hat, Inc.
[email protected]
[email protected]
Abstract
• To find out possibilities for reduction of such data
structures;
The DWARF debugging information format has been so
far used in debuggers such as gdb, and more recently in
tools such as systemtap and frysk.
• Use of information about function parameters and
return types to generate Linux kernel modules for
obtaining data needed for generation of callgraphs
and values set to fields at runtime;
In this paper the author will show additional scenarios
where such information can be useful, such as:
• A tool that given two object files shows a binary
diff to help understanding the effects of source
code changes on size of functions and data structures.
• Showing the layout of data structures;
• Reorganizing such data structures to remove alignment holes;
Some use cases will be presented, showing how the tools
can be used to solve real world problems.
• Improving CPU cache utilization;
• Displaying statistics about inlining of functions;
• Re-creating structs and functions from the debugging information;
• Showing binary diffs to help understand the effects
of any code change.
And much more.
1
Ideas discussed with some fellow developers but not yet
tried will also be presented, with the intent of hopefully
having them finally tested in practice by interested readers.
2
DWARF Debugging Format
DWARF [3] is a debugging file format used by many
compilers to store information about data structures,
variables, functions and other language aspects needed
by high level debuggers.
Introduction
This paper talks about new ways to use the DWARF debugging information inserted into binaries by compilers
such as gcc.
The author developed several tools that allow:
• Extracting useful information about data structures
layout;
• Finding holes and padding inserted by the compiler
to follow alignment constraints in processor architectures;
It has had three major revisions, with the second being
incompatible with the first, the third is an expansion of
the second, adding support for more C++ concepts, providing ways to eliminate data duplication, support for
debugging data in shared libraries and in files larger than
4 GB.
The DWARF debugging information is organized in
several ELF sections in object files, some of which will
be mentioned here. Please refer to the DWARF [3] specification for a complete list. Recent developments in
tools such as elfutils [2] allow for separate files with the
• 35 •
36 • The 7 dwarves: debugging information beyond gdb
debugging information, but the common case is for the
information to be packaged together with the respective
object file.
Debugging data is organized in tags with attributes.
Tags can be nested to represent, for instance, variables
inside lexical blocks, parameters for a function and other
hierarchical concepts.
As an example let us look at how the ubiquitous hello
world example is represented in the “.debug_info” section, the one section that is most relevant to the subject
of this paper:
$ cat hello.c
int main(void)
{
printf("hello, world!\n");
}
Using gcc with the -g flag to insert the debugging information:
$ gcc −g hello.c −o hello
Now let us see the output, slightly edited for brevity,
from eu-readelf, a tool present in the elfutils package:
$ eu−readelf −winfo hello
DWARF section ‚.debug_info‚ at offset
0x6b3:
[Offset]
Compilation unit at offset 0:
Version: 2, Abbrev section offset: 0,
Addr size: 4, Offset size: 4
[b] compile_unit
stmt_list
0
high_pc
0x0804837a
low_pc
0x08048354
producer
"GNU C 4.1.1"
language
ISO C89 (1)
name
"hello.c"
comp_dir
"~/examples"
[68] subprogram
external
name
"main"
decl_file 1
decl_line 2
prototyped
type
[82]
low_pc
0x08048354
high_pc
0x0804837a
frame_base location list [0]
[82] base_type
name
byte_size
encoding
"int"
4
signed (5)
Entries starting with [number] are the DWARF tags that
are represented in the tool’s source code as DW_TAG_
tag_name. In the above output we can see some: DW_
TAG_compile_unit, with information about the
object file being analyzed, DW_TAG_subprogram,
emitted for each function, such as “main” and DW_
TAG_base_type, emitted for the language basic
types, such as int.
Each tag has a number of attributes, represented in
source code as DW_AT_attribute_name. In the
DW_TAG_subprogram for the “main” function we
have some: DW_AT_name (“main”), DW_AT_decl_
file, that is an index into another DWARF section
with the names for the source code files, DW_AT_
decl_line, the line in the source code where this
function was defined, DW_AT_type, the return type
for the “main” routine. Its value is a tag index, that in
this case refers to the [82] tag, which is the DW_TAG_
base_type for “int,” and also the address of this function, DW_AT_low_pc.
The following example exposes some additional
DWARF tags and attributes used in the seven dwarves.
The following struct:
struct swiss_cheese {
char a;
int b;
};
is represented as:
[68] structure_type
name
"swiss_cheese"
byte_size
8
[7d] member
name
"a"
type
[96]
data_member_location 0
[89] member
name
"b"
type
[9e]
data_member_location 4
[96] base_type
name
"char"
byte_size
1
2007 Linux Symposium, Volume Two • 37
[9e] base_type
name
byte_size
"int"
4
In addition to the tags already described we have now
DW_TAG_structure_type to start the representation of a struct, that has the DW_AT_byte_size
attribute stating how many bytes the struct takes (8
bytes in this case). There is also another tag, DW_
TAG_member, that represents each struct member. It
has the DW_AT_byte_size and the DW_AT_data_
member_location attribute, the offset of this member in the struct. There are more attributes, but for
brevity and for the purposes of this paper, the above are
enough to describe.
3
The 7 dwarves
The seven dwarves are tools that use the DWARF
debugging information to examine data struct layout
(pahole), examine executable code characteristics
(pfunct), compare executables (codiff), trace execution of functions associated with a struct (ctracer),
pretty-print DWARF information (pdwtags), list
global symbols (pglobal), and count the number of
times each set of tags is used (prefcnt).
Some are very simple and still require work, while others, such as pahole and pfunct, are already being
helpful in open source projects such as the Linux kernel,
xine-lib and perfmon2. One possible use is to prettyprint DWARF information accidentally left in binaryonly kernel modules released publicly.
All of these tools use a library called libdwarves,
that is packaged with the tools and uses the DWARF
libraries found in elfutils [2]. By using elfutils, many of
its features such as relocation, reading of object files for
many architectures, use of separate files with debugging
information, etc, were leveraged, allowing the author to
concentrate on the features that will be presented in the
next sections.
Unless otherwise stated, the examples in the following
sections use a Linux kernel image built for the x86-64
architecture from recent source code.1
The Linux kernel configuration option CONFIG_
DEBUG_INFO has to be selected to instruct the compiler
1 circa
2.6.21-rc5.
to insert the DWARF information. This will make the
image much bigger, but poses no performance impact on
the resulting binary, just like when building user space
programs with debug information.
3.1
pahole
Poke-a-hole, the first dwarf, is used to find alignment
holes in structs. It is the most advanced of all the tools
in this project so far.
Architectures have alignment constraints, requiring data
types to be aligned in memory in multiples of their
word-size. While compilers do automatically align data
structures, careful planning by the developer is essential
to minimize the paddings (“holes”) required for correct
alignment of the data structures members.
An example of a bad struct layout is in demand to better
illustrate this situation:
struct cheese {
char name[17];
short age;
char type;
int
calories;
short price;
int
barcode[4];
};
Adding up the sizes of the members one could expect
that the size of struct cheese to be 17 + 2 + 1 + 4 + 2 +
16 = 42 bytes. But due to alignment constraints the real
size ends up being 48 bytes.
Using pahole to pretty-print the DWARF tags will
show where the 6 extra bytes are:
/∗ <11b> ∼/examples/swiss_cheese.c:3 ∗ /
struct cheese {
char name[17];
/∗ 0 17 ∗ /
/∗ XXX 1 byte hole, try to pack ∗ /
short age;
char type;
/∗ 18
/∗ 20
2 ∗/
1 ∗/
/∗ XXX 3 bytes hole, try to pack ∗ /
int
calories;
short price;
/∗ 24
/∗ 28
4 ∗/
2 ∗/
38 • The 7 dwarves: debugging information beyond gdb
/∗ XXX 2 bytes hole, try to pack ∗ /
int
}; /∗
/∗
/∗
/∗
barcode[4]; /∗ 32 16 ∗ /
size: 48, cachelines: 1 ∗ /
sum members: 42, holes: 3 ∗ /
sum holes: 6 ∗ /
last cacheline: 48 bytes ∗ /
This shows that in this architecture the alignment rule
state that short has to be aligned at a multiple of 2
offset from the start of the struct, and int has to be
aligned at a multiple of 4, the size of the word-size on
the example architecture.
Another alignment rule aspect is that a perfectly arranged struct on a 32-bit architecture such as:
$ pahole long
/∗ <67> ∼/examples/long.c:1 ∗ /
struct foo {
int a;
/∗ 0 4 ∗ /
void ∗b;
/∗ 4 4 ∗ /
char c[4]; /∗ 8 4 ∗ /
long g;
/∗ 12 4 ∗ /
}; /∗ size: 16, cachelines: 1 ∗ /
/∗ last cacheline: 16 bytes ∗ /
has holes when built on an architecture with a different
word-size:
$ pahole long
/∗ <6f> ∼/examples/long.c:1 ∗ /
struct foo {
int
a;
/∗ 0 4 ∗ /
/∗ XXX 4 bytes hole, try to pack ∗ /
void ∗b;
/∗ 8 8 ∗ /
char c[4]; /∗ 16 4 ∗ /
/∗ XXX 4 bytes hole, try to pack ∗ /
long g;
/∗ 24 8 ∗ /
}; /∗ size: 32, cachelines: 1 ∗ /
/∗ sum members: 24, holes: 2 ∗ /
/∗ sum holes: 8 ∗ /
/∗ last cacheline: 32 bytes ∗ /
This is because on x86-64 the size of pointers and long
integers is 8 bytes, with the alignment rules requiring
these basic types to be aligned at multiples of 8 bytes
from the start of the struct.
To help in these cases, pahole provides the
--reorganize option, where it will reorganize the
struct trying to achieve optimum placement regarding
memory consumption, while following the alignment
rules.
Running it on the x86-64 platform we get:
$ pahole −−reorganize −C foo long
struct foo {
int a;
/∗ 0 4 ∗ /
char c[4]; /∗ 4 4 ∗ /
void ∗b;
/∗ 8 8 ∗ /
long g;
/∗ 16 8 ∗ /
}; /∗ size: 24, cachelines: 1 ∗ /
/∗ last cacheline: 24 bytes ∗ /
/∗ saved 8 bytes! ∗ /
There is another option, --show_reorg_steps that
sheds light on what was done:
$ pahole −−show_reorg_steps
−−reorganize −C foo long
/∗ Moving ’c’ from after ’b’ to after ’a’ ∗ /
struct foo {
int a;
/∗ 0 4 ∗ /
char c[4]; /∗ 4 4 ∗ /
void ∗b;
/∗ 8 8 ∗ /
long g;
/∗ 16 8 ∗ /
}; /∗ size: 24, cachelines: 1 ∗ /
/∗ last cacheline: 24 bytes ∗ /
While in this case there was just one step done, using this option in more complex structs can involve
many steps, that would have been shown to help understanding the changes performed. Other steps in the
--reorganize algorithm includes:
• Combining separate bit fields
• Demoting bit fields to a smaller basic type when the
type being used has more bits than required by the
members in the bit field (e.g. int a:1, b:2;
being demoted to char a:1, b:2;)
• Moving members from the end of the struct to fill
holes
• Combining the padding at the end of a struct with
a hole
2007 Linux Symposium, Volume Two • 39
Several modes to summarize information about all the
structs in object files were also implemented. They will
be presented in the following examples.
The top ten structs by size are:
$ pahole −−sizes vmlinux | sort −k2 −nr
| head
hid_parser: 65784 0
hid_local: 65552 0
kernel_stat: 33728 0
module: 16960 8
proto: 16640 2
pglist_data: 14272 2
avc_cache: 10256 0
inflate_state: 9544 0
ext2_sb_info: 8448 2
tss_struct: 8320 0
The second number represents the number of alignment
holes in the structs.
Yes, some are quite big and even the author got impressed with the size of the first few ones, which is one
of the common ways of using this tool to find areas that
could get some help in reducing data structure sizes. So
the next step would be to pretty-print this specific struct,
hid_local:
$ pahole −C hid_local vmlinux
/∗ <175c261>
∼/net-2.6.22/include/linux/hid.h:300 ∗ /
struct hid_local {
uint usage[8192];
// 0 32768
// cacheline 512 boundary (32768 bytes)
uint cindex[8192];
// 32768 32768
// cacheline 1024 boundary (65536 bytes)
uint usage_index;
// 65536 4
uint usage_minimum;
// 65540 4
uint delimiter_depth; // 65544 4
uint delimiter_branch;// 65548 4
}; /∗ size: 65552, cachelines: 1025 ∗ /
/∗ last cacheline: 16 bytes ∗ /
So, this is indeed something to be investigated, not a bug
in pahole.
$ pahole −−sizes vmlinux | sort −k3 −nr
| head
net_device: 1664 14
vc_data: 432 11
tty_struct: 1312 10
task_struct: 1856 10
request_queue: 1496 8
module: 16960 8
mddev_s: 672 8
usbhid_device: 6400 6
device: 680 6
zone: 2752 5
There are lots of opportunities to use --reorganize
results, but in some cases this is not true because the
holes are due to member alignment constraints specified
by the programmers.
Alignment hints are needed, for example, when a set of
fields in a structure are “read mostly,” while others are
regularly written to. So, to make it more likely that the
“read mostly” cachelines are not invalidated by writes in
SMP machines, attributes are used on the struct members instructing the compiler to align some members at
cacheline boundaries.
Here is one example, in the Linux kernel, of an alignment hint on the struct net_device, that appeared on
the above output:
/∗
∗ Cache line mostly used on receive
∗ path (including eth_type_trans())
∗/
struct list_head poll_list
____cacheline_aligned_in_smp;
If we look at the excerpt in the pahole output for this
struct where poll_list is located we will see one of
the holes:
/∗ cacheline 4 boundary
void ∗dn_ptr;
/∗
void ∗ip6_ptr;
/∗
void ∗ec_ptr;
/∗
void ∗ax25_ptr; /∗
(256 bytes) ∗ /
256 8 ∗ /
264 8 ∗ /
272 8 ∗ /
280 8 ∗ /
/∗ XXX 32 bytes hole, try to pack ∗ /
As mentioned, the second column is the number of
alignment holes. Sorting by this column provides another picture of the project being analyzed that could
help finding areas for further work:
/∗ cacheline 5 boundary (320 bytes) ∗ /
struct list_head poll_list;
/∗ 320 16 ∗ /
40 • The 7 dwarves: debugging information beyond gdb
These kinds of annotations are not represented in the
DWARF information, so the current --reorganize
algorithm can not be precise. One idea is to use the
DWARF tags with the file and line location of each
member to parse the source code looking for alignment
annotation patterns, but this has not been tried.
Having stated the previous possible inaccuracies in the
--reorganize algorithm, it is still interesting to use
it in all the structs in an object file to present a list of
structs where the algorithm was successful in finding a
new layout that saves bytes.
Using the above kernel image the author found 165
structs where holes can be combined to save some bytes.
The biggest savings found are:
$ pahole −−packable vmlinux | sort −k4
−nr | head
vc_data
432
176 256
net_device
1664 1448 216
module
16960 16848 112
hh_cache
192
80 112
zone
2752 2672 80
softnet_data
1792 1728 64
rcu_ctrlblk
128
64 64
inet_hashinfo
384
320 64
entropy_store
128
64 64
task_struct
1856 1800 56
The columns are: struct name, current size, reorganized size and bytes saved. In the above list of structs
only a few clearly, from source code inspection, do not
have any explicit alignment constraint. Further analysis is required to verify if the explicit constraints are
still needed after the evolution of the subsystems that
use such structs, if the holes are really needed to isolate
groups of members or could be reused.
struct sock {
int protocol;
struct spinlock lock;
};
struct inet_sock {
struct sock sk;
long
daddr;
};
struct tcp_sock {
struct inet_sock inet;
long cwnd;
long ssthresh;
};
the --expand option, applied to the tcp_sock
struct, produces:
struct tcp_sock {
struct inet_sock {
struct sock {
int
protocol;
struct spinlock
int magic;
int counter;
} lock;
} sk;
long
daddr;
} inet;
long
cwnd;
long
ssthresh;
}; /∗ size: 24 ∗ /
0 4 ∗/
4 4 ∗/
8 4 ∗/
4 8 ∗/
0 12 ∗ /
12 4 ∗ /
0 16 ∗ /
16 4 ∗ /
20 4 ∗ /
The offsets are relative to the start of the top level struct
(tcp_sock in the above example).
3.2
The --expand option is useful in analyzing crash
dumps, where the available clue was an offset from a
complex struct, requiring tedious manual calculation to
find out exactly what was the field involved. It works by
“unfolding” structs, as will be shown in the following
example.
/∗
{
/∗
/∗
/∗
/∗
/∗
/∗
/∗
/∗
pfunct
While pahole specializes on data structures, pfunct
concentrates on aspects of functions, such as:
• number of goto labels
In a program with the following structs:
• function name length
struct spinlock {
int magic;
int counter;
};
• number of parameters
• size of functions
• number of variables
2007 Linux Symposium, Volume Two • 41
• size of inline expansions
It also has filters to show functions that meet several criteria, including:
• functions that have as parameters pointers to a
struct
• external functions
• declared inline, un-inlined by compiler
• not declared inline, inlined by compiler
Also, a set of statistics is available, such as the number
of times an inline function was expanded and the sum
of these expansions, to help finding candidates for uninlining, thus reducing the size of the binary.
$ pfunct −−cc_inlined vmlinux | tail
do_initcalls
do_basic_setup
smp_init
do_pre_smp_initcalls
check_bugs
setup_command_line
boot_cpu_init
obsolete_checksetup
copy_bootdata
clear_bss
For completeness, the number of inlined functions was
2526.
3.3
The top ten functions by size:
$ pfunct −−sizes vmlinux | sort −k2 −nr
| head
hidinput_connect: 9910
load_elf32_binary: 6793
load_elf_binary: 6489
tcp_ack: 6081
sys_init_module: 6075
do_con_write: 5972
zlib_inflate: 5852
vt_ioctl: 5587
copy_process: 5169
usbdev_ioctl: 4934
One of the attributes of the DW_AT_subprogram
DWARF tag, that represents functions, is DW_AT_
inline, which can have one of the following values:
• DW_INL_not_inlined – Neither declared inline nor inlined by the compiler
• DW_INL_inlined – Not declared inline but inlined by the compiler
• DW_INL_declared_not_inlined –
clared inline but not inlined by the compiler
The --cc_inlined and --cc_uninlined options in
pfunct use this information. Here are some examples
of functions that were not explicitly marked as inline by
the programmers but were inlined by gcc:
codiff
An object file diff tool, codiff, takes two versions of a
binary, loads from both files the debugging information,
compares them and shows the differences in structs and
functions, producing output similar to the well known
diff tool.
Consider a program that has a print_tag function,
handling the following struct:
struct
int
int
char
};
tag {
type;
decl_file;
∗decl_line;
and in a newer version the struct was changed to this
new layout, while the print_tag function remained
unchanged:
struct
char
int
char
int
};
tag {
type;
decl_file;
∗decl_line;
refcnt;
De-
• DW_INL_declared_inlined – Declared inline and inlined by the compiler
The output produced by codiff would be:
$ codiff tag−v1 tag−v2
tag.c:
42 • The 7 dwarves: debugging information beyond gdb
struct tag |
3.4
+4
ctracer
1 struct changed
print_tag
|
+4
1 function changed, 4 bytes added
It is similar to the diff tool, showing how many bytes
were added to the modified struct and the effect of this
change in a routine that handles instances of this struct.
The --verbose option tells us the details:
$ codiff −V tag−v1 tag−v2
tag.c:
struct tag |
+4
nr_members: +1
/∗ 12 4 ∗ /
+int refcnt
type
from: int
/∗
0 4 ∗/
to:
/∗
0 1 ∗/
char
1 struct changed
print_tag
|
+4 # 29 → 33
1 function changed, 4 bytes added
The extra information on modified structs includes:
• Number of members added and/or removed
• List of new and/or removed members
A class tracer, ctracer is an experiment in creating
valid source code from the DWARF information.
For ctracer a method is any function that receives as
one of its parameters a pointer to a specified struct. It
looks for all such methods and generates kprobes entry and exit functions. At these probe points it collects
information about the data structure internal state, saving the values in its members in that point in time, and
records it in a relay buffer. The data is later collected
in userspace and post-processed, generating html + CSS
callgraphs.
One of the techniques used in ctracer involves creating subsets of data structures based on some criteria,
such as member name or type. This tool so far just filters out any non-integer type members and applies the
--reorganize code2 on the resulting mini struct to
possibly reduce the memory space needed for relaying
this information to userspace.
One idea that probably will be pursued is to generate
SystemTap [1] scripts instead of C language source files
using kprobes, taking advantage of the infrastructure
and safety guards in place in SystemTap.
3.5
pdwtags
A simple tool, pdwtags is used to pretty-print DWARF
tags for data structures (struct, union), enumerations and
functions, in a object file. It is useful as an example of
how to use libdwarves.
• Offset of members from start of struct
Here is an example on the hello world program:
• Type and size of members
$ pdwtags hello
/∗ <68> /home/acme/examples/hello.c:2 ∗ /
int main(void)
{
}
• Members that had their type changed
And for functions:
• Size difference
• Previous size -> New size
• Names of new and/or removed functions
This shows the “main” DW_TAG_subprogram tag, with
its return type.
In the previous sections other examples of DWARF tag
formatting were presented, and also tags for variables,
function parameters, goto labels, would also appear if
pdwtags was used on the same object file.
2 Discussed
in the pahole section.
2007 Linux Symposium, Volume Two • 43
3.6
pglobal
pglobal is an experimentation to print global variables and functions, written by a contributor, Davi Arnault.
This example:
$ cat global.c
int variable = 2;
int main(void)
{
printf("variable=%d\n",
variable);
}
would present this output with pglobal:
$ pglobal −ve hello
/∗ <89> /home/acme/examples/global.c:1 ∗ /
int variable;
which shows a list of global variables with their types,
source code file, and line where they were defined.
3.7
prefcnt
prefcnt is an attempt to do reference counting on
tags, trying to find some that are not referenced anywhere and could be removed from the source files.
4
Availability
The tools are maintained in a git repository that can
be browsed at http://git.kernel.org/?p=
linux/kernel/git/acme/pahole.git, and
rpm packages for several architectures are available at http://oops.ghostprotocols.net:
81/acme/dwarves/rpm/.
Acknowledgments
The author would like to thank Davi Arnault for pglobal,
proving that libdwarves was not so horrible for a tool
writer; all the people who contributed patches, suggestions, and encouragement on writing these tools;
and Ademar Reis, Aristeu Rozanski, Claudio Matsuoka, Glauber Costa, Eduardo Habkost, Eugene Teo,
Leonardo Chiquitto, Randy Dunlap, Thiago Santos, and
William Cohen for reviewing and suggesting improvements for several drafts of this paper.
References
[1] Systemtap.
http://sourceware.org/systemtap.
[2] Ulrich Drepper. elfutils home page.
http://people.redhat.com/drepper.
[3] DWARF Debugging Information Format
Workgroup. Dwarf debugging information format,
December 2005. http://dwarfstd.org.
44 • The 7 dwarves: debugging information beyond gdb
Adding Generic Process Containers to the Linux Kernel
Paul B. Menage∗
Google, Inc.
[email protected]
Abstract
While Linux provides copious monitoring and control
options for individual processes, it has less support
for applying the same operations efficiently to related
groups of processes. This has led to multiple proposals
for subtly different mechanisms for process aggregation
for resource control and isolation. Even though some of
these efforts could conceptually operate well together,
merging each of them in their current states would lead
to duplication in core kernel data structures/routines.
The Containers framework, based on the existing
cpusets mechanism, provides the generic process grouping features required by the various different resource
controllers and other process-affecting subsystems. The
result is to reduce the code (and kernel impact) required
for such subsystems, and provide a common interface
with greater scope for co-operation.
This paper looks at the challenges in meeting the needs
of all the stakeholders, which include low overhead,
feature richness, completeness and flexible groupings.
We demonstrate how to extend containers by writing
resource control and monitoring components, we also
look at how to implement namespaces and cpusets on
top of the framework.
1
Technically resource control and isolation are related;
both prevent a process from having unrestricted access
to even the standard abstraction of resources provided
by the Unix kernel. For the purposes of this paper, we
use the following defintions:
Resource control is any mechanism which can do either
or both of:
• tracking how much of a resource is being comsumed by a set of processes
• imposing quantative limits on that consumption, either absolutely, or just in times of contention.
Typically resource control is visible to the processes being controlled.
Namespace isolation1 is a mechanism which adds an
additional indirection or translation layer to the naming/visibility of some unix resource space (such as process ids, or network interfaces) for a specific set of processes. Typically the existence of isolation itself is invisible to the processes being isolated.
Resource Control and Isolation are both subsets of the
general model of a subsystem which can apply behaviour differently depending on a process’ membership
of some specific group. Other examples could include:
Introduction
Over the course of Linux history, there have been and
continue to be multiple efforts to provide forms of modified behaviour across sets of processes. These efforts have tended to fall into two main camps, resource
control/monitoring, and namespace isolation (although
some projects contain elements of both).
*With
additional
contributions
by
Balbir
Singh
and Srivatsa Vaddagiri, IBM Linux Technology Center,
{balbir,vatsa}@in.ibm.com
• basic job control. A job scheduling system needs
to be able to keep track of which processes are
part of a given running “job,” in the presence of
fork() and exit() calls from processes in that
job. This is the simplest example of the kind of
1 We avoid using the alternative term virtualization in this paper
to make clear the distinction between lightweight in-kernel virtualization/isolation, and the much more heavyweight virtual machine
hypervisors such as Xen which run between the kernel and the hardware.
46 • Adding Generic Process Containers to the Linux Kernel
process tracking system proposed in this paper, as
the kernel need do nothing more than maintain the
membership list of processes in the job.
• tracking memory pressure for a group of processes,
and being able to receive notifications when memory pressure reaches some particular level (e.g. as
measured by the scanning level reached in try_
to_free_pages()), or reaches the OOM stage.
Different projects have proposed various basic mechanisms for implementing such process tracking. The
drawbacks of having multiple such mechanisms include:
• different and mutually incompatible user-space and
kernel APIs and feature sets.
• The merits of the underlying process grouping
mechanisms and the merits of the actual resource
control/isolation system become intertwined.
• systems that could work together to provide synergistic control of different resources to the same sets
of processes are unable to do so easily since they’re
based on different frameworks.
• kernel structures and code get bloated with additional framework pointers and hooks.
• writers of such systems have to duplicate large
amounts of functionally-similar code.
The aim of the work described in this paper is to provide a generalized process grouping mechanism suitable
for use as a base for current and future Linux processcontrol mechanisms such as resource controllers; the intention is that writers of such controllers need not be
concerned with the details of how processes are being
tracked and partitioned, and can concentrate on the particular resource controller at hand, and the resource abstraction presented to the user. (Specifically, this framework does not attempt to prescribe any particular resource abstraction.) The requirements for a processtracking framework to meet the needs of existing and future process-management mechanisms are enumerated,
and a proposal is made that aims to satisfy these requirements.
For the purposes of this paper, we refer to a tracked
group of processes as a container. Whether this is a
suitable final name for the concept is currently the subject of debate on various Linux mailing lists, due to its
use by other development groups for a similar concept in
userspace. Alternative suggestions have included partition and process set.
2
Requirements
In this section we attempt to enumerate the properties required of a generic container framework. Not all mechanisms that depend on containers will require all of these
properties.
2.1
Multiple Independent Subsystems
Clients of the container framework will typically be
resource accounting/control systems and isolation systems. In this paper we refer to the generic client as a subsystem. The relationship between the container framework and a subsystem is similar to that between the
Linux VFS and a specific filesystem—the framework
handles many of the common operations, and passes notifications/requests to the subsystem.
Different users are likely to want to make use of different subsystems; therefore it should be possible to selectively enable different subsystems both at compile
time and at runtime. The main function of the container
framework is to allow a subsystem to associate some
kind of policy/stats (referred to as the subsystem state)
with a group of processes, without the subsystem having to worry in too much detail about how this is actually
accomplished.
2.2
Mobility
It should be possible for an appropriately-privileged
user to move a process between containers. Some subsystems may require that processes can only move into
a container at the point when it is created (e.g. a virtual
server system where the process becomes the new init
process for the container); therefore it should be possible for mobility to be configurable on a per-subsystem
basis.
2007 Linux Symposium, Volume Two • 47
2.3
Inescapability
Once a process has been assigned to a container, it
shouldn’t be possible for the process (or any of its children) to move to a different container without action by
a privileged (i.e. root) user, or by a user to whom that
capability has been delegated, e.g. via filesystem permissions.
2.4
Extensible User Interface
Different subsystems will need to present different configuration and reporting interfaces to userspace:
• a memory resource controller might want to allow
the user to specify guarantees and limits on the
number of pages that processes in a container can
use, and report how many pages are actually in use.
• a memory-pressure tracker might want to allow the
user to specify the particular level of memory pressure which should cause user notifications.
• the cpusets system needs to allow users to specify
various parameters such as the bitmasks of CPUs
and memory nodes to which processes in the container have access.
From the user’s point of view it is simplest if there is at
least some level of commonality between the configuration of different subsystems. Therefore the container
framework should provide an interface that captures the
common aspects of different subsystems but which still
allows subsystems sufficient flexibility. Possible candidates include:
• A filesystem interface, where each subsystem can
register files that the user can write (for configuration) and/or read (for reporting) has the advantages
that it can be manipulated by many standard unix
tools and library routines, has built-in support for
permission delegation, and can provide arbitrary
input/output formats and behaviour.
• An API (possibly a new system call?) that allows
the user to read/write named properties would have
the advantages that it would tend to present a more
uniform interface (although possibly too restrictive
for some subsystems) and potentially have slightly
better performance than a filesystem-based interface.
2.5
Nesting
For some subsystems it is desirable for there to be multiple nested levels of containers:
• The existing cpusets system inherently divides and
subdivides sets of memory nodes and CPUs between different groups of processes on the system.
• Nesting allows some fraction of the resources
available to one set of processes to be delegated to
a subset of those processes.
• Nested virtual servers may also find hierarchical
support useful.
Some other subsystems will either be oblivious to the
concept of nesting, or will actively want to avoid it;
therefore the container system should allow subsystems
to selectively control whether they allow nesting.
2.6
Multiple Partitions
The container framework will allow the user to partition
the set of processes. Consider a system that is configured with the cpusets and beancounters subsystems. At
any one time, a process will be in one and exactly one
cpuset (a cpuset A may also be a child of some other
cpuset B, in which case in a sense all processes in A are
indirectly members of cpuset B as well, but a process is
only a direct member of one cpuset). Similarly a process
is only a direct member of one beancounter. So cpusets
and beancounters are each a partition function on the set
of processes.
Some initial work on this project produced a system that
simply used the same partition function for all subsystems, i.e. for every cpuset created there would also be
a beancounter created, and all processes moved into the
new cpuset would also become part of the new beancounter. However, very plausible scenarios were presented to demonstrate that this was too limiting.
A generic container framework should support some
way of allowing different partitions for different subsystems. Since the requirements suggest that supporting hierarchical partitions is useful, even if not required/desired for all subsystems, we refer to these partitions, without loss of generality, as hierarchies.
For illustration, we consider the following examples of
dividing processes on a system.
48 • Adding Generic Process Containers to the Linux Kernel
Cpusets
Memory
/
/
sys
Network
staff
sys
students
/
staff
students
www
NFS
other
(a) University Server
Cpusets
Memory
/
R1
Network
/
R2
Isolation
/
/
R1
R2
R1
R2
R1
R2
VS1 VS2
VS3 VS4
VS1 VS2
VS3 VS4
VS1 VS2
VS3 VS4
(b) Hosting Server
Figure 1: Example container divisions with independent (single-subsystem) hierarchies
A University Timesharing System 2
A university server has various users—students,
professors, and system tasks. For CPU and memory, it is desired to partition the system according
to the process owner’s user ID, whereas for network traffic, it is desired to partition the system according to the traffic content (e.g. WWW browser
related traffic across all users shares the same limit
of 20%). Any single way of partitioning the system will make this kind of resource planning hard,
potentially requiring creating a container for each
tuple of the cross-product of the various configured resource subsystems.. Allowing the system
to be partitioned in multiple ways, depending on
resource type, is therefore a desirable feature.
A Virtual Server System
A large commercial hosting server has many
NUMA nodes. Blocks of nodes are sold to resellers (R1, R2) to give guaranteed CPU/memory
resources. The resellers then sell virtual servers
(VS1–VS4) to end users, potentially overcommitting their resources but not affecting other resellers
on the system.
The server owner would use cpusets to restrict each
reseller to a set of NUMA memory nodes/CPUs;
the reseller would then (via root-delegated capabilities) use a server isolation subsystem and a resource control subsystem to create virtual servers
with various levels of resource guarantees/limits,
within their own cpuset resources.
2 Example
contributed by Srivatsa Vaddagiri.
Two possible approaches to supporting these examples
are given below; the illustrative figures represent a kernel with cpusets, memory, network, and isolation subsystems.
2.6.1
Independent hierarchies
In the simplest approach, each hierarchy provides the
partition for exactly one subsystem. So to use e.g.
cpusets and beancounters on the same system, you
would need to create a cpuset hierarchy and a beancounters hierarchy, and assign processes to containers separately for each subsystem.
This solution can be used to implement any of the
other approaches presented below. The drawback is that
it imposes a good deal of extra management work to
userspace in the (we believe likely) common case when
the partitioning is in fact the same across multiple or
even all subsystems. In particular, moving processes
between containers can have races—if userspace has to
move a process as two separate actions on two different
hierarchies, a child process forked during this operation
might end up in inconsistent containers in the two hierarchies.
Figure 1 shows how containers on the university and
hosting servers might be configured when each subsystem is an independent hierarchy. The cpusets and memory subsystems have duplicate configurations for the
university server (which doesn’t use the isolation subsystem), and the network, memory and isolation subsys-
2007 Linux Symposium, Volume Two • 49
Cpusets / Memory
Network
/
/
sys
staff
students
www
NFS
other
(a) University Server
Memory / Network / Cpusets / Isolation
/
R1
R2
VS1 VS2
VS3 VS4
(b) Hosting Server
Figure 2: Example container divisions with multi-subsystem hierarchies
tems have duplicate configurations for the hosting server
since they’re the same for each virtual server.
2.6.2
Multi-subsystem hierarchies
An extension to the above approach allows multiple subsystems to be bound on to the same hierarchy; so e.g.
if you were using cpusets and beancounters, and you
wanted the cpuset and beancounter assignments to be
isomorphic for all processes, you could bind cpusets and
beancounters to the same hierarchy of containers, and
only have to operate on a single hierarchy when creating/destroying containers, or moving processes between
containers.
Figure 2 shows how the support for multiple subsystems
per hierarchy can simplify the configuration for the two
example servers. The university server can merge the
configurations for the cpusets and memory subsystems
(although not for the network subsystem, since that’s using an orthogonal division of processes). The hosting
server can merge all four subsystems into a single hierarchy.
2.7
handles or network sockets—with a container, for accounting purposes or in order to affect the kernel’s behaviour with respect to those objects.
Since such associations are likely to be subsystemspecific, the container framework needs primarily to be
able to provide an efficient reference-counting mechanism, which will allow references to subsystem state objects to be made in such a way that they prevent the destruction of the associated container until the reference
has been released.
2.8
Low overhead
The container framework should provide minimal additional runtime overhead over a system where individual subsystems are hard-coded into the source at all appropriate points (pointers in task_struct, additional
fork() and exit() handlers, etc).
3
Existing/Related Work
In this section we consider the existing mechanisms for
process tracking and control in Linux, looking at both
those already included in the Linux source tree, and
those proposed as bases for other efforts.
Non-process references to containers
3.1
Although the process is typically the object most universally associated with a container, it should also be
possible to associate other objects—such as pages, file
Unix process grouping mechanisms
Linux has inherited several concepts from classical Unix
that can be used to provide some form of association be-
50 • Adding Generic Process Containers to the Linux Kernel
tween different processes. These include, in order of increasing specificity: group id (gid), user id (uid), session
id (sid) and process group (pgrp).
used the independent hierarchies model described in
Section 2.6.1; Resource Containers bound all schedulers
(subsystems) into a single hierarchy.
Theoretically the gid and/or uid could be used as the
identification portion of the container framework, and
a mechanism for configuring per-uid/gid state could be
added. However, these have the serious drawbacks that:
PAGG [5] is part of the SGI Comprehensive System
Accounting project, adapted for Linux. It provides a
generic container mechanism that tracks process membership and allows subsystems to be notified when processes are created or exit. A crucial difference between
PAGG and the design presented in this paper is that
PAGG allows a free-form association between processes
and arbitrary containers. This results in more expensive
access to container subsystem state, and more expensive
fork()/exit() processing.
• Job-control systems may well want to run multiple
jobs as the same user/group on the same machine.
• Virtual server systems will want to allow processes
within a virtual server to have different uids/gids.
The sid and/or the pgrp might be suitable as a tracking base for containers, except for the fact that traditional Unix semantics allow processes to change their
sid/pgrp (by becoming a session/group leader); removing this ability would be possible, but could resulting in
unexpected breakage in applications. (In particular, requiring all processes in a virtual server to have the same
sid or pgrp would probably be unmanageable).
3.2
Cpusets
The cpusets system is the only major container-like system in the mainline Linux kernel. Cpusets presents a
pseudo-filesystem API to userspace with semantics including:
• Creating a directory creates a new empty cpuset (an
analog of a container).
• Control files in a cpuset directory allow you to control the set of memory nodes and/or CPUs that
tasks in that cpuset can use.
• A special control file, tasks can be read to list the
set of processes in the cpuset; writing a pid to the
tasks file moves a process into that cpuset.
3.3
Linux/Unix container systems
The Eclipse [3] and Resource Containers [4] projects
both sought to add quality of service to Unix. Both
supported hierarchical systems, allowing free migration
of processes and threads between containers; Eclipse
Resource Groups [2] (originally named CKRM – Classbased Kernel Resource Management) and BeanCounters [1] are resource control frameworks for Linux. Both
provide multiple resource controllers and support additional controllers. ResGroups’ support for additional
controllers is more generic than the design proposed
in this paper—we feel that the additional overheads
that it introduces are unnecessary; BeanCounters is less
generic, in that additional controllers have to be hardcoded into the existing BeanCounters source. Both
frameworks also enforce a particular resource model
on their resource controllers, which may be inappropriate for resource controllers with different requirements from those envisaged—for example, implementing cpusets with its current interface (or an equivalent
natural interface) on top of either the BeanCounters or
ResGroups abstractions would not be possible.
3.4
Linux virtual server systems
There have been a variety of virtual server systems developed for Linux; early commercial systems included
Ensim’s Virtual Private Server [6] and SWSoft’s Virtuozzo [7]; these both provided various resource controllers along with namespace isolation, but no support
for generic extension with user-provided subsystems.
More recent open-sourced virtualization systems have
included VServer [8] and OpenVZ [9], a GPL’d subset
of the functionality of Virtuozzo.
3.5
NSProxy-based approaches
Recent work on Linux virtual-server systems [10]
has involved providing multiple copies of the various
2007 Linux Symposium, Volume Two • 51
namespaces (such as for IPC, process ids, etc) within
the kernel, and having the namespace choice be made
on a per-process basis. The fact that different processes can now have different IPC namespaces results
in the requirement that these namespaces be referencecounted on fork() and released on exit(). To
reduce the overhead of such reference counting, and
to reduce the number of per-process pointers required
for all these virtualizable namespaces, the struct
nsproxy was introduced. This is a reference-counted
structure holding reference-counted pointers to (theoretically) all the namespaces required for a task; therefore
at fork()/exit() time only the reference count on
the nsproxy object must be adjusted. Since in the
common case a large number of processes are expected
to share the same set of namespaces, this results in a
reduction in the space required for namespace pointers
and in the time required for reference counting, at the
cost of an additional indirection each time one of the
namespaces is accessed.
4
Proposed Design
This section presents a proposed design for a container
framework based on the requirements presented in Section 2 and the existing work surveyed above. A prototype implementation of this design is available at
the project website [11], and has been posted to the
[email protected] mailing list and
other relevant lists.
4.1
Overview
The proposed container approach is an extension of
the process-tracking design used for cpusets. The current design favours the multiple-hierarchy approach described in Section 2.6.2.
4.2
New structure types
The container framework adds several new structures
to the kernel. Figure 3 gives an overview of the relationship between these new structures and the existing
task_struct and dentry.
4.2.1 container
The container structure represents a container object as described in Section 1. It holds parent/child/
sibling information, per-container state such as flags,
and a set of subsystem state pointers, one for the state
for each subsystem configured in the kernel. It holds
no resource-specific state. It currently3 holds no reference to a list of tasks in the container; the overhead of
maintaining such a list would be paid whenever tasks
fork() or exit(), and the relevant information can
be reconstructed via a simple walk of the tasklist.
4.2.2 container_subsys
The container_subsys structure represents a single resource controller or isolation component, e.g. a
memory controller or a CPU scheduler.
The most important fields in a container_subsys
are the callbacks provided to the container framework;
these are called at the appropriate times to allow the subsystem to learn about or influence process events and
container events in the hierarchy to which this subsystem is bound, and include:
create is called when a new container is created
destroy is called when a container is destroyed
can_attach is called to determine whether the subsystem wants to allow a process to be moved into a
given container
attach is called when a process moves from one container to another
fork is called when a process forks a child
exit is called when a process exits
populate is called to populate the contents of a container directory with subsystem-specific control
files
bind is called when a subsystem is moved between hierarchies.
3 The possibility of maintaining such a task list just for those sub-
systems that really need it is being considered.
52 • Adding Generic Process Containers to the Linux Kernel
Apart from create and destroy, implemention of
these callbacks is optional.
This function simply dereferences the given subsystem
pointer in the task’s css_group (see next Section).
Other fields in container_subsys handle housekeeping state, and allow a subsystem to find out to which
hierarchy it is attached.
4.2.4 css_group
Subsystem registration is done at compile time—
subsystems add an entry in the header file include/
linux/container_subsys.h. This is used in conjunction with pre-processor macros to statically allocate
an identifier for each subsystem, and to let the container
system locate the various container_subsys objects.
The compile-time registration of subsystems means that
it is not possible to build a container subsystem purely
as a module. Real-world subsystems are expected to require subsystem-specific hooks built into other locations
in the kernel anyway; if necessary, space could be left in
the relevant arrays for a compile-time configurable number of “extra” subsystems.
4.2.3 container_subsys_state
A container_subsys_state represents the base
type from which subsystem state objects are derived,
and would typically be embedded as the first field in the
subsystem-specific state object. It holds housekeeping
information that needs to be shared between the generic
container system and the subsystem. In the current design this state consists of:
container – a reference to the container object with
which this state is associated. This is primarily
useful for subsystems which want to be able to examine the tree of containers (e.g. a hierarchical resource manager may propagate resource information between subsystem state objects up or down
the hierarchy of containers).
refcnt – the reference count of external non-process objects on this subsystem state object, as described in
Section 2.7. The container framework will refuse
to destroy a container whose subsystems have nonzero states, even if there are no processes left in the
container.
To access its state for a given task, a subsystem can
call task_subsys_state(task, <subsys_id>).
For the same reasons as described in Section 3.5, maintaining large numbers of pointers (per-hierarchy or persubsystem) within the task_struct object would result in space wastage and reference-counting overheads,
particularly in the case when container systems compiled into the kernel weren’t actually used.
Therefore, this design includes the css_group (container subsystem group) object, which holds one
container_subsys_state pointer for each registered subsystem. A reference-counted pointer field
(called containers) to a css_group is added to
task_struct, so the space overhead is one pointer per
task, and the time overhead is one reference count operation per fork()/exit(). All tasks with the same
set of container memberships across all hierarchies will
share the same css_group.
A subsystem can access the per-subsystem state for a
task by looking at the slot in the task’s css_group
indexed by its (statically defined) subsystem id. Thus
the additional indirection is the only subsystem-state access overhead introduced by the css_group; there’s
no overhead due to the generic nature of the container
framework. The space/time tradeoff is similar to that
associated with nsproxy.
It has been proposed (by Srivatsa Vaddagiri and others) that the css_group should be merged with the
nsproxy to form a single per-task object containing
both namespace and container information. This would
be a relatively straightforward change, but the current
design keeps these as separate objects until more experience has been gained with the system.
4.3
Code changes in the core kernel
The bulk of the new code required for the container
framework is that implementing the container filesystem and the various tracking operations. These are
driven entirely by the user-space API as described in
Section 4.5.
Changes in the generic kernel code are minimal and consist of:
2007 Linux Symposium, Volume Two • 53
container / dentry
A1
A2
/
/foo
container_subsys_state
A3
CG1
T1
B1
/bar
B2
CG2
T2
T3
C1
B3
css_group
task_struct
Figure 3: Three subsystems (A, B, C) have been compiled into the kernel; a single hierarchy has been mounted
with A and B bound to it. Container directories foo and bar have been created, associated with subsystem states
A2/B2 and A3/B3 respectively. Tasks T1 and T2 are in container foo; task T3 is in container bar. Subsystem C is
unbound so all container groups (and hence tasks) share subsystem state C1.
• A hook early in the fork() path to take an additional reference count on the task’s css_group
object.
• A hook late in the fork() path to invoke
subsystem-specific fork callbacks, if any are required.
• A hook in the exit() path to invoke any
subsystem-specfic exit callbacks, if any, and to
release the reference count on the task’s css_
group object (which will also free the css_group
if this releases the last reference.)
4.4
include creating/destroying containers, moving processes between containers, and reading/writing subsystem control files. Performance-sensitive operations
should not require this lock.
When modifying the containers pointer in a task,
the container framework surrounds this operation with
task_lock()/task_unlock(), and follows with
a synchronize_rcu() operation before releasing
the container_mutex.
Therefore, in order for a subsystem to be sure that it is
accessing a valid containers pointer, it suffices for
at least one of the following three conditions to be true
of the current task:
Locking Model
• it holds container_mutex
The current container framework locking model revolves around a global mutex (container_mutex),
each task’s alloc_lock (accessed via task_
lock() and task_unlock()) and RCU critical sections.
The container_mutex is used to synchronize percontainer operations driven by the userspace API. These
• it holds its own alloc_lock.
• it is in an RCU critical section.
The final condition, that of being in an RCU critical section, doesn’t prevent the current task being concurrently
moved to a different container in some hierarchy—it
54 • Adding Generic Process Containers to the Linux Kernel
simply tells you that the current task was in the specified set of containers at some point in the very recent
past, and that any of the subsystem state pointers in that
css_group object won’t be candidates for deletion
until after the end of the current RCU critical section.
When an object (such as a file or a page) is accounted
to the value that has been read as the current subsystem
state for a task, it may actually end up being accounted
to a container that the task has just been moved from;
provided that a reference to the charged subsystem state
is stored somewhere in the object, so that at release
time the correct subsystem state can be credited, this is
typically sufficient. A subsystem that wants to reliably
migrate resources between containers when the process
that allocated those resources moves (e.g. cpusets, when
the memory_migrate mode is enabled) may need additional subsystem-specific locking, or else use one of
the two other locking methods listed above, in order to
ensure that resources are always accounted to the correct
containers.
The subsystem state pointers in a given css_group are
immutable once the object has been created; therefore
as long as you have a pointer to a valid css_group, it
is safe to access the subsystem fields without additional
locking (beyond that mandated by subsystem-specific
rules).
4.5
is released and all subsystems are available for reuse.
If the hierarchy still has child containers, the hierarchy
(and superblock) remain active even though not actively
attached to a mounted filesystem.4
Creating a directory in a container mount creates a new
child container; containers may be arbitrarily nested,
within any restrictions imposed by the subsystems
bound to the hierarchy being manipulated.
Each container directory has a special control file,
tasks. Reading from this file returns a list of processes in the container; writing a pid to this file moves
the given process into the container (subject to successful can_attach() callbacks on the subsystems bound
to the hierarchy).
Other control files in the container directory may be created by subsystems bound to that hierarchy; reads and
writes on these files are passed through to the relevant
subsystems for processing.
Removing a directory from a container mount destroys
the container represented by the directory. If tasks remain within the container, or if any subsystem has a nonzero reference count on that container, the rmdir()
operation will fail with EBUSY. (The existence of subsystem control files within a directory does not keep it
busy; these are cleared up automatically.)
Userspace API
The userspace API is very similar to that of the existing
cpusets system.
The file /proc/PID/container lists, for each active hierarchy, the path from the root container to the
container of which process PID is a member.5
A new hierarchy is created by mounting an instance of
the container pseudo-filesystem. Options passed to
the mount() system call indicate which of the available subsystems should be bound to the new hierarchy.
Since each subsystem can only be bound to a single hierarchy at once, this will fail with EBUSY if the subsystem
is already bound to a different hierarchy.
The file /proc/containers gives information
about the current set of hierarchies and subsystems in
use. This is primarily useful for debugging.
Initially, all processes are in the root container of this
new hierarchy (independently of whatever containers
they might be members of in other hierarchies).
The container code is optimized for fast access by subsystems to the state associated with a given task, and a
fast fork()/exit() path.
If a mount request is made for a set of subsystems that
exactly match an existing active hierarchy, the same superblock is reused.
Depending on the synchronization requirements of a
particular subsystem, the first of these can be as simple
as:
At the time when a container hierarchy is unmounted, if
the hierarchy had no child containers then the hierarchy
4.6
Overhead
4 They
remain visible via a /proc reporting interface.
proposal is for this to be a directory holding container path files, one for each subsystem.
5 An alternative
2007 Linux Symposium, Volume Two • 55
struct task_struct *p = current;
rcu_read_lock()
struct state *st =
task_subsys_state(p,
my_subsys_id);
...
<Do stuff with st>
...
rcu_read_unlock();
On most architectures, the RCU calls expand to noops, and the use of inline functions and compile-time
defined subsystem ids results in the code being equivalent to struct state *st = p->containers->
subsys[my_subsys_id], or two constant-offset
pointer dereferences. This involves one additional
pointer dereference (on a presumably hot cacheline)
compared to having the subsystem pointer embedded
directly in the task structure, but has a reduced space
overhead and reduced refcounting overhead at fork()
/ exit() time.
Assuming none of the registered subsystems have registered fork() / exit() callbacks, the overhead
at fork() (or exit()) is simply a kref_get()
(or kref_put()) on current->containers->
refcnt.
5
Example Subsystems
The containers patches include various examples of subsystems written over the generic containers framework.
These are primarily meant as demonstrations of the way
that the framework can be used, rather than as fullyfledged resource controllers in their own right.
5.1
CPU Accounting Subsystem
• declaration of a subsystem in include/linux/
container_subsys.h
• Kconfig/Makefile additions
• the code in kernel/cpuacct.c to implement
the subsystem. This can focus on the actual details
of tracking the CPU for a container, since all the
common operations are handled by the container
framework.
Internally, the cpuacct subsystem uses a percontainer spinlock to synchronize access to the usage/load counters.
5.2
Cpusets
Cpusets is already part of the mainline kernel; as part of
the container patches it is adapted to use the generic container framework (the primary change involved removal
of about 30% of the code, that was previously required
for process-tracking).
Cpusets is an example of a fairly complex subsystem
with hooks into substantial other parts of the kernel (particularly memory management and scheduler parameters). Some of its control files represent flags, some
represent bitmasks of memory nodes and cpus, and others report usage values. The interface provided by the
generic container framework is sufficiently flexible to
accomodate the cpusets API.
Internally, cpusets uses an additional global mutex—
callback_mutex—to synchronize container-driven
operations (moving a task between containers, or updating the memory nodes for a container) with callbacks
from the memory allocator or OOM killer.
The cpuacct subsystem is a simple demonstration of
a useful container subsystem. It allows the user to easily read the total amount of CPU time (in milliseconds)
used by processes in a given container, along with an
estimate of the recent CPU load for that container.
For backwards compatibility the existing cpuset
filesystem type remains; any attempt to mount it gets
redirected to a mount of the container filesystem,
with a subsystem option of cpuset.
The 250-line patch consists of:
5.3
• callback hooks added to the account_*_
time() functions in kernel/sched.c to inform the subsystem when a particular process is
being charged for a tick.
ResGroups
ResGroups (formerly CKRM [2]) is a hierarchical resource control framework that specifies the resource
limits for each child in terms of a fraction of the resources available to its parent. Additionally resources
56 • Adding Generic Process Containers to the Linux Kernel
may be borrowed from a parent if a child has reached its
resource limits.
The abstraction provided by the generic containers
framework is low-level, with free-form control files.
As an example of how to provide multiple subsystems sharing a common higher-level resource abstraction, ResGroups is implemented as a container subsystem library by stripping out the group management aspects of the code and adding container subsystem callbacks. A resource controller can use the ResGroups
abstraction simply by declaring a container subsystem,
with the subsystem’s private field pointing to a ResGroups res_controller structure with the relevant
resource-related callbacks.
The ResGroups library registers control files for that
subsystem, and translates the free-form read/write interface into a structured and typed set of callbacks. This
has two advantages:
• it reduces the amount of parsing code required in a
subsystem
• it allows multiple subsystems with similar (resource or other) abstractions to easily present the
same interface to userspace, simplifying userspace
code.
One of the ResGroups resource controllers
(numtasks, for tracking and limiting the number
of tasks created in a container) is included in the patch.
5.4
BeanCounters
BeanCounters [1] is a single-level resource accounting
framework that aims to account and control consumption of kernel resources used by groups of processes. Its
resource model allows the user to specify soft and hard
limits on resource usage, and tracks high and low watermarks of resource usage, along with resource allocations
that failed due to limits being hit.
The port to use the generic containers framework converts between the raw read/write interface and the structured get/store in a similar way to the ResGroups port,
although presenting a different abstraction.
Additionally, BeanCounters allows the accounting context (known as a beancounter) to be overridden in particular situations, such as when in an interrupt handler or
when performing work in the kernel on behalf of another
process. This aspect of BeanCounters is maintained unchanged in the containers port—if a process has an override context set then that is used for accounting, else the
context reached via the css_group pointer is used.
5.5
NSProxy / Container integration
A final patch in the series integrates the NSProxy system
with the container system by making it possible to track
processes that are sharing a given namespace, and (potentially in the future) create custom namespace sets for
processes. This patch is a (somewhat speculative) example of a subsystem that provides an isolation system
rather than a resource control system.
The namespace creation paths (via fork() or
unshare()) are hooked to call container_
clone(). This is a function provided by the container
framework that creates a new sub-container of a task’s
container (in the hierarchy to which a specified subsystem is bound) and moves the task into the new container. The ns container subsystem also makes use of
the can_attach container callback to prevent arbitrary manipulation of the process/container mappings.
When a task changes its namespaces via either of these
two methods, it ends up in a fresh container; all of its
children (that share the same set of namespaces) are in
the same container. Thus the generic container framework provides a simple way to export to userspace the
sets of namespaces in use, their hierarchical relationships, and the processes using each namespace set.
6
Conclusion and Future Work
In this paper we have examined some of the existing
work on process partitioning/tracking in Linux and other
operating systems, and enumerated the requirements for
a generic framework for such tracking; a proposed design was presented, along with examples of its use.
As of early May 2007, several other groups have
proposed resource controllers based on the containers
framework; it is hoped that the containers patches can
be trialled in Andrew Morton’s -mm tree, with the aim
of reaching the mainline kernel tree in time for 2.6.23.
2007 Linux Symposium, Volume Two • 57
7
Acknowledgements
Thanks go to Paul Jackson, Eric Biederman, Srivatsa
Vaddagiri, Balbir Singh, Serge Hallyn, Sam Villain,
Pavel Emelianov, Ethan Solomita, and Andrew Morton for their feedback and suggestions that have helped
guide the development of these patches and this paper.
References
[1] Kir Kolyshkin, Resource management: the
Beancounters, Proceedings of the Linux
Symposium, June 2007
[2] Class-based Kernel Resource Management,
http://ckrm.sourceforge.net
[3] J. Blanquer, J. Bruno, E. Gabber, M. Mcshea, B.
Ozden, and A. Silberschatz, Resource
management for QoS in Eclipse/BSD. In
Proceedings of FreeBSD’99 Conf., Berkeley, CA,
USA, Oct. 1999
[4] Gaurav Banga, Peter Druschel, and Jeffrey C.
Mogul. Resource containers: A new facility for
resource management in server systems. In
Proceedings of the Third Symposium on
Operating Systems Design and Implementation
(OSDI ’99), pages 45–58, 1999
[5] SGI. Linux Process Aggregates (PAGG),
http://oss.sgi.com/projects/pagg/
[6] Ensim Virtual Private Server,
http://www.ensim.com
[7] SWSoft Virtuozzo, http:
//www.swsoft.com/en/virtuozzo/
[8] Linux VServer,
http://www.linux-vserver.org/
[9] OpenVZ, http://www.openvz.org/
[10] Eric W. Biederman, Multiple Instances of the
Global Linux Namespaces, Proceedings of the
Linux Symposium, July 2006.
[11] Linux Generic Process Containers, http://
code.google.com/p/linuxcontainers
58 • Adding Generic Process Containers to the Linux Kernel
KvmFS: Virtual Machine Partitioning For Clusters and Grids
Andrey Mirtchovski
Los Alamos National Laboratory
Latchesar Ionkov
Los Alamos National Laboratory
[email protected]
[email protected]
Abstract
This paper describes KvmFS, a synthetic file system
that can be used to control one or more KVM virtual
machines running on a computer. KvmFS is designed
to provide its functionality via an interface that can
be exported to other machines for remote configuration
and control. The goal of KvmFS is to allow a multiCPU, multi-core computer to be partitioned externally
in a fashion similar to today’s computational nodes on
a cluster. KvmFS is implemented as a file server using
the 9P protocol and its main daemon can be mounted locally via the v9fs kernel module. Communication with
the KvmFS occurs through standard TCP sockets. Virtual machines are controlled via commands written to
KvmFS’ files. Status information about KVM virtual
machines is obtained by reading KvmFS. KvmFS allows us to build clusters in which more than one application can share the same SMP/Multi-core node with
minimalistic full system images tailored specifically for
the application.
1
Introduction
The tendency in high-performance computing is towards building processors with many computational
units, or cores, with the goal of parallelizing computation so that many units are performing work at the
same time. Dual and quad-core processors are already
on the market, and manufacturers are hinting at 8, 32,
or even 80 cores for a single CPU, with a single computational node composed of two, four, or more CPUs.
This will result in applications running and contending
for resources on large symmetric multiprocessor systems (SMPs) composed of hundreds of computational
units.
There is a problem with this configuration, however:
since clusters are currently the dominant form of node
organization in the HPC world (as seen in the latest
breakdown by machine type on the Top 500 list of supercomputers), most applications are designed to either
run on a single 2- or 4-core machine, or so that separate
parts of the program will run on separate 2- or 4-core
nodes, and will communicate via some message-passing
framework such as MPI. This has resulted in most of
the applications running here, at Los Alamos National
Laboratory, scaling to at most 8 CPUs on a single node.
Furthermore, many applications assume that they are the
only ones running on a single node and will not have
to contend for resources. To satisfy the requirements
of such applications, large SMP computers will have to
be partitioned so that applications are ensured dedicated
resources without contention. Fail-over and resilience,
two very hot topics in High Performance Computing,
also require the means to transfer an application from
one machine to another in the case of hardware or software component failures on the original computer.
One solution for partitioning hardware and providing
resilience has gained widespread adoption and is considered feasible for the HPC world: virtualization using hypervisors. Borrowing from the mainframe, it allows separate instances of an operating system (or indeed separate operating systems) to be run on the same
hardware or parts thereof. The two major CPU manufacturers have added support for virtualization to their
newest offerings, which provides even greater performance gains than previously thought.
KVM has recently emerged as a fast and reliable (with
the hardware support on modern processors) subsystem
for virtualizing the hardware on a computer. Our goal
with KvmFS is to enable KVM to be remotely controlled by either system operators or schedulers and to
allow it to be used for partitioning on clusters composed
of large SMP machines, such as the ones already being
proposed here at LANL.
Virtualization benefits the system administrator, as
well as programmers and scientists running highperformance code on large clusters. One benefit is the
• 59 •
60 • KvmFS: Virtual Machine Partitioning For Clusters and Grids
full control over the operating system installation that
an application requires. For example, it is not necessary to have all support libraries and software installed
on all machines of a cluster, instead, the application is
run in an OS instance that already contains all that is required. This greatly simplifies installations in the case
where conflicting libraries and support software may be
required by different applications. Another possibility is
to run a completely different operating system under virtualization, something impossible in current monolithic
cluster environments.
With the fast and reliable means of running applications
on their own slice of a SMP, it is convenient to be able
to extend the control of partitioning and virtualization
across the cluster to a control or a head node. This is the
niche that KvmFS fills: it provides the fast and secure
means to control VMs across a cluster, or indeed a grid
environment.
1.1
KVM
KVM [14] is a hypervisor support module in the Linux
kernel which utilizes hardware-assisted x86 virtualization on modern Intel processors with Intel Virtualization technology or AMD’s Secure Virtual Machine. By
adding virtualization capabilities to a standard Linux
kernel, KVM provides the benefits of the optimizations
that exist in a standard kernel to virtualized programs,
greatly increasing performance over “full hypervisors”
such as Xen [1] or VMWare [9]. Under the KVM model,
every virtual machine is a regular Linux process scheduled by the standard Linux scheduler. Its memory is
allocated by the Linux memory allocator.
KVM works in conjunction with QEMU to deliver the
processor’s virtualization capabilities to the end user.
1.2
QEMU
QEMU [2] is a machine emulator which can run an
unmodified target operating system (such as Windows
or Linux) and all its applications in a virtual machine.
QEMU runs on several host operating systems such as
Linux, Windows, and Mac OSX.
The primary usage of QEMU is to run one operating
system on another, such as Windows on Linux or Linux
on Windows. Another usage is debugging, because the
virtual machine can be easily stopped, and its state can
be inspected, saved, and restored. Moreover, specific
embedded devices can be simulated by adding new machine descriptions and new emulated devices.
Although the host and target operating systems can be
different, our software will focus on Linux as the host
system since Linux is the primary OS on all of our recent clusters at LANL and is widely adopted for HPC
environments. Also, KVM currently exists only for the
Linux kernel.
2
Design
KvmFS was created allow its users to run and control
virtual machines in a heterogeneous networked environment. As such, KvmFS was designed to fulfill the following tasks:
functionality provide an interface that allows management of VMs on a cluster
scalability provide the ability for fast creation of multiple identical VMs on different nodes connected via
a network
checkpoint and restart provide the ability to suspend
virtual machines and resume their execution, potentially on a different node
The design of KvmFS follows the well established
model of providing functionality in the form of synthetic
file systems which clients operate on using standard I/O
commands such as read and write. This method has
proven successful in various operating systems descendant from UNIX. The /proc [7] file system is a very
well established example. The “Plan 9” operating system further extends this concept. It presents the network communication subsystem as mountable files [13]
or even the graphics subsystem and the window manager written on top of it, as a file system.
Implementations such as the above suggest that the concept is feasible and that implementing interfaces to resources in the form of a file system and exporting them
to other machines is a very good way to quickly allow access to them from remote machines, especially
since files are the single most exported resource in a networked environment such as a cluster.
KvmFS is structured as a two-tiered file server to which
clients connect either from the local machine or across
2007 Linux Symposium, Volume Two • 61
the network. The file server allows them to copy image
files and boot virtual machines using those image files.
The file server also allows controlling running virtual
machines (start, stop, freeze), as well as migrating them
from one computer to another.
3.2
The top-level directory KvmFS serves contains two files
providing information about the architecture of the machine as well as starting a new session for a new VM.
Each session already started is presented as a numbered subdirectory. The subdirectory itself presents files
which can be used to control the execution of the VM,
as well as a subdirectory which allows arbitrary image
files to be copied to it and used by the VM. The KvmFS
filesystem is presented in detail in section 3.
Ctl is used to execute and control a session’s main process. Reading from the file returns the main process pid
if the process is running, and –1 otherwise. The operations on the session are performed by writing to it.
3
The KVM File System
KvmFS presents a synthetic file system to its clients.
The file system can be used for starting and controlling
all aspects of the runtime of the virtual machines running on the machine on which kvmfs is running.
ctl
info
id
fs/
3.1
These files are contained in the session directory which
is created when a client opens the clone file of a
KvmFS server.
Reading from info returns the current memory and device configuration of the virtual machine. The format of
the information is identical to the commands written to
ctl file.
Id is used to set and get the user-specified VM identifier.
The fs directory points to the temporary storage created
for the virtual machine. The user can copy disk images
and saved VM state files that can be used in the VM
configuration.
4
clone
arch
vm#/
Top-level files
Arch is a read-only file; reading from it returns the architecture of the compute node in a format operatingsystem/processor-type.
Clone is a read-only file. When it is opened, KvmFS
creates a new session and the corresponding session directory in the filesystem.
Reading from the file returns the name of the session
directory.
Vm# is a directory corresponding to a session created
by a KvmFS client. Even though a session may not be
running, Vm# will exist as long as that client keeps the
clone file open. If the virtual machine corresponging
to a session is running the clone file may be closed
without causing the Vm# file to disappear.
Session-level files
KvmFS Commands
The following section describes the set of commands
available for controlling KvmFS instances:
dev name image Specifies the device image for a specific device. Name is one of hda, hdb, hdc, hdd. If
image is not an absolute path, it should point to a
file that is copied in the fs directory. An optional
boot parameter can be provided to specify that the
device should be used to boot from.
net id mac Creates a network device with ID id and
MAC mac.
loadvm file Loads a saved VM state from file file. If
file is not an absolute path, it should point to a file
in the fs directory.
storevm file Stores the state of the VM to file file. If
file is not an absolute path, the file is created in the
fs directory.
power on|off Turns VM power on or off.
freeze Suspends the execution of the VM.
unfreeze Resumes the execution of the VM.
62 • KvmFS: Virtual Machine Partitioning For Clusters and Grids
clone max-vms address-list Creates copies of the VM
on the nodes specified by address-list. Copies the
content of the fs directory to the remote VMs and
configures the same device configuration. If the
virtual machine is already running, stores the current VM state (as in storevm) and loads it in the
remote VMs. If max-vms is greater than zero,
and the number of the specified sessions is bigger
than max-vms, clone pushes its content to up
to max-sessions and issues clone commands to
some of them to clone themselves to the remaining
VMs from the list.
The format of the address-list is:
address-list = \
1*(vm-address ‘,’’)
vm-address = node-name \
[‘!’’port]
‘/’’ vm-id
node-name = ANY
port = NUMBER
vm-id = ANY
5
Implementation
There are two ways of implementing accesses to programs or system resources as files in Linux, either using Fuse [3] or the 9P [8] protocol. We chose the 9P
protocol because it is better suited for communicating
with file systems over networks. 9P has also been in use
for the past twenty years and is sufficiently hardened to
be able to handle various workloads on environments
ranging from a single machine to thousands of cluster
nodes [5]. Furthermore, our team is well familiarized
with 9P through the implementation of V9FS, the kernel
module allowing 9P servers to be mounted on a Linux
filesystem [10] [4]. It is important to point out, however, that there is no significant barrier to implementing
KvmFS using FUSE.
5.1
9P
Representing operating system resources as files is a relatively old concept exploited to some extent in the original UNIX operating system, but it matured extensively
with the development and release of the “Plan 9 from
Bell-Labs” operating system [12].
“Plan 9 from Bell-Labs” uses a simple, yet very powerful communication protocol to facilitate communication between different parts of the system. The protocol,
named “9P” [8], allows heterogeneous resource sharing
by allowing servers to build a hierarchy of files corresponding to real or virtual system resources, which then
clients access via common (POSIX-like) file operations
by sending and receiving 9P messages. The different
types of 9P messages are described in Table 1.
There are several benefits of using the 9P protocol:
Simplicity The protocol has only a handful of messages
which encompass all major file operations, yet it
can be implemented (including the co-routine code
explained above) in around 2,000 lines of C code.
Robustness 9P has been in use in the Plan 9 operating
system for over 15 years.
Architecture independence 9P has been ported to and
used on all major computer architectures.
Scalability Our Xcpu [11] suite uses 9P to control and
execute programs on thousands of nodes at the
same time.
A 9P session between a server and its clients consists
of requests by the clients to navigate the server’s file
and directory hierarchy and responses from the server to
those requests. The client initiates a request by issuing
a T-message, the server responds with an R-messages.
A 9P transaction is the combined act of transmitting a
request of particular type by the client and receiving a
reply from the server. There may be more than one request outstanding; however, each request requires a response to complete a transaction. There is no limit on
the number of transactions in progress for a single session.
Each 9P message contains a sequence of bytes representing the size of the message, the type, the tag (transaction id), control fields depending on the message type,
and a UTF-8 encoded payload. Most T-messages contain a 32-bit unsigned integer called Fid, used by the
client to identify the “current file” on the server, i.e.,
the last file accessed by the client. Each file in the file
system served by our library has an associated element
called Qid used to uniquely identify it in the file system.
5.2
KvmFS
KvmFS is implemented in C using the SPFS and Spclient [6] libraries for writing 9P2000-compliant userspace file servers and accessing them over a network.
2007 Linux Symposium, Volume Two • 63
9P type
version
auth
error
flush
attach
walk
open
create
read
write
clunk
remove
stat
wstat
Description
identifies the version of the protocol and indicates the maximum
message size the system is prepared to handle
exchanges auth messages to establish an authentication fid used by
the attach message
indicates that a request (Tmessage) failed and specifies the
reason for the failure
aborts all outstanding requests
initiates a connection to the server
causes the server to change the current file associated with a fid
opens a file
creates a new file
reads from a file
writes to a file
frees a fid that is no longer needed
deletes a file
retrieves information about a file
modifies information about the file
Table 1: Message types in the 9P protocol
It is a single-threaded code which uses standard networking via the socket() routines. Although our
implementation is in C, both 9P2000 and KvmFS are
language-agnostic and can be reimplemented in any
other programming language that has access to networking.
OS Image files used by virtual machines can grow to be
quite large (sometimes up to the size of a complete system installation: several gigabytes) and can take a long
time to be transferred to a remote node. To start a single VM on all the nodes of a cluster can potentially take
upwards of an hour for large clusters, with literally a
hundred percent of the time being spent transferring the
disk images of the VM either from a head node or from
a networked file system such as NFS. To alleviate this
problem we can employ tree-based spawning of virtual
machines via cloning. During tree-spawning, if an end
node has received the complete image (or in some cases
a partial image), that node can retransmit the image to
another node, potentially located only a hop away on the
network. To allow tree-spawns each KvmFS server can
also serve as a client to another server by implement-
ing routines which connect over 9P, create new sessions,
set-up and start a new VM with the image from the local session. This reduces logarithmically the amount of
fetches that need to occur from the head node and significantly increases the scale at which KvmFS can be deployed. We have tested tree-spawn algorithms for small
images on several thousand nodes on LANL’s clusters.
The total number of lines for KvmFS, not including the
SPFS libraries, is less than two thousand lines of code.
SPFS itself is 5,158 lines of code, and Spclient is another 2,381 lines of code.
6
Sample Sessions
Several examples of using KvmFS follow. The examples show systems mounted remotely using the v9fs [4]
kernel module and consequently being accessed via
common shell commands. In the examples below, the
names n1, n2, etc., are names of nodes on our cluster.
6.1
Create a virtual machine
This example creates a virtual machine using two files
copied from the home directory. Disk.img is set to
correspond to hard drive hda and vmstate is used as
a previously saved virtual machine.
mount -t 9p n1 /mnt/9
cd /mnt/9
tail -f clone &
cd 0
cp ~/disk.img fs/disk.img
cp ~/vmstate fs/vmstate
echo dev hda disk.img > ctl
echo net 0 00:11:22:33:44:55 > ctl
echo power on freeze > ctl
echo loadvm vmstate > ctl
echo unfreeze > ctl
6.2
Migrate a virtual machine to another node
This example shows the migration of a virtual machine
from one node to another.
mount -t 9p n1 /mnt/9/1
mount -t 9p n2 /mnt/9/2
tail -f /mnt/9/2/clone &
cd /mnt/9/1/0
echo freeze > ctl
echo ‘clone 0 n2!7777/0’ > ctl
echo power off > ctl
64 • KvmFS: Virtual Machine Partitioning For Clusters and Grids
6.3
Create clones of a virtual machine
This example shows the cloning of a virtual machine
onto a new computer.
[2] F. Bellard. Qemu, a fast and portable dynamic
translator. USENIX 2005 Annual Technical
Conference, FREENIX Track, 2005.
[3] FUSE. Filesystems in userspace.
http://fuse.sourceforge.net/.
mount -t 9p n1 /mnt/9
cd /mnt/9/0
echo ‘clone 2 n2!7777/0,\
n3!7777/0,\
n4!7777/0‘ > ctl
[4] Eric Van Hensbergen and Latchesar Ionkov. The
v9fs project.
http://v9fs.sourceforge.net.
7
[5] Eric Van Hensbergen and Ron Minnich. Grave
robbers from outer space: Using 9p2000 under
linux. In Freenix Annual Conference, pages
83–94, 2005.
Conclusions And Future Work
We have described the KvmFS file system which
presents an interface to virtual machines running on
Linux in the form of files accessible locally or remotely.
KvmFS allows us to extend the control of the partitioning and running of virtual machines on a computer beyond the system on which the virtual machines are running and onto a networked environment such as a cluster
or a computational grid. KvmFS benefits large cluster
environments such as the ones in use here, at the Los
Alamos National Laboratory, by enabling fine-grained
control over the software running on them from a centralized location. Status information regarding the parameters on currently running VMs can also easily be
obtained from computers other than the ones they are
executing on. Our system also allows checkpointing and
migration of VMs to be controlled from a centralized
source, thus enabling partitioning schedulers to be built
on top of KvmFS.
Future work we have planned for KvmFS is in the area
of fine-grained control of the execution parameters of
virtual machines running under KvmFS such as their
CPU affinity. Also, we plan to integrate KvmFS with
existing schedulers at LANL to provide a seamless way
of partitioning our clusters.
Another interesting issue we are exploring is exporting
the resources of running virtual machines, such as their
/proc filesystem, through the KvmFS interface so that
processes running under the VM can be controlled externally or even over a network.
References
[1] P. Barham, B. Dragovic, K. Fraser, S. Hand,
T. Harris, A. Ho, and R. Neugebauer. Xen and the
art of virtualization. 2004.
[6] L. Ionkov. Library for writing 9p2000 compliant
user-space file servers. http:
//sourceforge.net/projects/npfs/.
[7] T.J. Killian. Processes as files. USENIX Summer
1984 Conf. Proc., 1984.
[8] AT&T Bell Laboratories. Introduction to the 9p
protocol. Plan 9 Programmer’s Manual, 3, 2000.
[9] R. Meushaw and D. Simard. Nettop: Commercial
technology in high-assurance applications.
http://www.vmware.com, 2000.
[10] R. Minnich. V9fs: A private name space system
for unix and its uses for distributed and cluster
computing.
[11] R. Minnich and A. Mirtchovski. Xcpu: a new,
9p-based, process management system for
clusters and grids. In Cluster 2006, 2006.
[12] R. Pike, D. Presotto, S. Dorward, B. Flandrena,
K. Thompson, H. Trickey, and P. Winterbottom.
Plan 9 from Bell Labs. Computing Systems,
8(3):221–254, Summer 1995.
[13] D. Presotto and P. Winterbottom. The
organization of networks in plan 9. USENIX
Winter 1993 Conf. Proc., pages 43–50, 1993.
[14] Qumranet. Kvm: Kernel-based virtualization
driver. http://kvm.qumranet.com/
kvmwiki/Documents.
Linux-based Ultra Mobile PCs
Rajeev Muralidhar, Hari Seshadri, Krishna Paul, Srividya Karumuri
Mobility Group, Intel Corporation
[email protected], [email protected]
[email protected], [email protected]
Abstract
devices at home, office, or in an automobile while
driving.
Ultra Mobile PCs present a new class of challenges for
system designers since they are perceived to be versatile,
low power devices and yet with the full functionality
of larger handhelds/laptops. User experience of being
ubiquitously connected and access to data anytime and
anywhere is a fundamental requirement for this class of
devices. However, access to data across wireless interfaces has a direct impact on battery life of such handheld
devices. This paper presents detailed analysis of some
of Linux file systems and data access across wireless.
Based on our observations and analysis, we make some
key design recommendations for file systems for Linuxbased Ultra-Mobile PCs.
1
Introduction
The new generation of Ultra-Mobile PCs offer consumers significantly better capabilities than ever before
to access the Internet, be productive and enjoy their favorite digital content while on the go. Consumers now
want and expect access to their personal data and the Internet no matter where they are around the world, and
take their laptops/ultra-portable PCs with them. Sharing data and content is an expected feature of any new
technology—users want to be connected with the important people in their lives anytime, everywhere they go
and want technology to make their lives easier. Some of
the important technology features of such Ultra-Mobile
PCs (UMPCs) are:
• Full PC and Internet capabilities: Full PC capability capable of running mainstream OSes like
Linux and Windows, allowing consumers to run familiar applications.
• Location Adaptibility: Personalized information
and services based on location, environment recognition, and adaptability and interaction with other
• Anytime connectivity: Connectivity in several
ways such as WLAN, WWAN, WPAN, WiMAX,
etc. enabling “always reachability” via email, IM,
or VoIP.
• Ultra mobility: Small, thin, light form factor with
high battery life.
In addition to the more generic UMPCs which can essentially compute and communicate with rich productivity features and anytime, anywhere data access, there
are other categories of ultra-mobile devices that are targetted to specific usages such as ruggedness (for application in environmental sciences, health/medicine, etc.),
affordability (such as education devices), etc.
Regardless of the targeted usage or form factor of such
devices, one of the fundamental visions driving pervasive computing research is access to personal and shared
data anywhere and anytime. In many ways, this vision
is close to being realized with multipe wireless connectivity options such as WLAN, WWAN, WPAN, and the
upcoming WiMAX connectivity options to such small,
mobile devices. Additionally, with several devices becoming the norm at home, sharing data between these
devices in an efficient manner is an important aspect
of usage, and it is important that the underlying platform and system support for such usages is done in
an energy efficient manner. For example, it is quite
likely that a home is equipped with multiple devices
such as a desktop, media box (possibly with network
connectivity options), home entertainment system with
connectivity to a desktop/media storage, laptop, highend cell phones, and also ultra-mobile PCs, all connected to the Internet through an external broadband
connection and internally via high throughput wireless,
like the IEEE 802.11n. This is becoming quite common in some of the economies of the world today. In
• 65 •
66 • Linux-based Ultra Mobile PCs
such a scenario, a UMPC can be used to play locally
stored media on the home entertainment device. Alternatively, it could be used to play remote digital media
from set top box/desktop locally on the UMPC via wireless/streaming.
3. Subsequently, we analyze one of the recent energy
efficient file systems, BlueFS, and understand its
impact on platform power.
4. Finally, based on our experiments and analysis, we
make recommendations that we believe are critical
to designing low power Linux-based ultra-mobile
PCs.
In such scenarios, we believe that substantial barriers
remain to pervasive, energy efficient data access across
wireless. Some of the key challenges are:
• Low power platform design: Although devices
such as cell phones have matured to provide long
talk time and standy battery lives, they lack the full
featuredness expected in order to run producitivity applications, mainstream OSes, etc. We believe
that the platform design of UMPCs pose significant
challenges in order to meet the battery life and full
PC capability expectations.
• Low power communication / connectivity options: Most connectivity options such as WLAN,
WPAN, WWAN are power hungry. Usage scenarios such as media streaming over wireless connections will pose significant limitations on battery life
since power-hungry network and storage devices
tax the limited battery capacity of UMPCs.
• Disconnected operation and access to data via
local/network caches: Disconnected operation is
a way of life in wireless networks. Some research
file systems have explored the use of local and network caches for faster access to data.
• Energy efficient data sharing and file systems:
Power efficient file systems are critical since mobile data access performance can suffer due to variable storage access times caused by dynamic power
management, mobility, and use of heterogeneous
storage devices/connectivity options.
This paper focuses on the last aspect above, namely, energy efficiency in file systems, and makes the following
contributions.
1. We analyze the platform power consumption of a
Linux-based Ultra-mobile PC during different scenarios and quantify the impact of different platform
components towards total platform power.
2. We then analyze the popular Network File System
(NFS) for some of the common UMPC usage scenarios and identify the power bottlenecks.
This paper is organized as follows: Section 1 is this introduction. Section 2 reviews some of the related work.
Section 3 describes the experimental analysis we performed with NFS and BlueFS. Subsequently, in Section 4, we make key observations and design recommendations. We finally conclude the paper with a summary
and areas of future work.
2
Related Work
Energy efficiency in file systems is typically not a primary design consideration; this is true for distributed
file systems as well. However, several recent projects
target energy reduction in local file systems. In [5],
the authors provided interfaces to applications to create
energy-efficient device access patterns. Moving down
the operating system stack, one of the primay components of a file system is its cache—file systems differ
substantially in their choice and use of cache hierarchy.
For example, NFS [2] uses only the kernel page cache
and the file server. The Andrew File System (AFS) [4]
adds a single local disk cache; however, it always tries
to read data from the disk before going to the server.
Coda [1], which is also designed for mobile computing,
much like AFS, uses a single disk cache on the client;
this cache is always accessed in preference to the server.
BlueFS [3] is different from other file systems in that it
uses an adaptive cache hierarchy to reduce energy usage
and efficiently integrate portable storage. BlueFS further reduces client energy usage by dynamically monitoring device power states and fetching data from the
device that will use the least energy. BlueFS borrows
several techniques from Coda including support for disconnected operation and asynchronous reintegration of
modifications to the file server. BlueFS also can proactively trigger power mode transitions of storage devices
that can lead to improved performance and energy savings. As reported in [3], mechanisms like this can
greatly improve energy efficiency on the platform as a
whole.
2007 Linux Symposium, Volume Two • 67
Media playback over NFS Vs BlueFS
There has been a lot of analysis of power and performance of handhelds, but we believe this is the first analysis of platform power and power efficiency of fullfeatured ultra-mobile PCs.
Experimental Analysis
The experimental setup used consisted of a Linux-based
Ultra-mobile PC that was instrumented to enable power
measurements using a FLUKE Data acquisition system, 2680A/2686A Data Acquisition System. The following components were measured for power in different scenarios—processor, memory, chipset (GMCH),
IO Hub (ICH), Hard drive (PATA), Buses (PCI-E, USB),
and peripherals (Audio, WLAN card).
Data Acquisition system
Linux based
Ultra mobile
PC
Host Computer
Figure 1: Experimental Setup
The experimental setup is shown in Figure 1 and the
system configuration used for the UMPC is shown in
Table 1.
The following experiments were performed:
• Idle state
• Audio playback over NFS
• Audio playback over BlueFS
• Rich Media (high-definition movie) playback over
NFS
• Rich Media (high-definition movie) playback using
BlueFS using local hard drive as cache
• Rich Media (high-definition movie) playback using
BlueFS using USB drive as cache
4
Observations and File System Design Recommendations
Based on our analysis of NFS and BlueFS, here are a
few observations:
Power (in watt)
3
CPU
USB
Memory
GMCH
PATA
Azalia_audio
ICH_TOTAL
WLAN
10
9
8
7
6
5
4
3
2
1
0
Idle
Audio
Video PB
Audio
Video PB
Playback (over NFS) Playback
(over
(over NFS) 1080p_H264
(over
BlueFS)
video clip
BlueFS) 1080p_H264
video clip
Figure 2: Performance of Media playback over NFS and
BlueFS over the wireless link
1. Idle power on the platform was surprising higher,
around 4.5W (Figure 2), as compared to other
OSes which were around 3.2W; a closer look at
the data reveals that the idle power for the WLAN
component is as same as that of power it consumed
when its exercising the work load, leading us to believe that we had an inefficient driver.
2. Another interesting aspect of the data was that the
CPU power drawn when the system was idle was
about 0.5W and a closer look at the processor’s
C3 residency state revealed that the CPU has C3
residency of only about 75%. Ideally this should
be around 90–95% to get maximum platform idle
power. We believe this is a critical piece to resolve
to get better power for Linux based platform.
3. In addition to the impact of CPU residency, it is
very important that all the devices in the platform
support a low power idle state. As seen in our observations above, an inefficient device driver can
spoil overall platform idle power and we need to
make sure we have well optimized devices and
drivers for a low ideal power. In the observation above, if we consider the ideal idle and transmit power for WLAN device, the idle power of
the platform improves. This is shown in Figure 3
which considers the projected ideal WLAN power
and shows the performance of Media playback over
NFS and BlueFS.
4. NFS power bottlenecks: The WLAN power consumption is among the top 3 in the list, next only
to CPU and GMCH. This is as expected, all the
68 • Linux-based Ultra Mobile PCs
Component
Configuration
R
Intel
Core Duo 800 MHz
512 MB DDR2
ICH7
R
Intel
945GM Express Chipset Family
R
Intel High Definition Audio
R
Intel
3945 ABG Network Connection
CPU
Memory
ICH
GMCH
Audio
WLAN
Table 1: Configuration of Linux-based Ultra-Mobile PC used for experimental analysis
NFS transactions are network centric. Assuming
the network stack and the device are well optimized
for the power, better platform power saving can be
attained through file system specifically designed
for low power.
Media playback over NFS Vs BlueFS (projected WLAN power)
Memory
USB
Projected WLAN
PATA
GMCH
10
9
8
7
6
5
4
3
2
1
0
3. We did not see any significant impact on the write
performance as compared to NFS though one possible optimization could be to re-evaluate the write
to many strategy in terms of power efficiency.
Media playback over BlueFS: Local disk cache Vs USB cache
CPU
USB
Memory
GMCH
PATA
Azalia_audio
ICH_TOTAL
WLAN
10
9
Idle
Audio PB
(over NFS)
Video PB
(over NFS)
1080p_H264
video clip
Audio PB
(over
BlueFS)
Video PB
(over
BlueFS)
1080p_H264
video clip
Figure 3: Performance of Media playback over NFS and
BlueFS (with projected WLAN power)
8
Power (in watt)
Power (in watt)
CPU
ICH_TOTAL
Azalia_audio
consumed less power compared to USB drive as
cache, suggesting that if we have an optimized local solid state drive like Robson flash drive [6] as
cache for BlueFS will have significant impact on
the platform power.
7
6
5
4
3
2
1
0
4.1
BlueFS impact on Platform Power
1. BlueFS did show more effiency in terms of platform power for the given workload, as compared
to NFS. The latency did come down drastically
for BlueFS and this clearly brought down the net
power consumed by the platform for a given workload to complete.
2. Caching mechanisms also helped in improving the
user experience, and overall usage scenario. However, the choice of the caching device does have an
impact on the system power. For example, from
Figure 4 BlueFS running over a local disk as cache
Audio PB
(local disk
cache)
Video PB
Audio PB
Video PB
(local disk (USB cache) (USB cache)
cache)
1080p_H264
1080p_H264
video clip
video clip
Figure 4: Performance of Media playback over BlueFS
using local disk cache and USB cache
4. We also observed that while the Wolverine user
daemon dynamically selects the device to read or
write on run time, it does not do anything to the devices that are not being used. One possible power
saving option would be to modify Wolverine to
power down the devices that are not being selected
for read or write operation.
2007 Linux Symposium, Volume Two • 69
5. Caching being a critical piece of BlueFS efficiency,
proper focus needs to be made on the cache hierarchy selection. Other power efficient caching technologies like co-operative caching needs to be explored for more optimized power saving.
5
Summary and Future Work
Ultra-Mobile PCs present a new class of challenges for
system designers since they are perceived to be high performance, low power devices and yet with the full functionality of larger handhelds/laptops. User experience
of being ubiquitously connected and access to data anytime and anywhere is a fundamental requirement for this
class of devices. However, access to data across wireless interfaces has a direct impact on battery life of such
handheld devices.
This paper presented detailed analysis of the Network
File System (NFS) and Blue File System (BlueFS) for
specific usage scenarios targetting network data access
across wireless interfaces and makes. Based on the
power and performance analysis of these file systems,
we made some key design recommendations to designers of file systems for Linux-based Ultra-Mobile PCs.
References
[1]
J.J. Kistler and M. Satyanarayanan, Disconnected
operation in the Coda File system, ACM
Transactions on Computer Systems, 10(1),
February, 1992.
[2]
Network Working Group, NFS: Network File
System, Protocol specification, March 1989. RFC
1094.
[3]
Edmund B. Nightingale and Jason Flinn,
Energy-Efficiency and Storage Flexibility in the
Blue File System, Proceedings of the 6th USENIX
Symposium on Operating Systems Design and
Implementation (OSDI), San Francisco, CA,
December, 2004.
[4]
J.H. Howard, M.L. Kazar, S.G. Menees, D.A.
Nichols, M. Satyanarayanan, R.N. Sidebotham,
and M.J. West, Scale and performance in a
distributed file system, ACM Transactions on
Computer Systems, 6(1), February, 1988.
[5]
T. Heath, E. Pinheiro, and R. Bianchini,
Application-supported device management for
energy and performance, In Proceedings of the
2002 Workshop on Power-Aware Computer
Systems, pages 114–123, February, 2002.
[6]
Michael Trainor, Overcoming Disk Drive Access
Bottlenecks with Intel Robson Technology,
Technology at Intel Magazine, Volume 4, Issue 9,
December, 2006.
We plan to extend this work further in the following areas:
1. Evaluate BlueFS for multiple storage devices—
USB, newer storage mechanisms like Robson
Flash memory recently introduced on Intel’s
newest platforms. We believe that although BlueFS
has an excellent mechanism for caching data, the
choice of the device will be important in total platform power consumption.
2. Evaluate other wireless interfaces and usage models, specifically mobile digital TV, IP TV, since
such scenarios would be critical for ultra-mobile
PCs.
6
Acknowledgements
We would like to thank Bernie Keany for his valuable
discussions and inputs, Adarsh Jain, Arvind Singh and
Vanitha Raju for all their help with power measurements
and analysis on the Ultra-mobile PC platforms. We
would also like to thank Ananth Narayan for the tools
he provided for our analysis.
70 • Linux-based Ultra Mobile PCs
Where is your application stuck?
Shailabh Nagar
IBM India Research Lab
[email protected]
Balbir Singh
Vivek Kashyap
Narasimha Sharoff
Chandra Seetharaman
Pradipta Banerjee
IBM Linux Technology Center
{[email protected],[email protected],[email protected]}.ibm.com,
[email protected], [email protected]
Abstract
Xen migration or Container mobility promise better system utiliztion and system performance. But how does
one know if the effort will improve the workload’s
progress? Resource management solutions promise optimal performance tuning. But how does one determine
the resources to be reallocated and the impact of the allotment? Most customers develop their own benchmark
that is used for purchasing a solution, but how does one
know that the bottleneck is not in the customer benchmark?
Per-task delay accounting is a new functionality introduced for the Linux kernel which provides a direct
measurement of resource constraints delaying forward
progress of applications. Time spent by Linux tasks
waiting for CPU time, completion of submitted I/O and
in resolving page faults caused by allocated real memory, delay the forward progress of the application being
run within the task. Currently these wait times are either unavailable at a per-task granularity or can only by
obtained indirectly, through measurement of CPU usage and number of page faults. Indirect measurements
are less useful because they make it harder to decide
whether low usage of a resource is due to lack of demand from the application or due to resource contention
with other tasks/applications.
Direct measurement of per-task delays has several advantages. They provide feedback to resource management applications that control a task’s allocation of system resources by altering its CPU priority, I/O priority
and real memory limits and enable them to fine tune
these parameters more quickly to adapt to resource management policies and application demand. They are also
useful for accurate metering/billing of resource usage
which is particularly useful for shared systems such as
departmental servers or hosting platforms. For desktop
users, these statistics provide a quick way of determining the resource bottleneck, if any, for applications that
are not running as fast as expected.
In this paper, we describe the design, implementation
and usage of per-task delay accounting functionality
currently available in the Linux kernel tree. We demonstrate the utility of the feature by studying the delay profiles of some commonly used applications and how their
resource usage can be tuned using the feedback provided. We provide a brief description of the alternative
mechanisms proposed to address similar needs.
1
Introduction
Linux is supported on a wide range of systems, from
embedded to desktop to mainframe, running a diverse
set of applications ranging from business and scientific
to office productivity and entertainment. Linux provides
multiple metrics and “knobs” for achieving optimal performance in these various deployments. There are a
myriad of well known benchmarks and tools available
to help gather and analyze and then tune the systems for
desired performance.
However, after elaborate tuning as well the applications
or system may still perform unsatisfactorily. The resource bottlenecks blocking the progress must be addressed through additional provisioning, resource real-
• 71 •
72 • Where is your application stuck?
location or even load-balancing by migration of the application/service to another system.
There is on-going work such as resource groups and
‘containers’ to re-allocate resources to desired workloads for better system utilization and performance. Xen
and Linux containers support the notion of migrating
live workloads to consolidate systems when load is low
and migrate to other systems for better load-balancing.
However, all these mechanisms will work ‘blind’ without a good method to pinpoint the resources that need
tuning.
The delay-accounting framework is built on the observation that: since ultimately the application’s progress
is most important, the bottlenecks impeding the applications progress must be easily identifiable. The delayaccounting framework therefore gathers the time spent
on behalf of the task (or task group) in queues contending for system resources. This information may then
be utilised by workload management applications to dynamically increase the desired applicaton’s access to the
bottlenecked resource by raising its priority, or share of
the resource pool, or even initiating service or application migration to a different system.
This paper discusses the design, implementation and
utility of the per-task delay accounting framework developed to address this issue. The following sectons
outline the use cases
2
bandwidth and physical memory. These, respectively,
translate to knowing how long a Linux task (or groups
of tasks) spend in, i.e. get delayed, in
• waiting to run on a CPU after becoming runnable
waiting for block
• I/O operations inititated by the task to complete
waiting for page
• faults to complete
The information is useful in at least two distinct scenarios:
Simple hand tuning: If a favorite task seems to be
spending most of its time waiting for I/O completion, raising its I/O priority (compared to other
tasks) may help. Similarly, if a task is mainly waiting on page faults, increasing its RSS limit (or running other memory hogs at a much lower cpu priority) may help alleviate the resource bottleneck.
Workload management: One of the objectives of
modern workload management tools is to manage
the forward progress of aggregates of tasks which
are involved in a given business function. The idea
being that if business function A is more important than another one B, the applications (tasks and
processes from an OS viewpoint) involved in the
former should get preferential access to the OS resources compared to B.
To achieve this, workload managers need to periodically know the bottlenecked resource for all tasks
running on the system and use that information, in
conjunction with policies that determine prioritization, to adjust the resource priorities like nice values, I/O priorities and RSS limits. Workload managers may also make a decision to shift a given application off a system if it determines that priority
boosting isn’t helping.
Motivation
The traditional focus of operating system accounting is
the time spent by a Linux task doing a particular activity e.g. time spent by a task executing on a cpu in system mode, user mode, in interrupts etc. There is also a
measure of the system activity that happens e.g. number
of system calls, I/O blocks transferred, network packets sent/received. While these metrics are often useful for measuring overall system utilization or for high
level detection of performance anomalies, they are not
directly usable for determining what is delaying forward progress of a specific application, except perhaps
by skilled and experienced system administrators.
Per-task delay accounting was designed and implemented to meet the above needs. We next describe the
design considerations in detail.
3
Hence there is a need for answering the simple question:
what resource, managed by the operating system, is my
application waiting for? To start with, the resources of
interest can be high level such as cpu time, block I/O
Design and implementation
The design and implementation of per-task delay accounting had to take the following three major factors
into consideration.
2007 Linux Symposium, Volume Two • 73
3.1
Measurement of delays
The design objective was to measure the most significant sources of delay for a process to the highest accuracy possible, preferably at nanosecond granularity. The
approach taken was to take high resolution timestamps
at the appropriate kernel functions and accumalate the
timestamp differences into per-process data structures.
The delay sources chosen and the manner in which they
are collected are:
1. Waiting to run on a cpu after becoming runnable:
Here we needed to take timestamps when a process was added to a cpu runqueue and again when
it was selected to be run on a cpu. The schedstats codebase, added to help gather cpu scheduler statistics for development and debugging purposes, came in handy since it already had code to
gather these timestamps and take their differences.
The schedstats functions sched_info_arrive
and sched_info_depart which gathered other
statistics that were not of interest to delay accounting had to be refactored to minimize the performance impact. Another decision made to keep the
performance impact low was to stick to the jiffie
level timestamp resolution used by schedstats instead of higher resolution ones available in the kernel.
2. Waiting for block I/O submitted to complete: Here
we had a choice of trying to accurately measure
the entire delay in submitting block I/O as well as
the delay incurred in the block device performing
the I/O. However, it was finally decided that we
would measure only the time spent by a process in
sleeping for submitted I/O to complete. Measuring the delays in the I/O submission path as well
turned out to be quite complex, given the diversity
of functions that are involved in block I/O submission as well as the difficulty of correctly attributing
the delays to the right process in all these paths.
These factors would have necessitated a number of
timestamps being collected all over the kernel code
which affects maintainability. Moreover, much
of the delays seen in I/O submission cannot be
changed by the user (other than indirectly by affecting the cpu scheduling of the submitting process)
whereas delays incurred after I/O submission can
be affected by tweaking the I/O scheduling priority
of the process. Hence it was decided to only measure the time spent in sched.c/io_schedule()
using high resolution timestamps.
3. Waiting for a page fault to complete We had briefly
considered measuring the delays seen in both major
and minor page faults but later concentrated only
on the former to minimize impact of delay collection code on the virtual memory management code
paths. Delays for major page faults are a subset
of the block I/O delays which were already being
measured so the only change needed was to record
the fact that a process was in the middle of a major page fault and use this information at block I/O
delay recording time.
Delay accounting also measures and returns an intervalbased measurement of time spent running on a cpu. This
is more accurate than the sampling-based cpu time measures normally available from the kernel (via a task’s
utime, stime fields in task struct). Accurate cpu usage
times are valuable in accurate workload management.
One factor that has to be considered for cpu time is the
possibility of the kernel running as a guest OS in a virtualized environment. These “guest OSes” are scheduled
by the hypervisor in accordance with its scheduling policies and priorities for the OS instance. As a result, the
times spent waiting for a particular resource need to be
measured in wall-clock times. In contrast the the utilization of the resource occurs only when the Guest is
executing. This differentiation enables an educated assessment of resource allocation (such as additional CPU
share) needed by the “guest” or the resources within the
the “guest OS.”
The delay accounting framework retuns both the real
and virtual cpu utilization on virtual systems (currently
implemented for LPARs on ppc64) as well as the delays experienced by the individual task groups in the OS
instances.
3.2
Storing the delay accounting data
Each of the delay data recorded above needed to be
stored taking into account two important constraints:
1. The data structures should be expandable to add
other per-task delays that were deemed useful in
74 • Where is your application stuck?
future. While the current per-task delay accounting only looks at wait for cpu, block I/O and major page fault delays, it is well possible that other
delays associated with kernel resource allocation
would be of interest and measured in future.
2. The data should be collected per-task and also aggregated per-process (i.e. per-tgid) within the kernel. This latter design constraint drew a lot of
comments when the delay accounting code was
proposed since it was felt that per-process delays
could as well be accumulated outside the kernel in
userspace. However, we had observed that accurate
measures of per-process delays were very useful
for performance analysis of bottlenecks and also
that accumalating per-task delays in userspace required far too much overhead and reduced accuracy
due to presence of short-lived tasks in a process.
Hence it was necessary to have a per-process delay
aggregating data structure that would keep the delay data collected for an exiting task and make it
available until all tasks of the process exited.
The taskstats data structure, defined in include/
linux/taskstats.h, took into account these
constraints. It was versioned, mandated that new
fields would be added at the bottom and also took
into account alignment requirements for 32 and 64
bit architectures.
To meet the second constraint, two copies of
the data structure are maintained. One is pertask, maintained within the task_struct. The
other is per-tgid, maintained within the signal_
struct associated with a tgid. The fields of struct
taskstats are large enough to serve as an accumalator for per-tgid delays.
3.3
that the data transfer of delay accounting data be
efficient while handling large volumes (due to potentially large number of tasks). A similar requirement, albeit less severe, exists even for monitoring
a single application if its degree of multithreading
is sufficiently high.
2. Handle rapid exit rate without data loss: In order
to do workload management at the level of userdefined groups of processes, workload managers
need to get the cumulative delays seen by a task
(and a thread group) right up to the time it exits.
Hence delay accounting data needs to be available
even after a task (or thread group) exits. Obviously
the kernel cannot keep such data around for a long
time so the choice was made to use a “push” model
(kernel->user) to send such data out to listening
userspace applications rather than require them to
“pull” the data. In such a scenario, its important to
be able to handle a rapid rate of task/thread group
exits, if not on a sustained basis, atleast for short
bursts, without losing data.
3. Exporting data as text or not: This is another
instance of the classic debate whether such data
should be exported as text through /proc or /sysfs
like interfaces allowing it be directly read in user
space using shell utilities or whether it should be
a structured binary stream requiring special user
space utilities to parse. Given the volume of data
needing to be transferred, the latter option was chosen.
4. Bidirectional read/writes: There was a need for
userspace to send commands and configuration information to the kernel delay accounting and hence
interfaces like relayfs which lacked a user->kernel
write capability were not usable.
Interface to userspace to supply the data
The interface to access delay accounting data from
userspace formed a large part of the discussion preceding the acceptance of delay accounting in the kernel.
The various design constraints for the interface were:
1. Efficient transfer of large volumes of delay data:
Workload managers that are monitoring the entire
system for performance bottlenecks need to gather
delay statistics from each task periodically. In order to allow this period to be small, it is essential
Given these constraints, we decided to use the newly introduced genetlink interface. Genetlink is a generalized
version of the netlink interface. Netlink, which exports
a sockets API, has been used to handle large volumes
of kernel<->user data, primarily for networking related
transfers. But it suffered the limitation of having a limited number of sockets available for use by different kernel subsystems as well as an API that was too networkcentric for some. Genetlink was created to address these
issues. It multiplexes multiple users over a single netlink
socket and simplifies the API they need to use to effect
2007 Linux Symposium, Volume Two • 75
bidirectional data transfer. Delay accounting was one
of the early adopters of the genetlink mechanism and
its usage provided inputs for refining and validating the
genetlink interface as well.
Delay accounting handles the rapid exit rate constraint
by splitting the delay data sent on exit into per-cpu
streams. A listening userspace entity has to explicitly
register interest in getting data for a given cpu in the
system. Once it does so, it receives the exit delay data
for any task which exits while last running on that cpu.
This design allows systems with many cpus (which will
typically have a correspondingly larger number of exiting tasks) to balance the exit data bandwidth amongst
multiple userspace listeners, each listening to a subset
of cpus. CPUs are used as a convenient means of dividing up the exit data requirements. They also help when
the cpusets mechanism is used to physically partition up
machines with very large number of cpus and some of
the physical partitions have strict performance requirements that prohibit exit data from being processed. Being able to regulate the sending of exit delay data by the
kernel by cpu allows fine-grain control over the performance impact of delay accounting.
Finally, virtual machine technology enables a single system to run multiple OS instances. These “guest OSes”
are scheduled by the hypervisor in accordance with its
scheduling policies and priorities for the OS instance.
As a result, the times spent waiting for a particular resource need to be measured in wall-clock times. In contrast the the utilization of the resource occurs only when
the Guest is executing. This differentiation enables an
educated assessment of resource allocation (such as additional CPU share) needed by the “guest” or the resources within the the “guest OS.”
The delay accounting framework retuns both the real
and virtual cpu utilization on virtual systems (currently
implemented for LPARs on ppc64) as well as the delays experienced by the individual task groups in the OS
instances.
3.4
Delay accounting lifecycle
With the above elements in place, its useful to outline how the delay accounting works in practice. The
description is being kept generic without referring to
specifics of the interface since that can be obtained elsewhere.
On system startup, the system administrator can optionally start userspace “listeners” who register to listen to
exit delay data on one or more cpus. The typical usage is to start one listener listening to all the cpus of the
system.
When a task is created (via fork), a taskstats data structures get allocated. If the task is the first one of a thread
group, a per-tgid taskstats struct is allocated as well. As
the task makes system calls, the delays it encounters get
measured and aggregated into both these data structures.
At any point during the task’s lifetime, a user can query
the delay statistics for a task, or its thread group, via the
genetlink interface by sending an appropriate command.
The reply contains the taskstats data structure for the
task or thread group.
When the task exits, its delay data is sent to any listener
which has registered interest in the cpu on which the exit
happens. If the task is the last one in its thread group,
the accumalated delay data for the thread group is additionally sent to registered listeners.
3.5
Per Task IO Accounting
An important related work are the per-task I/O accounting statistics by Andrew Morton which improve the accuracy of measurement of I/O resource consumption by
a task. The CSA infrastructure also supports per-task IO
statistics, but the data returned by it, can be incorrect.
CSA accounts for per task IO statistics using data
read or written through the sendfile(2), read(2),
readv(2), write(2), and writev(2) system
calls. It does not account for
1. Data read through disk read ahead
2. Page fault initiated reads
3. Sharing data through the page cache. If a page is
already dirty and another task T1, writes to it, both
the task that first dirtied the page and T1 will be
charged for IO.
The following example illustrates the deficiencies of the
current per task IO accounting infrastructure. We wroter
a sample test application that maps a 1.2GB file and
writes to 1GB of the mmap’ed memory. The output below shows the output of /proc/<pid of test>/io
76 • Where is your application stuck?
rchar: 1261
wchar: 237
syscr: 6
syscw: 13
read_bytes: 1048592384
write_bytes: 1317117952
cancelled_write_bytes: 0
The gathered statistics indicate that the existing accounting of rchar and wchar present in CSA, failed to capture
the IO that had taken place during the test.
The ideal place to account for IO, is the IO submission routine, submit_bio(). This works well for accounting data being read in by the task. However, for
write operations, we need some place else to account
for the following reasons
Application
...
submit_bio
Writes are usually delayed, which means that it is hard
to track the task that initiated the write. Furthermore,
the data might become available long after the task has
exited.
Write accounting is therefore done at page dirtying time.
The routines __set_page_dirty_nobuffers()
and __set_page_dirty_buffers() account the
data as written and charge the current task for IO.
A task can also actually cause negative IO, by truncating pagecache data, brought in by another task. Instead of accounting for possible negative write IO, the
data is stored in the field called cancelled_write_
bytes.
Figures 1, 2, and 3 show the call flow graph for read,
write, and truncate accounting, respectively.
Communicating the per task IO data to user space is
fairly straight forward. It uses the per task taskstats interface for this purpose. The taskstats structure has been
expanded to new fields corresponding to the per task
IO accounting information. The taskstats interface automatically takes care of sending this data to user space
when either a task exits or information is requested from
user space.
4
Case studies of performance bottleneck
analysis
The following two case studies, taken from a performance analyst who used delay accounting to debug performance issues, illustrate the utility of the mechanism.
read accounting
Figure 1: Read IO Accounting
1. Analysing performance issue with an MPI based
parallel application:
This is a brief on how per-task delay accounting
was used to find out the root cause for a performance problem of an application running on homogeneous cluster. During the user acceptance test
for the cluster this application successfully completed its run within the expected time. However
some days later the same application was taking
too much time to complete. Nothing changed in
the cluster wrt to the configuration. However one
strange thing was noted - when the cluster was
compleletely isolated from the public network the
application completed its run within the expected
time. The problem happened only when the cluster was open for use by everyone concerned. This
was an important lead but we didn’t have any clue
on how to proceed. The cluster was pretty large
2007 Linux Symposium, Volume Two • 77
Application
Application
...
...
set_page_
dirty
__set_page_
dirty_
nobuffers
__set_page_
dirty_
buffers
cancel_dirty_
page
write accounting
Figure 2: Write IO Accounting
truncate accounting
and analysing each and every node manually was a
tedious task.
Some of the possible things to look for were network communication delays, problems with the job
scheduler’s resource reservation functionality and
system configuration of all the nodes (just to be
sure that nothing was changed in between). Even
after doing all these activities we were not able to
identify the root cause of the problem. We didn’t
have a clue whether the issue was with any particular node/s or with the entire cluster.
Per-task delay accounting came to our rescue here.
We asked the customer not to isolate the cluster and
let it be used like in any normal day. The application was run on all the nodes in the cluster and
subsequently the getdelays program was run so as
to get the delay accounting statistics for this particular application. After completion of the run, the
delay accounting statistics from all the nodes were
compared and it was found that there was huge IO
and CPU delay on one of the nodes in the cluster.
This was affecting the overall performance (execution time) of the application. We then focussed our
attention on this particular node. Eventually after
monitoring this node for some time, we found that
one of the users was directly running interactive
jobs on this particular node. This in turn pointed
to a security hole in the customer’s overall cluster
Figure 3: Truncate IO Accounting
setup which allowed this user to bypass the access
control restrictions put in place and run the jobs directly on a particular node.
Per task delay accounting made the job of isolating the problem a lot easier. An added advantage
is that of convincing the customer becomes a lot
easier and effective.
Current per task delay accounting can be taken
a step forward by including per task network IO
delay accounting statistics also and writing a tool
based on per-task delay accounting for identifying
performance problems in a cluster.
2. There was another instance where per-task delay
accounting helped us in dealing with a customer.
The customer had a single threaded program on
a non-Linux platform. The application was later
made multi-threaded on the same platform. The
program typically read X number of records in n
seconds.
The customer ported the multi-threaded version of the
program to Linux (using C programming language).
The ported program was reading significantly less number of records in n seconds when compared to the
original program on the non-Linux platform (hardware
78 • Where is your application stuck?
configuration was same, only the OS was different).
Tools like top, vmstat, iostat were not very conclusive.
Since source code access for the program was not there,
we asked the customer to provide us with both single threaded and multi-threaded version of the program
along with the timings and used per-task delay accounting to get the delay stats for both the single-threaded and
multi-threaded version of the program. We found that
for the multi-threaded version IO delay was on a higher
side when compared with the single-threaded version.
Pointed this out to the customer (as source code access
was not there). Convinced them that they need to relook
at the application code.
Per task delay accounting helped us to get specific data
pertaining to the multi-threaded program in question.
5
Summary
Detecting the bottlenecks in resource allocation that affect an application’s performance on a Linux system is
an increasingly important goal for workload management on servers and on desktops. In this paper, we describe per-task delay accounting, a new functionality we
contributed to the Linux kernel, that helps identify the
resource allocation bottleneck impeding an applications
forward progress. We also describe other important related work that improves the accuracy of CPU and I/O
bandwidth consumption. Finally we demonstrate how
these new mechanisms help identify where applications
can get "stuck" within the kernel.
Trusted Secure Embedded Linux
From Hardware Root Of Trust To Mandatory Access Control
Hadi Nahari
MontaVista Software, Inc.
[email protected]
Abstract
With the ever-increasing presence of Linux implementations in embedded devices (mobile handsets, settop boxes, headless computing devices, medical equipments, etc.), there is a strong demand for defining
the security requirements and augmenting, enhancing,
and hardening the operating environment. Currently
an estimated 70% of new semiconductor devices are
Linux-enabled; such a high growth is accompanied
by inevitable security risks, hence the requirement for
hardware-based trusted and secure computing environment, enhanced with MAC (Mandatory Access Control)
mechanisms for such devices in order to provide appropriate levels of protection. Due to stringent security requirements for resource-constrained embedded devices,
establishing trust-chain on hardware root of trust, and
deploying MAC mechanisms to balance performance
and control are particularly challenging tasks.
This paper presents the status of MontaVista Software’s
efforts to implement such solutions based on ARM cores
that provide separated computing environment, as well
as SELinux (Security Enhanced Linux) to provide MAC
for embedded devices. The focus will be on practical aspects of hardware integration as well as porting SELinux
to resource-constrained devices.
1
Introduction
The defining line between embedded and nonembedded systems is becoming more and more blurred
[2]; whether the system has an elaborate UI (User Interface), or if it is operating under a resource-constrained
environment are not sufficiently delineating identifiers
anymore.
The availability of more computing power at a low cost
has also resulted in developers’ and manufacturers’ interest in adding more functionality to devices that were
traditionally either not capable of, or not expected to
have them (smart phones, hand-held computing devices,
complex medical control systems, navigation gear, etc.).
The difficulty in satisfying the security requirements of a
software package is proportional to its design complexity. The default access control method in Linux, that is,
DAC (Discretionary Access Control) is at best considered insufficient for any security-sensitive implementation, hence the increase in demand for MAC in recent
years.
HAS (Hardware Assisted Security) has not yet been sufficiently standardized and from the industry adoption
perspective, it is still considered to be in its infancy. Yet
(or however), HAS is one more item in the toolbox of security architects who need to provide solutions for fundamental problems such as establishing TCB (Trusted
Computing Base) using hardware-based root of trust,
managing key material, and security governance of the
system.
In the past years, there has been an increasing growth in
adoption of Linux in various environments. This important phenomenon, which is unparalleled by other operating systems, has resulted in Linux becoming more and
more the de-facto operating system for embedded devices. The recent acceleration of this adoption by saiddevices is partially due to the highly modular architecture of Linux kernel, and partially due to its maturity,
which results in lower COO (Cost Of Ownership.)
One must note, however, that this growth is accompanied by complex and elaborate software solutions build
atop embedded Linux devices to address the ever increasing demands of the market, and hence the complex
security requirements of such devices. This makes implementing a holistic security strategy for Linux more
challenging, especially when one considers the highly
varied selection of embedded devices adopting, or planning to adopt Linux; from smart phones, hand-held de-
• 79 •
80 • Trusted Secure Embedded Linux
vices, set top boxes, high-end televisions, medical devices, automotive control, navigation systems, assembly line control devices, missile guidance systems, to
the other end of the spectrum such as CGL (Carrier
Grade Linux) in the telecoms industry. Such environments each possess a very unique set of security characteristics and requirements, and therefore provide different challenges. Figure 1 shows a typical Linux-based
mobile phone architecture.
In this article I will start by describing the most common
security requirements in the embedded industry, and follow it by explaining the design principles and reviewing
the available technologies that were initially considered
viable, both for HAS and MAC, and will propose an architecture based on the selected technologies. Where
applicable, I will point out whether the said-method or
technology satisfies a subset of the embedded systems
(mobile handsets and CGL).
2. Performance Trade-off
Memory footprint is important because a big majority
of the embedded devices tend to have limited memory
available at run-time. Any security solution for such devices must therefore have an acceptable and low memory footprint.
Performance trade-off is important because the computing power available in an embedded environment is typically low, due to hardware architecture characteristics,
as well as issues pertaining power management in battery operated devices. Low power consumption is one
of the fundamental reasons based on which ARM is the
de-facto architecture for such devices.
3
1. Simplicity
The main focus of this article is to provide:
1. A high-level, architectural overview of a design
that provides fundamental and necessary facilities
to establish the trustworthiness of the operating
system services (via connection to a hardwarebased root trust).
2. A mechanism to establish Effective Containment
(that is, a mechanism to prevent an exploited application from enabling attacks on another application
possible) via the MAC offered by SELinux.
Security services provided by higher-level software constructs, such as middleware and frameworks alike are
not the focus of this article and will not be discussed.
It is also noteworthy to mention that, where the required security related components exist in the underlying hardware architecture, the proposed design is viable
for non-embedded systems as well.
2
Design Constraints
The following are the most commonly considered constraints when designing and developing software components for an embedded device:
1. Memory Footprint
Design Principles
2. Modularity
We have made the design as simple as possible. This is
to ensure no unnecessary complexity is introduced into
the system and also the overall security analysis of the
system is easier to perform.
The proposed architecture is modular. This is to ensure that the design could also be implemented on hardware architectures that lack the security capabilities introduced, and also environments where the types of attacks, or the security assets of the system would not require the high degree of protection provided by this design.
4
4.1
Technology Overview
Secure Boot
Secure Boot (a.k.a. High Assurance Boot) is a technique
for verifying and asserting the integrity of an executable
image prior to passing the control to it. Assuming the
verification mechanism is based on the digital signature
of the image being verified, then the reliability of this
verification is at best as good as the reliability of the protection mechanism provided in the device for the public
key of the image signer.
The most important assumption here is that the code
which performs the integrity verification process is itself
2007 Linux Symposium, Volume Two • 81
Figure 1: A Typical Linux-based Mobile Phone Architecture
trustworthy. To assert this assumption, the implementations typically put the public key material, as well as the
verifier code into non-writable areas of memory, which
in turn are protected via a form of hardware protection
mechanism. Figure 2 shows a generic Secure Boot architecture.
This design enables the establishment of a chain of trust
by ensuring that the trust, on each layer of the system, is
based on, and is only based on, the trust on the layer(s)
underneath it, all the way down to the hardware security component, which serves as the Root Of Trust. If
verification fails to succeed at any given stage, the system might be put in a suspended-mode to block possible
attacks.
One must note, however, that this architecture, though
ensuring the integrity of the operating environment
when a hard boot occurs, does not guarantee its integrity during the runtime; that is, in case of any malicious modification to the operating environment during
the runtime, this architecture will not detect it until the
next hard boot happens.
4.2
Effective Containment
The “Buffer Overflow” class of attacks is practically
impossible to prevent in native environments with no
type- or boundary-checking available at runtime. Executing native code in operating environments like Linux
makes it specifically susceptible to this category of attacks. This therefore makes exploiting a buffer overflow attack of particular interest to hackers, and successfully mounting such an attack is considered a badge of
honor. Effective Containment, in this context, is therefore referred to a class of techniques that contain (as
opposed to prevent) such attacks for which there are no
practical prevention mechanism available. This could
be achieved via the use of various software and security
technologies. Applying a MAC mechanism is one way
to implement effective containment.
4.2.1
Embedded SELinux
One method to achieve a MAC is via implementing
RBAC (Role-Based Access Control). NSA’s SELinux,
among other features such as MLS (Multi Level Security), provides Linux with MAC through RBAC.
82 • Trusted Secure Embedded Linux
Figure 2: A Typical Secure Boot Design
SELinux was not originally designed for the ARM architecture, or for embedded devices. There have been,
however, previous and reasonably successful attempts
to port SELinux or parts of it into an embedded device
and on an ARM architecture; the most notable of which
being by Russell Coker [1].
in the future as the above-mentioned technologies mature.
By adding a MAC mechanism such as SELinux on top
of Secure Boot, we will be able to address one of its fundamental shortcomings; providing a level of protection
at runtime. Figure 3 shows an architecture, deploying
Secure Boot and MAC mechanisms together.
In recent years, the industry has put more focus on
adding more computing power to embedded devices, not
only in adding more processing capabilities to each core,
but also adding to the number of cores available in hardware architectures. One of the objectives of this expansion is have a dedicated hardware resource to each highlevel task, and therefore achieving easier management
of software design and implementation through hardware compartmentalization. This approach has resulted
in recent growth in implementing virtualization technologies in embedded space. Various types of virtualization techniques exist (hardware- and software-based)
which all provide multiple guest domains, each assuming total access to the underlying hardware, and conceptually having no awareness of the other guest domains.
A fundamental element of any virtualization implementation is a layer called hypervisor, which is responsible for mediating the interactions among guest domains,
and providing necessary life-cycle management for each
guest domain.
In this design, not only have we accomplished augmenting the Secure Boot mechanism (by way of providing
runtime containment), but have also enabled a way to
expose hardware-security capabilities (e.g. TPM standard services) to the applications and processes during
the system runtime.
As a side note, it is important to mention that RBAC is
not the only mechanism to implement MAC. Other implementations exist which might also become suitable
for embedded devices; “Tomoyo Linux” and Novell’s
“AppArmor” are both examples of such solutions that
implement a technique called NBAC (Name-Based Access Control). LIDS (Linux Intrusion Detection System) is another example. At the time of writing this article, however, neither of these implementations seem to
have been able to gain the traction in the industry, nor
by manufacturers of embedded devices to be the default
MAC for such devices. This state, however, may change
4.2.2
Multi-core and Virtualization
As is in most cases, this technique has existed in
large-scale enterprise systems prior to embedded space;
however, again the implications of this technology in
resource-constrained embedded devices are different
2007 Linux Symposium, Volume Two • 83
Figure 3: Augmenting Secure Boot with Access Control
than those of the enterprise systems. The use cases,
however, remain similar.
Any modern design that attempts to provide a security
solution for embedded space, therefore needs to assume
it might be contained in a virtual, guest domain.
4.2.3
hardware architecture; however, no parts of this design
rely on such capability. It is also important to mention
that we only assume the TrustZone hardware availablity
in the underlying architecture; analyzing the proprietary
software stacks on top of TrustZone hardware that provide additional security capabilities to the applications,
is outside the scope of this article.
ARM TrustZone Technology
5
TrustZone is a security technology introduced by ARM
Ltd. in its “ARM 1176” core. TrustZone is a technology to provide a hardware-based separation for execution environment, and divide it into two halves; secure and normal worlds. The security-sensitive applications are run executed in a separate memory space
which is not accessible to “normal applications.” TrustZone is the first ARM architecture to provide hardwarebased security in its core. Although and if done right
this could potentially provide the operating environment with an additional level of security, at its core
this could be considered a hardware-based virtualization solution, and is conceptually not a new idea. Furthermore compartmentalized-security and separation of
execution environments due to application’s security requirements, along with “separation of concerns,” have
all been well-understood and known concepts in computer science and software engineering for decades [3].
The proposed design in this article considers the availability of ARM TrustZone technology on the underlying
5.1
Proposed Architecture
High-level Analysis
We propose the architecture shown in Figure 4 to address the security requirements discussed in this article.
This design is based on a hardware root of trust,
and therefore could provide security as reliable as the
method protecting this root. It implements a MAC
mechanism based on embedded SELinux, and can do
it in a virtualized environment. The proposed design
deploys the security capabilities available in hardware
(that is, TrustZone hardware) to enforce a separation
mechanism among guest domains, via dedicating separate areas of memory to different processes that exist
in each domain. The overall security management, such
as secure IPC (Inter Process Communication) of such
processes, is the responsibility of the VMM (Virtual
Machine Monitor) which acts as the hypervisor in this
design. This design enables a hardware-enforced separation among processes running in each guest domain,
84 • Trusted Secure Embedded Linux
Figure 4: Implementing MAC and Virtualization, Based on Hardware Root Of Trust
with a fine-grained, mandatory access control mechanism provided by SELinux infrastructure. The initial verification of each guest domain happens prior to
bringing it up. After each domain is on-line, ensuring
its health from security perspective is also provided by
the SELinux infrastructure.
It is presumed that due to differences in security requirements during the start-up and runtime, not all the
embedded devices would require all the elements provided in this design. This, however, does not indicate
a weakness in the architecture, as the main security aspects of the design could be implemented/enabled independently.
6
Conclusion
We proposed a design that deploys a hardware root of
trust to provide secure execution of applications in a virtualized environment. We also augmented the design by
adding a MAC mechanism to provide enhanced protection to applications and processes at runtime.
On an system which requires and implements all the capabilities provided in this architecture, a thorough analysis must be performed to ensure an appropriate security policy is in place to deploy the SELinux capabilities
efficiently; an unnecessarily comprehensive and restrictive policy has a potential to hamper the overall runtime
performance, and increase the memory footprint of the
system.
The performance of the hypervisor is also the key in this
design, as it is the layer that arbitrates the interactions
among the processes which exist in separate guest domains. A fast and high-performing hypervisor is the
quintessential key to the successful implementation of
this design.
7
Legal Statement
This work represents the personal views of the author
and is a technical analysis of an architecture; it does not
necessarily represent the views of MontaVista Software,
Inc.
Furthermore, the author is not an attorney and makes
no judgment or recommendation on legal (and specifically GPL) ramifications of the proposed design; such
issues are outside the scope of this article, and should be
dealt with via consulting with a GPL attorney/law practitioner.
2007 Linux Symposium, Volume Two • 85
Linux is the registered trademark of Linus Torvalds in
the United States of America, other countries, or both.
Other company, product, and service names may be
trademarks or service marks of others.
References
[1] Russell Coker. Porting nsa security enhanced linux
to hand-held devices. In Proceedings of the Linux
Symposium. Ottawa Linux Symposium, July 2003.
[2] William R. Hamburgen, Deborah A. Wallach,
Marc A. Viredaz, Lawrence S. Brakmo, Carl A.
Waldspurger, Joel F. Bartlett, Timothy Mann, and
Keith I. Farkas. Itsy: Stretching the Bounds of
Mobile Computing. IEEE Computer, 34(4):28–35,
April 2001.
[3] Jorrit N. Herder, Herbert Bos, Andrew S.
Tenenbaum. A Lightweight Method for Building
Reliable Operating Systems Despite Unreliable
Device Drivers. Technical report, Dept. of
Computer Science, Vrije Universiteit, Amsterdam,
The Netherlands, 2006.
86 • Trusted Secure Embedded Linux
Hybrid-Virtualization—Enhanced Virtualization for Linux*
Jun Nakajima and Asit K. Mallick
Intel Open Source Technology Center
[email protected], [email protected]
Abstract
change over the time. In fact, patches already have been
sent to update them while we are writing this paper!
We propose hybrid-virtualization that combines paravirtualization and hardware-assisted virtualization. It
can achieve equivalent or better performance than
software-only para-virtualization, taking the full advantage of each technology. We implemented a hybridvirtualization Linux with para-virtualization, which
required much fewer modifications to Linux, and
yet achieved equivalent or better performance than
software-only XenLinux.
The hybrid-virtualization employs para-virtualization
for I/O, interrupt controllers, and timer to simplify the
system and optimize performance. For CPU virtualization, it allows one to use the same code as in the original
kernel.
The other benefits are: One, it can run on broader ranges
of VMMs, including Xen and KVM; and Two, it takes
full advantage of all the future extensions to hardware
including virtualization technologies.
This paper assumes basic understanding of the Linux
kernel and virtualization technologies. It provides insights to how the para-virtualization can be extended
with hardware assists for virtualization and take advantage of future hardware extension.
1
Introduction
Today x86 Linux already has two levels of paravirtualization layers, including paravirt_t and VMI that
communicate with the virtual machine monitor (VMM)
to improve performance and efficiency. However, it
is true that such (ever-changing) extra interfaces complicate code maintenance of the kernel and create inevitable confusions. In addition, it can create different kernel binaries, potentially for each VMM, such
as Xen*, KVM, VMware, etc. Today, paravirt_ops already has 76 operations for x86, and it would grow and
One of the main sources of such growth and modification seems to be different hypervisor implementations
in support of para-virtualization.
Para-Virtualization
The para-virtualization is a virtualization technique that
presents a software interface to virtual machines that is
similar but not identical to that of the underlying hardware. This technique is often used to obtain better performance of guest operating systems running inside a
virtual machine.
Para-virtualization can be applicable even to hardwareassisted virtualization as well. Historically, paravirtualization in the Linux community was used to mean
modifications to the guest operating system so that
it can run in a virtual machine without requiring the
hardware-assisted virtualization features. In this paper,
we use software-only para-virtualization to mean “paravirtualization that obviates hardware-assisted virtualization.”
The nature of the modifications used by paravirtualization to the kernel matters. We experienced significant complexity of software-only para-virtualization
when we ported x86-64 Linux to Xen [4]. The root
cause of such complexity is that software-only paravirtualization forces the kernel developers to handle the
virtual CPU that has significant limitations and different
behaviors from the native CPU.
For example, such virtual CPU has completely different systems state such as, it does not have GDT, IDT,
LDT, or TSS; completely new interrupt/exception mechanism; or different protection mechanism. And the virtual CPU does not support any privileged instructions,
requiring them to be executed by hypercalls.
• 87 •
88 • Hybrid-Virtualization—Enhanced Virtualization for Linux
The protection mechanism often has problems with having a shared kernel address space as there is no ringlevel protection when both user and kernel are running
at ring 3. This creates an additional overhead of stitching address space between any transition between the
application and the kernel.
Additionally, system calls are first intercepted by the
Xen (ring 0), and are injected to the guest kernel. Once
the guest kernel completes the service, then it needs to
go back to the user executing a hypercall (and page table
switch because of the reason above).
real time, not virtual time! As most operating systems
rely on timer interrupts to maintain its time, the system
expects timer interrupts even when idle. If timer interrupts are missed, it can affect the time keeping of the operating system. Without para-virtualization, the VMM
needs to continue injecting timer interrupts or to inject
back-to-back timer interrupts when the guest operating
system is scheduled back to run. This is not a reliable or
scalable way of virtualization. With para-virtualization,
a typical modification is to change the idle code to request the VMM to notify itself in a specified time period.
Then time is re-calculated and restored in the guest.
Benefiting from Para-Virtualization
SMP Guests Handling
We also found para-virtualization really simplified
and optimized the system. In fact there are still
significant cases where the native or software-only
para-virtualization outperforms full-virtualization using hardware-assisted virtualization especially with I/O
or memory intensive workloads (or both).
SMP guest handling is another example. In x86 or x8664, local APIC is required to support SMP especially
because the operating systems need to send IPI (InterProcessor Interrupt). Figure 1 shows the code for sending IPI on the x86-64 native systems using the flat mode.
As you see, the code needs to access the APIC registers
a couple of times. Each access to the APIC registers
needs to be intercepted for virtualization, causing overhead (often a transition to the VMM).
In this paper we first discuss the advantages and disadvantages of para-virtualization, full-virtualization, and
hardware-assisted virtualization. Note that some of
these advantages and disadvantages can be combined
and complimentary. Second, we discuss the hybridvirtualization for Linux proposal. Unlike softwareonly para-virtualization, hybrid-virtualization employs
hardware-assisted virtualization, and it needs much
fewer para-virtualization operations. Third, we discuss
the design and implementation. Finally we present some
examples of performance data.
2
2.1
Para-Virtualization
Advantages
Obviously para-virtualization is employed to achieve
high performance and efficiency.
Since paravirtualization typically uses a higher level of APIs that
are not available on the underlying hardware, efficiency
is also improved.
Para-virtualization can replace such multiple implicit requests with a single explicit hypercall, achieving faster,
simpler, and more efficient implementations.
I/O Device Handling
Writing software that emulates a complete computer,
for example, is complex and labor-intensive because
various legacy and new devices need to be emulated.
With para-virtualization the operating system can operate without such devices, and thus the implementation
of the VMM can be simpler.
From the guest operating system’s point view, the
impacts of such modifications would be limited because the operating system already has the infrastructure that supports layers of I/O services/devices, such as
block/character device, PCI device, etc.
2.2
Disadvantages
Time and Idle Handling
“Time” is a notable example. Even in a virtual system,
the user expects that the virtual machine maintain the
There are certain advantages of para-virtualization as
mentioned above but there are certain disadvantages in
Linux.
2007 Linux Symposium, Volume Two • 89
static void flat_send_IPI_mask(cpumask_t cpumask, int vector)
{
...
/*
* Wait for idle.
*/
apic_wait_icr_idle();
/*
* prepare target chip field
*/
cfg = __prepare_ICR2(mask);
apic_write(APIC_ICR2, cfg);
/*
* program the ICR
*/
cfg = __prepare_ICR(0, vector, APIC_DEST_LOGICAL);
/*
* Send the IPI. The write to APIC_ICR fires this off.
*/
apic_write(APIC_ICR, cfg);
...
}
Figure 1: Sending IPI on the native x86-64 systems (flat mode)
Modified CPU Behaviors
One of the fundamental problems, however, is that
software-only para-virtualization forces the kernel developers to handle the virtual CPU that has significant
limitations and different behaviors from the native CPU.
And such virtual CPU behaviors can be different on different VMMs because the semantics of the virtual CPU
is defined by the VMM. Because of that, kernel developers don’t feel comfortable when the kernel code also
needs to handle virtual CPUs because they may break
virtual CPUs even if the code they write works fine for
native CPUs.
Figure 2 shows, for example, part of paravirt_t structure in x86 Linux 2.6.21(-rcX as of today). As you can
see, it has operations on TR, GDT, IDT, LDT, the kernel stack, IOPL mask, etc. It is barely possible for a
kernel developer to know how those operations can be
safely used without understanding the semantics of the
virtual CPU, which is defined by each VMM. It also is
not guaranteed that the common code between the native and virtual CPU can be cleanly written.
A notable issue is the CPUID instruction because it is
available in user mode as well, thus software-only paravirtualization inherently requires modifications to the
operating system. The CPUID instruction is often used
to detect the CPU capabilities available on the processor. If a user application does so, it may not be possible
to modify the application if provided in a binary object.
2.2.1
Overheads
Although para-virtualization is intended to achieve high
performance, ironically the protection mechanism technique used by software-only para-virtualization can often cause overhead. For example, system calls are first
intercepted by the Xen (ring 0), and are injected to the
guest kernel. Once the guest kernel completes the service, then it needs to go back to the user executing a
hypercall with the page tables switched to protect the
guest kernel from the user processes. This means that it
is impossible to implement fast system calls.
The same bouncing mechanism is employed when handling exceptions, such as page faults. They are also first
intercepted by Xen even if generated purely by user processes.
The guest kernel also loses the global pages for its address translation to protect Xen from the guest kernel.
Note that this overhead can be eliminated in hardwareassisted virtualization because hardware-assisted virtu-
90 • Hybrid-Virtualization—Enhanced Virtualization for Linux
struct paravirt_ops
{
...
void (*load_tr_desc)(void);
void (*load_gdt)(const struct Xgt_desc_struct *);
void (*load_idt)(const struct Xgt_desc_struct *);
void (*store_gdt)(struct Xgt_desc_struct *);
void (*store_idt)(struct Xgt_desc_struct *);
void (*set_ldt)(const void *desc, unsigned entries);
unsigned long (*store_tr)(void);
void (*load_tls)(struct thread_struct *t, unsigned int cpu);
void (*write_ldt_entry)(void *dt, int entrynum,
u32 low, u32 high);
void (*write_gdt_entry)(void *dt, int entrynum,
u32 low, u32 high);
void (*write_idt_entry)(void *dt, int entrynum,
u32 low, u32 high);
void (*load_esp0)(struct tss_struct *tss,
struct thread_struct *thread);
void (*set_iopl_mask)(unsigned mask);
...
};
Figure 2: The current paravirt_t structure (only virtual CPU part of 76 operations) for x86
alization can provide the same CPU behavior as the native without modifications to the guest operating system.
obtain optimized performance. Supporting SMP guest
OSes further complicates the VMM design and implementation.
3
In addition, as new technologies emerge, the VMM
needs to virtualize more devices and features to minimize functional/performance gaps between the virtual
and native systems.
3.1
Full-Virtualization
Advantages
The full-virtualization requires no modifications to the
guest operating systems. This attribute itself clearly
brings significant value and advantage.
3.2
Disadvantages
Full-virtualization requires one to provide the guest operating systems with an illusion of a complete virtual
platform seen within a virtual machine behavior same
as a standard PC/server platform. Today, both Xen and
KVM need Qemu for PC platform emulation with the
CPU being native. For example, its system address
space should look like a standard PC/server system address map, and it should support standard PC platform
devices (keyboard, mouse, real time clock, disk, floppy,
CD-ROM drive, graphics, 8259 programmable interrupt
controller, 8254 programmable interval timer, CMOS,
etc.), guest BIOS, etc. In addition, we need to provide those virtual devices with the DMA capabilities to
4
Hardware-Assisted Virtualization
The hardware-assisted virtualization is orthogonal to
para or full virtualization, and it can be used for the both.
4.1
Advantages
The hardware-assisted virtualization provides virtual
machine monitors (VMM) with simpler and robust implementation.
Full-virtualization can be implemented by software only
[1], as we see such products such as VMware as well
as Virtual PC and Virtual Server from Microsoft today. However, hardware-assisted virtualization such
R
R
as Intel
Virtualization Technology (simply Intel
VT
hereafter) can improve the robustness, and possibly performance.
2007 Linux Symposium, Volume Two • 91
4.2
Disadvantages
Obviously hardware-assisted virtualization requires a
system with the feature, but it is sensible to assume that
hardware-assisted virtualization is available on almost
all new x86-64-based systems.
Para-virtualization under hardware-assisted virtualization needs to use a certain instruction(s) (such as
R
VMCALL on Intel
VT), which is more costly than
the fast system call (such as SYSENTER/SYSEXIT,
SYSCALL/SYSRET) used under software-only paravirtualization. However, the cost of such instructions
will be lower in the near future.
The hardware-assisted virtualization today does not include I/O devices, thus it still needs emulation of I/O devices and possibly para-virtualization of performancecritical I/O devices to reduce frequent interceptions for
virtualization.
5
Hybrid-Virtualization for Linux
Hardware-assisted virtualization does simplify the
VMM design and allows use of the unmodified Linux
as a guest.
There are, however, still significant cases where
software-only para-virtualization outperforms fullvirtualization using hardware-assisted virtualization especially with I/O or memory intensive workloads (or
both), which are common among enterprise applications. Those enterprise applications matter to Linux.
For I/O intensive workloads, such performance gaps
have been mostly closed by using para-virtualization
drivers for network and disk. Those drivers are shared
with software-only para-virtualization.
For memory intensive workloads, the current production processors with hardware-assisted virtualization
does not have capability to virtualize MMU, and the
VMM needs to virtualize MMU in software [2]. This
causes visible performance gaps between the native or
software-only para-virtualization and hardware-assisted
full-virtualization (See [7], [8]).
5.1
Overview of Hybrid-Virtualization
Hybrid-virtualization that we propose is technically
para-virtualization for hardware-assisted virtualization.
However, we use this terminology to avoid any confusions caused by the connotation from software-only
para-virtualization. And the critical difference is that
hybrid-virtualization is simply a set of optimization
techniques for hardware-assisted full-virtualization.
5.2
Pseudo Hardware Features
The hybrid-virtualization capabilities are detected and
enabled as by the standard Linux for the native as if
they were hardware features, i.e. pseudo hardware feature, i.e. visible as hardware from the operating system’s
point of view.
We use the CPUID instruction to detect certain CPU
capabilities on the native system, and we include the
ones for hybrid-virtualization without breaking the native systems. The CPUID instruction is intercepted by
hardware-assisted virtualization so that the VMM can
virtualize the CPUID instruction. In other words, the
kernel does not know whether the capabilities are implemented in software (i.e., VMM) or hardware (i.e.,
silicon).
In order to avoid maintenance problems caused by the
paravirt layer, the interfaces must be in the lowest level
in the Linux that makes the actual operations on the
hardware. If a particular VMM needs a higher level or
new interface in the kernel, it should be detected and
enabled as pseudo hardware feature as well, rather than
extending or modifying the paravirt layer.
5.3
Common Kernel Binary for the Native and
VMMs
One of the goals of hybrid-virtualization is to have
the common kernel binary for the native and various
VMMs, including the Xen hypervisor, KVM [6], etc.
For example, the kernel binary for D0, G, H can be all
same in Figure 3.
With the approach above and the minimal paravirt layer,
we can achieve the goal.
5.4
Related Works
Ingo Molnar also added simple paravirt ops support (usR
ing the shadow CR3 feature of Intel
VT) to improve
the context switch of KVM [3]. This technique can be
simply incorporated in our hybrid-virtualization.
92 • Hybrid-Virtualization—Enhanced Virtualization for Linux
Qemu I/O
Linux
Guest (G)
Linux
Guest (G)
Privilege Linux
(D0)
HybridVirtualization
Support
Hypervisor
Normal
User
Process
Normal
User
Process
Linux
Guest (G)
Linux
Guest (G)
Qemu I/O
Qemu I/O
KVM Driver
Linux Kernel (H)
HybridVirtualization
Support
Figure 3: Same Kernel Binary for a hypervisor (D0 and G), KVM (G) and the native (H)
6
Design and Implementation
6.1
Areas for Para-Virtualization
Based of the performance data available in the community and our experiences with x86-64 Linux porting to Xen, we identified the major areas to use paravirtualization, while maintaining the same CPU behavior as the native:
• I/O devices, such as network and disk
• Timer – with para-virtualization, the kernel can
have better accounting because of the stolen time
for other guests.
• Idle handling – the latest kernel has no idle ticks,
but the kernel could even specify the time period
for which it will be idle so that the VMM can use
the time for other VMs.
• Interrupt controllers
• MMU
• SMP support – the hypervisor also knows which
physical CPUs actually have (real) TLBs with information that needs to be flushed. A guest with
many virtual CPUs can send many unnecessary
IPIs to virtual CPU running other guests. This area
is included by the interrupt controller.
In fact all the areas except MMU are straightforward to
support in Linux as it already has the proper infrastructures to handle without depending on para-virtualization
or virtualization-specific modifications:
2007 Linux Symposium, Volume Two • 93
• I/O devices – obviously Linux needs to handle various I/O devices today, and various paravirtualization drivers are already available in commercial VMMs.
• Timer – Linux supports various time sources, such
as PIT, TSC, HPET,
• Idle handling – Linux already has a mechanism to
select the proper idle routine.
• Interrupt controller – the genapic (in x86-64) is a
good example.
6.2
MMU Para-Virtualization
This is the outstanding area where Linux benefits
significantly today from para-virtualization even with
hardware-assisted virtualization.
For our implementation, we used the direct page tables
employed by Xen (See [5], [4]). Unlike the shadow page
table mode that builds additional (duplicated) page tables for the real translation, the direct page tables are
native page tables. The guest operating system use the
hypercalls to request the VMM to update the page tables
entries.
The paravirt_t layer in x86 already has such operations,
and we ported the subset of paravirt operations to x8664, extending them to the 4-level page tables as shown
in Figure 4.
6.2.1
6.2.2
Other Optimization Techniques
Since we can run the kernel in ring 0, all the optimization techniques used by the native kernel have been back
to the kernel in hybrid-virtualization, including fast system call.
6.3
Detecting Hybrid-Virtualization
The kernel needs to detect whether hybrid-virtualization
is available or not (i.e., on the native or unknown VMM
that does not support hybrid-virtualization). As we discussed, we use the CPUID (leaf 0x40000000, for example) instruction. The leaf 0x40000000 is not defined on
the real hardware, and the kernel can reliably detect the
presence of hybrid-virtualization only in a virtual machine because the VMM can implement the capabilities
of the leaf 0x40000000.
6.4
Hypercall and Setup
Once the hybrid-virtualization capabilities are detected,
the kernel can inform the VMM of the address of the
page that requires the instruction stream for hypercalls
(called “hypercall page”). The request to the VMM is
done by writing the address to an MSR returned by the
CPUID instruction. Then the VMM actually writes the
instruction stream to the page, and then hypercalls will
be available via jumping to the hypercall page with the
arguments (indexed by the hypercall number).
Efficient Page Fault Handling
Although hybrid-virtualization uses the direct page table
mode today, it is significantly efficient compared with
the one on software-only para-virtualization because the
page faults can be selectively delivered to guest directly
in hardware-assisted virtualization. For example, VMX
provides page-fault error-code mask and match fields in
the VMCS to filter VM exits due to page-faults based
on their cause (reflected in the error-code). We use this
functionality so that the guest kernel directly get page
faults from user processes without causing a VM exit.
Note that the majority of page faults are from user processes under practical workloads.
In addition, now the kernel runs in the ring 0 as the native, all the native protection and efficiency, including
paging-based protection and global pages, have been returned back to the guest kernel.
6.5
Booting and Initialization
The hybrid-virtualization Linux uses the booting code
identical to the native at early boot time. It then switches
to the direct page table mode if hybrid-virtualization
is present. Until that point, the guest kernel needs to
use the existing shadow page table mode, and then it
switches to the direct page table mode upon a hypercall.
We implemented the SWITCH_MMU hypercall for
this purpose. Upon that hypercall, the VMM updates the
guest page tables so that they can contain host physical
address (rather than guest physical address) and writeprotect them. Upon completion of the hypercall, the
guest needs to use the set of hypercalls to update its page
tables, and those are seamlessly incorporated by the paravirt layer.
94 • Hybrid-Virtualization—Enhanced Virtualization for Linux
struct paravirt_ops
{
...
unsigned long (*read_cr3)(void);
void (*write_cr3)(unsigned long);
void (*flush_tlb_user)(void);
void (*flush_tlb_kernel)(void);
void (*flush_tlb_single)(unsigned long addr);
void (*alloc_pt)(unsigned long pfn);
void (*alloc_pd)(unsigned long pfn);
void (*release_pt)(unsigned long pfn);
void (*release_pd)(unsigned long pfn);
void (*set_pte)(pte_t *ptep, pte_t pteval);
void (*set_pte_at)(struct mm_struct *mm, ...
pte_t (*ptep_get_and_clear)(struct mm_struct *mm, ...
void (*set_pmd)(pmd_t *pmdp, pmd_t pmdval);
void (*set_pud)(pud_t *pudp, pud_t pudval);
void (*set_pgd)(pgd_t *pgdp, pgd_t pgdval);
void
void
void
void
(*pte_clear)(struct mm_struct *mm, ...
(*pmd_clear)(pmd_t *pmdp);
(*pud_clear)(pud_t *pudp);
(*pgd_clear)(pgd_t *pgdp);
unsigned
unsigned
unsigned
unsigned
pte_t
pmd_t
pud_t
pgd_t
long
long
long
long
(*pte_val)(pte_t);
(*pmd_val)(pmd_t);
(*pud_val)(pud_t);
(*pgd_val)(pgd_t);
(*make_pte)(unsigned
(*make_pmd)(unsigned
(*make_pud)(unsigned
(*make_pgd)(unsigned
long
long
long
long
pte);
pmd);
pud);
pgd);
};
Figure 4: The current paravirt_t structure for x86-64 hybrid-virtualization
6.6
Prototype
We implemented hybrid-virtualization x86-64 Linux
in Xen, starting from full-virtualization in hardwareassisted virtualization, porting the x86 paravirt (with
significant reduction).
We used the existing Xen services for the following:
• I/O devices – virtual block device and network device front-end drivers.
• Timer
• Idle handling
• Interrupt controller
Since the x86-64 Linux uses 2MB pages for the kernel mapping and the current Xen does not support large
pages, we needed to add the level 1 pages (page tables)
in the kernel code so that SWITCH_MMU hypercall
can work.
We also reused the code for x86-64 XenLinux virtual
MMU code for the paravirt MMU.
2007 Linux Symposium, Volume Two • 95
12
10
8
usec
para domU
6
hybrid
KVM
visible performance improvements. Figure 5 shows preliminary results. “para-domU” is x86-64 XenLinux with
software-only para-virtualization, and “hybrid” is the
one with hybrid-virtualization. “KVM” is x86-64 Linux
running on the latest release (kvm-24, as of today). The
smaller are the better, and the absolute numbers are not
so relevant.
4
As of today, we are re-measuring the performance using the latest processors, where we believe the cost of
hypercalls are even lower.
2
st
op
at
en
/c
lo
se
sig
in
s
sig t
hn
dl
nu
ll c
al
l
nu
ll I
/O
0
8
Conclusion
The hybrid-virtualization is able to combine advantages
from both the hardware assisted full virtualization and
software-only para-virtualization. The initial prototype
results also show performance close to software-only
para-virtualization. This also provides the added benefit that the same kernel can run under native machines.
7000
6000
Acknowledgment
usec
5000
para domU
4000
hybrid
3000
KVM
We would like to thank Andi Kleen and Ingo Molnar for
reviewing this paper and providing many useful comments.
2000
Xin Li and Qing He from Intel also have been working
on the development of hybrid-virtualization Linux.
1000
0
fork proc exec proc sh proc
Figure 5: Preliminary Micro-benchmark Results (lmbench)
7
Performance
Although the cost of hypercalls are slightly higher in
hybrid-virtualization, hybrid-virtualization is more efficient than software-only para-virtualization because of
the retained optimization techniques in the native kernel. In fact, hybrid-virtualization showed the equivalent
performance with kernel build, compared with softwareonly para-virtualization, which has near-native performance for that workload.
For micro-benchmarks, hybrid-virtualization showed
References
[1] Virtual Machine Interface (VMI) Specifications.
http://www.vmware.com/interfaces/
vmi_specs.html.
[2] Y. Dong, S. Li, A. Mallick, J. Nakajima, K. Tian,
X. Xu, F. Yang, and W. Yu. Extending Xen with
R
IntelVirtualization
Technology. Auguest 2006.
http://www.intel.com/technology/
itj/2006/v10i3/.
[3] Ingo Molnar. KVM paravirtualization for Linux.
2007.
http://lkml.org/lkml/2007/1/5/205.
[4] Jun Nakajima, Asit Mallick, Ian Pratt, and Keir
Fraser. X86-64 XenLinux: Architecture,
Implementation, and Optimizations. In Preedings
of the Linux Symposium, July 2006.
96 • Hybrid-Virtualization—Enhanced Virtualization for Linux
[5] Ian Pratt, Keir Fraser, Steven Hand, Christian
Limpach, Andrew Warfield, Dan Magenheirmer,
Jun Nakajima, and Asit Mallick. Xen 3.0 and the
Art of Virtualization. In Preedings of the Linux
Symposium, July 2005.
[6] Qumranet. KVM: Kernel-based Virtualization
Driver. 2006. http:
//www.qumranet.com/wp/kvm_wp.pdf/.
[7] VMware. A Performance Comparison of
Hypervisors. 2007.
http://www.vmware.com/pdf/
hypervisor_performance.pdf/.
[8] XenSource. A Performance Comparison of
Commercial Hypervisors. 2007.
http://www.xensource.com/files/
hypervisor_performance_comparison_
1_0_5_with_esx-data.pdf/.
c 2007 by Intel. Redistribution rights
This paper is copyright are granted per submission guidelines; all other rights are reserved.
*Other names and brands may be claimed as the property of
others.
Readahead: time-travel techniques for desktop and embedded systems
Michael Opdenacker
Free Electrons
[email protected]
Abstract
1.2
Readahead techniques have successfully been used to
reduce boot time in recent GNU/Linux distributions like
Fedora Core or Ubuntu. However, in embedded systems with scarce RAM, starting a parallel thread reading ahead all the files used in system startup is no longer
appropriate. The cached pages could be reclaimed even
before accessing the corresponding files.
The idea of reading ahead is to speed up the access to
a file by preloading at least parts of its contents in page
cache ahead of time. This can be done when spare I/O
resources are available, typically when tasks keep the
processor busy. Of course, this requires the ability to
predict the future!
This paper will first guide you through the heuristics
implemented in kernelspace, as well as through the
userspace interface for preloading files or just announcing file access patterns. Desktop implementations will
be explained and benchmarked. We will then detail Free
Electrons’ attempts to implement an easy to integrate
helper program reading ahead files at the most appropriate time in the execution flow.
Fortunately, the systems we are dealing with are predictable or even totally predictable in some situations!
• Predictions by watching file read patterns. If pages
are read from a file in a sequential manner, it makes
sense to go on reading the next blocks in the file,
even before these blocks are actually requested.
• System startup. The system init sequence doesn’t
change. The same executables and data files are always read in the same order. Slight variations can
still happen after a system upgrade or when the system is booted with different external devices connected to it.
This paper and the corresponding presentation target
desktop and embedded system developers interested in
accelerating the course of Time.
1
1.1
Reading ahead: borrowing time from the future
• Applications startup. Every time a program is run,
the same shared libraries and some parts of the
program file are always loaded. Then, many programs open the same resource or data files at system startup. Of course, file reading behaviour is
still subject to changes, according to how the program was started (calling environment, command
arguments. . . ).
The page cache
Modern operating system kernels like Linux manage
and optimize file access through the page cache. When
the same file is accessed again, no disk I/O is needed
if the file contents are still in the page cache. This dramatically speeds up multiple executions of a program or
multiple accesses to the same data files.
Of course, the performance benefits depend on the
amount of free RAM. When RAM gets scarce because
of allocations from applications, or when the contents
of more files have to be loaded in page cache, the kernel
has to reclaim the oldest pages in the page cache.
Reading ahead
If enough free RAM is available, reading ahead can
bring the following benefits:
• 97 •
• Of course, reduced system and application startup
time.
98 • Readahead: time-travel techniques for desktop and embedded systems
• Improved disk throughput. This can be true for
storage devices like hard disks which incur a high
time cost moving the disk heads between random
sectors. Reading ahead feeds the I/O scheduler
with more I/O requests to manage. This scheduler can then reorder requests in a more efficient
way, grouping a greater number of contiguous disk
blocks, and reducing the number of disk head
moves. This is much harder to do when disk blocks
are just read one by one.
its pages were reclaimed before being accessed by the
process. In this case, the kernel reduces the size of
the ahead window, down to VM_MIN_READAHEAD (16
KB). Otherwise, the kernel increases this size, up to
VM_MAX_READAHEAD (128 KB).
• Better overall utilization for both I/O and processor resources. Extra file I/O is performed when the
processor is busy. Context switching, which costs
precious CPU cycles, is also reduced when a program no longer needs to sleep waiting for I/O, because the data it is requesting have already been
fetched.
Implementation details can be found in the mm/
readahead.c file in the kernel sources.1
2
2.1
Kernel space readahead
Implementation in stock kernels
The description of the Linux kernel readahead mechanism is based on the latest stable version available at the
time of this writing, Linux 2.6.20.
When the kernel detects sequential reading on a file, it
starts to read the next pages in the file, hoping that the
running process will go on reading sequentially.
The kernel also keeps track of page cache hits, to detect situations in which the file is partly or fully in page
cache. When this happens, readahead is useless and
turned off.
The initial readahead implementation in Linux 2.6 is
discussed in the 2004 proceedings [7] of the Ottawa
Linux Symposium.
2.2
Adaptive readahead patches
Many improvements to the kernel readahead mechanism have been proposed by Wu Fengguang through the
Adaptive readahead patchset, since September 2005 (as
announced on this LWN article [1].
In addition to the standard sequential reading scenario,
this patchset also supports:
• a readahead window which can grow up to 1 MB,
depending on the application behaviour and available free memory
• parallel / interleaved sequential scans on one file
As shown in Figure 1, the kernel implements this by
managing two read windows: the current and ahead
one,
While the application is walking the pages in the current
window, I/O is underway on the ahead window. When
the current window is fully traversed, it is replaced by
the ahead window. A new ahead window is then created,
and the corresponding batch of I/O is submitted.
• sequential reads across file open/close
• mixed sequential / random accesses
• sparse / skimming sequential read
• backward sequential reading
• delaying readahead if the drive is spinned down in
laptop mode
This way, if the process continues to read sequentially,
and if enough free memory is available, it should never
have to wait for I/O.
At the time of this writing the latest benchmarks [3]
show access time improvements in most cases.
Of course, any seek or random I/O turns off this readahead mode.
This patchset and its ideas will be described in detail
by Wu Fengguang himself at this 2007 edition of the
Ottawa Linux Symposium.
The kernel actually checks how effective reading ahead
is to adjust the size of the new ahead window. If a
page cache miss is encountered, it means that some of
1 A very convenient way of studying kernel source files is using a
Linux Cross Reference (LXR) website indexing the kernel sources,
such as http://lxr.free-electrons.com.
2007 Linux Symposium, Volume Two • 99
Current
read offset
When this page is reached:
- the ahead window becomes the current one
- a new ahead window is created
(possibly shorter or larger)
Offset in the open file
(scale: pages)
Current read window
(already read ahead)
Ahead read window
(reading ahead in progress)
Figure 1: Stock kernel implementation
3
User-space readahead interface
3.2
The fadvise system call
We’ve seen how the kernel can do its best to predict the
future from recent and present application behaviour, to
improve performance.
Several variants of this system call exist, depending
on your system or GNU/Linux distribution: posix_
fadvise, fadvise64, fadvise64_64.
However, that’s about all a general purpose kernel can
predict. Fortunately, the Linux kernel allows userspace
to let it know its own predictions. Several system call
interfaces are available.
They all have the same prototype though:
3.1
The readahead system call
#include <fcntl.h>
ssize_t readahead(
int fd,
off64_t *offset,
size_t count);
Given an open file descriptor, this system call allows applications to instruct the kernel to readahead a given segment in the file.
Though any offset and count parameters can be
given, I/O is performed in whole pages. So offset
is rounded down to a page boundary and bytes are read
up to the first page boundary greater than or equal to
offset+count.
#define _XOPEN_SOURCE 600
#include <fcntl.h>
int posix_fadvise(
int fd,
off_t offset,
off_t len,
int advice);
Programs can use this system call to announce an intention to access file data in a specific pattern in the future, thus allowing the kernel to perform appropriate optimizations.
Here is how the Linux kernel interprets the possible settings for the advice argument:
POSIX_FADV_NORMAL: use the default readahead
window size.
Note that readahead blocks until all data have been
read. Hence, it is typically called from a parallel thread.
POSIX_FADV_SEQUENTIAL: sequential access
with increasing file offsets. Double the readahead
window size.
See the manual page for the readahead system call
[6] for details.
POSIX_FADV_RANDOM: random access.
readahead.
Disable
100 • Readahead: time-travel techniques for desktop and embedded systems
POSIX_FADV_WILLNEED: the specified data will be
accessed in the near future. Initiate a non-blocking
read of the specified region into the page cache.
4
POSIX_FADV_NOREUSE: similar, but the data will
just be accessed once.
4.1
POSIX_FADV_DONTNEED: attempts to free the
cached pages corresponding to the specified region,
so that more useful cached pages are not discarded
instead.
Note that this system call is not binding: the kernel is
free to ignore the given advise.
Full details can be found on the manual page for
posix_fadvise [5].
3.3
The madvise system call
#include <sys/mman.h>
int madvise(
void *start,
size_t length,
int advice);
The madvise system call is very similar to fadvise,
but it applies to the address space of a process.
When the specified area maps a section of a file,
madvise information can be used by the kernel to
readahead pages from disk or to discard page cache
pages which the application will not need in the near
future.
Full details can be found on the manual page for
madvise [4].
3.4
Recommended usage
As the readahead system call is binding, application
developers should use it with care, and prefer fadvise
and madvise instead.
When multiple parts of a system try to be smart and
consume resources while being oblivious to the others,
this often hurts overall performance. After all, resource
management is the kernel’s job. It can be best to let it
decide what to do with the hints it receives from multiple sources, balancing the resource needs they imply.
Implementations in GNU/Linux distributions
Ubuntu
Readahead utilities are released through the
readahead package.
The following description
is based on Ubuntu 6.10 (Edgy).
Reading ahead is started early in the system startup
by the /etc/init.d/readahead init script. This
script mainly calls the /sbin/readahead-list
executable, taking as input the /etc/readahead/
boot file, which contains the list of files to readahead,
one per line.
readahead-list is of course started as a daemon,
to proceed as a parallel thread while other init scripts
run. readahead-list doesn’t just readahead each
specified file one by one, it also orders them first.
Ordering files is an attempt to read them in the most
efficient way, minimizing costly disk seeks. To order
two files, their device numbers are first compared. When
their device numbers are identical, this means that they
belong to the same partition. The numbers of their first
block are then compared, and if they are identical, their
inode numbers are eventually compared.
The readahead-list package carries another utility: readahead-watch. It is used to create or update
the list of files to readahead by watching which files are
accessed during system startup.
readahead-watch is called from /etc/init.d/
readahead when the profile parameter is given in
the kernel command line. It starts watching for all files
that are accessed, using the inotify [8] system call.
This is a non trivial task, as inotify watches have to
be registered for each directory (including subdirectories) in the system.
readahead-watch eventually gets stopped by the
/etc/init.d/stop-readahead script, at the
very end of system startup. It intercepts this signal and
creates the /etc/readahead/boot file.
For the reader’s best convenience, C source code for
these two utilities and a copy of /etc/readahead/
boot can be found on http://free-electrons.
com/pub/readahead/ubuntu/6.10/.
2007 Linux Symposium, Volume Two • 101
4.2
Fedora Core
Readahead utilities are released through the
readahead package.
The following description
is based on Fedora Core 6.
The readahead executable is /usr/sbin/readahead.
Its interface and implementation are similar. It also sorts
files in order to minimize disk seeks, with more sophisticated optimizations for the ext2 and ext3 filesystems.
A difference with Ubuntu is that there are two readahead init scripts. The first one is /etc/init.d/
readahead_early, which is one of the first scripts
to be called.
It preloads files listed in /etc/
readahead.d/default.early, corresponding to
libraries, executables, and files used by services started
by init scripts. The second script, /etc/init.
d/readahead_later, is one of the last executed
scripts. It uses /etc/readahead.d/default.
later, which mainly corresponds to files used by the
graphical desktop and user applications in general.
Another difference with Ubuntu is that the above lists
of files are constant and are not automatically generated
from application behaviour. They are just shipped in
the package. However, the readahead-check utility (available in package sources) can be used to generate these files from templates and check for nonexistent
files.
Once more, the readahead.c source code
and a few noteworthy files can be found on
http://free-electrons.com/pub/
readahead/fedora-core/6/.
4.3
Benchmarks
The below benchmarks compare boot time with and
without readahead on Ubuntu Edgy (Linux 2.6.17-11,
with all updates as of Apr. 12, 2007), and on Fedora
Core 6 (2.6.18-1.2798.fc6, without any updates).
Disabling readahead was done by renaming the
/sbin/readahead-list (Ubuntu) or /usr/sbin/
readahead programs, so that readahead init scripts
couldn’t find them any more and exited at the very beginning.
The Fedora Core 6 results are surprising. An explanation is that readahead file lists do not only include files
involved in system startup, but also files needed to start
the desktop and its applications. Fedora Core readahead
is thus meant to reduce the execution time of programs
like Firefox or Evolution!
As a consequence, Fedora Core is reading ahead
much more files than needed (even if we disable the
readahead-later step) and it reaches the login
screen later than if readahead was not used. The eventual benefits in the time to run applications should still
be real. However, they are more difficult to measure.
4.4
Shortcomings
The readahead implementations that we have just covered are fairly simple, but not perfect though.
4.4.1
Reading entire files
A first limitation is that these implementations always
preload entire files, while the readahead system call
allows to fetch only specific sections in files.
It’s true that it can make sense to assume that plain data
files used in system startup are often read in their entirety. However, this is not true at all with executables and shared libraries, for which each page is loaded
only when it is needed. This mechanism is called demand paging. When a program jumps to a section of
its address space which is not in RAM yet, a page fault
is raised by the MMU, and the kernel loads the corresponding page from disk.
Boot time was measured by inserting an init script which
just copies /proc/uptime to a file. This script was
made the very last one to be executed.
Using the top or ps commands, you can check that the
actual RAM usage of processes (RSS or RES) is much
smaller than the size of their virtual address space (VSZ
or VIRT).
/proc/uptime contains two figures: the raw uptime
in seconds, and the amount of time spent in the idle loop,
meaning the CPU was waiting for I/O before being able
to do anything else.
So, it is a waste of I/O, time, and RAM to load pages in
executables and shared libraries which will not be used
anyway. However, as we will see in the next section,
demand paging is not trivial to trace from userspace.
102 • Readahead: time-travel techniques for desktop and embedded systems
Ubuntu Edgy without readahead
Ubuntu Edgy with readahead
Fedora Core 6 without readahead
Fedora Core 6 with readahead
boot time
average: 48.368 s
std deviation: 0.153
average: 39.942 s (-17.4 %)
std deviation: 1.296
average: 50.422 s
std deviation: 0.496
average: 59.858 s (+18.7 %)
std deviation: 0.552
idle time
average: 29.070 s
std deviation: 0.281
average: 22.3 s (-23.3 %)
std deviation: 0.271
average: 28.302 s
std deviation: 0.374
average: 35.446 (+20.2 %)
std deviation: 0.312
Table 1: Readahead benchmarks on Ubuntu Edgy and Fedora Core 6
4.4.2
Reading ahead too late
Another limitation comes from reading ahead all files in
a row, even the ones which are needed at the very end of
system startup.
We’ve seen that files are preloaded according to their
location on the disk, and not according to when they are
used in system startup. Hence, it could happen that a
file needed by a startup script is accessed before it is
preloaded by the readahead thread.
5
5.1
Implementing readahead in embedded systems
Embedded systems requirements
Embedded systems have specific features and requirements which make desktop implementations not completely appropriate for systems with limited resources.
The main constraint, as explained before, is that free
RAM can be scarce. It is no longer appropriate to
preload all the files in a row, because some of the readahead pages are likely to be reclaimed before being used.
As a consequence, a requirement is to readahead files
just a little while before they are used.
Therefore, files should be preloaded according to the order in which they are accessed. Moreover, most embedded systems use flash instead of disk storage. There is
no disk seek cost accessing random blocks on storage.
Ordering files by disk location is futile.
Still because of the shortness of free RAM, is it also a
stronger requirement to preload only the portions of the
files which are actually accessed during system startup.
Last but not least, embedded systems also require simple
solutions which can translate in lightweight programs
and in low cpu usage.
5.2
Existing implementations
Of course, it is possible to reuse code from readahead
utilities found in GNU/Linux distributions, to readahead
a specific list of files.
Another solution is to use the readahead applet that
we added to the Busybox toolset (http://busybox.
net), which is used in most embedded systems. Thanks
to this applet, developers can easily add readahead commands to their startup scripts, without having to compile
a standalone tool.
5.3
Implementation constraints and plans
Updates, code, benchmarks, and documentation will be
available through our readahead project page [2].
5.3.1
Identifying file access patterns
It is easy to identify files which are accessed during
startup, either by using inotify or by checking the
atime attribute of files (last access time, when this feature is not disabled at mount time). However, it is much
more difficult to trace which sections are accessed in a
given file.
When the file is just accessed, not executed, it is still
possible to trace the open, read, seek, and close
2007 Linux Symposium, Volume Two • 103
system calls and deduce which parts of each file are accessed. However, this is difficult to implement.2
Anyway, when the file is executed (in the case of a program or a shared library), there doesn’t seem to be any
userspace interface to keep track of accessed file blocks.
It is because demand paging is completely transparent
to processes.
That’s why we started to implement a kernel patch to
log all file reads (at the moment by tracing calls to the
vfs_read function), and demand paging activity (by
getting information from the filemap_nopage function). This patch also tracks exec system calls, by
watching the open_exec function, for reasons that we
will explain in the next section.
The main need is to translate inode and device numbers into file paths, as the kernel doesn’t know about
file names.
This is done by identifying the filesystem the inode belong to thanks to major and minor number information.
Then, each filesystem containing one of our files is exhaustively traversed to build a lookup table allowing to
find a file path for a given inode.
Of course, this can be very costly, but neither data gathering nor this postprocessing is meant to be run on a
production system. This will only be done once during
development.
5.3.3
This patch logs the following pieces of information for
each accessed file:
• inode number,
• device major and minor numbers,
Improving readahead in GNU/Linux distributions
Our first experiment will be to make minor changes to
the utilities used in GNU/Linux distributions, so that
they can process files lists also specifying which parts
to readahead in each file.
• offset,
5.3.4
• number of bytes read.
Code and more details can be found on our project
page [2].
At the time of this writing, this patch is just meant to assess the usefulness of reading ahead only the used sections in a file. If this proves to be profitable, a clean,
long term solution will be investigated with the Linux
kernel development community.
5.3.2
Postprocessing the file access dump
We are developing a Python script to postprocess file
access information dumped from the kernel.
2 Even tracing these system calls is difficult. System call tracing
is usually done on a process and its children with the strace command or with the ptrace system call that it uses. The problem is
that ptrace cannot be used for the init process, which would
have allowed tracing on all running processes at once.
Another, probably simpler solution would be to use C library interposers, wrappers around the C library functions used to execute
system calls.
Towards a generic and efficient implementation
While preloading the right file sections is easy once file
access information is available, another requirement is
to perform readahead at the right time in the execution
flow. As explained before, reading ahead mustn’t happen too early, and mustn’t happen too late either.
Once more, the challenge is to predict the future by using knowledge about the past.
A very basic approach would be to collect time information together with file access data. However, such information wouldn’t be very useful to trigger readahead at
the right time, as reading ahead accelerates time. Furthermore, as processes spend less time waiting for I/O,
the exact ordering of process execution can be altered.
Thus, what is needed is a way to follow the progress
of system startup, and to match the actual events with
recorded ones.
A simple idea is to use inotify to get access notifications for executables involved in system startup, and
match these notifications with recorded exec calls.
104 • Readahead: time-travel techniques for desktop and embedded systems
event10: first
execution of
/sbin/ifconfig.
event11: second
execution
of /bin/grep.
event12: first
execution of
/usr/bin/dillo
Previous readahead window: 1 MB
of data access recorded after event10.
New readahead window: 1 MB
of data access recorded after event11.
Past
Present
Future
Figure 2: Proposed readahead implementation
This would be quite easy to implement, as this would
just involve a list of files, without having to register recursive directory based notifications.
• The window size could even be dynamically increased, to make sure it goes beyond the next
recorded event.
As shown in the example in Figure 2, our idea is to manage readahead windows of a given data size. In this example, when event11 is recognized, we create a new
readahead window starting from this event, corresponding to 1 MB of recorded disk access starting from this
event.
• If window size is large enough, we expect it to
compensate for actual changes in the order of
events.
Actually, we would only need to start new readahead
I/O from the end of the previous window to the end of
the new one. This assumes that the window size is large
enough to extend beyond the next event. Otherwise, if
readahead windows didn’t overlap, there would be parts
of the execution flow with no readahead at all.
Within a given window, before firing readahead I/O, we
would of course need to remove any duplicate read operations, as well as to merge consecutive ones into single
larger ones.
Here are the advantages of this approach:
• Possibility to readahead the same blocks multiple
times in the execution flow. This covers the possibility that these blocks are no longer in page cache.
• For each specific system, possibility to tune the
window size according to the best achieved results.
5.3.5
Open issues
Several issues have not been addressed yet in this
project.
In particular, we would need a methodology to support
package updates in standard distributions. Would file
access data harvesting be run again whenever a package
involved in system startup is updated? Or should each
package carry its own readahead information, requiring
a more complex package development process?
5.4
Conclusion
Though the proposed ideas haven’t been fully implemented and benchmarked yet, we have identified
promising opportunities to reduce system startup time,
in a way that both meets the requirements of desktop
and embedded Linux systems.
2007 Linux Symposium, Volume Two • 105
If you are interested in this topic, stay tuned on the
project page [2], join the presentation at OLS 2007, discover the first benchmarks on embedded and desktop
systems, and share your experience and ideas on accelerating the course of Time.
References
[1] Jonathan Corbet. Lwn article: Adaptive file
readahead.
http://lwn.net/Articles/155510/,
October 2005.
[2] Free Electrons. Advanced readahead project.
http://free-electrons.com/
community/tools/readahead/.
[3] WU Fenguang. Linux kernel mailing list: Adaptive
readahead v16 benchmarks.
http://lkml.org/lkml/2006/11/25/7,
November 2006.
[4] Linux Manual Pages. madvise(2) - linux man page.
http://www.die.net/doc/linux/man/
man2/madvise.2.html.
[5] Linux Manual Pages. posix_fadvise(2) - linux man
page. http://www.die.net/doc/linux/
man/man2/posix_fadvise.2.html.
[6] Linux Manual Pages. readahead(2) - linux man
page. http://www.die.net/doc/linux/
man/man2/readahead.2.html.
[7] Ram Pai, Badari Pulavarty, and Mingming Cao.
Linux 2.6 performance improvement through
readahead optimization. In Ottawa Linux
Symposium (OLS), 2004. http://www.
linuxsymposium.org/proceedings/
reprints/Reprint-Pai-OLS2004.pdf.
[8] Wikipedia. inotify. http:
//en.wikipedia.org/wiki/Inotify.
106 • Readahead: time-travel techniques for desktop and embedded systems
Semantic Patches
Documenting and Automating Collateral Evolutions in Linux Device Drivers
1
Yoann Padioleau
EMN
Julia L. Lawall
DIKU
Gilles Muller
EMN
[email protected]
[email protected]
[email protected]
Introduction
2
Device drivers form the glue code between an operating system and its devices. In Linux, device drivers
are highly reliant for this on the various Linux internal
libraries, which encapsulate generic functionalities related to the various busses and device types. In recent
years, these libraries have been evolving rapidly, to address new requirements and improve performance. In
response to each evolution, collateral evolutions are often required in driver code, to bring the drivers up to
date with the new library API. Currently, collateral evolutions are mostly done manually. The large number
of drivers, however, implies that this approach is timeconsuming and unreliable, leading to subtle errors when
modifications are not done consistently.
To address this problem, we propose a scripting language for specifying and automating collateral evolutions. This language offers a WYSIWYG approach to
program transformation. In the spirit of Linux development practice, this language is based on the patch syntax. As opposed to traditional patches, our patches are
not line-oriented but semantics-oriented, and hence we
give them the name semantic patches.
This paper gives a tutorial on our semantic patch language, SmPL, and its associated transformation tool,
spatch. We first give an idea of the kind of program transformations we target, collateral evolutions,
and then present SmPL using an example based on
Linux driver code. We then present some further examples of evolutions and collateral evolutions that illustrate
other issues in semantic patch development. Finally, we
describe the current status of our project and propose
some future work. Our work is directed mainly to device driver maintainers, library developers, and kernel
janitors, but anyone who has ever performed a repetitive
editing task on C code can benefit from it.
Evolutions and Collateral Evolutions
The evolutions we consider are those that affect a library
API. Elements of a library API that can be affected include functions, both those defined by the library and
the callback functions that the library expects to receive
from a driver, global variables and constants, types, and
macros. A library may also implicitly specify rules for
using these elements. Many kinds of changes in the API
can result from an evolution that affect one of these elements. For example, functions or macros can change
name or gain or lose arguments. Structure types can be
reorganized and accesses to them can be encapsulated in
getter and setter functions. The protocol for using a sequence of functions, such as up and down can change,
as can the protocol for when error checking is needed
and what kind of error values should be returned.
Each of these changes requires corresponding collateral
evolutions, in all drivers using the API. When a function or macro changes name, all callers need to be updated with the new name. When a function or macro
gains or loses arguments, new argument values have to
be constructed and old ones have to be dropped in the
driver code, respectively. When a structure type is reorganized, all drivers accessing affected fields of that
structure have to be updated, either to perform the new
field references or to use any introduced getter and setter
functions. Changes in protocols may require a whole sequence of modifications, to remove the old code and introduce the new. Many of these collateral evolutions can
have a non-local effect, as, for example, changing a new
argument value may trigger a whole set of new computations, and changing a protocol may require substantial
code restructuring. The interaction of a driver with the
API may furthermore include some device-specific aspects. Thus, these changes have to be mapped onto the
structure of each affected driver file.
We have characterized evoluations and collateral evolu-
• 107 •
108 • Semantic Patches
tions in more detail, including numerous examples, in a
paper at EuroSys 2006 [1].
3
Semantic Patch Tutorial
In this section, we describe SmPL (Semantic Patch Language), our language for writing semantic patches. To
motivate the features of SmPL, we first consider a moderately complex collateral evolution that raises many
typical issues. We then present SmPL in terms of this
example.
3.1
The “proc_info” evolution
As an example, we consider an evolution and associated
collateral evolutions affecting the SCSI API functions
scsi_host_hn_get and scsi_host_put. These
functions access and release, respectively, a structure of
type Scsi_Host, and additionally increment and decrement, respectively, a reference count. In Linux 2.5.71, it
was decided that, due to the criticality of the reference
count, driver code could not be trusted to use these functions correctly and they were removed from the SCSI
API [2].
This evolution had collateral effects on the “proc_info”
callback functions defined by SCSI drivers, which call
these API functions. Figure 1 shows a slightly simplified excerpt of the traditional patch file updating
the proc_info function of drivers/usb/storage/
scsiglue.c. Similar collateral evolutions were performed in Linux 2.5.71 in 18 other SCSI driver files inside the kernel source tree. To compensate for the removal of scsi_host_hn_get and scsi_host_put,
the SCSI library began in Linux 2.5.71 to pass to these
callback functions a Scsi_Host-typed structure as an
argument. Collateral evolutions were then needed in all
the proc_info functions to remove the calls to scsi_
host_hn_get (line 19 for the scsiglue.c driver),
and scsi_host_put (lines 27 and 42), and to add the
new argument (line 4). Those changes in turn entailed
the removal of a local variable (line 11) and of nullchecking code (line 20-22), as the library is assumed
not to call the proc_info function on a null value. Finally, one of the parameters of the proc_info function
was dropped (line 6) and every use of this parameter was
replaced by a field access (line 33) on the new structure
argument.
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
--- a/drivers/usb/storage/scsiglue.c
+++ b/drivers/usb/storage/scsiglue.c
@@ -264,33 +300,21 @@
-static int usb_storage_proc_info (
+static int usb_storage_proc_info (struct Scsi_Host *hostptr,
char *buffer, char **start, off_t offset,
int hostno, int inout)
+
int inout)
{
struct us_data *us;
char *pos = buffer;
- struct Scsi_Host *hostptr;
unsigned long f;
/* if someone is sending us data, just throw it away */
if (inout)
return offset;
-
-
+
/* find our data from the given hostno */
hostptr = scsi_host_hn_get(hostno);
if (!hostptr) {
return -ESRCH;
}
us = (struct us_data*)hostptr->hostdata[0];
/* if we couldn’t find it, we return an error */
if (!us) {
scsi_host_put(hostptr);
return -ESRCH;
}
/* print the controller name */
SPRINTF("
Host scsi%d: usb-storage\n", hostno);
SPRINTF("
Host scsi%d: usb-storage\n", hostptr->host_no);
/* print product, vendor, and serial number strings */
SPRINTF("
Vendor: %s\n", us->vendor);
@@ -318,9 +342,6 @@
*(pos++) = ’\n’;
}
-
/* release the reference count on this host */
scsi_host_put(hostptr);
/*
* Calculate start of next buffer, and return value.
Figure 1: Simplified excerpt of the patch file from Linux
2.5.70 to Linux 2.5.71
Of the possible API changes identified in Section 2, this
example illustrates the dropping of two library functions
and changes in the parameter list of a callback function.
These changes have non-local effects in the driver code,
as the context of the dropped call to scsi_host_hn_
get must change as well, to eliminate the storage of the
result and the subsequent error check, and the value of
the dropped parameter must be reconstructed wherever
it is used.
3.2
A semantic patch, step by step
We now describe the semantic patch that will perform
the previous collateral evolutions, on any of the 19 relevant files inside the kernel source tree, and on any relevant drivers outside the kernel source tree. We first
describe step-by-step various excerpts of this semantic
2007 Linux Symposium, Volume Two • 109
patch, and then present its complete definition in Section 3.3.
3.2.1
Modifiers
The first excerpt adds and removes the affected parameters of the proc_info callback function:
proc_info_func (
struct Scsi_Host *hostptr,
char *buffer, char **start, off_t offset,
int hostno,
int inout) { ... }
has the parameters of the proc_info function all on the
same line, spread over multiple lines as in scsiglue.c,
or separated by comments. We have split the semantic patch over four lines only to better highlight what is
added and removed. We could have equivalently written
it as:
- proc_info_func(char *buffer, char **start, off_t offset,
int hostno, int inout)
+ proc_info_func(struct Scsi_Host *hostptr, char *buffer,
+
char **start, off_t offset, int inout)
{ ... }
+
Like a traditional patch, a semantic patch consists of a
sequence of lines, some of which begin with the modifiers + and - in the first column. These lines are added
or removed, respectively. The remaining lines serve as
context, to more precisely identify the code that should
be modified.
Unlike a traditional patch, a semantic patch must have
the form of a complete C-language term (an expression, a statement, a function definition, etc.). Here we
are modifying a function, so the semantic patch has the
form of a function definition. Because our only goal
at this point is to modify the parameter list, we do not
care about the function body. Thus, we have represented
it with “...”. The meaning and use of “...” are described in more detail in Section 3.2.4.
Because of the wide range of possible collateral evolutions, as described in Section 2, collateral evolutions
may affect almost any C constructs, such as structures,
initializers, function parameters, if statements, in many
different ways. SmPL, for flexibility, allows to write almost any C code in a semantic patch and to annotate
freely any part of this code with the + and - modifiers.
The combination of the unannotated context code with
the - code and the combination of the unannotated context code with the + code must, however, each have the
form of valid C code, to ensure that the pattern described
by the former can match against valid driver code and
that the transformation described by the latter will produce valid C code as a result.
Another difference as compared to a traditional patch is
that the meaning of a semantic patch is insensitive to
newlines, spaces, comments, etc. Thus, the above semantic patch will match and transform driver code that
To apply this semantic patch, it should be stored in a
file, e.g., procinfo.spatch. It can then be applied to
e.g. the set of C files in the current directory using our
spatch tool:
spatch *.c < procinfo.spatch.
3.2.2
Metavariables
A traditional patch, like the one in Figure 1, describes
a transformation of a specific set of lines in a specific
driver. This specificity is due to the fact that a patch
hardcodes some information, such as the name of the
driver’s proc_info callback function. Thus a separate
patch is typically needed for every driver. The goal of
SmPL on the other hand is to write a generic semantic
patch that can transform all the relevant drivers, accommodating the variations among them. In this section and
the following ones we describe the features of SmPL
that make a semantic patch generic.
In the excerpt of the previous section, the reader may
have wondered about the name proc_info_func,
which indeed does not match the name of the scsiglue
proc_info function, as shown in Figure 1, lines 3 and 4,
or the names of any of the proc_info functions in the
kernel source tree. Furthermore, the names of the parameters are not necessarily buffer, start, etc.; in
particular, the introduced parameter hostptr is sometimes called simply host. To abstract away from these
variations, SmPL provides metavariables. A metavariable is a variable that matches an arbitrary term in the
driver source code. Metavariables are declared before
the patch code specifying the transformation, between
two @@s, borrowing the notation for delimiting line
numbers in a traditional patch (Figure 1, lines 2 and
37). Metavariables are designated as matching terms of
a specific kind, such as an identifier, expression,
110 • Semantic Patches
or statement, or terms of a specific type, such as int
or off_t. We call the combination of the declaration of
a set of metavariables and a transformation specification
a rule.
Back to our running example, the previous excerpt is
made into a rule as follows:
@@
identifier proc_info_func;
identifier buffer, start, offset, inout, hostno;
identifier hostptr;
@@
proc_info_func (
+
struct Scsi_Host *hostptr,
char *buffer, char **start, off_t offset,
int hostno,
int inout) { ... }
This code now amounts to a complete, valid semantic
patch, although it still only performs part of our desired
collateral evolution.
3.2.3
Multiple rules and inherited metavariables
The previous excerpt matches and transforms any function with parameters of the specified types. A proc_info
function, however, is one that has these properties and
interacts with the SCSI library in a specific way, namely
by being provided by the driver to the SCSI library on
the proc_info field of a SHT structure (for SCSI Host
Template), which from the point of view of the SCSI library represents the device. To specify this constraint,
we define another rule that identifies any assignment to
such a field in the driver file. SmPL allows a semantic
patch to define multiple rules, just as a traditional patch
contains multiple regions separated by @@. The rules are
applied in sequence, with each of them being applied to
the entire source code of the driver. In our example we
thus define one rule to identify the name of the callback
function and another to transform its definition, as follows:
@ rule1 @
struct SHT ops;
identifier proc_info_func;
@@
ops.proc_info = proc_info_func;
@ rule2 @
identifier rule1.proc_info_func;
identifier buffer, start, offset, inout, hostno;
identifier hostptr;
@@
proc_info_func (
struct Scsi_Host *hostptr,
char *buffer, char **start, off_t offset,
int hostno,
int inout) { ... }
+
In the new semantic patch, the metavariable proc_
info_func is defined in the first rule and referenced
in the second rule, where we expect it to have the same
value, which is enforced by spatch. In general, a rule
may declare new metavariables and inherit metavariables from previous rules. Inheritance is explicit, in that
the inherited metavariable must be declared again in the
inheriting rule, and is associated with the name of the
rule from which its value should be inherited (the rule
name is only used in the metavariable declaration, but
not in the transformation specification, which retains the
form of ordinary C code). To allow this kind of inheritance, we must have means of naming rules. As shown
in the semantic patch above, the name of a rule is placed
between the two @@s at the beginning of a metavariable
declaration. A name is optional, and is not needed if the
rule does not export any metavariables.
Note that the first rule does not perform any transformations. Instead, its only role is to bind the proc_info_
func metavariable to constrain the matching of the second rule. Once a metavariable obtains a value it keeps
this value until the end of the current rule and in any subsequent rules that inherit it. Metavariables thus not only
make a semantic patch generic by abstracting away from
details of the driver code, but also allow communicating
information and constraints from one part of the semantic patch to another, e.g., from ’–’ code to ’+’ code, or
from one rule to another.
A metavariable may take on multiple values, if the rule
matches at multiple places in the driver code. If such a
metavariable is inherited, the inheriting rule is applied
once for each possible set of bindings of the metavariables it inherits. For example, in our case, a driver
may set the proc_info field multiple times, to different
functions, in which case rule 2 would be applied multiple times, for the names of each of them.
3.2.4
Sequences
So far, we have only considered the collateral evolutions
on the header of the proc_info function. But collateral
evolutions are needed in its body as well: deleting the
2007 Linux Symposium, Volume Two • 111
calls to scsi_host_hn_get and scsi_host_put,
deleting the local variable holding the result of calling
scsi_host_hn_get and the error checking code on
its value. The affected code fragments are scattered
throughout the body of the proc_info function and are
separated from each other by arbitrary code specific to
each SCSI driver. To abstract away from these irrelevant variations, SmPL provides the “...” operator,
which matches any sequence of code. Refining rule2 of
the semantic patch to perform these collateral evolutions
gives:
@ rule2 @
identifier rule1.proc_info_func;
identifier buffer, start, offset, inout, hostno;
identifier hostptr;
@@
proc_info_func (
+
struct Scsi_Host *hostptr,
char *buffer, char **start, off_t offset,
int hostno,
int inout) {
...
struct Scsi_Host *hostptr;
...
hostptr = scsi_host_hn_get(hostno);
...
if (!hostptr) { ... return ...; }
...
scsi_host_put(hostptr);
...
}
The second rule of the semantic patch now has the
form of the definition of a function that first contains
a declaration of the hostptr variable, then a call to
the function scsi_host_hn_get, then an error check,
and finally a call to scsi_host_put sometime before the end. In practice, however, a proc_info function may e.g. contain many calls to scsi_host_put,
as illustrated by the scsiglue example (Figure 1,
lines 27 and 42). Closer inspection of the original
scsiglue source code, however, shows that at execution time, the driver only executes one or the other of
these calls to scsi_host_put, as the one on line 27
is only executed in an error case, and the one on line
42 is only executed in a non-error case. This is illustrated by Figure 2, which shows part of the controlflow graph of the scsiglue proc_info function. Because the execution pattern declare/scsi_host_hn_
get/error-check/scsi_host_put is what must be followed by every SCSI proc_info driver, it is this pattern
that the semantic patch should match against. The operator “...” thus matches paths in the control-flow graph
rather than an arbitrary block of code in the driver source
code. Thus, in practice, a single minus or plus line in
the semantic patch can delete or add multiple lines in
the source code of the driver.
The transformation specified in a rule is applied on
driver code only if the whole rule matches code,
not if only parts of the rule match code. Thus,
here, the rule only matches proc_info callback functions having 5 parameters of the specified types, and
the sequence of instructions declare/scsi_host_hn_
get/error-check/scsi_host_put, and where these instructions share the use of the same variable, represented
in the semantic patch by the repeated use of the same
metavariable hostptr.
As said in the previous section, the repeated use of the
same metavariable, here hostptr, can serve multiple
purposes. First, it is used here to constrain some transformations by forcing two pieces of code to be equal
in the driver code. So, for example, not all conditionals
will be removed in the driver, only those testing the local
structure returned by scsi_host_hn_get. Metavariables are also used to move code from one place to another. Here hostptr is used to move the matched local
variable name into the parameter list. Metavariables declared as expression or statement can be used to
move more complex terms.
3.2.5
Nested Sequences
The last transformation concerning the proc_info function is the replacement of every reference to the dropped
hostno parameter by a field access. SmPL provides
the <... ...> operator to perform such universal
replacements. This operator is analogous to the /g operator of Perl. In order to avoid having to consider how
references to hostno may interleave with the calls to
scsi_host_hn_get and scsi_host_put, etc., we
define a third rule that simply makes this transformation
everywhere it applies:
@ rule3 @
identifier rule1.proc_info_func;
identifier rule2.hostno;
identifier rule2.hostptr;
@@
proc_info_func(...) {
<...
hostno
+
hostptr->host_no
...>
}
112 • Semantic Patches
..
.
hostptr = scsi_host_hn_get(hostno);
if (!hostptr) YYYYY
f
YYYYYY
f
f
Y,
fffff
,
fffff
f
f
s
us = hostptr→...;
{
return -ESRCH;
}
if(!us)
{
r
SPRINTF(...);
scsi_host_put(hostptr);
scsi_host_put(hostptr);
return -ESRCH;
.
..
}
-}o
Figure 2: Simplified control-flow graph for part of Figure 1
Note that the operator “...” can be used to represent
any kind of sequence. Here, in the function header, it is
used to represent a sequence of parameters. It can also
be used to provide flexible matching in initializers and
structure definitions.
3.2.6
Isomorphisms
We have already mentioned that a semantic patch is insensitive to spacing, indentation and comments. Moreover, by defining sequences in terms of control-flow
paths, we abstract away from the various ways of sequencing instructions that exist in C code. These features help make a semantic patch generic, allowing the
patch developer to specify only a few scenarios, while
spatch handles other scenarios that are semantically
equivalent.
Other differences that we would like to abstract away
from include variations within the use of specific C constructs. For example, if x is any expression that has
pointer type, then !x, x == NULL, and NULL == x
are all equivalent. For this, we provide a variant of the
SmPL syntax for defining isomorphisms, sets of syntactically different terms that have the same semantics. The
null pointer-test isomorphism is defined in this variant of
SmPL as follows:
// iso file, not a semantic patch
@@ expression *X; @@
X == NULL <=> !X <=> NULL == X
Given this specification, the pattern if(!hostptr) in
the semantic patch matches a conditional in the driver
code that tests the value of hostptr using any of the
listed variants.
In addition to a semantic patch, spatch accepts a file
of isomorphisms as an extra argument. A file of isomorphisms is provided with the spatch distribution,
which contains 30 equivalences commonly found in
driver code. Finally, it is possible to specify that a single
rule should use only the isomorphisms in a specific file,
file, by annotating the rule name with using file.
3.3
All Together Now
The complete semantic patch for the proc_info collateral evolutions is shown below. As compared to the
rules described above, this semantic patch contains an
additional rule, rule4, which adjusts any calls to the
proc_info function from within the driver. Note that in
this rule, the metavariables that were declared as identifiers in rule2 to represent the parameters of the proc_info
function are redeclared as expressions, to represent
the proc_info function’s arguments.
The second rule has also been slightly modified, in that
two lines have been annotated with the “?” operator
stating that those lines may or may not be present in
the driver. Indeed, many drivers forget to check the return value of scsi_host_hn_get or forget to release
2007 Linux Symposium, Volume Two • 113
the structure before exiting the function. As previously
noted, the latter omission is indeed what motivated the
proc_info evolution.
Note that there is no rule for updating the prototype of
the proc_info function, if one is contained in the file.
When the type of a function changes, spatch automatically updates its prototype, if any.
@ rule1 @
struct SHT ops;
identifier proc_info_func;
@@
ops.proc_info = proc_info_func;
@ rule2 @
identifier rule1.proc_info_func;
identifier buffer, start, offset, inout, hostno;
identifier hostptr;
@@
proc_info_func (
+
struct Scsi_Host *hostptr,
char *buffer, char **start, off_t offset,
int hostno,
int inout) {
...
struct Scsi_Host *hostptr;
...
hostptr = scsi_host_hn_get(hostno);
...
?if (!hostptr) { ... return ...; }
...
?scsi_host_put(hostptr);
...
}
@ rule3 @
identifier rule1.proc_info_func;
identifier rule2.hostno;
identifier rule2.hostptr;
@@
proc_info_func(...) {
<...
hostno
+
hostptr->host_no
...>
}
@ rule4 @
identifier
identifier
expression
identifier
@@
rule1.proc_info_func;
func;
buffer, start, offset, inout, hostno;
hostptr;
func(..., struct Scsi_Host *hostptr, ...) {
<...
proc_info_func(
+
hostptr,
buffer, start, offset,,
hostno,
inout)
...>
}
On the 30 isomorphisms we have written, 3 of them “apply” to this semantic patch, accommodating many varia-
tions among the 19 drivers inside the kernel source tree.
We have already mentioned the different ways to write
a test such as if(!hostptr) in the previous section.
There is also the various ways to assign a value in a field,
which can be written ops.proc_info = fn as in our
semantic patch, or written ops->proc_info = fn in
some drivers, or written using a global structure initializer. Indeed, the last case was used for the scsiglue.c
driver as shown by the following excerpt of this driver:
struct SHT usb_stor_host_template = {
/* basic userland interface stuff */
.name = "usb-storage",
.proc_name = "usb-storage",
.proc_info = usb_storage_proc_info,
.proc_dir = NULL,
Finally, braces are not needed in C code when a branch
contains only one statement. So, the pattern { ..
. return ...; } in rule2 also matches a branch containing only the return statement.
It takes 23 seconds to spatch given the whole semantic patch to correctly update the 19 relevant drivers. If
run on all the 2404 driver files inside the kernel source
tree, it takes spatch 3 minutes to correctly update the
same 19 drivers.
4
More Features, More Examples
So far we have written and tested 49 semantic patches
for collateral evolutions found in the Linux 2.5 and
Linux 2.6. By comparing the results produced by the
semantic patch to the results produced by the traditional
patch, we have found that spatch updates 92% of
the driver files affected by these collateral evolutions
correctly. In the remaining cases, there is typically a
problem parsing the driver code, or needed information is missing because spatch currently does not parse
header files. Parsing the driver code is a particular
problem in our case, because our goal is to perform a
source-to-source transformation, which means that we
have chosen not to expand macros and preprocessor directives, and instead parse them directly.
In this section, we consider some other examples from
our test suite, to illustrate some typical issues in semantic patch development.
114 • Semantic Patches
4.1
Replacing one function name by another
In Linux 2.5.22, the function end_request was given
a new first argument, of type struct request *. In
practice, the value of this argument should be the next
request from one of the driver’s queue, as represented
by a reference to the macro CURRENT. This collateral
evolution affected 27 files spread across the directories
acorn, block, cdrom, ide, mtd, s390, sbus.
level. With video_usercopy, the ioctl function receives a pointer to a kernel-level data structure containing the user-level arguments and can modify this data
structure to return any values to user level.
Making an ioctl function video_usercopy-ready involves the following steps:
• Adding some new parameters to the function.
The following semantic patch implements this collateral
evolution:
• Eliminating calls to copy_from_user, put_
user, etc.
@@ expression X; @@
- end_request(X)
+ end_request(CURRENT,X)
• Changing the references to the local structure used
by these functions to use the pointer prepared by
video_usercopy.
This semantic patch updates the 27 affected files in the
Linux source tree correctly.
This example may seem almost too simple to be worth
writing an explicit specification, as one can e.g. write a
one-line sed command that has the same effect. Nevertheless, such solutions are error prone: we found that
in the file drivers/block/swim_iop.c, the transformation was applied to the function swimiop_send_
request, which has no relation to this collateral evolution. We conjecture that this is the result of applying a
sed command, or some similar script, that replaces calls
to end_request without checking whether this string
is part of a more complicated function name. spatch
enforces the syntactic structure of semantic patch code,
allowing matches on identifier, expression, statement,
etc. boundaries, rather than simply accepting anything
that a superstring of the given pattern.
4.2
Collecting scattered information
In Linux 2.5.7, the function video_generic_ioctl,
later renamed video_usercopy, was introduced to encapsulate the copying to and from user space required
by ioctl functions. Ioctl functions allow the user
level to configure and control a device, as they accept
commands from the user level and perform the corresponding action at the kernel level. Without video_
usercopy, an ioctl function has to use functions such as
copy_from_user or get_user to access data passed
in with the command, and functions such as copy_to_
user or put_user to return information to the user
The last two points are somewhat complex, because the
various commands interpreted by the ioctl function may
each have their own requirements with respect to the
user-level data. A command may or may not have a
user-level argument, and it may or may not return a result to the user level. In the case where there is no use
or returned value then no transformation should be performed; in the other cases, the structure containing the
user-level argument or result should be converted to a
pointer. Furthermore, there are multiple possible copying functions, and there are multiple forms that the references to the copied data can take.
Figure 3 shows a semantic patch implementing this
transformation, under the simplifying assumption that
the kernel-level representation of the user-level data is
stored in a locally declared structure. This semantic
patch consists of a single rule that changes the prototype of this function (adding some new variables, as indicated by fresh identifier), changes the types of
the local structures, and removes the copy functions.
The many variations in an ioctl function noted above
are visible in this rule. To express multiple possibilities, SmPL provides a disjunction operator, which begins with an open parenthesis in column 0, contains a
list of possible patterns separated by a vertical bar in
column 0, and then ends with a close parenthesis in column 0. Most of the body of the ioctl function pattern
is represented as one large disjunction that considers the
possibility of there being both a user-level argument and
a user-level return value (lines 14-39), the possibility
of there being a user-level argument but no user-level
2007 Linux Symposium, Volume Two • 115
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
@@
identifier ioctl, dev, cmd, arg, v, fld;
fresh identifier inode, file;
expression E, E1, e1,e2,e3;
type T;
@@
ioctl(
struct video_device *dev,
+
struct inode *inode, struct file *file,
unsigned int cmd, void *arg) {
+
struct video_device *dev = video_devdata(file);
...
(
T v;
+
T *v = arg;
...
(
if (copy_from_user(&v,arg,E)) { ... return ...; }
|
if (get_user(v,(T *)arg)) { ... return ...; }
)
<...
(
v.fld
+
v->fld
|
&v
+
v
|
v
+
*v
)
...>
(
if (copy_to_user(arg,&v,E1)) { ... return ...; }
|
if (put_user(v,(T *)arg)) { ... return ...; }
)
...
|
// a copy of the above pattern with the copy_to_user/put_user
// pattern dropped
|
// a copy of the above pattern with the copy_from_user/get_user
// pattern dropped
|
... when != \(copy_from_user(e1,e2,e3)\|copy_to_user(e1,e2,e3)
\|get_user(e1,e2)\|put_user(e1,e2)\)
)
}
Figure 3: Semantic patch for the video_ usercopy
collateral evolution
return value (elided in comments on line 41), the possibility of there being a user-level return value but no
user-level argument (elided in comments on line 41-42),
and there being neither a user-level argument nor a userlevel return value (line 44-45). These possibilities are
considered from top to bottom, with only the first one
that matches being applied. This strategy is convenient
in this case, because e.g. code using both a user-level
argument and a user-level return value also matches all
of the other patterns. The last cases uses “...” with
the construct when. The when construct indicates a pattern that should not be matched anywhere in the code
matched by the associated “...”.
Within each of the branches of the outermost disjunction, there are several nested disjunctions. First, another
disjunction is used to account for the two kinds of copy
functions, copy_from_user or get_user. This case
does not rely on the top-to-bottom strategy, because the
patterns are disjoint. Next, between any copying, there
is a nest (see Section 3.2.5) replacing the different variations on how to refer to a structure by the pointer-based
counterpart. Here again, the ordering of the disjunction
is essential, as the final case, v, should only be used
when the variable is not used in a field access or address
expression. Finally, there is a third disjunction allowing
either copy_to_user or put_user.
Like the proc_info semantic patch, this semantic patch
relies on isomorphisms. Specifically, the calls to the
copy functions may appear alone in a conditional test
as shown, or may be compared to 0, and as in the
proc_info case, the return pattern in each of the conditional branches can match a single return statement,
without braces.
4.3
Collecting scattered information
In Linux 2.6.20, the strategy for creating work queues
and setting and invoking their callback functions
changed as follows:
• Previously, all work queues were declared with
some variant of INIT_WORK, and then could
choose between delayed or undelayed work dynamically, by using either some variant of
schedule_work or some variant of schedule_
delayed_work. Since the changes in Linux
2.6.20, the choice between delayed or undelayed
work has to be made statically, by creating the
work queue with either INIT_DELAYED_WORK or
INIT_WORK, respectively.
• Previously, creation of a work queue took as arguments a queue, a callback function, and a pointer
to the value to be passed as an argument to the
callback function. Since 2.6.20, the third argument is dropped, and the callback function is simply passed the work queue as an argument. From
this, it can access the local data structure containing the queue, which can itself store whatever information was required by the callback function.
For simplicity, we consider only the case where the work
queue is created using INIT_WORK, where it is the field
of a local structure, and where the callback function
116 • Semantic Patches
passed to INIT_WORK expects this local structure as an
argument.
Figure 4 shows the semantic patch. In this semantic
patch, we name all of the rules, to ease the presentation, but only those with descriptive names, such as
is_delayed, are necessary.
The semantic patch is divided into two sections, the first
for the case where the work queue is somewhere used
with a delaying function such as schedule_delayed_
work and the second for the case where such a function is not used on the work queue. Both cases can
occur within a single driver, for different work queues.
The choice between these two variants is made at the
first rule, is_delayed, using a trick based on metavariable binding. This rule matches all calls to schedule_
delayed_work and other functions indicating delayed
work, for any work queue &device->fld and arbitrary task E. The next five rules, up to the commented
dividing line, refer directly or indirectly to the type
of the structure containing the matched work queue
&device->fld, and thus these rules are only applied
to work queues for which the match in is_delayed
somewhere succeeds. The remaining three rules, at the
bottom of the semantic patch, do not depend on the rule
is_delayed, and thus apply to work queues for which
there is no call to any delaying function.
In the first half of the semantic patch, the next task is to
convert any call to a non-delaying work queue function
to a delaying one, by adding a delay of 0 (rule2). The
rule delayed_fn then changes calls to INIT_WORK
to calls to INIT_DELAYED_WORK and adjusts the argument lists such that the cast on the second argument (the
work queue callback function) is dropped and the third
argument is dropped completely. Note that the casts
on the second and third arguments need not be present
in the driver code, thanks to an isomorphism. Next
(rule4), the work queue is changed from having type
work_struct to having type delayed_work. The last
two rules of this section, rule5 and rule5a, update the
callback functions identified in the call to INIT_WORK.
The first, rule5, is for the case where the current parameter type is void * and the second, rule5a, is for
the case where the parameter type is the type of the local structure containing the work queue. In both cases,
the parameter is given the type struct work_struct,
and then code using the macro container_of is added
to the body of the function to reconstruct the original argument value.
@ is delayed @
type local type; local type *device; expression E,E1;
identifier fld;
@@
( schedule_delayed_work(&device->fld,E)
| cancel_delayed_work(&device->fld)
| schedule_delayed_work_on(E1,&device->fld,E)
| queue_delayed_work(E1,&device->fld,E)
)
@ rule2 @
is delayed.local type *device;
identifier is delayed.fld; expression E1;
@@
(
- schedule_work(&device->fld)
+ schedule_delayed_work(&device->fld,0)
|
- schedule_work_on(E1,&device->fld)
+ schedule_delayed_work_on(E1,&device->fld,0)
|
- queue_work(E1,&device->fld)
+ queue_delayed_work(E1,&device->fld,0)
)
@ delayed fn @
type T,T1; identifier is delayed.fld, fn;
is delayed.local type *device;
@@
- INIT_WORK(&device->fld, (T)fn, (T1)device);
+ INIT_DELAYED_WORK(&device->fld, fn);
@ rule4 @
type is delayed.local type; identifier is delayed.fld;
@@
local type { ...
struct work_struct fld;
+
struct delayed_work fld;
... };
@ rule5 @
identifier data, delayed fn.fn, is delayed.fld;
type T, is delayed.local type; fresh identifier work;
@@
- fn(void *data) {
+ fn(struct work_struct *work) {
<...
(T)data
+
container_of(work,local type,fld.work)
...>
}
@ rule5a @
identifier data, delayed fn.fn, is delayed.fld;
type is delayed.local type; fresh identifier work;
@@
- fn(local type *data) {
+ fn(struct work_struct *work) {
+
local type *data = container_of(work,local type,fld.work);
...
}
//[email protected] non delayed fn @
type local type, T,T1; local type *device; identifier fld, fn;
@@
- INIT_WORK(&device->fld, (T)fn, (T1)device);
+ INIT_WORK(&device->fld, fn);
@ rule7 @
identifier data, non delayed fn.fn, non delayed fn.fld;
type T, non delayed fn.local type; fresh identifier work;
@@
- fn(void *data) {
+ fn(struct work_struct *work) {
<...
(T)data
+
container_of(work,local type,fld)
...>
}
@ rule7a @
identifier data, non delayed fn.fn, non delayed fn.fld;
type non delayed fn.local type; fresh identifier work;
@@
- fn(local type *data) {
+ fn(struct work_struct *work) {
+
local type *data = container_of(work,local type,fld);
...
}
Figure 4: Semantic patch for the INIT_WORK collateral
evolution
2007 Linux Symposium, Volume Two • 117
In the second section, calls to INIT_WORK for nondelayed work queues have their second and third arguments transformed as in the delayed case. The rules
rule7 and rule7a then update the callback functions
analogously to rules rule5 and rule5a.
Using the Linux 2.6 git repository [3], we have identified 245 driver files that use work queues. Of these, 45%
satisfy the assumptions on which this semantic patch is
based. This semantic patch applies correctly to 91% of
them. The remaining cases are due to some constructs
that are not treated adequately by our approach, to interfile effects, and to some optimizations made by the programmer that are too special-purpose to be reasonable
to add to a generic transformation rule.
5
Conclusion
In this paper we have presented SmPL, our scripting
language to automate and document collateral evolutions in Linux device drivers. This language is based
on the patch syntax, familiar to Linux developers, but
accommodates many variations among drivers. As opposed to a traditional patch, a single semantic patch can
update hundreds of drivers at thousands of code sites
because of the features of SmPL, including the use of
metavariables, isomorphisms, and control-flow paths,
which makes a semantic patch generic. We hope that
the use of semantic patches will make collateral evolutions in Linux less tedious and more reliable. We also
hope that it will help developers with drivers outside the
kernel source tree to better cope with the fast evolution
of Linux.
Until now we have tried to replay what was already done
by Linux programmers. We would like now to interact with the Linux community and really contribute to
Linux by implementing or assisting library developers
in performing new evolutions and collateral evolutions.
As a first step we have subscribed to the janitors kernel mailing list and planned to contribute by automating
some known janitorings [4]. We would also like to investigate if SmPL could be used to perform collateral
evolutions in other Linux subsystems such as filesystems or network protocols or to perform other kinds of
program transformations.
Finally, introducing semantic patches in the development process may lead to new processes, or new tools.
For instance, how can semantic patches be integrated
in versioning tools such as git. We could imagine a
versioning tool aware of semantic patches and of the semantics of C, that could for example automatically update new drivers coming from outside the kernel source
tree with respect to some recent semantic patches. Semantic patches, due to their degree of genericity, can
also help with the problem of conflicts between multiple patches that are developed concurrently and affect
some common lines of code, but in an orthogonal way.
Finally, for the same reason, semantic patches should be
more portable from one Linux version to the next, in the
case of a patch that is not immediately accepted into the
Linux kernel source tree.
All the semantic patches we have written, as well as a binary version of spatch, are available on our website:
http://www.emn.fr/x-info/coccinelle. Reading those semantic patches can give a better feeling of
the expressivity of SmPL. They can also be used as a
complement to this tutorial.
References
[1] “Understanding Collateral Evolution in Linux
Device Drivers.” Yoann Padioleau, Julia L.
Lawall, and Gilles Muller. Proceedings of the
ACM SIGOPS EuroSys 2006 Conference, Leuven,
Belgium, April, 2006, pages 59–71.
[2] http://lwn.net/Articles/36311/.
[3] http://git.kernel.org/git/?p=linux/
kernel/git/torvalds/linux-2.6.git;a=
summary.
[4] http://kernelnewbies.org/
KernelJanitors/Todo.
118 • Semantic Patches
cpuidle—Do nothing, efficiently. . .
Venkatesh Pallipadi
Shaohua Li
Intel Open Source Technology Center
Adam Belay
Novell, Inc.
[email protected]
{venkatesh.pallipadi|shaohua.li}@intel.com
Abstract
management and system power management gain importance for a variety of reasons.
Most of the focus in Linux processor power management today has been on power managing the processor
while it is active: cpufreq, which changes the processor frequency and/or voltage and manages the processor performance levels and power consumption based on
processor load. Another dimension of processor power
management is processor ‘idling’ power.
Almost all mobile processors in the marketplace today
support the concept of multiple processor idle states
with varying amounts of power consumed in those idle
states. Each such state will have an entry-exit latency
associated with it. In general, there is a lot of attention shifting towards idle platform power and new
platforms/processors are supporting multiple idle states
with different power and wakeup latency characteristics.
This emphasis on idle power and different processors
supporting different number of idle states and different
ways of entering these states, necessitates the need for a
generic Linux kernel framework to manage idle processors.
This paper covers cpuidle, an effort towards a generic
processor idle management framework in Linux kernel.
The goal is to have a clean interface for any processor hardware to make use of different processor idle
levels and also provide abstraction between idle-drivers
and idle-governors allowing independent development
of drivers and governors. The target audiences are the
developers who are keen to experiment with new idle
governors on top of cpuidle, and developers who
wants to use the cpuidle driver infrastructure in various architectures, and any one else who is keen to know
about cpuidle.
1
Introduction
Almost all the mobile processors today support multiple
idle states and the trend is spreading as processor power
In typical system usage models, processor(s) spend a lot
of their time idling (like while you are reading this paper
on your laptop, with your favorite pdf-reader). Thus any
power saved when system is idle will have big returns in
terms of battery life, heat generated in the system, need
for cooling, etc.
But there is a trade-off between idling power and
amount of state a processor saves and the amount of
time it takes to enter and exit from this idle state. The
idle enter-exit latency, if it is too high, may be visible
with media applications like a DVD player. Such usage
models will limit the usage of a particular idle state on
the processor running this application, even though the
idle state is power efficient. Similarly, if a processor idle
state does not preserve the the contents of the processor’s cache, some particular application which has some
idle time may notice a performance degradation when
this particular idle state is used.
In order to manage this trade-off effectively, the kernel
needs to know the characteristics of all idle states and
also should understand the currently running applications, and should take a well-informed decision about
what idle state it wants to enter when processor goes to
idle.
To do this effectively and cleanly, there is a preliminary
requirement of having clean and simple interfaces. Such
an interface can provide consistent information to the
user and ease the innovation and development in the area
of processor idle management.
cpuidle is a an effort in this direction and this paper provides insight into cpuidle. We start section
2 with a background on processor power management
and idle states. Section 3 provides the design description of cpuidle. Section 4 talks about all the develop-
• 119 •
120 • cpuidle—Do nothing, efficiently. . .
ments and advancements happening in cpuidle and
some conclusions in section 5.
2
2.1
Background
Processor Power management
Processor power management can be broadly classified
into two classes.
Processor active – various states a processor can be in
while actively executing and retiring instructions.
Processor frequency scaling, in which a processor can run at different frequencies and or voltages
falls under this class. So does processor thermal
throttling, where processor runs slower due to duty
cycle throttling.
Linux cpufreq, extensively discussed in [4], [6],
and [5], is a generic infrastructure that handles
CPU frequency scaling.
Processor idle – various states a processor can be in
while it is idle and not retiring any instructions.
The states here differ in amount of power the processor consumes while being in that state and also
the latency to enter-exit this low-power idle state.
There may also be other differences like preserving the processor state across these idle states, etc.
based on a specific processor. For example, a processor may only flush L1 cache in one idle state,
but may flush L1 and L2 caches in another idle
state. There can also be differences around when
an idle state can be entered and what its impact
will be on other logical or physical processors in
the system.
2.2
Processor idle states
Currently, most of the processors in mobile and handheld segments support multiple idle states. The prime
objective here is to provide a more power-efficient system with longer battery life or fewer cooling requirements. This feature is slowly moving up the chain into
desktops and servers. This is much like processor frequency scaling which was mostly present in mobile processors a few years back, to most of the servers supporting that feature today. Recent EnergyStar idle power
regulations [2] are tending to make this faster, making
this feature more common across a range of systems.
2.3
Current Processor idle state support
Below is a short summary of current processor idle state
management in Linux 2.6.21 [3].
ACPI based idle states For the remainder of this section we restrict our attention to idle state support as
in i386 (and x86-64) architectures.
In i386 (and x86-64) architectures, there is support
for ACPI-based [1] processor idle states. These
states are referred to as C-states in ACPI terminology. Each of the ACPI C-states is characterised by its power consumption and wakeup latency, and also based on preservation of the processor state, while in this C-state. ACPI-based platforms will report processor idle capability to Linux
using ACPI interfaces. A platform can dynamically
change the number of C-states supported, based on
different platform parameters such as whether it is
running on battery or AC power.
The current Linux support for such idle states is
fully embedded in the drivers/acpi directory
along with all ACPI support code. Code here detects the C-states available at boot time, handles
any changes to the number of C-states during run
time, and has simplistic policy to choose a particular C-state to enter into whenever a CPU goes
idle. This code includes various platform-specific
bits, specific workarounds for platform ACPI bugs,
and also a /proc-based interface exporting the Cstate-related information to userspace.
Arch specific idle—i386 and x86-64 i386 and x86-64
(and also ia64) have some architecture-specific
processor idle management that does not depend on
ACPI. On i386 and x86-64, it includes support for
poll_idle, halt_idle, and mwait_idle.
poll_idle is a polling-based idle loop, which
is not really power efficient, but will have very little wakeup overhead. halt_idle is based on
the x86 hlt instruction, and mwait_idle is
based on the monitor mwait pair of instructions. There are specific static rules regarding
which of these idle routines will be used on any
system, based on boot options and hardware capabilities. Further, boot options across x86 and x8664 are not the same for these three idle routines.
Arch-specific idle—other architectures There
are
various other architectures that have their own
2007 Linux Symposium, Volume Two • 121
code for processor idle state management. This
includes ia64 with PAL halt and PAL light halt,
Power with nap and doze modes, and idle support
for different platforms in the ARM architecture.
Each of these types of support for idle states also
comes with its own set of boot parameters and/or
/proc or /sys interfaces to user-space.
Bottom line There is very little sharing of code and
sharing of idle management policies across architectures. Processor idle state management and various boot options, etc., are duplicated; this results in code duplication and maintenance overhead. This, as well as the increasing focus on processor idle power in platforms, highlights the need
for a generic processor idle framework in Linux
kernel.
3
Basic cpuidle infrastructure
Figure 1 gives a high-level overview of the cpuidle
architecture. The basic idea behind cpuidle is to separate the idle state management policies from hardwarespecific idle state drivers. At this level, the cpuidle
model has similarities with cpufreq [6].
3.1 cpuidle core
The cpuidle core provides a set of generic interfaces
to manage processor idle features.
3.1.1 cpuidle data structures
A per-cpu cpuidle_device structure holds information about the number of idle states supported by each
processor, information about each of those idle state (in
an array of cpuidle_state struct), and the status of this device, among other things.
3.1.2
Drivers can register and unregister with cpuidle core
using cpuidle_register_driver and cpuidle_
unregister_driver. Governors can register and unregister using cpuidle_register_governor and
cpuidle_unregister_governor. Each cpu device gets detected on cpu add_device callback of
cpu_sysdev. If there is a currently active governor
and active driver, then the device gets initialized with
those governor and driver.
3.1.3
cpuidle core maintains separate linked lists of all registered drivers, all registered governors, and all detected
devices.
cpuidle_lock is the lone mutex that handles all
SMP orderings within cpuidle.
Idle handling
cpuidle core has an idle handler, cpuidle_idle_
call(), that gets plugged into an architectureindependent pm_idle function pointer, that will be
used by each individual processor when it goes idle. Just
before going into idle, the governor selects the best idle
state to go into. And then cpuidle invokes the entry
point for that particular state in the cpuidle driver. On
returning from that state, there is an optional governor
callback for the governor to capture information about
idle state residency.
3.1.4
Handling system state change
The number and type of idle states can vary dynamically based on a given system state, like battery- or ACpowered, etc. Such a system state change notification
goes to the idle driver, which will invoke cpuidle_
force_redetect() in the cpuidle core. This results in the idle handler being temporarily uninstalled
and the idle states being re-detected by the driver, followed by re-initialization of the governor state to take
note of this change.
3.2
cpuidle_state is a structure that contains information about each individual state, power usage, exit latency, usage statistics of the state, etc.
Initialization and Registration
Design guidelines
There were few conscious design decisions/trade-offs in
cpuidle.
3.2.1 cpu_idle_wait
To make sure we do not take a lock during the normal
idle routine entry-exit, and to be able to safely change
122 • cpuidle—Do nothing, efficiently. . .
/sys/devices/system/cpu/cpuX/cpuidle
User-level
interfaces
governors
/sys/devices/system/cpu/cpuidle
ladder
menu
Generic cpuidle infrastructure
drivers
acpi-cpuidle
halt_idle
ACPI processor driver
arch/platform specific drivers
Figure 1: cpuidle overview
the governor/driver at run time, cpu_idle_wait was
used. Note that changing of drivers/governors is an uncommon event which will not be performance-sensitive.
cpuidle. In the future, this switching of driver and
governor can be disabled by default, in order to avoid
incorrect usage.
3.2.2
3.3
system-level governor and driver
Should cpuidle support a single driver and single
governor for the whole system, or should they be percpu? Considering the advantage of keeping things simple with a system-level governor and driver with respect
to usage of per-cpu-based governor and driver, it was decided to have a single system-level governor and driver.
3.2.3
No cpu_hotplug_lock in cpuidle
The cpuidle_register_driver uses a structure
that defines the cpuidle driver interface:
struct cpuidle_driver {
char
name[CPUIDLE_NAME_LEN];
struct list_head driver_list;
int (*init)
(struct cpuidle_device *dev);
void (*exit)
(struct cpuidle_device *dev);
int (*redetect) (struct cpuidle_device *dev);
int
Learning from experiences of cpufreq and cpu_
hotplug_lock, cpuidle avoids using cpu_
hotplug_lock in the entire subsystem. This in fact
resulted in a cleaner self-contained SMP and hotplug
synchronization model for cpuidle.
3.2.4
Runtime governor/driver switching
Even though runtime switching of the governor and
driver can result in potential wrong usages by the endusers, cpuidle supports runtime switching of the governor or driver, mostly to help developers and testers of
driver interface
(*bm_check) (void);
struct module
};
*owner;
init() is a callback, called by cpuidle to initialize each device in the system with this specific driver.
exit() is called to exit this particular driver for each
device. The redetect() callback is used to redetect the device states, on certain system state changes.
bm_check() is used to note the bus mastering status
on the device. In init(), the driver has to initialize all
the states for the particular device and handle the total
state count for that device.
2007 Linux Symposium, Volume Two • 123
struct cpuidle_state {
char name[CPUIDLE_NAME_LEN];
void *driver_data;
unsigned
unsigned
unsigned
unsigned
int
int
int
int
flags;
exit_latency; /* in US */
power_usage; /* in mW */
target_residency; /* in US */
unsigned int usage;
unsigned int time; /* in US */
int (*enter) (struct cpuidle_device *dev,
struct cpuidle_state *state);
struct kobject kobj;
};
the idle call. reflect() is called after an idle
exit, for the governor to capture information about idle
state residency. Note that time spent in the governor’s
reflect() is in the critical path (on exit from idle,
before starting the work) and hence has to be fast.
cpuidle_register_governor() and cpuidle_
unregister_governor() are used to register and
unregister (respectively) a governor with cpuidle.
cpuidle_get_bm_activity() gets the information about bm activity, which can be used by the governor during its select routine.
3.5
enter() is the callback used to actually enter this idle
state. exit_latency and power_usage will be
characteristic of the idle state. flags denote generic
capabilities, features, and bugs of the idle state. usage
is the count of times this idle state is invoked, and time
is time spent in this state.
cpuidle_register_driver() and cpuidle_
unregister_driver() are used to register and
unregister (respectively) a driver with cpuidle.
cpuidle_force_detect() is used by the driver
to force the cpuidle core to re-detect all the device
states (e.g., after a system state change).
3.4
governor interface
struct cpuidle_governor {
char
name[CPUIDLE_NAME_LEN];
struct list_head governor_list;
int (*init)
void (*exit)
void (*scan)
(struct cpuidle_device *dev);
(struct cpuidle_device *dev);
(struct cpuidle_device *dev);
int (*select)
void (*reflect)
(struct cpuidle_device *dev);
(struct cpuidle_device *dev);
struct module
};
*owner;
Userspace interface
cpuidle userspace interfaces are split at the following
two places in /sys.
3.5.1
This information is under /sys/devices/system/
cpu/cpuidle/.
available_drivers is a read-only interface that
lists all the drivers that have successfully registered
with cpuidle.
current_driver is a read-write interface that contains the current active cpuidle driver. By writing a new value to this interface, the idle driver can
be changed at run time.
available_governors is a read-only interface
that lists all the governors that have successfully
registered with cpuidle.
current_governor is a read-write interface that
contains the current active cpuidle governor. By
writing a new value to this interface, the idle governor can be changed at run-time.
Note there can be single governor and single driver
for all processors in the system.
init() is a callback, called by cpuidle, to initialize
each governor with a specific device. exit() is called
to exit this governor for a device.
scan() is called on a re-detect of the states in the device. This provides an opportunity for the governor to
note the changes in states during a driver re-detect.
select() is called before each idle entry by a device, for the governor to make a state selection for
System-generic information
3.5.2
Per-cpu information
This information is under /sys/devices/system/
cpu/cpuX/cpuidle/ where X=0,1,2,.... For
each idle state Y supported by the current driver, the following read-only information can be seen under sysfs.
124 • cpuidle—Do nothing, efficiently. . .
stateY/usage: Shows the count of number of
times this idle state has been entered since the last
driver init or redetect.
stateY/time: Shows the amount of time spent
in this idle state in uS. itemstateY/latency:
Shows the wakeup latency for this state.
stateY/power: Shows the typical power consumed
when CPU enters this state in mW.
3.6
Configuring and using cpuidle
is (as seen by dyntick), latency requirements, previous
C-state residency, max_cstate requirement, and bm
activity, etc., and then picks the deepest possible idle
state straight away. This governor aims at getting maximum possible power advantage with little impact on
performance.
4.2
Power data
Power/Performance data with various idle policies will
be provided at the time of presentation of this paper.
To configure cpuidle, select:
4.3
Main Kernel Config
Power management options (ACPI, APM) --->
CPU idle PM support --->
[ ] CPU idle PM support
Below is some of the items from the cpuidle to-do
list. The list below is not exhaustive. Specifically, if you
don’t find your favorite architecture mentioned here and
you would like to use cpuidle on your architecture, let
the authors of this paper know about it.
Once CPU idle PM is selected, there will be further
options for various governors supported in the kernel,
which can then be selected.
<*> ’ladder’ governor (NEW)
<*> ’menu’ governor (NEW)
Currently cpuidle is supported only on i386 and x8664, with an ACPI-based idle driver.
4 cpuidle advancements
The current cpuidle changes are the beginning of
things to come. There are a few things under development and discussion.
4.1
New governors
The ladder governor takes a step-wise approach to selecting an idle state. Although this works fine with periodic tick-based kernels, this step-wise model will not
work very well with tickless kernels. The kernel can go
idle for a long time without a periodic timer tick and it
may not get a chance to step-down the ladder to the deep
idle state whenever it goes idle.
A new idle governor to handle this, called the menu
governor, is being worked on. The menu governor looks
at different parameters like what the expected sleep time
Future Work
Today, CPU logical offline does not take CPU to its
deepest idle state. There are thoughts about using
cpuidle to enter the deepest idle state when a CPU
is logically offlined.
cpuidle needs to be more flexible with regards to different non-ACPI-based idle drivers supported, and also
support run-time switching across these drivers.
Make cpuidle simple by default, and make it use the
right driver and right governor for a platform by using a
rating scheme for drivers and governors. This will avoid
all the issues with users/distributions needing to configure cpuidle at every boot.
Experiment with different governors to find the most
power/performance efficient governor for specific platforms. This will be an ongoing exercise as more platforms support multiple idle states and use the cpuidle
infrastructure.
5
Conclusion
The authors hope that cpuidle infrastructure enables
Linux to have a platform-independent, generic infrastructure for processor idle management. Such an infrastructure will simplify support of idle states on specific hardware by making it possible to write a simple
plug-in driver. Additionally, such an infrastructure will
2007 Linux Symposium, Volume Two • 125
simplify the writing of idle governors, and hopefully
will increase experimentation and innovation in idle
governors—something similar to the frequency governors that resulted from the cpufreq infrastructure.
6
Acknowledgements
Thanks to the developers and testers in the community
who took time to comment on, report issues with, and
contribute to cpuidle in various ways. Special thanks
to Len Brown for providing the feedback, directions,
and constant support.
References
[1] Acpi in linux.
http://acpi.sourceforge.net.
[2] Energy star - office equipment - computers.
http://www.energystar.gov.
[3] Linux 2.6.21. http://www.kernel.org.
[4] Linux kernel cpufreq subsystem.
http://www.kernel.org/pub/linux/
utils/kernel/cpufreq/cpufreq.html.
[5] Dominik Brodowski. Current trend in linux kernel
power management, linuxtag 2005. http:
//www.free-it.de/archiv/talks_
2005/paper-11017/paper-11017.pdf.
[6] Venkatesh Pallipadi and Alexey Starikovskiy. The
ondemand governor, ols 2006.
http://www.linuxsymposium.org/
2006/linuxsymposium_procv2.pdf.
This paper is (c) 2007 by Intel. Redistribution rights are
granted per submission guidelines; all other rights reserved.
* Other names and brands may be claimed as the property of
others.
126 • cpuidle—Do nothing, efficiently. . .
My bandwidth is wider than yours
Ultra Wideband, Wireless USB, and WiNET in Linux*
Iñaky Pérez-González
Open source Technology Center, Intel Corporation
[email protected]
Abstract
Imagine a radio technology that gives you 480 Mbps at
short range. Imagine that you don’t have to keep all
those cables around to connect your gadgets. Make it
low-power, too. You even want to be able to stream content from your super-duper cell phone to your way-toomany inches flat TV. Top it off, make it an open standard.
It’s not just a dream: we have it and is called UltraWide-Band, and it comes with many toppings of your
choice (Wireless USB and WiNET; Bluetooth and 1394
following) to help remove almost every data cable that
makes your day miserable. And Linux already supports
it.
1
What is all this?
rule out snooping and man-in-the-middle attacks. Backwards compatibility is maintained, so we can reuse all
of our drivers with slight modifications in the core host
stack.
WiNET snaps an Ethernet frame over a UWB payload
and adds a few protocols for bridging; devices cluster in
different WiNET networks (similar to WIFI ad-hoc) and
also includes authentication and strong encryption.
Other high level protocols can build on top of UWB
(Bluetooth 3.0 is planning to do so, for example).
2
Ultra Wide Band
This protocol is designed for being low-power (as in little usage and efficient), with good facilities for QoS and
streaming (mainly centered in audio and video) and providing strong cryptography on the transport to compensate for the open medium.
UWB is a high speed, short range radio technology intended to be the common backbone for higher level protocols. It aims to replace most of the data cables in desktop systems, home theaters, and other kinds of PAN-like
interconnects. It has been defined by the WiMedia consortium after a long fight in IEEE over the underlying
implementation and now it is ECMA-368 and is back in
IEEE for further standardization.
It provides all the blocks (delivery of payloads, neighborhood and bandwidth management, encryption support, {broad,multi,uni}cast, etc.) needed by higher level
protocols to build on top without any central infrastructure.
Wireless USB sits on top of UWB, where it allocates
bandwidth and establishes a virtual cable; WUSB devices connect to the host in the same master-slave fashion as wired USB. The security of the cable is replaced
with strong encryption and an authentication process to
Figure 1: UWB’s spectrum usage
Ultra-Wide-Band operates over the unlicensed 3.1 to
10.6 GHz band, transferring at data rates from 53Mbps
to 480Mbps;1 high rates reach up to 3 meters; lower
rates, all the way to 10 meters. These are split in fourteen 528 Mhz bands; these are grouped in five band
1 53.3,
80, 106.7, 160, 200, 320, 400, and 480 Mbps, not all
mandatory.
128 • My bandwidth is wider than yours
Figure 2: Division of time in UWB (credit: ECMA-368 Fig 3)
groups (channels) (composed of three bands each except the last one, which are two). Data is encoded MBOFDM2 over 122 sub-carriers (100 data, 10 guard, 12
pilot).
The power emission is as low as the maximum specified
in the FCC Part 15 limit for interference: −41dBm/Mhz
(0.074µW /MHz), being the practical radiated power
about 100µW /band (−10dBm). This is more or less
three thousand times less than a cell phone3 and allows
UWB to appear as noise to other devices.
Time is divided in superframes (see Figure 2), composed of 256 media allocation slots (MAS), 256µs each.
Thus a superframe is about 65ms. The MAS is the basic
bandwidth allocation unit.
The superframe starts with the beacon period, which
is divided in 85µs beacon slots (96 maximum, about
32 MAS slots). The first beacon slots are used for signalling; when a new device wants to join it senses for it
to be empty and transmits its beacon until it is assigned
another empty slot.
It is important to note that devices don’t have a common
concept of start of the superframe. There might be an
offset and devices coordinate among themselves to synchronize in a common start of superframe. That is called
a beacon group, a group of devices that beacon during
a shared beacon period at the beginning of the same superframe. This becomes a complication for a device B
2 Multiband
Orthogonal Frequency Division Modulation.
3 Roughly calculated, about five orders of magnitude less than
WIFI.
Figure 3: Hidden neighbours
that can hear beacons from A and C without A and C
being able to listen to each other.
If A and B are beaconing in the same beacon group and
C gets in range of B (Figure 3), C might be beaconing
at a time different to that of A and B.4 B recognizes C’s
beacon as an alien beacon and tells A about which slots
C is using; thus A and B don’t try to use those slots
to transmit (as their tranmission would get mixed with
C’s).
The rules for use of the media are extremely simple. A
device might only transmit:
• Its beacon, during the beacon slot assigned to it.
4 Especially
example.
if it has a beacon group formed with device D, for
2007 Linux Symposium, Volume Two • 129
Figure 4: Full WiNET topology
• Data, during the MAS slots reserved by it. This
is called Distributed Reservation Protocol (DRP),
basically a TDMA model. It involves a negotiation
among the devices on which devices own which
MAS slots. Each device can define a maximum
of eight static streams (or allocations) with this
method. They are fixed (as in reserved bandwidth)
until dropped.
• Data, when the media is not being used. Called Prioritized Contention Access, it is a CSMA technology: sense the carrier and if empty, transmit. Eight
different priority levels are defined for which devices contend based on the prioritization they give
to their data.
UWB aims to provide a secure enough media, tamperand snoop-proof.
It is implemented using AES128/CCM, one-time pads, and 4-way handshakes for
devising pair-wise and group-wise temporal keys (secret establishment/authentication to avoid man-in-themiddle attacks is left to the higher level protocols).
Consideration is given to power saving. Devices can
switch off their radio until they have to transmit/receive
(beacon or data), even advertising to each other that they
are suspending beaconing for an amount of time. Transmission rates and emission power can be adjusted to decrease consumption of energy, for example, for devices
in close proximity.
In general, UWB becomes a flexible low-level protocol
for building on top. It offers enough flexibility for all
kinds of media and data, and almost no restrictions in
mobility (other than range) and usage models.
3
WiNET: IP over UWB
WiNET slaps an Ethernet payload over UWB frame to
achieve the same functionality that is possible with Ethernet: IP, bridging, etc.
In concept, it is very similar to WIFI, except for the short
range (10m max; a brick wall will stop it short5 ) and the
nonexistence of access points (all is ad-hoc). It is faster
and more power-efficient for PAN usage models.
WiNET-capable devices group in WiNET Service Sets
(WSSs).6 Devices may belong to more than one at the
same time.
Security is provided using UWB’s framework,7 which
provides data integrity and privacy; there are association methods to avoid man-in-the-middle attacks when
establishing a trust relationship (using numeric comparison or simple password comparison).
5 Which
is an advantage in many usage models
equivalent to the ESSID in WIFI terms.
7 AES-128/CCM, 4-way handshakes to generate pair and group
wise keys, one time pads.
6 Roughly
130 • My bandwidth is wider than yours
QoS is achieved by reserving fixed point-to-point
streams allocated with the UWB Dynamic Reservation
Protocol (for example, the bandwidth required to stream
audio to the living room speakers is known ahead of
time) or by mapping IP traffic prioritization into the
UWB Prioritized Channel Access traffic levels.
As well, 802.1D bridging services are provided (see
Figure 4) to allow different WiNET segments to be
bridged. This is useful, for example, for providing
wireless network connectivity in high density urban
dwellings, where the high number of apartments would
make a WIFI access point on each unfeasible. Under
this model, an Ethernet backbone connects WiNET access points that mobile devices connect to while roaming through the apartment without losing connectivity.
4
Wireless USB
Wireless USB by itself is very simple: remove the cable from USB 2.0, put in its place an UWB radio. The
rest (at the high level) remains the same; with a few
modifications to the USB core stack we can (in theory)
reuse most of our already written drivers for mass storage, video, audio, etc.
WUSB still maintains the master/slave model of the
wired version (even if UWB is peer to peer). The WUSB
host creates a static bandwidth allocation with the Distributed Reservation Protocol, and in there it creates a
WUSB Channel. Devices that connect to that channel
define (along with the host) a WUSB Cluster.
gives time for devices to query the host (device notifications, DNs8 ), and provides a link to the next MMC,
which prefixes another allocation period.
This model allows WUSB devices to be simplified, as
they don’t have to understand (unless desired) UWB,
beaconing, DRP, or PCA. They just look for MMCs and
follow the links, getting their I/O control information
from them.
Cable-based concepts, such as reset, connect, and disconnect are implemented via signalling in the device notification time slots (for device to host) and in the MMC
information elements (host to device).
4.1
Wireless USB security
WUSB security builds on top of UWB’s security framework.9
The trust relationships are established via a Connection
Context, which is composed of a Connection Host ID
(CHID), Connection Device ID (CDID), and Connection Key (CK). The CHID uniquely identifies the host,
the CDID the device, and the CK is the shared secret.
Both host and device keep the same CC as proof of trust.
Establishing the secure connection is done via the 4-way
handshake process. When a device is directed by the
user to connect to the host, it looks for the CHID broadcasted by it, and then looks up in its internal CC tables
for the CDID it was assigned by that host. Then host and
device prove to each other that they have the CK without
actually exchanging it and derive a pair-wise temporal
key. The host issues a new group key and issues it to all
devices, including the new one. As well, all keys expire
after a certain number of messages have been encoded
with them, time at which new ones are renegotiated using another 4-way handshake.
When there is no Connection Context established,
WUSB specifies methods for the authentication/pairing
process:
Figure 5: A WUSB Channel (credit: WUSB1.0 Fig 4-4)
At the beginning of each allocated period of time,
the host emits an MMC (Microscheduled Management
Command). This is a data structure composed of information elements (IEs) that specifies the length of the
allocated period, which devices can transmit and when,
• Cable Based Association: For devices that can
connect with a cable, it is used to establish trust by
transmitting the connection context using a CableBased Association Framework [USB] interface.
8 Unlike wired USB, in WUSB devices can initiate transactions
to the host.
9 AES-128/CCM, 4-way handshakes, pair and group wise keys,
one time pads.
2007 Linux Symposium, Volume Two • 131
• Numeric Association: Use Diffie-Hellman to create a temporary secure channel and avoid man-inthe middle attacks by having the device and the
host present a short (two to four digits) number to
the user. If they match, the user confirms the pairing. Limited range and explicit user conditioning
make up for the lack of strength in a four-digit decimal hash.
Devices can keep more than one Connection Context
in non-volatile memory, so that there is no need for reauthenticating when moving a device from one host to
another.
5
The hardware
Hardware comes in the shape of a UWB Radio Controller (RC) with support on top for the higher level protocols. There is specialization, however: a low-power
device might sacrifice some functionality to save power;
a PC-side controller would offer full support.
We will concentrate mostly on the host side, as we just
want to use the devices.
5.1
USB dongles: HWAs or Host Wire Adapters
Defined by the Wireless USB specification, HWAs consist of a UWB radio controller and a WUSB host controller all connected via USB to the host system. Other
extra interfaces are possible (for example, for WiNET).
WUSB traffic to/from WUSB devices is piped through
wired USB. Imagine a USB controller connected via
USB instead of PCI.
Its main intent is to enable legacy systems to get seamless UWB and WUSB connectivity. The drawback is
the high overhead of piping USB traffic over USB.
5.2
Wireless USB hubs: DWAs or Device Wire
Adapters
Defined by the Wireless USB specification, a DWA is
composed of a hub for USB wired devices whose upstream connection is wireless USB. Similarly to the
HWA, think of a USB host controller that is connected
to the system via Wireless USB, not PCI.
This is intended to connect your wired devices to your
Wireless-USB-enabled laptop; as well, legacy applications will use much of this. Take an existing USB
chipset for some kind of device, put in front a DWA
adapter, and suddenly your device is “wireless.”10
It has the same drawbacks as HWA regarding performance.
5.3
PCI (and friends) connected adapters: WHCI
Defined by the Wireless Host Controller Interface, the
brother of EHCI. It is a Wireless USB host controller
plugged straight to the PCI bus, which, as HWA, might
contain other interfaces (again, such as a WiNET interface).
This is intended for new systems or those where a PCI or
mini-PCI card can be deployed easily. It gives the best
performance, as there is no extra overhead for delivering
the final data to its destination (as in HWA/DWA).
Exercise for the reader: what happens when you connect
a WUSB printer to a HWA, the HWA to a DWA, and the
DWA to a WHCI, finally to your PC?
6
Linux support
Full-featured Linux support for UWB, Wireless USB,
and WiNET will consist of:
• A UWB Stack to provide radio neighborhood and
bandwidth management.
• Drivers for HWA (USB dongle) and WHCI (PCI)
UWB Radio Controllers plugging into the UWB
stack.
• A Wireless USB stack providing two abstractions
used by the three different kinds of host controllers (Wireless USB Host Controller and Wire
Adapter). It also includes security, authorization/
pairing management, and seamless integration into
the main USB stack.
• Drivers for HWA (USB dongle) and WHCI (PCI)
Wireless USB host controllers, as well as for the
DWA (Wireless USB hub) host controller.
10 And
yes, if you connect twenty of these, you’ll have twenty
USB hosts in your machine.
132 • My bandwidth is wider than yours
Figure 6: Linux’s support for UWB/WUSB/WiNET
• Driver for WUSB Cable-Based Association, as
well as support for WUSB numeric association.
• WiNET drivers: Our efforts are also to implement,
R
using the Intel
Wireless UWB Link 1480, network device drivers for the USB and PCI form factors.
This adds up to two stacks and six drivers; eight, if we
count the WiNET drivers (Figure 6).
6.1
Current status
In general, the driver set is quite stable and usable with
the available hardware (which is very scarce).
The Linux UWB stack has implemented most of the
basic management features, allowing the discovery of
remote devices and a Distributed Reservation Protocol
bandwidth negotiator. It can work with devices implementing WUSB 1.0 and WHCI 0.95.11 Radio control
drivers have been implemented for HWA (hwa-rc) and
WHCI (whc-rc).
As of April 2007, only the HWA Wireless USB host
controller is implemented, in a limited fashion; only
control, bulk, and interrupt transfers work. However,
it is possible to use an AL-4500 mass storage evaluation
11 Both
specs are mostly identical; however, as WHCI is developing on aspects that were not yet known when WUSB 1.0 was finalized, errata will be issued to correct them.
device made by Alereon. Authorization/pairing is being
implemented, making the low-level Cable-Based Association driver complete (user space glue is now done
manually).
We have also developed drivers for the Intel 1480 Wireless UWB Link WiNET interface, which are quite stable
as of now.
In general, there is still a lot of work to be done. The
UWB stack still needs to handle a lot of complex situations, like alien beacons, suspend and resume handling in the UWB media, selection of ideal rate and
power transmission parameters, and fine tuning of the
bandwidth allocator. The Wireless USB stack requires
a complete transfer scheduler and implementation of
isochronous support. The driver for DWA needs to be
put together (with pieces from HWA) and a driver for
the WHCI WUSB host controller has to be created.
6.2
Sample usage scenarios
All interaction between the user and the local radio controllers happens through sysfs:
# cd /sys
# ls -N bus/uwb/devices/
uwb0/
# ls -N class/uwb_rc/
uwb0/
2007 Linux Symposium, Volume Two • 133
The radio is kept off by default; we could start beaconing to announce ourselves to others in one of the supported channels12 on station A:
A# cd /sys/class/uwb_rc
A# echo 13 0 > uwb0/beacon
If now a user starts scanning on station B:
B# echo 13 0 > uwb0/scan
It will find station A’s beacon and will be announced by
the kernel; entries will be created in sysfs:
B# tail /var/log/kern.log
...
uwb-rc uwb0: uwb device \
(mac 00:14:a5:cb:6f:54 dev f8:5c)\
connected to usb 1-4.4:1.0
...
B# ls -N /sys/bus/uwb/devices/
uwb0/
f8:5c/
This indicates that a remote UWB device with address
f8:5c has been detected. At this point, the devices
are not connected, but just B is listening for A’s beacon.
For them to be able to exchange information, B needs
to also beacon so A knows about it—they need to be
linked in the same beacon group. That we accomplish
by asking B to beacon against A’s beacon (in the same
beacon period):
Connecting Wireless USB devices
If we had any Wireless USB devices, we would have to
tell the WUSB controller to create a WUSB Channel;
assuming controller usb6 is the one corresponding to
our radio controller:
# cd /sys/class/usb_host/usb_host6
# echo <16 byte CHID>
\
0001
\
mylinux-wusb-01 \
> wusb_chid
With this we have given a 16-byte CHID to the driver,
which has configured it into the host so it broadcasts
a WUSB channel named mylinux-wusb-01. Now
devices that have been paired with this CHID before will
request connection to the host when we ask them to (for
now we allow all of them to connect):
new variable speed Wireless USB \
device using hwa-hc and address 2
From now on, this behaves like yet another USB device.
There are still no controls for selecting rate or power.
If no transactions are done to the device or the device
doesn’t ping back to the host’s keep-alives, then it will
be disconnected. The timeout is specified in a perhost basis in file /sys/class/usb_host/X/wusb_
trust_timeout. Most devices we’ve seen until now
don’t implement keep-alives, so this value has to be set
high to avoid their disconnection.
7
Conclusion
B# echo f8:5c > uwb0/beacon
Now we’ll see in station B a similar message (uwb
device (...) connected) as well as an entry with
its 16-bit address in /sys/bus/uwb/devices. In
the case of the Intel 1480 Wireless UWB Link (USB
form factor), we could now load the WiNET driver
(i1480u-winet) and configure network connections
on both sides:
# modprobe i1480u-winet
# ifconfig winet0 192.168.2.1
12 Most
and 15.
hardware known to our team supports channels 13, 14,
We have done a quick description of Ultra Wideband,
Wireless USB, and WiNET, a set of technologies that
aim at replacing all the cables that clutter desktops and
living rooms. Designed with streaming and power efficiency in mind, they also provide security comparable
to that of the cable.
We have also described how Linux implements support
for it, its current status, and how to use it. There is basic
support working, but a lot is still to be done.
We expect a huge increase of consumer electronics devices of all kinds (cellphones, cameras, computing, audio, video. . . ) supporting this set of technologies in upcoming years. And with Linux playing an all-the-time
134 • My bandwidth is wider than yours
more important role in those embedded applications, as
well as in the desktop, it is key that it supports them as
soon as they hit the streets en masse.
References
[linuxuwb.org] Linux UWB/WUSB/WiNET,
http://linuxuwb.org
[WiMedia] WiMedia Alliance,
http://wimedia.org
[ECMA368] Ecma International, ECMA-368 High
Rate Ultra Wideband PHY and MAC standard,
1.0,
http://www.ecma-international.org
[WiMedia] WiMedia Alliance, WiNET specification
(still not publicly available)
http://wimedia.org
[WUSB1.0] USB Implementors Forum, Wireless USB
1.0 specification, http://usb.org
[WAM1.0] USB Implementors Forum, Association
Models supplement to the Certified Wireless
Universal Serial Bus Specification, 1.0,
http://usb.org
[WHCI] Intel Corporation, Wireless Host Controller
Interface, 0.95, http://intel.com
c
2007
by Intel Corporation.
*Linux is a registered trademark of Linus Torvalds. Other
names and brands may be claimed as the property of others.
Zumastor Linux Storage Server
Daniel Phillips
Google, Inc.
[email protected]
Abstract
Zumastor provides Linux with network storage functionality suited to a medium scale enterprise storage
role: live volume backup, remote volume replication,
user accessible volume snapshots and integration with
Kerberized network filesystems. This paper examines
the design and functionality of the major system components involved. Particular attention is paid to the subjects of optimizing server performance using NVRAM,
and reducing the amount of network bandwidth required
for remote application using various forms of compression. Future optimization strategies are discussed.
Benchmark results are presented for currently implemented optimizations.
1
Introduction
Linux has done quite well at the edges of corporate networks—web servers, firewalls, print servers and
other services that rely on well standardized protocols—
but has made scant progress towards the center, where
shared file servers define the workflow of a modern organization. The barriers are largely technical in that
Linux storage capabilities, notably live filesystem snapshot and backup, have historically fallen short of the
specialized proprietary offerings to which users have become accustomed.
Zumastor provides Linux with network storage functionality suited to medium scale enterprise storage roles:
live volume backup, remote volume replication, user
accessible volume snapshots and integration with Kerberized network filesystems. Zumastor takes the form
of a set of packages that can be added to any Linux
server and will happily coexist with other roles that the
server may serve. There are two major components: the
ddsnap virtual block device, which provides base snapshot and replication functionality, and the Zumastor volume monitor, which presents the administrator with a
simple command line interface to manage volume snapshotting and replication. We first examine the low level
components in order to gain an understanding of the design approach used, its capabilities and limitations.
2
The ddsnap Virtual Block Device
The ddsnap virtual block device provides multiple
read/write volume snapshots. As opposed to the incumbent lvm snapshot facility, ddsnap does not suffer from
degraded write performance as number of snapshots increases and does not require a separate underlying physical volume for each snapshot. A ddsnap virtual device
requires two underlying volumes: an origin volume and
a snapshot store. The origin, as with the lvm snapshot, is
a normal volume except that write access is virtualized
in order to protect snapshotted data. The snapshot store
contains data copied from the origin in in the process of
protecting snapshotted data. Metadata in the snapshot
store forms a btree to map logical snapshot addresses to
data chunks in the snapshot store.
The snapshot store also contains bitmap blocks that control allocation of space in the snapshot store, a list of currently held snapshots, a superblock to provide configuration information, and a journal for atomic and durable
updates to the metadata. The ddsnap snapshot store resembles a simple filesystem, but with only a single directory, the btree, indexed by the logical address of a
snapshot. Each leaf of the btree contains a list of logical chunk entries; each logical chunk entry in the btree
contains a list of one or more physical chunk addresses;
and for each physical chunk address, a bitmap indicates
which snapshots currently share that physical chunk.
Share bits are of a fixed, 64 bit size, hence the ddsnap
limitation of 64 simultaneous snapshots. This limitation may be removed in the future with a redesign of the
btree leaf format.
• 135 •
136 • Zumastor Linux Storage Server
2.1
Client-server design
DDsnap was conceived as a cluster snapshot—DD
stands for distributed data—with a client-server architecture. Each ddsnap client (a device mapper device)
provides access to either the underlying, physical origin volume or to some snapshot of the origin volume.
To implement the copy-before-write snapshot strategy,
a ddsnap origin client communicates with a userspace
server over a socket, requesting permission from this
snapshot server before writing any block so that the
server may move any data shared with a snapshot to the
snapshot store. Similarly, a ddsnap snapshot client requests permission from the snapshot server before writing any block so that space may be allocated in the snapshot store for the write. A snapshot client also requests
permission before reading snapshot data, to learn the
physical location of the data and to serialize the read
against origin writes, preventing the data being read
from moving to a new location during the read. On the
other hand, an origin client need not consult the server
before reading, yielding performance nearly identical to
the underlying physical volume for origin reads.
Since all synchronization with the snapshot server is
carried out via messages, the server need not reside on
the same node as an origin or snapshot client, although
with the current single-node storage application it always does. Some more efficient means of synchronization than messages over a socket could be adopted for a
single node configuration, however messaging overhead
has not proved particularly bothersome, with a message inter-arrival time measured in microseconds due to
asynchronous streaming. Some functionality required
for clustering, such as failing over the server, uploading client read locks in the process, is not required for
single-node use, but imposes no overhead by its presence.
Creating or deleting a snapshot is triggered by sending a
message to the snapshot server, as are a number of other
operations such as obtaining snapshot store usage statistics and obtaining a list of changed blocks for replication. The ddsnap command utility provides a commandline syntax for this. There is one snapshot server for
each snapshot store, so to specify which snapshot server
the command is for, the user gives the name of the respective server control socket. A small extra complexity
imposed by the cluster design is the need for a ddsnap
agent, whose purpose on a cluster is to act as a node’s
central cluster management communication point, but
which serves no useful purpose on a single node. It is
likely that the functionality of agent and snapshot server
will be combined in future, somewhat simplifying the
setup of a ddsnap snapshot server. In any event, the possibility of scaling up the Zumastor design using clustering must be viewed as attractive.
2.2
Read/Write Snapshots
Like lvm snapshots, ddsnap snapshots are read/write.
Sometimes the question is raised: why? Isn’t it unnatural to write to a snapshot? The answer is, writable snapshots come nearly for free, and they do have their uses.
For example, virtualization software such as Bochs,
QEMU, UML or Xen might wish to base multiple VM
images on the same hard disk image.1 The copy-onwrite property of a read/write snapshot gives each VM a
private copy in its own snapshot of data that it has written. In the context of zumastor, a root volume could be
served over NFS to a number of diskless workstations,
so each workstation is able to modify modify part of its
own copy while continuing to share the unmodified part.
2.3
Snapshotted Volume IO Performance
Like the incumbent lvm snapshot, origin read performance is nearly identical to native read performance,
because origin reads are simply passed through to the
underlying volume.
As with the incumbent lvm snapshot, ddsnap uses a
copy-before-write scheme where snapshotted data must
be copied from the origin to the snapshot store the first
time the origin chunk is written to after a new snapshot. This can degrade write performance markedly under some loads. Keeping this degradation to a tolerable
level has motivated considerable design effort, and work
will continue in this area. With the help of several optimization techniques discussed below, a satisfactory subjective experience is attained for the current application:
serving network storage.
Compared to the incumbent lvm snapshot, the ddsnap
snapshot design requires more writes to update the
metadata, typically five writes per newly allocated physical chunk:
1 http://en.wikipedia.org/wiki/
Copy-on-write
2007 Linux Symposium, Volume Two • 137
1. Write allocation bitmap block to journal.
2.3.2
Effect of Chunk Size and Number of Snapshots on Write Performance
2. Write modified btree leaf to journal.
3. Write journal commit block.
4. Write allocation bitmap block to store.
5. Write modified btree leaf to store.
This update scheme is far from optimal and is likely
to be redesigned at some point, but for now a cruder
approach is adopted: add some nonvolatile memory
(NVRAM) to the server.
The presence of a relatively small amount of nonvolatile
RAM can accelerate write performance in a number of
ways. One way we use NVRAM in Zumastor is for
snapshot metadata. By placing snapshot metadata in
NVRAM we reduce the cost of writing to snapshotted
volume locations significantly, particularly since ddsnap
in its current incarnation is not very careful about minimizing metadata writes. Unfortunately, this also limits
the maximum size of the btree, and hence the amount of
snapshot data that can be stored. This limit lies roughly
in the range of 150 gigabytes of 4K snapshot chunks
per gigabyte of NVRAM. NVRAM is fairly costly, so
accommodating a large snapshot store be expensive.
Luckily, much can be done to improve the compactness
of the btree, a subject for another paper.
Using NVRAM, snapshot performance is no worse than
the incumbent lvm snapshot, however the size of the
btree and hence the amount of data that can be stored in
the snapshot store is limited by the amount of NVRAM
available. Future work will relax this limitation.
2.3.1
Filesystem Journal in NVRAM
For filesystems that support separate journals, the journal may be placed in NVRAM. If the filesystem is further configured to journal data writes as well as metadata, a write transaction will be signalled complete as
soon as it has been entered into the journal, long before
being flushed to underlying storage. At least until the
journal fills up, this entirely masks the effect of slower
writes to the underlying volume. The practical effect of
this has not yet been measured.
Untar time on the native (Ext3) filesystem is about 14
seconds. Figure 1 shows that untar time on the virtual
block device with no snapshots held is about 20 seconds, or slower by a factor of 1.43. This represents
the overhead of synchronizing with the snapshot server,
and should be quite tractable to optimization. Snapshotted untar time ranges from about 3.5 times to nearly 10
times slower than native untar time.
Figure 1 also shows the effect of number of currently
held snapshots on write performance and of varying the
snapshot chunk size. At each step of the test, a tar
archive of the kernel source is unpacked to a new directory and a snapshot is taken. We see that (except for the
very first snapshot) the untar time is scarcely affected by
the number of snapshots. For the smallest chunk size,
4K, we see that untar time does rise very slightly with
the number of snapshots, which we may attribute to increased seek time within the btree metadata. As chunk
size increases, so does performance. With a snapshot
store chunk size of 128KB, the untar runs nearly three
times faster.
2.3.3
Effect of NVRAM on Write Performance
Figure 2 shows the effect of placing the snapshot data in
NVRAM. Write performance is dramatically improved,
and as before, number of snapshots has little or no effect. Interestingly, the largest chunk size tested, 128KB,
is no longer the fastest; we see best performance with
64K chunk size. The reason for this remains to be investigated, however this is good news because a smaller
chunk size improves snapshot store utilization. Write
performance has improved to about 2 to 5 times slower
than native write performance, depending on chunk size.
2.3.4
NVRAM Journal compared to NFS Write
Log
NVRAM is sometimes used to implement a NFS write
log, where each incoming NFS write is copied to the
write log and immediately acknowledged, before being
written to the underlying filesystem. Compared to the
strategy of putting the filesystem journal in NVRAM,
performance should be almost the same: in either case,
138 • Zumastor Linux Storage Server
Time to untar a kernel source tree vs Number of Snapshots
200
native:normal:128k
native:normal:16k
native:normal:4k
native:normal:64k
Real time (s) to untar kernel
150
100
50
0
0
5
10
Number of Snapshots
15
20
Figure 1: Write performance without NVRAM
a write is acknowledged immediately after being written to NVRAM. There may be a small difference in the
overhead of executing a filesystem operation as opposed
to a potentially simpler transaction log operation, however the filesystem code involved is highly optimized
and the difference is likely to be small. On the other
hand, the transaction log requires an additional data
copy into the log, likely negating any execution path efficiency advantage. It is clear which strategy requires
less implementation effort.
2.3.5
Ongoing Optimization Efforts
A number of opportunities for further volume snapshot
write optimization remain to be investigated. For example, it has been theorized that writing to a snapshot
instead of the origin can improve write performance a
great deal by eliminating the need to copy before writing. If read performance from a snapshot can be maintained, then perhaps it would be a better idea to serve a
master volume from a snapshot than an origin volume.
3
Volume Replication
Volume replication creates a periodically updated copy
of a master volume at some remote location. Replication
differs from mirroring in two ways: 1) changes to the
remote volume are batched into volume deltas so that
multiple changes to the same location are collapsed into
a single change and 2) a write operation on the master
is not required to wait for write completion on the remote volume. Batching the changes also allows more
effective compression of volume deltas, and because the
changes are sorted by logical address, applying a delta
to a remote volume requires less disk seeking than applying each write to a mirror member in write completion order. Replication is thus suited to situations where
the master and remote volume are not on the same local
network, which would exhibit intolerable remote write
latency if mirrored. High latency links also tend to be
relatively slow, so there is much to be gained by good
compression of volume deltas.
Zumastor implements remote replication via a two step
process: 1) Compute difference list; 2) Generate delta.
To generate the difference list for a given pair of snapshots, the ddsnap server scans through the btree to find
all snapshot chunks that belong to one snapshot and not
the other, which indicates that the data for the corresponding chunks was written at different times and is
most probably different. To generate the delta, a ddsnap
utility runs through the difference list reading data from
one or both of the snapshots which is incorporated into
2007 Linux Symposium, Volume Two • 139
Time to untar a kernel source tree vs Number of Snapshots
200
native:nvram:128k
native:nvram:16k
native:nvram:4k
native:nvram:64k
Real time (s) to untar kernel
150
100
50
0
0
5
10
Number of Snapshots
15
20
Figure 2: Write performance with NVRAM
the output delta file. To allow for streaming replication,
each volume delta is composed of a number of extents,
each corresponding to some number of contiguous logical chunks.
A variety of compression options are available for delta
generation. A “raw” delta incorporates only literal data
from the destination snapshot. An “xdelta” delta computes the binary difference between source and destination snapshot. Raw delta is faster to generate and requires less disk IO, is faster to apply to the target volume, and is more robust in the sense that the code is
very simple. Computing an xdelta delta requires more
CPU and disk bandwidth but should result in a smaller
delta that is faster to transmit.
A volume delta may be generated either as a file or as
a TCP stream. Volume replication can be carried out
manually using delta files:
1. Generate a snapshot delta as a file
2. Transmit the delta or physically transport it to the
downstream host
3. Apply the delta to the origin volume of the downstream host
It is comforting to be able to place a snapshot delta and
to know that the replication algorithm is easy enough to
carry out by hand, which might be important in some
special situation. For example, even if network connectivity is lost, volume replication can still be carried out
by physically transporting storage media containing a
delta file.
Zumastor uses ddsnap’s streaming replication facility,
where change lists and delta files are never actually
stored, but streamed from the source to target host and
applied to the target volume as a stream. This saves a
potentially large amount of disk space that would be otherwise be required to store a delta file on both the source
and target host.
From time to time it is necessary to replicate an entire
volume, for example when initializing a replication target. This ability is provided via a “full volume delta”
that generates a raw, compressed delta as if every logical
chunk had appeared in the difference list. Incidentally,
only the method of delta generation is affected by this
option, not the delta file format.
To apply a volume delta, ddsnap overwrites each chunk
of the target volume with the new data encoded in the
delta in the case of a raw delta, or reads the source snapshot and applies the binary difference to it in the case
140 • Zumastor Linux Storage Server
of xdelta. Clearly, it is required that the source snapshot exist on the downstream host and be identical to
the source snapshot on the upstream host.
3. Transmit the next extent of the delta downstream.
To create the initial conditions for replication:
5. Repeat at 3 until done.
4. Apply the delta extent to the downstream origin.
1. Ensure that upstream and downstream origin volumes are identical, for example by copying one to
the other
For streaming replication, a server is started via ddsnap
on the target host to receive the snapshot delta and apply
it to the downstream origin.
2. Snapshot the upstream and downstream volumes
Fortunately for most users, all these steps are handled
transparently by the Zumastor volume manager, described below.
The need to copy an entire volume over the network in
the first step can be avoided in some common cases.
When a filesystem is first created, it is easy to zero both
upstream and downstream volumes, which sets them to
an identical state. The filesystem is then created after
step 2. above, so that relatively few changed blocks
are transmitted in the first replication cycle. In the case
where the downstream volume is known to be similar,
but not identical to the upstream volume (possibly as a
result of an earlier hardware or software failure) then the
remote volume differencing utility rdiff may be used to
transmit a minimal set of changes downstream.
Multi level replication from a master volume to a chain
of downstream volumes is handled by the same algorithm. We require only that two snapshots of the master
volume be available on the upstream volume and that
the older of the two also be present on the downstream
volume. A volume may be replicated to multiple targets
at any level in the chain. In general, volume replication topology is a tree, with the master volume at the
root and an arbitrary number of target volumes at interior and leaf nodes. Only the master is writable; all the
target volumes are read-only.
Now, for each replication cycle:
3.1
Delta Compression
1. Set a new snapshot on the upstream volume.
5. Apply the delta to the downstream origin (downstream origin is now identical to the new upstream
snapshot).
Compression of delta extents is available as an option, either using zlib (gzip) or in the case of xdelta,
an additional Huffman encoding stage. A compressed
xdelta difference should normally be more compact than
gzipped literal data, however, one can construct cases
where the reverse is true. A further (extravagant) “best”
compression option computes both the gzip and xdelta
compression for a given extent and use the smaller for
the output delta. Which combination of delta generation options is best depends largely on the amount of
network bandwidth available.
For the streaming case, step 4 is done earlier so that the
transmit and apply may iterate:
Figure 3 illustrates the effect of various compression options on delta size. For this test, the following steps are
performed:
2. Generate the delta from old to new upstream snapshot.
3. Transmit the delta downstream.
4. Set a new snapshot on the downstream volume
(downstream origin and new snapshot are now
identical to the old upstream snapshot).
1. Set a new snapshot on upstream and downstream
volumes.
1. Set snapshot 0.
2. Untar a kernel tree.
2. Generate the delta from old to new upstream snapshot.
3. Set snapshot 1.
2007 Linux Symposium, Volume Two • 141
Figure 3: Delta Compression Effectiveness
4. Apply a (large) patch yielding the next major kernel release.
expresses the delta sizes of Figure 3 as compression ratios, ranging from 5 to 13 for the various loads.
5. Set snapshot 2.
Delta compression directly affects the time required to
transmit a delta over a network. This is particularly important when replicating large volumes over relatively
low bandwidth network links, as is typically the case.
The faster a delta can be transmitted, the fresher the remote copy will be. We can talk about the “churn rate” of
a volume, that is, the rate at which it changes. This could
easily be in the neighborhood of 10% a day, which for a
100 gigabyte disk would be 10 gigabytes. Transmitting
a delta of that size over a 10 megabit link would require
10000 seconds, or about three hours. An 800 gigabyte
volume with 10% churn a day would require more than
a day to transmit the delta, so the following delta will
incorporate even more than 10% churn, and take even
longer. In other words, once replication falls behind, it
rapidly falls further and further behind, until eventually
nearly all the volume is being replicated on each cycle,
which for our example will take a rather inconvenient
number of days.
Three delta files are generated, the two incremental
deltas from snapshot 0 to snapshot 1 and from snapshot
1 to snapshot 2, and the cumulative delta from snapshot
0 to snapshot 2. We observe a very large improvement
in delta size, ranging up to a factor of 10 as compared to
the uncompressed delta.
XDelta performs considerably better on the snapshot 1
to snapshot 2 delta, which is not surprising because this
delta captures the effect of changing many files as opposed to adding new files to the filesystem, so it is only
on this delta that there are many opportunities to take
advantage of similarity between the two snapshots.
The “best” method gives significantly better compression on the snapshot 1 to snapshot 2 delta, which indicates that some delta extents compress better with gzip
than they do with xdelta. (As pointed out by the author
of xdelta, this may be due to suboptimal use of compression options available within xdelta.) Figure 4 re-
In summary, good delta compression not only improves
the freshness of replicated data, it delays the point at
142 • Zumastor Linux Storage Server
Figure 4: Delta Compression Effectiveness
which replication lag begins to feed on itself and enables
timely replication of larger, busier volumes over lower
speed links.
3.2
be mounted in its place, before resuming. Interestingly,
the patch to accomplish this is only a few lines, because
most of the functionality to accomplish it already existed.
NFS Snapshot Rollover
Exporting a replicated volume via NFS sounds easy except that we expect the filesystem to change state “spontaneously” each time a new volume delta arrives, without requiring current NFS clients to close their TCP connections. To create the effect of jumping the filesystem
from state to state as if somebody had been editing the
filesystem locally, we need to unmount the old snapshot
and mount the new snapshot so that future NFS accesses
will be to the new snapshot. The problem is, the Linux
server will cache some elements of the client connection state such as the file handle of the filesystem root,
which pins the filesystem and prevents it from being unmounted.
Zumastor solves this problem by introducing a nfsd suspend/resume operation. This flushes all cached client
state which forces the use count of the exported filesystem snapshot to one, the mount point. This allows the
old snapshot to be unmounted and the new snapshot to
3.3
Incremental Backup using Delta Files
Ddsnap delta files are not just useful for replication, they
can also be used for incremental backup. From time to
time, a “full volume” delta file can be written to tape,
followed periodically by a number of incremental deltas.
This should achieve very rapid backup and economical
use of tape media, particularly if deltas are generated
with more aggressive compression options. To restore,
a full (compressed) volume must be retrieved from tape,
along with some number of delta files, which are applied
sequentially to arrive at a volume state as some particular point in time. Restoring a single file would be a very
slow process, however it is also expected to be a rare
event. It is more important that backup be fast, so that it
is done often.
2007 Linux Symposium, Volume Two • 143
4
Zumastor volume monitor
The Zumastor volume monitor takes care of most of
the chores of setting up virtual block devices, including making socket connections between the ddsnap
user space and kernel components, creating the virtual devices with dmsetup, organizing mount points and
mounting volumes. It maintains a simple database implemented as a directory tree that stores the configuration and operating status of each volume on a particular
host, and provides the administrator with a simple set
of commands for adding and removing volumes from
the database, and defining their operational configuration. Finally, it takes care of scheduling snapshots and
initiating replication cycles.
The Zumastor volume database is organized by volumes, where each volume is completely independent
from the others, not even sharing daemons. Each Zumastor volume is either a master or a target. If a master,
it has a replication schedule. If a target, then it has an
upstream source. In either case, it may have any number
of replication targets. Each replication target has exactly
one source, which prevents cycles and also allows automatic checking that the correct source is replicating to
the correct target.
The replication topology for each volume is completely
independent. A given host may offer write/write access
to volumes that are replicated to other hosts and readonly access to volumes replicated to it from other hosts.
So for example, two servers at widely separated geographic locations might each replicate a volume to the
other, which not provides a means of sharing data, but
also provides a significant degree of redundancy, particularly if each server backs up both its own read/write
volume and the replicated read-only volume to tape.
The replication topology for each volume is a tree,
where only the master (root of the tree) behaves differently from the other nodes. The master generates snapshots either periodically or on command. Whenever one
of its target hosts is ready to receive a new snapshot
delta, the master creates a new snapshot and replicates it
to the target, ensuring that the downstream host receives
as fresh as possible a view of the master volume. On
all other hosts, snapshot deltas are received from an upsteam source and simply passed along down the chain.
Zumastor replication is integrated with NFS in the sense
that Zumastor knows how to suspend NFS while it re-
mounts a replicated volume to the latest snapshot, effecting the snapshot rollover described above.
5
The Future
In the future, Zumastor will continue to gain new functionality and improve upon existing functionality. It
would be nice to have a graphical front end to the
database, and a web interface. It would be nice to see
the state of a whole collection of Zumastor servers together in one place, including the state of any replication cycles in progress. It would be natural to integrate
more volume management features into Zumastor, such
as volume resizing. Zumastor ought to be able to mirror itself to a local machine and fail over NFS service
transparently. Zumastor should offer its own incremental backup using delta files. Another creative use of delta
files would be to offer access to “nearline” snapshots,
where a series of archived reverse deltas are applied to
go back further in time than is practical with purely online snapshots.
There is still plenty of room for performance optimization. There is a lot more that can be done with
NVRAM, and things can be done to improve the performance without NVRAM, perhaps making some of
Zumastor’s replication and backup capabilities practical
for use on normal workstations and the cheapest of the
cheap servers.
All in all, there remains plenty of work to do and plenty
of motivation for doing it.
144 • Zumastor Linux Storage Server
Cleaning up the Linux Desktop Audio Mess
Lennart Poettering
Red Hat, Inc.
[email protected]
Abstract
Desktop audio on Linux is a mess. There are just too
many competing, incompatible sound systems around.
Most current audio applications have to support every
sound system in parallel and thus ship with sound abstraction layers with a more or less large number of
back-end plug-ins. JACK clients are incompatible with
ALSA clients, which in turn are incompatible with OSS
clients, which in turn are incompatible with ESD clients,
and so on. “Incompatible” often means “exclusive;”
e.g., if an OSS application gets access to the audio hardware, all ALSA applications cannot access it.
Apple MacOS X has CoreAudio, Microsoft Windows
XP has a new user-space audio layer; both manage to
provide comprehensive APIs that make almost every
user happy, ranging from desktop users to pro audio
people. Both systems provide fairly modern, easy-touse audio APIs, and a vast range of features including
desktop audio “bling.”
On Linux we should be able to provide the same: a common solution that works on the desktop, in networked
thin-client setups and in pro audio environments, scaling from mobile phones to desktop PCs and high-end
audio hardware.
1
Fixing the Linux Audio Stack
In my talk, I want to discuss what we can do to clean
up the mess that desktop audio on Linux is: why we
need a user-space sound system, what it should look
like, how we need to deal with the special requirements
of networked audio and pro-audio stuff, and how we
should expose the sound system to applications for allowing Compiz-style desktop “bling”—but for audio. I
then will introduce the PulseAudio sound server as an
attempt to fix the Linux audio mess.
PulseAudio already provides compatibility with 90% of
all current Linux audio software. It features low-latency
audio processing and network transparency in an extensible desktop sound server. PulseAudio is now part of
many distributions, and is likely to become the default
sound system on Fedora and Ubuntu desktops in the
next releases of these distributions.
The talk will mostly focus on the user-space side of
Linux audio, specifically on the low-level interface between hardware drivers and user-space applications.
2
Current State of Linux Audio
The current state of audio on Linux and other Free Software desktops is quite positive in some areas, but in
many other areas, it is unfortunately very poor. Several
competing audio systems and APIs are available. However, none of them is useful in all types of applications,
nor does any meet the goals of being easy-to-use, scalable, modern, clean, portable, and complete. Most of
these APIs and systems conflict in one way or another.
On the other hand, we have a few components and
APIs for specific purposes that are well accepted and
cleanly designed (e.g., LADSPA, JACK). Also, Linuxbased systems can offer a few features that are not available on competing, proprietary systems. Among them
is network transparent audio and relatively low-latency
scheduling.
While competing, proprietary systems currently lack a
few features the Linux audio stack can offer, they managed to provide a single (specific to the respective OS)
well-accepted API that avoids the balkanisation we currently have on Free Software desktops. Most notably,
Apple MacOS X has CoreAudio which is useful for the
desktop as well as for professional audio applications.
Microsoft Windows Vista, on the other hand, now ships
a new user-space audio layer, which also fulfills many of
the above requirements for modern audio systems and
APIs.
• 145 •
146 • Cleaning up the Linux Desktop Audio Mess
In the following sections, I will quickly introduce the
systems that are currently available and used on Linux
desktop, their specific features, and their drawbacks.
• Hardly portable to non-Unix systems.
2.1
• Incompatible with everything else; every application gets exclusive access to the sound device, thus
blocking all other applications from accessing it simultaneously.
Advanced Linux Sound Architecture (ALSA)
The ALSA system [2] has become the most widely accepted audio layer for Linux. However, ALSA, both as
audio system and as API, has its share of problems:
• The ALSA user-space API is relatively complicated.
• ALSA is not available on anything but Linux.
• The ALSA API makes certain assumptions about
sound devices that are only true for hardware devices. Implementing an ALSA plug-in for virtual
devices (“software” devices) is not doable without
nasty hacks.
• Not “high-level” enough for many situations.
• dmix is bug-ridden and incomplete.
• Resampling is very low quality.
• You need different configurations for normal desktop use (dmix) and pro audio use (no dmix).
On the other hand, it also has some real advantages over
other solutions:
• It is available on virtually every modern Linux installation.
• It is very powerful.
• It is (to a certain degree) extendable.
2.2
Open Sound System (OSS)
• ioctl()-based interface is not type-safe, not the
most user-friendly.
• Almost impossible to virtualize correctly and
comprehensively. Hacks like esddsp, aoss,
artsdsp have proven to not work.
• Applications silently assume the availability of certain driver functionality that is not necessarily available in all setups. Most prominently, the 3D game
Quake doesn’t run with drivers that don’t support
mmap()-based access to the DMA audio buffer.
• No network transparency, no support for desktop
“bling.”
The good things:
• Relatively easy to use;
• Very well accepted, even beyond Linux;
• Feels very Unix-ish.
2.3
JACK
The JACK Audio Connection Kit [3] is a sound server
for professional audio purposes. As such, it is well accepted in the pro-audio world. Its emphasis, besides
playback of audio through a local sound card, is streaming audio data between applications.
Plusses:
OSS [7] has been the predecessor of ALSA in the Linux
kernel. ALSA provides a certain degree of compatibility
with OSS. Besides that the API is available on several
other Unixes. OSS is a relatively “old” API, and thus
has a number of limitations:
• Doesn’t offer all the functionality that modern sound
hardware provides which needs to be supported by
the software (such as no surround sound, no float
samples).
• Not high-level enough for almost all situations, since
it doesn’t provide sample format or sample rate
conversions. Most software silently assumes that
S16NE samples at 44100Hz are available on all systems, which is no longer the case today.
• Easy to use;
• Powerful functionality;
• It is a real sound server;
• It is very well accepted in the pro-audio world.
Drawbacks:
• Only floating point samples;
• Fixed sampling rate;
• Somewhat awkward semantics which makes it unusable as a desktop audio server (i.e., server doesn’t
start playback automatically, needs a manual “start”
command);
2007 Linux Symposium, Volume Two • 147
• Not useful on embedded machines;
• No network transparency.
2.4
aRts
The KDE sound server aRts [5] is no longer actively developed and has been orphaned by its developer. Having
a full music synthesiser as desktop sound server might
not be such a good idea, anyway.
2.5
EsounD
The Enlightened Sound Daemon (EsounD or ESD) [4]
has been the audio daemon of choice of the GNOME
desktop environment since GNOME 1.0 times. Besides
basic mixing and network transparency capabilities, it
doesn’t offer much. Latency querying, low-latency behaviour, and surround sound are not available at all. It
is thus hardly useful for anything beyond basic music
playback or playing event sounds (“bing!”).
2.6
goal, for the most part. More precisely, a modern sound
API for Free Software desktops should fulfill the following requirements:
• Completeness: an audio API should be a generalpurpose interface; it should be suitable for simple
audio playback as well as professional audio production.
• Scalability: usable on all kinds of different systems,
ranging from embedded systems to modern desktop
PCs and pro audio workstations.
• Modernness: provide good integration into the Free
Software desktop ecosystem.
• Proper support for networked and “software” (virtual) devices, besides traditional hardware devices.
• Portability: the audio API should be portable across
different operating systems.
• Easy-to-use for both the user, and for the programmer. This includes a certain degree of automatic
fine-tuning, to provide optimal functionality with
“zero configuration.”
PortAudio
3.2
The PortAudio API [6] is a cross-platform abstraction
layer for audio hardware access. As such it sits on top
of other audio systems, like OSS, ALSA, ESD, the Windows audio stack, or MacOS X’s CoreAudio. PortAudio
has not been designed with networked audio devices in
mind, and also doesn’t provide the necessary functionality for clean integration into a desktop sound server.
PortAudio has never experienced wide adoption.
3
What we Need
As shown above, none of the currently available audio
systems and APIs can provide all that is necessary on
a modern desktop environment. I will now define four
major goals which a new desktop audio system should
try to achieve.
3.1
A Widely Accepted, Modern, Portable, Easyto-Use, Powerful, and Complete Audio API
None of the described Linux audio APIs fulfills all requirements that are expected from a modern audio API.
On the other hand, Apple’s CoreAudio and Microsoft’s
new Windows Vista user-space audio layer reach this
Routing and Filtering Audio in Software
Classic audio systems such as OSS are designed to provide an abstract API around hardware devices. A modern audio system should provide features beyond that:
• It needs to be possible to play back multiple audio
streams simultaneously, so that they are mixed in
real time.
• Applications should be able to hook into what is currently being played back.
• Before audio is written to an output device, it might
be transferred over the network to another machine.
• Before audio is played back some kind of postprocessing might take place.
• Audio streams might need to be re-routed during
playback.
3.3
Desktop “Bling”
Free Software desktops currently lack an audio counterpart for the well known window manager Compiz. A
modern desktop audio systems should be able to provide:
148 • Cleaning up the Linux Desktop Audio Mess
• Separate per-application and per-window volumes.
• Soft fade-ins and fade-outs of music streams.
• Automatically increasing the volume of the application window in the foreground, decreasing the volume of the application window in the background.
• Forward a stop/start request to any music-playing
applications if a VoIP call takes place.
• Remember per-application and per-window volumes and devices.
• Reroute audio to a different audio device on-the-fly
without interruption, from within the window manager.
• Do “hot” switching between audio devices whenever a new device becomes available. For example,
when a USB headset is plugged in, automatically
start using it by switching an in-progress VoIP call
over to the new headset.
3.4
A Compatible Sound System
Besides providing the features mentioned above, a new
sound system for Linux also needs to retain a large degree of compatibility with all the currently available systems and APIs, as much as possible. Optimally, all currently available Linux audio software should work simultaneously and without manual intervention. A major
task is to marry the pro-audio and desktop audio worlds
into a single audio system.
4
What PulseAudio already provides
The PulseAudio [1] sound server is our attempt to reach
the four aforementioned goals. It is a user-space sound
server that provides network transparency, all kinds of
desktop “bling,” relatively low-latency, and is extensible
through modules. It sits atop of OSS and ALSA sound
devices and routes and filters audio data, possibly over
the network.
PulseAudio is intended to be a replacement for systems
like ESD or aRts. The former is entirely superseded;
PulseAudio may be installed as drop-in replacement for
EsounD on GNOME desktops.
PulseAudio ships with a large set of modules (plug-ins):
• Driver modules (i.e., accessing OSS, ALSA, Win32,
Solaris drivers).
• Protocol support (i.e., native TCP-based protocol,
EsounD protocol, RTP).
• Integration into LIRC, support for multimedia keyboards.
• Desktop integration (i.e., hooks into the X11 system
for authentication and redirecting the X11 bell).
• Integration with JACK, EsounD.
• Zeroconf support, using Avahi.
• Management: Automatically restore volumes, devices of playback streams, move a stream to a different device if its original devices becomes unavailable due to a hot-plug event.
• Auto-configuration: integration with HAL for automatic and dynamic configuration of the sound server
based on the available hardware.
• Combination of multiple audio devices into a single
audio device while synchronising audio clocks.
PulseAudio is not intended to be a competitor to JACK,
GStreamer, Helix, KDE Phonon, or Xine. Quite the opposite: we already provide good integration into JACK,
GStreamer, and Xine. We have different goals.
The PulseAudio core is carefully optimised for speed
and low latency. Local clients may exchange data with
the PulseAudio audio server over shared memory data
transfer. The PulseAudio sound server will never copy
audio data blocks around in memory unless it is absolutely necessary. Most audio data operations are based
on liboil’s support for the extended instruction sets
of modern CPUs (MMX, SSE, AltiVec).
Currently the emphasis for PulseAudio is on networked
audio, where it offers the most comprehensive functionality.
PulseAudio support is already available in a large
number of applications. For others, we have prepared patches. Currently we have native plug-ins,
drivers, patches, and compatibility for Xine, MPlayer,
GStreamer, libao, XMMS, Audacious, ALSA, OSS
(using $LD_PRELOAD), EsounD, Music Player Daemon (MPD), and the Adobe Flash player.
PulseAudio has a small number of graphical utility applications:
• Volume Control.
2007 Linux Symposium, Volume Two • 149
• Panel Applet (for quickly changing the output device, selecting it from a list of Zeroconf-announced
audio devices from the network).
• Volume Meter.
• Preferences panel, for a user-friendly configuration
of advanced PulseAudio functionality.
• A management console to introspect a PulseAudio
server’s internals.
5
5.1
PulseAudio Internals
Buffering Model
PulseAudio offers a powerful buffering model which is
an extension of the model Jim Gettys pioneered in the
networked audio server AF [9]. In contrast to traditional
buffering models it offers flexible buffering control, allowing large buffers—which is useful for networked audio systems—while still providing quick response to external events. It allows absolute and relative addressing
of samples in the audio buffer and supports a notion of
“zero latency.” Samples that have already been pushed
into the playback buffer may be rewritten at any time.
5.2
Zero-Copy Memory Management
Audio data in the PulseAudio sound server is stored in
reference-counted memory blocks. Audio data queues
contain only references to these memory blocks instead
of the audio data itself. This provides the advantage of
minimising copying of audio data in memory, and also
saves memory. In fact the PA core is written in a way
that, in most cases, data arriving on a network socket
is written directly into the sound card DMA hardware
buffer without spending time in bounce buffers or similar. This helps to keep memory usage down and allows
very low-latency audio processing.
5.3
Shared Memory Data Transfer
Local clients can exchange audio data with a local
PulseAudio daemon through shared-memory IPC. Every process allocates a shared memory segment where
it stores the audio data it wants to transfer. Then, when
the data is sent to another process, the recipient receives
only the information necessary to find the data in that
segment. The recipient maps the segment of the originator in read-only mode and accesses the data.
The shared memory data transfer is the natural extension
of the aforementioned zero-copy memory management,
for communication between processes.
5.4
Synchronisation
Multiple streams can be synchronised together on the
server side. If this is done, it is guaranteed that the playback indexes of these streams never deviate. Clients can
label stream channels freely (e.g., “left,” “right,” “rearleft,” “rear-right,” and so on). Together with the aforementioned buffering model, this allows implementation
of flexible server-side multi-track mixing.
5.5
Buffer Underrun Handling
PulseAudio does its best to ensure that buffer underruns have no influence on the time axis. Two modes
are available: In the first mode, playback pauses when a
buffer underrun happens. This is the mode that is usually available in audio APIs such as OSS. In the second mode playback never stops, and if data is available
again, enough data is skipped so that the time function
experiences no discontinuities.
6
Where we are going
While the PulseAudio project in the current state fulfills
a large part of the aforementioned requirements, it is not
complete yet. Compatibility with many sound systems,
a wide range of desktop audio “bling,” networked audio, and low-latency behaviour are already available in
current versions of PulseAudio. However we are still
lacking in other areas:
• Better low-latency integration into JACK.
• Some further low-latency fixes can be made.
• Better portability to systems which don’t support
floating-point numbers.
• The client API PulseAudio currently offers is comparatively complicated and difficult to use.
Besides these items, there are also a lot of minor issues
to be solved in the PulseAudio project. In the following subsections, I quickly describe the areas we are currently working on.
150 • Cleaning up the Linux Desktop Audio Mess
6.1
Threaded Core
The current PulseAudio core is mostly single-threaded.
In most situations this is not a problem, since we carefully make sure that no operation blocks for longer than
necessary. However, if more than one audio device
is used by a single PulseAudio instance, or when extremely low latencies must be reached, this may become
a problem. Thus the PulseAudio core is currently being moved to a more threaded design: every PulseAudio module that is important in low-latency situations
will run its own event loop. Communication between
those separate event loops, the main event loop, and
other local clients is (mostly) done in a wait-free fashion (mostly not lock-free, however). The design we are
currently pursuing allows a step-by-step upgrade to this
new functionality.
6.2 libsydney
During this year’s Foundation of Open Media Software
(FOMS) conference in January in Sydney, Australia, the
most vocally expressed disappointment in the Linux audio world is the lack of a single well-defined, powerful
audio API which fulfills the requirements of a modern
audio API as outlined above. Since the current native
PulseAudio API is powerful but unfortunately overly
complex, we took the opportunity to define a new API
at that conference. People from Xiph, Nokia, and I sat
down to design a new API.
Of course, it might appear as a paradox to try fix the
balkanisation of Linux audio APIs by adding yet another one, but given the circumstances, and after careful consideration, we decided to pursue this path. This
new API was given the new name libsydney [8],
named after the city we designed the first version of the
API in. libsydney will become the only supported
API in future PulseAudio versions. Besides working on
top of PulseAudio, it will natively support ALSA, OSS,
Win32, and Solaris targets. This means that developing
a client for PulseAudio will offer cross-platform support
for free. libsydney is currently in development; by
the time of the OLS conference, an initial public version
will be made available.
6.3
Multi-User
Currently the PulseAudio audio server is intended to be
run as a session daemon. This becomes a problem if
multiple users are logged into a single machine simultaneously. Before PulseAudio can be adopted by modern
distributions, some kind of hand-over of the underlying
audio devices will need to be implemented to support
these multi-user setups properly.
7
Where you can get it
PulseAudio is already available in a large number of
distributions, including Fedora, Debian, and Ubuntu.
Since it is a drop-in replacement for EsounD, it is trivial to install it and use it as the desktop sound server in
GNOME.
Alternatively, you may download a version from our
web site [1].
It is planned for PulseAudio to replace EsounD in the
default install in the next versions of Fedora and Ubuntu.
8
Who we are
PulseAudio has been and is being developed by Lennart
Poettering (Red Hat, Inc.) and Pierre Ossman (Cendio
AB).
References
[1] PulseAudio, http://pulseaudio.org/
[2] ALSA, http://alsa-project.org/
[3] JACK Audio Connection Kit,
http://jackaudio.org/
[4] EsounD, http://www.tux.org/
~ricdude/overview.html
[5] aRts, http://www.arts-project.org/
[6] PortAudio, http://www.portaudio.com/
[7] Open Sound System,
http://www.opensound.com/oss.html
[8] libsydney,
http://0pointer.de/cgi-bin/
viewcvs.cgi/trunk/?root=libsydney
[9] AF, http://tns-www.lcs.mit.edu/vs/
audiofile.html
Linux-VServer
Resource Efficient OS-Level Virtualization
Herbert Pötzl
Marc E. Fiuczynski
[email protected]
[email protected]
Abstract
Linux-VServer is a lightweight virtualization system
used to create many independent containers under a
common Linux kernel. To applications and the user of a
Linux-VServer based system, such a container appears
just like a separate host.
The Linux-Vserver approach to kernel subsystem containerization is based on the concept of context isolation. The kernel is modified to isolate a container into
a separate, logical execution context such that it cannot see or impact processes, files, network traffic, global
IPC/SHM, etc., belonging to another container.
Linux-VServer has been around for several years and its
fundamental design goal is to be an extremely low overhead yet highly flexible production quality solution. It
is actively used in situations requiring strong isolation
where overall system efficiency is important, such as
web hosting centers, server consolidation, high performance clusters, and embedded systems.
1
Introduction
This paper describes Linux-VServer, which is a virtualization approach that applies context isolation techniques to the Linux kernel in order to create lightweight
container instances. Its implementation consists of a
separate kernel patch set that adds approximately 17K
lines of code to the Linux kernel. Due to its architecture independent nature it has been validated to work on
eight different processor architectures (x86, sparc, alpha, ppc, arm, mips, etc.). While relatively lean in terms
of overall size, Linux-VServer touches roughly 460 existing kernel files—representing a non-trivial softwareengineering task. Linux-VServer is an efficient and flexible solution that is broadly used for both hosting and
sandboxing scenarios.
Hosting scenarios such as web hosting centers providing Virtual Private Servers (VPS) and HPC clusters need
to isolate different groups of users and their applications
from each other. Linux-VServer has been in production
use for several years by numerous VPS hosting centers
around the world. Furthermore, it has been in use since
2003 by PlanetLab (www.planet-lab.org), which is a geographically distributed research facility consisting of
roughly 750 machines located in more than 30 countries.
Due to its efficiency, a large number of VPSs can be
robustly hosted on a single machine. For example, the
average PlanetLab machine today has a 2.4Ghz x86 processor, 1GB RAM, and 100GB of disk space and typically hosts anywhere from 40-100 live VPSes. Hosting
centers typically use even more powerful servers and it
is not uncommon for them to pack 200 VPSes onto a
single machine.
Server consolidation is another hosting scenario where
isolation between independent application services
(e.g., db, dns, web, print) improves overall system robustness. Failures or misbehavior of one service should
not impact the performance of another. While hypervisors like Xen and VMware typically dominate the server
consolidation space, a Linux-VServer solution may be
better when resource efficiency and raw performance are
required. For example, an exciting development is that
the One Laptop Per Child (OLPC) project has recently
decided to use Linux-VServer for their gateway servers
that will provide services such as print, web, blog, void,
backup, mesh/wifi, etc., to their $100 laptops at school
premises. These OLPC gateways servers will be based
on low cost / low power consuming embedded systems
hardware, and for this reason a resource efficient solution like Linux-VServer rather than Xen was chosen.
Sandboxing scenarios for generic application plugins
are emerging on mobile terminals and web browsers to
isolate arbitrary plugins–not just Java lets–downloaded
by the user. For its laptops OLPC has designed a security framework, called bitfrost [1], and has decided to
152 • Linux-VServer
utilize Linux-VServer as its sandboxing solution, isolating the various activities from each other and protecting
the main system from all harm.
2.1
Container-based System Overview
At a high-level, a container-based system provides a
shared, virtualized OS image, including a unique root
file system, a set of system executables and libraries,
and resources (cpu, memory, storage, etc.) assigned to
the container when it is created. Each container can be
“booted” and “shut down” just like a regular operating
system, and “rebooted” in only seconds when necessary.
Guest 1
Admin
Guest Admin
...
Guest Admin
Guest N
Virtual Platform
This section provides an overview of container-based
systems, describes the general techniques used to
achieve isolation, and presents the mechanisms with
which Linux-VServer implements these techniques.
Host Context
/proc
/home
/usr
/dev
...
Linux-VServer Design Approach
Quake Srv.
Postgresql
...
/proc
/home
/usr
/dev
...
2
Apache
MySQL
PHP
/proc
/home
/usr
/dev
...
This paper has two goals: 1) serve as a gentle introduction to container-based system for the general Linux
community, and 2) highlight both the benefits (and
drawbacks) of our context isolation approach to kernel
containerization. The next section presents a high-level
overview of container-based systems and then describes
the Linux-VServer approach in further detail. Section 3
evaluates efficiency of Linux-VServer. Finally, Section 4 offers some concluding remarks.
Hosting Platform
Of course, Linux-VServer is not the only approach to
implementing containers on Linux. Alternatives include non-mainlined solutions such as OpenVZ, Virtuozzo, and Ensim; and, there is an active community of developers working on kernel patches to incrementally containerize the mainline kernel. While these
approaches differ at the implementation level, they all
typically focus in onto a single point within the overall containerization design spectrum: system virtualization. Benchmarks run on these alternative approaches to
Linux-VServer reveal non-trivial time and space overhead, which we believe are fundamentally due to their
focus on system virtualization. In contrast, we have
found with Linux-VServer that using a context isolation approach to containerize critical kernel subsystems
yields neglible overhead compared to a vanilla kernel—
and in most cases performance of Linux-VServer and
Linux is indistinguishable.
Host Services
Shared OS Image
Figure 1: Container-based Platform
To applications and the user of a container-based system, the container appears just like a separate linux system.
Figure 1 depicts a container-based system, which is
comprised of two basic platform groupings. The hosting platform consists essentially of the shared OS image
and a privileged host context. This is the context that
a system administrator uses to manage containers. The
virtual platform is the view of the system as seen by the
guest containers. Applications running in a guest container work just as they would on a corresponding noncontainer-based system. That is, they have their own
root file system, IP addresses, /dev, /proc, etc.
The subsequent sections will focus on the main contributions that Linux-VServer makes, rather than being exhaustively describing all required kernel modifications.
2.2
Kernel Containerization
This section describes the kernel subsystem enhancements that Linux-VServer makes to support containers. These enhancements are designed to be low overhead, flexible, as well as to enhance security in order
to properly confine applications into a container. For
CPU scheduling, Linux-VServer introduces a novel filtering technique in order to support fair-share, workconserving, or hard limit container scheduling. However, in terms of managing system resources such as
storage space, io bandwidth, for Linux-VServer it is
mostly an exercise of leveraging existing Linux resource
management and accounting facilities.
2.2.1
Guest Filesystems
Guest container filesystems could either be implemented using loop-back mounted images—as is typical
2007 Linux Symposium, Volume Two • 153
for qemu, xen, vmware, and uml based systems—or by
simply using the native file systems and using chroot.
The main benefit of using a chroot-ed filesystem over
the loop-back mounted images is performance. Guests
can read/write files at native filesystem speed. However, there are two drawbacks: 1) chroot() information is
volatile and therefore only provides weak confinement,
and 2) chroot-ed filesystems may lead to significant duplication of common files. Linux-VServer addresses
both of these problems, as one of its central objectives is
to support containers in a resource efficient manner that
performs as well as native Linux.
Filesystem Chroot Barrier
Because chroot() information is volatile, it is simple
to escape from a chroot-ed environment, which would
be bad from a security perspective when one wants to
maintain the invariant that processes are confined within
their containers filesystem. This invariant is nice to have
when using containers for generic hosting scenarios, but
clearly is required for sandboxing scenario. To appreciate how easy it is to escape conventional chroot() confinement, consider the following three simple steps: a)
create or open a file and retain the file-descriptor, b) chroot into a subdirectory at equal or lower level with regards to the file, which causes the ‘root’ to be moved
‘down’ in the filesystem, and then c) use fchdir() on the
file descriptor to escape from that ‘new’ root, which lets
the process escape from the ‘old’ root as well, as this
was lost in the last chroot() system call.
To address this problem Linux-VServer uses a special
file attribute called the chroot barrier. The above trick
does not work when this barrier is set on the root directory of a chroot-ed filesystem, as it prevents unauthorized modification and escape from the chroot confinement.
Filesystem Unification
To appreciate the second drawback mentioned above,
consider that systems with dozens or maybe even hundreds of containers based on the same Linux distribution
will unnecessarily duplicate many common files. This
duplication occurs simply to maintain a degree of separation between containers, as it would be difficult using
conventional Linux filesystem techniques to ensure safe
sharing of files between containers.
To address this problem Linux-VServer implements a
disk space saving technique by using a simple unification technique applied to whole files. The basic ap-
proach is that files common to more than one container,
which are rarely going to change (e.g., like libraries
and binaries from similar OS distributions), can be hard
linked on a shared filesystem. This is possible because
the guest containers can safely share filesystem objects
(inodes).
The only drawback with hard linking files is that without
additional measures, a container could (un)intentionally
destroy or modify such shared files, which in turn would
harm/interfere other containers.
This can easily be addressed by adding an immutable
attribute to the file, which then can be safely shared between two containers. In order to ensure that a container
cannot modify such a file directly, the Linux capability
to modify this attribute is removed from the set of capabilities given to a guest container.
However, removing or updating a file with immutable
link attribute set from inside a guest container would be
impossible. To remove the file the additional “permission to unlink” attribute needs to be set. With this alone
an application running inside a container could manually implement a poor man’s CoW system by: copying
the original file, making modifications to the copy, unlinking the original file, and renaming the copy the original filename.
This technique was actually used by older LinuxVServer based systems, but this caused some incompatibilities with programs that make in-place modifications to files. To address this problem, Linux-VServer
introduced CoW link breaking which treats shared hardlinked files as copy-on-write (CoW) candidates. When
a container attempts to mutate a CoW marked file, the
kernel will create a private copy of the file for the container.
Such CoW marked files belonging to more than one
container are called ‘unified’ and the process of finding
common files and preparing them in this way is called
Filesystem Unification. Unification is done as an out-ofband operation by a process run in the root container—
typically a cron job that intelligent walks all of the containers’ filesystems looking for identical files to unify.
The principal reason for doing filesystem unification is
reduced resource consumption, not simplified administration. While a typical Linux distribution install will
consume about 500MB of disk space, our experience is
that after unification the incremental disk space required
154 • Linux-VServer
when creating a new container based on the same distribution is on the order of a few megabytes.
It is straightforward to see that this technique reduces required disk space, but probably more importantly it improves memory mappings for shared libraries, reduces
inode caches, slab memory for kernel structures, etc.
Section 3.1 quantifies these benefits using a real world
example.
2.2.2
it may not be possibly to re-instantiate processes with
the same PID. To overcome this drawback, alternative
container-based systems virtualize the PID space on a
per container basis.
We hope to positively influence the proposed kernel
mainlining of containerized PID space support such that
depending on the usage scenario it is possible to choose
Linux-VServer style isolation, virtualization, or a hybrid
thereof.
Process Isolation
2.2.3
Linux-VServer uses the global PID space across all containers. Its approach is to hide all processes outside a
container’s scope, and prohibits any unwanted interaction between a process inside a container and a process
belonging to another container. This separation requires
the extension of some existing kernel data structures in
order for them to: a) become aware to which container
they belong, and b) differentiate between identical UIDs
used by different containers. To work around false assumptions made by some user-space tools (like pstree)
that the init process has to exist and have PID 1,
Linux-VServer also provides a per container mapping
from an arbitrary PID to a fake init process with PID 1.
When a Linux-VServer based system boots, by default
all processes belong to the host context. To simplify system administration, this host context acts like a normal
Linux system and doesn’t expose any details about the
guests, except for a few proc entries. However, to allow
for a global process view, Linux-VServer defines a special spectator context that can peek at all processes at
once. Both the host and spectator context are only logical containers—i.e., unlike guest containers, they are
not implemented by kernel datastructures.
A side effect of this approach is that process migration
from one container to another container on the same host
is achieved by changing its container association and updating the corresponding per-container resource usage
statistics such NPROC, NOFILE, RSS, ANON, MEMLOCK, etc.
The benefit to this isolation approach for the systems
process abstraction is twofold: 1) that it scales well with
a large number of contexts, 2) most critical-path logic
manipulating processes and PIDs remain unchanged.
The drawback is that one cannot as cleanly implement
container migration, checkpoint and resume, because
Network Isolation
Linux-VServer does not fully virtualize the networking
subsystem. Rather, it shares the networking subsystem
(route tables, IP tables, etc.) between all containers, but
restricts containers to bind sockets to a subset of host
IPs specified either at container creation or dynamically
by the host administrator. This has the drawback that it
does not let containers change their route table entries
or IP tables rules. However, it was a deliberate design
decision, as it inherently lets Linux-VServer containers
achieve native networking performance.
For Linux-VServer’s network isolation approach several
issues have to be considered; for example, the fact that
bindings to special addresses like IPADDR_ANY or the
local host address have to be handled to avoid having
one container receive or snoop traffic belonging to another container. The approach to get this right involves
tagging packets with the appropriate container identifier
and incorporating the appropriate filters in the networking stack to ensure only the right container can receive
them. Extensive benchmarks reveal that the overhead of
this approach is minimal as high-speed networking performance is indistinguishable between a native Linux
system and one enhanced with Linux-VServer regardless of the number of concurrently active containers.
In contrast, the best network L2 or L3 virtualization approaches as implemented in alternative container-based
systems impose significant CPU overhead when scaling
the number of concurrent, high-performance containers
on a system. While network virtualization is a highly
flexible and nice feature, our experience is that it is not
required for all usage scenarios. For this reason, we believe that our network isolation approach should be a
feature that high-performance containers should be permitted to select at run time.
2007 Linux Symposium, Volume Two • 155
Again, we hope to positively influence the proposed kernel mainlining of network containerization support such
that depending on the usage scenario it is possible to
choose Linux-VServer style isolation, virtualization, or
a hybrid thereof.
2.2.4
CPU Isolation
Linux-VServer implements CPU isolation by overlaying a token bucket scheme on top of the standard Linux
CPU scheduler. Each container has a token bucket that
accumulates tokens at a specified rate; every timer tick,
the container that owns the running process is charged
one token. A container that runs out of tokens has its
processes removed from the run-queue until its bucket
accumulates a minimum amount of tokens. This token bucket scheme can be used to provide fair sharing
and/or work-conserving CPU reservations. It can also
enforce hard limits (i.e., an upper bound), as is popularly used by VPS hosting centers to limit the number of
cycles a container can consume—even when the system
has idle cycles available.
The rate that tokens accumulate at in a container’s
bucket depends on whether the container has a reservation and/or a share. A container with a reservation
accumulates tokens at its reserved rate: for example, a
container with a 10% reservation gets 100 tokens per
second, since a token entitles it to run a process for
one millisecond. A container with a share that has
runnable processes will be scheduled before the idle task
is scheduled, and only when all containers with reservations have been honored. The end result is that the
CPU capacity is effectively partitioned between the two
classes of containers: containers with reservations get
what they’ve reserved, and containers with shares split
the unreserved capacity of the machine proportionally.
Of course, a container can have both a reservation (e.g.,
10%) and a fair share (e.g., 1/10 of idle capacity).
2.2.5
Network QoS
The Hierarchical Token Bucket (htb) queuing discipline of the Linux Traffic Control facility (tc) [2] can
be used to provide network bandwidth reservations and
fair service. For containers that have their own IP addresses, the htb kernel support just works without modifications.
However, when containers share an IP address, as is
done by PlanetLab, it is necessary to track packets in order to apply a queuing discipline to a containers flow of
network traffic. This is accomplished by tagging packets sent by a container with its context id in the kernel.
Then, for each container, a token bucket is created with
a reserved rate and a share: the former indicates the
amount of outgoing bandwidth dedicated to that container, and the latter governs how the container shares
bandwidth beyond its reservation. The htb queuing
discipline then allows each container to send packets
at the reserved rate of its token bucket, and fairly distributes the excess capacity to other containers in proportion to their shares. Therefore, a container can be
given a capped reservation (by specifying a reservation
but no share), “fair best effort” service (by specifying a
share with no reservation), or a work-conserving reservation (by specifying both).
2.2.6
Disk QoS
Disk I/O is managed in Linux-VServer using the standard Linux CFQ (“completely fair queuing”) I/O scheduler. The CFQ scheduler attempts to divide the bandwidth of each block device fairly among the containers
performing I/O to that device.
2.2.7
Storage Limits
Linux-VServer provides the ability to associate limits to
the amount of memory and disk storage a container can
acquire. For disk storage one can specify limits on the
maximum number of disk blocks and inodes a container
can allocate. For memory, a variety of different limits
can be set, controlling the Resident Set Size and Virtual
Memory assigned to each context.
Note that fixed upper bounds on RSS are not appropriate for usage scenarios where administrators wish to
overbook containers. In this case, one option is to let
containers compete for memory, and use a watchdog
daemon to recover from overload cases—for example
by killing the container using the most physical memory. PlanetLab [3] is one example where memory is a
particularly scarce resource, and memory limits without overbooking are impractical: given that there are
up to 90 active containers on a PlanetLab server, this
would imply a tiny 10MB allocation for each container
156 • Linux-VServer
on the typical PlanetLab server with 1GB of memory.
Instead, PlanetLab provides basic memory isolation between containers by running a simple watchdog daemon, called pl_mom, which resets the container consuming the most physical memory when swap has almost filled. This penalizes the memory hog while keeping the system running for everyone else, and is effective
for the workloads that PlanetLab supports. A similar
technique is apparently used by managed web hosting
companies.
3
Evaluation
In a prior publication [5], we compared in further detail the performance of Linux-VServer with both vanilla
Linux and Xen 3.0 using lmbench, iperf, and dd as microbenchmarks and kernel compile, dbench, postmark,
osdb as synthetic macrobenchmarks. Our results from
that paper revealed that Linux-VServer has in the worst
case a 4 percent overhead when compared to an unvirtualized, vanilla Linux kernel; however, in most cases
Linux-VServer is nearly identical in performance and
in a few lucky cases—due to gratuitous cache effects—
Linux-VServer consistently outperforms vanilla kernel.
Please consult our other paper [5] for these details.
This section explores the efficiency of Linux-VServer.
We refer to the combination of scale and performance
as the efficiency of the system, since these metrics correspond directly to how well the virtualizing system orchestrates the available physical resources for a given
workload. All experiments are run on HP Proliant
servers with dual core processors, 2MB caches, 4GB
RAM, and 7.2k RPM SATA-100 disks.
3.1
Filesystem Unification
As discussed in Section 2.2.1, Linux-VServer supports
a unique filesystem unification model. The reason for
doing filesystem unification is to reduce disk space consumption, but more importantly it reduces system resource consumption. We use a real world example to
demonstrate this benefit from filesystem unification.
We configure guest containers with Mandriva 2007. The
disk footprint of a non-unified installation is 150MB per
guest. An activated guest runs a complement of daemons and services such as syslog, crond, sshd, apache,
postfix and postgresql—a typical configuration used in
VPS hosting centers.
We evaluate the effectiveness of filesystem unification
using two tests. The first consists of starting 200 separate guests one after the other measuring memory consumption. The second test is identical to the first, except
before all guests are started, their filesystems are unified.
For the latter test, the disk footprint of each unified guest
reduces from 150MB to 10MB, resulting in 140MB of
common and thus shared data on disk.
Tables 1 and 2 summarize the results for this test, categorizing how much time it takes for the guest to start
up and how much memory it consumes categorized by
memory type such as active, buffer, cache, slab, etc.
What these columns in the two tables reveal is that the
kernel inherently shares memory for shared libraries, binaries, etc. due to the unification (i.e., hard linking) of
files.
Table 3 compares the rows with the 200th guest, which
shows the difference and overhead percentage in consumed memory as well as the time required to start the
same number of guest container. These differences are
significant!
Of course, techniques exist to recoup redundant memory
resources (e.g., VMware’s content-based memory sharing used in its ESX product line [6]). However, such
techniques require the system to actively seek out redundant memory by computing hash keys page data, etc.,
which introduces non-trivial overhead. In contrast, with
the filesystem unification approach we inherently obtain
this benefit.
As a variation of our prior experiment, we have also
measured starting the 200 guest containers in parallel.
The results for this experiment are shown in Figure 2.
The first thing to note in the figure is that the parallel startup of 200 separate guests causes the machine to
spend most of the very long startup (approx. 110min)
paging in and out data (libraries, executeables, shared
files), which causes the cpu to hang in iowait most of
the time (light blue area in the cpu graphs) rendering
the system almost unresponsive. In contrast, the same
startup with 200 unified guests is rather fast (approx.
20min), and most of the startup time is spent on actual
guest processes.
3.2
Networking
We also evaluated the efficiency of network operations
by comparing 2.6.20 based kernels, one unmodified kernel, and one patched with Linux-VServer 2.2. Two sets
2007 Linux Symposium, Volume Two • 157
Guest
001
002
003
...
198
199
200
Time
0
7
13
...
1585
1593
1599
Active
16364
30700
44640
...
2093424
2103368
2113004
Buffers
2600
3816
4872
...
153400
151540
149272
Cache
20716
42112
62112
...
2399560
2394048
2382964
Anon
4748
9052
13364
...
849696
854020
858344
Mapped
3460
8200
12872
...
924760
929660
934336
Slab
8164
11056
13248
...
414892
415300
415528
Recl.
2456
3884
5268
...
246572
246324
245896
Unrecl.
5708
7172
7980
...
168320
168976
169632
Recl.
2520
5760
8360
...
232988
233064
233388
Unrecl.
5712
7216
8156
...
151572
152320
152868
Table 1: Memory Consumption—Separate Guests
Guest
001
002
003
...
198
199
200
Time
0
10
14
...
1304
1313
1322
Active
16576
31368
38888
...
1172124
1178876
1184368
Buffers
2620
4672
5364
...
88468
88896
88568
Cache
20948
74956
110508
...
2492268
2488476
2483208
Anon
4760
9068
13368
...
850452
854840
858988
Mapped
3444
8140
9696
...
307596
309092
310640
Slab
8232
12976
16516
...
384560
385384
386256
Table 2: Memory Consumption—Unified Guests
Attribute
Time
Active
Buffers
Cache
Anon
Mapped
Slab
Recl.
Unrecl.
Difference
277 s
928848 k
60724 k
100012 k
632 k
623680 k
29340 k
12572 k
16768 k
Overhead
21.0 %
79.5 %
70.7 %
-4.2 %
0.0 %
203.0 %
7.8 %
5.4 %
11.4 %
Table 3: Overhead Unified vs. Separate
158 • Linux-VServer
500
RRDTOOL / TOBI OETIKER
RRDTOOL / TOBI OETIKER
600
800
700
600
400
500
300
400
300
200
200
100
100
0
0
17:10
short
17:20
mid
17:30
long
17:40
running
17:50
18:00
18:10
18:20
18:30
18:40
18:50
19:00
20:10
sleeping/2
short
250
20:30
long
running
RRDTOOL / TOBI OETIKER
RRDTOOL / TOBI OETIKER
300
20:20
mid
300
250
200
200
150
150
100
100
50
50
0
0
17:10
syst
17:20
user
17:30
17:40
17:50
18:00
18:10
18:20
18:30
18:40
18:50
19:00
20:10
wait
syst
2.5 G
3.0 G
2.5 G
2.0 G
2.0 G
1.5 G
1.5 G
1.0 G
1.0 G
0.5 G
0.5 G
17:10
slab
17:20
mapped
17:30
buffers
17:40
17:50
18:00
18:10
18:20
18:30
18:40
18:50
19:00
20:10
active
slab
20:30
buffers
active
1.4 M
1.2 M
1.2 M
1.0 M
1.0 M
0.8 M
0.8 M
0.6 M
0.6 M
0.4 M
0.4 M
0.2 M
0.2 M
0.0
20:20
mapped
RRDTOOL / TOBI OETIKER
RRDTOOL / TOBI OETIKER
1.4 M
20:30
wait
RRDTOOL / TOBI OETIKER
RRDTOOL / TOBI OETIKER
3.0 G
20:20
user
0.0
17:10
pagein
17:20
pageout
17:30
activate
17:40
deactivate
17:50
18:00
18:10
18:20
18:30
18:40
18:50
19:00
20:10
pagein
20:20
pageout
Figure 2: Parallel Startup of 200 Guests—Separate (left) vs. Unified (right)
20:30
activate
deactivate
2007 Linux Symposium, Volume Two • 159
of experiments were conducted: the first measuring the
throughput of packets sent and received over the network for a CPU bound workload, and the second assessing the cost of using multiple heavily loaded LinuxVServer containers concurrently. While the former evaluates the ability of a single container to saturate a highspeed network link, the latter measures the efficiency
of Linux-VServer’s utilization of the underlying hardware. In both experiments, fixed-size UDP packets were
exchanged between containers and a remote system on
the local network. HP Proliant servers were used for
both the sender and receiver, connected through a Gigabit network, equipped with 2.4Ghz Xeon 3060.
I/O, we may infer from the gaps in its time-line that
either another container is running or the virtualized
system is running on behalf of another container, in a
context switch for instance. The aggregate CPU time
recorded by all tests is within 1% of system capacity.
The first set of experiments demonstrated that the performance of Linux-VServer is equivalent to that of
vanilla Linux. This is in line with our prior iperf-based
TCP throughput results [5].
For the second experiment we observe that the CPU
scheduler for Linux-VServer achieves the requested
reservation within 1%. Specifically, the container
having requested 1/4th of overall CPU time receives
25.16% and 49.88% on UP and SMP systems, respectively. The remaining CPU time is fairly shared amongst
the other seven containers.
The second set of experiments involved continually
increasing the number of clients confined in LinuxVServer based containers sending UDP packets as in
the previous experiment. We made two observations:
1) the CPU utilization of Linux-VServer containers for
packet sizes with which the network was saturated was
marginally higher (77% as opposed to 72%), and 2)
the increase in the CPU utilization of Linux-VServer,
and the threshold beyond which it saturated the CPU
was identical to that of Native Linux as containers were
added.
These experiments suggest that for average workloads, the degradation of performance using the LinuxVServer network isolation approach is marginal. Furthermore, Linux-VServer can scale to multiple concurrent containers exchanging data at high rates with a performance comparable to native Linux.
3.3
CPU Fair Share and Reservations
To investigate both CPU isolation of a single resource
and resource guarantees, we use a combination of CPU
intensive tasks. Hourglass is a synthetic real-time application useful for investigating scheduling behavior at
microsecond granularity [4]. It is CPU-bound and involves no I/O.
Eight containers are run simultaneously. Each container
runs an instance of hourglass, which records contiguous
periods of time scheduled. Because hourglass uses no
We evaluated two experiments: 1) all containers are
given the same fair share of CPU time, and 2) one of
the containers is given a reservation of 1/4th of overall
CPU time. For the first experiment, VServer for both
UP and SMP systems do a good job at scheduling the
CPU among the containers such that each receive approximately one eights of the available time.
4
Conclusion
Virtualization technology in general benefits a wide variety of usage scenarios. It promises such features as
configuration independence, software interoperability,
better overall system utilization, and resource guarantees. This paper described the Linux-VServer approach
to providing these features while balancing the tension
between strong isolation of co-located containers with
efficient sharing of the physical resources on which the
containers are hosted.
Linux-VServer maintains a small kernel footprint, but it
is not yet feature complete as it lacks support for true
network virtualization and container migration. These
are features that ease management and draw users to
hypervisors such as Xen and VMware, particularly in
the server consolidation and hosting scenarios. There
is an active community of developers working towards
adding these features to the mainline Linux kernel,
which we expect will be straightforward to integrate
with Linux-VServer.
In the mean time, for managed web hosting, PlanetLab,
the OLPC laptop and gateway server, embedded systems, etc., the trade-off between isolation and efficiency
is of paramount importance. We believe that LinuxVServer hits a sweet spot in the containerization design
160 • Linux-VServer
space, as it provides for strong isolation and it performs
equally with native Linux kernels in most cases.
References
[1] Ivan Krstic. System security on the One Laptop per
Child’s XO laptop: the Bitfrost security platform.
http://wiki.laptop.org/go/Bitfrost.
[2] Linux Advanced Routing and Traffic Control.
http://lartc.org/.
[3] Larry Peterson, Andy Bavier, Marc E. Fiuczynski,
and Steve Muir. Experiences building planetlab. In
Proceedings of the 7th USENIX Symposium on
Operating System Design and Implementation
(OSDI ’06), Seattle, WA, November 2006.
[4] John Regehr. Inferring scheduling behavior with
hourglass. In In Proceedings of the Freenix Track
of the 2002 USENIX Annual Technical Conference,
June 2002.
[5] Stephen Soltesz, Herbert Pötzl, Marc E.
Fiuczynski, Andy Bavier, and Larry Peterson.
Container-based operating system virtualization: A
scalable, high-performance alternative to
hypervisors. In Proc. 2nd EUROSYS, Lisboa,
Portugal, March 2007.
[6] Carl Waldspurger. Memory resource management
in vmware esx server. In Proc. 5th OSDI, Boston,
MA, Dec 2002.
Internals of the RT Patch
Steven Rostedt
Red Hat, Inc.
Darren V. Hart
IBM Linux Technology Center
[email protected]
[email protected]
[email protected]
Abstract
1
Steven Rostedt ([email protected])
Over the past few years, Ingo Molnar and others have
worked diligently to turn the Linux kernel into a viable Real-Time platform. This work is kept in a patch
that is held on Ingo’s page of the Red Hat web site [7]
and is referred to in this document as the RT patch.
As the RT patch is reaching maturity, and slowly slipping into the upstream kernel, this paper takes you into
the depths of the RT patch and explains exactly what it
is going on. It explains Priority Inheritance, the conversion of Interrupt Service Routines into threads, and
transforming spin_locks into mutexes and why this all
matters. This paper is directed toward kernel developers
that may eventually need to understand Real-Time (RT)
concepts and help them deal with design and development changes as the mainline kernel heads towards a
full fledge Real-Time Operating System (RTOS). This
paper will offer some advice to help them avoid pitfalls
that may come as the mainline kernel comes closer to an
actual RTOS.
The RT patch has not only been beneficial to those
in the Real-Time industry, but many improvements to
the mainline kernel have come out of the RT patch.
Some of these improvements range from race conditions
that were fixed to reimplementation of major infrastructures.1 The cleaner the mainline kernel is, the easier it
is to convert it to an RTOS. When a change is made to
the RT patch that is also beneficial to the mainline kernel, those changes are sent as patches to be incorporated
into mainline.
1 such
The Purpose of a Real-Time Operating System
The goal of a Real-Time Operating System is to create
a predictable and deterministic environment. The primary purpose is not to increase the speed of the system,
or lower the latency between an action and response, although both of these increase the quality of a Real-Time
Operating System. The primary purpose is to eliminate
“surprises.” A Real-Time system gives control to the
user such that they can develop a system in which they
can calculate the actions of the system under any given
load with deterministic results. Increasing performance
and lowering latencies help in this regard, but they are
only second to deterministic behavior. A common misconception is that an RTOS will improve throughput and
overall performance. A quality RTOS still maintains
good performance, but an RTOS will sacrifice throughput for predictability.
To illustrate this concept, let’s take a look at a hypothetical algorithm that on a non Real-Time Operating System, can complete some calculation in 250 microseconds on average. An RTOS on the same machine may
take 300 microseconds for that same calculation. The
difference is that an RTOS can guarantee that the worst
case time to complete the calculation is known in advanced, and the time to complete the calculation will
not go above that limit.2 The non-RTOS can not guarantee a maximum upper limit time to complete that algorithm. The non-RTOS may perform it in 250 microseconds 99.9% of the time, but 0.1% of the time, it might
take 2 milliseconds to complete. This is totally unacceptable for an RTOS, and may result in system failure.
For example, that calculation may determine if a device
driver needs to activate some trigger that must be set
within 340 microseconds or the machine will lock up.
So we see that a non-RTOS may have a better average
2 when
as hrtimers and generic IRQs
• 161 •
performed by the highest priority thread.
162 • Internals of the RT Patch
performance than an RTOS, but an RTOS guarantees to
meet its execution time deadlines.
The above demonstrates an upper bound requirement for
completing a calculation. An RTOS must also implement the requirement of response time. For example, a
system may have to react to an asynchronous event. The
event may be caused by an external stimulus (hitting a
big red button) or something that comes from inside the
system (a timer interrupt). An RTOS can guarantee a
maximum response time from the time the stimulant occurs to the time the reaction takes place.
1.1
Latencies
The time between an event is expected to occur and the
time it actually does is called latency. The event may be
an external stimulus that wants a response, or a thread
that has just woken up and needs to be scheduled. The
following is the different kinds and causes of latencies
and these terms will be used later in this paper.
• Interrupt Latency — The time between an
interrupt triggering and when it is actually serviced.
• Wakeup Latency — The time between the
highest priority task being woken up and the time
it actually starts to run. This also can be called
Scheduling Latency.
• Priority Inversion — The time a high priority thread must wait for a resource owned by a
lower priority thread.
• Interrupt Inversion — The time a high
priority thread must wait for an interrupt to perform
a task that is of lower priority.
Interrupt latency is the easiest to measure since it corresponds tightly to the time interrupts are disabled. Of
course, there is also the time that it takes to make it to
the actual service routine, but that is usually a constant
value.3 The duration between the waking of a high priority process and it actually running is also a latency.
This sometimes includes interrupt latency since waking
of a process is usually due to some external event.
Priority inversion is not a latency but the effect of priority inversion causes latency. The amount of time a
thread must wait on a lower priority thread is the latency due to priority inversion. Priority inversion can
not be prevented, but an RTOS must prevent unbounded
priority inversion. There are several methods to address
unbounded priority inversion, and Section 6 explains the
method used by the RT patch.
Interrupt inversion is a type of priority inversion where
a thread waits on an interrupt handler servicing a lower
priority task. What makes this unique, is that a thread
is waiting on an interrupt context that can not be preempted, as opposed to a thread that can be preempted
and scheduled out. Section 2 explains how threaded interrupts address this issue.
2
Threaded Interrupts
As mentioned in Section 1.1, one of the causes of latency involves interrupts servicing lower priority tasks.
A high priority task should not be greatly affected by
a low priority task, for example, doing heavy disk IO.
With the normal interrupt handling in the mainline kernel, the servicing of devices like hard-drive interrupts
can cause large latencies for all tasks. The RT patch
uses threaded interrupt service routines to address this
issue.
When a device driver requests an IRQ, a thread is created to service this interrupt line.4 Only one thread can
be created per interrupt line. Shared interrupts are still
handled by a single thread. The thread basically performs the following:
while (!kthread_should_stop()) {
set_current_state
(TASK_INTERRUPTIBLE);
do_hardirq(desc);
cond_resched();
schedule();
}
Here’s the flow that occurs when an interrupt is triggered:
The architecture function do_IRQ()5 calls one of the
following chip handlers:
4 See
kernel/irq/manage.c do_irqd.
arch/<arch>/kernel/irq.c. (May be different in
some architectures.)
5 See
3 except
with the RT kernel, see Section 2.
2007 Linux Symposium, Volume Two • 163
• handle_simple_irq
• handle_level_irq
• handle_fasteoi_irq
• handle_edge_irq
• handle_percpu_irq
Each of these sets the IRQ descriptor’s status flag
IRQ_INPROGRESS, and then calls redirect_
hardirq().
redirect_hardirq() checks if threaded interrupts
are enabled, and if the current IRQ is threaded (the
IRQ flag IRQ_NODELAY is not set) then the associated thread (do_irqd) is awaken. The interrupt line
is masked and the interrupt exits. The cause of the interrupt has not been handled yet, but since the interrupt line
has been masked, that interrupt will not trigger again.
When the interrupt thread is scheduled, it will handle
the interrupt, clear the IRQ_INPROGRESS status flag,
and unmask the interrupt line.
The interrupt priority inversion latency time is only the
time from the triggering of the interrupt, the masking of
the interrupt line, the waking of the interrupt thread, and
returning back to the interrupted code, which takes on a
modern computer system a few microseconds. With the
RT patch, a thread may be given a higher priority than a
device handler interrupt thread, so when the device triggers an interrupt, the interrupt priority inversion latency
is only the masking of the interrupt line and waking the
interrupt thread that will handle that interrupt. Since the
high priority thread may be of a higher priority than the
interrupt thread, the high priority thread will not have to
wait for the device handler that caused that interrupt.
2.1
Hard IRQs That Stay Hard
It is important to note that there are cases where an interrupt service routine is not converted into a thread. Most
notable example of this is the timer interrupt. The timer
interrupt is handled in true interrupt context, and is not
serviced by a thread. This makes sense since the timer
interrupt controls the triggering of time events, such as,
the scheduling of most threads.
A device can also specify that its interrupt handler shall
be a true interrupt by setting the interrupt descriptor flag
IRQ_NODELAY. This will force the interrupt handler
to run in interrupt context and not as a thread. Also
note that an IRQ_NODELAY interrupt can not be shared
with threaded interrupt handlers. The only time that
IRQ_NODELAY should be used is if the handler does
very little and does not grab any spin_locks. If the handler acquires spin_locks, it will crash the system in full
CONFIG_PREEMPT_RT mode.6
It is recommended never to use the IRQ_NODELAY flag
unless you fully understand the RT patch. The RT patch
takes advantage of the fact that interrupt handlers run
as threads, and allows for code that is used by interrupt
handlers, that would normally never schedule, to schedule.
2.2
Soft IRQs
Not only do hard interrupts run as threads, but all soft
IRQs do as well. In the current mainline kernel,7
soft IRQS are usually handled on exit of a hard interrupt. They can happen anytime interrupts and soft
IRQs are enabled. Sometimes when a large number of
soft IRQs need to be handled, they are pushed off to
the ksoftirqd thread to complete them. But a soft
IRQ handler can not assume that it will be running in a
threaded context.
In the RT patch, the soft IRQs are only handled in
a thread. Furthermore, they are split amongst several
threads. Each soft IRQ has its own thread to handle
them. This way, the system administrator can control
the priority of individual soft IRQ threads.
Here’s a snapshot of soft IRQ and hard IRQ threads,
using ps -eo pid,pri,rtprio,cmd.
6 see
Section 4.
as the time of this writing.
7 2.6.21
164 • Internals of the RT Patch
PID
4
5
6
7
8
9
10
11
12
304
347
381
382
393
400
401
402
413
3
PRI
90
90
90
90
90
90
90
90
90
90
90
90
90
90
90
90
90
90
RTPRIO
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
CMD
[softirq-high/0]
[softirq-timer/0]
[softirq-net-tx/]
[softirq-net-rx/]
[softirq-block/0]
[softirq-tasklet]
[softirq-sched/0]
[softirq-hrtimer]
[softirq-rcu/0]
[IRQ-8]
[IRQ-15]
[IRQ-12]
[IRQ-1]
[IRQ-4]
[IRQ-16]
[IRQ-18]
[IRQ-17]
[IRQ-19]
Kernel Preemption
A critical section in the kernel is a series of operations
that must be performed atomically. If a thread accesses a
critical section while another thread is accessing it, data
can be corrupted or the system may become unstable.
Therefore, critical sections that can not be performed
atomically by the hardware, must provide mutual exclusion to these areas. Mutual exclusion to a critical section
may be implemented on a uniprocessor (UP) system by
simply preventing the thread that accesses the section
from being scheduled out (disable preemption). On a
symmetric multiprocessor (SMP) system, disabling preemption is not enough. A thread on another CPU might
access the critical section. On SMP systems, critical
sections are also protected with locks.
An SMP system prevents concurrent access to a critical
section by surrounding it with spin_locks. If one CPU
has a thread accessing a critical section when another
CPU’s thread wants to access that same critical section,
the second thread will perform a busy loop (spin) until
the previous thread leaves that critical section.
A preemptive kernel must also protect those same critical sections from one thread accessing the section before
another thread has left it. Preemption must be disabled
while a thread is accessing a critical section, otherwise
another thread may be scheduled and access that same
critical section.
Linux, prior to the 2.5 kernel, was a non-preemptive kernel. That means that whenever a thread was running
in kernel context (a user application making a system
call) that thread would not be scheduled out unless it
volunteered to schedule (calls the scheduler function).
In the development of the 2.5 kernel, Robert Love introduced kernel preemption [2]. Robert Love realized
that the critical sections that are protected by spin_locks
for SMP systems, are also the same sections that must
be protected from preemption. Love modified the kernel to allow preemption even when a thread is in kernel
context. Love used the spin_locks to mark the critical
sections that must disable preemption.8
The 2.6 Linux kernel has an option to enable kernel preemption. Kernel preemption has improved reaction time
and lowered latencies. Although kernel preemption has
brought Linux one step closer to an RTOS, Love’s implementation contains a large bottleneck. A high priority process must still wait on a lower priority process
while it is in a critical section, even if that same high
priority process did not need to access that section.
4
Sleeping Spin Locks
Spin_locks are relatively fast. The idea behind a
spin_lock is to protect critical sections that are very
short. A spin_lock is considered fast compared to sleeping locks because it avoids the overhead of a schedule.
If the time to run the code in a critical section is shorter
than the time of a context switch, it is reasonable to
use a spin_lock, and on contention, spin in a busy loop,
while waiting for a thread on another CPU to release the
spin_lock.
Since spin_locks may cause a thread on another CPU
to enter a busy loop, extra care must be given with the
use of spin_locks. A spin_lock that can be taken in
interrupt context must always be taken with interrupts
disabled. If an interrupt context handler that acquires
a spin_lock is triggered while the current thread holds
that same spin_lock, then the system will deadlock. The
interrupt handler will spin on the spin_lock waiting for
the lock to be released, but unfortunately, that same interrupt handler is preventing the thread that holds the
spin_lock from releasing it.
A problem with the use of spin_locks in the Linux kernel is that they also protect large critical sections. With
8 other areas must also be protected by preemption (e.g., interrupt
context).
2007 Linux Symposium, Volume Two • 165
the use of nested spin_locks and large sections being
protected by them, the latencies caused by spin_locks
become a big problem for an RTOS. To address this, the
RT patch converts most spin_locks into a mutex (sleeping lock).
By converting spin_locks into mutexes, the RT patch
also enables preemption within these critical sections.
If a thread tries to access a critical section while another
thread is accessing it, it will now be scheduled out and
sleep until the mutex protecting the critical section is released.
When the kernel is configured to have sleeping
spin_locks, interrupt handlers must also be converted
to threads since interrupt handlers also use spin_locks.
Sleeping spin_locks are not compatible with notthreaded interrupts, since only a threaded interrupt may
schedule. If a device interrupt handler uses a spin_lock
and also sets the interrupt flag IRQ_NODELAY, the system will crash if the interrupt handler tries to acquire the
spin_lock when it is already taken.
Some spin_locks in the RT kernel must remain a busy
loop, and not be converted into a sleeping spin_lock.
With the use of type definitions, the RT patch can magically convert nearly all spin_locks into sleeping mutexes, and leave other spin_locks alone.
5
headers are created to actually facilitate the code by
not having to figure out whether a spin_lock function
is for a mutex or a busy loop. The header files, unfortunately, are quite complex. To make it easier to understand, I will not show the actual macros that make up
the spin_lock function, but, instead, I will show what it
looks like evaluated slightly.
#define spin_lock(lock)
if (TYPE_EQUAL((lock),
raw_spinlock_t))
__spin_lock(lock);
else if (TYPE_EQUAL((lock),
spinlock_t))
_spin_lock(lock);
else __bad_spinlock_type();
The TYPE_EQUAL is defined as __builtin_types_
compatible_p(typeof(lock), type *) which is
a gcc internal command that handles the condition at
compile time. The __bad_spinlock_type function
is not actually defined, if something other than a spinlock_t or raw_spinlock_t is passed to a spin_lock function the compiler will complain.
The __spin_lock()10 acts like the original spin_lock
function, and the _spin_lock()11 evaluates to the mutex, rt_spin_lock(), defined in kernel/rtmutex.
c.
The Spin Lock Maze
6
To avoid having to touch every spin_lock in the kernel,
Ingo Molnar developed a way to use the latest gcc extensions to determine if a spin_lock should be used as
a mutex, or stay as a busy loop.9 There are places in
the kernel that must still keep a true spin_lock, such as
the scheduler and the implementation of mutexes themselves. When a spin_lock must remain a spin_lock
the RT patch just needs to change the type of the
spin_lock from spinlock_t to raw_spinlock_t.
All the actual spin_lock function calls will determine at
compile time which type of spin_lock should be used.
If the spin_lock function’s parameter is of the type
spinlock_t it will become a mutex. If a spin_lock
function’s parameter is of the type raw_spinlock_t
it will stay a busy loop (as well as disable preemption).
Looking into the header files of spinlock.h will drive
a normal person mad. The macros defined in those
9 also
called raw_spin_lock.
Priority Inheritance
The most devastating latency that can occur in an RTOS
is unbounded priority inversion. As mentioned earlier,
priority inversion occurs when a high priority thread
must wait on a lower priority thread before it can run.
This usually occurs when a resource is shared between
high and low priority threads, and the high priority
thread needs to take the resource while the low priority thread holds it. Priority inversion is natural and can
not be completely prevented. What we must prevent is
unbounded priority inversion. That is when a high priority thread can wait an undetermined amount of time
for the lower priority thread to release the resource.
The classic example of unbounded priority inversion
takes place with three threads, each having a different
priority. As shown in Figure 1, the CPU usage of three
10 prefixed
11 prefixed
with two underscores.
with one underscore.
166 • Internals of the RT Patch
threads, A (highest priority) B (middle priority), and C
(lowest priority). Thread C starts off and holds some
lock, then thread A wakes up and preempts thread C.
Thread A tries to take a resource that is held by thread
C and is blocked. Thread C continues but is later preempted by thread B before thread C could release the resource that thread A is blocked on. Thread B is of higher
priority than thread C but lower priority than thread
A. By preempting thread C it is in essence preempting thread A. Since we have no idea how long thread B
will run, thread A is now blocked for an undetermined
amount of time. This is what is known as unbounded
priority inversion.
There are different approaches to preventing unbounded
priority inversion. One way is just simply by design.
That is to carefully control what resources are shared as
well as what threads can run at certain times. This is
usually only feasible by small systems that can be completely audited for misbehaving threads. The Linux kernel is far too big and complex for this approach. Another approach is priority ceiling [3], where each resource (lock) knows the highest priority thread that will
acquire it. When a thread takes a resource, it is temporarily boosted to the priority of that resource while
it holds the resource. This prevents any other thread
that might acquire that resource from preempting this
thread. Since pretty much any resource or lock in the
Linux kernel may be taken by any thread, you might as
well just keep preemption off while a resource is held.
This would include sleeping locks (mutexes) as well.
What the RT patch implements is Priority Inheritance
(PI). This approach scales well with large projects, although it is usually criticized that the algorithms to implement PI are too complex and error prone. PI algorithms have matured and it is easier to audit the PI algorithm than the entire kernel. The basic idea of PI is
that when a thread blocks on a resource that is owned
by a lower priority thread, the lower priority thread inherits the priority of the blocked thread. This way the
lower priority thread can not be preempted by threads
that are of lower priority than the blocked thread. Figure 2 shows the same situation as Figure 1 but this time
with PI implemented.
The priority inheritance algorithm used by the RT patch
is indeed complex, but it has been vigorously tested and
used in production environments. For a detailed explanation of the design of the PI algorithm used not only by
the RT patch but also by the current mainline kernel PI
futex, see the kernel source documentation [9].
7
What’s Good for RT is Good for the Kernel
The problem with prior implementations of RT getting
accepted into mainline Linux, was that too much was
done independently from mainline development, or was
focused strictly on the niche RT market. Large intrusive changes were made throughout the kernel in ways
that were not acceptable by most of the kernel maintainers. Finally, one day Ingo Molnar noticed the benefits
of RT and started developing a small project that would
incorporate RT methods into the Linux kernel. Molnar,
being a kernel maintainer, could look at RT from a more
general point of view, and not just from that of a niche
market. His approach was not to force the Linux kernel
into the RT world, but rather to bring the beneficial parts
of the RT world to Linux.
One of the largest problems back then (2004) was this
nasty lock that was all over the Linux kernel. This
lock is know as the Big Kernel Lock (BKL). The BKL
was introduced into Linux as the first attempt to bring
Linux to the multiprocessor environment. The BLK
would protect concurrent accesses of critical sections
from threads running on separate CPUs. The BKL was
just one big lock to protect everything. Since then,
spin_locks have been introduced to separate non related
critical sections. But there are still large portions of
Linux code that is still protected by the BKL.
The BKL was a spin_lock that was large and intrusive,
and would cause large latencies. Not only was it a spinning lock, but it was also recursive.12 It also had the
non-intuitive characteristic that a process holding a BKL
is allowed to voluntarily sleep. Spin locks could cause
systems to lock up if a thread were to sleep while holding one, but the BKL was special, in that the scheduler
magically released the BKL, and would reacquire the
lock when the thread resumes.
Molnar developed a way to preempt this lock [6]. He
changed the BKL from a spin lock into a mutex. To
preserve the same semantics, the BKL would be released if the thread voluntarily scheduled, but not when
the thread was preempted. Allowing threads to be
preempted while holding the BKL greatly reduced the
scheduling latencies of the kernel.
12 Allowed
the same owner to take it again while holding it, as
long as it released the lock the same number of times.
2007 Linux Symposium, Volume Two • 167
Blocked
A
B
C
Preempted
Preempted
Figure 1: Priority Inversion
Sleeps
Blocked
A
Wakes up
B
C
Preempted
Inherits prio
Releases lock
Figure 2: Priority Inheritance
7.1
Death of the Semaphore
Semaphores are powerful primitives that allow one or
more threads access to a resource. The funny thing
is, they were seldom used for multiple accesses. Most
of the time they are used for maintaining mutual exclusion to a resource or to coordinate two or more
threads. For coordination, one thread would down
(lock) a semaphore and then wait on it.13 Some other
thread, after completing some task, would up (unlock)
the semaphore to let the waiting threads know the task
was completed.
13 usually
the semaphore was just created as locked.
The latter can be replaced by a completion [4]. A
completion is a primitive that has the purpose of notifying one or more threads when another thread has
completed an event. The use of semaphores for this
purpose is now obsolete and should be replaced with
completions.
There was nothing available in the mainline kernel to replace the semaphore for a single mutual exclusion lock.
The ability of a semaphore to handle the case of multiple
threads accessing a resource produces an overhead when
only acting as a mutex. Most of the time this overhead
is unnecessary. Molnar implemented a new primitive
for the kernel called mutex. The simpler design of the
mutex makes it much cleaner and slightly faster than a
168 • Internals of the RT Patch
• Generic IRQS (2.6.18) – Ingo Molnar’s
consolidation of the IRQ code to unify all the architectures.
semaphore. A mutex only allows a single thread access
to a critical section, so it is simpler to implement and
faster than a semaphore. So the addition of the mutex
to the mainline kernel was a benefit for all. But Molnar
had another motive for implementing the mutex (which
most people could have guessed).
Semaphores, with the property of allowing more than
one thread into a critical section, have no concept
of an owner. Indeed, one thread may even release
a semaphore while another thread acquires it.14 A
semaphore is never bound to a thread. A mutex, on the
other hand, always has a one-to-one relationship with a
thread when locked. The mutex may be owned by one,
and only one, thread at a time. This is key to the RT kernel, as it is one of the requirements of the PI algorithm.
That is, a lock may have one, and only one, owner. This
ensures that a priority inheritance chain stays a single
path, and does not branch with multiple lock owners
needing to inherit a priority of a waiting thread.
7.2
The Path to RT
Every mainline release includes more code from the RT
patch. Some of the changes are simply clean-ups and
fixes for race conditions. An RTOS on a single CPU system exposes race conditions much easier than an 8 way
SMP system. The race windows are larger due to the
preemptive scheduling model. Although race conditions
are easier to exposed on an RT kernel, those same race
conditions still exist in the mainline kernel running on
an SMP system. There have been arguments that some
of the fixed race conditions have never been reported, so
they most likely have never occurred. More likely, these
race conditions have crashed some server somewhere,
but since the race window is small, the crash is hard to
reproduce. The crash would have been considered an
anomaly and ignored. With the RT patch exposing rare
bugs and the RT patch maintainers sending in fixes, the
mainline kernel has become more stable with fewer of
these seemingly unreproducable crashes.
In addition to clean-ups and bug fixes, several major features have been already incorporated into the mainline
kernel.
• gettimeofday (2.6.18) – John Stultz’s redesign of the time infrastructure.
14 in
the case of completions.
• High Resolution Timers Pt. 1
(2.6.16) – Thomas Gleixner’s separation
of timers from timeouts.
• High Resolution Timers Pt. 2
(2.6.21) – Thomas Gleixner’s change to
the timer resolution. Now clock event resolution
is no longer bound to jiffies, but to the underlining
hardware itself.
One of the key features for incorporating the RT patch
into mainline is PI. Linus Torvalds has previously stated
that he would never allow PI to be incorporated into
Linux. The PI algorithm used by the RT patch can also
be used by user applications. Linux implements a user
mutex that can create, acquire, and release the mutex
lock completely in user space. This type of mutex is
known as a futex (fast mutex) [1]. The futex only enters
the kernel on contention. RT user applications require
that the futex also implements PI and this is best done
within the kernel. Torvalds allowed the PI algorithm to
be incorporated into Linux (2.6.18), but only for the use
with futexes.
Fortunately, the core PI algorithm that made it into the
mainline Linux kernel is the same algorithm that is used
by the RT patch itself. This is key to getting the rest
of the RT patch upstream and also brings the RT patch
closer to mainline, and facilitates the RT patch maintenance.
8
RT is the Gun to Shoot Yourself With
The RT patch is all about determinism and being able
to have full control of the kernel. But, like being root,
the more power you give the user the more likely they
will destroy themselves with it. A common mistake for
novice RT application developers is writing code like
the following:
x = 0;
/∗ let another thread set x ∗/
while (!x)
sched_yield();
Running the above with the highest priority on an
RTOS, and wondering why the system suddenly freezes.
2007 Linux Symposium, Volume Two • 169
This paper is not about user applications and an RT kernel, but the focus is on developers working within the
kernel and needing to understand the consequences of
their code when someone configures in full RT.
8.1
yield() is Deadly
As with the above user land code, the kernel has a similar devil called yield(). Before using this, make sure
you truly understand what it is that you are doing. There
are only a few locations in the kernel that have legitimate uses of yield(). Remember in the RT kernel,
even interrupts may be starved by some device driver
thread looping on a yield(). yield() is usually
related to something that can also be accomplished by
implementing a completion.
Any kind of spinning loop is dangerous in an RTOS.
Similar to using a busy loop spin_lock without disabling
interrupts, and having that same lock used in an interrupt
context handler, a spinning loop might starve the thread
that will stop the loop. The following code that tries to
prevent a reverse lock deadlock is no longer safe with
the RT patch:
retry:
spin_lock(A);
if (!spin_trylock(B)) {
spin_unlock(A);
goto retry;
}
Note: The code in fs/jbd/commit.c has such a situation.
8.2
rwlocks are Evil
Rwlocks are a favorite with many kernel developers.
But there are consequences with using them. The
rwlocks (for those that don’t already know), allow multiple readers into a critical section and only one writer.
A writer is only allowed in when no readers are accessing that area. Note, that rwlocks which are also implemented as busy loops on the current mainline kernel, are
now sleeping mutexes in the RT kernel.15
Any type of read/write lock needs to be careful, since
readers can starve out a writer, or writers can starve
15 mainline
kernel also has sleeping rwlocks implemented with
up_read and down_read.
out the readers. But read/write locks are even more
of a problem in the RT kernel. As explained in Section 6, PI is used to prevent unbounded priority inversion. Read/write locks do not have a concept of ownership. Multiple threads can read a critical section at
the same time, and if a high priority writer were to need
access, it would not be able to boost all the readers at
that moment. The RT kernel is also about determinism,
and known measurable latencies. The time a writer must
wait, even if it were possible to boost all readers, would
be the time the read lock is held multiplied by all the
readers that currently have that lock.16
Presently, to solve this issue in the RT kernel, the
rwlocks are not simply converted into a sleeping lock
like spin_locks are. Read_locks are transformed into a
recursive mutex so that two different threads can not enter a read section at the same time. But read_locks still
remain recursive locks, meaning that the same thread
can acquire the same read_lock multiple times as long as
it releases the lock the same number of times it acquires
it. So in the RT kernel, even read_locks are serialized
among each other. RT is about predictable results, over
performance. This is one of those cases that the overall performance of the system may suffer a little to keep
guaranteed performance high.
8.3
Read Write seqlocks are Mischievous
As with rwlocks, read/write seqlocks can also cause a
headache. These are not converted in the RT kernel.
So it is even more important to understand the usage of
these locks. Recently, the RT developers came across a
regression with the introduction of some of the new time
code that added more instances of the xtime_lock.
This lock uses read/write seqlocks to protect it. The way
the read/write seqlocks work, is that the read side enters
a loop starting with read_seqlock() and ending
with read_sequnlock(). If no writes occurred between the two, the read_sequnlock() returns zero,
otherwise it returns non-zero. If something other than
zero is returned by the read_seqlock(), the loop
continues and the read is performed again.
The issue with the read/write seqlocks is that you can
have multiple writes occur during the read seqlock. If
the design of the seqlocks is not carefully thought out,
you could starve the read lock. The situation with the
16 Some
may currently be sleeping.
170 • Internals of the RT Patch
xtime_lock was even present in the 2.6.21-rc series.
The xtime_lock should only be written to on one
CPU, but a change that was made in the -rc series that
allowed the xtime_lock to be written to on any CPU.
Thus, one CPU could be reading the xtime_lock but
all the other CPUs could be queueing up to write to
it. Thus the latency of the read_seqlock is not only the
time the read_seqlock is held, but also the sum of all
the write_seqlocks that are run on each CPU. A poorly
designed read/write seqlock implementation could even
repeat the write_seqlocks for the CPUs. That is to say,
while CPU 1 is doing the read_seqlock loop, CPU 2
does a write_seqlock, then CPU 3 does a write_seqlock,
then CPU 4 does a write_seqlock, and by this time,
CPU 2 is doing another write_seqlock. All along, leaving CPU 1 continually spinning on that read_seqlock.
8.4
Interrupt Handlers Are No Longer Supreme
Another gotcha for drivers that are running on the RT
kernel is the assumption that the interrupt handler will
occur when interrupts are enabled. As described in section threaded-interrupts, the interrupt service routines
are now carried out with threads. This includes handlers
that are run as soft IRQs (e.g., net-tx and net-rx). If a
driver for some reason needs a service to go off periodically so that the device won’t lockup, it can not rely on
an interrupt or soft IRQ to go off at a reasonable time.
There may be cases that the RT setup will have a thread
at a higher priority than all the interrupt handlers. It is
likely that this thread will run for a long period of time,
and thus, starve out all interrupts.17 If it is necessary
for a device driver to periodically tickle the device then
it must create its own kernel thread and put it up at the
highest priority available.
9
Who Uses RT?
The RT patch has not only been around for development
but there are also many users of it, and that number is
constantly growing.
The audio folks found out that the RT patch has significantly helped them in their recordings (http://
ccrma.stanford.edu/planetccrma/software).
IBM, Red Hat and Raytheon are bringing the
RT patch to the Department of Defense (DoD).
17 besides
the timer interrupt.
(http://www-03.ibm.com/press/us/en/
pressrelease/21033.wss)
Financial institutions are expressing interest in using the
RT kernel to ensure dependably consistent transaction
times. This is increasingly important due to recently enacted trading regulations [8].
With the growing acceptance of the RT patch, it won’t
be long before the full patch is in the mainline kernel,
and anyone can easily enjoy the enhancements that the
RT patch brings to Linux.
10
RT Benchmarks
Darren V. Hart ([email protected])
Determinism and latency are the key metrics used to
discuss the suitability of a real-time operating system.
IBM’s Linux Technology Center has contributed several test cases and benchmarks which test these metrics in a number of ways. The results that follow are
a small sampling that illustrates the features of the RT
patch as well as the progress being made merging these
features into the mainline Linux kernel. The tests were
run on a 4 CPU Opteron system with a background load
of make -j8 2.6.16 kernel build. Source for the tests
used are linked to from the RT Community Wiki.18 Full
details of these results are available online [5].
10.1
gettimeofday() Latency
With their dependence on precise response times, realtime systems are prone to making numerous system
calls to determine the current time. A deterministic implementation of gettimeofday() is critical. The gtod_latency test measures the difference between the time reported in pairs of consecutive
gettimeofday() calls.
The scatter plots for 2.6.18 (Figure 3) and 2.6.18rt7 (Figure 4) illustrate the reduced latency and
improved determinism the RT patch brings to the
gettimeofday() system call. The mainline kernel
experiences a 208 us maximum latency, with a number
of samples well above 20 us. Contrast that with the 17
us maximum latency of the 2.6.18-rt7 kernel (with the
vast majority of samples under 10 us).
18 http://rt.wiki.kernel.org/index.php/IBM_
Test_Cases
2007 Linux Symposium, Volume Two • 171
10.2
Periodic Scheduling
Real-time systems often create high priority periodic
threads. These threads perform a very small amount
of work that must be performed at precise intervals.
The results from the sched_latency measure the
scheduling latency of a high priority periodic thread,
with a 5 ms period.
Prior to the high resolution timer (hrtimers) work, timer
latencies were only good to about three times the period of the periodic timer tick period (about 3ms with
HZ=1000). This level of resolution makes accurate
scheduling of periodic threads impractical since a task
needing to be scheduled even a single microsecond after the timer tick would have to wait until the next tick,
as illustrated in the latency histogram for 2.6.16 (Figure 5).19 With the hrtimers patch included, the RT kernel demonstrates low microsecond accuracy (Figure 6),
with a max scheduling latency of 25 us. The mainline
2.6.21 kernel has incorporated the hrtimers patch.
10.3
[3] Priority ceiling protocol.
http://en.wikipedia.org/wiki/
Priority_ceiling_protocol.
[4] Jonathan Corbet. Driver porting: completion
events.
http://lwn.net/Articles/23993/.
[5] Darren V. Hart. Ols 2007 - real-time linux latency
comparisons.
http://www.kernel.org/pub/linux/
kernel/people/dvhart/ols2007.
[6] Ingo Molnar.
http://lwn.net/Articles/102216/.
[7] Ingo Molnar. Rt patch. http://people.
redhat.com/mingo/realtime-preempt.
[8] “The Trade News”. Reg nms is driving
broker-dealer investment in speed and storage
technology. http://www.thetradenews.
com/regulation-compliance/
compliance/671.
Asynchronous Event Handling
As discussed in Section 2, real-time systems depend
on deterministic response times to asynchronous events.
async_handler measures the latency of waking a
thread waiting on an event. The events are generated
using POSIX conditional variables.
Without the RT patch, the 2.6.20 kernel experiences a
wide range of latencies while attempting to wake the
event handler (Figure 7), with a standard deviation of
3.69 us. 2.6.20-rt8 improves on the mainline results,
reducing the standard deviation to 1.16 us (Figure 8).
While there is still some work to be done to reduce the
maximum latency, the RT patch has greatly improved
the deterministic behavior of asynchronous event handling.
References
[1] Futex. http:
//en.wikipedia.org/wiki/Futex.
[2] Preemptible kernel patch makes it into linux kernel
v2.5.4-pre6. http://www.linuxdevices.
com/news/NS3989618385.html.
19 2.6.16
was used as later mainline kernels were unable to complete the test.
[9] Steven Rostedt. Rt mutex design.
Documentation/rt-mutex-design.txt.
172 • Internals of the RT Patch
Figure 3: 2.6.18 gtod_latency scatter plot
Figure 4: 2.6.18-rt7 gtod_latency scatter plot
Figure 5: 2.6.16 sched_latency histogram
Figure 6: 2.6.20-rt8 sched_latency histogram
Figure 7: 2.6.20 async_handler scatter plot
Figure 8: 2.6.20-rt8 async_handler scatter plot
lguest: Implementing the little Linux hypervisor
Rusty Russell
IBM OzLabs
[email protected]
Abstract
Lguest is a small x86 32-bit Linux hypervisor for running Linux under Linux, and demonstrating the paravirtualization abilities in Linux since 2.6.20. At around
5,000 lines of code including utilities, it also serves as
an excellent springboard for mastering the theory and
practice of x86 virtualization.
This talk will cover the philosophy of lguest and then
dive into the implementation details as they stand at this
point in time. Operating System experience is required,
but x86 knowledge isn’t. By the time the talk is finished, you should have a good grounding in the range of
implementation issues facing all virtualization technologies on Intel, such as Xen and KVM. You should also be
inspired to create your own hypervisor, using your own
pets as the logo.
1
So, I decided to write a trivial, self-contained Linuxon-Linux hypervisor. It would live in the Linux kernel
source, run the same kernel for guests as for host, and
be as simple as possible. This would serve as a third
testbed for paravirt_ops.
2
There turned out to be other benefits to writing such a
hypervisor.
• It turned out to be around 5,000 lines, including
the 1,000 lines of userspace code. This means it is
small enough to be read and understood by kernel
coders.
• It provides a complete in-tree example of how to
use paravirt_ops.
Introduction
• It provides a simple way to demonstrate the effects
of a new Linux paravirtualization feature: you only
need to patch one place to show the new feature and
how to use it.
Around last year’s OLS I was having discussions with
various technical people about Linux support for paravirtualization, and Xen in particular. (Paravirtualization is where the guest knows it’s being run under a hypervisor, and changes its behaviour).
I wanted the Linux kernel to support Xen, without wedding the Linux kernel to its interface: it seemed to me
that now Xen showed that Free Software virtualization
wasn’t hard, we’d see other virtualization technologies
worth supporting. There was already VMWare’s proposed VMI standard, for example, but that wasn’t a
proven ABI either.
The result was paravirt_ops. This is a single structure
which encapsulates all the sensitive instructions which a
hypervisor might want to override. This was very similar to the VMI proposal by Zach Amsden, but some
of the functions which Xen or VMI wanted were nonobvious to me.
Post-rationale for lguest
• It provides a testbed for new ideas. As other hypervisors rush to “productize” and nail down APIs and
ABIs, lguest can be changed from kernel to kernel.
Remember, lguest only promises to run the matching guests and host (i.e., no ABI).
My final point is more social than technical. I said
that Xen had shown that Free Software paravirtualization was possible, but there was also some concern that
its lead and “buzz” risked sucking up the groundwater
from under other Free hypervisors: why start your own
when Xen is so far ahead? Yet this field desperately
needs more independent implementations and experimentation. Creating a tiny hackable hypervisor seemed
to be the best way to encourage that.
• 173 •
174 • lguest: Implementing the little Linux hypervisor
As it turned out, I needn’t have worried too much. The
KVM project came along while I was polishing my
patches, and slid straight into the kernel. KVM uses
a similar “linux-centric” approach to lguest. But on the
bright side, writing lguest taught me far more than I ever
thought I’d know about the horribly warty x86 architecture.
3
3. The switcher which flips the CPU between host and
guest,
4. The host module (lg.ko) which sets up the switcher
and handles the kernel side of things for the
launcher, and
5. The awesome documentation which spans the
code.1
Comparing With Other Hypervisors
4.1
As you’d expect from its simplicity, lguest has fewer
features than any other hypervisor you’re likely to have
heard of. It doesn’t currently support SMP guests, suspend and resume, or 64-bit. Glauber de Oliveira Costa
and Steven Rostedt are hacking on lguest64 furiously,
and suspend and resume are high on the TODO list.
Lguest only runs matching host and guest kernels. Other
hypervisors aim to run different Operating Systems as
guests. Some also do full virtualization, where unmodified OSs can be guests, but both KVM and Xen require
newer chips with virtualization features to do this.
Lguest is slower than other hypervisors, though not always noticeably so: it depends on workload.
On the other hand, lguest is currently 5,004 lines for a
total of 2,009 semicolons. (Note that the documentation
patch adds another 3,157 lines of comments.) This includes the 983 lines (408 semicolons) of userspace code.
The code size of KVM and Xen are hard to compare to
this: both have features, such as 64-bit support. Xen
includes IA-64 support, and KVM includes all of qemu
(yet doesn’t use most of it).
Nonetheless it is instructive to note that KVM 19 is
274,630 lines for a total of 99,595 semicolons. Xen
unstable (14854:039daabebad5) is 753,242 lines and
233,995 semicolons (the 53,620 lines of python don’t
carry their weight in semicolons properly, however).
4
Lguest Code: A Whirlwind Tour
lguest consists of five parts:
1. The guest paravirt_ops implementation,
2. The launcher which creates and supplies external
I/O for the guest,
Guest Code
How does the kernel know it’s an lguest guest? The
first code the x86 kernel runs are is startup_32 in
head.S. This tests if paging is already enabled: if it is,
we know we’re under some kind of hypervisor. We end
up trying all the registered paravirt_probe functions, and end up in the one in drivers/lguest/
lguest.c. Here’s the guest, file-by-file:
drivers/lguest/lguest.c Guests know that they can’t do
privileged operations such as disable interrupts:
they have to ask the host to do such things via
hypercalls. This file consists of all the replacements for such low-level native hardware operations: we replace the struct paravirt_ops
pointers with these.
drivers/lguest/lguest_asm.S The guest needs several
assembler routines for low-level things and placing
them all in lguest.c was a little ugly.
drivers/lguest/lguest_bus.c Lguest guests use a very
simple bus for devices. It’s a simple array of device
descriptors contained just above the top of normal
memory. The lguest bus is 80% tedious boilerplate
code.
drivers/char/hvc_lguest.c A trivial console driver: we
use lguest’s DMA mechanism to send bytes out,
and register a DMA buffer to receive bytes in. It is
assumed to be present and available from the very
beginning of boot.
drivers/block/lguest_blk.c A simple block driver
which appears as /dev/lgba, lgbb, lgbc,
etc. The mechanism is simple: we place the
information about the request in the device page,
1 Documentation
was awesome at time of this writing. It may
have rotted by time of reading.
2007 Linux Symposium, Volume Two • 175
then use the SEND_DMA hypercall (containing the
data for a write, or an empty “ping” DMA for a
read).
drivers/net/lguest_net.c This is very simple, a virtual
network driver. The only trick is that it can talk directly to multiple other recipients (i.e., other guests
on the same network). It can also be used with only
the host on the network.
4.2
Launcher Code
The launcher sits in the Documentation/lguest directory:
as lguest has no ABI, it needs to live in the kernel tree
with the code. It is a simple program which lays out
the “physical” memory for the new guest by mapping
the kernel image and the virtual devices, then reads repeatedly from /dev/lguest to run the guest. The
read returns when a signal is received or the guest sends
DMA out to the launcher.
The only trick: the Makefile links it statically at a high
address, so it will be clear of the guest memory region.
It means that each guest cannot have more than 2.5G of
memory on a normally configured host.
4.3
Switcher Code
Compiled as part of the “lg.ko” module, this is the code
which sits at 0xFFC00000 to do the low-level guesthost switch. It is as simple as it can be made, but it’s
naturally very specific to x86.
4.4
Host Module: lg.ko
It is important to that lguest be “just another” Linux kernel module. Being able to simply insert a module and
start a new guest provides a “low commitment” path to
virtualization. Not only is this consistent with lguest’s
experimential aims, but it has potential to open new scenarios to apply virtualization.
drivers/lguest/lguest_user.c This contains all the
/dev/lguest code, whereby the userspace
launcher controls and communicates with the
guest. For example, the first write will tell us the
memory size, pagetable, entry point, and kernel
address offset. A read will run the guest until a
signal is pending (-EINTR), or the guest does a
DMA out to the launcher. Writes are also used to
get a DMA buffer registered by the guest, and to
send the guest an interrupt.
drivers/lguest/io.c The I/O mechanism in lguest is simple yet flexible, allowing the guest to talk to the
launcher program or directly to another guest. It
uses familiar concepts of DMA and interrupts, plus
some neat code stolen from futexes.
drivers/lguest/core.c This contains run_ guest()
which actually calls into the host↔guest switcher
and analyzes the return, such as determining if the
guest wants the host to do something. This file
also contains useful helper routines, and a couple
of non-obvious setup and teardown pieces which
were implemented after days of debugging pain.
drivers/lguest/hypercalls.c Just as userspace programs
request kernel operations via a system call, the
guest requests host operations through a “hypercall.” As you’d expect, this code is basically one
big switch statement.
drivers/lguest/segments.c The x86 architecture has
segments, which involve a table of descriptors
which can be used to do funky things with virtual
address interpretation. The segment handling code
consists of simple sanity checks.
drivers/lguest/page_tables.c The guest provides a
virtual-to-physical mapping, but the host can neither trust it nor use it: we verify and convert it
here to point the hardware to the actual guest pages
when running the guest. This technique is referred
to as shadow pagetables.
drivers/lguest/interrupts_and_traps.c This file deals
with Guest interrupts and traps. There are three
classes of interrupts:
1. Real hardware interrupts which occur while
we’re running the guest,
2. Interrupts for virtual devices attached to the
guest, and
3. Traps and faults from the guest.
Real hardware interrupts must be delivered to the
host, not the guest. Virtual interrupts must be delivered to the guest, but we make them look just
like real hardware would deliver them. Traps from
176 • lguest: Implementing the little Linux hypervisor
the guest can be set up to go directly back into the
guest, but sometimes the host wants to see them
first, so we also have a way of “reflecting” them
into the guest as if they had been delivered to it directly.
4.5
but it’s designed to guide optimization efforts for hypervisor authors. Here are the current results for a native
run on a UP host with 512M of RAM and the same configuration running under lguest (on the same Host, with
3G of RAM). Note that these results are continually improving, and are obsolete by the time you read them.
The Documentation
Test Name
Context switch via
pipe
One
Copy-onWrite fault
Exec client once
One fork/exit/ wait
One
int-0x80
syscall
One syscall via libc
Two PTE updates
256KB read from
disk
One disk read
Inter-guest pingpong
Inter-guest
4MB
TCP
Inter-guest
4MB
sendfile
Kernel Compile
The documentation is in seven parts, as outlined in
drivers/lguest/README. It uses a simple script in
Documentation/lguest to output interwoven code
and comments in literate programming style. It took
me two weeks to write (although it did lead to many
cleanups along the way). Currently the results take
up about 120 pages, so it is appropriately described
throughout as a heroic journey. From the README file:
Our Quest is in seven parts:
Preparation: In which our potential hero is flown
quickly over the landscape for a taste of its scope.
Suitable for the armchair coders and other such persons of faint constitution.
Guest: Where we encounter the first tantalising wisps
of code, and come to understand the details of the
life of a Guest kernel.
Native
Lguest
Factor
2413 ns
6200 ns
2.6
3555 ns
9822 ns
2.8
302 us
776 us
2.6
120 us
269 ns
407 us
266 ns
3.7
1.0
127 ns
1802 ns
276 ns
6042 ns
2.2
3.4
33333 us
41725 us
1.3
113 us
185 us
1.6
53850 ns
149795 ns
2.8
16352 us
334437 us
20
10906 us
309791 us
28
10m39
13m48s
1.3
Table 1: Virtbench and kernel compile times
Drivers: Whereby the Guest finds its voice and become
useful, and our understanding of the Guest is completed.
6
Launcher: Where we trace back to the creation of the
Guest, and thus begin our understanding of the
Host.
There is an infinite amount of future work to be done. It
includes:
Host: Where we master the Host code, through a long
and tortuous journey. Indeed, it is here that our
hero is tested in the Bit of Despair.
Switcher: Where our understanding of the intertwined
nature of Guests and Hosts is completed.
Mastery: Where our fully fledged hero grapples with
the Great Question: “What next?”
5
Benchmarks
I wrote a simple extensible GPL’d benchmark program
called virtbench.2 It’s a little primitive at the moment,
2 http://ozlabs.org/~rusty/virtbench
Future Work
1. More work on the I/O model.
2. More optimizations generally.
3. NO_HZ support.
4. Framebuffer support.
5. 64-bit support.
6. SMP guest support.
7. A better web page.
2007 Linux Symposium, Volume Two • 177
7
Conclusion
Lguest has shown that writing a hypervisor for Linux
isn’t difficult, and that even a minimal hypervisor can
have reasonable performance. It remains to be seen how
useful lguest will be, but my hope is that it will become
a testing ground for Linux virtualization technologies,
a useful basis for niche hypervisor applications, and an
excellent way for coders to get their feet wet when starting to explore Linux virtualization.
178 • lguest: Implementing the little Linux hypervisor
ext4 online defragmentation
Takashi Sato
NEC Software Tohoku, Ltd.
[email protected]
Abstract
ext4 greatly extends the filesystem size to 1024PB compared to 16TB in ext3, and it is capable of storing many
huge files. Previous study has shown that fragmentation can cause performance degradation for such large
filesystems, and it is important to allocate blocks as contiguous as possible to improve I/O performance.
In this paper, the design and implementation of an online
defragmentation extension for ext4 is proposed. It is designed to solve three types of fragmentation, namely single file fragmentation, relevant file fragmentation, and
free space fragmentation. This paper reports its design,
implementation, and performance measurement results.
1
Introduction
In this paper, an online defragmentation feature for ext4
is proposed, which can solve the fragmentation problem
on a mounted filesystem.
Section 2 describes various features in current Linux
filesystems to reduce fragmentation, and shows how
much fragmentation occurs when multiple processes
writes simultaneously to disk. Section 3 explains the design of the proposed online defragmentation method and
Section 4 describes its implementation. Section 5 shows
the performance benchmark results. Existing work on
defragmentation is shown in Section 6. Section 7 contains the summary and future work.
2
Fragmentations in Filesystem
Filesystem on Linux have the following features to reduce occurrence of fragments when writing a file.
When a filesystem has been used for a long time, disk
blocks used to store file data are separated into discontiguous areas (fragments). This can be caused by concurrent writes from multiple processes or by the kernel
not being able to find a contiguous area of free blocks
large enough to store the data.
• Delayed allocation
The decision of where to allocate the block on the
disk is delayed until just before when the data is
stored to disk in order to allocate blocks as contiguously as possible (Figure 1). This feature is already implemented in XFS and is under discussion
for ext4.
If a file is broken up into many fragments, file read performance can suffer greatly, due to the large number of
disk seeks required to read the data. Ard Biesheuvel has
shown the effect of fragmentation on file system performance [1]. In his paper, file read performance decreases
as the amount of free disk space becomes small because
of fragmentation. This occurs regardless of the filesystem type being used.
ext3 is currently used as the standard filesystem in
Linux, and ext4 is under development within the Linux
community as the next generation filesystem. ext4
greatly extends the filesystem size to 1024PB compared
to 16TB in ext3, and it is capable of storing many huge
files. Therefore it is important to allocate blocks as contiguous as possible to improve the I/O performance.
• Block reservation
Contiguous blocks are reserved right after the last
allocated block, in order to use them for successive
block allocation as shown in Figure 2. This feature
is already implemented in ext4.
Although ext4 and XFS already have these features
implemented to reduce fragmentation, writing multiple
files in parallel still causes fragmentation and decrease
in file read performance. Figure 3 shows the difference in file read performance between the following two
cases:
• 179 •
180 • ext4 online defragmentation
Seconds
Data
1GB file read time(real time)
22
21
write
16.5%
degrade
14.8%
degrade
EXT3
XFS
20
19
18
17
16
13
252
2
288
Fragments in 1GB file
The environment of the measurement:
kernel: 2.6.18-rc4 with Mingming’s ext4 patch set
CPU:
Xeon 3.0GHx
Memory: 1GB
Arch:
i386
This block is freed before the data is
written to disk, we can write it on the
contiguous blocks
Figure 3: The influence of fragments
Figure 1: Delayed allocation
Data
i. Pick up the
reserved block
write
reserved blocks
ii. Write to disk
Figure 2: Block reservation
• Create the file by writing 32 1GB files sequentially
• Create the file by writing 32 1GB files from 32
threads concurrently
File read performance decreases about 15% for ext3,
and 16.5% for XFS.
Currently ext4 does not have any defragmentation feature, so fragmentation will not be resolved until the file
is removed. Online defragmentation for ext4 is necessary to solve this problem.
3
3.1
Design of Online Defragmentation
Types of Fragmentation
Fragmentation could be classified into the following
three types [2].
• Single file fragmentation
Single file fragmentation occurs when a single file
is broken into multiple pieces. This decreases the
performance of accessing a single file.
• Relevant file fragmentation
Relevant file fragmentation occurs when relevant
files, which are often accessed together by applications are allocated separately on the filesystem. This decreases the performance of applications which access many small files.
• Free space fragmentation
Free space fragmentation occurs when the filesystem has many small free areas and there is no large
free area consisting of contiguous blocks. This will
make the other two types of fragmentation more
likely to occur.
Online defragmentation should be able to solve these
three types of fragmentation.
3.2
Single File Fragmentation
Single file fragmentation could be solved by moving file
data to contiguous free blocks as shown in Figure 4.
Defragmentation for a single file is done in the following
steps (Figure 5).
1. Create a temporary inode.
2. Allocate contiguous blocks to temporary file as in
Figure 5(a).
2007 Linux Symposium, Volume Two • 181
ioctl
File
User
Kernel
Move the data to
contiguous blocks
Target
inode
Create temporary
inode and allocate
contigurous blocks
Temporary
inode
Disk
Contiguous blocks
Contiguous free blocks
(a) Allocate contiguous blocks
ioctl
Figure 4: Defragment for a single file
User
Kernel
Target
inode
3. Move file data for each page as described in Figure
5(b). The following sequence of events should be
committed to the journal atomically.
page cache
Temporary
inode
write to
block
read from
block
(a) Read data from original file to memory page.
Contiguous blocks
(b) Swap the blocks between the original inode
and the temporary inode.
(b) Replace data blocks
(c) Write data in memory page to new block.
Figure 5: Resolving single file fragmentation
3.3
Relevant File Fragmentation
Relevant file fragmentation could be solved by moving
the files under the specified directory close together with
the block containing the directory data as presented in
Figure 6.
File1
Block No
60000
Defragmentation for relevant files is done in the following steps (Figure 7).
1. The defragmentation program asks the kernel for
the physical block number of the first block of the
specified directory. The kernel retrieves the physical block number of the extent which is pointed by
the inode of the directory and returns that value as
in Figure 7(a).
2. For each file under the directory, create a temporary
inode.
3. The defragmentation command passes the physical
block number obtained in step 1 to the kernel. The
kernel searches for the nearest free block after the
given block number, and allocates that block to the
temporary inode as described in Figure 7(b).
4. Move file data for each page, by using the same
method as for single file defragmentation.
Block No = 100
Block No = 100
directory
directory
File1
File2
70000
Block No
101
File2
102
Figure 6: Defragment for the relevant files
5. Repeat steps 2 to 4 for all files under the specified
directory.
3.4
Free Space Fragmentation
If the filesystem has insufficient contiguous free blocks,
the other files are moved to make sufficient space to allocate contiguous blocks for the target file. Free space defragmentation is done in the following steps (Figure 8).
1. Find out the block group number to which the target file belongs. This could be calculated by using
the number of inodes in a group and the inode number as below.
groupNumber =
inodeNumber
iNodesPerGroup
182 • ext4 online defragmentation
Specify "0"
as the file
relative block
number
Return "104" as
the physical
block number
ioctl()
ioctl
User
Kernel
extent0
start=104
4blocks
extent1
start=108
4blocks
User
inode
Kernel
extent0
start = 104
5blocks
inode
(inode No=201)
extent1
start = 204
5blocks
exten0
start=104
4blos
(a) Get block mapping
ioctl ( goal = 100 )
(a) Get extens
User
Kernel
original
inode
extent
start=104
4blocks
ioctl()
temporary
inode
User
Allocate a block
near goal
Block No = 60000
exten1
start=108
4blocs
Kernel
Block No = 101
Register blocks to
avoid being used
by other files.
inode
(b) Specify goal as allocation hint
extent
start=104
4blocks
Figure 7: Resolving relevant files fragmentation
reservation window
(b) Reserve blocks
2. Get the extent information of all the files belonging
to the target group and choose the combination of
files to evict for allocating contiguous blocks large
enough to hold the target file as in Figure 8(a).
ioctl
User
Kernel
group0
3. Reserve the chosen blocks so that it will not be used
by other processes. This is achieved by the kernel
registering the specified blocks to the reservation
window for each file as presented in Figure 8(b).
group1
5. Move the data in the target file to the blocks which
have been just freed. The kernel allocates the freed
blocks to the temporary inode and moves the file
data using the same method as for single file defragmentation as in Figure 8(d).
group2
groupN
(c) Move victim file
ioctl
User
4. Move the data in the files chosen in step 2 to other
block groups. The destination block group could
be either specified by the defragmentation command or use the block group which is farthest away
from the target group as in Figure 8(c). The file
data is moved using the same method as for single
file defragmentation.
Search free blocks
from the farthest
group from the
target inode.
Temporary
inode
Target
inode
Kernel
Target
inode
extent
start=104
14blocks
Temporary
inode
extent
start=104
14blocks
Contiguous free blocks
(d) Insert the specified extent to temporary
inode
Figure 8: Resolving free space fragmentation
2007 Linux Symposium, Volume Two • 183
4
Implementation
4.2
Moving Target File Data
(EXT4_IOC_DEFRAG)
The following five ioctls provide the kernel function for
online defragmentation. These ioctls use Alex Tomas’s
patch [3] to implement multi-block allocation feature
to search and allocate contiguous free blocks. Alex’s
multi-block allocation and the proposed five ioctls are
explained below.
This ioctl moves file data from fragmented blocks to the
destination. It uses the structures ext4_ext_defrag_
data and ext4_extent_data shown in Figure 10 for
input parameters. The behavior of this ioctl differs depending on the type of defragmentation it is used for.
The ioctls described in Section 4.3 to 4.6 are still under
development, and have not been tested. Also, moving
file data for each page is currently not registered to the
journal atomically. This will be fixed by registering the
sequence of procedures for replacing blocks to the same
transaction.
• Single file fragmentation
Both the start offset of defragmentation
(start_offset) and the target size (defrag_size)
need to be specified. When both goal and ext.len
are set to 0, the kernel searches for contiguous free
blocks starting from the first block of the block
group which the target file’s inode belongs to, and
replaces the target file’s block with the free blocks.
4.1
Multi-block allocation
Alex’s multi-block allocation patch [3] introduces a
bitmap called "buddy bitmap" to manage the contiguous blocks for each group in an inode which is pointed
from the on-memory superblock (Figure 9).
The buddy bitmap is divided into areas to keep bitmap
of contiguous free blocks with length of powers of two,
e.g. bitmap for 2 contiguous free blocks, bitmap for 4
contiguous free blocks, etc. The kernel can quickly find
contiguous free blocks of the desired size by using the
buddy bitmap. For example, when the kernel requests
14 contiguous free blocks, it searches in the area for 8,
4, and 2 contiguous free blocks and allocates 14 contiguous free blocks on disk.
Contiguous 14 blocks
Since I am still designing the implementation of the following four ioctls, I haven’t tested them yet.
4.3
i_mapping
s_buddy_cache
Disk
Group0
• Free space fragmentation
In addition to start_offset and defrag_size, ext
should be set to the information of the extent which
represents the new contiguous area for replacement. When ext.len is set to a positive number,
the kernel replaces the target file’s blocks with the
blocks in ext
inode
ext4 superblock
Noral
bitmap
• Relevant file fragmentation
In addition to start_offset and defrag_size, goal
should be set to the physical block number of the
first block in the specified directory. When goal is
set to a positive number, the kernel searches for free
blocks starting from the specified block, and replaces the target file’s blocks with the nearest contiguous free blocks.
Group1
Get Group Information (EXT4_IOC_GROUP_
INFO)
Group n
Buddy
bitmap
Buddy bitmap manages
contiguous blocks in group.
1 1 1 1 1 1 0
Bits for
2 contiguous blocks
1 1 0
Bits for
4 contiguous blocks
0
Bits for
8 contiguous blocks
Figure 9: Multi-block allocation
This ioctl gets the group information. There is no input parameter. The kernel gets the number of blocks
in a group (s_blocks_per_group) and the number of
the inodes (s_inodes_per_group) from ext4 memory superblock (ext4_sb_info) and returns them with the structure (ext4_group_data) in Figure 11.
blocks_per_group is not used in the current implementation, but it is returned in case of future use.
184 • ext4 online defragmentation
4.4
Get Extent Information (EXT4_IOC_GET_
EXTENTS_INO)
This ioctl gets the extent information. The structure
shown in Figure 12 is used for both input and output.
The command sets the first extent number of the target extent to entries. The kernel sets the number of returned extents upon return. Since there might be very
large number of extents in a file, the kernel returns extents up to max_entries specified as input. If the number
of extents is larger than max_entries, the command can
get all extents by calling this ioctl multiple times with
updated entries.
4.5
Block Reservation (EXT4_IOC_RESERVE_
BLOCK)
This ioctl is used to reserve the blocks, so that it will
not be used by other processes. The blocks to reserve is
specified in the extent information (ext4_extent_data).
The kernel reserves the blocks using the existing block
reservation function.
4.6
Move Victim
VICTIM)
File
(EXT4_IOC_MOVE_
This ioctl moves a file from the block group where it belongs to other block groups. ext4_extents_info structure
is used for input parameter. ino stores the inode number
of the target file, and entries holds the number of extents
specified in ext. ext points to the array of extents which
specify the areas which should be moved, and goal contains the physical block number of the destination.
The kernel searches for a contiguous free area starting
from the block specified by goal, and replaces the target file’s blocks with the nearest contiguous free blocks.
If goal is 0, it searches from the first block of the
block group which is farthest away from the block group
which contains the target file’s inode.
5
5.1
Performance Measurement Results
Single File Fragmentation
Fifty fragmented 1GB files were created. Read performance was measured before and after defragmentation.
Performance measurement result is shown in Table 1. In
this case, defragmentation resulted in 25% improvement
in file read performance.
Before defrag
After defrag
Fragments
12175
800
I/O performance
(Sec)
618.3
460.6
Table 1: The measurement result of the defragmentation
for a single file
5.2
Relevant File Fragmentation
The Linux kernel source code for 2.6.19-rc6 (20,000
files) was extracted on disk. Time required to run find
command on the kernel source was measured before and
after defragmentation. Performance measurement result
is shown in Table 2. In this case, defragmentation resulted in 29% performance improvement.
Before defrag
After defrag
I/O performance
(Sec)
42.2
30.0
Table 2: The measurement result of the defragmentation
for relevant files
Defragmentation for free space fragmentation is still under development. Performance will be measured once it
has been completed.
6
Related Work
Jan Kara has proposed an online defragmentation enhancement for ext3. In his patch [4], a new ioctl to
exchange the blocks in the original file with newly allocated contiguous blocks is proposed. The implementation is in experimental status and still lacks features
such as searching contiguous blocks. It neither supports
defragmentation for relevant files nor defragmentation
for free space fragmentation.
During the discussion in linux-ext4 mailing list, there
were many comments that there should be a common
interface across all filesystems for features such as free
block search and block exchange. And in his mail [5],
a special filesystem to access filesystem meta-data was
proposed. For instance, the extent information could
be accessed by reading the file data/extents. Also the
blocks used to store file data could be exchanged to contiguous blocks by writing the inode number of the temporary file which holds the newly allocated contiguous
2007 Linux Symposium, Volume Two • 185
struct ext4_ext_defrag_data {
// The offset of the starting point (input)
ext4_fsblk_t start_offset;
// The target size for the defragmentation (input)
ext4_fsblk_t defrag_size;
// The physical block number of the starting
// point for searching contiguous free blocks (input)
ext4_fsblk_t goal
// The extent information of the destination.
struct ext4_extent_data ext;
}
struct ext4_extent_data {
// The first logical block number
ext4_fsblk_t block;
// The first physical block number
ext4_fsblk_t start;
// The number of blocks in this extent
int
len;
}
Figure 10: Structures used for ioctl (EXT4_IOC_DEFRAG)
struct ext4_group_data {
// The number of inodes in a group
int inodes_per_group
// The number of blocks in a group
int blocks_per_group;
}
Figure 11: Structures used for ioctl (EXT4_IOC_GROUP_INFO)
struct ext4_extents_info {
//inode number (input)
unsigned long long ino;
//The max number of extents which can be held (input)
int
max_entries;
//The first extent number of the target extents (input)
//The number of the returned extents (output)
int
entries;
//The array of extents (output)
//NUM is the same value as max_entries
struct ext4_extent_data ext[NUM];
}
Figure 12: Structures used for ioctl (EXT4_IOC_GET_EXTENTS_INO)
186 • ext4 online defragmentation
blocks to data/reloc. During the discussion, two demerits were found. One is that common procedures across
all filesystems are very few. The other is that there are a
lot of overheads for encoding informations in both userspace and the kernel. Therefore this discussion has gone
away. This discussion is for unifying interface and is not
for the implementation for the online defragmentation
which is explained by this paper.
7
Conclusion
Online defragmentation for ext4 has been proposed and
implemented. Performance measurement has shown
that defragmentation for a single file can improve read
performance by 25% on a fragmented 1GB file. For
relevant file fragmentation, defragmentation resulted in
29% performance improvement for accessing all file in
the Linux source tree.
Online defragmentation is a promising feature to improve performance on a large filesystems such as ext4.
I will continue development on the features which have
not been completed yet.
There are also work to be done in the following areas:
• Decrease performance penalty on running processes
Since it is possible for defragmentation to purge
data on the page cache which other processes might
reference later, defragmentation may decrease performance of running processes. Using fadvice to
alleviate the performance penalty may be one idea.
• Automate defragmentation
To reduce system administrator’s effort, it is necessary to automate defragmentation. This can be
realized by the following procedure.
1. The kernel notifies the occurrence of fragments to user space.
2. The user space daemon catches the notification and executes the defragmentation command.
References
[1] Giel de Nijs, Ard Biesheuvel, Ad Denissen, and
Niek Lambert, “The Effects of Filesystem
Fragmentation,” in Proceedings of the Linux
Symposium, Ottawa, 2006, Vol. 1, pp. 193–208,
http://www.linuxsymposium.org/2006/
linuxsymposium_procv1.pdf.
[2] “File system fragmentation.”
http://en.wikipedia.org/wiki/File_
system_fragmentation.
[3] Alex Tomas. “[RFC] delayed allocation, mballoc,
etc.” http://marc.info/?l=linux-ext4&m=
116493228301966&w=2.
[4] Jan Kara. “[RFC] Ext3 online defrag,”
http://marc.info/?l=linux-fsdevel&m=
116160640814410&w=2.
[5] Jan Kara. “[RFC] Defragmentation interface,”
http://marc.info/?l=linux-ext4&m=
116247851712898&w=2.
The Hiker Project: An Application Framework for Mobile Linux Devices
David “Lefty” Schlesinger
ACCESS Systems Americas, Inc.
[email protected]{hikerproject.org,access-company.com}
Abstract
The characteristics of mobile devices are typically an order of magnitude different than desktop systems: CPUs
run at megahertz, not gigahertz; memory comes in
megabytes, not gigabytes; screen sizes are small and input methods are constrained; however, there are billions
of mobile devices sold each year, as opposed to millions
of desktop systems. Creating a third-party developer
ecosystem for such devices requires that fragmentation
be reduced, which in turn demands high-quality solutions to the common problems faced by applications on
such devices. The Hiker Project’s application framework components present such solutions in a number
of key areas: application lifecycle management, task-totask and task-to-user notifications for a variety of events,
handling of structured data (such as appointments or
contact information) and transfer of such data between
devices, management of global preferences and settings,
and general security issues. Together, these components
comprise an “application framework,” allowing the development of applications which can seamlessly and
transparently interoperate and share information.
ACCESS Co., Ltd., originally developed the Hiker
Project components for use in their “ACCESS Linux
Platform” product, but recently released them under an
open source license for the benefit and use of the open
source community. This paper will describe, in detail,
the components which make up the Hiker Project, discuss their use in a variety of real-world contexts, examine the proliferation of open source-based mobile devices and the tremendous opportunity for applications
developers which this growth represents.
1
The Need for, and Benefits of, a Mobile
Framework
The typical cell phone of today is generally equivalent
in power, in various dimensions, to a desktop system of
four or five years ago. Cell phones increasingly have
CPUs running at close to half a gigahertz, dynamic
RAM of 64 megabytes and beyond, and storage, typically semiconductor-based, in capacities of several gigabytes. Current MP3 players can have disk capacities well beyond what was typical on laptop systems
only two or three years ago. The usage models for cell
phones and other mobile devices, however, tend to be
very different than that of desktop systems.
The bulk of applications-related development effort on
open source-based systems has been primarily focused
on servers and desktop devices which have a distinct usage model which does not adapt well to smaller, more
constrained mobile devices. In order to effectively use
open source-based systems to create a mobile device,
and particularly to enable general applications development for such a device, a number of additional services
are needed.
The term application framework means different things
to different people. To some, it is the GUI toolkit that
is used. To others, it is the window manager. Still others see it as the conventions for starting and running a
process (e.g. Linux’s fork() and exec() calls; C
programs have an entry point called “main” that takes
a couple of parameters and returns an integer; etc.).
When we use the term “application framework,” we intend it to mean the set of libraries and utilities that support and control applications running on the platform.
Why are additional libraries needed to control applications? Why not just use the same conventions as on a
PC: choose programs off a start menu and explicitly end
an application by choosing the “exit” menu item or closing its window?
The reason is the different “use model” on handheld
devices. PCs have large screens that can accommodate many windows, full keyboards, and general pointing devices. A cell phone typically has a screen fewer
than three inches diagonal (although pixel resolutions
• 187 •
188 • The Hiker Project: An Application Framework for Mobile Linux Devices
can be equivalent to QVGA and higher), a complement
of under twenty keys and a “five-way” pointing device
or a “jog wheel.” Based on experience refining Garnet
(formerly known as “Palm OS”), we believe that there
should be only one active window on a typical handheld
device. As another example, when the user starts a new
application, the previous application should automatically save its work and state, and then exit.
Similarly, the optimal conceptual organization of data
is different on mobile devices. Rather than an “application/document” paradigm, using an explicit, treestructured file system, a “task-oriented” approach,
where data is inherent to the task, is more natural on
these devices. Tasks, as opposed to applications, are
short-lived and focused: making a call, reading an SMS
message, creating a contact or appointment, etc. Occasionally, tasks will be longer-lived: browsing the web,
or viewing media content. Another typical attribute of
such devices is regular, unscheduled interruptions: a
low-battery warning, an incoming email, a stock or news
alert.
As well as the task of managing the lifecycle of programs (launching, running, stopping), the application
framework must also help with distributing and installing applications. The conventions are simple: an
application and all supporting files (images, data, localizations, etc.) are rolled up into a single file known
as a “bundle.” Bundles are convenient for users and
third party developers, and allow software to be passed
around and downloaded as an atomic object.
A third task of the application framework is to support common utility operations for applications, such as
communication between applications, keeping track of
which applications handle which kind of content, and
dealing with unscheduled events like phone calls or instant messages.
The final task of the application framework is to implement a secure environment for software. That means an
environment which resists attempts by one application
to interfere with another (this hardening is called “application sandboxing”). The secure environment also supports security policies for permission-based access to resources. For example, part of a policy might be “only
applications from the vendor are allowed network access.” The security policy is implemented using a Linux
security module.
The Hiker components then, broadly speaking, focus on
several key areas:
• presenting a common view of applications to the
user (Application Manager and Bundle Manager),
• communicating time-based and asynchronous
events between applications or between an application and the user (Notification Manager, Alarm
Manager, Attention Manager);
• interoperability of applications and sharing of
information between them (Exchange Manager,
Global Settings), and
• performing these functions in a secure context (Security Policy Framework/Hiker Security Module)
The Abstract IPC service is used by these components in
order to simplify their implementation and allow them to
generally take advantage of improved underlying mechanisms through a single gating set of APIs. Taken together, they provide mechanisms to allow seamless interoperability and sharing of information between suites
of applications in a trusted environment.
These components are intended to offer several concrete
benefits to the development community:
• They provide real reference implementations that
can serve as the basis for application developers
who want to write interoperable applications for
mobile devices.
• They (hopefully) help to jump-start activities related to mobile devices in several key areas (e.g.
security) by filling a number of current gaps in the
services available to applications in that space.
• They can help to generally increase interest in application development for open source-based mobile devices
• They might encourage other companies to both
participate in these projects and to contribute new
projects as well.
2007 Linux Symposium, Volume Two • 189
1.1
Access to the Project, Licensing Terms, etc.
Full source code and other reference material for Hiker
can be found at the Hiker Project web site, http://
www.hikerproject.org.
Sources are currently available as tarballs, but we expect to be putting a source code repository up in the
near future. Several mailing lists are available, and a
TRAC-based bug reporting/wiki system will be in place
shortly. A large amount of detailed API documentation,
generated by Doxygen, is also available on the site.
Hiker is dual-licensed under the Mozilla Public License,
v. 1.1 and the Library General Public License, v. 2, with
the exception of the LSM-based portion of the Security Framework, which, as an in-kernel component, is
licensed under GPL v. 2.
2
The Application Manager
The Application Manager controls application lifetime
and execution and is the component that is responsible
for maintaining the simple application task model that
users expect on a phone. The application manager starts
and stops applications as appropriate, ensures that the
current running application controls the main display,
maintains a list of running applications, places applications in the background, and prevents multiple launches
of a single application.
The Application Manager is initiated at system start-up
and provides the following services:
• Application launching mechanism and management of application lifecycle.
• Routing of launch requests to the existing instance
(if the application is already running).
• Coordination of the “main UI app” – retires the current application when a new one is launched, and
launches a default when needed.
• May also provide default behavior for certain important system events (i.e., hard key handling,
clamshell open/close).
The Application Manager runs in its own process. Applications typically run in their own processes and control their own UI. This simple mapping of applications
to processes provides a secure, stable model for application execution. To maximize utility on small screen
form factors, the Application Manager will preserve the
standard “Garnet OS” behavior of having one main UI
application at a time, with that application having drawing control of the main panel of the screen (exclusive
of status bars, etc.) When the user runs a new application, the system will generally ask the current one to
exit (although there is a facility for applications which
need to continue execution in the background). Also, as
in legacy “Garnet OS” and desktop operating systems
like Mac OS X, only a single instantiation of any given
application at time will be running.
The Application Manager handles the high-level operations of launching applications, and provides a number
of APIs to applications and to the system for access to
these services. It maintains a list of currently running
applications, and keeps track of which one is the “primary” or “main UI” application. This special status is
used to coordinate the display and hiding of UI when
the user moves between applications. Note that an application that is not the main UI application may still
put up UI under exceptional circumstances, it is simply
recommended that this be done only occasionally (for
example to ask the user for a password), and that it be
in the form of a modal dialog. The user’s attention is
generally focused on the main UI application, and so UI
from background applications is often an interruption. It
is expected that most applications will not run in background mode.
3
The Bundle Manager
The Bundle Manager combines a file format for distributing single files that contain applications and all
their dependencies (application name, icon, localized
resources, dependant libraries, etc.) along with functions for installing, removing, and enumerating application “bundles.” The Bundle Manager takes care of allocation of per-application storage locations in writable
storage in the file system, and providing access to localized resources contained within the bundle. Through the
Bundle Manager enumeration mechanism, multiple application types are merged and can be launched through
a common mechanism.
The Bundle Manager is the system component responsible for controlling how applications, and supplemental data for applications (libraries, resources, etc.), are
190 • The Hiker Project: An Application Framework for Mobile Linux Devices
ACCESS Linux Platform Launcher
Home
Screen
(NFDM)
Legacy Applications
Native ACCESS Linux Platform Applications
Launchpads (Native, Garnet, Java)
ACCESS Linux Platform UI & Core Application Services Frameworks
Application Server Bundle Manager
Custom
Widgets
Garnet VM
(Palm OS)
Emulator
Attention/Alarm/
Notification
Managers
MultiOTA
Java VM,
media Device
JSRs
Services Mgmt
HotSync®
OTA
Data
Sync
SyncML
Telephony
Security Policy
Framework
X Windowing System
H/W Acceleration
Mobile Messaging Bluetooth
Framework Services
Exchange Services
Manager
Global Settings
DRM
Gstreamer
Exchange
Manager
Plug-Ins
Connection
Manager
User Space
GTK+
Entertainment
3rd-party
NetFront
PIM
Suite
SMS, MMS,
Browser Applications Native
(Audio,
Video,
IM
Apps
(SVG, SMIL)
Players)
Applications
Telephony
&
Messaging
GTK+
Apps
SDK Tools
Garnet
Apps
Java
Apps
BlueZ
SQLite
OpenSSL
Hiker Security Module
Graphics &
Display
Drivers
Input
Driver
File
System
Multimedia
Drivers
RAM
LCD
Input
Device
NAND
Multimedia
Hardware
Power
Management
CPU
Open Source Software
Hiker Framework
Networking
Stack
Networking
Drivers
Bluetooth
Driver
GSM/GPRS/UMTS/EDGE,
WiFi, Bluetooth Technology, etc.
Hardware
Memory
Management
Kernel
Service/
Process
Management
ACCESS Proprietary
Figure 1: The Hiker Components in the ACCESS Linux Platform
loaded onto a system using the Application Manager
and other framework components, manipulated, transmitted off of the system, and removed.
The Bundle Manager is a mid-level library and server
which provides easy access to application resources for
developers, as well as maintaining state about bundles
present in the system.
The Bundle Manager is designed around the notion of
“bundles” as concrete immutable lumps of information
which are managed on a device, where each bundle can
contain an arbitrary amount of data in a format appropriate to that bundle. Each bundle type is defined both
in terms of how it is stored on the device, and as a “flattened” format suitable for transmission as a stream out
of the device. (These formats may be the same, different, or overlap at various times).
The Bundle Manager is the channel through which all
third-party applications are distributed and loaded on to
a device. The server component of the Bundle Manager
is intended to be the only software on the device which
has permission to access the bundle folder on the internal filesystem, requiring interaction with the Bundle
Manager for installation or removal.
The Bundle Manager provides consistent mechanisms
for retrieving resources, both localized and unlocalized
(i.e., loading the files or other bundle contents, perhaps
in a localized folder-name) from bundles.
4
The Notification Manager
Notification Manager provides a mechanism for sending
programmatic notifications of unsolicited system events
to applications. Applications can register to receive particular types of notifications that they are interested in.
The Notification Manager can deliver notifications not
only to currently running applications, but also to ap-
2007 Linux Symposium, Volume Two • 191
plications that are registered to receive them but are not
currently running.
Notifications are general system level or user application level events like application installed/uninstalled,
card inserted/removed, file system mounted/unmount,
incoming call, clamshell opened/closed, time changed,
locale changed, low power, or device going to
sleep/waking up. The Notification Manager has a
client/server architecture.
5
The Alarm Manager
The Alarm Manager provides a mechanism to notify applications of real time alarm (i.e. time-based) events.
Both currently running and non-running applications
can receive events from the Alarm Manager. The Alarm
Manager does not control presentation to the user—the
action taken by an application in response to an alarm is
defined by the application.
The Alarm Manager:
4.1
Notification Manager server
• Works with power management facilities to register the first timer;
The Notification Manager server is a persistent thread
in a separate system process which keeps track of all
registered notifications and broadcasts notifications to
registered clients. The Notification Manager server also
communicates with the Package Manager and Application Server.
• Calls the Application Manager to launch the applications for which an alarm is due;
• Supports multiple alarms per application; and
• Stores its alarm database in SQLite for persistence.
4.2
Notification Manager client library
Client processes call APIs in the Notification Manager
client library to
1. register to receive notifications,
The Alarm Manager has no UI of its own; applications that need to bring an alarm to the user’s attention
must do this through the Attention Manager. The Alarm
Manager doesn’t provide reminder dialog boxes, and it
doesn’t play the alarm sound. Applications should use
the Attention Manager to interact with the user.
2. unregister previously registered notifications,
3. signal the completion of a notification, and
4. broadcast notifications.
The Notification Manager client library uses the Abstract IPC framework to communicate with the Notification Manager server.
4.3
What the Notification Manager is not
1. The Notification Manager should not be used for
application specific or directed notifications like
alarms or find.
2. The Notification Manager facilitates the sending
and receiving of notifications but it does not itself broadcast notifications (individual component
owners are responsible for broadcasting their own
notifications).
6
The Attention Manager
The Attention Manager manages system events that
need to be presented to the user, such as a low battery
condition or an incoming call (rather than programmatic
events delivered to other applications like the service
provided by the Notification Manager). The Attention
Manager uses a priority scheme to manage presentation
of items needing attention to the user. The infrastructure
used by applications and system services to ask for attentions and the storage of the currently pending list of
events requiring the user’s attention is separate from the
actual presentation of the events to the user.
The Attention Manager is a standard facility by which
applications can tell the user that something of significance has occurred. The Attention Manager is responsible only for being a nexus for such events and interacting with the user in regards to these events; it is not
responsible for generating the events.
192 • The Hiker Project: An Application Framework for Mobile Linux Devices
The Attention Manager provides both a single alert dialog and maintains a list of all “alert-like” events. Together these improve the user experience by first getting
the user’s attention when needed, then allowing the user
to deal with the attention or dismiss for review later.
By handling it this way, it is no longer necessary to
click through a series of old alert dialogs. Often the
user doesn’t care about most of the missed appointments
or phone calls—although he might care about a few of
them. Without the Attention Manager, the user cannot
selectively dismiss or follow up on the alert events but
would instead have to deal with each alert dialog in turn.
Applications have complete control over the types and
level of attention they can ask for.
Typical flow of an attention event:
• An application (e.g. the calendar of “Date Book”)
requests the Alarm Manager to awaken it at some
time in the future.
• The Alarm Manager simply sends an event to
an application when that future point in time is
reached. The application can then post an event
to the Attention Manager with the appropriate priority.
• The Attention Manager will present the appropriate
alert dialog based on the event type and priority.
• The Attention Manager is designed solely to interact with the user when an event must be brought to
the user’s attention.
6.1
When the Attention Manager isn’t appropriate
The Attention Manager is specifically designed for attempts to get attentions that can be effectively handled
or suspended. The Attention Manager also doesn’t attempt to replace error messages. Applications should
use modal dialogs and other existing OS facilities to
handle these cases.
The Attention Manager is also not intended to act as a
“To Do” or “Tasks” application, nor act as a “universal
in-box.” Applications must make it clear that an item appearing in the Attention Manager is simply a reminder,
and that dismissing it neither deletes nor cancels the
item itself. That is, saying “OK” to an attention message
regarding an upcoming appointment does not delete the
appointment, and dismissing an SMS reminder does not
delete the SMS message from the SMS inbox.
The Attention Manager is not an event logger, nor an
event history mechanism. It contains only the state of
active attention events.
The Attention Manager is organized in order to meet
specific design goals, which are:
• To separate UI from attention event logging mechanisms;
• To provide sufficient configurability so that a licensee may alter both the appearance and behavior
of the posted events;
• To maintain persistent store of events that will survive a soft reset;
• To be responsive (need to be quick from alert to
UI—prime example is incoming call); and
• To minimize memory usage (i.e. try to get as small
of memory foot print as possible).
The server model currently utilized relies on an init
script to start a small daemon. The daemon accepts
IPC requests to post, update, query or delete events and
maintain such event state in a database to provide persistent storage for the events. The daemon launches the
attention UI application which will display the appropriate alert dialog. If the snooze action is chosen for
an event (provided that a snooze action is associated
with the event), the Attention UI application will call
the Alarm manager to schedule a wakeup. The wakeup
will be in the form of a launch or relaunch via the Application server. In this model, the attention status gadget
is assumed to be polling the Attention Manager daemon
for active event state and using that information in displaying status. If the attention status gadget is “clicked”
on, it starts the Attention UI through the Application
Server.
6.2
Features
The Attention Manager implements the following major
components:
2007 Linux Symposium, Volume Two • 193
• attention events;
• an API library for posting, updating, deleting, and
querying events;
Communication can be synchronous or asynchronous.
When done asynchronously, processes receive messages
via a callback mechanism that works through the gLib
main loop.
• a server through which events are posted, retrieved
and managed;
8
• a UI application that displays the alert dialogs;
• an event database and associated DML API; and
• a status gadget for the status bar.
7
Abstract IPC
The Abstract IPC service provides a lightweight, robust interface to a simple message-based IPC mechanism. The actual implementation can be layered on top
of other IPC mechanisms. The current implementation
is based on Unix sockets, but this mechanism can be layered on other IPC mechanisms if required. The current
implementation has a peer-to-peer architecture that minimizes context switches, an important feature on some
popular embedded architectures.
The Abstract IPC Service comprises an API for a simple
interprocess communication (IPC) mechanism used by
the framework components described in this paper.
The goals of this design include:
• Independence from underlying implementation
mechanisms (e.g. pipes, sockets, D-BUS, etc.);
• A simple, easy to use send/receive message API;
• Support for marshalling/unmarshalling message
data; and
• Minimization of context switches by sending messages directly between processes without passing
through an intermediary process.
The IPC mechanism is based on a single server process exchanging messages with one or more clients. The
server process creates a channel; clients connect to the
channel and receive a connection pointer they can use to
send/receive messages to the server. The format of the
messages is completely up to the server and clients of
the channel.
Security Policy Framework and Hiker Security Module
The Security Policy Framework (SPF) is the component
which controls the security policy for the device. The
actual policy used by the framework is created by a licensee and can be updated. Policy is flexible and separate from the mechanisms used to enforce it. The policy can express a wide (and extensible) range of policy
attributes. Typical elements of a policy address use of
file system resources, network resources, password restriction policies, access to network services, etc. Each
policy is a combination of these attributes and is tied to
a particular digital signature.
Applications are checked for a digital signature (including no signature or a self-signature) and an appropriate
security policy is applied to the application. One of the
policy decisions that can be made by the framework is
whether the user should be consulted—this allows for
end-users to control access to various types of data on
the device and ensure that malicious applications will
not access this data covertly. Other types of decisions
are allow/deny which may be more appropriate for a carrier to use to protect access to network resources, etc.
The Hiker Security Module is a kernel level enforcement component that works in concert with the Security Policy Framework. The Security Module controls
the actual access to files, devices and network resources.
Because it is an in-kernel component, the Security Module is released under the GPL.
There must be some user control on who is allowed to
connect to the user’s device and request action from it.
Security is mostly based on the user control at the following levels:
• There will be default handlers (implemented, for
example, by in the box PIM applications) for a
bunch of published standard services. In the event
where a third party application would try to register
a duplicate handler, and the first handler declared
it wanted to be unique, the user would be alerted
194 • The Hiker Project: An Application Framework for Mobile Linux Devices
and asked to arbitrate which application should be
the installed handler. The user is the authority that
tells the system which handler wins in case of conflict. This security works whichever handler installs first. In a model where all installed applications are signed and therefore trusted, we can rely
on what the application do when they register.
actual handling of the data to whoever declared he was
the handler for this action/type-of-data pair. In addition,
the destination of the request (where the action will actually be performed) can be specified as the local device or
a remote location. This opens up new universal possibilities such as directly send a vCard to someone through
Internet while being on the phone with him.
• When there is a non-authenticated incoming connection, the user is asked to authorize the connection. Local is obviously initiated by the user and
is always valid. IR is considered authenticated, as
the user must explicitly direct his device to the initiator. Paired Bluetooth is authenticated by definition. SMS is authenticated by the mobile network.
TCP may be considered authenticate if the source
IP address figures in the table of trusted sources (although this may be discussed as it is easy to spoof
the source IP). TCP may also be configured to require a challenge password before it accepts to read
from the connection.
This component also implements the legacy Palm OS
“Garnet” Exchange Manager functionality (send data to
a local or remote application). This simply corresponds
to the action store
• Above the connection level authentication, handlers may also require permission from the user
before they perform their action. This is handler
specific. “get vCard” is obviously a very good candidate to user authorization.
9
The Exchange Manager
The Exchange Manager is a central broker to manage
inter-application/inter-device communication. Requests
to the Exchange Manager contain verbs (“get”, “store”,
“play”), data (qualified by mime-type) as well as other
parameters used to identify the specific item to be affected by the request. Use cases of the Exchange Manager include beaming a contact to another device, taking
a picture using the camera from an MMS application,
looking up a vCard based on caller ID, viewing an email
attachment, etc.
The Exchange Manager is an extensible framework:
new handlers can be created for new data types and actions as well as for new transports (e.g. IR, Local, Bluetooth, SMS, TCP/IP, etc.).
There is a need for any application to be able to perform
different tasks (such as play, get, store, print, etc.) on
several types of data. This component offers a simple,
yet expandable, API that lets any application defer the
The Java VM also implements a similar functionality
(JSR211—CHAPI). It is foreseen that the Java and native components will interoperate. In other words, a Java
application will be able to send a vCard to a remote device through IR, as well as receive data from a local native application, for some examples.
9.1
Features
The purpose of this component is to enable an application or system component to request the system to perform some action on some data, without knowing who
will carry and fulfill the request. In addition, the client
can request that the action be performed either on the local device or on some specific other destination (mobile
phone or desktop PC, etc.), using any available transport. This opens up new interesting scenarios that were
not possible to do before.
An application that implements a service it wants to
make available to others registers a handler to tell the
system it can perform this specific action on this specific type of data. The handler may also specify that it
will accept only local request, or that it will accept all
requests. Each registered handler is valid for only one
combination of action/data type. The action/data type
is defined by a verb, and a MIME type (e.g. “store –
text/vCard”).
Transport modules are responsible to carry the request
from the source to the destination device. When the request arrives at the destination (which may be the local machine), the transport will hand it to the Exchange
Manager who will then invoke the corresponding action
handler to do the actual work. A result may be sent
back to the initiator, which means it is also possible to
use this component to retrieve some data (not only send
2007 Linux Symposium, Volume Two • 195
it), or pass some data and get it back modified in some
way. An obvious use case would be to use your phone
to lookup a contact in your desktop PC address book,
or retrieve a contact’s photo and name given its phone
number.
Handlers can be registered or unregistered at any time.
A board game would register the “moveplayer” action
(a handler to receive other players moves) when it is
launched, and would send its own moves by requesting
this same action from the other user device. The game
would unregister the handler when it quits. Note that
this example does not mean Exchange Manager could
be used as a network media to handle more than peer to
peer exchanges.
An application cannot verify the availability and identity of a handler and this would not make sense in the
general usage (it is the goal of the Exchange Manager to
be able to have an unknown handler execute a request).
If an application needs to authenticate the handler, then
this means it looks for a very precise handler it knows
and in this case, it could use, for example, data encryption to ensure only the person with the right key can
understand the request.
Transports are independent modules that can also be
added or removed at any time. Typical transports would
include Local, IrDA, Bluetooth, SMS, and TCP. NonHiker destination systems must run at least an Exchange
Manager daemon and transports as well. Except for the
handler invocation part, this should be the same code for
any Linux platform (the sharedlib, daemon and transports only use standard Linux and GTK services). It
would be easy, for example, to implement a new encrypted transport, should the need arise. The library
provides a standard UI dialog to let the user select a
transport and enter the relevant parameters. If the transport information is missing in the request, the Exchange
Manager will itself pop this UI up at the time it needs
the information. If the transport determines that the destination address is missing, it will also popup an address
selection UI.
Verbs can be accompanied by parameters. Only a few
parameters are common to all verbs (e.g. a humanreadable description of the data that may be used to ask
the user if he accepts what he is receiving). Parameters are passed as a tag/value pair (the value being int
or string). Some are mandatory but most are optional
and depend on the specific handler definition. Using pa-
rameters, the result of an action handler can be precisely
customized to the client needs.
A non-exhaustive list of actions that will be defined include store, get, print, and play.
Parameters can be used by the action handler to find
out how exactly it should perform its action, or by the
transport module to get the destination address or other
transport-specific information.
An Exchange Manager daemon is started at boot time
(or at any other time). The daemon is used to listen
for incoming action request for all transports. When
a transport has an incoming request ready, the daemon
dispatches it to the right action handler. The action handler then performs its duty, and returns the result back
to the transport. The answer is then sent back to the
originator.
When the originator is local, the user is never asked to
accept the incoming data. When the originator is remote, whether a user confirmation is required will depend on the transport being used. For IrDA, it is assumed that the user implicitly accepts as he directs his
device toward the emitter (it is still to be decided if
we ignore the possibility that someone would be able
to beam something to you without your consent while
you have the device turned on). For Bluetooth, it depends whether the connection is paired or not. For SMS,
the mobile network identifies the originator (in addition,
there is no “connection” with SMS). For TCP, the transport configuration will tell whether the originator IP is
authorized, and it will ask if not.
For handlers that are essentially data consumers and
don’t return anything (like “store”), it may make sense
to let multiple handlers register for the same verb/data.
For this reason, it is left to the handler to specify if it
must be unique or not at registration time. In case it
must be unique and someone tries to register a second
handler for the same verb/data, the user would be notified and he would have the responsibility to arbitrate
which of the two handlers should be the active one.
To maintain transfer compatibility with phones or legacy
Garnet OS devices, the initiator may set a parameter to
tell he wants to use Obex as the transport. In this case,
the only verb allowed is “store.” The transport plug-in
will recognize this parameter and send the data using
the OpenObex daemon. As well, a transport plug-in can
also receive data from the OpenObex daemon. It would
196 • The Hiker Project: An Application Framework for Mobile Linux Devices
treat that like an incoming connectionless “store” action
on the received data.
For all other combinations of action/data type, the transport protocol is ours (or third party in case of third party
transport). Obex protocol is handled by the OpenObex
library. SMS NBS transport is handled in the SMS
component. Some specific Bluetooth profiles (e.g. basic
imaging profile) could also be handled by the Bluetooth
transport in order to maximize compatibility with other
kinds of devices.
An “Exchange request” is the only entity an application
works with. It is an opaque structure that contains all the
information characterizing a request: the verb, the parameters, the data reference and the destination. There
are APIs to set and get all of them. The data itself can be
specified in multiple ways: file descriptor (data will be
read from this fd by the transport) or URL (URL is sent,
and action handler will access data through the URL).
10
Global Settings
The Global Settings component provides a common API
and storage for all applications and services to access
user preferences (fonts, sizes, themes) and other application settings and configuration data. Global Settings
are hierarchical and could be used, e.g., as the basis for
OMA Device Management settings storage. The component is designed to support the security requirements
of OMA Device Management. The storage for Global
Settings uses the recently open-sourced libsqlfs project
layered on SQLite. Global Settings provides generic,
non-mobile specific, storage.
The Global Settings service provides functions for storing user preferences. It provides APIs for the setting
and getting of software configurations (typically keyvalue pairs such as “font size: 12 points”). The settings
keys may form a hierarchy like a directory tree, with
each key comparable to a file or directory in a file system, e.g. applications/datemanager/fontsize.
Indeed, Global Settings is actually implemented on top
of an abstract POSIX file system: each key has a value
and meta data such as a user id, a group id, and an access
permission.
To accomplish this, Global Settings utilizes libsqlfs, a
service component which creates the abstraction of a
POSIX file system within an SQLite database file. An
initial implementation was attempted using gconf. To
support OMA Device Management requirements, we
dropped the gconf design, which could not provide security over keys.
The Global Settings service has two parts: the daemon
(aka server) and the client library. You could store settings by simply having a server process. However, to
make it trivial for the clients to talk to the server, we
also provide a client library which handles the IPC to
the server. The client library is linked in with the client
application.
The client library and the daemon communicate via Abstract IPC. The daemon does the actual I/O for the data;
it links with the SQLite library and does the key content reads and writes on SQLite databases, with the tree
hierarchy actually implemented using relational tables
through SQL. SQLite provides no effective access control, so the daemon uses Unix file access control on the
database file to exclude everyone else. The daemon also
keeps track of the users and groups that are allowed to
access certain keys, and enforces access control. The
SQLite database files will be only readable and writable
by the daemon process.
10.1
Data Model
1. We expose key/value pairs where values amount to
the “contents” of the key and can be arbitrary data
of arbitrary size.
2. Key descriptions (in multiple languages) are supported only by convention (see below).
3. We support settings that are user, group, or other
readable/writable (or not); the user and group identities are based on these of the system and are
granted by the system. The Global Settings service does not give special meanings to any specific
group or user id.
The possible key names or key strings form a key space,
which is similar to the space of file paths. The key
strings are also called key paths. Each key path can be
absolute or relative; absolute key or key paths must start
with /, and relative key paths are relative to a “current
directory” or a “cwd.” There are APIs to get and to set
the “cwd.”
2007 Linux Symposium, Volume Two • 197
A “directory” is a key which contains other keys. A directory is similar to the interior nodes in the OMA Device Management Tree definition. To simplify our design, we disallow a directory key from having its own
content. So if you add a child key to an existing key
which has no value (or having the null value), that key
becomes a directory and attempts to set the content for
that key will fail in the future. Permissions for directories thus follow the semantics of POSIX file system.
A directory key can be created in two ways:
Otherwise, Global Settings places no meanings on the
uids and gids, except the uid 0 which has permissions
for everything, as root. The SUID bit is not honored and
ignored for Global Settings.
The x bits in directories determine if the directories can
be entered; the x bits in non-directory keys are ignored
and have no meaning currently.
The uid and gids of keys are modifiable according to the
following rules:
• The owner id cannot be changed except by the root.
• A directory is created if a request is made to create
a key that would be a child or a further descent of
the directory
• Or a key can be created with an explicit API for
this purpose
Key names follow a standard convention to allow grouping of similar attributes under the same part of the key
hierarchy. We follow the GConf conventions as closely
as possible for application preferences and system settings, with consideration for device-specific standards
like /dm for OMA Device Management.
Some typical keys are represented below:
• /dm for OMA Device Management
• /capabilities for “is java installed,” “is Garnet OS emulation installed,” etc.
• The group id cannot be changed except by the root
or the owner.
Global Settings has reserved rooms for extra attributes
for keys, currently not implemented but these could be
used for access control lists or some other meta data but
I treat such usage as the best to be avoided; if POSIX
permissions provide all that’s needed it is the best as it
is simple and efficient.
With the above convention for keys, it becomes desirable for the applications or specific device (drivers) to
create its key hierarchy during the installation time (or
at the point of system image creation). Once created a
hierarchy may be protected from access by applications
other than the designated applications.
The initial key installation follow these steps:
• /packages/com.access.apps.app1 for preferences of “app1”
• A group id is pre-assigned to a particular application (group). This assignment is to be guaranteed
at run time by the Bundle Manager and system security.
The Global Settings service is not meant for storage
of security-sensitive data such as passwords or private
keys. The data in the Global Settings are only protected
by POSIX file permissions and are not encrypted or otherwise protected!
• After an application is installed, it, or the Bundle
Manager, will use a Global Settings tool or equivalent APIs to copy the key data from the default
settings XML file into the Global Settings database
and properly set the user and the group ids and the
permissions for these keys.
Global Settings implements the POSIX file permission
(user, group and others, readable, writeable or executable) model on the keys and the key hierarchy. So
a run time process has to acquire the appropriate user
or group IDs to access a key the same way it access a
file with the same POSIX permission bits in the host file
system.
• Later the Global Settings service ensures that the
key hierarchy is accessible only to applications
with the right group membership or the user id.
The Unix file permission style permissions will
be the only security mechanism protecting the key
and key values; Global Settings does not provide
encryption-based protection mechanism.
198 • The Hiker Project: An Application Framework for Mobile Linux Devices
The Global Settings daemon is started at system boot
time. Packages need to include their associated default
preferences and these need to be installed in the correct
fashion for the underlying preferences system.
By 2010, it’s estimated that the number of “smart
phones” sold per year will exceed the number of desktop
systems. As many as half of those phones will be running Linux-based system, according to some analysts.
Clients that wish to be informed of changes in settings can register a callback with the Notification Manager. The Global Settings daemon will send Notification Manager a string representing each key that it
changes. Notification Manager will notify each application that has registered to be told about changes to
that key. (Notification Manager will notify each application that registered for that key, or a prefix of that key.
For example, an application that registered for oma/
apps would be notified when any of the following keys
changed: oma/apps/calendar/fontsize, oma/
apps/date/background-image, or oma/apps.
Linux and other open source software has taken on increased significance in this context. While a number
of Linux-based phones have been shipped (primarily in
China and other Pacific Rim geographies), few of them
have been truly “open” systems, that is, the ability to develop software for and incorporate it onto such devices
has been terribly limited.
Following the conventions of the Notification Manager, each key change notification has the “notification type” (or “notify type”) of a string of
the form /alp/globalsettings/keychange/
+ the key string.
For example, a change of
the key oma/apps/calendar/fontsize will invoke a broadcast notification call with the notification type /alp/globalsettings/keychange/
oma/apps/calendar/fontsize.
The Notification Manager currently is responsible for
monitoring the key changes in a directory tree; it implements this by checking if a changed key has, as a
prefix, a substring which matches the representative key
of a key subspace being monitored for changes by some
application. For example, the previous key change example will invoke change notifications for applications
which want to know key changes in the /oma/apps/
calendar/ key directory. The Notification Manager
is the actual component which checks this and invoke
the notification callback in client applications.
11
Conclusion
Mobile devices, and the applications running on them,
represent a new frontier for open source developers.
Worldwide cell phone sales are approaching one billion
a year, with “smart phones” (that is, phones whose capabilities can be enhanced “post-platform,” subsequent to
their purchase by the consumer) showing the largest rate
of growth. Open source-based operating systems have
been of increasing interest as a foundation for work in
the space.
Further, because the usage model for these devices is
so different from the usual desktop-oriented paradigms,
there are significant gaps in service-level functionality,
particularly in areas such as abstraction of varying execution environments for the user, packaging of applications and related resources and metadata, information
interchange between applications as well as between devices, and general approaches to security.
The security component, in particular, is key to the effort
to foster a “third-party developer ecosystem” for mobile
devices. Because of their very nature, as well as the
regulatory structure within which they exist, certain operational characteristics of devices such as cell phones
must be guaranteed. This is true even in the case of errant or malicious additional software being installed on
the device.
A paper of this length can only provide a high-level
overview of the components involved and their potential characteristics, usage, and interrelationships. A
great deal more detailed information is available on the
project web site.
Hiker is an attempt to address the most significant of the
gaps discussed at the outset of this paper as a way of
reducing fragmentation and encouraging participation
in the mobile applications development context. The
Hiker Project is intended to be a open, community effort. While ACCESS engineers are responsible for the
initial implementation, the project is intended for the use
of all developers interested in mobile applications development, and their participation in improving the framework is invited.
c 2007 The Hiker Project. Permission to redistribute in ac
cordance with Linux Symposium submission guidelines is
R
granted; all other rights are reserved. ACCESS
is a regTM
istered trademark of ACCESS Co., Ltd. Garnet is a trade-
2007 Linux Symposium, Volume Two • 199
R
mark of ACCESS Systems Americas, Inc. UNIX
is a regR
istered trademark of The Open Group. Palm OS is a registered trademark of Palm Trademark Holding Company, LLC.
R
The registered trademark Linux
is owned by Linus Torvalds, owner of the mark in the U.S. and other countries, and
R
licensed exclusively to the Linux Mark Institute. Mac
and
R
OS X are registered trademarks of Apple, Inc. All other
trademarks mentioned herein are the property of their respective owners.
200 • The Hiker Project: An Application Framework for Mobile Linux Devices
Getting maximum mileage out of tickless
Suresh Siddha
Venkatesh Pallipadi
Arjan Van De Ven
Intel Open Source Technology Center
{suresh.b.siddha|venkatesh.pallipadi|arjan.van.de.ven}@intel.com
Abstract
Now that the tickless(/dynticks) infrastructure is integrated into the base kernel, this paper talks about various add on changes that makes tickless kernels more
effective.
Tickless kernel pose some hardware challenges that
were primarily exposed by the requirement of continuously running per-CPU timer. We will discuss how this
issue was resolved by using HPET in a new mode. Eliminating idle periodic ticks causes kernel process scheduler not do idle balance as frequently as it would do otherwise. We provide insight into how this tricky issue of
saving power with minimal impact on performance, is
resolved in tickless kernel.
We will also look at the kernel and user level daemons
and drivers, polling for things with their own timers and
its side effect on overall system idle time, with suggestions on how to make these daemons and drivers
tickless-friendly.
1
Old Linux kernels used a 100 Hz frequency (every
10 milliseconds) timer interrupt, newer Linux uses a
1000 Hz (1ms) or 250 Hz (4ms) timer interrupt. The
frequency of the timer interrupt determines how fine
grained you can schedule future events. Since the kernel
knows this frequency, it also knows how to keep time:
every 100 / 250 / 1000 timer interrupts another second
has passed.
This periodic timer event is often called “the timer tick.”
This timer tick is nice and simple but has two severe
downsides: First of all, this timer tick happens periodically irrespective of the processor state (idle Vs busy)
and if the processor is idle, it has to wake up from its
power saving sleep state every 1, 4, or 10 milliseconds,
which costs quite a bit of energy (and hence battery life
in laptops). Second of all, in a virtualization environment, if a system has 50 guests that each have a 1000
Hz timer tick, the total system will have a 50,000 effective ticks. This is not workable and highly limits the
number of possible guests.
Introduction
Traditionally, SMP Linux (just as most other operating systems) kernel uses a global timer (present in the
chipset of the platform) to generate a periodic event
for time keeping (for managing time of the day) and
periodic local CPU timer event for managing per-CPU
timers. Timers are basically events that the kernel wants
to happen at a specified time in the future (either for its
own use or on behalf of an application). An example of
such a timer is the blinking cursor; the GUI wants the
cursor to blink every 1.2 seconds so it wants to schedule
an operation every 600 milliseconds into the future. In
the pre tickless kernel, per-CPU “timers” were implemented using the periodic timer interrupt on each CPU.
When the timer interrupt happens, the kernel checks if
any of the scheduled events on that CPU are due and if
so, it performs the operation associated with that event.
Tickless(/Dynticks) kernel is designed to solve these
downsides. This paper will briefly look into the current
tickless kernel implementation and then look in detail
about the various add-ons the authors added to make the
tickless kernel more effective. Section 2 will look into
the current tickless kernel infrastructure. Section 3 will
look at the impact of different timers in the kernel and
its impact on tickless kernel. Section 4 will address the
hardware challenges that were exposed by the requirement of per-CPU timer.
Section 5 will talk about the impact on process load balancing in tickless idle kernels and the problem resolution. Section 6 will look at the impact of the different
timers (and polling) in user level daemons and drivers
on the power savings aspect of the tickless kernel.
• 201 •
202 • Getting maximum mileage out of tickless
2
Tickless Kernel
Tickless kernel, as the name suggests, is a kernel without the regular timer tick. Tickless kernel depends on
architecture independent generic clocksource and clockevent management framework, which got into the mainline in the recent past [7]. Generic timeofday and clocksource management framework moved lot of timekeeping code into architecture independent portion of code,
with architecture portion reduced to defining and managing low level hardware pieces of clocksources. While
clock sources provide read access to the monotonically
increasing time value, clock event devices are used to
schedule the next event interrupt(s). The setup and selection of the event devices is hardwired into the architecture dependent code. The clock events provides a
generic framework to manage clock event devices and
their usage for the various clock event driven kernel
functionalities.
Linux kernel typically provided timers which are of tick
(HZ) based timer resolution. clockevents framework in
the newer kernels enabled the smooth implementation
of high resolution timers across architectures. Depending on the clock source and clock event devices that are
available in the system, kernel switches to the hrtimer
[8] mode and per CPU periodic timer tick functionality
is also provided by the per CPU hrtimers (managed by
per-CPU clockevent device).
Hrtimer based periodic tick enabled the functionality of
tickless idle kernel. When a CPU goes into idle state,
timer framework evaluates the next scheduled timer
event and in case that the next event is further away than
the next periodic tick, it reprograms the per-CPU clockevent device to this future event. This will allow the idle
CPU to go into longer idle sleeps without the unnecessary interruption by the periodic tick.
The current solution in 2.6.21 [4] eliminates the tick during idle and as such it is not a full tickless or dynamic
tick implementation. However, eliminating the tick during idle is a great first step forward. Future trend however is to completely remove the tick, irrespective of the
busy or idle CPU state.
2.1
Dynticks effectiveness data
Effectiveness of dynticks can be measured using different system information like power consumption, idle
time etc. Following sections of this paper looks at the
dynticks effectiveness in terms of three measurements
done on a totally idle system.
• The number of interrupts per second.
• The number of timer events per second.
• Average amount of time CPU stays in idle state
upon each idle state entry.
These measurements, collectively, gives an easy approximation to actual system power and battery consumption.
These measurements reported were taken on a totally
idle system, few minutes after reboot. The number of interrupts in the system, per second, is computed by taking
the average from output of vmstat. The value reported
is the number of interrupts per second on the whole
system (all CPUs). The number of events reported is
from /proc/timer_stats and the value reported is
events per second. Average CPU idle time per call is
the average amount of time spent in a CPU idle state
per entry into idle. The time reported is in uS and this
data is obtained by using /proc/acpi/processor/
CPU*/power. All these three measurements are at the
system level and includes the activity of all CPUs.
The system used for the measurement is a Mobile refTM
R
erence system with Intel
Core 2 Duo CPUs (2 CPU
cores), running i386 kernel with a HZ rate of 1000.
2.1.1
Baseline measurement
Table 1 show the data with and without dynticks enabled.
As the data indicates, dyntick eliminates the CPU timer
ticks when CPUs idle and hence reduces the number of
interrupts in the system drastically. This reduction in
number of interrupts also increases the amount of time
CPU spends in an idle state, once entering that idle state.
Is this the best that can be done or is there scope to do
more changes within the kernel to reduce the number of
interrupts and/or reduce the number of events? Following sections addresses this specific question.
2007 Linux Symposium, Volume Two • 203
With ticks
Tickless
# interrupts
#events
2002
118
59.59
60.60
Avg CPU idle
residency (uS)
651
10161
Table 1: System activity during idle with and without periodic ticks
3
Keeping Kernel Quiet
One of the noticeable issue with the use of timers, inside core kernel, in drivers and also in userspace, is that
of staggered timers. Each user of a timer does not know
about other timers that may be setup on the system at
the particular time and picks a particular time based on
its own usage restrictions. Most of the time, this specific usage restriction does not mandate a strict hard time
value. But, each timer user inadvertently end up setting
the timer on their own and hence resulting in a bunch of
staggered timers at the system level.
will be handled when processor eventually comes out of
idle due to a non-deferrable timer or any other interrupts.
Deferrable timer is implemented using a special state bit
in the timer structure, overloaded over one of the fields
in the current structure, which maintains the nature of
the timer (deferrable or not). This state bit is preserved
as the timer moves around in various per-CPU queues
and __next_timer_interrupt() skips over all
the deferrable timers and picks the timer event for next
non-deferrable timer in the timer queue.
To prevent this in kernel space, a new API __round_
jiffies() is introduced [6] in the kernel. This API
rounds the jiffy timeout value to the nearest second. All
users of timeout, who are really not interested in precise
timeout should use this API while setting their timeout.
This will cause all such timers to coalesce and expire at
the same jiffy, preventing the staggered interrupts.
This API works very well with ondemand, reducing the
number of interrupts and number of events on an idle
system as shown in the Table 2. As shown, this feature
nearly doubles the average CPU idle residency time, on
a totally idle system. This API may also have limited
usages with other timers inside the kernel like machine
check or cache reap timers and has the potential to reduce the number of wakeups on an idle system further
down.
Another specific issue inside the kernel that needed special attention are the timer interrupts from drivers which
are only important when CPU is busy and not really as
important to wake the CPU from idle and service the
timer. Such timer can tolerate the latency until some
other important timer or interrupt comes along, at which
time this timer can be serviced as well. Classic example
of this usage model is cpufreq ondemand governor.
Note that this timer is only available for in kernel usage at this point and usage for user apps is not yet conceptualized. It is not straight forward to extend this to
userspace as user timer are not directly associated with
per-CPU timer queues and also there can be various
dependencies across multiple timers, which can result
in timer reordering depending on what CPU they are
scheduled on and whether that CPU is idle or not.
ondemand governor monitors each processor utilization
at periodic intervals (many times per second) and tries to
manage the processor frequency, keeping it close to the
processor utilization. When a processor is totally idle,
there is no pressing need for ondemand to periodically
wakeup the processor just to look at its utilization. To
resolve this issue, a new API of deferrable timers
was introduced [1] in the recent kernel.
Deferrable timer is a timer that works as a normal timer
when processor is active, but will be deferred to a later
time when processor is idle. The timers thus deferred
4
Platform Timer Event Sources
Dynticks depends on having a per-CPU timer event
source. On x86, LAPIC timer can be used as a dependable timer event source. But, when the platform
supports low power processor idle states (ACPI C2, C3
states), on most current platforms LAPIC timer stops
ticking while CPU is in one of the low power idle states.
Dynticks uses a nice workaround to address this issue,
with the concept of broadcast timer. Broadcast timer is
an always working timer, that will be shared across a
204 • Getting maximum mileage out of tickless
Ondemand
Ondemand +
deferrable timer
# interrupts
#events
118
89
60.60
17.17
Avg CPU idle
residency (uS)
10161
20312
Table 2: System activity during idle with and without deferrable timer usage in ondemand
pool of processors and has the responsibility to send a
local APIC timer interrupt to wakeup any processor in
the pool. Such broadcast timers are platform timers like
PIT or HPET [3].
PIT/8254: is a platform timer that can run either in oneshot or periodic mode. It has a frequency of 1193182
Hz and can have a maximum timeout of 27462 uS.
HPET: Is based on newer standard, has a set of memory
mapped timers. These timers are programmable to work
in different modes and frequency of this timer is based
on the particular hardware. On our system under test,
HPET runs at 14318179 Hz freq and can have a max
timeout of more than 3 seconds (with 32-bit timer).
HPET is superior than PIT, in terms of max timeout
value and thus can reduce the number of interrupts when
the system is idle. Most of the platforms today has built
in HPET timers in the chipset. Unfortunately, very few
of the platforms today enable HPET timer and/or advertise the existence of HPET timer to OS using the ACPI
tables. As a result, Linux kernel ends up using PIT
for broadcast timer. This is not an issue on platforms
which do not support low power idle state (e.g., today’s
servers) as they have always working local APIC time.
But, this does cause issue on laptops that typically support low power idle states.
4.1
Force detection of HPET
To resolve this issue of BIOS not enabling/advertising
HPET, there is a kernel feature to forcefully detect and
enable HPET on various chipsets, using chipset specific
PCI quirks. Once that is done, HPET can be used instead of PIT to reduce the number of interrupts on an
idle system further. On our test platform, data that we
got after forcefully detecting and enabling HPET timer
is in Table 3.
Note that this patch to force enable HPET was in
proposal-review state at the time of writing this paper
and was not available in any standard kernel yet.
4.2
HPET as a per-CPU timer
Linux kernel uses “legacy replacement” mode of HPET
timer today to generate timer events. In this mode,
HPET appears like legacy PIT and RTC to OS generating interrupts on IRQ0 and IRQ8 for HPET channel 0
and channel 1 timer respectively. There is a further optimization possible, where HPET can be programmed
in “standard” interrupt delivery mode and use different
channels of HPET to send “per-CPU” interrupt to different processors. This will help laptops that have 2 logical
CPUs and at least 2 HPET timer channels available. Different channels of HPET can be used to program timer
for each CPU, thereby avoiding the need for broadcast
timer altogether and eliminating the LAPIC timers as
well. This feature, which is still under development at
the time of writing this paper, brings an incremental benefit on systems with more than one logical CPUs and
that support deep idle states (most laptop systems with
dual core processors). Table 4 shows the data with and
without this feature on such a system.
In comparison to base tickless data (as shown in Table 1), features we have talked so far (as shown in Tables 2, 3, and 4) have demonstrated the increase in idle
residency time by approximately 7 times.
5
Idle Process Load balancing
In the regular kernel, one of the usages of the periodic
timer tick on each processor is to perform periodic process load balancing on that particular processor. If there
is a process load imbalance, load balancer will pull the
process load from a busiest CPU, ensuring that the load
is equally distributed among the available processors in
the system. Load balancing period and the subset of
processors which will participate in the load balancing
will depend on different factors, like the busy state of
the processor doing the load balance, the hierarchy of
scheduler domains that this processor is part of and the
2007 Linux Symposium, Volume Two • 205
# interrupts
#events
89
32
17.17
15.15
PIT
HPET
Avg CPU idle
residency (uS)
20312
56451
Table 3: System activity during idle with PIT Vs HPET
global HPET
percpu HPET
# interrupts
#events
32
22
15.15
15.15
Avg CPU idle
residency (uS)
56451
73514
Table 4: System activity during idle with global vs. per-CPU HPET channels
Garbage collector
parallel
gencon
Perf Regression
6.3%
7.7%
Table 5: SPECjbb2000 performance regression with
Tickless kernel. Tickless Idle load balancing enhancements recovered this performance regression.
process load in the system. Compared to busy CPUs,
idle CPUs perform load balancing more often (mainly
because it has nothing else to do and can immediately
start executing the pulled load, the load otherwise was
waiting for CPU cycles on another busy CPU). In addition to the fairness, this will help improve the system
throughput. As such, idle load balancing plays a very
important role.
Because of the absence of the periodic timer tick in tickless kernel, idle CPU will potentially sleep for longer
time. This extended sleep will delay the periodic load
balancing and as such the idle load balancing in the system doesn’t happen as often as it does in the earlier kernels. This will present a throughput and latency issue,
especially for server workloads.
To measure the performance impact, some experiments
were conducted on an 8 CPU core system (dual package
system with quad-core) using SPECjbb2000 benchmark
in a 512MB heap and 8 warehouses configuration. Performance regression with tickless 2.6.21-rc6-rt0 kernel
[5] is shown in Table 5.
Recovering this performance regression in the tickless
kernel with no impact on power savings is tricky and
challenging. There were some discussions happened
in the Linux kernel community on this topic last year,
where two main approaches were discussed.
First approach is to increase the back off interval of periodic idle load balancing. Regular Linux kernel already
does some sort of backoff (increasing the load balance
period up to a maximum amount) when the CPU doing the load balance at a particular sched domain finds
that the load at that level is already balanced. And if
there is an imbalance, the periodic interval gets reset
to the minimum level. Different sched domains in the
scheduler domain hierarchy uses different minimum and
maximum busy/idle intervals and this back off period
increases as one goes up in the scheduler domain hierarchy. Current back off intervals are selected in such a
fashion that there are not too many or too less load balancing attempts, so that there is no overdoing the work
when the system is well balanced and also react in reasonable amount of time, when the load changes in the
system.
To fix the performance regression, this approach suggests to further increase the backoff interval for all the
levels in the scheduler domain hierarchy but still retaining the periodic load balancing on each CPU (by registering a new periodic timer event which will trigger the
periodic load balancing). Defining the interval increase
will be tricky and if it is too much, then the response
time will also be high and won’t be able to respond for
sudden changes in the load. If it is small, then it won’t
be able to save power, as the periodic load balancing will
wake up the idle CPU often.
Second mechanism is some sort of a watchdog mech-
206 • Getting maximum mileage out of tickless
anism where the busy CPU will trigger the load balance on an idle CPU. This mechanism will be making
changes to the busy load balancing (which will be doing more load balancing work, while the current busy
task on that CPU is eagerly waiting for the CPU cycles).
Busy load balancing is quite infrequent compared to idle
load balancing attempts. Similar to the first mechanism,
this mechanism also won’t be able to respond quickly
to changes in load. And also figuring out that a CPU is
heavily loaded and where that extra load need to moved,
is some what difficult job, especially so in the case of
hierarchical scheduler domains.
This paper proposes a third route which nominates an
owner among the idle CPUs, which does the idle load
balancing (ILB) on behalf of the other idle CPUs in the
system. This ILB owner will have the periodic tick active in idle state and uses this tick to do load balancing
on behalf of all the idle CPUs that it tracks, while the
other idle CPUs will be in long tickless sleeps. If there
is an imbalance, ILB owner will wakeup the appropriate CPU from its idle sleep. Once all the CPUs in the
system are in idle state, periodic tick on the ILB owner
will also stop (as there is no other CPU generating load
and hence no reason for checking the load imbalance).
New idle load balancing owner will be selected again,
as soon as there is a busy CPU in the system.
This solution is in 2.6.21 -mm kernels and the experiments showed that this patch completely recovered the
performance regression seen earlier (Table 5) in the tickless kernels with SPECjbb workload. If this ILB owner
selection is done carefully (like an idle core in a busy
package), one can minimize the power wasted also.
6
Keeping Userspace Quiet
Tickless idle kernel alone is not sufficient to enable the
idle processor to go into long and deep sleeps. In addition to the kernel space, applications in the user space
also need to quite down during idle periods, which will
ensure that the whole system goes to long sleeps, ultimately saving power (and thus enhancing battery life in
case of laptops).
Dave Jones’ OLS2006 talk [9] entitled “Why Userspace
Sucks” revealed to the Linux community that the
userspace really doesn’t quiet down as one would hope
for, on an otherwise idle system. Number of applications and daemons wakeup at frequent intervals (even on
a completely idle system) for performing a periodic activity like polling a device, cursor blinking, querying for
a status change to modify the graphical icon accordingly
and so on (for more information about the mischeivous
application behaviors look into references [9, 10, 2]).
A Number of fixes went into applications and libraries
over the course of the last year to fix these problems [2]. Instead of polling periodically for checking
status changes, applications and deamons should use
some sort of event notification where ever possible and
perform the actions based on the triggered event. For example, the hal daemon used to poll very frequently to
check for media changes and thus making the idle processor wakeup often. Newer SATA hardware supports
a feature called Asynchronous Notification, which will
notify the host at a media change event. With the recent changes in the community, hal daemon will avoid
the polling on platforms which has the support of this
asynchronous notification.
Even in the case where the application has to rely on periodic timers, application should use intelligent mechanisms to avoid/minimize the periodic timers when possible. Instead of having scattered timers across the period of time, it will be best to group them and expire
the bunch of timers at the same instance. This grouping will minimize the number of instances a processor
will be wokenup, while still servicing the same number
of timers. This will enable the processor to sleep longer
and go into the lowest power state that is possible.
For example all gnome applications use the glib timer
g_timeout_add() API for their timers, which expire
at scattered instances. A second API, g_timeout_
add_seconds() has now been added which causes all
recurring timers to happen at the start of the second, enabling the system wide grouping of timers. The start
of the second is offset by a value which is system wide
but system-specific to prevent all Linux machines on the
internet doing network traffic at the same time.
New tools are getting developed [10] for identifying the applications (and even the kernel level components) which behave badly by wakingup more often than required. These tools use the kernel interfaces (like /proc/timer_stats, /proc/acpi/
processor/CPU*/power, /proc/interrupts) and
report the biggest offenders and also the average Cstate residency information of the processor. Developers
should use these tools to identify if their application is
2007 Linux Symposium, Volume Two • 207
on the hitlist and if so, fix them based on the above mentioned guidelines.
7
Conclusions
Tickless kernel infrastructure is the first and important
step forward in making the idle system go into long and
deep sleeps. Now that this is integrated into Linux kernel, enhancements mentioned in this paper will increase
the mileage out of the tickless kernel, by minimizing
the unnecessary wakeups in an otherwise idle system.
Going forward, responsibility of saving power lies with
both system and user level software. As an evolutionary
step, in coming days we can expect the Linux kernel to
be fully (both during idle and busy) dynamic tick capable.
8
Acknowledgments
Thanks to all the Linux community members who contributed, reviewed and provided feedback to various
tickless add on features mentioned in this paper.
References
[1] Deferrable timers.
http://lwn.net/Articles/228143/.
[2] Dependency tree for bug 204948: Userspace
sucks (wakeups). https:
//bugzilla.redhat.com/bugzilla/
showdependencytree.cgi?id=204948.
[3] High precision event timers specification.
http://www.intel.com/technology/
architecture/hpetspec.htm.
[4] Linux 2.6.21. http://www.kernel.org.
[5] Realtime preempt patches.
http://people.redhat.com/mingo/
realtime-preempt/.
[6] Round jiffies infrastructure. http:
//lkml.org/lkml/2006/10/10/189.
[7] Thomas Gleixner and Ingo Molnar. Dynamic
ticks.
http://lwn.net/Articles/202319/.
[8] Thomas Gleixner and Douglas Neihaus. High
resolution timers ols 2006.
https://ols2006.108.redhat.com/
reprints/gleixner-reprint.pdf.
[9] Dave Jones. Why userspace sucks ols 2006.
https://ols2006.108.redhat.com/
reprints/jones-reprint.pdf.
[10] Arjan Van De Ven. Programming for low power
usage.
http://conferences.oreillynet.
com/cs/os2007/view/e_sess/12958.
c
This paper is copyright 2007
by Intel Corporation. Redistribution rights are granted per submission guidelines; all
other rights are reserved.
*Other names and brands may be claimed as the property of
others.
208 • Getting maximum mileage out of tickless
Containers: Challenges with the memory resource controller and its
performance
Balbir Singh
IBM
Vaidyanathan Srinivasan
IBM
[email protected]
[email protected]
Abstract
Containers in Linux are under active development and
have different uses like security, isolation and resource
guarantees. In order to provide a resource guarantee
for containers, resource controllers are used as basic
building blocks to monitor and control utilization of system resources like CPU time, resident memory and I/O
bandwidth, among others. While CPU time and I/O
bandwidth are renewable resources, memory is a nonrenewable resource in the system. Infrastructure to monitor and control resident memory used by a container
adds a new dimension to the existing page allocation and
reclaim logic.
In order to assess the impact of any change in memory
management implementation, we propose adding parameters to modify VM1 behavior and instrument code
paths and collect data against common workloads like
file-server, web-server, database-server and developer
desktop. Data of interest would be reclaim rate, page
scan density, LRU2 quantum, page container affinity and
page generation.
This paper discusses, in detail, the design and performance issues of RSS controller and pagecache controller within the container framework. Some of the
modifications to the current page reclaim logic that
could help containers are also evaluated.
1
Background
Server consolidation, virtualization and containers are
buzz words in the industry today. As enterprises are consolidating applications and platforms to a single server,
either through virtualization or containers, there is a
1 Linux
2 Least
virtual memory manager.
recently used page list.
need to differentiate between them. Consider a server
that hosts two platforms, one an employee e-mail server
and the other a customer call center application. The enterprise would definitely want the customer call center
application to have a priority over the employee e-mail
server. It would be unacceptable if the employee e-mail
server occupied and consumed most of the resources
available in the consolidated server thereby affecting
performance of critical applications (in this case, the call
center application).
Resource management can provide service guarantees
by limiting the resource consumption of the employee
e-mail server. Resource controllers are part of container
framework that would monitor and control certain resource. Controllers generally monitor and limit one resource like memory, CPU time, I/O bandwidth etc. In
order to provide isolation between containers from resource perspective, we would primarily need to control
memory and CPU time. In this paper we discuss the
challenges with the design and implementation of memory controller.
2
Memory controller
A memory controller [13] allows us to limit the memory
consumption of a group of applications. Several proposals for memory control have been posted to LKML,3
they are resource groups [11], memory container [12],
beancounters [6], and the most recent, RSS controller
[2] [3]. The design and features supported by each of
the proposals is discussed below.
2.1
Resource groups
The resource groups memory controller was developed
by Chandra Seetharaman, Jiantao Kong, and Valerie
Clement [11].
3 Linux
• 209 •
kernel mailing list.
210 • Containers: Challenges with the memory resource controller and its performance
It was built on top of the resource groups, resource management infrastructure and supported both limits and
guarantees. Guarantees and limits were set using the
min_shares and max_shares parameters, respectively. Resource groups control only user-space pages.
Various configuration parameters allowed the system
administrator to control:
• The percentage of the memory usage limit, at
which the controller should start reclaiming pages
to make room for new pages;
• The percentage to which the reclaimer should
shrink pages, when it starts reclaiming;
• Number of seconds in a shrink interval;
• Number of shrink attempts in a shrink interval.
A page LRU list, broken down from zone LRU, is maintained for every resource group, which helps minimize
the number of pages to be scanned during page reclaim.
2.3
Beancounters
The memory controller for Beancounters was developed
by Pavel and Kirill [7]. The salient features of this implementation are:
• Initial versions supported only resource limits,
whereas later versions supports reclaim of RSS
pages as well.
• The system call interface was the only means
for setting limits and obtaining resource usage,
whereas newer versions have added file system
based configuration and control.
• Kernel resources such as page tables, slab usage is
accounted for and limited.
The drawbacks of this approach are:
• There is no direct support for guarantees.
Task migration is an expensive operation, as it requires
the class field in each page to be updated when a
task is migrated.
• Task migration is supported, however when a task
migrates, it does not carry forward the charges of
the resources used so far.
2.2
• Pagecache control is not present.
Memory container
The salient features of memory containers as posted by
Rohit Seth [12] are as follows:
• It accounts and limits pagecache and RSS usage of
the tasks in the container.
• It scans the mappings and deactivates the pages
when either the pagecache or RSS limit is reached.
• When container reclaim is in progress, no new
pages are added to it.
2.4
RSS controller
The RSS controller was developed by Balbir Singh [14].
The salient features of this implementation are:
• No change in the size of page structure.
• RSS accounting definition is the same as that is
TM
presently used in the Linux kernel.
• The per-zone LRU list is not altered.
The drawbacks of this approach are:
• Task migration is an expensive operation, the container pointer of each page requires updating.
• The container that first accesses a file, is charged
for all page cache usage of that file.
• There is no support for guarantees.
• Shared pages are reclaimed by un-mapping the
page from the container when the container is over
its limit.
The drawback of this approach is the reclaim algorithm.
The reclaimer needs to walk through the per zone LRU
of each zone to first find and then reclaim pages belonging to a given container.
2007 Linux Symposium, Volume Two • 211
LRU
List
page
descriptor
page
descriptor
page
descriptor
page
descriptor
...
Per Container
List
meta
page
meta
page
meta
page
meta
page
Figure 1: RSS controller with per container list
Pavel enhanced the RSS controller [2] and added several good features to it. The most significant was a per
container list of pages.
Figure 1 shows the organization of the RSS controller.
Each page has a meta page associated with it. All the
meta pages of the pages belonging to a particular container are linked together to form the per container list.
When the container is over its limit, the RSS controller
scans through the per container list and try to free pages
from that list.
The per container list is not the most efficient implementation for memory control, because the list is not in LRU
order. Balbir [3] enhanced the code to add per container
LRU lists (active and inactive) to the RSS controller.
3
Pagecache control
Linux VM will read pages from disk files into a main
memory region called pagecache.4 This acts as a buffer
between the user application’s pages and actual data on
disk. This approach has the following advantages:
• Disk I/O is very expensive compared to memory
access, hence the use of free memory to cache disk
data improves performance.
• Even though the application may read only a few
bytes from a file, the kernel will have to read multiple disk blocks. This extra data needs to be stored
somewhere so that future reads on the same file can
be served immediately without going to disk again.
• The application may update few bytes in a file repeatedly, it is prudent for the kernel to cache it in
memory and not flush it out to disk every time.
• Application may reopen the same file often, there
is a need to cache the file data in memory for future
4 Also
referred to as disk cache.
use even after the file descriptor is closed. Moreover the file may be opened by another application
for further processing.
The reader might begin to ponder why we need to control the pagecache? The problem mainly arises from
backup applications and other streaming data applications that bring in large amounts of disk data to memory
that is most likely not to be reused. As long as free
memory is available, it is best to use them for pagecache pages since that would potentially improve performance. However, if there is no free memory, then cold
pages belonging to other applications would be swapped
out to make room for new pagecache data. This behavior would work fine in most circumstances, but not all.
Take the case of a database server that does not access
records through pagecache as it uses direct I/O. Applications, like the database server, manage their own memory usage and prefer to use their own disk caching algorithms. The OS is unlikely to predict the disk cache behavior of the application as well as the application can.
The pagecache might hurt the performance of such applications. Further, if there is a backup program that
moves large files on the same machine, it would end up
swapping pages belonging to database to make room for
pagecache. This helps the backup program to get its
job done faster, but after the backup is done, the system
memory is filled with pagecache pages while database
application pages are swapped-out to disk. When the
database application needs them back, it will have to
wait for the pages to be swapped-in. Hence the database
application pays the price for backup application’s inappropriate use of pagecache.5
The problem becomes more visible with server consolidation and virtualization. Now there is a need to limit
the usage of pagecache for a certain group of applications in order to protect the working set of other critical applications. Limiting the pagecache usage for less
important tasks would impact its performance, which is
acceptable, because the system performance is judged
only based on the performance of the critical application like database or web server.
The RSS controller does control pagecache to some extent. When an application maps files, the pages are accounted in its resident set and would be reclaimed by
5 The
pagecache feature is less important in the example given,
since the throughput of the database is more important than the speed
of the backup.
212 • Containers: Challenges with the memory resource controller and its performance
RSS controller if they go over the limit. However, it
is possible for application to load data into pagecache
memory with read/write system calls and not map all
the pages in memory. Hence there is a need to control unmapped pagecache memory as well. The pagecache controller is expected to count unmapped pagecache pages and reclaim them if found over the limit. If
the pages are mapped by the application, then they are
counted as RSS page and the RSS controller will do the
needful. If unmapped pagecache pages are not tracked
and controlled, then the pages unmapped by the RSS
controller will be marked for swap-out operation. The
actual swap-out operation will not happen unless there
is a memory pressure. The pages reclaimed by the RSS
controller will actually go into swapcache which is part
of pagecache. The pagecache controller will count these
swap-cache pages as well and create a memory pressure
to force the reclaimer to actually swap-out the pages and
free system memory. In order to maintain memory limits, for containers, pagecache memory should also be
controlled apart from RSS limit. Pagecache controller
and RSS memory controller are parts of memory controller for containers. Initial prototype patches are independent, however both these controllers share code
paths and hopefully they will eventually be integrated
as part of container memory controller.
The Linux VM has various knobs like /proc/
sys/vm/{swappiness, dirty_ratio, dirty_
background_ratio} to control pagecache usage and
behavior.
However they control system-wide behavior and may affect overall system performance.
swappiness is a percentage ratio that would control
choice of pages to reclaim. If the percentage is greater,
anonymous pages would be chosen and swapped out
instead of pagecache pages during page reclaim. Reducing the swappiness ratio would reduce pagecache usage. The other two knobs, dirty_ratio
and dirty_background_ratio, control write out
of pagecache pages. Dirty pagecache pages needs to be
written out to disk before the page can be reused. However a clean pagecache page is as good as free memory because it can be freed with almost zero overhead
and then reused for other purposes. The kernel periodically scans for dirty pagecache pages and writes them
out based on the desired dirty page ratio.
Container framework and memory controller provide infrastructure to account for and monitor system memory used by group of applications. Extending the avail-
able infrastructure to account for and control pagecache
pages would provide isolation, control and performance
enhancements for certain groups of applications. By default, the Linux kernel would try to use the memory
resources in the best suitable manner to provide good
overall system performance. However, if applications
running in the system are assigned different priorities
then kernel’s decisions needs to be made taking into account the container’s limits which indirectly implies priority.
Limiting the amount of pagecache used by a certain
group of applications is the main objective of the pagecache controller under the container framework. Couple
of methods to control pagecache have been discussed
on LKML in the past. Some of these techniques are discussed below.
3.1
Container pagecache controller
Pagecache accounting and control subsystem under container framework [15] works using the same principle
as memory controller. Pages brought into the pagecache
are accounted for against the application that brought
it in. Shared pagecache pages are counted against the
application that first brought it into memory. Once the
pagecache limit is reached, the reclaimer is invoked that
would pick unmapped pages in inactive list and free
them.
The code reclaim path for the RSS controller and pagecache controller is common except for few additional
condition checks and different scan control fields. All
reclaim issues discussed in RSS controller section applies to the pagecache controller as well.
3.2
Allocation-based pagecache control
Roy Huang [4] posted a pagecache control technique
where the existing kswapd() would be able to reclaim
pages when the pagecache goes over limit. A new routine balance_pagecache() is called from various
file I/O paths that would wake up kswapd() in order
to reclaim pagecache pages if they are over the limit.
kswapd() checks to see if pagecache is over the limit
and then it uses shrink_all_memory() to reclaim
all pagecache pages. The pagecache limit is set through
a /proc interface.
2007 Linux Symposium, Volume Two • 213
The generic reclaimer routine is used here, which
prefers pagecache pages over mapped pages. However,
if the pagecache limit is set to a very small percentage,
then the reclaimer will be called too often and it will
end up unmapping other mapped pages as well. Another
drawback in this technique is not distinguishing mapped
pagecache pages that might be in use by the application.
If a mapped page is freed, then the application will most
probably page-fault for it soon.
Aubrey Li [9] took a different approach by adding a
new allocation flag, __GFP_PAGECACHE, to distinguish pagecache allocations. This new flag is passed
during allocation of pagecache pages. Pagecache limit
is set through /proc as in the previous case. If the utilization is over the limit, then code is added to flag a low
zone watermark in the zone_watermark_ok() routine. The kernel will take the default action to reclaim
memory until sufficient free memory is available and
zone_watermark_ok() would return true. The reclaim technique has the same drawbacks cited in Roy’s
implementation.
Christoph Lameter [8] refined Aubrey’s approach [9]
and enhanced the shrink_zone() routine to use different scan control fields so that only pagecache pages
are freed. He introduced per-zone pagecache limit and
turned off may_swap in scan control so that mapped
pages would not be touched. However, there is a problem with not unmapping mapped pages because pagecache stats count both mapped and unmapped pagecache pages. If the mapped part is above limit, like if
an application mmap() file causes pagecache to go over
the limit, then the reclaimer will be triggered repeatedly,
which does not unmap pages and reduce the pagecache
utilization. We should account for only unmapped pagecache pages for the limit in order to workaround this issue. Mapped pagecache pages will be accounted by the
RSS memory controller. The possibility of user spacebased control of pagecache was also discussed.
3.3
Usermode pagecache control
Andrew Morton [10] posted a user-mode pagecache
control technique using fadvise() calls to hint the
application’s pagecache usage to kernel. The POSIX
fadvise() system call can be used to indicate to
the kernel how the application intends to use the contents of the open file. There are a couple of options
like NORMAL, RANDOM, SEQUENTIAL, WILLNEED,
NOREUSE , or DONTNEED that the application can use
to alter caching and read-ahead behavior for the file.
Andrew has basically overridden read/write system
calls in libc through LD_PRELOAD and inserted
fadvise() and sync_file_range() calls to
zero out the pagecache utilization of the application.
The application under control is run using a shell script
to override its file access calls, and the new user space
code will insert hidden fadvise calls to flush or discard
pagecache pages. This effectively make the application not use any pagecache and thus does not alter other
memory pages used in the system.
This is a very interesting approach to show that pagecache control can be done from user space. However
some of the disadvantages are:
• The application under control suffers heavy performance degradation due to almost zero pagecache
usage, along with added system call overheads.
The intent was to limit pagecache usage and not
to avoid using it.
• Group of applications working on the same file
data will have to bring in data again from disk
which would slow it down further.
More work needs to be done to make fadvise() more
flexible to optimally limit pagecache usage while still
preserving reasonable performance. The containers approach is well suited to target a group of applications
and control their pagecache utilization rather than per
process control measures.
4
Challenges
Having looked at several memory controller implementations, we now look at the challenges that memory control poses. We classify these challenges into the following categories:
1. Design challenges
2. Implementation challenges
3. Usability challenges
We will look at each challenge and our proposed solution for solving the problem.
214 • Containers: Challenges with the memory resource controller and its performance
4.1
Design challenges
The first major design challenge was to avoid extending the struct page data structure. The problem
with extending struct page is that the impact can
be large. Consider an 8 GB machine, which uses a 4 KB
page size. Such a system has 2,097,152 pages. Extending the page size by even 4 bytes creates an overhead of
8 MB.
Controlling the addition using a preprocessor macro definition is not sufficient. Linux distributions typically
ship with one enterprise kernel and the decision regarding enablement of a feature will have to be made at
compile time. If container feature is enabled and end
users do not use them, they incur an overhead of memory wastage.
Our Solution. At first, we implemented the RSS controller without any changes to struct page. But
without a pointer from the page to the meta page, it became impossible to quickly identify all pages belonging to a container. Thus, when a container goes over
its limit and tries to reclaim pages, we are required to
walk through the per zone LRU list each time. This is a
time-consuming operation and the overhead, in terms of
CPU time, far outweighs the disadvantage of extending
struct page.
The second major challenge was to account shared
pages correctly. A shared page can be charged:
• To the first container that brings in the page. This
approach can lead to unfairness, because one container could end up bearing the charge for all
shared pages. If the container being charged for
the shared page is not using the page actively, the
scenario might be treated as an unfair implementation of memory control.
• To all containers using the shared page. This scenario would lead to duplicate accounting, where
the sum of all container usage would not match the
total number of pages in memory.
Our Solution. The first RSS container implementation
accounted for every shared page to each container. Each
container mm_struct was charged for every page it
touched. In the newer implementations, with their percontainer LRU list, each page can belong to only one
container at a time. The unfairness issue is dealt with
using the following approach: A page in the per container LRU list is aged down to the inactive list if it is
not actively used by the container that brought it in. If
the page is in active use by other containers, over a period of time this page is freed from the current container
and the other container that is actively using this page,
will map it in. The disadvantage of this approach is that
a page needs to be completely unmapped from all mappings, before it can move from one container to another.
The third major challenge was to decide on whether we
should account per thread memory usage or per process
memory usage. All the threads belonging to a process
share the same address space. It is quite possible that
two threads belonging to the same process might belong
to two different containers. This might be due to the
fact that they may belong to different container groups
for some other resource, like CPU. They might have different CPU usage limits. This leads to more accounting
problems as:
• By default all pages in a thread group are shared.
How do we account for pages in a thread group?
• We now need to account every page to the thread
that brought it in, thus requiring more hooks into
task_struct.
Our Solution. We decided to charge the thread group
leader for all memory usage by the thread group. We
group tasks virtually for memory control by thread
group. Threads can belong to different containers, but
their usage is charged to the container that contains the
thread group leader.
4.2
Implementation challenges
The first major implementation challenge was low cost
task migration. As discussed earlier, one of the disadvantages of the memory controller implementations was
the time required to migrate a task from one container to
another. It typically involved finding all pages in use by
the task and changing their container pointer to the new
container. This can be a very expensive operation as it
involves walking through the page tables of the page being migrated.
Our Solution. In the first implementation of the RSS
controller, struct page was not modified, hence
2007 Linux Symposium, Volume Two • 215
there were no references from the page descriptor to
the container. Task migration was handled by adding
a memory usage counter for each mm_struct. When
a process is moved from one container to another, the
accumulated memory usage was subtracted from the
source container and added to the destination container.
If the newly migrated task put the destination container
over its memory usage limit, page reclaim is initiated
on migration. With the new RSS controller implementation that has a per-container LRU list, a member of
struct page points to the meta page structure.
The meta page structure, in turn, points to the container.
On task migration, we do not carry forward any accounting/charges, we simply migrate the task and ensure that
all new memory used by the task is charged to the new
container. When the pages that were charged to the old
container are freed, we uncharge the old container.
The second major implementation challenge is the implementation of the reclaim algorithm. The reclaim
algorithm in Linux has been enhanced, debugged and
maintained in the last few years. It works well with a variety of workloads. Changing the reclaim algorithm for
containers is not a feasible solution. Any major changes
might end up impacting performance negatively or introduce new regressions or corner cases.
Our Solution. We kept the reclaim algorithm for the
RSS controller very simple. Most of the existing code
for the reclaim algorithm has been reused. Other functions that mimic global reclaim methodology for containers have been added. The core logic is implemented
in the following routines:
container_try_to_free_pages
container_shrink_active_list
container_shrink_inactive_list, and
container_isolate_lru_pages.
These are similar to their per-zone reclaim counterparts:
try_to_free_pages
shrink_active_list
shrink_inactive_list, and
isolate_lru_pages, respectively.
We’ve defined parameters for measuring reclaim performance. These are described in Section 5.
4.3
Usability challenges
Some of the challenges faced by the end-users of containers and resource controllers are described below:
Container configuration:
Containers bring in more knobs for end-user and overall
system performance and ability of the system to meet its
expected behavior is entirely dependent on the correct
configuration of container. Misconfigured containers in
the system would degrade the system performance to an
unacceptable level. The primary challenge with memory controller is choice of memory size or limit for each
container. The amount of memory that is allocated for
each container should closely match the workload and
its resident memory requirements. This involves more
understanding of the workloads or user applications.
There are enough statistics like delay accounting and
container fail counts to measure the extent to which container is unable to meet the workload’s memory requirement. Outside of containers, the kernel would try to do
the best possible job, given the fixed amount of system
RAM. If performance is unacceptable, the user would
have to cut down the applications (workload) or buy
more memory. However, with containers, we are dicing
the system into smaller pieces and it becomes the system administrator’s job to match the right sized piece to
the right sized job. Any mismatch will produce less than
the desired result.
There is a need for good user space and systemmanagement tools to automatically analyze the system
behavior and suggest the right container configuration.
Impact on other resource dimensions:
There is an interesting side effect with container resource management. Resources like CPU time and
memory can be considered independent while configuring the containers. However, practical case studies indicate that there is a relationship between different resources, even though they are accounted for and controlled independently. For example, reducing the working set of an application using a memory controller
would indirectly reduce its CPU utilization because the
application is now made to wait for page I/O to happen. Restricting working set or pagecache of a workload increases its I/O traffic and makes it progressively
I/O bound even though the application was originally
CPU bound when running unrestricted.
Similarly, reducing the CPU resource to a workload may
reduce its I/O requirement because the application is not
able to generate new data at the same rate. These kinds
216 • Containers: Challenges with the memory resource controller and its performance
of interactions suggest that configuring containers may
be more complex than we may have considered.
5
Reclaim parameters
The reclaim algorithm is a very critical implementation
challenge. To visualize and gain insight into the reclaim
algorithm of the container, a set of parameters have been
defined. These parameters are discussed in the following sections.
5.1
Page reclaim rate
Page reclaim rate measures the rate at which pages are
being reclaimed from the container. The number of
pages reclaimed and the duration of the reclaim cycle
are taken into account.
nr_reclaimed
Page reclaim rate =
(tstart − tend )
Where tstart and tend are the time stamp at the beginning
and end of one reclaim cycle (container_shrink_
pages) and nr_reclaimed is the number of pages freed
during this time. From a memory controller point of
view, freeing a page is as good as unmapping them from
the process address space. The page can still be in memory and may additionally be dirty, pending a write-out or
swap operation.
A very low reclaim rate value indicates we are taking
more time to free pages:
• All pages are in active list and it takes more reclaim
cycles to move them to inactive list and then ultimately reclaim them.
• We have been searching the wrong set of pages and
it took time to find the right page.
• Most candidate pages are dirty and we are blocked
on write-out or swap I/O operation.
5.2
Page container affinity
The page container affinity measures the affinity of
physical page to a particular container. When system is
running multiple containers, each of the containers is expected to free pages and consume it again. If containers
grab each others page, that means that too much concurrent reclaim and allocations are happening, whereby a
page just freed by container A is immediately allocated
by container B. This could also happen if Container B
was under the limit and A was over the limit and we
are purposely taking memory pages away from A and
giving it to B.
5.3
Page generation
Page generation is the number of times a page was freed
by a container. A very high value for page generation
indicates that:
• The container size is very low; this implies that we
are actively freeing our working set, which keeps
coming back in.
• The reclaim algorithm is freeing the wrong set of
pages from the container.
5.4
LRU quantum
The reclaimer mainly works on the active list and inactive list of pages belonging to the container. New allocations or recently referenced allocations would go
to the head of the active list. The container_
shrink_active_list routine picks appropriate
pages from the active list and moves them to inactive
list. While container_shrink_inactive_list
calls shrink_page_list to free aged pages at the tail
of the inactive list.
Newest pages are supposed to be at the head of the active list while the oldest page would be at the tail of the
inactive list. LRU quantum is the time difference between these two pages. This is an important parameter
because this gives an indication of how fast the active
and inactive lists are churned.
A greater value of LRU quantum indicates a stable container, where the working set fits the available memory.
The reclaimer is run less often and pages take a while
before they falls off the end of inactive list.
A smaller value of LRU quantum indicates churning of
the list. Combined with page generation, this means
there is too little memory for the container. If page generation is low while LRU quantum is high then it could
indicate a problem in the LRU aging algorithm used.
2007 Linux Symposium, Volume Two • 217
5.5
Page scan density
Page scan density is the number of times a page was
scanned before it was actually freed. A lower the value
indicates that the reclaimer has been choosing the right
pages to free and it is quite smart. Higher values of
page scan density for a wider range of pages means the
reclaimer is going through pages and is unable to free
them, or perhaps the reclaimer is looking at the wrong
end of the LRU list.
6
Case studies
A few typical workload examples have been studied in
order to understand various parameters and its variations, depending upon workload and container configuration. The following section describes the parameters
traced during execution of simple workloads and test
programs.
6.1
Sequential memory access workload
Pagetest is a simple test program that allocates memory and touches each page sequentially for n number of
times. In the following experiment, the pagetest program was run with an RSS limit of 400 MB, while the
program would sequentially touches 600 MB of memory five times.
Observations:
• Memory reclaim pattern shows that once the RSS
usage limit is hit, then all the pages are reclaimed
and the RSS usage drops to zero
• The usage immediately shoots to 400 MB because
the plots is approximately by time and we did not
have samples during the interval when the application was under limit and slowly filled its RSS up to
the limit.
• Active list and inactive list size are mirror image of
each other since the sum of active and inactive size
is constant. The variations in list size corresponds
to the page reclaim process.
• Free memory size dropped initially and it remains
constant while cached memory size initially increased and then remained constant. Free memory size is not affected by the reclaim process since
pages reclaimed by RSS controller was pushed to
swapcache and stays there until touched again or
there is enough memory pressure to swap-out to
disk. Since we had enough free memory in this experiment, the swapcache grew and no swap to disk
happened.
• LRU quantum was less than one second in this
case. The time difference between pages at the
head of active list and tail of inactive list was high
just before the reclaim started and then quickly
dropped down as pages are reclaimed.
• Page scan density shows that we scanned pages
three to four times before reclaiming them. This
shows that the reclaim algorithm has maintained
the active and inactive list optimally and has been
218 • Containers: Challenges with the memory resource controller and its performance
choosing the right pages. We would not see a uniform distribution if the list aging algorithm was incorrect.
• Page generation shows that most part of physical
RAM was reused 5 times during the test which corresponds to the loop iteration of 5.
6.2
kernbench test
Kernbench compiles a Linux kernel using multiple
threads that would consume both anonymous pages and
pagecache pages. In the following experiment, the kernbench test was run with 100 threads with RSS controller
and memory limit set to 300 MB. The pagecache controller and pagecache limit was not enabled during this
experiment.
Observations:
• kernbench has run for long time and the reclaim
pattern is compressed. There are many cycles of
reclaim. Hence it is difficult to deduce the slope
pattern in the memory size and LRU quantum plots
• Page reclaim rate plot has very wide distribution
of values and it has been difficult to make sense
of the plot. The time taken to reclaim a page in
each reclaim cycles is mostly under few milli seconds. However, many times the number of pages
reclaimed during a reclaim cycles goes too low
making the time shoot up.
• Page scan density and page generation shows that
certain region of memory had more pages recycles
and their wide distribution corresponds to the complexity of the workload and their memory access
pattern.
600000
Reclaim rate
6.3
500000
dbench test with pagecache limit
micro secs
400000
300000
200000
100000
0
1000
1200
1400
1600
1800
2000
2200
kilo samples
2400
2600
2800
3000
3200
The dbench file system benchmark was used to stress
the pagecache controller. In the following experiment,
dbench was run for 60 seconds with 20 clients. When
dbench was run unrestricted, it used around 460 MB
pagecache. In this experiment pagecache controller
limit was set to 300 MB which would force reclaim of
pagecache pages during the run. RSS controller was not
enabled during this experiment.
2007 Linux Symposium, Volume Two • 219
4. We use a load balancer (web stress) tool to access the /daytrader/scenario URL of the
Web server. We’ve used the Apache HTTP server
benchmarking tool ab [1] in our testing.
5500
Free
Cached
Active
Inactive
RSS Usage
5000
4500
4000
mega bytes
3500
3000
2500
2000
Observations:
1500
1000
500
• Pagecache controller would not reclaim all pagecache pages when the limit is hit. The reclaimer
would reclaim pages as much as possible to push
the container below limit. Hence the pagecache
usage and cached memory size is almost a straight
line.
0
0
20
40
60
kilo samples
80
100
120
7000
Free
Cached
Active
Inactive
RSS Usage
6000
5000
mega bytes
4000
• As expected the active and inactive list variations
are like mirror image of each other.
3000
• Other parameter like LRU quantum, page generation and pagescan density was similar to pagetest
program and not as widely distributed as kernbench. Pagecache usage pattern of dbench is much
simpler compared to memory access pattern of
kernbench.
6.4
2000
1000
0
0
100
200
300
400
500
600
700
kilo samples
Web server workload
The daytrader benchmark application (with stock size
R
of 2000 and 800 concurrent users) was run with IBM
TM
Websphere community edition. Only the RSS control was enabled. The figures show reclaim parameter
variation for container sizes of 600 MB and 400 MB
respectively. The Web server workload involved an inbuilt database server called derby, which stores all
daytrader data. The daytrader database results were obtained using the following steps:
100000
Reclaim rate
1. Reset the daytrader data.
micro secs
2. The configuration parameters are selected (direct
transaction, no EJB, synchronous commit).
80000
60000
40000
20000
0
3. The database is populated with data.
0
100
200
300
400
kilo samples
500
600
700
220 • Containers: Challenges with the memory resource controller and its performance
90000
6.5
Pages reclaimed
80000
Database workload
70000
nrreclaimed
60000
50000
40000
30000
20000
10000
0
0
100
200
300
400
500
600
700
kilo samples
The pgbench [5] benchmark was run with only RSS
control enabled. The figures show the reclaim parameter variation for container sizes of 800 MB and 400 MB
respectively. The results were obtained using the following steps:
1. The database was initialized, with a scale factor of
100.
2. The benchmark pgbench was run with a scale
factor of 100, simulating ten clients, each doing
1000 transactions.
6000
Free
Cached
Active
Inactive
RSS Usage
5000
mega bytes
4000
3000
2000
1000
0
0
500
1000
1500
2000
2500
kilo samples
7000
Free
Cached
Active
Inactive
RSS Usage
6000
5000
4000
mega bytes
Observations:
3000
• Decreasing the size of the container reduced the
LRU quantum value.
2000
1000
• Reclaim performance was poor when the number
of pages reclaimed were low which resulted in high
reclaim time.
• Decreasing the size of the container increased the
page scan density. Each page was scanned more
often before it could be freed.
• The range of physical memory used was independent of the size of the container used.
• The page generation went up as the size of the container was decreased.
0
0
500
1000
1500
2000
kilo samples
2500
3000
3500
2007 Linux Symposium, Volume Two • 221
200000
• The range of physical memory used is bigger than
the maximum RSS of the database server.
Pages reclaimed
180000
160000
nrreclaimed
140000
120000
100000
• The page generation went up as the size of the container was decreased.
80000
60000
40000
20000
0
0
500
1000
1500
2000
2500
kilo samples
• The range of physical memory used decreased as
the page generation increased.
120000
Pages reclaimed
100000
nrreclaimed
80000
60000
40000
7
20000
Future work
0
0
500
1000
1500
2000
2500
3000
3500
kilo samples
We plan to extend the basic RSS controller and the pagecache controller by adding an mlock(2) controller
and support for accounting kernel memory, such as slab
usage, page table usage, VMAs, and so on.
8
Conclusion
Memory control comes with the overhead of increased
CPU time and lower throughput. This overhead is expected as each time the container goes over its assigned
limit, page reclaim is initiated, which might further initiate I/O. A group of processes in the container are unlikely to do useful work if they hit their limits frequently,
thus it is important for the page reclaim algorithm to ensure that when a container goes over its limit, it selects
the right set of pages to reclaim. In this paper, we’ve
looked at several parameters, that help us assess the performance of the workload in the container. We’ve also
looked at the challenges in designing and implementing
a memory controller.
Observations:
• Decreasing the size of the container increased the
rate of change of LRU quantum.
• High LRU quantum values resulted in more pages
being reclaimed.
• Decreasing the size of the container increased the
page scan density Each page was scanned more often before it could be freed.
• The range of physical memory used was independent of the size of the container used.
The performance of a workload under a container is deteriorated as expected. Performance data shows that the
impact of changing the container size might not be linear. This aspect requires further investigation along with
the study of performance of pages shared across containers.
9
Open issues
The memory controller currently supports only limits.
Guarantees support can be built on top of the current
framework using limits. One desirable feature for controllers is excess resource distribution. Resource groups
use soft limits to redistribute unutilized resources. Each
container would get a percentage of unutilized resources
in proportion to its soft limit. We have to analyze the
impact of implementing such a feature.
222 • Containers: Challenges with the memory resource controller and its performance
10
Legal Statement
c
International
Business Machines Corporation 2007. Permission to redistribute in accordance with Linux Symposium
submission guidelines is granted; all other rights reserved.
This work represents the view of the authors and does not
necessarily represent the view of IBM.
IBM, IBM logo, ibm.com, and WebSphere, are trademarks of
International Business Machines Corporation in the United
States, other countries, or both.
Linux is a registered trademark of Linus Torvalds in the
United States, other countries, or both.
Other company, product, and service names may be trademarks or service marks of others.
References in this publication to IBM products or services
do not imply that IBM intends to make them available in all
countries in which IBM operates.
INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES
[5] Tatsuo Ishii. Pgbench postgresql benchmark.
http://archives.postgresql.org/
pgsql-hackers/1999-09/msg00910.
php.
[6] Kirill Korotaev. Beancounters v2. http:
//lkml.org/lkml/2006/8/23/117.
[7] Kirill Korotaev. Beancounters v6. http:
//lkml.org/lkml/2006/11/9/135.
[8] Christoph Lameter. Pagecache control through
page allocation. http:
//lkml.org/lkml/2007/1/23/263.
[9] Aubrey Li. Pagecache control through page
allocation. http:
//lkml.org/lkml/2007/1/17/202.
[10] Andrew Morton. Usermode pagecache control:
fadvise().
http://lkml.org/lkml/2007/3/3/110.
THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some
states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may
not apply to you. This information could include technical
inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be
incorporated in new editions of the publication. IBM may
make improvements and/or changes in the product(s) and/or
the program(s) described in this publication at any time without notice.
References
[1] Apache http benchmarking tool.
http://httpd.apache.org/docs/2.0/
programs/ab.html.
[2] Pavel Emelianov. Memory controller with
per-container page list.
http://lkml.org/lkml/2007/3/6/198.
[3] Pavel Emelianov and Balbir Singh. Memory
controller with per-container lru page list.
http://lkml.org/lkml/2007/3/9/361.
[4] Roy Huang. Pagecache control through page
allocation.
http://lkml.org/lkml/2007/1/15/26.
[11] Chandra Seetharaman. Resource groups. http:
//lkml.org/lkml/2006/4/27/378.
[12] Rohit Seth. Containers. http:
//lkml.org/lkml/2006/9/14/370.
[13] Balbir Singh. Memory controller rfc. http:
//lkml.org/lkml/2006/10/30/51.
[14] Balbir Singh. Memory controller v2.
http://lkml.org/lkml/2007/2/26/8.
[15] Vaidyanathan Srinivasan. Container pagecache
controller.
http://lkml.org/lkml/2007/3/06/51.
Kernel Support for Stackable File Systems
Josef Sipek, Yiannis Pericleous, and Erez Zadok
Stony Brook University
{jsipek,yiannos,ezk}@fsl.cs.sunysb.edu
Abstract
Although it is now possible to use stackable (layered)
file systems in Linux, there are several issues that should
be addressed to make stacking more reliable and efficient. To support stacking properly, some changes to
the VFS and VM subsystems will be required. In this
paper, we discuss some of the issues and solutions proposed at the Linux Storage and Filesystems workshop
in February 2007, our ongoing work on stacking support for Linux, and our progress on several particular
stackable file systems.
1
Introduction
A stackable (layered) file system is a file system that
does not store data itself. Instead, it uses another file
system for its storage. We call the stackable file system
the upper file system, and the file systems it stacks on
top of the lower file systems.
Although it is now possible to use stackable file systems, a number of issues should be addressed to improve
file system stacking reliability and efficiency. The Linux
kernel VFS was not designed with file system stacking
in mind, and therefore it comes as no surprise that supporting stacking properly will require some changes to
the VFS and VM subsystems.
We use eCryptfs and Unionfs as the example stackable
file systems to cover both linear and fan-out stacking,
respectively.
eCryptfs is a cryptographic file system for Linux that
stacks on top of existing file systems. It provides functionality similar to that of GnuPG, except that encrypting and decrypting the data is transparent to the application [1, 3, 2].
Unionfs is a stackable file system that presents a series
of directories (branches) from different file systems as
one virtual directory, as specified by the user. This is
commonly referred to as namespace unification. Previous publications [4, 5, 6] provide detailed description
and some possible use cases.
Both eCryptfs and Unionfs are based on the FiST stackable file system templates, which provide support for
layering over a single directory [7]. As shown in Figures 1(a) and 1(b), the kernel’s VFS is responsible for
dispatching file-system–related system calls to the appropriate file system. To the VFS, a stackable file system appears as if it were a standard file system. However, instead of storing or retrieving data, a stackable file
system passes calls down to lower-level file systems. In
this scenario, NFS is used as a lower-level file system,
but any file system can be used to store the data as well
(e.g., Ext2, Ext3, Reiserfs, SQUASHFS, isofs, tmpfs,
etc.).
To the lower-level file systems, a stackable file system
appears as if it were the VFS. Stackable file system development can be difficult because the file system must
adhere to the conventions of both the file systems for
processing VFS calls, and of the VFS for making VFS
calls.
Without kernel support, stackable file systems suffer
from inherent cache coherency problems. These issues
can be divided into two categories: (1) data coherency of
the page cache contents, and (2) meta-data coherency of
the dentry and inode caches. Changes to the VFS
and the stackable file systems are required to remedy
these problems.
Moreover, lockdep, the in-kernel lock validator, “observes” and maps all locking rules as they dynamically
occur, as triggered by the kernel’s natural use of locks
(spinlocks, rwlocks, mutexes, and rwsems). Whenever
the lock validator subsystem detects a new locking scenario, it validates this new rule against the existing set of
rules. Unfortunately, stackable file systems need to lock
• 223 •
User
User Process
rename()
vfs_rename()
vfs_rename()
Virtual File System
ecryptfs_rename()
Kernel
rename()
Virtual File System
unionfs_rename()
eCryptfs
nfs_rename()
Unionfs
RW
RO
tmpfs_rename()
NFS
(a) eCryptfs layers over a single directory.
Kernel
User Process
User
224 • Kernel Support for Stackable File Systems
tmpfs
...
nfs_rename()
NFS
(b) Unionfs layers over multiple directories.
Figure 1: The user processes issue system calls, which the kernel’s virtual file system (VFS) directs to stackable file
systems. Stackable file systems in turn pass the calls down to lower-level file systems (e.g., tmpfs or NFS).
many of the VFS objects in a recursive manner, triggering lockdep warnings.
To maintain the upper to lower file system mapping of
kernel objects (such as dentrys, inodes, etc.), many
stackable file systems share much of the basic infrastructure. The 2.6.20 kernel introduced fs/stack.c,
a new file that contains several helper functions useful
to stackable file systems.
The rest of this paper is organized as follows. In Section 2 we discuss the cache coherency issues. In Section 3 we discuss the importance of locking order. In
Section 4 we discuss fsstack, the emerging Linux
kernel support for stacking. In Section 5, we discuss
a persistent store prototype we developed for Unionfs,
which can be of use to others. Finally, we conclude in
Section 6.
2
Cache Coherency
There are two different cache coherency issues that
stackable file systems must overcome: data and metadata.
2.1
Data Coherency
Typically, the upper file system maintains its own set of
pages used for the page cache. Under ideal conditions,
all the changes to the data go through the upper file system. Therefore, either the upper file system’s write
inode operation or the writepage address space operation will have a chance to transform the data as necessary (e.g., eCryptfs needs to encrypt all writes) and
write it to the lower file system’s pages.
Data incoherency occurs when data is written to the
lower pages directly, without the stacked file system’s
knowledge. There are two possible solutions to this
problem:
Weak cache coherency – NFS also suffers from cache
coherency issues as the data on the server may be
changed by either another client or a local server
process. NFS uses a number of assertions that are
checked before cached data is used. If any of these
assertions fail, the cached data is invalidated. One
such assertion is a comparison of the ctime with
what is cached, and invalidating any potentially
out-of-date information.
Strong cache coherency – Another possible solution
to the cache coherency problem is to modify the
VFS and VM to effectively inform the stackable
file systems that the data has changed on the lower
file system. There are several different ways of accomplishing this, but all involve maintaining pointers from lower VFS objects to all upper ones. Regardless of how this is implemented, the VFS/VM
2007 Linux Symposium, Volume Two • 225
must traverse a dependency graph of VFS objects,
invalidate all pages belonging to the corresponding
upper addresses spaces, and sync all of the pages
that are part of the lower address spaces.
Both approaches have benefits and drawbacks.
The major benefit of the weak consistency approach is
that the VFS does not have to be modified at all. The
major downside is that every stackable file system needs
to contain a number of these checks. Even if helper
functions are created, calls to these functions need to
be placed throughout the stackable file systems. This
leads to code duplication, which we try to address with
fsstack (see Section 4).
The most significant benefit of the stronger coherency
approach is the fact that it guarantees that the caches are
always coherent. At the same time, it requires that the
file system use the page cache properly, and that the file
system supplies a valid address space operations vector.
Some file systems do not meet these requirements. For
example, GPFS (created by IBM) only has readpage
and writepage, but does not have any other address
space operations. If the cache coherency is maintained
at the page-cache level, the semantics of using a lower
file system that does not define the needed operations
would be unclear.
2.2
Meta-Data Coherency
Similar to the page cache, many VFS objects, such as
the cached inode and dentry objects, may become
inconsistent. The meta-data contained in these caches
includes the {a,c,m}times, file size, etc.
Just as with data consistency, either a strong or a weak
cache coherency model may be used to prevent the upper and lower VFS objects from disagreeing on the file
system state. The benefits and drawbacks stated previously apply here as well (e.g., weak coherency requires
code duplication in most stackable file systems).
2.3
File Revalidation
The VFS currently allows for dentry revalidation.
NFS and other network file system are the few users of
this. A useful addition to this dentry revalidation operation would be an equivalent file operation. Given
a struct file, this would allow the file system to
check for validity and repair any inconsistencies.
Unionfs works around the lack of file revalidation
by calling its own helper function in the appropriate
struct file operations. The reason Unionfs requires this is due to the possibility of a branch management operation changing the number or order of
branches, and the lower struct file pointers need
to be updated.
3
Locking Order
Since stackable file systems must behave as both a file
system and the VFS, they need to lock many of the
VFS objects in a recursive manner, triggering warnings
about potential deadlocks. The in-kernel lock validator, lockdep, dynamically monitors the kernel’s usage
of locks (spinlocks, rwlocks, mutexes and rwsems) and
creates rules. Whenever the lock validator subsystem
detects a new locking scenario, it validates this new rule
against the existing set of rules.
The lockdep system is aware of locking dependency
chains, such as: parent→ child→ xattr→ quota. However, it does not understand that a stackable file system
may cause recursion in the VFS. For example, the VFS
may indirectly (but safely) call itself; vfs_readdir
can call a stackable file system on one directory, which
can in turn call vfs_readdir again on other lower
directories. Each time vfs_readdir is called, the
corresponding i_mutex is taken. This triggers a
lockdep warning, as it considers this situation a potential place for a deadlock, and warns accordingly. In
other words, lockdep needs to be informed of the hierarchies between stacked file systems. This, however,
would require adding a “stacked” argument to many
functions in the VFS, and passing that information to
lockdep.
4
fsstack
The code duplication found in many stackable file systems (such as eCryptfs, Unionfs, and our upcoming
cachefs) is another problem. The 2.6.20 kernel introduced fs/stack.c, a new file, which contains several useful helper functions. We are working on further
abstractions to the stacking API in Linux.
226 • Kernel Support for Stackable File Systems
Each stackable file system must maintain a set of pointers from the upper (stackable file system) objects to the
lower objects. For example, each Unionfs inode maintains a series of lower inode pointers.
Currently, there are two ways to keep track of lower
objects. Linear (one lower pointer) and fan-out (several lower pointers). Fan-out is the more interesting
case, as linear stacking is just a special case of fanout, with only one branch. Quite frequently, Unionfs
needs to traverse all the branches. This creates the
need for a for_each_branch macro (analogous to
for_each_node), which would decide when to terminate.
A “reference” stackable file system, much like NullFS in
many BSDs, would allow stackable file system authors
to easily create new stackable file systems for Linux.
This reference file system should use as many of the
fsstack interfaces as possible. Currently, the closest thing to this is Wrapfs [7], which can be generated
from FiST. Unfortunately, the generated code does not
follow proper coding style and general code cleanliness.
In Section 2.1, we considered a weaker form of the
cache coherency model. This model suffers from the
fact that a large number of the coherency checks (e.g.,
checking the {a,c,m}times) will need to be duplicated in each stackable file system. Using fsstack
avoids this problem by making use of generic functions
to perform operations common to all stackable file systems. The code necessary to invalidate and revalidate
the upper file system objects could be shared by several
file systems. However, each file system must call these
helper functions. If a bug is discovered in one stackable
file system (e.g., a helper function should be called but is
not), the fix may have to be ported to other file systems.
Stackable file systems must behave as a file system from
the point of view of the VFS, yet they must behave as
the VFS from the point of view of the file systems it is
stacked on top of. Generally, the most complex code occurs in the file system lookup code. One idea, proposed
at the 2007 Linux Storage and Filesystem workshop,
was to divide the current VFS lookup code into two portions, and to allow the file system to override part of the
functionality via a new inode operation. The default
operation would have functionality identical to the current lookup code. The flexibility allowed by this code
refactoring would simplify some of the code in more
complex file systems. For example, Ext2 could use the
generic lookup code provided by the VFS, while a file
system requiring more complex lookup code, such as
Unionfs, can provide its own lookup helper which performs the necessary operations (e.g., to perform namespace unification).
5
On Disk Format (ODF)
We have developed an On Disk Format (ODF) to help
Unionfs 2.0 persistently store any meta-data it needs,
such as whiteouts. ODF is a small file system on a
partition or loop device. The ODF has helped us resolve most of the critical issues that Unionfs 1.x had
faced, such as namespace pollution, inode persistence,
readdir consistency and efficiency, and more. Since,
all the meta-data is kept in a separate file system instead
of in the branches themselves, Unionfs can be stacked
on top of itself and have overlapping branches.
Such a format can be used by any stackable file system
that needs to store meta-data persistently. For example,
a versioning file system may use it to store information
about the current version of a file, a caching file system
may use it to store information about the status of the
cached files. Unionfs benefits in many ways as well, for
example there is no namespace pollution, and Unionfs
can be stacked on itself.
By keeping all the meta-data together in a separate file
system, simply creating an in-kernel mount can be used
to easily hide it from the user, assuring that the user will
not temper with the meta-data. Also, it becomes easier
to backup the state of the file system by simply creating a backup of the ODF file system. If a file system
which statically allocates inode tables is used, the user
must estimate the number of inodes and data blocks
the ODF will need before hand. Using a file system
which allocates inode blocks dynamically (e.g., XFS)
fixes this problem. This is a shortcoming of the file system, and not ODF itself.
The ODF can use another file system, such as Ext2 or
XFS, to store the meta-data. Another possibility we are
looking at for the future is to build an ODF file system that will have complete control of how it stores this
meta-data, thus allowing us to make it more efficient,
flexible and reusable.
2007 Linux Symposium, Volume Two • 227
6
Conclusion
Stackable file systems can be used today on Linux.
There are some issues which should be addressed to increase their reliability and efficiency. The major issues
include the data and meta-data cache coherency between
the upper and lower file systems, code duplication between stackable file systems, and the recursive nature of
stacking causing lockdep to warn about what it infers
are possible deadlocks. Addressing these issues will require changes to the VFS/VM.
7
Acknowledgements
The ideas presented in this paper were inspired and motivated by numerous discussions with the following people: Russel Catalan, Dave Chinner, Bruce Fields, Steve
French, Christoph Hellwig, Eric Van Hensbergen, Val
Henson, Chuck Lever, Andrew Morton, Trond Myklebust, Eric Sandeen, Theodore Ts’o, Al Viro, Peter Zijlstra, and many others.
This work was partially made possibly by NSF Trusted
Computing Award CCR-0310493.
References
[1] M. Halcrow. ecryptfs: a stacked cryptographic
filesystem. Linux Journal, (156), April 2007.
[2] M. A. Halcrow. Demands, Solutions, and
Improvements for Linux Filesystem Security. In
Proceedings of the 2004 Linux Symposium, pages
269–286, Ottawa, Canada, July 2004. Linux
Symposium.
[3] M. A. Halcrow. eCryptfs: An Enterprise-class
Encrypted Filesystem for Linux. In Proceedings of
the 2005 Linux Symposium, pages 201–218,
Ottawa, Canada, July 2005. Linux Symposium.
[4] D. Quigley, J. Sipek, C. P. Wright, and E. Zadok.
UnionFS: User- and Community-oriented
Development of a Unification Filesystem. In
Proceedings of the 2006 Linux Symposium,
volume 2, pages 349–362, Ottawa, Canada, July
2006.
[5] C. P. Wright, J. Dave, P. Gupta, H. Krishnan, D. P.
Quigley, E. Zadok, and M. N. Zubair. Versatility
and unix semantics in namespace unification. ACM
Transactions on Storage (TOS), 2(1):1–32,
February 2006.
[6] C. P. Wright and E. Zadok. Unionfs: Bringing File
Systems Together. Linux Journal, (128):24–29,
December 2004.
[7] E. Zadok and J. Nieh. FiST: A Language for
Stackable File Systems. In Proc. of the Annual
USENIX Technical Conference, pages 55–70, San
Diego, CA, June 2000. USENIX Association.
228 • Kernel Support for Stackable File Systems
Linux Rollout at Nortel
Ernest Szeideman
Nortel Networks Ltd.
[email protected]
Abstract
At Nortel, we have focused on delivering a “Standard Operating Environment” for our design systems
whereby we maintain a common set of tools and processes in the rollout of Linux and other operating system images. There are a number of opportunities, challenges, and pitfalls with bringing this about at an enterprise level.
1
Introduction
The Linux version of the Standard Operating Environment (SOE) was born a few years ago out of an initiative
to introduce a standard image configuration that would
address the needs of groups who were increasingly looking to Linux for product development and testing. Since
that initial SOE release, Linux has become common for
desktop and server computing solutions across the corporation. The goal of every Linux SOE release is to introduce a certified and supported Enterprise Linux distribution into Nortel.
A survey of the literature reveals many articles detailing the specific implementation details and related challenges faced in creating a standardized image. Fewer
articles speak of the high level design and engineering process driving the implementation, and fewer still
speak specifically about lessons learned which would
assist others in overcoming assumptions and processes
counterproductive to such an endeavor. Ubiquitous
throughout the IT industry is the concept of a Standard Operating Environment referring to a standard image configuration. However, to be useful and accepted
in an enterprise, an SOE requires that the design must
solve real business problems for a company, problems
that vary over time, across different industries, business
environments, and even different business cultures. As
such, although the design and development of an SOE
may vary, the lessons learned by one company should
prove of benefit to others as well.
This paper will discuss what an SOE is, briefly describe
how we did the design and why, and most importantly
speak of the lessons we have learned and how they relate
to Linux and the open source model from an enterprise
perspective.
2
What is an SOE and Why
A Standard Operating Environment for Linux means
a standard image configuration for both desktops and
servers. The intention is that unless there is sufficient justification, all supported Linux installs within the
company will use the SOE. This greatly simplifies management by ensuring consistency in the deployed image
regardless of location which provides high levels of reliability and supportability.
The SOE should support a limited set of hardware that
has been chosen for company-wide use for both servers
and workstations. Although Linux provides perhaps the
most hardware support of any operating system ever,
minimizing the set of hardware reduces the matrix of
testing required. This reduces hardware support costs,
and reduces hardware acquisition costs due to volume
purchasing.
The inclusion of a common set of Linux vendor packages on all machines, a common set of third-party packages, as well as a common set of company-developed
packages, ensures consistency in the deployed image regardless of location. It also provides a vehicle whereby
software can be deployed company-wide to meet ever
changing business needs.
Security and network certification of the image implies
security and network configuration changes (such as ensuring limited world access to init scripts or checks to
ensure that IP forwarding is turned off). This helps the
company in minimizing risk, taking advantage of security and network expertise, providing confidence in the
• 229 •
230 • Linux Rollout at Nortel
SOE, as well as ensuring that the image plays nicely
within a company’s environment.
1. It must include a reasonable set of packages required to support the environment.
Providing a standardized installation process, including
appropriate storage locations for the image, reduces the
net cost per Linux install by reducing complexity, ensuring standardization, and maximizing the ability to support the install via documentation and support help lines.
2. It must include packages that are deemed as required by the internal customers.
Lastly, having a formalized process to gather requirements, design, implement, test, and trial an SOE ensures
that tasks can be adequately resourced, timelines meet
business priorities, and consumers of the image can plan
for the deployment and use of the image to accomplish
business goals.
3
The Nortel SOE
At Nortel Networks Inc., there are over 291,000 nodes
on a network with over 350 locations throughout the
world containing 8,000 subnets housing a myriad of
servers and desktops running many different operating
systems and providing access to a number of different
network services (as of May, 2006). Any opportunities
at standardization will result in substantial savings to the
corporation.
5
4
3
2
1
0
Level
Patching
Group specific
Location specific
Global config
Vendor OS
Hardware
Explanation
Post-SOE maintenance
UML, Clearcase
Postinstall, cfengine
Packages, security, network
Consistent set of packages
Hardware catalogue
The table above denotes the high-level design of the
Linux SOE.
Level 0, or the Hardware layer, represents all activities
in achieving a standard catalogue of hardware including
hardware comparisons, benchmarking, vendor negotiation, and the like. Any SOE that is released will have,
as a minimum, the requirement to support the catalogue
hardware.
Level 1, or the Vendor operating system layer, is the inclusion of a consistent set of packages from the vendor
that is supposed to achieve three things:
3. It must attempt to be consistent with previous SOE
releases (i.e., it must attempt to match the functionality that was included in previous SOE releases at
this layer).
In this layer, one should capitalize on and make use
of the installation tools or mechanisms provided by the
vendor (e.g., Anaconda/kickstart used in RHEL (Red
Hat Enterprise Linux) or YaST (Yet Another Setup Tool)
used in SuSE (Software und System-Entwicklung)). As
Nortel is using RHEL in its SOE, this layer is accomplished with the use of kickstart where the required
package groupings and packages are specified in the
%packages section.
Level 2, or the Global configuration layer, is where other
packages not necessarily provided by the vendor are installed. This includes security, network, and companyprovided packages. A special design consideration for
this layer is to keep absolute separation between whatever installation mechanisms the vendor provides and
the one relied upon at this layer. At Nortel, the automated kickstart installation mechanism has a post install
section that is used to automatically kick off an install
script, which completes all aspects of this layer. The
benefits of this are threefold:
1. It allows easy determination of where problems
may exist in an install.
2. It insulates the SOE engineers from changes made
to the vendor’s installation tools or mechanisms.
3. It allows for changes to the underlying Linux distribution without major impact to this level or the
levels above it.
Level 3, or the location-specific layer, is designed to answer the requirement of how to maintain standardization
across a multitude of locations where specific infrastructure services, service names, and configuration processes differ. This is a key challenge for any large corporation. The methodology employed requires that the
target node take advantage of locally dependent services
2007 Linux Symposium, Volume Two • 231
while maintaining the standardization of the SOE. For
Nortel, an init (initialization) script, which allows for
complete automation, handles this layer which includes
support for NIS, NTP, LDAP, and cfengine as well as
other services. Automation of all of these tasks is not
only desirable, but is also required if one wants to ensure
consistency in deployment. An additional requirement
of this layer is to be able to re-implement these services
in the event that a machine changes locations (for example, if a node is redeployed to another site, the employee
changes locations, etc.). Making use of an init script
allows for this requirement. Configuration-specific parameters are sourced from location-named files containing all data relevant to this layer for each major location
at the company.
Level 4, or the group-specific layer, contains that which
does not need to be installed everywhere, yet which is
required by specific groups. Examples of this are the
use of virtualization such as UML (User-Mode Linux)
as well as Clearcase. Interestingly, group-specific software, such as Clearcase, also has location-specific dependencies (for example, which VOB (Versioned Object
Base) servers to connect to may be dependent on which
site you work at). The ownership of each of the capabilities relied upon at this level is provided at Nortel by
specific individuals or groups who may have formal vendor relationships as required. As these people or groups
have the requirement to have their code work with the
SOE, they form a special community who has access to
pre-releases of all SOEs. References are made to their
documentation from within that provided for each SOE.
In some cases, there is an automatic reinstallation of
these pieces in the event a reimage is performed.
Level 5, or the patching layer, concerns itself with postSOE maintenance. Once an image is deployed, it must
still be maintained and/or kept track of for licensing.
There must also be the facility to account for changing
business requirements, which may include the deployment of new or updated products (for example, DST
(Daylight Saving Time) fixes). At Nortel, we are currently using RHN (Red Hat Network) Satellite. We take
a snapshot of the base channel minus kernel (3rd party
applications are tied to kernel versions). The snapshot
of the channel is tested before the patch bundle is released to ensure that the patches don’t break anything
in the Nortel environment. This patch bundle is produced quarterly. This allows time to deploy the bundle
to all of the systems in an orderly and systematic way.
Within Nortel, rhnsd is not used. The patch window for
each system is scheduled ahead of time and controlled
by configuration files on the system. A generic scheduling method is employed that can be used across all the
UNIX and UNIX-like operating systems. As everything
is packaged as a requirement of being included in the
SOE, this enables all aspects of the standardized image
across all levels to be patched.
4
Lessons Learned
A number of lessons have been learned since a fully supported Linux was introduced in Nortel a few years ago.
These are lessons taken from an enterprise perspective
and may not apply everywhere.
1. Remote cloning of machines in an enterprise is a
deployment concern that must be taken into account. Hewlett Packard’s iLO (Integrated LightsOut) or other similar remote console mechanisms
are highly desirable, particularly when the system
administrator or installer is located remotely from
the machine being imaged. One should not assume
that the installer is able to sit in front of the machine being deployed.
2. Windows interoperability solutions contained
within Linux have really enhanced its value in the
enterprise, particularly when compared with other
proprietary UNIX operating systems. However,
it has and continues to cause many challenges.
VMware with a Windows guest is currently
being used in Nortel with workstations to provide
standardized Windows images to those running
Linux. One may wish to refresh one’s Linux image
to the latest General Availability (GA) release,
but this does not assume that one wishes to have
their Windows environment upgraded as well.
To accommodate this requirement, a localdisk
partition is created on all default Linux installs
which holds, among other things, the VMware
image files. An upgrade clone is utilized which
wipes all partitions, except localdisk, and thereby
allows the user to get a new Linux build while
keeping any VMware images they may have had.
3. One cannot assume access to an enterprise’s DHCP
(Dynamic Host Configuration Protocol) infrastructure to make use of PXE (Preboot eXecution En-
232 • Linux Rollout at Nortel
vironment) installs or Red Hat Network provisioning. In a large corporation, different groups are responsible for different aspects of the infrastructure.
As such, it takes time to get consensus on how best
to implement change. One such example is the use
of PXE as it relates to the DHCP infrastructure. If
this is the case, as it is at Nortel, one may need
to find alternative means to accomplish remote upgrades of machines. A script, which integrates with
cron (a time-based scheduling service in Linux) is
currently being used to provide this functionality.
4. For security reasons, patching of one’s infrastructure is necessary using internal repositories. As
well, no information about the nodes being patched
should leave the company network (cannot use
RHN or RHN proxy; must use RHN Satellite).
5. An additional comment with regards to patching
involves the potential for divergence when patching versus re-rolling an SOE using a newer update.
This is particularly true if one is limited in updating kernels due to third-party reliance on the kernel
(e.g. Clearcase or UML). For example, if one starts
with a RHEL 4.1 machine and patches it with a
patch bundle to 4.3, one may not end up with the
same system as if one started with RHEL 4.2 because not all patches are included in the patch bundle. In Nortel’s case, the kernel is not included in
the patch bundle meaning that although both RHEL
4.1 and 4.2 machines were patched to a RHEL 4.3
level, they are not identical.
6. Users in a corporation typically do not have root
access. For example, a user without root access
cannot add a printer so printer configuration must
be managed on a global basis. When users do not
have root access, there are significant management
and support implications. On the other hand, if the
users do have root access, there are a whole different set of support and management implications.
7. Being able to identify an SOE machine remotely is
not only desirable, but is also required from a systems management, licensing, lifecycle, and maintenance perspective.
8. Packaging all components of an SOE including inhouse and third-party software in the same format
as your Linux vendor’s packages is important. Being able to easily upgrade if required (such as in the
event of a security vulnerability), easily determining versions of software, being able to validate the
authenticity of software (via digital signing), and
being able to understand where files on a system
came from are some of the benefits of this.
9. Communication to your deployment people as well
as to those making use of the SOE is paramount to
achieving success. Whether by use of WebPages,
blogs, user groups, or other forms of documentation, communication gets more challenging as the
size of your company grows.
10. ISV (Independent software vendor) support will
probably be the single most important factor in determining which distribution your SOE is based on.
11. No matter how much you simplify an install or install process, deployment using installers without
Linux experience will be a problem.
12. It is difficult to get patches from your Linux vendor fast enough (e.g., when you find a problem
while producing the SOE or a patch bundle, both
of which have deadlines to meet).
13. If a vendor says hardware is certified, what does
that mean? Read the fine-print!
14. Despite every effort to the contrary, using thirdparty proprietary applications/code is a requirement that should be assumed in an enterprise (e.g.
Clearcase).
15. A variety of products to choose from (KDE vs.
Gnome, for example) makes standardization difficult when one must appease many palates.
16. Keep Global configuration (Level 2) and higher
separate from the vendor install at all costs or you
will be sorry!
17. Digitally sign all of your in-house packages. Being able to ascertain the authenticity of the packages contained within the SOE is important from a
corporate and a security standpoint.
18. Have backup copies of all GA’d images. This will
save future time and aggravation. At some point
somebody will need to install an old image, either
for testing or other purposes.
19. Change control is a critical component of SOE development (e.g. CVS, Clearcase, etc.).
2007 Linux Symposium, Volume Two • 233
20. Testing is important. Sadly, it will be the first thing
to go when schedules are tight; having a testing matrix and test plan is paramount. A corollary to this:
If someone tells you they have tested their product,
but does not have a test plan, they are not telling
the truth.
21. Fixes upstream are useless unless they are backported to the current SOE environment(s). (The Fix
is Upstream BOF with Matthew Tippett)
22. One cannot move from proprietary UNIX’s
(Solaris/HP-UX) to Linux in one step, although
new projects can start out quite well.
23. There have been and continue to be issues with
Linux interoperating in a heterogeneous enterprise
environment (e.g. assuming print servers are Linux
as opposed to the non-CUPS-aware HP-UX). Do
not assume your Linux vendor does any extensive
testing using other operating systems your company uses.
24. Each package which you include in an SOE that
does not come from the vendor needs to have someone who is responsible for it (a provider).
25. There is a large amount of proprietary thinking
on the part of management that needs to be modified when using Linux and/or other open source
software. An example is assuming that the Linux
vendor that you are paying for support can fork
some code to meet the corporation’s requirements
instead of the vendor waiting for the fix to be available from upstream. The Linux vendor’s preferred
method is to wait for the fixes to come from upstream (e.g. they would rather wait for the Evolution folks to fix the code than having to fix it themselves and then maintain the fix in subsequent upstream versions if the Evolution folks don’t take the
fix).
26. When creating an SOE, use of a vendor-supported
Linux offering is recommended over an unsupported version. An example is the use of RHEL
vs. Fedora. A supported Linux offering will have
more and better ISV support. Updates tend to focus on customer problems and compatibility tends
to be of higher importance than new features. And
lastly, in an enterprise environment where downtime may mean the loss of substantial amounts of
money, the ability to get support from a company
is important from a business perspective.
5
Conclusion
The engineering and design of an SOE for an enterprise
requires participation from throughout the corporation.
For any large corporation, developing an SOE is worth
the cost due to the many benefits it offers. The design is
critical to an SOE’s success and must reflect and solve
real world business problems.
It is hoped that the many lessons learned in our SOE
voyage at Nortel will help guide others pursuing the
many benefits a Linux SOE has to offer.
6
References
[1] Office of Government Commerce, Information
Technology Infrastructure Library. Retrieved April,
2007 from http://www.itil.co.uk/
[2] Aupek, Andrew, Architectural Design of Enterprise
Wide Standard Operating Environments. Retrieved
April, 2007 from
http://www.lib.mq.edu.au/about/
conferences/Architectural%20Design%20of%
20Enterprise%20wide%20Standard%
20Operating%20Environments.pdf
[3] Carnegie Mellon Software Engineering Institute,
Capability Maturity Model Integration (CMMI).
Retrieved April, 2007 from
http://www.sei.cmu.edu/cmm/
[4] Edith Cowan University, IT Services Standard
Operating Environment. Retrieved April, 2007 from
http://soe.ecu.edu.au/about/
[5] Griffith University, Standard Operating
Environment for Staff Desktop Computers. Retrieved
April, 2007 from
http://www62.gu.edu.au/policylibrary.
nsf/0/1e7a27d0e03ceed44a256ee00063ed6b?
opendocument
[6] Queensland University of Technology, Standard
Operating Environment. Retrieved April, 2007 from
http://www.its.qut.edu.au/soe/
234 • Linux Rollout at Nortel
Request-based Device-mapper multipath and Dynamic load balancing
Kiyoshi Ueda
NEC Corporation
Jun’ichi Nomura
NEC Corporation
Mike Christie
Red Hat, Inc.
[email protected]
[email protected]
[email protected]
Abstract
Multipath I/O is the ability to provide increased performance and fault tolerant access to a device by addressing it through more than one path. For storage devices,
Linux has seen several solutions that were of two types:
high-level approaches that live above the I/O scheduler
(BIO mappers), and low-level subsystem specific approaches. Each type of implementation has its advantage because of the position in the storage stack in which
it has been implemented. The authors focus on a solution that attempts to reap the benefits of each type of
solution by moving the kernel’s current multipath layer,
dm-multipath, below the I/O scheduler and above the
hardware-specific subsystem. This paper describes the
block, Device-mapper, and SCSI layer changes for the
solution and its effect on performance.
1
Introduction
Multipath I/O provides the capability to utilize multiple
paths between the host and the storage device. Multiple
paths can result from host or storage controllers having
more than one port, redundancy in the fabric, or having
multiple controllers or buses.
As can be seen in Figure 1(a), multipath architectures
like MD Multipath or the Device-mapper (DM) layer’s
multipath target have taken advantage of multiple paths
at a high level by creating a virtual device that is comprised of block devices created by the hardware subsystem.
In this approach, the hardware subsystem is unaware of
multipath, and the lower-level block devices represent
paths to the storage device which the higher-level software routes I/Os in units of BIOs over [1]. This design
has the benefit that it can support any block device, and
is easy to implement because it uses the same infrastructure that software RAID uses. It has the drawback that it
does not have access to detailed error information, and it
resides above the I/O scheduler and I/O merging, which
makes it difficult to make load-balancing decisions.
Another approach to multipath design modifies the
hardware subsystem or low-level driver (LLD) to be
multipath-aware. For the Linux SCSI stack (Figure 1(b)), Host Bus Adapter (HBA) manufacturers, such
as Qlogic, have provided LLDs for their Fibre Channel
and iSCSI cards which hide the multipath details from
the OS [2]. These drivers coalesce paths into a single
device which is exposed to the kernel, and route SCSI
commands or driver-specific structures. There have also
been multipath implementations in the SCSI layer that
are able to route SCSI commands over different types
of HBAs. These can be implemented above the LLD
in the SCSI mid-layer or as a specialized SCSI upperlayer driver [3]. These designs benefit from being at a
lower level, because they are able to quickly distinguish
transport problems from device errors, can support any
SCSI device including tape, and are able to make more
intelligent load-balancing decisions.
This paper describes a multipath technique, Requestbased DM, which can be seen in Figure 1(c), that is located under the I/O scheduler and above the hardware
subsystem, and routes struct requests over the devices created by the hardware specific subsystem. (To
distinguish from the general meaning of request, request
is used in this paper to mention the struct request.)
As a result of working with requests instead of BIOs or
SCSI commands, this new technique is able to bridge
the multipath layer with the lower levels because it has
access to the lower-level error information, and is able
to leverage the existing block-layer statistics and queue
management infrastructure to provide improved load
balancing.
In Section 2, we will give an overview of the Linux
block and DM layer. Then Section 3 describes in more
detail the differences between routing I/O at the BIOlevel versus the request-level, and what modifications to
• 235 •
236 • Request-based Device-mapper multipath and Dynamic load balancing
File system
Direct I/O
File system
Direct I/O
File system
Direct I/O
BIO mapper (dm-multipath)
I/O scheduler
I/O scheduler
I/O scheduler
Request-based DM
Hardware subsystem (SCSI, IDE)
SCSI upper level driver
disk (sd), tape (st), and CD (sr).
Hardware subsystem (SCSI, IDE)
SCSI mid layer
Low level driver
(Qlogic qla2xxx, Emulex lpfc)
(b) SCSI multipath
(a) BIO mapper multipath
(c) Request-based DM multipath
Figure 1: Multipath implementations
the block, SCSI, and DM layers are necessary to support
Request-based multipath. Finally, we will detail performance results and load-balancing changes in Section 4
and Section 5.
read, write
page
file system, etc.
submit_bio
2
Overview of Linux Block I/O and DM
BIO
block layer
In this section, we look into the building blocks of multipath I/O, specifically, how the applications’ read/write
operations are translated into low-level I/O requests.
unplug
Request
low-level device driver
2.1
Block I/O
When a process, or kernel itself, reads or writes to a
block device, the I/O operation is initially packed into
a simple container called a BIO. (See Figure 2.) The
BIO uses a vector representation pointing to an array of
tuples of <page, offset, len> to describe the I/O
buffer, and has various other fields describing I/O parameters and state that needs to be maintained for performing the I/O [4].
Upon receiving the BIO, the block layer attempts to
merge it with other BIOs already packed into requests
and inserted in the request queue. This allows the block
layer to create larger requests and to collect enough of
them in the queue to be able to take advantage of the
sorting/merging logic in the elevator [4].
Figure 2: Relationship between page, BIO, and request
This approach to collecting multiple larger requests before dequeueing is called plugging. If the buffers of
two BIOs are contiguous on disk, and the size of the
BIO combined with the request it is to be merged with
is within the LLD and hardware’s I/O size limitations,
then the BIO is merged with an existing request; otherwise the BIO is packed into a new request and inserted
into the block device’s request queue. Requests will
continue to be merged with incoming BIOs and adjacent requests until the queue is unplugged. An unplug
of the queue is triggered by various events such as the
2007 Linux Symposium, Volume Two • 237
plug timer firing, the number of requests exceeding a
given threshold, and I/O completion.
is set to the device it wants to send the BIO
to.
When the queue is unplugged the requests are passed
to the low-level driver’s request_fn() to be executed. And when the I/O completes, subsystems like
the SCSI and IDE layer will call blk_complete_
request() to schedule further processing of the request from the block layer softirq handler. From
that context, the subsystem will complete processing of the request by asking the block layer to requeue it, or by calling end_request(), or end_
that_request_first()/chunk() and end_that_
request_last() to pass ownership of the request
back to the block layer. To notify upper layers of the
completion of the I/O, the block layer will then call
each BIO’s bi_end_io() function and the request’s
end_io() function.
– The cloned BIO is submitted to the underlying device.
During this process of I/O being merged, queued and
executed, the block layer and hardware specific subsystem collect a wide range of I/O statistics such as: the
number of sectors read/written, the number of merges
occurred and accumulated length of time requests took
to complete.
2.2
DM
DM is a virtual block device driver that provides a
highly modular kernel framework for stacking block device filter drivers [1]. The filter drivers are called target
drivers in DM terminology, and can map a BIO to multiple block devices, or can modify a BIO’s data or simulate various device conditions and setups. DM performs
this BIO manipulation by performing the following operations:
• Completion
– DM’s completion handler calls the targetspecific completion handler where the BIO
can be remapped or completed.
– Original BIO is completed when all cloned
BIOs are completed.
2.3
dm-multipath
dm-multipath is the DM target driver that implements multipath I/O functionality for block devices. Its
map function determines which device to route the BIO
to using a path selection module and by ordering paths
in priority groups (Figure 3). Currently, there is only
the round-robin path selector, which sends N number of
BIOs to a path before selecting a new path.
sector=100
length=100
Original BIOs
sector=0
length=100
DM device
clone
dm-multipath
map
Path selector
• Cloning
– When a BIO is sent to the DM device, a
near identical copy of that BIO is created by
DM’s make_request() function. The major difference between the two BIOs is that
the clone will have a completion handler that
points to DM’s clone_endio() function.
sector=0
length=100
Block device A
sector=100
length=100
Cloned BIOs
Block device B
I/O scheduler
I/O scheduler
low-level driver
low-level driver
• Mapping
– The cloned BIO is passed to the target driver,
where the clone’s fields are modified. By targets that map or route I/O, the bi_bdev field
Figure 3: current (BIO-based) dm-multipath
238 • Request-based Device-mapper multipath and Dynamic load balancing
3 Request-based DM
3.2
3.1
Request-based DM is based on ideas from the block
layer multipath [5] patches, which were an experiment
that moved the multipath layer down to the requestlevel. The goal of Request-based DM is to integrate into
the DM framework so that it is able to utilize existing applications such as multipath-tools and dmsetup.
Limitations of BIO-based dm-multipath
There are three primary problems which Request-based
multipath attempts to overcome:
1. Path selection does not consider I/O scheduler’s behavior.
2. Block layer statistics are difficult for DM to use.
3. Error severity information is not available to DM.
dm-multipath’s path selection modules must balance
trying to plug the underlying request queue and creating large requests against making sure each path is fully
utilized. Setting the number of BIOs that cause a path
switch to a high value will assure that most BIOs are
merged. However, it can cause other paths to be underused because it concentrates I/O on a single path for
too long. Setting the BIO path-switching threshold too
low would cause small requests to be sent down each
path and would negate any benefits that plugging the
queue would bring. At its current location in the storage
stack, the path selector module must guess what will be
merged by duplicating the block layer tests or duplicate
the block layer statistics so it can attempt to make reasonable decisions based on past I/O trends.
Along with enhancing performance, multipath’s other
duty is better handling of disruptions. The LLD and
the hardware subsystem have a detailed view of most
problems. They can decode SCSI sense keys that may
indicate a storage controller on the target is being maintained or is in trouble, and have access to lower level error information such as whether a connection has failed.
Unfortunately, the only error information DM receives
is the error code value -EIO.
Design and implementation
As explained in Section 2.2, DM’s key I/O operations
are cloning, mapping, and completion of BIOs. To allow these operations to be executed on requests, DM
was modified to take advantage of following block layer
interfaces:
BIO
Request
Submission
Completion
Submission
Completion
BIO-based DM
make_request_fn
bio->bi_end_io
request_fn
request->end_io
Request-based DM
generic_make_request()
generic_make_request()
make_request_fn()
make_request_fn()
DM device
I/O scheduler
clone and map
queue
request_fn()
generic_make_request()
clone and map
Underlying device
make_request_fn()
I/O scheduler
queue
queue
request_fn()
request_fn()
Hardware
BIO
Given that these issues are caused by the location of the
dm-multipath map and completion functions, Requestbased DM adds new DM target drivers call outs, and
modifies DM and the block layer to support mapping
at the request-level. Section 3.2 will explain the design
and implementation of Request-based DM. Section 3.3
discusses the issues that are still being worked on and
problems that were discovered with the Request-based
approach. Finally, Section 3.4 describes user interface
changes to DM.
Request
Hardware specific (SCSI command, etc.)
Figure 4: Difference of I/O submission flow
As can be seen in Figure 4, with BIO-based DM, BIOs
submitted by upper layers through generic_make_
request() are sent to DM’s make_request_fn()
where they are cloned, mapped, and then sent to a device below DM. This device could be another virtual
2007 Linux Symposium, Volume Two • 239
device, or it could be the real device queue—in which
case the BIO would be merged with a request or packed
in a new one and queued, and later executed when the
queue is unplugged.
Conversely, with Request-based DM, DM no longer
uses a specialized make_request_fn() and instead
uses the default make_request_fn(), __make_
request(). To perform cloning and mapping, DM
now implements its request_fn() callback, which is
called when the queue is unplugged. From this callback, the original request is cloned. The target driver
is asked to map the clone. And then the clone is inserted
directly into the underlying device’s request queue using __elv_add_request().
To handle I/O completion, the Request-based DM
patches allow the request’s end_io() callback to be
used to notify upper layers when an I/O is finished.
More details on this implementation in Section 3.3. DM
only needs to hook into the cloned request’s completion
handler—similar to what is done for BIO completions.
(Figure 5).
3.3.1 Request cloning
A clone of the original request is needed, because a
layer below DM may modify request fields, and the use
of a clone simplifies the handling of partial completions.
To allocate the clone, it would be best to use the existing request mempools [6], so DM initially attempted to
use get_request(). Unfortunately, the block layer
and some I/O schedulers assume that get_request()
is called in the process context in which the BIO was
submitted, but a request queue’s request_fn() can be
called from the completion callback which can be run in
a softirq context.
Removing the need for cloning or modifying get_
request() to be usable from any context would be
the preferable solutions, but both required too many
changes to the block layer for the initial release. Instead,
DM currently uses a private mempool for the request
clones.
3.3.2
Completion handling
dm-multipath’s completion handler has to do the fol-
Result visible to upper layer
lowing:
Original
default completion handler
• Check completion status.
Retry
Cloned
DM completion handler
Success
Failure
• Setup a retry if an error has occurred.
• Release its private data if a retry is not needed.
• Return a result to the upper layer.
Hardware
= BIO or Request
Figure 5: Completion handling of cloned I/O
3.3 Request-based DM road bumps
A lot of the Request-based details have been glossed
over, so they could be discussed in this section. While
working with requests simplifies the mapping operation,
it complicates the cloning path, and requires a lot of new
infrastructure for the completion path.
When segments of a BIO are completed, the upper layers do not begin processing the completion until the entire operation has finished. This allows BIO mappers
to hook at a single point—the BIO’s bi_end_io()
callback. Before sending a BIO to generic_make_
request(), DM will copy the mutable fields like the
size, starting sector, and segment/vector index. If an error occurs, DM can wait until the entire I/O has completed, restore the fields it copied, and then retry the BIO
from the beginning.
Requests, on the other hand, are completed in two
parts: __end_that_request_first(), which completes BIOs in the request (sometimes partially), and
end_that_request_last(), which handles statistics accounting, releases the request, and calls its end_
240 • Request-based Device-mapper multipath and Dynamic load balancing
write
read
35000
175
30000
150
25000
125
20000
100
15000
75
50
10000
25
5000
0
Throughput[MB/s]
Throughput[MB/s]
200
200
35000
175
30000
150
8
16
32
64
128
256
15000
75
10000
50
5000
25
0
0
4
512
8
16
32
64
128
256
512
max_sectors[KB]
max_sectors[KB]
Throughput
20000
100
0
4
25000
125
Throughput
Number of
dispatched
requests
Number of
dispatched
requests
Command: dd if=/dev/<dev|zero> of=/dev/<null|dev> bs=16777216 count=8
Figure 6: Performance effects of I/O merging
io() function. This separation creates a problem for er-
ror processing, because Request-based DM does not do
a deep copy of the request’s BIOs. As a result, if there
is an error, __end_that_request_first() will end
up calling the BIO’s bi_end_io() callback and returning the BIO to the upper layer, before DM has a chance
to retry it.
A simple solution might be to add a new hook in __
end_that_request_first(), where the new hook
is called before a BIO is completed. DM would then be
responsible for completing the BIO when it was ready.
However, it just imposes additional complexity on DM
because DM needs to split its completion handler into
error checking and retrying as the latter still has to wait
for end_that_request_last(). It is nothing more
than a workaround for the lack of request stacking.
• Modify existing end_io() users to handle the new
behavior.
• Provide a new helper function for device drivers to
complete a request. The function eventually calls
the request’s end_io() function. Device drivers
have to be modified to call the new helper function
for request completion. (end_that_request_
*() are no longer called from device drivers.) If
the helper function returns 0, device drivers can assume the request is completed. If the helper function returns 1, device drivers can assume the request is not completed and can take actions in response.
3.4
User-space DM interface
True request stacking
To solve the problem, a redesign of the block layer request completion interfaces, so that they function like
BIO stacking, is necessary. To accomplish this, Request-based DM implements the following:
• Provide a generic completion handler for requests
which are not using their end_io() in the current code. __make_request() will set the default handler.
dm-multipath has a wide range of tools like
multipath-tools and installers for major distribu-
tions. To minimize headaches caused by changing the
multipath infrastructure, not only did Request-based
multipath hook into DM, but it also reused the BIObased dm-multipath target. As a result, the only
change to the user-space DM interface is a new flag for
the DM device creation ioctl. The existence of the
flag is checked at the ioctl handler and, if it is turned on,
the device will be set up for Request-based DM.
read
35000
30000
25000
20000
15000
10000
5000
0
1
2
5
10
50
100
1000
rr_min_io
BIO-based DM
Total number of dispatched requests
(Smaller is better)
Total number of dispatched requests
(Smaller is better)
2007 Linux Symposium, Volume Two • 241
Request-based
DM
write
35000
30000
25000
20000
15000
10000
5000
0
1
2
5
10
50
100
1000
rr_min_io
BIO-based DM
Request-based
DM
Command: dd if=/dev/<dev|zero> of=/dev/<null|dev> bs=16777216 count=8
Figure 7: Effects of frequent path changes on I/O merging
4
Performance testing
max_sectors controls the request size. It is expected
that when the value of max_sectors becomes smaller,
main purposes of Request-based
dm-multipath is to reduce the total number of
requests dispatched to underlying devices even when
path change occurs frequently.
the number of dispatched requests becomes larger. The
results in Figure 6 appear to confirm this, and indicate
that I/O merging, or at least larger I/Os, is important to
achieve higher throughput.
In this section, performance effects of I/O merging
and how Request-based dm-multipath reduces the
number of requests under frequent path change are
shown. The test environment used for the measurement
is shown in Table 1.
4.2
One
of
the
Host
Storage
Switch
CPU
Memory
FC HBA
Port
Cache
Port
Intel Xeon 1.60[GHz]
2[GB]
Emulex LPe1150-F4 * 2
4[Gbps] * 2
4[GB]
2[Gbps]
Table 1: Test environment
4.1
Effects of I/O merging
Sequential I/O results are shown in Figure 6. The
throughput for a fixed amount of reads and writes on a
local block device was measured using the dd command
while changing the queue’s max_sectors parameter.
In the test setup, the Emulex driver’s max segment size
and max segment count are set high enough, so that
Effects of Request-based dm-multipath on
I/O merging
While the results shown in the previous section are obtained by artificially reducing the max_sectors parameter, such situations can happen when frequent path
changes occur in BIO-based dm-multipath.
Testing results for the same sequential I/O pattern
on a dm-multipath device when changing roundrobin path selector’s rr_min_io parameter which corresponds to the frequency of path change is shown in
Figure 7.
This data shows that, when path change occurs frequently, the total number of requests increases with
BIO-based dm-multipath. While under the same condition, the number of requests is low and stable with
Request-based dm-multipath.
4.3
Throughput of Request-based dm-multipath
At this point in time, Request-based dm-multipath
still cannot supersede BIO-based dm-multipath in sequential read performance with a simple round-robin
242 • Request-based Device-mapper multipath and Dynamic load balancing
Host0
multipath device0
Path0
sda
Path1
multipath device1
Path2
sdb
Cable0
Path3
sdc
HBA0
does not care about that, and will select Path2(sdb)
at next path selection for multipath device1. It will
cause congestion on Cable0.
sdd
HBA1
To get better performance even in such environments, a
dynamic load balancer is needed.
5.2
Load parameters
Cable1
Port0
Port1
LUN0
LUN1
It is important to define good metrics to model the load
of a path. Below is an example of parameters which
determine the load of a path.
• Number of in-flight I/Os;
• Block size of in-flight I/Os;
• Recent throughput;
Figure 8: Examples of targets sharing cables
• Recent latency; and
• Hardware specific parameters.
path selector. The performance problem is currently under investigation.
5
Dynamic load balancing
The benefit of moving multipath layer below the I/O
scheduler is not only for the efficiency of I/O merging.
This section reviews the other important feature of Request-based dm-multipath, dynamic load balancing.
5.1
Needs of dynamic load balancing
There are two load balancing types in general, static and
dynamic. dm-multipath currently supports a static
balancer with weighted round-robin. It may be sufficient in an ideal environment where all paths and storage
controllers are symmetric and private to the host system.
But in an environment where the load of each path is
not same or dynamically changes, round-robin does not
work well.
For example, suppose there is a multipath configuration described in Figure 8 and Path0(sda) is being used heavily for multipath device0. It means
Cable0 is heavily loaded. In this situation, multipath
device1 should use Path3(sdd) to avoid heavily
loaded Cable0. However, the round-robin path selector
Using information such as the number of in-flight I/Os
on a path would be the simplest way to gauge traffic.
For BIO-based DM, it was described in Section 2.2 the
unit of I/O is the BIO, but BIO counters do not take into
account merges. Request-based DM, on the other hand,
is better suited for this type of measurement. Its use of
requests allows it to measure traffic in the same units of
I/O that are used by lower layers, so it is possible for
Request-based DM to take into account a lower layer’s
limitations like HBA, device, or transport queue depths.
Throughput or latency is another valuable metric. Many
lower layer limits are not dynamic, and even if they
were, could not completely account for every bottleneck
in the topology. If we used throughput as the load of a
path, path selection could be done with the following
steps.
1. Track block size of in-flight I/Os on each path
. . . in-flight size.
2. At path selection time, calculate recent throughput
of each path by using generic diskstats (sectors
and io_ticks) . . . recent throughput.
3. For each path, calculate the time which all inflight I/Os will finish by using (in-flight size)/
(recent throughput).
2007 Linux Symposium, Volume Two • 243
4. Select the path of which Step 3 is the shortest time.
We plan to implement such dynamic load balancers after
resolving the performance problems of Section 4.3.
6
Conclusion
Request-based multipath has some potential improvements over current dm-multipath. The paper focused
on the I/O merging, which affects load balancing, and
confirmed the code works correctly.
There is a lot of work to be done to modify the block
layer so that it can efficiently and elegantly handle routing requests. And there are a lot of interesting directions
the path selection modules can take, because the multipath layer is now working in the same units of I/O that
the storage device and LLD are.
References
[1] Edward Goggin, Linux Multipathing Proceedings
of the Linux Symposium, 2005.
[2] Qlogic, Qlogic QL4xxx QL2xxx Driver
README, http://www.qlogic.com.
[3] Mike Anderson, SCSI Mid-Level Multipath,
Proceedings of the Linux Symposium, 2003.
[4] Jens Axboe, Notes on the Generic Block Layer
Rewrite in Linux 2.5, Documentation/block/
biodoc.txt, 2007.
[5] Mike Christie, [PATCH RFC] block layer (request
based) multipath,
http://lwn.net/Articles/156058/.
[6] Jonathan Corbet, Driver porting: low-level
memory allocation,
http://lwn.net/Articles/22909/.
244 • Request-based Device-mapper multipath and Dynamic load balancing
Short-term solution for 3G networks in Linux: umtsmon
Klaas van Gend
MontaVista Software, Inc.
[email protected]
Abstract
When not at home and in need of Internet access, one
can search for an open Wifi access point. But if there
is none available, you’ll have to set up a connection
through a mobile network—GPRS, EDGE, UMTS, HSDPA, or WCDMA networks. For laptops, there are special PCMCIA cards that can do that; most mid- or highend mobile phones can do this through USB or Bluetooth as well. To manage such a connection, one needs
special software—it works differently from a regular
phone dial-up, Wifi, or Ethernet connection.
umtsmon was created to address this need. The author wanted to have a simple tool that works for all current Linux distributions. umtsmon is not the final mobile network manager application—at some point, the
functionality of umtsmon will have to be integrated into
Network Manager and its GUI apps. But umtsmon will
definitely serve as a playground to find out what users
really want, so only the really used features will be implemented the right way into Network Manager. Also:
umtsmon is available now as a simple download and
run—it is usable for existing Linux users. The integrated Network Manager will only help future distributions.
In this talk, Klaas will discuss mobile networks in general, how the various brands of pccards work, and what
umtsmon can and cannot do yet.
1
Short history of 3G networks
For Western European consumers, mobile communication networks started in the early 80s. Back then, most
countries had their own analog standards and equipment
was heavy—mainly due to the batteries and antennas. It
was also rather easy to listen into conversations and it
was expensive.
The organisation GSM, Groupe Spécial Mobile, was
started in 1982 by the joint European telecom operators
to address the issues. By the end of the eighties, the
GSM standard was close to finished and was tranferred
to a standardization body, ETSI. The new standard used
digital transmission, performed frequency hopping, and
prevented tapping of conversations.
The first network to go live was in Finland in 1991; by
the end of 1993, networks were operational in 48 countries with a total of one million subscribers.
The popularity of GSM surprised many—by now every
person in the Netherlands (including newlyborns and the
elderly) owns more than one mobile handset. This unexpected surge in users caused telecom operators to start
hunting for expansion of their networks—they feared
overloading of their networks.
Also, GSM features a direct tunnel from handset to local
cell antenna, and users are charged for the duration of
the connection. This is less useful for data connections,
so an extension to the GSM standard was made: GPRS.
This allowed for a packet-switching-based connection,
therefore not requiring a tunnel. Charging per amount
of data was possible. However, GSM/GPRS only allows
for small bandwidths—typically comparable to old analog modem speeds—max 28k8 kbits/s if you are lucky.
UMTS was created to address these two needs—
relieving the load of the GSM networks and addressing
higher bandwidth data communication. Different radio
technology required new antennas, thus requiring new
• 245 •
246 • Short-term solution for 3G networks in Linux: umtsmon
radio frequencies and equipment. Governments across
Europe saw their chance and auctioned the new radio
frequencies for astronomic sums of money. Several
telecom operators nearly went bankrupt because they
were forced to buy into expensive frequencies in several
countries.
specialised companies like Option (Belgium), Novatel Wireless (USA), 3GSystems (Germany) and Sierra
Wireless (USA).
A deafening silence followed.
UMTS requires a lot of antennas. To get a decent coverage, there are far more antennas required for UMTS
than there are for a normal GSM network. The year
2004 through the first half 2006 saw a heated debate on
the dangers of radio transmitters in cell phones and antennas to the public health. All kind of research either
suggested that one would get sick from living close to an
antenna, or would get a heated brain from using a cell
phone. Also some people advised against wearing a cell
in one’s trouser pockets as it might reduce virility (?!).
This made several local municipalities refuse UMTS antennas within their territory. These “white spots” in
UMTS coverage might endanger the timely roll-out of
the UMTS networks. . .
So, telecom operators invested in frequencies, invested
in equipment. And just some Internet junkies bought
into it and bought PCCards for laptops or expensive
phones that used the new network. At the same time,
most operators added new GSM antennas to their new
UMTS stations. By creating more cells, the average
number of users in a cell decreased—the GSM technology was saved from overload.
PCCards and especially Blackberries were the first killer
apps for UMTS—these devices use UMTS (if available)
to get their users access to their e-mail. The reduction
of the rates helped adoption of UMTS, but still many
consider it too expensive. Nowadays, most telecom operators are on break-even for their 3G networks—when
not counting in payment of the original radio licenses.
By now, telecom operators see the danger of competing
technologies like WiMax and Wifi. So they are moving
their UMTS networks forward to HSPA (HSDPA and
HSUPA) which require yet new devices.
Analysis of a PCMCIA UMTS card
All telecom operators sell PCCards for laptops. However, all are OEM products, manufactured by small
Figure 1: a PCMCIA card and its contents
The first generation of UMTS cards as pioneered by Option, have an interesting hardware architecture as depicted in Figure 1. If one inserts the card into a laptop
running Linux, Linux will recognize a new USB interface. Three (or four) usbserial devices are connected
(via a hub) to that USB interface. Standard Linux kernels do not recognize the VendorID/Product ID for usbserial, but if forced to load by hand, three new serial
ports appear on /dev/ttyUSBx.
Most other vendors have cards with similar design—this
is mainly due to the fact that there are very limited manufacturers of chipsets for UMTS data. In most cases,
this is QualComm.
QualComm decided to go a different route for the HSDPA cards. No longer serial2usb interfaces, but specialised connections that require a specialised driver.
With help from other people, Paul Hardwick from Option ported the existing Windows driver to Linux. This
driver is now known as the Nozomi driver. Its path to
inclusion in the Linux kernel is interesting—of course it
was rejected for inclusion because it was not written the
“Linux way.” With help from Greg Kroah-Hartman, the
driver is taking shape now.
3
2
Analysis of a “Zero CD” USB UMTS brick
To reduce packaging costs, some vendors now ship a
technology called “ZeroCD.” It was pioneered by Option in their ICON USB box (see Figure 2), but there
are also PCCards available. Essential is that the device
2007 Linux Symposium, Volume Two • 247
select the network of a mobile operator, send an SMS,
and such. There are multiple interfaces to the modem
to allow one interface to be used by PPP for the actual
network connection, whereas one can use another interface to send AT commands to retrieve the status of the
modem, network, or SIM card.
A few examples of new AT commands:
• AT+COPS=? will (after 30 seconds) return a list of
all mobile networks that are available, with info on
which networks you are allowed to connect to.
Figure 2: a “ZeroCD” USB box and its contents
boots up as a USB Mass Storage Device. For Windows
users, an autorun.inf file will automatically take
care of installing the software. Afterwards, the driver
will send a magic string to the USB Hub. The USB Hub
then disconnects the Mass Storage and connects the modem ports, either through USBSerial or the above mentioned Nozomi. For this type of device, vendors do not
need to ship installation CDs. For users, the installation
is simplified: just plugging it in is enough.
The major disadvantage of the current ZeroCD chipset
is the power consumption—it requires two USB plugs
because one USB plug can only carry 5W. . . Be careful and remove the device if your laptop runs on battery
power!
4
Back to the AT commands era
Whether the card supports serial or nozomi, after loading the right driver, you will run into serial ports
on /dev/ttyUSBx, /dev/ttyACMx, or /dev/
nozomiX.
Adventurous Penguins immediately type minicom
/dev/ttyUSB0 to see what’s on the serial devices.
Hopefully, they are old enough to remember the good
old Hayes-compatible modem era, where one could play
with AT Commands and PPP settings for ages before the
first connection to the outside world was successful.
Actually, they need to—because that’s exactly what you
get: all three interfaces are connected to an UMTS modem with an AT Command set. However, standardization committee 3GPP has standardized the AT commands for 3G network modems, so there are standardized commands to talk to the modem to enter PIN codes,
• AT+CPIN="1234" to enter a PIN code for the
smart card.
• AT+CSQ returns the signal strength of the mobile
connection.
So we’re stuck with AT interfaces. Let’s re-install ppp
and go back to the old days. Or install umtsmon—which
will interact with the modem and do all the AT commands for you.
5
Single Serial Port devices
The most popular cards in Europe all have multiple interfaces. This means that we can, for example, use
/dev/ttyUSB0 to connect PPP to, whilst we can simultaneously send AT commands to /dev/ttyUSB2.
However, some cards (like the Sony Ericsson GC79,
most Sierra Wireless cards, and some of the Novatels)
only have a single serial port. This means that AT commands and PPP data need to share the same port. Technically, this is not a problem—software like kppp implements this functionality already. However, the OpenMoko project also spawned a new project called the
GSM Daemon that also can do this. This might be an
interesting road for the future—at the cost of another
external dependency.
6
umtsmon system design—dependencies
As stated before, umtsmon was designed to work on as
wide a range of Linuxes as possible. This is why we
attempt to make as few assumptions about the operating system as possible. Yet we have to rely on a few
packages to be present:
248 • Short-term solution for 3G networks in Linux: umtsmon
• PPP
We need PPP to make the actual network connection and change routing and such.
• QT3
The QT library is needed for the UI. umtsmon
cannot run without it. QT in itself also has a few
dependencies, like X.
For versions of umtsmon beyond 0.6, we probably will
add a few more requirements:
• pcmcia-utils
This one obviously is not necessary for the ICON
and other USB-only devices. We want to use
pcmcia-utils to enable users to reset the card
(pccard eject and pccard insert) and/or
to simplify the autodetection code.
• libusb
At this moment, a lot of the autodetection is
done by browsing through the /sys filesystem.
This is rather complex to code consistently for
all Linux kernel revisions. Using libusb should
solve that problem for us and again simplify the
autodetection code. It might be wise to move the
libusb-dependent code into a shared library that is
dlopen()ed at runtime to prevent umtsmon from
trying to run if libusb isn’t present or if it is too old
to work.
• icon_switch
This is a small utility that switches the ICON box
from mass storage to modem operation. Unfortunately, it is rather unreliable and it needs extensions for the other ZeroCD devices that have different USB IDs and may require different code sequences. umtsmon at this moment requires PPP to
be SUID—umtsmon calls pppd directly with arguments controlling the connection. umtsmon will
complain to the user if PPP is not set SUID and
ask the user if it is allowed to fix it. This is a security hole: in theory people could start writing
malicious dialers dialing expensive foreign numbers. This should be addressed in a future revision by having umtsmon create profiles in the
/etc/ppp/peers/ directory.
7
umtsmon software design
Internally, umtsmon is written to follow the MVC design pattern. MVC means Model View Controller. Basically, this comes down to a separation of concerns—
a class should only contain code that represents data
(=model), changes data (=controller), or displays it
(=view).
Central in the umtsmon 0.6 design are the classes Query,
SerialPort, ConnectionInfo, and PPPConnection. Any
AT Command sequence that is to be sent to the card is
represented as a Query instance. The Query class also
contains rudimentary parsing and will strip off echos
and such. Query connects to a SerialPort instance for
the actual communication.
The following paragraphs discuss some details of the
design of umtsmon.
7.1
PPPConnection
PPPConnection is the beating heart of the application.
As can be seen in Figure 3, the main GUI class MainWindow subscribes one of its attributes, the MainWindowPPPObserver, to receive any state changes of the
PPP daemon. If someone outside umtsmon or umtsmon
itself then starts the ppp daemon to make a connection,
the PPPConnection class with call all its attached Observers to notify the state changes. MainWindow responds to that by enabling/disabling buttons and menu
items.
At this moment, only MainWindow is subscribed to receive the PPP state changes. This will change in the near
future when we start talking about the NetworkManager
integration—that will require another Observer to the
PPP state.
7.2
(Inhibiting) ConnectionInfo
ConnectionInfo regularly polls the card to ask for the
mobile operator, signal strength, and such. On some occasions, ConnectionInfo must be prevented from sending out Queries, like during the PPP connection setup or
whilst AT+COPS=? (see Section 4) is running. In such
cases, the PPPConnection or NetworkChanger class just
creates a ConnectionInfoInhibitor instance. Creation
of the Inhibitor instance will increase a counter inside
2007 Linux Symposium, Volume Two • 249
PPPObserverInterface
ObserverManager
- theObserverList : ObserverList
- theObserverListIterator : typename ObserverList::iterator
+ ObserverManager()
+ ~ ObserverManager()
+ attach()
+ detach()
PPPObserverInterface
# firstObserver()
# nextObserver()
+ newPPPState()
+ ~ PPPObserverInterface()
attach/detach
newPPPState
PPPConnection
+
+
+
+
+
+
+
+
+
+
PPPConnection()
setSerialPortName()
~ PPPConnection()
startPPP()
stopPPP()
getCounterBytesSent()
getCounterBytesReceived()
refreshPPPStats()
isPPPStarting()
hasErrors()
MainWindowPPPObserver
startPPP/stopPPP
MainWindow
QMainWindow
+ newPPPState()
from the QT library
Figure 3: Class Diagram of PPPConnection and interacting classes
SIMHandler
PPPConnection
+
+
+
+
+
+
+
+
+
+
PPPConnection()
setSerialPortName()
~ PPPConnection()
startPPP()
stopPPP()
getCounterBytesSent()
getCounterBytesReceived()
refreshPPPStats()
isPPPStarting()
hasErrors()
+
+
+
+
+
+
+
+
+
+
SIMHandler()
~ SIMHandler()
askForPIN()
isPinCodeRequired()
setPUK()
setPIN()
setDeviceInfo()
isPINProtectionEnabled()
setPINActive()
setNewPIN()
created on demand
create on demand
«friend to ConnectionInfo»
ConnectionInfoInhibitor
modifies theInhibitionCount
Runner
created on demand
+
+
+
+
+
+
Runner()
~ Runner()
getPath()
isSUID()
amIRoot()
runCommand()
-
ConnectionInfo
theRegistrationValue : Registration
theSignalQuality : int
theRadioType : int
theOperatorName : QString
theInhibitionCount : int
Figure 4: Class Diagram of ConnectionInfo and interacting classes
250 • Short-term solution for 3G networks in Linux: umtsmon
from QT3 library
QMainWindow
QDialog
MainWindow
+ newPPPState()
QSettings
ProfileDialog
creates
startPPP/stopPPP
PPPConnection
+
+
+
+
+
+
+
+
+
+
PPPConnection()
setSerialPortName()
~ PPPConnection()
startPPP()
stopPPP()
getCounterBytesSent()
getCounterBytesReceived()
refreshPPPStats()
isPPPStarting()
hasErrors()
modifies
«Singleton»
TheSettingsSingleton
use data
+
+
+
+
Profile
getQSRef()
me()
removeSubTree()
makeChangesPersistant()
Figure 5: Class Diagram of Profile and interacting classes
ConnectionInfo; upon destruction, the counter will automatically be decreased. PPPConnection uses an instance of the Runner class to manage the execution of
/usr/sbin/pppd. This is shown in Figure 4. In the
case of single serial port cards, the AT commands and
the PPP data stream need to be sent over the same serial
port. In that case, ConnectionInfo never can run when a
PPP connection exists.
7.3
Profile Management
Refer to Figure 5 for a class diagram. Once the user
clicks on the connect button in MainWindow, PPPConnection gets called with a reference to a Profile. PPPConnection will use the info inside the Profile class
to setup the connection. To change a profile, the user
selects Profile Management in the menu in the GUI.
The ProfileDialog will be instantiated and filled with
the data from the active Profile. Users then can choose
to create another profile, change the current one, etc.
The data is stored to disk in a key=data formatted
~/.umtsmon/umtsmonrc file. The QSettings class
takes care of that. Because settings need to be accessed
throughout the program, possibly even before main()
is started, settings are always retrieved through a Singleton pattern class. This also solves the issue that a QSettings class only saves its data upon destruction. Call-
ing makeChangesPersistent() will thus cause
the QSettings instance to be destroyed.
8
NetworkManager
takeover
integration
and/or
High on the wish list is to integrate at least a little with
NetworkManager. The big annoyance is that at the moment, even if a UMTS connection is made, software
like Gaim and Firefox will refuse to connect because
according to them there is no connection. Apparently
they use libnm to ask NetworkManager if the system
is on-line or not. As stated before, umtsmon should
run, regardless of NetworkManager’s presence. However, this is only loose coupling—we’re not discussing
adding UMTS support to Network Manager yet. In the
end, UMTS connections should be just another item that
is implemented in NetworkManager and its GUIs. We
currently view umtsmon as a playing ground for that.
What features are actually used? How to implement
stuff? Where to put security constraints? It all is easier to do in a small program than in the collection of
binaries that makes up NetworkManager. Yet NetworkManager is the future—it is the most convenient way
for users to manage yet another networking connection.
It remains to be seen if the current umtsmon team will
actually do the NetworkManager implementation.
2007 Linux Symposium, Volume Two • 251
Brand
Sony Ericsson
Option
Option
model
GC79
GT GPRS EDGE
3G Quad
type
single-port serial
remarks
GPRS and EDGE only
three of four port usb2serial
need kernel module usbserial.ko with parameters or
the specialised option kernel module.
Huawei
Option
Option
E612
ICON
nozomi
external usb box
need nozomi kernel module
ZeroCD chipset,
need
switching
3GSystems
Sierra Wireless
Novatel
Novatel
XSPlug3
7xx series
U630/U530
XU870
PCMCIA serial modem
single serial port
dual serial port, only first usable
first Expresscard to be supported
serial ports don’t communicate.
handled as a single serial
port card
Kyocera
KPC650
dual serial port
various mobile
phones
various
connect through either serial,
USB or Bluetooth
Table 1: Hardware support of umtsmon
9
Device, Commercial and Distribution support
At this moment, umtsmon supports a wide variety of
hardware. The 0.6 release will support devices from Novatel, 3G Systems, Sony Ericsson, Option, Sierra Wireless, and Huawei. Also mobile phones that have a laptop connection through USB, Bluetooth, or serial can
be supported, with a few limitations. See Table 1 for a
more complete list.
10
Conclusions
• Support for UMTS cards is in the same position as
hardware enablement projects like ALSA were a
few years ago. Several devices work—mostly the
devices owned by the developers. Manufacturers
don’t see the need to cooperate yet, nor to fund development.
• All known 3G mobile devices implement serial interfaces, either directly or through drivers.
None of the device vendors is cooperating with the development, however. The development team is currently
investigating creating a fund to buy all available hardware and distribute it amongst the developers to ensure
that all hardware is supported and remains operational.
• UMTS is just another radio technology reusing existing communication standards: AT commands.
Network operator T-Mobile Germany sponsored the development by providing a laptop and devices to one
of the developers, who happened to also have done an
internship on UMTS on Linux for T-Mobile. The internship resulted in a lot of improvements to umtsmon,
thanks Christofer!
• umtsmon is not really integrated into Linux—it’s a
standalone application.
At the moment of writing this paper, umtsmon is
available as a standard package in OpenSuse (starting
umtsmon 0.3 in OpenSuse 10.2) and Gentoo (starting
with umtsmon 0.5, currently in ~amd64 and ~x86 only).
• umtsmon was created to handle the AT commands
exchange for the user and start the PPP daemon.
• NetworkManager integration should start from
scratch, possibly inheriting the GSM multiplexing
daemon from OpenMoko to solve the single serial
port problem correctly.
• Writing a paper for OLS is a good stimulus for
coders to finally write down some parts of their
software design.
252 • Short-term solution for 3G networks in Linux: umtsmon
11
Links
The umtsmon website:
http://umtsmon.sourceforge.net/
PharScape (HOWTOs and support forum for all Option
based cards and the Nozomi drivers):
http://www.pharscape.org/
The 3GPP approved AT command set:
http://www.3gpp.org/ftp/Specs/latest/
Rel-7/27_series/
The GFS2 Filesystem
Steven Whitehouse
Red Hat, Inc.
[email protected]
Abstract
The GFS2 filesystem is a symmetric cluster filesystem
designed to provide a high performance means of sharing a filesystem between nodes. This paper will give
an overview of GFS2’s make subsystems, features and
differences from GFS1 before considering more recent
developments in GFS2 such as the new on-disk layout of
journaled files, the GFS2 metadata filesystem, and what
can be done with it, fast & fuzzy statfs, optimisations of
readdir/getdents64 and optimisations of glocks
(cluster locking). Finally, some possible future developments will be outlined.
To get the most from this talk you will need a good
background in the basics of Linux filesystem internals
and clustering concepts such as quorum and distributed
locking.
1
Introduction
The GFS2 filesystem is a 64bit, symmetric cluster
filesystem which is derived from the earlier GFS filesystem. It is primarily designed for Storage Area Network
(SAN) applications in which each node in a GFS2 cluster has equal access to the storage. In GFS and GFS2
there is no such concept as a metadata server, all nodes
run identical software and any node can potentially perform the same functions as any other node in the cluster.
2
Historical Detail
The original GFS [6] filesystem was developed by Matt
O’Keefe’s research group in the University of Minnesota. It used SCSI reservations to control access to
the storage and ran on SGI’s IRIX.
Later versions of GFS [5] were ported to Linux, mainly
because the group found there was considerable advantage during development due to the easy availability of
the source code. The locking subsystem was developed to give finer grained locking, initially by the use
of special firmware in the disk drives (and eventually,
also RAID controllers) which was intended to become a
SCSI standard called dmep. There was also a network
based version of dmep called memexp. Both of these
standards worked on the basis of atomically updated areas of memory based upon a “compare and exchange”
operation.
Later when it was found that most people preferred
the network based locking manager, the Grand Unified
Locking Manager, gulm, was created improving the performance over the original memexp based locking. This
was the default locking manager for GFS until the DLM
(see [1]) was written by Patrick Caulfield and Dave Teigland.
In order to limit access to areas of the storage to maintain filesystem integrity, a lock manager is used. In
GFS2 this is a distributed lock manager (DLM) [1]
based upon the VAX DLM API. The Red Hat Cluster
Suite provides the underlying cluster services (quorum,
fencing) upon which the DLM and GFS2 depend.
Sistina Software Inc, was set up by Matt O’Keefe and
began to exploit GFS commercially in late 1999/early
2000. Ken Preslan was the chief architect of that version
of GFS (see [5]) as well as the version which forms Red
Hat’s current product. Red Hat acquired Sistina Software Inc in late 2003 and integrated the GFS filesystem
into its existing product lines.
It is also possible to use GFS2 as a local filesystem with
the lock_nolock lock manager instead of the DLM.
The locking subsystem is modular and is thus easily substituted in case of a future need of a more specialised
lock manager.
During the development and subsequent deployment of
the GFS filesystem, a number of lessons were learned
about where the performance and administrative problems occur. As a result, in early 2005 the GFS2 filesystem was designed and written, initially by Ken Preslan
254 • The GFS2 Filesystem
Bit Pattern
00
01
10
11
and more recently by the author, to improve upon the
original design of GFS.
The GFS2 filesystem was submitted for inclusion in Linus’ kernel and after a lengthy period of code review
and modification, was accepted into 2.6.16.
Block State
Free
Allocated non-inode block
Unlinked (still allocated) inode
Allocated inode
Table 1: GFS2 Resource Group bitmap states
3
The on-disk format
The on-disk format of GFS2 has, intentionally, stayed
very much the same as that of GFS. The filesystem is
big-endian on disk and most of the major structures have
stayed compatible in terms of offsets of the fields common to both versions, which is most of them, in fact.
It is thus possible to perform an in-place upgrade of GFS
to GFS2. When a few extra blocks are required for some
of the per node files (see the metafs filesystem, Subsection 3.5) these can be found by shrinking the areas of the
disk originally allocated to journals in GFS. As a result,
even a full GFS filesystem can be upgraded to GFS2
without needing the addition of further storage.
3.1
The superblock
GFS2’s superblock is offset from the start of the disk
by 64k of unused space. The reason for this is entirely
historical in that in the dim and distant past, Linux used
to read the first few sectors of the disk in the VFS mount
code before control had passed to a filesystem. As a
result, this data was being cached by the Linux buffer
cache without any cluster locking. More recent versions
of GFS were able to get around this by invalidating these
sectors at mount time, and more recently still, the need
for this gap has gone away entirely. It is retained only
for backward compatibility reasons.
3.2
Resource groups
of blocks containing the allocation bitmaps. There are
two bits in the bitmap for each block in the resource
group. This is followed by the blocks for which the resource group controls the allocation.
The two bits are nominally allocated/free and data (noninode)/inode with the exception that the free inode state
is used to indicate inodes which are unlinked, but still
open.
In GFS2 all metadata blocks start with a common header
which includes fields indicating the type of the metadata
block for ease of parsing and these are also used extensively in checking for run-time errors.
Each resource group has a set of flags associated with
it which are intended to be used in the future as part of
a system to allow in-place upgrade of the filesystem. It
is possible to mark resource groups such that they will
no longer be used for allocations. This is the first part
of a plan that will allow migration of the content of a
resource group to eventually allow filesystem shrink and
similar features.
3.3
Inodes
GFS2’s inodes have retained a very similar form to those
of GFS in that each one spans an entire filesystem block
with the remainder of the block being filled either with
data (a “stuffed” inode) or with the first set of pointers
in the metadata tree.
Following the superblock are a number of resource
groups. These are similar to ext2/3 block groups in
that their intent is to divide the disk into areas which
helps to group together similar allocations. Additionally in GFS2, the resource groups allow parallel allocation from different nodes simultaneously as the locking
granularity is one lock per resource group.
GFS2 has also inherited GFS’s equal height metadata
tree. This was designed to provide constant time access to the different areas of the file. Filesystems such
as ext3, for example, have different depths of indirect
pointers according to the file offset whereas in GFS2,
the tree is constant in depth no matter what the file offset is.
On-disk, each resource group consists of a header block
with some summary information followed by a number
Initially the tree is formed by the pointers which can be
fitted into the spare space in the inode block, and is then
2007 Linux Symposium, Volume Two • 255
grown by adding another layer to the tree whenever the
current tree size proves to be insufficient.
the total length of the entry and the offset to the next
entry.
Like all the other metadata blocks in GFS2, the indirect
pointer blocks also have the common metadata header.
This unfortunately also means that the number of pointers they contain is no longer an integer power of two.
This, again, was to keep compatibility with GFS and
in the future we eventually intend to move to an extent
based system rather than change the number of pointers
in the indirect blocks.
Once enough entries have been added that it’s no longer
possible to fit them all in the directory block itself, the
directory is turned into a hashed directory. In this case,
the hash table takes the place of the directory entries
in the directory block and the entries are moved into a
directory “leaf” block.
3.3.1
Attributes
GFS2 supports the standard get/change attributes
ioctl() used by ext2/3 and many other Linux filesystems. This allows setting or querying the attributes listed
in Table 2.
As a result GFS2 is directly supported by the
lsattr(1) and chattr(1) commands. The hashed
directory flag, I, indicates whether a directory is hashed
or not. All directories which have grown beyond a certain size are hashed and section 3.4 gives further details.
3.3.2
Extended Attributes & ACLs
GFS2 supports extended attribute types user, system and
security. It is therefore possible to run selinux on a
GFS2 filesystem.
GFS2 also supports POSIX ACLs.
3.4
In the first instance, the hash table size is chosen to be
half the size of the inode disk block. This allows it to
coexist with the inode in that block. Each entry in the
hash table is a pointer to a leaf block which contains
a number of directory entries. Initially, all the pointers
in the hash table point to the same leaf block. When
that leaf block fills up, half the pointers are changed to
point to a new block and the existing directory entries
moved to the new leaf block, or left in the existing one
according to their respective hash values.
Eventually, all the pointers will point to different blocks,
assuming that the hash function (in this case a CRC32) has resulted in a reasonably even distribution of directory entries. At this point the directory hash table
is removed from the inode block and written into what
would be the data blocks of a regular file. This allows
the doubling in size of the hash table which then occurs
each time all the pointers are exhausted.
Eventually when the directory hash table hash reached
a maximum size, further entries are added by chaining
leaf blocks to the existing directory leaf blocks.
As a result, for all but the largest directories, a single
hash lookup results in reading the directory block which
contains the required entry.
Directories
GFS2’s directories are based upon the paper “Extendible
Hashing” by Fagin [3]. Using this scheme GFS2 has
a fast directory lookup time for individual file names
which scales to very large directories. Before ext3
gained hashed directories, it was the single most common reason for using GFS as a single node filesystem.
When a new GFS2 directory is created, it is “stuffed,”
in other words the directory entries are pushed into the
same disk block as the inode. Each entry is similar to an
ext3 directory entry in that it consists of a fixed length
part followed by a variable length part containing the file
name. The fixed length part contains fields to indicate
Things are a bit more complicated when it comes to the
readdir function, as this requires that the entries in
each hash chain are sorted according to their hash value
(which is also used as the file position for lseek) in
order to avoid the problem of seeing entries twice, or
missing them entirely in case a directory is expanded
during a set of repeated calls to readdir. This is discussed further in the section on future developments.
3.5
The metadata filesystem
There are a number of special files created by
mkfs.gfs2 which are used to store additional metadata related to the filesystem. These are accessible by
256 • The GFS2 Filesystem
Attribute
Append Only
Immutable
Journaling
No atime
Sync Updates
Hashed dir
Symbol
a
i
j
A
S
I
Get or Set
Get and set on regular inodes
Get and set on regular inodes
Set on regular files, get on all inodes
Get and set on all inodes
Get and set on regular files
Get on directories only
Table 2: GFS2 Attributes
mounting the gfs2meta filesystem specifying a suitable gfs2 filesystem. Normally users would not do this
operation directly since it is done by the GFS2 tools as
and when required.
Under the root directory of the metadata filesystem
(called the master directory in order that it is not confused with the real root directory) are a number of files
and directories. The most important of these is the resource index (rindex) whose fixed-size entries list the
disk locations of the resource groups.
3.5.1
Journals
Below the master directory there is a subdirectory which
contains all the journals belonging to the different nodes
of a GFS2 filesystem. The maximum number of nodes
which can mount the filesystem simultaneously is set
by the number of journals in this subdirectory. New
journals can be created simply by adding a suitably initialised file to this directory. This is done (along with the
other adjustments required) by the gfs2_jadd tool.
3.5.2
Quota file
The quota file contains the system wide summary of all
the quota information. This information is synced periodically and also based on how close each user is to
their actual quota allocation. This means that although it
is possible for a user to exceed their allocated quota (by
a maximum of two times) this is in practise extremely
unlikely to occur. The time period over which syncs of
quota take place are adjustable via sysfs.
3.5.3
statfs
The statfs files (there is a master one, and one in each
per_node subdirectory) contain the information required to give a fast (although not 100% accurate) result for the statfs system call. For large filesystems mounted on a number of nodes, the conventional
approach to statfs (i.e., iterating through all the resource groups) requires a lot of CPU time and can trigger a lot of I/O making it rather inefficient. To avoid
this, GFS2 by default uses these files to keep an approximation of the true figure which is periodically synced
back up to the master file.
There is a sysfs interface to allow adjustment of the sync
period or alternatively turn off the fast & fuzzy statfs
and go back to the original 100% correct, but slower
implementation.
3.5.4
inum
These files are used to allocate the no_formal_ino
part of GFS2’s struct gfs2_inum structure. This is
effectively a version number which is mostly used by
NFS, although it is also present in the directory entry
structure as well. The aim is to give each inode an additional number to make it unique over time. The master
inum file is used to allocate ranges to each node, which
are then replenished when they’ve been used up.
4
Locking
Whereas most filesystems define an on-disk format
which has to be largely invariant and are then free to
change their internal implementation as needs arise,
GFS2 also has to specify its locking with the same degree of care as for the on-disk format to ensure future
compatibility.
2007 Linux Symposium, Volume Two • 257
Lock type
Non-disk
Meta
Inode
Iopen
Rgrp
Trans
Flock
Quota
Journal
Use
mount/umount/recovery
The superblock
Inode metadata & data
Inode last closer detection
Resource group metadata
Transaction lock
flock(2) syscall
Quota operations
Journal mutex
5
NFS
The GFS2 interface to NFS has been carefully designed
to allow failover from one GFS2/NFS server to another,
even if those GFS2/NFS servers have CPUs of a different endianness. In order to allow this, the filehandles
must be constructed using the fsid= method. GFS2
will automatically convert endianness during the decoding of the filehandles.
Table 3: GFS2 lock types
6
GFS2 internally divides its cluster locks (known as
glocks) into several types, and within each type a 64 bit
lock number identifies individual locks. A lock name
is the concatenation of the glock type and glock number and this is converted into an ASCII string to be
passed to the DLM. The DLM refers to these locks as
resources. Each resource is associated with a lock value
block (LVB) which is a small area of memory which
may be used to hold a few bytes of data relevant to that
resource. Lock requests are sent to the DLM by GFS2
for each resource which GFS2 wants to acquire a lock
upon.
All holders of DLM locks may potentially receive callbacks from other intending holders of locks should the
DLM receive a request for a lock on a particular resource with a conflicting mode. This is used to trigger
an action such as writing back dirty data and/or invalidating pages in the page cache when an inode’s lock is
being requested by another node.
GFS2 uses three lock modes internally, exclusive,
shared and deferred. The deferred lock mode is effectively another shared lock mode which is incompatible
with the normal shared lock mode. It is used to ensure
that direct I/O is cluster coherent by forcing any cached
pages for an inode to be disposed of on all nodes in the
cluster before direct I/O commences. These are mapped
to the DLMs lock modes (only three of the six modes
are used) as shown in table 4.
The DLM’s DLM_LOCK_NL (Null) lock mode is used as
a reference count on the resource to maintain the value
of the LVB for that resource. Locks for which GFS2
doesn’t maintain a reference count in this way (or are
unlocked) may have the content of their LVBs set to zero
upon the next use of that particular lock.
Application writers’ notes
In order to ensure the best possible performance of an
application on GFS2, there are some basic principles
which need to be followed. The advice given in this
section can be considered a FAQ for application writers
and system administrators of GFS2 filesystems.
There are two simple rules to follow:
• Make maximum use of caching
• Watch out for lock contention
When GFS2 performs an operation on an inode, it first
has to gain the necessary locks, and since this potentially
requires a journal flush and/or page cache invalidate on
a remote node, this can be an expensive operation. As
a result for best performance in a cluster scenario it is
vitally important to ensure that applications do not contend for locks for the same set of files wherever possible.
GFS2 uses one lock per inode, so that directories may
become points of contention in case of large numbers of
inserts and deletes occurring in the same directory from
multiple nodes. This can rapidly degrade performance.
The single most common question asked relating to
GFS2 performance is how to run an smtp/imap email
server in an efficient manner. Ideally the spool directory is broken up into a number of subdirectories each of
which can be cached separately resulting in fewer locks
being bounced from node to node and less data being
flushed when it does happen. It is also useful if the locality of the nodes to a particular set of directories can
be enhanced using other methods (e.g. DNS) in the case
of an email server which serves multiple virtual hosts.
258 • The GFS2 Filesystem
GFS2 Lock Mode
LM_ST_EXCLUSIVE
LM_ST_SHARED
LM_ST_DEFERRED
DLM Lock Mode
DLM_LOCK_EX (exclusive)
DLM_LOCK_PR (protected read)
DLM_LOCK_CW (concurrent write)
Table 4: GFS2/DLM Lock modes
6.1 fcntl(2) caveat
When using the fcntl(2) command F_GETLK note
that although the PID of the process will be returned in
the l_pid field of the struct flock, the process
blocking the lock may not be on the local node. There is
currently no way to find out which node the lock blocking process is actually running on, unless the application
defines its own method.
The various fcntl(2) operations are provided via the
userspace gfs2_controld which relies upon openais for its communications layer rather than using the
DLM. This system keeps on each node a complete copy
of the fcntl(2) lock state, with new lock requests
being passed around the cluster using a token passing
protocol which is part of openais. This protocol ensures
that each node will see the lock requests in the same order as every other node.
It is faster (for whole file locking) for applications to use
flock(2) locks which do use the DLM. In addition it
is possible to disable the cluster fcntl(2) locks and
make them local to each node, even in a cluster configuration for higher performance. This is useful if you
know that the application will only need to lock against
processes local to the node.
6.2
Using the DLM from an application
The DLM is available through a userland interface in
order that applications can take advantage of its cluster locking facility. Applications can open and use
lockspaces which are independent of those used by
GFS2.
way in which readdir is used in combination with
other syscalls, such as stat.
There has also been some discussion (and more recently
in a thread on lkml [2]) relating to the readdir interface to userspace (currently via the getdents64
syscall) and the other two interfaces to NFS via the
struct export_operations. At the time of
writing, there are no firm proposals to change any of
these, but there are a number of issues with the current
interface which might be solved with a suitable new interface. Such things include:
• Eliminating the sorting in GFS2’s readdir for
the NFS getname operation where ordering is irrelevant.
• Boosting performance by returning more entries at
once.
• Optionally returning stat information at the same
time as the directory entry (or at least indicating the
intent to call stat soon).
• Reducing the problem of lseek in directories
with insert and delete of entries (does it result in
seeing entries twice or not at all?).
7.2
GFS2 does not support inotify nor do we have any plans
to support this feature. We would like to support dnotify
if we are able to design a scheme which is both scalable
and cluster coherent.
7.3
7
inotify & dnotify
Performance
Future Development
7.1 readdir
Currently we have already completed some work relating to speeding up readdir and also considered the
There are a number of ongoing investigations into various aspects of GFS2’s performance with a view to gaining greater insight into where there is scope for further
improvement. Currently we are focusing upon increasing the speed of file creations via open(2).
2007 Linux Symposium, Volume Two • 259
8
Resources
GFS2 is included in the Fedora Core 6 kernel (and
above). To use GFS2 in Fedora Core 6, install the
gfs2-utils and cman packages. The cman package is not required to use GFS2 as a local filesystem.
There are two GFS2 git trees available at kernel.org.
Generally the one to look at is the -nmw (next merge
window) tree [4] as that contains all the latest developments. This tree is also included in Andrew Morton’s
-mm tree. The -fixes git tree is used to send occasional fixes to Linus between merge windows and may
not always be up-to-date.
The user tools are available from Red Hat’s CVS
at:
http://sources.redhat.com/cgi-bin/
cvsweb.cgi/cluster/?cvsroot=cluster
References
[1] “DLM—Kernel Distributed Lock Manager,”
Patrick Caulfield, Minneapolis Cluster Summit
2004, http://sources.redhat.com/
cluster/events/summit2004/
presentations.html#mozTocId443696
[2] Linux Kernel Mailing List. Thread “If not
readdir() then what?” started by Ulrich Drepper
on Sat, 7 Apr 2007.
[3] “Extendible Hashing,” Fagin, et al., ACM
Transactions on Database Systems, Sept., 1979.
[4] The GFS2 git tree:
git://git.kernel.org/pub/scm/
linux/git/steve/gfs2-2.6-nmw.git
(next merge window)
[5] “64-bit, Shared Disk Filesystem for Linux,”
Kenneth W. Preslan, et al., Proceedings of the
Seventh NASA Goddard Conference on Mass
Storage, San Diego, CA, March, 1999.
[6] “The Global File System,” S. Soltis, T. Ruwart,
and M. O’Keefe, Fifth NASA Goddard Conference
on Mass Storage Systems and Technologies,
College Park, MD, September, 1996.
260 • The GFS2 Filesystem
Driver Tracing Interface
David J. Wilder
IBM Linux Technology Center
Michael Holzheu
IBM Linux on zSeries Development
[email protected]
[email protected]
Thomas R. Zanussi
IBM Linux Technology Center
[email protected]
Abstract
• Static: Tracks that are added to the source code
and compiled with it.
This paper proposes a driver-tracing interface (DTI) that
builds on the existing Relay tool and the proven Debug
TM
Feature model used by IBM zSeries Linux. Users of
this infrastructure are provided with individual, manageable channels for capturing or passing debug data into
user space. Separate channels are created by each subsystem or driver. Data is stored in kernel ring buffers
providing flight recorder type functionality. Unwanted
or unconsumed data is simply discarded where pertinent
data can be saved for future analysis. In the instance of
a system crash, all unconsumed tracing data is automatically saved in crash dumps. With support from crash
analysis tools like crash or lcrash, trace data can be extracted directly from a crash dump, providing an exact
trace of the events leading up to the crash.
TM
Developers of Linux device drivers will be interested
in DTI as a tool to aid in the troubleshooting of their
drivers. Service engineers and support personnel who
are tasked with isolating driver bugs will learn how to
capture DTI data on a live system and extract DTI data
from a crash dump.
1
Introduction
Webster defines a trace as “the track left by the passage
of a person, animal, or object.” Applied to computer
systems, we can adapt this definition to mean the track
left by the execution of a program. A typical program
doesn’t normally leave tracks, other than the expected
side effect of the program. To cause a program to create
tracks so that its passage can meaningfully be tracked,
code that explicitly leaves those tracks must be added
into the execution path of the program. We call the individual tracks we’ve inserted tracepoints. Two types of
tracepoints can be used.
• Dynamic: Tracks that are added to the execution
stream at run time.
Tracing is the act of causing special-purpose code associated with a program to report something specific about
what the program is doing at a given point. The information can be simple or complex, high or low-frequency,
binary or text-based, time-based or unsequenced and so
on. The resulting data stream can be continuously persisted to long-term storage, sent to a destination over a
network connection, or it can be endlessly cycled around
a constant-sized buffer. The buffer will only be read
when an event of interest occurs and a user needs details
about the sequence of events that led up to that event,
for example a system crash or afailed assertion in the
normal program flow.
1.1
Why is tracing needed
Tracing is needed because, in many situations, only a
detailed, sequenced, or timestamped history of program
execution can explain the behavior of a program or the
pathology of a problem. In many cases, coarse-grained
statistical or summary information can show the general
area of a problem, but only trace data can show the true
source of the problem.
The detailed data from a complete trace can be postprocessed and summary information or aggregated
statistics can be calculated based on it. The converse
however is not true. Detailed information cannot be extracted from statistics or summaries, because that information is lost in the process. Keeping in mind practical
considerations such as storage costs, it is always better
• 261 •
262 • Driver Tracing Interface
to have the detailed trace information instead of only the
statistics, because the appropriate trace data allows for
more varied and flexible analysis.
2
Relay buffers are represented as files in a host file system such as debugfs; data previously written into a relay
channel can be retrieved by read(2)ing or mmap(2)ing
these files.
Current solutions for static tracing
2.3
Currently, there are three kernel APIs available to do
static tracing using kernel memory buffers:
• printk
• relay
• s390 debug feature (s390dbf)
2.1
Printk
Printk often is misused for tracing purposes, since there
is no other standard way for device drivers to log debug
information.1 There are multiple printk levels defined,
which indicate the importance of a kernel message. The
kernel messages are written in one global printk buffer,
which can be accessed from the user space with the
syslog() system call or via the /proc/kmesg file. The
dmesg tool prints the content of the message buffer to
the screen, and then the kernel log daemon klogd reads
kernel messages and redirects them either to the syslogd
or into a file. The printk message buffer can also be accessed from system dumps through the lcrash or other
crash dump analysis tools.
2.2
Relay
Relay provides a basic low-level interface that has a variety of uses, including tracing. In order to define a kernel trace buffer, the relay_open() function is used.
This function creates a relay channel. Relay channels
are organized as wrap around buffers in memory. There
are two mechanisms to write trace data into a channel:
• relay_write(chan, data, length) is used
to place data in the global buffer.
• relay_reserve(chan, length) is used to reserve a slot in a channel buffer which can be written
to later.
The s390 debug feature
The s390 debug feature (s390dbf) is a tracing API,
which is used by most of the s390 specific device
drivers. Each device driver creates its own debug feature
in order to log trace records into memory areas, which
are organized as wrap around ring buffers. The s390dbf
uses its own ring buffer implementation. The main purpose of the debug feature is to inspect the trace logs after
a system crash. Dump analysis tools like crash or lcrash
can be used to find out the cause of the crash. If the system still runs but only a subcomponent which uses dbf
fails, it is possible to look at the debug logs on a live
system via the Linux debugfs file system.
Device drivers can register themselves to the debug feature with the debug_register() function. This
function initializes an s390dbf for the caller. For each
s390dbf there are a number of debug areas where exactly one is active at one time. Each debug area consists
of a set of several linked pages in memory. In the debug areas, there are stored debug entries (trace records)
which are written by event and exception calls.
An event call writes the specified debug entry to the active debug area and updates the log pointer for the active
area. If the end of the active debug area is reached, a
wrap around in the ring buffer is done and the next debug entry will be written at the beginning of the active
debug area.
An exception call writes the specified debug entry to the
log and switches to the next debug area. This is done
in order to guarantee that the records that describe the
origin of the exception are not overwritten when a wrap
around for the current area occurs.
The debug areas themselves are also ordered in the form
of a ring buffer. When an exception is thrown in the last
debug area, the next debug entries are then written again
in the very first area.
Each debug entry contains the following data:
1 This paper is not purposing a replacement for printk.
The DTI is
purposed as an additional tool that should be used in place of printk
only when true tracing is needed.
• Timestamp
2007 Linux Symposium, Volume Two • 263
• Cpu-Number of calling task
• Level of debug entry (0. . . 6)
• Return Address to caller
• Flag that indicate whether an entry is an exception
or not
The trace logs can be inspected in a live system through
entries in the debugfs file system. Files in the debugfs
that were created by s390dbf represent different views
to the debug log. The purpose of s390dbf views is to
format the trace records in a human-readable way. Predefined views for hex/ascii, sprintf and raw binary data
are provided. It is also possible to define other component specific views. The content of a view can be seen
by reading the corresponding debugfs file. The standard
views are also available in the dump analysis tools lcrash
and crash. Figure 1 shows an example of an s390dbf
sprintf view.
3
Driver Tracing Interface
Adding code into a driver or subsystem that is not contributing to the core functionality might be seen as unnecessary. This concern must be addressed by DTI, ensuring that the added benefit is balanced with low overhead of the feature.
• DTI should have as little performance impact as
possible.
• DTI should reuse existing code in the Linux kernel.
• DTI must implement per-CPU buffering.
• DTI should minimize the in-kernel processing of
trace data.
The remaining goals specify functionality requirements.
• DTI’s API should be usable in both user context
and interrupt context.
• Trace data must be buffered so that it can be retrieved from a crash dump.
• Trace data must be viewable from a live system.
This section describes the proposed Driver Tracing Interface (DTI) for the Linux kernel. It starts by examining the project goals and usage models that were considered in its design. Also provided is a brief description
of two existing subsystems that DTI depends on, the DebugFS and relay subsystems.
3.1
Design goals
DTI will add supportability to drivers and subsystems
that adopt it. However, from the support community
viewpoint the deployment of DTI must be propagated
into a significant number of subsystems, drivers, and
system architectures before it usefulness is proven. Developing support tools and process around one off solutions is costly and unproductive to support organizations, therefore a key aspect of our project goals is to
provide a feature that can easily be adopted by the Linux
development community, thus ensuring its wide use.
• The DTI’s API should be as simple and easy to implement as possible.
• DTI should be architecture independent.
• DTI must allow for a rich set of tools to process
trace data.
3.2
Usage models
Two primary usage models were examined when designing the DTI API.
Usage Model 1: Isolating a driver problem from a
post-mortem cash dump analysis. In this scenario,
the system has crashed and a crashed system image
(crash dump) has been obtained. By analyzing the
crash dump the user suspects there is a problem in the
XYZ driver. Using the DTI commands integrated into
the crash dump analysis tool, the user can extract the
DTI trace buffer from the crash dump and examine the
records. The entire trace buffer containing the last trace
records recorded by the XYZ driver is available. Using this data the user can obtain a trace showing what
the driver was doing when the crash dump was taken.
This allows the user to learn more about the cause of the
crash.
Usage Model 2: Troubleshooting a driver on a running system. In this scenario, the user has encountered
264 • Driver Tracing Interface
00 01173807785:527586 0 − 02 00000000001eed86
Subchannel 0.0.4e20 reports non−I/O sc type 0001
00 01173807786:095834 2 − 02 00000000001f0962
reprobe done (rc=0, need_reprobe=0)
00 01173884042:004944 2 − 03 00000000001f7344
SenseID : UC on dev 0.0.1700, lpum 80, cnt 00
Figure 1: Example of the s390dbf sprintf view
a problem that is suspected to be related to one or more
specific drivers. The user would like to examine the
trace data just after the problem has occurred. To do
so the following steps are taken:
1. Set the trace level to an appropriate level to produce
the interested trace records.
2. Wait for the problem to occur, or reproduce the
problem if possible.
3. Switch off tracing on the affected driver. Trace
records produced just before, during, and after the
problem occurred will remain in the DTI buffer.
4. Collect the trace data using a user level trace formatting tool.
5. Switch tracing back on.
By integrating DTI with systemtap additional usage
modules can be realized.2
3.3
Debugfs
Debugfs is a minimalistic pseudo-filesystem existing
mainly to provide a namespace that kernel facilities can
hang special-purpose files of off, which in turn provides
file-based access to kernel data. It provides a simple
API for creating files and directories, as well as a set of
ready made file operations which make it easy to create and use files that read and write primitive data types
such as integers. For more complex data, it provides a
means for facilities to associate custom file operations
with debugfs files; in the case of relay, the exported
relay_file_operations are associated with the debugfs files created to represent relay buffers. Despite
the name, debugfs is not meant to be used only for debugging applications; it’s enabled by default in many
Linux distributions, and its use is encouraged especially
for things that don’t obviously belong in other pseudofilesystems such as procfs or sysfs.
3.4
Relay
Relay3 is a kernel facility designed for ‘relaying’ potentially large quantities of data from the kernel to the user
space. Its overriding goal is to provide the shortest and
cheapest possible path for a byte of data from the point
it’s generated in the kernel to the point it’s usable by a
program in user space. To accomplish this goal, it allocates a set of pages in the kernel, strings them together
into a contiguous kernel address range via vmap(), and
provides a set of functions designed to efficiently write
data into the resulting relay buffer.
Each relay buffer is represented to user space as a file.
This relay file is the abstraction used by the user space
programs to retrieve the data contained in the relay
buffer. The standard set of file operations allows for
both read(2) and mmap(2) access to the data. These
relay file operations are exported by the kernel, which
allows them to be created in a pseudo-filesystem such
as debugfs or procfs. In fact relay files must be created
in one of these pseudo-filesystems in order for them to
be accessible to user space programs (older versions of
relay did actually include a file system called relayfs but
the fs portion of the code was later subsumed by almost
identical code in debugfs, and thus removed).
Relay buffers are logically subdivided into a number of
equally sized sub-buffers. The purpose of sub-buffers
is to provide the same benefits as double-buffering, but
with more granularity. As data is written, it fills up subbuffers, which are then considered ready for consumption by the user space. At the same time data is being
written by the kernel into these unfinished sub-buffers,
user space can be reading and releasing other finished
sub-buffers. Relay channels can be configured to do
double-buffereing or single-buffering if desired, or they
can be configured to use large numbers of sub-buffers.
A sub-buffer isn’t considered readable until it’s full and
the next sub-buffer is entered (a sub-buffer switch). The
latency between when a given event is written and the
2 These
advanced usage models will be explored in more detail
in Section 9, Integration With Other Tools.
3 See
Documentation/filesystems/relay.txt for complete details.
2007 Linux Symposium, Volume Two • 265
time it’s available to the user increases with the subbuffer size. If sub-buffers are small, the latency is small
and the amount of data that would be lost if the machine
were to loses power is small. However, using small
sub-buffers results in more time spent in the sub-buffer
switching code (the slow path) instead of the main logging path (the fast path). Relay was designed with some
reasonable middle ground in mind, efficiently buffering
data implies some nontrivial amount of latency. If an application requires more immediacy, another mechanism
should be considered. The assumption is that any mechanism that offers more immediacy by definition also creates more tracing overhead. The implied goal of relay is
to cause as little disruption to a running system as possible.
4.2
Creating the trace channel
By default, a relay buffer is created for each CPU; the
combination of all per-CPU relay buffers along with
associated meta-information is called a relay channel.
Most of the relay API deals with the relay channels, and
almost every aspect of a relay channel are configurable
through the relay API.
};
4
struct dti_event {
The creation and binding of the trace handle are performed by calling dti_register(). When called,
dti_register() creates a relay channel, associated
data files and two additional control files in the debug
file system. Upon successful completion, a struct
dti_info pointer is returned. The caller will pass this
pointer to all subsequent calls to the API. The format of
struct dti_info is:
struct dti_info {
struct dentry∗ root;
struct rchan∗ chan;
int
level;
struct dentry ∗reset_consumed_ctrl;
struct dentry ∗level_ctrl;
Proposal for the Driver Tracing Interface
4.3
Writing trace records
Trace records are passed to the user using a variable length record as described in the struct dti_
event.
__u16 len;
__u64 time;
This section describes the purposed DTI architecture.
The kernel API is introduced, trace record formatting
and buffering are also discussed.
4.1
The DTI kernel API
The proposed DTI API can be broken in the following
four major operations:
• Creating a trace handle and binding it to a relay
channel.
• Writing trace records.
char data[0];
}
__attribute__ ((packed));
Trace record suppliers only need to supply a pointer to
the data buffer containing the raw data and the length of
the data. DTI places no restriction on the format of the
data supplied.
4.4
Trace level
The trace level is used to control what trace records
should be placed in the buffer. Suppliers of trace data
provide a trace level value each time a trace record is
written. The trace level value is compared to the current trace level found in dti_info->level. Trace
records are only placed in the buffer if the supplied trace
level is less than or equal to the current trace level.
• Closing the channel.
• Setting the trace level.
The prototype of the API to the DTI is shown in Figure 2.
The current trace level is set using dti_set_level()
or by the user writing a new trace level to the level control file. Trace levels are defined as an integer between
–1 and DTI_LEVEL_MAX. A value of –1 means no tracing is to be done. When a trace channel is first registered
the current trace level is set to DTI_LEVEL_DEFAULT.
266 • Driver Tracing Interface
/∗∗
∗ dti_register: create new trace
∗ @name: name of trace
∗ @size_in_k: size of subbuffer in KB
∗
∗ returns trace handle or NULL, if register failed.
∗/
struct dti_info ∗dti_register(const char ∗name,
int size_in_k);
/∗∗
∗ dti_unregister: unregister trace
∗ @trace: trace handle
∗/
void dti_unregister(struct dti_info ∗trace);
/∗∗
∗ dti_printk_raw: Write formatted string to trace
∗ @trace: trace handle
∗ @fmt: format string
∗ @...: parameters
∗
∗ returns 0, if event is written. Otherwise -1.
∗/
int dti_printk_raw(struct dti_info ∗trace, int prio, const char∗ fmt, ...);
/∗∗
∗ dti_event_raw: Write buffer to trace
∗ @trace: trace handle
∗ @prio: priority of event (the lower, the higher the priority)
∗ @buf: buffer to write
∗ @len: length of buffer
∗
∗ returns 0, if event is written. Otherwise -1.
∗/
int dti_event_raw(struct dti_info ∗trace, int prio, char∗ buf, size_t len);
/∗∗
∗ dti_set_level: set trace level
∗ @trace: trace handle
∗/
void dti_set_level(struct dti_info ∗trace, int new_level);
Figure 2: Prototype of the DTI API
2007 Linux Symposium, Volume Two • 267
__dti_register(name, subbuf_size,
n_subbufs)
• Three sub-buffers are shown.
• The numbers represent the trace records.
• The 1st and the 2nd trace records have already been
overwritten.
Sub-buffer 1
13
14
03
04
Sub-buffer 2
05
06
07
08
Sub-buffer 3
09
10
11
12
4.7
When relay data is read, the following records are returned:
05
06
07
08
09
10
11
12
13
14
Figure 3: An example of reading relay buffers
4.5
Data buffering
DTI depends on relay to handle the data buffering. Relay arranges trace records into a fixed number of subbuffers arraigned in a ring. Each sub-buffer may contain
one or more trace records or may be unused. Records
are never split across sub-buffers. As sub-buffers are
filled, new records are placed in the next sub-buffer in
the ring. If no unconsumed sub-buffers are available,
the sub-buffer containing the oldest data is overwritten.
When trace records are read by the user using the relay
read interface, the oldest complete sub-buffer returned
first, then the second oldest and so on. Therefore, the
trace records are returned in the exact the same order
they were written. For the current (newest) sub-buffer,
the trace records up to the latest written trace record is
returned. We lose the rest of the trace records (the oldest
ones) of the current sub-buffer. This is acceptable, if
enough sub-buffers are used. This process is illustrated
in Figure 3.
4.6
Users normally use the dti_register() version
which does the calculation on behalf of the user. The
user is not required to understand buffer internals, however if the user wants more control over the internal
sub-buffer sizes, the __dti_register() version is
available.4
Picking a buffer size
When the DTI trace is registered, you supply a size-ink value, which is the total size of each relay channel
buffer:
dti_register(name, size_in_k)
DTI automatically divides size-in-k by 8 and calls the
exported __dti_register() function:
Record time stamps
The time field in the struct dti_event is generated by the DTI. Its purpose is to provide both a time
reference for when the trace record was written and a
tool to sequence the records chronologically. The order
of the trace records in a buffer of a single CPU is guaranteed to be in chronological order. DTI creates one relay
buffer for each CPU. Therefore, the user must fully read
each per-CPU buffer, then order the records correctly.
It is possible for records read from different per-CPU
buffers to contain the same time stamp. The choice of a
sufficiently high resolution timer reduces the possibility
of duplicate time-stamps; if the possibility is small, it
might be acceptable.
5
DTI handle API
This section describes an extension to the basic DTI
API called DTI handles. The DTI handle API simplifies writing kernel code that utilizes DTI. The features
provided by the DTI handle API are:
• Auto-registration
• Support for early boot time tracing
Auto-registration eliminates the need to explicitly call
dti_register(). Both modules and built-in drivers
are supported. Registration of the DTI handle is automatically performed the first time trace data is written.
Early boot time tracing allows built-in drivers to log
trace data before kmalloc memory is available. Static
buffers are used to hold DTI events until it is safe to
setup the relay channels. The DTI handle code creates
4 See
Section-3.4 Relay for a summary of sub-buffer size tradeoffs to consider when choosing buffer/sub-buffer sizes.
268 • Driver Tracing Interface
#include <linux/dti.h>
static struct dti_handle my_handle
#ifdef MODULE
/∗ On the first event, channel will be auto-registered. ∗ /
DEFINE_DTI_HANDLE(my_handle, DRV_NAME, 4096 ∗ 32, DTI_LEVEL_DEBUG,NULL);
#endif
#ifdef KERNEL
/∗
∗ Built-in drivers can optionally provide a static buffer used for
∗ early tracing.
∗/
static char my_buf[4096 ∗ 4] __initdata;
DEFINE_DTI_HANDLE(my_handle, DRV_NAME, 4096 ∗ 32, DTI_LEVEL_DEBUG,my_buf);
#endif
static int __init init_mydriver(void)
{
....
INIT_DTI_HANDLE(my_handle);
....
}
my_driver_body(..)
{
....
/∗ trace some events ∗/
dti_printk(my_handle, DTI_LEVEL_DEFAULT, format, _fmt, ## _args);
....
}
void cleanup_mydriver(void)
{
....
CLEANUP_DTI_HANDLE(my_handle);
....
}
module_init(init_testdriver);
module_exit(cleanup_testdriver);
Figure 4: Example of using DTI handles
2007 Linux Symposium, Volume Two • 269
a postcore_initcall to switch tracing from static
buffers to relay channels. All trace records written into
static buffers are made available to the user interface after the postcore_initcall has run.
An example of using DTI handles is shown in Figure 4.
6
User interface
The section covers how trace data is read by the user on
a running system and how tracing is controlled by the
user.
6.1
File structure and control files
When a trace handle is bound, the following files are
created in the traces directory of the root of the mounted
debug file system.
dti/
driver−name/
data0 ... data[max−cpus]
level
reset_consumed
6.2
Retrieving trace data
One data file per CPU is created for each registered DTI
trace provider. Trace records (struct dti_event)
are read from the data files using a user supplied trace
formatting tool. A trace formatting tool should read
each per-CPU data file for a specified trace provider then
arrange records according to the time stamp field of the
struct dti_event.
The sequence of events normally followed when reading
trace data is:
1. Switch off tracing by writing a –1 into the level file.
2. Read each of the per-CPU data files.
3. Switch tracing back on.
6.3
Trace level
The level file is used to inform the DTI provider of the
level of trace records that should be placed in the data
buffer. Reading the level file will return an ASCII value
indicating the current level of tracing. The level can be
changed by writing the ASCII value of the desired tracing level into the level file.
6.4
Reset consumed
When trace records are read, the records are marked
as consumed by the relay subsystem as they are read.
Therefore, subsequent reads will only return unread or
new records in the buffers. If the desired behavior of a
trace formatting tool is to return all records in the buffer
each time the tools executed, the tool must reset the consumed value after reading all records currently in the
buffer. Resetting the consumed value is performed by
writing any value into the reset-consumed file.
7
Dump analysis tool support
Analysis of trace data from a crashed system is one of
the most important use-cases for DTI. As such, support will be added to the crash and lcrash dump analysis
tools enabling those tools to extract and make use of the
DTI trace buffers and related trace information from a
crashed system image.
7.1
Retrieving trace data from a crash dump
When a DTI trace is registered through dti_
register(), a text name is specified as one of the parameters. This string not only identifies the trace to the
user, but is also effectively concatenated with a prefix
string, unlikely to be used by a user, in order to make the
complete identifying string easily locatable in a memory dump for example if a trace name is given as “mydriver” by the user, the string the dump tool would use
to find the corresponding dti_info struct would be
__DTI__mydriver. When this string is located, it’s
a straightforward exercise to locate the associated relay
channel and its buffers. For example, assuming a simplified dti_info struct:
struct dti_info
{
struct rchan ∗chan;
char dti[7] = "__DTI__";
char name[DTI_TRACENAME_LEN];
.
.
.
}
The dump tool would locate the beginning of the dti[]
array, and subtracting the size of a pointer would find
the pointer to the struct rchan:
270 • Driver Tracing Interface
DTI API
dti_
register()
debug_unregister() dti_
unregister()
debug_event()
dti_event_
raw()
debug_sprintf_
dti_printk_
event()
raw()
debug_set_level() dti_set_
level()
s390dbf API
debug_register()
struct rchan
{
size_t subbuf_size;
size_t n_subbufs;
struct rchan_buf[NR_CPUS];
.
.
.
}
From the pointer to the rchan, you can locate each of the
buffers that make up the channel and its size.
struct rchan_buf
{
/∗ start of buffer ∗/
void ∗start;
/∗ start of current sub-buffer ∗ /
void ∗data;
/∗ write offset into the current
sub-buffer ∗ /
size_t offset;
/∗ number of sub-buffers
consumed ∗/
size_t consumed;
.
.
.
}
From this information, you can extract all the available
data from each buffer and send it to the post-processing
tool to be combined and sorted as usual.
8
Sample implementations
8.1
Port of the S390 dbf
Most of the s390 device drivers currently use the
s390dbf. Examples are:
• ZFCP: SCSI host adapter device driver
• QETH: Ethernet network device driver
• DASD: s390 harddisk driver
• TAPE: Driver for 3480/90 and 3590/92 channel attached tape devices
Table 1: Mapping of the s390dbf API to the DTI API
All the users of the s390dbf API can be quite easily converted to use the new DTI API. Table 1 shows functions
that can be mapped directly.
There is no DTI equivalent for the s390dbf exception
calls. Those must be replaced by the appropriate DTI
event functions. The exception functionality used to
switch debug areas is not frequently used by the s390
device drivers. Therefore it is acceptable to remove this
functionality in order to keep the API small and simple.
The functions debug_register_view() and
debug_unregister_view() are not needed any
more, since formatting of DTI traces is done in the user
space.
Currently the s390 ZFCP device driver uses non-default
self-defined s390dbf views. For that driver, it is necessary to implement a user space tool with the same
formatting functionality as the ZFCP specific s390dbf
view.
Some details of the port have not yet been resolved.
• How should the number of pages value used by
debug_register be mapped to the buffer size
used in dti_register()?
• Is an equivalent for debug_stop_all() needed?
8.2
Port of some other drivers
There are currently a large number of custom logging
APIs in the kernel, each mainly restricted to logging
formatted debugging string data related to a particular driver or subsystem. Most of them are a variation on #define DPRINTK(x...) printk(x...).
2007 Linux Symposium, Volume Two • 271
These can easy be ported to DTI using the DTI handle
API. However, DTI’s strength is focused on continuous
tracing to a buffer which can be retrieved when necessary rather than the continuous logging implemented by
these special-purpose facilities.
There are, however, a handful of continuous tracing facilities similar to DTI in the kernel, varying from very
minimalistic to fairly full-featured. Included in this category is the current s390dbf facility, which is presently
the most advanced. Briefly examined are some of the
others that tracing facilities that would be candidates for
porting to the proposed DTI API.
• drivers/scsi/mesh.c provides the dlog()
function for logging formatted records. It keeps
data in a ring of structs. The dump function printk’s
the whole buffer.
• drivers/net/wan/lmc/lmc_debug.h
provides LMC_EVENT_LOG() which logs two u32
args along with an event number and jiffies.
• drivers/char/ip2 provides ip2trace()
which is used to trace any number of longs into a
buffer containing 1000 longs. It provides a read(2)
interface to read the data.
• drivers/isdn/hardware/eicon/
debug.c provides an extensive API and set
of functions used to log and maintain a queue of
debug messages.
• fs/xfs/support/ktrace.c provides a simple yet extensive API for tracing the xfs file system.
The main logging function is ktrace_enter(),
which allows up to 16 values to be logged per entry into a buffer containing 64 ktrace entries.
9
Integration of other tools
DTI tracing is of course, useful in its own right. Combined with a trace analysis tool such as SystemTap5 it
can become an even more powerful tool. A DTI trace
can be used to see with great detail exactly what happens
within a particular driver over a given time interval, but
it doesn’t have any other context associated with it, such
as system calls or interrupt activity that may have triggered activity within the driver. In many cases, it would
5 http://sourceware.org/systemtap
be extremely useful to have such associated data available for analysis. DTI’s strength is its data-gathering
functionality. Using Systemtap, DTI’s functionality can
be extended by adding context to the data, perform time
analysis of the data being gathered or maintain a summary information about the trace. For example, if a
certain pattern of interest only occurs intermittently, the
user could detect it and either halt the trace, preserving
the events that led up to it, or alert the user of the condition. In addition, SystemTap can be used to gather
aggregated summaries of the data over long periods of
time (longer than the limited size of a relay buffer would
allow) to get an overall picture of activity with respect
to the driver and associated context.
The DTI tapset is being developed to allow SystemTap
to put kprobes on the high-level DTI tracing functions,
which makes all data passing through them accessible
to SystemTap. Note that doing this in no way affects the
normal flow of DTI events; the only additional effect is
the probe effect, which means that each event recorded
in this way incurs a penalty equal to the time required to
fire the probe and run the SystemTap handler.
Systemtap can also be used to dynamically place new
probe points into a driver. To do this Systemtap places
a kprobe in the driver where a trace point is to be added
and all data available at the probe point is fed back into
the DTI data stream. The DTI post-processing tools can
then be used to format and display this external data
along with the normal DTI trace output. To do this,
users make use of the ‘DTI-control’ tapset, which allows SystemTap scripts to control and log data to DTI
via the standard DTI kernel interface.
10
Conclusion
Customers of s390 systems demand very high reliability
and quick turnaround time for bug fixes. Since its introduction early in the history of Linux on the s390, the
s390 Debug Facility has proven itself as an invaluable
tool for meeting customers’ reliability expectations. The
ability to analyze trace data in a crash dump and perform
first fault analysis is key to the s390dfb’s success. The
question has been posed, “Why reinvent functionality
that already exists?” The answer is simple: DTI intends
to exploit the s390db model and bring this technology to
all Linux platforms. Service organizations gain not only
by the additions of DTI functionality but by the uniformity of a tracing infrastructure between all platforms. In
272 • Driver Tracing Interface
addition, DTI utilizes the existing relay subsystem that
did not exist when s390dbf was written. Therefore, DTI
can be implemented with a much smaller footprint than
the s390dbf.
s390 drivers provide the perfect sandbox for porting
drivers to the DTI and testing its implementation. We
plan to pursue this effort as well as encouraging other
driver developers to adopt DTI.
Legal statement
This work represents the view of the author and does not necessarily represent the view of IBM.
IBM, IBM (logo), e-business (logo), pSeries, e (logo) server,
and xSeries are trademarks or registered trademarks of International Business Machines Corporation in the United States
and/or other countries.
Linux is a registered trademark of Linus Torvalds.
Other company, product, and service names may be trademarks or service marks of others.
Linux readahead: less tricks for more
Fengguang Wu
Hongsheng Xi
Jun Li
University of Science and Technology of China
[email protected], {xihs,Ljun}@ustc.edu.cn
Nanhai Zou
Intel Corporation
[email protected]
Abstract
made. Finally, carefully selected data is read in before
being requested by the application.
The Linux 2.6 readahead has grown into an elaborate
work that is hard to understand and extend. It is confronted with many subtle situations. This paper highlights these situations and proposes alternative solutions
to them. By adopting new calling conventions and data
structures, we demonstrate that readahead can be made
more clean, flexible and reliable, which opens the door
for more opportunities.
There
exist
APIs
(posix_fadvise(2),
madvise(2)) for the user-space to inform the
kernel about its access pattern or more precise actions
about data, but few applications bother to take advantage of them. They are mostly doing sequential or
random reads, and expecting the kernel to serve these
common and simple cases right.
1
So the kernel has to guess. When done right, readahead
can greatly improve I/O throughput and reduce application visible I/O delays. However, a readahead miss can
waste bandwidth and memory, and eventually hurt performance.
1.1
Introduction
Background
Readahead is a widely deployed technique to bridge the
huge gap between the characteristics of disk drives and
the inefficient usage by applications. At one end, disk
drives are good at large sequential accesses and bad at
seeks. At the other, applications tend to do a lot of tiny
reads. To make the two ends meet, modern kernels and
disk drives do readahead: to bring in the data before it
is needed and try to do so in big chunks.
Readahead brings three major benefits. Firstly, I/O delays are effectively hidden from the applications. When
an application requests a page, it has been prefetched
and is ready to use. Secondly, disks are better utilized
by large readahead requests. Lastly, it helps amortize
request processing overheads.
Readahead typically involves actively detecting the access pattern of all read streams and maintaining information about them. Predictions based on on where and
how much data will be needed in the near future are
1.2
A brief history
Linux 2.6 implements a generic readahead heuristic in
its VFS layer.
The unified readahead framework was first introduced
[1] in the early 2.5 time by Andrew Morton. It features the current/ahead windows data structure; readahead/read-around heuristics; protection against readahead thrashing, aggressive cache hits [2] and congested
queues [3]. The mmap read-around logic was later taken
out by Linus Torvalds[4]. The separation of read-ahead
and read-around yields better solutions for both. The
rather chaotic mmap reads from executables can now
be prefetched aggressively, and the readahead logic can
concentrate on detecting sequential reads from random
ones.
Handling sequential and random reads right, however,
turned out to be a surprisingly hard mission. One big
274 • Linux readahead: less tricks for more
challenge comes from some mostly random database
workloads. In three years, various efforts were made
to better support random cases [5, 6, 7, 8, 9]. Finally,
Steven Pratt and Ram Pai settled it down by passing the
read request size into page_cache_readahead()
[10, 11]. The addition of read size also helped another
known issue: when two threads are doing simultaneous
pread()s, they will be overwriting each other’s readahead states. The readahead logic may see lots of 1-page
reads, instead of the true pread() sizes. The old solution, in the day when page_cache_readahead()
was called once per page, was to take a local copy
of readahead state in do_generic_mapping_read
[12, 13].
1.3
Moving on
Linux 2.6 is now capable of serving common random/sequential access patterns right. That may be sufficient for the majority, but it sure can do better.
So comes the adaptive readahead patch [14], an effort
to bring new readahead capabilities to Linux. It aims to
detect semi-sequential access patterns by querying the
page-cache context. It also measures the read speed of
individual files relative to the page-cache aging speed.
That enables it to be free from readahead thrashing, and
to manage the readahead cache in an economical way.
The lack of functionality is not an issue with regard to
readahead, in fact the complexity of the code actually
prevents further innovation. It can be valuable to summarize the experiences we learned in the past years, to
analyze and reduce the source of the complexity is what
motivated us to do the work of required for this paper.
We propose a readahead algorithm that aims to be clean.
It is called on demand, which helps free readahead
heuristics from most of the chores that the current algorithm suffers from. The data structure is also revised
for ease of use, and to provide exact timing information.
1.4
Overview of the rest of the paper
In Section 2, we first discuss the readahead algorithm
as in Linux 2.6.20, then proceed to discuss and propose
new solutions to the three major aspects (data structure,
call scheme, and guideline) of readahead. In Section 3,
we analyze how the old/new readahead algorithms work
out in various situations. Finally, Section 4 gives benchmark numbers on their overheads and performance.
2
Readahead Algorithms
2.1
Principles of 2.6 readahead
Figure 1 is a brief presentation of the readahead algorithm in Linux 2.6.20. The heuristics can be summarized in four aspects:
sequential detection If the first read at the start of a
file, or a read that continues from where the previous one ends, assume a sequential access. Otherwise it is taken as a random read.
The interface demands that it be informed of every read requests. prev_page is maintained to
be the last page it saw and handled. An oversize read (read_size > max_readahead)
will be broken into chunks of no more than max_
readahead and fed to the readahead algorithm
progressively.
readahead size There are three phases in a typical
readahead sequence:
initial When there exists no current_window
or ahead_window, the size of initial readahead is mainly inferred from the size of current read request. Normally readahead_
size will be 4 or 2 times read_size.
ramp-up When there is a previous readahead, the size
is doubled or x4.
full-up When reaching max_readahead.
It is possible to jump directly into full-up
phase, if the request size is large enough (e.g.
sendfile(10M)).
readahead pipelining To maximally overlap application processing time and disk I/O time, it maintains
two readahead windows: current_window is
where the application expected to be working on;
ahead_window is where asynchronous I/O happens. ahead_window will be opened/renewed in
advance, whenever it sees a sequential request that
• is oversize
• has only current_window
• crossed into ahead_window
2007 Linux Symposium, Volume Two • 275
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
do_generic_mapping_read:
call page_cache_readahead
for each page
if is prev_page + 1
call page_cache_readahead
if page not cached
report cache miss
leave cache hit mode
page_cache_readahead:
handle unaligned read
set prev_page to current page index
if in cache hit mode
return
shift prev_page to the last requested page,
but no more than max_readahead pages
if is sequential read and no current_window
make current_window
call blockable_page_cache_readahead
if is oversize read
call make_ahead_window
elif is random read
clear readahead windows
limit size to max_readahead
call blockable_page_cache_readahead
elif no ahead_window
call make_ahead_window
elif read request crossed into ahead_window
advance current_window to ahead_window
call make_ahead_window
ensure prev_page do not overrun ahead_window
make_ahead_window:
if have seen cache miss
clear cache miss status
decrease readahead size by 2
else
x4 or x2 readahead size
limit size to max_readahead
call blockable_page_cache_readahead
blockable_page_cache_readahead:
if is blockable and queue congested
return
submit readahead io
if too many continuous cache hits
clear readahead windows
enter cache hit mode
Figure 1: readahead in 2.6.20
276 • Linux readahead: less tricks for more
cache hit/miss A generic cache hit/miss happens
when a page to be accessed is found to be
cached/missing. However, the terms have specific
meanings in 2.6 readahead.
A readahead cache hit happens when a page to
be readahead is found to be cached already. A
long run of readahead cache hits indicates an already cached file. When the threshold VM_MAX_
CACHE_HIT(=256) is reached, readahead will
be turned off to avoid unnecessary lookups of the
page-cache.
A readahead cache miss happens when a page that
was brought in by readahead is found to be lost on
time of read. The page may be relaimed prematurely, which indicates readahead thrashing. The
readahead size can be too large, so decrease it by 2
for the next readahead.
2.2
Readahead windows
The 2.6 readahead adopts dual windows to achieve readahead pipelining: while the application is walking in the
current_window, I/O is underway in the ahead_
window. Although it looks straightforward, the implementation of this concept is not as simple as one would
think.
useful. The two windows bring three possible combinations of on/off states. The code has to probe for the existence of current_window and/or ahead_window
before it can do any query or action on them. The heuristics also have to explicitly open ahead_window to
start readahead pipelining.
Now let’s make a study of the information necessary for
a sequential readahead:
1. To work out the position of next readahead, that of the previous one will be
sufficient:
We normally apply a simple
size ramp up rule: (offset, size) =>
(offset+size, size*2).
2. Optionally, in case the previous readahead pages
are lost, the timing information of their first enqueue to inactive_list would be helpful. Assume the reader is now at offset, and was at
page la_index when the lost pages were first
brought in, then thrashing_threshold =
offset - la_index.
3. To achieve pipelining, indicating a lookahead page
would be sufficient: on reading of which it should
be invoked to do readahead in advance.
For the purpose of pipelining, we want to issue I/O for
the next readahead before the not-yet-consumed readahead pages fall under a threshold, lookahead size. A
value of lookahead_size = 0 disables pipelining,
whereas lookahead_size = readahead_size
opens full pipelining.
We revised the data structure (Figure 2) to focus on the
previous readahead, and to provide the exact timing information. The changes are illustrated in Figure 3 and
compared in Table 1.
The current/ahead windows scheme is one obvious way
to do readahead pipelining. It implies lookahead_
size to be readahead_size - read_size1 for
the initial readahead. It then ranges from readahead_
size to readahead_size + read_size for the following ones. It is a vague range due to the fact that
2.6.20 readahead pushes forward the windows as early
as it sees the read request (instead of one realtime page
read) crossing into the ahead_window.
The 2.6 readahead works by inspecting all read requests and trying to discover sequential patterns from
them. In theory, it is a sound way. In practice, it
makes a lot of fuss. Why should we call excessively
into page_cache_readahead() only to do nothing? Why handle cache hits/misses in convoluted feedback loops?
However, the scheme leads to obscure information and
complicated code. The lookahead size is implicitly
coded and cannot be freely tuned. The timing information for the previous readahead may be too vague to be
1 assume
read_size <= max_readahead
2.3
Readahead on demand
In fact, there are only two cases that qualify for a readahead:
sync readahead on cache miss A cache miss occurred, the application is going to do I/O anyway.
So try readahead and check if some more pages
should be piggybacked.
2007 Linux Symposium, Volume Two • 277
struct file_ra_state {
unsigned long start;
unsigned long size;
unsigned long ahead_start;
unsigned long ahead_size;
unsigned long cache_hit;
unsigned long flags;
+
pgoff_t la_index;
+
pgoff_t ra_index;
+
pgoff_t lookahead_index;
+
pgoff_t readahead_index;
unsigned long prev_page;
unsigned long ra_pages;
};
/* Current window */
/* Ahead window */
/*
/*
/*
/*
/*
/*
/*
/*
cache hit count */
RA_FLAG_MISS | RA_FLAG_INCACHE */
enqueue time */
begin offset */
time to do next readahead */
end offset */
Cache last read() position */
Maximum readahead window */
Figure 2: revising readahead data structure
(a) 2.6.20 readahead
|----- size ---->|------------ ahead_size ------------->|
===|================|======================================|=====
^start
^ahead_start
(b) on-demand readahead
|------------------- readahead size -->|
|---- reader on the way --->|-- lookahead size -->|
===|=====#==========|================#=====================|=====
^
^
^
^
la_index
ra_index lookahead_index
readahead_index
Figure 3: tracking readahead windows
question
on-demand readahead
when to do next read- lookahead_index
ahead
where to do next read- readahead_index
ahead
2.6.20 readahead
around ahead_start or start
start + size or
ahead_start +
ahead_size
maybe/roughly start
the time of previous la_index
readahead
the size of previous readahead_index - ra_index size or ahead_size
readahead
Table 1: deciding the next readahead
278 • Linux readahead: less tricks for more
async readahead on lookahead page The application
is walking onto a readahead page with flag PG_
readahead, or a lookahead mark. It indicates
that the readahead pages in the front are dropping
to lookahead_size, the threshold for pipelining. So do readahead in advance to reduce application stalls.
When called on demand, the readahead heuristics can
be liberated from a bunch of special cases. The details
about them will be covered in Section 3.
2.4
The new algorithm
Figure 4 shows the proposed on-demand readahead algorithm. It is composed of a list of condition-action
blocks. Each condition tests for a specific case (Table
2), and most actions merely fill the readahead state with
proper values (Table 3).
random A small, stand-alone read. Take it as a random
read, and read as is.
lookahead It is lookahead time indicated by the readahead state, so ramp up the size quickly and do the
next readahead.
readahead It is readahead time indicated by the readahead state. We can reach here if the lookahead
mark was somehow ignored (queue congestion) or
skipped (sparse read). Do the same readahead as in
lookahead time.
initial First read on start of file. It may be accessing the
whole file, so start readahead.
oversize An oversize read. It cannot be submitted in
one huge I/O, so do it progressively as a readahead
sequence.
miss A sequential cache miss. Start readahead.
interleaved A lookahead hit without a supporting readahead state. It can be some interleaved sequential
streams that keep invalidating each other’s readahead state. The lookahead page indicates that the
new readahead will be at least the second one in the
readahead sequence. So get the initial readahead
size and ramp it up once.
The new algorithm inherits many important behaviors
from the current one, such as random reads, and the size
ramp up rule on sequential readahead. There are also
some notable changes:
1. A new parameter page is passed into
ondemand_readahead(). It tells whether
the current page is present. A value of NULL
indicates a synchronous readahead, otherwise an
asynchronous one.
2. A new parameter begin_offset is introduced
to indicate where the current read request begins.
prev_page now simply tracks the last accessed
page of previous request. Hence the new sequential access indicator becomes: sequential =
(begin_offset - prev_page <= 1).
3. I/O for overlapped random reads may not be submitted as early. Suppose a 8-page random read,
whose first 4 pages are overlapped with a previous
read. The 2.6 readahead will emit request for all of
the 8 pages before accessing the first page. While
the on-demand readahead will ask for the remaining 4 pages on accessing the 5th page. Hence it
avoids some unnecessary page-cache lookups, at
the cost of not being able to overlap transfer of
the leading cached pages with I/O for the following ones.
4. Linux 2.6.20 only does readahead for sequential
read requests. In the new design, we loosen the criteria a bit: the lookahead hit alone can trigger the
next readahead. It enables detection of interleaved
reads.
It is not as safe to ignore sequentialness, but the risk
is pretty low. Although we can create a set of random
reads to trigger a long run of readahead sequences, it
is very unlikely in reality. One possible candidate may
be stride reads. But it cannot even cheat the algorithm
through the size ramp-up phase, where the lookahead
pages distribute in a non-uniform way.
The support of interleaved reads is minimal. It makes no
extra efforts to detect interleaved reads. So the chances
of discovering them is still low. Interleaved sequential
reads may or may not be readahead, or may be served
intermittently.
2007 Linux Symposium, Volume Two • 279
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
do_generic_mapping_read:
for each page
if page not cached
call ondemand_readahead
if page has lookahead mark
call ondemand_readahead
set prev_page to last accessed page
ondemand_readahead:
if is asynchronous readahead and queue congested
return
if at start of file
set initial sizes
elif is small random read in wild
read as is
return
elif at lookahead_index or readahead_index
ramp up sizes
else
set initial sizes
if has lookahead mark
ramp up size
fill readahead state
submit readahead io
set lookahead mark on the new page at new lookahead_index
Figure 4: on-demand readahead algorithm
case
initial
oversize
random
lookahead
readahead
miss
interleaved
description
read on start of file
random oversize read
random read
lookahead hit
readahead hit
sequential cache miss
lookahead hit with no context
condition
!offset
!page && !sequential && size > max
!page && !sequential
offset == ra->lookahead_index
offset == ra->readahead_index
!page
page
Table 2: detecting access patterns
case
random
lookahead,readahead
initial,oversize,miss
interleaved
ra_index
offset
ra->readahead_index
offset
offset + 1
ra_size
size
la_size
0
get_next_ra_size(ra)
get_init_ra_size(size,max) 1
get_init_ra_size(...) * 4
1
Table 3: deciding readahead parameters
280 • Linux readahead: less tricks for more
3
Case Studies
In this section, we investigate special situations the readahead algorithm has to confront:
1. Sequential reads do not necessary translate into
incremental page indexes: multi-threaded reads,
retried reads, unaligned reads, and sub-page-size
reads.
2. Readahead should not always be performed on sequential reads: cache hits, queue congestion.
3. Readahead may not always succeed: out of memory, queue full.
4. Readahead pages may be reclaimed before being
read: readahead thrashing.
3.1
2. Pretend that it happily enters cache-hit-noreadahead mode for a sendfile(100M) and
avoids page-cache lookups. Now another overhead arises: page_cache_readahead() that
used to be called once every max_readahead
pages will be called on each page to ensure in time
restarting of readahead after the first cache miss.
The above issues are addressed in on-demand readahead
by the following rules:
1. Call ondemand_readahead() on cache miss;
2. Call ondemand_readahead() on lookahead
mark; and
3. Only set lookahead mark on a newly allocated
readahead page.
Cache hits
Ideally, no readahead should ever be performed on
cached files. If a readahead is done on a cached file,
then this can cost many pointless page cache lookups. In
a typical system, reads are mostly performed on cached
pages. Cache hits can far outweigh cache misses.
The 2.6 readahead detects excessive cache hits via
cache_hit. It counts the continuous run of readahead
pages that are found to be already cached. Whenever
it goes up to VM_MAX_CACHE_HIT(=256), the flag
RA_FLAG_INCACHE will be set. It disables further
readahead, until a cache miss happens, which indicates
that the application have walked out of the cached segment.
In summary,
1. Always call page_cache_readahead();
2. Disable readahead after 256 cache hits; and
3. Enable readahead on cache miss.
That scheme works, but is not satisfactory.
1. It only works for large files. If a file is fully
cached but smaller than 1MB, it won’t be able to
see the light of RA_FLAG_INCACHE, which can
be a common case. Imagine a web server that
caches a lot of small to medium html/png files
and desktop systems.
Table 4 compares the two algorithms’ behavior on various cache hit situations. It is still possible to apply the
threshold of VM_MAX_CACHE_HIT in the new algorithm,
but we’d prefer to keep it simple. If a random cached
page happens to disable one lookahead mark, let it be.
It would be too rare and non-destructive to ask for attention. As for real-time applications, they need a different
policy—to persist on cache hits.
3.2
Queue Congestion
When the I/O subsystem is loaded, it becomes questionable to do readahead. In Linux 2.6, the load of each disk
drive is indicated by its request queue. A typical request queue can hold up to BLKDEV_MAX_RQ(=128)
requests. When a queue is 7/8 full, it is flagged as
congested; When it is completely full, arriving new requests are simply dropped. So in the case of a congested
queue, doing readahead risks wasting the CPU/memory
resources: to scan through the page-cache, allocate a
bunch of readahead pages, get rejected by the request
system, and finally free up all the pages—a lot of fuss
about nothing.
Canceling readahead requests on high I/O pressure can
help a bit for the time being. However, if it’s only about
breaking large requests into smaller ones, the disks will
be serving the same amount of data with much more
seeks. In the long run, we hurt both I/O throughput and
latency.
2007 Linux Symposium, Volume Two • 281
ondemand_readahead()
large cached chunk
full cached small files
prefetched chunks
small cached chunk
cache miss
page_cache_readahead()
called on every page to recheck
not called
called to do readahead
may or may not be called
called and do readahead now
restart readahead after first miss
Table 4: readahead on cache hits
So the preferred way is to defer readahead on a congested queue. The on-demand readahead will do so for
asynchronous readaheads. One deferred asynchronous
readahead will return some time later as a synchronous
one, which will always be served. The process helps
smooth out the variation of load, and will not contribute
more seeks to the already loaded disk system.
The on-demand readahead takes no special action
against readahead thrashing. Once thrashed, an initial
readahead will be started from the current position. It
does not cut down the number of thrashed pages, but
does avoid the catastrophic seeks. Hence it performs
much better on thrashing.
The current readahead basically employs the same policy. Only that the decisions on whether to force a readahead are littered throughout the code, which makes it
less obvious.
3.4
3.3
Readahead thrashing
In a loaded server, the page-cache can rotate pages
quickly. The readahead pages may be shifted out of the
LRU queue and reclaimed, before a slow reader is able
to access them in time.
Readahead thrashing can be easily detected. If a cache
miss occurs inside the readahead windows, readahead
thrashing happened. In this case, the current readahead
decreases the next readahead size by 2. By doing so it
hopes to adapt to the thrashing threshold. Unfortunately,
the algorithm does not remember it. Once it steps slowly
off to the thrashing threshold, the thrashings stop. It
then immediately reverts back to the normal behavior of
ramping up the window size by 2 or 4. Which starts a
new round of thrashings. On average, about half of the
readahead pages can be thrashed.
It would be even more destructive for disk throughput.
Suppose that current_window is thrashed when an
application is walking in the middle of it. The 2.6
readahead algorithm will be notified via handle_ra_
miss(). But it merely sets a flag RA_FLAG_MISS,
and takes no action to recover the current_window
pages to be accessed. do_generic_mapping_
read() then starts to fault in them one by one, generating a lot of disk seeks. Overall, up to half pages may
be faulted in this crude way.
Unaligned reads
File operations work on byte ranges, while the readahead routine works on page offsets. When an application issues 10000B sized reads, which do not align
perfectly to the 4K page boundary, the readahead code
will see an o f f set + size flow of 0 + 3, 2 + 2, 4 + 3, 7 +
2, 9+3, 12+2, 14+3, 17+2, 19+3, . . .. Note that some
requests overlap for one page. It’s no longer an obvious
sequential pattern.
Unaligned reads are taken care of by allowing
offset == prev_page [15] in 2.6 readahead and
on-demand readahead.
3.5
Retried reads
Sometimes the readahead code will receive an interesting series of requests[16] that looks like: 0 + 1000, 10 +
990, 20 + 980, 30 + 970, . . .. They are one normal read
followed by some retried ones. They may be issued by
the retry-based AIO kernel infrastructure, or retries from
the user space for unfinished sendfile()s.
This pattern can confuse the 2.6.20 readahead. Explicit
coding is needed to ignore the return of reads that have
already been served.
The on-demand readahead is not bothered by this issue.
Because it is called on the page to be accessed now, instead of the read request.
282 • Linux readahead: less tricks for more
case
2.6.20 on-demand overheads reasoning
sequential re-read in 4KB
20.30
20.05
−1.2% no readahead invocation
sequential re-read in 1MB
37.68
36.48
−3.2%
small files re-read (tar /lib) 49.13
48.47
−1.3% no page-cache lookup
random reading sparse file
81.17
80.44
+0.9% one extra page-cache lookup per cache miss
sequential reading sparse file
389.26
387.97
−0.3% less readahead invocations
Table 5: measuring readahead overheads
0.8
0.3
0.6
0.2
0.4
0.1
0.2
0
time (%)
time (%)
16k
32k
64k
128k
0
-0.2
-0.1
-0.2
-0.4
-0.3
8k
16k
32k
64k
128k
-0.6
-0.8
-1
0
100
200
300
400 500 600 700
random reads (MB)
800
-0.4
-0.5
900 1000
0
500
1000
1500 2000 2500
random reads (MB)
3000
3500
4000
Figure 5: timing overlapped random reads
3.6
Interleaved reads
4
Performance
4.1
When multiple threads are reading on the same file descriptor, the individual sequential reads get interleaved
and look like random ones to the readahead heuristics.
Multimedia files that contain separated audio/video sections may also lead to interleaved access patterns.
Benchmark environment
The benchmarks are performed on a Linux 2.6.20 that is
patched with the on-demand readahead. The basic setup
is
• 1MB max readahead size
• 2.9GHz Intel Core 2 CPU
Interleaved reads will totally confuse the current readahead, and are also beyond the mission of on-demand
readahead. However, it does offer minimal support
that may help some interleaved cases. Take, for example, the 1-page requests consisting of two streams:
0, 100, 1, 101, 2, 102, . . .. The stream starting from 0 will
get readahead service, while the stream from 100 will
still be regarded as random reads. The trick is that the
read on page 0 triggers a readahead (the initial case),
which will produce a lookahead mark. The following
reads will then hit the lookahead mark, make further
readahead calls and push forward the lookahead mark
(the lookahead case).
• 2GB memory
• 160G/8M Hitachi SATA II 7200 RPM disk
4.2
Overheads
Table 5 shows the max possible overheads for both algorithms. Each test is repeated sufficient times to get the
stable result. When finished, the seconds are summed
up and compared.
Cache hot sequential reads on a huge file are now faster
by 1.2% for 1-page reads and by 3.2% for 256-page
2007 Linux Symposium, Volume Two • 283
reads. Cache hot reads on small files (tar /lib) see
a 1.3% speed up.
15
10
5
Overlapped random reads
0
0
50
100
time (s)
150
(a) disk/net throughput on loaded disk
350
110
100
300
90
2.6.20 req-size
2.6.20 disk-util
on-demand req-size
on-demand disk-util
250
200
iozone throughput
80
70
60
50
150
40
100
4.4
200
disk utilization (%)
We benchmarked 8/16/32/64/128KB random reads on
a 500/2000MB file. The requests are aligned to small
4KB boundaries and therefore can be overlapping with
each other. On every 50/200MB read, the total seconds
elapsed are recorded and compared. Figure 5 demonstrates the difference of time in a progressive way. It
shows that the 128KB case is unstable, while others converge to the range (−0.2%, 0.1%), which are trivial variations.
request size (KB)
4.3
2.6.20 disk
2.6.20 net
on-demand disk
on-demand net
20
throughput (MB/s)
We also measured the maximum possible overheads on
random/sequential reads. The scenario is to do 1-page
sized reads on a huge sparse file. It is 0.9% worse for
random reads, and 0.3% better for sequential ones. But
don’t take the two numbers seriously. They will be lost
in the background noise when doing large sized reads,
and doing it on snail-paced disks.
25
30
20
50
10
We ran the iozone benchmark with the command
iozone -c -t1 -s 4096m -r 64k. That’s doing
64KB non-overlapping reads on a 4GB file. The
throughput numbers in Table 6 show that on-demand
readahead keeps roughly the same performance.
access pattern
Read
Re-read
Reverse Read
Stride read
Random read
Mixed workload
Pread
2.6.20
62085.61
62253.49
50001.21
8656.21
13907.86
19055.29
62217.53
on-demand
62196.38
62224.99
50277.75
8645.63
13924.07
19062.68
62265.27
gain
+0.2%
−0.0%
+0.6%
−0.1%
+0.1%
+0.0%
+0.1%
Table 6: iozone throughput benchmark (KB/s)
4.5
Readahead thrashing
We boot the kernel with mem=128m single, and
start a 100KB/s stream on every second. Various statistics are collected and showed in Figure 6. The thrashing
begins at 20sec. The 2.6 readahead starts to overload
the disk at 40sec, and eventually achieved 5MB/s maximum network throughput. The on-demand readahead
throughput keeps growing, and the trend is going up to
15MB/s. That’s three times better.
0
0
20
40
60
80
0
100 120 140 160 180 200
time (s)
(b) average I/O size and disk utilization
Figure 6: performance on readahead thrashing
5
Conclusion
This work greatly simplified Linux 2.6 readahead algorithm. We successfully eliminated the complexity
of dual windows, cache hit/miss, unaligned reads, and
retried reads. The resulting code is more clean and
should be easier to work with. It maintains roughly the
same behavior and performance for common sequential/random access patterns. Performance on readahead
thrashing and cache hits are improved noticeably.
6
Future Work
The algorithm is still young and imperfect. It needs
more benchmarks, real-world tests, and fine tuning.
Look-ahead size may be a bit smaller, especially for the
initial readahead. It does not impose strict sequential
284 • Linux readahead: less tricks for more
checks, which may or may not be good. The overlapped
random reads may also be improved.
Then we can embrace all the fancy features that were
missed for so long time.
To name a few: interleaved reads from multimedia/multi-threaded applications; clustered random reads and chaotic semisequential reads from some databases; backward reads
and stride reads in scientific arenas; real thrashing prevention and efficient use of readahead cache for file
servers. Sure there are more. They can be packed into an
optional kernel module for ease of use and maintenance.
References
[1] Andrew Morton, [PATCH] readahead, git commit
b546b96d0969de0ff55a3942c71413392cf86d2a 2
[2] Andrew Morton, [PATCH] readahead
optimisations, git commit
213f035476c932921d6281e4d5d39585f214a2eb
[3] Andrew Morton, [PATCH] rework readahead for
congested queues, git commit
10d05dd588a3879f9b40725a9073bc97fcd44776
[4] Linus Torvalds, [PATCH] Simplify and speed up
mmap read-around handling, git commit
d5cfe1b35c4e81f4c4dc5139bd446f04870ebf90
[5] Andrew Morton, [PATCH] Allow VFS readahead
to fall to zero, git commit
71ddf2489c68cf145fb3f11cba6152de49e02793
[6] Ram Pai, [PATCH] readahead: multiple
performance fixes, git commit
2bb300733b3647462bddb9b993a6f32d6cbcdbbc
[7] Ram Pai, [PATCH] speed up readahead for seeky
loads, git commit
ef12b3c1abce83e8e25d27bdaab6380238e792ff
[8] Suparna Bhattacharya, Ram Pai, [PATCH]
adaptive lazy readahead, git commit
87698a351b86822dabbd8c1a34c8a6d3e62e5a77
[9] Ram Pai, Badari Pulavarty, Mingming Cao, Linux
2.6 performance improvement through readahead
optimization, http://www.
linuxsymposium.org/proceedings/
reprints/Reprint-Pai-OLS2004.pdf
2 all
git commits are accessible from
http://git.kernel.org/?p=linux/kernel/git/
torvalds/old-2.6-bkcvs.git
[10] Simplified Readahead,
http://groups.google.com/group/
linux.kernel/browse_thread/
thread/e5f475d4a11759ba/
697d85a0d86458d3?&hl=en#
697d85a0d86458d3
[11] Steven Pratt, Ram Pai, [PATCH] Simplified
readahead, git commit
e8eb956c01529eccc6d7407ab9529ccc6522600f
[12] Linux: Random File I/O Regressions In 2.6,
http://kerneltrap.org/node/3039
[13] Andrew Morton, [PATCH] readahead: keep
file->f_ra sane, git commit
2ea7dd3fc9bc35ad0c3c17485949519cb691c097
[14] Linux: Adaptive Readahead,
http://kerneltrap.org/node/6642
[15] Oleg Nesterov, [PATCH] readahead: improve
sequential read detection, git commit
03a554d2325ef5f3160514359330965fd7640e81
[16] Suparna Bhattacharya, John Tran, Mike Sullivan,
Chris Mason, Linux AIO Performance and
Robustness for Enterprise Workloads,
http://www.linuxsymposium.org/
proceedings/reprints/
Reprint-Bhattacharya-OLS2004.pdf
Regression Test Framework and Kernel Execution Coverage
Hiro Yoshioka
Miracle Linux Corporation
[email protected]
Abstract
write “There is an incompatibility YYY because of introducing function XXX.”
We have developed a Linux kernel regression test
framework (“crackerjack”) and a branch coverage test
tool (hereinafter “btrax”) to capture kernel regression.
Crackerjack is a harness program and a set of test programs. It runs test programs, records the results, and
then compares the expected results. Therefore, if a
particular system call failed in a release and was then
fixed in a later release, crackerjack records this as nonfavorable because of incompatibility. The btrax is an
integrated component of crackerjack and is a tool to assess test programs’ effectiveness. It uses Intel processor’s branch trace capability and records how much code
was traced by a test program. Crackerjack is initially designed for Linux kernel system call testing, but care has
been taken to allow future expansion to other types of
software.
1
1.1
Introduction
The cost of validating such incompatibility for middleware developers is increasing, therefore we need some
mechanism to find such incompatibility.
If you find the incompatibility early, then analysing the
issue and fixing it is very easy.
However, if you find the issue very late, some applications may already make use of this incompatible behavior and therefore you can not change or fix the behavior,
even the fix is trivial.
Therefore, finding incompatibility very early has practical benefit not only for Linux kernel developers but also
for middleware developers.
1.2
Test Early, Test Often
1.2.1
The Linux kernel development process does not explicitly define an automated mechanism for maintenance of
compatibility. Unintended introduction of incompatibilities as the result of a bugfix and/or an upgrade do not get
detected in an automated way. The basis of testing in the
Linux kernel development community is predicated on
frequent releases, with feedback and review by a large
number of contributors. Therefore, end-users and middleware developers can find incompatibility problems
only after the release of a kernel.
Developers may introduce new functionality which, intentionally or unintentionally, introduced incompatibility but there are few cases which describe the incompatibility explicitly. For example, you may write in the
change log, “Function XXX is added” but you may not
Regression Testing
Necessities of Regression Testing
The word regression has a negative connotation; degrade also has a bad image. Incompatibility is not always a bad thing. We have to have some incompatibility
to introduce new features, bug fixes, and performance
improvements.
Although the word regression has negative connotation,
we will use the word in this paper, because the term “regression test” is commonly used in the testing community.
Regression testing is a mechanism to find different (diff)
behavior of implementation. Maintaining compatibility
is very important. But it is not always possible, we have
to have some tradeoff.
• 285 •
286 • Regression Test Framework and Kernel Execution Coverage
1.2.2
Automatic Test
Testing is a boring process but we’d like to change so it
is a fun and easy process.
We need a systematic way to find a regression of the
Linux Kernel and OSS.
Development of new features: Verify that the new feature in question does not destroy previous features in an
incompatible way. If the feature extension was an incompatible extension, verify the extent of such incompatibility. Add test program for the new feature to maintain compatibility in the future.
Middleware developer
Regression testing is an automatic process which runs
a test and compares the expected results, then validates
the compatibility of the software. Regression testing is a
common practice in commercial software developments
but not well done in the open source software.
As such, we have developed a compatibility testing tool
for the Linux kernel interface, the goal of which is to
avoid unintended introduction of incompatibilities, and
to effectively reduce application development cost by
detecting such incompatibilities upfront. This tool is
different from standard certification tests such as Linux
Standard Base, in that the tool can detect incompatibilities between a particular version of a kernel and its revised versions.
These developers should execute a regression test
against a new version of kernel, and if incompatibilities are found, specifically understand the extent of the
incompatiblity. It will be easy to find kernel regression,
if middleware tests are prepared and run.
1.2.4
Non Goals
The following are non goals.
• Certification Tests e.g. POSIX, LSB
• Performance Tests, e.g. Benchmarks
The test tool includes following features.
• Automatically assess kernel behaviors and storing
the results.
• Detect differences between stored results and point
out incompatibilities.
• Manage (register, modify, remove) test results and
expected test results.
We will promote the development of this test tool by
communicating with the Linux kernel community, the
test community, the North-east Asia OSS Promotion
Forum, etc. from an early stage, through the so-called
bazaar model.
1.2.3
Expected Usage
Linux kernel developer
Bugfix of an existing kernel: Verify that the bugfix does
not destroy previous features in an incompatible way.
Add a test program for the bug in question and verify
that the existing kernel includes the bug and the bugfix
version does not.
We don’t build certification tests nor performance tests.
They are non goals.
1.3
Summary of theme
Develop a regression test framework, the regression
tests, and the test coverage measurement tool, as shown
in figure 1. Regression test framework is a framework
that executes each of the test sets, and is a basis for
the framework of this Linux kernel compatibility testing tool.
2
Regression Test Framework - crackerjack
Crackerjack is a regression test framework which provides 1) execution of test sets, 2) reporting based on results of test set execution, and 3) management of test
programs, expected results, test sets, and test results.
It is implemented using Ruby on Rails. Ruby makes it
easy to modify, ensuring a low maintenance cost.
Regression testing is defined as testing two builds of
software, with emphasis on detection of regression (incompatibility of functionality).
2007 Linux Symposium, Volume Two • 287
In Figure 1, the result (Rn) of a test executed on a certain version of software (Vn) is compared against an expected result (En). The initial expectation (E1) is typically identical to R1.
V1----R1----^ ----compare | ~~~~~
v ----E1---->
V2----R2----^ ----| ~~~~~
v ----E2---->
V3----R3----^ ----| ~~~~~
v ----E3---->
V4
R4
^
|
v
E4
(btrax). It is outside the scope of crackerjack project, to
measure performance or certify compatibility.
2.1
The framework provides the following functions.
• Run both GUI (Graphical User Interface) mode and
CUI (Character User Interface) mode.
• Execute test programs.
Figure 1: Comparison between test results (Rn) and expected results (En)
• Compare test execution results and expected results.
To detect a regression, the results from two separate
builds have to be compared. If a result from a system
call can be statically determined to be correct, such a
comparison would return a valid result (OK) and or not
(NG). We can add a comparison routine to determine the
results.
pid = getpid ()
if (pid > 5000 && pid < 66536) {
printf ("OK\n");
} else {
printf ("NG\n");
}
return EXIT_SUCCESS
Figure 2: Example – Exact Match
pid = get_pid
printf ("%d\n", pid)
return EXIT_SUCCESS
Figure 3: Example - Range
In the first example above (see Figure 2), the test program statically determines whether the function call returned a valid result (’OK’) or not (’NG’). In the second
example (see Figure 3), the test program only outputs
the function call result, for later comparison.
The comparison method may vary between test programs. Therefore, it is the test program developer’s responsibility to define a comparison method for that test
program.
The objective of the crackerjack system is to perform
regression tests. crackerjack consists of (1) framework,
(2) a collection of test programs, and (3) branch tracer
Software Functionality
• Report based on results of test set execution.
• Manage test programs, expected results, test sets,
test target, and test results.
• Define compare programs.
The expected end-users of crackerjack are kernel developers, middleware developers, and test program developers.
For more information, please refer to the Appendix.
3
Branch Tracer for Linux – btrax
3.1
btrax
We have integrated a branch tracer for Linux (known as
btrax hereinafter) in the crackerjack to find the execution
coverage of regression tests.
This program (btrax) traces the branch executions of the
target program, analyzes the trace log file, and displays
coverage information and execution path. It’s possible
to trace it for an application program, a library, a kernel
module, and the kernel.
The btrax consists of the following commands.
1. Collect the branch trace log via bt_collect_
log,
2. Report the coverage
coverage,
information
via
bt_
288 • Regression Test Framework and Kernel Execution Coverage
3. Report the execution path via bt_execpath, and
4. Split the branch trace log by each process via bt_
split.
The btrax collects a branch trace information using Intel’s last branch record capability. bt_collect_log
stores the branch trace log, bt_coverage and bt_
execpath report the branch coverage and the execution path information respectively.
3.2
Coverage
The coverage information gathered includes function,
branch, and state coverage. Usually, it would be displayed in address value order.
The branch tracer (bt_collect_log) collects the
last branch information using Intel’s last branch record
capability.
bt_coverage analyzes the ELF files such as kernel,
module, etc. and gets the branch and function-call information. Then, it analyzes the traced log(s) with this
information, and displays the coverage information.
Function coverage displays how many functions were
executed among total functions. Displayed functions are
almost compatible with objdump’s output. Note that it
would not show the “function call coverage.” (See Figure 12.)
Branch coverage displays how many conditional
branches (i.e. both branch and fall-through) were executed among total ones. (See Figure 13.)
State (basic block) coverage shows how many states
(basic block) were executed among total states. State
means straight-line piece of code without any jumps
or jump targets in the middle (a.k.a. basic block ). In
the previous “switch case” example, if the codes of the
“case 0” and “case 2” were both executed three times,
then each state and coverage would be as follows. (See
Figure 15.)
A chain of function calls is displayed, for example, function FA calls function FB, and function FB calls function
FC, and so on. If you would like to limit the coverage
target to the functions which are included in function
call tree, -I option can be used. In this case, the function
call tree would be displayed with other coverage information (such as function/branch/state coverage). Example of the function call tree is shown below. (See Figure 16.)
4
Linux Kernel System Call Test Coverage
We made test programs which use Linux system calls
and used the crackerjack with the btrax. We measured
the function coverage, the branch coverage, and the state
coverage of the each test program execution (Table 1).
We selected 50 system call test programs of LTP and
measured the execution coverages of them as our benchmark. (Table 2)
We know the LTP is comprehensive test suite but the
execution coverage is not large enough.
The average function coverage, branch coverage, and
state coverage are 41.39%, 23.1%, and 30.94% respectively. (Note: 38%, 10%, and 12% of the test programs
exceeded 50% of function, branch, and state coverage.)
It is very difficult to increase the execution coverage.
The following are the reasons.
• exception/error condition: Making an exception
program is not easy. Making an Error condition
is not easy. Sometimes it is not feasible.
• asynchronous processing: For example, making
spin/lock, spin/wait condition is not easy.
• excluding functions from coverage measures: For
example, a common routine like printk has a lot of
execution path. If a given system call uses printk,
it contains a lot of execution path which are not
covered the test programs.
We need to exclude some functions from the coverage
measurement but it is hard to find such functions. Pruning unnecessary code path is difficult. If a given system
call has more than three digits of function calls, it implies insufficient pruning.
It is almost impossible to run codepaths for low memory
situations. It is even questionable that such test could
even run.
2007 Linux Symposium, Volume Two • 289
Func
branch
state
coverage % coverage % coverage %
13 time
100.0
70.0
88.24
20 getpid
0.00
100.00
0.00
20 getpid (wb)
100.00
100.00
100.00
25 stime
69.23
41.67
50.68
27 alarm
14.19
2.50
5.65
30 utim (wb)
30.77
10.79
16.73
30 utime
23.56
8.81
13.38
42 pipe
67.74
31.91
49.79
42 pipe (wb)
82.26
47.04
65.60
45 brk
23.88
8.96
12.74
45 brk (wb)
23.13
9.12
12.53
66 setsid
29.41
12.08
18.10
78 gettimeofday
87.50
52.00
70.31
79 settimeofday
77.78
45.19
57.04
82 old_select
3.96
1.78
2.67
87 swapon
19.12
9.05
12.21
90 old_mmap
7.14
2.91
3.54
91 munmap
13.74
5.78
7.66
92 truncate
4.48
1.06
1.77
93 ftruncate
0.88
0.11
0.20
101 ioperm
19.78
8.84
10.91
103 syslog
5.45
1.67
2.44
104 setitimer
3.79
1.44
2.02
105 getitimer
1.35
0.45
0.61
110 iopl
100.00
50.00
81.82
115 swapoff
12.28
4.12
6.18
116 sysinfo
15.11
3.31
5.79
120 clone
19.30
6.79
9.92
121 setdomainname
7.46
1.88
3.15
124 adjtimex
5.67
1.05
1.79
125 mprotect
7.82
3.90
5.28
142 select
3.96
1.78
2.67
144 msync
1.52
0.42
0.62
147 getsid
72.73
46.67
61.70
150 mlock
2.08
0.37
0.72
151 munlock
1.66
0.31
0.56
152 mlockall
24.12
9.29
12.62
153 munlockall
1.66
0.21
0.44
162 nanosleep
31.76
13.41
18.67
163 mremap
13.83
6.21
8.71
168 poll
2.30
0.95
1.47
187 sendfile
1.01
0.11
0.19
193 truncate64
4.48
1.06
1.77
194 ftruncate64
0.88
0.11
0.2
203 setreuid
1.27
0.23
0.38
204 setregid
100.00
20.00
46.43
205 getgroups
1.54
0.25
0.41
206 setgroups
1.26
0.10
0.23
208 setresuid
1.27
0.26
0.41
209 getresuid
66.67
33.33
60.00
210 setresgid
100.00
18.42
45.16
211 getresgid
66.67
33.33
60.00
218 mincore
0.62
0.06
0.10
219 madvise
1.60
0.50
0.73
System call
Table 1: Summary of coverage of tests %
Func
branch
state
coverage % coverage % coverage %
13 time
75.00
60.00
82.35
20 getpid
100.00
100.00
100.00
25 stime
61.54
35.42
47.95
27 alarm
53.45
15.58
25.03
30 utime
28.85
9.83
15.27
42 pipe
77.42
44.08
61.32
45 brk
13.43
6.76
8.88
66 setsid
23.53
7.92
12.76
78 gettimeofday
87.50
44.00
67.19
79 settimeofday
66.67
32.69
45.77
82 old_select
No exist
No exist
No exist
87 swapon
29.08
11.40
16.80
90 old_mmap
17.41
11.25
13.11
91 munmap
21.15
9.45
13.24
92 truncate
19.77
6.21
9.73
93 ftruncate
15.48
4.38
7.22
101 ioperm
4.27
1.56
2.02
103 syslog
26.32
13.64
14.13
104 setitimer
48.44
11.01
21.05
105 getitimer
67.86
24.65
40.64
110 iopl
100.00
100.00
84.62
115 swapoff
20.61
5.90
9.75
116 sysinfo
86.96
40.35
59.06
120 clone
27.52
11.48
16.80
121 setdomainname
100.00
50.00
71.43
124 adjtimex
57.14
16.18
26.49
125 mprotect
11.53
5.70
7.57
142 select
10.88
4.72
6.61
144 msync
5.50
2.45
3.25
147 getsid
72.73
26.67
48.94
150 mlock
20.60
8.39
12.23
151 munlock
5.32
3.12
3.76
152 mlockall
17.82
7.08
9.88
153 munlockall
2.31
0.39
0.69
162 nanosleep
58.82
15.16
25.32
163 mremap
17.57
7.68
11.04
168 poll
6.12
1.86
3.13
187 sendfile
12.77
3.72
6.05
193 truncate64
No exist
No exist
No exist
194 ftruncate64
No exist
No exist
No exist
203 setreuid
11.76
4.08
5.69
204 setregid
100.00
96.43
96.43
205 getgroups
83.33
40.00
60.78
206 setgroups
9.43
2.95
4.55
208 setresuid
10.92
4.14
5.68
209 getresuid
66.67
50.00
80.00
210 setresgid
100.00
68.42
96.88
211 getresgid
66.67
50.00
80.00
218 mincore
13.57
4.85
7.04
219 madvise
11.43
4.03
6.15
System call
Table 2: Summary of coverage of tests (LTP)%
290 • Regression Test Framework and Kernel Execution Coverage
In spin lock situations, program code normally runs
through locked side path. It is hard to prepare conditions for competing locks.
Making race condition is also hard to test.
There is a common function called from gettimeofday
/ settimeofday. In this common function, paths are
uniquely determined by get / set. So other execution
paths have never been executed.
5
Discussion
5.1
5.1.1
Kernel Tests – Writing a Good Test is Very
Hard
Test Coverage
Writing good kernel tests is very difficult. Our data
shows that the execution coverage is low. As discussed
above, it is very hard to increase the execution coverage.
5.1.2
man Pages are Not Enough
Some man pages do not have enough detail information.
For example, utime does not have a description of error
return values.
If we don’t have clear definition, we can not determine
if the test result is OK or NG.
5.1.3
Behavior of 2.4 vs. 2.6
2.6 introduced more strict parameter checking. We discovered a condition where 2.4 did not report errors but
2.6 did. (We discovered implementation-dependent incompatibility.)
For example, settimeofday second had loose error
checking, but 2.6 introduced more strict error checking.
We think fixing a bug is important but changing behavior may introduce other incompatibility. So we need to
know as early as possible to assess it.
5.2
Finding Incompatibility
For portability, middleware developers should preferably not be using implementation-dependent and undefined functions. However there are cases when such
functions are used without intention.
There is a large hidden cost to avoid unintended introduction of incompatibility. It is said that the most costly
activity in development of commercial software is the
maintenance of backward compatibility.
Crackerjack detects not only unintended incompatibilities, but also intended incompatibilities. Both are important for notification to middleware developers. It is
important to notify the changes in behavior, in a timely
manner. We can detect behavior diffs across versions.
For example, the memory range acquired from brk()
is static but the memory range is randomized by turning
on the exec shield. Crackerjack detects such a specification change.
We can write user-defined compare program not only
simple OK/NG but allows some statistical allowance.
6
6.1
Related Work
LTP
LTP (Linux Test Project) is a set of Linux test programs
which includes the Linux kernel test, stress tests, benchmark tests, and so on. LTP is a comprehensive test suite
but it is not intended to be a regression test suite.
The Linux kernel test validates the POSIX definition of
the kernel therefore it does not cover features like implementation defined, implementation dependent, and
or undefined functionality.
On the other hand, crackerjack is a test harness and tries
to capture all execution behavior and difference between
each version. Such behavior includes not only standard
features but also implementation defined, implementation dependent, and undefined by the standard.
Crackerjack finds the diff of implementation behavior.
We can integrate crackerjack with the LTP. For example,
adding some regression tests to LTP and invoke them
from crackerjack.
2007 Linux Symposium, Volume Two • 291
6.2
gcov/lcob
The gcov/lcob is a coverage tool. There is a kernel patch
to measure the test coverage of the Linux kernel. The
gcov uses gcc to get the coverage data but you need to
patch the kernel.
The btrax uses Intel’s last branch record capability and
you don’t need any patch nor rebuild kernel. So you can
measure your standard kernel without rebuilding kernel.
6.3
autotest
The autotest is a harness program of invoking several
tests program including LTP, benchmark programs and
so on.
We can plug crackerjack into autotest.
7
7.1
Future Work
Kernel Development Process
We believe finding incompatibility in an early stage is
very important and all of us can get much benefit from
it.
It is good thing to run regression tests on every kernel
release. Adding this practice into the kernel development process is our big challenge. We need to show our
benefit to the kernel community and convince them to
use it.
7.2
Expanding the Area
The concept of regression testing is very simple, just
find the diff of the implementation between releases.
Crackerjack can be used on other types of software interfaces, for example, the /proc file system, glibc, and
so on.
The system calls are very stable and we don’t see much
incompatibility in them. However, /proc file system is
much more flexible, so we may easily find some incompatibility.
7.3
Crackerjack
A richer set of default compare programs for crackerjack
is needed. Today we have to add compare programs if
the default does not match your needs.
We need methodology to relieve the test program developers. It might be a test pattern, convention or environment.
Crackerjack has to record system information, environment, and reproducible information.
Current development focuses on regression test framework and test coverage tool. Extending the test to all of
Linux kernel functions, and sustained execution of regression tests, would wait until the next project.
7.4
Community Activity
Our development is supported by a working group of
Japan OSS promotion forum which consists of private
sector and public sector. There is a collaboration with
China and Korea groups too.
We’d like to expand this activity with the Linux and test
community.
8
Acknowledgements
This project is supported by the Information Technology
Promotion Agency (IPA), Japan.
We would like to thank my colleagues and their contributions. Satoshi Fujiwara (Hitachi) implements the
btrax. Takahiro Yasui (Hitachi) and Masato Taruishi
(Red Hat KK) wrote kernel tests and measured the
Linux kernel execution and the branch coverage. Kazuo
Yagi (Miracle Linux) implements the crackerjack.
The project team: Hitachi team; Satoshi Fujiwara
(btrax), Takahiro Yasui (kernel test programs), Hisashi
Hashimoto, Yumiko Sugita, and Tomomi Suzuki.
Miracle Linux team; Kazuo Yagi (crackerjack and kernel test programs), Ryo Yanagiya, and Hiro Yoshioka.
Red Hat KK team; Masato Taruishi (kernel test programs) and Toshiyuki Takamiya.
292 • Regression Test Framework and Kernel Execution Coverage
References
$ su Password:
[1] Linux Test Project
http://ltp.sourceforge.net/
[2] autotest
http://test.kernel.org/autotest/
[3] ABAT http://test.kernel.org
# cd /usr/src/crackerjack/trunk/crackerjack/
# ./crackerjack
crackerjack>h
number push test program to stack
d
Delete(pop) stack
e
register test program result
on stack as Expected result
h
help
l
List the test programs
p
Print stack
x
eXecute test program on stack
[4] Test Tools Wiki(OSS Testing Summit)
http://developer.osdl.org/dev/test_
tools/index.php/Main_Page
[Eric Raymond] The Cathedral and the Bazaar
http://www.catb.org/~esr/writings/
cathedral-bazaar/cathedral-bazaar
Figure 5: Invoke crackerjack
crackerjack>l
0000) access
0001) adjtimex
0002) adjtimex/whitebox
0003) alarm
...
[5] Ruby on Rails
Figure 6: List the Tests Command
http://www.rubyonrails.org/
A.2
Invoke crackerjack
Appendix:
Become the root user and run crackerjack.
A
A.1
crackerjack – Getting Started
Get the Code and make
Read help with ’h’ command. (See Figure 5)
List the test programs with ’l’ command. (See Figure 6)
The latest source code is always available at
https://crackerjack.svn.sourceforge.
net/svnroot/crackerjack/
Push the test programs to the stack with “number” which
corresponds to the test program you want. You can look
the contents of stack with p command, and pop the test
programs from stack with d command.
You can get it by Subversion. For example, see the Figure 4 “Getting Source code and make.”
Execute the test program on stack with the ’x’ command. (See Figure 7.)
$ svn co \
https://crackerjack.svn.sourceforge.net/svnroot/crackerjack/
A
crackerjack/trunk
A
crackerjack/trunk/crackerjack
(...snip...)
Checked out revision 477.
$ make
(...snip...)
Figure 4: Getting Source Code and make
If a test program has compiler errors, then try make
-k. Some system calls are not available in old Linux
kernels, for example, 2.6.9 does not have mkdirat, mknodat etc.
Quit the crackerjack with the ’q’ command. (See Figure
8.)
A.3
Run in Non-interactive way
You can execute test programs from a file which indicates the order of tests (order file). (See Figure 9.)
You can create an order-file using the ’l’ command similar to the following then execute the test. (See Figure
10.)
2007 Linux Symposium, Volume Two • 293
crackerjack>1
# ./crackerjack -l > m.order
# ./crackrjack -x m.order
1
crackerjack>2
1 2
Figure 10: crackerjack Non-interactive with ’l’ and ’x’
Commands
crackerjack>3
1 2 3
# ./crackerjack-gui-server
crackerjack>4
1 2 3 4
crackerjack>5
Figure 11: crackerjack GUI Mode
1 2 3 4 5
crackerjack>x
Action
SystemCallName
X
adjtimex
X
adjtimex/whitebox
X
alarm
X
alarm/whitebox
X
brk/basic
Id
20070412133111
20070412133111
20070412133111
20070412133111
20070412133111
Figure 7: Execute Tests
crackerjack>q
#
1. Collect the branch trace log via bt_collect_
log,
2. Report
the
coverage
bt_coverage,
information
via
3. Report the execution path via bt_execpath,
4. Split the branch trace log by each process via bt_
split.
Figure 8: Quit with the ’q’ Command
A.4
GUI mode
Invoke the GUI server similar to the following then use a
web browser to access localhost:3000. (See Figure 11.)
The btrax collects a branch trace information using Intel’s last branch record capability. bt_collect_log
stores the branch trace log, bt_coverage and bt_
execpath report the branch coverage and the execution path information respectively.
You may need to install the Ruby on Rails.
B.2
B
The coverage information includes function coverage,
branch coverage and state coverage. Usually, it would
be displayed in address value order.
B.1
btrax – Getting Started
Basic Concept
This program (btrax) traces the branch executions of the
target program, analyzes the trace log file, and displays
coverage information and execution path. It’s possible
to trace it for an application program, a library, a kernel
module, and the kernel.
The btrax consists of the following commands.
# ./crackerjack -h
USGE: crackerjack [option] [FILE]
-l
list the test programs
-x FILE
execute the test program on reading order from file
-e FILE
register the current result as the expected result
-c result_kerv,result_id,expected_kerv,expected_id
compare the current result to the expected result
-b
execute with btrax, avaiable with -e option
-h
show this help
-v
show version
Figure 9: crackerjack Non-interactive Mode
B.2.1
Coverage
bt_coverage
bt_coverage analyzes the ELF files such as kernel,
module, etc. and get the branch and function-call information. Then, it analyzes the traced log(s) with this
information, and displays the coverage information.
bt_coverage tries to show the source information
such as source file name and line number, but if there
is no debug information in the ELF file, it shows only
the address value.
You can check whether the source code was executed or
not by using html output (for this, it needs debug information in the ELF file and the source code files). Note
that inline functions and macros would not be colorized
294 • Regression Test Framework and Kernel Execution Coverage
correctly in the html files. It is because they were expanded to the other functions and could not be found in
the ELF file.
(example source code)
Address
C
Assembler
1:
if (xxx)
jxx LABEL
2:
aaa;
aaa
3:
bbb;
LABEL:
bbb
(coverage counting for each case)
You can also compare the two log files’ kernel coverage
by generating html files. Even if the log files were generated on the different kernels, bt_coverage can still
compare them.
branch
(1->3)
fallthrough
(1->2)
coverage
counting
symbols
not executed
not executed
executed
executed
not executed
executed
not executed
executed
0/2=0.00%
1/2=50.00%
1/2=50.00%
2/2=100.00%
NT
HT
HT
OK
(if branch was executed 3 times, and fall-through was executed 1 time, then coverage output would
be. . . )
B.2.2
Function Coverage
---- branch coverage (OK:1,HT:0,NT:0/2=100.00% UK:0/0=100.00%)
(OK) 1 [3/1] 3:2 // 1->3 3 times, and 1->2 1 time executed
It displays how many functions were executed among
total functions. Displayed functions are almost compatible with objdump’s output. Note that it would not show
the “function call coverage.” For example, refer to the
below chart (‘//’ means comment). (See Figure 12.)
(example source code)
funcA(); // executed once
funcB(); // executed once
...
funcB();
...
funcB();
funcC();
(then, coverage output would be...)
---- function coverage (2/3=66.67%) ---(OK) <funcA> (1) // funcA executed once
(OK) <funcB> (1) // funcB executed once
(NT) <funcC> (0) // funcC not executed
Figure 12: Function Coverage
B.2.3
Branch Coverage
It displays how many conditional branches (i.e. both
branch and fall-through) were executed among total
ones. For example, branch coverage counting for each
coverage case is as follows. (See Figure 13.)
There is a case that the branch address would be determined by indirect addressing such as “switch case”
code. In this case, it is impossible to know the branch
addresses and number of these by analyzing the ELF
file. (See Figure 14.)
We call this kind of branch as “unknown branch.” Unknown branches are counted whether the branch was
executed or not, and are counted separate from normal
branches. In this example, if all of the switch case codes
were not executed, branch coverage would be as follows.
Figure 13: Branch Coverage
(example source code)
Address C
------- ------------------1: switch (xxx) {
2: case 0: aaa;
3:
break;
4: case 1: bbb;
5:
break;
6: case 2: ccc;
7:
break;
8: }
Assembler
------------------jmp *(%eax)
aaa
jmp LABEL
bbb
jmp LABEL
ccc
LABEL:
Figure 14: Branch Coverage
---- branch coverage (OK:0,HT:0,NT:0/0=100.00% UK:0/1=0.00%)
(UN) 1 [0/x] ----------:xxxxxxxxxxx
// 1 jumps nowhere
Or, if the codes of the “case 0” and “case 2” were both
executed 3 times, then branch coverage would be as follows.
---- branch coverage (OK:0,HT:0,NT:0/0=100.00% UK:1/1=100.00%)
(UT) 1 [3/x] 2:xxxxxxxxxxx
// 1->2 executed 3 times
(UT) 1 [3/x] 6:xxxxxxxxxxx
// 1->6 executed 3 times
In the coverage output, you cannot check that how many
branches were executed for the unknown branches.
But each case block’s execution information would be
showed in state coverage. Although you can check that
in html output.
B.2.4
State (Basic Block) Coverage
It shows how many states (basic block) were executed
among total states. State means straight-line piece of
code without any jumps or jump targets in the middle
a.k.a. basicblock. In the previous ’switch case’ example, if the codes of the “case 0” and “case 2” were
both executed three times, then each state and coverage
would be as follows. (See Figure 15.)
2007 Linux Symposium, Volume Two • 295
(example source code)
Address C
------- ----------------1: switch (xxx) {
- - - - - - 2: case 0: aaa;
3:
break;
- - - - - - 4: case 1: bbb;
5:
break;
- - - - - - 6: case 2: ccc;
- - - - - - 7:
break;
8: }
Assembler
------------------jmp *(%eax)
- - - - - -// state border
aaa
jmp LABEL
- - - - - - bbb
jmp LABEL
- - - - - - ccc
- - - - - - LABEL:
(coverage output would be...)
------ state coverage (4/5=80.00%) -----(OK) 1
// state from address 1 was executed
(OK) 2
(NT) 4
// state from address 4 was not executed
(OK) 6
(OK) 7
Figure 15: State (basic block) Coverage
B.2.5
“function coverage,” and each function’s information is
sorted by this value.
There is the function call whose address would be determined by indirect addressing such as “function call
by using function pointer.” In this case, it is impossible
to know the function address by analyzing the ELF file.
So, this kind of functions would not be displayed in the
function tree. Example of this kind of function call is
shown below.
(example
Address
------1:
2:
3:
4:
source code)
C
----------------------------------int call_function(void (*func),,, )
{
func();
}
Assembler
----------------
call *0x84(%edx)
Function Call Tree
It means the chain of function call, for example, function
FA calls function FB, and function FB calls function FC,
and so on. If you would like to limit the coverage target to the functions which are included in function call
tree, -I option can be used. In this case, function call
tree would be displayed with other coverage information (such as function/branch/state coverage). Example
of the function call tree is shown below. (See Figure 16.)
==== includes: sys_open ======
==== excludes: schedule,printk,dump_stack,panic,show_mem ====
==== function tree (59/498=11.85%) ======
(OK) <sys_open>:fs/open.c,1101
(3, F:498)
(OK) +-<do_sys_open>:fs/open.c,1079
(3, F:497)
(OK) +-+-<do_filp_open>:fs/open.c,874
(3, F:196)
(OK) +-+-+-<nameidata_to_filp>:fs/open.c,942 (3, F:4)
(OK) +-+-+-+-<__dentry_open>:fs/open.c,799
(3, F:3)
(NT) +-+-+-+-+-<wake_up_process>:kernel/sched.c,1521 (0, F:1)
//... snip ...
(UT) <generic_file_open>:fs/open.c,1216 (2)
(UT) <dummy_inode_follow_link>:security/dummy.c,324
(1)
//... snip ...
Figure 16: Function Call Tree
In this example, we can see that the sys_open was executed (it is seen as ‘OK’) 3 times and it contains 498
functions including itself (it is seen as (3, F:498)).
If the function was already displayed, then it is displayed with (--) symbol instead of (OK) or (NT).
A function call tree may contain unnecessary functions
for the user. In this case, it could be excluded by using -E option. You can also check that if it would be
excluded, then how many functions would be decreased
by using “F:N” information (we call it “function excluding guidance”) in the function call tree.
Function excluding guidance is also displayed in the
If you would like to include this kind of function to
the coverage target, you must check the source code
if there is no information. To improve this situation,
(bt_coverage) also analyzes the trace log(s) and
shows the functions which were executed by indirect addressing. This kind of function is displayed with (UT)
mark (we call it “function including guidance”). Read
the man page for more information.
B.3
Get the Code, Build and Install
The project home page is the following, Download the
tarball from the project page.
http://sourceforge.net/projects/
btrax/
Read the README and follow the instruction. (See
Figure 17.)
B.4
Checking System Call Coverage
In order to determine the correctness of our regression
test, we measure the execution branch coverage of tests.
The following subsections show the steps to take to measure the branch coverage using the btrax.
B.4.1
Create a program calling system call
Create a regression test which uses a system call(s).
(You can use LTP as an example.)
296 • Regression Test Framework and Kernel Execution Coverage
Build and Install.
$ cd $(WHERE_YOUR_WORK_DIRECTORY)
$ tar jxvf btrax-XXX.tar.bz2
$ cd btrax-XXX
# bt_coverage --ker -f \
‘echo $(ls cpu*)|sed ’s/\s\+/,/g’‘ \
-I $(syscall_name)
Figure 20: Checking Call coverage
Install the command.
$ make
$ su (input super-user password here)
# make install
# bt_coverage --ker -f \
‘echo $(ls cpu*)|sed ’s/\s\+/,/g’‘ \
-I $(syscall_name) \
-E schedule,dump_stack,printk
Create relayfs mount point.
# mkdir /mnt/relay
Figure 17: Build and Install
B.4.2
Figure 21: Excluding functions
# bt_coverage --ker -f \
‘echo $(ls cpu*)|sed ’s/\s\+/,/g’‘ \
-I $(syscall_name) \
-E schedule,dump_stack,printk \
-o $(HTML_OUT_DIR) -S $(KERN_SRC_DIR)
# (mozilla) file://$(HTML_OUT_DIR)/top.html
Start Branch Trace
Figure 22: Excluding functions
Start branch trace. (See Figure 18.) Note that
syscall_name must be defined in the kernel’s sys_
call_table.
# bt_collect_log --syscall \
$(syscall_name) -d $(ODIR)\
-c $(program)
Figure 18: Start branch trace
B.4.4
Compare System Call Coverage
# bt_coverage --ker \
-I $(syscall_name)\
-E schedule,dump_stack,printk \
-o $(HTML_OUT_DIR)\
-S $(KERN_SRC_DIR)\
-f ‘echo $(log1/cpu*)|sed ’s/\s\+/,/g’‘ \
--f2 ‘echo $(log2/cpu*)|sed ’s/\s\+/,/g’‘
# (mozilla) file://$(HTML_OUT_DIR)/top.html
Figure 23: Comparing the system call coverage
B.4.3
Checking Coverage
To check the system call coverage summary, do the next
command. (See Figure 19.)
# cd $(ODIR)
# bt_coverage --ker -f \
‘echo $(ls cpu*)|sed ’s/\s\+/,/g’‘ \
-I $(syscall_name) -s
Figure 19: Checking coverage
To check the system call coverage detail, do the next
command. (See Figure 20.)
If you want to exclude the function(s) from coverage
result, use the -E option. (See Figure 21.) To check
whether the code in that system call was executed or
not, do the next. (See Figure 22.) Note that html files are
using the Javascript. If you have some trouble browsing,
check the Javascript setting.
To compare same kernel’s system call coverage, do the
next command line which uses the -S, -f and –f2 options. In this example, each log directory is log1 and
log2. (See Figure 23.)
# bt_coverage --ker\
-I $(syscall_name)\
-E schedule,dump_stack,printk \
-o $(HTML_OUT_DIR)\
-u uname_r1 --u2 uname_r2\
-S src1 --S2 src2 \
-f ‘echo $(log1/cpu*)|sed ’s/\s\+/,/g’‘\
--f2 ‘echo $(log2/cpu*)|sed ’s/\s\+/,/g’‘
# (mozilla) file://$(HTML_OUT_DIR)/top.html
Figure 24: Comparing the system call coverage
If you had traced different kernel’s system calls, you can
also compare these logs. To compare the different kernel’s system call coverage, use the next command line
which also employs the -u option. In this example, each
log directory is log1 and log2, each kernel version is
uname_r1 and uname_r2, and each kernel source directory is src1 and src2. (See Figure 24.)
Enable PCI Express Advanced Error Reporting in the Kernel
Yanmin Zhang and T. Long Nguyen
Intel Corporation
[email protected], [email protected]
Abstract
PCI Express is a high-performance, general-purpose I/O
Interconnect. It introduces AER (Advanced Error Reporting) concepts, which provide significantly higher reliability at a lower cost than the previous PCI and PCI-X
standards. The AER driver of the Linux kernel provides
a clean, generic, and architecture-independent solution.
As long as a platform supports PCI Express, the AER
driver shall gather and manage all occurred PCI Express
errors and incorporate with PCI Express device drivers
to perform error-recovery actions.
This paper is targeted toward kernel developers interested in the details of enabling PCI Express device
drivers, and it provides insight into the scope of implementing the PCI Express AER driver and the AER conformation usage model.
1
Introduction
Current machines need higher reliability than before and
need to recover from failure quickly. As one of failure
causes, peripheral devices might run into errors, or go
crazy completely. If one device is crazy, device driver
might get bad information and cause a kernel panic: the
system might crash unexpectedly.
As a matter of fact, IBM engineers (Linas Vepstas and
others) created a framework to support PCI error recovery procedures in-kernel because IBM Power4 and
Power5-based pSeries provide specific PCI device error recovery functions in platforms [4]. However, this
model lacks the ability to support platform independence and is not easy for individual developers to get
a Power machine for testing these functions. The PCI
Express introduces the AER, which is a world standard.
The PCI Express AER driver is developed to support the
PCI Express AER. First, any platform which supports
the PCI Express could use the PCI Express AER driver
to process device errors and handle error recovery accordingly. Second, as lots of platforms support the PCI
Express, it is far easier for individual developers to get
such a machine and add error recovery code into specific
device drivers.
2
2.1
PCI Express Advanced Error Reporting
Driver
PCI Express Advanced Error Reporting Topology
To understand the PCI Express Advanced Error Reporting Driver architecture, it helps to begin with the basics of PCI Express Port topology. Figure 1 illustrates
two types of PCI Express Port devices: the Root Port
and the Switch Port. The Root Port originates a PCI
Express Link from a PCI Express Root Complex. The
Switch Port, which has its secondary bus representing
switch internal routing logic, is called the Switch Upstream Port. The Switch Port which is bridging from
switch internal routing buses to the bus representing
the downstream PCI Express Link is called the Switch
Downstream Port. Each PCI Express Port device can
be implemented to support up to four distinct services:
native hot plug (HP), power management event (PME),
advanced error reporting (AER), virtual channels (VC).
The AER driver development is based on the service
driver framework of the PCI Express Port Bus Driver
design model [3]. As illustrated in Figure 2, the PCI
Express AER driver serves as a Root Port AER service
driver attached to the PCI Express Port Bus driver.
2.2
PCI Express Advanced Error Reporting Driver
Architecture
PCI Express error signaling can occur on the PCI Express link itself or on behalf of transactions initiated on
the link. PCI Express defines the AER capability, which
is implemented with the PCI Express AER Extended
• 297 •
298 • Enable PCI Express Advanced Error Reporting in the Kernel
Root Port
CPU
Root Complex
Root
Port
Root
Port
Up
Port
PCI Express Switch
Down
Port
Interrupt
Switch
Upstream
Port
Switch
Downstream
Port
Root Complex
Root
Port
Down
Port
Up
Port
Switch
Figure 1: PCI Express Port Topology
Down
Port
Down
Port
Error Message
PBD
End Point
Root Complex
PMErs
Root
Port
Root
Port
HPrs
AERrs
PMErs
AERrs
HPrs
VCrs
VCrs
Figure 3: PCI Express Error Reporting procedures
Claim
AER Port Service Driver
Figure 2: AER Root Port Service Driver
Capability Structure, to allow a PCI Express component (agent) to send an error reporting message to the
Root Port. The Root Port, a host receiver of all error
messages associated with its hierarchy, decodes an error message into an error type and an agent ID and then
logs these into its PCI Express AER Extended Capability Structure. Depending on whether an error reporting
message is enabled in the Root Error Command Register, the Root Port device generates an interrupt if an
error is detected. The PCI Express AER service driver
is implemented to service AER interrupts generated by
the Root Ports. Figure 3 illustrates the error report procedures.
Once the PCI Express AER service driver is loaded, it
claims all AERrs service devices in a system device hierarchy, as shown in Figure 2. For each AERrs service
device, the advanced error reporting service driver configures its service device to generate an interrupt when
an error is detected [3].
When errors happen, the PCI Express AER driver could
provide such infrastructure with three basic functions:
• Gathers the comprehensive error information if errors occurred.
• Performs error recovery actions.
• Reports error to the users.
2.2.1
PCI Express Error Introduction
Traditional PCI devices provide simple error reporting
approaches, PERR# and SERR#. PERR# is parity error,
while SERR# is system error. All non-PERR# errors are
SERR#. PCI uses two independent signal lines to represent PERR# and SERR#, which are platform chipsetspecific. As for how software is notified about the errors,
it totally depends on the specific platforms.
To support traditional error handling, PCI Express provides baseline error reporting, which defines the basic
error reporting mechanism. All PCI Express devices
have to implement this baseline capability and must map
required PCI Express error support to the PCI-related
error registers, which include enabling error reporting
2007 Linux Symposium, Volume Two • 299
and setting status bits that can be read by PCI-compliant
software. But the baseline error reporting doesn’t define
how platforms notify system software about the errors.
PCI Express errors consist of two types, correctable errors and uncorrectable errors. Correctable errors include
those error conditions where the PCI Express protocol
can recover without any loss of information. A correctable error, if one occurs, can be corrected by the
hardware without requiring any software intervention.
Although the hardware has an ability to correct and reduce the correctable errors, correctable errors may have
impacts on system performance.
Uncorrectable errors are those error conditions that impact functionality of the interface. To provide more
robust error handling to system software, PCI Express
further classifies uncorrectable errors as fatal and nonfatal. Fatal errors might cause corresponding PCI Express links and hardware to become unreliable. System
software needs to reset the links and corresponding devices in a hierarchy where a fatal error occurred. Nonfatal errors wouldn’t cause PCI Express link to become
unreliable, but might cause transaction failure. System
software needs to coordinate with a device agent, which
generates a non-fatal error, to retry any failed transactions.
PCI Express AER provides more reliable error reporting infrastructure. Besides the baseline error reporting,
PCI Express AER defines more fine-grained error types
and provides log capability. Devices have a header log
register to capture the header for the TLP corresponding
to a detected error.
Correctable errors consist of receiver errors, bad TLP,
bad DLLP, REPLAY_NUM rollover, and replay timer
time-out. When a correctable error occurs, the corresponding bit within the advanced correctable error status
register is set. These bits are automatically set by hardware and are cleared by software when writing a “1”
to the bit position. In addition, through the Advanced
Correctable Error Mask Register (which has the similar
bitmap like advanced correctable error status register),
a specific correctable error could be masked and not be
reported to root port. Although the errors are not reported with the mask configuration, the corresponding
bit in advanced correctable error status register will still
be set.
Uncorrectable errors consist of Training Errors, Data
Link Protocol Errors, Poisoned TLP Errors, Flow Con-
trol Protocol Errors, Completion Time-out Errors, Completer Abort Errors, Unexpected Completion Errors, Receiver Overflow Errors, Malformed TLPs, ECRC Errors, and Unsupported Request Errors. When an uncorrectable error occurs, the corresponding bit within
the Advanced Uncorrectable Error Status register is set
automatically by hardware and is cleared by software
when writing a “1” to the bit position. Advanced error
handling permits software to select the severity of each
error within the Advanced Uncorrectable Error Severity
register. This gives software the opportunity to treat errors as fatal or non-fatal, according to the severity associated with a given application. Software could use the
Advanced Uncorrectable Mask register to mask specific
errors.
2.2.2
PCI Express AER Driver Designed To Handle
PCI Express Errors
Before kernel 2.6.18, the Linux kernel had no root port
AER service driver. Usually, the BIOS provides basic
error mechanism, but it couldn’t coordinate corresponding devices to get more detailed error information and
perform recovery actions. As a result, the AER driver
has been developed to support PCI Express AER enabling for the Linux kernel.
2.2.2.1 AER Initialization Procedures
When a machine is booting, the system allocates interrupt vector(s) for every PCI Express root port. To
service the PCI Express AER interrupt at a PCI Express
root port, the PCI Express AER driver registers its interrupt service handler with Linux kernel. Once a PCI
Express root port receives an error reported from the
downstream device, that PCI Express root port sends an
interrupt to the CPU, from which the Linux kernel will
call the PCI Express AER interrupt service handler.
Most of AER processing work should be done under
a process context. The PCI Express AER driver creates one worker per PCI Express AER root port virtual
device. Depending on where an AER interrupt occurs
in a system hierarchy, the corresponding worker will be
scheduled.
Most BIOS vendors provide a non-standard error processing mechanism. To avoid conflict with BIOS while
handling PCI Express errors, the PCI Express AER
300 • Enable PCI Express Advanced Error Reporting in the Kernel
driver must request the BIOS for ownership of the PCI
Express AER via the ACPI _OSC method, as specified
in PCI Express Specification and ACPI Specification. If
the BIOS doesn’t support the ACPI _OSC method, or
the ACPI _OSC method returns errors, the PCI Express
AER driver’s probe function will fail (refer to Section 3
for a workaround if the BIOS vendor does not support
the ACPI _OSC method).
Once the PCI Express AER driver takes over, the BIOS
must stop its activities on PCI Express error processing.
The Express AER driver then configures PCI Express
AER capability registers of the PCI Express root port
and specific devices to support PCI Express native AER.
2.2.2.2 Handle PCI Express Correctable Errors
Because a correctable error can be corrected by the hardware without requiring any software intervention, if one
occurs, the PCI Express AER driver first decodes an error message received at PCI Express root port into an error type and an agent ID. Second, the PCI Express AER
driver uses decoded error information to read the PCI
Express AER capability of the agent device to obtain
more details about an error. Third, the PCI Express AER
driver clears the corresponding bit in the correctable error status register of both PCI Express root port and the
agent device. Figure 4 illustrates the procedure to process correctable errors. Last but not least, the details
about an error will be formatted and output to the system console as shown below:
+—— PCI-Express Device Error —–+
Error Severity : Corrected
PCIE Bus Error type : Physical Layer
Receiver Error : Multiple
Receiver ID : 0020
VendorID=8086h, DeviceID=3597h, Bus=00h, Device=04h,
Function=00h
The Requester ID is the ID of the device which reports
the error. Based on such information, an administrator
could find the bad device easily.
2.2.2.3 Handle PCI Express Non-Fatal Errors
If an agent device reports non-fatal errors, the PCI
Express AER driver uses the same mechanism as described in Section 2.2.2 to obtain more details about an
error from an agent device and output error information
to the system console. Figure 5 illustrates the procedure
to process non-fatal errors.
AER Driver
1) Get Source ID/
Error Type,
Clear Root Status
Root Complex
Root
Port
2) Get Detailed Error Type,
Clear Correctable Error Status
End Point: E1
Figure 4: Procedure to Process Correctable Errors
AER Driver
1) Get Source ID/
Error Type
Clear root status
3) Error Recovery
End Point
Driver
Root Complex
Root
Port
2) Get Detailed Error
Type and Log
End Point: E1
Figure 5: Procedures to Process Non-Fatal Errors
The first two steps are like the ones to process correctable errors. During Step 2, the AER driver need to
retrieve the packet header log from the agent if the error
is TLP-related.
Below is an example of non-fatal error output to the system console.
+—— PCI-Express Device Error ——+
Error Severity : Uncorrected (Non-Fatal)
PCIE Bus Error type : Transaction Layer
Completion Timeout : Multiple
Requester ID : 0018
VendorID=8086h, DeviceID=3596h, Bus=00h, Device=03h,
Function=00h
Unlike correctable errors, non-fatal errors might cause
2007 Linux Symposium, Volume Two • 301
some transaction failures. To help an agent device driver
to retry any failed transactions, the PCI Express AER
driver must perform a non-fatal error recovery procedure, which depends on where a non-fatal error occurs
in a system hierarchy. As illustrated in Figure 6, for
example, there are two PCI Express switches. If endpoint device E2 reports a non-fatal error, the PCI Express AER driver will try to perform an error recovery
procedure only on this device. Other devices won’t take
part in this error recovery procedure. If downstream port
P1 of switch 1 reports a non-fatal error, the PCI Express
AER driver will do error recovery procedure on all devices under port P1, including all ports of switch 2, end
point E1, and E2.
callbacks of the relevant drivers. In the resume functions, drivers could resume operations to the devices.
If an error_detected callback returns PCI_ERS_
RESULT_NEED_RESET, the recovery procedure will call
all slot_reset callbacks of relevant drivers. If
all slot_reset functions return PCI_ERS_RESULT_
CAN_RECOVER, the resume callback will be called to
finish the recovery. Currently, some device drivers provide err_handler callbacks. For example, Intel’s
E100 and E1000 network card driver and IBM’s POWER
RAID driver.
The PCI Express AER driver outputs some information
about non-fatal error recovery steps and results. Below
is an example.
Root Complex
Root
Port
Up
Port
Switch 1
Down
Port: P1
Up
Port
Down
Port
End Point: E1
Switch 2
Down
Port
End Point: E2
Figure 6: Non-Fatal Error Recovery Example
To take part in the error recovery procedure, specific device drivers need to implement error callbacks as described in Section 4.1.
When an uncorrectable non-fatal error happens, the
AER error recovery procedure first calls the error_
detected routine of all relevant drivers to notify their
devices run into errors by the deep-first sequence. In
the callback error_detected, the driver shouldn’t
operate the devices, i.e., do not perform any I/O on the
devices. Mostly, error_detected might cancel all
pending requests or put the requests into a queue.
If the return values from all relevant error_
detected routines are PCI_ERS_RESULT_CAN_
RECOVER, the AER recovery procedure calls all resume
+—— PCI-Express Device Error —–+
Error Severity : Uncorrected (Non-Fatal)
PCIE Bus Error type : Transaction Layer
Unsupported Request : First
Requester ID : 0500
VendorID=14e4h, DeviceID=1659h, Bus=05h, Device=00h,
Function=00h
TLB Header:
04000001 0020060f 05010008 00000000
Broadcast error_detected message
Broadcast slot_reset message
Broadcast resume message
tg3: eth3: Link is down.
AER driver successfully recovered
2.2.2.4 Handle PCI Express Fatal Errors
When processing fatal errors, the PCI Express AER
driver also collects detailed error information from the
reporter in the same manner as described in Sections
2.2.2.2 and 2.2.2.3. Below is an example of non-fatal
error output to the system console:
+—— PCI-Express Device Error ——+
Error Severity : Uncorrected (Fatal)
PCIE Bus Error type : Transaction Layer
Unsupported Request : First
Requester ID : 0200
VendorID=8086h, DeviceID=0329h, Bus=02h, Device=00h,
Function=00h
TLB Header:
04000001 00180003 02040000 00020400
When performing the error recovery procedure, the major difference between non-fatal and fatal is whether
302 • Enable PCI Express Advanced Error Reporting in the Kernel
the PCI Express link will be reset. If the return values from all relevant error_detected routines are
PCI_ERS_RESULT_CAN_RECOVER, the AER recovery
procedure resets the PCI Express link based on whether
the agent is a bridge. Figure 7 illustrates an example.
driver specific */
pci_ers_result_t (*reset_link) (struct
pci_dev *dev);
...
};
Root Complex
Root
Port: P0
Up
Port: P1
Switch
Down
Port: P2
Down
Port: P3
End Point: E1
Figure 7: Reset PCI Express Link Example
In Figure 7, if root port P0 (a kind of bridge) reports a
fatal error to itself, the PCI Express AER driver chooses
to reset the upstream link between root port P0 and upstream port P1. If end-point device E1 reports a fatal
error, the PCI Express AER driver chooses to reset the
upstream link of E1, i.e., the link between P2 and E1.
The reset is executed by the port. If the agent is a port,
the port will execute reset. If the agent is an end-point
device, for example, E1 in Figure 7, the port of the upstream link of E1, i.e., port P2 will execute reset.
The reset method depends on the port type. As for root
port and downstream port, the PCI Express Specification defines an approach to reset their downstream link.
In Figure 7, if port P0, P2, P3, and end point E1 report
fatal errors, the method defined in PCI Express Specification will be used. The PCI Express AER driver implements the standard method as default reset function.
There is no standard way to reset the downstream
link under the upstream port because different switches
might implement different reset approaches. To facilitate the link reset approach, the PCI Express AER driver
adds reset_link, a new function pointer, in the data
structure pcie_port_service_driver.
struct pcie_port_service_driver {
...
/* Link Reset Capability - AER service
If a port uses a vendor-specific approach to reset link, its
AER port service driver has to provide a reset_link
function. If a root port driver or downstream port service driver doesn’t provide a reset_link function,
the default reset_link function will be called. If
an upstream port service driver doesn’t implement a
reset_link function, the error recovery will fail.
Below is the system console output example printed by
the PCI Express AER driver when doing fatal error recovery.
+—— PCI-Express Device Error —–+
Error Severity : Uncorrected (Fatal)
PCIE Bus Error type : (Unaccessible)
Unaccessible Received : First
Unregistered Agent ID : 0500
Broadcast error_detected message
Complete link reset at Root[0000:00:04.0]
Broadcast slot_reset message
Broadcast resume message
tg3: eth3: Link is down.
AER driver successfully recovered
2.3
Including PCI Express Advanced Error Reporting Driver Into the Kernel
The PCI Express AER Root driver is a Root Port service driver attached to the PCI Express Port Bus driver.
Its service must be registered with the PCI Express Port
Bus driver and users are required to include the PCI Express Port Bus driver in the kernel [5]. Once the kernel configuration option CONFIG_PCIEPORTBUS is included, the PCI Express AER Root driver is automatically included as a kernel driver by default (CONFIG_
PCIEAER = Y).
3
Impact to PCI Express BIOS Vendor
Currently, most BIOSes don’t follow PCI FW 3.0 to
support the ACPI _OSC handler. As a result, the PCI
Express AER driver will fail when calling the ACPI
2007 Linux Symposium, Volume Two • 303
control method _OSC. The PCI Express AER driver
provides a current workaround for the lack of ACPI
BIOS _OSC support by implementing a boot parameter, forceload=y/n. When the kernel boots with
parameter aerdriver.forceload=y, the PCI Express AER driver still binds to all root ports, which implements the AER capability.
4
4.1
Impact to PCI Express Device Driver
4.2
Device driver helper functions
To communicate with device AER capabilities, drivers
need to access AER registers in configuration space. It’s
easy to write incorrect code because they must access/
change the bits of registers. To facilitate driver programming and reduce coding errors, the AER driver provides
a couple of helper functions which could be used by device drivers.
Device driver requirements
4.2.1
To conform to AER driver infrastructure, PCI Express
device drivers need support AER capability.
First, when a driver initiates a device, it needs to enable
the device’s error reporting capability. By default, device error reporting is turned off, so the device won’t
send error messages to root port when it captures an error.
Secondly, to take part in the error recovery procedure, a
device driver needs to implement error callbacks as described in the pci_error_handlers data structure
as shown below.
struct pci_error_handlers {
/* PCI bus error detected on this device */
pci_ers_result_t (*error_detected)(struct
pci_dev *dev, enum pci_channel_state error);
/* MMIO has been re-enabled, but not DMA */
pci_ers_result_t (*mmio_enabled)(struct
pci_dev *dev);
/* PCI slot has been reset */
pci_ers_result_t (*slot_reset)(struct
pci_dev *dev);
/* Device driver may resume
normal operations */
void (*resume)(struct pci_dev *dev);
};
In data structure pci_driver, add err_handler
as a new pointer to point to the pci_error_
handlers. In kernel 2.6.14, the definition of pci_
error_handlers had already been added to support
PCI device error recovery [4]. To be compatible with
PCI device error recovery, PCI Express device error recovery also uses the same definition and follows a similar rule. One of our starting points is that we try to
keep the recovery callback interfaces as simple as we
can. If the interfaces are complicated, there will be no
driver developers who will be happy to add error recovery callbacks into device drivers.
int pci_find_aer_capability
(struct pci_dev *dev);
pci_find_aer_capability locates the PCI Express AER capability in the device configuration space.
Since offset 0x100 in configuration space, PCI Express
devices could provide a couple of optional capabilities
and they link each other in a chain. AER is one of them.
To locate AER registers, software needs to go through
the chain. This function returns the AER offset in the
device configuration space.
4.2.2
int pci_enable_pcie_error_reporting (struct
pci_dev *dev);
pci_enable_pcie_error_reporting enables
the device to send error messages to the root port when
an error is detected. If the device doesn’t support PCIExpress capability, the function returns 0. When a device driver initiates a device (mostly, in its probe function), it should call pci_enable_pcie_error_
reporting.
4.2.3
int pci_disable_pcie_error_reporting (struct
pci_dev *dev);
pci_disable_pcie_error_reporting
disables the device from sending error messages to the root
port. Sometimes, device drivers want to process errors
by themselves instead of using the AER driver. It’s not
encouraged, but we provide this capability.
4.2.4
int pci_cleanup_aer_uncorrect_
error_status (struct pci_dev *dev);
pci_cleanup_aer_uncorrect_error_
status cleans up the uncorrectable error status
304 • Enable PCI Express Advanced Error Reporting in the Kernel
register. The AER driver only clears correctable
error status register when processing errors. As for
uncorrectable errors, specific device drivers should
do so because they might do more specific processing. Usually, a driver should call this function in its
slot_reset or resume callbacks.
4.3
Testing PCI Express AER On Device Driver
It’s hard to test device driver AER capabilities. By lots
of experiments, we have found that UR (Unsupported
Request) can be used to test device drivers. We triggered UR error messages by probing a non-existent device function. For example, if a PCI Express device only
has one function, when kernel reads the ClassID from
the configuration space of the second function of the
device, the device might send an Unsupported Request
error message to the root port and set the bit in uncorrectable error status register. By setting different values
in the corresponding bit in uncorrectable error mask register, we could test both non-fatal and fatal errors.
5
Conclusion
The PCI Express AER driver creates a generic infrastructure to support PCI Express AER. This infrastructure provides the Linux kernel with an ability to capture
PCI Express device errors and perform error recovery
where in a hierarchy an agent device reports. Last but
not least the system administrators could get formatted,
useful error information to debug device errors.
Linux kernel 2.6.19 has accepted the PCI Express AER
patches. Future work includes enabling PCI Express
AER for every PCI Express device by default, blocking
I/O when an error happens, and so on.
6
Acknowledgement
Special thanks to Steven Carbonari for his contributions
to the architecture design of PCI Express AER driver,
Rajesh Shah for his contributions to code review, and
the Linux community for providing great input.
Legal Statement
c 2007 by Intel Corporation. PerThis paper is copyright mission to redistribute in accordance with Linux Symposium submission guidelines is granted; all other rights are
reserved.
References
[1] PCI Express Base Specification Revision 1.1.
March 28, 2005. http://www.pcisig.com
[2] PCI Firmware Specification Revision 3.0,
http://www.pcisig.com
[3] Tom Long Nguyen, Dely L. Sy, & Steven
Carbonari. “PCI Express Port Bus Driver Support
for Linux.” Proceedings of the Linux Symposium,
Vol. 2, Ottawa, Ontario, 2005.
http://www.linuxsymposium.org/
2005/linuxsymposium_procv2.pdf
[4] pci-error-recovery.txt. Available from:
2.6.20/Documentation.
[5] PCIEBUS-HOWTO.txt. Available from:
2.6.20/Documentation.
[6] pcieaer-howto.txt. Available from:
2.6.20/Documentation.
Enabling Linux* Network Support of Hardware Multiqueue Devices
Zhu Yi
Intel Corp.
Peter P. Waskiewicz, Jr.
Intel Corp.
[email protected]
[email protected]
Abstract
In the Linux kernel network subsystem, the Tx/Rx
SoftIRQ and Qdisc are the connectors between the network stack and the net devices. A design limitation is
that they assume there is only a single entry point for
each Tx and Rx in the underlying hardware. Although
they work well today, they won’t in the future. Modern
network devices (for example, E1000 [8] and IPW2200
[6]) equip two or more hardware Tx queues to enable
transmission parallelization or MAC-level QoS. These
hardware features cannot be supported easily with the
current network subsystem.
This paper describes the design and implementation
for the network multiqueue patches submitted to netdev [2] and LKML [1] mailing lists early this year,
which involved the changes for the network scheduler,
Qdisc, and generic network core APIs. It will also discuss breaking the netdev->queue_lock with finegrained per-queue locks in the future. At the end of the
paper, it takes the IPW2200 and E1000 drivers as an
example to illustrate how the new network multiqueue
features will be used by the network drivers.
1
A Brief Introduction for the Linux Network
Subsystem
When a packet is passed from the user space into the
kernel space through a socket, an skb (socket kernel
buffer) is created to represent that packet in the kernel.
The skb is passed through various layers of the network
stack before it is handed to the device driver for transmission. Inside the Linux kernel, each network device
is represented by a struct net_device structure.
All the struct net_device instances are linked
into a doubly linked list with a single pointer list head
(called hlist); the list head is named dev_base.
The struct net_device contains all information
and function pointers for the device. Among them there
is a qdisc item. Qdisc stands for queuing discipline.
It defines how a packet is selected on the transmission
path. A Qdisc normally contains one or more queues
(struct sk_buff_head) and a set of operations
(struct Qdisc_ops). The standard .enqueue
and .dequeue operations are used to put and get packets from the queues by the core network layer. When a
packet first arrives to the network stack, an attempt to
enqueue occurs. The .enqueue routine can be a simple FIFO, or a complex traffic classification algorithm.
It all depends on the type of Qdisc the system administrator has chosen and configured for the system. Once
the enqueue is completed, the packet scheduler is invoked to pull an skb off a queue somewhere for transmission. This is the .dequeue operation. The skb is
returned to the stack, and is then sent to the device driver
for transmission on the wire. The network packets transmission can be started by either dev_queue_xmit()
or the TX SoftIRQ (net_tx_action()) depending
on whether the packet can be transmitted immediately
or not. But both routines finally call qdisc_run() to
dequeue an skb from the root Qdisc of the netdev and
send it out by calling the netdev->hard_start_
xmit() method.
When the hardware Tx queue of a network device is
full (this can be caused by various reasons—e.g., carrier
congestion, hardware errors, etc.), the driver should call
netif_stop_queue() to indicate to the network
scheduler that the device is currently unusable. So the
qdisk_restart() function of the network scheduler won’t try to transmit the packet (with the device’s
.hard_start_xmit() method) until the driver explicitly calls netif_start_queue() or netif_
wake_queue() to indicate the network scheduler its
hardware queue is available again. The netdev->
hard_start_xmit() method is responsible for
checking the hardware queue states. If the device
hardware queue is full, it should call netif_stop_
queue() and returns NETDEV_TX_BUSY. On the
other side, when the network scheduler receives the
• 305 •
306 • Enabling Linux Network Support of Hardware Multiqueue Devices
NETDEV_TX_BUSY as the return value for netdev->
hard_start_xmit(), it will reschedule. Note that
if a driver returns NETDEV_TX_BUSY without calling netif_stop_queue() in the hard_start_
xmit() method when the hardware transmit queue is
full, it will chew tons of CPU.
For a normal network device driver, the general rules to
deal with the hardware Tx queue are:
• Driver detects queue is full and calls netif_
stop_queue();
• Network scheduler will not try to send more packets through the card any more;
• Even in some rare conditions (dev->hard_
start_xmit() is still called), calls into the
driver from top network layer always get back a
NETDEV_TX_BUSY;
• EOT interupt happens and driver cleans up the TX
hardware path to make more space so that the core
network layer can send more packets (driver calls
netif_start_queue())
an example: if the high-priority queue is full while the
low one is not, the Qdisc will still keep dequeueing
the high priority skb. But it will always fail to transmit in the high-priority queue because the corresponding hardware queue is full. To make the situation even
worse, netif_stop_queue() and friends are also
ignorant of multiple hardware queues. There is no way
to schedule Tx SoftIRQ based on hardware queues (vs.
based on the global netdev). For example, if the lowpriority hardware queue is full, should the driver call
netif_stop_queue() or not? If the driver does,
the high priority skbs will also be blocked (because the
netdev Tx queue is stopped). If the driver doesn’t, the
high CPU usage problem we mentioned in Section 1 will
happen when low priority skbs remain in the Qdisc.
3
How to Solve the Problem?
Since the root cause for this problem is that the network
scheduler and Qdisc do not expect the network devices
to have multiple hardware queues, the obvious fix is to
add the support for multi-queue features to them.
4
The Design Considerations
• Subsequent packets get queued to the hardware.
In this way, the network drivers use netif_stop_
queue() and netif_start_queue() to provide
feedback to the network scheduler so that neither packet
starvation nor a CPU busy loop occurs.
2
What’s the Problem if the Device has Multiple Hardware Queues?
The problem happens when the underlying hardware has
multiple hardware queues. Multiple hardware queues
provide QoS support from the hardware level. WireR
less network adapters such as the Intel
PRO/Wireless
R
R
3945ABG, Intel PRO/Wireless 2915ABG, and Intel
PRO/Wireless 2200BG Network Connections have already provided this feature in hardware. Other high
speed ethernet adapters (i.e., e1000) also provide multiple hardware queues for better packet throughput by
parallelizing the Tx and Rx paths. But the current Qdisc
interface isn’t multiple-hardware-queue aware. That is,
the .dequeue method is not able to dequeue the correct skb according to the device hardware queue states.
Take a device containing two hardware Tx queues for
The main goal of implementing support for multiple
queues is to prevent one flow of traffic from interfering with another traffic flow. Therefore, if a hardware
queue is full, the driver will need to stop the queue.
With multiqueue, the driver should be able to stop an individual queue, and the network stack in the OS should
know how to check individual queue states. If a queue is
stopped, the network stack should be able to pull packets from another queue and send them to the driver for
transmission.
One main consideration with this approach is how the
stack will handle traffic from multiqueue devices and
non-multiqueue devices in the same system. This must
be transparent to devices, while maintaining little to no
additional overhead.
5
The Implementation Details
The following details of implementation are under discussion and consideration in the Linux community at the
writing of this paper. The concepts should remain the
same, even if certain implementation details are changed
to meet requests and suggestions from the community.
2007 Linux Symposium, Volume Two • 307
The first part of implementation is how to represent
queues on the device. Today, there is a single queue
state and lock in the struct net_device. Since
we need to manage the queue’s state, we will need a
state for each queue. The queues need to be accessible
from the struct net_device so they can be visible to both the stack and the driver. This is added to
include/linux/netdevice.h:
Inside struct net_device:
struct net_device
{
...
struct net_device_subqueue
*egress_subqueue;
unsigned long
egress_subqueue_count;
...
}
Here, the netdev has the knowledge of the queues, and
how many queues are supported by the device. For all
non-multiqueue devices, there will be one queue allocated, with an egress_subqueue_count of 1. This is
to help the stack run both non-multiqueue devices and
multiqueue devices simultaneously. The details of this
will be discussed later.
When a network driver is loaded, it needs to allocate
a struct net_device and a structure representing itself. In the case of ethernet devices, the function alloc_etherdev() is called. A change to this
API provides alloc_etherdev_mq(), which allows
a driver to tell the kernel how many queues it wants to
allocate for the device. alloc_etherdev() is now a
macro that calls alloc_etherdev_mq() with a queue
count of 1. This allows non-multiqueue drivers to transparently operate in the multiqueue stack without any
changes to the driver.
Ultimately, alloc_etherdev_mq() calls the new
alloc_netdev_mq(), which actually handles the
kzalloc().
In here, egress_subqueue is assigned to the newly allocated memory, and egress_
subqueue_count is assigned to the number of allocated queues.
On the deallocation side of things, free_netdev()
now destroys the memory that was allocated for each
queue.
The final part of the multiqueue solution comes with the
driver being able to manipulate each queue’s state. If
one hardware queue runs out of descriptors for whatever
reason, the driver will shut down that queue. This operation should not prevent other queues from transmitting
traffic. To achieve this, the network stack should check
the state for the global queue state, as well as the individual queue states, before deciding to transmit traffic
on that queue.
Queue mapping in this implementation happens in the
Qdisc, namely PRIO. The mapping is a combination of
which PRIO band an skb is assigned to (based on TC
filters and/or IP TOS to priority mapping), and which
hardware queue is assigned to which band. Once the skb
has been classified in prio_classify(), a lookup to
the band2queue mapping is done, and assigned to a
new field in the skb, namely skb->queue_mapping.
The calls to netif_subqueue_stopped() will pass
this queue mapping to know if the hardware queue to
verify is running or not. In order to help performance
and avoid unnecessary requeues, this check is done in
the prio_dequeue() routine, prior to pulling an skb
from the band. The check will be done again before the
call to hard_start_xmit(), just as it is done today on
the global queue. The skb is then passed to the device
driver, which will need to look at the value of skb->
queue_mapping to determine which Tx ring to place
the skb on in the hardware. At this point, multiqueue
flows have been established.
The network driver will need to manage the queues
using the new netif_{start|stop|wake}_
subqueue() APIs.
This way full independance
between queues can be established.
6
6.1
Using the Multiqueue Features
R
PRO/Wireless 2200BG Network ConIntel
nection Driver
This adapter supports the IEEE 802.11e standard [3] for
Quality of Service (QoS) on the Medium Access Control (MAC) layer. Figure 1 shows the hardware implementation. Before a MSDU (MAC Service Data Unit)
is passed to the hardware, the network stack maps the
308 • Enabling Linux Network Support of Hardware Multiqueue Devices
CPU 2
CPU 1
(MSDU, UP)
Mapping to AC
Core 1
Core 2
Core 1
Core 2
Transmit queues
for ACs
Per-queue EDCA
functions with
internal conclision
resolution
Tx queue 1
Tx queue 2
E1000 network adapter
Figure 1: MAC level QoS implementation
Figure 2: Mapping CPU cores to multiple Tx queues on
SMP system
frame type or User Priority (UP) to Access Category
(AC). The NIC driver then pushes the frame to the corresponding one of the four transmit queues according to
the AC. There are four independent EDCA (enhanced
distributed channel access) functions in the hardware,
one for each queue. The EDCA function resolves internal collisions and determines when a frame in the transmit queue is permitted to be transmitted via the wireless
medium.
cases, the queue will still remain active since the network scheduler has just checked its state in the Qdisc
.dequeue method. But in some rare cases, a race
condition would still happen during this period to make
the queue state inconsistent. This is the case where the
Qdisc .requeue method is invoked by the network
scheduler.
With the multiqueue devices supported by the network
subsystem, such hardware-level packet scheduling is
easy to enable. First, a specific PRIO Qdisc queue mapping for all the IEEE 802.11 wireless devices is created.
It maps the frame type or UP to AC according to the
mapping algorithm defined in [3]). With this specific
queue mapping, the IEEE 802.11 frames with higher
priority are always guaranteed to be scheduled before
the lower priority ones by the network scheduler when
both transmit queues are active at the time. In other
cases, for example, the higher priority transmit queue is
inactive while the lower priority transmit queue is active,
and the lower priority frame is scheduled (dequeued).
This is the intention because the hardware is not going
to transmit any higher priority frames at this time. When
the dev->hard_start_xmit() is invoked by the
network scheduler, the skb->queue_mapping is already set to the corresponding transmit queue index for
the skb (by the Qdisc .dequeue method). The driver
then just needs to read this value and move the skb to
the target transmit queue accordingly. In the normal
This adapter with MAC types of 82571 and higher supports multiple Tx and Rx queues in hardware. A big
advantage with these multiple hardware queues is to
achieve packets transmission and reception parallelization. This is especially useful on SMP and multi-core
systems with a lot of processes running network loads
on different CPUs or cores. Figure 2 shows an e1000
network adapter with two hardware Tx queues on a
multi-core SMP system.
6.2
R
Intel
PRO/ 1000 Adapter Driver
With the multiqueue devices supported by the network
subsystem, the e1000 driver can export all its Tx queues
and bind them to different CPU cores. Figure 3 illustrates how this is done in the e1000 multiqueue
patch [4]. The per-CPU variable adapter->cpu_
tx_ring points to the mapped Tx queue for the current CPU. After the e1000 queue mapping has been
setup, the access for the Tx queues should always be
referenced by the adapter->cpu_tx_ring instead
of manipulating the adapter->tx_ring array directly. With spreading CPUs on multiple hardware Tx
2007 Linux Symposium, Volume Two • 309
netdev = alloc_etherdev_mq(sizeof(struct e1000_adapter), 2);
netdev->features |= NETIF_IF_MULTI_QUEUE;
...
adapter->cpu_tx_ring = alloc_percpu(struct e1000_tx_ring *);
lock_cpu_hotplug();
i = 0;
for_each_online_cpu(cpu) {
*per_cpu_ptr(adapter->cpu_tx_ring, cpu) =
&adapter->tx_ring[i % adapter->num_tx_queues];
i++;
}
unlock_cpu_hotplug();
Figure 3: E1000 driver binds CPUs to multiple hardware Tx queues
queues, transmission parallelization is achieved. Since
the CPUs mapped to different Tx queues don’t contend for the same lock for packet transmission, LLTX
lock contention is also reduced. With breaking the
netdev->queue_lock into per-queue locks in the
future, this usage model will perform and scale even
better. The same parallelization is also true for packet
reception.
Comparing with the multiqueue usage model for the
hardware QoS scheduler by the wireless devices, the
e1000 usage model doesn’t require a special frame type
to queue mapping algorithm in the Qdisc. So any type
of multiqueue-aware Qdiscs can be configured on top of
e1000 hardware by the system administrator with command tc, which is part of the iproute2 [7] package.
For example, to add the PRIO Qdisc to your network
device, assuming the device is called eth0, run the following command:
7
In order to extend flexibility of multiqueue network device support, work on the Qdisc APIs can be done. This
is needed to remove serialization of access to the Qdisc
itself. Today, the Qdisc may only have one transmitter
inside it, governed by the __LINK_STATE_QDISC_
RUNNING bit set on the global queue state. This bit will
need to be set per queue, not per device. Implications
with Qdisc statistics will need to be resolved, such as
the number of packets sent by the Qdisc, etc.
Per-queue locking may also need to be implemented in
the future. This is dependent on performance of higher
speed network adapters becoming throttled by the single
device queue lock. If this is determined to be a source of
contention, the stack will need to change to know how
to independently lock and unlock each queue during a
transmit.
8
# tc qdisc add dev eth0 root \
handle 1: prio
As of the writing of this paper, there are already patches
in the linux-netdev mailing list [5] to enable the multiqueue features for the pfifo_fast and PRIO Qdiscs.
Future Work
Conclusion
The multiqueue devices support for network scheduler
and Qdisc enables modern network interface controllers
to provide advanced features like hardware-level packet
scheduling and Tx/Rx parallelization. As processor
packages ship with more and more cores nowadays,
there is also a trend that the network adapter hardware
may equip more and more Tx and Rx queues in the future. The multiqueue patch provides the fundamental
features for the network core to enable these devices.
310 • Enabling Linux Network Support of Hardware Multiqueue Devices
Legal
c 2007 by Intel Corporation. ReThis paper is Copyright distribution rights are granted per submission guidelines; all
other rights are reserved.
*Other names and brands may be claimed as the property of
others.
References
[1] Linux kernel mailing list.
[email protected]
[2] Linux network development mailing list.
[email protected]
[3] IEEE Computer Society. LAN/MAN Committee.
IEEE Standard for Information technology –
Telecommunications and information exchange
between systems – Local and metropolitan area
networks – Specific requirements Part 11: Wireless
LAN Medium Access Control (MAC) and Physical
Layer (PHY) specifications Amendment 8: Medium
Access Control (MAC) Quality of Service
Enhancements. 3 Park Avenue New York, NY
10016-5997, USA, November 2005.
[4] Peter P Waskiewicz Jr. E1000 example
implementation of multiqueue network device api.
http:
//marc.info/?l=linux-netdev&m=
117642254323203&w=2.
[5] Peter P Waskiewicz Jr. Multiqueue network device
support implementation. http:
//marc.info/?l=linux-netdev&m=
117642230823028&w=2.
[6] James Ketrenos and the ipw2200 developers.
R PRO/Wireless 2200BG Driver for Linux.
Intel
http://ipw2200.sf.net.
[7] Alexey Kuznetsov and Stephen Hemminger.
Iproute2: a collection of utilities for controlling
TCP / IP networking and Traffic Control in Linux.
http://linux-net.osdl.org/index.
php/Iproute2.
[8] John Ronciak, Auke Kok, and the e1000
R PRO/10/100/1000/10GbE
developers. The Intel
Drivers. http://e1000.sf.net.
Concurrent Pagecache
Peter Zijlstra
Red Hat
[email protected]
Abstract
In this paper we present a concurrent pagecache for
Linux, which is a continuation of the existing lockless
pagecache work [5].
Currently the pagecache is protected by a reader/writer
lock. The lockless pagecache work focuses on removing
the reader lock, however, this paper presents a method to
break the write side of the lock. Firstly, since the pagecache is centered around the radix tree, it is necessary to
alter the radix tree in order to support concurrent modifications of the data structure. Secondly, we adapt the
pagecache, by removing all non-radix tree consumers
of the lock’s protection, and extend the pageflag, introduced by the lockless pagecache, into a second per page
lock. Then we can fully utilize the radix tree’s new functionality to obtain a concurrent pagecache. Finally, we
analyze the improvements in performance and scalability.
1
Introduction
In order to provide some background for this work, we
will give a quick sketch of the Linux memory management. For a more in depth treatment see Mel Gorman’s
excellent book on the subject [2].
1.1
Pagecache
As we know, in Linux, the pagecache caches on-disk
data in memory per file. So the Linux pagecache
stores and retrieves disk pages based on the (inode,
offset)-tuple. This per inode page-index is implemented with a radix tree [3].
The typical consumer of this functionality is the VFS,
Virtual File-System. Some system-interfaces, such as
read(2) and write(2), as well as mmap(2), operate on the pagecache. These instantiate pages for the
pagecache when needed, after which, the newly allocated pages are inserted into the pagecache, and possibly filled with data read from disk.
1.1.1
Page Frames
Each physical page of memory is managed by a
struct page. This structure contains the minimum
required information to identify a piece of data, such as
a pointer to the inode, and the offset therein. It also contains some management state, a reference counter for
instance, to control the page’s life-time, as well as various bits to indicate status, such as PG_uptodate and
PG_dirty. It is these page structures which are indexed in the radix tree.
1.1.2
Page Reclaim
In a situation when a free page of memory is requested,
and the free pages are exhausted, a used page needs to
be reclaimed. However the pagecache memory can only
be reclaimed when it is clean, that is, if the in-memory
content corresponds to the on-disk version.
When the page is not clean, it is called dirty, and requires
data to be written back to disk. The problem of finding
all the dirty pages in a file is solved by tags, which is a
unique addition to the Linux radix tree (see Section 2.1).
1.2
Motivation
The lockless pagecache work by Nick Piggin [5] shows
that the SMP scalability of the pagecache is greatly improved by reducing the dependency on high-level locks.
However, his work focuses on lookups.
While lookups are the most frequent operation performed, other operations on the pagecache can still form
a significant amount of the total operations performed.
• 311 •
312 • Concurrent Pagecache
Therefore, it is necessary to investigate the other operations as well. They are:
• insert an item into the tree;
The tags are maintained in per-node bitmaps, so that on
each given level we can determine whether or not the
next level has at least a single tag set. Figure 2 shows
the same tree as before, but now with two tags (denoted
by an open and closed bullet respectively).
• update an existing slot to point at a new item;
1
• remove an item from the tree;
msb
1
• set a tag on an existing item;
1
0
• clear a tag on an existing item.
0
2
Radix Tree
0
0
The radix tree deserves a thorough discussion, as it is
the primary data structure of the pagecache.
The radix tree is a common dictionary-style data structure, also know as Patricia Trie or crit bit tree. The Linux
kernel uses a version which operates on fixed-length input, namely an unsigned long. Each level represents a fixed number of bits of this input space (usually
6 bits per tree level - which gives a maximum tree height
of d64/6e = 11 on 64-bit machines). See Figure 1 for
a representation of a radix tree with nodes of order 2,
mapping an 8-bit value.
1
msb
1
1
0
1
Figure 2: 8-bit radix tree with 2 bitmap indices
2.2
Concurrency Control
Traditionally, the radix tree is locked as a whole, and
does not support concurrent operations. Lock contention of this high-level lock is where the scalability
problems come from.
Linux currently uses a reader/writer lock, called tree_
lock, to protect the tree. However, on large SMP machines it still does not scale properly due to cache line
bouncing; the lock also fully serialises all modifications.
2.3
0
lsb
RCU Radix Tree
0
0
1
lsb
Figure 1: 8-bit radix tree
2.1
Tags
A unique feature of the Linux radix tree is its tagsextension. Each tag is basically a bitmap index on top
of the radix tree. Tags can be used in conjunction with
gang lookups to find all pages which have a given tag
set within a given range.
The RCU radix tree enables fully concurrent lookups
(cf. [4]), which is done by exploiting the Read-CopyUpdate technique [1].
RCU basically requires us to atomically flip pointers
from one version of a (partial) data structure to a new
version, while it will keep the old one around until the
system passes through a quiescent state. At this point
it is guaranteed that there are no more users of the old
structure, and therefore it can be freed safely.
However, the radix tree structure is sufficiently static, so
that often modifications are nothing but a single atomic
change to the node. In this case we can just keep using
the same node.
2007 Linux Symposium, Volume Two • 313
The radix-tree modifications still need to be serialised
with respect to each other. The lookups, however, are
no longer serialised with respect to modifications.
This allows us to replace the reader/writer lock with a
regular one, and thus reduce the cache-line bouncing by
not requiring an exclusive access to the cache line for
the lookups.
2.4
Concurrent Radix Tree
With lookups fully concurrent, modifying operations
become a limiting factor. The main idea is to ‘break’
the tree lock into many small locks.1
The obvious next candidate for locking would be the
nodes.
When we study the operations in detail, we see that they
fall into two categories:
• uni-directional;
• bi-directional.
The most simple of the two is the uni-directional operations; they perform only a single traversal of the tree:
from the root to a leaf node. These include: insert, update and set tag.
The bi-directional operations are more complex, since
they tend to go back up the tree after reaching the leaf
node. These are the remaining operations: remove and
clear tag.
holding the node locked. We release the node lock as
soon as the child is locked.
In this situation concurrency is possible, since another
operation can start its descent as soon as the root node
is unlocked. If their paths do not have another node in
common, it might even finish before the operation which
started earlier. The worst case, however, is pipelined
operation, which is still a lot better than a fully serialised
one.
2.4.2
Path Locking
Obviously, this model breaks down when we need to
walk back up the tree again, for it will introduce cyclic
lock dependencies. This implies that we cannot release
the locks as we go down, which will seriously hinder
concurrent modifications.
An inspection of the relevant operations shows that the
upwards traversal has distinct termination conditions. If
these conditions were reversed, so that we could positively identify the termination points during the downward traversal, then we could release all locks upwards
of these points.
In the worst case, we will hold the root node lock, yet for
non-degenerate trees the average case allows for good
concurrency due to availability of termination points.
clear tag Clearing a tag in the radix tree involves
walking down the tree, locating the item and clearing
its tag. Then we go back up the tree clearing tags, as
long as the child node has no tagged items.
Thus, the termination condition states:
2.4.1
Ladder Locking aka Lock-Coupling
This technique, which is frequently used in the database
world, allows us to walk a node-locked tree in a single direction (bi-directional traffic would generate deadlocks).
If all modifiers alter the tree top-to-bottom, and hold a
lock on the node which is being modified, then walking down is as simple as taking a lock on a child, while
1 Ideally
we reduce the locks so far that we end up with single
atomic operations. However tags and deletion (the back tracking operations) seem to make this impossible; this is still being researched.
we terminate the upward traversal if we encounter a node, which still has one or more
entries with the tag set after clearing one.
Changing this condition, in order to identify the termination points during downwards traversal, gives:
the upwards traversal will terminate at nodes
which have more tagged items than the one
we are potentially clearing.
So, whenever we encounter such a node, it is clear that
we will never pass it on our way back up the tree, therefore we can drop all the locks above it.
314 • Concurrent Pagecache
remove Element removal is a little more involved: we
need to remove all the tags for a designated item, as well
as remove unused nodes. Its termination condition captures both of these aspects.
The following termination condition needs to be satisfied when walking back up the tree:
We also prefer to retain as much of the old API as possible, in order to leave the other radix tree users undisturbed.
Finally, we would like a CONFIG option to disable the
per-node locking for those environments where the increased memory footprint of the nodes is prohibitive.
We take the current pattern for lookups as an example:
the upward traversal is terminated when we
encounter a node which is not empty, and
none of the tags are unused.
The condition, identifying such point during the downward traversal, is given by:
we terminate upwards traversal when a node
that has more than two children is encountered, and for each tag it has more items than
the ones we are potentially clearing.
Again, this condition identifies points that will never be
crossed on the traversal back up the tree.
So, with these details worked out, we see that a nodelocked tree can achieve adequate concurrency for most
operations.
2.4.3
API
Concurrent modifications require multiple locking contexts and a way to track them.
The operation that has the richest semantics is radix_
tree_lookup_slot(). It is used for speculative
lookup, since that requires rcu_dereference() to
be applied to the obtained slot. The update operation
is performed using the same radix tree function, but by
applying rcu_assign_pointer() to the resulting
slot.
When used for update, the encompassing node should
still be locked after return of radix_tree_lookup_
slot(). Hence, clearly, we cannot hide the locking in
the radix_tree_*() function calls.
Thus we need an API which elegantly captures both
cases; lookup and modification.
struct page **slot, *page;
rcu_read_lock();
slot = radix_tree_lookup_slot(
&mapping->page_tree, index);
page = rcu_dereference(*slot);
rcu_read_unlock();
Contrary to lookups, which only have global state (the
RCU quiescent state), the modifications need to keep
track of which locks are held. As explained before, this
state must be external to the operations, thus we will
need to instantiate a local context to track these locks.
struct page **slot;
DEFINE_RADIX_TREE_CONTEXT(ctx,
&mapping->page_tree);
radix_tree_lock(&ctx);
slot = radix_tree_lookup_slot(
ctx.tree, index);
rcu_assign_pointer(*slot, new_page);
radix_tree_unlock(&ctx);
As can be seen above, radix_tree_lock() operation locks the root node. By giving ctx.tree as
the tree root instead of &mapping->page_tree, we
pass the local context on, in order to track the held locks.
This is done by using the lower bit of the pointer as a
type field.
Then we adapt the modifying operations, in order to
move the lock downwards:
void **radix_tree_lookup_slot(
struct radix_tree *root,
unsigned long index)
{
...
RADIX_TREE_CONTEXT(context, root);
...
do {
...
/* move the lock down the tree */
radix_ladder_lock(context, node);
...
} while (height > 0);
...
}
2007 Linux Symposium, Volume Two • 315
The RADIX_TREE_CONTEXT() macro extracts the context and the actual root pointer.
3.1
Note that unmodified operations will be fully exclusive
because they do not move the lock downwards.
The lockless pagecache focuses on providing the guarantees, introduced above, in view of the full concurrency
of RCU lookups. That is, RCU lookups are not excluded
by holding the tree lock.
This scheme captures all the requirements mentioned at
the beginning of this section. The old API is retained
by making the new parts fully optional; and by moving most of the locking specific functionality into a few
macros and functions, it is possible to disable the fine
grained locking at compile time using a CONFIG option.
3
Pagecache Synchronisation
The lockless pagecache paper [5] discusses the pagecache synchronisation in terms of guarantees provided
by the read and write side of the pagecache lock. The
read side provides the following guarantees (by excluding modifications):
• the existence guarantee;
• the accuracy guarantee.
The write side provides one additional guarantee (by being fully exclusive), namely:
• the no-new-reference guarantee.
The existence guarantee ensures that an object will exist during a given period. That is, the struct page
found must remain valid. The read lock trivially guarantees this by excluding all modifications.
The accuracy guarantee adds to this by ensuring that
not only will the object stay valid, but it will also stay
in the pagecache. The existence only avoids deallocation, while the accuracy ensures that it keeps referring
to the same (inode, offset)-tuple during the entire time. Once again, this guarantee is provided by the
read lock by excluding all modifications.
The no-new-reference guarantee captures the fully exclusive state of the write lock. It excludes lookups from
obtaining a reference. This is especially relevant for element removal.
3.1.1
Lockless Pagecache
Existence
The existence guarantee is trivially satisfied by observing that the page structures have a static relation with
the actual pages to which they refer. Therefore they are
never deallocated.
A free page still has an associated struct page,
which is used by the page allocator to manage the free
page. A free page’s reference count is 0 by definition.
3.1.2
Accuracy
The accuracy guarantee is satisfied by using a
speculative-get operation, which tries to get a reference
on the page returned by the RCU lookup. If we did obtain a reference, we must verify that it is indeed the page
requested. If either the speculative get, or the verification fails, e.g. the page was freed and possibly reused
already, then we retry the whole sequence.
The important detail here is the try-to-get-a-reference
operation, since we need to close a race with freeing
pages, i.e. we need to avoid free pages from temporarily
having a non-zero reference count. The reference count
is modified by using atomic operations, and to close the
race we need an atomic_inc_not_zero() operation, which will fail to increment when the counter is
zero.
3.1.3
No New Reference
The no-new-reference guarantee is met by introducing a
new page flag, PG_nonewrefs, which is used to synchronise lookups with modifying operations. That is,
the speculative get should not return until this flag is
clear. This allows atomic removal of elements which
have a non-zero reference count (e.g. the pagecache itself might still have a reference).
316 • Concurrent Pagecache
3.1.4
Tree Lock
When we re-implement all lookup operations to take
advantage of the speculative get, and re-implement the
modifying operations to use PG_nonewrefs, then the
read-side of the tree_lock will have no users left.
Hence we can change it into a regular spinlock.
3.2
Concurrent Pagecache
The lockless pagecache leaves us with a single big lock
serialising all modifications to the radix tree. However,
with the adaptations to the radix tree, discussed in Section 2.4, the serialisation, required to meet the synchronisation guarantees of Section 3, is per page.
3.2.2
Before we can fully remove the tree_lock, we need
to make sure that there are no other users left.
A close scrutiny reveals that nr_pages is also serialised by the tree_lock. This counter needs to provide its own serialisation, for we take no lock covering
the whole inode. Changing it to an atomic_long_t
is the easiest way to achieve this.
Another unrelated user of the tree lock is architecture
specific dcache flushing. However, since its use of the
tree lock is a pure lock overload, it does not depend on
any other uses of the lock. We preserve this usage and
rename the lock to priv_lock.
3.2.3
3.2.1
Tree-Lock Users
No New Reference
PG_nonewrefs vs. PG_locked
Since we need to set/clear PG_nonewrefs around
most modifying operations, we might as well do it
around all modifying operations, and change PG_
nonewrefs into an exclusion primitive, which serialises each individual pagecache page modification.
We can’t reuse PG_locked for this because, they have
a different place in the locking hierarchy.
inode->i_mutex
inode->i_alloc_sem
mm->mmap_sem
PG_locked
mapping->i_mmap_lock
anon_vma->lock
mm->page_table_lock or pte_lock
zone->lru_lock
swap_lock
mmlist_lock
mapping->private_lock
inode_lock
sb_lock
mapping->tree_lock
Figure 3: mm locking hierarchy
Figure 3 represents the locking hierarchy. As we can
see, PG_locked is an upper level lock, whereas the
tree_lock (now to be replaced by PG_nonewrefs)
is at the bottom.
Also, PG_locked is a sleeping lock, whereas tree_
lock must be a spinning lock.
The
lockless
pagecache
sets
and
clears
PG_nonewrefs around insertion operations, in
order to avoid half inserted pages to be exposed to
readers. However, the insertion could be done without
PG_nonewrefs by properly ordering the operations.
On the other hand, the deletion fully relies on PG_
nonewrefs. It is used to hold off the return of the
speculative get until the page is fully removed. Then
the accuracy check, after obtaining the speculative reference, will find that the page is not the one we requested,
and will release the reference and re-try the operation.
We cannot rely on atomic_inc_not_zero() failing in this case, because the pagecache itself still has a
reference on the page.
By changing PG_nonewrefs into a bit-spinlock and
using it around all modifying operations, thus serialising
the pagecache on page level, we satisfy the requirements
of both the lockless and the concurrent pagecache.
4
Performance
In order to benchmark the concurrent radix tree, a new
kernel module is made. This kernel module exercises
the modifying operations concurrently.
This module spawns a number of kernel threads, each
of which applies a radix tree operation on a number of
indices. Two range modes were tested: interleaved and
2007 Linux Symposium, Volume Two • 317
sequential. The interleaved mode makes each thread iterate over the whole range, and pick only those elements
which match i mod nr_threads = nr_thread. The sequential mode divides the full range into nr_thread separate sub ranges.
and verify that the node is still valid. After this, we
continue the operation in a regular locked fashion. By
doing this we would avoid locking the upper nodes in
many cases, and thereby significantly reduce cache-line
bouncing.
These two patterns should be able to highlight the impact of cache-line bouncing. The interleaved pattern has
a maximal cache-line overlap, whereas the sequential
pattern has a minimal cache-line overlap.
Something similar can be done for the item removal:
find the lowest termination point during an RCU traversal, lock it and verify its validity. Then continue as a
regular path-locked operation.
4.1
In each case, when the validation fails, the operation
restarts as a fully locked operation.
Results
Here we present results obtained by running the new
kernel module, mentioned above, on a 2-way x86-64
machine, over a range of 16777216 items. The numbers
represent the runtime (in seconds).
Since these two examples cover both the ladder-locking
model in Section 2.4.1, and the path-locking model in
Section 2.4.2, they can be generalised to cover all other
modifying operations.
The interleaved mode gives:
5.1
operation
insert
tag
untag
remove
serial
16.006
14.989
17.515
14.213
concurrent
19.485
15.538
16.982
16.506
gain
-22%
-4%
3%
-16%
The sequential mode gives:
operation
insert
tag
untag
remove
serial
15.768
15.110
18.138
14.607
concurrent
14.792
14.581
15.027
16.250
gain
6%
4%
17%
-11%
As we see from the results, the lock induced cache-line
bouncing is a real problem, even on small SMP systems.
The locking overhead is not prohibitive however.
5
Optimistic Locking
Now that the pagecache is page-locked, and the basic
concurrency control algorithms are in place, effort can
be put into investigating more optimistic locking rules
for the radix tree.
For example, for the insertion we can do an RCU lookup
of the lowest possible matching node, then take its lock
Results
Rerunning the kernel module, in order to test the concurrent radix tree performance with this new optimistic
locking model, yields much better results.
The interleaved mode gives:
operation
insert
tag
untag
remove
serial
16.006
14.989
17.515
14.213
optimistic
12.034
7.417
4.135
6.529
gain
25%
51%
76%
54%
optimistic
3.446
5.359
4.126
6.488
gain
78%
65%
77%
56%
The sequential mode gives:
operation
insert
tag
untag
remove
serial
15.768
15.110
18.138
14.607
These results are quite promising for larger SMP machines.
Now we see that, during the interleaved test, the threads
slowly drifted apart, thus naturally avoiding cache-line
bouncing.
318 • Concurrent Pagecache
6
Availability
This work resulted in a patch-set for the Linux kernel,
and is available at:
http://programming.kicks-ass.net/
kernel-patches/concurrent-pagecache/
References
[1] Wikipedia, Read-Copy-Update
http://en.wikipedia.org/wiki/RCU
[2] M. Gorman, Understanding the Linux Virtual
Memory Manager, 2004.
[3] Wikipedia, Radix Tree, http:
//en.wikipedia.org/wiki/Radix_tree
[4] N. Piggin, RCU Radix Tree,
http://www.kernel.org/pub/linux/
kernel/people/npiggin/patches/
lockless/2.6.16-rc5/radix-intro.pdf
[5] N. Piggin A Lockless Pagecache in Linux Introduction, Progress, Performance, Proceedings of
the Ottawa Linux Symposium 2006, pp. 241–254.
