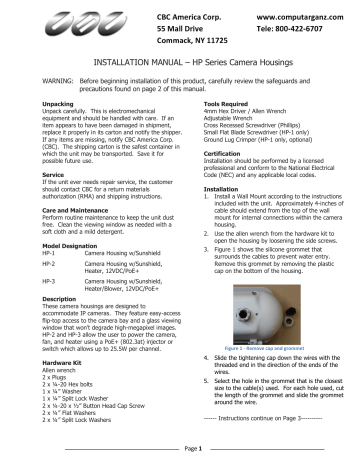

INSTALLATION MANUAL – HP Series Camera Housings
WARNING: Before beginning installation of this product, carefully review the safeguards and
precautions found on page 2 of this manual.
Unpacking
Unpack carefully. This is electromechanical
equipment and should be handled with care. If an
item appears to have been damaged in shipment,
replace it properly in its carton and notify the shipper.
If any items are missing, notify CBC America Corp.
(CBC). The shipping carton is the safest container in
which the unit may be transported. Save it for
possible future use.
Tools Required
4mm Hex Driver / Allen Wrench
Adjustable Wrench
Cross Recessed Screwdriver (Phillips)
Small Flat Blade Screwdriver (HP-1 only)
Ground Lug Crimper (HP-1 only, optional)
Certification
Installation should be performed by a licensed
professional and conform to the National Electrical
Code (NEC) and any applicable local codes.
Service
If the unit ever needs repair service, the customer
should contact CBC for a return materials
authorization (RMA) and shipping instructions.
Installation
1. Install a Wall Mount according to the instructions
included with the unit. Approximately 4-inches of
cable should extend from the top of the wall
mount for internal connections within the camera
housing.
Care and Maintenance
Perform routine maintenance to keep the unit dust
free. Clean the viewing window as needed with a
soft cloth and a mild detergent.
2. Use the allen wrench from the hardware kit to
open the housing by loosening the side screws.
Model Designation
HP-1
Camera Housing w/Sunshield
HP-2
Camera Housing w/Sunshield,
Heater, 12VDC/PoE+
HP-3
Camera Housing w/Sunshield,
Heater/Blower, 12VDC/PoE+
3. Figure 1 shows the silicone grommet that
surrounds the cables to prevent water entry.
Remove this grommet by removing the plastic
cap on the bottom of the housing.
Description
These camera housings are designed to
accommodate IP cameras. They feature easy-access
flip-top access to the camera bay and a glass viewing
window that won’t degrade high-megapixel images.
HP-2 and HP-3 allow the user to power the camera,
fan, and heater using a PoE+ (802.3at) injector or
switch which allows up to 25.5W per channel.
Figure 1 - Remove cap and grommet
4. Slide the tightening cap down the wires with the
threaded end in the direction of the ends of the
wires.
Hardware Kit
Allen wrench
2 x Plugs
2 x ¼-20 Hex bolts
1 x ¼” Washer
1 x ¼” Split Lock Washer
2 x ¼-20 x ½” Button Head Cap Screw
2 x ¼” Flat Washers
2 x ¼” Split Lock Washers
5. Select the hole in the grommet that is the closest
size to the cable(s) used. For each hole used, cut
the length of the grommet and slide the grommet
around the wire.
------ Instructions continue on Page 3----------
Page 1
IMPORTANT SAFEGUARDS
1.
2.
3.
4.
5.
6.
7.
Read Instructions - All the safety and operating instructions should be read before the unit is operated.
Retain Instructions - The safety and operating instructions should be retained for future reference.
Heed Warnings - All warnings on the unit and in the operating instructions should be adhered to.
Follow Instructions - All operating and use instructions should be followed.
Cleaning - Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount. The unit may fall, causing serious injury to a person and serious
damage to the unit. Use only with a stand, tripod, bracket, or mount recommended by the manufacturer or sold with the product. Any mounting of the
unit should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.
An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart
combination to overturn.
8. Ventilation - Openings in the enclosure, if any, are provided for ventilation, to ensure reliable operation of the unit, and to protect it from overheating.
These openings must not be blocked or covered. This unit
should not be placed in a built-in installation unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
9. Power Sources - This unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power
supply you plan to use, consult your appliance dealer or local power company. For units intended to operate from battery power or other sources, refer
to the operating instructions.
10. Grounding or Polarization - This unit may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This
plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If
the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
Alternatively, this unit may be equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a groundingtype power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do
not defeat the safety purpose of the grounding-type plug.
11. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against
them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.
12. Power Lines - An outdoor system should not be located in the vicinity of overhead power lines or other electric light or power circuits or where it can fall
into such power lines or circuits. When installing an outdoor system, extreme care should be taken to keep from touching such power lines or circuits as
contact with them might be fatal. U.S.A. models only - refer to the National Electrical Code Article 820 regarding installation of CATV systems.
13. Overloading - Do not overload outlets and extension cords as this can result in a fire or electric shock.
14. Object and Liquid Entry - Never push objects of any kind into this unit through openings, as they may touch dangerous voltage points or short out parts
that could result in a fire or electric shock. Never spill liquid of any kind on the unit.
15. Servicing - Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
16. Damage Requiring Service - Unplug the unit from the outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled or objects have fallen into the unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions,
as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to
its normal operation.
e. If the unit has been dropped or the cabinet has been damaged.
f. When the unit exhibits a distinct change in performance--this indicates a need for service.
17. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or
have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
18. Safety Check - Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in
proper operating condition.
19. Coax Grounding - If an outside cable system is connected to the unit, be sure the cable system is grounded. U.S.A. models only--Section 810 of the
National Electrical Code, ANSI/NFPA No.70-1981, provides information with respect to proper grounding of the mount and supporting structure,
grounding of the coax to a discharge unit, size of grounding conductors, location of discharge unit,connection to grounding electrodes, and requirements
for the grounding electrode.
20. Lightning - For added protection of this unit during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from
the wall outlet and disconnect the cable system. This will prevent damage to the unit due to lightning and power line surges.
FCC NOTICE
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's
instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing
device in accordance with Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Relocate the monitor away from the TV/radio receiver.
Plug the monitor into a different wall outlet so that the console is on a different branch circuit.
Re-orient the TV/radio antenna.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions.
NOTE: Changes or modifications to the unit may void FCC compliance.
Page 2
6. Run the cables into the housing and re-insert the
grommet into the cap in the base of the housing.
Wiring for HP-1 Housing
7. Tighten the tightening cap hand-tight, then turn
it an additional ½-turn using an adjustable
wrench.
1. A terminal block is provided for convenience
when wiring AC voltage cameras. A grounding
connection is provided for mains voltage
installations. Use a crimper to terminate the
ground wire into the eye terminal and firmly
secure to the bracket by tightening the nut using
an adjustable wrench. Any devices that require a
ground connection can be wired into terminal
block position labeled “X”.
8. Attach the housing to the mount. If using the
BWM-5011 Wall Mount, use the allen wrench
included with the unit. If using a different
mount, use the hex nuts and washers from the
housing’s hardware kit.
9. Figure 2 shows two plugs from the hardware kit
that are inserted into the unoccupied grommet
holes. Each plug is stepped to accommodate any
of the holes. Insert each plug into any
unoccupied holes until it is seated.
2. Terminate the network cable or coax cable
(camera video) using the appropriate connector
and connect to the camera.
3. Power the camera according to the instructions
included with the camera. It is recommended to
wire AC voltage line/neutral conductors into the
terminal block (“L”/”N” positions) to provide
added strain relief. Run flying leads (customer
supplied) from the terminal block to the camera.
4. Additional devices can be connected to the
terminal block using positions labeled “1” and
“2”. See Figure 3.
2 1 X N L
Figure 2 - Grommet Holes and Plug
10. Remove the camera sled from inside the housing
by loosening the two cross recessed screws (do
not remove) and sliding the sled towards the rear
of the housing.
Figure 3 - Terminal Block
11. Attach the camera to the sled using the supplied
¼-20 fastener, washer, and lock washer.
5. Return to Step 14 in the Instructions section to
complete the installation.
12. Replace the camera sled into the housing. Slide
it as far forward as possible so that the camera
lens is approximately 4mm away from the
viewing window. Note that the camera lens can
extend beyond the end of the lens housing when
zoomed in. Ensure that the lens does not contact
the housing viewing window throughout its zoom
range.
-----Wiring for HP-2 and HP-3 Units on Page 4-------
13. Follow the instructions in the following section
(depending on the housing model number) to
complete the camera and housing wiring.
14. Close the housing and tighten the side bolts
using the allen wrench from the hardware kit to
complete the installation.
15. The sunshield can be removed for installations in
indoor or cold environments using a cross
recessed (Phillips head) screwdriver.
The following sections describe wiring for the
different housing models.
Page 3
Wiring for HP-2 and HP-3 Housings
1. Refer to Figures 4 and 5.
2. These units include a PoE splitter which allows a
single network cable to power the camera,
heater, and fan. See the Description section of
this manual for additional information.
3. Alternatively, 12VDC can be supplied to power
12VDC cameras, heater, and fan. A toggle switch
on the bracket in the rear of the housing should
be set to “DC Power” if using this option.
4. If using PoE, connect the incoming network cable
to the RJ45 port labeled “Power & Data In” and
check to ensure the toggle switch is set to “POE
Power”. Connect the short network cable inside
the housing to the camera. A red LED on the
bracket will light up if PoE is supplied to the
system.
Figure 4 – HP-3 Housing Interior
Toggle
Switch
5. If using DC voltage, check the polarity of the
incoming wires and label the wires accordingly.
Connect the 12VDC+ conductor to the “+12V In”
terminal block port. Connect the 12VDCconductor to the “GND In” terminal block port.
Use customer-supplied hook up wire to connect
power to the camera.
6. Return to Step 14 in the Instructions section to
complete the installation.
Figure 5 - PoE and DC Connection Bracket
©2014 CBC America Corp.
All Rights Reserved 04/2014
Page 4
