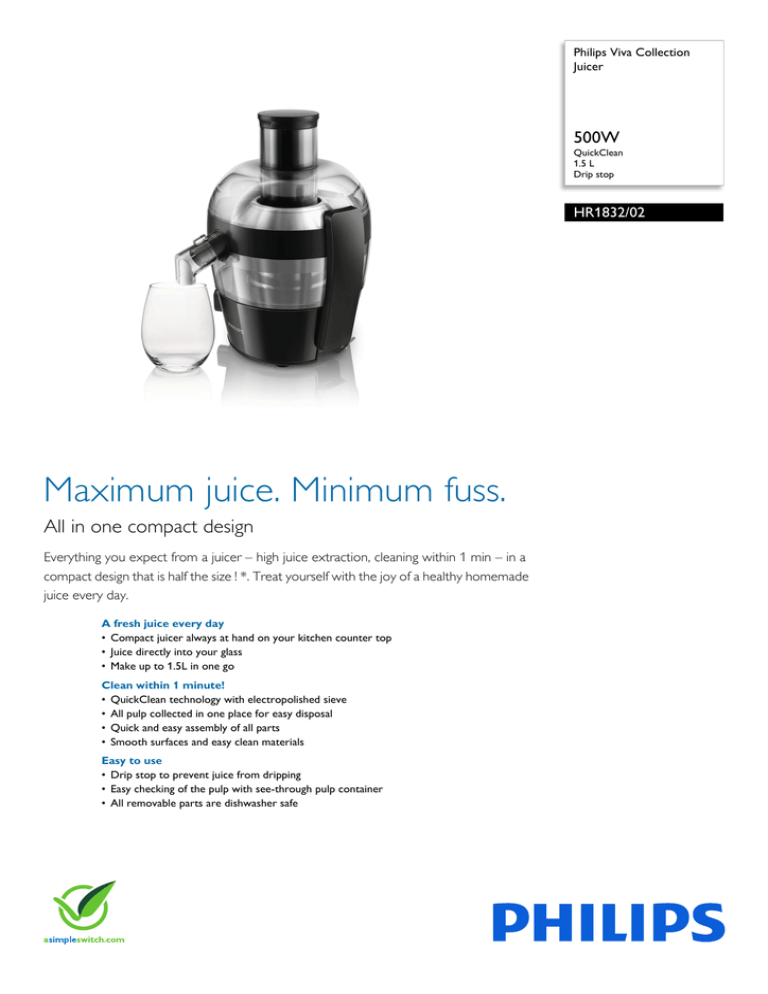

Philips HR1832/02, HR1832 SPIN JUICER COMPACT Datasheet

Philips HR1832/02, HR1832 SPIN JUICER COMPACT Datasheet
Philips Viva Collection
1.5 L
Drip stop
Maximum juice. Minimum fuss.
All in one compact design
Everything you expect from a juicer – high juice extraction, cleaning within 1 min – in a
compact design that is half the size ! *. Treat yourself with the joy of a healthy homemade
juice every day.
A fresh juice every day
• Compact juicer always at hand on your kitchen counter top
• Juice directly into your glass
• Make up to 1.5L in one go
Clean within 1 minute!
• QuickClean technology with electropolished sieve
• All pulp collected in one place for easy disposal
• Quick and easy assembly of all parts
• Smooth surfaces and easy clean materials
Easy to use
• Drip stop to prevent juice from dripping
• Easy checking of the pulp with see-through pulp container
• All removable parts are dishwasher safe
500W QuickClean, 1.5 L, Drip stop
Compact design
QuickClean technology
handling. This drastically facilitates the whole
cleaning process.
Smooth surfaces and easy clean
With only half the size*, this juicer takes
limited space. You can leave it on your kitchen
counter top or store it easily.
Direct serve
A lot of pulp fibers usually get stucked in the
sieve which makes it very difficult to clean.
Thanks to the electropolished process, all
surfaces of the sieve are smooth. This helps
you swip away the fibers with a standard
kitchen tool (sponge or brush).
Smooth surfaces and easy clean materials
Drip stop spout
All pulp in one place
This juicer allows you to use your own glass
(Max 12cm height). Place it directly under the
integrated tap and you are ready to juice.
Make up to 1.5L in one go
All the pulp is collected in the only place where
it should be : the pulp container. Due to its
round design and smooth surfaces, it is easy to
reach and remove. It also means there is no
need anymore to remove pulp from other
parts such as the lid.
When activated, the drip stop will prevent the
juicer from dripping. The drip stop spout is
very easy to clean as it is detachable and it is
made of dishwasher safe materials. With one
simple move, you prevent the juice from
dripping and keep your counter top clean.
Easy assembly
Thanks to the innovative QuickClean
extraction system, you can make up to 1.5L of
juice in one go without needing to empty the
pulp container.
The different parts of the juicer have been
designed to allow an intuitive assembling and
Philips Green Logo
Philips Green Products can reduce costs,
energy consumption and CO2 emissions.
How? They offer a significant
environmental improvement in one or
more of the Philips Green Focal Areas –
Energy efficiency, Packaging, Hazardous
substances, Weight, Recycling and
disposal and Lifetime reliability.
500W QuickClean, 1.5 L, Drip stop
Design specifications
Color(s): Ink black
Material housing: ABS Plastic
Material jug: PP Plastic
Material pulp container and pusher: ABS, SAN
General specifications
Non-slip feet
Safety clamps
Integrated cord storage
One optimized speed: For all fruits
Technical specifications
Power: 500 W
Voltage: 220/240 V
Frequency: 50/60 Hz
Cord length: 0.80 m
Pulp container: 1 l
Feeding tube dia: 55 mm
Capacity juice jug: 500 ml
Issue date 2014-03-07
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 4.0.1
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
* Compared to Avance collection juicer HR1869/70, HR1869/71,
